复杂构型水滴收集率的拉格朗日快速算法研究

曾涛; 王昭力; 熊华杰; 陈宇; 周志宏

doi:10.13224/j.cnki.jasp.20220539

复杂构型水滴收集率的拉格朗日快速算法研究

doi: 10.13224/j.cnki.jasp.20220539

曾涛^{1, 2,},
王昭力¹,
熊华杰¹,
陈宇^{1, 2},
周志宏^{1, 2,*, ,}

1.
四川大学建筑与环境学院力学系，成都 610000
2.
宜宾产业技术研究院，四川宜宾 644000

基金项目: 国家自然科学基金（12072213）；国家科技重大专项（J2019-Ⅲ-0010-0054）；国家数值风洞工程（NNW2019-JT01-023）

详细信息

作者简介:
曾涛（1997-），男，硕士生，研究方向为空气动力学、飞机/风力机结冰

通讯作者:
周志宏（1981-），教授，博士，研究方向为低速空气动力学、飞机/风力机结冰。E-mail：zhouzhihong@scu.edu.cn

中图分类号: V211
计量
- 文章访问数: 399
- HTML浏览量: 238
- PDF量: 33
- 被引次数: 0
出版历程
- 收稿日期: 2022-07-24
- 网络出版日期: 2025-04-10

Research on a fast Lagrangian algorithm for water droplet collection efficiency in complex configurations

ZENG Tao^{1, 2
,},
WANG Zhaoli¹,
XIONG Huajie¹,
CHEN Yu^{1, 2},
ZHOU Zhihong^{1, 2,*
, ,}

1.
Department of Mechanics，College of Architecture and Environment，Sichuan University，Chengdu 610000，China
2.
Yibin Institute of Industrial Technology，Yibin Sichuan 644000，China

摘要

摘要:
针对飞机结冰数值模拟中拉格朗日方法计算复杂构型效率低、适应性差的问题，提出一种适用于复杂构型的水滴收集率的拉格朗日快速算法。基于蒙特卡洛粒子统计方法计算水滴收集率以提高算法对于复杂构型的适应性，采用分块追踪结合壁面距离的自适应分析方法确定适当覆盖所有撞击部件的初始水滴释放阵列，提出采用结合沿程水滴网格阵列加密技术和基于误差控制的变步长加速技术提高计算效率，分析并获得了计算效率与加速方法中各控制变量的关系。计算结果表明：所发展的算法能够精确、高效地获得三维水滴收集率，适用于复杂构型，为飞机水滴收集率计算提供了新方法和思路，可以为飞机结冰特性研究、防除冰系统设计等提供技术参。通过调控加密比例系数n（n>1）和加密释放面位置控制系数k（0<k<1），可在有效提升计算效率的同时将计算精度误差3%的范围内。
- 蒙特卡洛算法 /
- 水滴收集率 /
- 拉格朗日 /
- 误差控制 /
- 飞机结冰
Abstract:
In order to solve the problems of low efficiency and poor adaptability of Lagrange method in the numerical simulation of aircraft icing, a fast Lagrangian algorithm for water droplet collection efficiency in complex configurations was proposed. Monte Carlo particle release statistical method was used to calculate the water droplet collection efficiency, which can significantly improve the adaptability of the algorithm to complex configurations. By using the adaptive analysis method of grid block tracking and wall impact judgment, the range of initial water droplet release array covering all impacting components can be determined. A method combining the encryption technology of grid array of water droplets along the way and the variable step acceleration technology based on error control was proposed, which can improve the calculation efficiency. Based on this method, the relationship between calculation efficiency and control variables in acceleration method was analyzed and obtained. The calculation results showed that the developed algorithm can obtain the three-dimensional water droplet collection efficiency accurately and efficiently, and can be applied to complex configurations, providing a new method and idea for calculating the collection rate of aircraft water droplets. It can also provide technical parameters for the study of aircraft icing characteristics and the design of anti-icing system. By adjusting the encryption proportional coefficient n (n>1) and the encryption release surface position control coefficient k (0<k<1), it can effectively improve the calculation efficiency and reduce the calculation accuracy error within 3%.
- Monte Carlo algorithm /
- droplet collection efficiency /
- Lagrangian /
- error control /
- aircraft icing

HTML

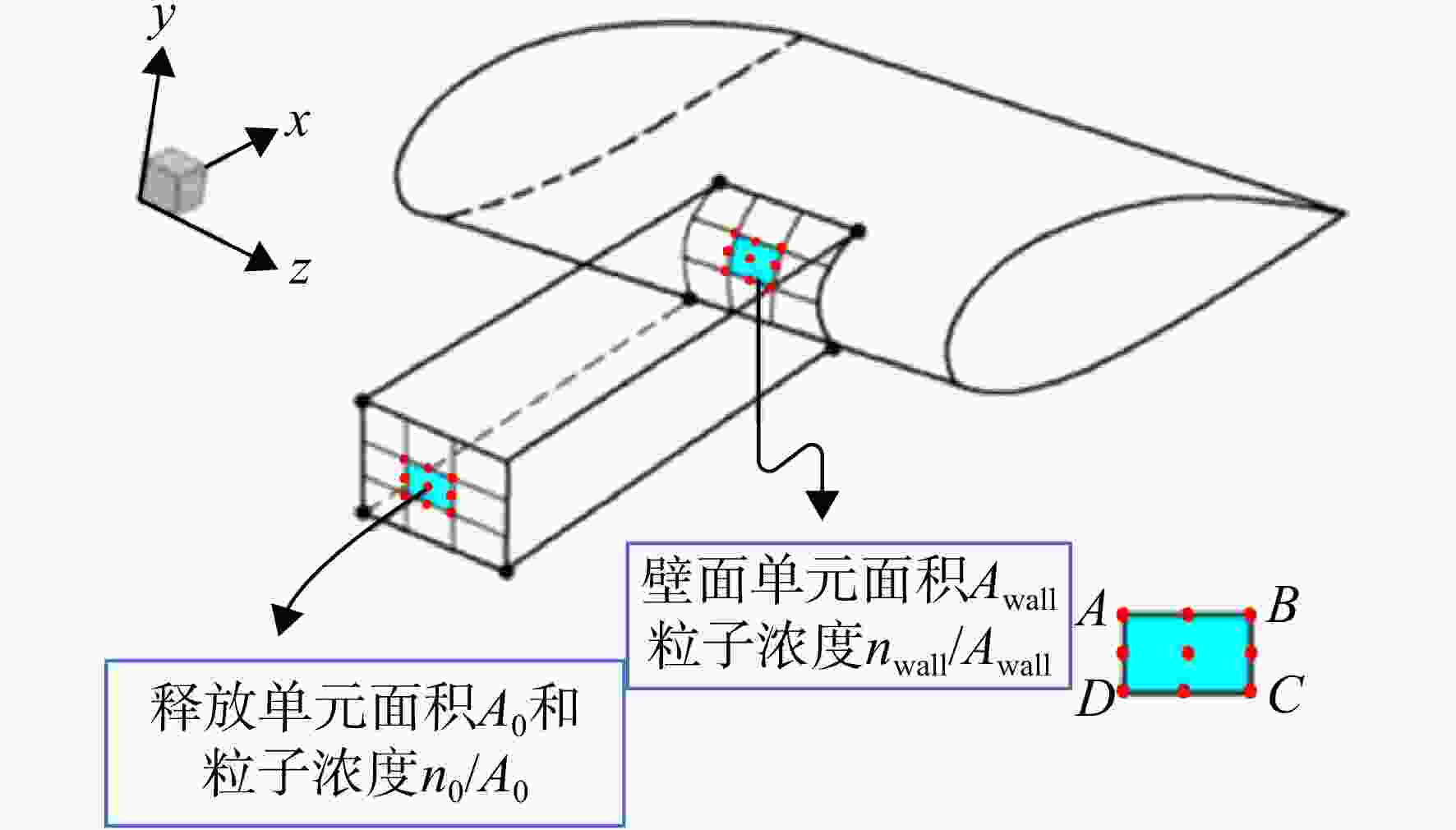

图 1 三维水滴收集率计算示意图

Figure 1. Calculation of water droplet collection efficiency in three-dimensional configuration

下载: 全尺寸图片幻灯片

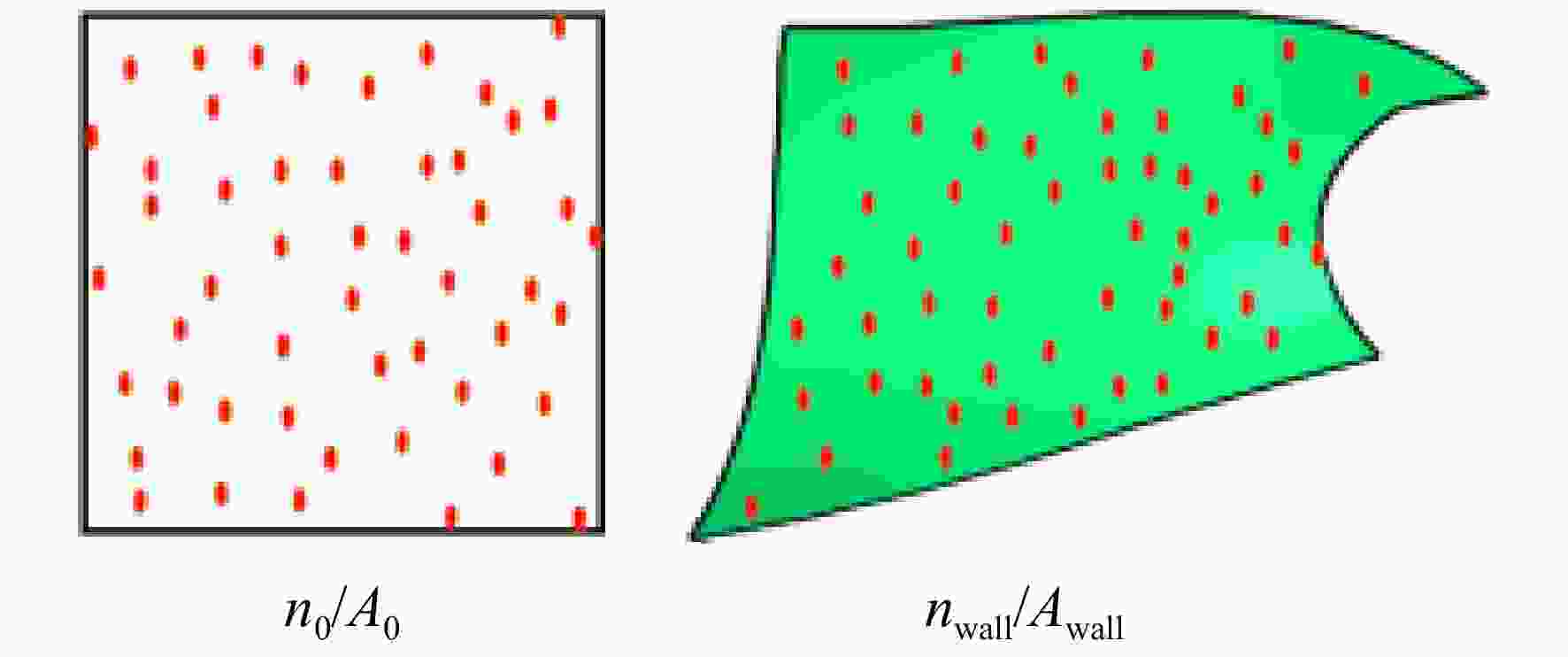

图 2 蒙特卡洛方法近似计算水滴收集率

Figure 2. Monte-Carlo approximate calculation of droplet collection efficiency

下载: 全尺寸图片幻灯片

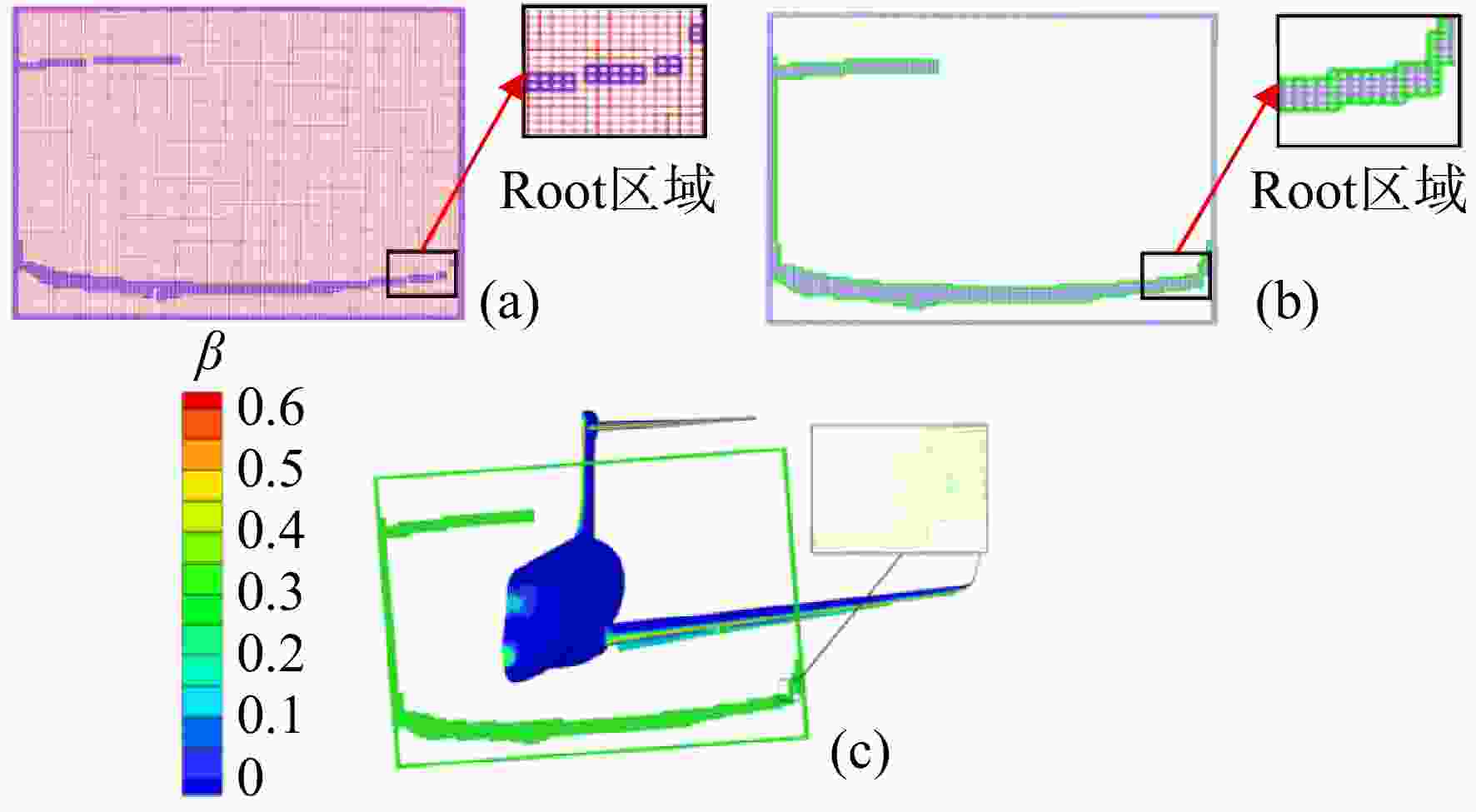

图 3 水滴粒子初始释放单元自适应识别

Figure 3. Adaptive identification of initial release units of water droplet particles

下载: 全尺寸图片幻灯片

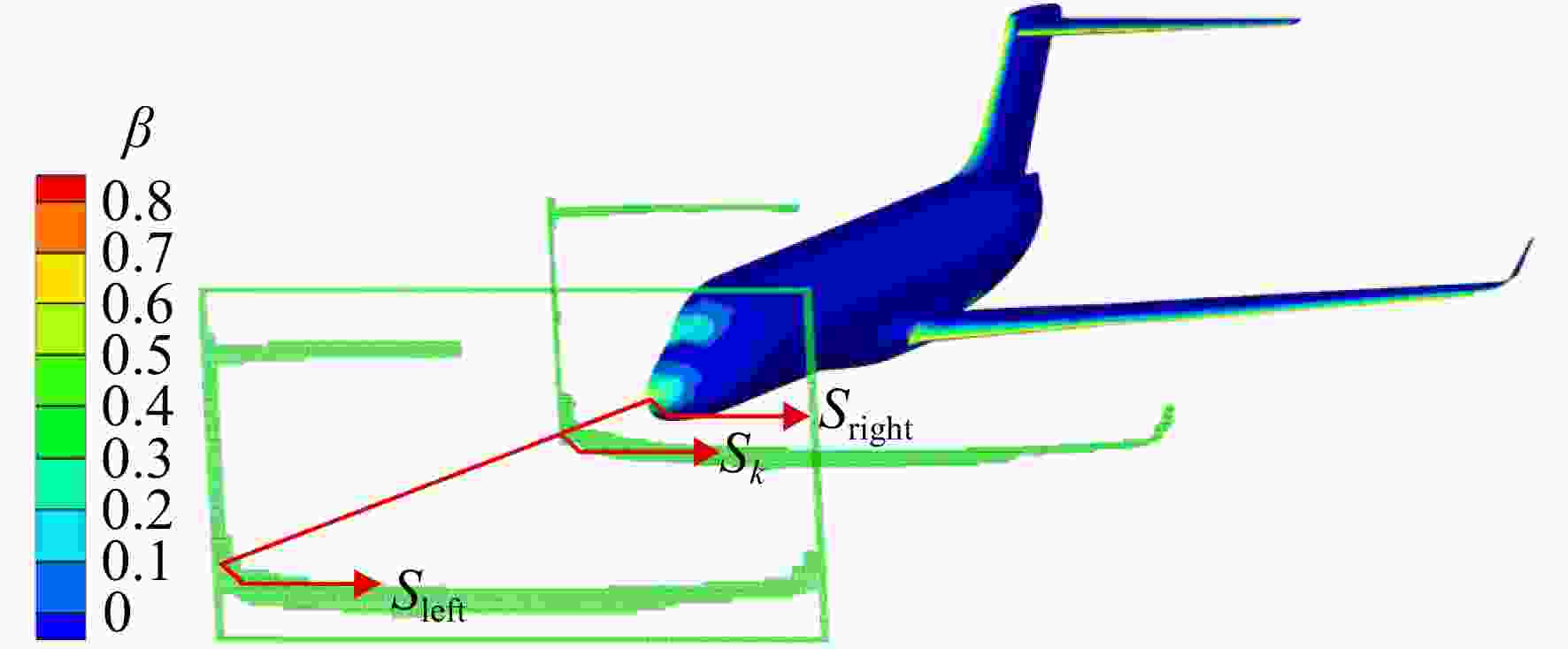

图 4 起始截面S_left、加密截面S_k与近壁截面S_right位置关系

Figure 4. Positional relationship between S_left of initial section, S_k of compact section and S_right of near-wall section

下载: 全尺寸图片幻灯片

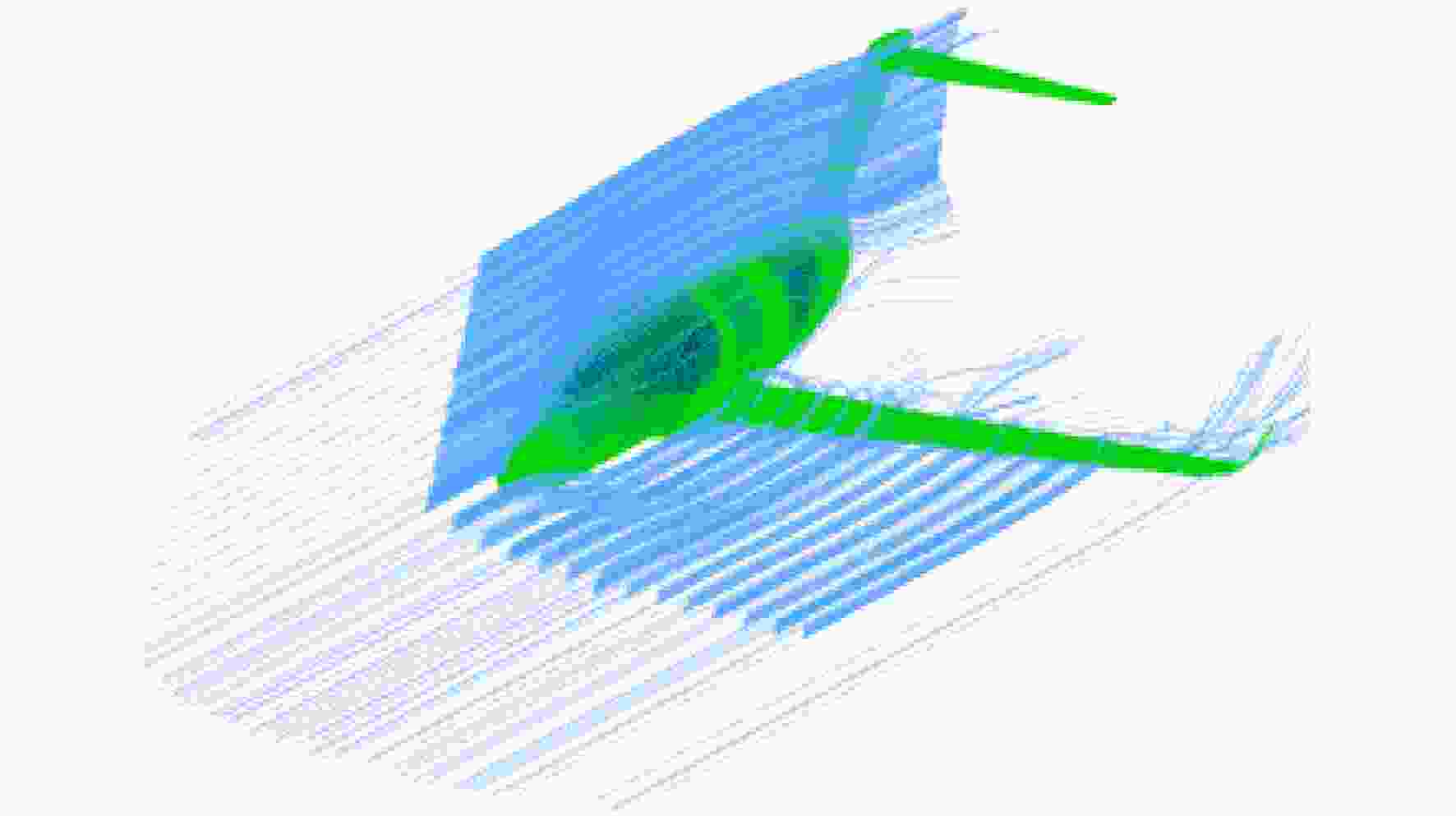

图 5 加密计算后部分轨迹的分布效果图

Figure 5. Distribution effect diagram of partial trajectories after encrypted calculation

下载: 全尺寸图片幻灯片

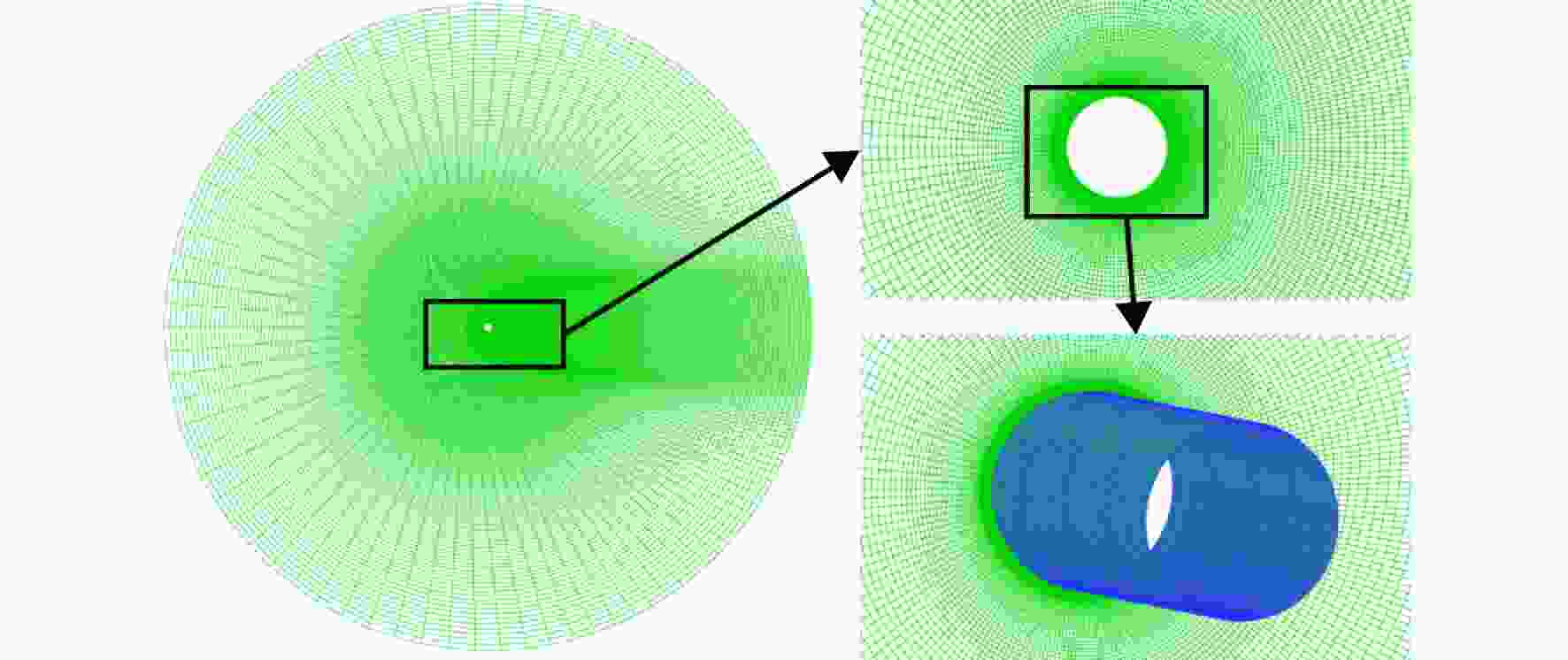

图 6 三维圆柱网格模型

Figure 6. Grid model of three-dimensional cylinder

下载: 全尺寸图片幻灯片

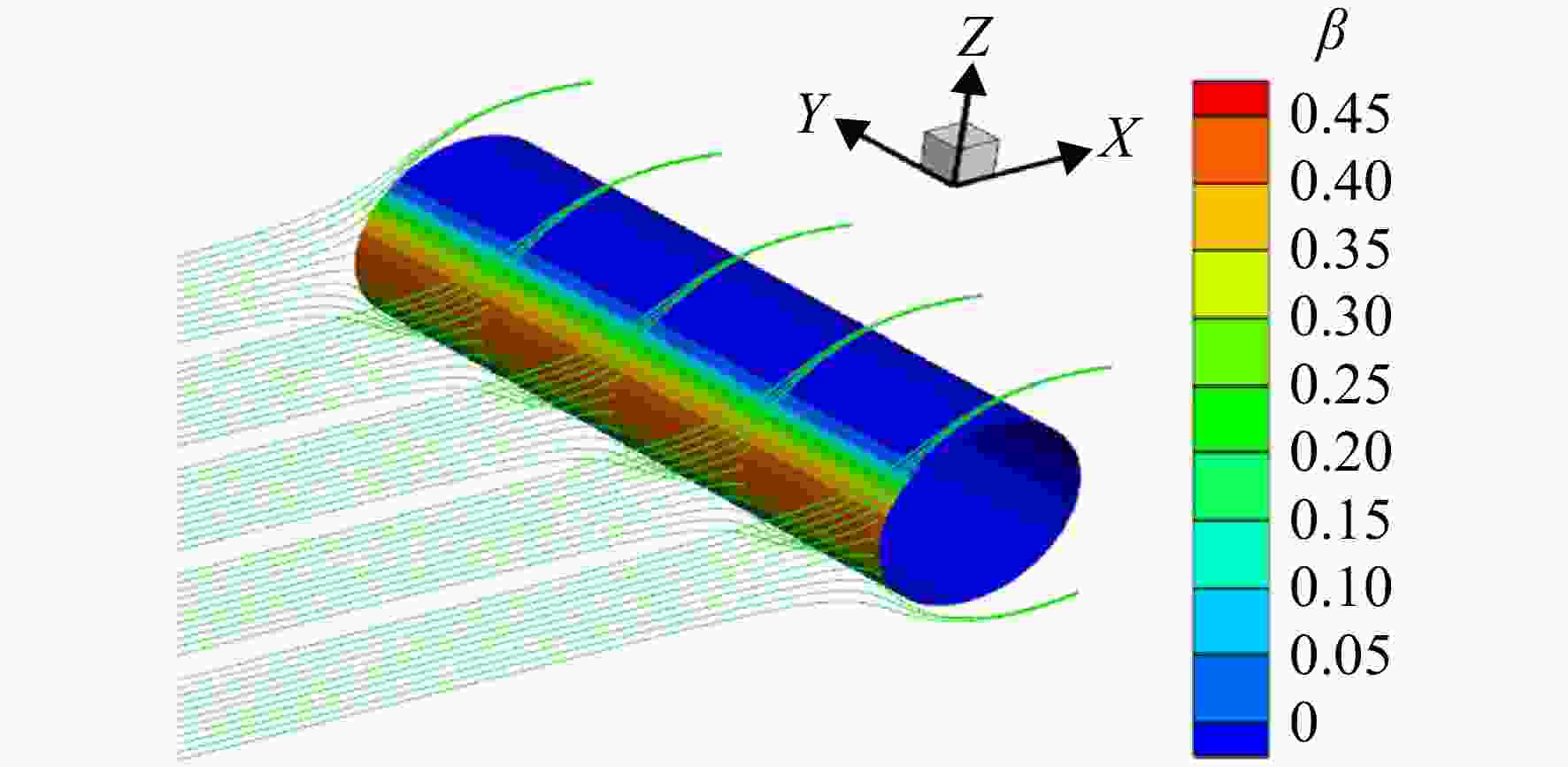

图 7 三维圆柱表面水滴收集率云图

Figure 7. Cloud chart of water droplet collection efficiency on the surface of a 3D cylinder

下载: 全尺寸图片幻灯片

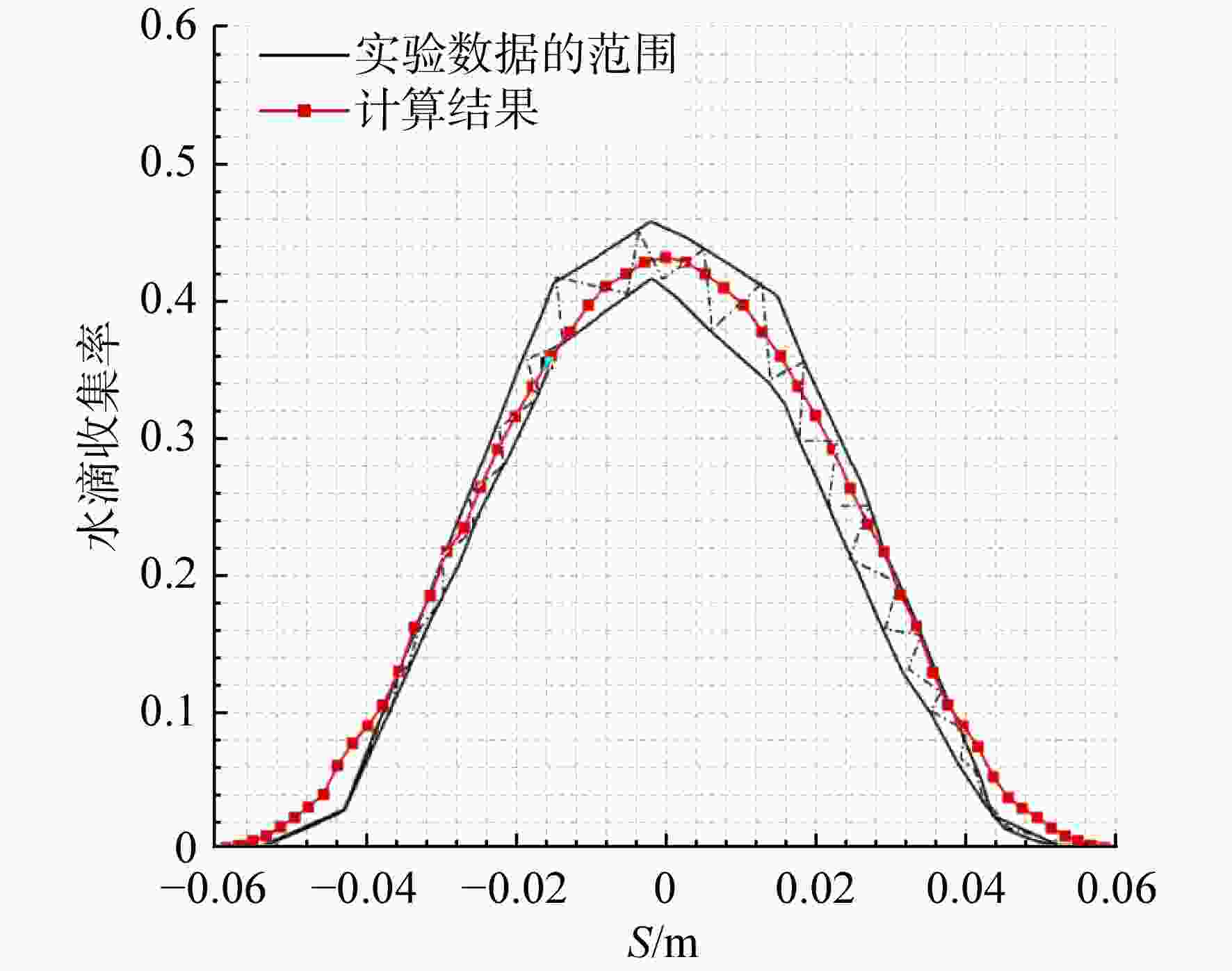

图 8 圆柱水滴收集率计算结果与试验结果对比（V=80 m/s, D_eq=16 μm, α=0°）

Figure 8. Comparison of calculation results and experimental results for cylindrical water droplet collection efficiency （V=80 m/s, D_eq=16 μm, α=0°）

下载: 全尺寸图片幻灯片

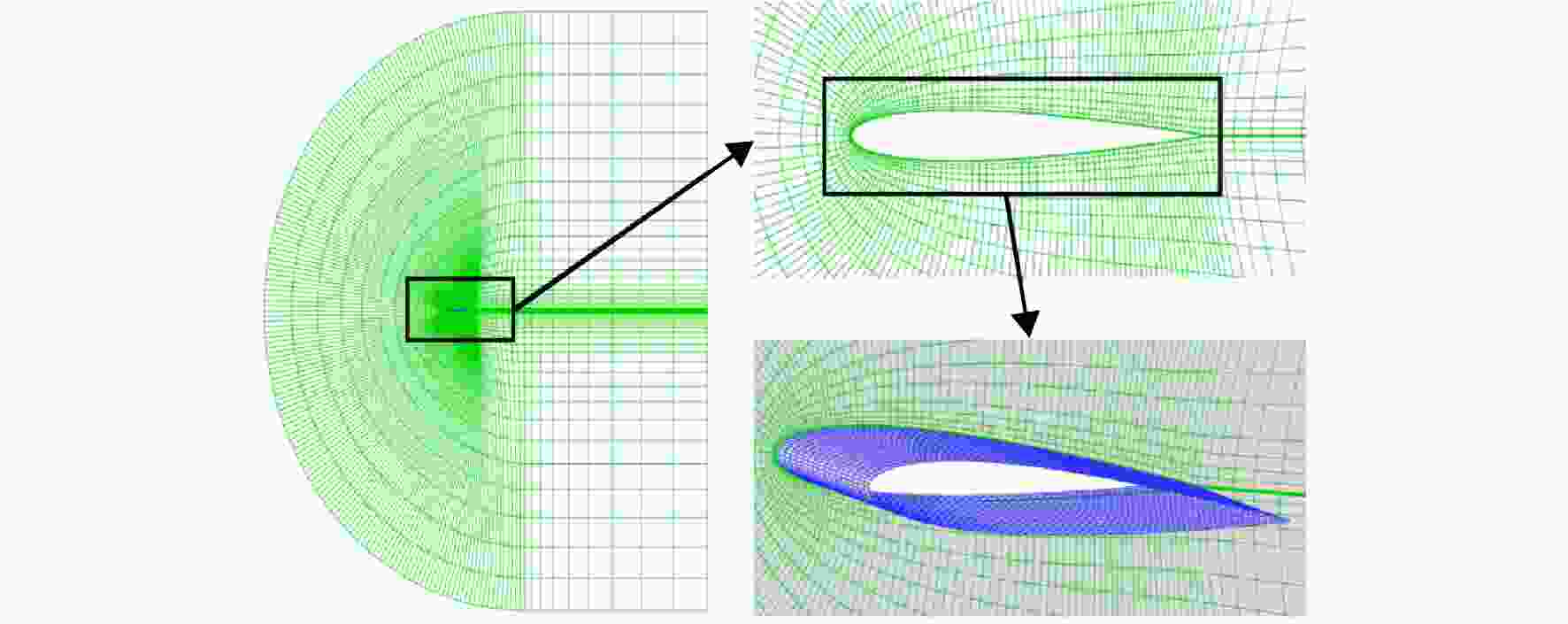

图 9 三维NACA0012机翼网格模型

Figure 9. Grid model of 3D NACA0012 airfoil

下载: 全尺寸图片幻灯片

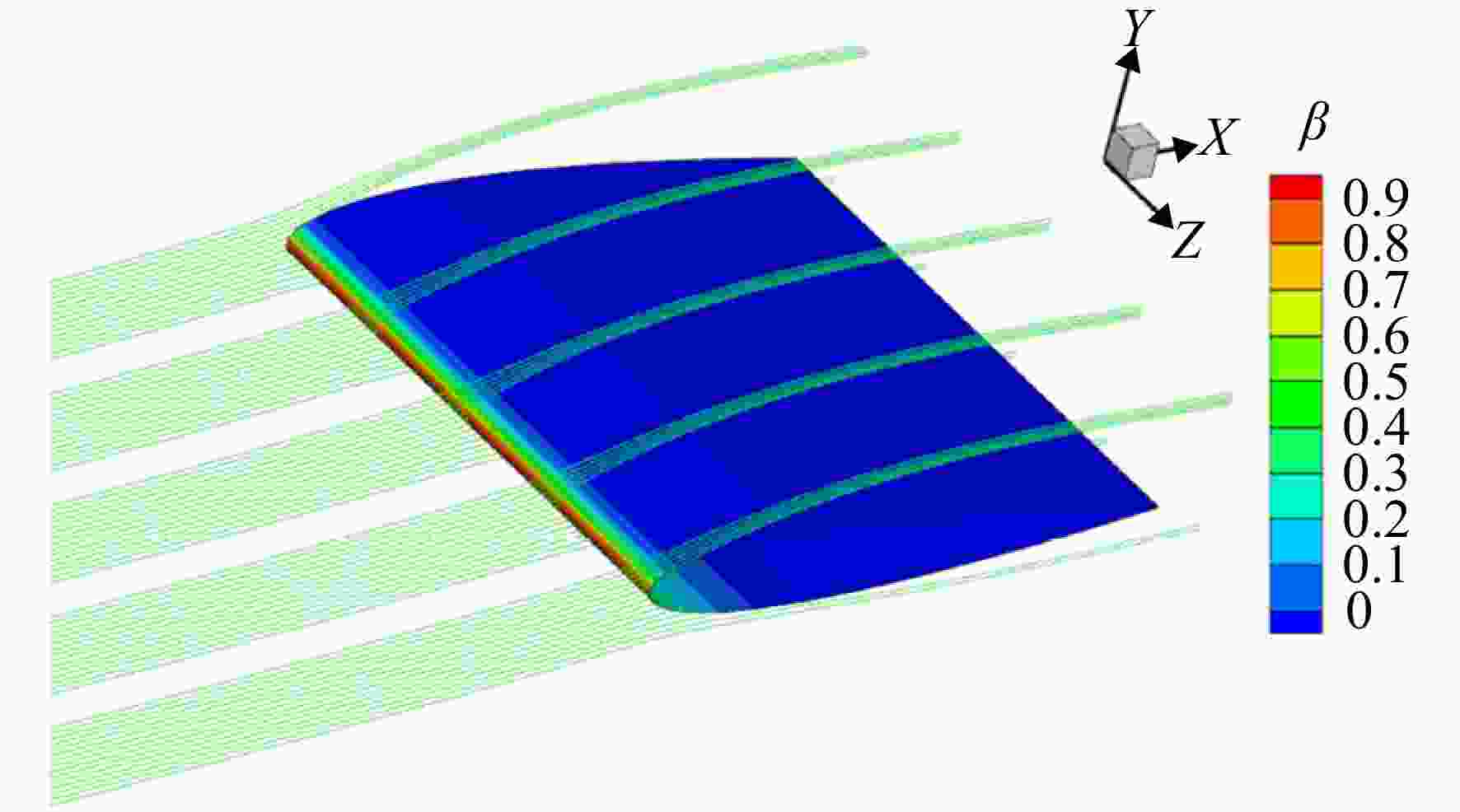

图 10 三维NACA0012机翼水滴轨迹分布与收集率云图

Figure 10. Droplet trajectory distribution and counter of collection efficiency of the 3D NACA0012 airfoil

下载: 全尺寸图片幻灯片

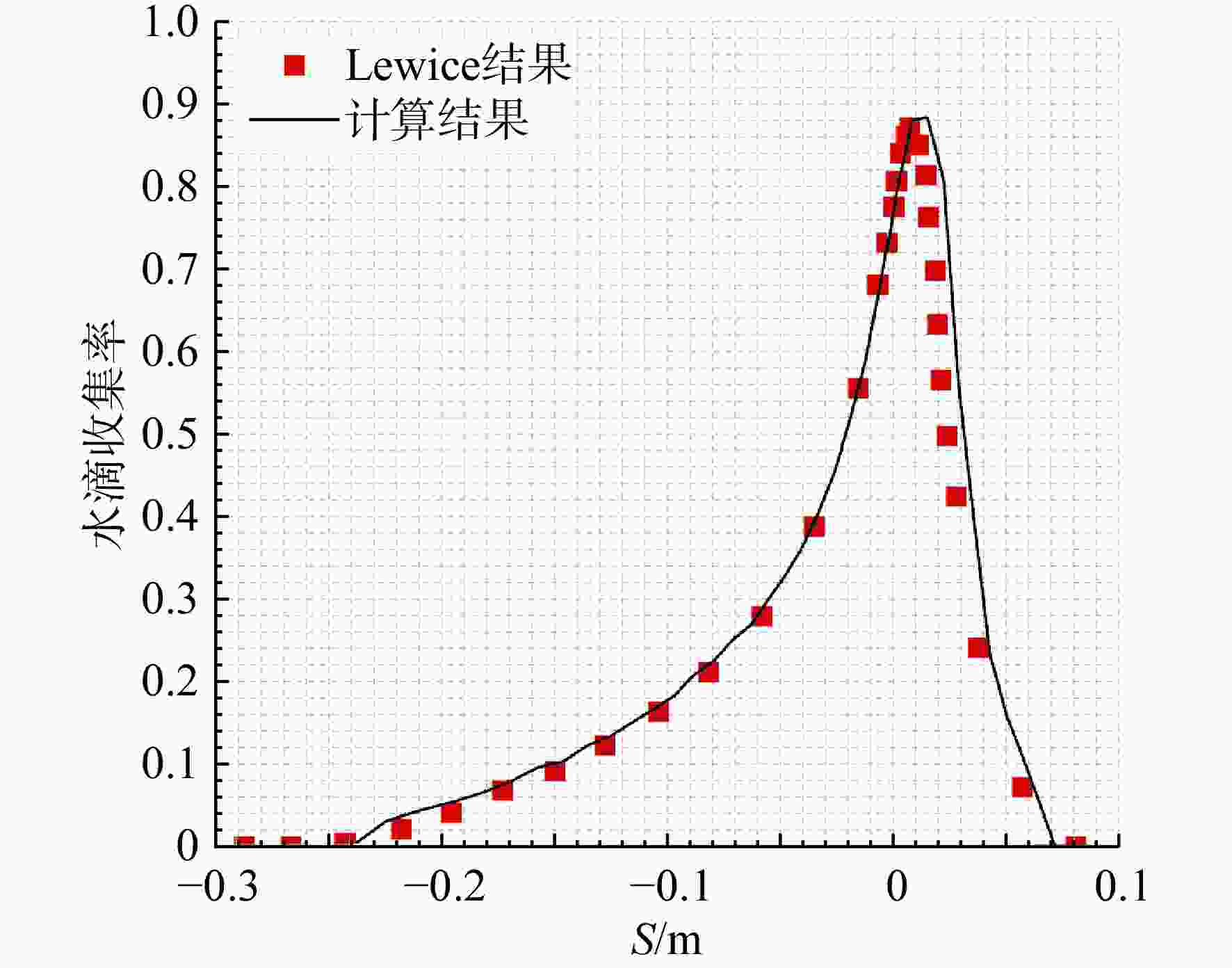

图 11 三维NACA0012机翼水滴收集率与Lewice计算结果对比（V=102.8 m/s, D_eq=40 μm, α=4°）

Figure 11. Comparison of water droplet collection efficiency of 3D NACA0012 airfoil with Lewice’s calculation results （V=102.8 m/s, D_eq=40 μm, α=4°）

下载: 全尺寸图片幻灯片

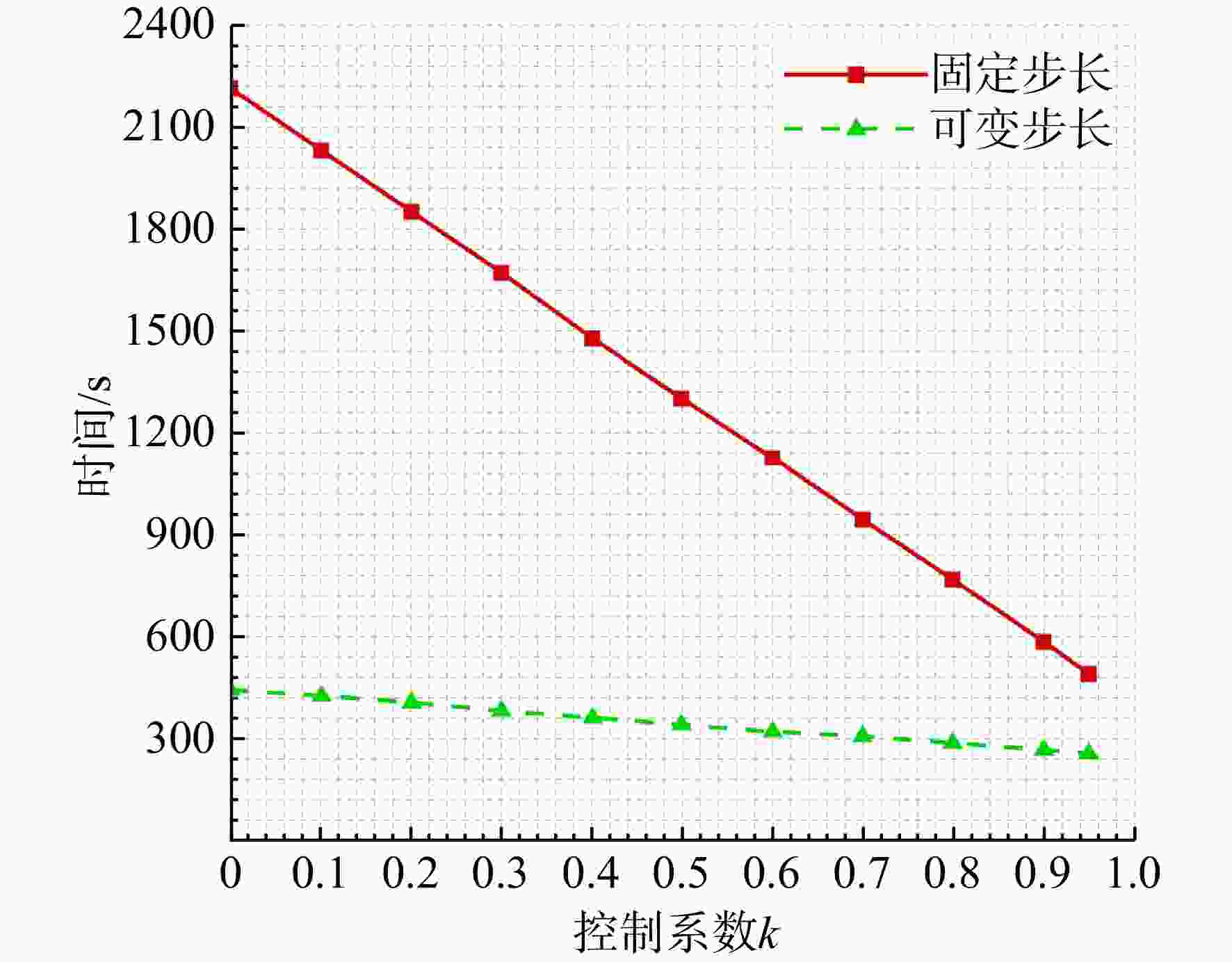

图 12 计算效率与加密位置的关系

Figure 12. Relationship between computational efficiency and the location of encryption

下载: 全尺寸图片幻灯片

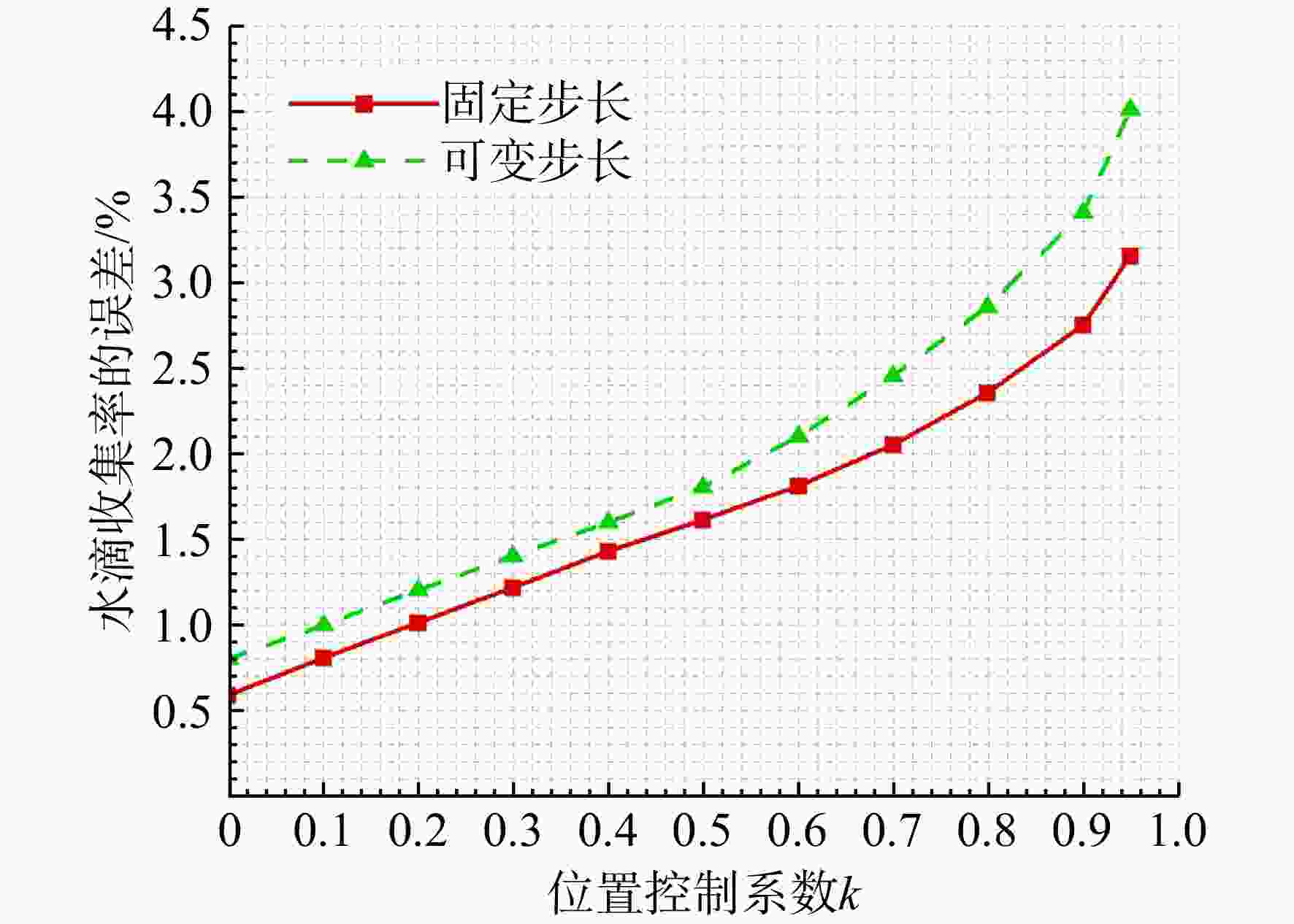

图 13 计算精度与加密位置的关系

Figure 13. Relationship between computational precision and the location of encryption

下载: 全尺寸图片幻灯片

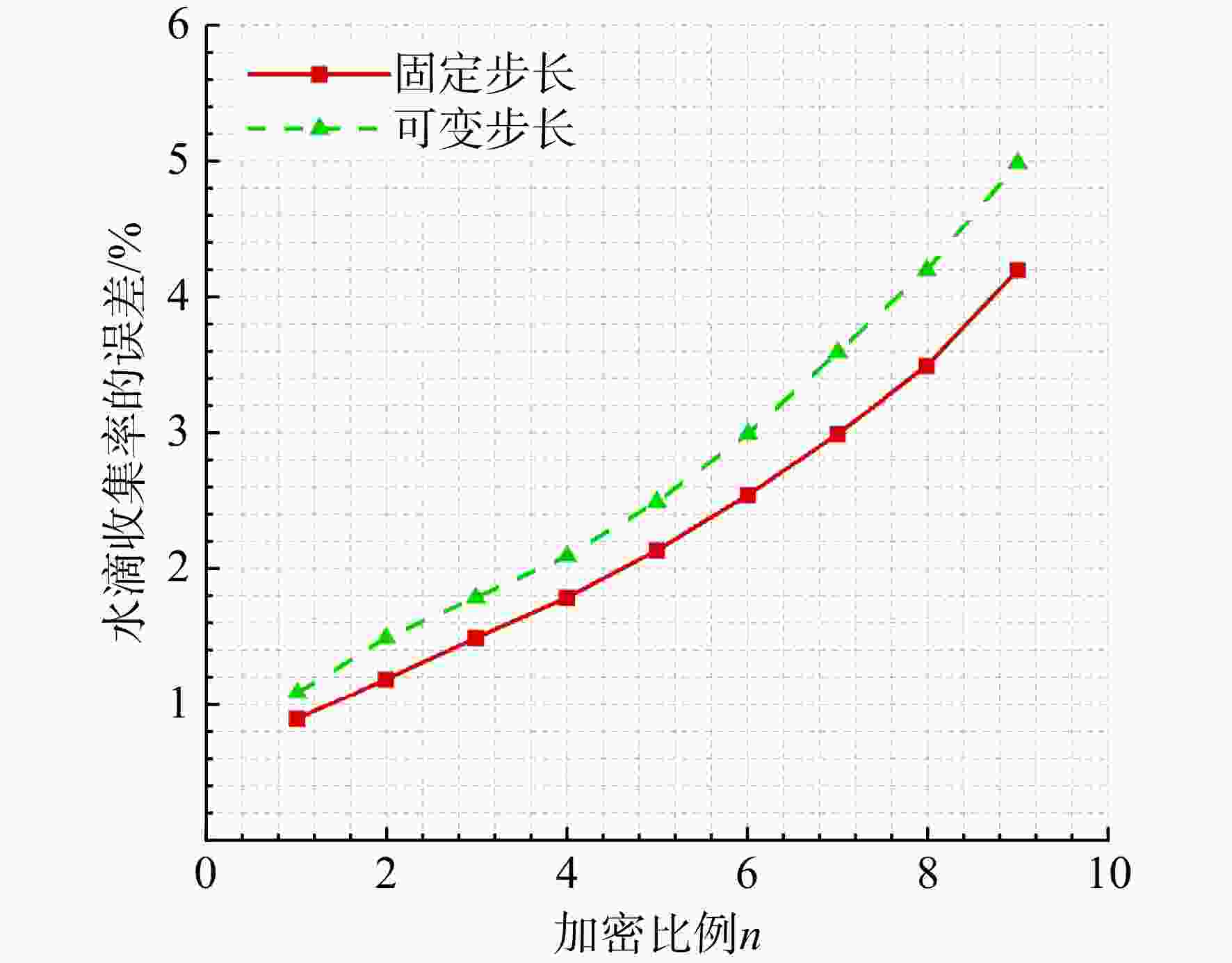

图 14 计算精度和加密比例的关系

Figure 14. Relationship between computational precision and encryption ratio

下载: 全尺寸图片幻灯片

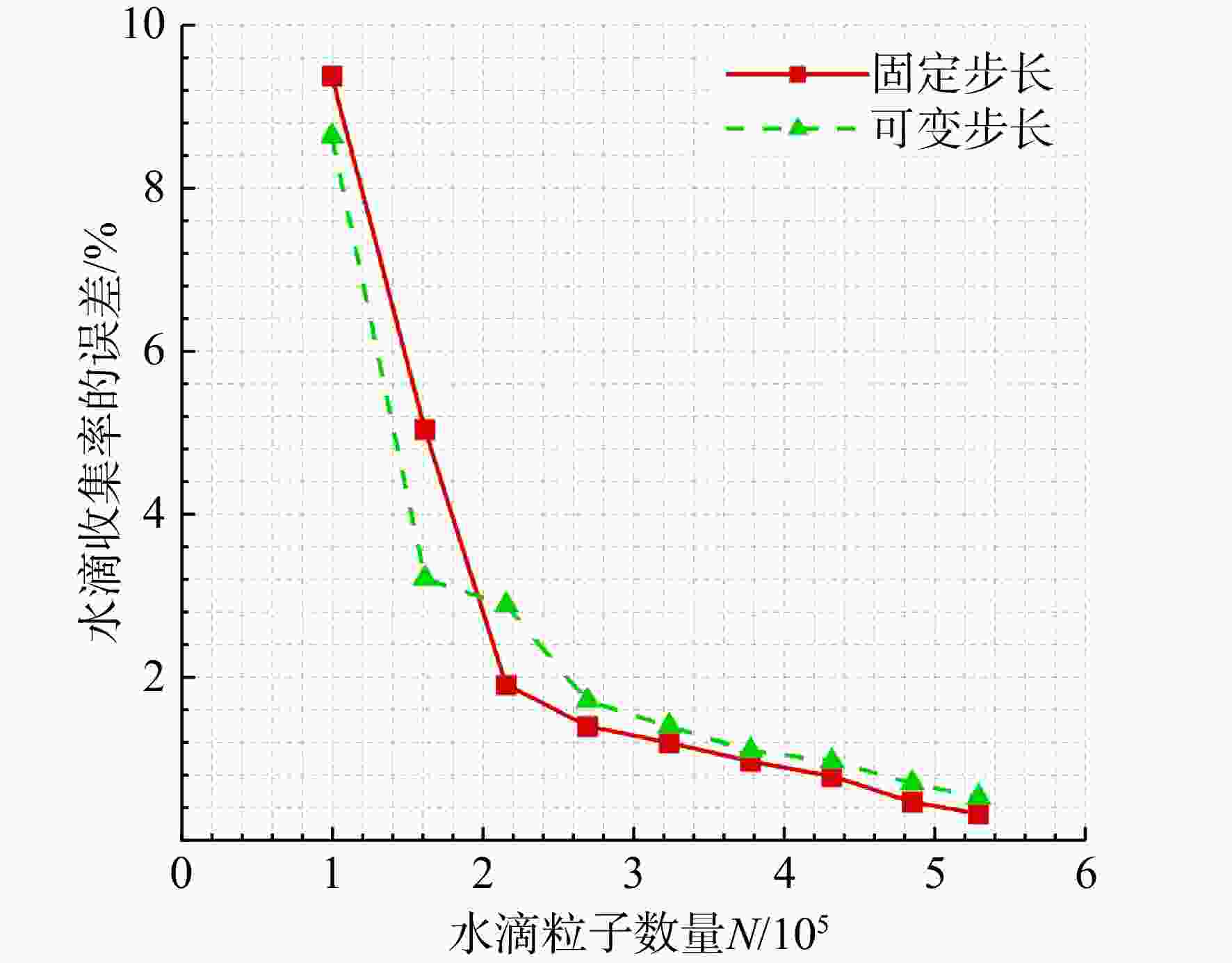

图 15 计算精度和水滴粒子数量的关系

Figure 15. Relationship between computational precision and the number of water droplets

下载: 全尺寸图片幻灯片

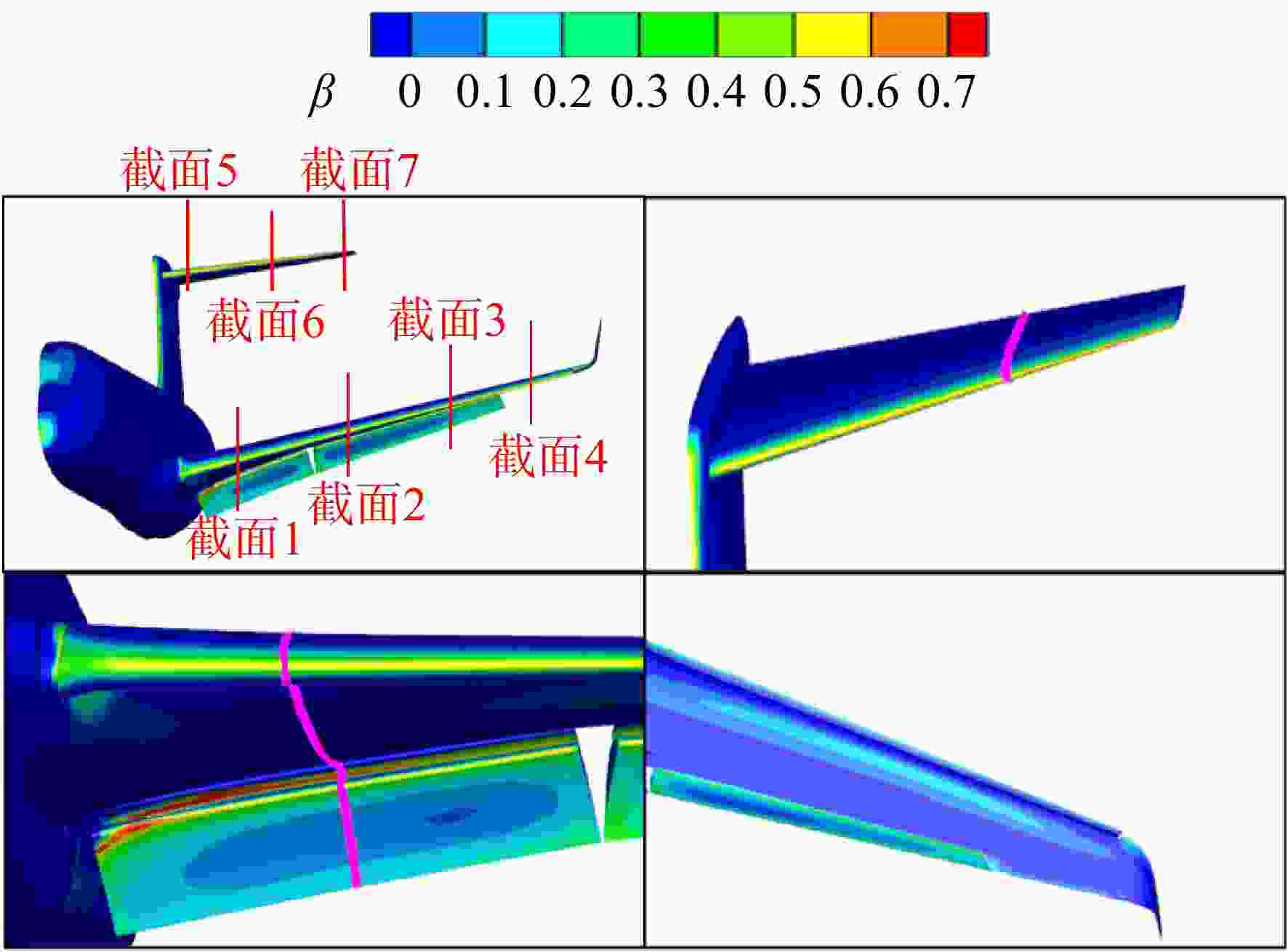

图 16 着陆构型水滴收集率云图

Figure 16. Cloud chart of water drop collection efficiency of landing configuration

下载: 全尺寸图片幻灯片

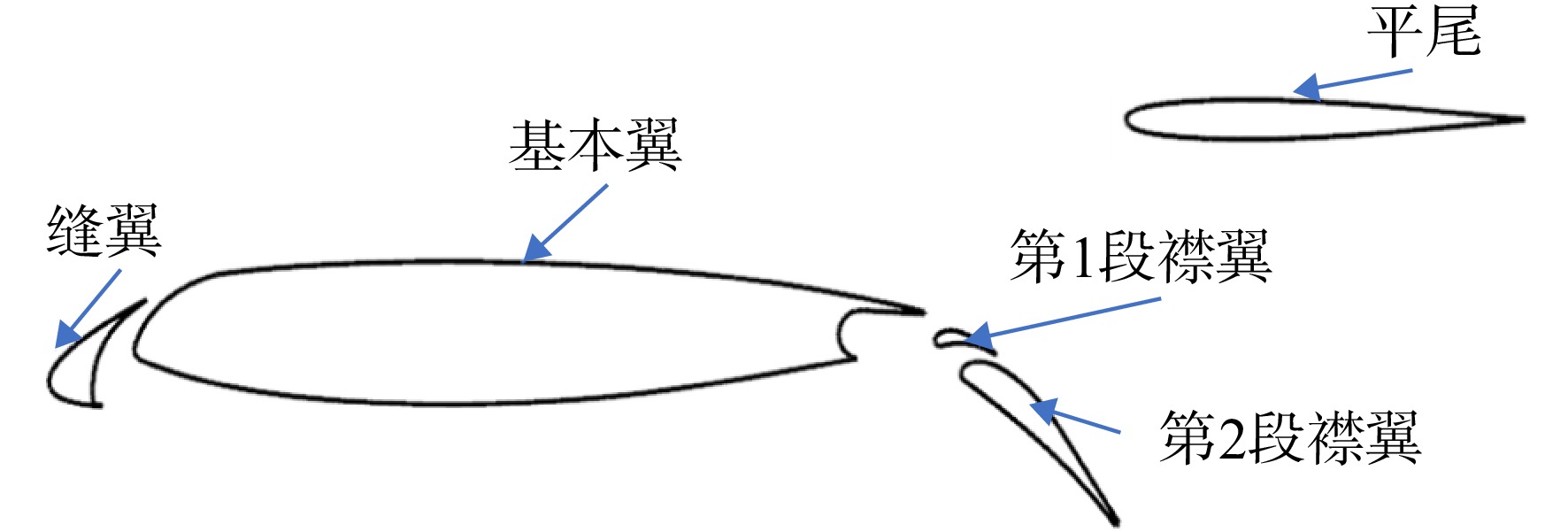

图 17 着陆构型截面上各部件的位置关系图

Figure 17. Position relationship diagram of various components on landing configuration section

下载: 全尺寸图片幻灯片

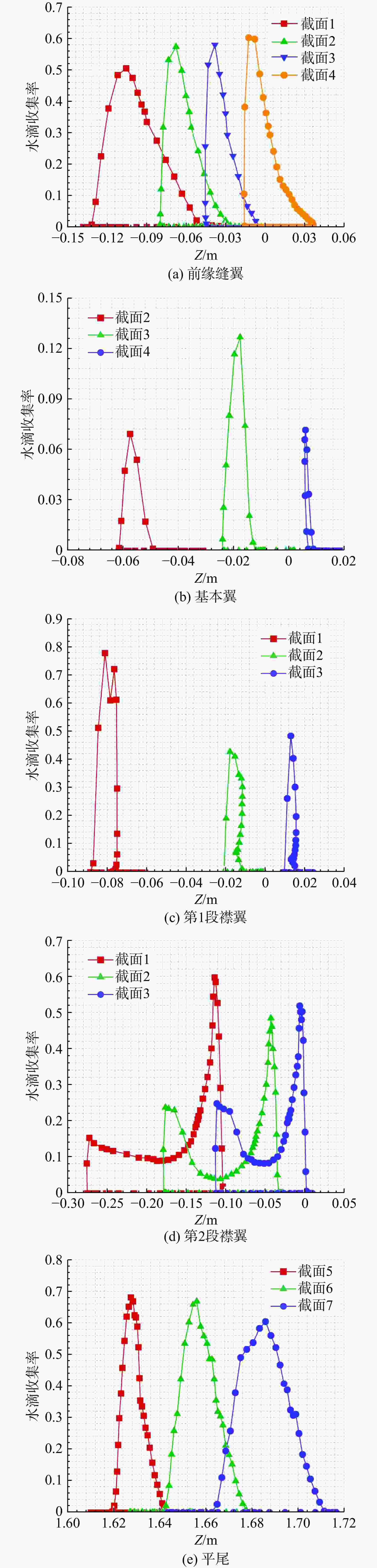

图 18 飞机各部件截面收集率系数分布图（V=90 m/s, D_eq=40 μm, α=0°）

Figure 18. Distribution diagram of sectional collection coefficient of aircraft components （V=90 m/s, D_eq=40 μm, α=0°）

下载: 全尺寸图片幻灯片
