Prediction of response intervals for misalignment faults in uncertain rotor systems
-
摘要:
针对区间不确定性对航空发动机转子系统的影响，运用一种基于Chebyshev正交多项式的非嵌入式区间分析方法对含参数不确定性的转子系统动力学特性进行分析。将叶盘不平衡量、联轴器不对中量以及联轴器套齿质量等关键参数的不确定性纳入考虑，建立含不对中故障的转子系统动力学模型。在此基础上，通过数值仿真的方式研究不确定性系统振动响应及其参数影响规律，分析了转子系统振动响应在不同转速下对不同不确定性参数的敏感程度。同时，通过与传统Monte Carlo模拟对比验证了方法的有效性。结果表明:转子系统的振动响应在不确定性区间参数的影响下呈现出区间形式，且对于不同不确定性参数的影响表现出明显差异。在多源不确定性参数共同作用下，系统所表现出的区间现象更为明显，甚至对系统的临界转速也造成了一定的影响。研究结果可为含不对中故障的复杂转子系统的不确定性响应预测提供一定的理论参考。
Abstract:Considering the effect of interval uncertainty on aero-engine rotor systems, a non-embedded interval analysis method based on Chebyshev orthogonal polynomials was applied to analyze the dynamics of rotor systems with parameter uncertainties. The uncertainties of the key parameters, such as the amount of blade disk unevenness, the amount of coupling misalignment, and the mass of coupling sleeve teeth, were taken into account to establish a dynamic model of the rotor system with misalignment faults. On this basis, the vibration response of the uncertain system and the influence of its parameters were investigated by numerical simulation, and the sensitivity of the vibration response of the rotor system to different uncertain parameters at different rotational speeds was analyzed. Meanwhile, the effectiveness of the method was verified by comparing with the traditional Monte Carlo simulation. The results showed that the vibration response of the rotor system presented an interval form under the influence of the uncertainty interval parameters, and the effects of different uncertainty parameters showed obvious differences. Under the combined effect of multiple sources of uncertainty parameters, the interval phenomenon of the system was more obvious, and even the critical speed of the system was also affected. The results of this study can provide a theoretical reference for prediction of the uncertainty response of complex rotor systems with misaligned faults.
-
Key words:
- rotor system /
- misalignment fault /
- parameter uncertainty /
- interval analysis /
- vibration response
-

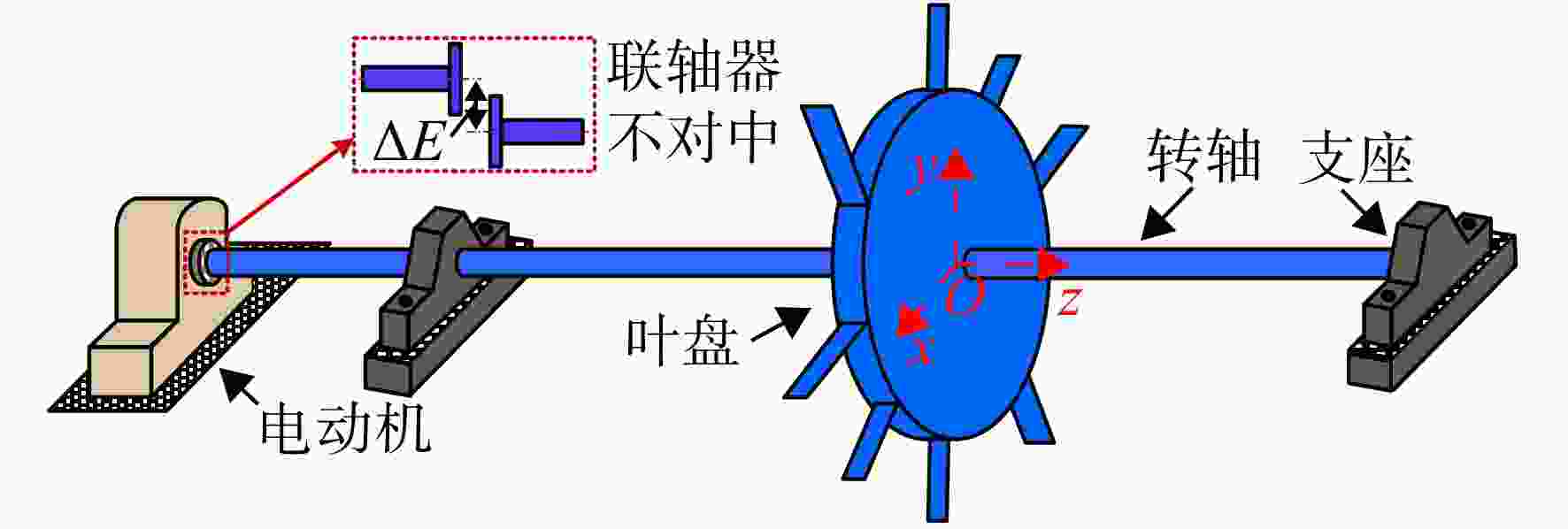

图 1 含不对中故障的转子结构示意图
Figure 1. Schematic diagram of rotor structure with misalignment fault

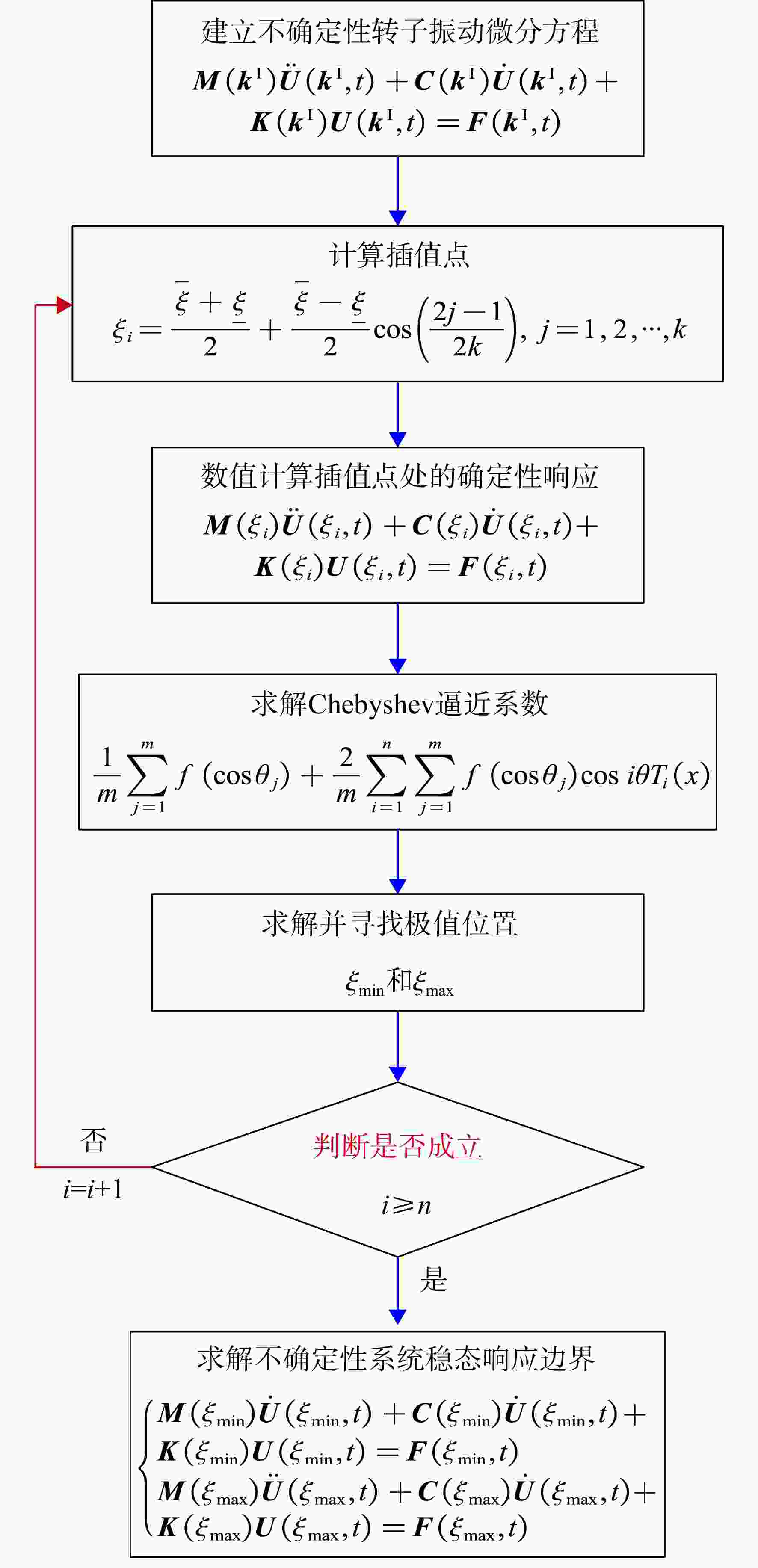

图 2 不确定性转子系统稳态响应计算流程图
Figure 2. Flow chart of steady state response calculation of uncertain rotor system

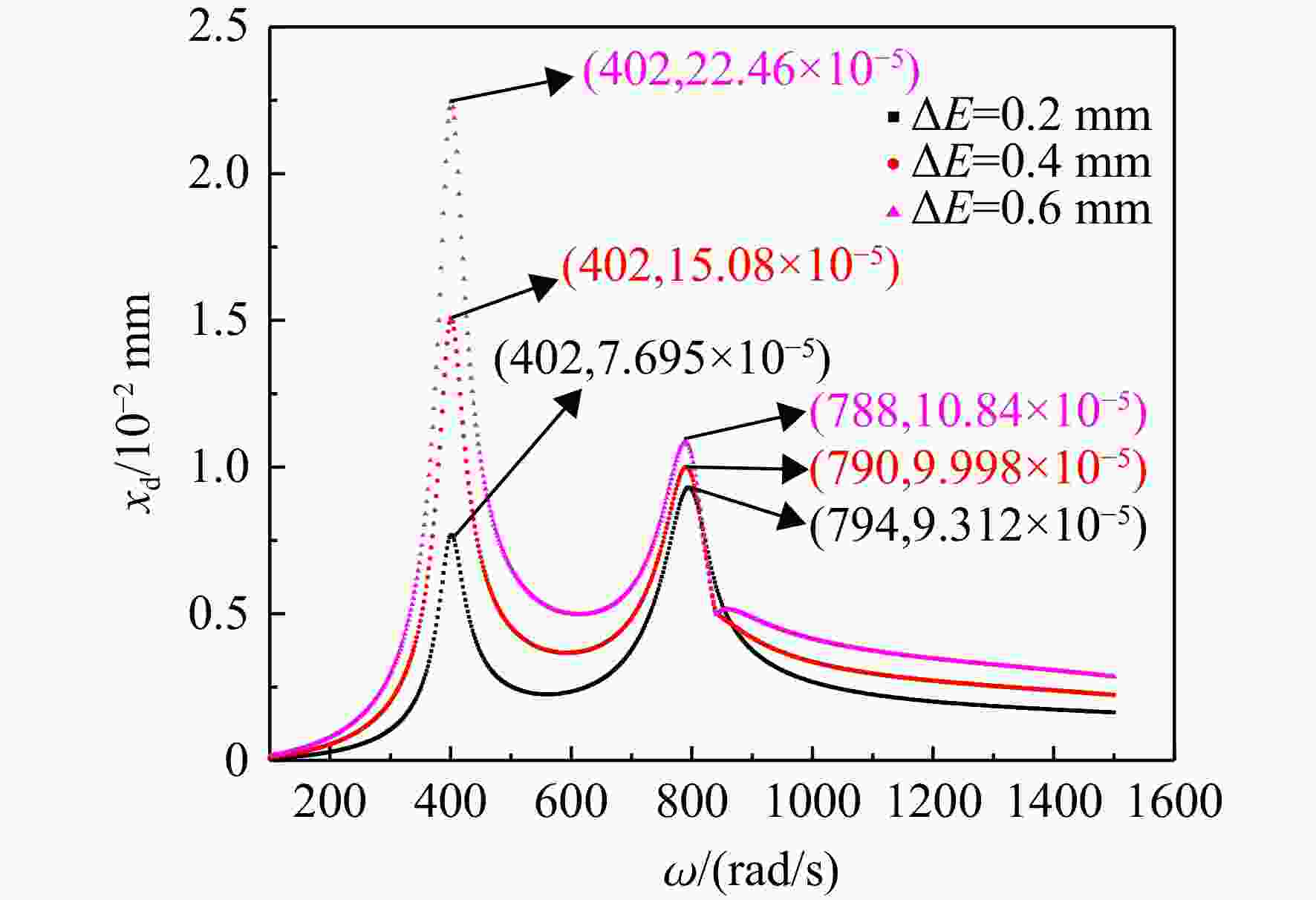

图 3 确定性转子系统横向响应幅频曲线
Figure 3. Amplitude frequency curve of lateral response of deterministic rotor system

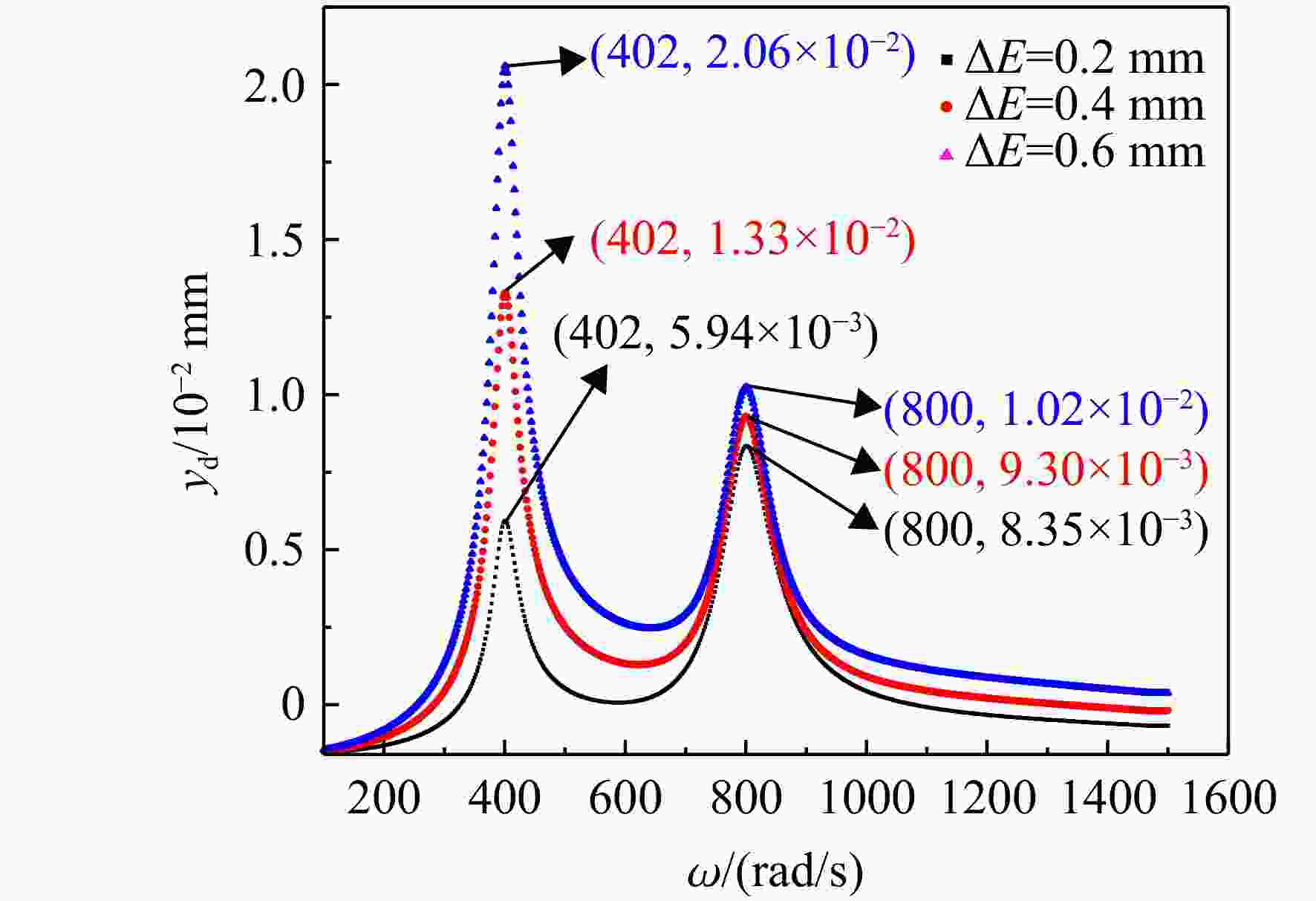

图 4 确定性转子系统竖向响应幅频曲线
Figure 4. Amplitude frequency curve of vertical response of deterministic rotor system

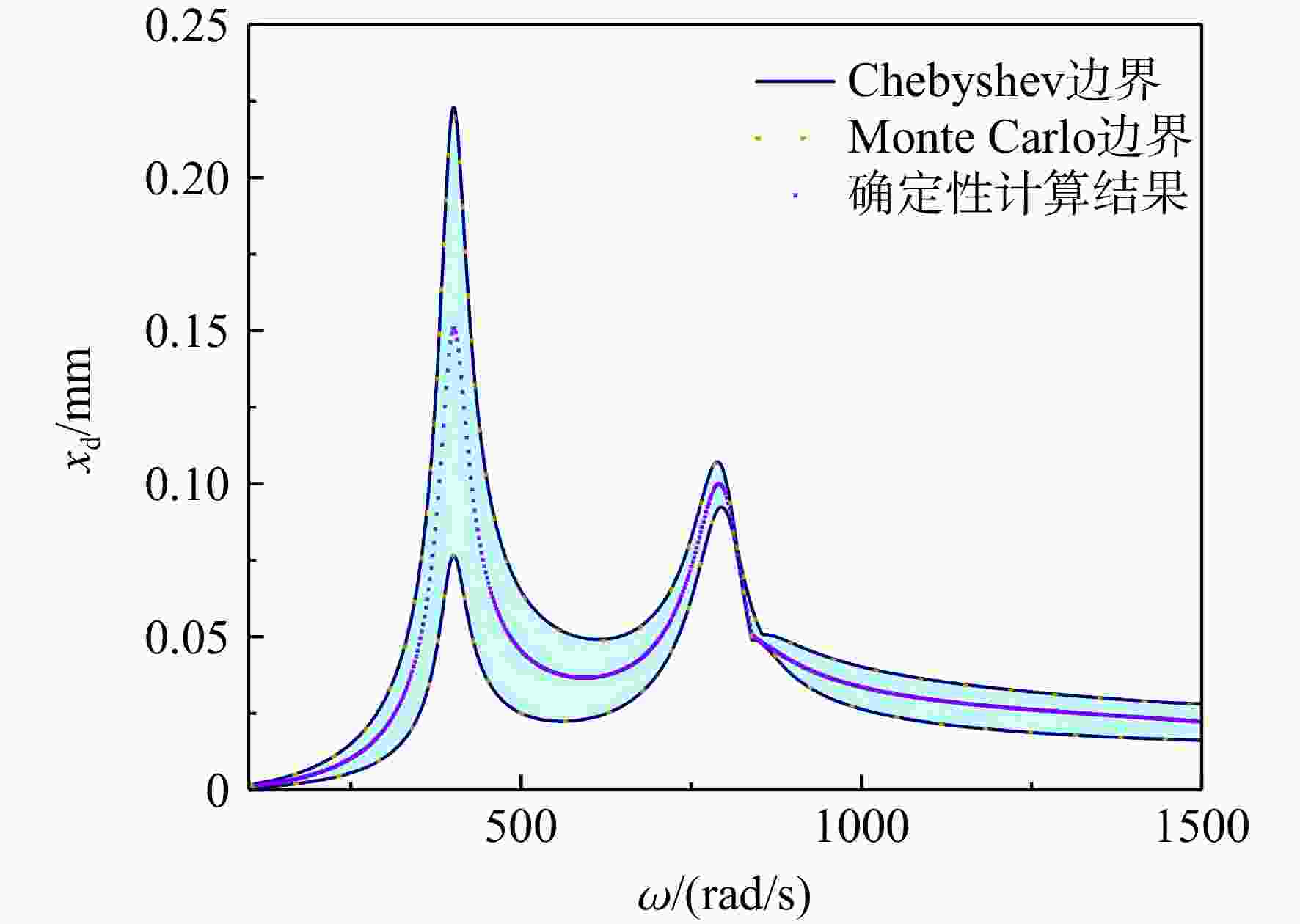

图 5 联轴器不对中程度呈参数不确定性时，转子系统横向响应幅频曲线
Figure 5. Amplitude frequency curve of lateral response of rotor system in the condition of uncertain misalignment of gear coupling

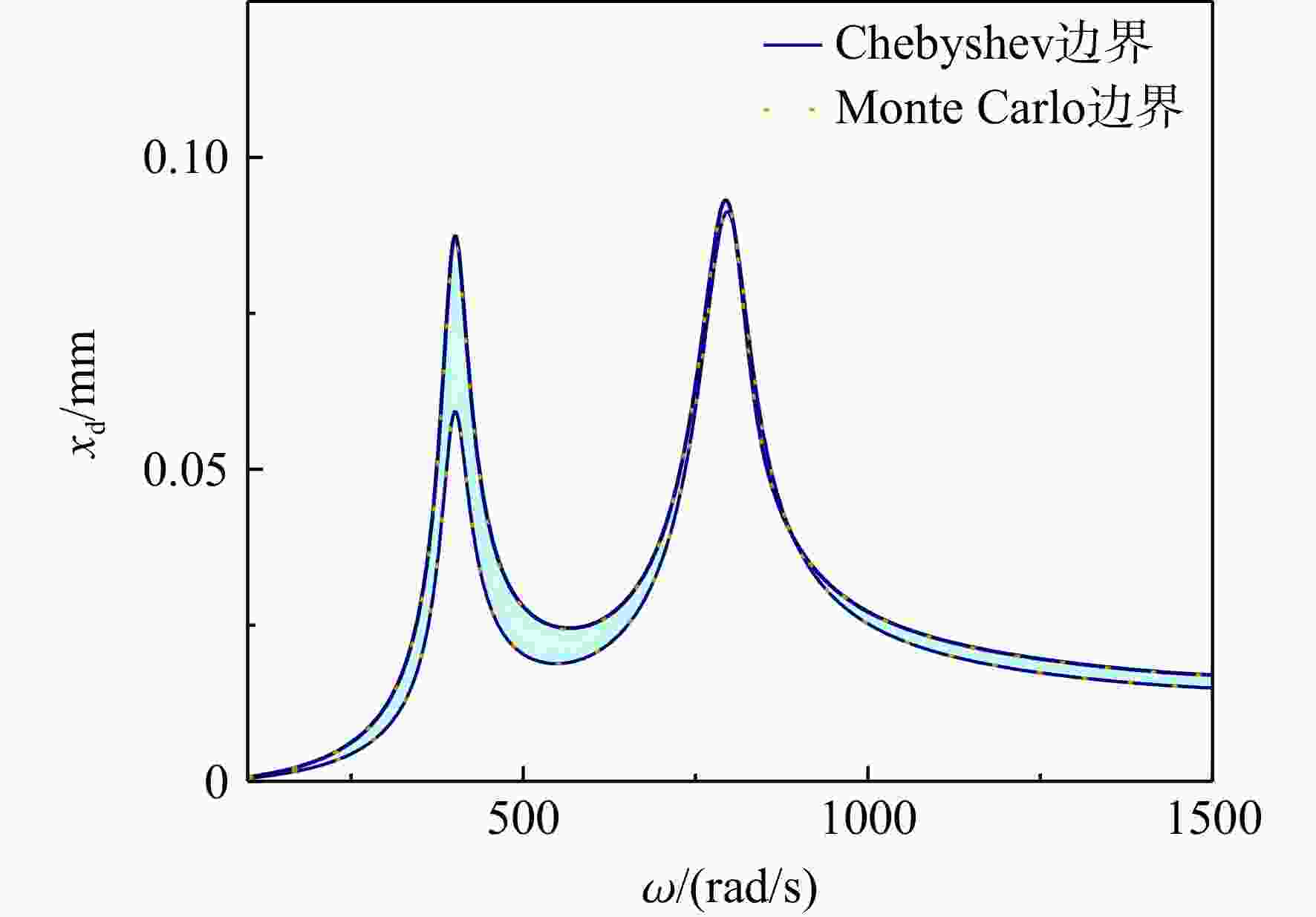

图 6 联轴器质量呈参数不确定性时，转子系统横向响应幅频曲线
Figure 6. Amplitude frequency curve of lateral response of rotor system in the condition of uncertain mass of coupling

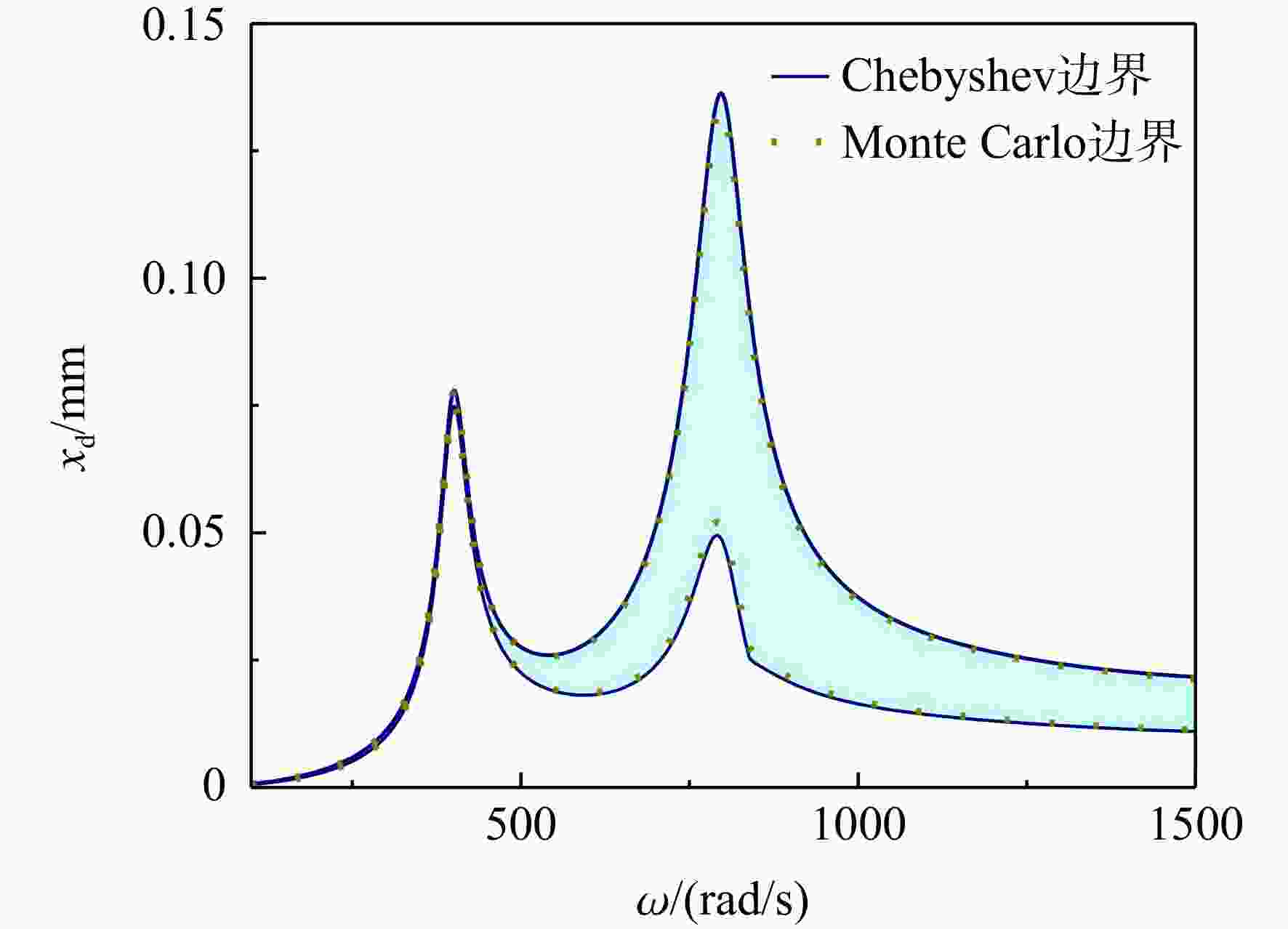

图 7 叶盘不平衡呈参数不确定性时，转子系统横向响应幅频曲线
Figure 7. Amplitude frequency curve of lateral response of rotor system in the condition of uncertain disc eccentricity

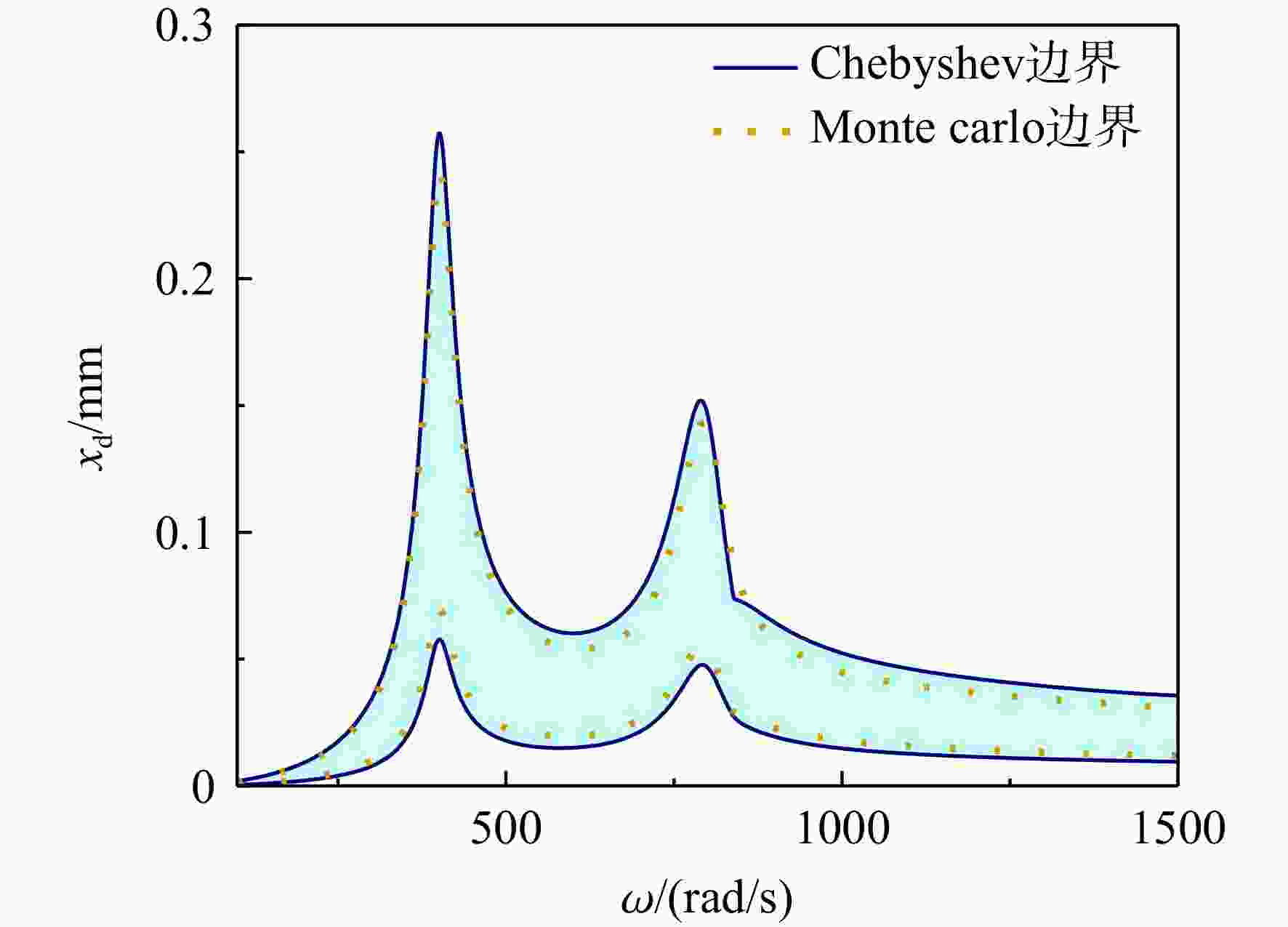

图 8 多源不确定性参数影响下系统横向响应幅频曲线
Figure 8. Amplitude frequency curve of lateral response of rotor system in the condition of multi-source uncertain parameters

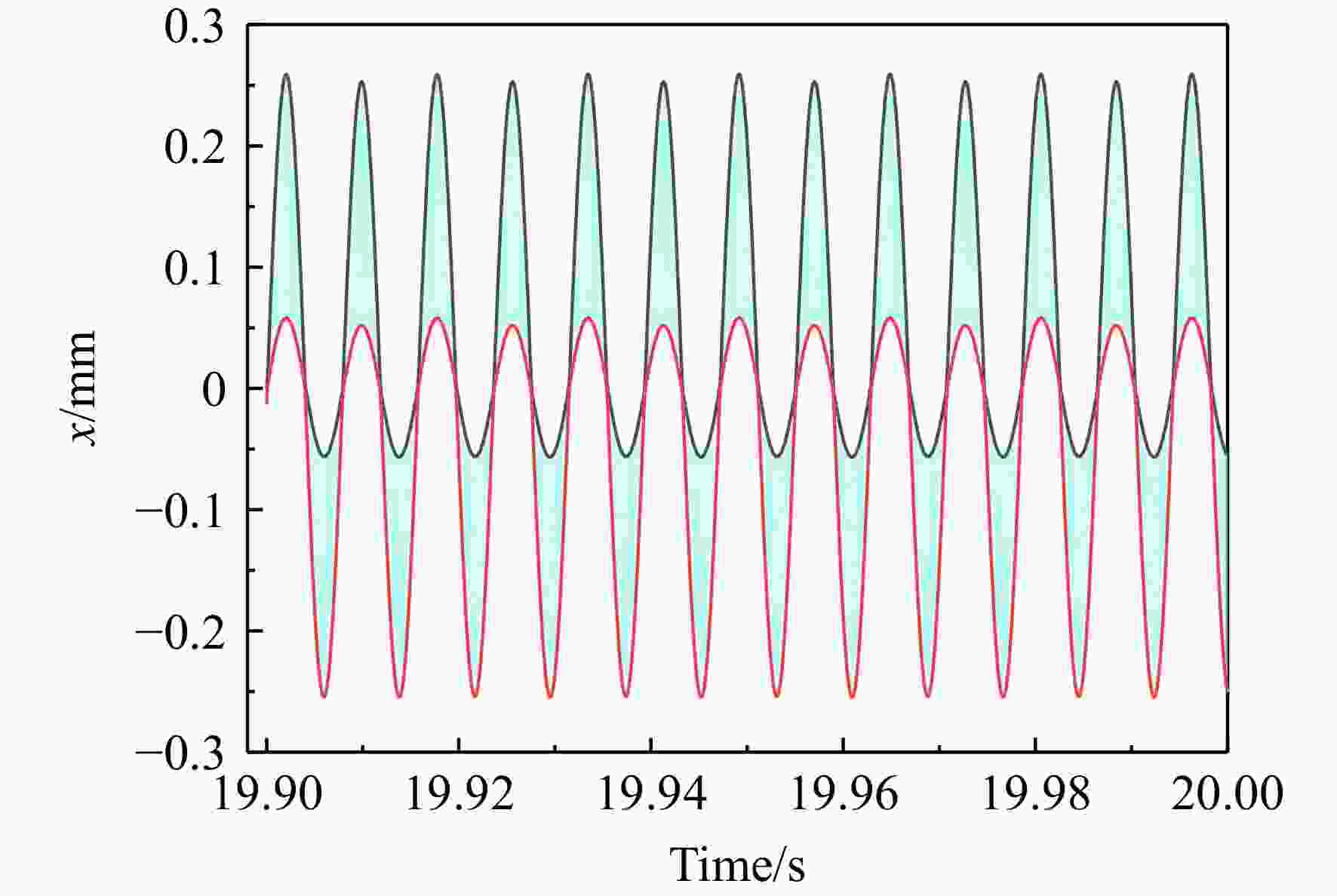

图 9 转速为$ \omega = 400\;{\text{rad/s}} $时，含多源不确定性参数的转子系统时间历程曲线
Figure 9. Time histories curve of rotor system with multi-source uncertain parameters at the rotational speed $ \omega = 400\;{\text{rad/s}} $
图 10 转速为$ \omega = 800\;{\text{rad/s}} $时，含多源不确定性参数的转子系统时间历程曲线
Figure 10. Time histories curve of rotor system with multi-source uncertain parameters at the rotational speed $ \omega = 800\;{\text{rad/s}} $
图 11 转速为$ \omega = 400\;{\text{rad/s}} $时，含多源不确定性参数的转子系统轴心轨迹图
Figure 11. Whirling orbit diagram of rotor system with multi-source uncertain parameters at the rotational speed $ \omega = 400\;{\text{rad/s}} $
图 12 转速为$ \omega = 800\;{\text{rad/s}} $时，含多源不确定性参数的转子系统轴心轨迹图
Figure 12. Whirling orbit diagram of rotor system with multi-source uncertain parameters at the rotational speed $ \omega = 800\;{\text{rad/s}} $
图 13 转速为$ \omega = 400\;{\text{rad/s}} $时，不同不确定性工况下转子系统横向响应区间波动
Figure 13. Interval fluctuation of lateral response of rotor system with different uncertainty conditions at the rotational speed $ \omega = 400\;{\text{rad/s}} $
图 14 转速为$ \omega = 800\;{\text{rad/s}} $时，不同不确定性工况下转子系统横向响应区间波动
Figure 14. Interval fluctuation of lateral response of rotor system with different uncertainty conditions at the rotational speed $ \omega = 800\;{\text{rad/s}} $
表 1 转子系统结构参数
Table 1. Structural parameters of rotor system
参数描述 数值 叶盘等效质量$ {m_{\text{d}}} $/kg 32.1 左轴承处等效质量$ {m_{\text{l}}} $/kg 4 右轴承处等效质量$ {m_{\text{r}}} $/kg 4 联轴器质量$ {m_{\text{c}}} $/kg 2.61 弹性轴刚度$ {k_{\text{d}}} $/107 （N/m） 2.5 左端轴承刚度$ {k_{\text{l}}} $/107 （N/m） 2.0 右端轴承刚度$ {k_{\text{r}}} $/107 （N/m） 2.0 叶盘阻尼系数$ {c_{\text{d}}} $/103 （N·s/m） 2.1 轴承处阻尼系数$ {c_{\text{l}}} $和$ {c_{\text{r}}} $/103 （N·s/m） 1.05 叶盘不平衡$ e $/mm 0.01 联轴器不对中量$ \Delta E $/mm 0.2/0.4/0.6
下载: 导出CSV
表 2 转子系统不确定性参数
Table 2. Uncertain parameters of rotor system
参数类型 ΔE/mm mc/kg e/mm 确定性 0.2 2.61 0.01 不确定性 [0.2, 0.6] [2, 3] [0.005, 0.015]
下载: 导出CSV
-
[1] MOGHE S M,MAHURE A N. Study of vibration re-sponse of coupling under misalignment condition-a review[J]. International Journal of Research in Advent Technology,2017,5(4): 50-53. [2] 韩清凯,王美令,赵广,等. 转子系统不对中问题的研究进展[J]. 动力学与控制学报,2016,14(1): 1-13. HAN Qingkai,WANG Meiling,ZHAO Guang,et al. A review of rotor systems with misalignment[J]. Journal of Dynamics and Control,2016,14(1): 1-13. (in Chinese doi: 10.6052/1672-6553-2015-081HAN Qingkai, WANG Meiling, ZHAO Guang, et al. A review of rotor systems with misalignment[J]. Journal of Dynamics and Control, 2016, 14(1): 1-13. (in Chinese) doi: 10.6052/1672-6553-2015-081 [3] 韩捷. 齿式联接不对中转子的故障物理特性研究[J]. 振动工程学报,1996,9(3): 297-301. HAN Jie. Study on fault properties of the rotor connected by the gear cou-pling[J]. Journal of Vibration Engineering,1996,9(3): 297-301. (in ChineseHAN Jie. Study on fault properties of the rotor connected by the gear cou-pling[J]. Journal of Vibration Engineering, 1996, 9(3): 297-301. (in Chinese) [4] 杨洋,曹登庆,王德友,等. 双盘悬臂转子的不平衡-定点碰摩耦合故障研究[J]. 航空动力学报,2016,31(2): 307-316. YANG Yang,CAO Dengqing,WANG Deyou,et al. Study on imbalance-fixed point rubbing coupling faults of dual-disc cantilever rotor[J]. Journal of Aerospace Power,2016,31(2): 307-316. (in ChineseYANG Yang, CAO Dengqing, WANG Deyou, et al. Study on imbalance-fixed point rubbing coupling faults of dual-disc cantilever rotor[J]. Journal of Aerospace Power, 2016, 31(2): 307-316. (in Chinese) [5] HUANG Zhiwei,ZHOU Jianzhong,YANG Mengqi,et al. Vibration characteristics of a hydraulic generator unit rotor system with parallel misalignment and rub-impact[J]. Archive of Applied Mechanics,2011,81(7): 829-838. doi: 10.1007/s00419-010-0453-4 [6] PATEL T H,DARPE A K. Vibration response of misaligned rotors[J]. Journal of Sound and Vibration,2009,325(3): 609-628. doi: 10.1016/j.jsv.2009.03.024 [7] 傅超,任兴民,杨永锋,等. 考虑参数不确定性的转子系统瞬态动平衡研究[J]. 动力学与控制学报,2017,15(5): 453-458. FU Chao,REN Xingmin,YANG Yongfeng,et al. Transient dynamic balancing of rotor system with parameter uncertainties[J]. Journal of Dynamics and Control,2017,15(5): 453-458. (in Chinese doi: 10.6052/1672-6553-2017-016FU Chao, REN Xingmin, YANG Yongfeng, et al. Transient dynamic balancing of rotor system with parameter uncertainties[J]. Journal of Dynamics and Control, 2017, 15(5): 453-458. (in Chinese) doi: 10.6052/1672-6553-2017-016 [8] WU Jinglai,ZHANG Yunqing,CHEN Liping,et al. A Chebyshev interval method for nonlinear dynamic systems under uncertainty[J]. Applied Mathematical Modelling,2013,37(6): 4578-4591. doi: 10.1016/j.apm.2012.09.073 [9] QI Wuchao,QIU Zhiping. A collocation interval analysis method for interval structural parameters and stochastic excitation[J]. Science China Physics,Mechanics and Astronomy,2012,55(1): 66-77. doi: 10.1007/s11433-011-4570-z [10] MA Yanhong,LIANG Zhichao,CHEN Meng,et al. Interval analysis of rotor dynamic response with uncertain parameters[J]. Journal of Sound and Vibration,2013,332(16): 3869-3880. doi: 10.1016/j.jsv.2013.03.001 [11] 毛文贵,李建华,刘桂萍,等. 考虑油膜不确定性的滑动轴承-转子系统不平衡量识别[J]. 振动与冲击,2016,35(18): 214-221. MAO Wengui,LI Jianhua,LIU Guiping,et al. Unbalance parameters identification for a sliding bearing-rotor system considering the uncertainty of parameters[J]. Journal of Vibration and Shock,2016,35(18): 214-221. (in ChineseMAO Wengui, LI Jianhua, LIU Guiping, et al. Unbalance parameters identification for a sliding bearing-rotor system considering the uncertainty of parameters[J]. Journal of Vibration and Shock, 2016, 35(18): 214-221. (in Chinese) [12] KAMARAJ A. Stress prediction in turbine blades under force excitation[D]. San Diego,US: San Diego State University,2016. [13] YANG Lechang,HE Ketai,GUO Yanling. Reliability analysis of a nonlinear rotor/stator contact system in the presence of aleatory and epistemic uncertainty[J]. Journal of Mechanical Science and Technology,2018,32(9): 4089-4101. doi: 10.1007/s12206-018-0808-2 [14] GAN Chunbiao,WANG Yuehua,YANG Shixi. Nonparametric modeling on random uncertainty and reliability analysis of a dual-span rotor[J]. Journal of Zhejiang University: Science A,2018,19(3): 189-202. doi: 10.1631/jzus.A1600340 [15] DENIMAL E,SINOU J J. Advanced kriging-based surrogate modelling and sensitivity analysis for rotordynamics with uncertainties[J]. European Journal of Mechanics - A,2021,90: 104331. doi: 10.1016/j.euromechsol.2021.104331 [16] 王存. 基于切比雪夫多项式展开的转子动力特性区间分析[J]. 航空动力学报,2020,35(4): 757-765. WANG Cun. Interval analysis of rotor dynamic characteristics based on Chebyshev polynomials expansion[J]. Journal of Aerospace Power,2020,35(4): 757-765. (in ChineseWANG Cun. Interval analysis of rotor dynamic characteristics based on Chebyshev polynomials expansion[J]. Journal of Aerospace Power, 2020, 35(4): 757-765. (in Chinese) [17] 马新星,张振果,华宏星. 考虑参数非概率不确定性的碰摩转子非线性振动响应分析[J]. 振动与冲击,2021,40(18): 56-62. MA Xinxing,ZHANG Zhenguo,HUA Hongxing. Nonlinear vibration responses of a rubbing rotor considering the non-probabilistic uncertainty of parameters[J]. Journal of Vibration and Shock,2021,40(18): 56-62. (in ChineseMA Xinxing, ZHANG Zhenguo, HUA Hongxing. Nonlinear vibration responses of a rubbing rotor considering the non-probabilistic uncertainty of parameters[J]. Journal of Vibration and Shock, 2021, 40(18): 56-62. (in Chinese) [18] FU Chao,XU Yuandong,YANG Yongfeng,et al. Response analysis of an accelerating unbalanced rotating system with both random and interval variables[J]. Journal of Sound and Vibration,2020,466: 115047. doi: 10.1016/j.jsv.2019.115047 [19] 伍小莉,杨洋,葛玉梅,等. 含齿式联轴器的单盘转子系统耦合故障分析[J]. 动力学与控制学报,2019,17(6): 553-559. WU Xiaoli,YANG Yang,GE Yumei,et al. Coupling faults analysis of single disk rotor system with gear coupling[J]. Journal of Dynamics and Control,2019,17(6): 553-559. (in Chinese doi: 10.6052/1672-6553-2019-045WU Xiaoli, YANG Yang, GE Yumei, et al. Coupling faults analysis of single disk rotor system with gear coupling[J]. Journal of Dynamics and Control, 2019, 17(6): 553-559. (in Chinese) doi: 10.6052/1672-6553-2019-045 -
