弹性环结构参数对ERSFD动力系统特性的影响

秦源杰 刘宾宾 尹必峰 郝龙 赵庆军 赵巍

秦源杰, 刘宾宾, 尹必峰, 等. 弹性环结构参数对ERSFD动力系统特性的影响[J]. 航空动力学报, 2024, 39(X):20220616 doi: 10.13224/j.cnki.jasp.20220616
引用本文: 秦源杰, 刘宾宾, 尹必峰, 等. 弹性环结构参数对ERSFD动力系统特性的影响[J]. 航空动力学报, 2024, 39(X):20220616 doi: 10.13224/j.cnki.jasp.20220616
QIN Yuanjie, LIU Binbin, YIN Bifeng, et al. Influence of elastic ring structural parameters on ERSFD dynamic system characteristics[J]. Journal of Aerospace Power, 2024, 39(X):20220616 doi: 10.13224/j.cnki.jasp.20220616
Citation: QIN Yuanjie, LIU Binbin, YIN Bifeng, et al. Influence of elastic ring structural parameters on ERSFD dynamic system characteristics[J]. Journal of Aerospace Power, 2024, 39(X):20220616 doi: 10.13224/j.cnki.jasp.20220616

弹性环结构参数对ERSFD动力系统特性的影响

doi: 10.13224/j.cnki.jasp.20220616
基金项目: 国家科技重大专项(J2019-Ⅱ-0011-0031); 国家自然科学基金(11902319)
详细信息
    作者简介:

    秦源杰(1995-),男,硕士生,主要从事航空发动机挤压油膜阻尼器计算与实验研究。E-mail:2280341150@qq.com

    通讯作者:

    赵巍(1978-),男,研究员、博士生导师,博士,主要从事航空发动机气动热力学方面的研究。E-mail:zhaowei@iet.cn

  • 中图分类号: V231

Influence of elastic ring structural parameters on ERSFD dynamic system characteristics

  • 摘要:

    为研究弹性环式挤压油膜阻尼器(ERSFD)的油膜力特性,分析ERSFD动力系统特性参数,基于弹性环径向变形,建立ERSFD内、外层油膜压力的微分计算模型,利用有限差分法对微分计算模型进行求解,通过数值模拟研究弹性环凸台高度、数量、宽度、弹性环内外连接孔对该型ERSFD油膜力特性的影响。结果表明:相对于传统挤压油膜阻尼器,弹性环径向变形改变内、外油膜间隙,有利于抑制油膜刚度随偏心率高度非线性变化。ERSFD中弹性环凸台调节了阻尼器内、外油膜压力分布形态,凸台的存在减小了挤压油膜区域,使ERSFD内、外油膜刚度和阻尼均减小。弹性环内外连接孔使内油膜刚度减小,外油膜刚度增大。

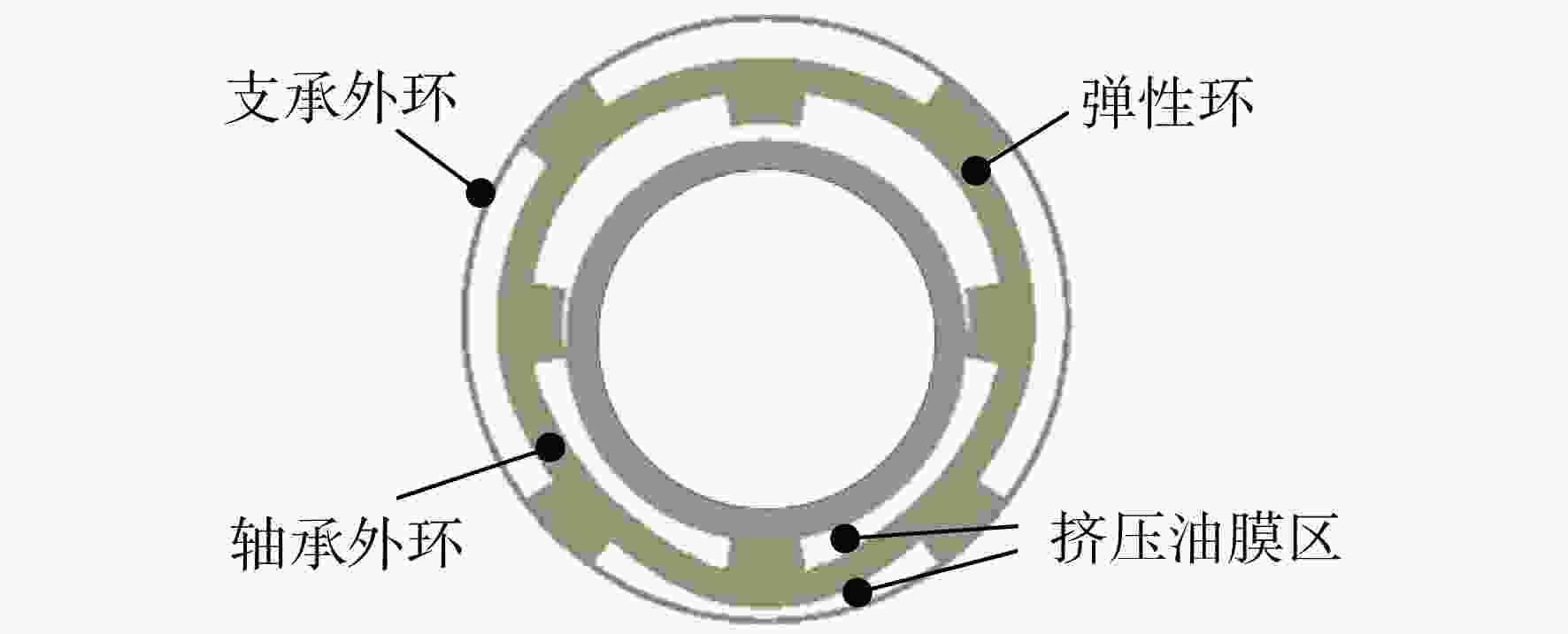

  • 图 1  ERSFD的结构示意图

    Figure 1.  Structure diagram of ERSFD

    图 2  ERSFD中弹性环变形示意图

    Figure 2.  Deformation diagram of elastic ring in ERSFD

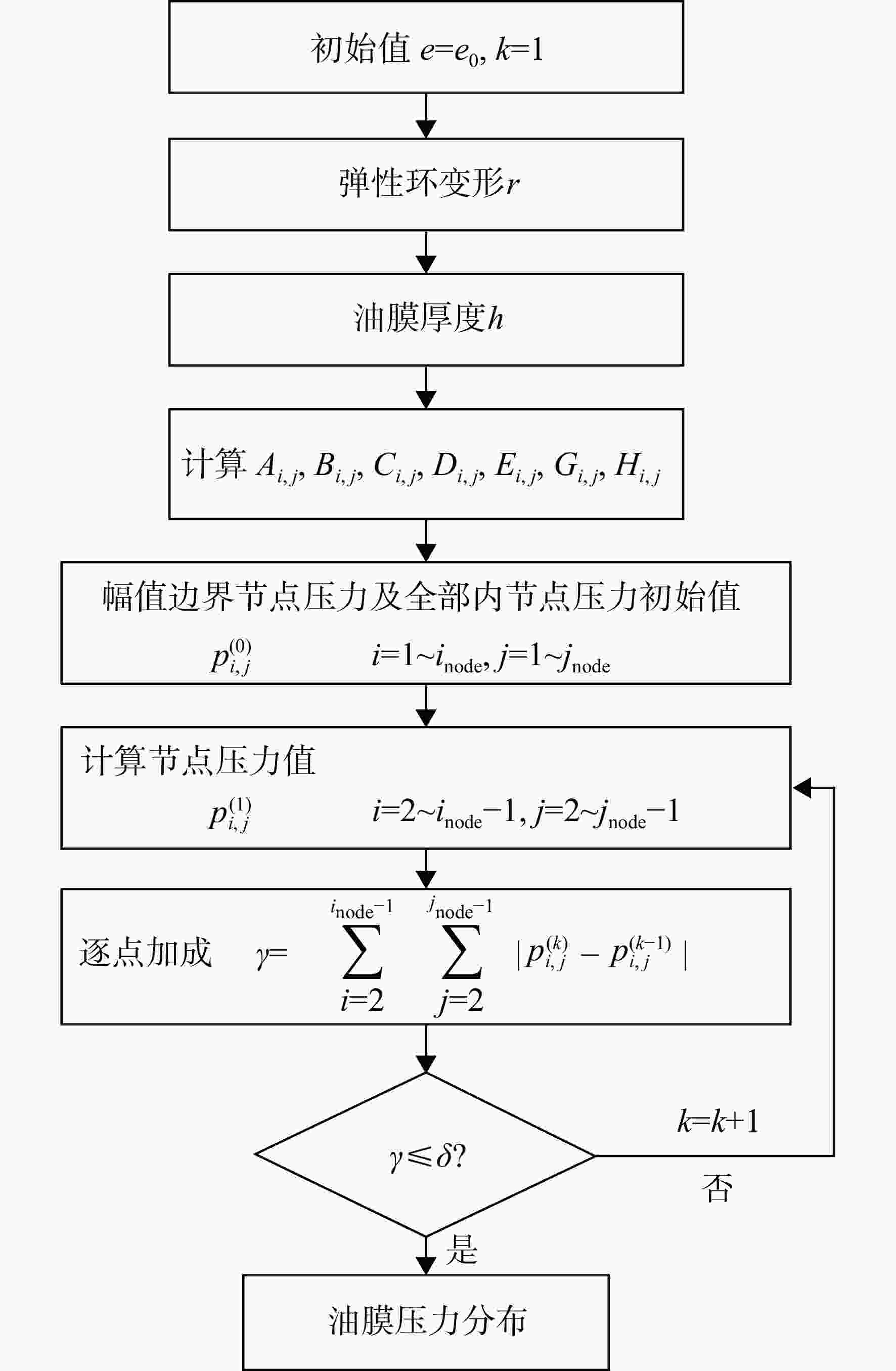

    图 3  油膜压力迭代计算流程图

    Figure 3.  Flow chart of iterative calculation of oil film pressure

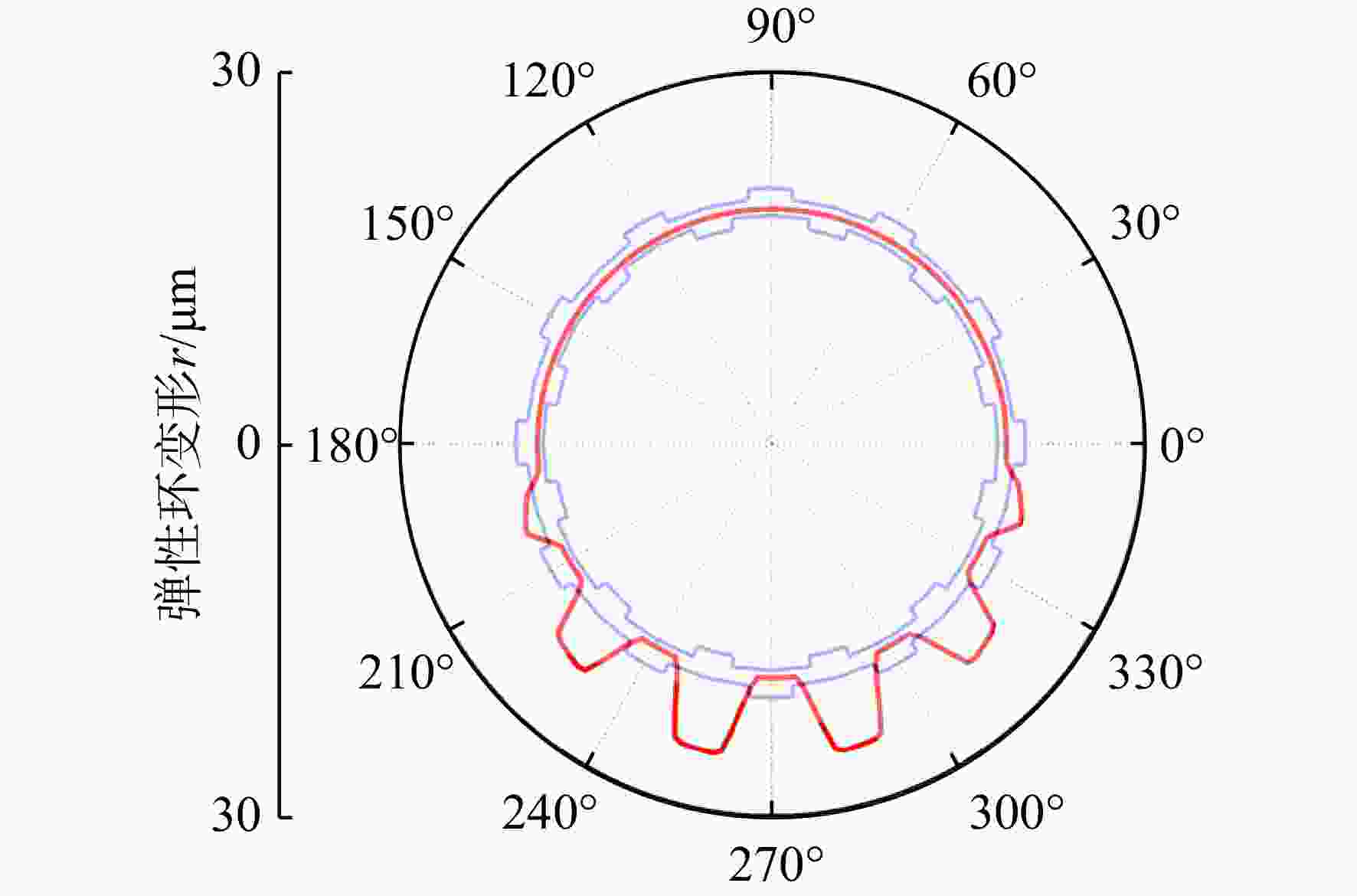

    图 4  弹性环变形量示意图

    Figure 4.  Schematic diagram of elastic ring deformation

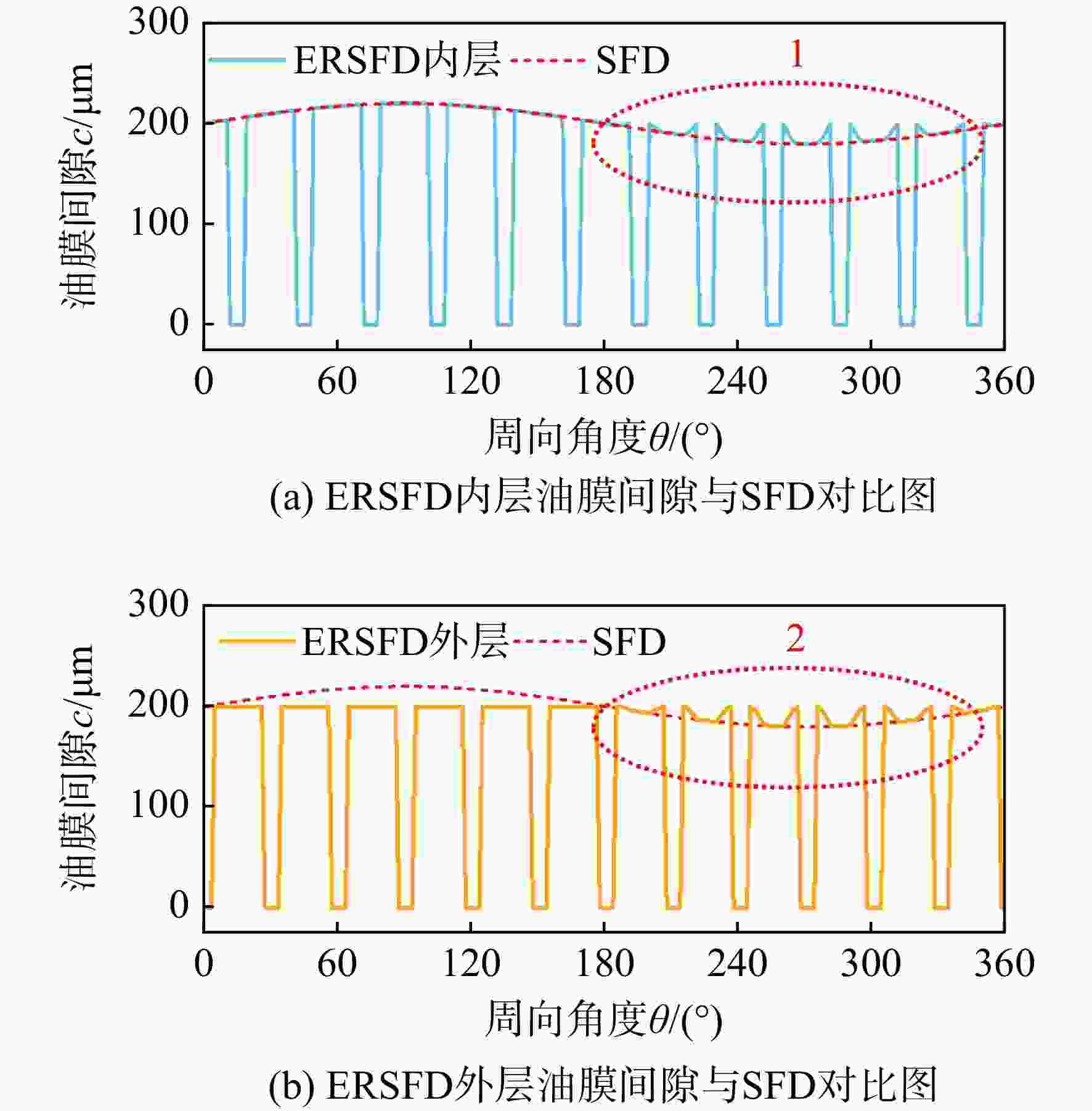

    图 5  ERSFD、SFD油膜间隙对比图

    Figure 5.  Comparison diagram of ERSFD and SFD oil film clearance

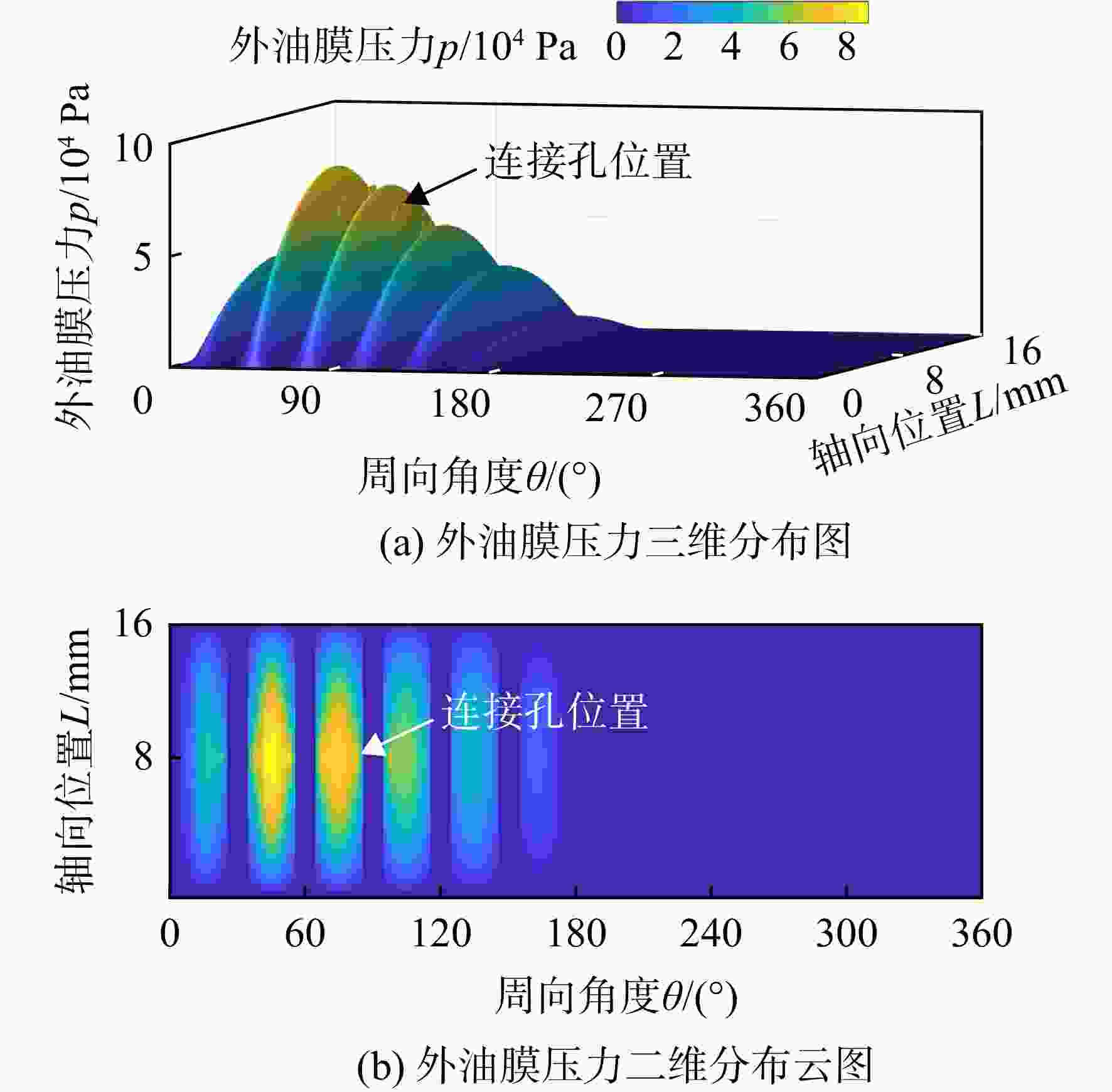

    图 6  外油膜压力分布图

    Figure 6.  Outer oil film pressure distribution diagram

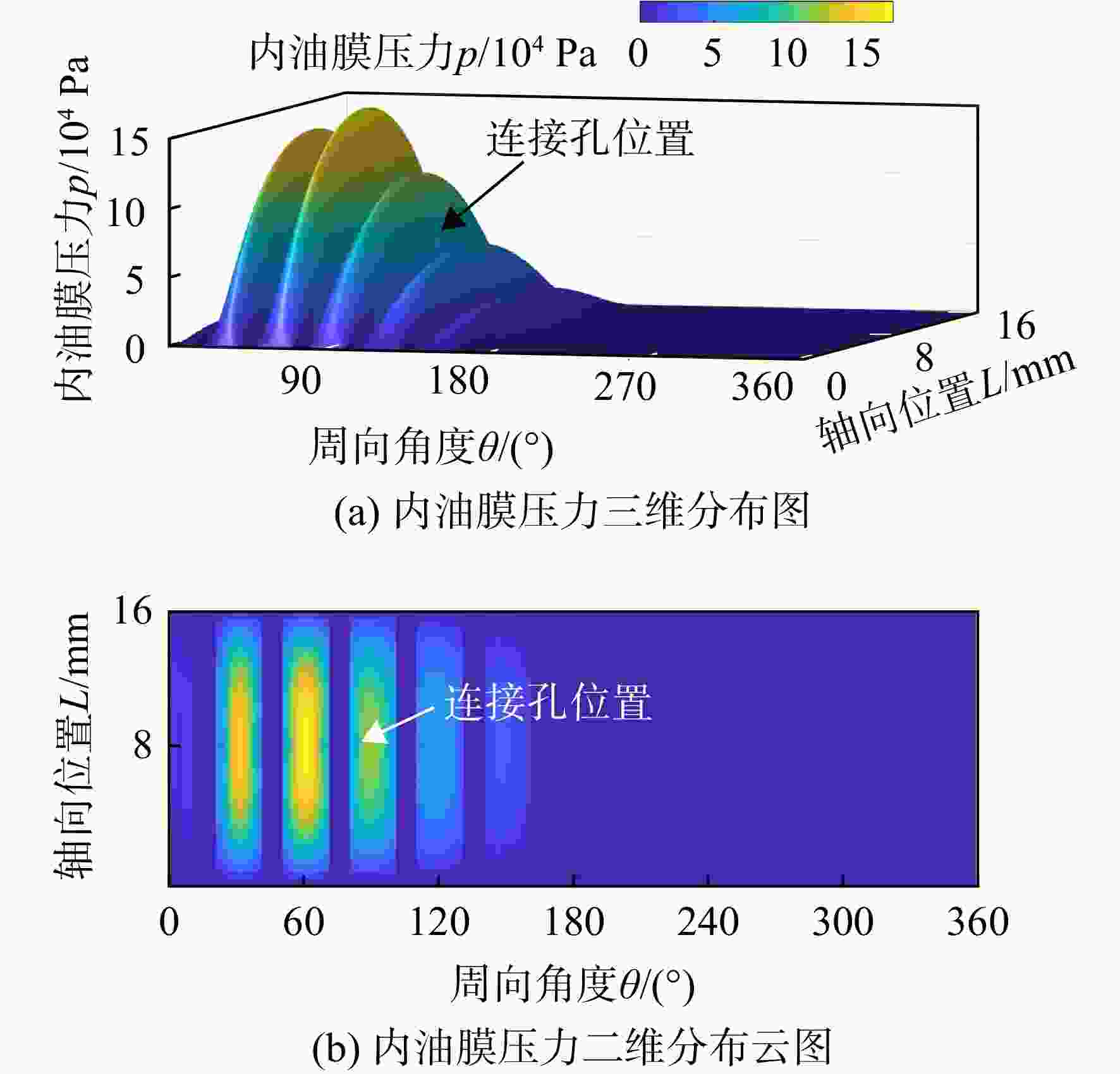

    图 7  内油膜压力分布图

    Figure 7.  Inner oil film pressure distribution diagram

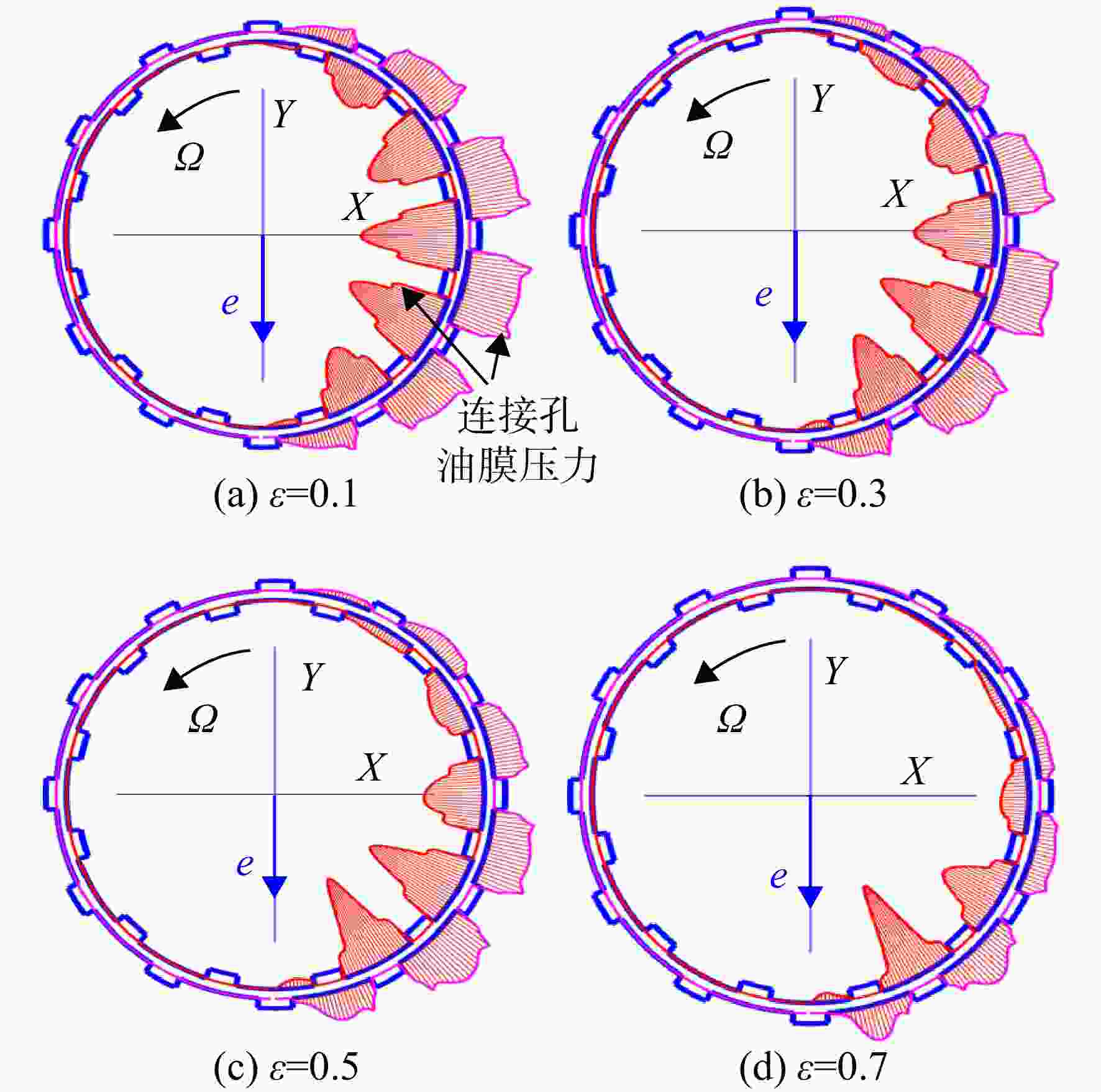

    图 8  不同偏心率下ERSFD油膜压力分布图(D=1 mm)

    Figure 8.  Oil film pressure distribution of ERSFD under different eccentricities (D=1 mm)

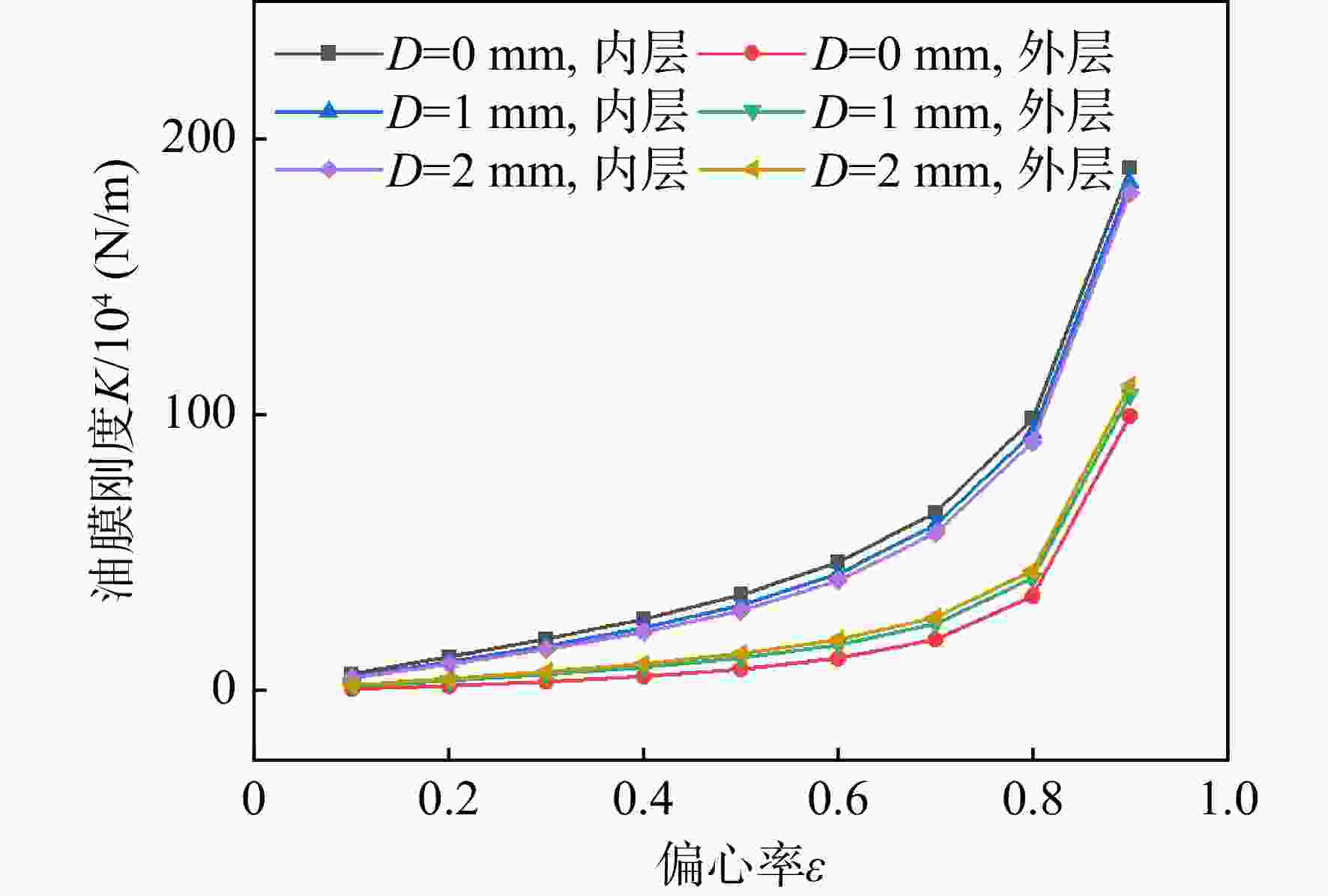

    图 9  内、外油膜刚度随偏心率的变化关系图

    Figure 9.  Relationship between inner and outer oil film stiffness and eccentricity

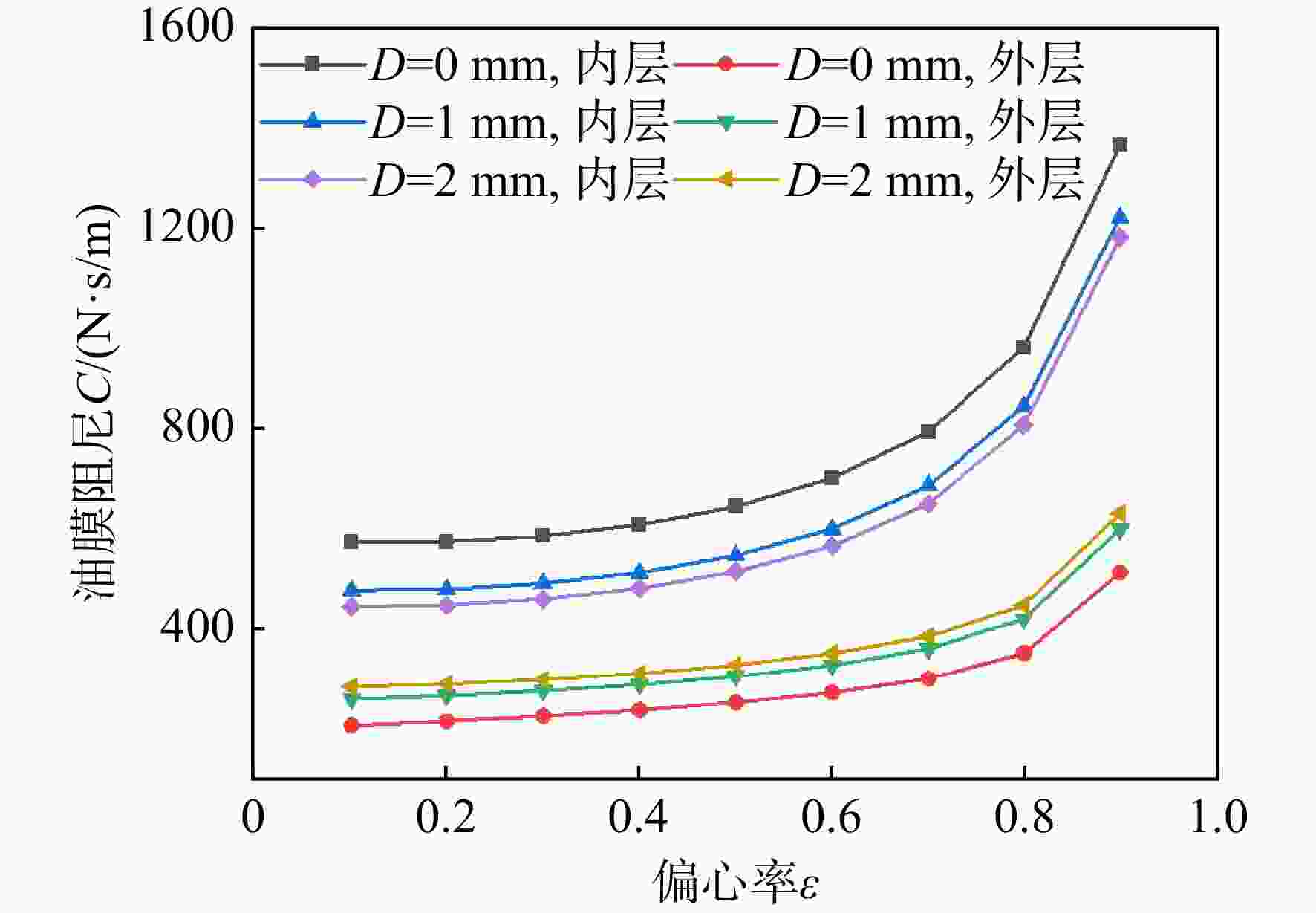

    图 10  内、外油膜阻尼随偏心率的变化关系图

    Figure 10.  Relationship between inner and outer oil film damping and eccentricity

    图 11  油膜间隙对ERSFD油膜刚度的影响

    Figure 11.  Effect of oil film clearance on oil film stiffness of ERSFD

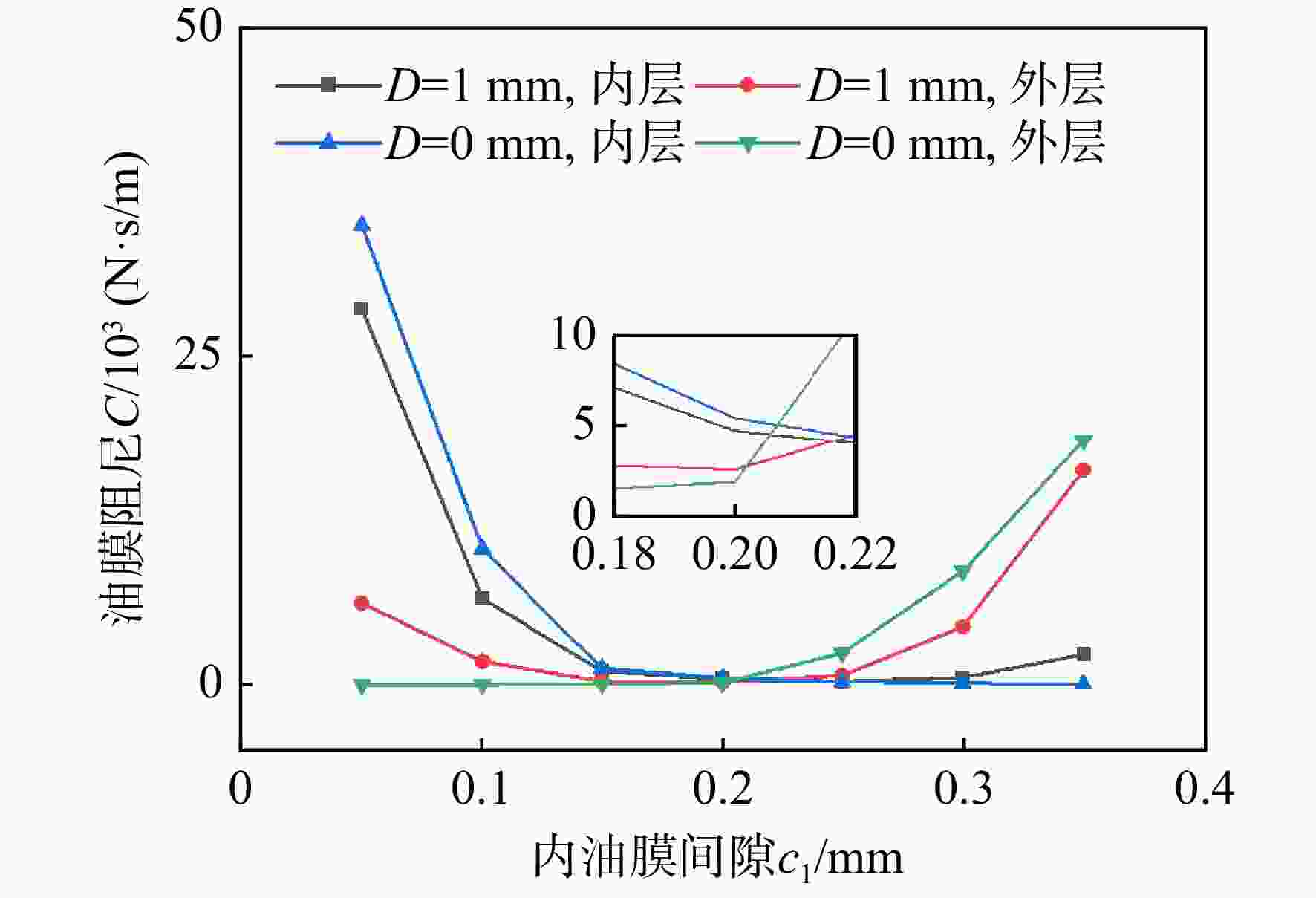

    图 12  油膜间隙对ERSFD油膜阻尼的影响

    Figure 12.  Effect of oil film clearance on oil film damping of ERSFD

    图 13  凸台数对ERSFD油膜刚度的影响

    Figure 13.  Effect of the number of bosses on the oil film stiffness of ERSFD

    图 14  凸台数对ERSFD油膜阻尼的影响

    Figure 14.  Effect of the number of bosses on oil film damping of ERSFD

    图 15  凸台宽度对ERSFD油膜刚度的影响

    Figure 15.  Effect of boss width on oil film stiffness of ERSFD

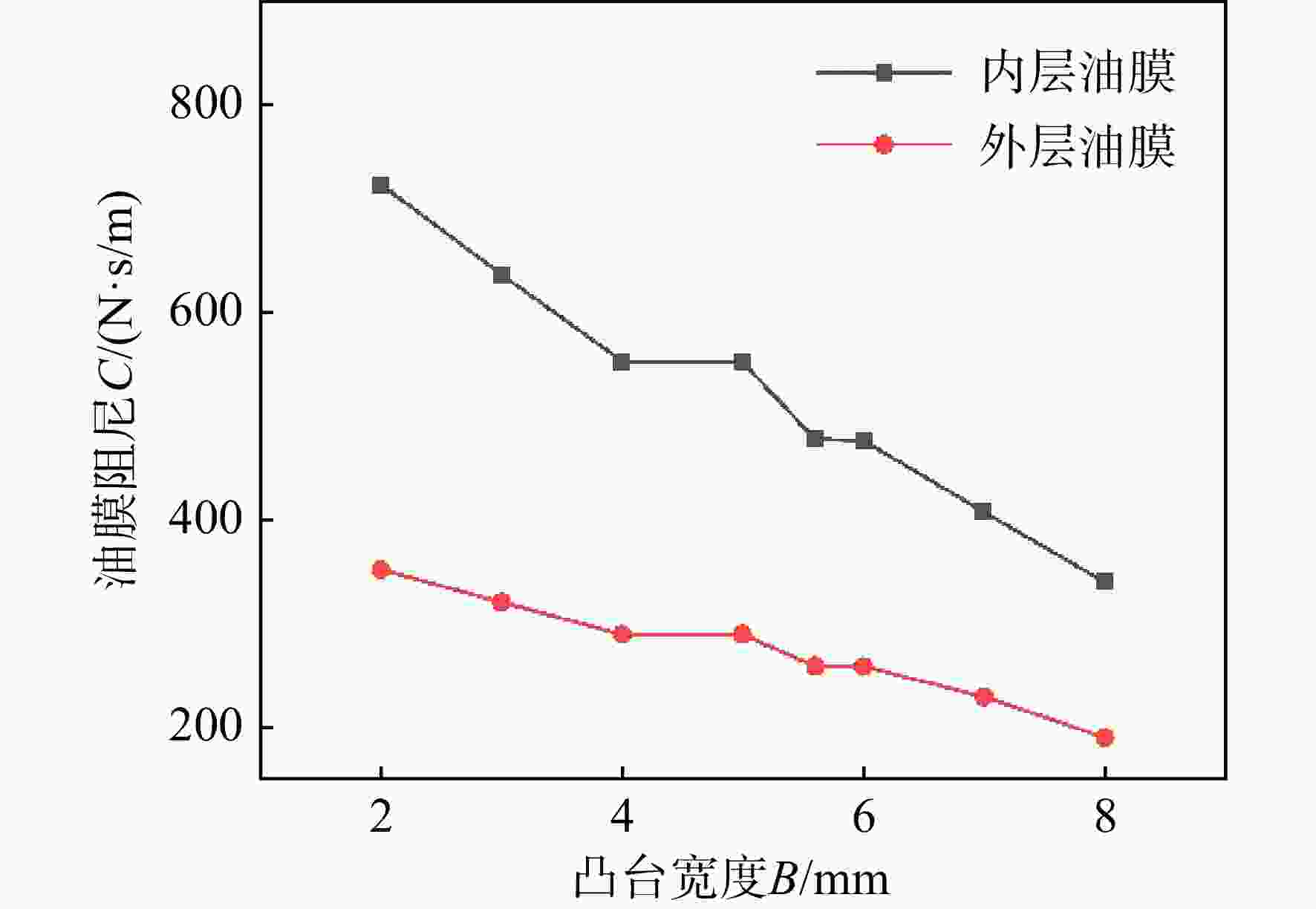

    图 16  凸台宽度对ERSFD油膜阻尼的影响

    Figure 16.  Effect of boss width on oil film damping of ERSFD

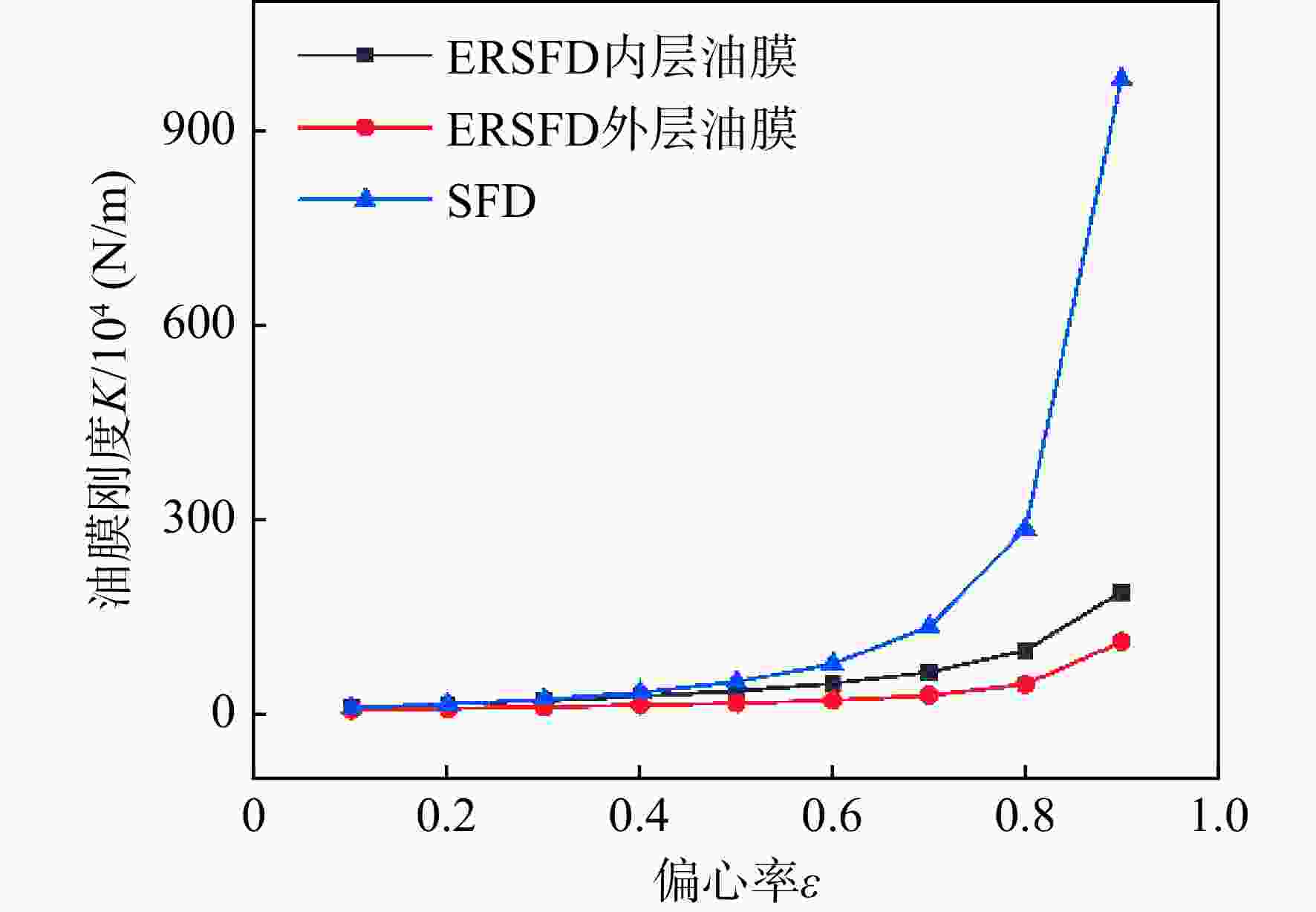

    图 17  ERSFD与鼠笼SFD的油膜刚度非线性对比图

    Figure 17.  Nonlinear comparison diagram of oil film stiffness between ERSFD and squirrel cage SFD

    表  1  ERSFD参数表

    Table  1.   Parameter table of ERSFD

    参数 数值
    凸台数$ N $ 12
    凸台宽度$ B/\mathrm{m}\mathrm{m} $ 5.6
    轴向长度$ L/\mathrm{m}\mathrm{m} $ 16
    弹性环厚度$ W/\mathrm{m}\mathrm{m} $ 0.6
    内层油膜间隙$ {C}_{1}/\mathrm{m}\mathrm{m} $ 0.2
    外层油膜间隙$ {C}_{2}/\mathrm{m}\mathrm{m} $ 0.2
    弹性环内半径$ {R}_{1}/\mathrm{m}\mathrm{m} $ 37.8
    弹性环外半径$ {R}_{2}/\mathrm{m}\mathrm{m} $ 38.8
    内外连接孔直径$ D/\mathrm{m}\mathrm{m} $ 1.0
    滑油动力黏度$ \mu / (\mathrm{P}\mathrm{a}\cdot \mathrm{s}) $ 0.0195
    下载: 导出CSV
  • [1] 孟光,夏南. 多自由度强非线性柔性转子-挤压油膜阻尼器系统的分叉与混沌响应[J]. 航空学报,2003,24(1): 42-45. MENG Guang,XIA Nan. Bifurcation and chaos responses of a flexible rotor-squeeze film damper system[J]. Acta Aeronautica et Astronautica Sinica,2003,24(1): 42-45. (in Chinese doi: 10.3321/j.issn:1000-6893.2003.01.010

    MENG Guang, XIA Nan. Bifurcation and chaos responses of a flexible rotor-squeeze film damper system[J]. Acta Aeronautica et Astronautica Sinica, 2003, 24(1): 42-45. (in Chinese) doi: 10.3321/j.issn:1000-6893.2003.01.010
    [2] 刘展翅,廖明夫,丛佩红,等. 航空发动机转子挤压油膜阻尼器设计方法[J]. 航空动力学报,2015,30(11): 2762-2770. LIU Zhanchi,LIAO Mingfu,CONG Peihong,et al. Design method of squeeze film damper for aero-engine rotors[J]. Journal of Aerospace Power,2015,30(11): 2762-2770. (in Chinese

    LIU Zhanchi, LIAO Mingfu, CONG Peihong, et al. Design method of squeeze film damper for aero-engine rotors[J]. Journal of Aerospace Power, 2015, 30(11): 2762-2770. (in Chinese)
    [3] 程礼,李帅莹,钱征文. 带挤压油膜阻尼器的盘式拉杆转子双稳态振动特性[J]. 航空动力学报,2013,28(9): 2044-2049. CHENG Li,LI Shuaiying,QIAN Zhengwen. Bistable vibration characteristics of disk-rod-fastening rotor with squeeze film dumper[J]. Journal of Aerospace Power,2013,28(9): 2044-2049. (in Chinese

    CHENG Li, LI Shuaiying, QIAN Zhengwen. Bistable vibration characteristics of disk-rod-fastening rotor with squeeze film dumper[J]. Journal of Aerospace Power, 2013, 28(9): 2044-2049. (in Chinese)
    [4] 冯国全,周柏卓,王娟. 基于整体-局部技术的鼠笼式弹性支承疲劳强度分析[J]. 航空发动机,2007,33(3): 22-24. FENG Guoquan,ZHOU Baizhuo,WANG Juan. Fatigue strength analysis of squirrel cage elastic support based on global-local technology[J]. Aeroengine,2007,33(3): 22-24. (in Chinese doi: 10.3969/j.issn.1672-3147.2007.03.006

    FENG Guoquan, ZHOU Baizhuo, WANG Juan. Fatigue strength analysis of squirrel cage elastic support based on global-local technology[J]. Aeroengine, 2007, 33(3): 22-24. (in Chinese) doi: 10.3969/j.issn.1672-3147.2007.03.006
    [5] 张广辉,黄延忠,陈亚龙,等. 突加不平衡下弹性环挤压油膜阻尼器减振性能实验[J]. 航空动力学报,2023,38(1): 32-40. ZHANG Guanghui,HUANG Yanzhong,CHEN Yalong,et al. Experiment on vibration reduction performance of elastic ring squeeze film damper under sudden unbalance[J]. Journal of Aerospace Power,2023,38(1): 32-40. (in Chinese

    ZHANG Guanghui, HUANG Yanzhong, CHEN Yalong, et al. Experiment on vibration reduction performance of elastic ring squeeze film damper under sudden unbalance[J]. Journal of Aerospace Power, 2023, 38(1): 32-40. (in Chinese)
    [6] 赵璐,廖明夫,王四季,等. 弹性环式挤压油膜阻尼器减振实验研究[J]. 推进技术,2021,42(5): 1129-1137. ZHAO Lu,LIAO Mingfu,WANG Siji,et al. Experimental study on vibration reducing effect of elastic ring squeeze film damper[J]. Journal of Propulsion Technology,2021,42(5): 1129-1137. (in Chinese

    ZHAO Lu, LIAO Mingfu, WANG Siji, et al. Experimental study on vibration reducing effect of elastic ring squeeze film damper[J]. Journal of Propulsion Technology, 2021, 42(5): 1129-1137. (in Chinese)
    [7] CHEN Weitao,CHEN Siyu,HU Zehua,et al. A novel dynamic model for the spiral bevel gear drive with elastic ring squeeze film dampers[J]. Nonlinear Dynamics,2019,98(2): 1081-1105. doi: 10.1007/s11071-019-05250-9
    [8] YANG Xiaomin,YANG Haisheng,CUI Yongcun,et al. Pressure performance for a thin-walled ring and turbulent-jet orifice modeled elastic squeeze film damper[J]. Chinese Journal of Aeronautics,2022,35(11): 235-251. doi: 10.1016/j.cja.2022.01.021
    [9] HAN Zhifei,DING Qian,ZHANG Wei. Dynamical analysis of an elastic ring squeeze film damper-rotor system[J]. Mechanism and Machine Theory,2019,131: 406-419. doi: 10.1016/j.mechmachtheory.2018.10.011
    [10] 王震林. 弹性环式挤压油膜阻尼器动力学特性研究[D]. 哈尔滨: 哈尔滨工业大学,2019. WANG Zhenlin. Research on the dynamic characteristics of elastic ring squeeze film damper[D]. Harbin: Harbin Institute of Technology,2019. (in Chinese

    WANG Zhenlin. Research on the dynamic characteristics of elastic ring squeeze film damper[D]. Harbin: Harbin Institute of Technology, 2019. (in Chinese)
    [11] ZHANG W,DING Q. A new method for computing the deformation of elastic ring inside the elastic ring squeeze film damper[C]// Abstracts of the 15th National Conference on Nonlinear Vibration and the 12th National Conference on Nonlinear Dynamics and Motion Stability. Tianjin: Chinese Society of Vibration Engineering,2015: 2.
    [12] 洪杰,邓吟,张大义. 弹性环式挤压油膜阻尼器动力设计方法[J]. 北京航空航天大学学报,2006,32(6): 649-653. HONG Jie,DENG Yin,ZHANG Dayi. Dynamic design method of elastic ring squeeze film damper[J]. Journal of Beijing University of Aeronautics and Astronautics,2006,32(6): 649-653. (in Chinese doi: 10.3969/j.issn.1001-5965.2006.06.006

    HONG Jie, DENG Yin, ZHANG Dayi. Dynamic design method of elastic ring squeeze film damper[J]. Journal of Beijing University of Aeronautics and Astronautics, 2006, 32(6): 649-653. (in Chinese) doi: 10.3969/j.issn.1001-5965.2006.06.006
    [13] 周海仑,张晨帅,艾延廷,等. 弹性环式挤压油膜阻尼器的流固耦合建模及动力特性分析[J]. 机械工程学报,2020,56(20): 195-205. ZHOU Hailun,ZHANG Chenshuai,AI Yanting,et al. Study on dynamic characteristics and modeling of elastic ring squeeze film damper based on fluid-structure interaction[J]. Journal of Mechanical Engineering,2020,56(20): 195-205. (in Chinese doi: 10.3901/JME.2020.20.195

    ZHOU Hailun, ZHANG Chenshuai, AI Yanting, et al. Study on dynamic characteristics and modeling of elastic ring squeeze film damper based on fluid-structure interaction[J]. Journal of Mechanical Engineering, 2020, 56(20): 195-205. (in Chinese) doi: 10.3901/JME.2020.20.195
    [14] ZHANG Wei,DING Qian. Elastic ring deformation and pedestal contact status analysis of elastic ring squeeze film damper[J]. Journal of Sound and Vibration,2015,346: 314-327. doi: 10.1016/j.jsv.2015.02.015
    [15] 何洪,王世琥,王连群,等. 弹性环阻尼器对涡轮增压器转子动力性能影响研究[J]. 车用发动机,2016(4): 70-74,81. HE Hong,WANG Shihu,WANG Lianqun,et al. Influence of elastic ring damper on power performance of turbocharger rotor[J]. Vehicle Engine,2016(4): 70-74,81. (in Chinese doi: 10.3969/j.issn.1001-2222.2016.04.013

    HE Hong, WANG Shihu, WANG Lianqun, et al. Influence of elastic ring damper on power performance of turbocharger rotor[J]. Vehicle Engine, 2016(4): 70-74, 81. (in Chinese) doi: 10.3969/j.issn.1001-2222.2016.04.013
    [16] 王震林,刘占生,徐宁,等. 基于双向流固耦合弹性环式挤压油膜阻尼器建模及动力学特性研究[J]. 汽轮机技术,2020,62(1): 1-5. WANG Zhenlin,LIU Zhansheng,XU Ning,et al. Modeling and dynamic characteristic investigation of elastic ring squeeze film damper by fluid-structure interaction approach[J]. Turbine Technology,2020,62(1): 1-5. (in Chinese

    WANG Zhenlin, LIU Zhansheng, XU Ning, et al. Modeling and dynamic characteristic investigation of elastic ring squeeze film damper by fluid-structure interaction approach[J]. Turbine Technology, 2020, 62(1): 1-5. (in Chinese)
    [17] 曹磊,高德平,江和甫. 弹性环式挤压油膜阻尼器减振机理初探[J]. 振动工程学报,2007,20(6): 584-588. CAO Lei,GAO Deping,JIANG Hefu. Damping machanism of elastic ring squeeze film damper[J]. Journal of Vibration Engineering,2007,20(6): 584-588. (in Chinese doi: 10.3969/j.issn.1004-4523.2007.06.006

    CAO Lei, GAO Deping, JIANG Hefu. Damping machanism of elastic ring squeeze film damper[J]. Journal of Vibration Engineering, 2007, 20(6): 584-588. (in Chinese) doi: 10.3969/j.issn.1004-4523.2007.06.006
    [18] 周明,李其汉,晏砺堂. 弹性环式挤压油膜阻尼器油膜力特性研究[J]. 燃气涡轮试验与研究,1998,11(3): 17-23. ZHOU Ming,LI Qihan,YAN Litang. Study on oil film force characteristics of elastic ring squeeze oil film damper[J]. Gas Turbine Experiment and Research,1998,11(3): 17-23. (in Chinese

    ZHOU Ming, LI Qihan, YAN Litang. Study on oil film force characteristics of elastic ring squeeze oil film damper[J]. Gas Turbine Experiment and Research, 1998, 11(3): 17-23. (in Chinese)
    [19] 康召辉,任兴民,王鸷. 弹性环式挤压油膜系统新的三维动力学模型[J]. 机械强度,2009,31(6): 892-895. KANG Zhaohui,REN Xingmin,WANG Zhi. New dynamic model of the 3d squeeze film system with a floating ring[J]. Journal of Mechanical Strength,2009,31(6): 892-895. (in Chinese doi: 10.3321/j.issn:1001-9669.2009.06.005

    KANG Zhaohui, REN Xingmin, WANG Zhi. New dynamic model of the 3d squeeze film system with a floating ring[J]. Journal of Mechanical Strength, 2009, 31(6): 892-895. (in Chinese) doi: 10.3321/j.issn:1001-9669.2009.06.005
    [20] ZHAO Lu,LIAO Mingfu,NIU Jihui. Investigation on steady state unbalance response of rotor with elastic ring squeeze film damper[J]. IOP Conference Series: Materials Science and Engineering,2020,751(1): 012043. doi: 10.1088/1757-899X/751/1/012043
