不同瓦块分布位置下多叶动压气体轴承的动态特性研究

陈阳; 吴垚; 张功学; 赵志明; 史少斌

doi:10.13224/j.cnki.jasp.20220647

不同瓦块分布位置下多叶动压气体轴承的动态特性研究

doi: 10.13224/j.cnki.jasp.20220647

陕西科技大学机电工程学院，西安 710021

基金项目: 国家自然科学基金（51305246）；西安科学技术局高校院所人才服务企业项目（23GXFW0006）；陕西省2022年自然科学基础研究计划一般项目（2022JQ-002）；陕西科技大学引进人才博士启动基金（2021BJ-11）

详细信息

作者简介:
陈阳（1996-），男，硕士生，主要从事气体滑动轴承动压润滑理论研究

通讯作者:
吴垚（1989-），男，讲师，博士，主要从事流体润滑理论和轴承-转子系统动力学研究。E-mail：1696199213@qq.com

中图分类号: V219
计量
- 文章访问数: 424
- HTML浏览量: 290
- PDF量: 23
- 被引次数: 0
出版历程
- 收稿日期: 2022-09-02
- 网络出版日期: 2025-05-19

Analysis on dynamic characteristics of multi-leaf aerodynamic bearing under different pad distribution

College of Mechanical and Electrical Engineering，Shaanxi University of Science and Technology，Xi’an 710021，China

摘要

摘要:
多叶动压气体滑动轴承因其高转速、高精度和低磨损等优点广泛应用在高速旋转机械中。本文联合偏导数法和有限差分法（FDM）求解气体可压缩Reynolds方程，计算了三叶动压气体轴承的动态特性，探究了轴颈扰动频率、偏心率、长径比及瓦块分布位置等参数对轴承动态特性的影响。研究表明：轴承的正交刚度和阻尼系数随偏心率、长径比和预负荷系数的增大而增大，正交刚度系数随轴承数和轴颈扰动频率的增加而增大，而正交阻尼系数呈现出相反的变化趋势，在瓦上承载方式下正交刚度（K_yy）和正交阻尼（D_xx）均大于瓦间承载，瓦上承载方式下正交刚度（K_xx）和正交阻尼（D_yy）均小于瓦间承载。
- 多叶气体轴承 /
- 动态Reynolds方程 /
- 动态性能 /
- 偏导数法 /
- 有限差分法
Abstract:
Multi-leaf hydrodynamic gas journal bearing is widely used in high-speed rotating machinery due to their advantages of high speed, high precision, and low wear. The partial derivative method and finite difference method (FDM) were used to solve the gas compressible Reynolds equation, the dynamic characteristics coefficient of the three-leaf aerodynamic bearing was calculated, and the influences of journal disturbance frequency, eccentricity, length diameter ratio and pad distribution position on the dynamic coefficient were discussed in detail. Research showed that the orthogonal stiffness and damping coefficient of the bearing increased with the rise of eccentricity ratio, length-diameter ratio and preload factor. As the bearing number and journal disturbance frequency rose, the orthogonal stiffness coefficient improved significantly, while the orthogonal damping coefficient showed the opposite trend, with the load on pad, the orthogonal stiffness (K_yy) and orthogonal damping (D_xx) were larger than load between pad, the orthogonal stiffness (K_xx) and orthogonal damping (D_yy) of the load on pad were smaller than load between pad.
- multi-leaf gas bearing /
- dynamic Reynolds equation /
- dynamic performance /
- partial derivative method /
- finite difference method

HTML

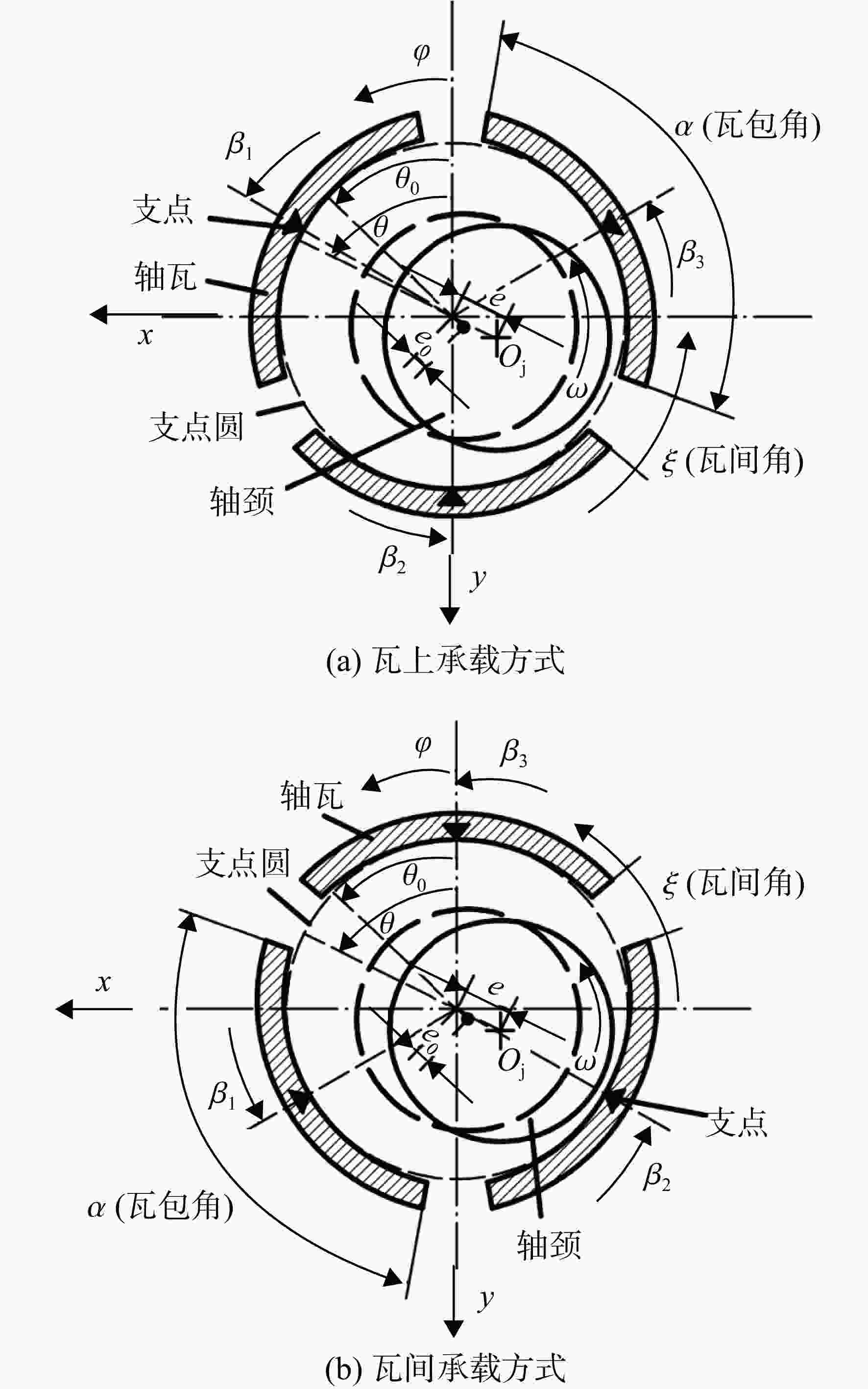

图 1 轴颈小扰动下三叶气体滑动轴承构造

Figure 1. Illustration of a three-lobed aerodynamic journal bearing with minor journal displacement

下载: 全尺寸图片幻灯片

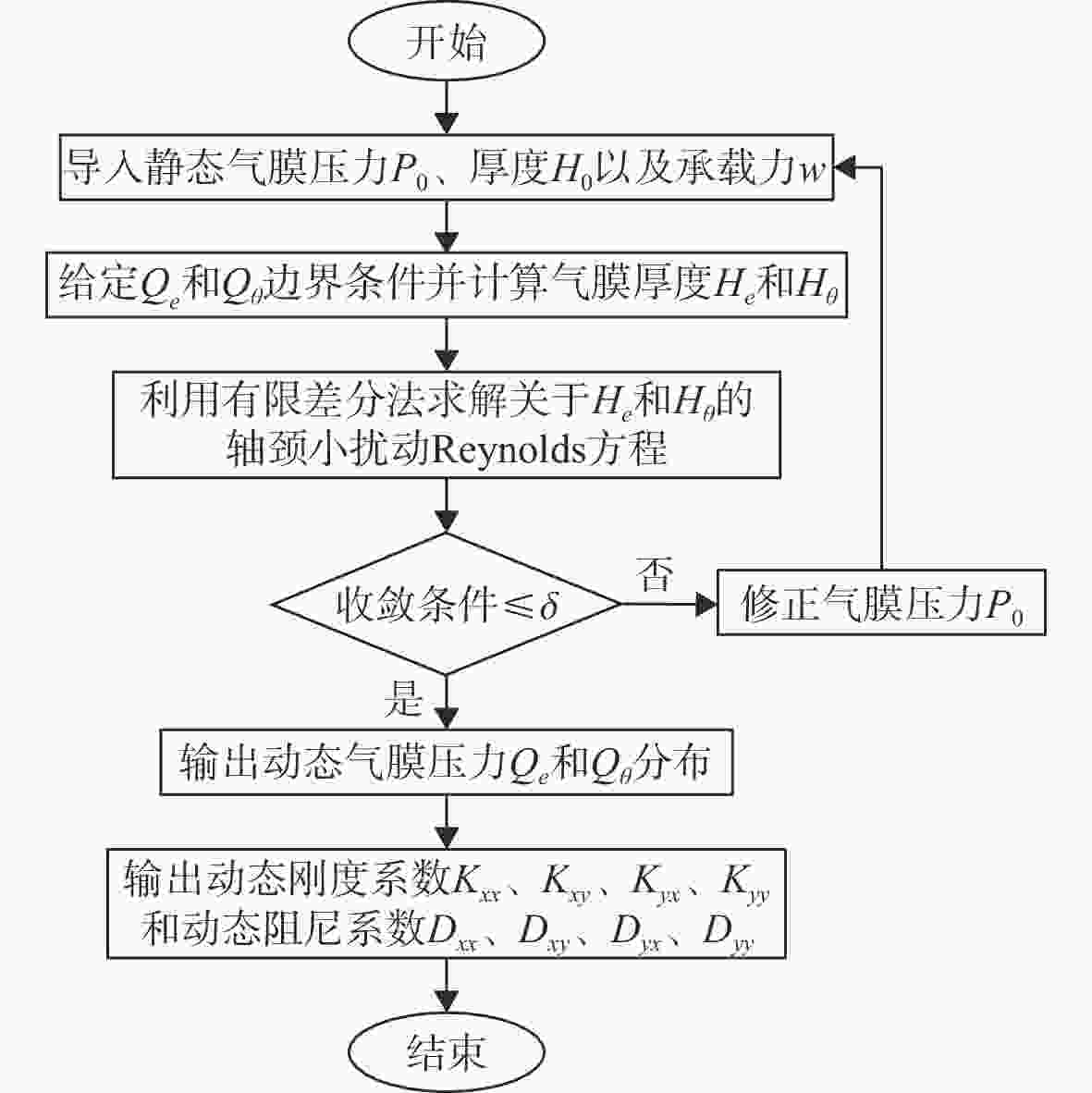

图 2 动态系数求解流程

Figure 2. Calculation flowchart of dynamic characteristic coefficient

下载: 全尺寸图片幻灯片

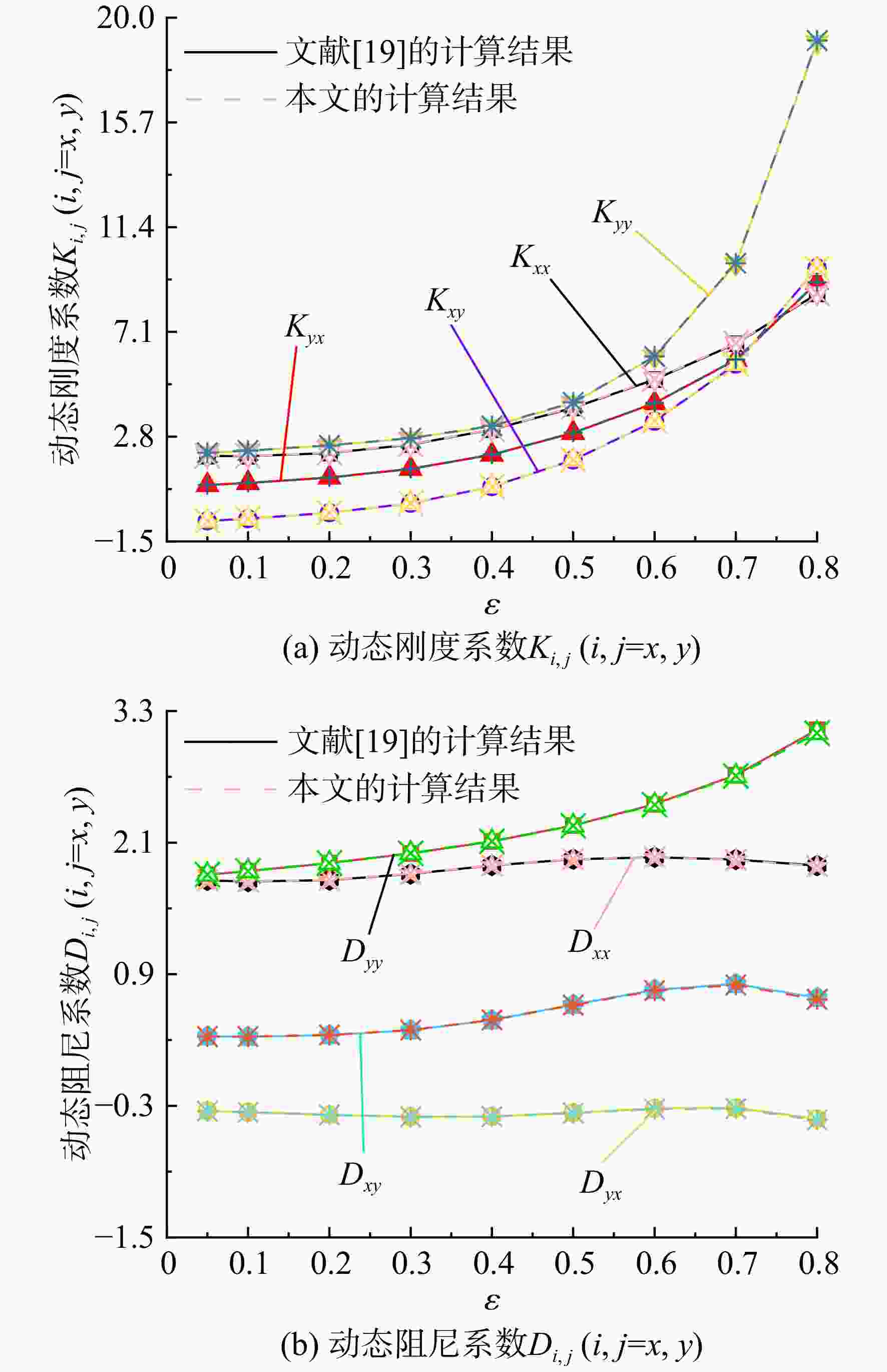

图 3 计算结果对比

Figure 3. Comparison of calculation results

下载: 全尺寸图片幻灯片

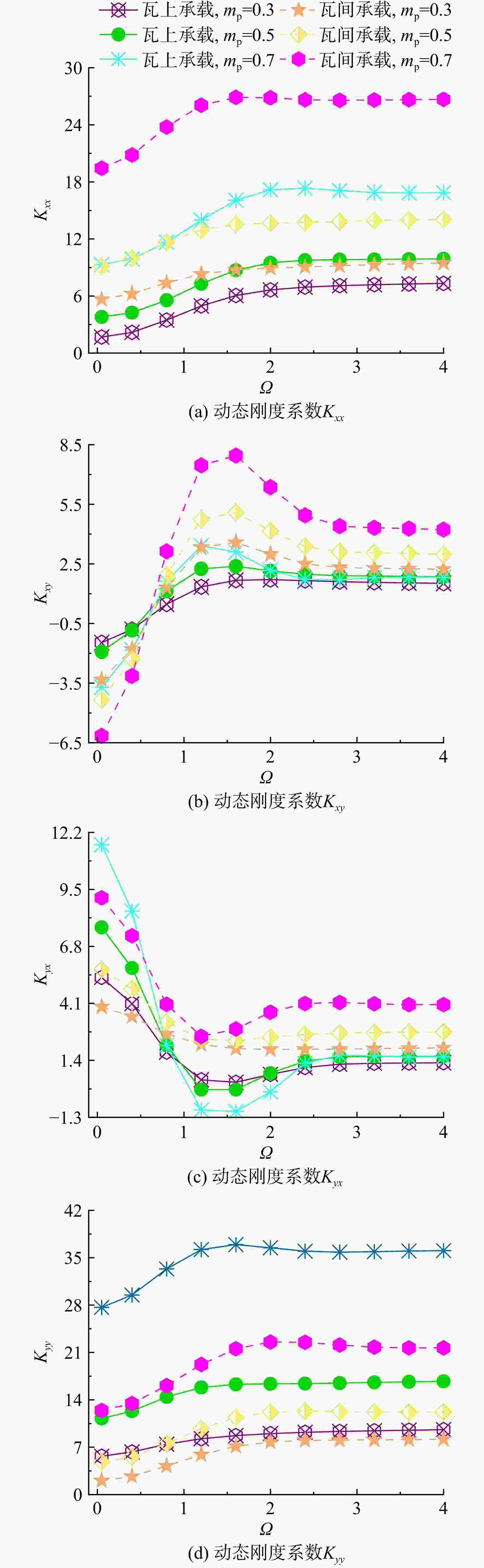

图 4 Ω和m_p对动态刚度系数的影响（Λ=4，L/D=1，ε=0.6）

Figure 4. Influence of Ω and m_p on the dynamic stiffness coefficient （Λ=4，L/D=1，ε=0.6）

下载: 全尺寸图片幻灯片

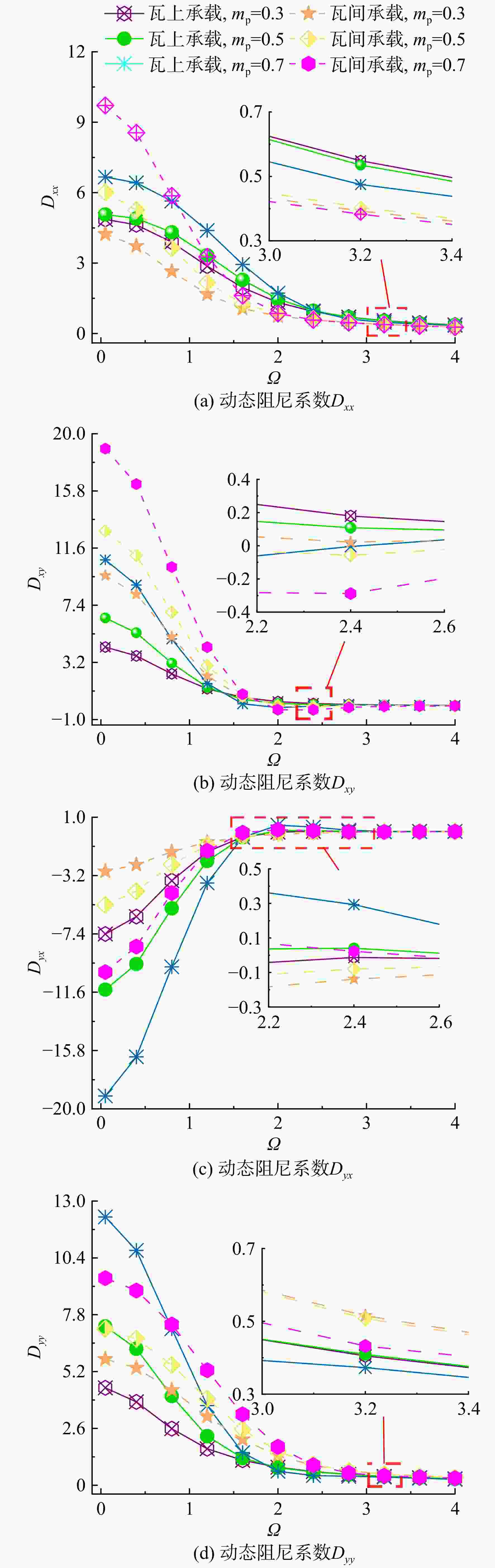

图 5 Ω和m_p对动态阻尼系数的影响（Λ=4，L/D=1，ε=0.6）

Figure 5. Influence of Ω and m_p on the dynamic damping coefficient （Λ=4，L/D=1，ε=0.6）

下载: 全尺寸图片幻灯片

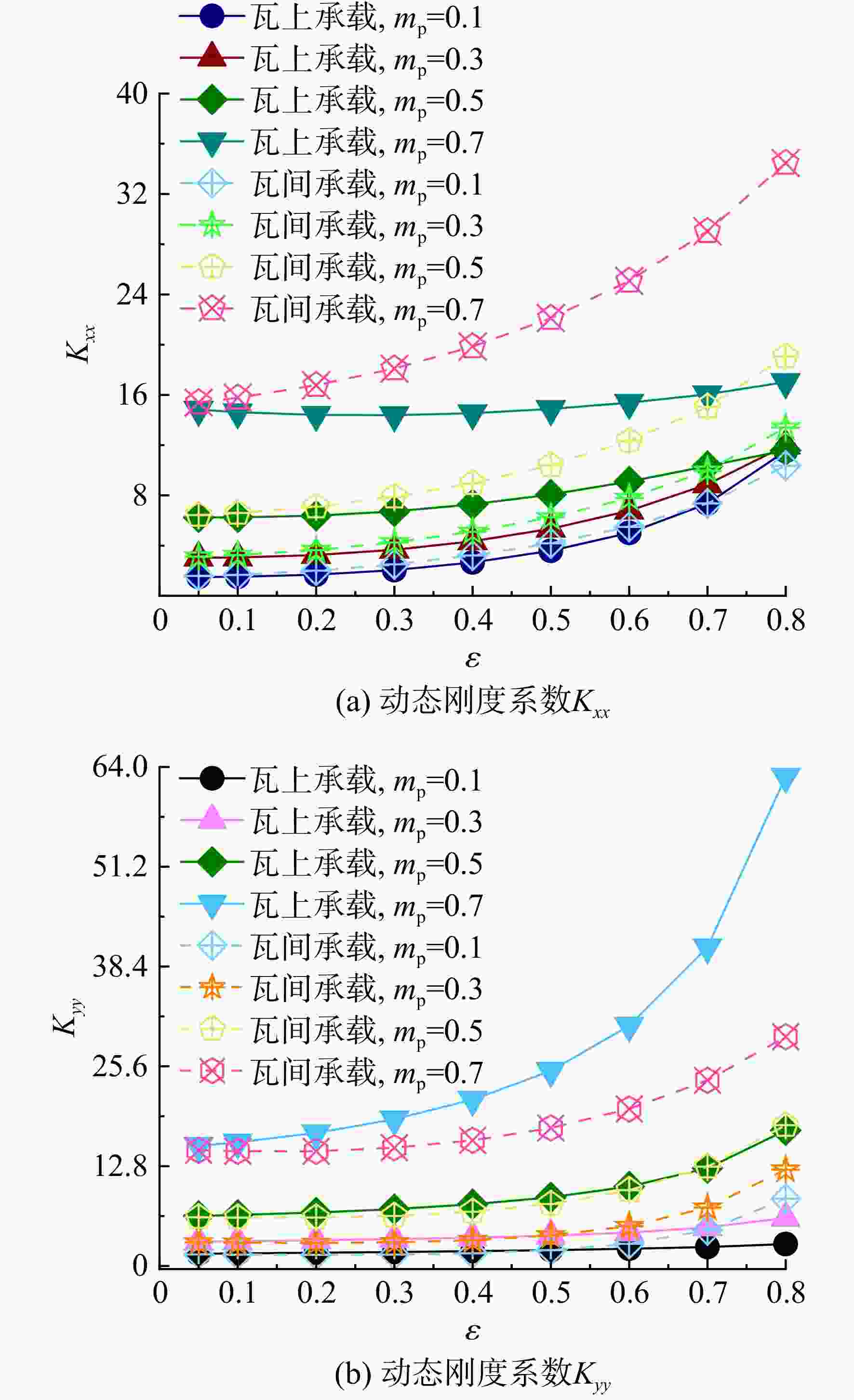

图 6 偏心率和预负荷对动态刚度系数的耦合作用机制分析（Λ=0.7，L/D=1.5，Ω=2）

Figure 6. Analysis of the coupling mechanism between eccentricity and preload on dynamic stiffness coefficient（Λ=0.7，L/D=1.5，Ω=2）

下载: 全尺寸图片幻灯片

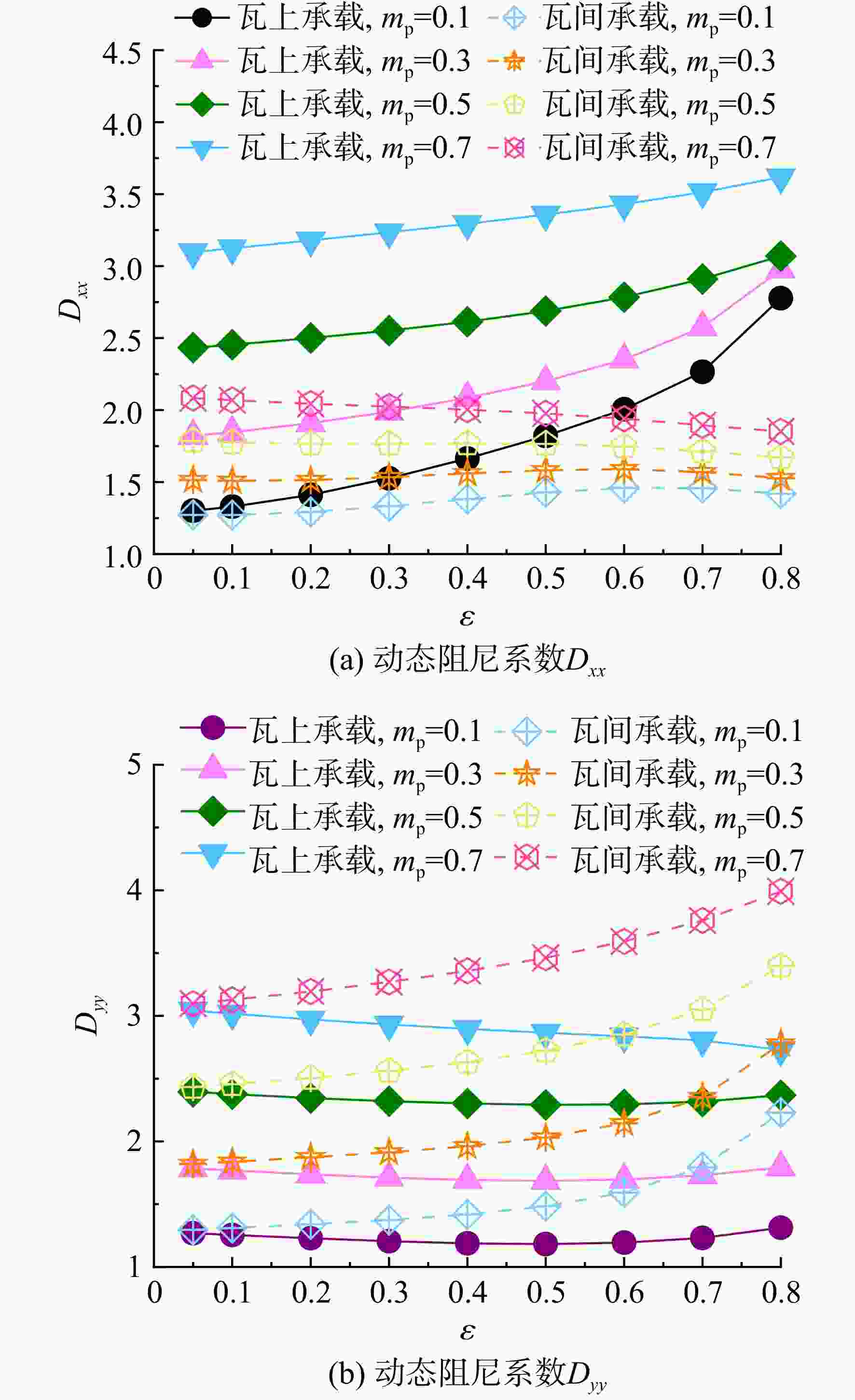

图 7 ε和m_p对动态阻尼系数的影响（Λ=0.7，L/D=1.5，Ω=2）

Figure 7. Influence of ε and m_p on the dynamic damping coefficient （Λ=0.7，L/D=1.5，Ω=2）

下载: 全尺寸图片幻灯片

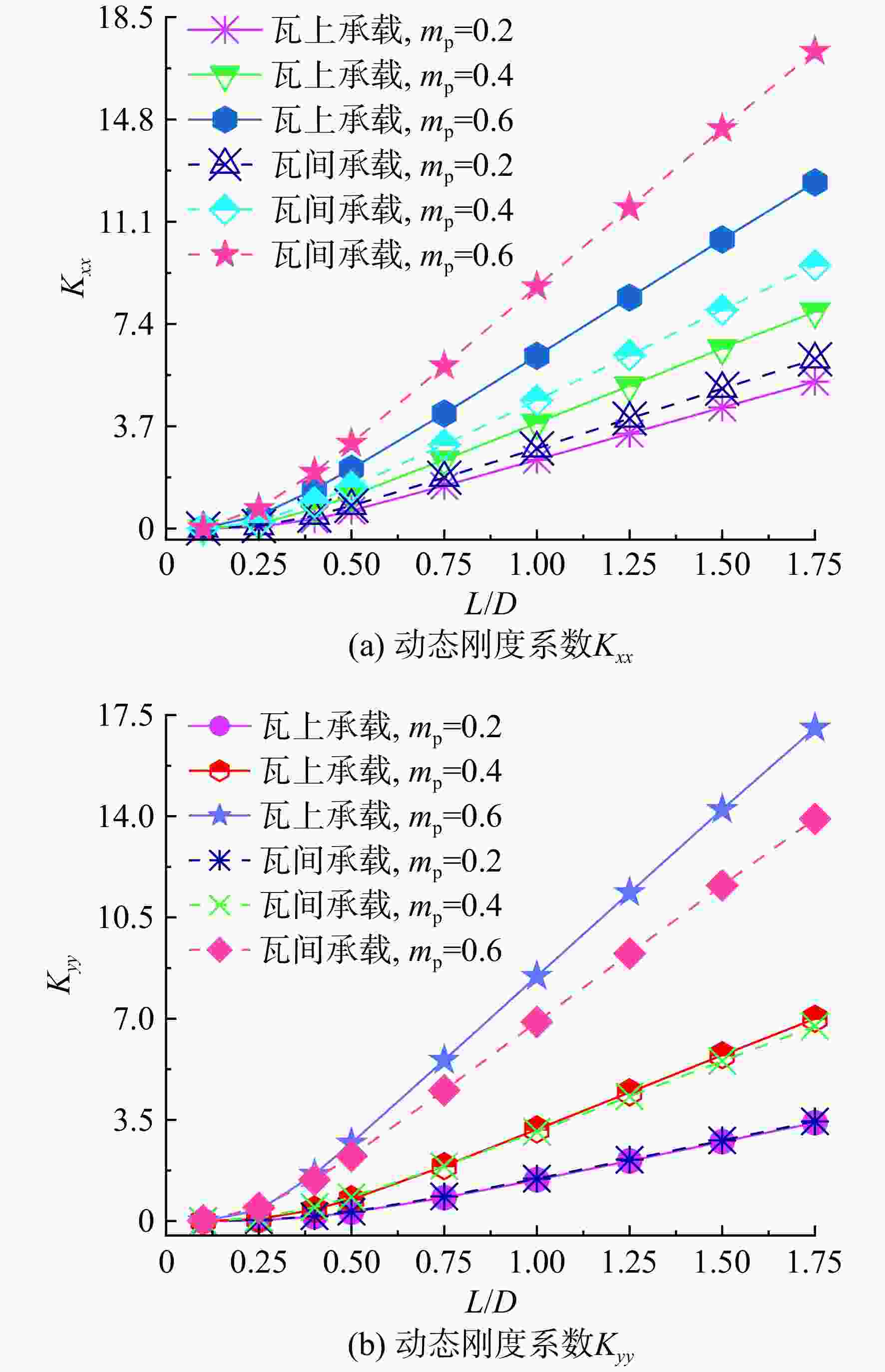

图 8 L/D和m_p对动态刚度系数的影响（Λ=0.6，ε=0.5，Ω=2）

Figure 8. Influence of L/D and m_p on the dynamic stiffness coefficient （Λ=0.6，ε=0.5，Ω=2）

下载: 全尺寸图片幻灯片

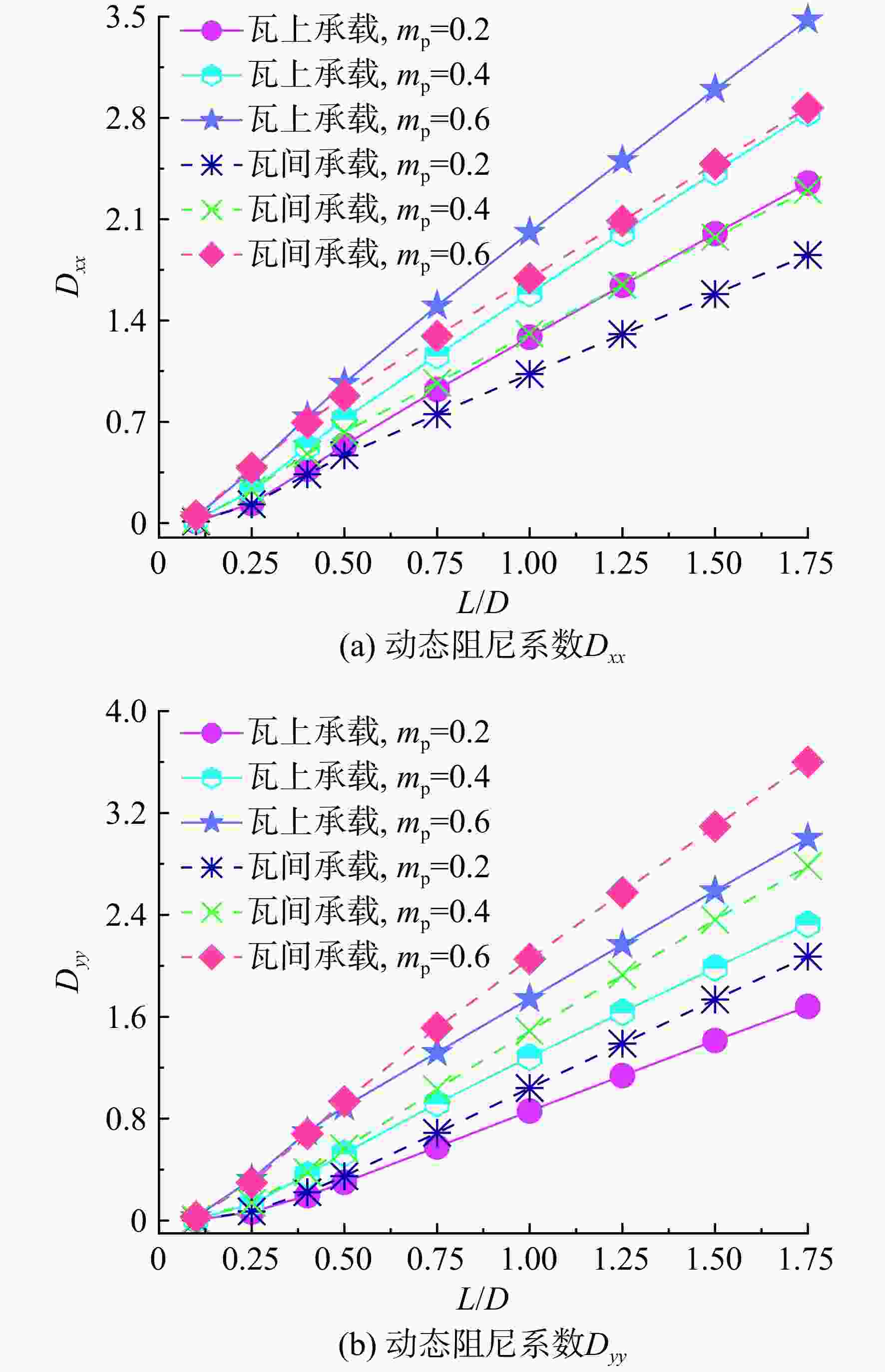

图 9 L/D和m_p对动态阻尼系数的影响（Λ=0.6，ε=0.5，Ω=2）

Figure 9. Influence of L/D and m_p on the dynamic damping coefficient （Λ=0.6，ε=0.5，Ω=2）

下载: 全尺寸图片幻灯片

图 10 m_p和Λ对动态刚度系数的影响（ε=0.6，L/D=1，Ω=2）

Figure 10. Influence of m_p and Λ on the dynamic stiffness coefficient （ε=0.6，L/D=1，Ω=2）

下载: 全尺寸图片幻灯片

图 11 Λ和m_p对动态阻尼系数的影响（ε=0.6，L/D=1，Ω=2）

Figure 11. Influence of Λ and m_p on the dynamic damping coefficient （ε=0.6，L/D=1，Ω=2）

下载: 全尺寸图片幻灯片
