Analysis of inerting index when inerting capability of aircraft fuel tank was degraded
-
摘要:
为明确飞机燃油箱惰能力降级指标，从点燃试验的试验设施、试验结果及不同试验之间结果差异的原因3个方面总结和分析了燃油箱点燃试验的文献，根据文献分析结果将燃油箱的惰化能力分为四个等级，分析发现：试验设施差异、点燃标准不同是不同试验结果存在差异的主要原因；高能点火源试验在燃爆标准、试验影响因素和试验结果方面存在特殊性，其对燃油箱混气惰化能力要求更高；飞机燃油箱的惰化能力会随着混气中氧气浓度的增加而降低，不同燃油箱惰化状态下燃油箱的安全性也存在差别，这种惰化能力的降级同时需要考虑点火源和混气气压的影响。

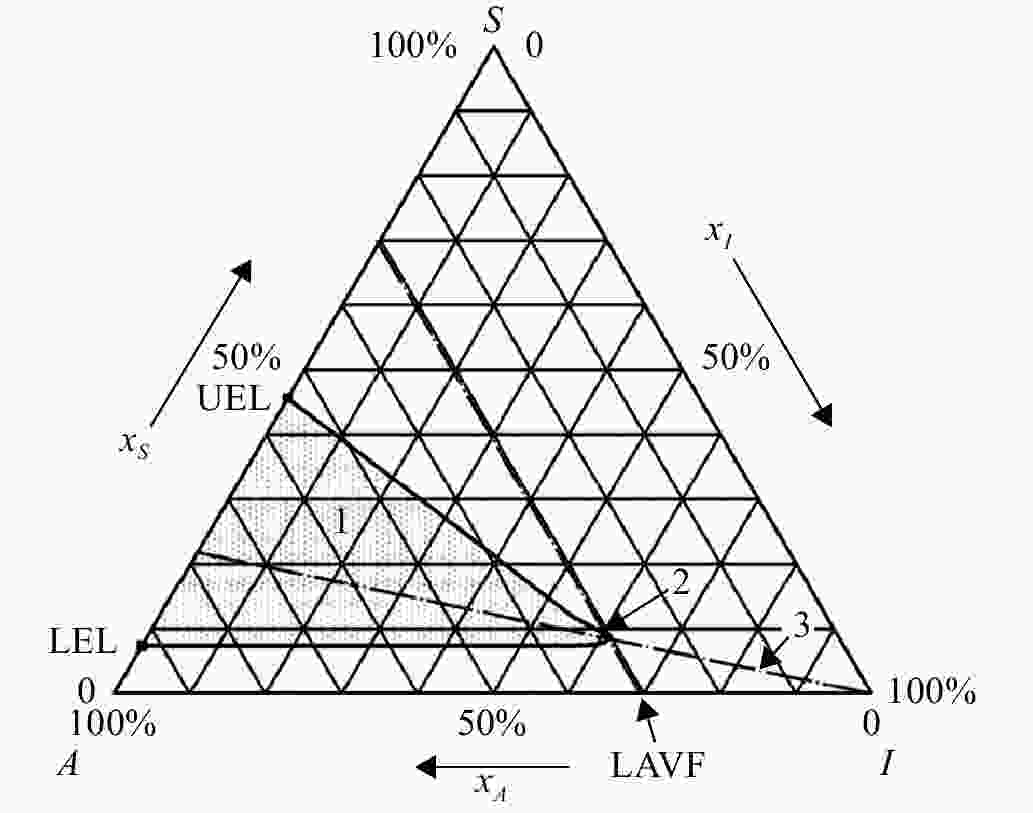

Abstract:In order to clarify the degradation index of the inerting of aircraft fuel tank, some literature of fuel tank ignition test were summarized and analyzed from three aspects: test facilities, test results and the reasons for the differences between different tests. According to the results of literature analysis, the inerting of fuel tank was divided into four grades. It was found that the differences of test facilities and ignition standards were the main reasons for the differences between different test results. The high-energy ignition source test had particularity in the aspects of explosion standard, test effect factors and test results, requiring for higher inerting ability of fuel tank. The inerting capacity of aircraft fuel tank could decrease with the increase of oxygen volume fraction in mixed gas, and the safety of fuel tank varied under different inerting conditions. The degradation of inerting capacity need to consider the effect of ignition source and mixed gas pressure at the same time.
-

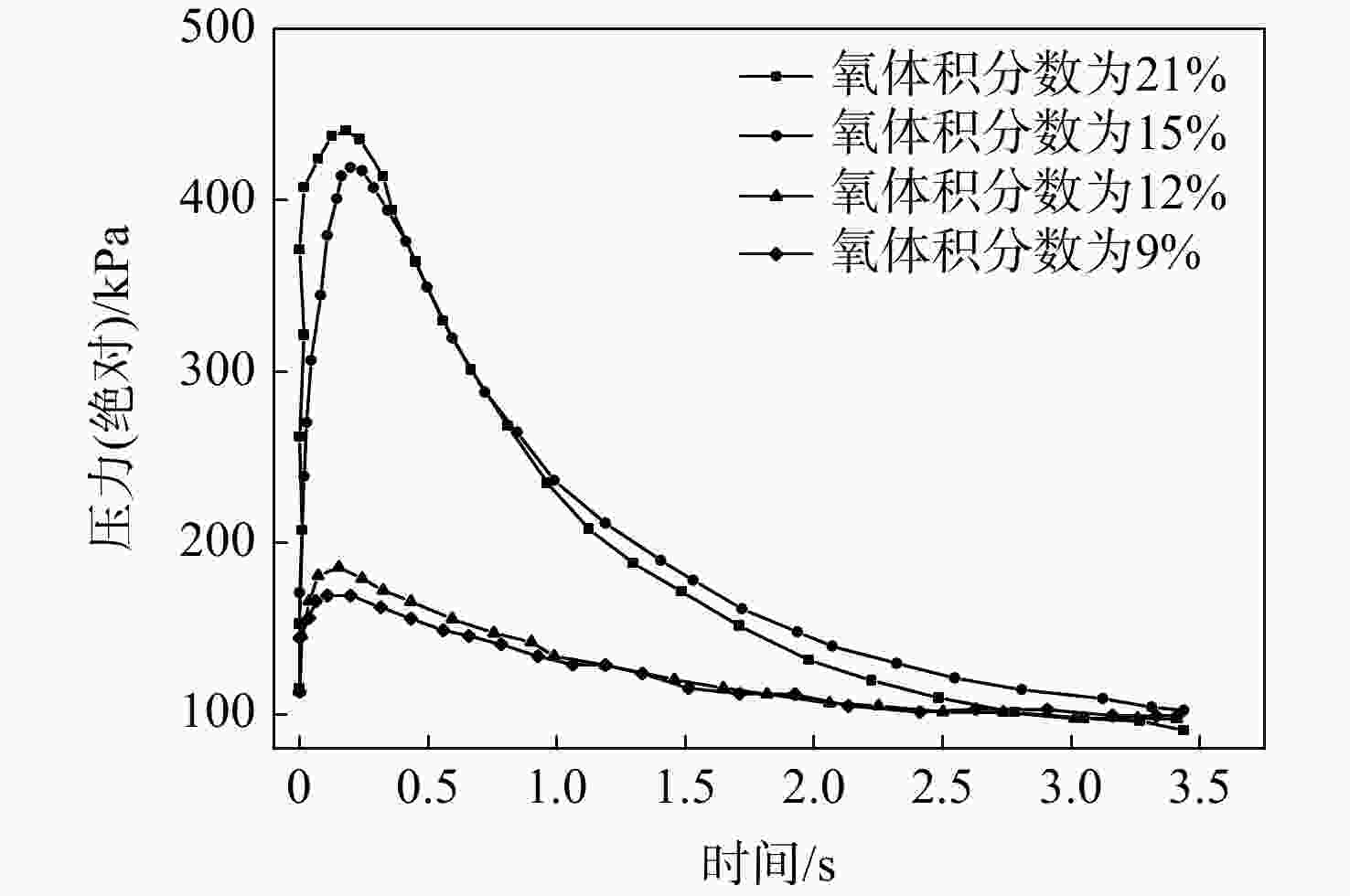

图 6 在30 mm HEI弹击时油箱压力变化
Figure 6. Pressures variation of fuel tank using the 30 mm HEI projectile attack

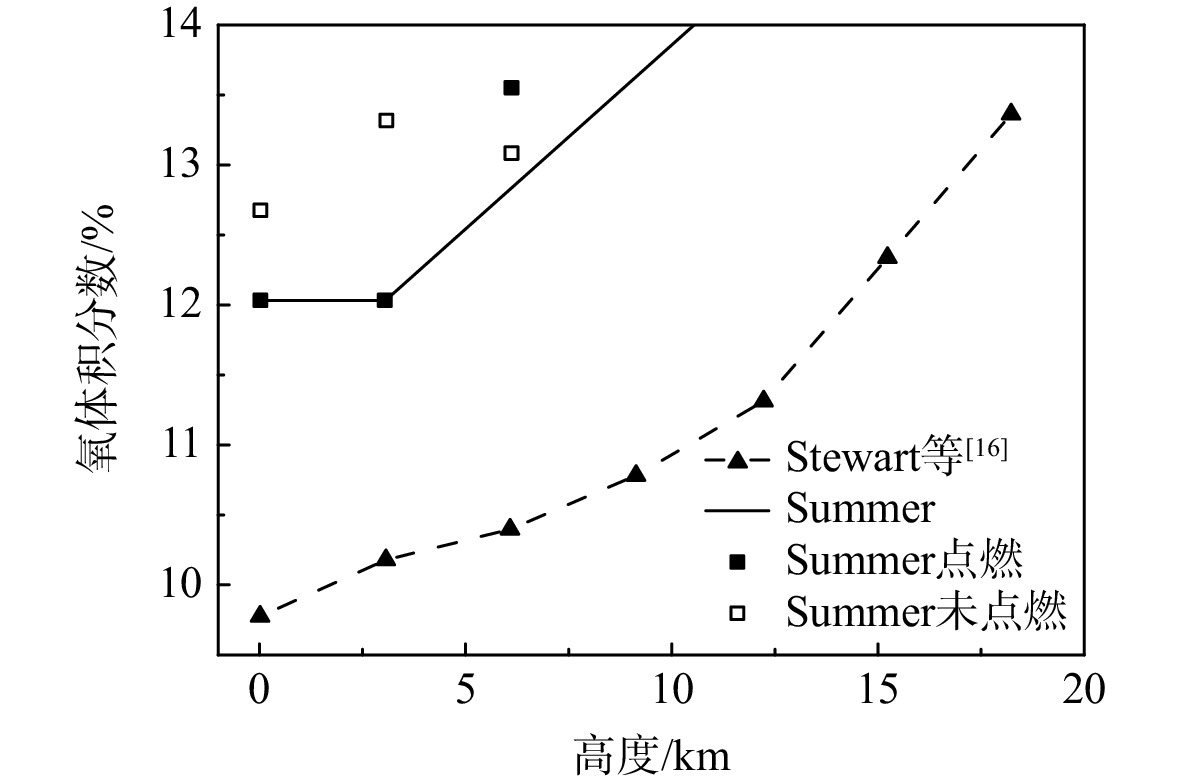

图 7 30 mmHEI弹击时高压条件下氧体积分数影响
Figure 7. Effect of changing oxygen volume fraction when using the 30 mm HEI projectile attack under high pressure condition

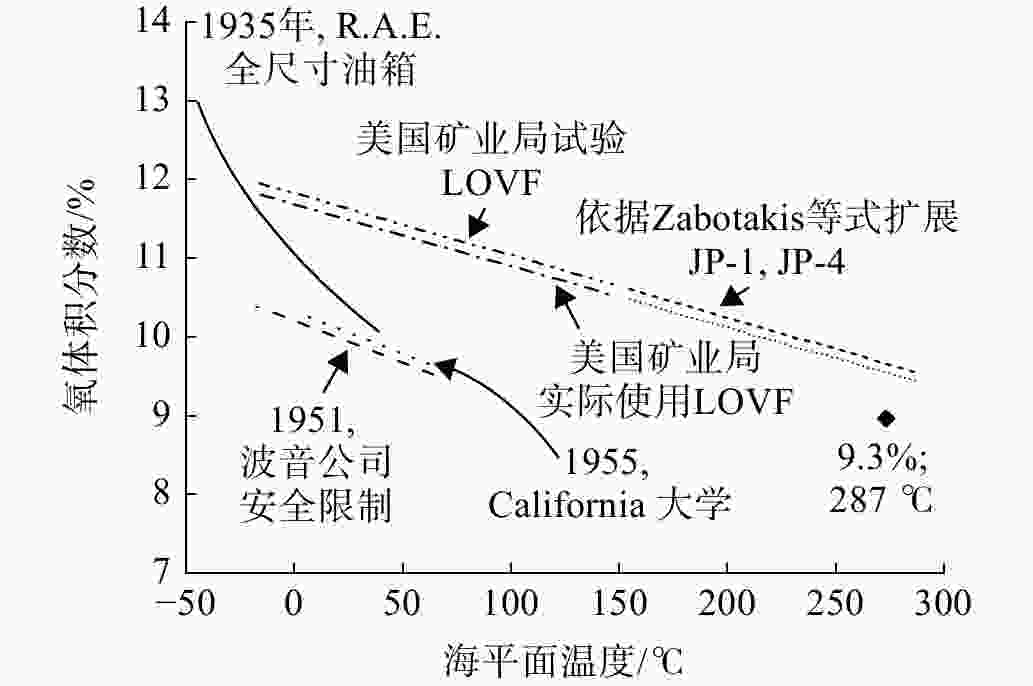

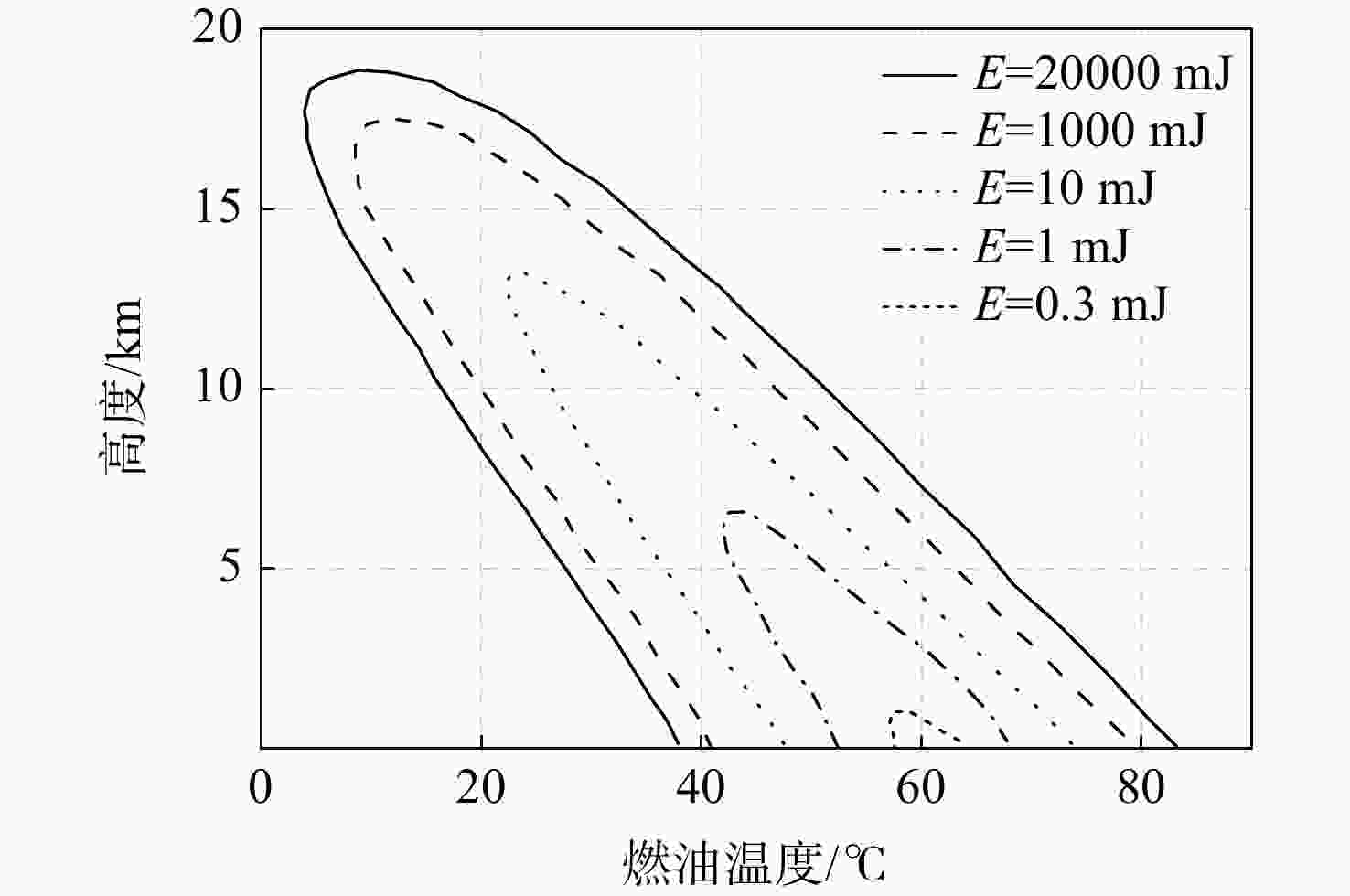

图 8 不同点火源点火的极限氧体积分数试验结果
Figure 8. Test results of limiting oxygen volume fraction for ignition by different ignition sources

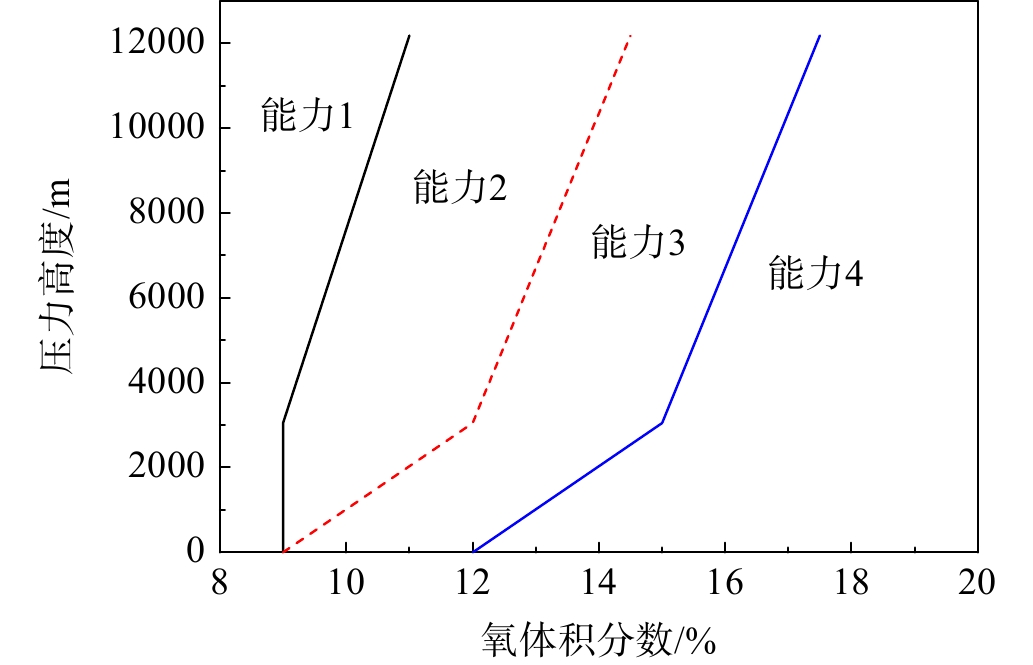

图 10 不同气相空间氧体积分数惰化能力分级
Figure 10. Classification of inerting ability of gaseous space in different oxygen volume fraction

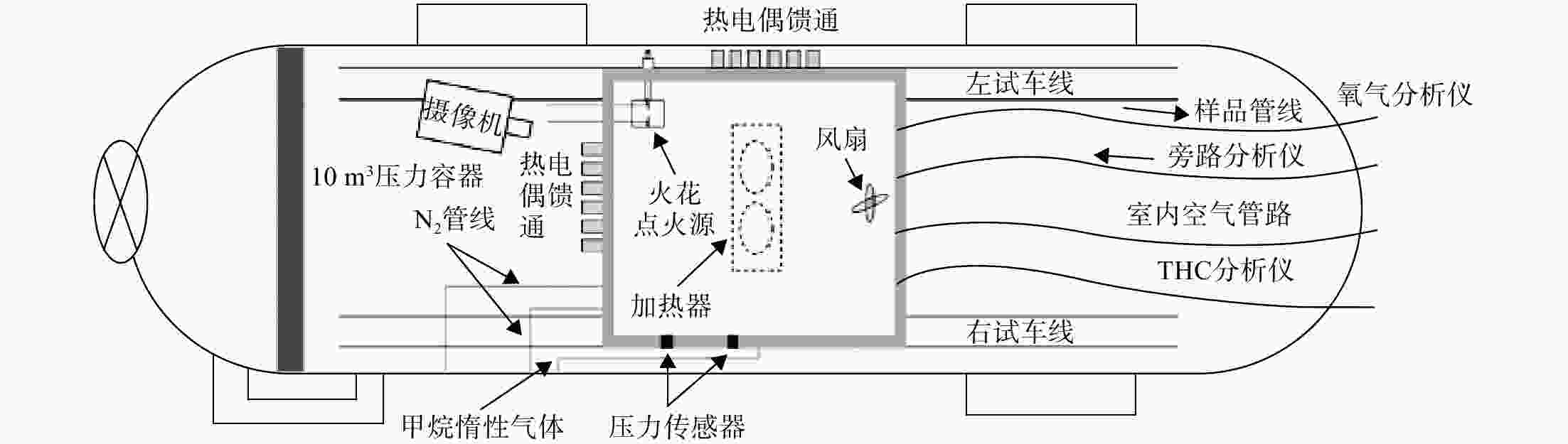

表 1 Tyson 30 mm弹击试验条件
Table 1. Tyson’s 30 mm projectile attack test conditions
不同测试高度下压力/kPa 试验时氧体积分数/% 210（低） 21, 15, 12, 9 196（中） 21, 12 159（高） 21, 12, 9
下载: 导出CSV

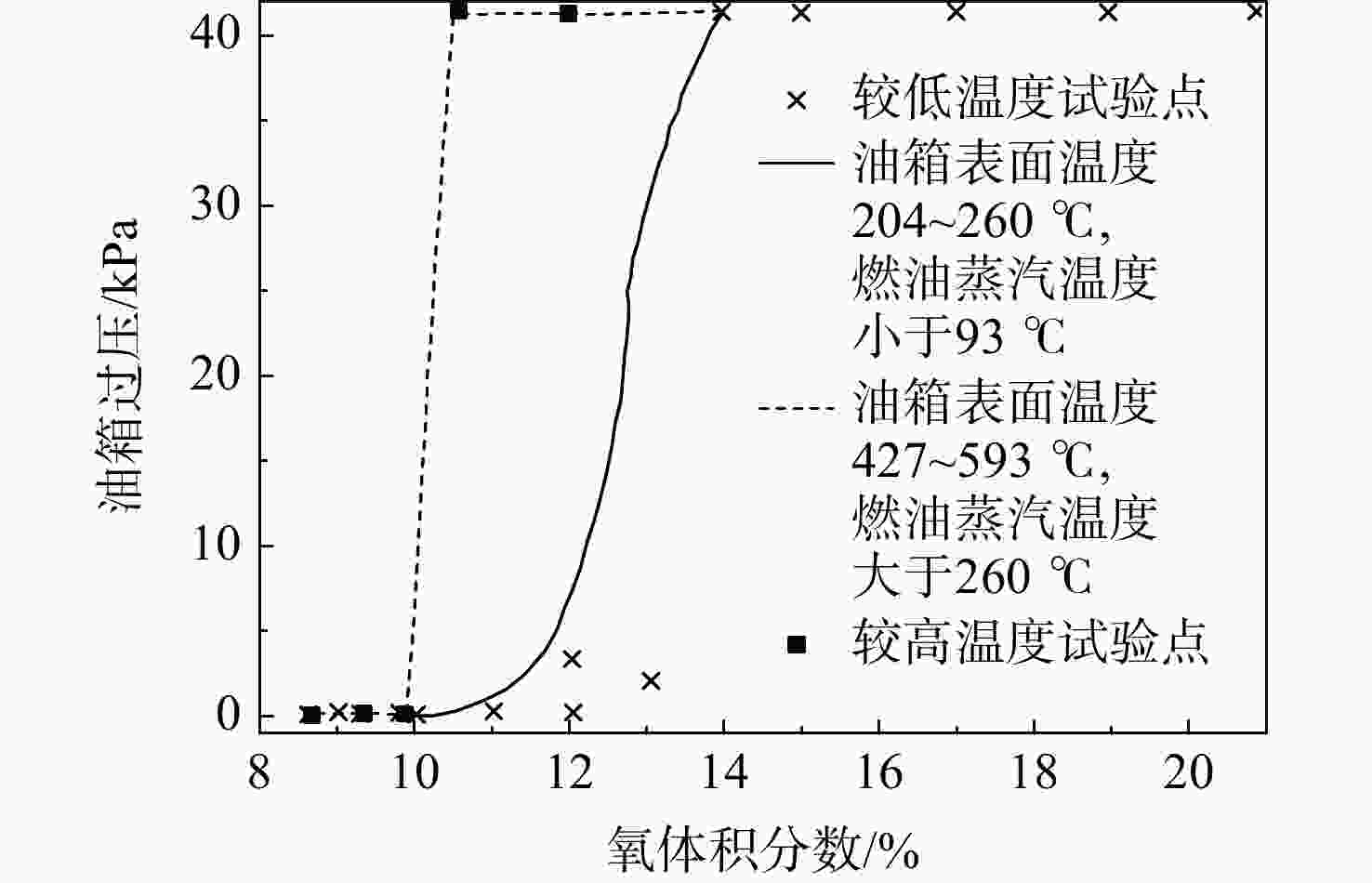

表 2 热表面和火花点火试验结果
Table 2. Test results of hot surface and spark ignition
点火源
类型油箱温度范围/℃ 试验结果 缩比油箱 全尺寸油箱 表面温度 无油空间温度 不发生爆炸的
极限氧体积分数/%不发生反应的
极限氧体积分数/%氧体积分数/% 结果 热表面 <260 <149 18 12.5 21 爆炸 热表面 >260 >149 ≤17 不确定 9 无反应 火花 <260 <149 14 12 15 爆炸 火花 >260 >149 10.4 9.9 9 无反应
下载: 导出CSV
-
[1] 中国民用航空局航空安全办公室. 中国民航航空安全报告(2013年) [R]. 北京: 中国民用航空局, 2014. [2] 孟昭蓉, 杨春生. 世界航空事故汇编[M]. 北京: 中国民用航空, 2002. [3] 张瑞华,刘卫华,刘春阳,等. 运输类飞机燃油箱可燃性适航符合性方法[J]. 航空动力学报,2020,35(5): 1099-1108. doi: 10.13224/j.cnki.jasp.2020.05.021ZHANG Ruihua,LIU Weihua,LIU Chunyang,et al. Flammability and air worthiness compliance method of fuel tank for transport aircraft[J]. Journal of Aerospace Power,2020,35(5): 1099-1108. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.05.021 [4] Aviation Rulemaking Advisory Committee (ARAC). Fuel tank harmonization working group final report[R]. Washington DC: Federal Aviation Administration, ECfthegT1-1231998, 1998. [5] 王慧丹,舒振杰,徐鹏国. 机载燃油惰化技术及标准研究[J]. 航空科学技术,2015,26(5): 18-21.WANG Huidan,SHU Zhenjie,XU Pengguo. Research on technology and standards of onboard inert gas generation system[J]. Aeronautical Scinence & Technology,2015,26(5): 18-21. (in Chinese) [6] 冯诗愚,刘冠男,江荣杰,等. 飞机燃油箱机载惰化技术研究现状与发展趋势[J]. 航空动力学报,2021,36(3): 616-625. doi: 10.13224/j.cnki.jasp.2021.03.017FENG Shiyu,LIU Guannan,JIANG Rongjie,et al. Research status anf development trend of aircraft fuel tank on-board inerting technology[J]. Journal of Aerospace Power,2021,36(3): 616-625. (in Chinese) doi: 10.13224/j.cnki.jasp.2021.03.017 [7] 王震. 飞机燃油箱防爆及抑爆材料应用技术[J]. 航空科学技术,2002(3): 33-35. doi: 10.3969/j.issn.1007-5453.2002.03.010WANG Zhen. Explosion suppression for aircraft fuel tanks and application technology of suppression material[J]. Aeronautical Science and Technology,2002(3): 33-35. (in Chinese) doi: 10.3969/j.issn.1007-5453.2002.03.010 [8] 童升华. 国产燃油理化性能与易燃性研究[D]. 南京: 南京航空航天大学, 2013.TONG Shenghua. Research on physicochemical characteristics & flammability of domestic fuels[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2013. (in Chinese) [9] 周鹏鹤,刘文怡,刘卫华. 飞机燃油箱惰化中样体积分数控制指标分析[J]. 航空动力学报,2020,35(9): 1856-1865.ZHOU Penghe,LIU Wenyi,LIU Weihua. Analysis on oxygen volume fraction control index in aircraft fuel tank inerting[J]. Journal of Aerospace Power,2020,35(9): 1856-1865. (in Chinese) [10] Fuel Flammability Task Group. A review of the flammability hazard of Jet A fuel vapor in civil transport aircraft fuel tanks[R]. Washington DC: Federal Aviation Administration, DOT/FAA/AR- 98/26, 2002. [11] SUMMER S M. Limiting oxygen concentration required to inert jet fuel vapor existing at reduced fuel tank pressures[R]. Washington DC: Federal Aviation Administration, DOT/FAA/AR-04/8, 2004. [12] TYSON J H, BARNES J F. The effectiveness of ullage nitrogen inerting systems against 30 mm high-explosive incendiary projectiles[R]. Washington DC: Naval Weapons Center, NWC TP-7129, 1991. [13] HILL R, JOHSON G R. Investigation of aircraft fuel tank explosions and nitrogen inerting requirements during ground fires[R]. Washington DC: Federal Aviation Administration, FAA Report RD-75-119, 1975. [14] ZINN S V. Inerted fuel tank oxygen concentration requirments[R]. Washington DC: Federal Aviation Administration, FAA Report RD-71-42, 1971. [15] OTT E E, LILLIE R. Influence of fuel slosh upon the effectiveness of nitrogen inerting for aircraft fuel tanks[R]. Washington DC: Air Force Aviation Propulsion Laboratory, AFAPL-TR-70-82, 1971. [16] STEWART P B, STARKMAN E S. Inerting condition for aircraft fuel tanks[R]. Washington DC: Wright Air Development Center, WADC Technical Report No.55-418, 1955. [17] ANDSON C L. Test and evalution of halon 1301 and nitrogen inerting against 23 mm HEI projectiles[R]. Washington DC: Air Force Aviation Propulsion Laboratory, AFFDL-TR-78-66, 1978. [18] NESTOR L. Investigation of turbine fuel flammability within aircraft fuel tanks[R]. Washington DC: Naval Air Propulsion Test Center, Final Report DS-67-7, 1967. -
