Early fault detection of rolling bearings based on self-supervised deep one classification
-
摘要:
针对当前因滚动轴承故障数据难以获取，而导致智能故障诊断模型难以训练的问题，提出一种仅依靠正常类样本进行训练的自监督深度一类分类方法用于滚动轴承早期故障预警。该方法在深度一类分类模型的基础上引入了多任务和自监督机制。采用深度残差网络提取输入信号的深层特征，将所提特征分别作为多个子任务的输入，其中支持向量描述（SVDD）分类子任务的输出结果，作为其余子任务的监督标签，通过所建立的联合损失函数，仅依靠正常类样本即可完成模型的自监督学习。在将所提方法用于滚动轴承故障预警时，先对全寿命周期的振动加速度信号进行频带分解和包络分析，将所得不同频段内的信号进行二维编码后作为网络的输入。在两组实际的滚动轴承故障数据集上对所提的方法进行试验验证。验证结果表明：所提深度一类分类方法在进行故障预警时准确率达到99%以上，充分表明该方法具有很高的故障预警和异常检测能力。
Abstract:At present the intelligent fault diagnosis model is difficult to train due to the difficulty in obtaining the fault data of rolling bearings. A self-supervised deep one-class classification method was proposed for early fault warning of rolling bearings based on the training of normal class samples. Based on the deep one-class classification model, multi-task and self-supervision mechanisms were introduced. Input signal was extracted with the use of the depth of the deep residual network characteristics, and the proposed features were taken respectively as input of more child tasks, including support vector description (SVDD) as the output results of the classification subtasks supervision and label as the rest of the subtasks; through the joint loss function, only relying on normal class samples can complete the model of supervised learning. When the proposed method was applied to the fault warning of rolling bearings, the vibration acceleration signals of the whole life cycle were decomposed by frequency band, and the signals in different frequency bands were encoded as the input of the network. The proposed method was validated on two actual rolling bearing fault data sets. The verification results showed that the accuracy of the proposed depth classification method reached more than 99% in fault warning, which fully indicated that the proposed method has a high ability of fault warning and anomaly detection.
-
Key words:
- deep one classification /
- multitasking /
- self-supervised learning /
- rolling bearing /
- fault diagnosis
-

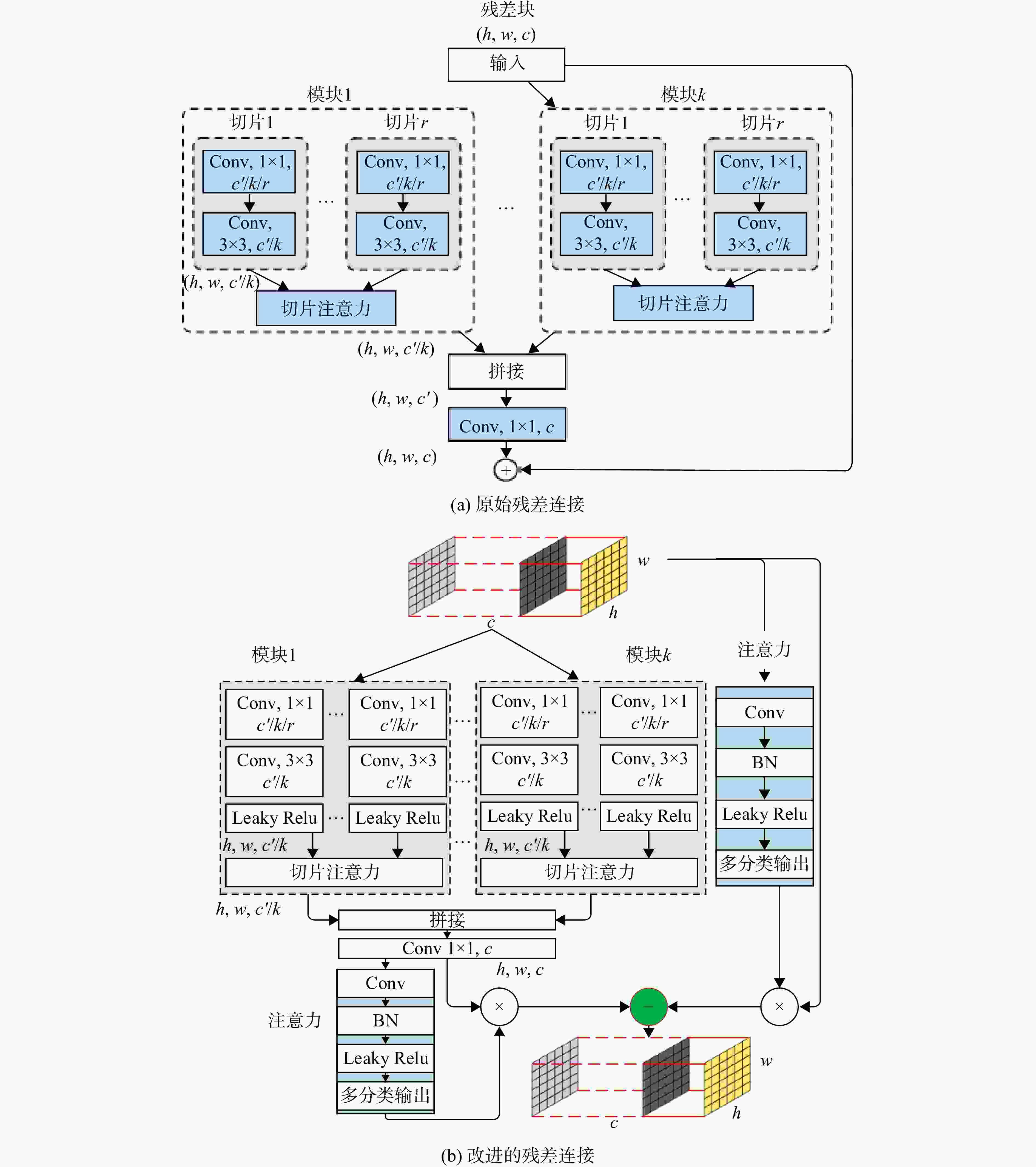

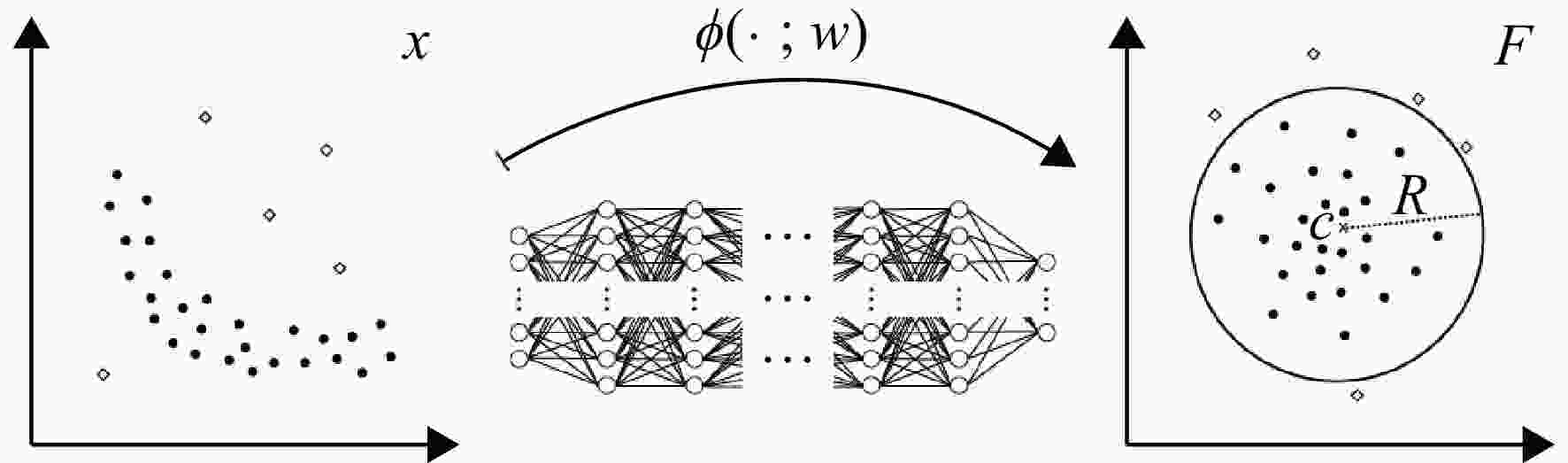

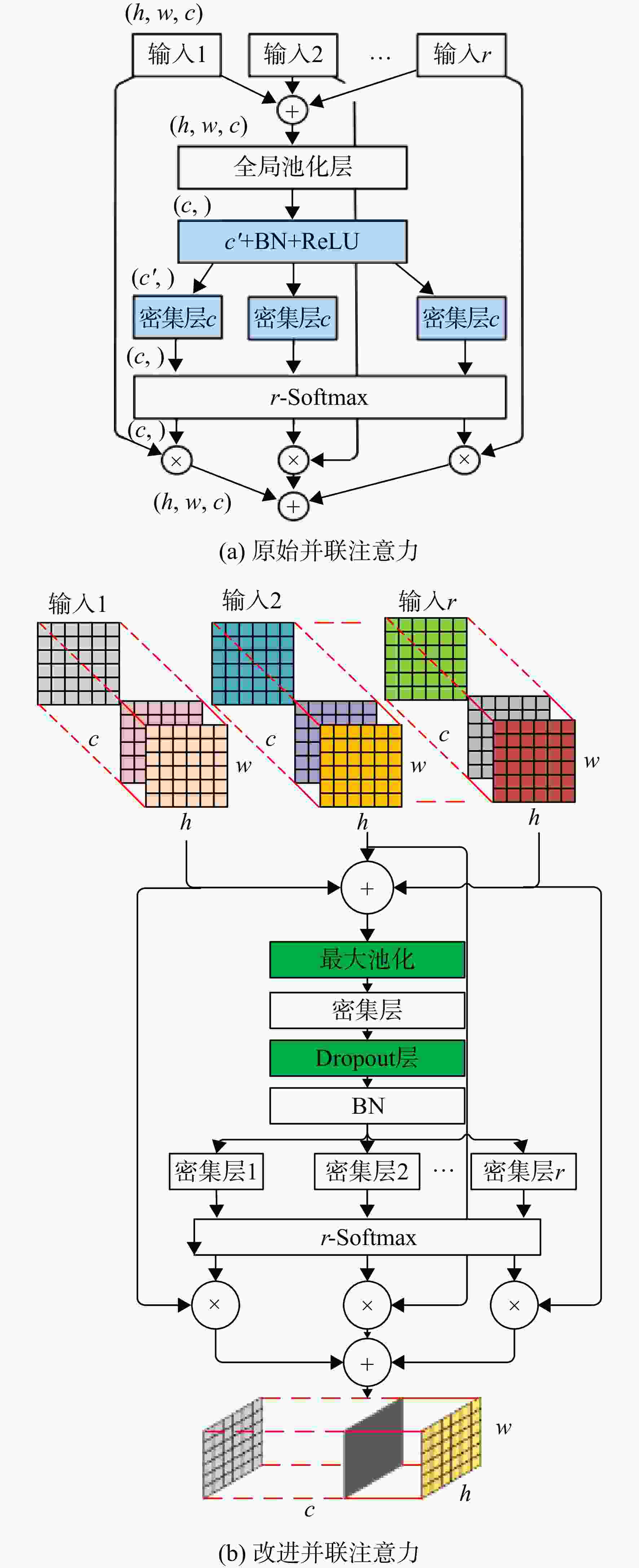

图 2 自监督深度一类分类
Figure 2. Self supervised deep support vector data description （SSDSVDD）

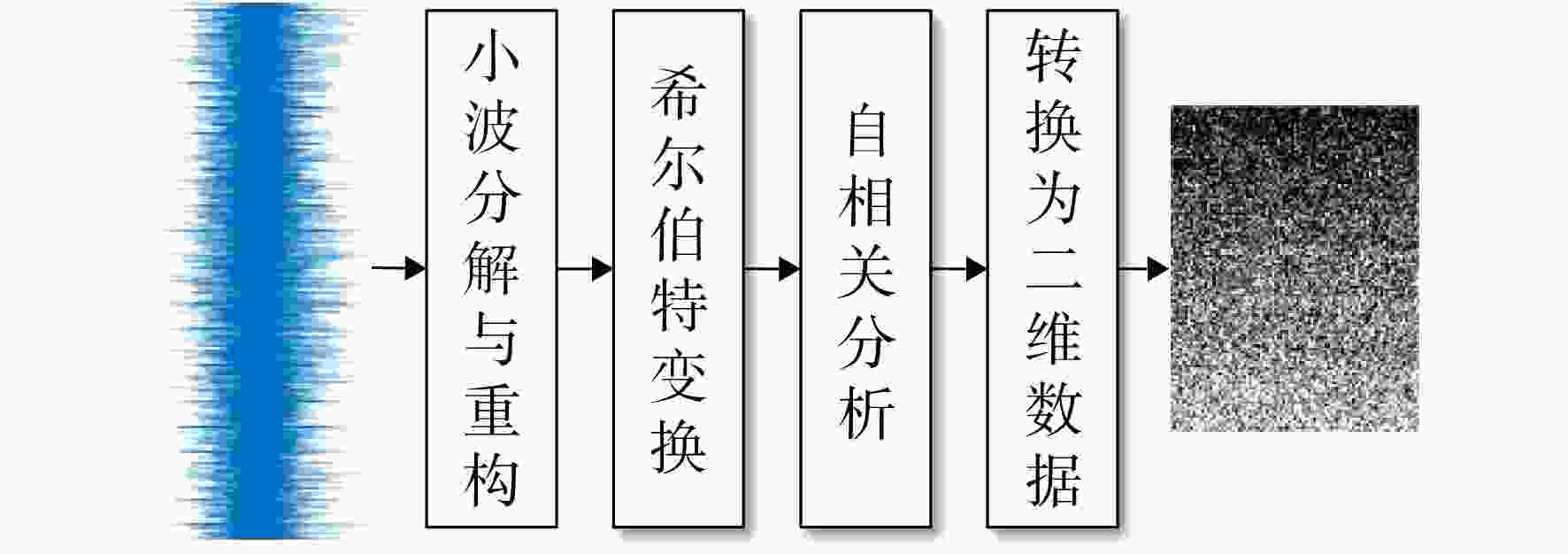

图 6 滚动轴承振动数据预处理流程图
Figure 6. Flow chart of rolling bearing vibration data preprocessing

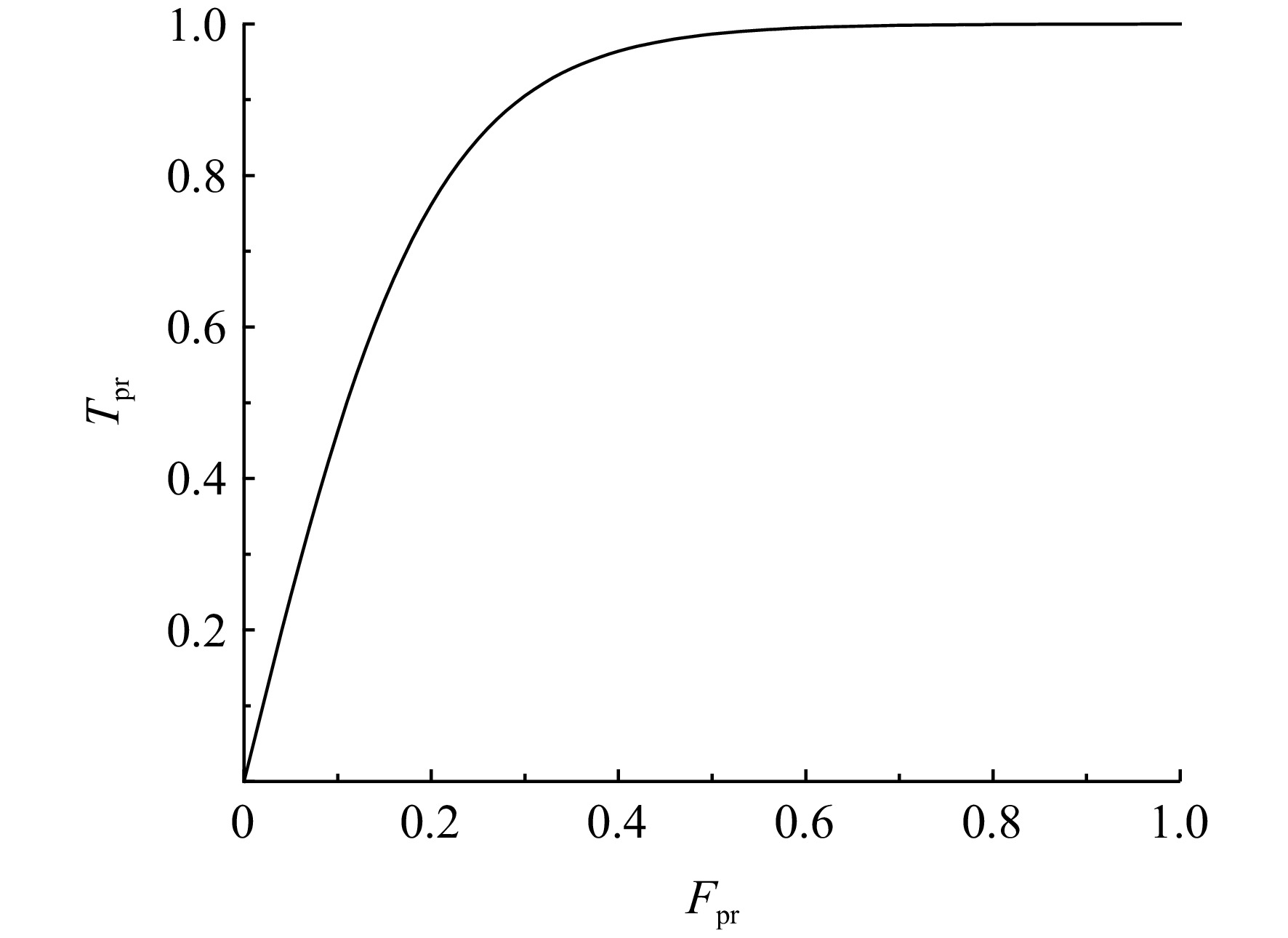

表 1 混淆矩阵
Table 1. Confusion matrix
混淆矩阵 真实类别 0 1 预测
类别0
（负类）TN （真反例） FN （假反例） 1
（正类）FP （假正例） TP （真正例）
下载: 导出CSV
表 2 在Mnist和Cifar-10两种数据集上的对比结果
Table 2. Comparison results of Mnist and CIFAR-10 data sets
正类标签 DSVDD SVDD DCAE KDE ANOGAN OC-NN SSDSVDD 0 98.0±0.7 98.6±0 97.6±0.7 97.1±0 96.6±1.3 97.6±1.7 98.5±1.2 1 99.7±0.1 99.5±0 98.3±0.6 98.9±0 99.6±0.6 99.5±0 99.7±0.1 2 91.7±0.8 82.5±0.1 85.4±2.4 79.0±0 85.0±2.9 97.3±2.1 97.4±1.6 3 91.9±1.5 88.0±0 86.7±0.9 86.2±0 88.7±2.1 86.5±3.9 92.3±0.8 4 94.9±0.8 94.9±0 86.5±2.0 87.9±0 89.4±1.3 93.2±2.4 93.8±0.5 5 88.5±0.9 77.1±0 78.2±2.7 73.8±0 88.3±2.9 86.5±3.3 91.1±1.3 6 98.3±0.5 96.5±0 94.6±0.5 87.6±0 94.7±2.7 97.1±1.4 98.6±1.3 7 94.6±0.9 93.7±0 92.3±1.0 91.4±0 93.5±1.8 93.6±2.1 95.2±2.1 8 93.9±1.6 88.9±0 86.5±1.6 79.2±0 84.9±2.1 88.5±4.7 92.4±0.9 9 96.5±0.3 93.1±0 90.4±1.8 88.2±0 92.4±1.1 93.5±3.3 96.1±1.9 飞机 61.7±4.1 61.6±0.9 59.1±5.1 61.2±0 67.1±2.5 60.4±1.9 73.5±0.3 汽车 65.9±2.1 63.8±0.6 57.4±2.9 64.0±0 54.7±3.4 62.0±2.0 72.1±0.6 鸟 50.8±0.8 50.0±0.5 48.9±2.4 50.0±0 52.9±3.0 63.7±1.4 62.1±0.1 猫 59.1±1.4 55.9±1.3 58.4±1.2 56.4±0 54.5±1.9 53.6±2.1 70.0±0.3 鹿 60.9±1.1 66.0±0.7 54.0±1.3 66.2±0 65.1±3.2 67.4±1.7 67.7±0.2 狗 65.7±2.5 62.4±0.8 62.2±1.8 62.4±0 60.3±2.6 56.1±2.1 69.5±0.1 青蛙 67.7±2.6 74.7±0.3 51.2±5.2 74.9±0 58.5±1.4 63.3±3.0 77.6±0.1 马 67.3±0.9 62.6±0.6 58.6±2.9 62.6±0 62.5±0.8 60.1±2.7 70.2±0.3 船舶 75.9±1.2 74.9±0.4 76.8±1.4 75.1±0 75.8±4.1 64.7±1.6 82.1±0.4 卡车 73.1±1.2 75.9±0.3 67.3±3.0 76.0±0 66.5±2.8 60.3±4.9 79.5±0.3
下载: 导出CSV

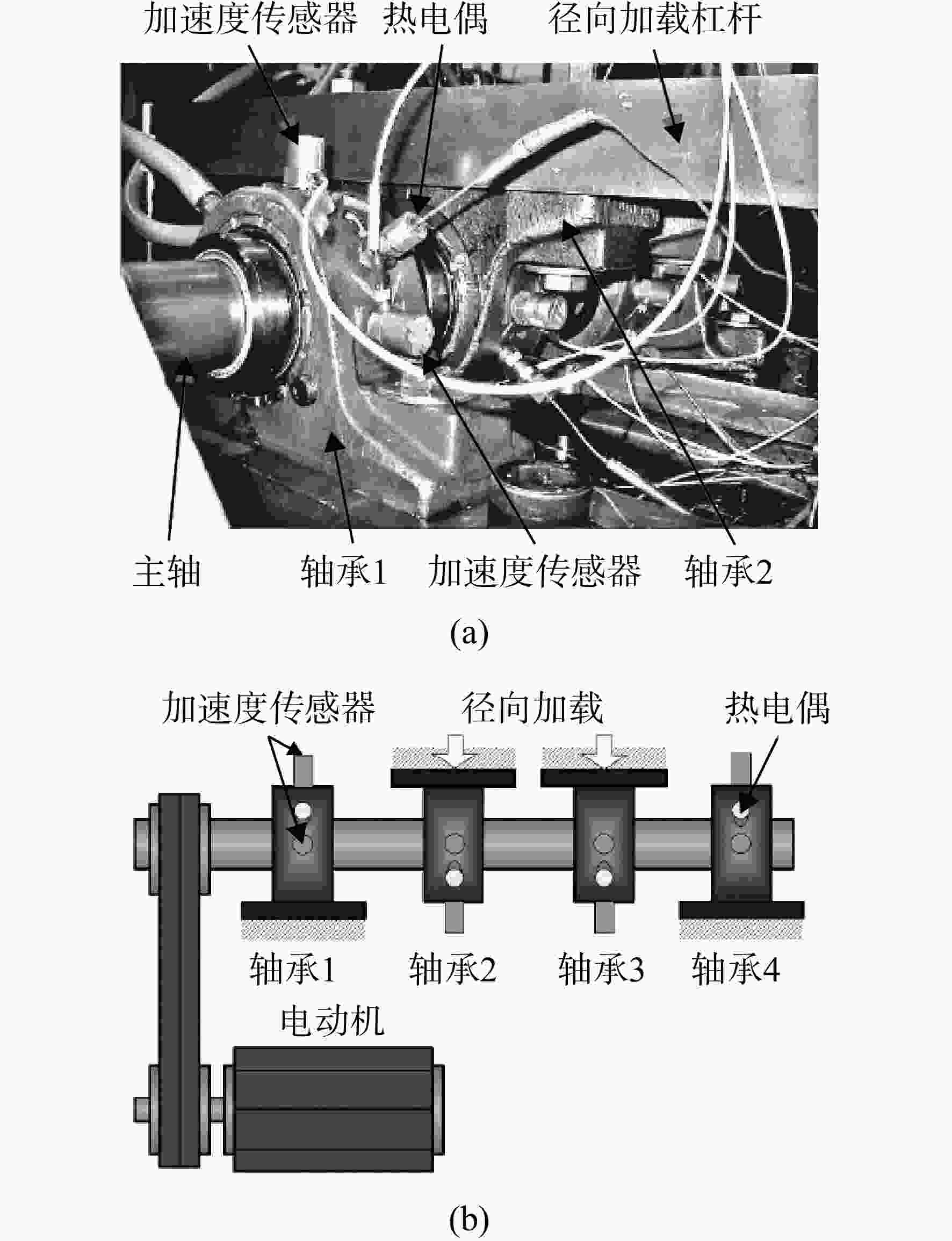

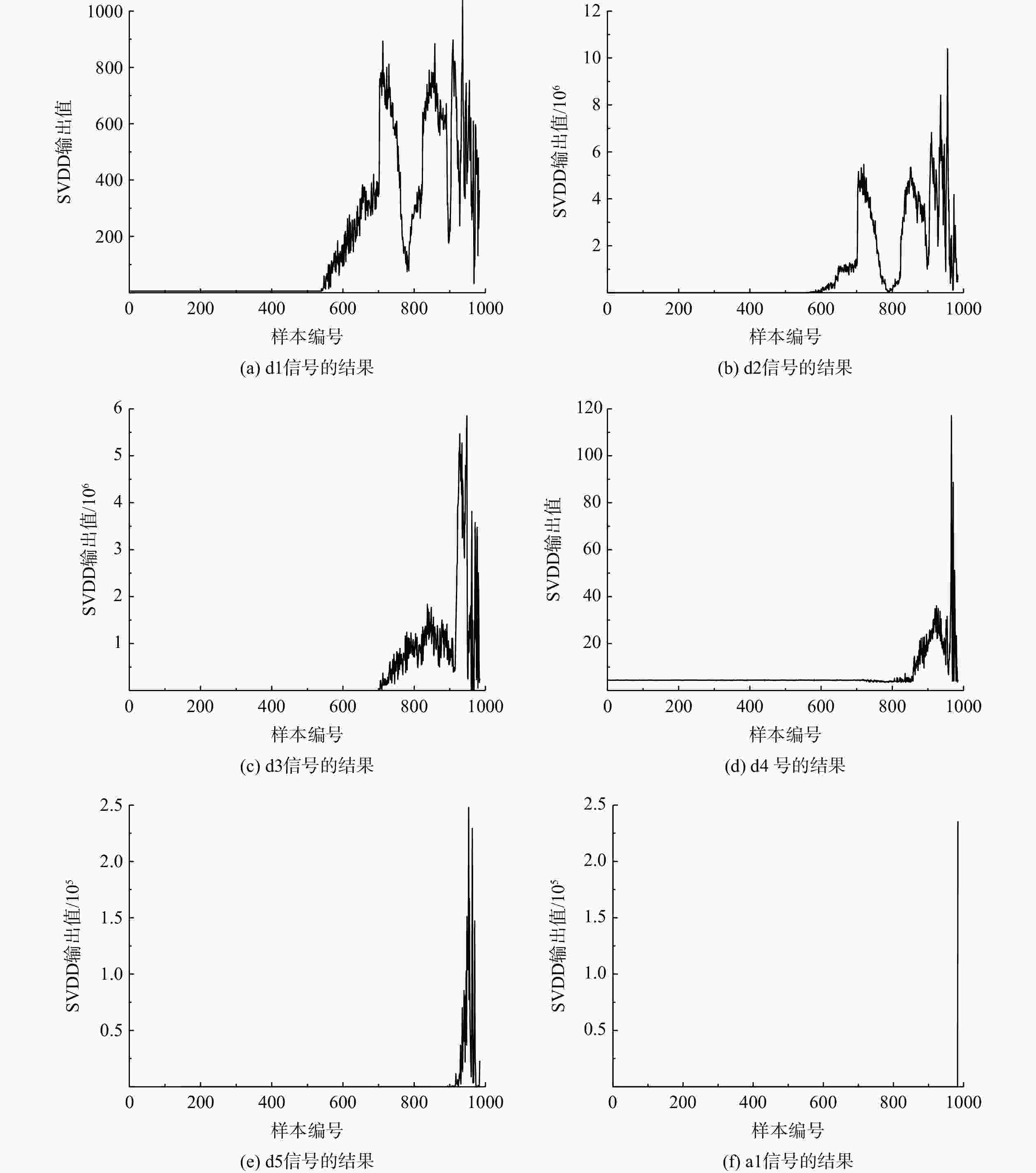

表 3 IMS数据集上的异常点样本
Table 3. Outlier samples on the IMS dataset
信号 SSDSVDD DSVDD ANOGAN OC-NN d1 530 537 533 533 d2 533 535 533 533 d3 700 698 701 700 d4 829 841 835 830 d5 900 903 900 901 a5 981 980 980 980 AUC 100.0 99.6 99.8 99.8 Acc 100.0 99.6 100.0 100.0
下载: 导出CSV

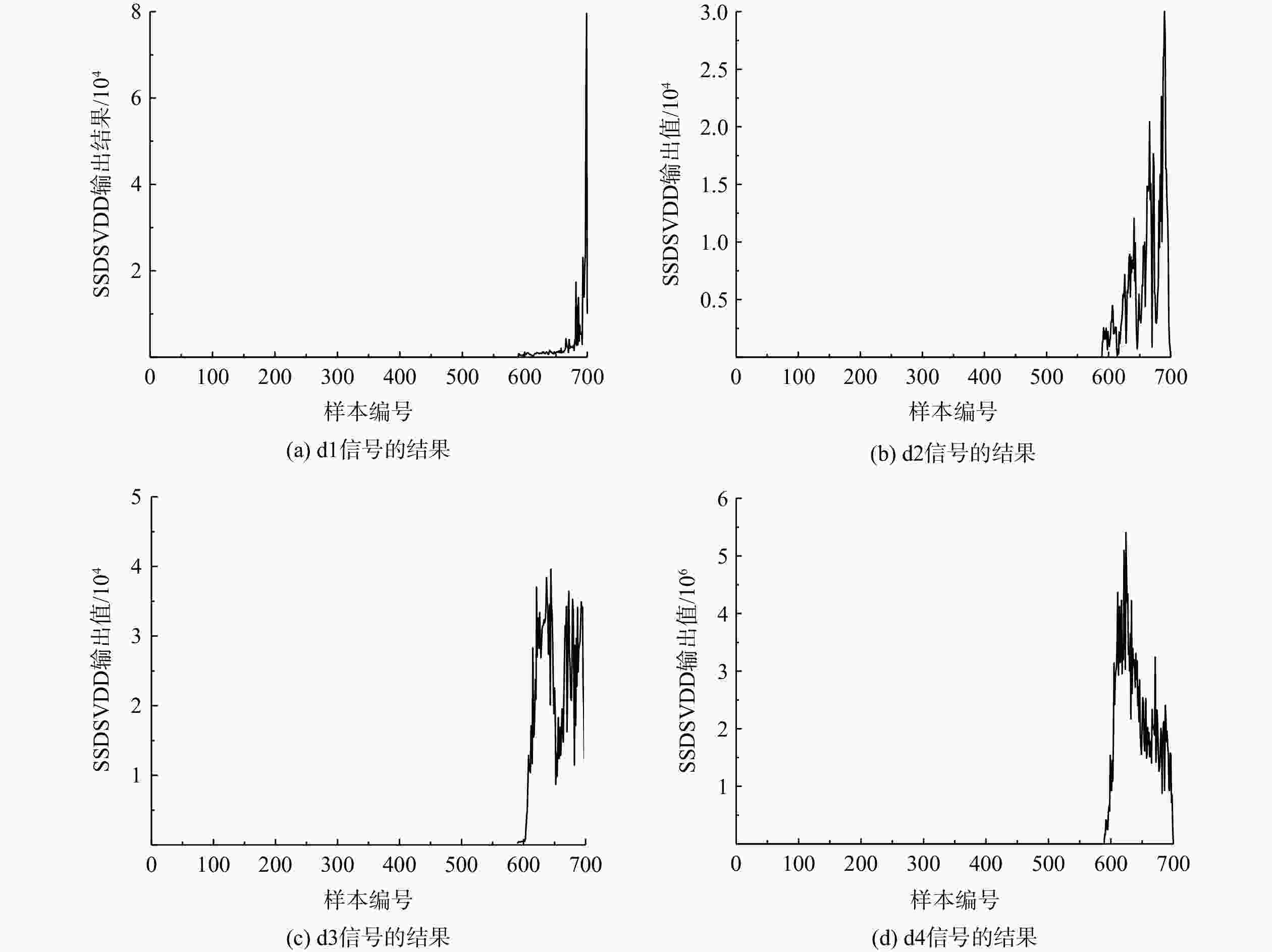

表 4 IDES数据集上的异常点样本
Table 4. Outlier samples on the IDES dataset
信号 SSDSVDD DSVDD ANOGAN OC-NN d1 590 596 599 593 d2 590 595 597 595 d3 590 595 598 594 d4 590 595 598 594 d5 643 650 645 652 a5 690 693 689 690 AUC 100.0 99.3 98.9 99.6 Acc 100.0 99.3 98.9 99.6
下载: 导出CSV
-
