Study on icing multiphase heat transfer process based on phase interface data exchange
-
摘要:

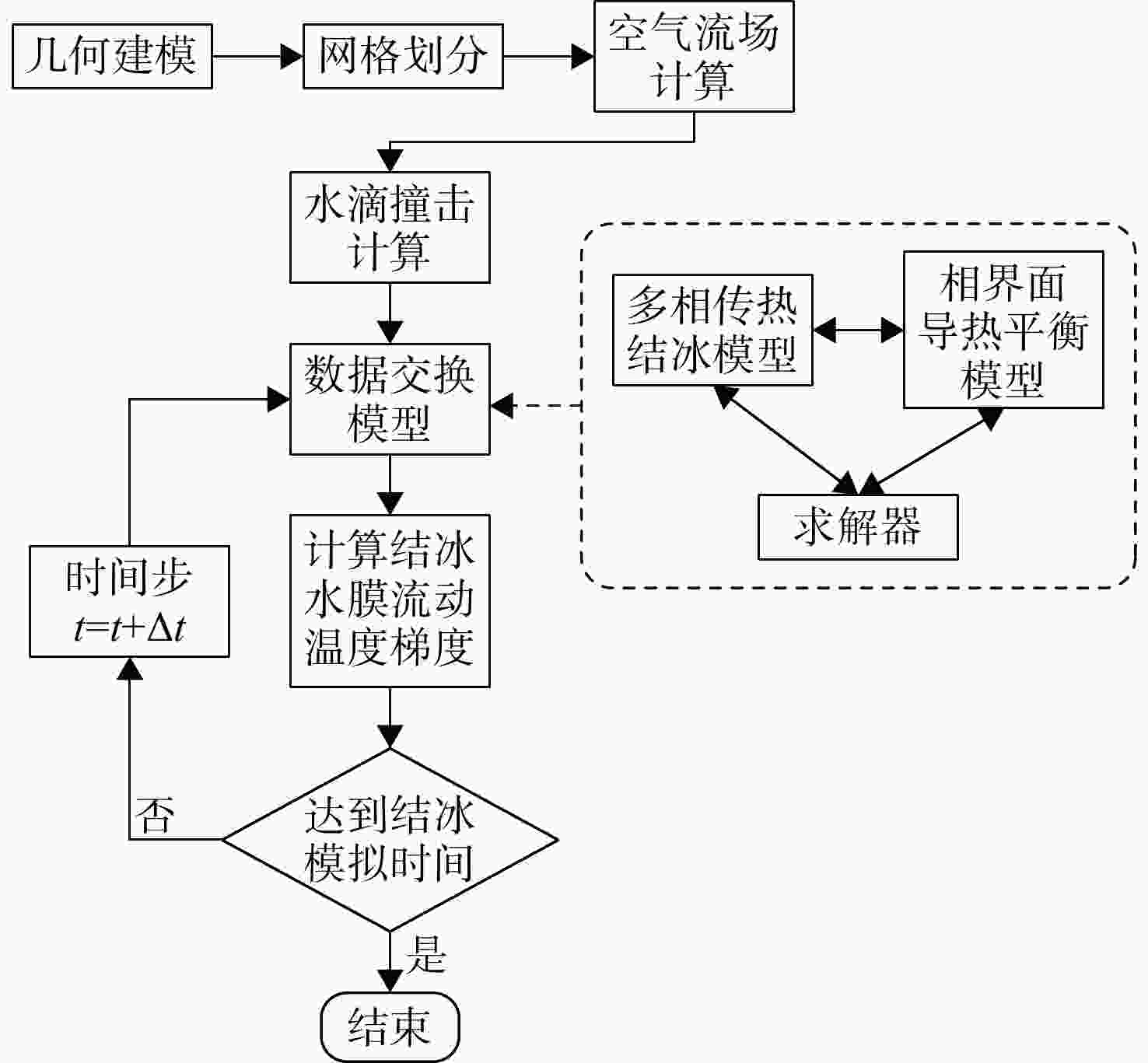

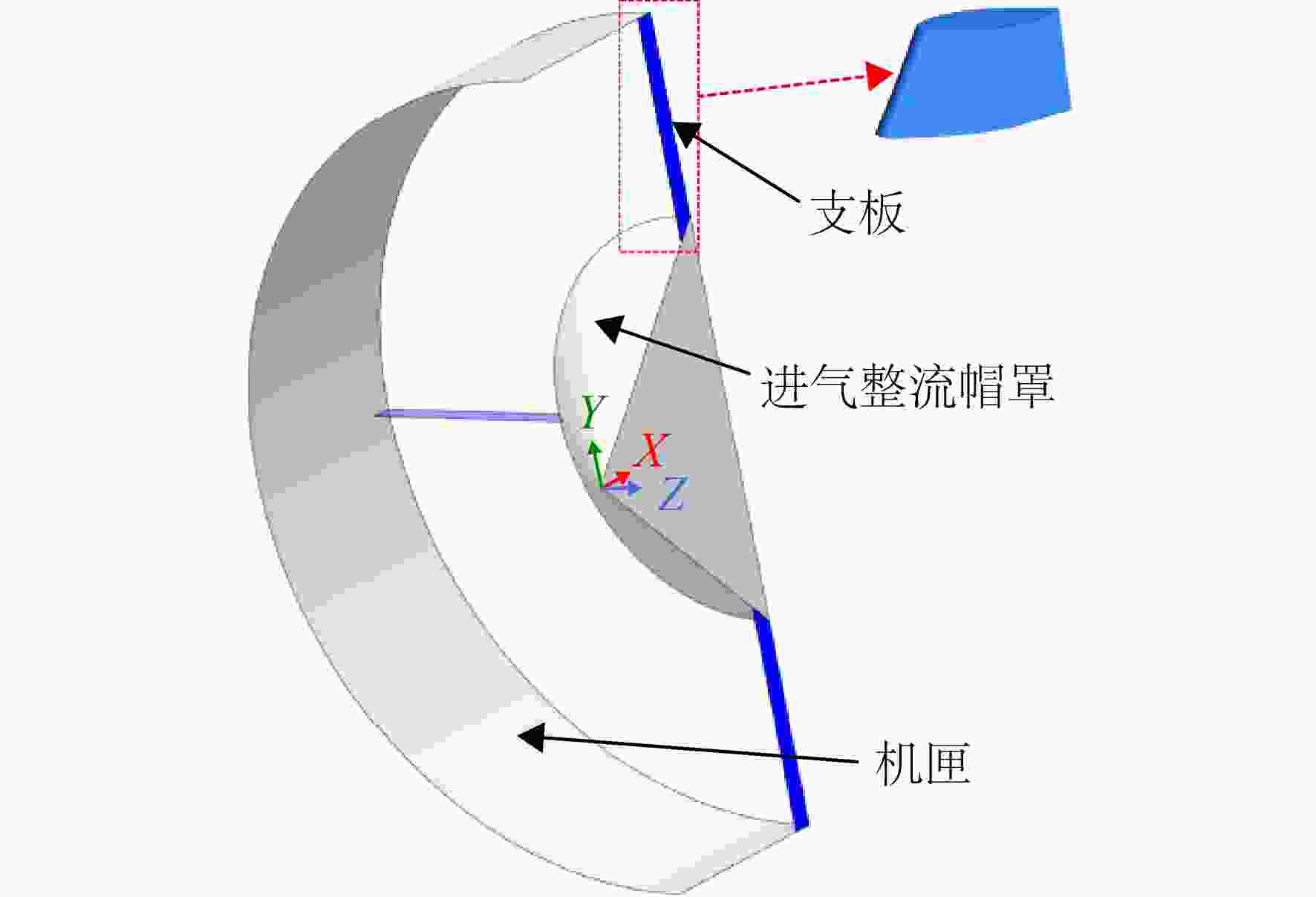

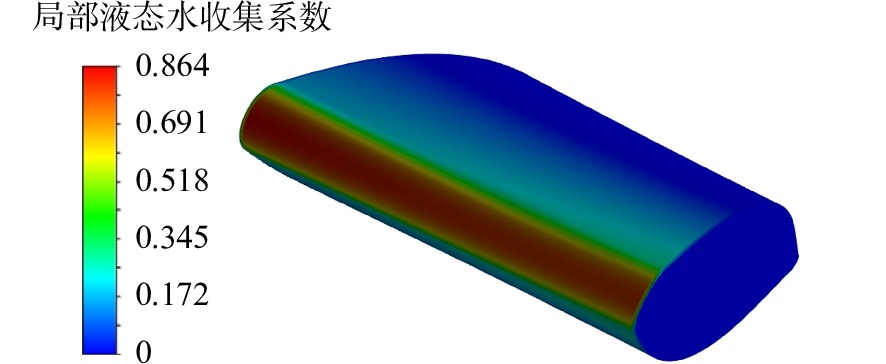

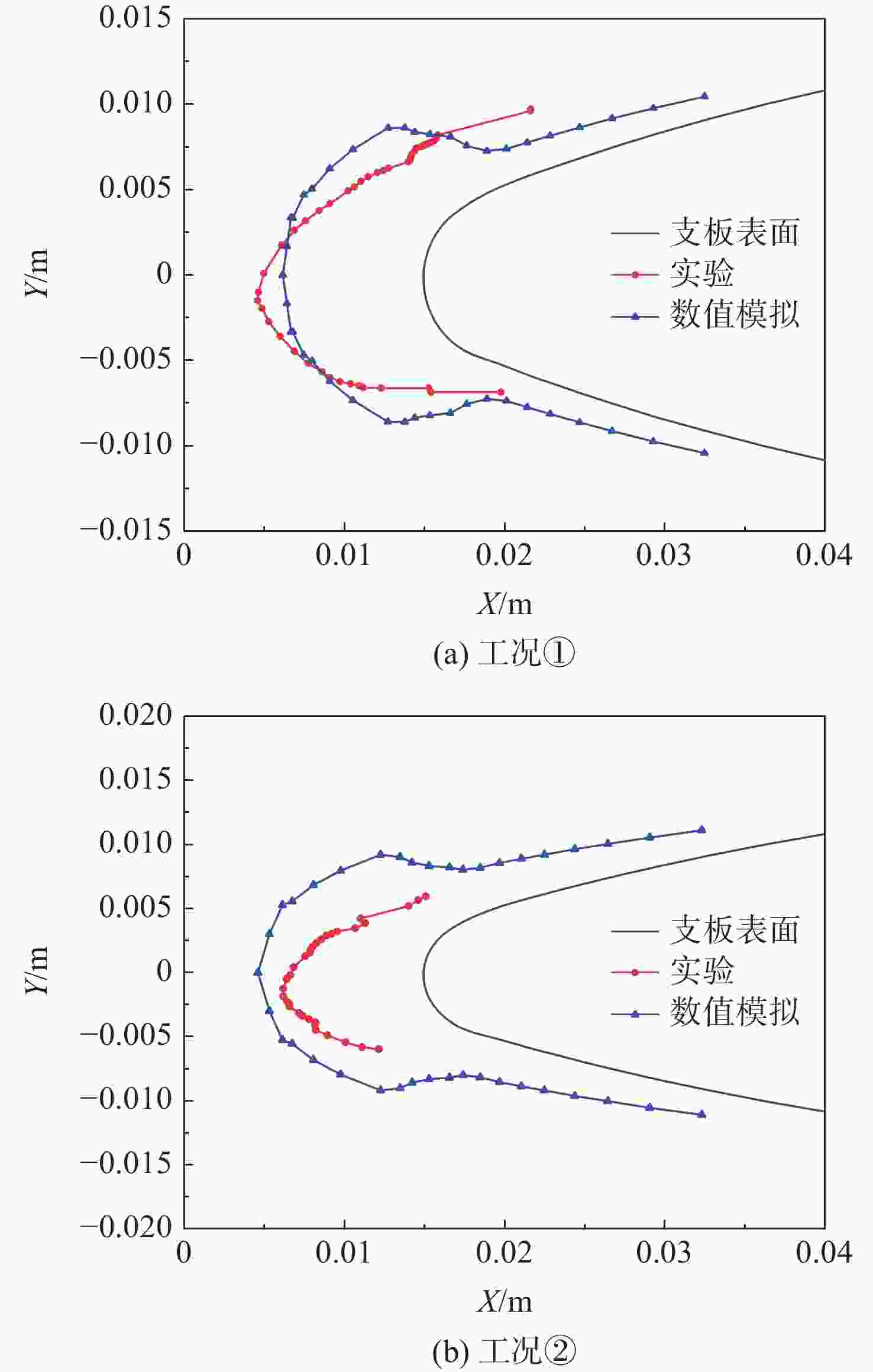

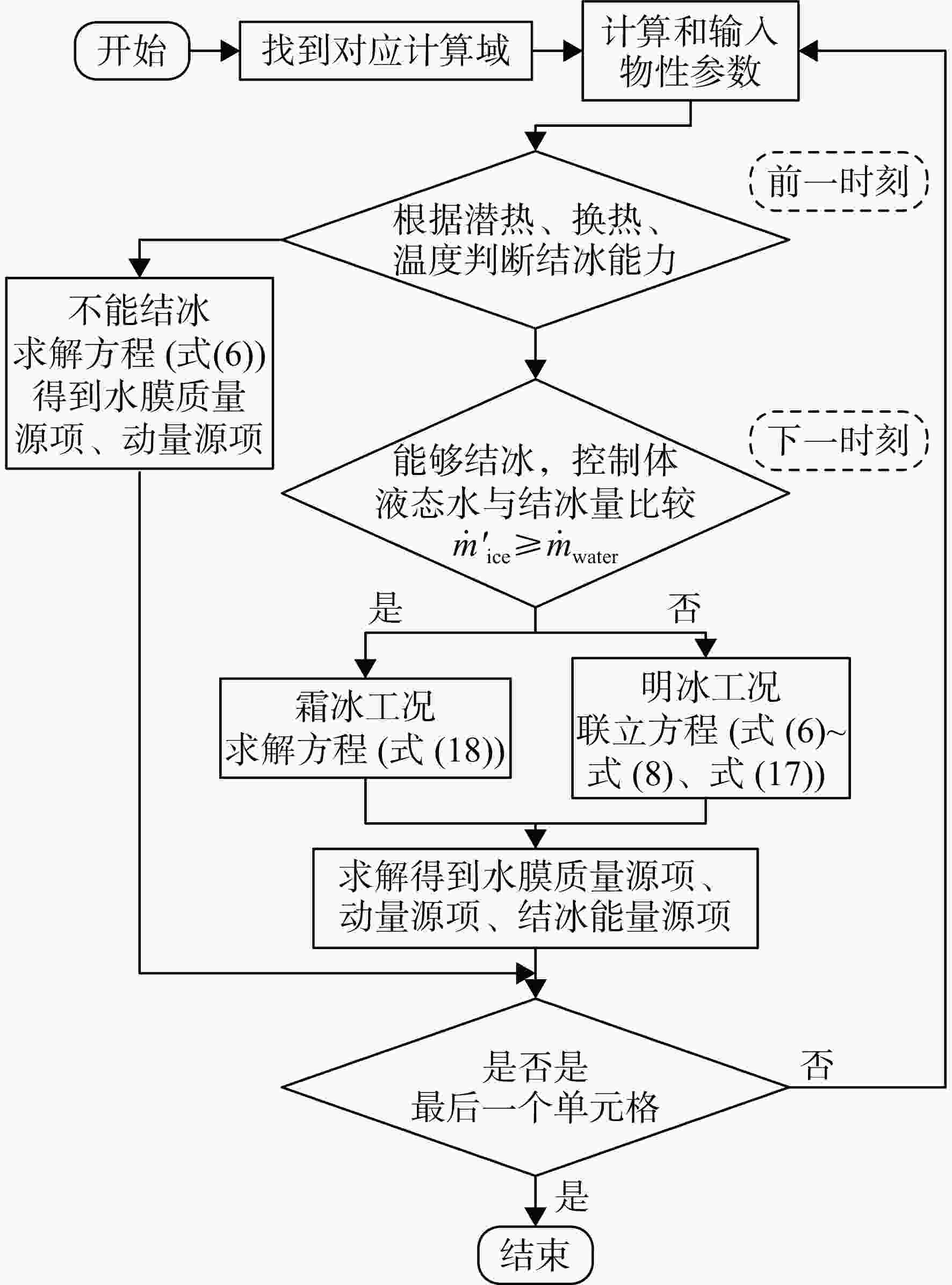

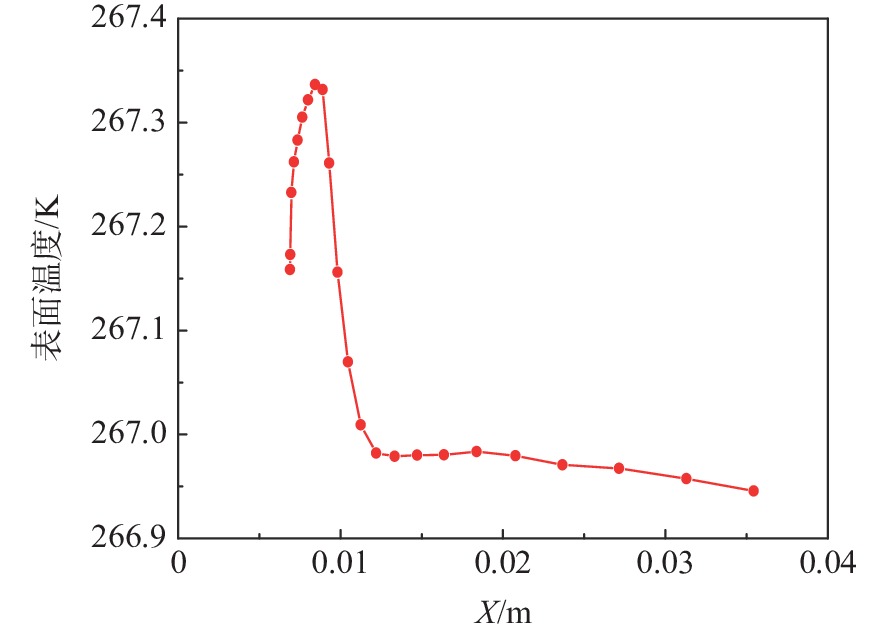

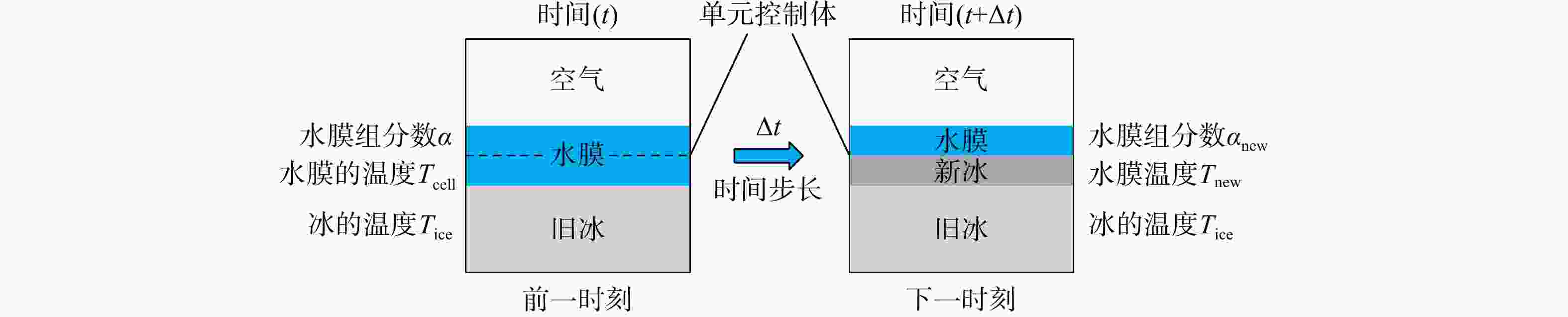

发动机结冰会对飞行安全造成影响，研究发动机结冰过程机理可以帮助提高飞行安全性能和完成适航验证。使用欧拉法计算了水滴运动过程，使用能量平衡法计算了结冰的多相传热流动过程，使用一维导热模型矫正了壁面导热过程，并提出了基于相界面导热平衡方程的数据交换模型。基于此模型进行了发动机进口部件的冰风洞实验数据数值验证，模拟计算最大结冰厚度与试验误差能够控制在10%左右。相界面数据交换模型能够对近壁的水膜流动和温度梯度进行精细化模拟，并且将用户自定义函数（UDF）与求解器进行流场参数的实时交换，经验证后表明该模型在计算结冰最大厚度时具有较好的精度。
Abstract:Aero-engine icing can affect flight safety. Studying the mechanism of aero-engine icing process can help improve the flight safety performance and accomplish airworthiness verification. The Eulerian method was used to calculate the motion of water droplet. The energy balance method was adopted to calculate the multiphase heat transfer and flow process of icing, and the one-dimensional heat conduction model was employed to correct the process of heat conduction with wall. The data exchange model based on phase interface heat conduction equilibrium equation was proposed. Based on this model, numerical verification of icing wind tunnel test data on the engine inlet part was accomplished. The maximum icing thickness error compared by simulation and test could be controlled at about 10%. The phase interface data exchange model can accurately simulate the water film flow and the temperature gradient near wall, and can also currently exchange the flow parameters between the user defined function (UDF) and the solver. The results showed that the model had good accuracy in calculating the maximum icing thickness.
-

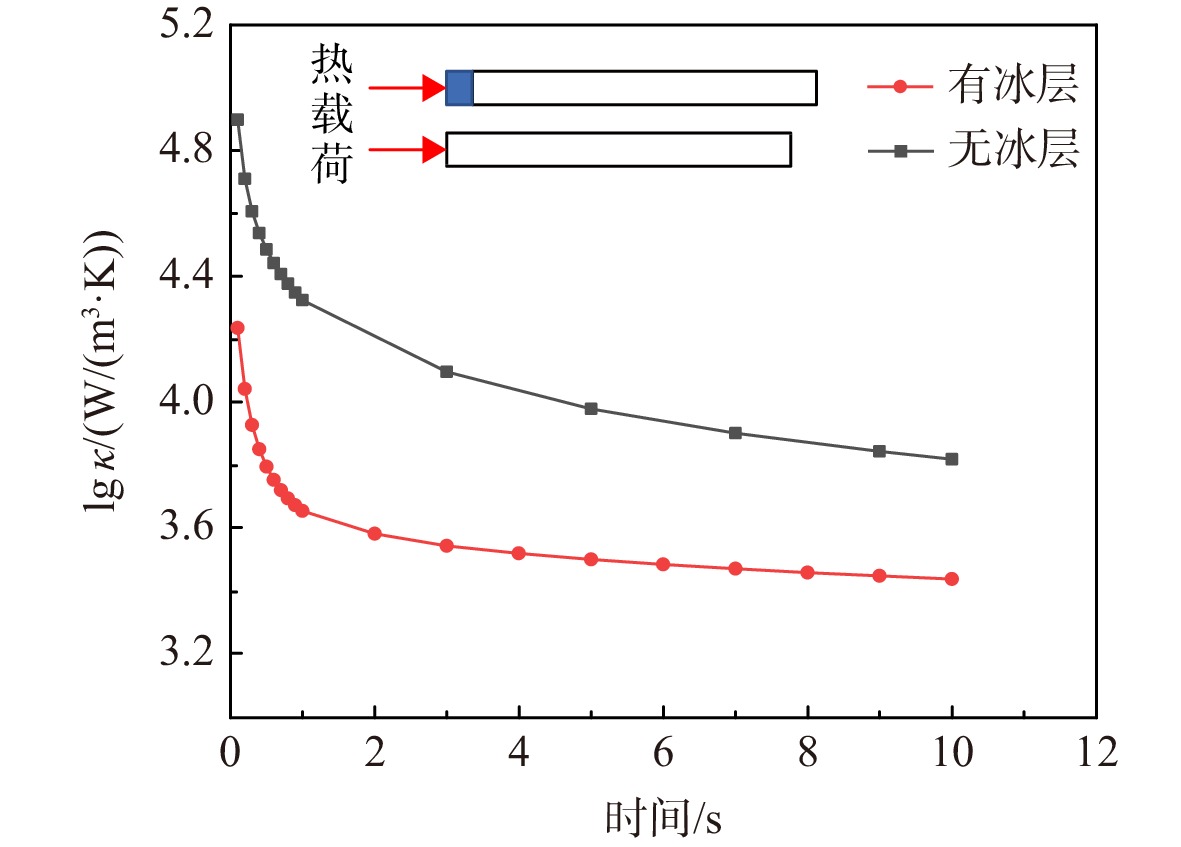

图 3 当量导热系数随冰层厚度变化
Figure 3. Equivalent heat conductivity coefficient varies with ice thickness

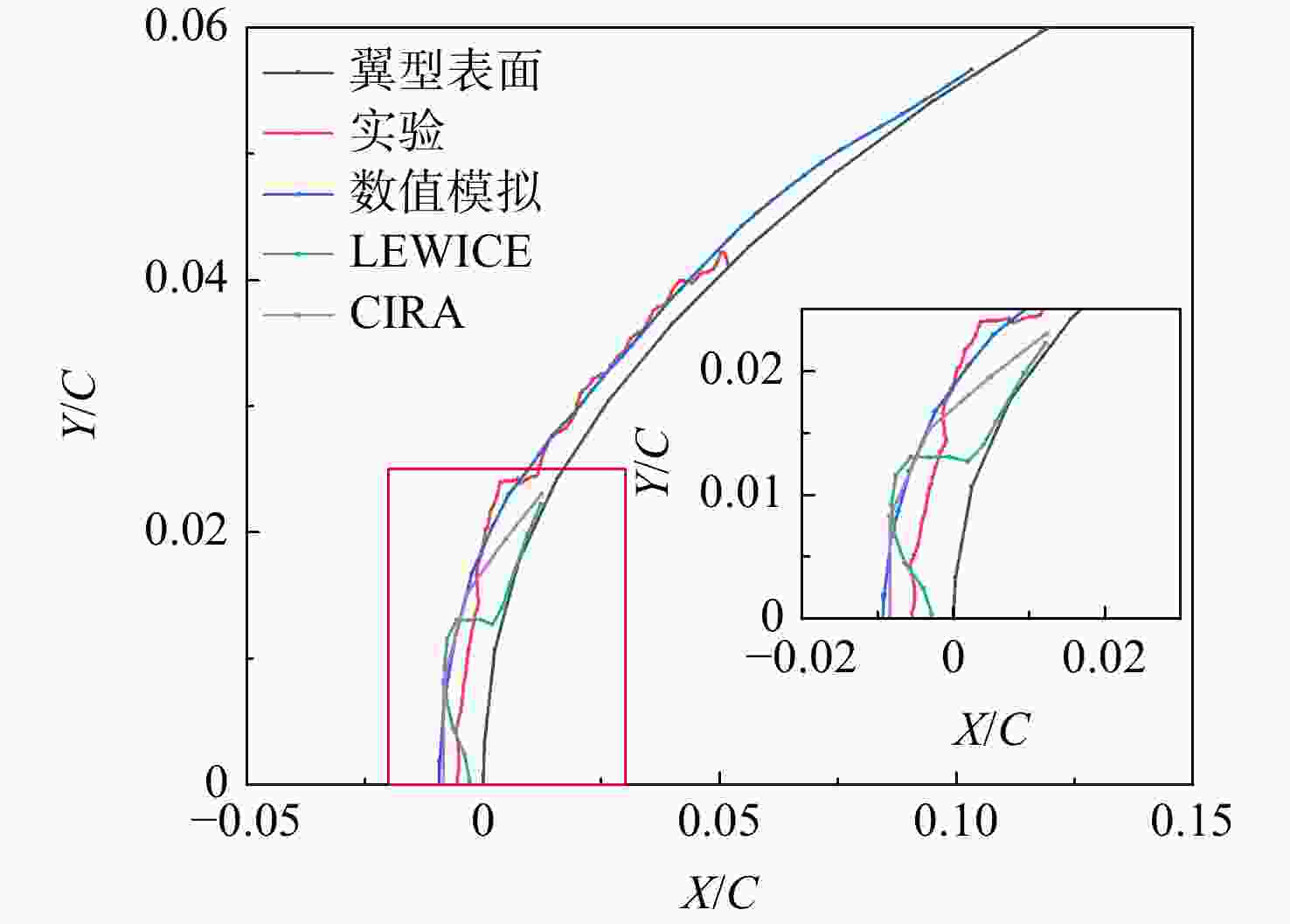

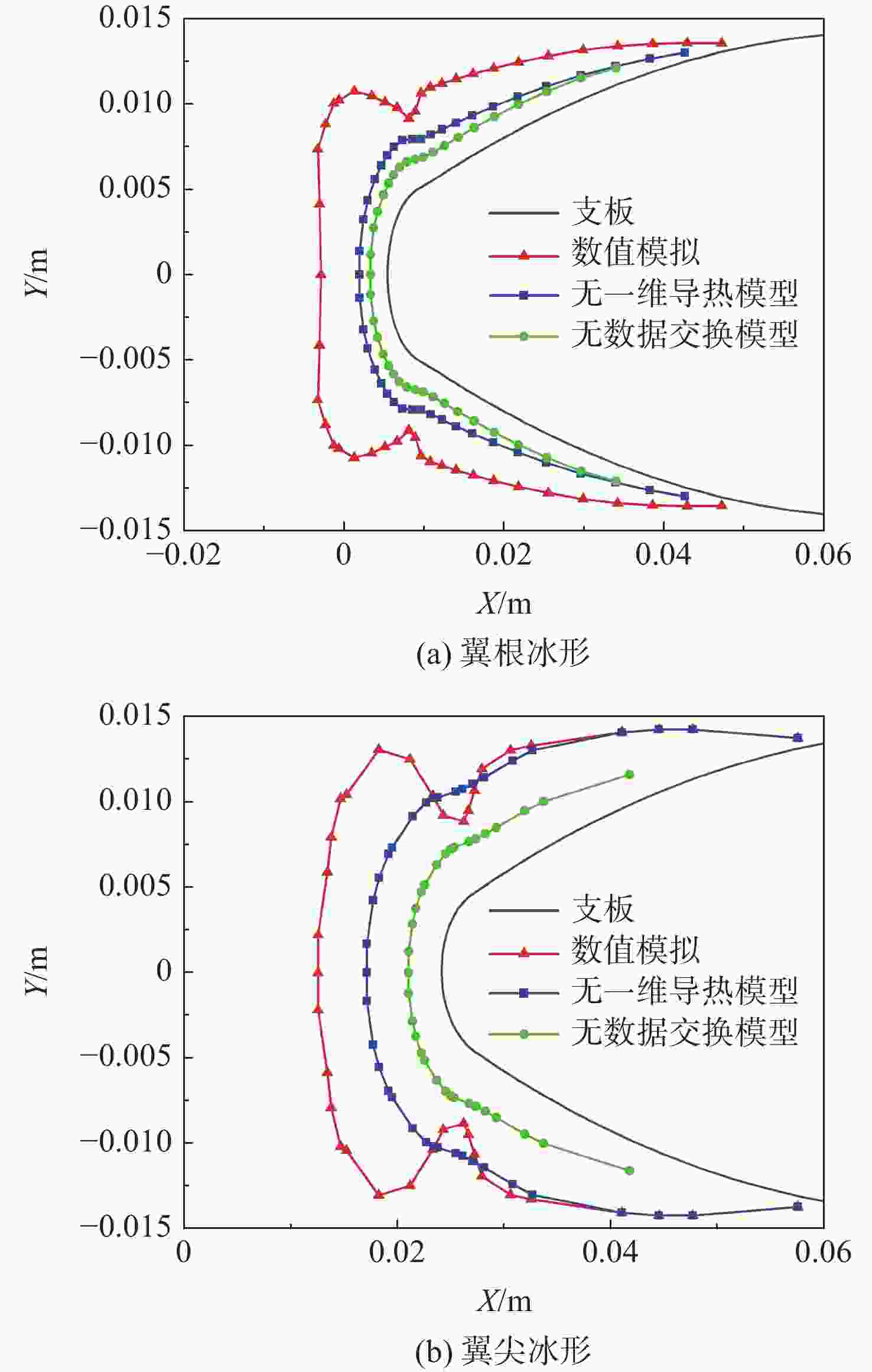

图 7 数据交换模型冰形与实验、LEWICE软件、CIRA软件冰形比较
Figure 7. Ice shape comparison of data exchange model, test, LEWICE software and CIRA software
表 1 不同冰层厚度当量导热系数
Table 1. Equivalent heat conductivity coefficient with different ice thicknesses
时间/s $ \kappa $/（W/（m3·K）） δ=0.5 mm δ=1 mm δ=2 mm δ=4 mm δ=6 mm 0.2 12394 11704 7864 7851 7851 0.4 8760 7468 4593 4580 4580 0.6 7624 5912 3446 3423 3420 0.8 7078 5119 2848 2813 2813 1 6725 4654 2479 2430 2430
下载: 导出CSV
-
[1] 宋建宇,吴晶峰,邱长波,等. 民用涡轴发动机进气系统结冰试验[J]. 航空动力学报,2020,35(5): 1089-1098.SONG Jianyu,WU Jingfeng,QIU Changbo,et al. Civil turboshaft engine inducting system icing test[J]. Journal of Aerospace Power,2020,35(5): 1089-1098. (in Chinese) [2] TIAN Linchuan, LIU Yang, HU Hui, et al. An experimental study to evaluate hydro-/ice-phobic coatings for icing mitigation over rotating aero-engine fan blades[R]. Atlanta, US, Atmospheric and Space Environments Conference, 2018. [3] LIU Yang,HU Hui. An experimental investigation on the unsteady heat transfer process over an ice accreting airfoil surface[J]. International Journal of Heat and Mass Transfer,2018,122: 707-718. doi: 10.1016/j.ijheatmasstransfer.2018.02.023 [4] 马科昌. 发动机进口支板防冰加热功率分布特性研究[D]. 南京: 南京航空航天大学, 2015MA Kechang. Performance of heat power distribution characteristic for strut of aeroengine inlet[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2015. (in Chinese) [5] THOMAS R, GUIDO B, ISIK O. FENSAP-ICE simulation of icing on wind turbine blades: Part 1 performance degradation[R]. Dallas, US: the 51st AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition, 2013. [6] OZCER I, BARUZZI G, REID T, et al. FENSAP-ICE: numerical prediction of ice roughness evolution, and its effects on ice shapes[R]. Vienna, Austria: SAE International Conference on Aircraft and Engine Icing and Ground Deicing, 2011. [7] WRIGHT W, STRUK P, BARTKUS T, et al. Recent advances in the LEWICE icing model[R]. Vienna, Austria: SAE International Conference on Icing of Aircraft, Engines, and Structures, 2015. [8] WILLIAM B W, VANTAGE P. Validation process for LEWICE by use of a Navier-Stokes solver[R]. Washington, US: AIAA Aviation and Aeronautics Forum and Exposition, 2016. [9] TIMOTHY A S, STEPHEN T M. An assessment of LEWICE roughness and convection enhancement models[R]. Vienna, Austria: SAE International Conference on Icing of Aircraft, Engines, and Structures, 2019. [10] FORTIN G, PERRON J, MINGGIONE G, et al. CIRAAMIL ice accretion code improvement[R]. San Antonio, US: the 1st AIAA Atmospheric and Space Environments Conference, 2009. [11] FRANCOIS M,FATIH T,ION P. Anti-icing system simulation using CANICE[J]. Journal of Aircraft,1999,36(6): 999-1006. doi: 10.2514/2.2541 [12] CHANKYU S,TAESEONG K. Development of an icing simulation code for rotating wind turbines[J]. Journal of Wind Engineering and Industrial Aerodynamics,2020,203: 104239.1-104239.12. [13] YANG Qian,GUO Xiaofeng,DONG Wei. Ice accretion and aerodynamic effects on a turbofan engine nacelle under takeoff conditions[J]. Aerospace Science and Technology,2022,126: 107571.1-107571.13. [14] 李静. 发动机进口静止/旋转部件结冰及结冰试验的相似研究[D]. 西安: 西北工业大学, 2015.LI Jing. Numerical simulation of ice accretion and study for icing scaling law[D]. Xi’an: Northwestern Polytechnical University, 2015. (in Chinese) [15] 卜雪琴,李皓,黄平,等. 二维机翼混合相结冰数值模拟[J]. 航空学报,2020,41(12): 124085.1-124085.11. doi: 10.7527/S1000-6893.2020.24085BU Xueqin,LI Hao,HUANG Ping. Numerical simulation of mixed phase icing on two-dimensional airfoil[J]. Acta Aeronautica et Astronautica Sinica,2020,41(12): 124085.1-124085.11. (in Chinese) doi: 10.7527/S1000-6893.2020.24085 [16] 雷梦龙,常士楠,杨波. 基于Meyers模型的三维结冰数值仿真[J]. 航空学报,2018,39(9): 121952.1-121952.11.LEI Menglong,CHANG Shinan,YANG Bo. Three-dimensional numerical simulation of icing using myers model[J]. Acta Aeronautica et Astronautica Sinica,2018,39(9): 121952.1-121952.11. (in Chinese) [17] MYERS T G. Extension to the messinger model for aircraft icing[J]. AIAA Journal,2001,39(2): 211-218. doi: 10.2514/2.1312 [18] 张强,陈迎春,周涛,等. 民用飞机机翼结冰试验与数值预测[J]. 航空动力学报,2017,32(1): 22-26.ZHANG Qiang,CHEN Yingchun,ZHOU Tao,et al. Test and numerical prediction of ice accretions on civil aircraft wing[J]. Journal of Aerospace Power,2017,32(1): 22-26. (in Chinese) [19] BERNARD L M. Equilibrium temperature of an unheated icing surface as a function of airspeed[J]. Journal of the Aeronautics Sciences,1953,20(1): 29-42. doi: 10.2514/8.2520 [20] 张文伟,柯鹏,杨春信,等. 气液两相流界面多尺度问题可计算性研究进展[J]. 化工学报,2014,65(12): 4645-4654.ZHANG Wenwei,KE Peng,YANG Chunxin,et al. Progress of computability of multi-scale interface problems in gas-liquid two-phase flow[J]. CIESC Journal,2014,65(12): 4645-4654. (in Chinese) [21] 邓文豪. 航空发动机过冷水滴结冰过程模拟工具的开发和验证[D]. 北京: 北京航空航天大学, 2022.DENG Wenhao. Development and validation of simulation tools on aeroengine supercooled water icing process[D]. Beijing: Beihang University, 2022. (in Chinese) [22] SUTIKNO W, SHASHIDHAR S. An Eulerian method to calculate the collection efficiency on two and three dimensional bodies[R]. Reno, US: the 41st Aerospace Sciences Meeting and Exhibit, 2003. [23] 郭琦,申晓斌,林贵平,等. 飞机旋转表面结冰数值模拟研究[J]. 北京航空航天大学学报,2021,48(11): 2259-2269.GUO Qi,SHEN Xiaobin,LIN Guiping,et al. Analysis and numerical simulation of icing on aircraft rotating surfaces[J]. Journal of Beijing University of Aeronautics and Astronautics,2021,48(11): 2259-2269. (in Chinese) [24] KIND R J. RTO technical report 38: ice accretion simulation evaluation test[R]. Paris, France: the Research and Technology Organization (RTO) of NATO, 2001. [25] BRAGG M B, CUMMINGS M J, HENZE C M. Boundary layer and heat transfer measurements on an airfoil with simulated ice roughness[R]. Reno, US: AIAA 34th Aerospace Sciences Meeting and Exhibit, 1996. -
