Research status and prospect of aircraft heat pipe anti-icing technology
-
摘要:

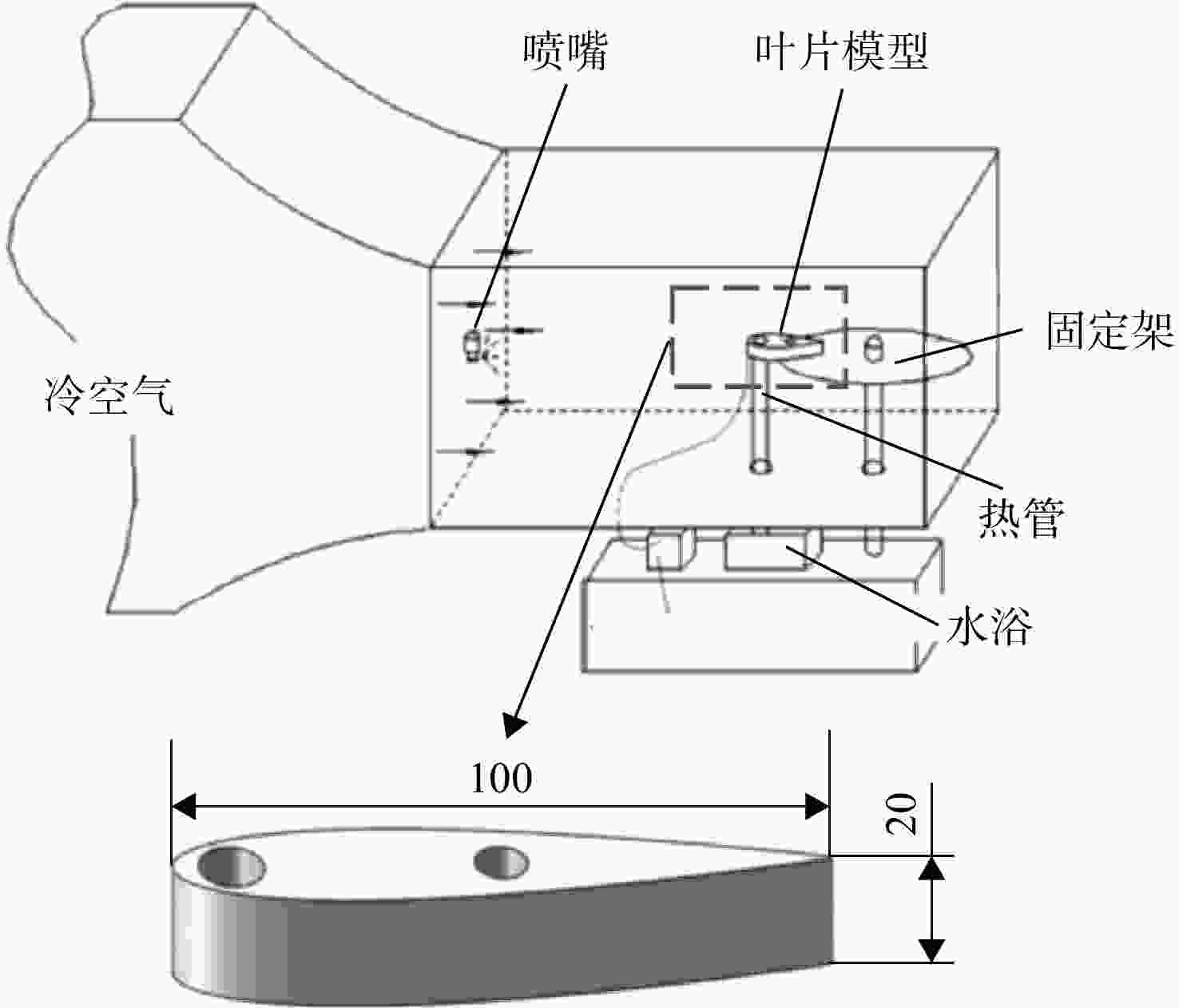

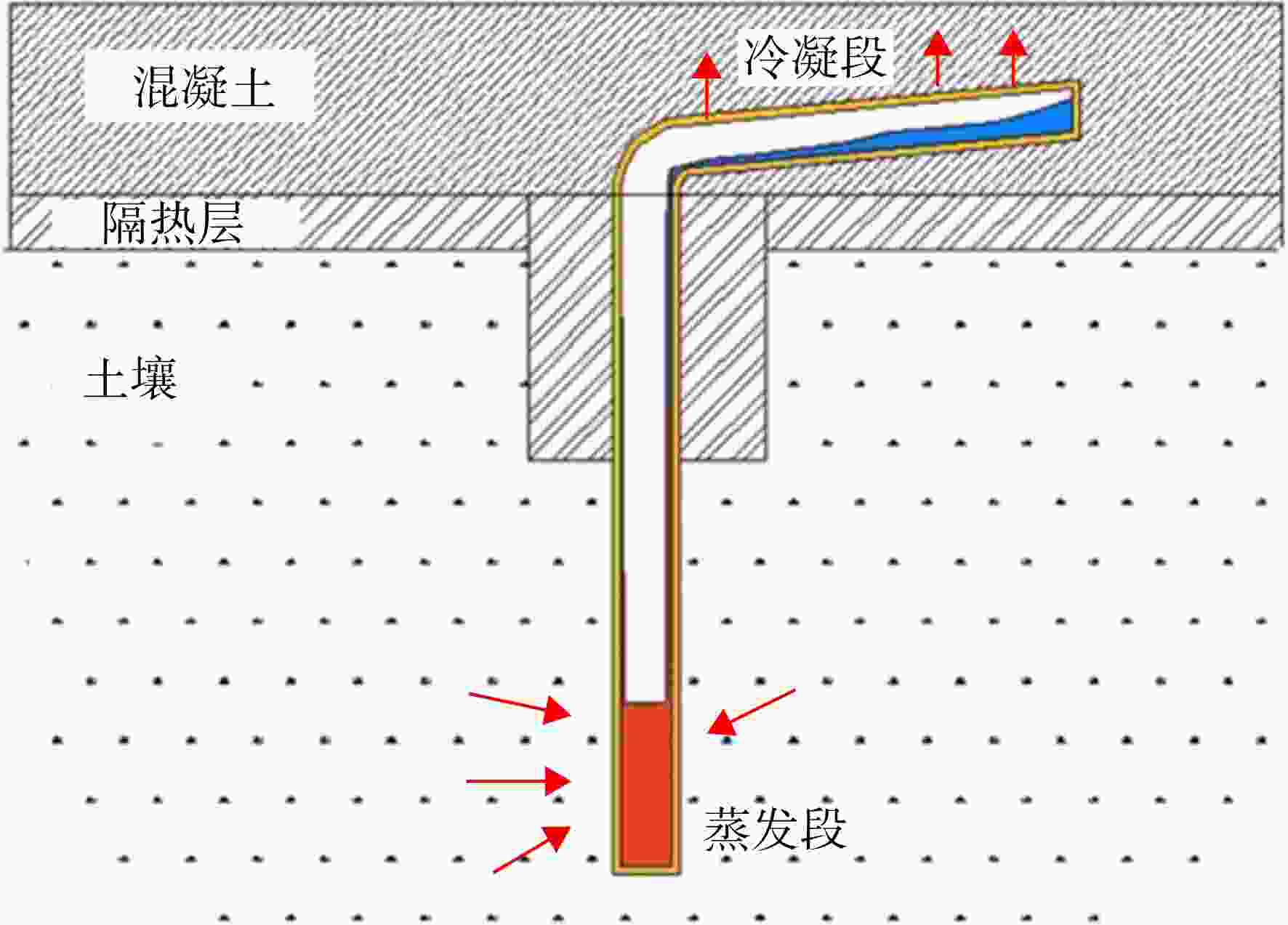

为深入认识和发展热管防冰技术,重点论述了不同类型热管在飞机防冰领域上的研究现状,总结了环路热管、旋转热管和重力热管在飞机机翼和发动机前端部件防冰上的理论和实验研究成果,梳理了防冰用环路热管和旋转热管的主要特点,并对热管防冰技术的发展方向进行了展望。结果表明:热管防冰技术的研究仍处于起步阶段,大多停留在热管防冰系统设计及其可行性验证;提出后续研究应以实验为主,采用数值计算和实验研究相结合的方法,重点关注热管防冰系统在机上环境和结冰气象条件下的运行特性,明确热管工质特性、工作温度、充液率等因素对热管防冰系统传热性能的影响等建议,为热管防冰系统的设计优化及实际应用提供理论和实验支撑。
Abstract:In order to deeply understand and develop the anti-icing technology of heat pipe, the research status of different types of heat pipes in aircraft anti-icing field was mainly discussed, the theoretical and experimental results of loop heat pipe, rotating heat pipe and gravity heat pipe used in anti-icing of aircraft wings and engine front parts were summarized, the main characteristics of loop heat pipe and rotating heat pipe for anti-icing were sorted out, and the development direction of heat pipe anti-icing technology was prospected. The results showed that the researches on heat pipe anti-icing technology were still at initial stage, and most of them stayed in the design and feasibility verification of heat pipe anti-icing system. These suggested that subsequent research should be concentrated on experiments, and the method of combining numerical calculation and experimental research should be adopted, with a focus on the operation characteristics of heat pipe anti-icing system under the aircraft environment and icing meteorological conditions; moreover, the influences of factors such as the characteristics of the working medium, working temperature and liquid filling rate on the heat transfer performance of the heat pipe anti-icing system were determined, thus providing a theoretical and experimental support for the design optimization and practical application of heat pipe anti-icing system.
-
表 1 传统防冰和除冰方法及缺点
Table 1. Traditional anti-icing and de-icing methods and drawbacks
防冰和除冰方法 实施方式 缺点 液体防冰 表面喷洒防冰液 腐蚀性强、防冰效率有限 机械除冰 气动胀管除冰 需要维修、笨重、除冰不彻底 热气防冰 发动机引气 推力减小,油耗增加 电热防冰 电能转化为热能 高品位能量消耗大 表 2 防冰用环路热管主要特点

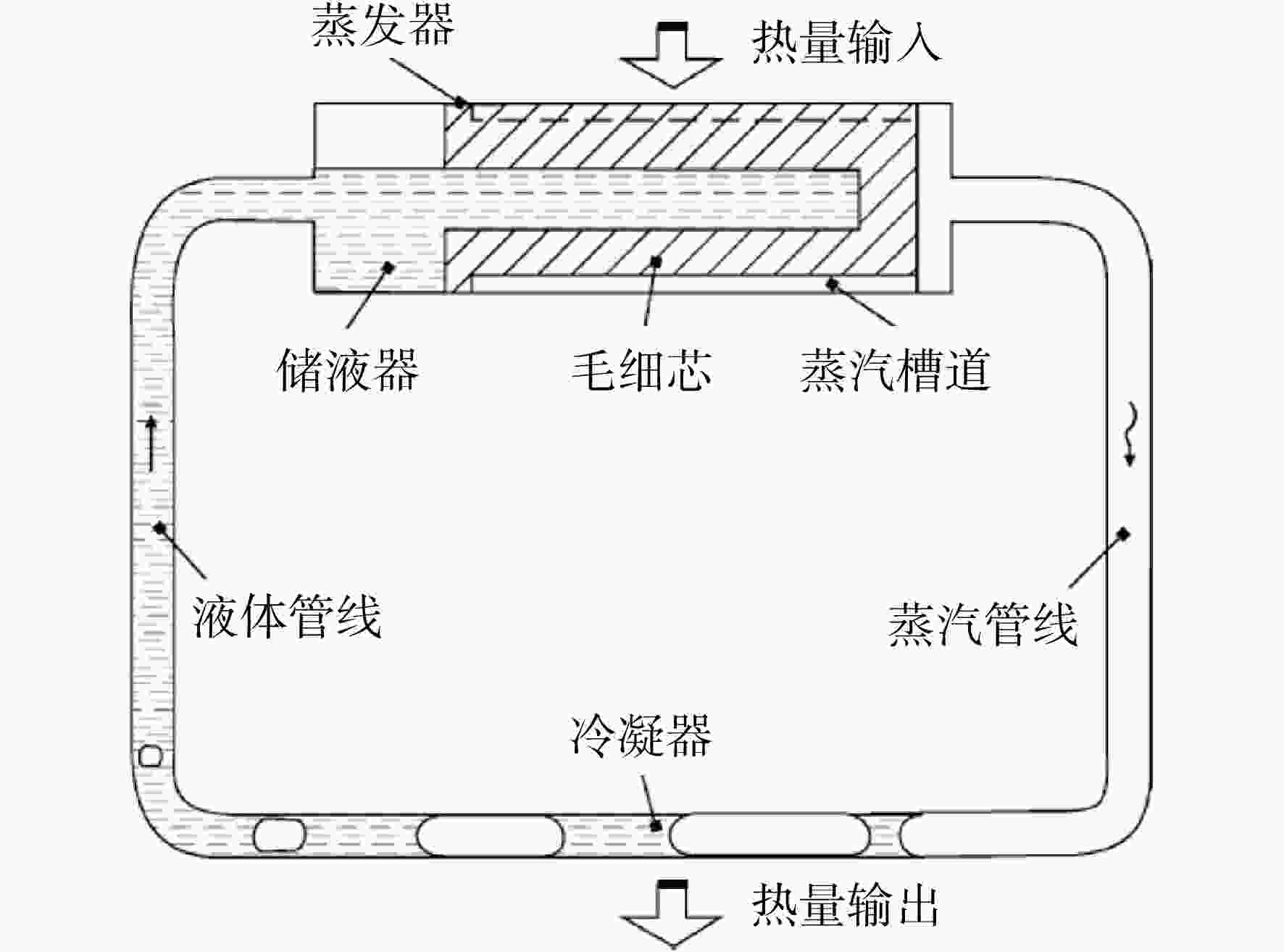

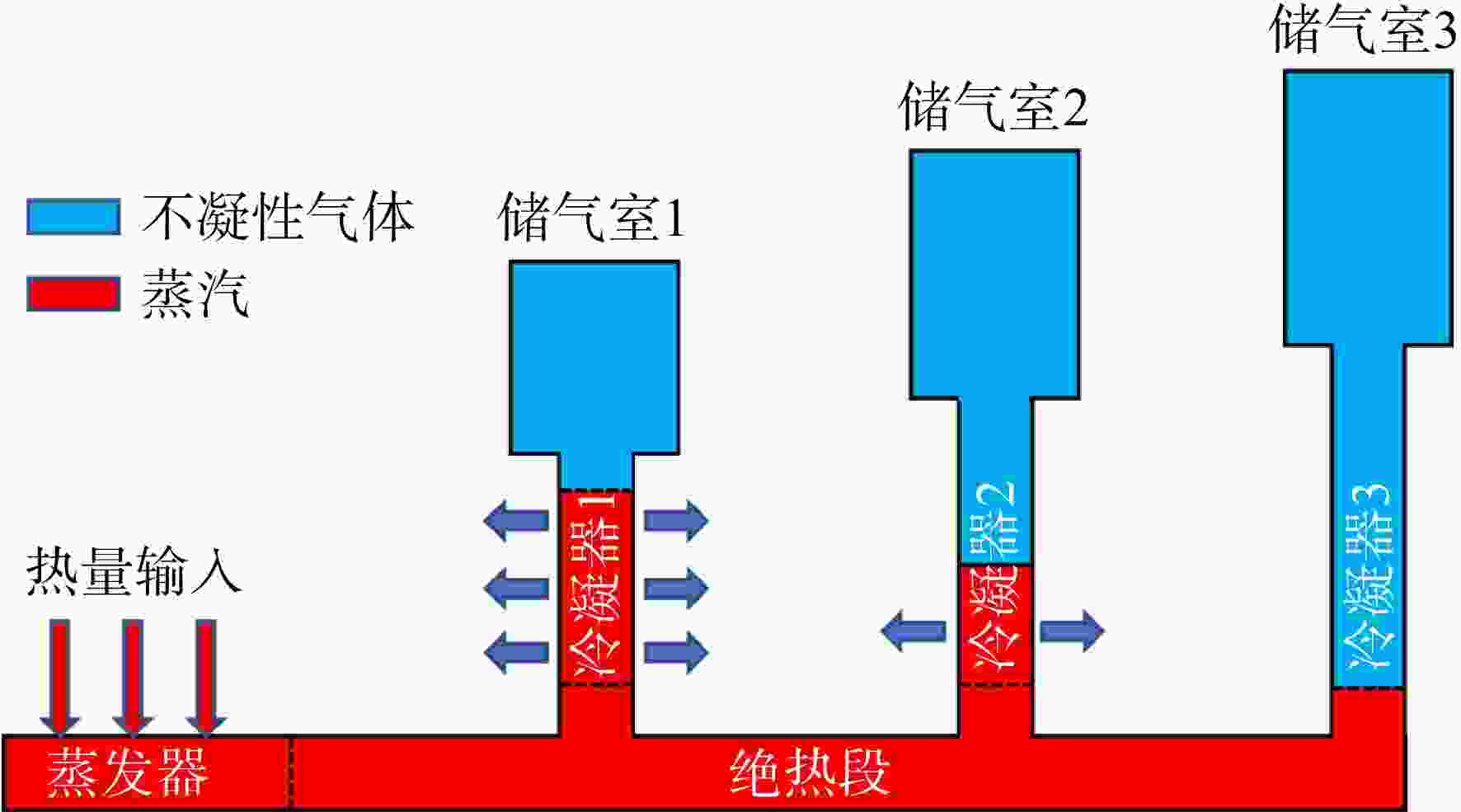

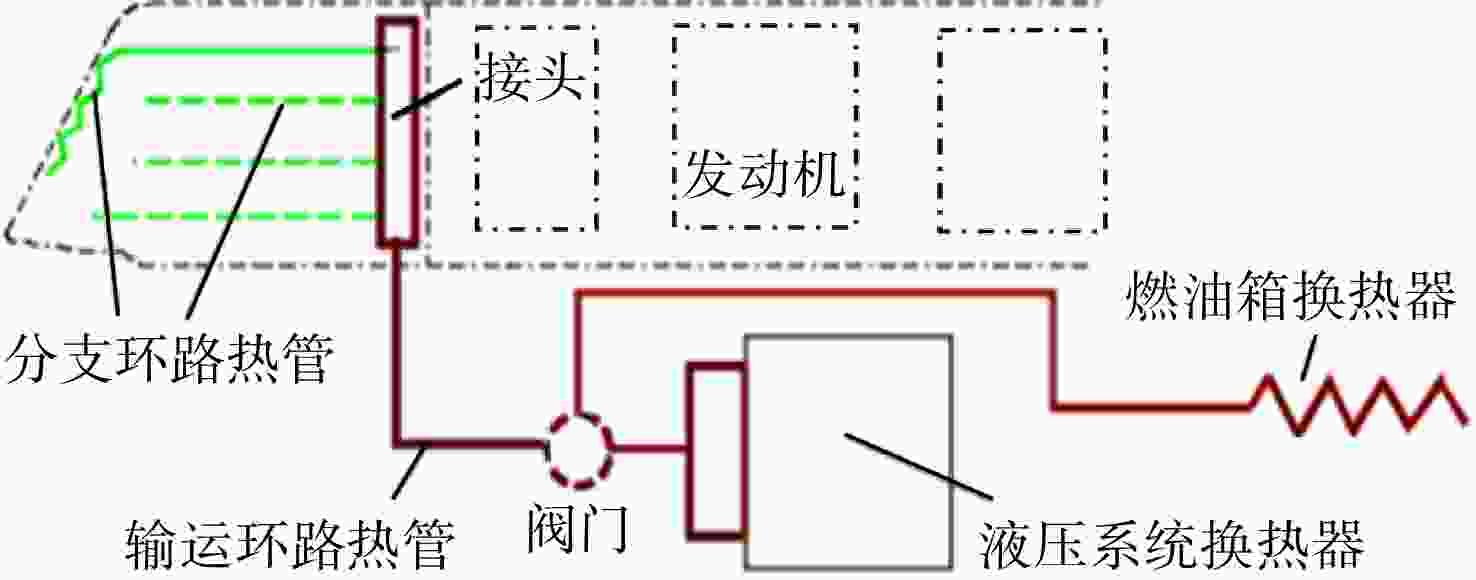

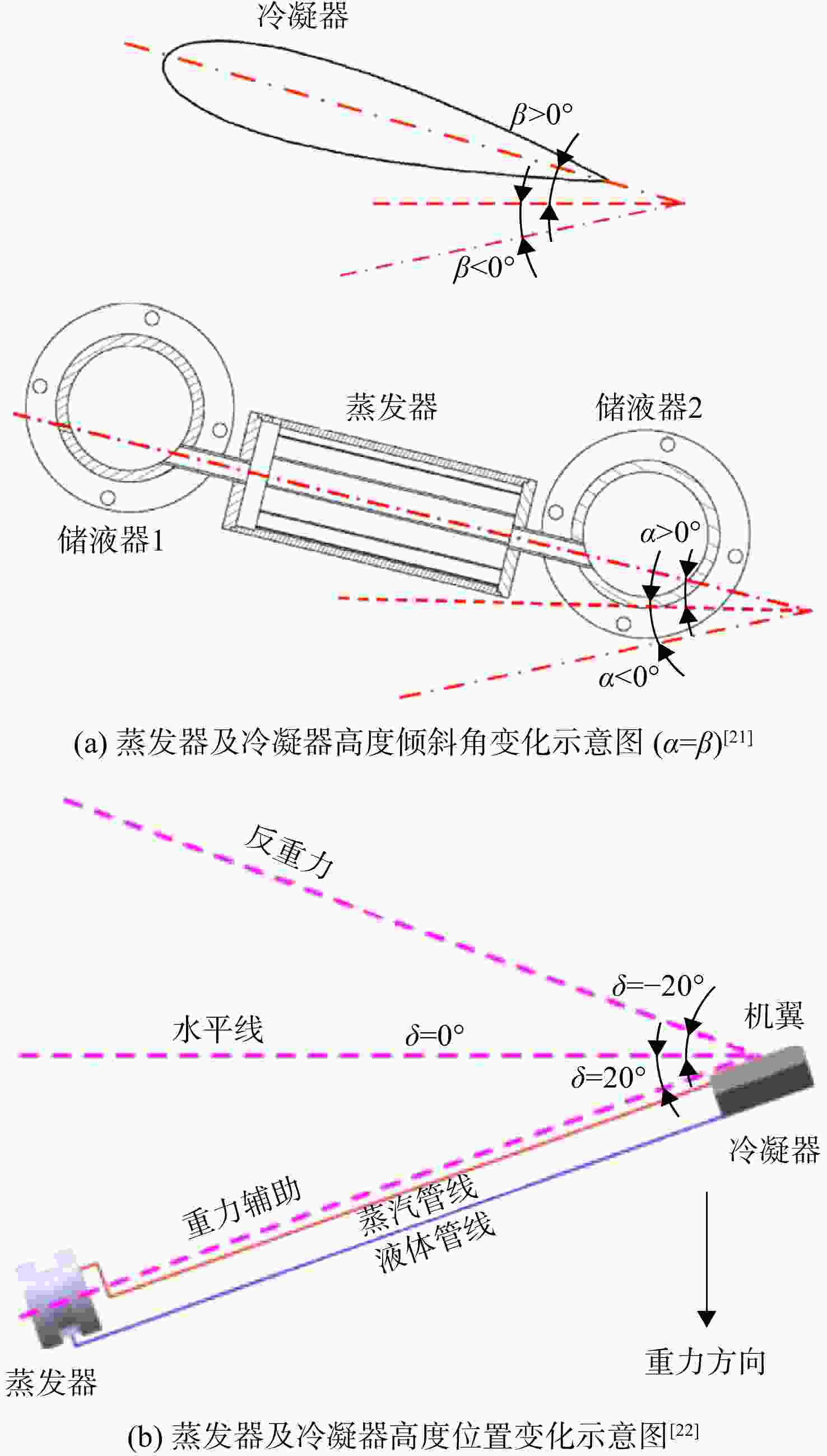

Table 2. Main characteristics of loop heat pipes for anti-icing

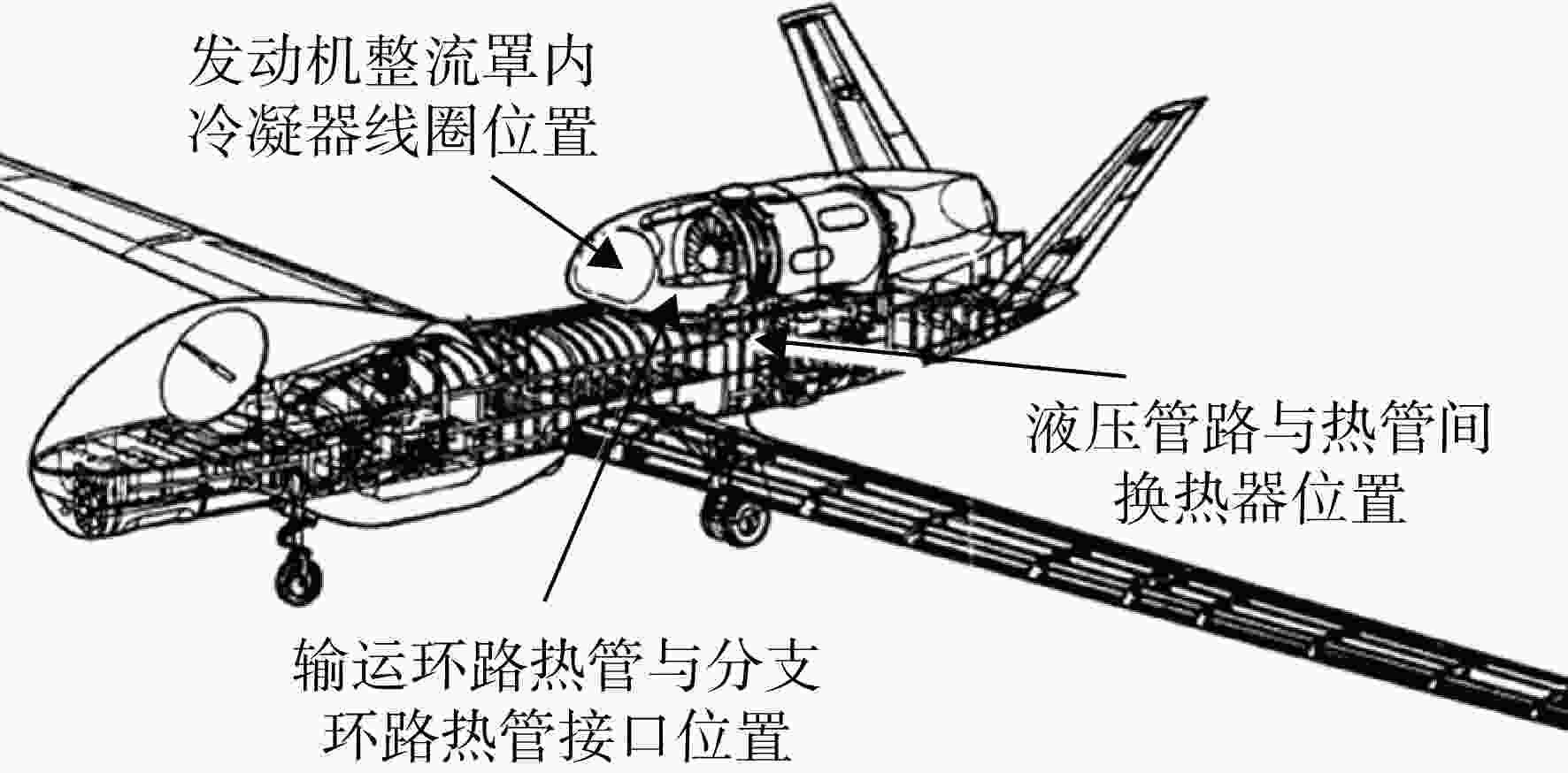

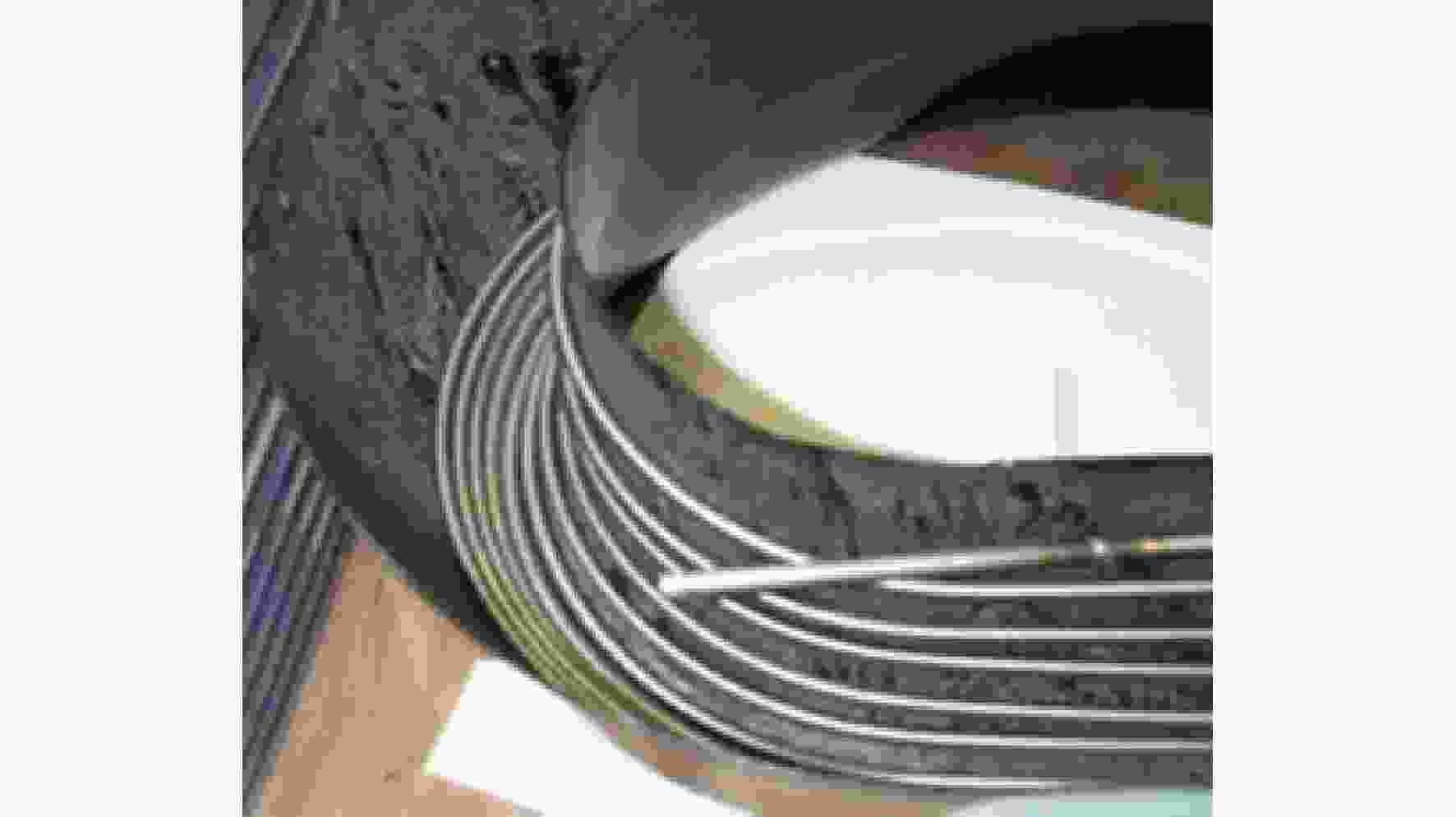

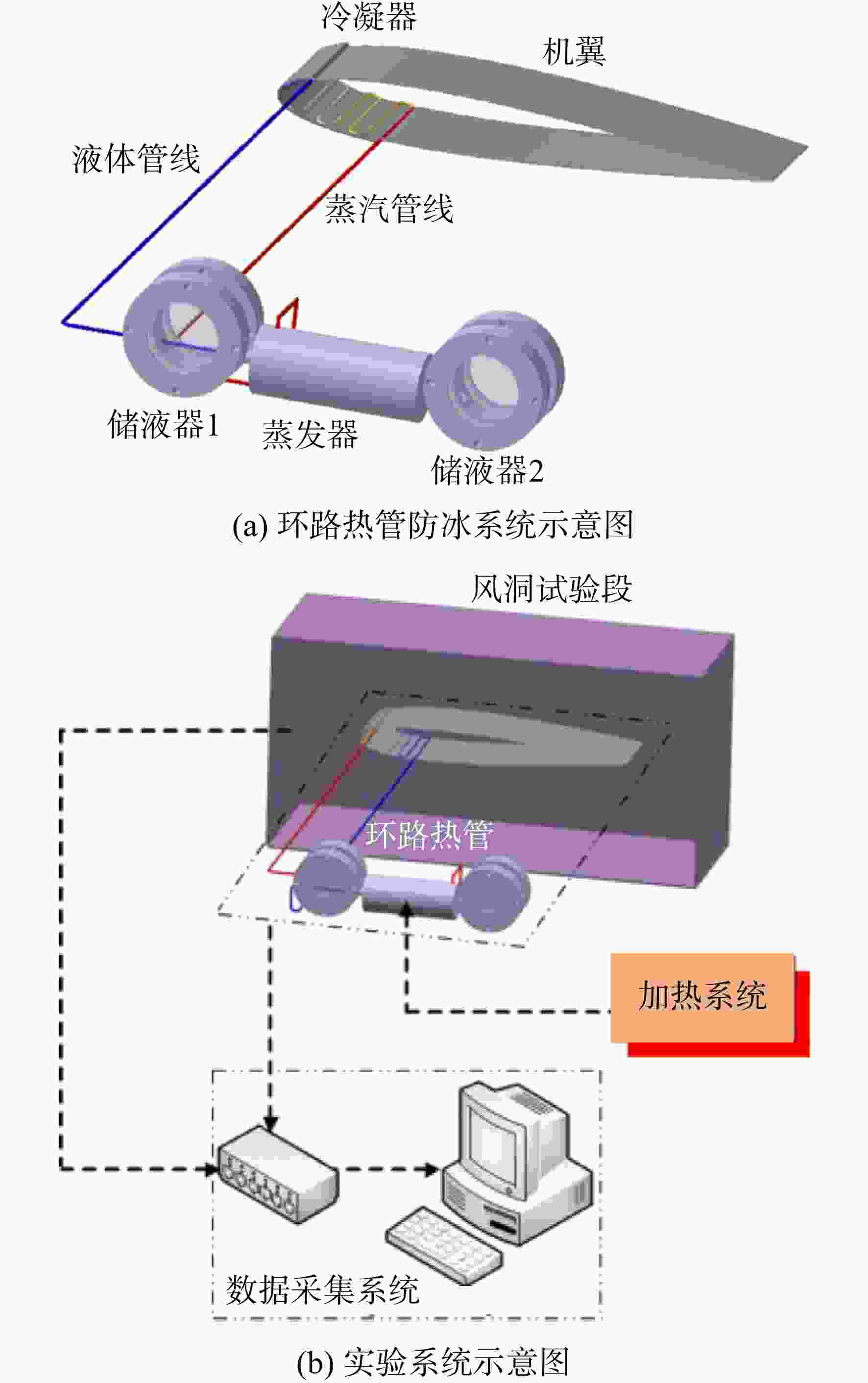

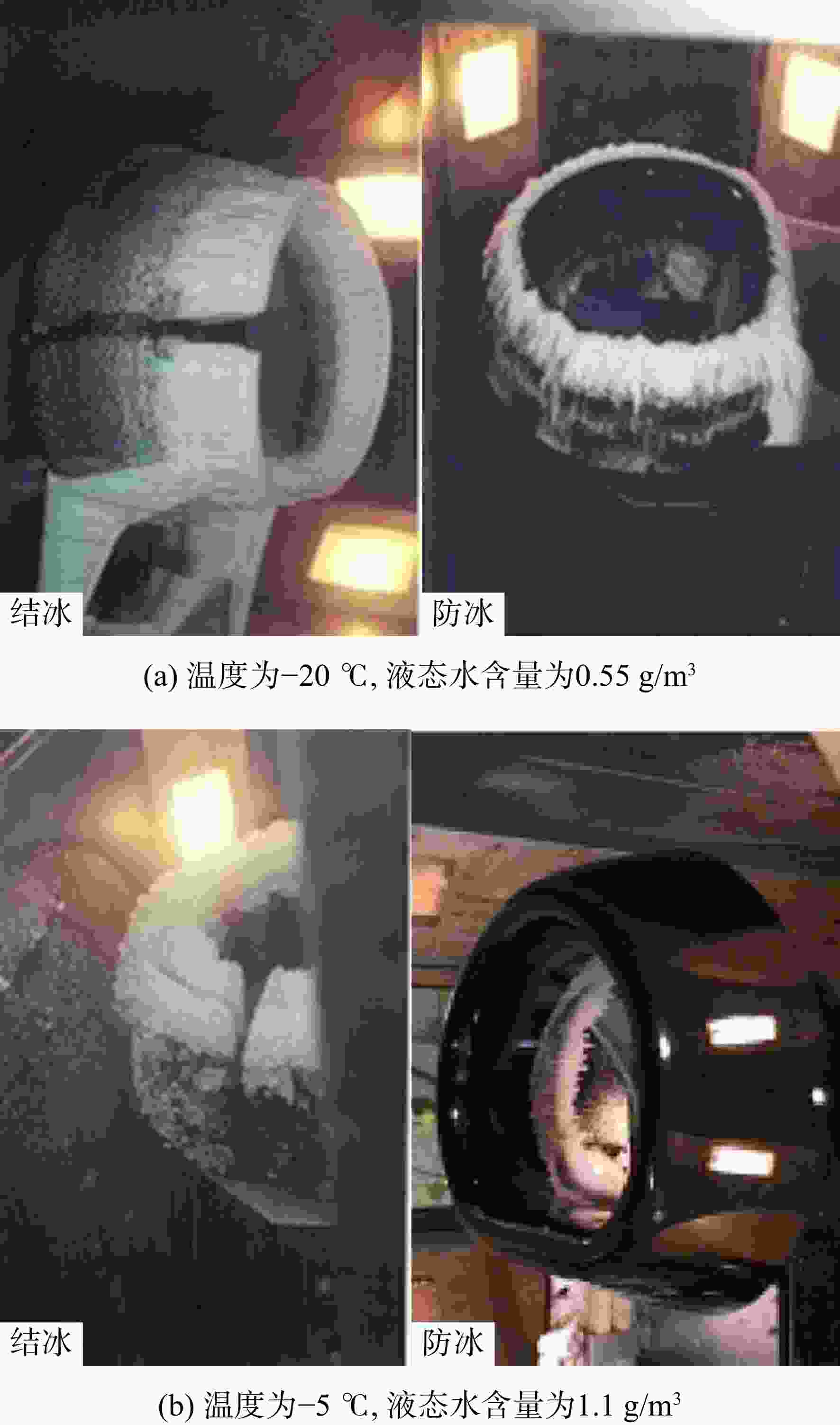

来源 工作液 工作温度/℃ 环路热管材料 结构特点 传热量或热载荷/W Anderson等人[11] 甲醇/乙醇 –28~340 传统型带泵回路 2930 (最大值)Anderson等人[13] 甲苯/甲醇 30~60 250~300 Phillips等人[14] 10~80 传统型 1500 (最大值)Phillips等人[15-16] 氨 –20~90 不锈钢 多冷凝器型,带旁路阀 3800 杨鹏[17] 水 –20~232 铜 传统型,10根环路热管 500(单根) Valle等人[19-20] 氨 –20~60 多冷凝器型,带开关阀和三通阀 100~400 Zhao等人[21] 乙醇 不锈钢 双储液器型 10~180 Su等人[22] 40%、60%、80%、100%
乙醇-水混合液–20~150 不锈钢 双储液器型 100~300 Su等人[23] 甲醇 不锈钢 60~140 Gregori等人[24] 丙酮
甲醇29~59
50~89铜/不锈钢 传统型 25~500
50~450表 3 防冰用旋转热管的主要特点

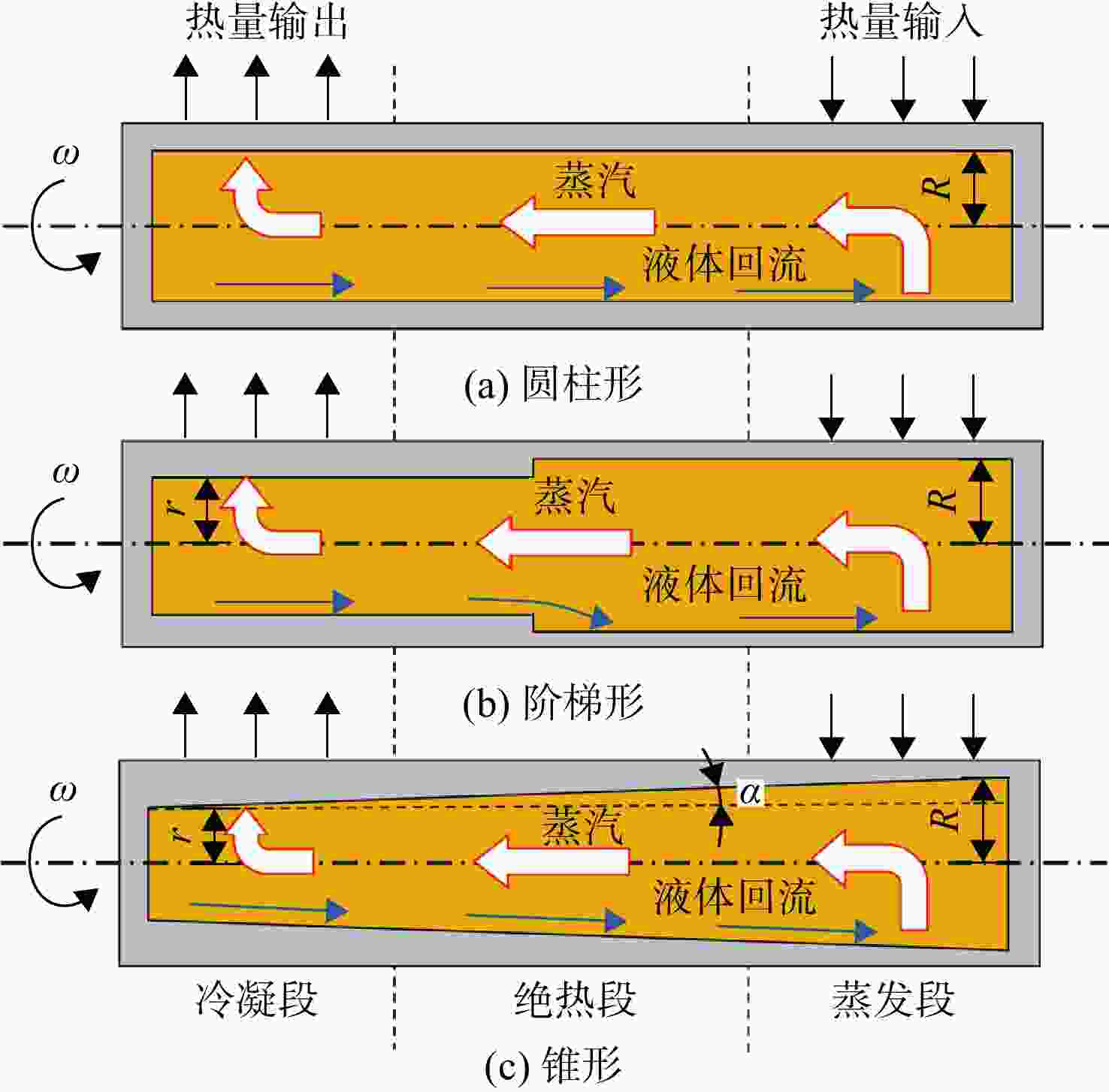

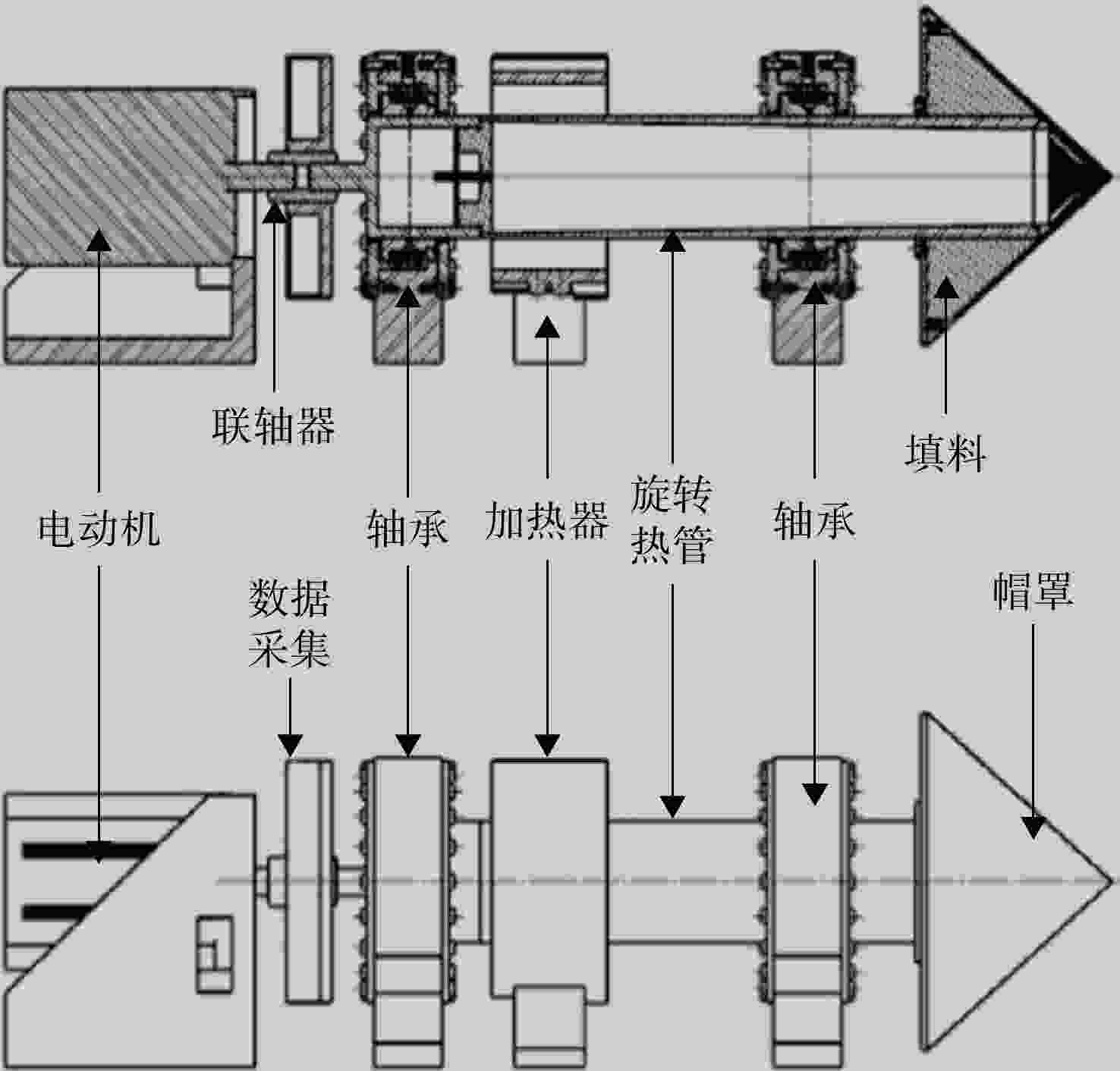

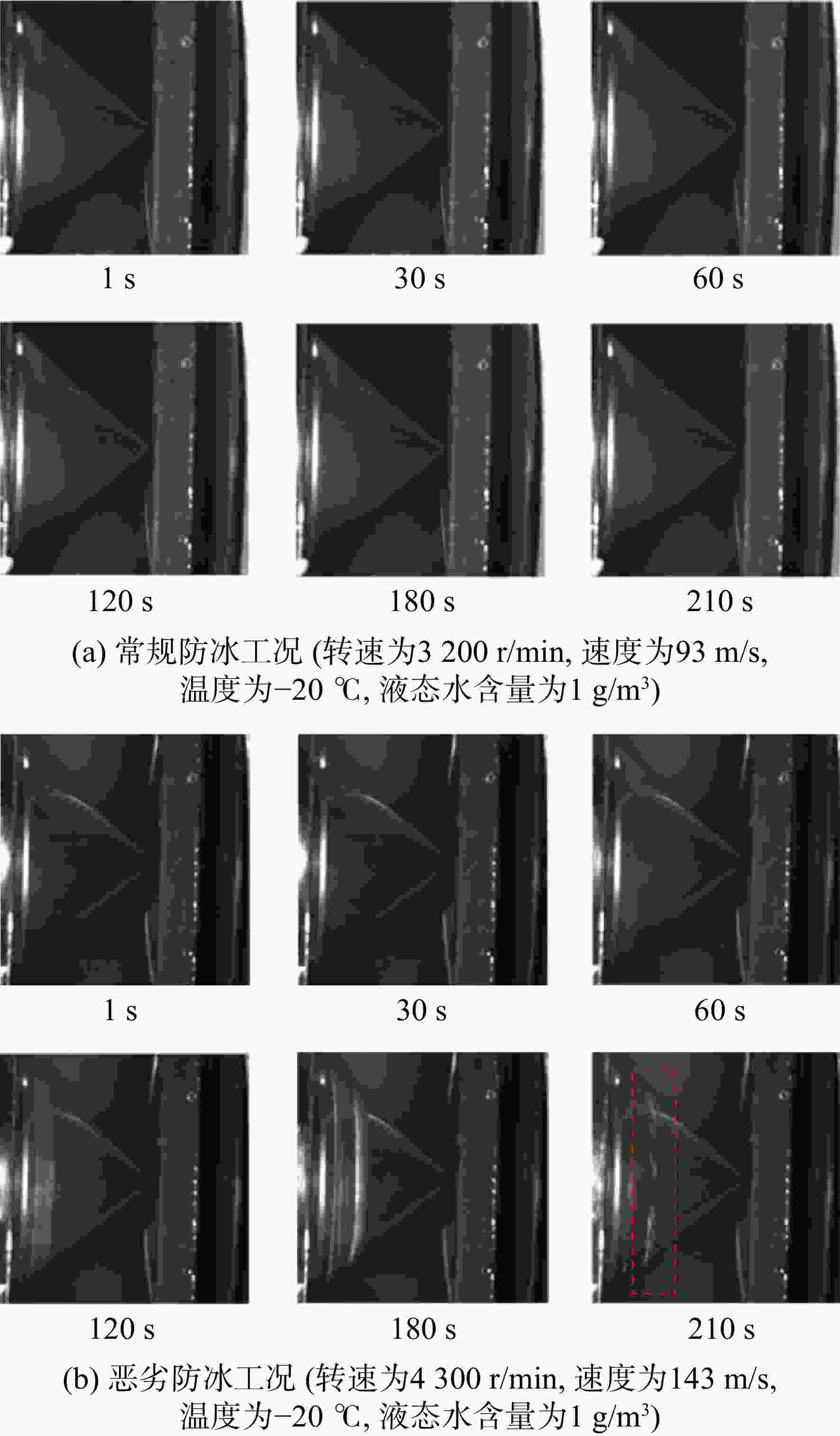

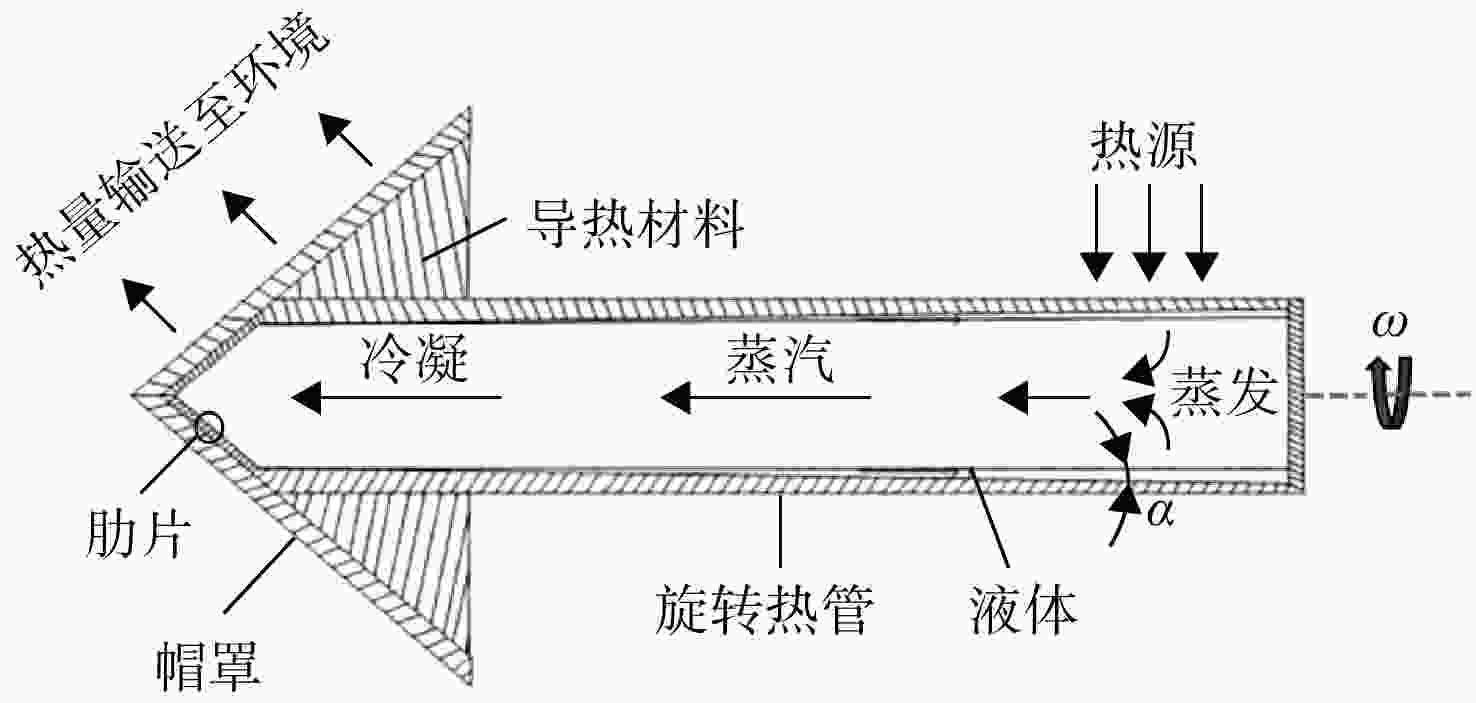

Table 3. Main features of rotating heat pipes for anti-icing
来源 工作液 充液率/% 工作温度/℃ 旋转热管材料 转速/
103 (r/min)腔室结构 传热量/W Ponnappan等人[48] 纯水/甲醇 18.3/12.6 20~250 不锈钢 5~30 半锥角为1° 1033 (最大值)/
644(最大值)Gilchrist等人[25] −40~100 铜 5~30 半锥角为0°~3.5° 95~207 Gilchrist等人[27] 水/乙醇 −30~100 铜/不锈钢 5~20 半锥角为1°~5°
或者阶梯形600~ 1700 (水)
400~750(乙醇)宣益民等人[28] 乙醇 −10~94 紫铜 1/2/3 全锥角为0.8° 500~ 3000 连文磊等人[29] 水 4~53 铜 1~10 半锥角为2° 200~600 连文磊等人[30] 水/乙醇 6 铜 1~5 全锥角为1° 200~ 1000 连文磊等人[31] 乙醇 6~23 −20~110 紫铜 1~4.5 全锥角为0.8° 576~ 2048 Du等人[32] 纯水 30 −20~85 黄铜 0.1(最大值) 半锥角为1° 75~200 -
