Cooling characteristics analysis on impingement film with effusion under constant pressure difference
-
摘要:
针对某型斜流驻涡燃烧室的火焰筒连续壁面短、气膜叠加效果差等问题，构建了冲击气膜/多斜孔复合的冷却结构。在等压差条件下开展了多种冷却方案的综合冷效试验研究，同时结合数值仿真，获得了冷/热流压差、狭缝-多斜孔间距比、冲击间距比等参数对流动和综合冷效的影响规律。结果表明：与单一的多斜孔和冲击气膜结构相比，冲击气膜/多斜孔复合冷却方案有效解决了气膜初始段冷效不高、轴向壁温分布不均匀的问题，面积平均综合冷效相比纯多斜孔冷却提升约3.2%；增大冷/热流压差可显著提高综合冷效，狭缝-多斜孔间距比过大不利于下游气膜的叠加，而冲击间距比的减小能够明显提升冲击气膜段的综合冷效。
Abstract:In response to the problem of short continuous liner wall and poor film stacking effect in a certain type of oblique flow vortex combustor, a combined impingement film and effusion cooling structure was constructed. Under the conditions of equal pressure difference, experimental study of multiple cooling schemes on the overall cooling effectiveness was carried out, and the influence laws of pressure difference between coolant and hot gas, the distance ratio between slit and effusion, and the impact spacing ratio on the flow and overall cooling effectiveness were obtained by combining the numerical simulation. The results showed that compared with the single effusion or impingement film structure, the impingement film composite effusion scheme solved the problems of low cooling effectiveness in the film initial section and uneven distribution of axial wall temperature, and average area overall cooling effectiveness was about 3.2% higher than effusion cooling. The increase of the pressure difference significantly improved the overall cooling effectiveness. The larger distance ratio between slit and effusion was not conducive to the stacking of the downstream cooling-film, while the reduction of the impact spacing ratio can improve the overall cooling efficiency of the impingement film section.
-

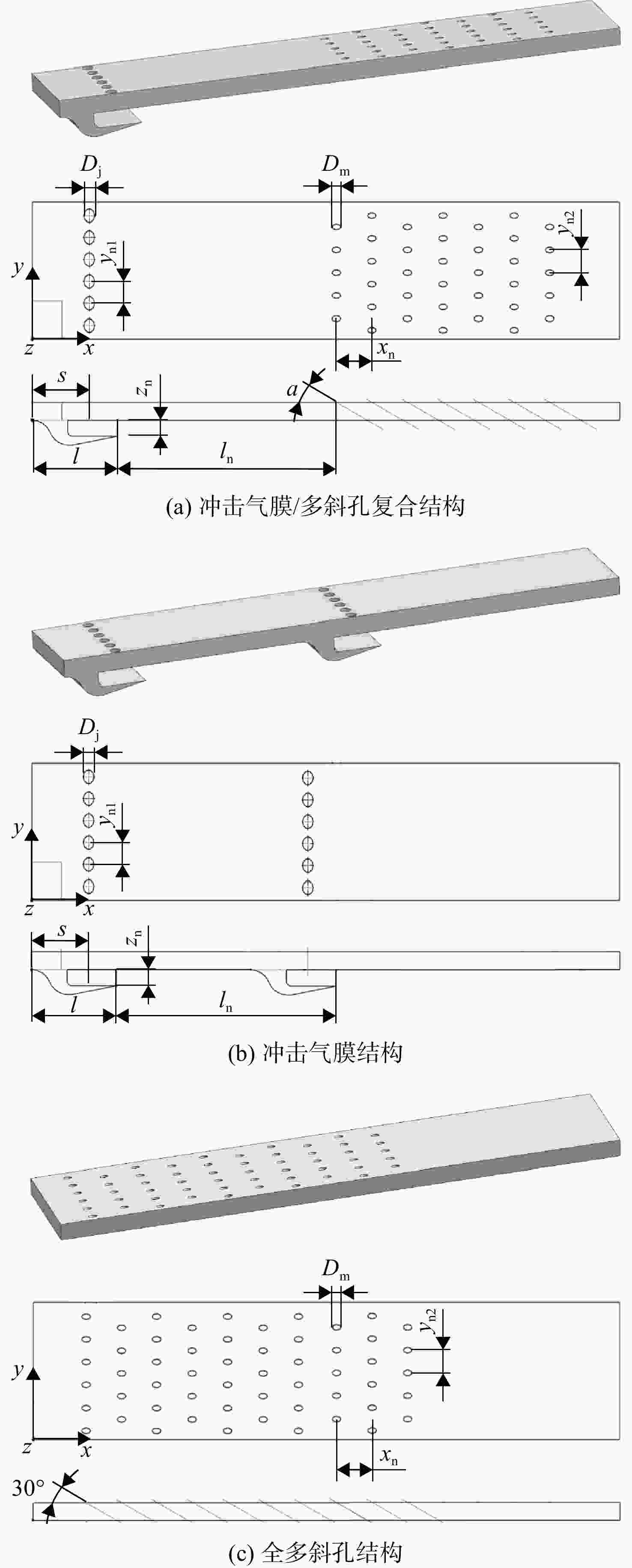

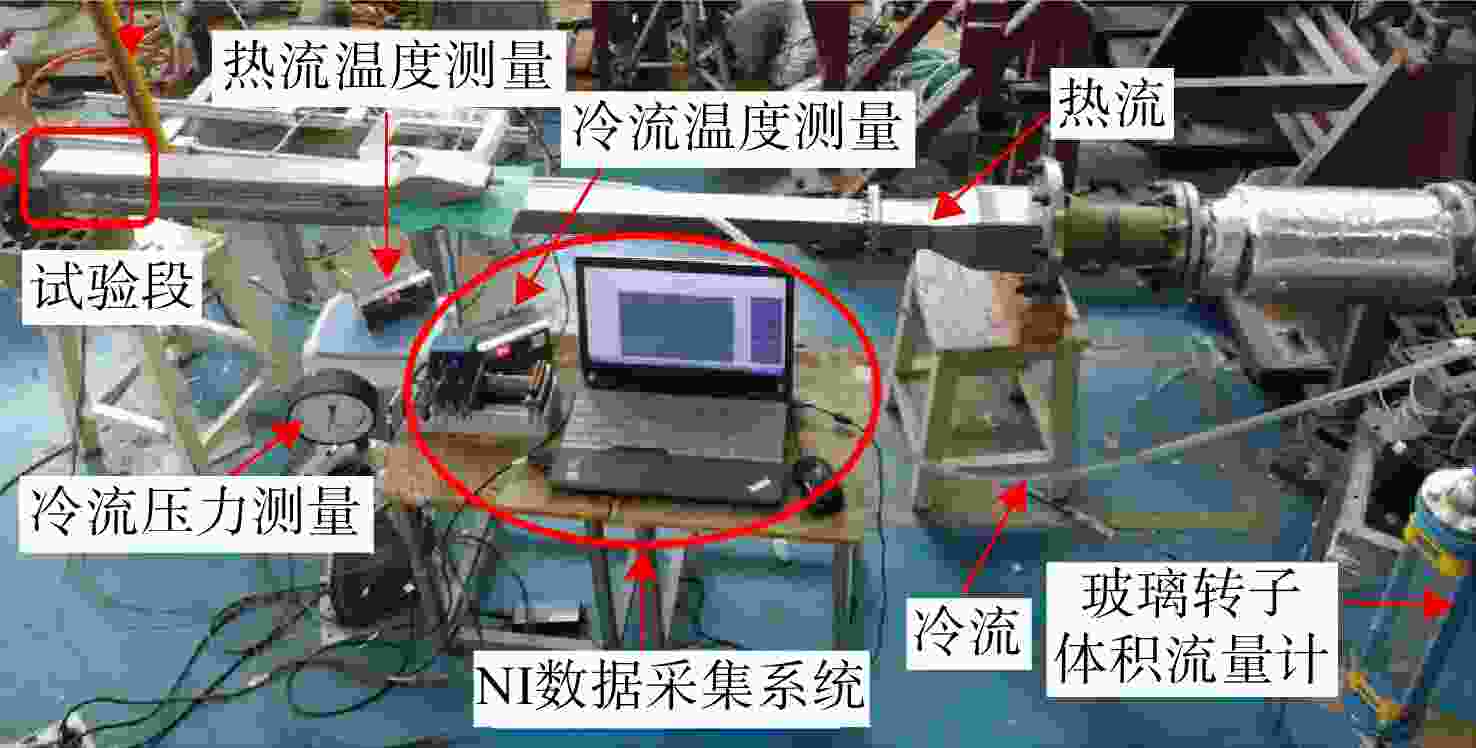

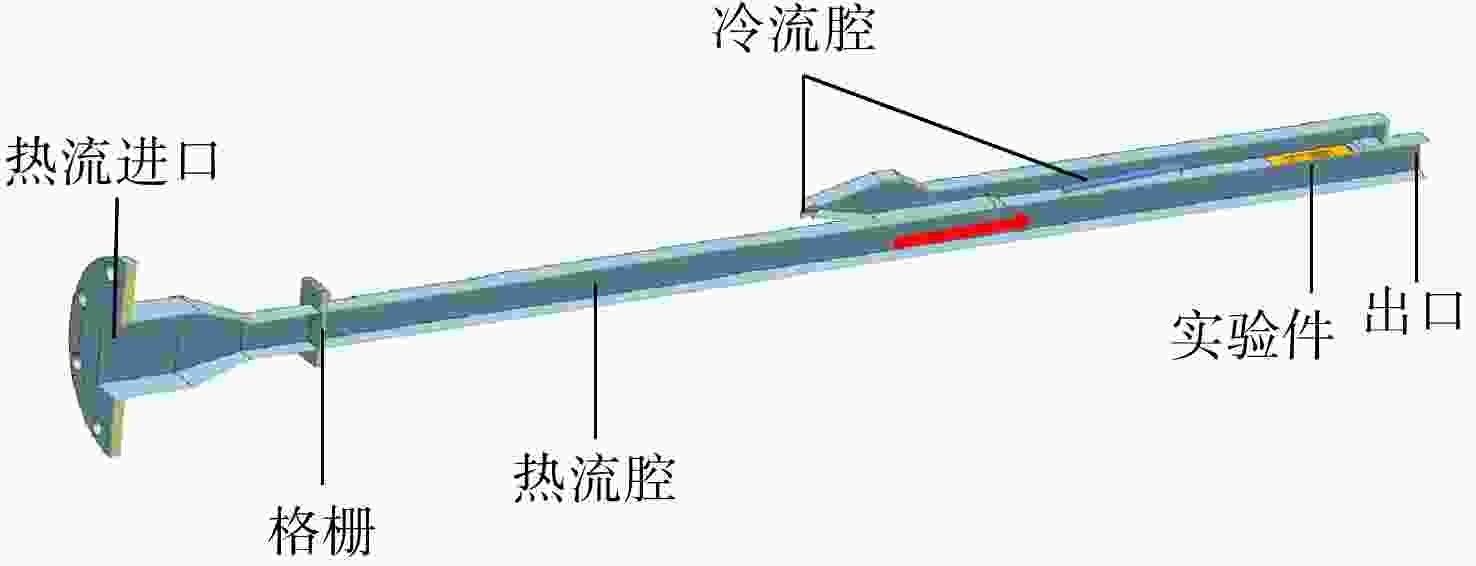

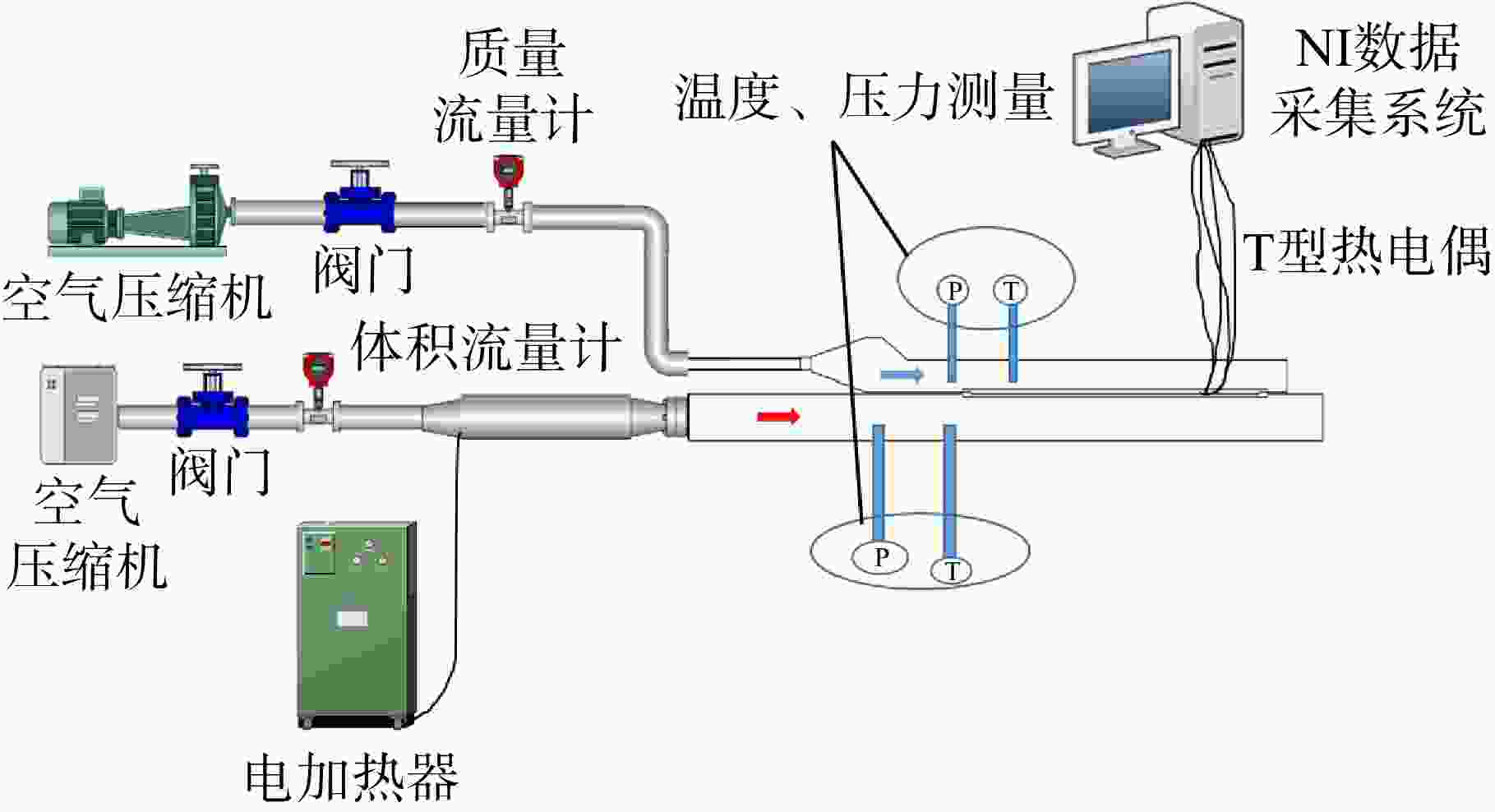

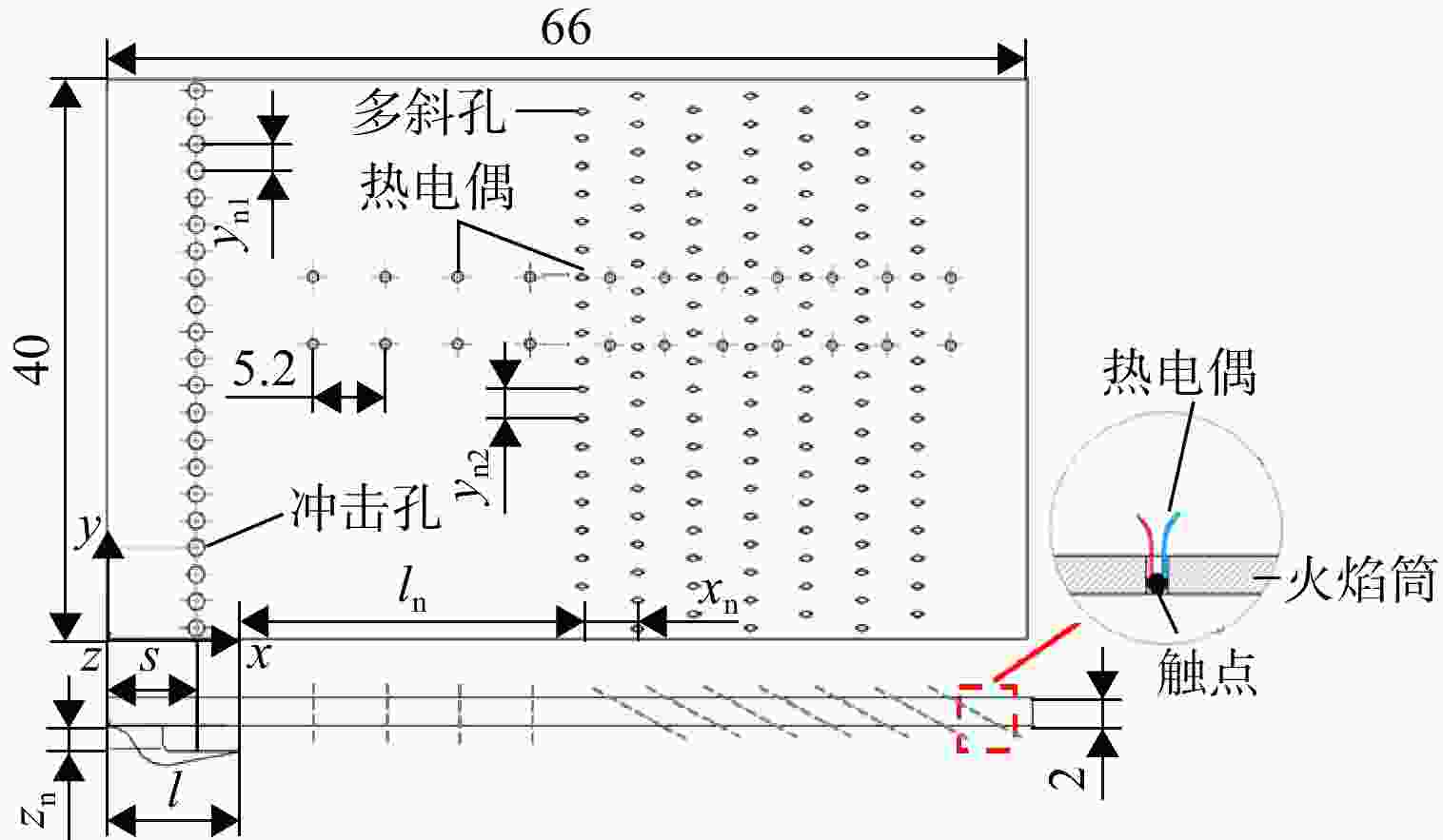

图 2 热电偶测点示意图（单位：mm）
Figure 2. Schematic diagram of thermocouple measuring points （unit：mm）

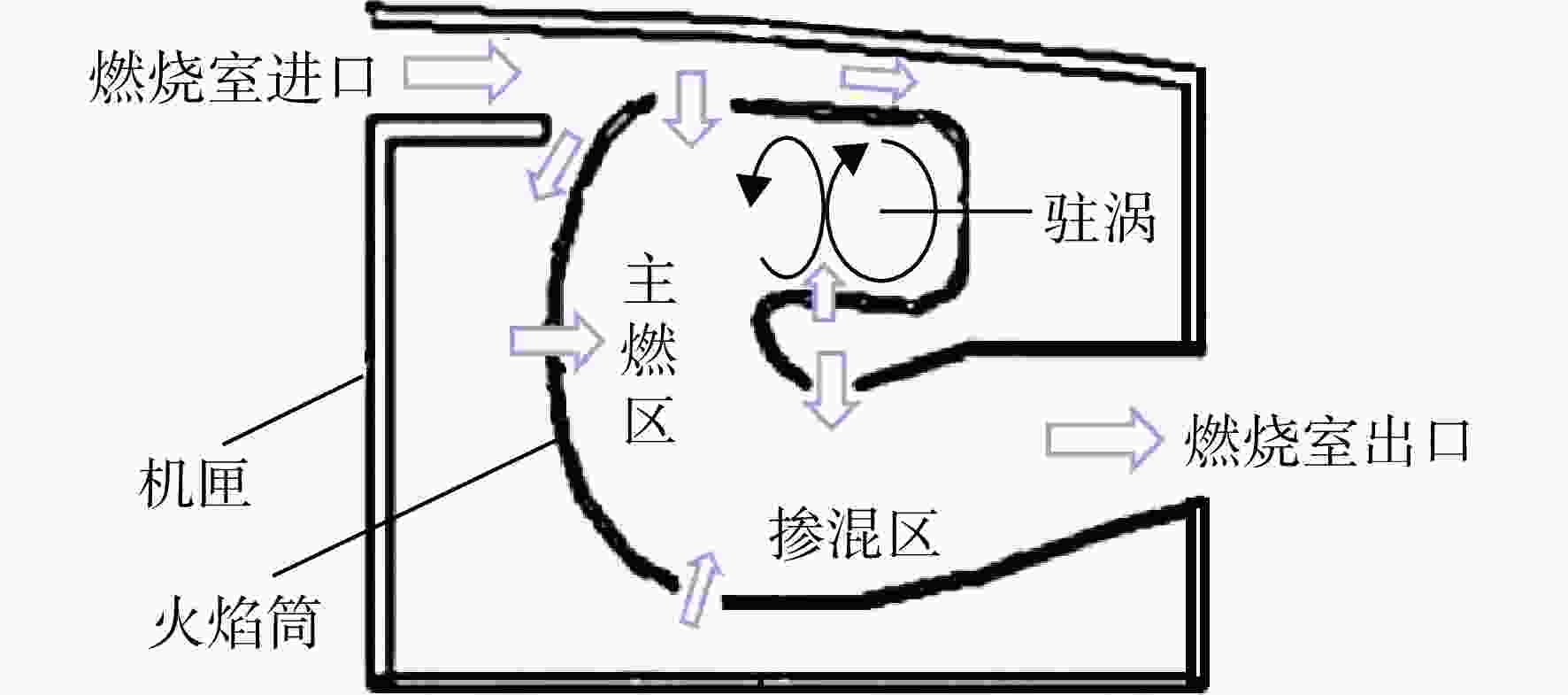

图 6 斜流驻涡燃烧室模型和流动示意图
Figure 6. Schematic diagram of model and flow of oblique flow vortex combustor

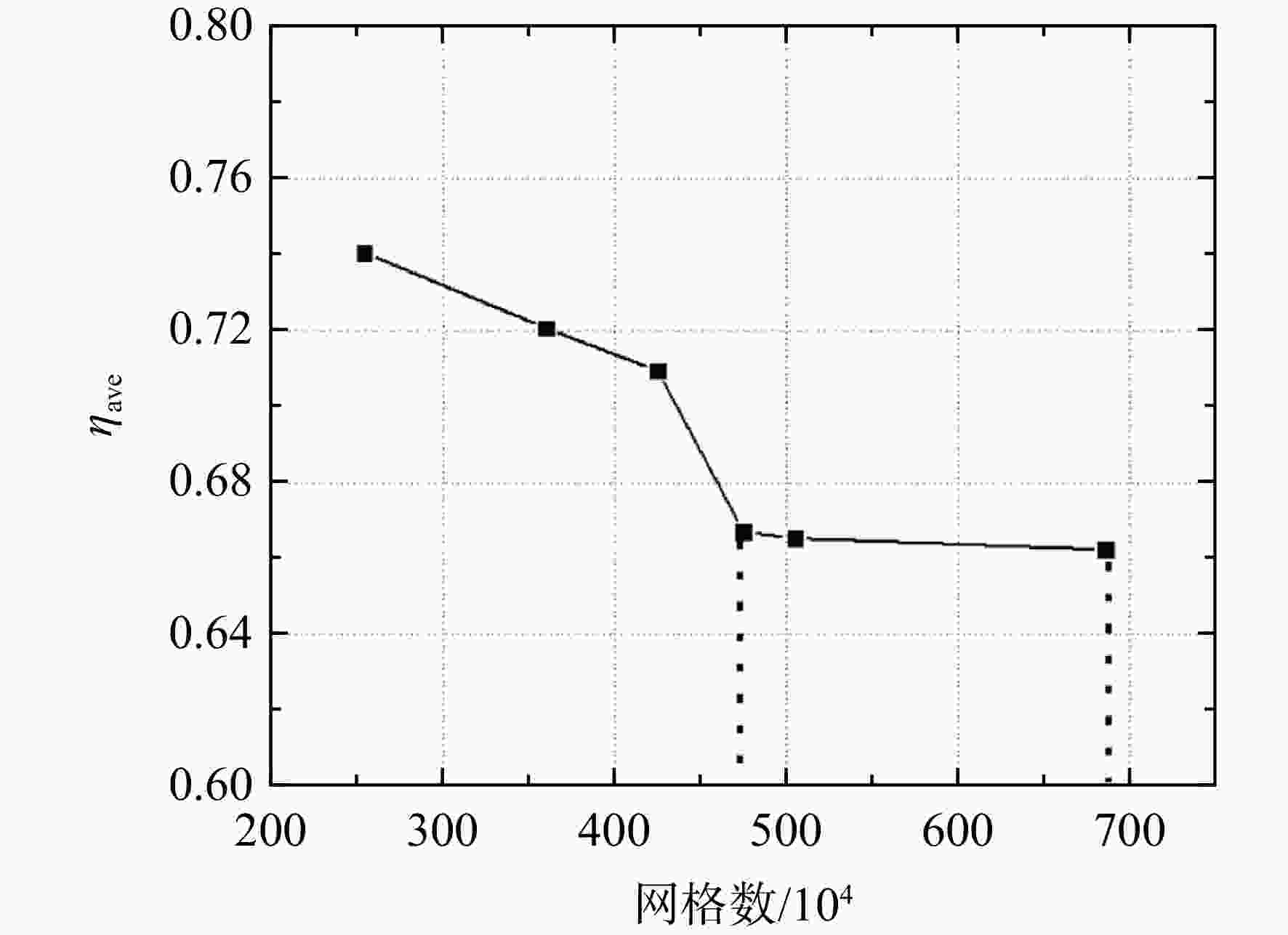

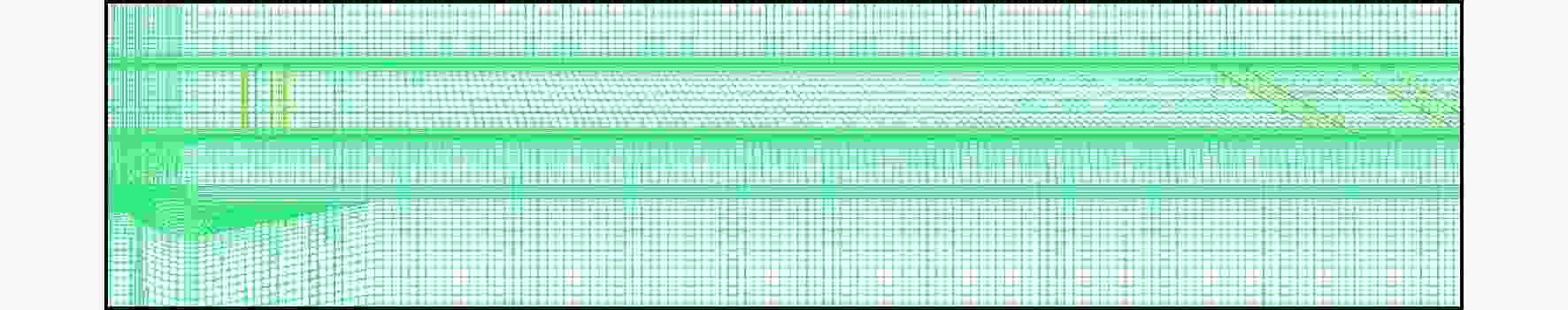

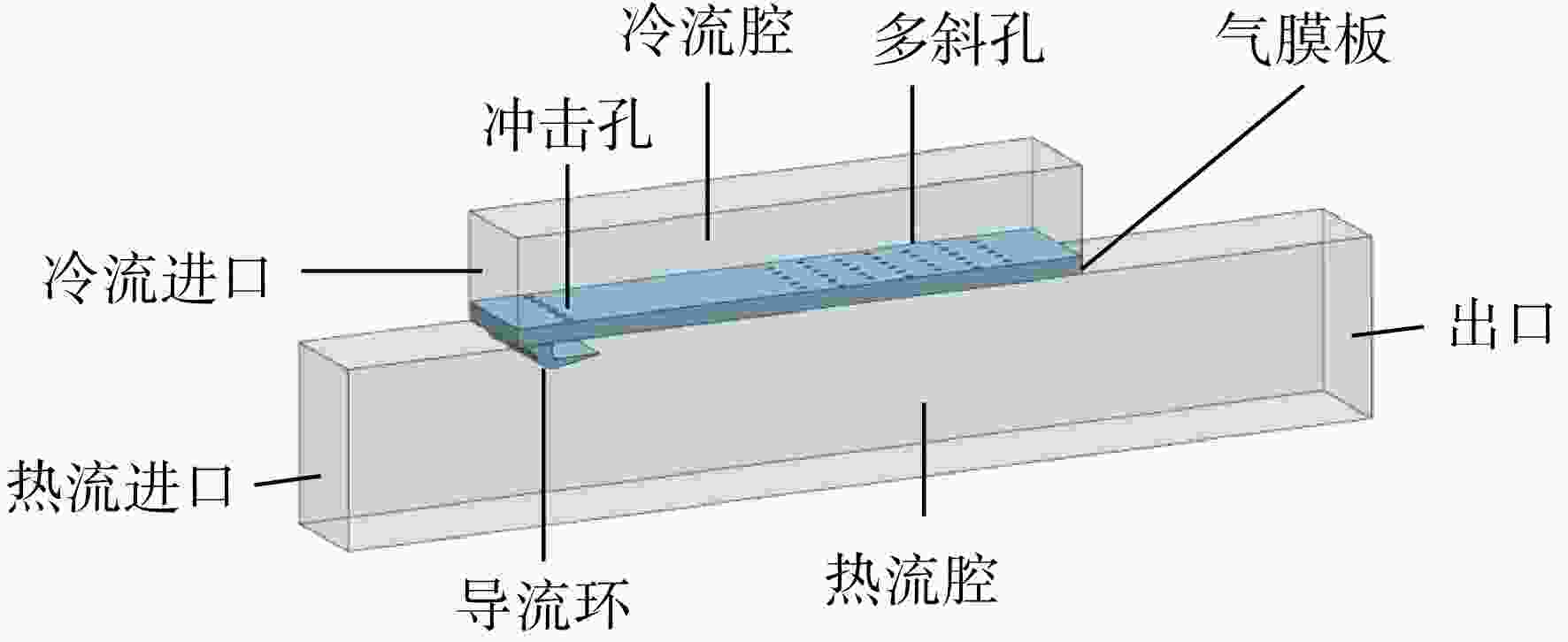

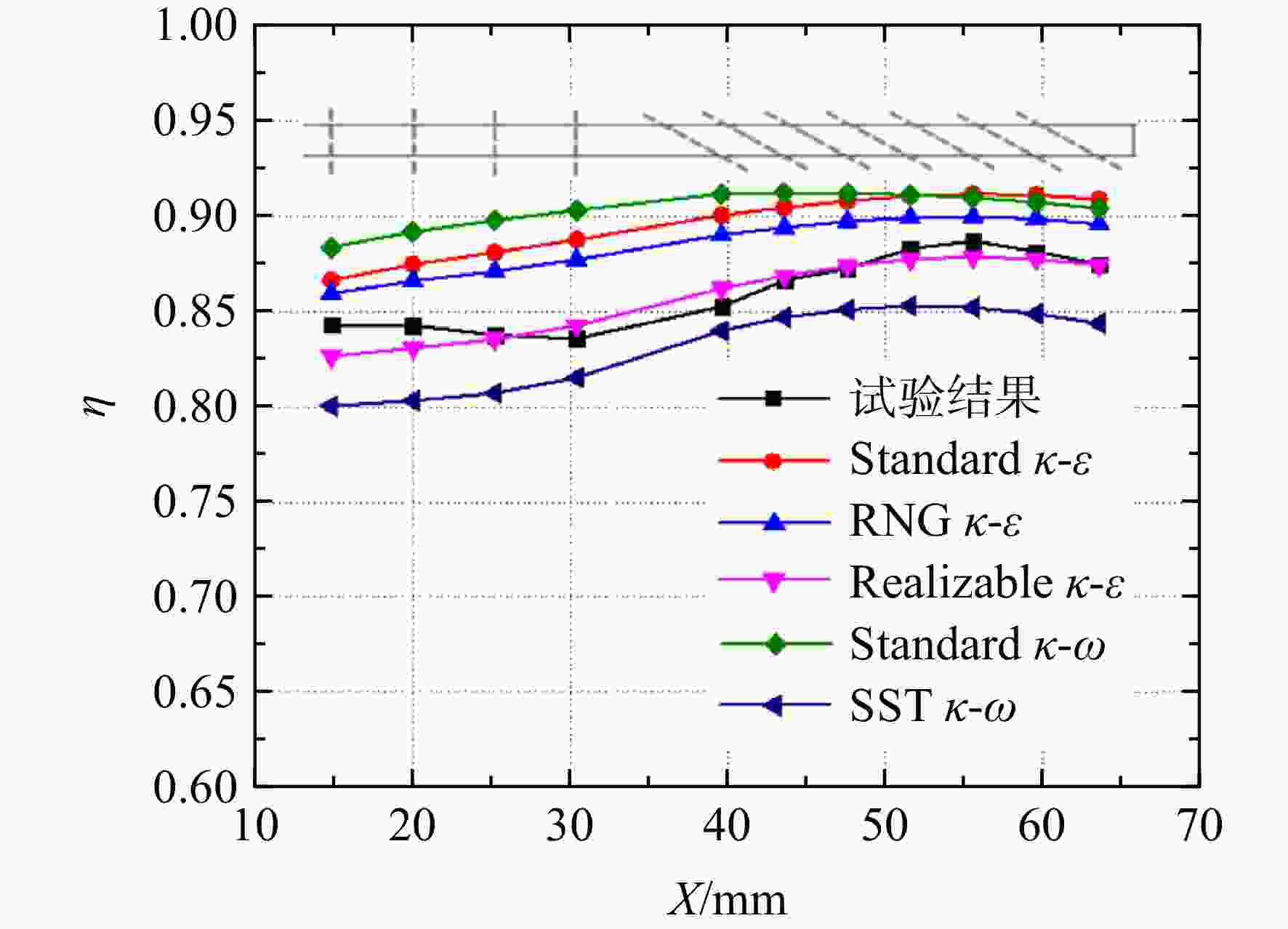

图 10 湍流模型对比（No.1方案，Δp=4.5 kPa）
Figure 10. Comparison of turbulence models（scheme of No.1，Δp=4.5 kPa）

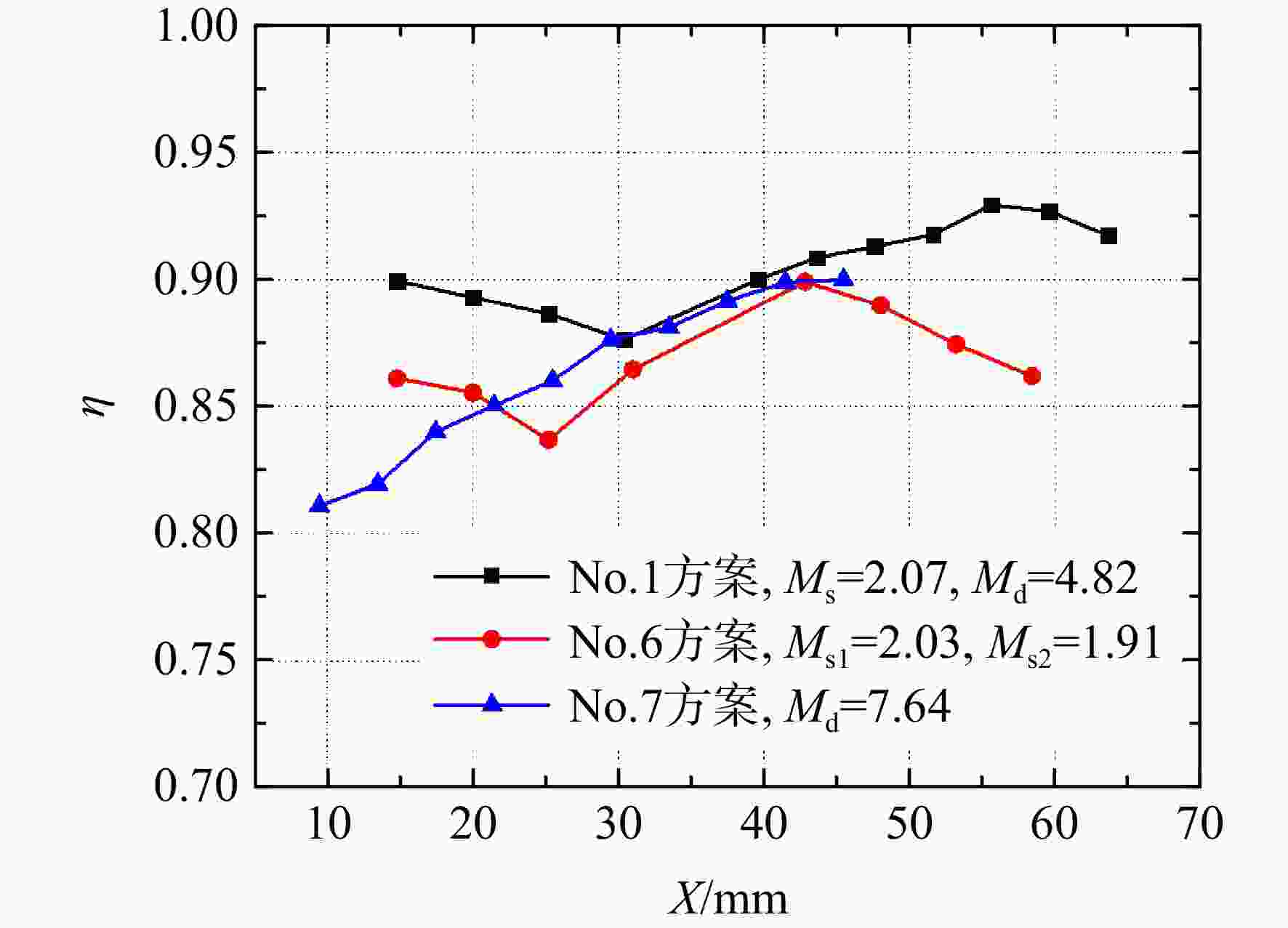

图 11 不同冷却方案综合冷效对比（Δp=19.5 kPa，试验结果）
Figure 11. Comparison of overall cooling effectiveness of different cooling schemes （Δp=19.5 kPa，experimental results）

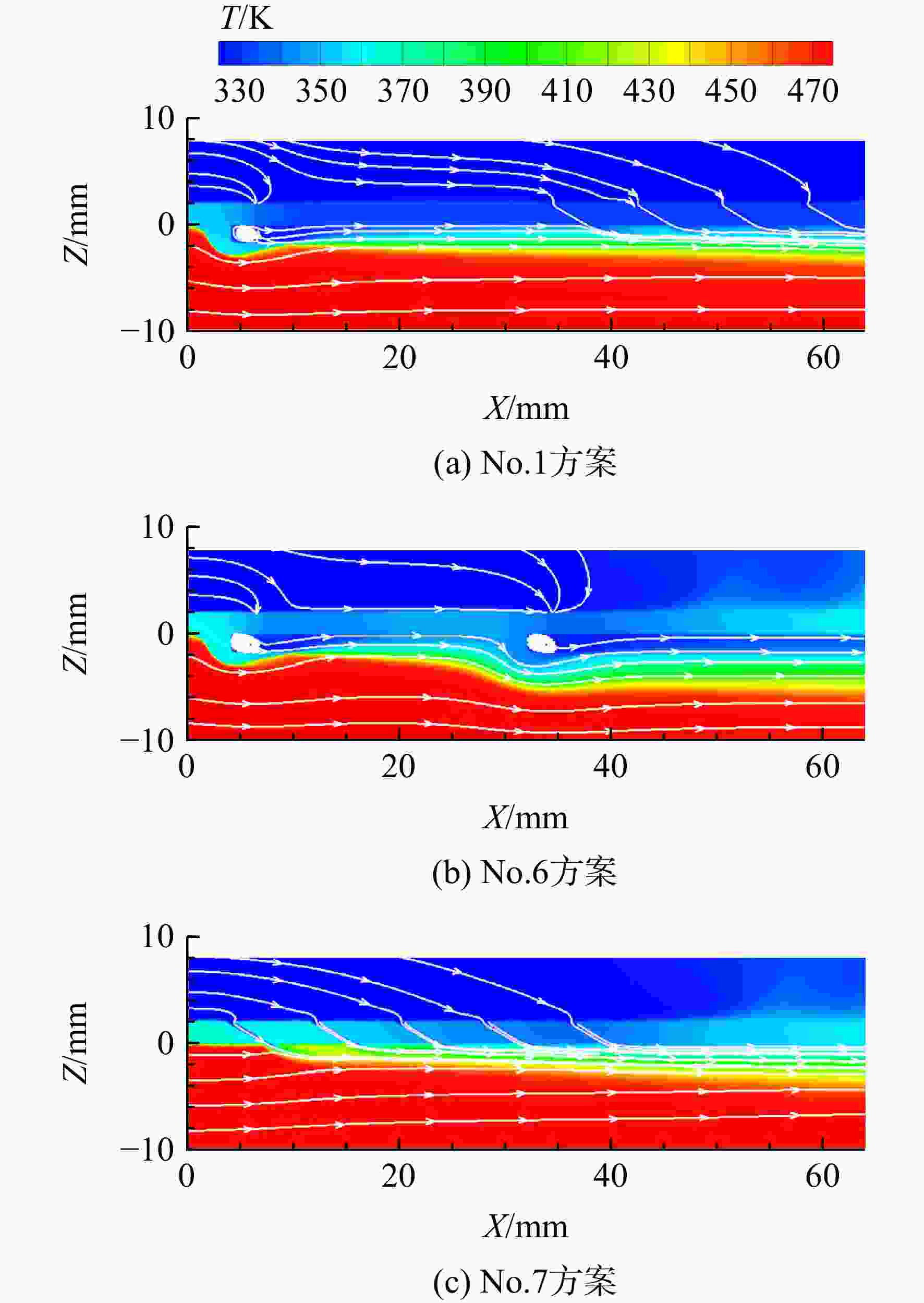

图 12 不同冷却方案的仿真结果 （Δp=19.5 kPa）
Figure 12. Simulation results of different cooling schemes （Δp=19.5 kPa）

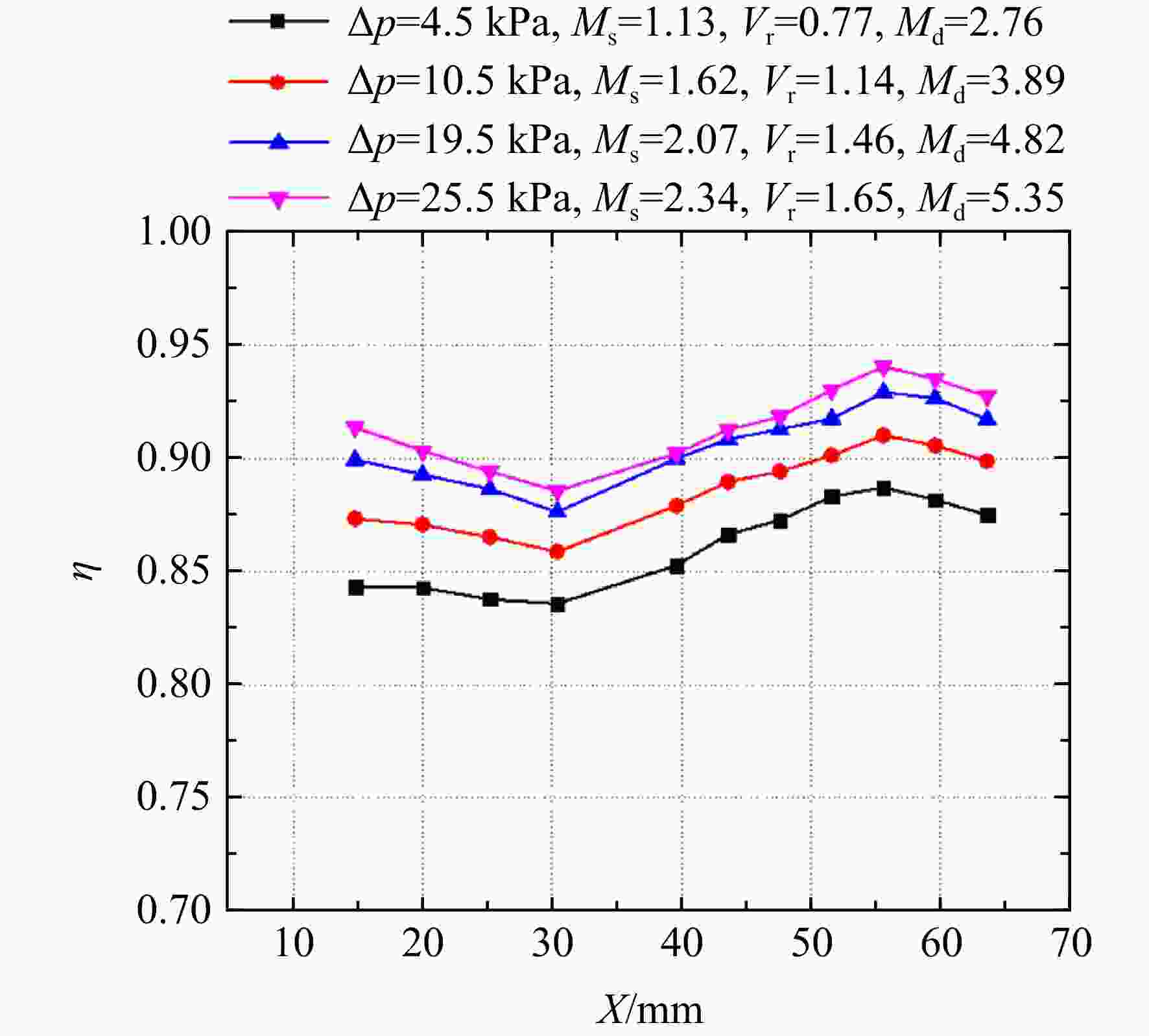

图 13 不同压差下综合冷效对比（No.1方案，试验结果）
Figure 13. Comparison of overall cooling effectiveness of different pressure differences （scheme of No.1，experimental results）

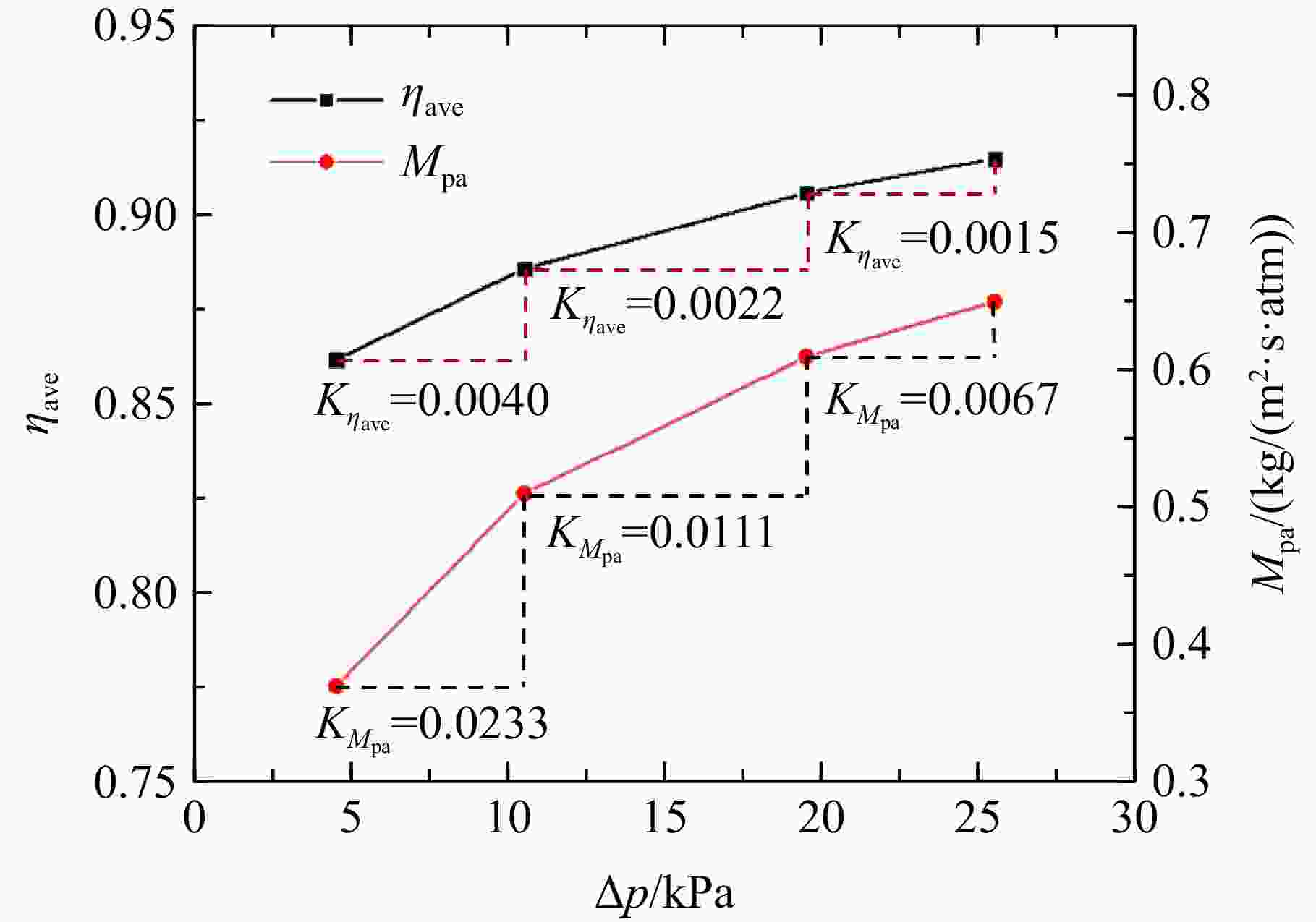

图 14 综合冷效及Mpa随压差变化（No.1方案，试验结果）
Figure 14. Variation of overall cooling effectiveness and Mpa with pressure difference （scheme of No.1，experimental results）

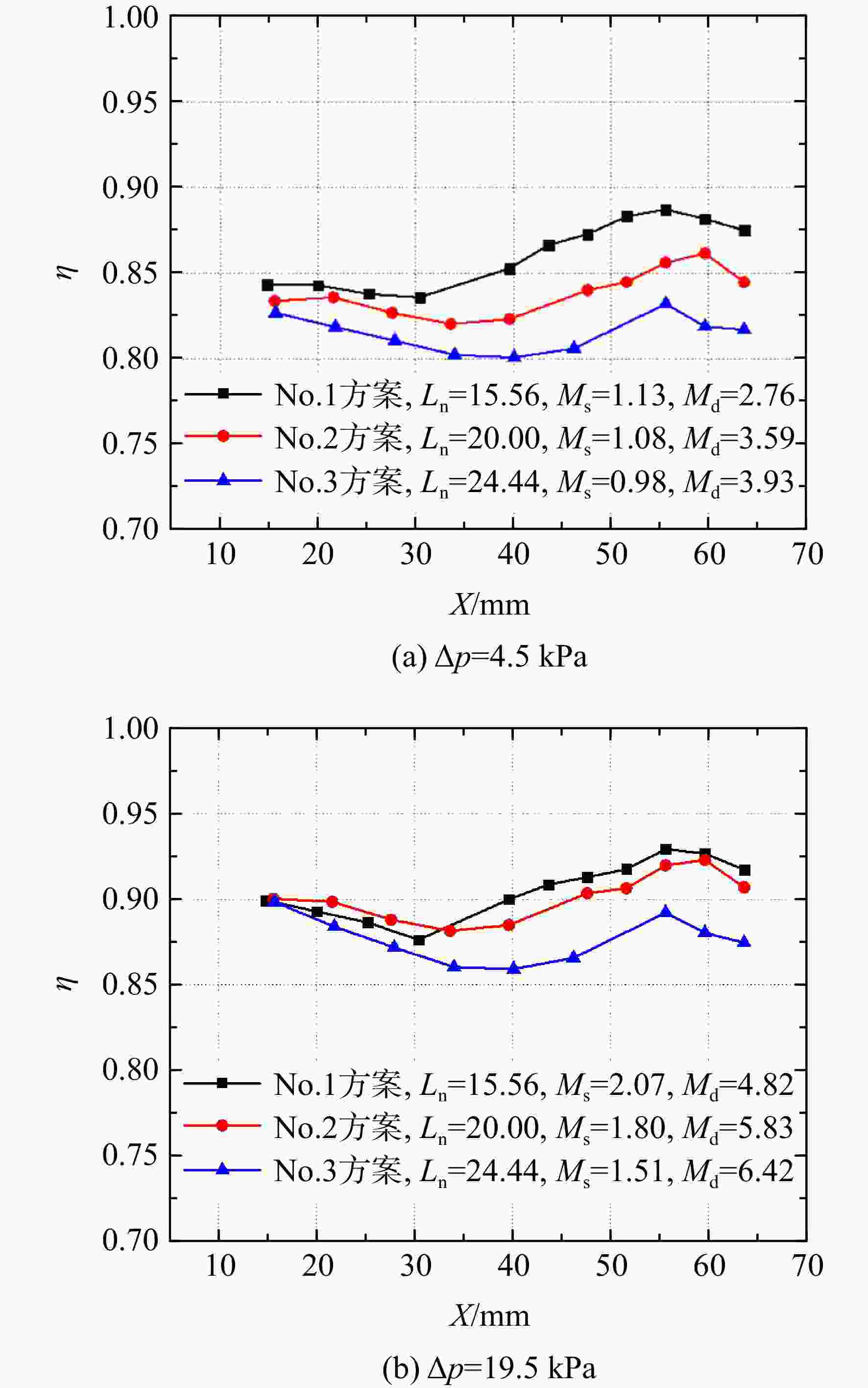

图 15 不同Ln下综合冷效对比（试验结果）
Figure 15. Comparison of overall cooling effectiveness of different Ln （experimental results）

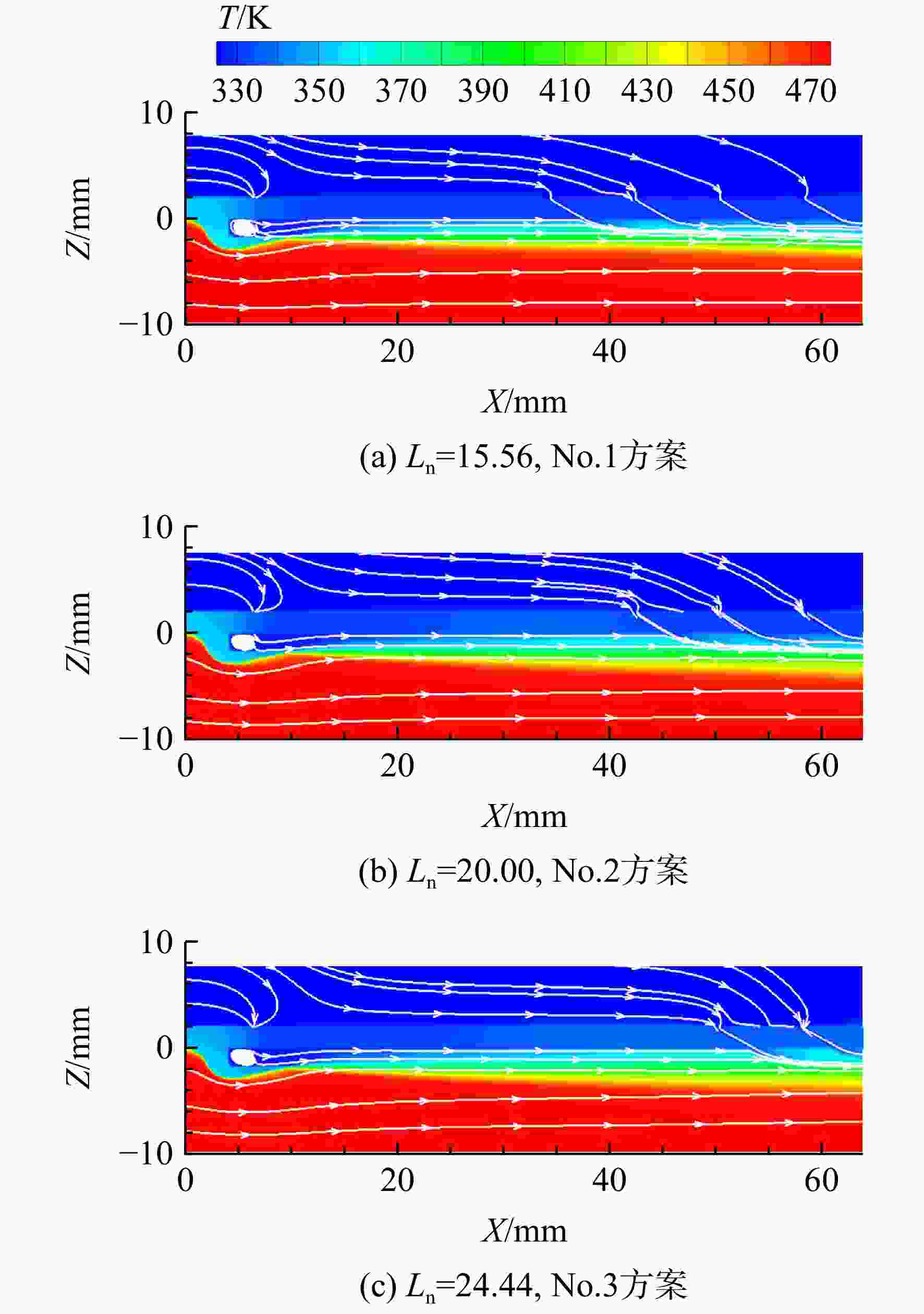

图 16 不同Ln下的仿真结果 （Δp =19.5 kPa）
Figure 16. Simulation results of different Ln （Δp =19.5 kPa）

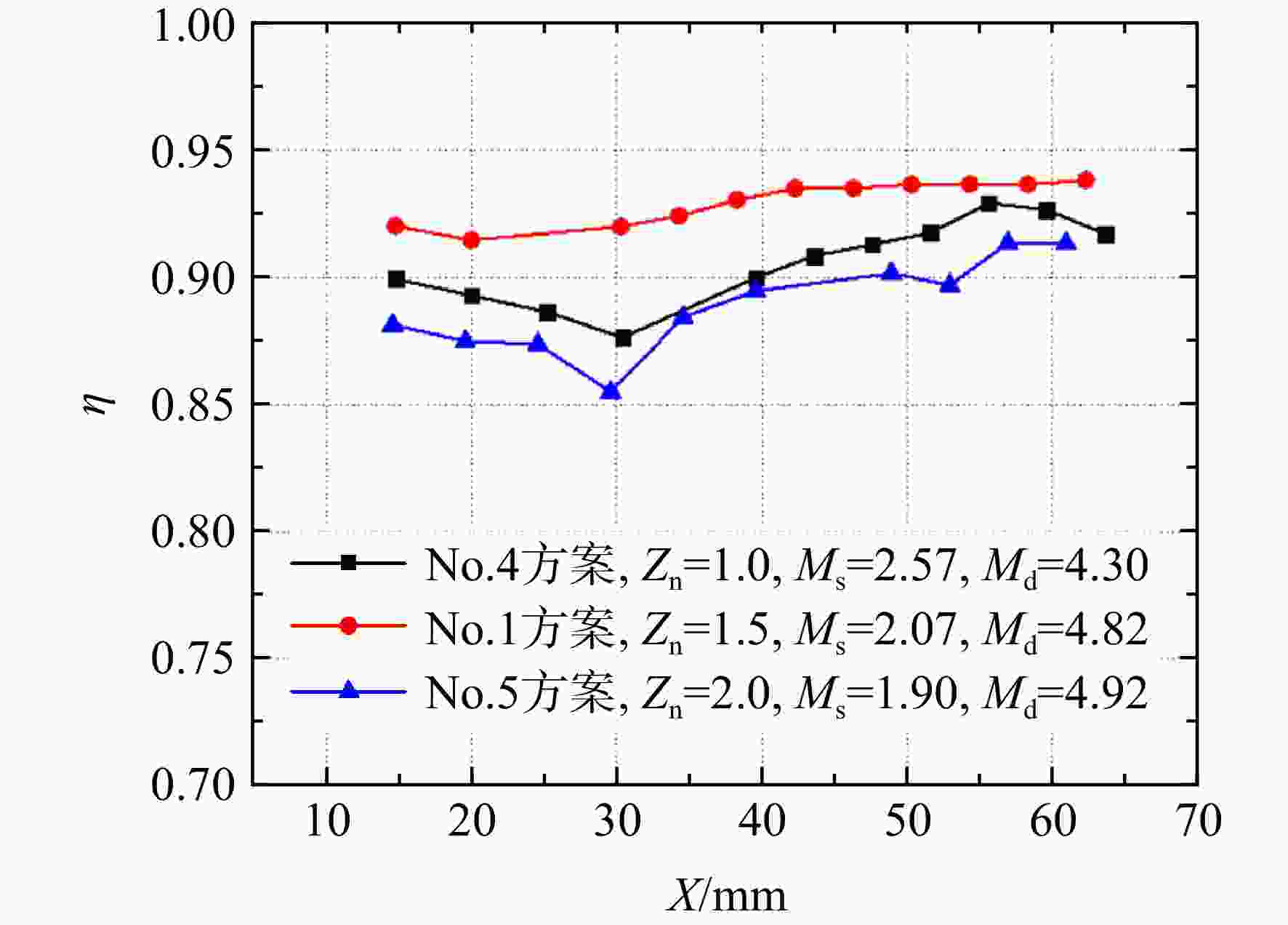

图 17 不同Zn下综合冷效对比（Δp=19.5 kPa，试验结果）
Figure 17. Comparison of overall cooling effectiveness of different Zn （Δp=19.5 kPa，experimental results）

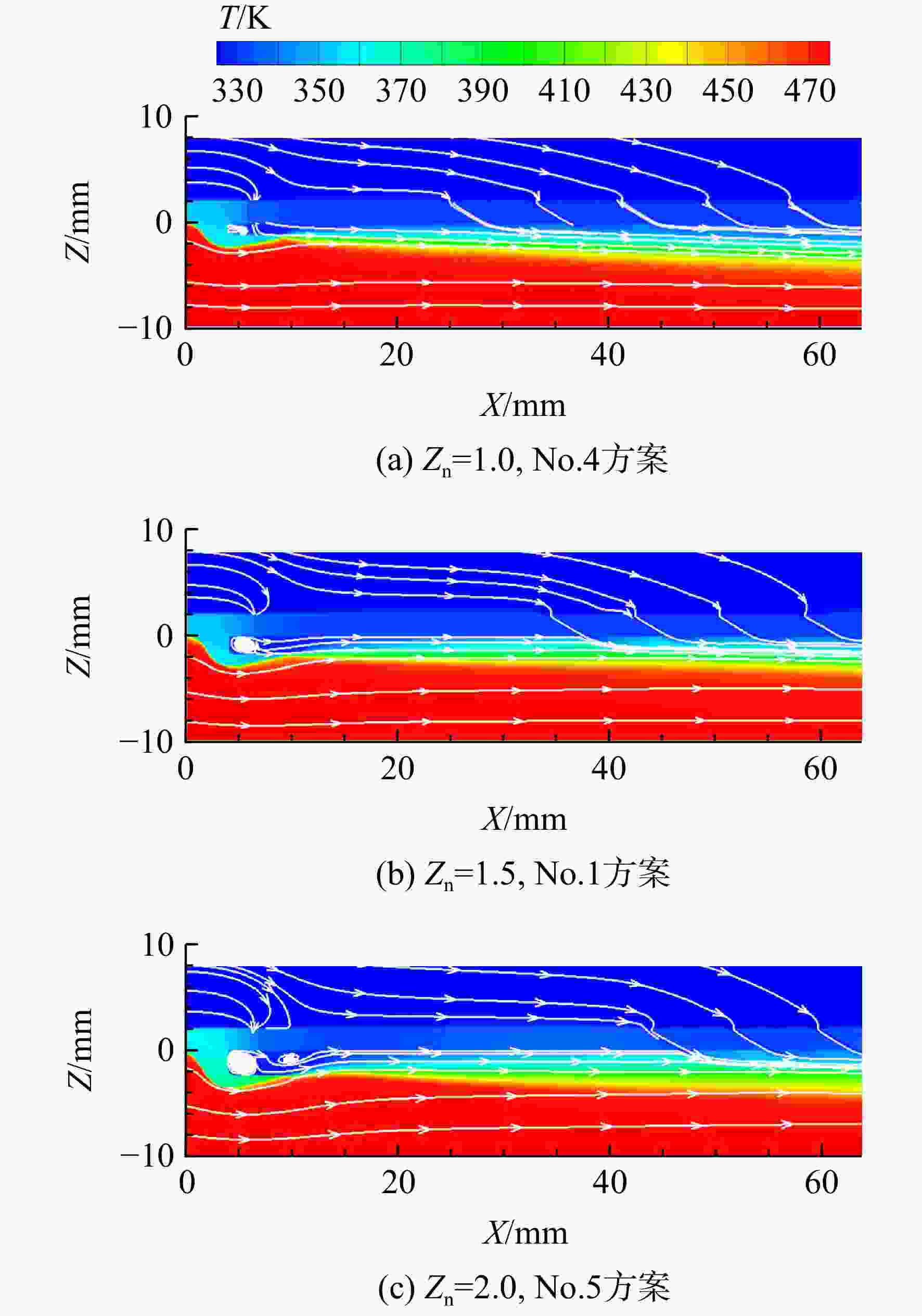

图 18 不同Zn下的仿真结果 （Δp =19.5 kPa）
Figure 18. Simulation results of different Zn （Δp =19.5 kPa）

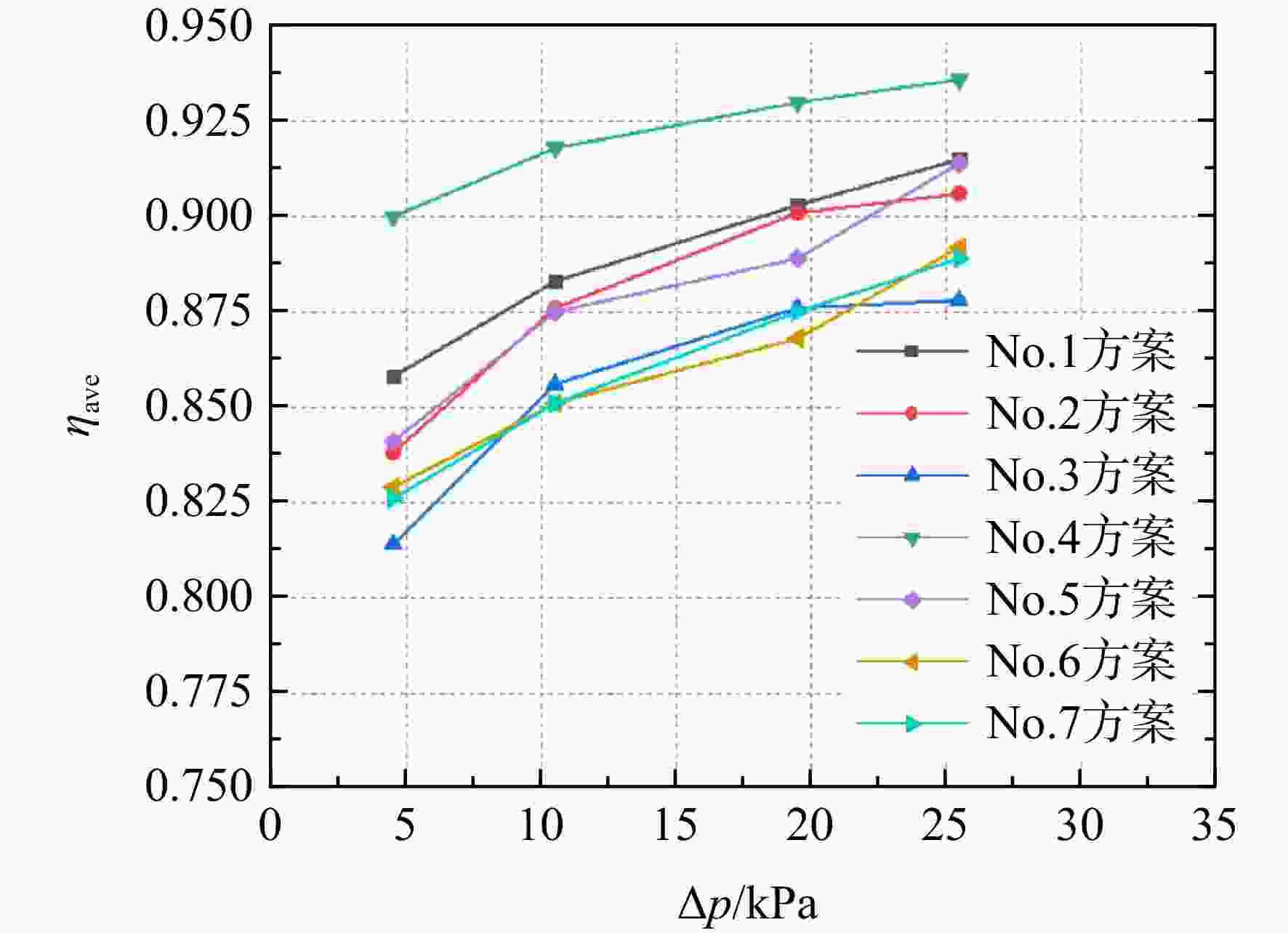

图 19 所有结构平均综合冷效对比（试验结果）
Figure 19. Comparison of average overall cooling effectiveness of all cooling structures （experimental results）

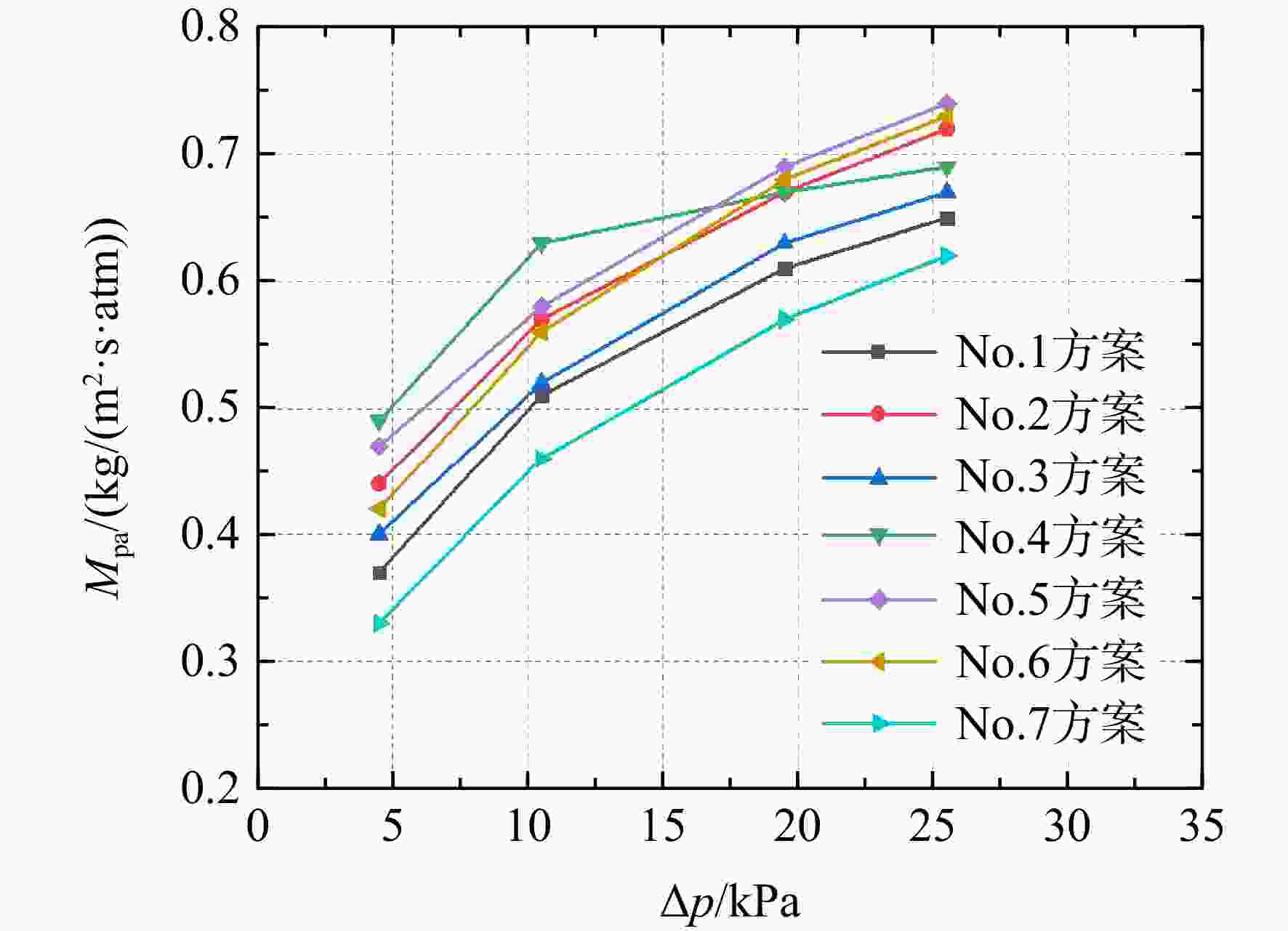

图 20 所有结构Mpa对比（试验结果）
Figure 20. Comparison of Mpa of all cooling structures （experimental results）
表 1 几何结构参数
Table 1. Geometry parameters
方案 Dj/mm Yn1 Zn Ln Dm/mm Xn Yn2 No.1（基准） 1.2 1.6 1.5 15.56 0.5 8 4 No.2 1.2 1.6 1.5 20.00 0.5 8 4 No.3 1.2 1.6 1.5 24.44 0.5 8 4 No.4 1.2 1.6 1.0 15.56 0.5 8 4 No.5 1.2 1.6 2.0 15.56 0.5 8 4 No.6 1.2 1.6 1.5 15.56 No.7 0.5 8 4
下载: 导出CSV
表 2 物理量和相对测试不确定度
Table 2. Physical quantities and relative uncertainty
物理量 数值 不确定度/% Tc/K 314～324 ±（0.15～0.16） Th/K 473 ±0.11 Tw/K 323～353 ±（0.14～0.15） η 0.76～1.0 ±（0.13～1.65）
下载: 导出CSV
表 3 试验工况参数
Table 3. Operating parameters of experiment
编号 冷流温度/K 冷流压力/kPa 热流温度/K 热流压力/kPa 1 318 106.325 473 101.825 2 318 112.325 473 101.825 3 318 121.325 473 101.825 4 318 127.325 473 101.825
下载: 导出CSV
表 4 不同冷却方案Mpa和ηave对比（Δp=19.5 kPa，试验结果）
Table 4. Comparison of Mpa and ηave of different cooling schemes （Δp=19.5 kPa，experimental results）
方案 ηave Mpa No.1 0.903 0.61 No.6 0.868 0.68 No.7 0.875 0.57
下载: 导出CSV
表 5 不同Ln下Mpa和ηave对比（试验结果）
Table 5. Comparison of Mpa and ηave of different Ln （experimental results）
方案 Δp=4.5 kPa Δp=19.5 kPa ηave Mpa ηave Mpa No.1 0.858 0.37 0.903 0.61 No.2 0.838 0.44 0.901 0.67 No.3 0.814 0.4 0.876 0.63
下载: 导出CSV
表 6 不同Zn下Mpa和ηave对比（Δp=19.5 kPa，试验结果）
Table 6. Comparison of Mpa and ηave of different Zn （Δp=19.5 kPa，experimental results）
方案 ηave Mpa No.4 0.930 0.67 No.1 0.903 0.61 No.5 0.889 0.69
下载: 导出CSV
-
[1] LEFEBVRE A H. Gas turbine combustion[M]. Washington,US: Hemisphere Pub,1983. [2] MONGIA H,GORE J,GRINSTEIN F,et al. Combustion research needs for helping development of next-generation advanced combustors[R]. AIAA2001-3853,2001. [3] 臧颖恺. 狭缝引射气膜冷却下的PIV实验和数值模拟[D]. 上海: 上海交通大学,2013. ZANG Yingkai. Slit ejector gas film cooling of PIV experiment and numerical simulation[D]. Shanghai: Shanghai Jiao Tong University,2013. (in ChineseZANG Yingkai. Slit ejector gas film cooling of PIV experiment and numerical simulation[D]. Shanghai: Shanghai Jiao Tong University, 2013. (in Chinese) [4] ZHANG Jingyu,WEI Jieli. Experimental investigation on the adiabatic cooling effectiveness of impinging-film cooling[R]. Cairns,Australia: 7th Asia-Pacific International Symposium on Aerospace Technology,2015. [5] 王菲. 某型三级旋流燃烧室的冲击/气膜冷却方案研究[D]. 南京: 南京航空航天大学,2013. WANG Fei. Research on impingement/film cooling technique of triple-swirler combustor[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2013. (in ChineseWANG Fei. Research on impingement/film cooling technique of triple-swirler combustor[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2013. (in Chinese) [6] WEI Jieli,ZHANG Jingyu,LI Shuai,et al. Numerical study on impinging-film hybrid cooling effect with different geometries[J]. International Journal of Thermal Sciences,2015,92: 199-216. doi: 10.1016/j.ijthermalsci.2015.01.038 [7] ZHANG Jingyu,YUAN Ce,JI Pengfei,et al. Experimental investigation on the overall cooling effectiveness of t-type impinging-film cooling[J]. Applied Thermal Engineering,2018,128: 595-603. doi: 10.1016/j.applthermaleng.2017.09.058 [8] 袁策. 带导流板的冲击/气膜流动与换热特性研究[D]. 南京: 南京航空航天大学,2018. YUAN Ce. Research on flow and heat transfer characteristics of impinging/film with inducting slab[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2018. (in ChineseYUAN Ce. Research on flow and heat transfer characteristics of impinging/film with inducting slab[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2018. (in Chinese) [9] BALLAL D R,LEFEBVRE A H. A proposed method for calculating film-cooled wall temperatures in gas turbine combustion chamber[J]. Journal of Turbomachinery,2013(6): 12-14. [10] VIARS P R. The impact of IHPTET on the engine/aircraft system[R]. AIAA-89-2137,1989. [11] 林宇震,宋波,李彬,等. 多斜孔壁冷却方式小孔内对流换热研究[J]. 航空动力学报,1999,14(1): 87-90. (in Chinese) LIN Yuzhen,SONG Bo,LI Bin,et al. A study on convective heat transfer in holes of inclined multihole wall film cooling[J]. Journal of Aerospace Power,1999,14(1): 87-90. (in Chinese doi: 10.3969/j.issn.1000-8055.1999.01.021LIN Yuzhen, SONG Bo, LI Bin, et al. A study on convective heat transfer in holes of inclined multihole wall film cooling[J]. Journal of Aerospace Power, 1999, 14(1): 87-90. (in Chinese) doi: 10.3969/j.issn.1000-8055.1999.01.021 [12] LIGRANI P,GOODRO M,FOX M,et al. Full-coverage film cooling: film effectiveness and heat transfer coefficients for dense hole arrays at different hole angles,contraction ratios,and blowing ratios[J]. Journal of Heat Transfer,2013,135(3): 031707. doi: 10.1115/1.4007981 [13] 陈亚林. 高温升燃烧室冷却方案研究[D]. 南京: 南京航空航天大学,2013. CHEN Yalin. Research on cooling technology of high temperature rise combustor[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2013. (in ChineseCHEN Yalin. Research on cooling technology of high temperature rise combustor[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2013. (in Chinese) [14] BERNHARD GUSTAFSSON K M,JOHANSSON T G. An experimental study of surface temperature distribution on effusion-cooled plates[J]. Journal of Engineering for Gas Turbines and Power,2001,123(2): 308-316. doi: 10.1115/1.1364496 [15] ANDREWS G E,GUPTA M L,MKPADI M C. Full coverage discrete hole film cooling: cooling effectiveness[J]. International Journal of Turbo and Jet Engines,1985,2(3): 199-212. [16] 刘捷,韩振兴,蒋洪德,等. 不同复合角对平板气膜冷却特性影响的实验研究[J]. 工程热物理学报,2008,29(8): 1311-1315. LIU Jie,HAN Zhenxing,JIANG Hongde,et al. Experimental research on flat plate film cooling effectiveness at different complex angles[J]. Journal of Engineering Thermophysics,2008,29(8): 1311-1315. (in Chinese doi: 10.3321/j.issn:0253-231X.2008.08.012LIU Jie, HAN Zhenxing, JIANG Hongde, et al. Experimental research on flat plate film cooling effectiveness at different complex angles[J]. Journal of Engineering Thermophysics, 2008, 29(8): 1311-1315. (in Chinese) doi: 10.3321/j.issn:0253-231X.2008.08.012 [17] 陈伟,董若凌,施红辉,等. 冷却孔复合角和排列方式综合作用对平板气膜冷却效果的影响[J]. 浙江理工大学学报,2013,30(4): 540-545. CHEN Wei,DONG Ruoling,SHI Honghui,et al. Influence of combined action of compound angle and arrangement mode of cooling holes on flat air film cooling effect[J]. Journal of Zhejiang Sci-Tech University,2013,30(4): 540-545. (in Chinese doi: 10.3969/j.issn.1673-3851.2013.04.015CHEN Wei, DONG Ruoling, SHI Honghui, et al. Influence of combined action of compound angle and arrangement mode of cooling holes on flat air film cooling effect[J]. Journal of Zhejiang Sci-Tech University, 2013, 30(4): 540-545. (in Chinese) doi: 10.3969/j.issn.1673-3851.2013.04.015 [18] 黄卫东. 涡轴发动机斜流驻涡燃烧室性能研究[D]. 南京: 南京航空航天大学,2016. HUANG Weidong. Study on performance of oblique flow trapped vortex combustor for turboshaft engine[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2016. (in ChineseHUANG Weidong. Study on performance of oblique flow trapped vortex combustor for turboshaft engine[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2016. (in Chinese) [19] 王嘉玺. 斜流驻涡燃烧室冷却性能研究[D]. 南京: 南京航空航天大学,2019. WANG Jiaxi. Research on cooling technology of an oblique flow trapped vortex combustor[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2019. (in ChineseWANG Jiaxi. Research on cooling technology of an oblique flow trapped vortex combustor[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019. (in Chinese) -
