基于开裂能密度的柔性接头摆动疲劳寿命预测

张金尧; 任军学; 薛牧遥; 童悦; 郑庆; 汤海滨

doi:10.13224/j.cnki.jasp.20220826

基于开裂能密度的柔性接头摆动疲劳寿命预测

doi: 10.13224/j.cnki.jasp.20220826

张金尧^{1, 2,},
任军学^1,*, ,,
薛牧遥³,
童悦³,
郑庆³,
汤海滨¹

1.
北京航空航天大学宇航学院，北京 100191
2.
西安航天动力技术研究所，西安 710025
3.
上海航天动力技术研究所，上海 200125

基金项目: 基础加强计划技术领域基金（2020JCJQJJ014）

详细信息

作者简介:
张金尧（1997-），男，助理工程师，硕士，主要从事航空宇航推进理论与工程研究

通讯作者:
任军学（1980-），男，副教授，博士，主要从事航空宇航推进理论与工程研究。E-mail：rjx_buaa@163.com

中图分类号: V431
计量
- 文章访问数: 638
- HTML浏览量: 368
- PDF量: 56
- 被引次数: 0
出版历程
- 收稿日期: 2022-10-31
- 网络出版日期: 2023-11-30

Prediction of the swing fatigue life of flexible joint based on cracking energy density

ZHANG Jinyao^{1, 2
,},
REN Junxue^{1,*
, ,},
XUE Muyao³,
TONG Yue³,
ZHENG Qing³,
TANG Haibin¹

1.
School of Astronautics，Beihang University，Beijing 100191，China
2.
Xi’an Aerospace Solid Propulsion Technology Institute，Xi’an 710025，China
3.
Shanghai Space Propulsion Technology Research Institute，Shanghai 200125，China

摘要

摘要:
为准确预测柔性接头的摆动疲劳寿命，将开裂能密度作为驱动弹性件疲劳裂纹扩展的损伤参量，借助材料的疲劳裂纹扩展试验和单轴拉伸疲劳试验建立了柔性接头的摆动疲劳寿命预测模型，并用有限元分析结果计算了柔性接头在12.3 MPa、6°摆角工况下的开裂能密度，进而对柔性接头的摆动疲劳寿命进行预测。结果表明：预测试验工况下柔性接头的摆动疲劳寿命为107次，实测寿命为120次，两者较为一致，且预测的裂纹位置和开裂平面与实际试验的失效位置较为吻合。模型预测柔性接头的摆动疲劳寿命与实测疲劳寿命之比为1/1.12，分布在2倍分散因子之内，满足工程疲劳寿命的预测要求。
- 疲劳寿命预测 /
- 柔性接头 /
- 开裂能密度 /
- 裂纹扩展 /
- 有限元分析 /
- 固体火箭发动机
Abstract:
In order to accurately predict the swing fatigue life of flexible joint, the cracking energy density (CED) was used as the damage parameter to drive the fatigue crack growth of elastomers. The swing fatigue life prediction model of flexible joint was established by means of fatigue crack growth test and uniaxial tensile fatigue test. The CED of flexible joint under 12.3 MPa and 6° swing angle was calculated by using the finite element analysis results, and then the swing fatigue life of flexible joint was predicted. The results showed that the predicted swing fatigue life of the flexible joint under the test condition was 107 cycles, which was consistent with the measured fatigue life of 120 cycles, and the predicted crack location and crack plane were in good agreement with the failure position of test. The ratio of predicted life to measured life was 1/1.12 within the double dispersion factor, which was acceptable in engineering.
- fatigue life prediction /
- flexible joint /
- cracking energy density /
- crack propagation /
- finite element analysis /
- solid rocket motor

HTML

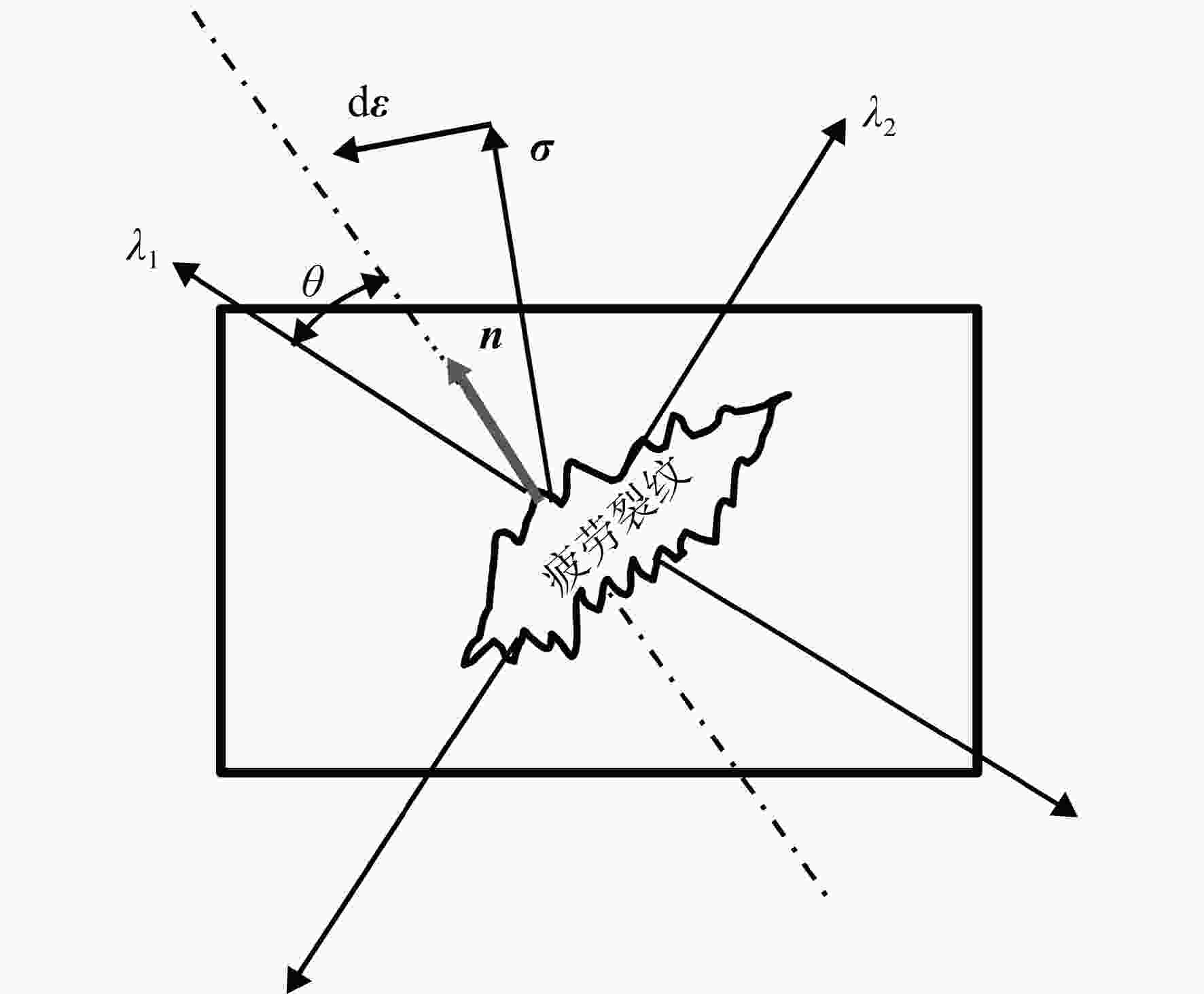

图 1 橡胶疲劳裂纹受力状态示意图

Figure 1. Stress state of rubber fatigue crack

下载: 全尺寸图片幻灯片

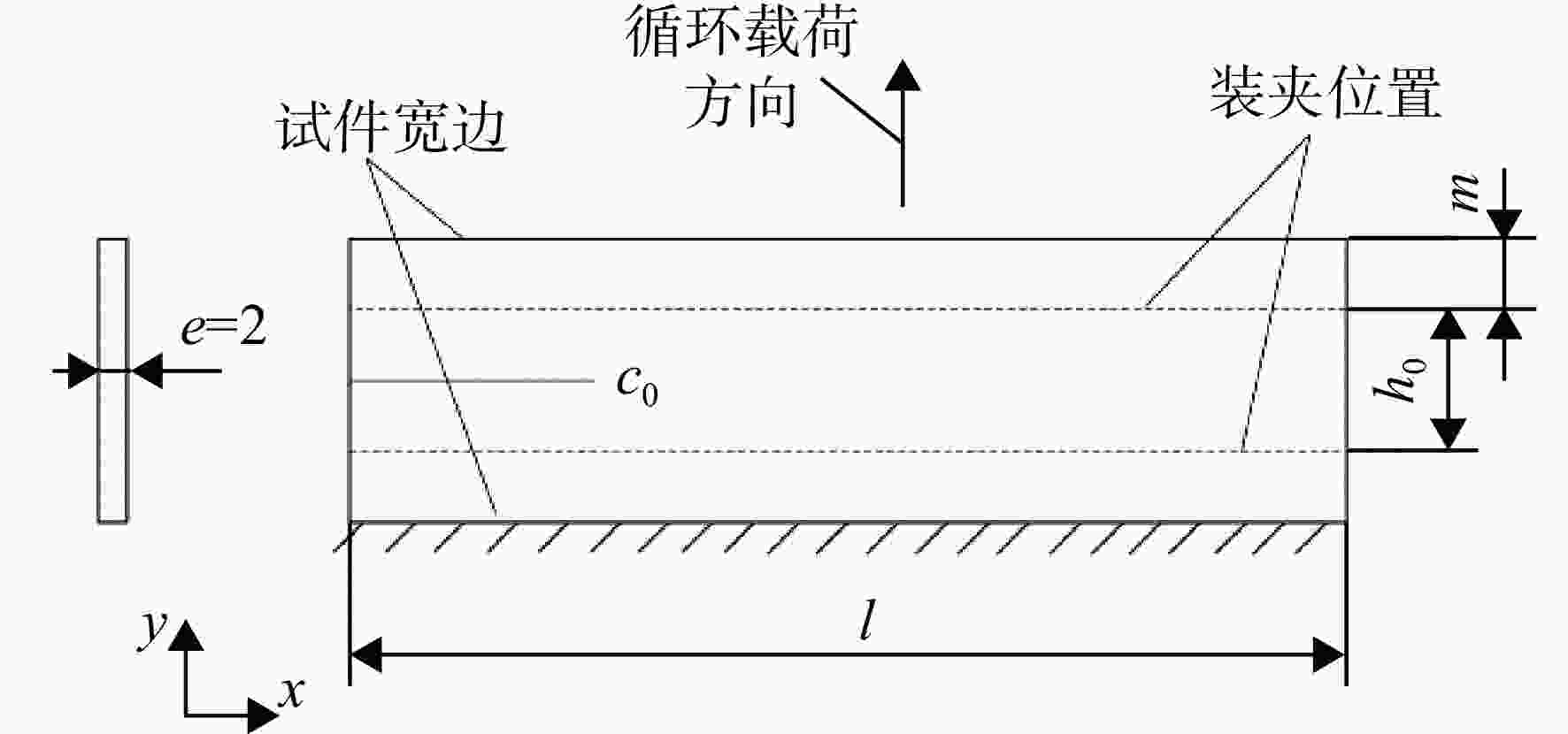

图 2 单边预制裂纹的纯剪试件

Figure 2. Pure shear specimen with unilateral prefabricated crack

下载: 全尺寸图片幻灯片

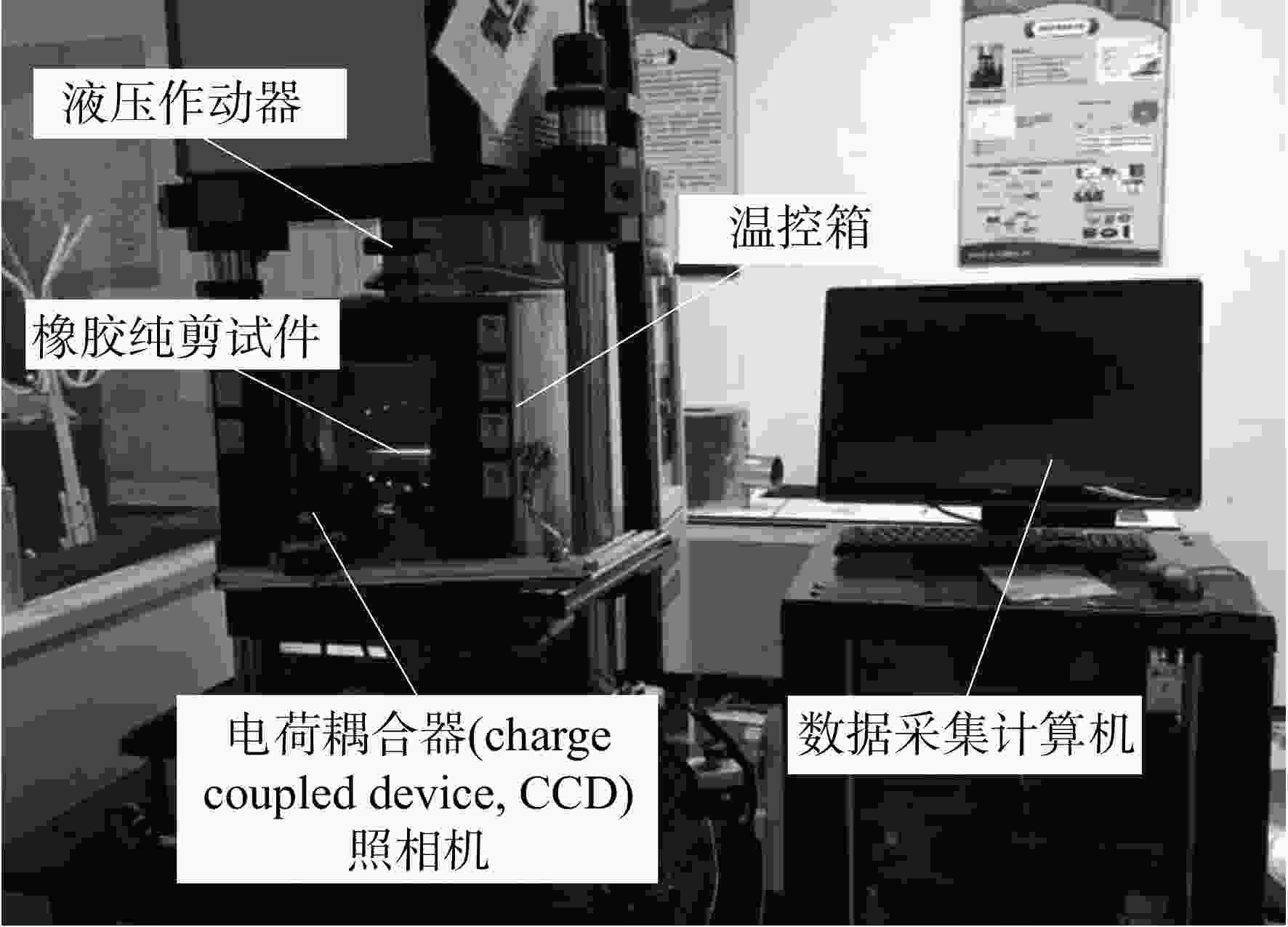

图 3 电磁动态疲劳试验系统

Figure 3. Electromagnetic dynamic fatigue test system

下载: 全尺寸图片幻灯片

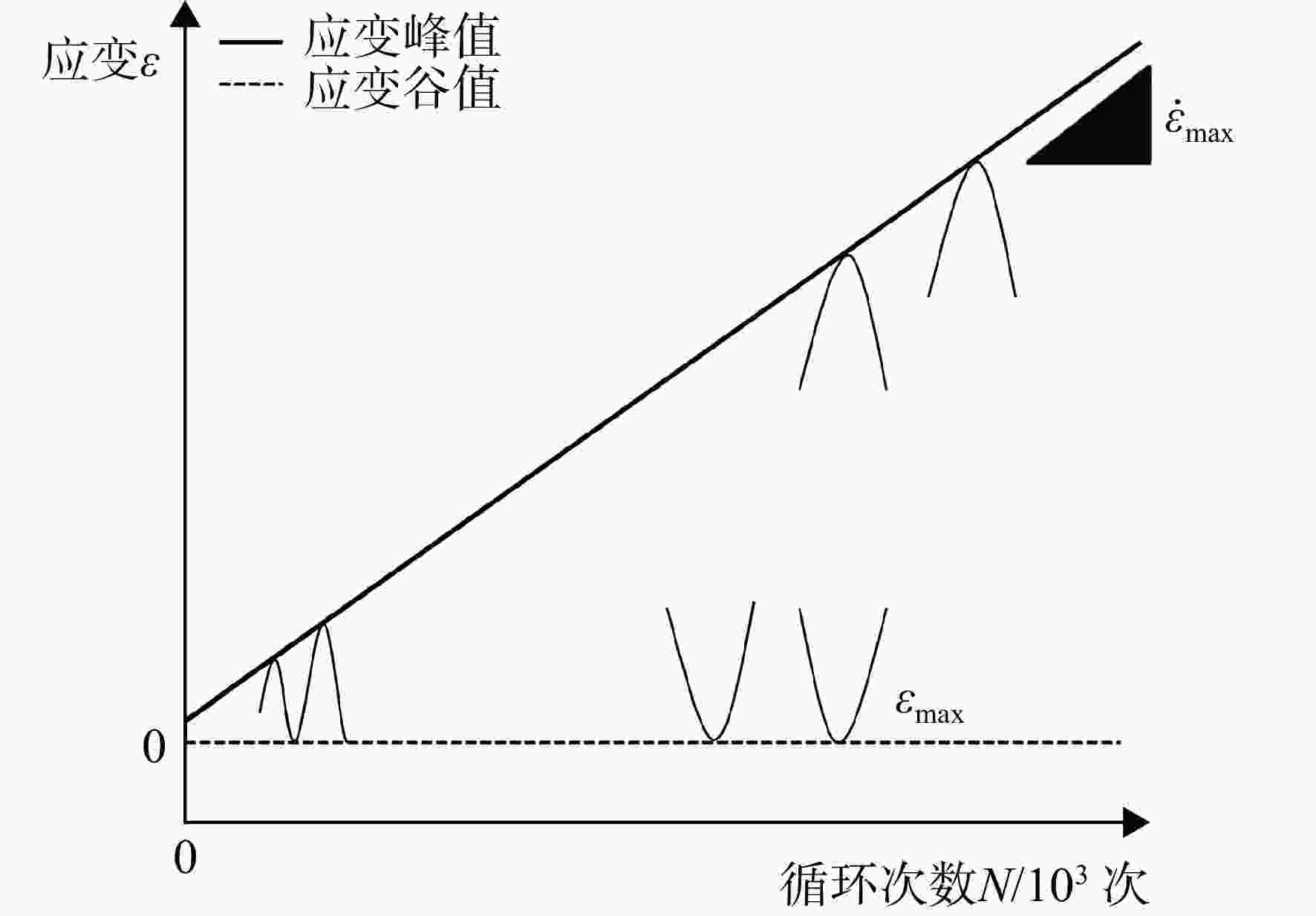

图 4 疲劳裂纹扩展试验变幅加载形式

Figure 4. Variable amplitude loading of fatigue crack growth test

下载: 全尺寸图片幻灯片

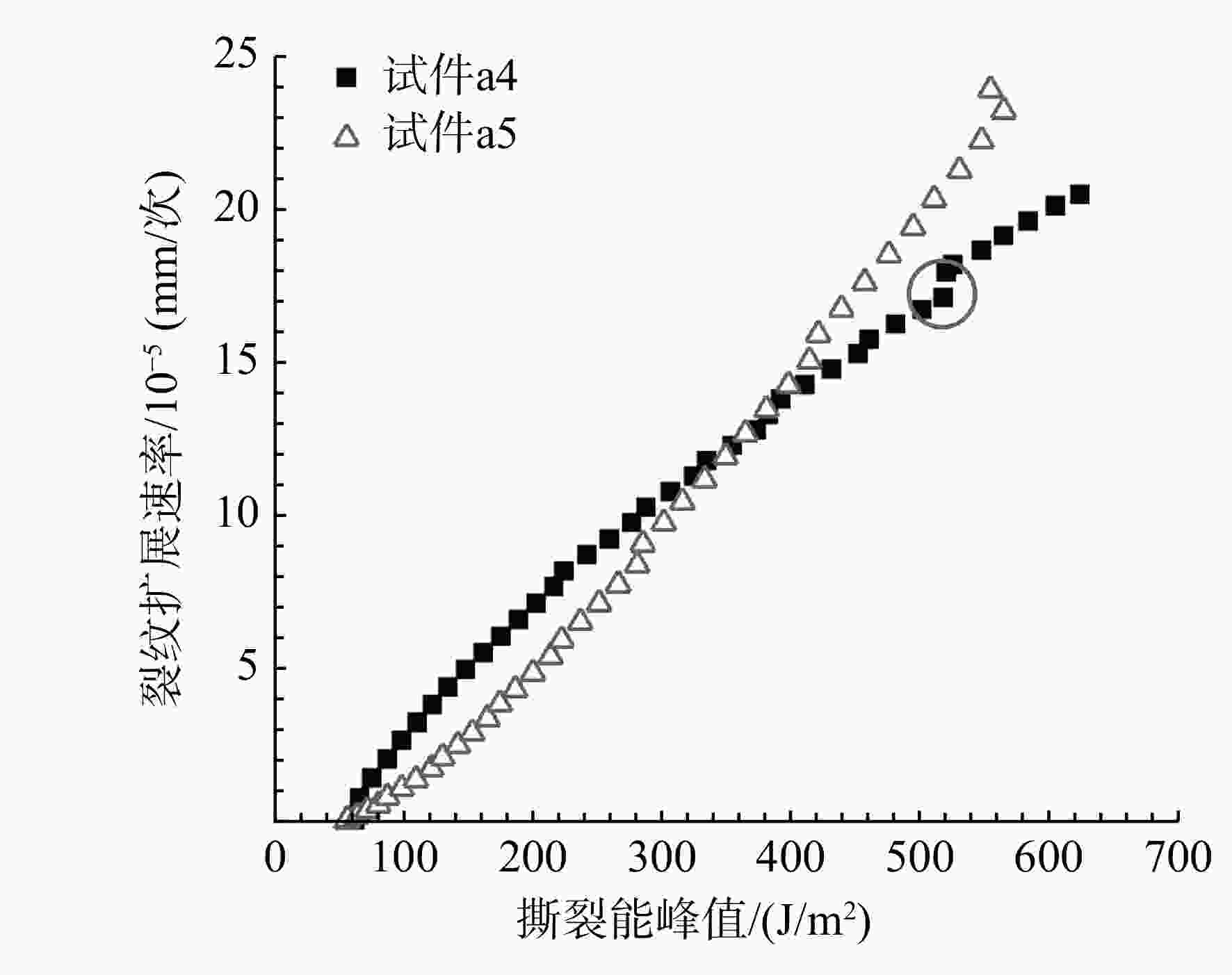

图 5 裂纹扩展速率随撕裂能峰值的变化关系

Figure 5. Relationship between crack growth rate and tear energy maximum

下载: 全尺寸图片幻灯片

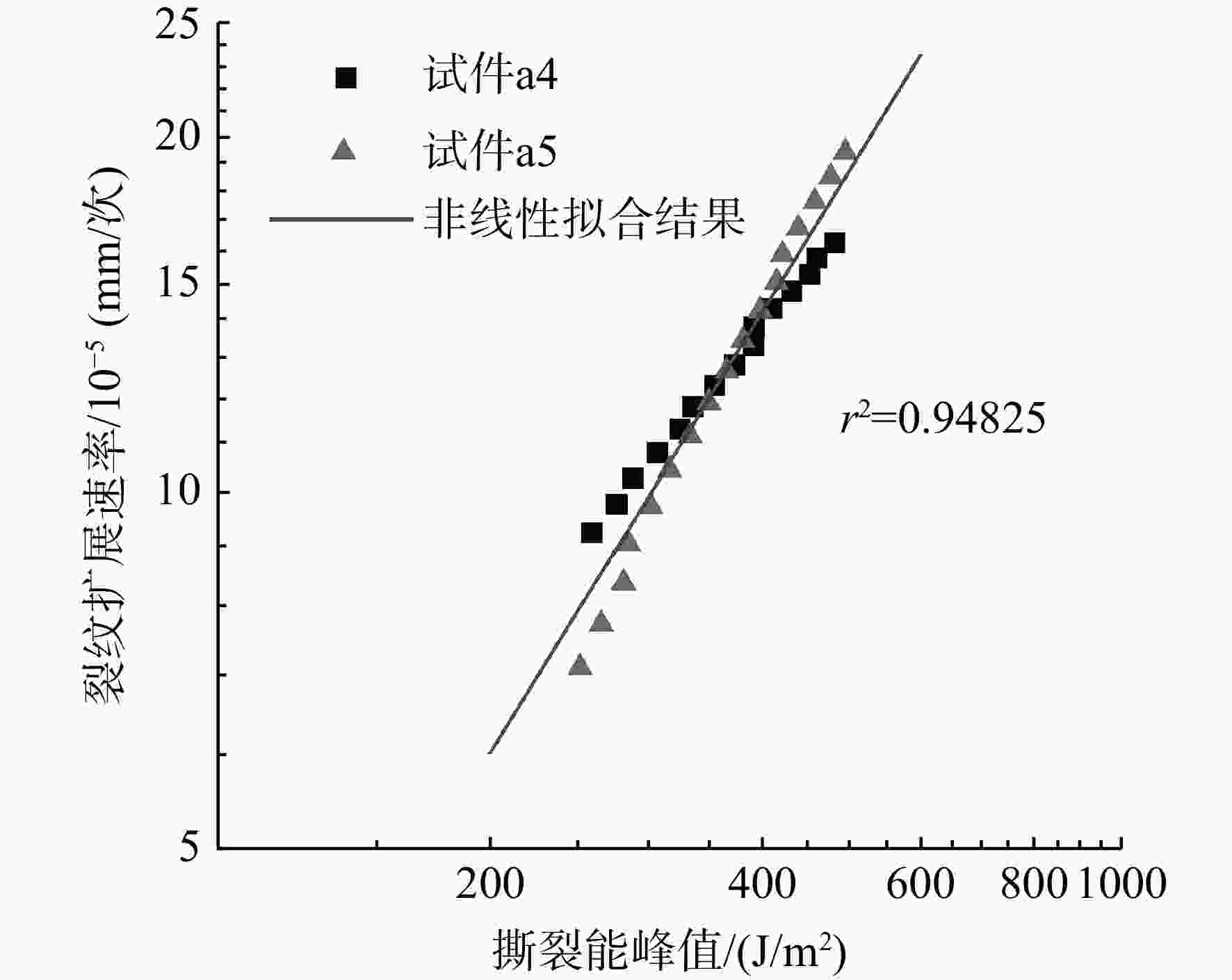

图 6 双对数坐标系下裂纹扩展速率随撕裂能峰值的拟合关系

Figure 6. Fitting relationship between crack growth rate and tear energy maximum in double logarithmic coordinate

下载: 全尺寸图片幻灯片

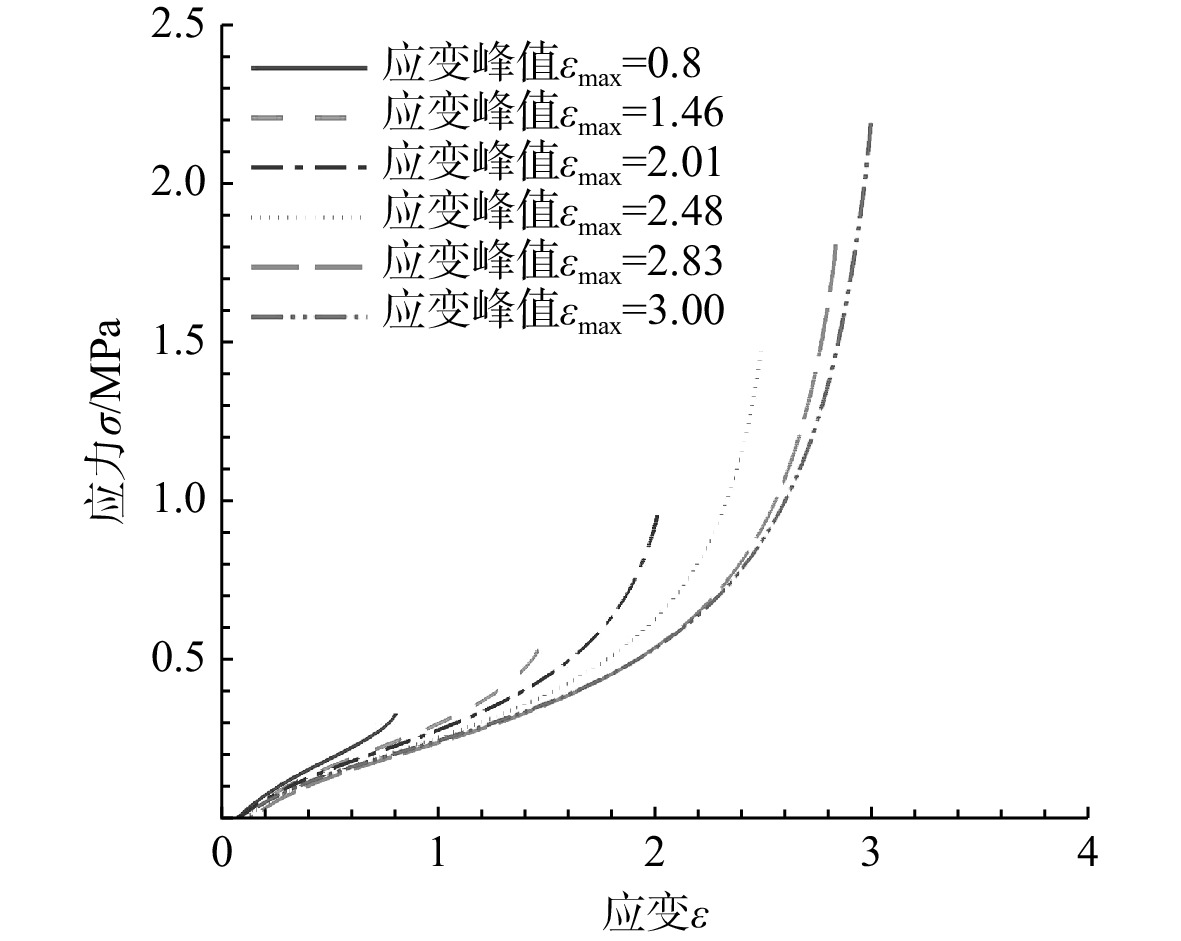

图 7 哑铃形试件卸载段的应力应变曲线

Figure 7. Stress-strain curves in unloading section of dumbbell specimen

下载: 全尺寸图片幻灯片

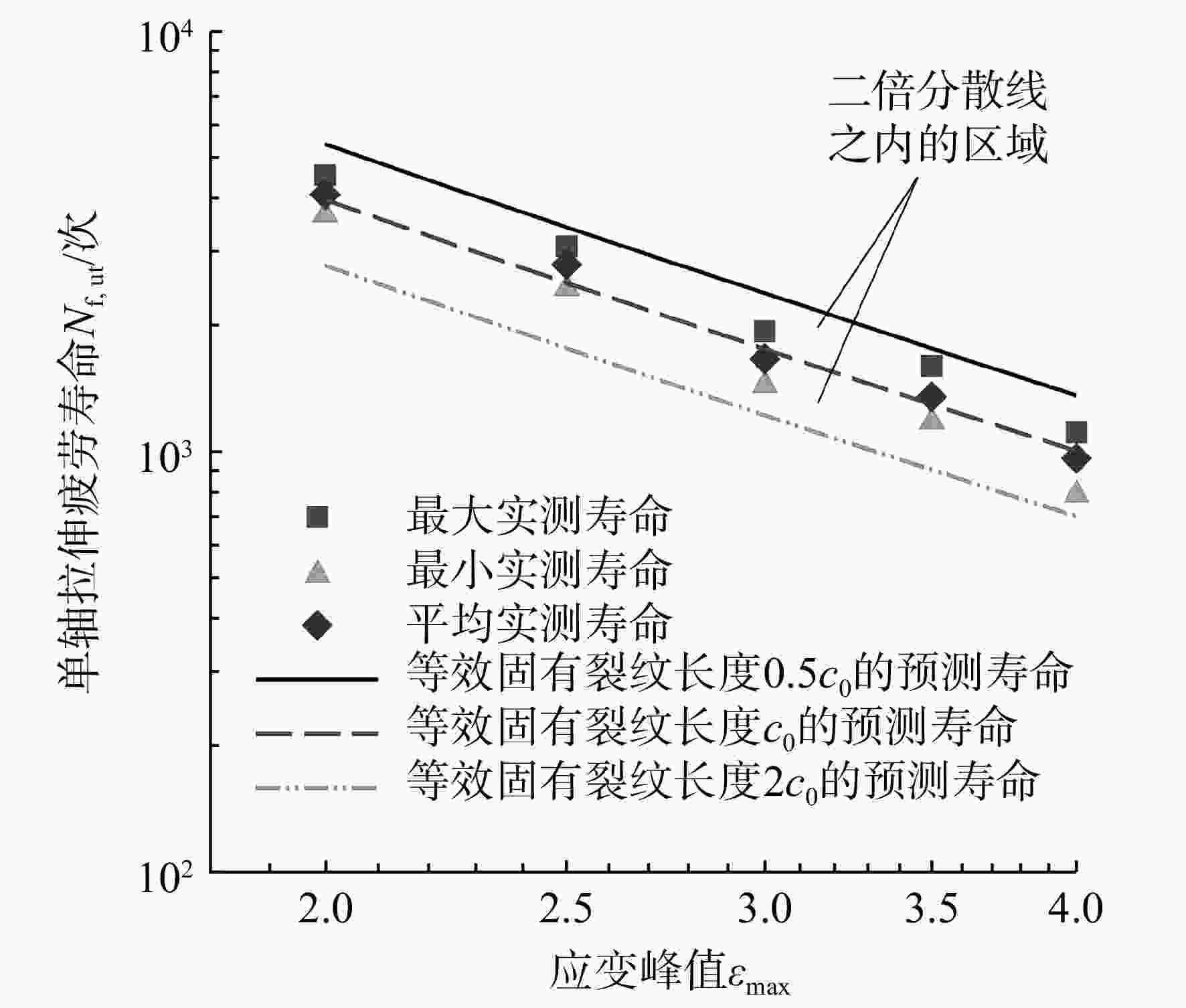

图 8 双对数坐标系下不同应变峰值的单轴拉伸疲劳预测寿命与计算寿命的比较

Figure 8. Comparisons of the predicted uniaxial tensil fatigue life and calculated uniaxial tensil fatigue life with different strain maximum in double logarithmic coordinate

下载: 全尺寸图片幻灯片

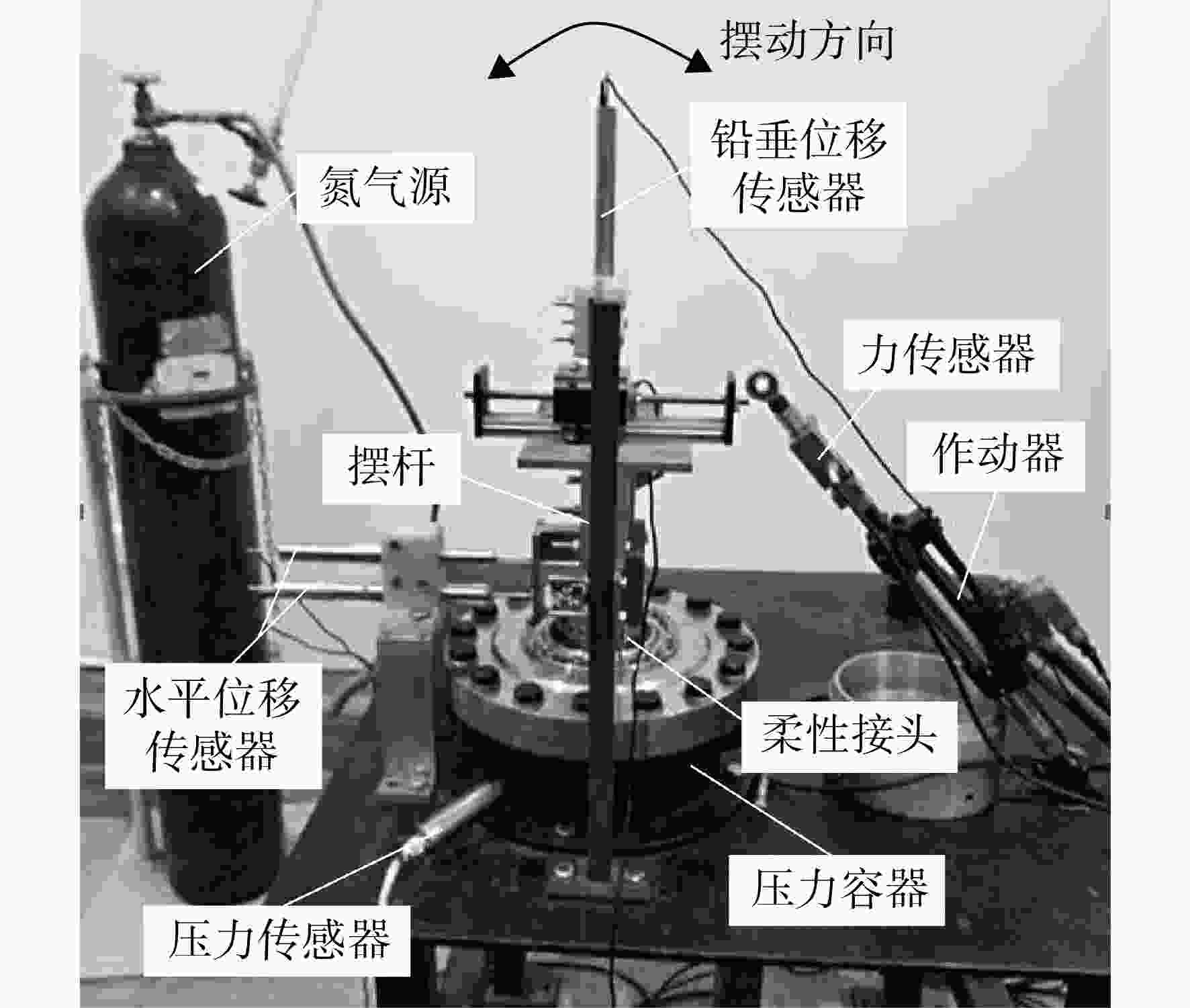

图 9 柔性接头摆动试验装置

Figure 9. Swing test device for flexible joint

下载: 全尺寸图片幻灯片

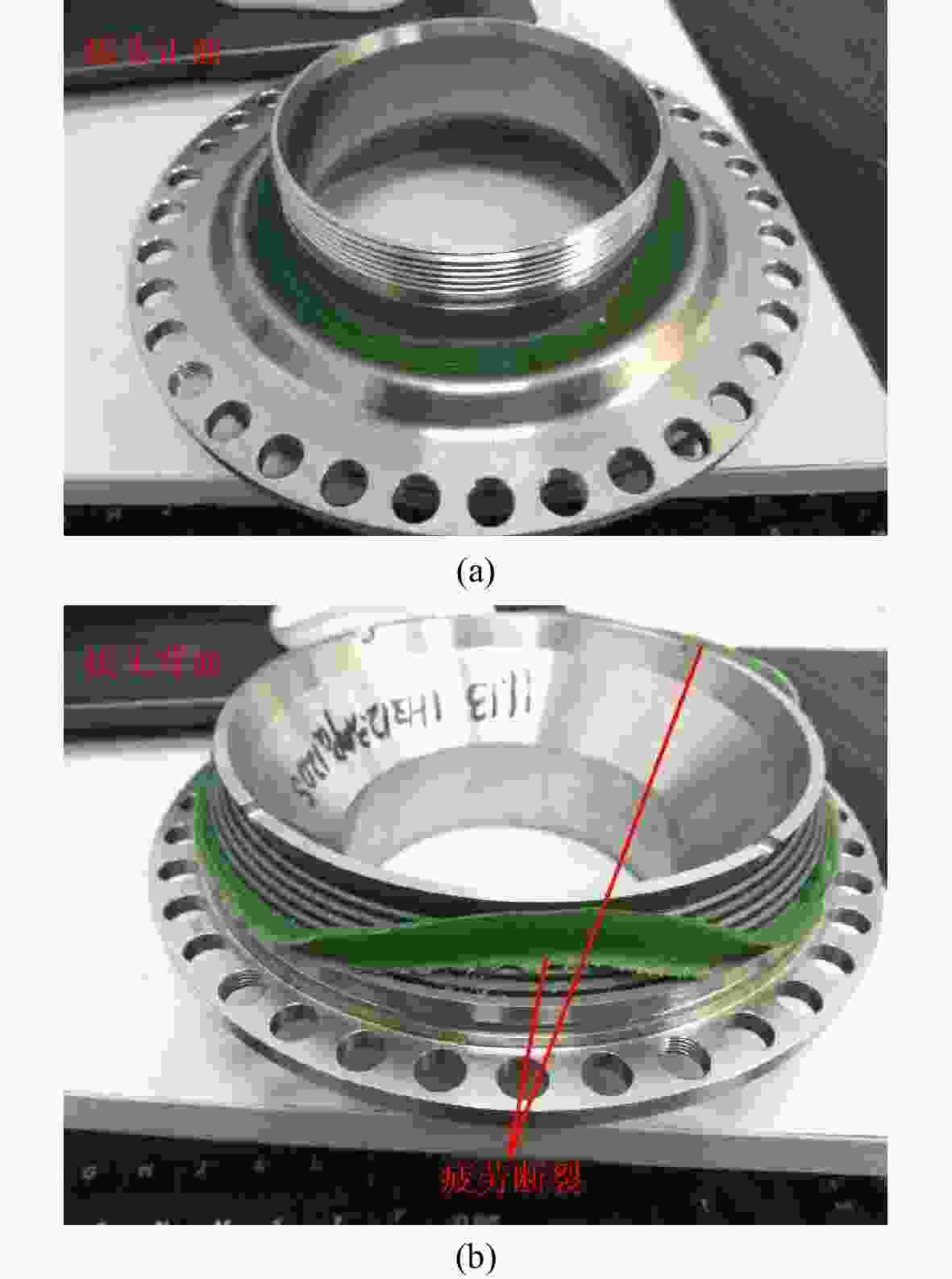

图 10 摆动疲劳寿命试验后的柔性接头

Figure 10. Flexible joint after swing fatigue life test

下载: 全尺寸图片幻灯片

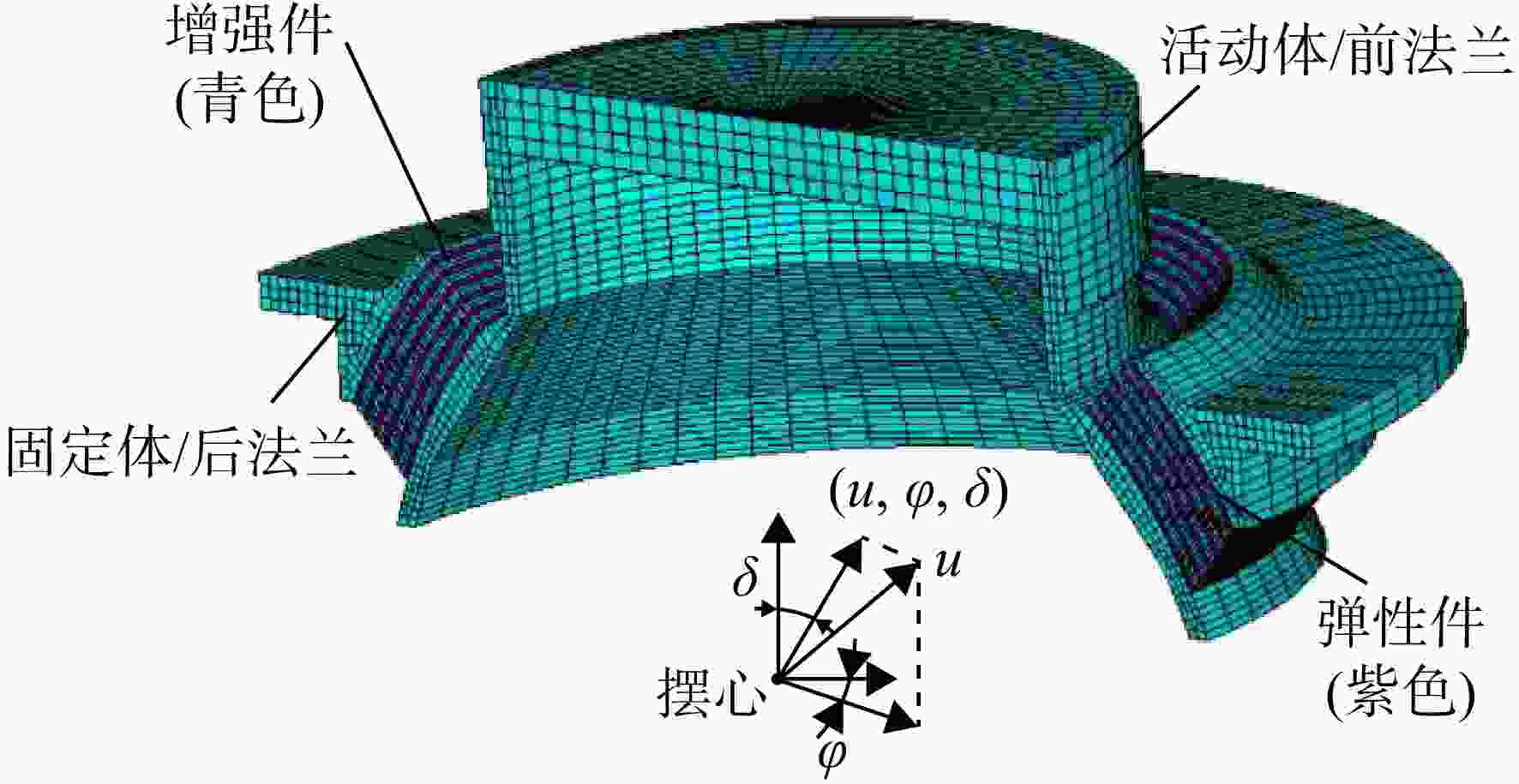

图 11 柔性接头有限元模型

Figure 11. Finite element model of flexible joint

下载: 全尺寸图片幻灯片

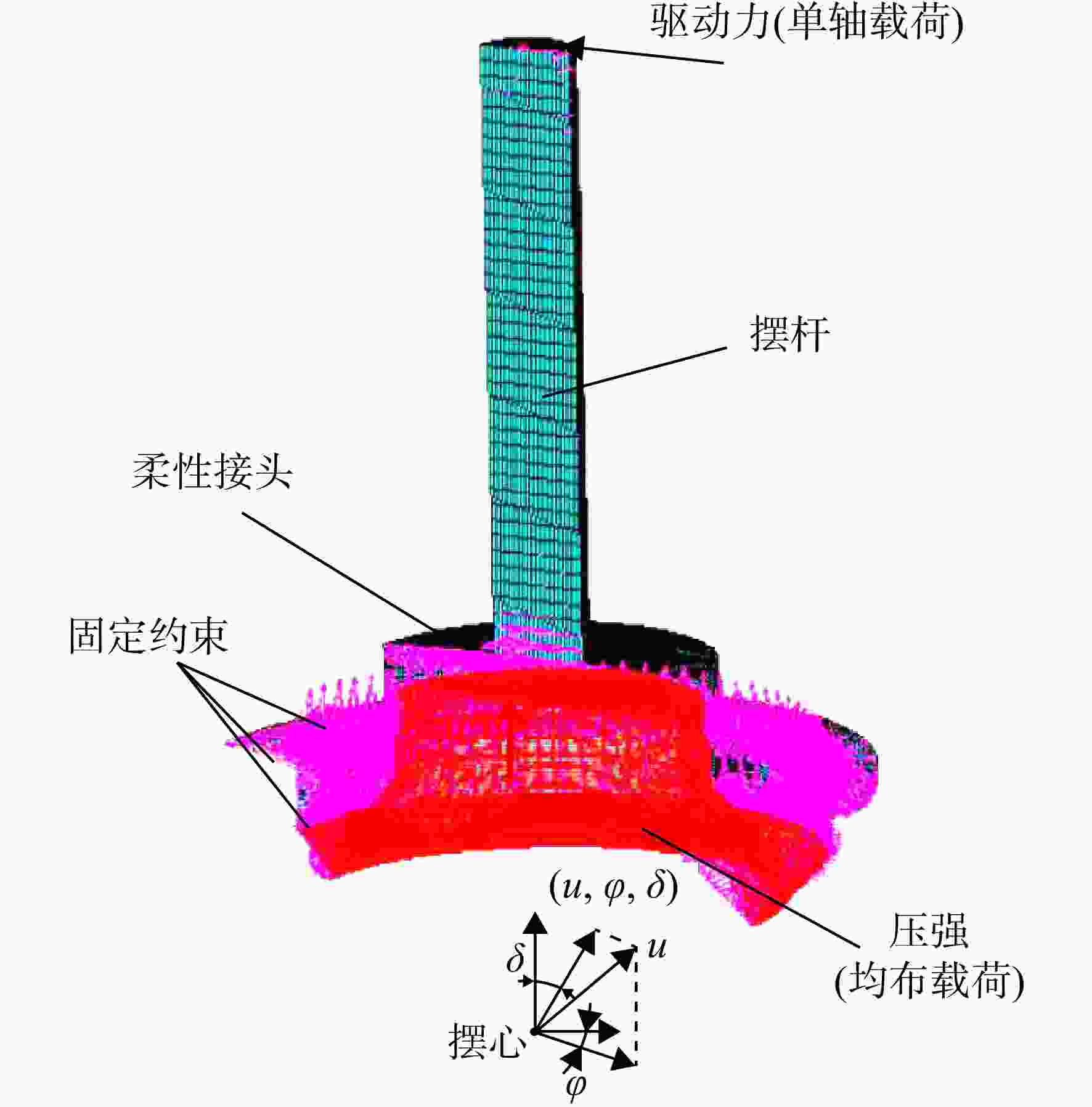

图 12 实际加载下的柔性接头有限元模型

Figure 12. Finite element model of flexible joint in fatigue test

下载: 全尺寸图片幻灯片

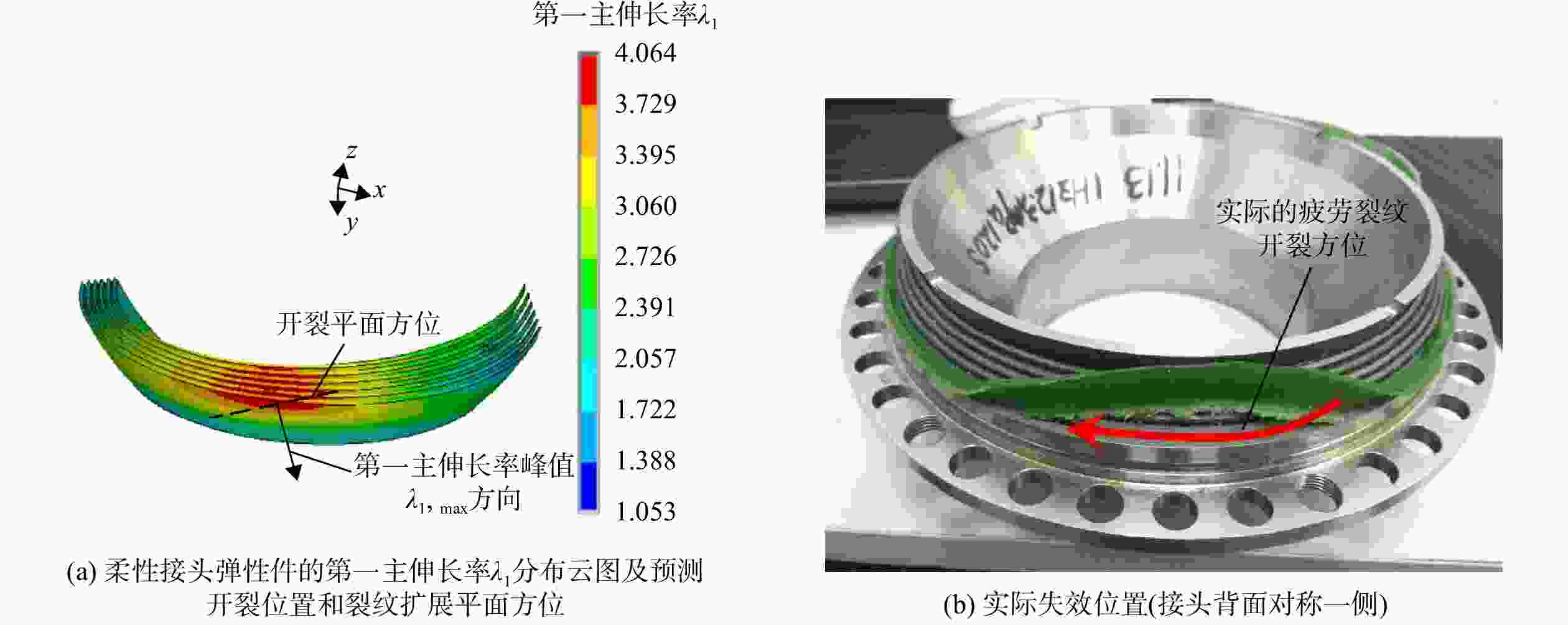

图 13 柔性接头疲劳寿命试验实际失效位置与预测开裂位置结果对比

Figure 13. Comparison between actual failure position and predicted failure position in fatigue life test of flexible joint

下载: 全尺寸图片幻灯片

表 1 纯剪试件静强度试验结果

Table 1. Static strength test results of pure shear specimens

试件编号	拉断应变ε_sb/%	拉断应力 σ_st/MPa	拉断应变能密度W_b/MPa	临界撕裂能 T_c/（kJ/m²）
a1（h₀=7.06 mm）	87.57	0.5103	0.4410	3.1136
a2（h₀=7.45 mm）	95.64	0.5015	0.4666	3.4759
a3（h₀=6.51 mm）	85.23	0.5108	0.4333	2.8206

下载: 导出CSV

表 2 硅橡胶单轴拉伸疲劳试验结果

Table 2. Results of uniaxial tensile fatigue test of silicone rubber

编号	ε_max/%	ε_min/%	N_f,max/cycles	N_f,min/cycles	N_f,avg/cycles
1	200	0	4536	3657	4088
2	250	0	3065	2435	2776
3	300	0	1923	1437	1660
4	350	0	1593	1177	1349
5	400	0	1108	786	963

下载: 导出CSV

表 3 柔性接头摆动疲劳寿命试验工况信息

Table 3. Condition of swing fatigue life test of flexible joint

环境温度/℃	试验压强/MPa	摆动频率/Hz	摆角幅值/(°)
23±2	12.3	1	±6

下载: 导出CSV

表 4 弹性件材料本构模型拟合参数

Table 4. Constitutive parameter of elastomer

本构参数	μ₁/10⁻⁵	α₁	μ₂	α₂
拟合值	1.83663	10.303	21.539	0.02659

下载: 导出CSV

表 5 柔性接头预测疲劳寿命与实测寿命对比

Table 5. Comparison between predicted fatigue life and measured fatigue life of flexible joint

预测开裂单元	开裂能密度峰值 W_c,max/MPa	开裂方位角 θ/rad	预测寿命 N_f,pre/cycles	实测寿命 N_f,test/cycles	N_f,pre/N_f,test
No.7505	5.585	θ=0，±π	107	120	1/1.12

下载: 导出CSV
