变温循环冷气对涡轮导叶寿命影响

陈英涛; 梁书伟; 艾延廷; 梁子键

doi:10.13224/j.cnki.jasp.20220834

变温循环冷气对涡轮导叶寿命影响

doi: 10.13224/j.cnki.jasp.20220834

沈阳航空航天大学航空发动机学院辽宁省航空推进系统先进测试技术重点实验室，沈阳 110136

详细信息

作者简介:
陈英涛（1975-），男，副教授、硕士生导师，博士生，主要从事发动机整机振动测试分析与故障诊断等方面的研究

通讯作者:
梁书伟（1998-），男，硕士生，主要研究叶片热疲劳方向。E-mail：2241620854@qq.com

中图分类号: V232.4
计量
- 文章访问数: 128
- HTML浏览量: 51
- PDF量: 51
- 被引次数: 0
出版历程
- 收稿日期: 2022-11-02
- 网络出版日期: 2024-02-04

Influence of variable temperature circulating air on turbine guide vane life

Liaoning Key Laboratory of Advanced Measurement and Test Technology for Aviation Propulsion System，School of Aero-engine，Shenyang Aerospace University，Shenyang 110136，China

摘要

摘要:
为提高燃气轮机涡轮导叶的可靠性及其使用寿命，引入变温循环冷气的概念，以某涡轮叶片为例，开展了燃气涡轮叶片热冲击循环疲劳寿命研究，对燃气轮机涡轮导叶进行启-停循环载荷谱下的应力状态的三维流固热耦合有限元分析，针对叶片在变温循环冷气的热冲击应力变化规律，得到叶片在循环中的稳态与过渡态下的温度场、应力场分布，之后对各个计算工况下的叶片结构强度与疲劳寿命进行分析与评估。搭建试验台，对该型燃气轮机涡轮导叶进行定温冷气循环下的热冲击疲劳试验，与有限元分析结果进行比对，得到结论：三维流固热耦合有限元分析所得叶片应力较大区域为叶片尾缘及叶盆中部，与热冲击试验所得破坏区一致，通过改变冷气循环温度可有效地提高叶片热疲劳寿命。
- 涡轮导叶 /
- 流固热耦合仿真 /
- 热应力 /
- 疲劳寿命 /
- 热冲击试验
Abstract:
To improve the reliability and service life of gas turbine guide vane, the concept of variable temperature circulating air conditioning was introduced. Taking a turbine vane as an example, the thermal shock cycle fatigue life of a gas turbine vane was studied, and three-dimensional fluid-solid thermal coupling finite element analysis of stress state under start-stop cycle load spectrum of turbine guide vane was carried out. According to the change law of thermal shock stress of the vane in the cold air of the variable temperature cycle, the temperature field distribution and stress field distribution of the vane in the steady state and transition state in the cycle were obtained, and then the structural strength and fatigue life of the vane under each calculation condition were analyzed and evaluated. A test bench was built, thermal shock fatigue test was carried out on the turbine guide vane of this type of gas turbine under constant temperature cold air circulation, and then the test results were compared with the results of finite element analysis, showing that: the large area of turbine van stress obtained by three-dimensional fluid-solid thermal coupling finite element analysis was located at the trailing edge of turbine van and the middle of turbine van basin, consistent with the failure zone obtained by thermal shock test; the thermal fatigue life of vane can be effectively improved by changing the cooling circulation temperature.
- turbine guide vane /
- fluid-solid thermal coupling simulation /
- thermal stress /
- fatigue life /
- thermal shock test

HTML

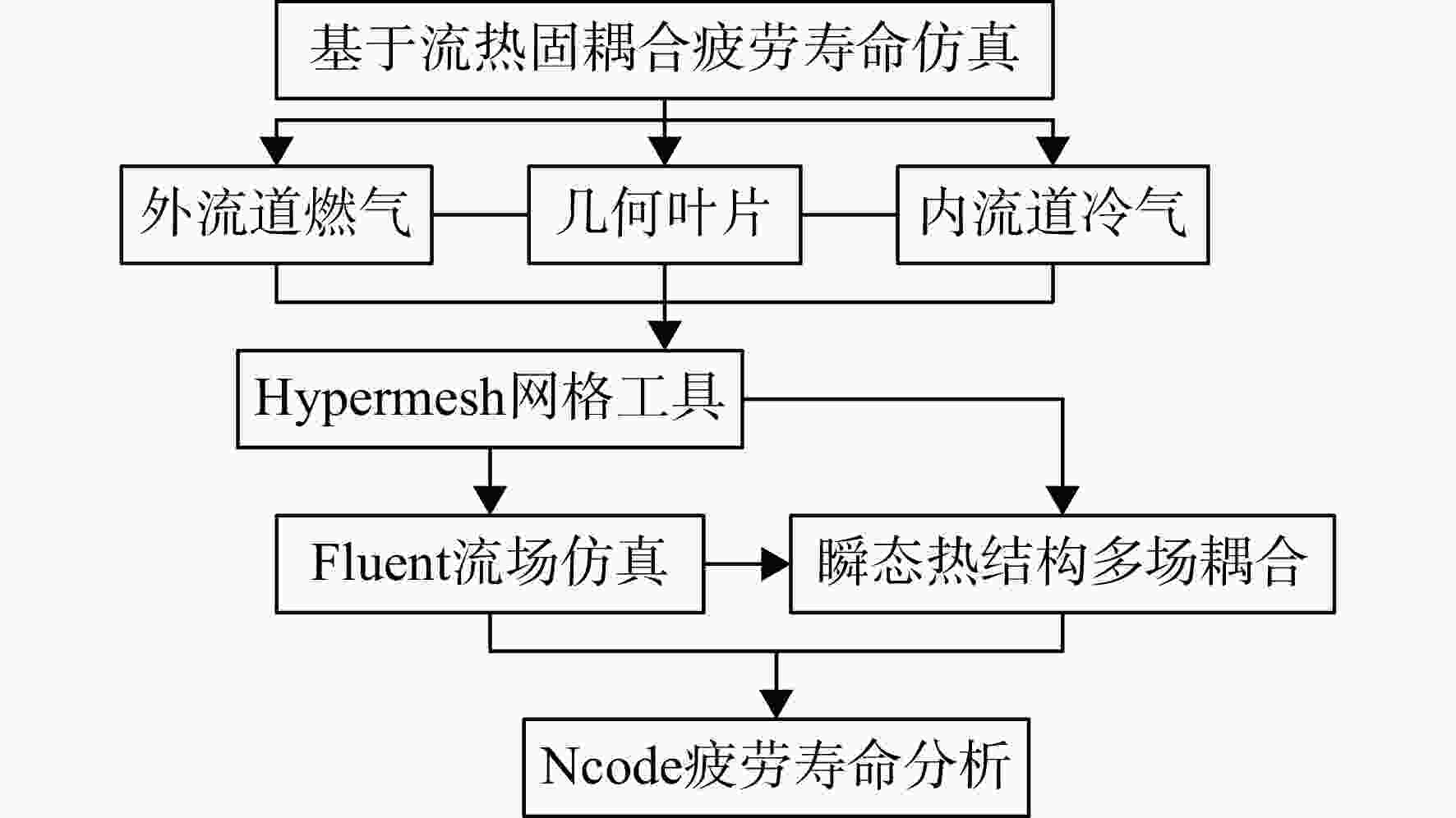

图 1 涡轮导叶热流固耦合仿真计算流程图

Figure 1. Flow chart of turbine guide vane thermal fluid-structure coupling simulation calculation

下载: 全尺寸图片幻灯片

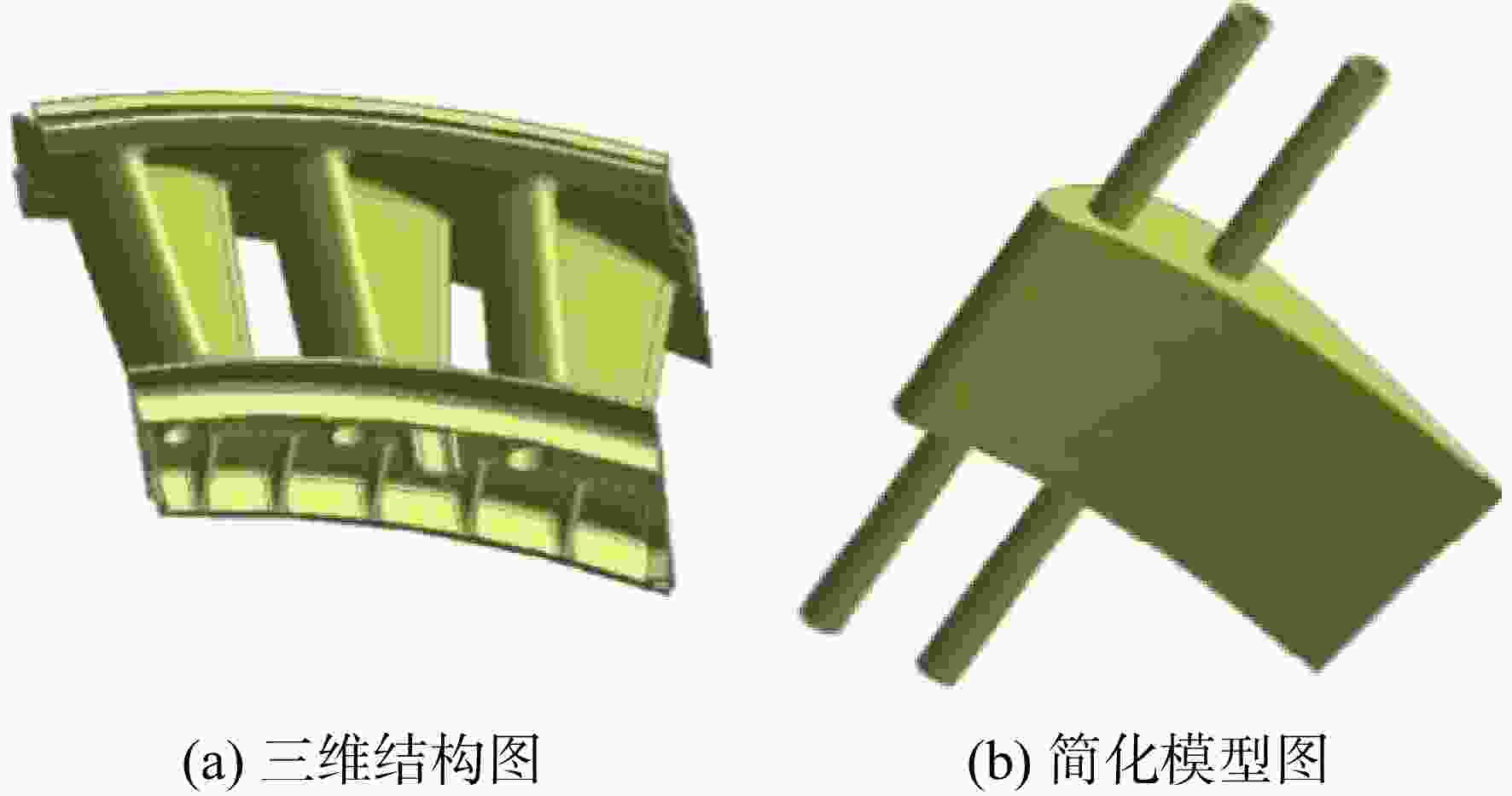

图 2 涡轮叶片模型

Figure 2. Turbine vane model

下载: 全尺寸图片幻灯片

图 3 涡轮导叶理论外流场

Figure 3. Theoretical external flow field of turbine guide vane

下载: 全尺寸图片幻灯片

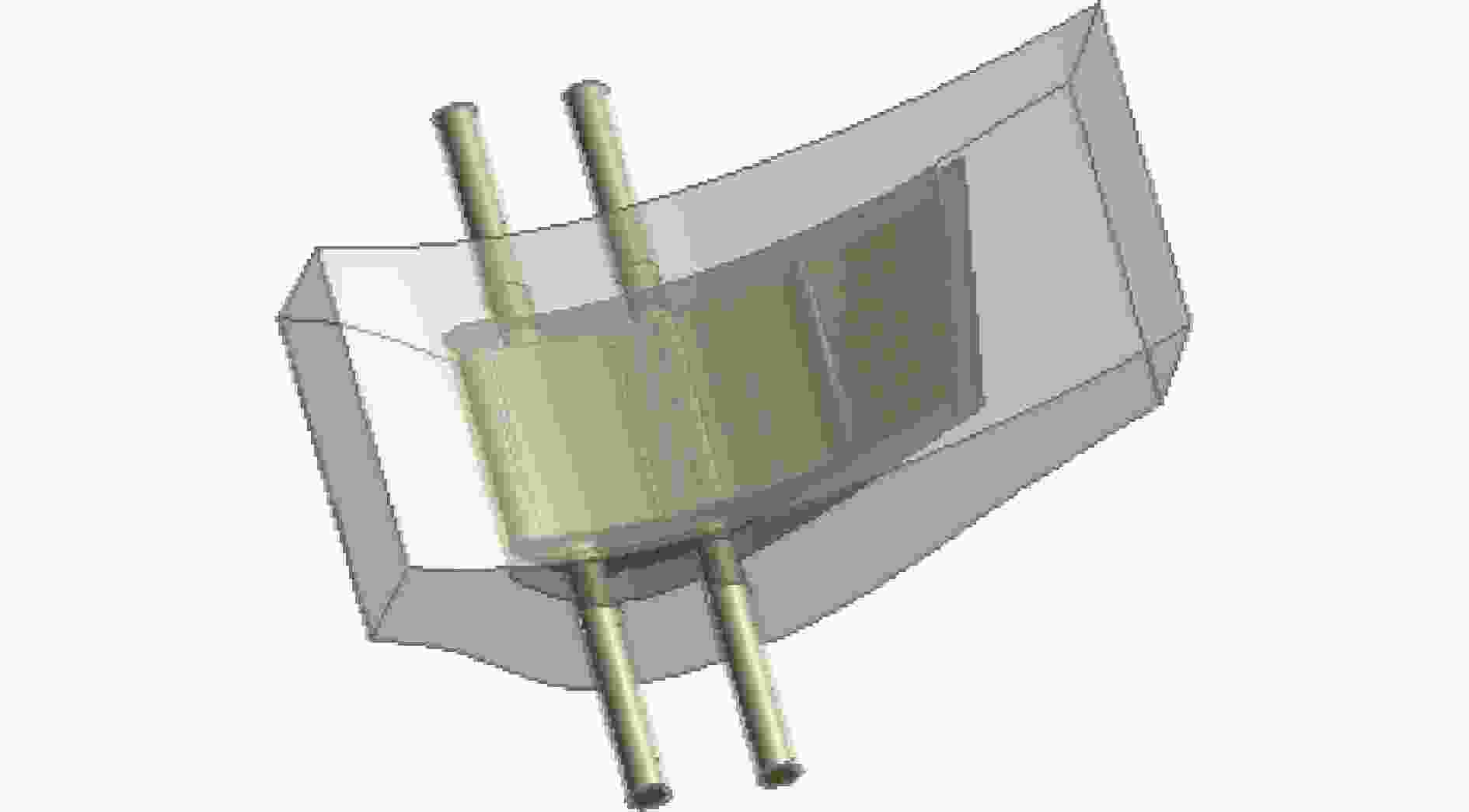

图 4 涡轮导叶流场实体图

Figure 4. Solid diagram of turbine guide vane flow field

下载: 全尺寸图片幻灯片

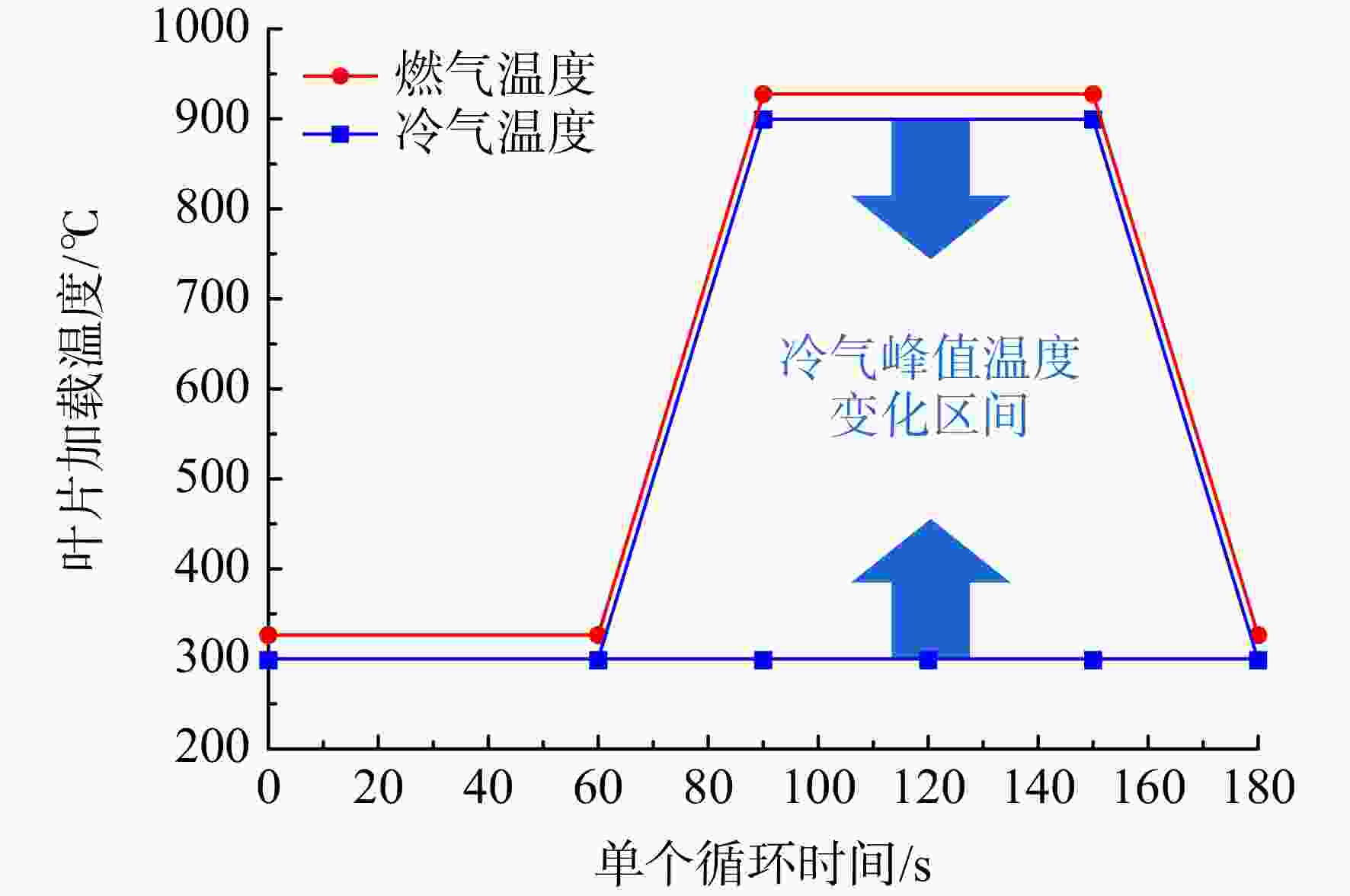

图 5 流场入口温度变化折线图

Figure 5. Flow field inlet temperature change line chart

下载: 全尺寸图片幻灯片

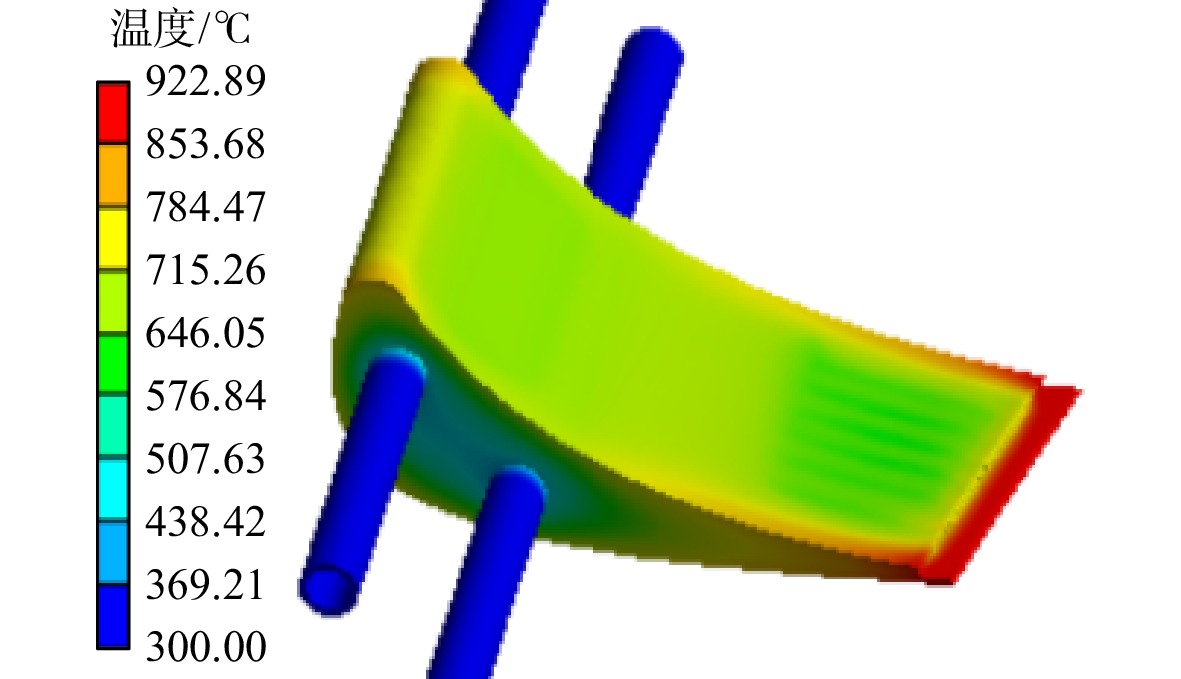

图 6 定温冷气循环下叶片温度场分布

Figure 6. Distribution of vane temperature field under constant temperature cooling air cycle

下载: 全尺寸图片幻灯片

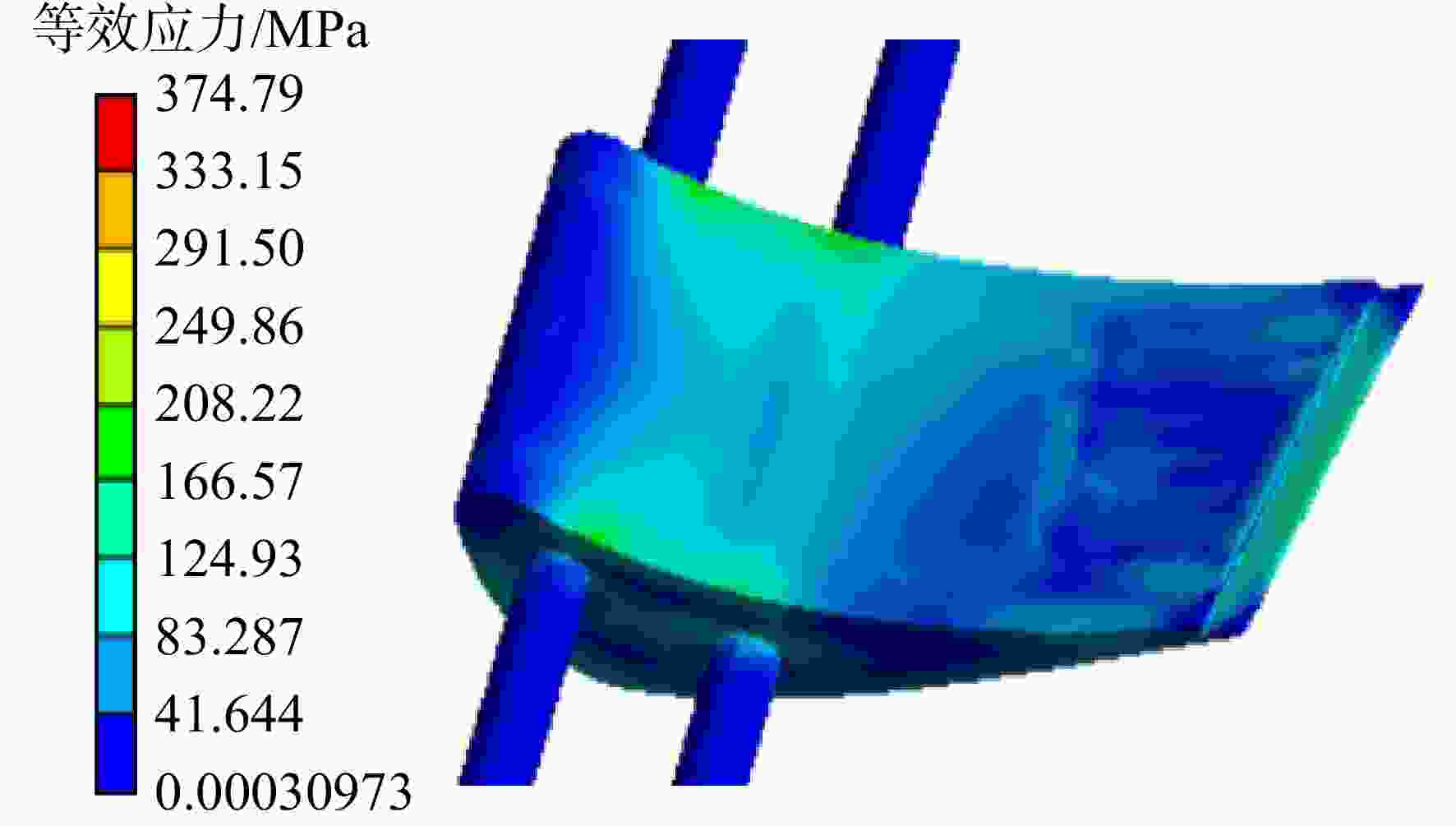

图 7 涡轮导叶等效应力分布云图

Figure 7. Equivalent stress distribution nephogram of turbine guide vane

下载: 全尺寸图片幻灯片

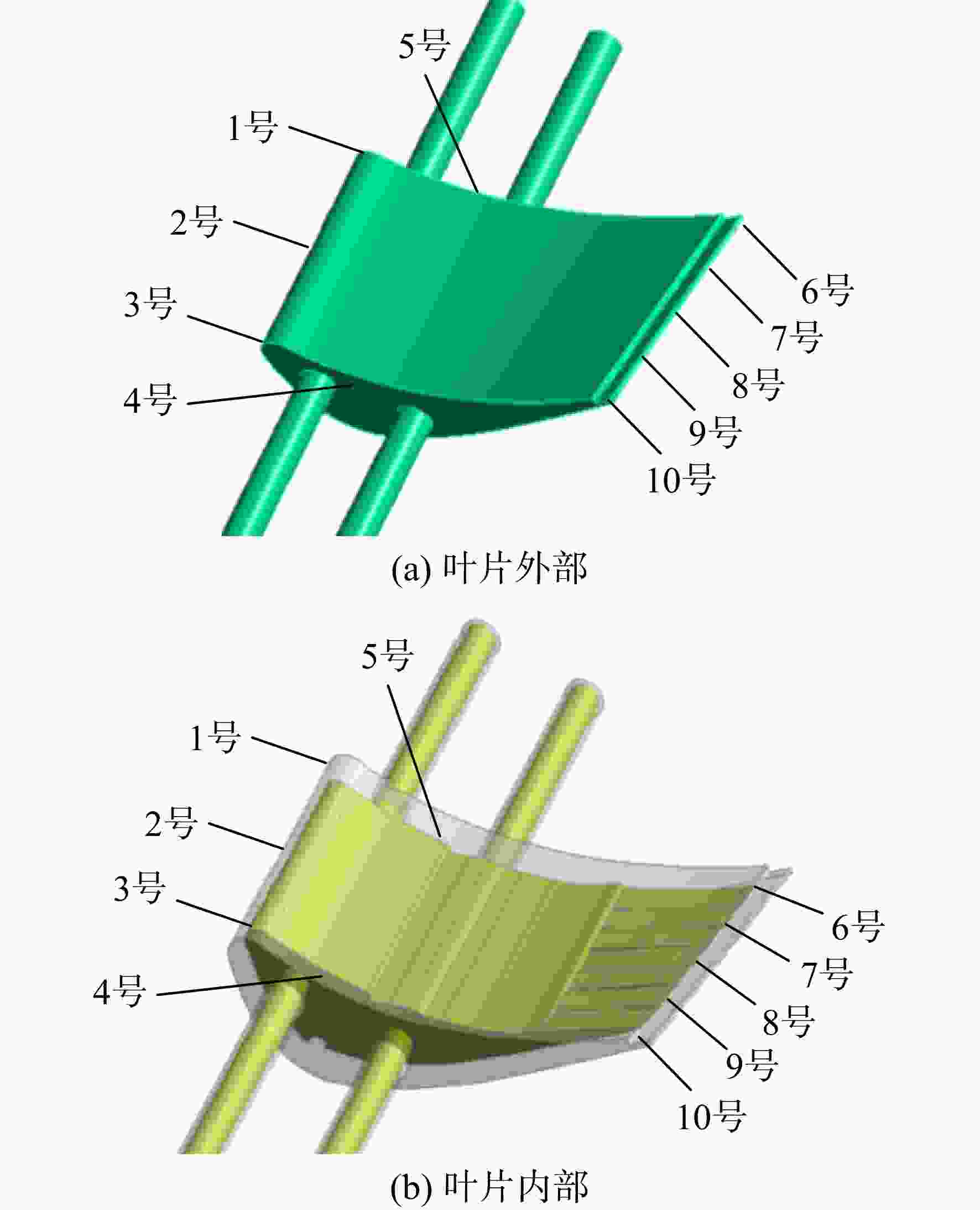

图 8 涡轮导叶危险节点分布

Figure 8. Distribution of turbine guide vane dangerous nodes

下载: 全尺寸图片幻灯片

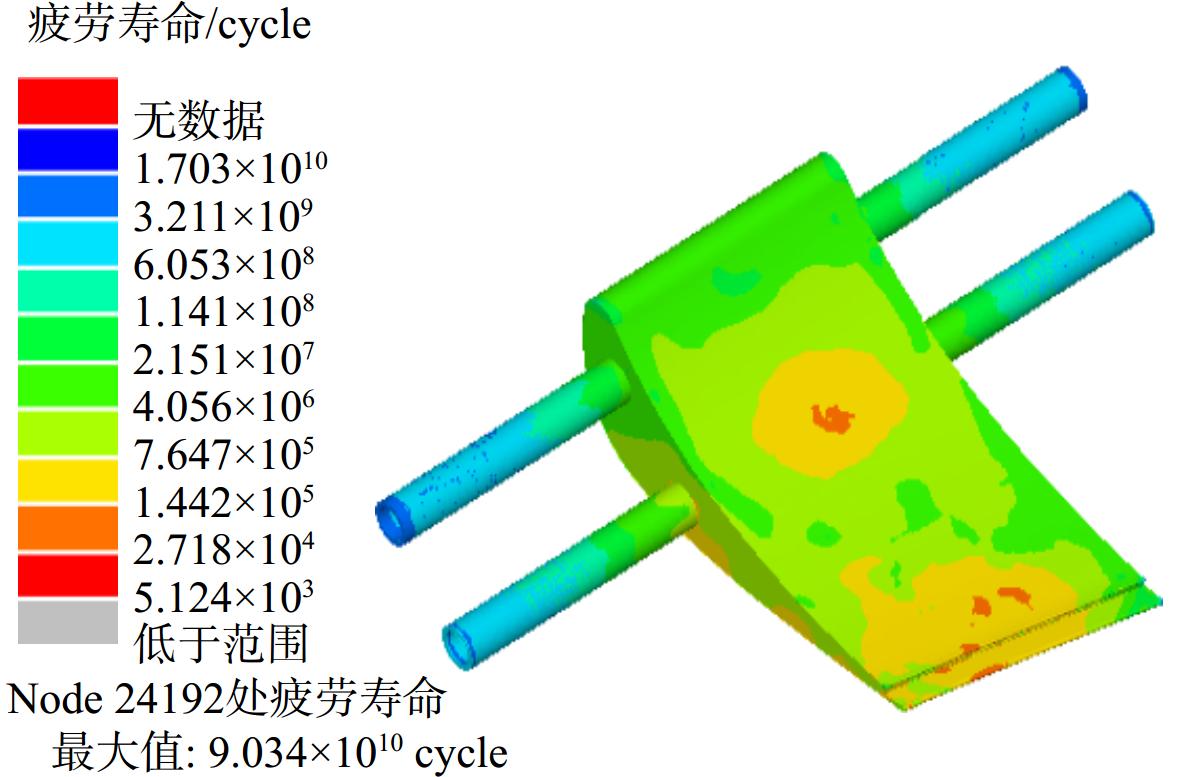

图 9 涡轮导叶疲劳寿命云图

Figure 9. Fatigue life nephogram of turbine guide vane

下载: 全尺寸图片幻灯片

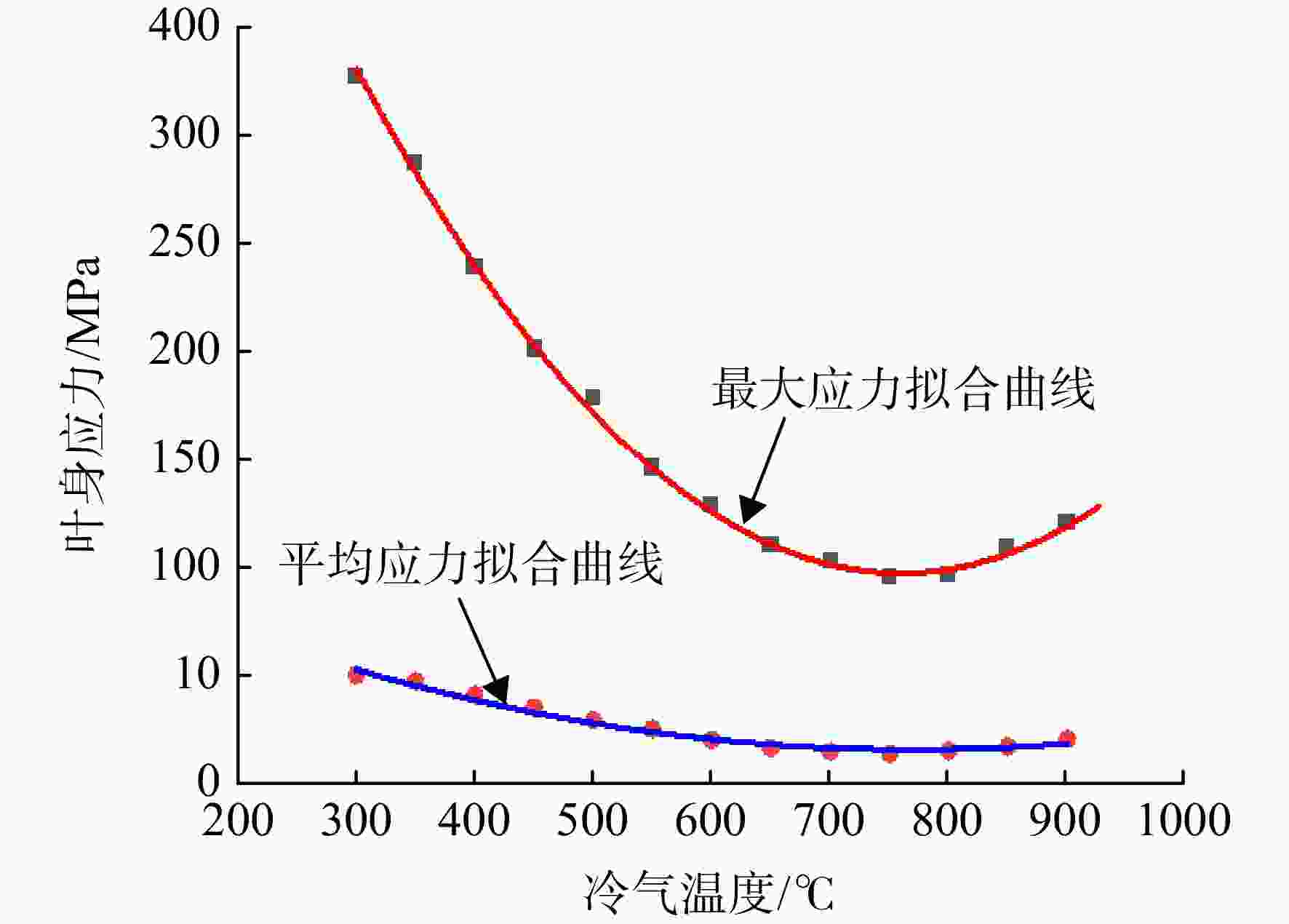

图 10 叶片应力随冷气峰值温度变化拟合图

Figure 10. Fitting diagram of vane stress variation with peak temperature of cold air

下载: 全尺寸图片幻灯片

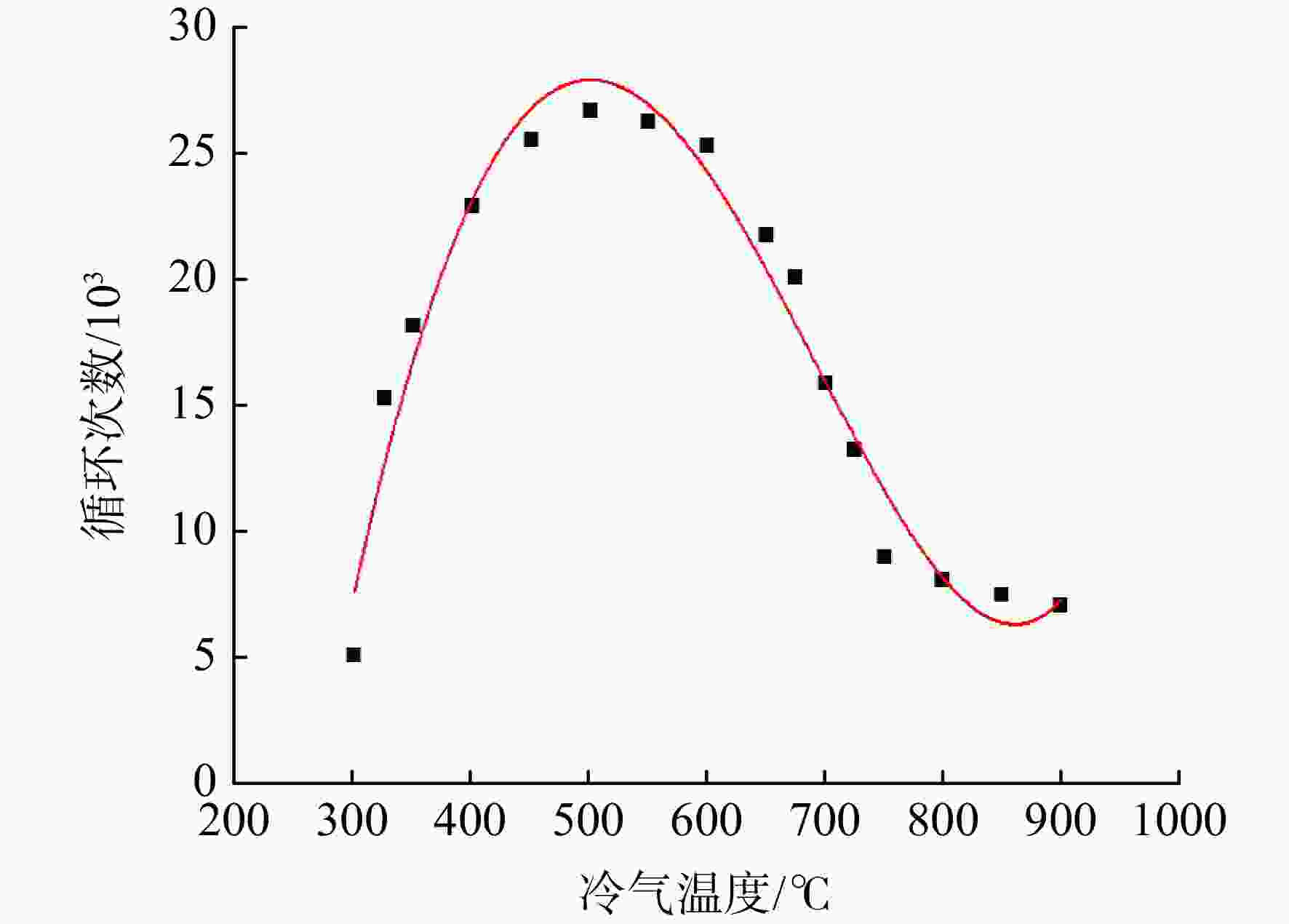

图 11 循环次数随冷气温度变化拟合图

Figure 11. Fitting diagram of cycle times changing with cold air temperature

下载: 全尺寸图片幻灯片

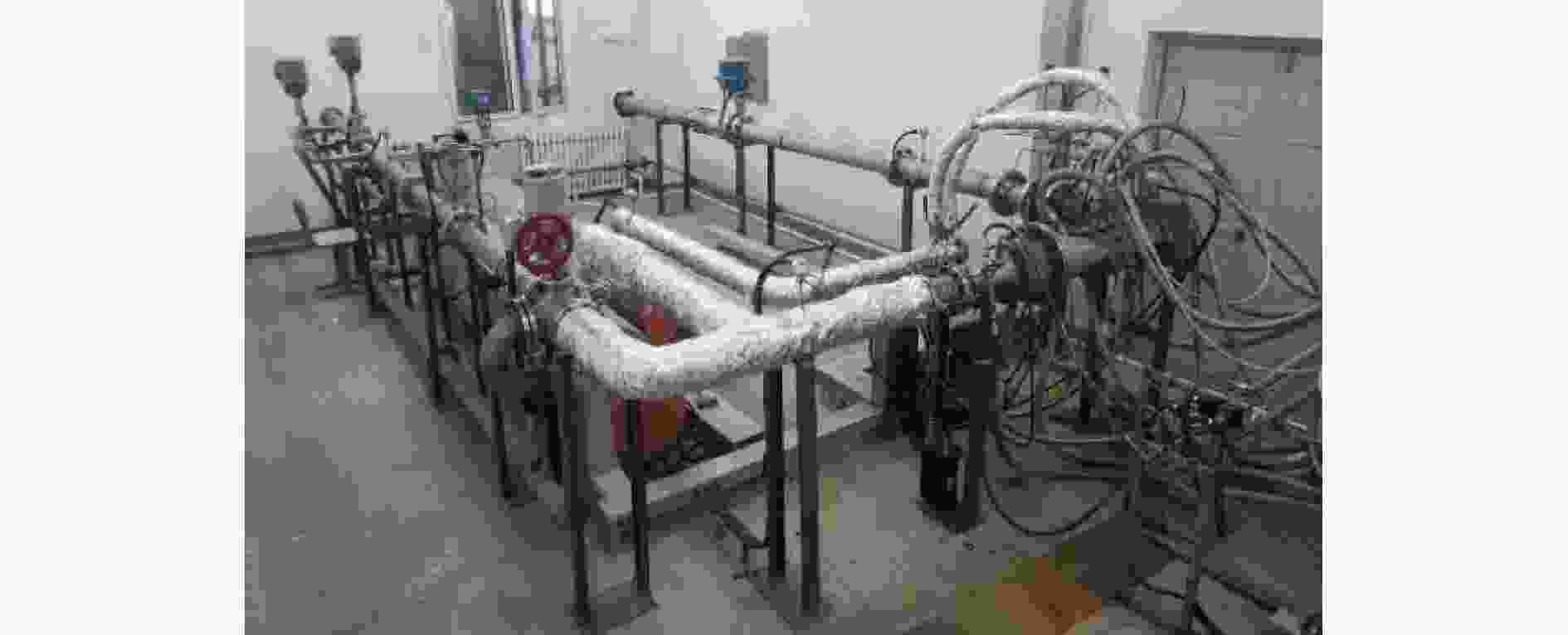

图 12 热冲击试验台

Figure 12. Thermal shock test bench

下载: 全尺寸图片幻灯片

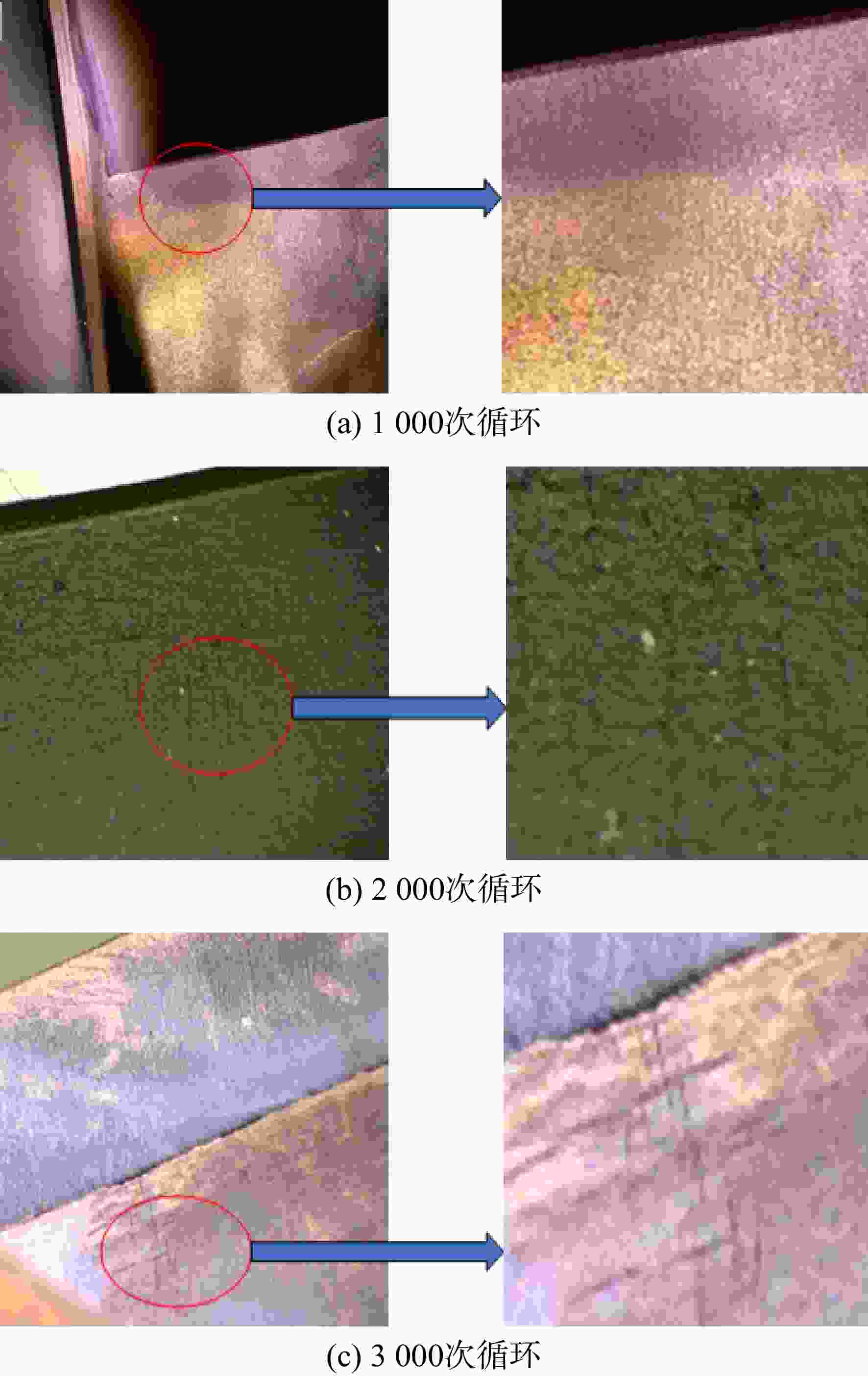

图 13 不同循环次数下叶片尾缘裂纹

Figure 13. Trailing edge cracks of vane under different cycles

下载: 全尺寸图片幻灯片

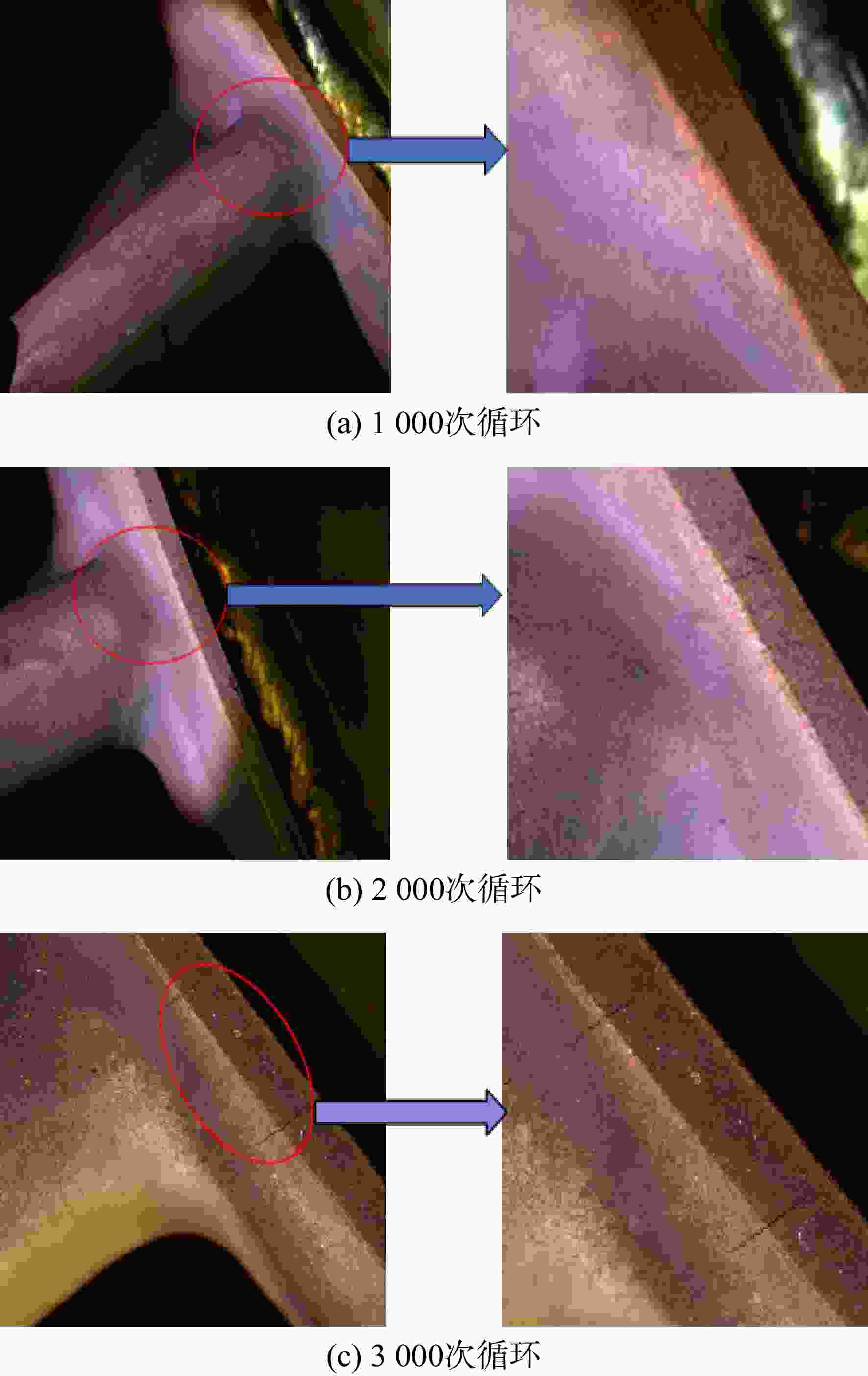

图 14 不同循环次数下叶片缘板裂纹

Figure 14. Vane edge plate cracks under different cycles

下载: 全尺寸图片幻灯片

表 1 涡轮导叶工况参数

Table 1. Turbine guide vane operating parameters

参数	燃气温度	冷气温度	燃气总压/ MPa	冷气总压/ MPa
数值及说明	可调	可调	0.75	0.35

下载: 导出CSV

表 2 涡轮导叶各危险节点载荷应力

Table 2. Load stress at each dangerous node of the turbine guide vane

节点编号	载荷应力/MPa
节点编号	外部节点	内部节点
1	29.5	58.2
2	27.6	52.1
3	38.6	59.5
4	220.4	231.2
5	231.7	228.7
6	91.53	88.5
7	128.4	125.1
8	157.2	166.8
9	134.3	132.4
10	103.8	129.4

下载: 导出CSV
