可调收敛喷管发动机高空台冲压校准和测量性能近似修正方法

吴锋 刘涛 邓燃 王靖元 徐全勇

吴锋, 刘涛, 邓燃, 等. 可调收敛喷管发动机高空台冲压校准和测量性能近似修正方法[J]. 航空动力学报, 2024, 39(10):20220862 doi: 10.13224/j.cnki.jasp.20220862
引用本文: 吴锋, 刘涛, 邓燃, 等. 可调收敛喷管发动机高空台冲压校准和测量性能近似修正方法[J]. 航空动力学报, 2024, 39(10):20220862 doi: 10.13224/j.cnki.jasp.20220862
WU Feng, LIU Tao, DENG Ran, et al. Investigation of performance approximate revision methods for engine with adjustable convergence nozzle in ram pressure calibration of altitude simulated test[J]. Journal of Aerospace Power, 2024, 39(10):20220862 doi: 10.13224/j.cnki.jasp.20220862
Citation: WU Feng, LIU Tao, DENG Ran, et al. Investigation of performance approximate revision methods for engine with adjustable convergence nozzle in ram pressure calibration of altitude simulated test[J]. Journal of Aerospace Power, 2024, 39(10):20220862 doi: 10.13224/j.cnki.jasp.20220862

可调收敛喷管发动机高空台冲压校准和测量性能近似修正方法

doi: 10.13224/j.cnki.jasp.20220862
基金项目: 中国航发四川燃气涡轮研究院外委课题
详细信息
    作者简介:

    吴锋(1982-),男,研究员,博士生,主要从事航空发动机高空模拟试验技术研究。E-mail:wufeng_my@mail.nwpu.edu.cn

  • 中图分类号: V235.1

Investigation of performance approximate revision methods for engine with adjustable convergence nozzle in ram pressure calibration of altitude simulated test

  • 摘要:

    针对控制规律与海拔高度相关带可调收敛喷管发动机,提出了在冲压条件下进行校准试验的方法。该方法通过冲压与等冲压试验结果比较获得修正系数,实现冲压条件下校准试验结果的近似修正。针对某型涡扇发动机,进行了高空台试验和总体性能仿真,获得了喷管控制偏差时发动机性能变化比例,基于冲压条件下试验结果修正得到了标准海平面条件下发动机性能。该方法表明:冲压条件下进行校准试验的方法是可行的,获取的发动机推力等主要性能参数与出厂试车结果相差小于2.0%。

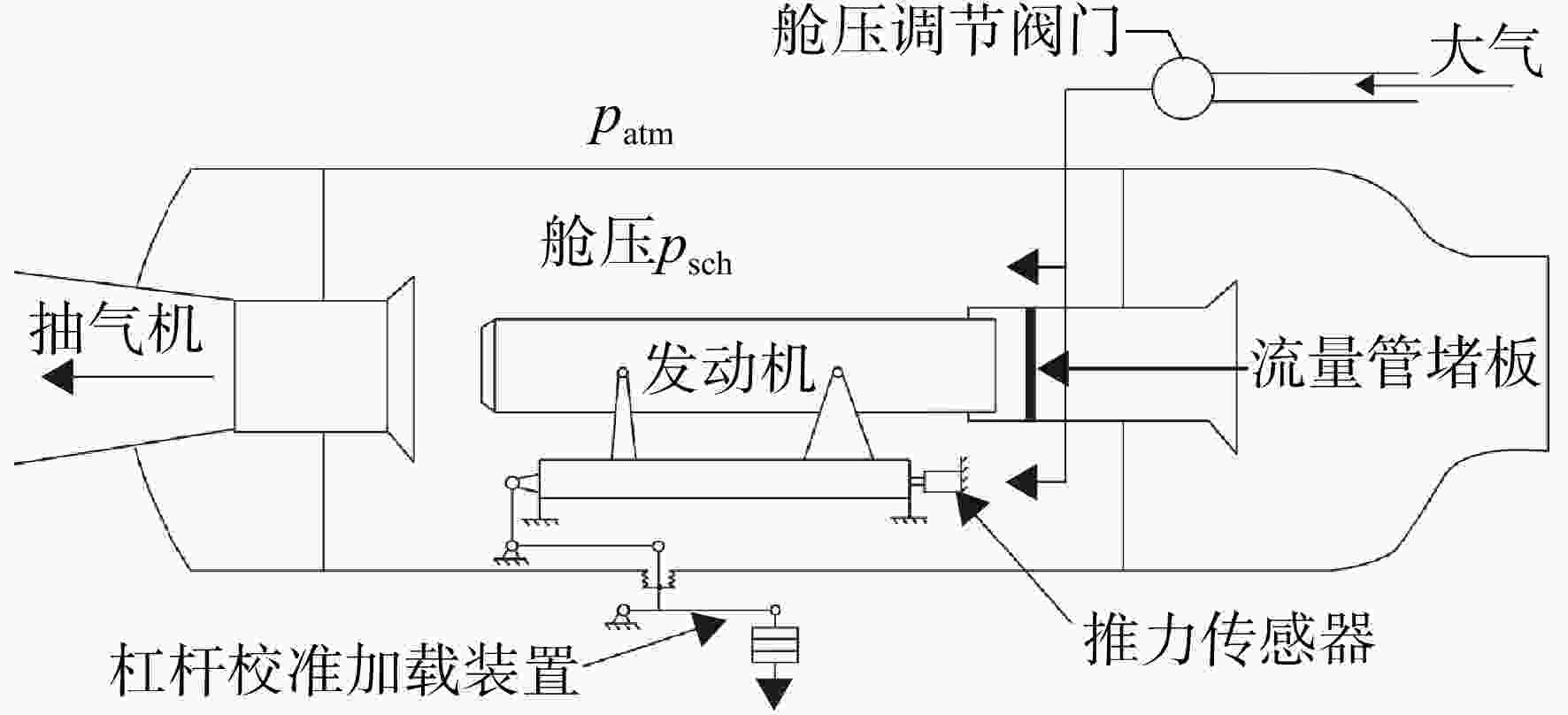

  • 图 1  高空舱冷却次流示意图

    Figure 1.  Secondary cooling air flow in altitude test chamber

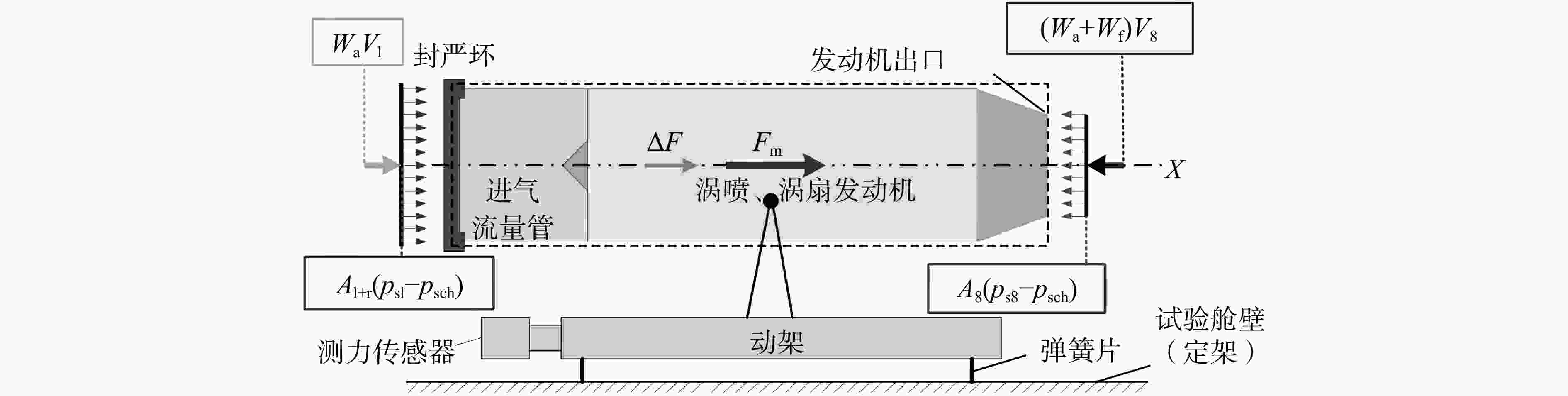

    图 2  直连式高空台发动机推力测量控制体示意图

    Figure 2.  Schematic diagram of the control volume of direct connected altitude engine thrust measurement.

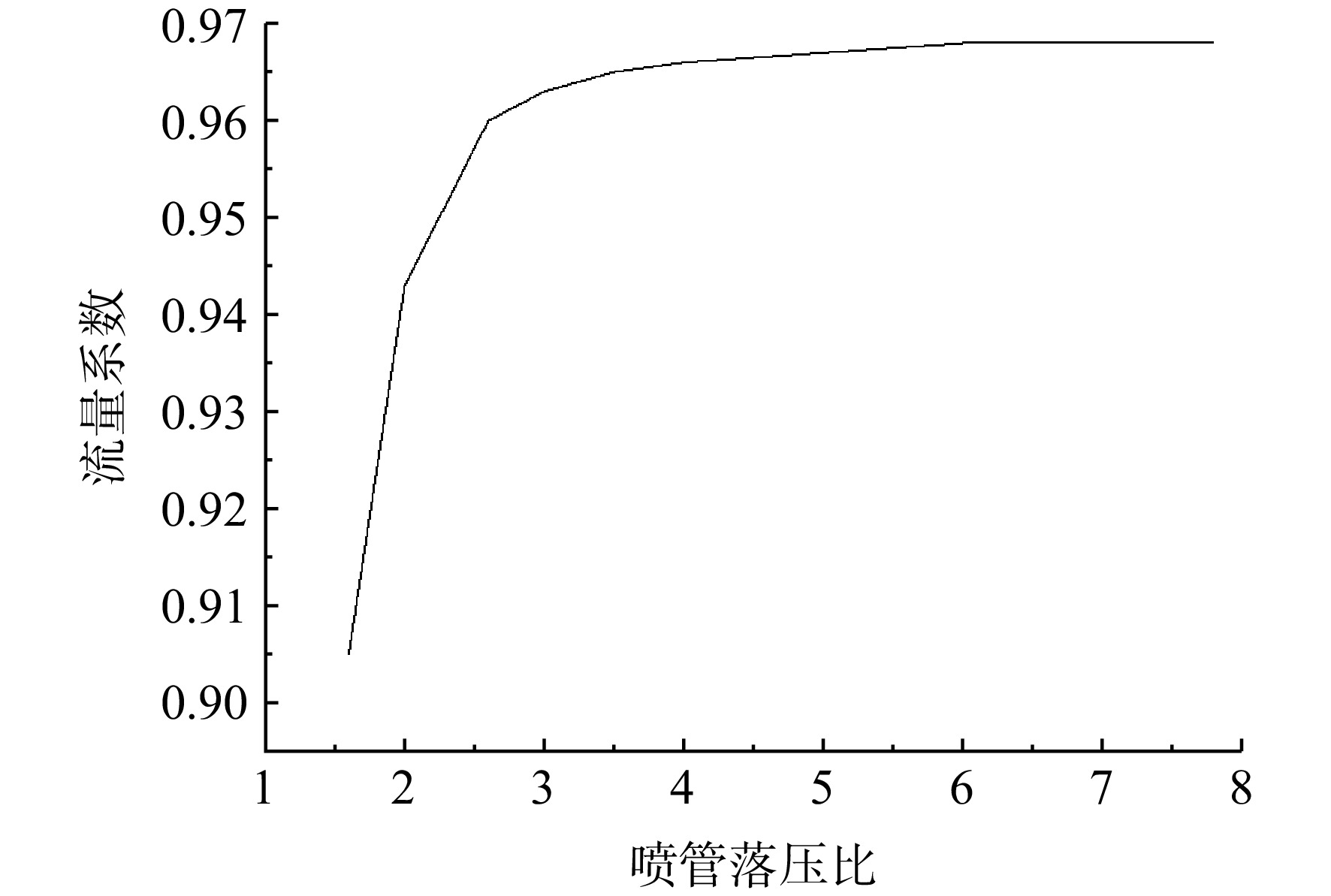

    图 3  尾喷管落压比与流量系数的对应关系

    Figure 3.  Relationship of $ {\pi _{\text{n}}} $vs. $ q\left( \lambda \right) $

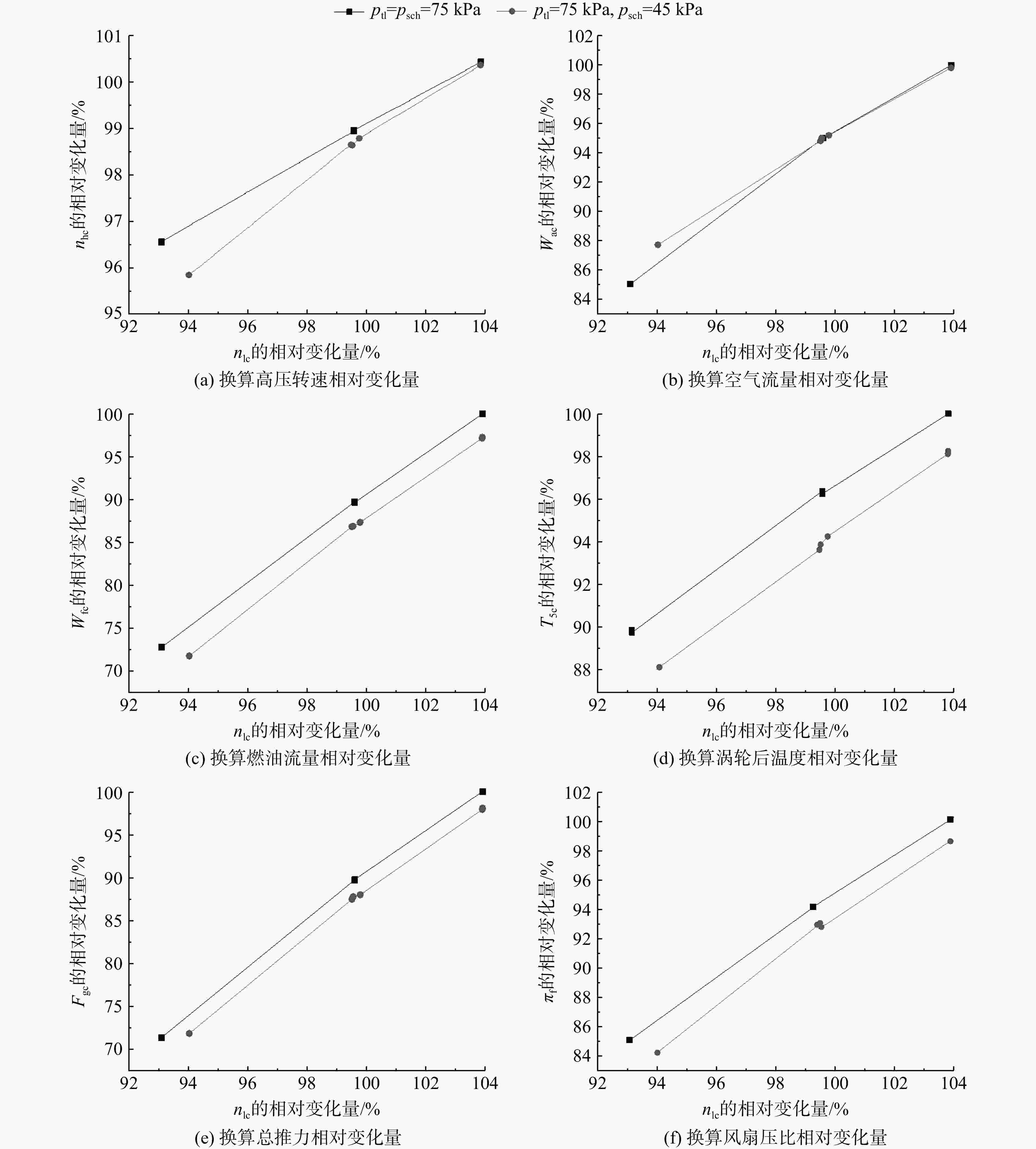

    图 4  发动机主要性能参数相对低压转速变化量

    Figure 4.  Variety of main parameter about engine performance vary with respect to the rotation speed of the low pressure shaft

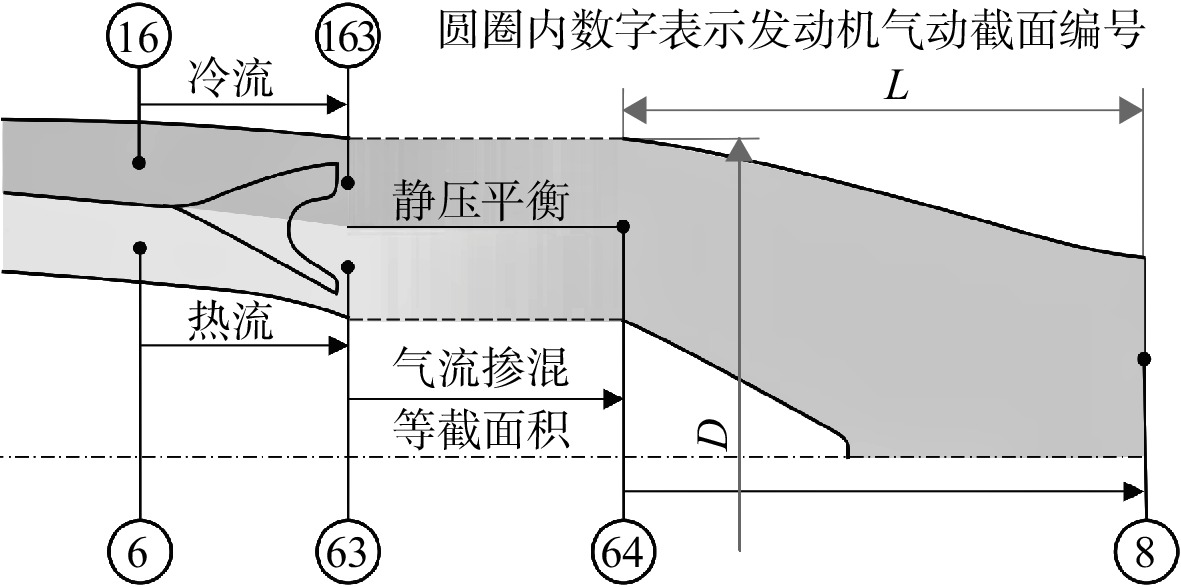

    图 5  涡扇发动机混合室模型

    Figure 5.  Exhaust mixer model for turbofan engine

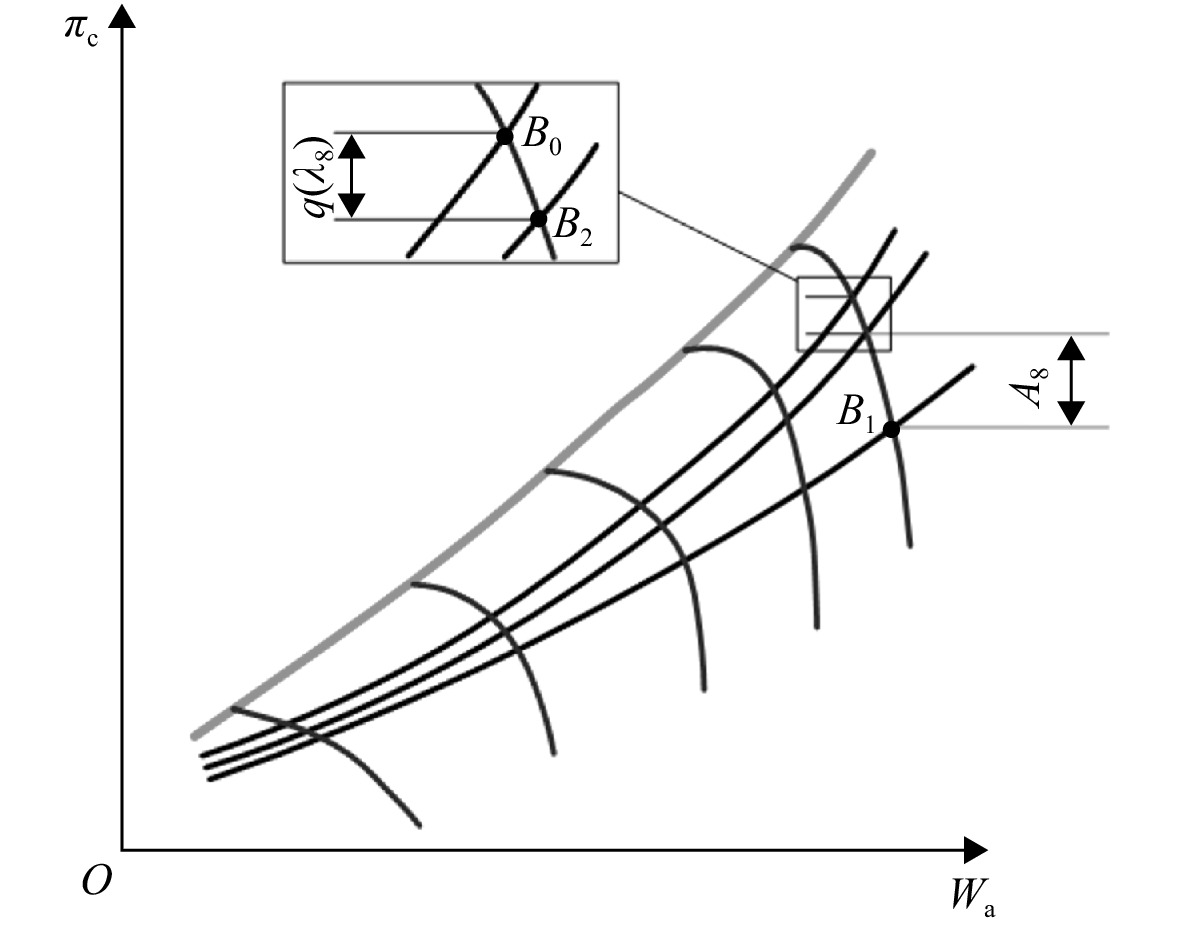

    图 6  发动机共同工作点变化示意图

    Figure 6.  Schematic diagram of the working point of engine

    $ {W_{\text{a}}} $ 空气质量流量(kg/s) Ma 马赫数
    $ {W_{\text{f}}} $ 燃油质量流量(kg/h) $ {F_{\text{g}}} $ 总推力(N)
    A 面积(m2 $ {F_{\text{m}}} $ 测量推力(N)
    p 气体压力(Pa) V 气流速度(m/s)
    T 气体温度(K) 下标
    R 气体常数(J/(kg·K)) t 滞止的,总的
    $ \lambda $ 速度系数 c 规定的飞行状态下
    $ q (\lambda ) $ 流量函数 r 环面的
    H 飞行高度(km) sch 高空舱内的
    下载: 导出CSV

    表  1  发动机主要性能参数差异(nlc=103.86%)

    Table  1.   Main parameters deviation for engine performance (nlc=103.86%)

    参数 相对变化量/%
    $ {n_{{\text{lc}}}} $
    $ {n_{{\text{hc}}}} $ −0.07
    $ {W_{{\text{ac}}}} $ −0.19
    $ {W_{{\text{fc}}}} $ −2.81
    $ {T_{{\text{5c}}}} $ −1.32
    $ {F_{{\text{gc}}}} $ −2.26
    $ {\pi _{\text{f}}} $ −1.61
    下载: 导出CSV

    表  2  A8面积变化发动机仿真计算结果

    Table  2.   Simulate results for engine caused by A8 deviation

    参数 相对变化量/%
    $ {A_8} $ 2.01
    $ {\pi _{\text{f}}} $ −1.45
    $ {n_{\text{h}}} $ −0.37
    $ {T_{\text{5}}} $ −1.05
    $ {W_{\text{f}}} $ −2.78
    $ {F_{\text{g}}} $ −2.09
    下载: 导出CSV

    表  3  修正后的校准试验结果与出厂数据比较

    Table  3.   Revised calibration test results vs. producer data

    参数 相对变化量/%
    $ {n_{{\text{lc}}}} $
    $ {n_{{\text{hc}}}} $ −0.15
    $ {W_{{\text{fc}}}} $ 1.90
    $ {T_{{\text{5c}}}} $ 0.78
    $ {F_{{\text{gc}}}} $ −0.53
    下载: 导出CSV
  • [1] SEBOURN C. Calculation of the discharge coefficient of close-coupled bellmouth flowmeters installed in propulsion test facilities: AIAA 2004-2732 [R]. Reston,US: AIAA,2004.
    [2] 刘志友,郭荣伟,侯敏杰,等. 航空发动机在高空台上的H0/Ma0试验分析[J]. 航空动力学报,2007,22(7): 1173-1178. LIU Zhiyou,GUO Rongwei,HOU Minjie,et al. Analysis of H=0 & Ma=0 test for aero-engine at ATF[J]. Journal of Aerospace Power,2007,22(7): 1173-1178. (in Chinese

    LIU Zhiyou, GUO Rongwei, HOU Minjie, et al. Analysis of H=0 & Ma=0 test for aero-engine at ATF[J]. Journal of Aerospace Power, 2007, 22(7): 1173-1178. (in Chinese)
    [3] 魏海涛,赵博,杨晓. 涡喷涡扇发动机试车台校准[J]. 计量技术,2002(2): 25-27. WEI Haitao,ZHAO Bo,YANG Xiao. Calibration of turbojet turbofan engine test bench[J]. Measurement Technique,2002(2): 25-27. (in Chinese

    WEI Haitao, ZHAO Bo, YANG Xiao. Calibration of turbojet turbofan engine test bench[J]. Measurement Technique, 2002(2): 25-27. (in Chinese)
    [4] 王辰辰,李新良,李程,等. 航空矢量发动机试车台推力校准技术综述[J]. 计测技术,2015,35(4): 10-14. WANG Chenchen,LI Xinliang,LI Cheng,et al. Thrust calibration technology of areo vector engine test cell[J]. Metrology and Measurement Technology,2015,35(4): 10-14. (in Chinese

    WANG Chenchen, LI Xinliang, LI Cheng, et al. Thrust calibration technology of areo vector engine test cell[J]. Metrology and Measurement Technology, 2015, 35(4): 10-14. (in Chinese)
    [5] 赵涌,侯敏杰,陈冕,等. 航空发动机高空模拟试验燃油流量原位校准系统设计与检验[J]. 燃气涡轮试验与研究,2013,26(1): 5-8,39. ZHAO Yong,HOU Minjie,CHEN Mian,et al. Design and verification of an in-situ calibration system for aero-engine fuel flow rate measurement in altitude simulation test[J]. Gas Turbine Experiment and Research,2013,26(1): 5-8,39. (in Chinese

    ZHAO Yong, HOU Minjie, CHEN Mian, et al. Design and verification of an in-situ calibration system for aero-engine fuel flow rate measurement in altitude simulation test[J]. Gas Turbine Experiment and Research, 2013, 26(1): 5-8, 39. (in Chinese)
    [6] 侯敏杰,刘志友,文刚. 高空舱内次流与真空度作用对发动机台架推力测量的影响研究[J]. 航空动力学报,2005,20(3): 384-388. HOU Minjie,LIU Zhiyou,WEN Gang. Research of the secondary flow and vacuum impact on the thrust measurement[J]. Journal Of Aerospace Power,2005,20(3): 384-388. (in Chinese

    HOU Minjie, LIU Zhiyou, WEN Gang. Research of the secondary flow and vacuum impact on the thrust measurement[J]. Journal Of Aerospace Power, 2005, 20(3): 384-388. (in Chinese)
    [7] 刘志友,侯敏杰,马前容. 高度对航空发动机地面试验性能的影响[J]. 航空动力学报,2006,21(2): 381-385. LIU Zhiyou,HOU Minjie,MA Qianrong. Research of altitude effect on aero-engine ground test performance[J]. Journal of Aerospace Power,2006,21(2): 381-385. (in Chinese

    LIU Zhiyou, HOU Minjie, MA Qianrong. Research of altitude effect on aero-engine ground test performance[J]. Journal of Aerospace Power, 2006, 21(2): 381-385. (in Chinese)
    [8] 刘志友,吴锋,仇钎. 直连式高空台试验中真空度与次流作用力校准的一种新方法[J]. 燃气涡轮试验与研究,2013,26(1): 1-4. LIU Zhiyou,WU Feng,QIU Qian. A new measurement method for the action of the secondary flow and vacuum in direct-connect ATF[J]. Gas Turbine Experiment and Research,2013,26(1): 1-4. (in Chinese

    LIU Zhiyou, WU Feng, QIU Qian. A new measurement method for the action of the secondary flow and vacuum in direct-connect ATF[J]. Gas Turbine Experiment and Research, 2013, 26(1): 1-4. (in Chinese)
    [9] 焦天佑,郭昕. 高空台对比试验校准与标定技术研究[J]. 燃气涡轮试验与研究,1997,10(1): 1-7. JIAO Tianyou,GUO Xin. Research on calibration and calibration technology of high altitude platform comparison test[J]. Gas Turbine Experiment and Research,1997,10(1): 1-7. (in Chinese

    JIAO Tianyou, GUO Xin. Research on calibration and calibration technology of high altitude platform comparison test[J]. Gas Turbine Experiment and Research, 1997, 10(1): 1-7. (in Chinese)
    [10] 焦华宾,莫松. 航空涡轮发动机现状及未来发展综述[J]. 航空制造技术,2015,58(12): 62-65. JIAO Huabin,MO Song. Present status and development trend of aircraft turbine engine[J]. Aeronautical Manufacturing Technology,2015,58(12): 62-65. (in Chinese

    JIAO Huabin, MO Song. Present status and development trend of aircraft turbine engine[J]. Aeronautical Manufacturing Technology, 2015, 58(12): 62-65. (in Chinese)
    [11] 焦天佑. 涡喷涡扇发动机试车台校准方法的研究[J]. 燃气涡轮试验与研究,1999,12(4): 5-7. JIAO Tianyou. Study on calibration method of turbojet turbofan engine test bench[J]. Gas Turbine Experiment and Research,1999,12(4): 5-7. (in Chinese

    JIAO Tianyou. Study on calibration method of turbojet turbofan engine test bench[J]. Gas Turbine Experiment and Research, 1999, 12(4): 5-7. (in Chinese)
    [12] 廉筱纯,吴虎. 航空发动机原理[M]. 西安: 西北工业大学出版社,2005. LIAN Xiaochun,WU Hu. Aeroengine principle[M]. Xi’an: Northwestern Polytechnical University Press,2005. (in Chinese

    LIAN Xiaochun, WU Hu. Aeroengine principle[M]. Xi’an: Northwestern Polytechnical University Press, 2005. (in Chinese)
    [13] 杜鹤龄. 航空发动机推力的测量和确定方法[J]. 航空动力学报,1997,12(4): 54-57,103. DU Heling. Measurement and determination method of aero-engine thrust[J]. Journal of Aerospace Power,1997,12(4): 54-57,103. (in Chinese

    DU Heling. Measurement and determination method of aero-engine thrust[J]. Journal of Aerospace Power, 1997, 12(4): 54-57, 103. (in Chinese)
    [14] 杜鹤龄. 航空发动机高空模拟[M]. 北京: 国防工业出版社,2002. DU Heling. Aero-engine altitude simulating[M]. Beijing: National Defense Industry Press,2002. (in Chinese

    DU Heling. Aero-engine altitude simulating[M]. Beijing: National Defense Industry Press, 2002. (in Chinese)
    [15] WU F,GONG X Q,SU J Y. Aerodynamic calibration and thrust correction method with inflow separation in indoor sea level test facility: ASME Paper GT2014-25594 [R]. Düsseldorf,Germany: ASME,2014.
    [16] LISTER J,BONSON W,MCAMIS R. Inlet duct static pressure assessment method contribution to direct-connect thrust measurement uncertainty: AIAA 2007-5335 [R]. Reston,US: AIAA,2007.
    [17] BEALE D. Experimental measurement of venturi discharge coefficient including sensitivity to geometric and flow quality variables: AIAA 1999-304 [R]. Reston,US: AIAA,1999.
    [18] BEALE D,HAND T,SEBOURN C. Development of a bellmouth airflow measurement technique for turbine engine ground test facilities: AIAA2001-3676 [R]. Reston,US: AIAA,2001.
