基于灵敏度分析的直升机旋翼桨叶模型修正方法

苏子献; 韩东; 崔钊

doi:10.13224/j.cnki.jasp.20220869

基于灵敏度分析的直升机旋翼桨叶模型修正方法

doi: 10.13224/j.cnki.jasp.20220869

苏子献^1,,
韩东^1,*, ,,
崔钊²

1.
南京航空航天大学航空学院直升机动力学全国重点实验室，南京 210016
2.
中国飞行试验研究院飞机所，西安 710089

基金项目: 国家自然科学基金（11972181）；江苏高校优势学科建设工程资助项目（PAPD）

详细信息

作者简介:
苏子献（1998-），男，硕士生，主要从事直升机旋翼动力学方面的研究。E-mail：444028639@qq.com

通讯作者:
韩东（1979-），男，教授，博士，主要从事直升机动力学及其控制、智能旋翼及旋翼飞行器飞行性能等方面的研究。E-mail：donghan@nuaa.edu.cn

中图分类号: V214.1
计量
- 文章访问数: 528
- HTML浏览量: 239
- PDF量: 36
- 被引次数: 0
出版历程
- 收稿日期: 2023-11-14
- 网络出版日期: 2024-04-03

Helicopter rotor blade model updating method based on sensitivity analysis

SU Zixian^1
,,
HAN Dong^{1,*
, ,},
CUI Zhao²

1.
National Key Laboratory of Helicopter Aeromechanics，College of Aerospace Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China
2.
Aircraft Flight Test Technology Institute，Chinese Flight Test Establishment，Xi’an 710089，China

摘要

摘要:
为缩减直升机旋翼桨叶结构有限元模型与实际模型之间模态响应结果之间的偏差，采用一种基于灵敏度分析的模型修正方法，由于传统的灵敏度方法未考虑设计参数变化对灵敏度计算结果的影响，以及出现量化不统一等问题，针对直升机旋翼桨叶模型对该方法进行适当的改进。以碳纤维复合材料直升机旋翼模型桨叶为例，通过试验与有限元分析分别得到其实际模型与有限元分析模型的前6阶模态的固有频率，利用灵敏度方法对桨叶有限元模型的主要设计参数进行优化，使旋翼有限元模型与实际模型间固有频率的平均误差由8.15%降低至1%以内，误差有了明显的降低、精度有明显的提升。修正结果表明，基于灵敏度分析的模型修正方法能够有效提升直升机桨叶结构模型的精度。
- 模型修正 /
- 灵敏度分析 /
- 旋翼桨叶 /
- 有限元模型 /
- 实际模型 /
- 固有频率
Abstract:
In order to reduce the deviation between the modal response results of the finite element model and the actual model of the helicopter rotor blade structure, a model updating method based on sensitivity analysis was used. In view of traditional sensitivity method without consideration of the influence of the change of design parameters on the sensitivity calculation results, as well as the problem of non-uniform quantification, the method was appropriately improved for the helicopter rotor blade model. Taking the carbon fiber composite helicopter rotor blade model as an example, the natural frequencies of the first six modes of the actual model and the finite element analysis model were obtained through experiments and finite element analysis, respectively, and the main design parameters of the finite element model of the rotor blade were optimized by using the sensitivity method. The average error between the rotor blade finite element model and the actual model was reduced from 8.15% to less than 1%. The error was significantly reduced and the accuracy was significantly improved. The updating results showed that the model updating method based on sensitivity analysis can effectively improve the accuracy of the helicopter propeller structure model.
- model updating /
- sensitivity analysis /
- rotor blade /
- finite element model /
- actual model /
- natural frequency

HTML

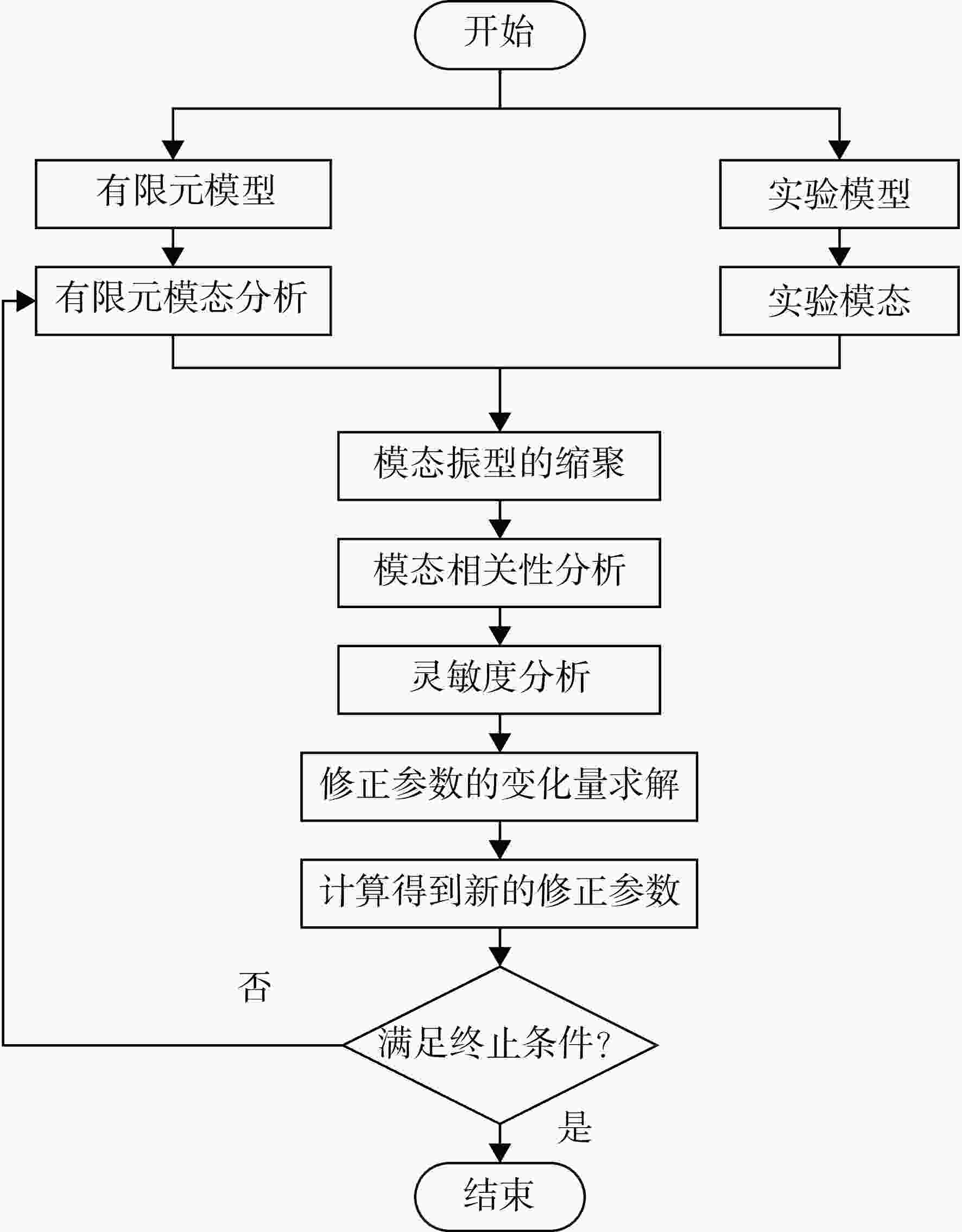

图 1 有限元模型修正流程图

Figure 1. Finite element model updating flow chart

下载: 全尺寸图片幻灯片

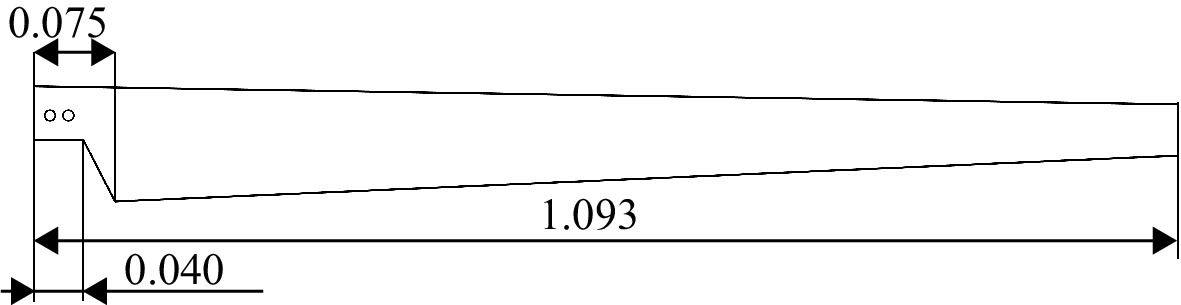

图 2 桨叶总体尺寸（单位：m）

Figure 2. Blade overall dimensions （unit: m）

下载: 全尺寸图片幻灯片

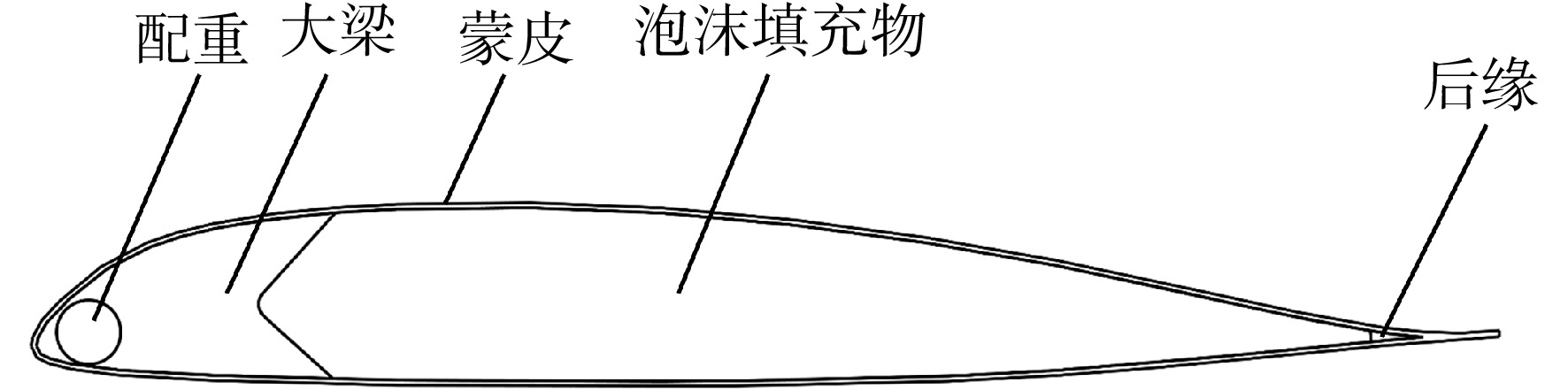

图 3 桨叶剖面结构

Figure 3. Blade profile structure

下载: 全尺寸图片幻灯片

图 4 挥舞、扭转方向测量固有频率

Figure 4. Measurement of natural frequency in flapping and twisting directions

下载: 全尺寸图片幻灯片

图 5 摆振方向测量固有频率

Figure 5. Measurement of natural frequency in lagging direction

下载: 全尺寸图片幻灯片

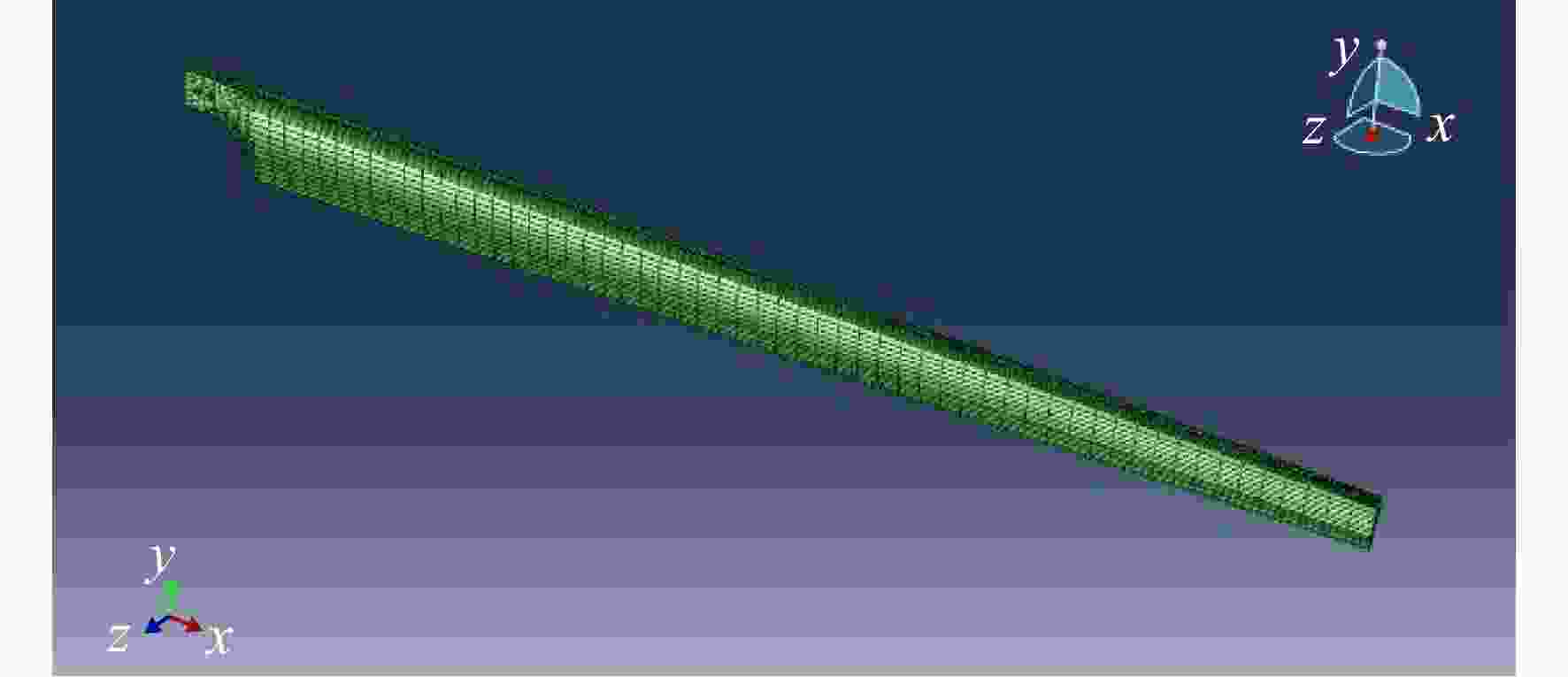

图 6 桨叶有限元模型

Figure 6. Blade finite element model

下载: 全尺寸图片幻灯片

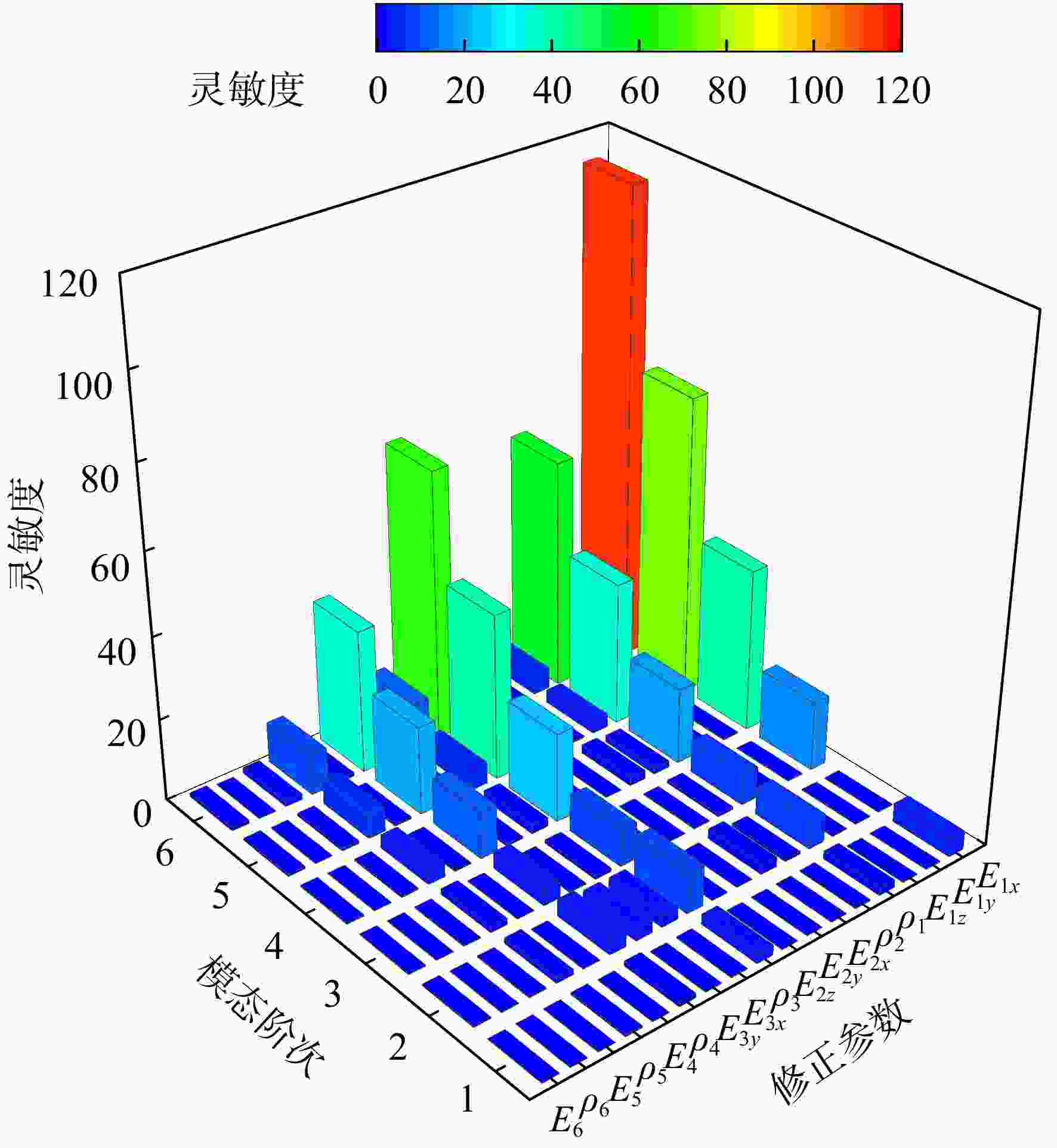

图 7 设计参数灵敏度

Figure 7. Design parameter sensitivity

下载: 全尺寸图片幻灯片

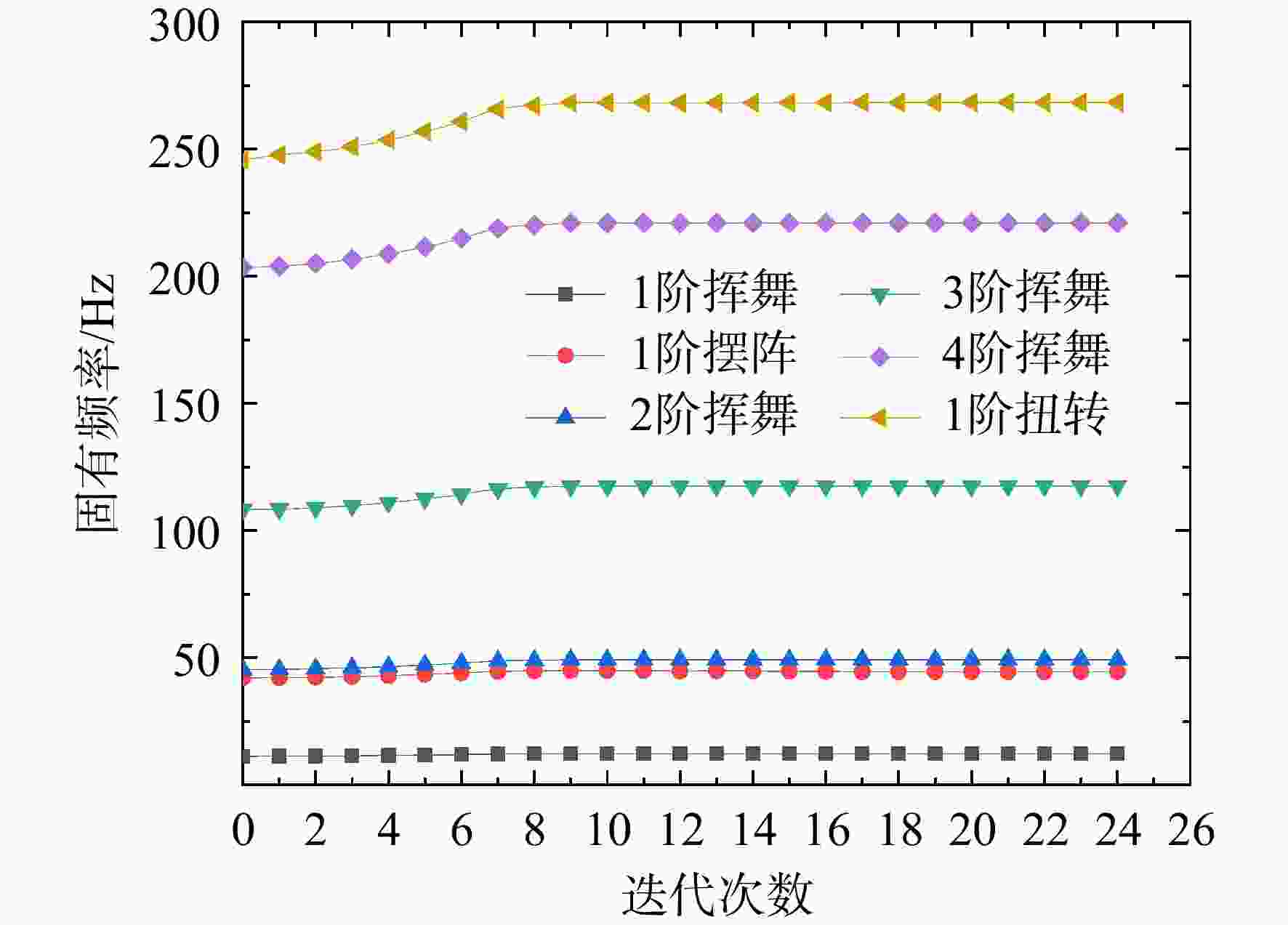

图 8 桨叶固有频率

Figure 8. Blade natural frequencies

下载: 全尺寸图片幻灯片

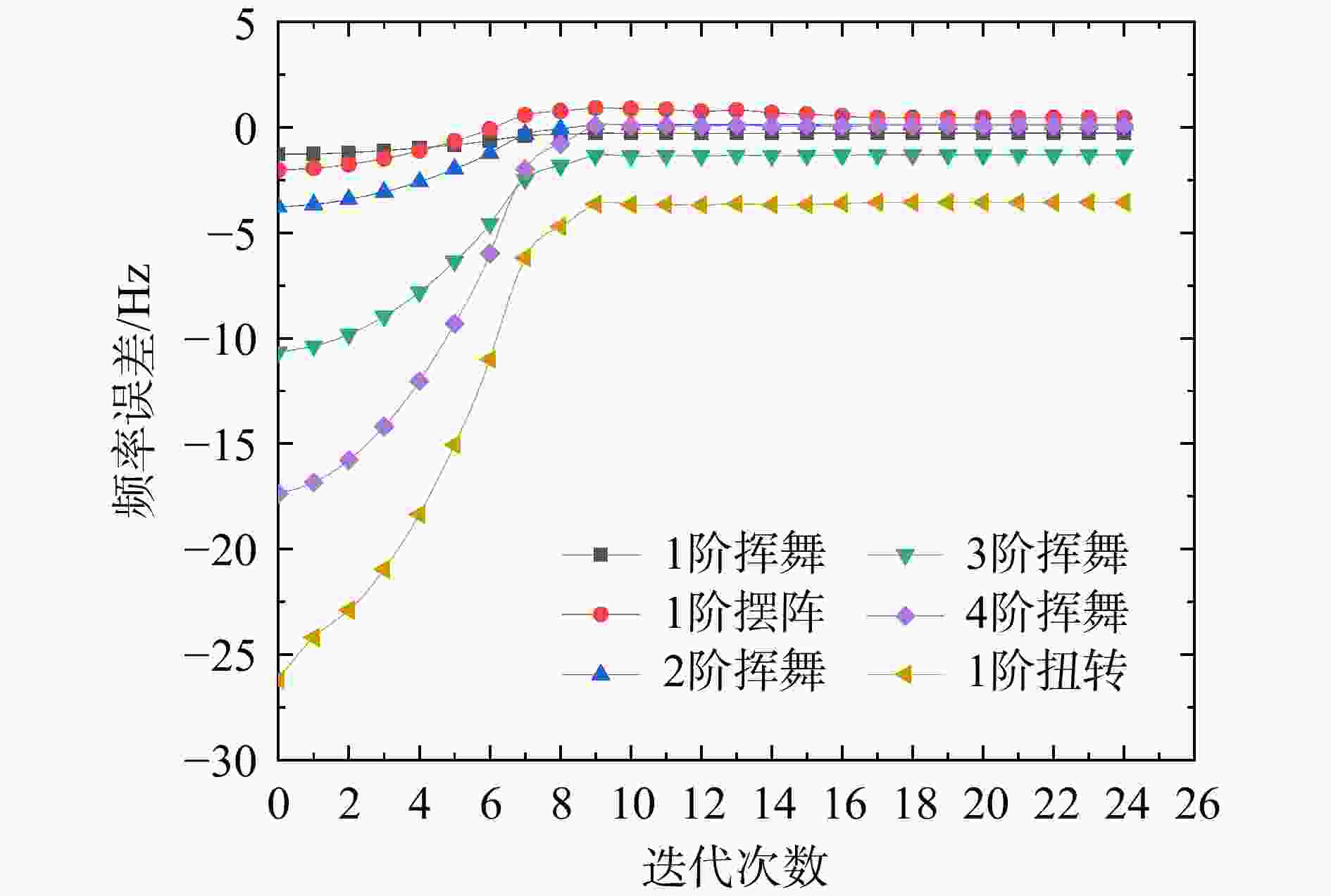

图 9 固有频率误差

Figure 9. Natural frequencies errors

下载: 全尺寸图片幻灯片

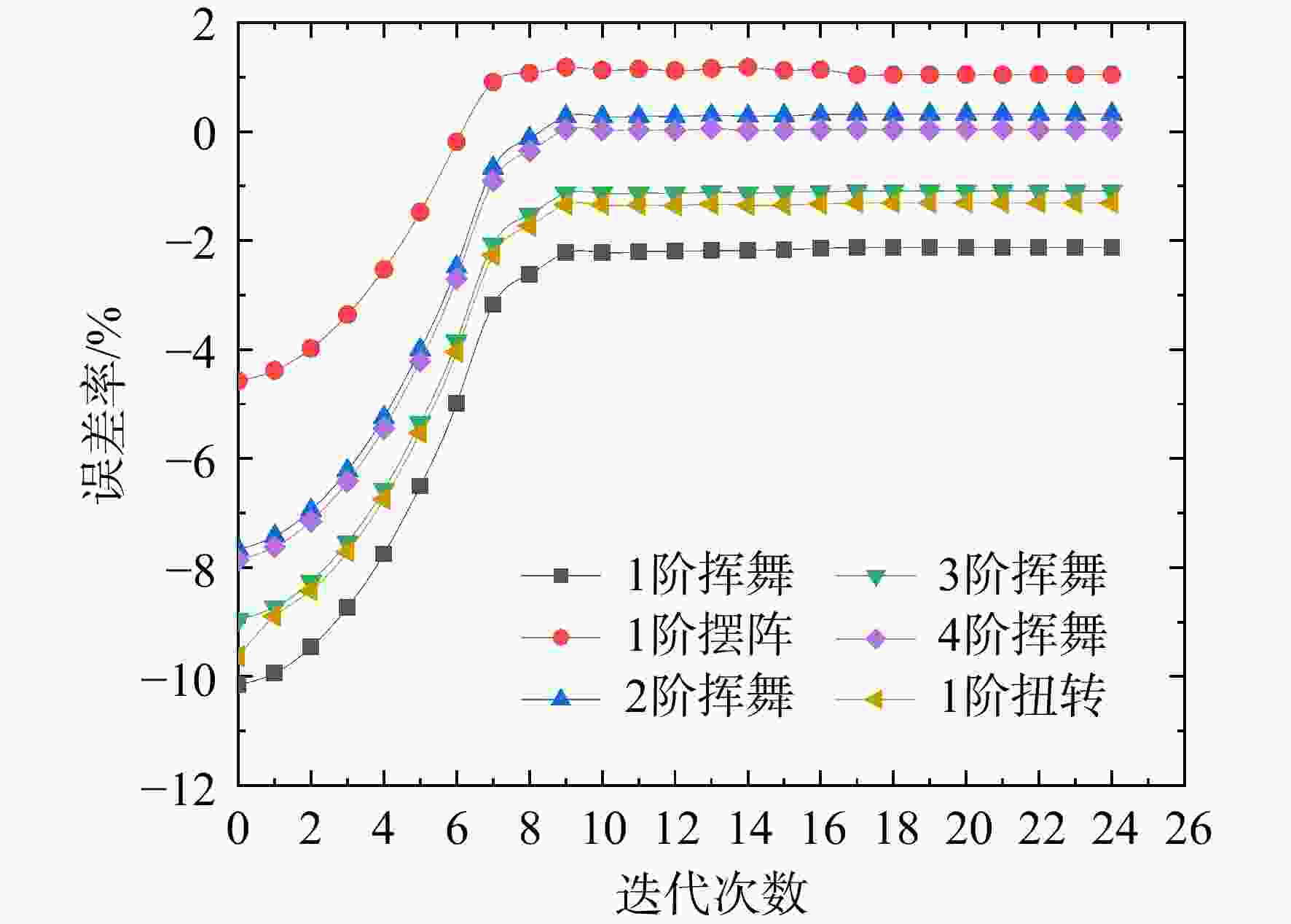

图 10 固有频率的误差率

Figure 10. Error rate of natural frequencies

下载: 全尺寸图片幻灯片

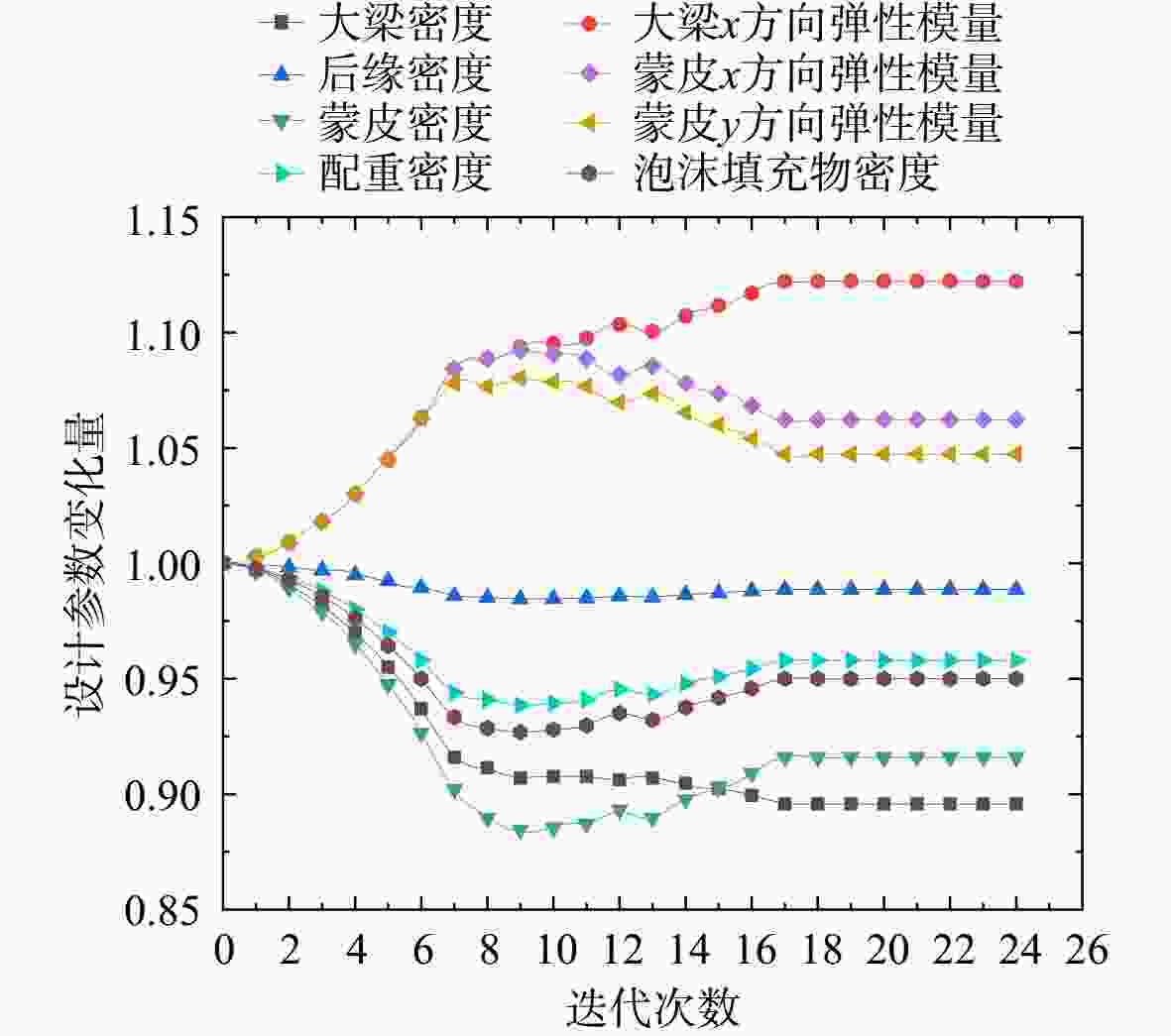

图 11 设计参数的变化量

Figure 11. Amount of variation of design parameters

下载: 全尺寸图片幻灯片

表 1 桨叶外形参数

Table 1. Blade profile parameters

参数	数值及说明
展长/m	1.093
翼尖弦长/m	0.046
尖削比	2∶1
负扭角/（°）	−5
翼型	OA213

下载: 导出CSV

表 2 桨叶结构设计参数

Table 2. Blade structure design parameters

结构件	设计参数	数值
大梁	密度$ {\rho _1} $/（g/cm³）	1.6
	x方向弹性模量$ {E_{1x}} $/GPa	125
	y方向弹性模量$ {E_{1y}} $/GPa	9.65
	z方向弹性模量$ {E_{1{\textit{z}}}} $/GPa	9.65
后缘	密度$ {\rho _2} $/（g/cm³）	1.6
	x方向弹性模量$ {E_{2x}} $/GPa	125
	y方向弹性模量$ {E_{2y}} $/GPa	9.65
	z方向弹性模量$ {E_{2{\textit{z}}}} $/GPa	9.65
蒙皮	密度$ {\rho _3} $/（g/cm³）	1.6
	x方向弹性模量$ {E_{3x}} $/GPa	125
	y方向弹性模量$ {E_{3y}} $/GPa	8.25
配重	密度$ {\rho _4} $/（g/cm³）	11.34
配重	弹性模量$ {E_4} $/GPa	17
泡沫填充物	密度$ {\rho _5} $/GPa	0.052
泡沫填充物	弹性模量$ {E_5} $/MPa	74
连接件	密度$ {\rho _6} $/（g/cm³）	7.8
连接件	弹性模量$ {E_6} $/GPa	200

下载: 导出CSV

表 3 桨叶有限元频率及试验频率

Table 3. Blade finite element frequencies and test frequencies

模态	有限元频率/Hz	试验频率/Hz
1阶挥舞	11.32	12.60
1阶摆振	42.08	44.10
2阶挥舞	45.36	49.13
3阶挥舞	108.20	118.85
4阶挥舞	203.51	220.87
1阶扭转	245.68	271.88

下载: 导出CSV

表 4 修正后桨叶的有限元频率及试验频率

Table 4. Blade finite element frequencies and test frequencies after updating

模态	频率/Hz			误差/%
模态	试验	修正前	修正后	修正前	修正后
1阶挥舞	12.60	11.32	12.33	10.16	2.14
1阶摆振	44.10	42.08	44.56	4.58	1.04
2阶挥舞	49.13	45.36	49.30	7.67	0.26
3阶挥舞	118.85	108.20	117.56	8.96	1.09
4阶挥舞	220.87	203.51	220.96	7.86	0.04
1阶扭转	271.88	245.68	268.32	9.64	1.31

下载: 导出CSV

表 5 修正前后模型桨叶结构设计参数

Table 5. Design parameters of model blade structure before and after updating

结构件	结构参数	修正前参数值	修正后参数值	参数的变化率/%
大梁	密度$ {\rho _1} $/（g/cm³）	1.60	1.43	−10.43
大梁	x方向弹性模量$ {E_{1x}} $/GPa	125	140	−12.23
后缘	密度$ {\rho _2} $/（g/cm³）	1.60	1.58	−1.13
蒙皮	密度$ {\rho _3} $/（g/cm³）	1.60	1.47	−8.40
	x方向弹性模量$ {E_{3x}} $/GPa	125	133	6.23
	y方向弹性模量$ {E_{3y}} $/GPa	8.25	8.64	4.73
配重	密度$ {\rho _4} $/（g/cm³）	11.34	10.77	−5.00
泡沫填充物	密度$ {\rho _5} $/（g/cm³）	0.052	0.050	−4.20

下载: 导出CSV
