Modification of static nonlinear model of thin layer element for aeroengine bolted structure
-
摘要:
针对于航空发动机机匣带有止口的螺栓连接结构的非线性刚度特征提出一种新的非线性模拟方法以及模型修正方法。首先提出了一种非线性薄层单元方法对螺栓连接结构的非线性刚度特征进行模拟，并对模拟结果进行评估；然后，提出一种新的双加权响应面修正方法；最后，使用该修正方法对螺栓连接结构静力学非线性模型修正：结果表明：本文建立的非线性薄层单元简化模型可以预测实际螺栓连接结构考虑止口接触面粗糙度的非线性刚度特征；提出双加权响应面修正方法修正前后的刚度误差维持在3.5%以内，验证了建模以及修正方法的可行性。
Abstract:A new nonlinear simulation method and model modification method were proposed for the nonlinear stiffness characteristics of bolted structures with notches in aeroengine casings. A nonlinear thin layer element method was proposed to simulate the nonlinear stiffness characteristics of bolted structures, and the simulation results were evaluated. A new dual weighted response surface correction method was also proposed. The modified method was used to modify the static nonlinear model of bolted structures. The results showed that the simplified nonlinear thin layer element model can predict the nonlinear stiffness characteristics of actual bolted structures considering the roughness of the seam contact surface; a dual weighted response surface correction method was proposed to maintain the stiffness error within 3.5% before and after correction, verifying the feasibility of the modeling and correction method.
-
图 3 螺栓连接接触单元圆筒结构有限元模型
Figure 3. Finite element model of cylindrical structure with bolted contact element

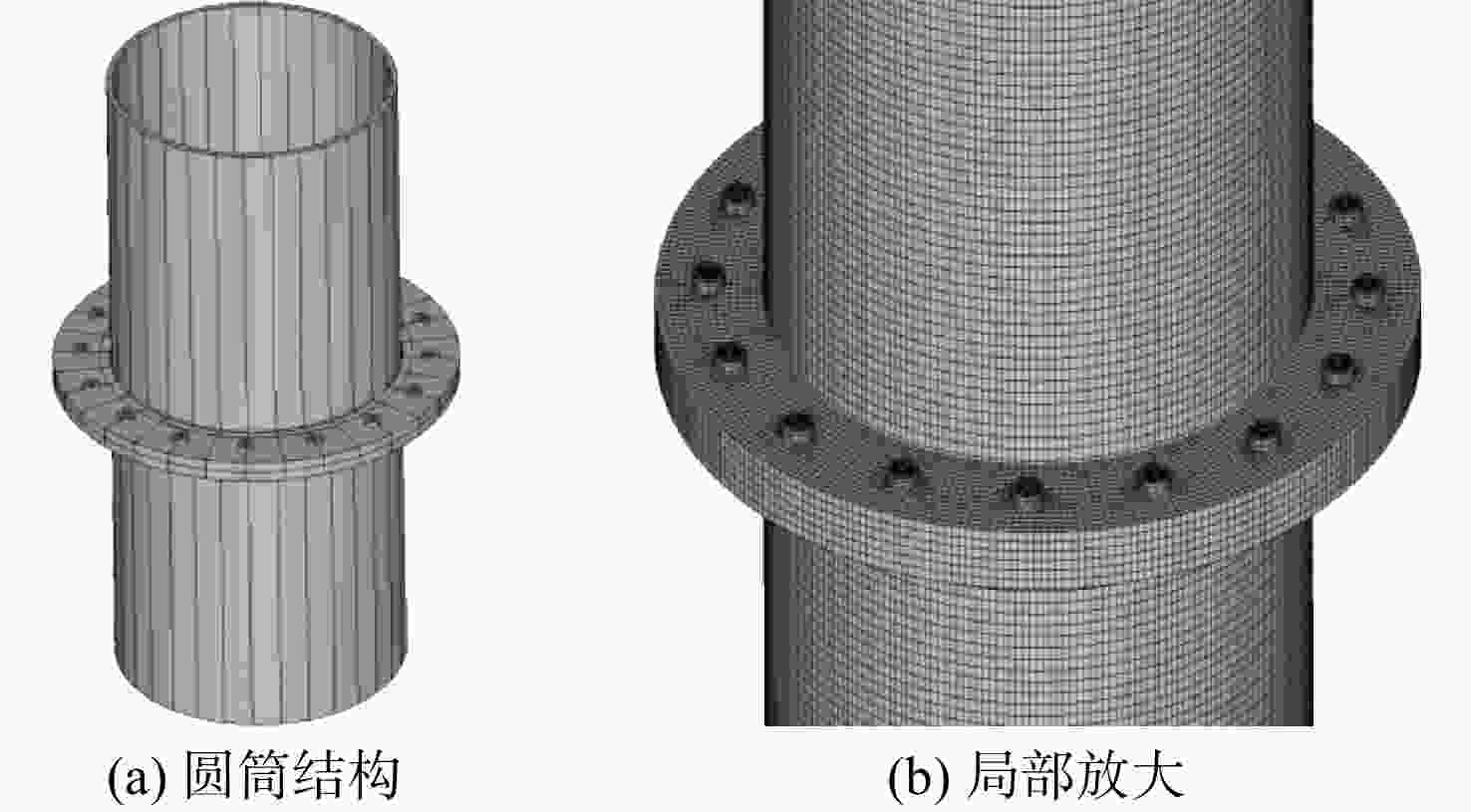

图 5 螺栓连接薄层单元圆筒结构有限元模型
Figure 5. Finite element model of cylinder structure with bolted thin layer element

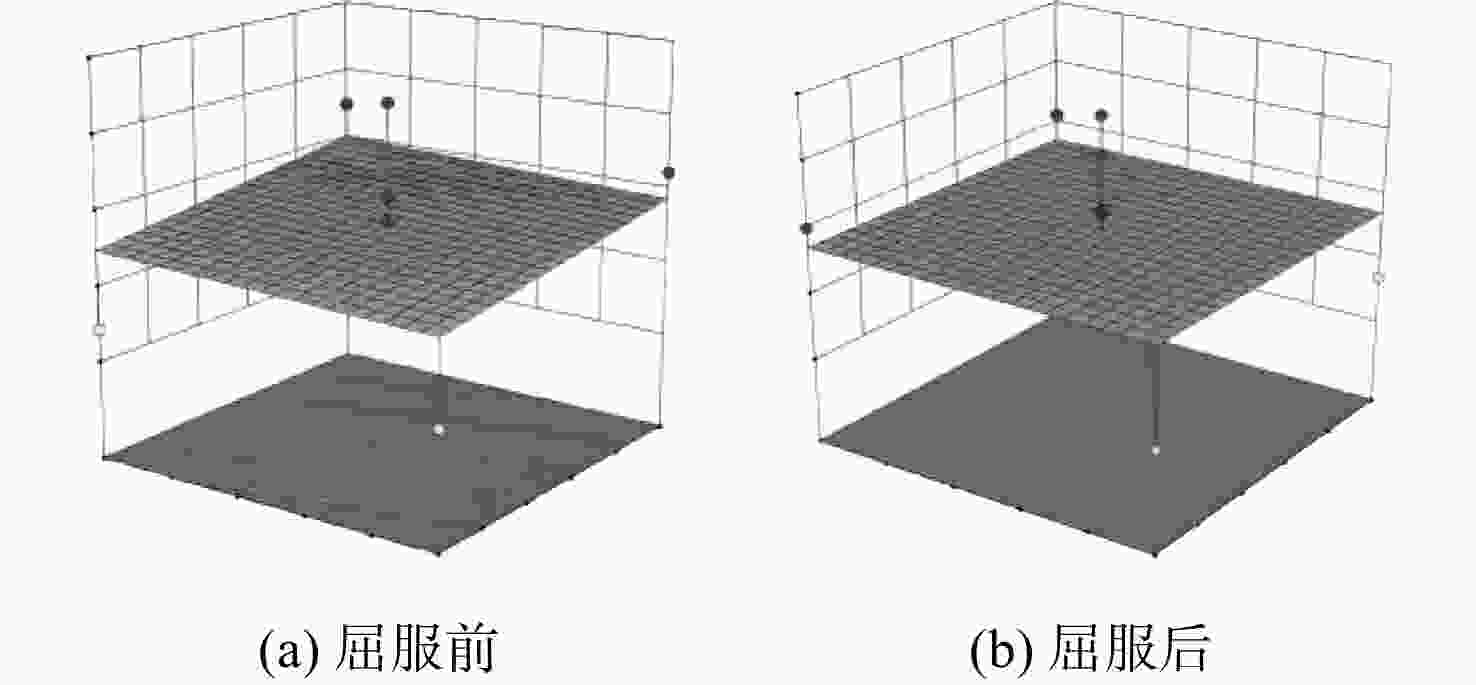

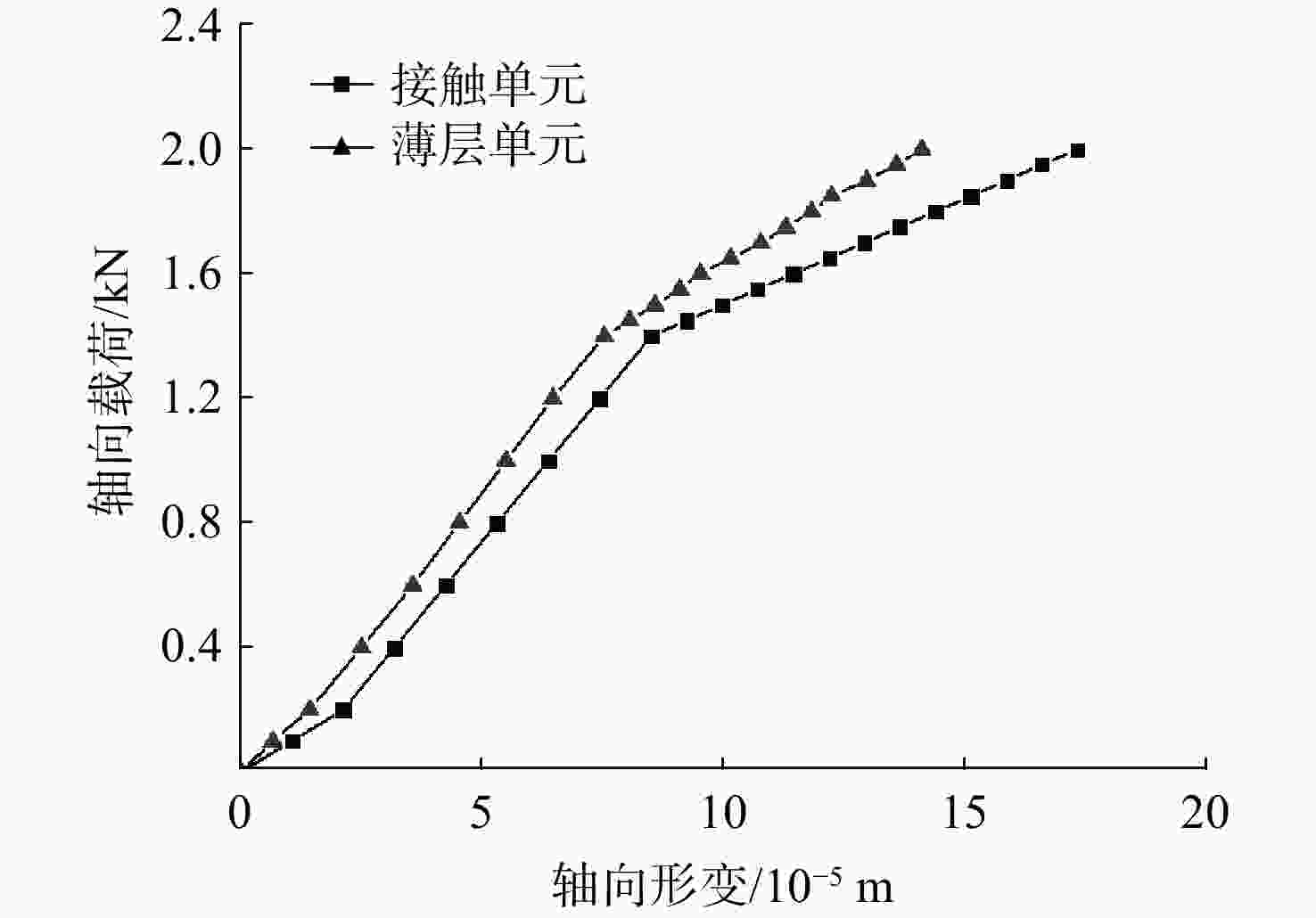

图 11 刚度屈服前后一次修正响应面结果
Figure 11. Results of first modified response surface before and after yield of stiffness

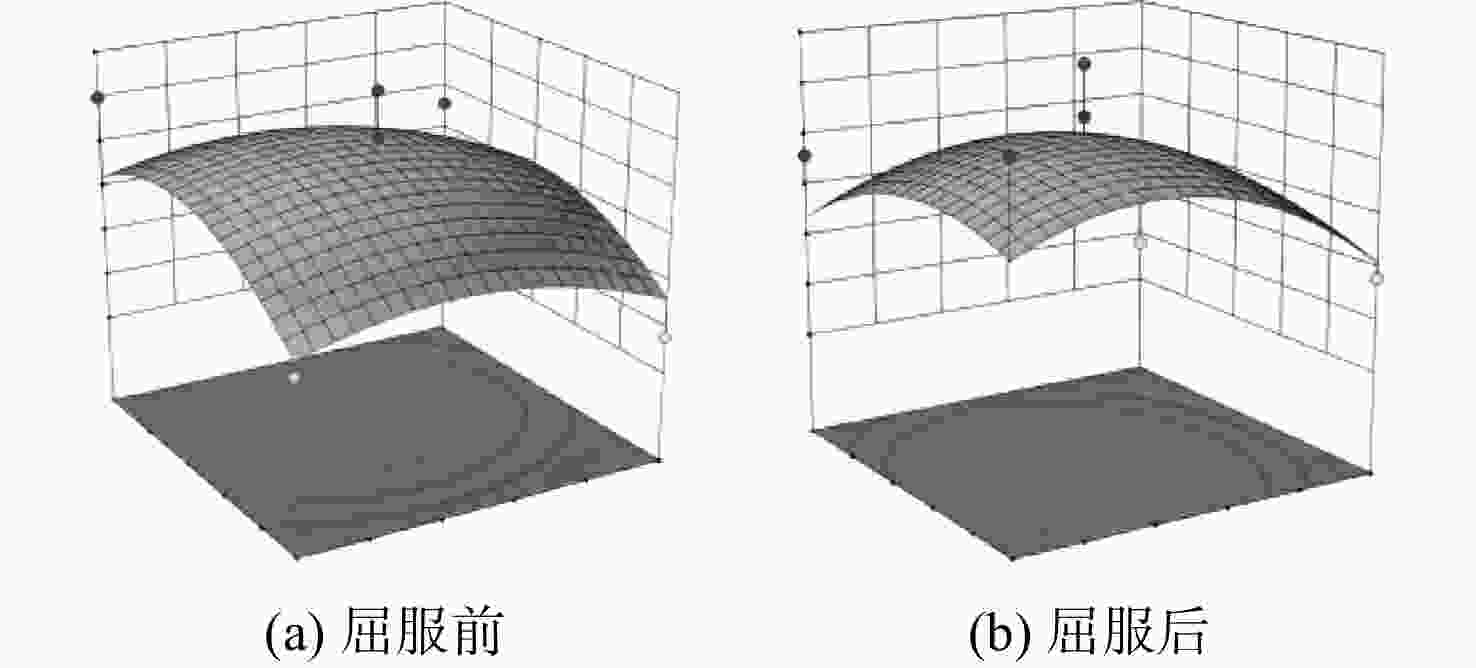

图 12 刚度屈服前后二次修正响应面结果
Figure 12. Results of secondary modified response surface before and after yield of stiffness
表 1 材料参数
Table 1. Material parameters
材料 弹性模量/105 MPa 泊松比 GH738 2.145 0.26 GH706 1.945 0.29 GH4169 1.999 0.3
下载: 导出CSV
表 2 修正后的材料参数
Table 2. Modified material parameters
参数 数值 屈服前弹性模量$ {c_1} $/105 MPa 2.7675 屈服后弹性模量$ {c_{\text{2}}} $/105 MPa 2.2668
下载: 导出CSV
表 3 修正前后的刚度误差分析
Table 3. Analysis of stiffness error before and after modification
阶段 刚度试验值/
107 （N/m）刚度修正值/
107 （N/m）误差/% 屈服前 1.974 1.968 3.03 屈服后 0.685 0.697 1.75
下载: 导出CSV
-
