基于自由变形型面的轴流涡轮叶片离散伴随优化

康伟; 王彦清; 徐全勇; 胡仕林

doi:10.13224/j.cnki.jasp.20220943

基于自由变形型面的轴流涡轮叶片离散伴随优化

doi: 10.13224/j.cnki.jasp.20220943

康伟^1,,
王彦清¹,
徐全勇^2,*, ,,
胡仕林¹

1.
西北工业大学航天学院，西安 710072
2.
清华大学航空发动机研究院，北京 100084

基金项目: 国家自然科学基金面上项目（11972307）；基础研究基金（JCKY2021204B141）；国家科技重大专项（J2019-Ⅴ-0001-0092，J2019-Ⅴ-0013-0108）

详细信息

作者简介:
康伟（1983-），男，副教授、硕士生导师，博士，主要从事多物理场耦合的优化与控制研究

通讯作者:
徐全勇（1980-），男，副研究员，博士，研究领域为航空发动机气动热力学。E-mail：xuquanyong@tsinghua.edu.cn

中图分类号: V231.3
计量
- 文章访问数: 567
- HTML浏览量: 337
- PDF量: 65
- 被引次数: 0
出版历程
- 收稿日期: 2022-12-09
- 网络出版日期: 2024-10-18

Discrete-adjoint optimization of axial turbine blade using free-form deformation

KANG Wei^1
,,
WANG Yanqing¹,
XU Quanyong^{2,*
, ,},
HU Shilin¹

1.
School of Astronautics，Northwestern Polytechnical University，Xi’an 710072，China
2.
Institute for Aero Engine，Tsinghua University，Beijing 100084，China

摘要

摘要:
针对涡轮机械单级气动优化问题，发展了基于自由变形型面技术的离散伴随CFD优化方法。对二维涡轮静叶与涡轮单级进行了优化分析，给出了叶型在约束条件下的最优形状。静叶优化得到的叶片前缘半径显著减小，厚度减小。在优化前后总压恢复系数减小了12.44%，而流动出口角约束在−74.66°，改变幅度为0.047%。对涡轮单级优化问题，考虑旋转效应后的动叶弯度提高，总效率提高了0.79%。而流动出口角约束在−70°，改变幅度为0.068%。结果表明所提方法在涡轮级气动性能优化问题上的有效性。与传统的有限差分方法，离散伴随方法对单级优化时间仅为有限差分的3%。
- 轴流涡轮 /
- 计算流体力学方法 /
- 离散伴随优化 /
- 自由变形型面 /
- 气动性能
Abstract:
A discrete-adjoint CFD method based on the free-form deformation was developed for aerodynamic performance optimization of the axial turbine stage. Optimization analysis of the two-dimensional turbine stator and single turbine stage was carried out, and the optimal shape of the blade shape under the constraints was given. In the stator blade optimization, the leading edge radius and thickness of the blade obtained were significantly reduced. The total pressure recovery coefficient decreased by 12.44% after optimization, while the flow outlet angle was constrained to −74.66° with the variance of 0.047% during the optimization. For the single-stage turbine optimization problem, the camber of the rotor blade was enhanced, and the total efficiency was improved by 0.79% considering the rotation effect. The constraint condition lied in the flow outlet angle with the variance of 0.068% during the optimization. The results showed the effectiveness of the proposed method on the aerodynamic performance optimization of turbine stage. Compared with the traditional finite difference method, the discrete adjoint method costed only 3% CPU time for single-stage optimization.
- axial turbine /
- CFD method /
- discrete-adjoint optimization /
- free-form deformation /
- aerodynamic performance

HTML

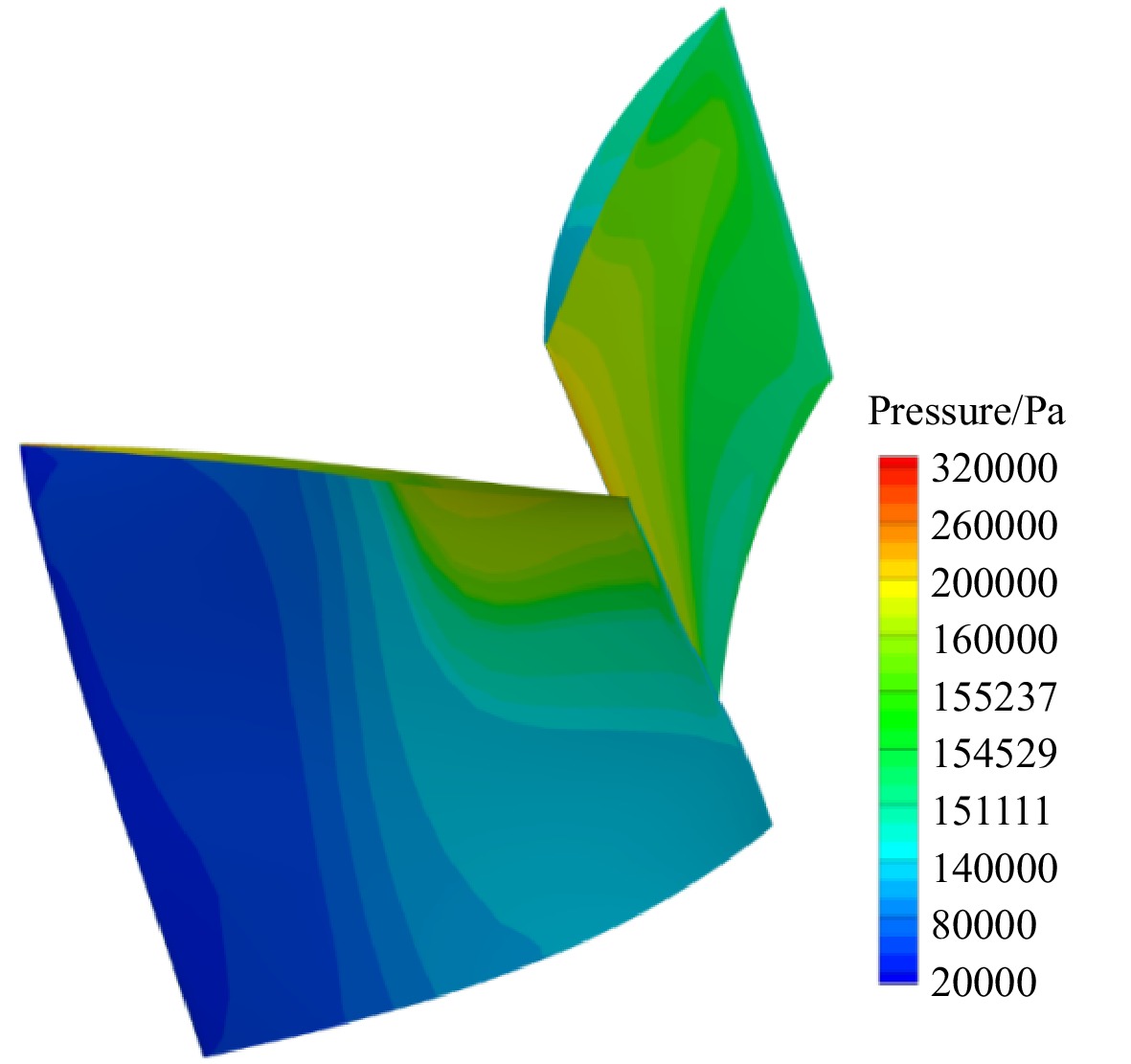

图 1 NASA 35跨声速叶轮叶片的压力分布

Figure 1. Pressure contour on the blade of transonic compressor for NASA 35 stage

下载: 全尺寸图片幻灯片

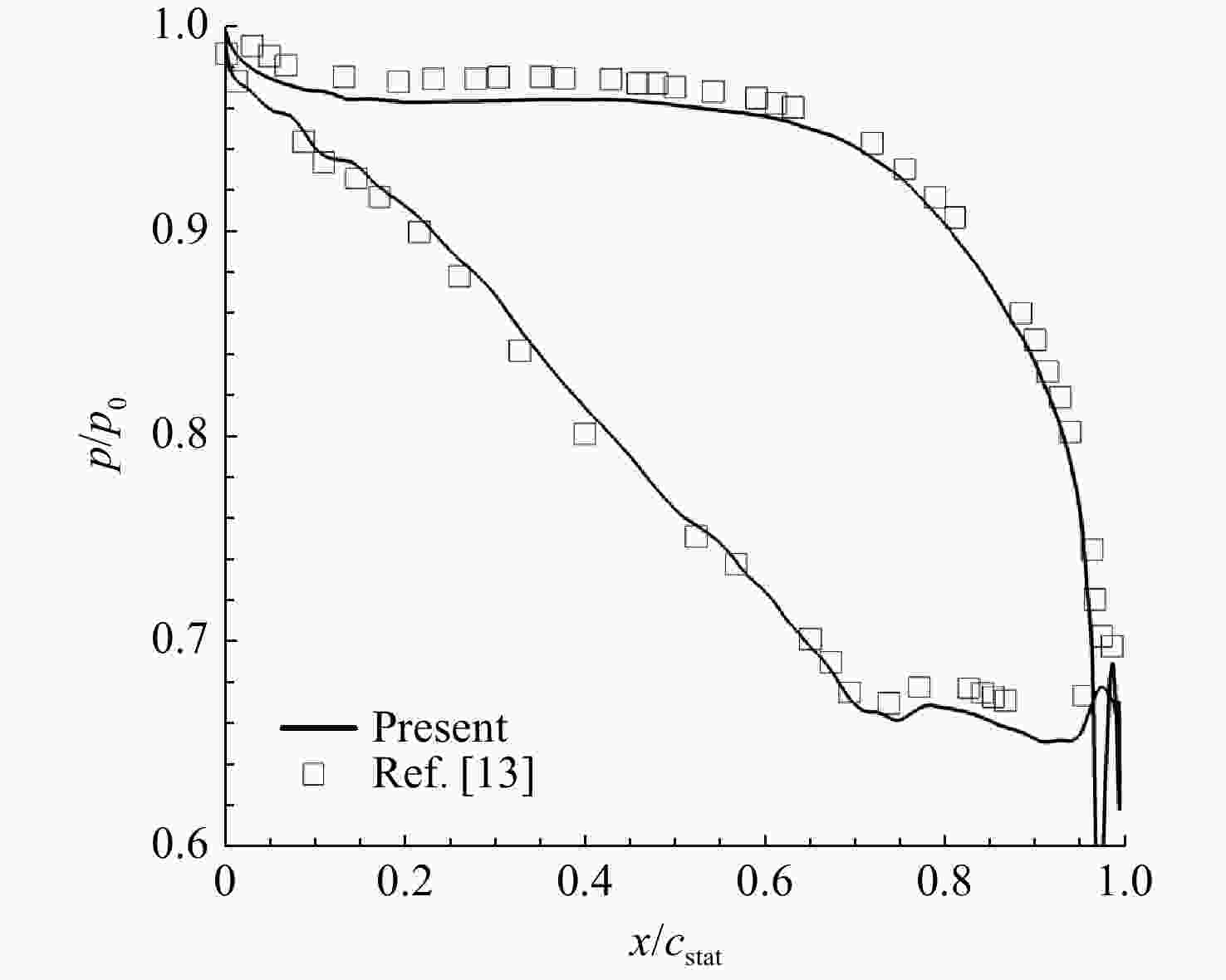

图 2 某涡轮静叶的压力分布

Figure 2. Pressure distribution on the stator airfoil of axial turbine stage

下载: 全尺寸图片幻灯片

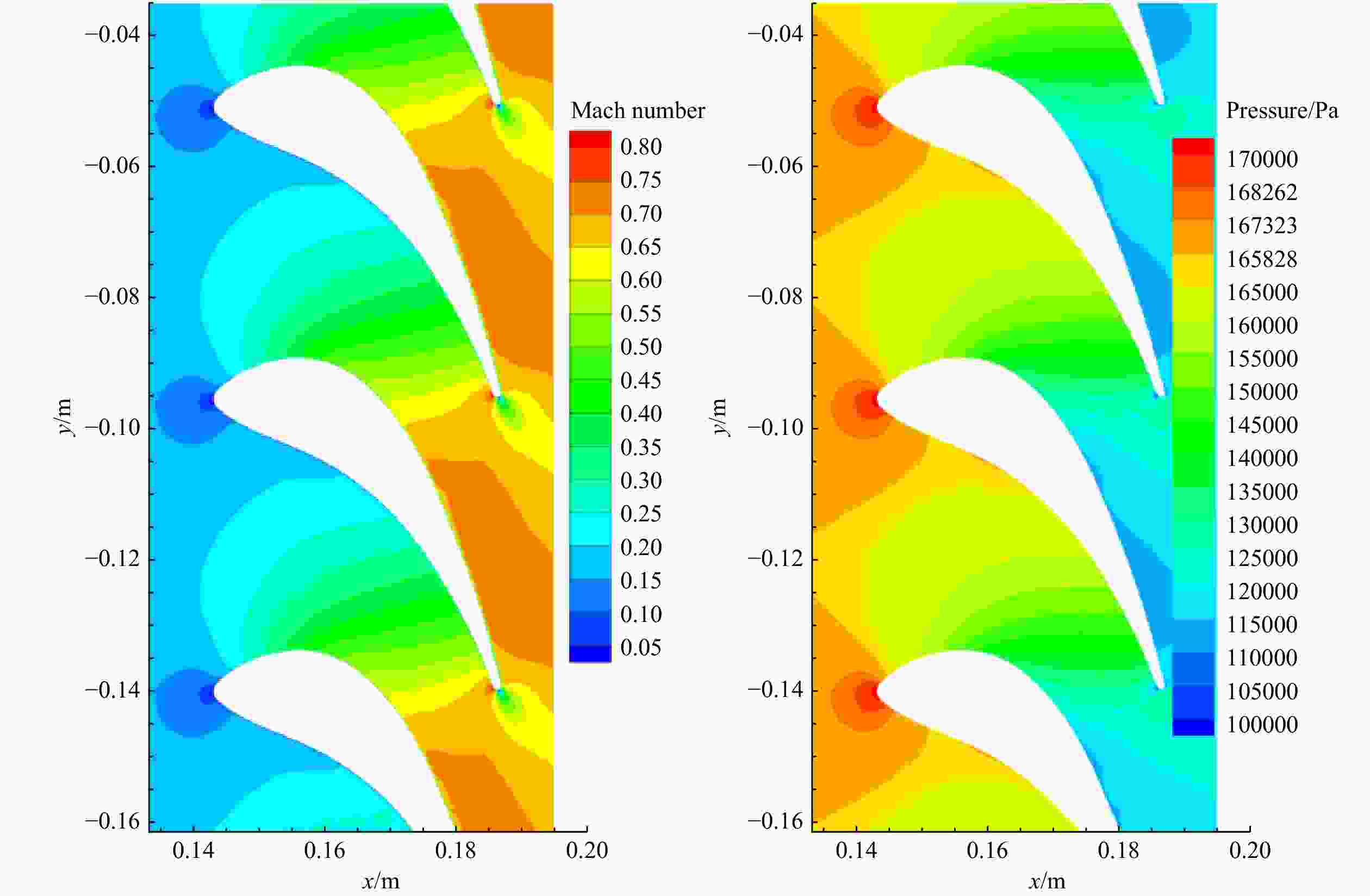

图 3 涡轮静叶叶片的马赫数与压力分布

Figure 3. Mach number and pressure contour on the stator blade of axial turbine stage

下载: 全尺寸图片幻灯片

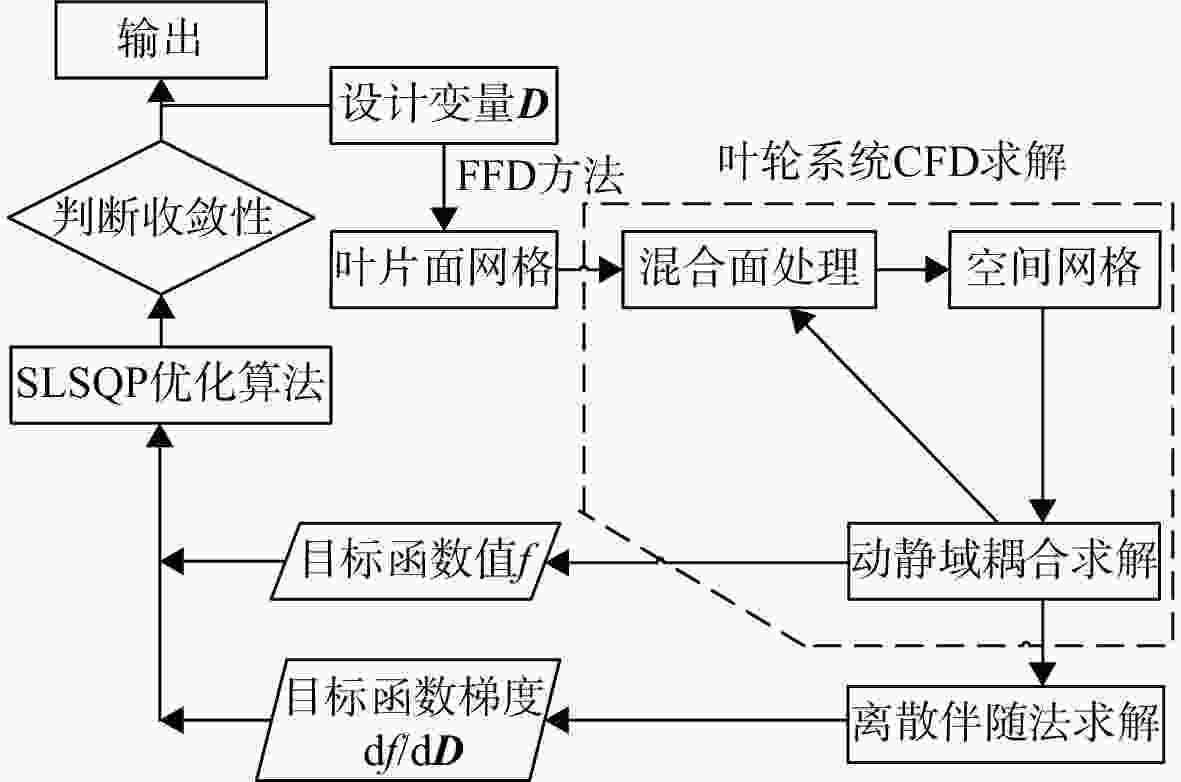

图 4 涡轮叶片的优化流程

Figure 4. Optimization chart of turbine blade

下载: 全尺寸图片幻灯片

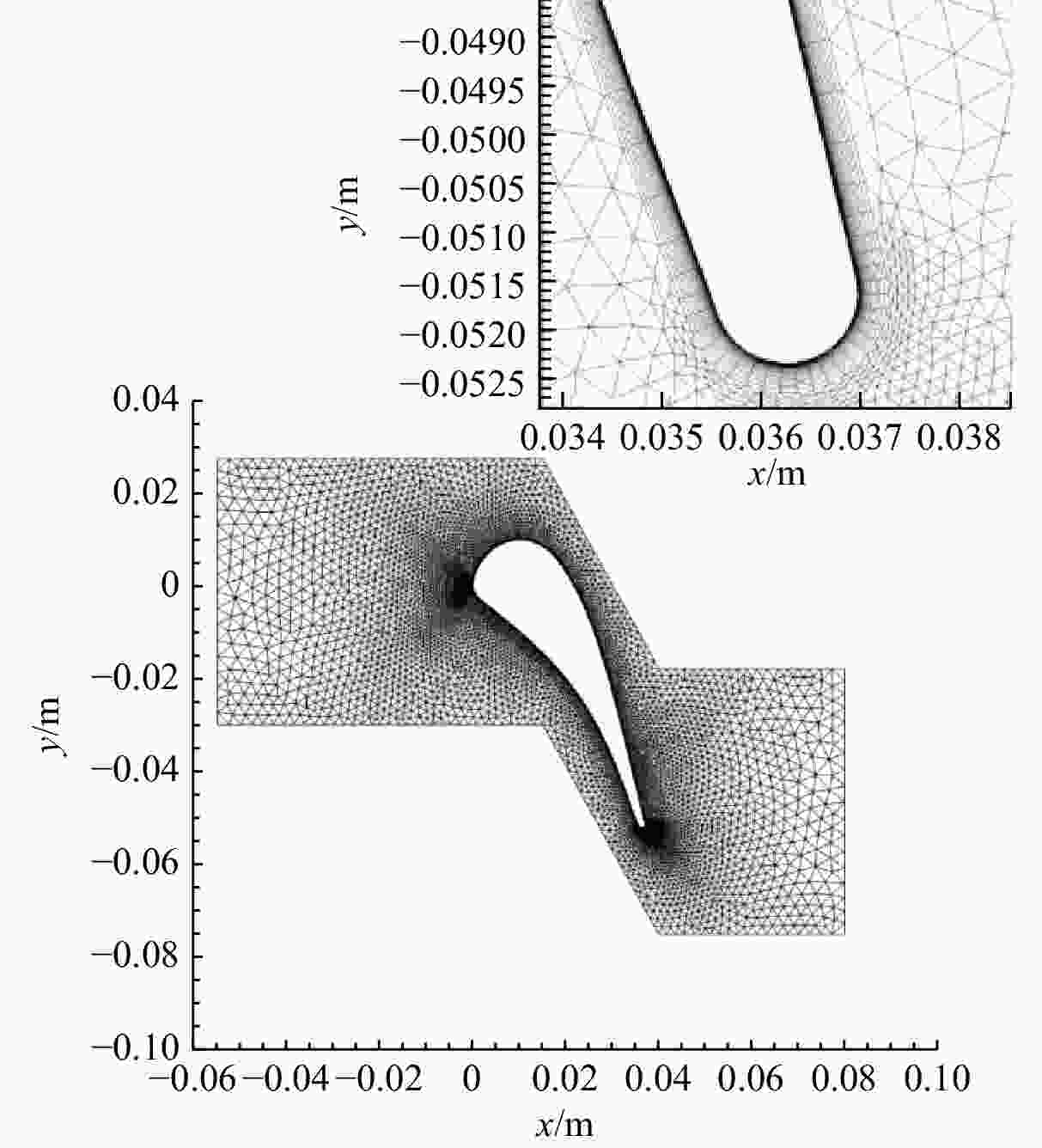

图 5 静叶流动混合网格

Figure 5. Hybrid grid of flow past the stator blade

下载: 全尺寸图片幻灯片

图 6 优化前后静叶叶片几何比较

Figure 6. Comparison of stator blade shape before and after the optimization

下载: 全尺寸图片幻灯片

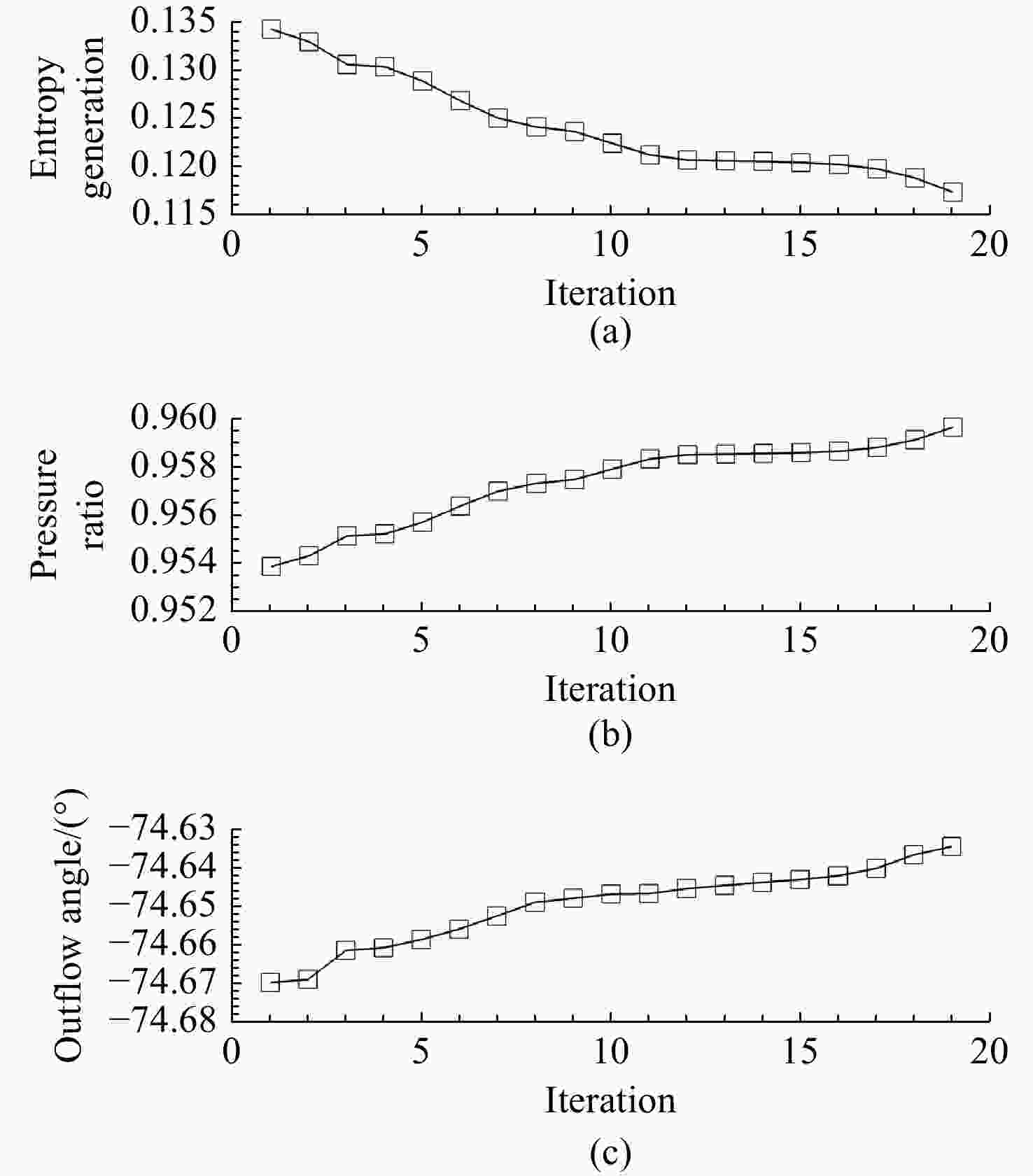

图 7 优化过程中静叶主要参数的变化过程

Figure 7. Iterative history of performance parameters of the stator blade in the optimization

下载: 全尺寸图片幻灯片

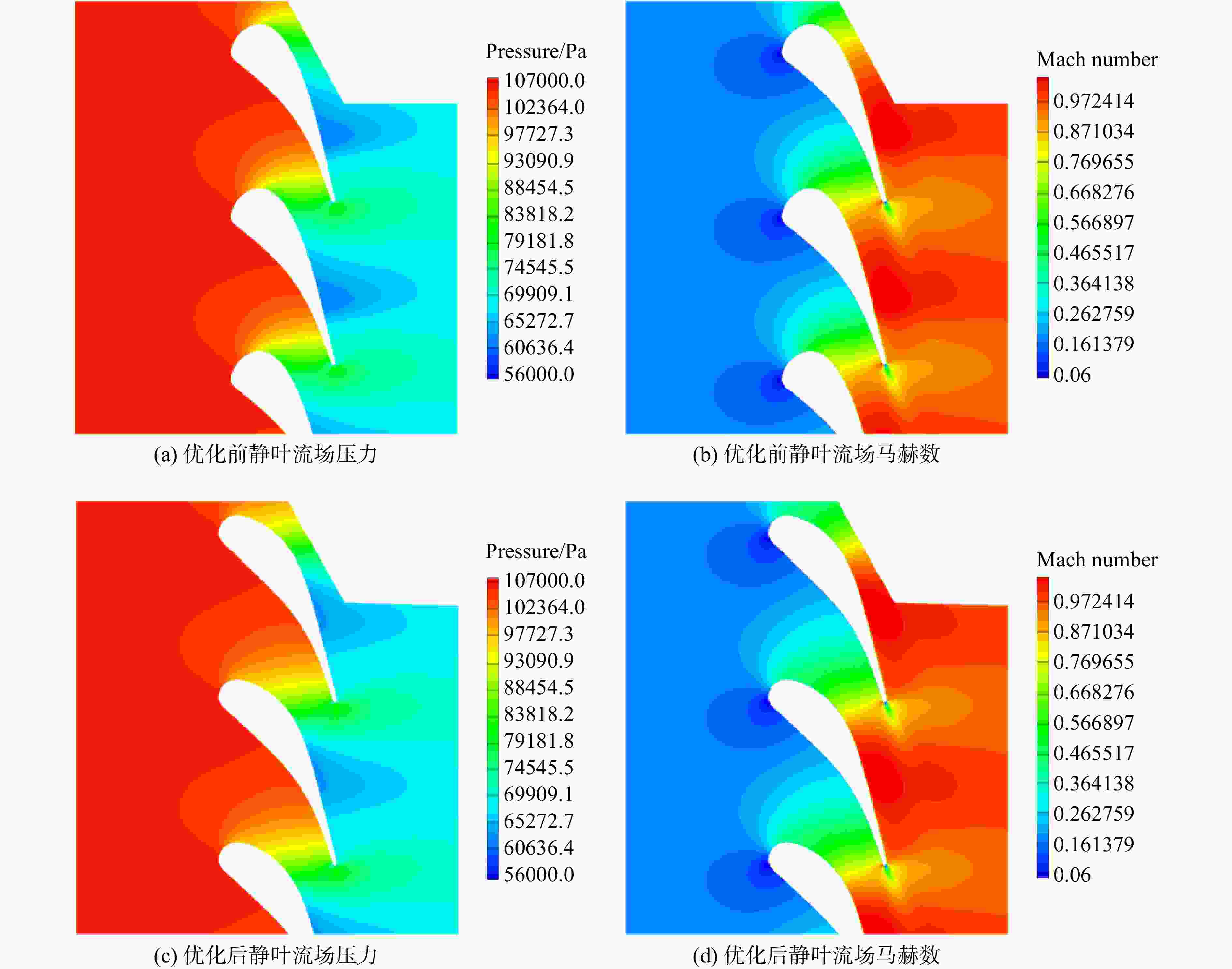

图 8 优化前后静叶流场压力与马赫数云图比较

Figure 8. Comparison of pressure and Mach number contour before and after the optimization

下载: 全尺寸图片幻灯片

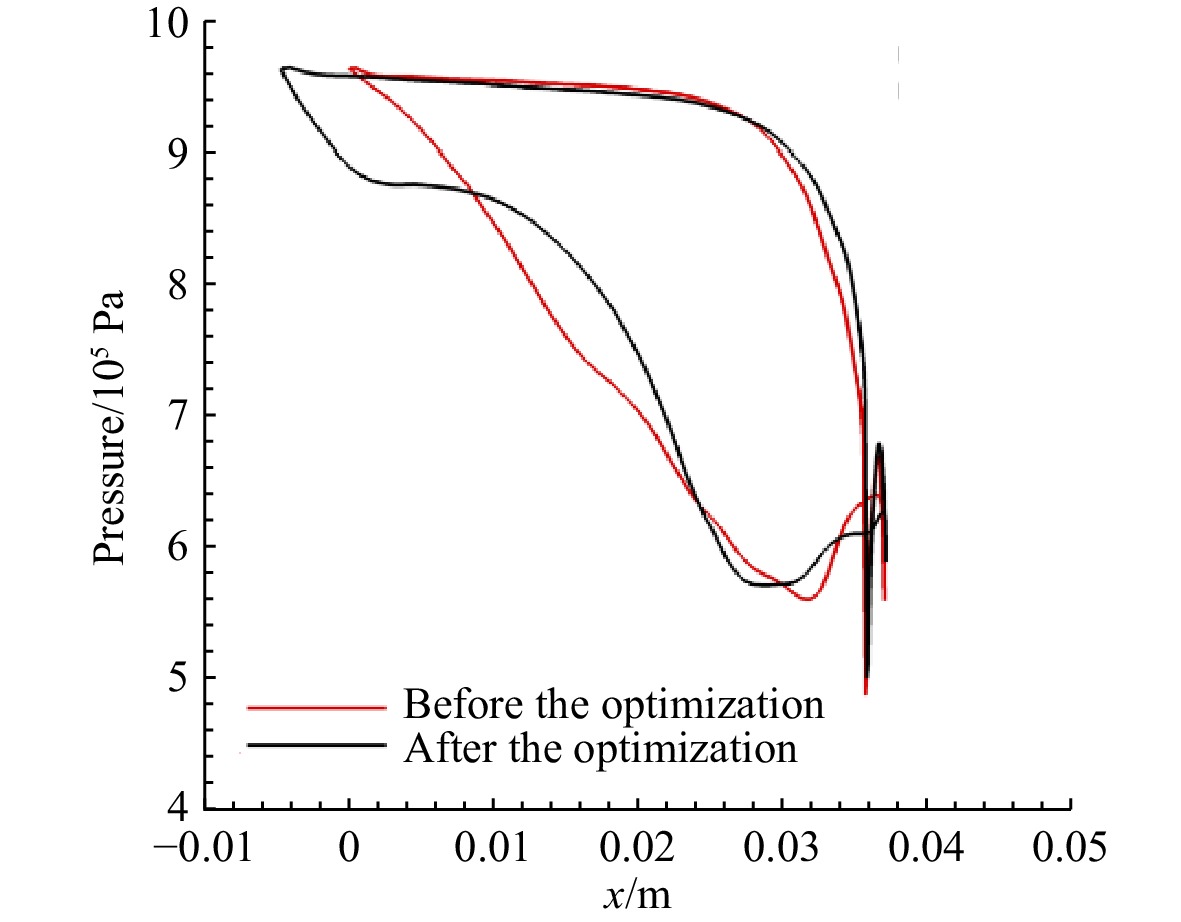

图 9 优化前后静叶表面压力比较

Figure 9. Comparison of pressure distribution on the stator blade before and after the optimization

下载: 全尺寸图片幻灯片

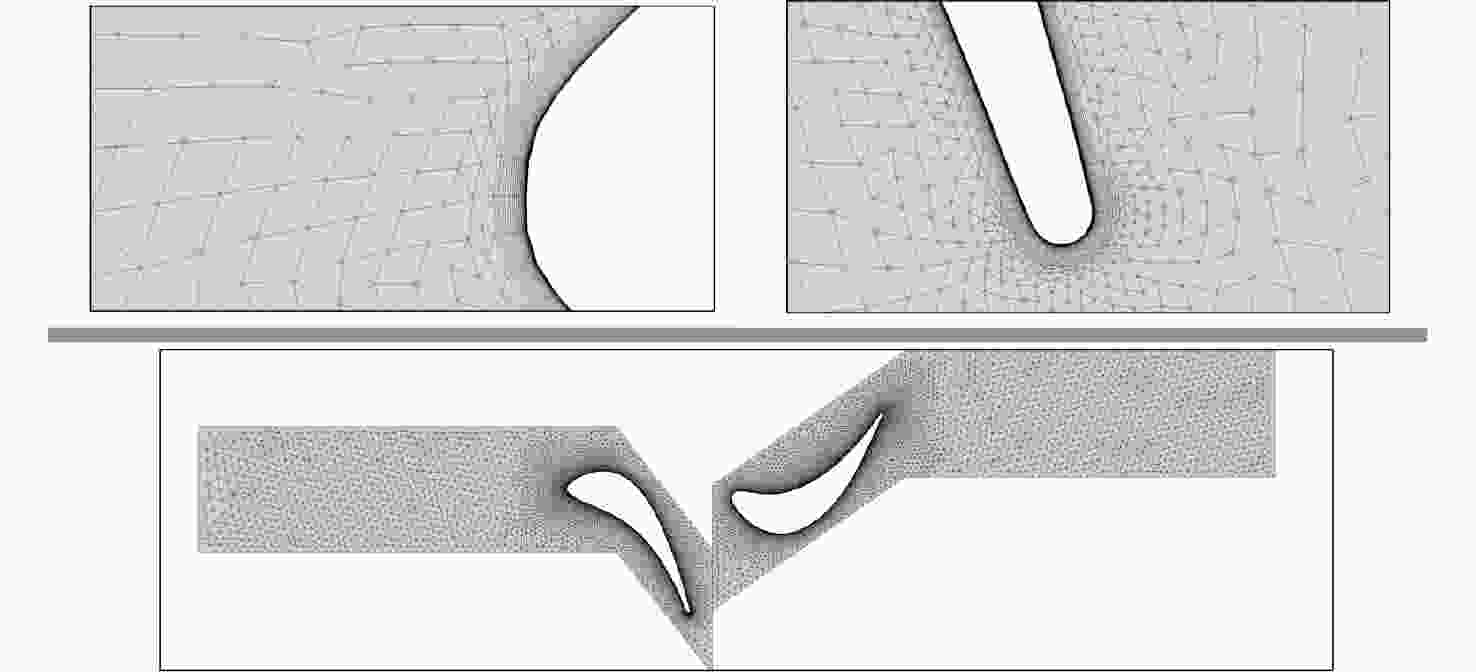

图 10 涡轮单级流动混合网格

Figure 10. Hybrid grid of flow past the turbine stage

下载: 全尺寸图片幻灯片

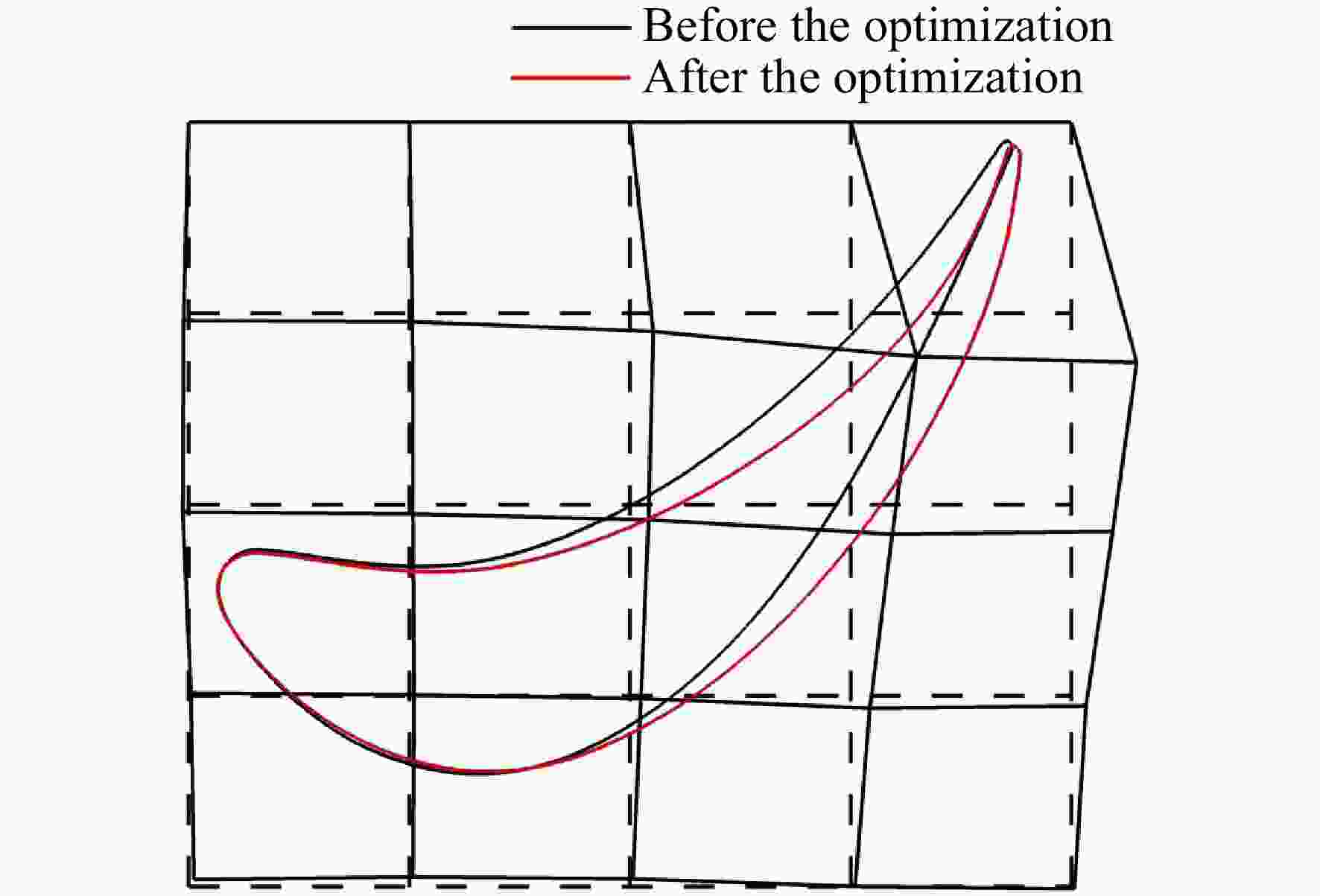

图 11 优化前后动叶几何比较

Figure 11. Comparison of rotor blade shape before and after the optimization

下载: 全尺寸图片幻灯片

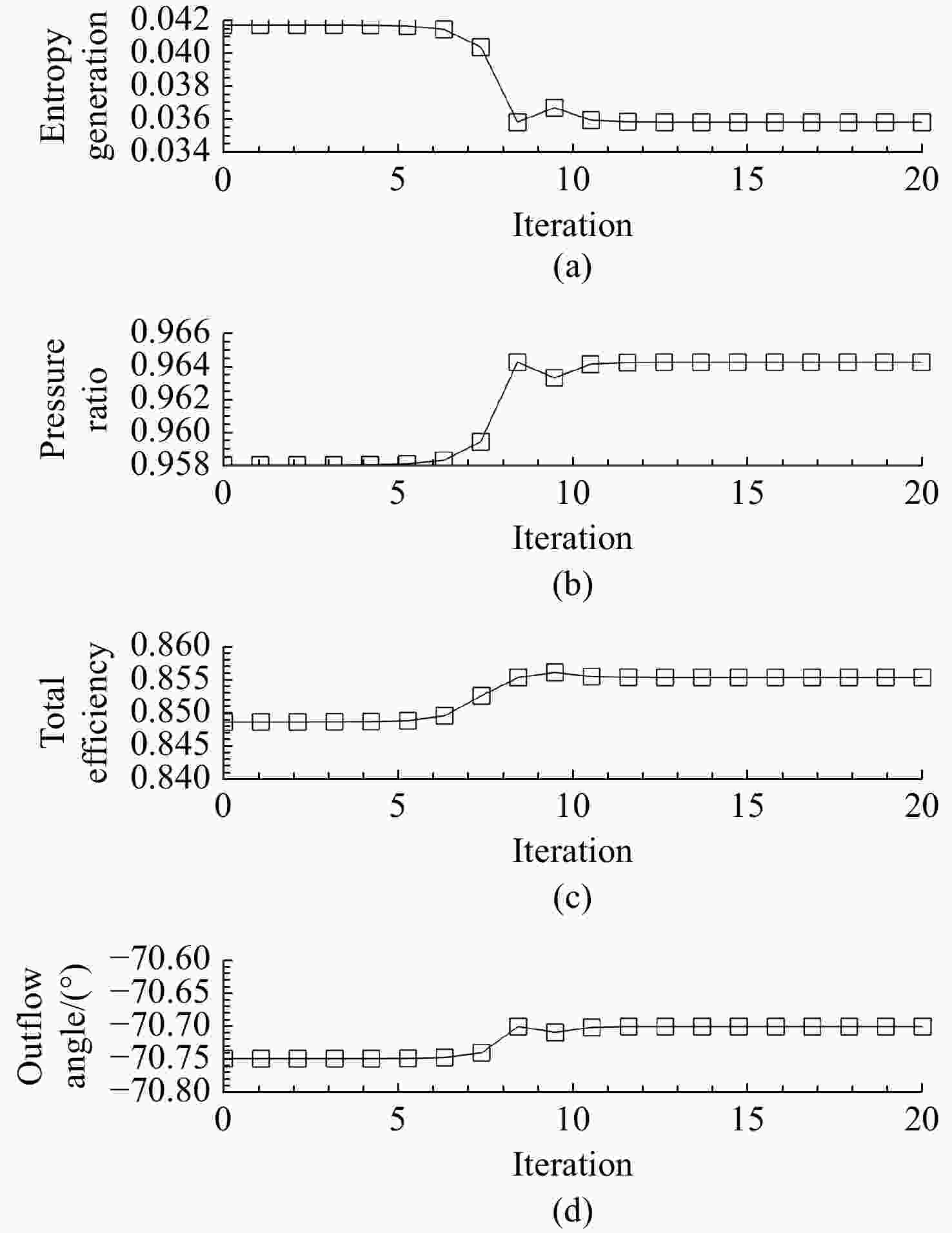

图 12 优化过程中单级涡轮主要参数的变化过程

Figure 12. Iterative history of performance parameters of the turbine stage in the optimization

下载: 全尺寸图片幻灯片

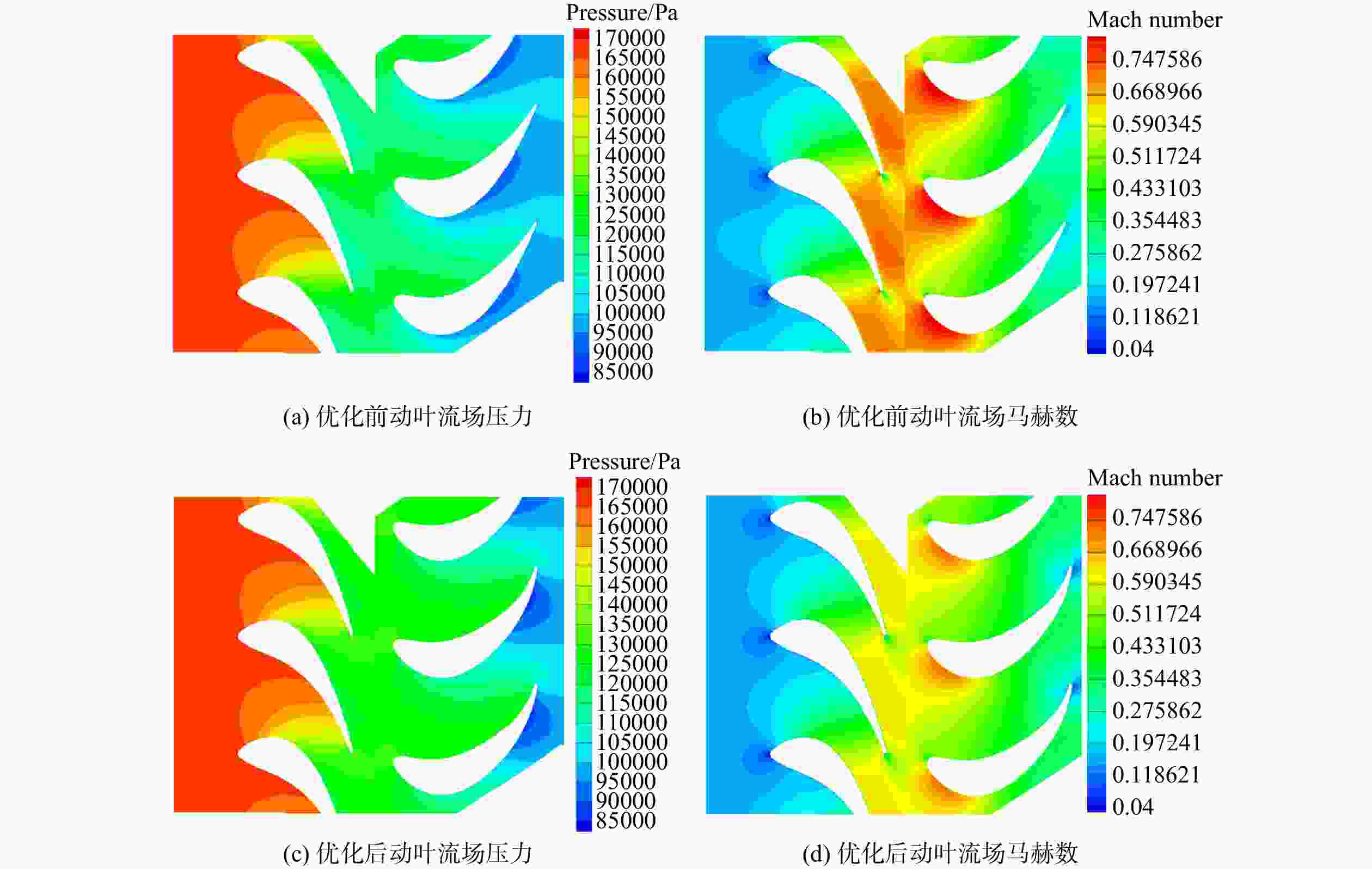

图 13 优化前后单级涡轮流场压力与马赫数云图比较

Figure 13. Comparison of pressure and Mach number contour of the turbine stage before and after the optimization

下载: 全尺寸图片幻灯片

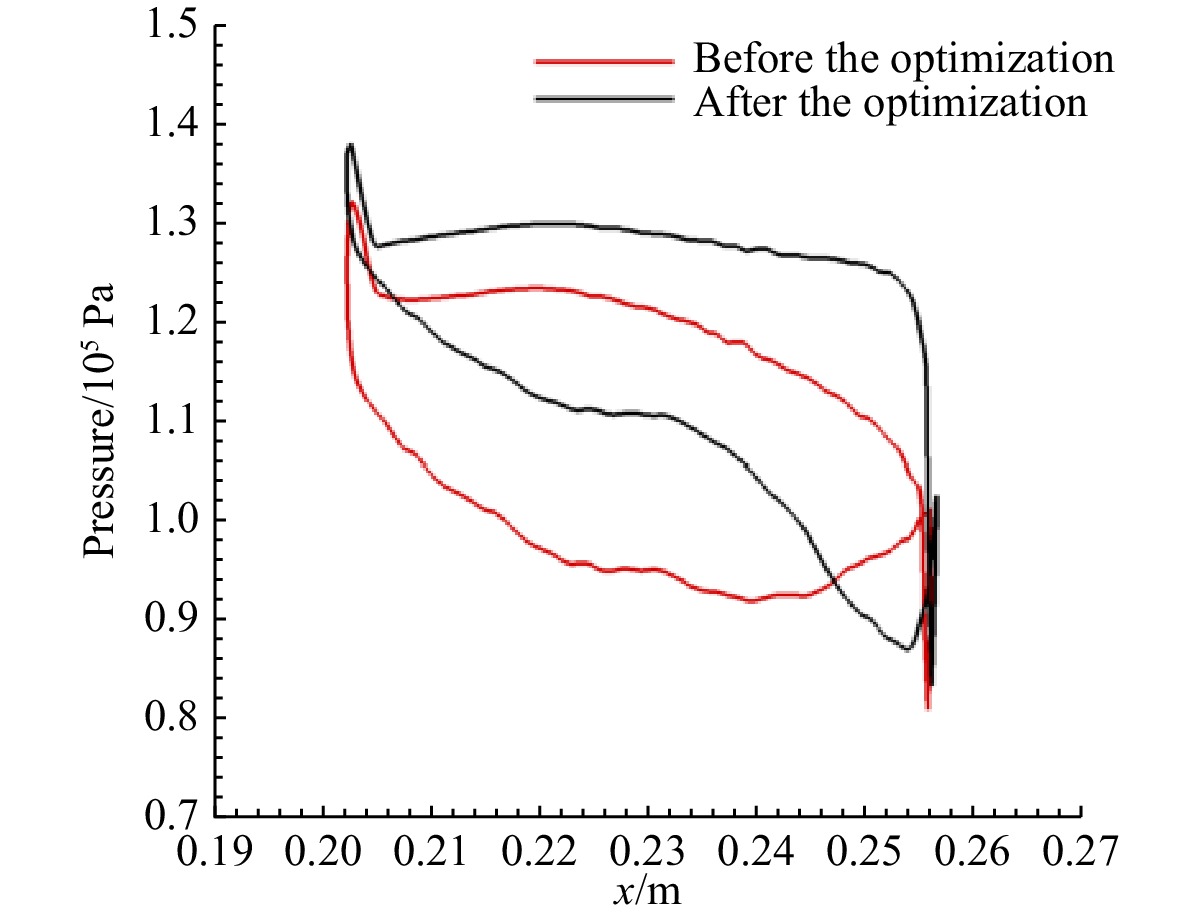

图 14 优化前后动叶表面压力比较

Figure 14. Comparison of pressure distribution on the rotor blade before and after the optimization

下载: 全尺寸图片幻灯片

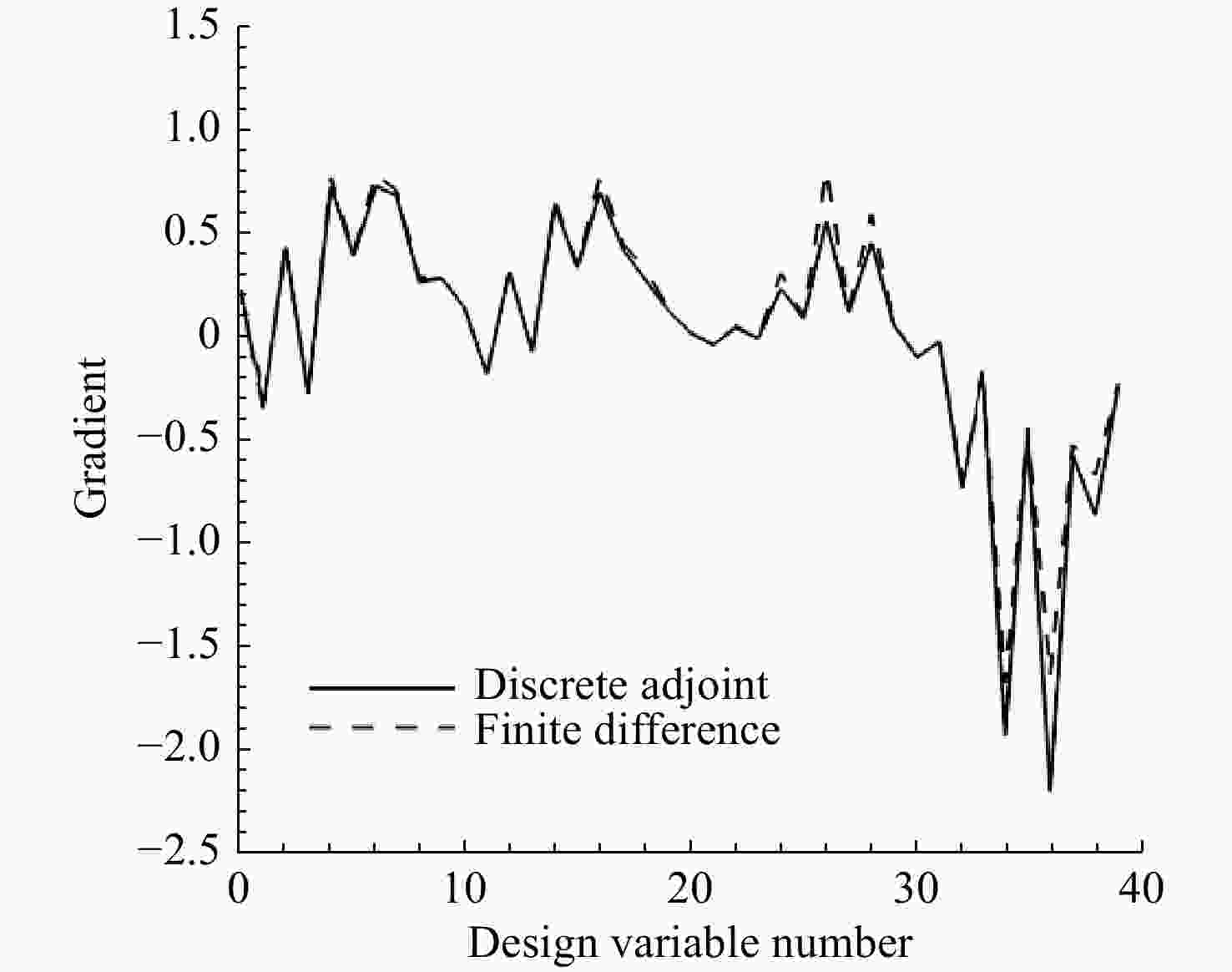

图 15 离散伴随方法与有限差分方法在涡轮静叶单步优化时40个设计变量的梯度比较

Figure 15. Comparison of gradient for stator blade between discrete-adjoint method and finite difference method at one iterative step

下载: 全尺寸图片幻灯片

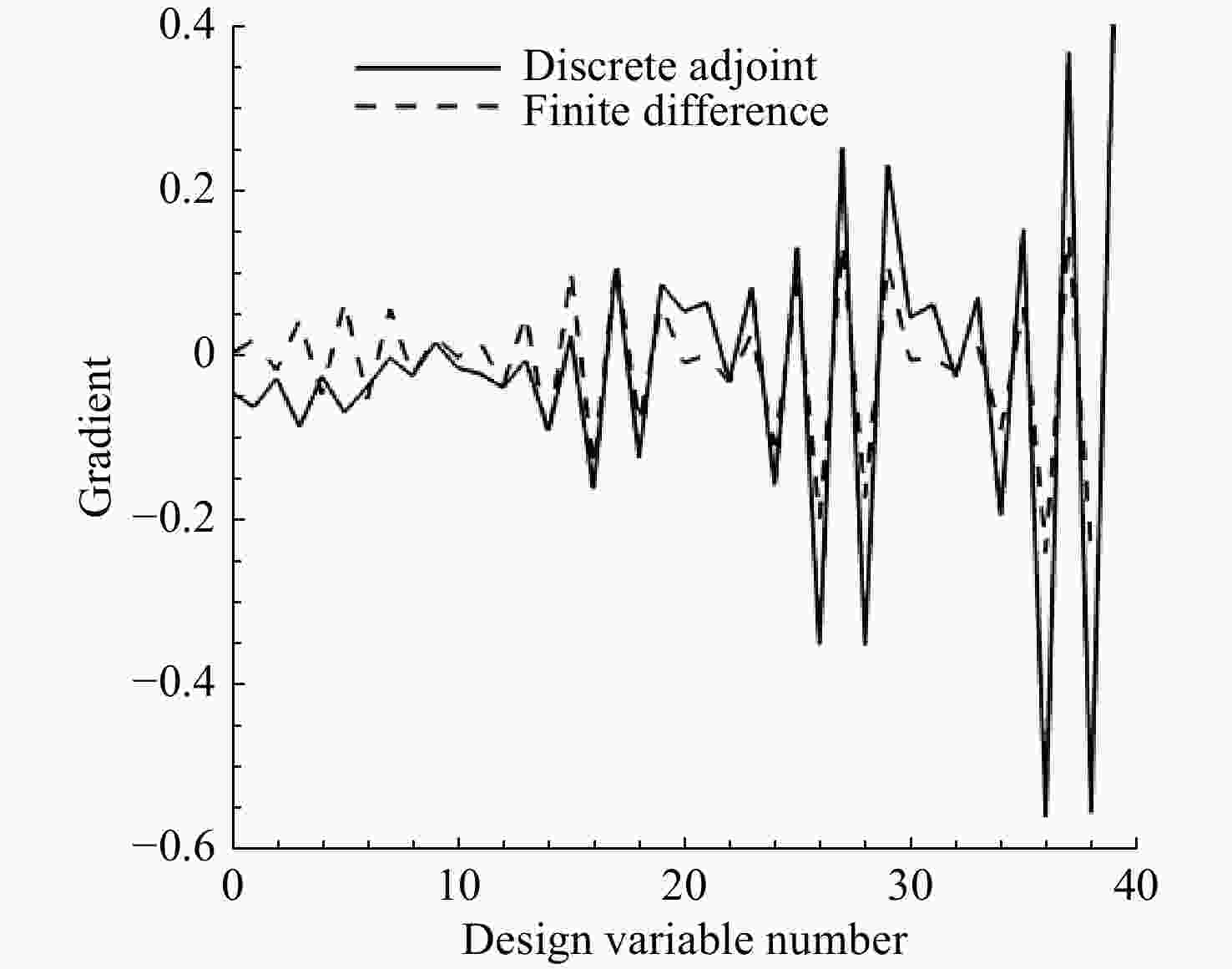

图 16 离散伴随方法与有限差分方法在涡轮单级单步优化时40个设计变量的梯度比较

Figure 16. Comparison of gradient for stage blade between discrete-adjoint method and finite difference method at one iterative step

下载: 全尺寸图片幻灯片

表 1 NASA 35跨声速叶轮单级计算参数

Table 1. Computational parameters of transonic compressor for NASA 35 stage

条件与参数	具体内容	数值
几何参数	动叶叶片数	36
几何参数	静叶叶片数	46
边界条件	总压入口条件/Pa	101 325
	总温入口条件/K	288.15
	静压出口条件/kPa	130
计算参数	ROE格式+MRF	理想气体模型
	转速	17 188.7 r/min（1 800 rad/s）
	准定常	库朗数为5

下载: 导出CSV

表 2 跨声速叶轮性能参数比较

Table 2. Comparison of compressor performance the transonic blade stage

参数	文献[12]数据	计算结果	误差/%
压比	1.82	1.802	−0.989
绝热效率	0.842	0.8134	−3.4
流量/（kg/s）	20.2	19.979	−1.09

下载: 导出CSV

表 3 涡轮静叶的进出口条件与优化目标

Table 3. Inlet and outlet condition of the turbine stator and its optimization objective

参数	数值及说明
入口总压/10⁶ Pa	1.39
入口总温/K	592.3
出口反压/10⁵ Pa	9
叶片表面	无黏绝热
优化目标	熵增最小
约束条件	出口角小于−74°

下载: 导出CSV

表 4 涡轮单级的进出口条件与优化目标

Table 4. Inlet and outlet condition of the turbine stage and its optimization objective

参数	数值及说明
总压/Pa	169623
总温/K	306
背压/Pa	99741
转速/（r/min）	1500
优化目标	熵增最小
约束条件	出气角小于−70°

下载: 导出CSV

表 5 离散伴随和有限差分计算单步优化梯度的CPU时间比较

Table 5. CPU time comparison of optimization gradient between discrete-adjoint method and finite difference method at one iterative step

参数	计算迭代次数	CPU时间/s
参数	计算迭代次数	静叶优化	单级优化
离散伴随	2	89.49	276.11
有限差分	40	1541.13	9510.8

下载: 导出CSV

参考文献(20)

[1]	LI Zhihui,ZHENG Xinqian. Review of design optimization methods for turbomachinery aerodynamics[J]. Progress in Aerospace Sciences,2017,93: 1-23. doi: 10.1016/j.paerosci.2017.05.003
[2]	RATNAWEERA A,HALGAMUGE S K,WATSON H C. Self-organizing hierarchical particle swarm optimizer with time-varying acceleration coefficients[J]. IEEE Transactions on Evolutionary Computation,2004,8(3): 240-255. doi: 10.1109/TEVC.2004.826071
[3]	王晓鹏. 遗传算法及其在气动优化设计中的应用研究[D]. 西安: 西北工业大学,2000. WANG Xiaopeng. Genetic algorithm and its application in aerodynamic optimization design[D]. Xi’an: Northwestern Polytechnical University,2000. (in Chinese WANG Xiaopeng. Genetic algorithm and its application in aerodynamic optimization design[D]. Xi’an: Northwestern Polytechnical University, 2000. (in Chinese)
[4]	韩忠华. Kriging模型及代理优化算法研究进展[J]. 航空学报,2016,37(11): 3197-3225. HAN Zhonghua. Kriging surrogate model and its application to design optimization: a review of recent progress[J]. Acta Aeronautica et Astronautica Sinica,2016,37(11): 3197-3225. (in Chinese HAN Zhonghua. Kriging surrogate model and its application to design optimization: a review of recent progress[J]. Acta Aeronautica et Astronautica Sinica, 2016, 37(11): 3197-3225. (in Chinese)
[5]	GILES M B,PIERCE N A. An introduction to the adjoint approach to design[J]. Flow,Turbulence and Combustion,2000,65(3/4): 393-415. doi: 10.1023/A:1011430410075
[6]	PAPOUTSIS-KIACHAGIAS E M,GIANNAKOGLOU K C. Continuous adjoint methods for turbulent flows,applied to shape and topology optimization: industrial applications[J]. Archives of Computational Methods in Engineering,2016,23(2): 255-299. doi: 10.1007/s11831-014-9141-9
[7]	ARENS K,RENTROP P,STOLL S O,et al. An adjoint approach to optimal design of turbine blades[J]. Applied Numerical Mathematics,2005,53(2/3/4): 93-105.
[8]	PAPADIMITRIOU D I,GIANNAKOGLOU K C. Compressor blade optimization using a continuous adjoint formulation[R]. ASME Paper GT2006-90466, 2006.
[9]	李伟伟,季路成,伊卫林. 基于伴随方法的多级叶轮机三维叶片优化设计[J]. 工程热物理学报,2014,35(11): 2164-2167. LI Weiwei,JI Lucheng,YI Weilin. Blade shape optimization of multistage turbomachinery by adjoint method[J]. Journal of Engineering Thermophysics,2014,35(11): 2164-2167. (in Chinese LI Weiwei, JI Lucheng, YI Weilin. Blade shape optimization of multistage turbomachinery by adjoint method[J]. Journal of Engineering Thermophysics, 2014, 35(11): 2164-2167. (in Chinese)
[10]	罗佳奇,杨婧. 基于伴随方法的单级低速压气机气动设计优化[J]. 航空学报,2020,41(5): 623368. LUO Jiaqi,YANG Jing. Aerodynamic design optimization of a single low-speed compressor stage by an adjoint method[J]. Acta Aeronautica et Astronautica Sinica,2020,41(5): 623368. (in Chinese LUO Jiaqi, YANG Jing. Aerodynamic design optimization of a single low-speed compressor stage by an adjoint method[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41(5): 623368. (in Chinese)
[11]	ECONOMON T D,PALACIOS F,COPELAND S R,et al. SU2: an open-source suite for multiphysics simulation and design[J]. AIAA Journal,2016,54(3): 828-846. doi: 10.2514/1.J053813
[12]	REID L,MOORE R. Design and overall performance of four highly loaded,high speed inlet stages for an advanced high-pressure-ratio core compressor[R]. NASA-TP-1337,1978.
[13]	STEPHAN B,GALLUS H E,NIEHUIS R. Experimental investigations of tip clearance flow and its influence on secondary flows in a 1-1/2 stage axial turbine[R]. ASME Paper 2000-GT-0613,2000.
[14]	刘晓冬,张沛良,何光洪,等. 基于伴随方法的飞翼布局多目标气动优化设计[J]. 西北工业大学学报,2021,39(4): 753-760. LIU Xiaodong,ZHANG Peiliang,HE Guanghong,et al. Multi-objective aerodynamic optimization of flying-wing configuration based on adjoint method[J]. Journal of Northwestern Polytechnical University,2021,39(4): 753-760. (in Chinese doi: 10.1051/jnwpu/20213940753 LIU Xiaodong, ZHANG Peiliang, HE Guanghong, et al. Multi-objective aerodynamic optimization of flying-wing configuration based on adjoint method[J]. Journal of Northwestern Polytechnical University, 2021, 39(4): 753-760. (in Chinese) doi: 10.1051/jnwpu/20213940753
[15]	ZHANG Pengfei,LU Juan,SONG Liming,et al. Study on continuous adjoint optimization with turbulence models for aerodynamic performance and heat transfer in turbomachinery cascades[J]. International Journal of Heat and Mass Transfer,2017,104: 1069-1082. doi: 10.1016/j.ijheatmasstransfer.2016.08.103
[16]	AGROMAYOR R,ANAND N,PINI M,et al. Multirow adjoint-based optimization of NICFD turbomachinery using a computer-aided design-based parametrization[J]. Journal of Engineering for Gas Turbines and Power,2022,144(4): 041008. doi: 10.1115/1.4052881
[17]	HUANG Huang,EKICI K. A discrete adjoint harmonic balance method for turbomachinery shape optimization[J]. Aerospace Science and Technology,2014,39: 481-490. doi: 10.1016/j.ast.2014.05.015
[18]	PÉREZ-ARRIBAS F,PÉREZ-FERNÁNDEZ R. A B-spline design model for propeller blades[J]. Advances in Engineering Software,2018,118: 35-44. doi: 10.1016/j.advengsoft.2018.01.005
[19]	周荐辉,樊未军,田晓沛,等. 某小型高速离心叶轮的优化设计[J]. 航空动力学报,2009,24(9): 2122-2127. ZHOU Jianhui,FAN Weijun,TIAN Xiaopei,et al. Optimized design of a small type high speed centrifugal compressor[J]. Journal of Aerospace Power,2009,24(9): 2122-2127. (in Chinese ZHOU Jianhui, FAN Weijun, TIAN Xiaopei, et al. Optimized design of a small type high speed centrifugal compressor[J]. Journal of Aerospace Power, 2009, 24(9): 2122-2127. (in Chinese)
[20]	SAMAREH J. Aerodynamic shape optimization based on free-form deformation[R]. AIAA 2004-4630,2004.
