Effect of the cavity combustor on the propagation modes of rotating detonations and propulsion performance
-
摘要:

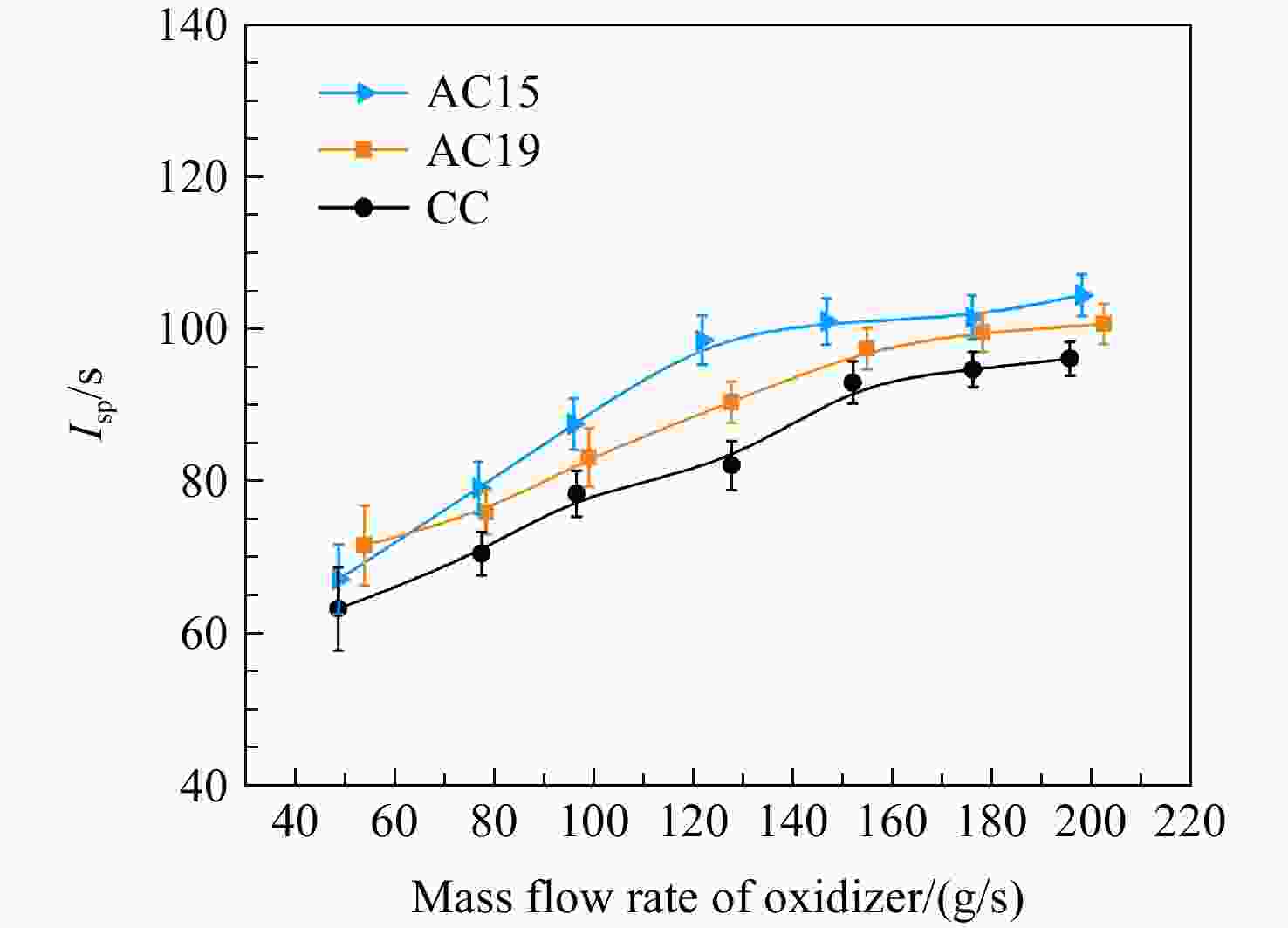

为研究凹腔燃烧室对旋转爆震波模态和燃烧室推进性能的影响，分别基于凹腔燃烧室、宽度19 mm和宽度15 mm的环形燃烧室，以乙烯和富氧空气为推进剂，氧化剂流量范围为50～200 g/s，当量比为0.8，在未安装和安装塞式喷管条件下开展了对比实验。未安装塞式喷管条件下，凹腔燃烧室和环形燃烧室中均得到了双波对撞模态和单波模态，且分布规律基本相同，但凹腔燃烧室中旋转爆震波的传播速度明显高于环形燃烧室，推进剂供给流量越低趋势越明显，说明凹腔结构可以改善推进剂的混合效果，减小爆震波的速度亏损。安装塞式喷管后，爆震波的传播模态发生了变化，不同燃烧室构型中得到了缓燃模态、双波对撞模态、四波对撞模态、单波模态和双波模态。凹腔燃烧室中爆震波以单波或双波模态稳定传播的工况范围较宽，爆震波速度亏损更小，环形燃烧室中爆震波稳定传播的工况范围较窄，主要以双波对撞或者四波对撞模态传播。最后，对比不同燃烧室条件下的混合物比冲发现，凹腔燃烧室的混合物比冲低于环形燃烧室，与宽度为15 mm的环形燃烧室相比比冲下降了约10%，与宽度为19 mm的环形燃烧室相比比冲平均下降了约7%。上述研究表明凹腔燃烧室有利于旋转爆震波的稳定传播，减小爆震波的速度亏损，但凹腔结构会降低燃烧室的推进性能。
Abstract:To investigate the effect of the cavity combustor on the propagation modes of rotating detonation waves and propulsion performance, experimental study was performed in a laboratory-scale rotating detonation combustor utilizing different combustor configurations including a cavity combustor, two annular combustors with the combustor width of 19 mm and 15 mm, respectively. Ethylene and oxygen-enriched air was used as propellants. The mass flow rate of oxidizer varied from 50 g/s to 200 g/s and the equivalence ratio was fixed at 0.8. The experiments have been conducted in the combustor with and without installing the aerospike nozzles, respectively. For the combustor without installing the nozzle, the dual-wave collision mode and the single detonation mode were obtained and the mass flow rate ranges of different modes were identical for different combustors. For the cavity combustor, the propagation velocity was faster than the values measured from the annular combustors, especially at lower mass flow rate. This phenomenon indicated that more homogeneous mixtures were produced and lower velocity deficit were obtained in the cavity combustor. As the combustors installing with the aerospike nozzles, different propagation modes were observed, including deflagration mode, dual-wave collision, quad-wave collision, single detonation mode and dual wave mode. The stable co-rotating detonations were easily obtained with a wide range of mass flow rate in the cavity combustor, while the detonation counter-rotating detonations were easily acquired at the same operation conditions. Finally, it was found that specific impulse calculated from the cavity combustor decreased by 10% compared with the annular combustor of width 15 mm, and by 7% compared with the annular one of width 19 mm, respectively. In summary, the cavity combustor was beneficial for promoting the stability and reducing the velocity deficit of rotating detonations, but this configuration was adverse for the propulsion performance.
-

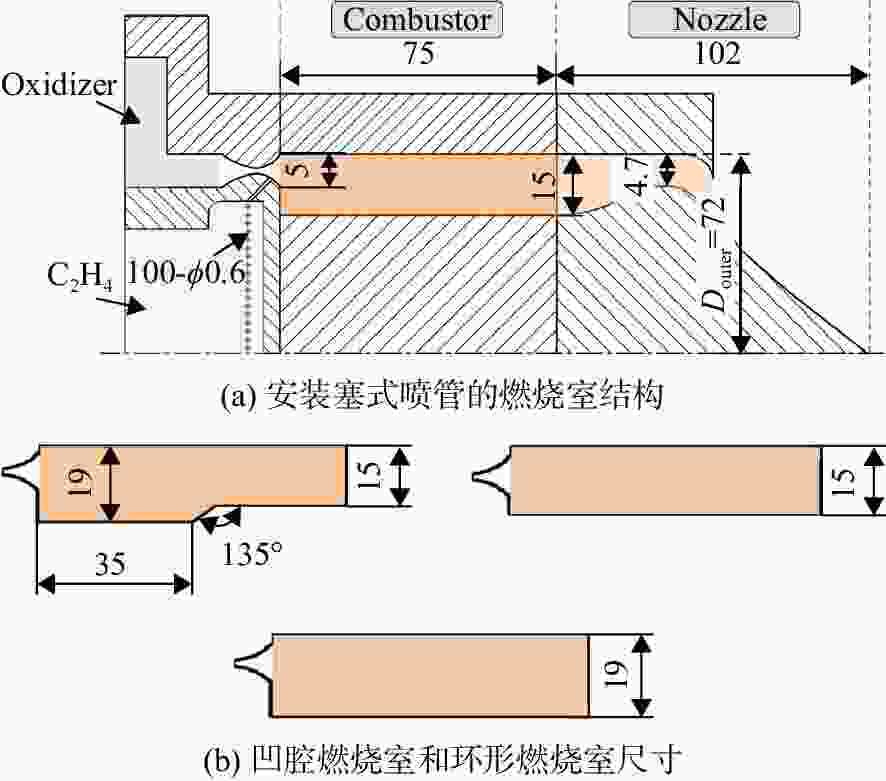

图 1 凹腔燃烧室和环形燃烧室结构示意图（单位：mm）
Figure 1. Schematic of the cavity combustor and annular combustor （unit: mm）
图 2 传感器安装位置示意图（单位：mm）
Figure 2. Schematic of the mounting positions of pressure transducers （unit: mm）

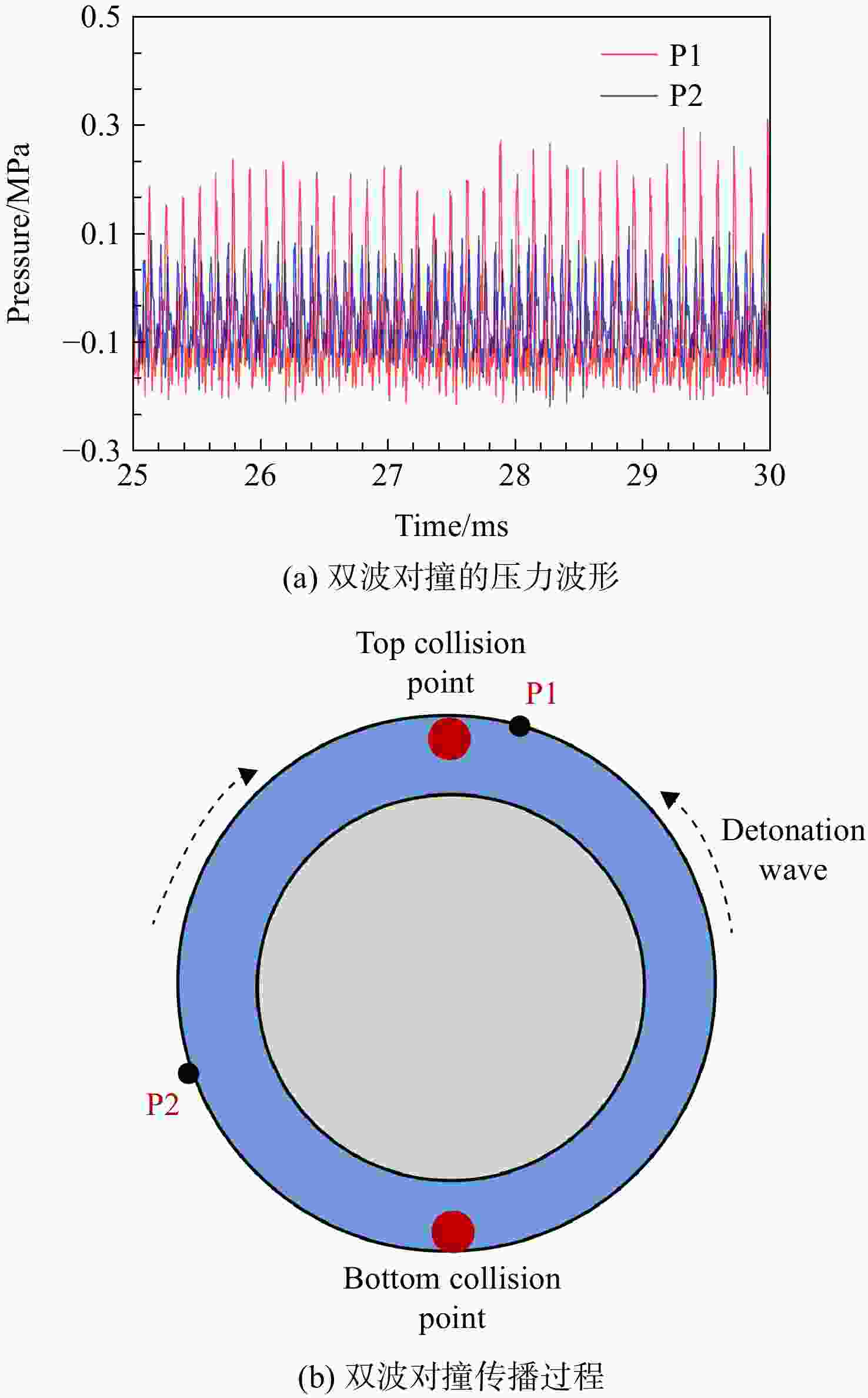

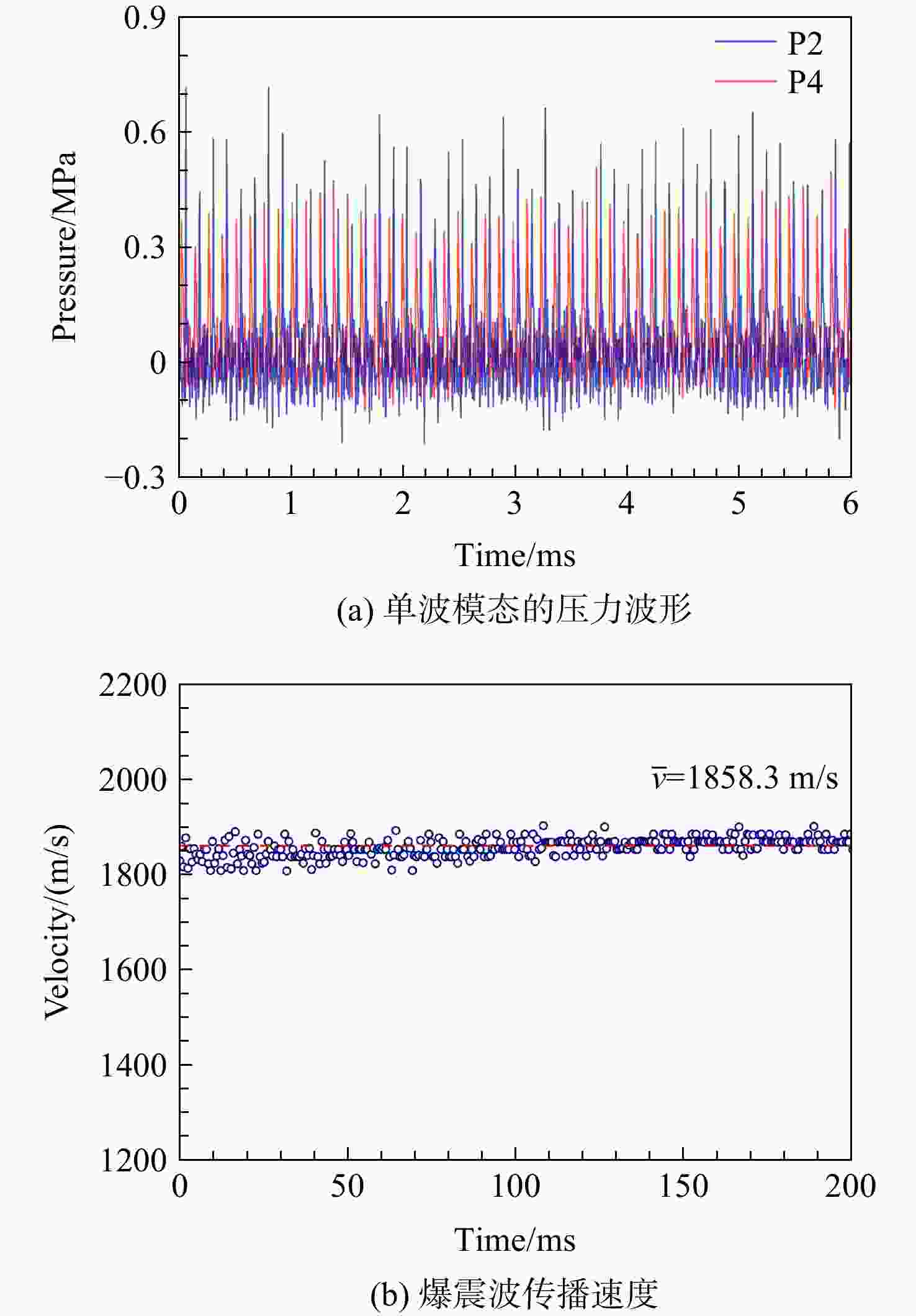

图 4 未安装塞式喷管凹腔燃烧室中稳定的单波模态
Figure 4. Single detonating mode in the cavity combustor without installing aerospike nozzles

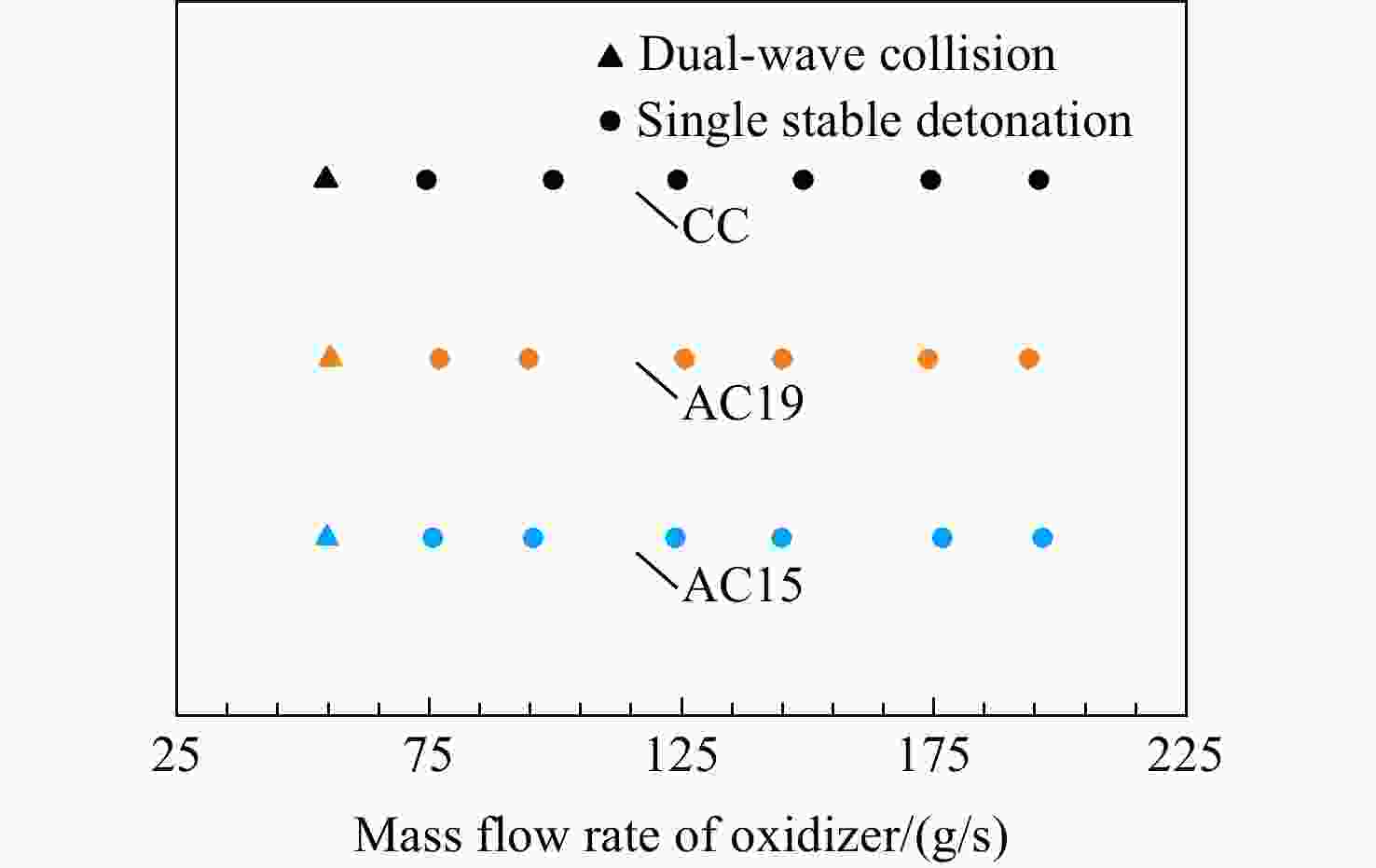

图 5 未安装塞式喷管燃烧室中旋转爆震波传播模态的分布
Figure 5. Ranges of the propagation modes of rotating detonations in combustors without installing aerospike nozzles

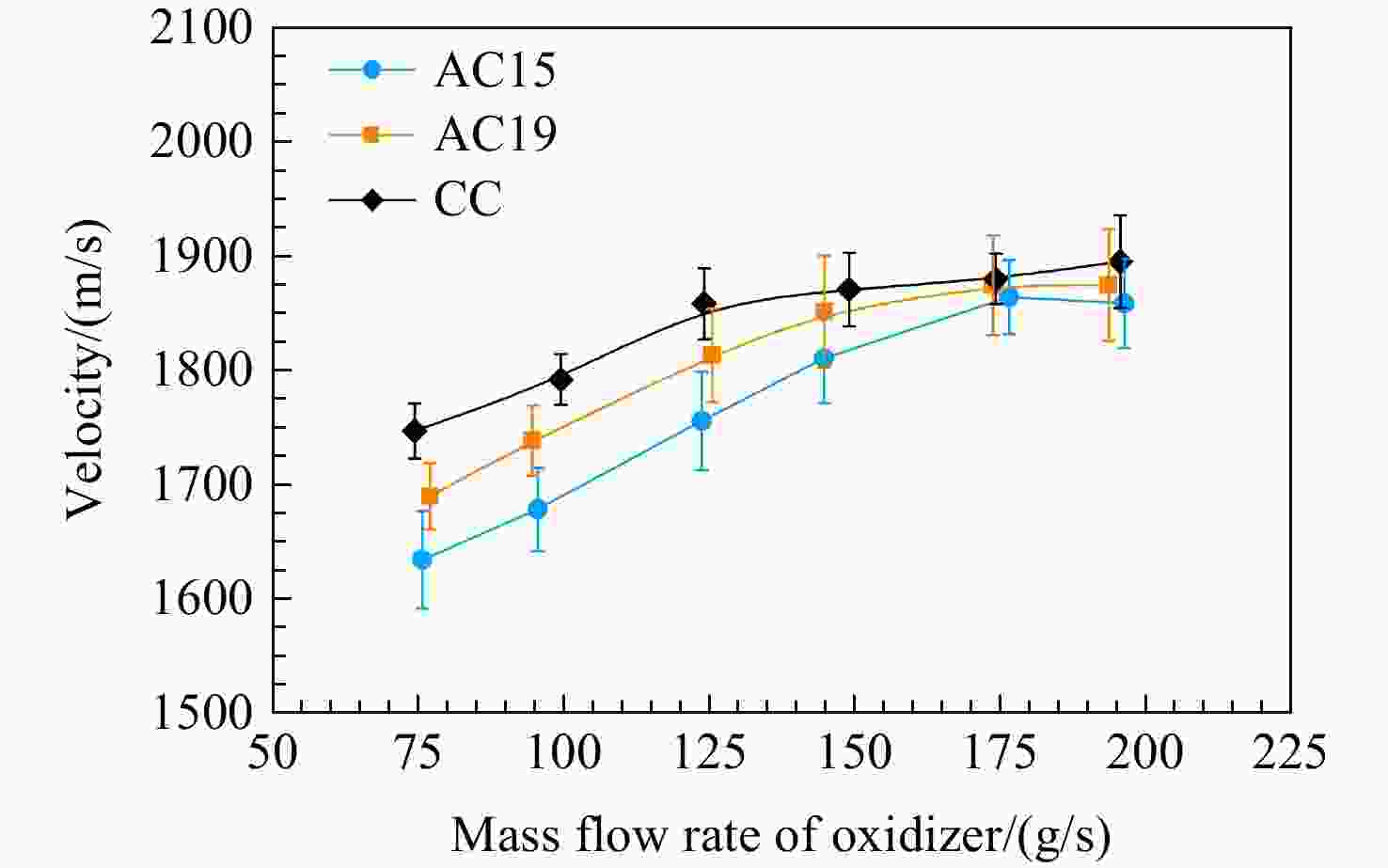

图 6 未安装塞式喷管燃烧室中的爆震波速度随氧化剂流量的变化
Figure 6. Propagation velocities of detonations for different mass flow rates of oxidizer in combustors without installing aerospike nozzles

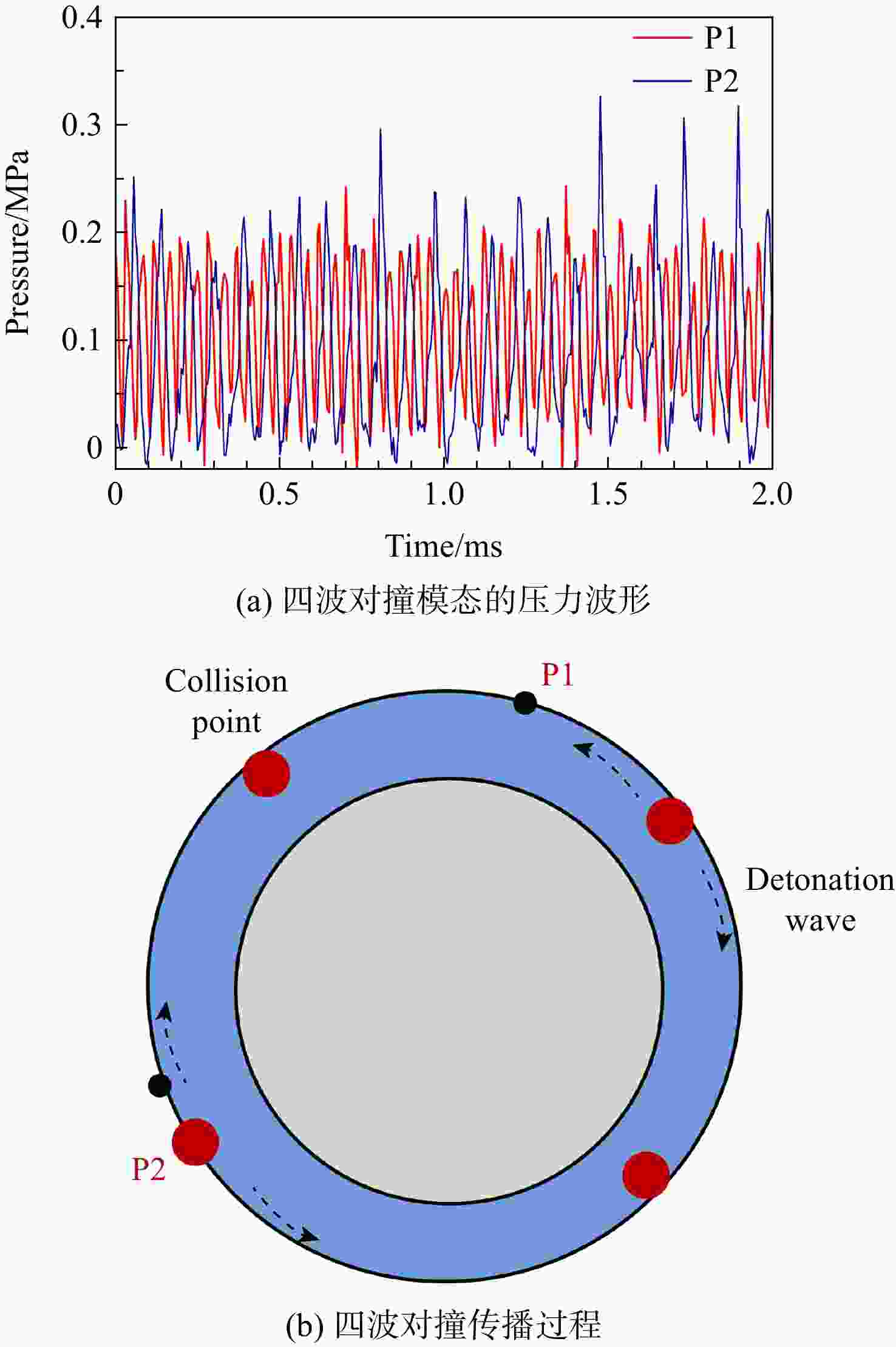

图 7 宽度为15 mm环形燃烧室中四波对撞模态
Figure 7. Quad-wave collision mode in the annular combustor with width of 15 mm

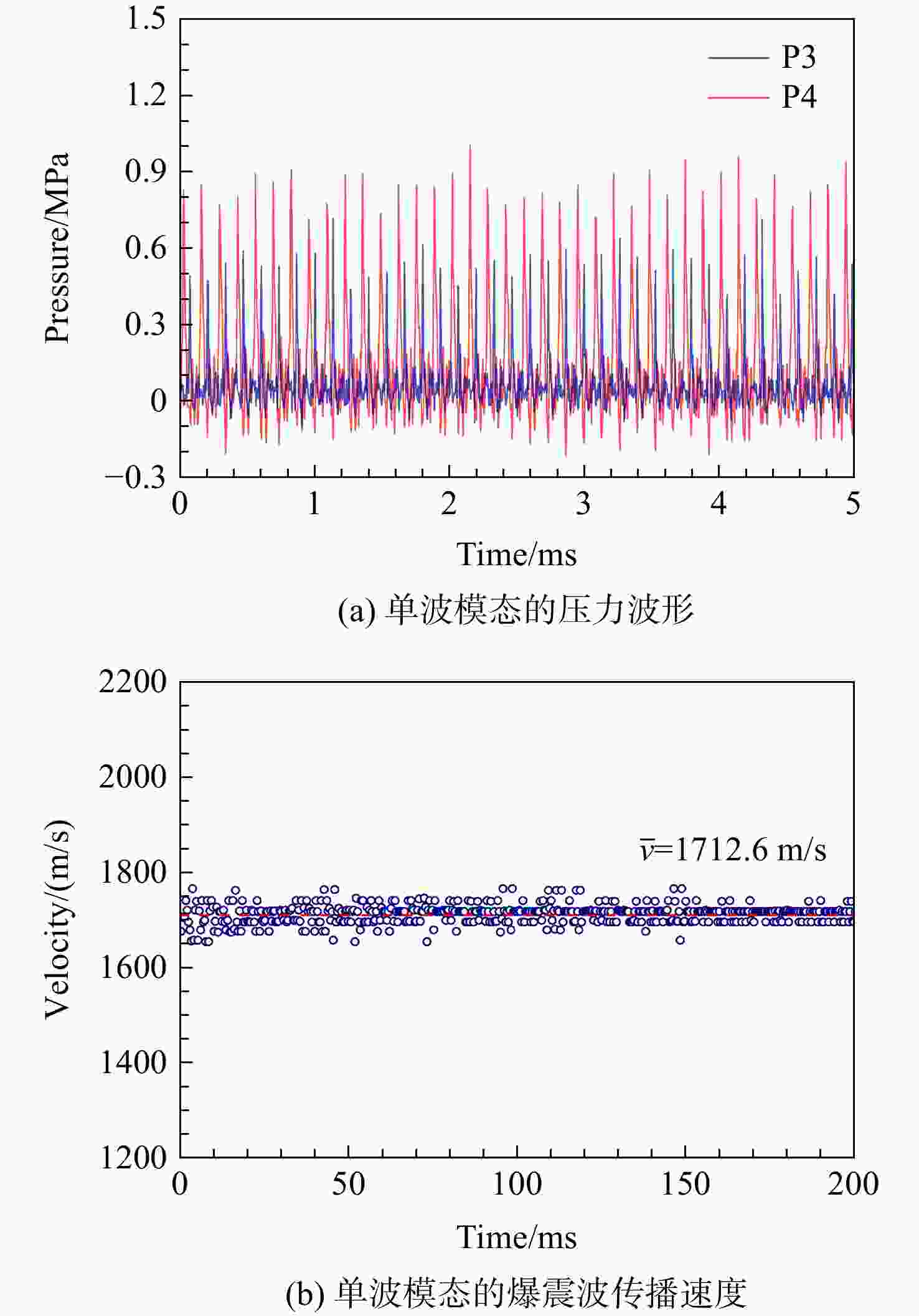

图 8 安装塞式喷管凹腔燃烧室中稳定的单波模态
Figure 8. Single detonating mode in the cavity combustorwith installing aerospike nozzle

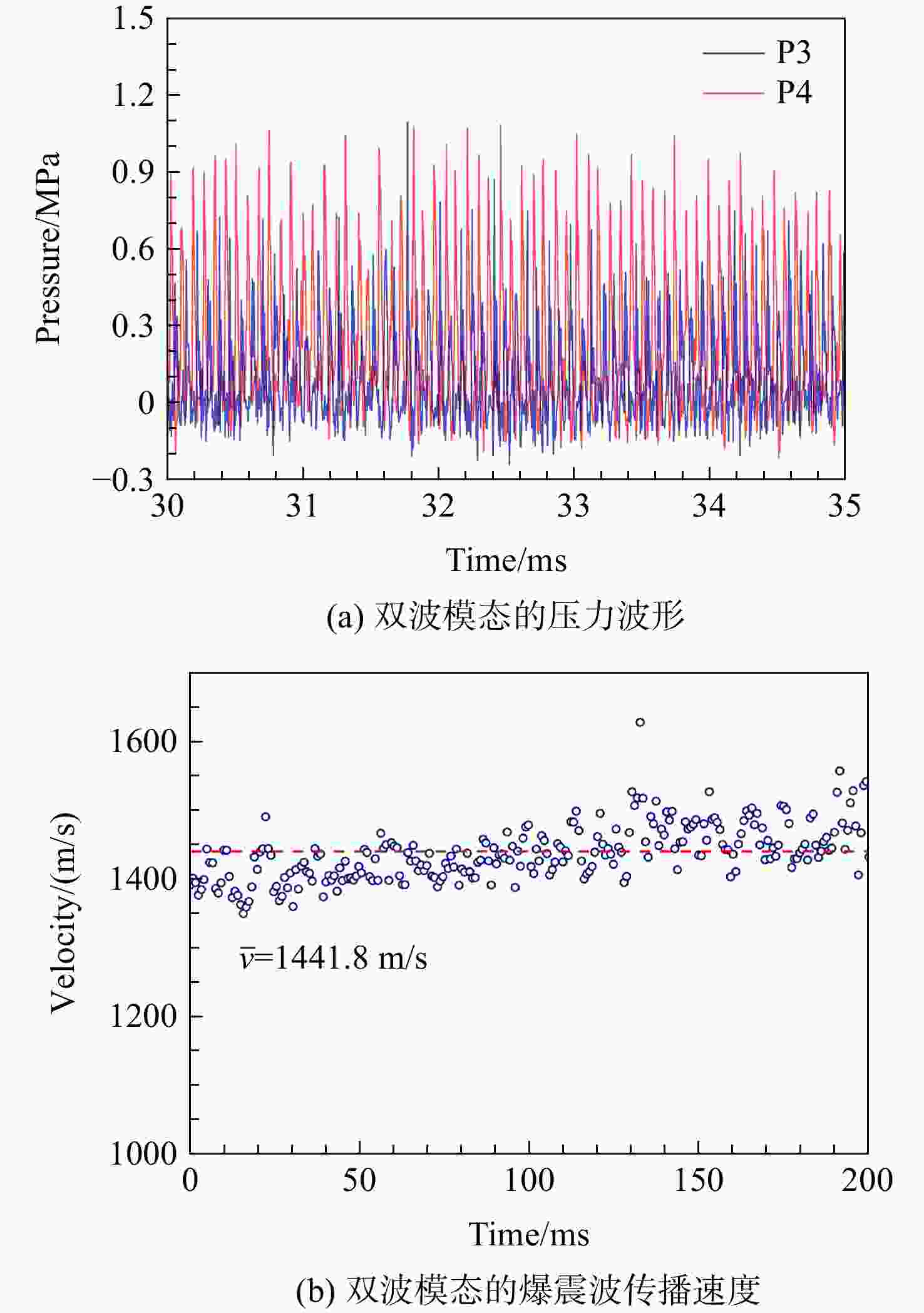

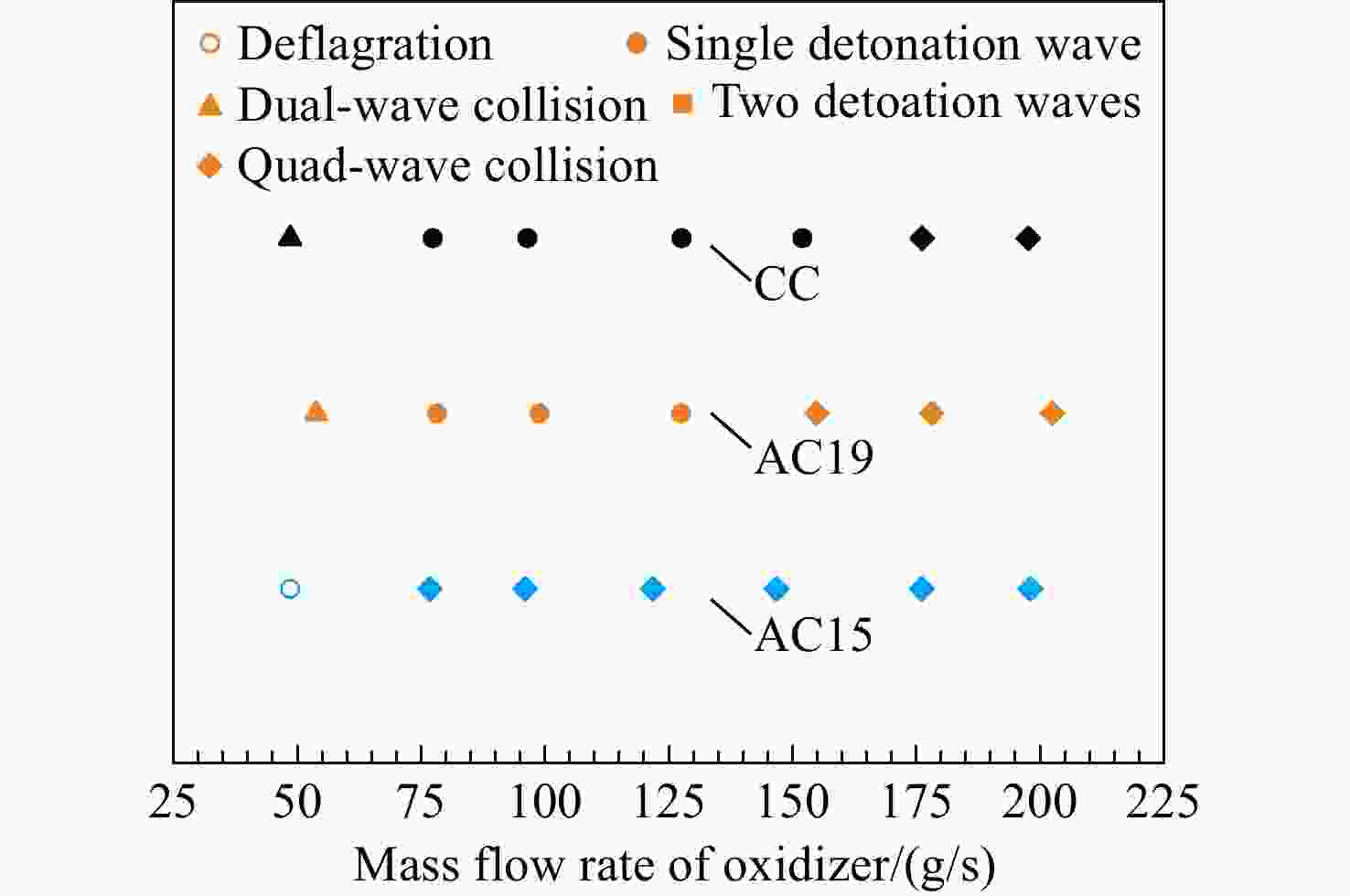

图 10 不同燃烧室中旋转爆震波模态的分布（安装塞式喷管）
Figure 10. Ranges of the different detonation modes in combustors （installing aerospike nozzle）

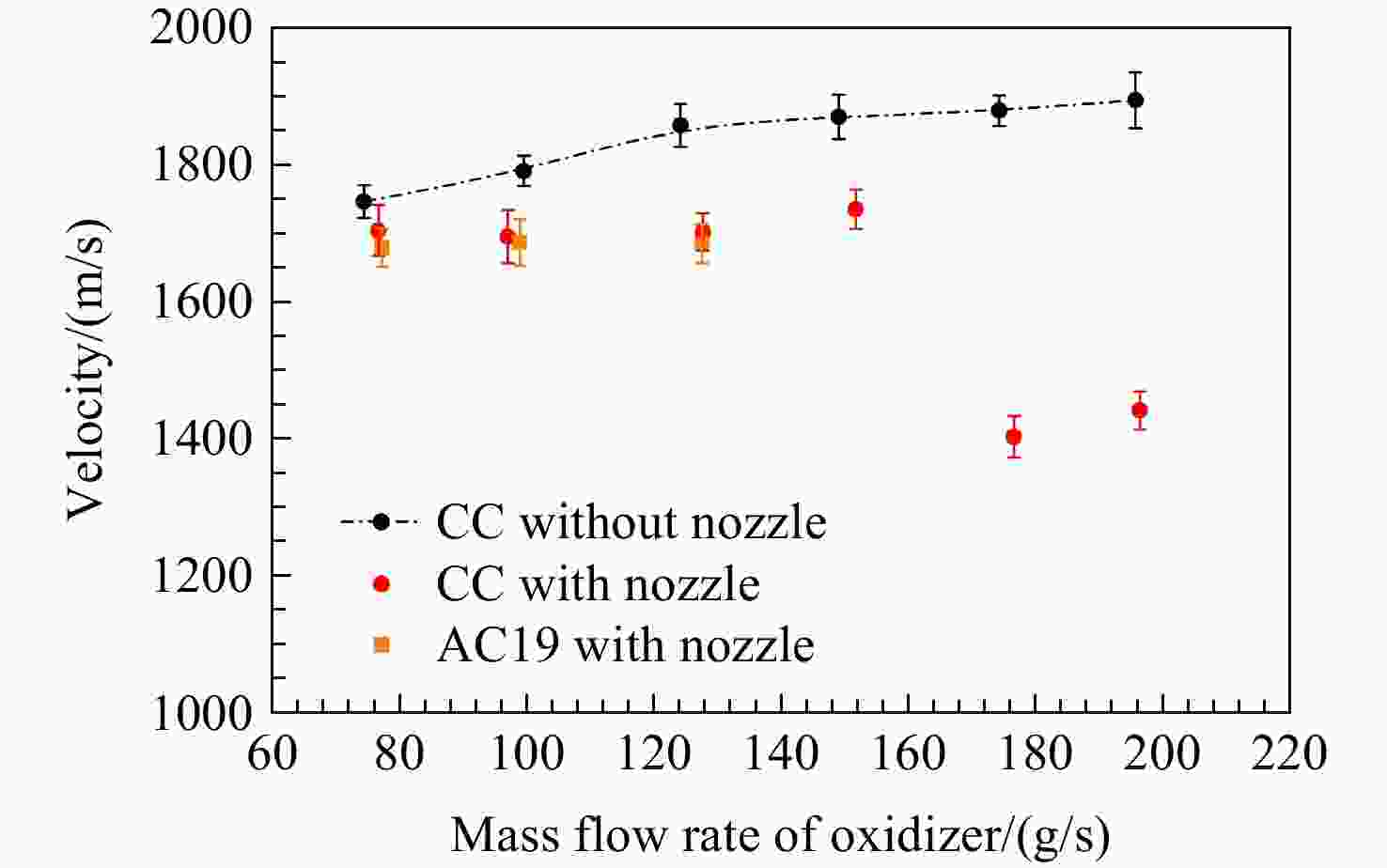

图 11 不同燃烧室中爆震波传播速度随氧化剂流量的变化（安装塞式喷管）
Figure 11. Propagation velocities of detonations for different mass flow rates of oxidizer in combustors （installing aerospike nozzle）
-
[1] LU F K,BRAUN E M. Rotating detonation wave propulsion: experimental challenges, modeling, and engine concepts[J]. Journal of Propulsion and Power,2014,30(5): 1125-1142. doi: 10.2514/1.B34802 [2] MA Zhuang,LUAN Mingyi,XIA Zhijie,et al. Recent progress, development trends, and consideration of continuous detonation engines[J]. AIAA Journal,2020,58(12): 4976-5035. doi: 10.2514/1.J058157 [3] ISHIHARA K, MASTSUOKA K, KASAHARA J, et al. Performance evaluation of a rotating detonation engine with conical-shape tail[R]. AIAA 2015-0630, 2015. [4] 马虎,张义宁,杨成龙,等. 燃料分布对旋转爆震波传播特性影响[J]. 航空动力学报,2019,34(3): 513-520.MA Hu,ZHANG Yining,YANG Chenglong,et al. Effects of fuel distribution on propagation of rotating detonation wave[J]. Journal of Aerospace Power,2019,34(3): 513-520. (in Chinese) [5] 袁雪强,蒋露欣,张多,等. 爆震波通过环形通道传播模式试验研究[J]. 火箭推进,2021,47(6): 101-110.YUAN Xueqiang,JIANG Luxin,ZHANG Duo,et al. Experimental study on the propagation mode of detonation wave in annular channel[J]. Journal of Rocket Propulsion,2021,47(6): 101-110. (in Chinese) [6] XIE Qiaofeng,WEN Haocheng,LI Weihong,et al. Analysis of operating diagram for H2/air rotating detonation combustors under lean fuel condition[J]. Energy,2018,151: 408-419. doi: 10.1016/j.energy.2018.03.062 [7] 严宇,胡洪波,洪流,等. 自燃推进剂旋转爆震燃烧实验研究[J]. 推进技术,2018,39(9): 1986-1993.YAN Yu,HU Hongbo,HONG Liu,et al. Experimental investigation on rotated detonation combustion of hypergolic propellants[J]. Journal of Propulsion Technology,2018,39(9): 1986-1993. (in Chinese) [8] 计自飞,李天琦,张会强. 吸气式旋转爆震组合循环发动机性能[J]. 火箭推进,2021,47(6): 86-92.JI Zifei,LI Tianqi,ZHANG Huiqiang. Performance analysis of rotating detonative airbreathing combined cycle engine[J]. Journal of Rocket Propulsion,2021,47(6): 86-92. (in Chinese) [9] 高剑,马虎,裴晨曦,等. 喷管对旋转爆震发动机性能影响的实验[J]. 航空动力学报,2016,31(10): 2443-2453.GAO Jian,MA Hu,PEI Chenxi,et al. Experiment of effect of nozzle shapes on the performance of rotating detonation engine[J]. Journal of Aerospace Power,2016,31(10): 2443-2453. (in Chinese) [10] BYKOVSKII F A,ZHDAN S A,VEDERNIKOV E F. Continuous spin detonations[J]. Journal of Propulsion and Power,2006,22(6): 1204-1216. doi: 10.2514/1.17656 [11] GEORGE A S,DRISCOLL R,ANAND V,et al. On the existence and multiplicity of rotating detonations[J]. Proceedings of the Combustion Institute,2017,36(2): 2691-2698. doi: 10.1016/j.proci.2016.06.132 [12] RANKIN B A,RICHARDSON D R,CASEWALL A W,et al. Chemiluminescence imaging of an optically accessible non-premixed rotating detonation engine[J]. Combustion and Flame,2017,176: 12-22. doi: 10.1016/j.combustflame.2016.09.020 [13] ZHOU Rui,WANG Jianping. Numerical investigation of shock wave reflections near the head ends of rotating detonation engines[J]. Shock Wave,2013,23: 461-472. doi: 10.1007/s00193-013-0440-0 [14] KAWASAKI A,INAKAWA T,KASAHARA J,et al. Critical condition of inner cylinder radius for sustaining rotating detonation waves in rotating detonation engine thruster[J]. Proceedings of the Combustion Institute,2019,37(3): 3461-3469. doi: 10.1016/j.proci.2018.07.070 [15] ZHANG Hailong,LIU Weidong,LIU Shijie. Effects of inner cylinder length on H2/air rotating detonation[J]. International Journal of Hydrogen Energy,2016,41(30): 13281-13293. doi: 10.1016/j.ijhydene.2016.06.083 [16] WANG Zhicheng,WANG Ke,LI Qing’an,et al. Effects of combustor width on the characteristic of rotating detonation wave[J]. Aerospace Science and Technology,2020,105: 106038. doi: 10.1016/j.ast.2020.106038 [17] WANG Yuhui,LE Jialing,WANG Chao,et al. A non-premixed rotating detonation engine using ethylene and air[J]. Applied Thermal Engineering,2018,137: 749-757. doi: 10.1016/j.applthermaleng.2018.04.015 [18] PENG Haoyang, LIU Weidong, LIU Shijie, et al. Hydrogen-air, ethylene-air, and methane-air continuous rotating detonation in the hollow chamber[J]. Energy, 2020, 118958.1-118598.12. [19] PENG Haoyang,LIU Weidong,LIU Shijie,et al. The effect of cavity on ethylene-air continuous rotating detonation in the annular combustor[J]. International Journal of Hydrogen Energy,2019,44(26): 14032-14043. doi: 10.1016/j.ijhydene.2019.04.017 [20] LIU Shijie,PENG Haoyang,LIU Weidong,et al. Effects of cavity depth on the ethylene-air continuous rotating detonation[J]. Acta Astronautica,2019,166: 1-10. [21] PENG Haoyang,LIU Weidong,LIU Shijie,et al. Effects of cavity location on ethylene-air continuous rotating detonation in a cavity-based annular combustor[J]. Combustion Science and Technology,2021,193(16): 2761-2782. doi: 10.1080/00102202.2020.1760255 [22] PENG Haoyang,LIU Weidong,LIU Shijie,et al. Enhancement of ethylene-air continuous rotating detonation in the cavity-based annular combustor[J]. Aerospace Science and Technology,2021,115: 106842.1-106842.10. doi: 10.1016/j.ast.2021.106842 [23] MENG Haolong,XIAO Qiang,FENG Wenkang,et al. Air-breathing rotating detonation fueled by liquid kerosene in cavity-based annular combustor[J]. Aerospace Science and Technology,2022,122: 107407.1-107407.11. doi: 10.1016/j.ast.2022.107407 [24] FROLOV S M,AKSENOV V S,DUBROVSKII A V,et al. Energy efficiency of a continuous-detonation combustion chamber[J]. Combustion, Explosion, and Shock Waves,2015,51(2): 232-245. doi: 10.1134/S0010508215020070 [25] 林伟,周进,林志勇,等. H2/air连续旋转爆震发动机推力测试(Ⅰ) 单波模态下的推力[J]. 推进技术,2015,36(4): 495-503.LIN Wei,ZHOU Jin,LIN Zhiyong,et al. Thrust measurement of H2/air continuously rotating detonation engine (Ⅰ) thrust under single wave mode[J]. Journal of Propulsion Technology,2015,36(4): 495-503. (in Chinese) [26] PENG Haoyang,LIU Weidong,LIU Shijie,et al. Experimental investigations on ethylene-air continuous rotating detonation wave in the hollow chamber with laval nozzle[J]. Acta Astronautica,2018,151: 137-145. doi: 10.1016/j.actaastro.2018.06.025 [27] ZHU Yiyuan,WANG Ke,WANG Zhicheng,et al. Study on the performance of a rotating detonation chamber with different aerospike nozzles[J]. Aerospace Science and Technology,2020,107: 106338.1-106338.10. doi: 10.1016/j.ast.2020.106338 [28] RUDY W,DZIUBANII K,ZBIKOWSKI M,et al. Experimental determination of critical conditions for hydrogen-air detonation propagation in partially confined geometry[J]. International Journal of Hydrogen Energy,2017,42(11): 7366-7373. doi: 10.1016/j.ijhydene.2016.04.056 [29] WANG Zhicheng,WANG Ke,ZHU Yiyuan,et al. Experimental investigation on the propagation characteristics of detonations in a semi-confined straight channel[J]. Experimental Thermal and Fluid Science,2021,123: 110329.1-110329.9. doi: 10.1016/j.expthermflusci.2020.110329 -
