基于锥束CT的飞秒激光加工气膜孔几何特征测量及表征

杨泽南; 许骏杰; 赵婉蓉; 梁威; 杨富强; 李志翔; 黄魁东

doi:10.13224/j.cnki.jasp.20230040

基于锥束CT的飞秒激光加工气膜孔几何特征测量及表征

doi: 10.13224/j.cnki.jasp.20230040

1.
中国航发北京航空材料研究院先进高温结构材料重点实验室，北京 100095
2.
西北工业大学航空发动机高性能制造工信部重点实验室，西安 710072

基金项目: 青年托举人才工程项目（YESS20200408）；财政部稳定支持项目（KZ90220107）；国家科技重大专项项目（J2019-Ⅶ-0013-0153）；国家自然科学基金青年基金（52005415）；中国航空发动机集团产学研合作项目（HFZL2022CXY024）

详细信息

作者简介:
杨泽南（1990-），男，高级工程师，博士，主要从事飞秒激光加工及检测技术研究

中图分类号: V263.1；V448；O353.5
计量
- 文章访问数: 118
- HTML浏览量: 81
- PDF量: 53
- 被引次数: 0
出版历程
- 收稿日期: 2023-01-20
- 网络出版日期: 2023-04-23

Measurement and characterization of geometric features of femtosecond laser of film hole based on cone beam CT

1.
Science and Technology on Advanced High Temperature Structural Materials Laboratory， Beijing Institute of Aeronautical Materials， Aero Engine Corporation of China，Beijing 100095，China
2.
Key Laboratory of High Performance Manufacturing for Aero Engine， Ministry of Industry and Information Technology， Northwestern Polytechnical University，Xi’an 710072，China

摘要

摘要:
针对当前国内气膜孔加工存在的几何精度偏低、质量不稳定现状，通过计算机断层成像技术利用气膜孔切片图像，在特征分割、点云拟合基础上对不同工艺参数激光加工的气膜孔孔径及几何特征质量进行检测与评价。结果表明：超快激光工艺参数的圆形气膜孔通孔入口直径略大于出口，锥度在0.005°～0.020°之间，位置度误差最大为ϕ0.072 mm，异型气膜孔入射角的范围在60°～70°之间。使用锥束CT（computed tomography）测量方法对气膜孔几何特征进行检测与评价是可靠的，具有重要工程应用价值。
- 气膜孔 /
- 单晶高温合金 /
- 飞秒激光加工 /
- 计算机层析成像技术 /
- 几何特征
Abstract:
In view of the current situation of low geometric accuracy and unstable quality of film cooling holes at home, experiments with different process parameters of femtosecond laser were carried out. The film cooling holes were analyzed based on the feature segmenting and point cloud fitting from slice image through computed tomography technology. Diameter and geometric features were tested and evaluated. The results showed that the diameter of the inlet of the film holes was slightly larger than that of the outlet with the process parameters of ultrafast laser, where the taper was between 0.005° and 0.020° for the testing detected by cone beam CT (computed tomography). The maximum position error was 0.072 mm. The incident angle of the special-shaped hole was roughly between 60° and 70°. It is reliable to use cone beam CT measurement method to detect and evaluate the geometric features of film cooling holes.
- film hole /
- single crystal high-temperature alloy /
- femtosecond laser processing /
- industrial computed tomography /
- geometric features

HTML

图 1 航空发动机涡轮叶片气膜孔示意图

Figure 1. Schematic diagram of film holes on turbine blades of aero-engine

下载: 全尺寸图片幻灯片

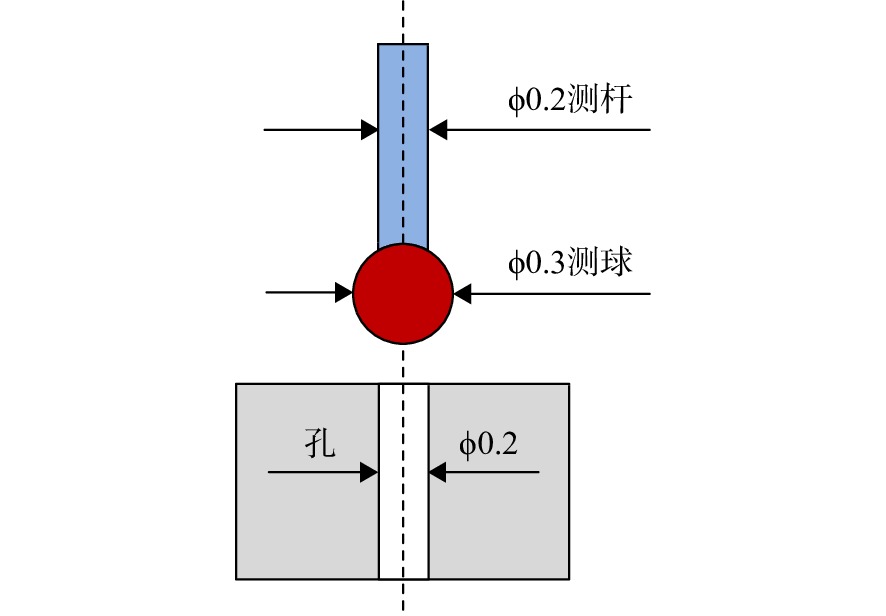

图 2 测球与被测孔示意图

Figure 2. Diagram of measuring ball and measured hole

下载: 全尺寸图片幻灯片

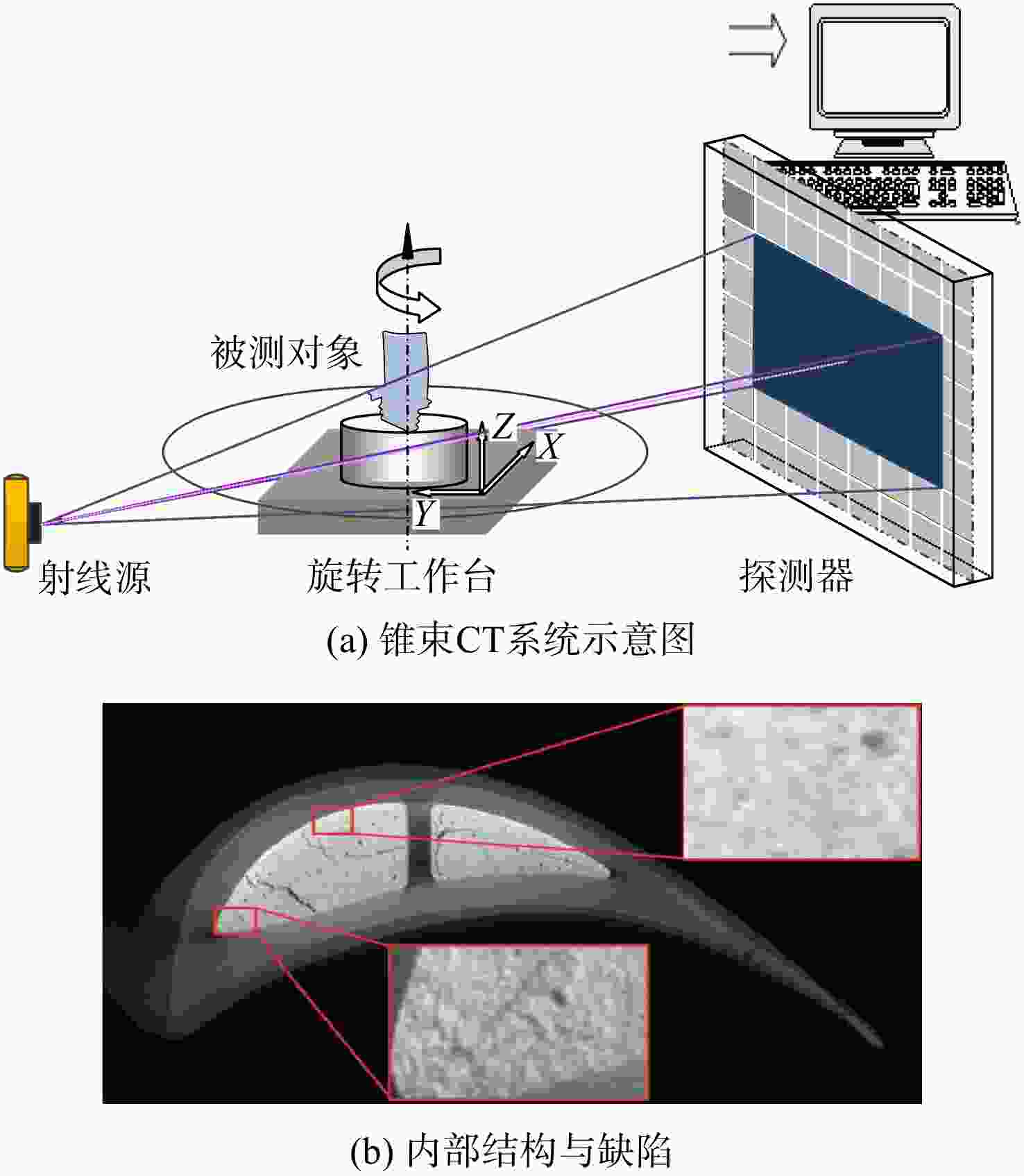

图 3 锥束CT无损检测

Figure 3. Non-destructive testing using cone beam CT

下载: 全尺寸图片幻灯片

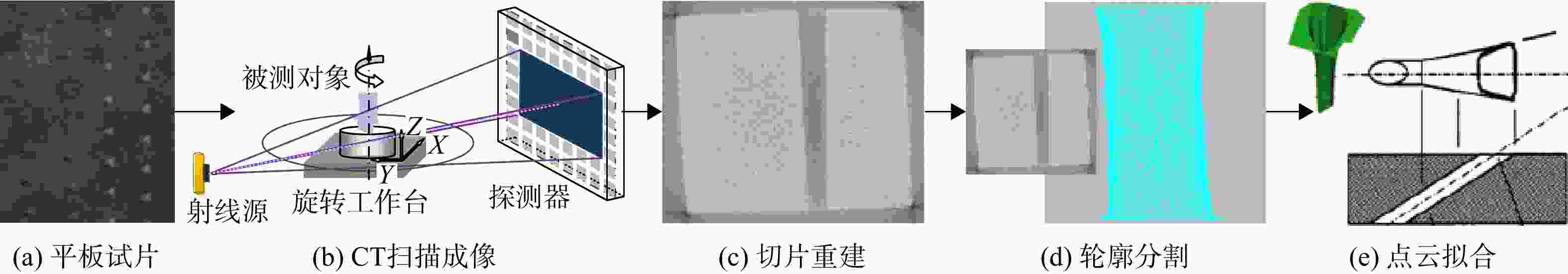

图 4 基于工业微焦点CT扫描的气膜孔测量流程图

Figure 4. Flow chart of measurement of film hole based on industrial microfocus CT scanning

下载: 全尺寸图片幻灯片

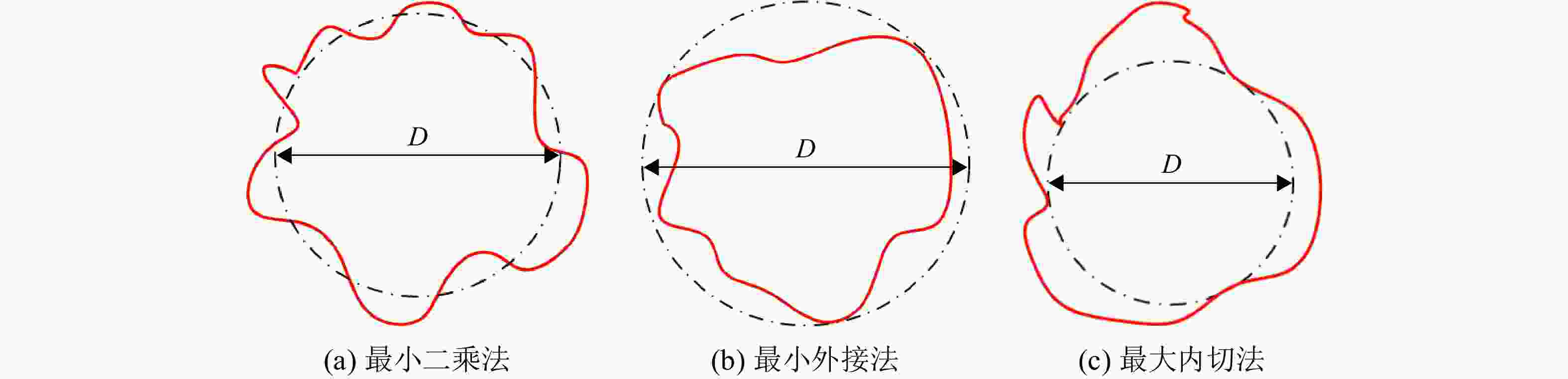

图 5 气膜孔直径尺寸拟合

Figure 5. Diameter fitting of film hole

下载: 全尺寸图片幻灯片

图 6 气膜孔锥度检测

Figure 6. Taper testing of film hole

下载: 全尺寸图片幻灯片

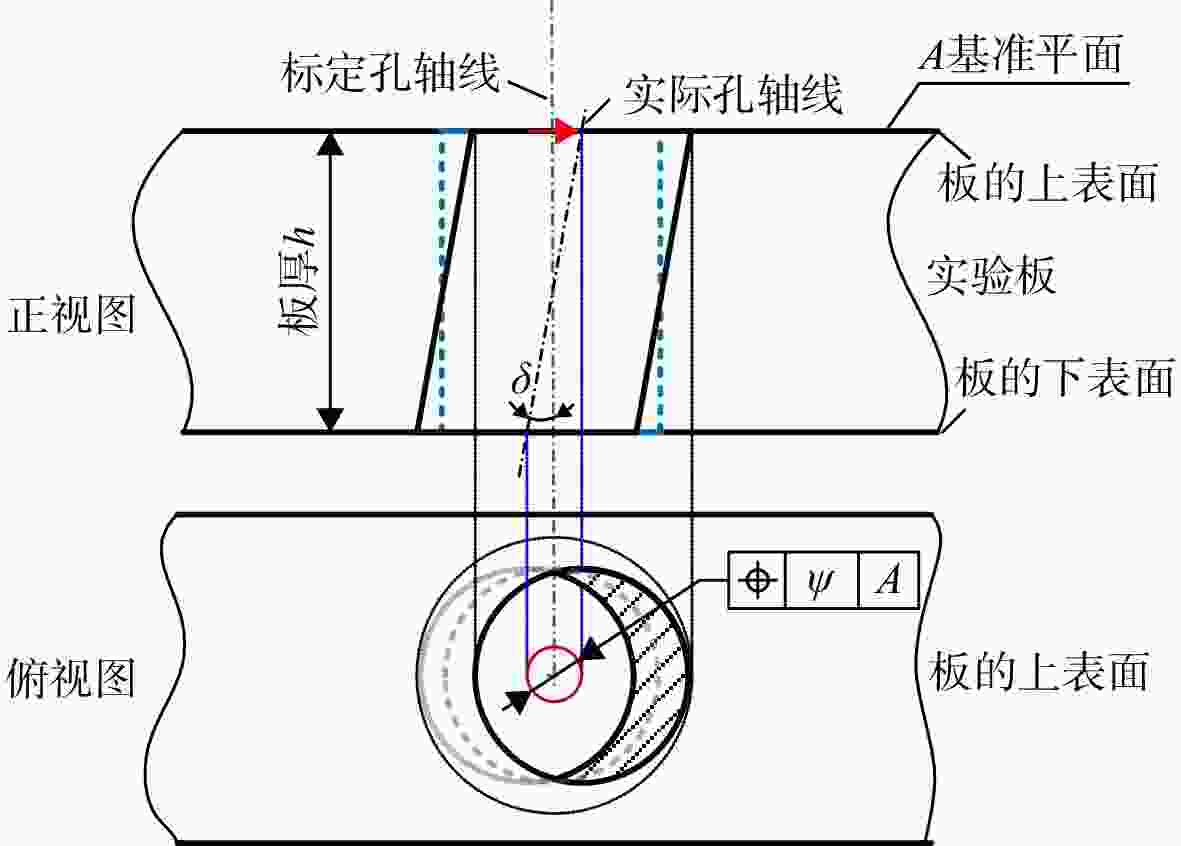

图 7 气膜孔轴线位置度检测

Figure 7. Axis position detecting of film hole

下载: 全尺寸图片幻灯片

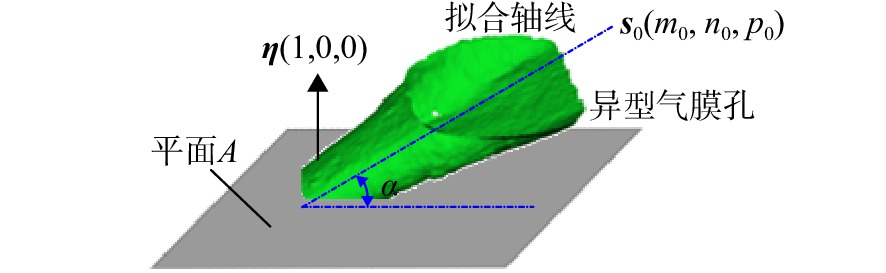

图 8 簸箕孔倾倾斜度测量示意图

Figure 8. Diagram of obliquity measurement of dustpan hole

下载: 全尺寸图片幻灯片

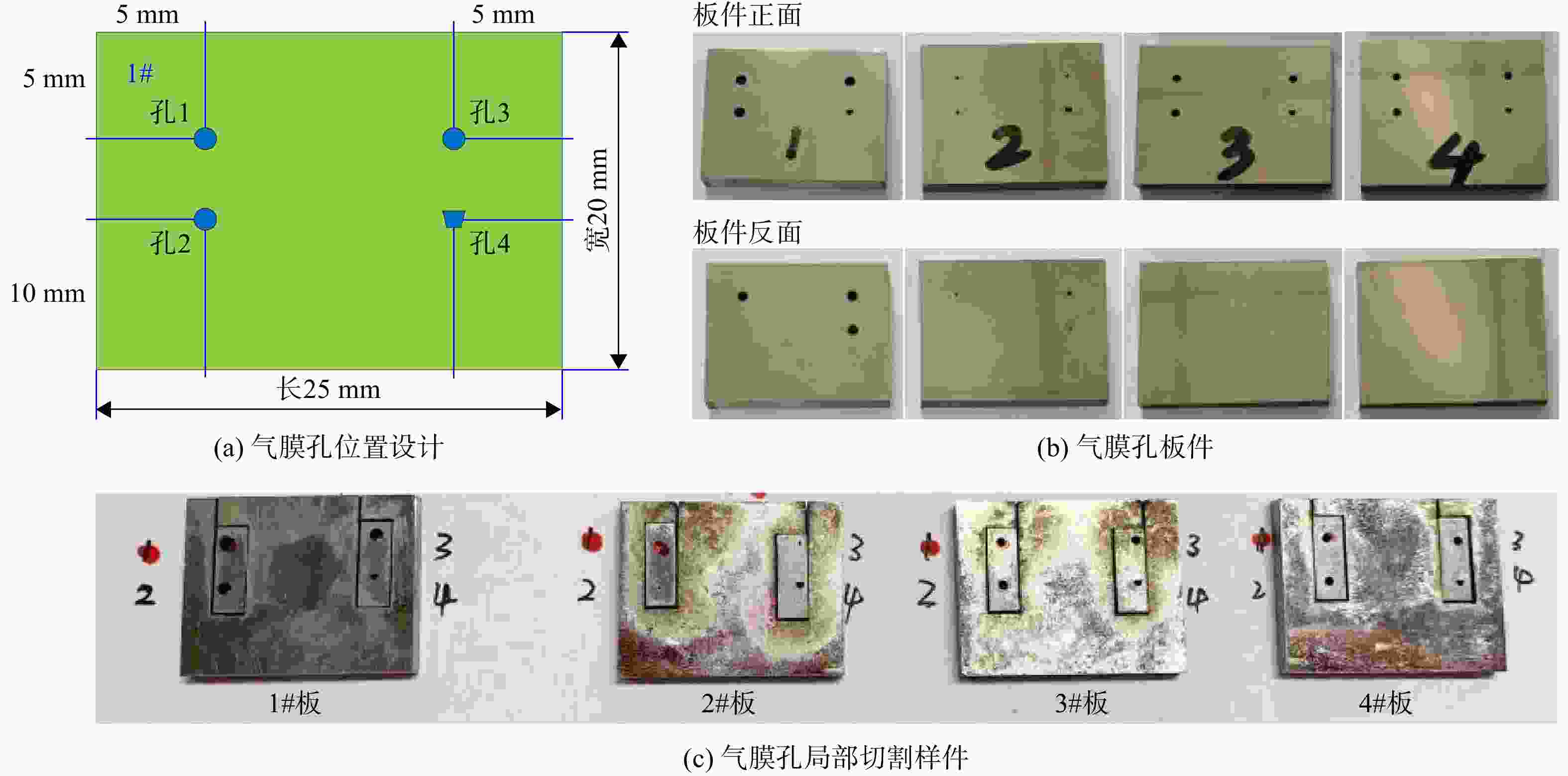

图 9 DD6镍基单晶高温合金气膜孔平板试片

Figure 9. Testing piece of DD6 nickel based single crystal superalloy film hole

下载: 全尺寸图片幻灯片

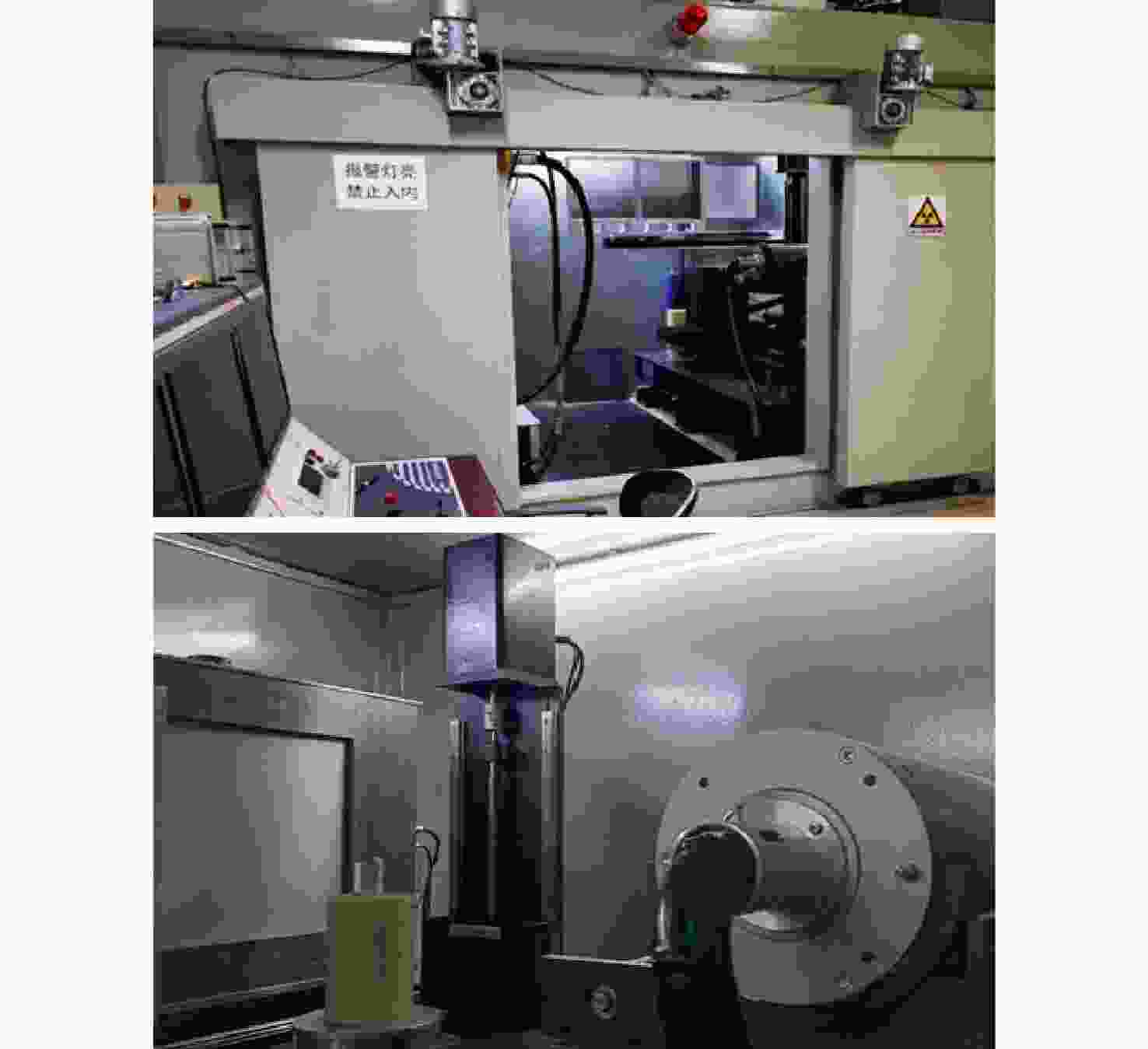

图 10 锥束CT无损检测设备

Figure 10. Equipment of cone beam CT for non-destructive testing

下载: 全尺寸图片幻灯片

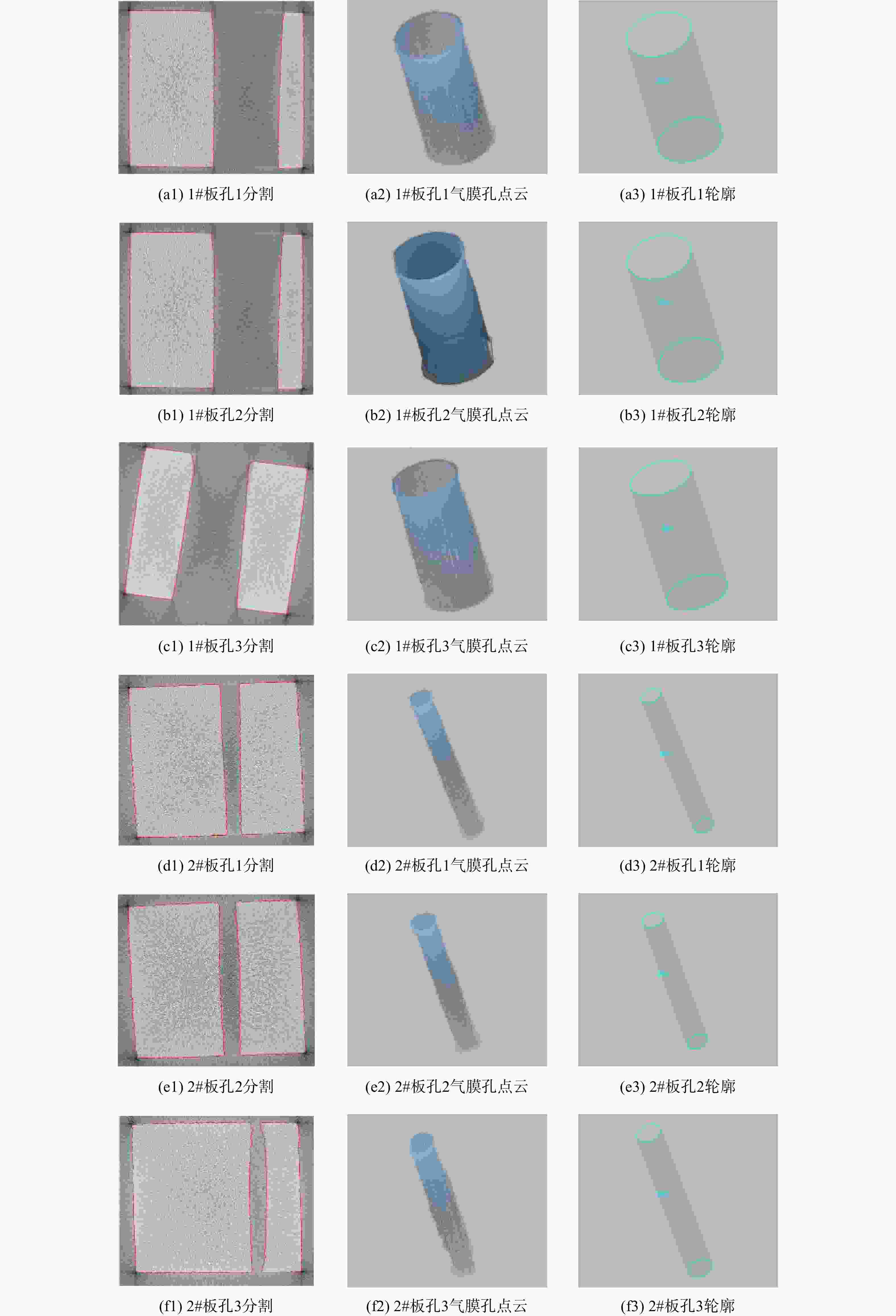

图 11 圆形气膜孔轮廓分割与点云拟合

Figure 11. Segmentation and point cloud fitting of circular film hole

下载: 全尺寸图片幻灯片

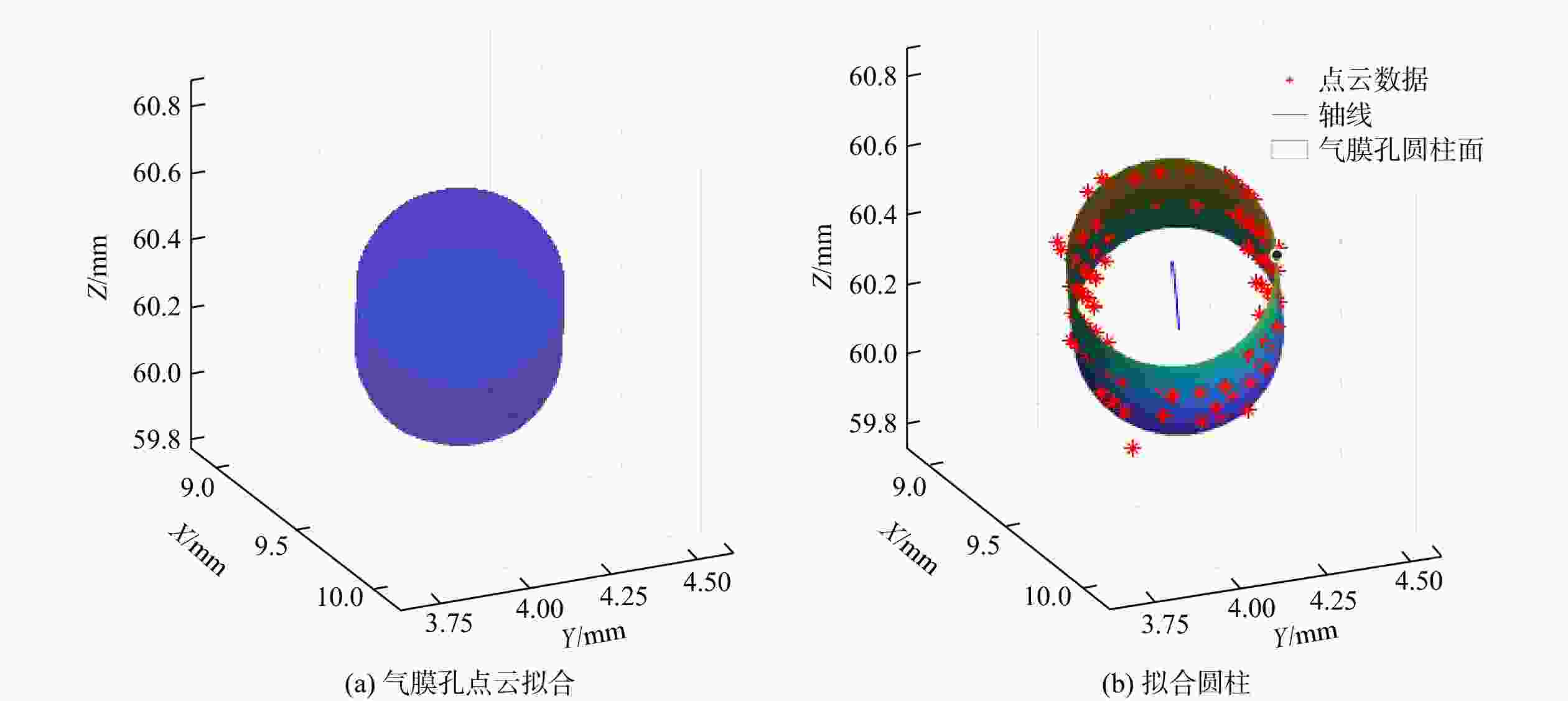

图 12 气膜孔轴线拟合示意图

Figure 12. Diagram of the axis fitting of film hole

下载: 全尺寸图片幻灯片

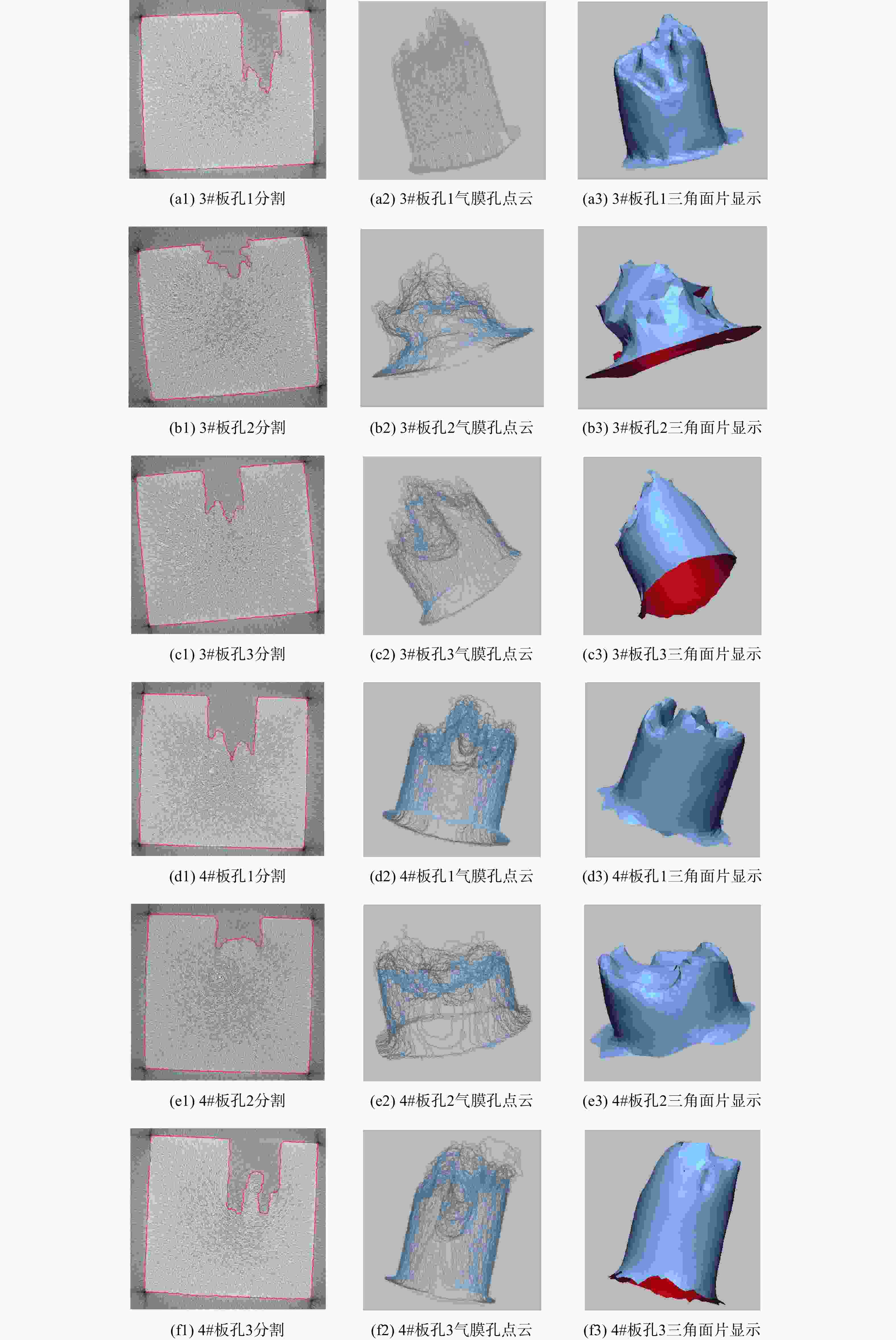

图 13 盲孔分割结果及面片显示

Figure 13. Blind hole segmentation results and patch display

下载: 全尺寸图片幻灯片

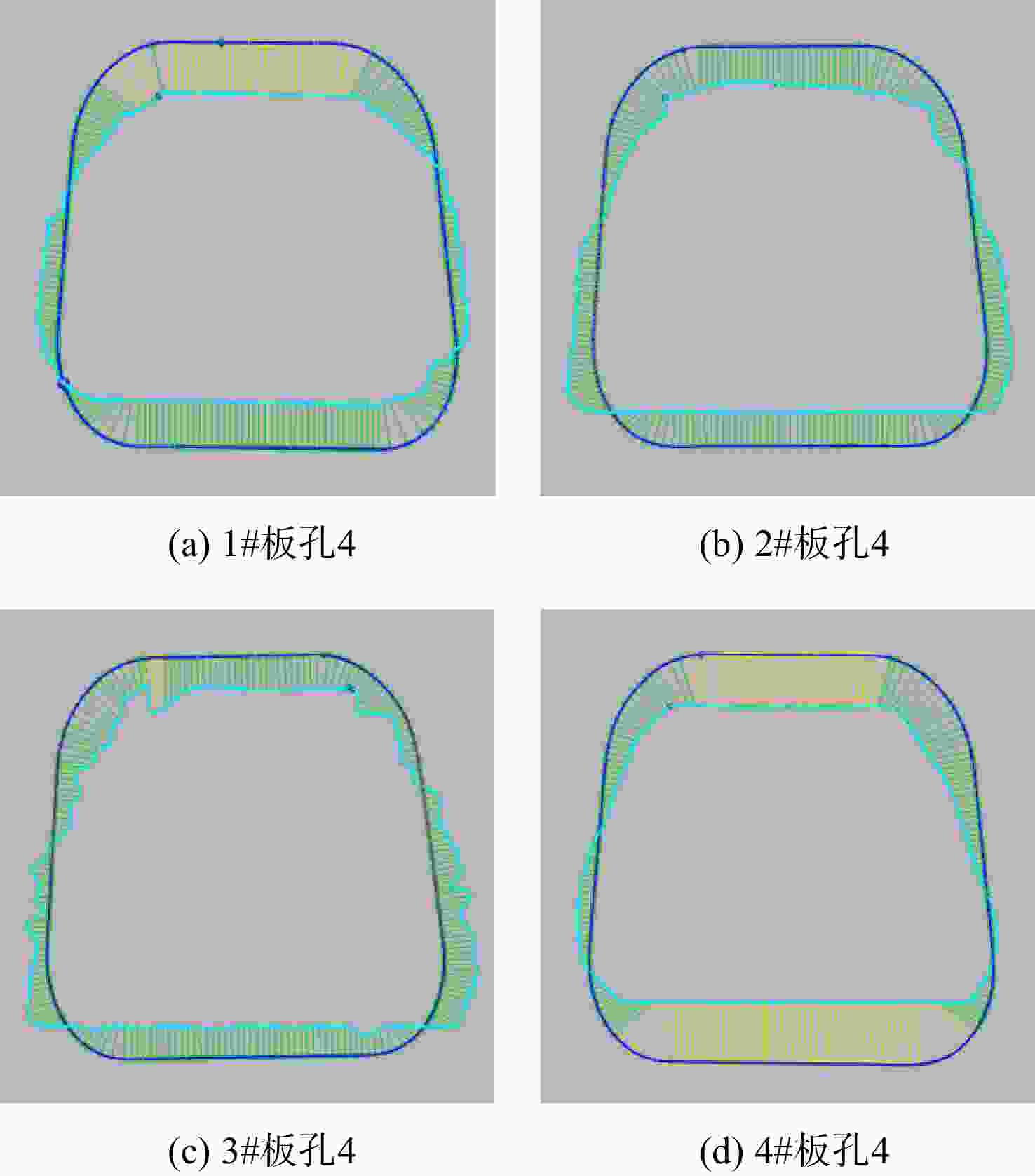

图 14 簸箕形气膜孔入口平面数据提取结果

Figure 14. Data extraction from the inlet plane of the dustpan-shaped film hole

下载: 全尺寸图片幻灯片

表 1 DD6镍基高温合金化学成分质量百分比

Table 1. Chemical composition of DD6 nickel-based superalloy by mass %

C	Cr	Ni	Co	W	Mo	Al	Nb	Ta	Re	Hf
0～0.04	3.8～4.8	其余	8.5～9.5	7.0～9.0	1.5～2.5	5.2～6.2	0～1.2	6.0～8.5	1.6～2.4	0.05～1.5

下载: 导出CSV

表 2 飞秒激光制孔实验（1#板/2#板孔径1.4 mm/0.4 mm工艺参数）

Table 2. Experiment for femtosecond laser drilling (process parameters for 1# board/2# board aperture of 1.4 mm/0.4 mm)

序号		加工				修孔
序号		功率/W	进给量/mm	单扫时间/ms	圈数	功率/W	进给量/mm	单扫时间/ms	圈数
1#板（1.4 mm通孔）	圆孔1	30	0.03	1000	80
	圆孔2	30	0.03	1000	80	15	0.02	500	40
	圆孔3	15	0.02	1000	80
2#板（0.4 mm通孔）	圆孔1	30	0.03	500	40
	圆孔2	30	0.03	500	40	15	0.04	200	40
	圆孔3	15	0.015	500	40

下载: 导出CSV

表 3 飞秒激光制孔实验（3#板/4#板孔径1 mm工艺参数）

Table 3. Experiment for femtosecond laser drilling (process parameters for 3# board/4# board aperture of 1 mm)

序号		加工					修孔
序号		功率/W	进给量/mm	单扫时间/ms	圈数	层数	功率/W	进给量/mm	单扫时间/ms	圈数	层数
3#板（1 mm盲孔）	圆孔1	30	0.03	1000	40	5
	圆孔2	30	0.03	1000	40	10
	圆孔3	30	0.03	1000	40	15
4#板（1 mm盲孔）	圆孔1	30	0.03	1000	40	5	15	0.02	500	40	9
	圆孔2	30	0.03	1000	40	10	15	0.02	500	40	17
	圆孔3	30	0.03	1000	40	15	15	0.02	500	40	25

下载: 导出CSV

表 4 飞秒激光制孔实验（异型孔孔4制孔工艺参数）

Table 4. Experiment for femtosecond laser drilling (process parameters for irregular holes drilling for hole 4)

因素	1#板	2#板	3#板	4#板
功率/W	20	15	10	5
分割层数	145	145	145	145
扫描速度/（r/min）	2 000	2 000	2 000	2 000

下载: 导出CSV

表 6 通孔轴线位置度几何特征锥束CT测量结果

Table 6. Measurement results of through hole axis position and geometric characteristics by cone beam CT

孔类型	编号	实测轴线向量（a,b,c）	ψ/mm
圆形通孔（ϕ1.4 mm）	1#板孔1	（0.4676, 0.3234, 0.8227）	0.014
	1#板孔2	（0.2445, 0.1695, 0.9547）	0.021
	1#板孔3	（0.1722, 0.1618, 0.9717）	0.016
圆形通孔（ϕ0.4 mm）	2#板孔1	（0.3800, 0.2827, 0.8807）	0.028
	2#板孔2	（0.2072, 0.1574, 0.9656）	0.013
	2#板孔3	（0.2590, 0.1512, 0.9540）	0.029

下载: 导出CSV

表 5 锥束CT对通孔的测量结果

Table 5. Measurement results of through holes by cone beam CT

孔类型	编号	平均直径/mm	入口直径/mm	出口直径/mm	锥度θ/（°）（计算）	几何误差/mm	E_r/%
圆形通孔（ϕ1.4 mm）	1#板孔1	1.354	1.366	1.258	0.0180	−0.046	3.286
	1#板孔2	1.366	1.376	1.265	0.0175	−0.034	2.429
	1#板孔3	1.352	1.348	1.239	0.0182	−0.048	3.429
圆形通孔（ϕ0.4 mm）	2#板孔1	0.354	0.348	0.314	0.0057	−0.046	11.500
	2#板孔2	0.356	0.331	0.301	0.0050	−0.044	11.000
	2#板孔3	0.351	0.344	0.296	0.0081	−0.049	12.250

下载: 导出CSV

表 7 锥束CT对盲孔直径几何特征的测量结果

Table 7. Measurement results of geometric characteristics of blind hole diameter by cone beam CT

孔类型	编号	平均直径/mm	几何误差/mm	E_r/%
圆形盲孔（1 mm）	3#板孔1	0.8720	−0.1280	12.80
	3#板孔2	0.8349	−0.1651	16.51
	3#板孔3	0.8748	−0.1252	12.52
	4#板孔1	0.8877	−0.1123	11.23
	4#板孔2	0.8896	−0.1104	11.04
	4#板孔3	0.8940	−0.1060	10.60

下载: 导出CSV

表 8 簸箕孔几何精度计算结果

Table 8. Calculation results of geometric accuracy of dustpan hole

编号	入射角/（°）	入口轮廓度特征/mm
1#板孔4	69.64	0.0696
2#板孔4	66.82	0.0598
3#板孔4	63.13	0.0399
4#板孔4	70.65	0.0358

下载: 导出CSV
