Thermal dynamic simulation and temperature control for aircraft thermal management system
-
摘要:
针对战斗机有限热沉条件下散热能力充分利用的问题，通过理论建模和仿真实验，对飞机热管理系统进行了全任务剖面热动态分析，并探究了燃油系统的温度控制策略。首先，提出了一种基于功率损失的控制体法，简化了液压元件热平衡方程，分析了液压泵生热的主要因素。其次，建立了热管理系统仿真平台，仿真得到热管理系统各节点温度变化曲线以及给定飞行剖面下飞机热续航时间。最后，提出热沉调度和温度控制策略，分别将飞机热续航能力提高了23.4%和29.2%。所完成的主要研究工作为飞机燃油系统温度控制和热管理系统设计提供了参考依据。

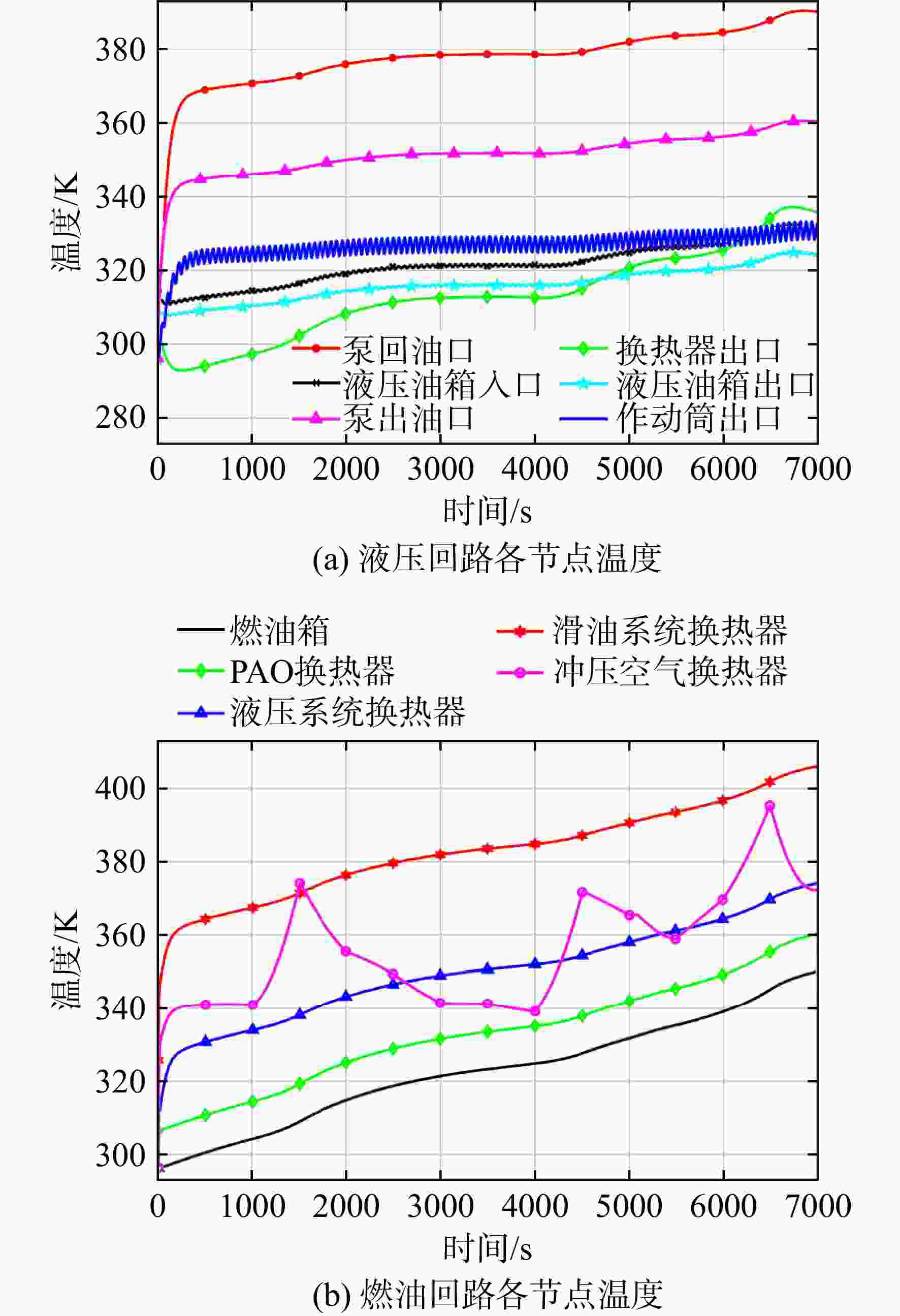

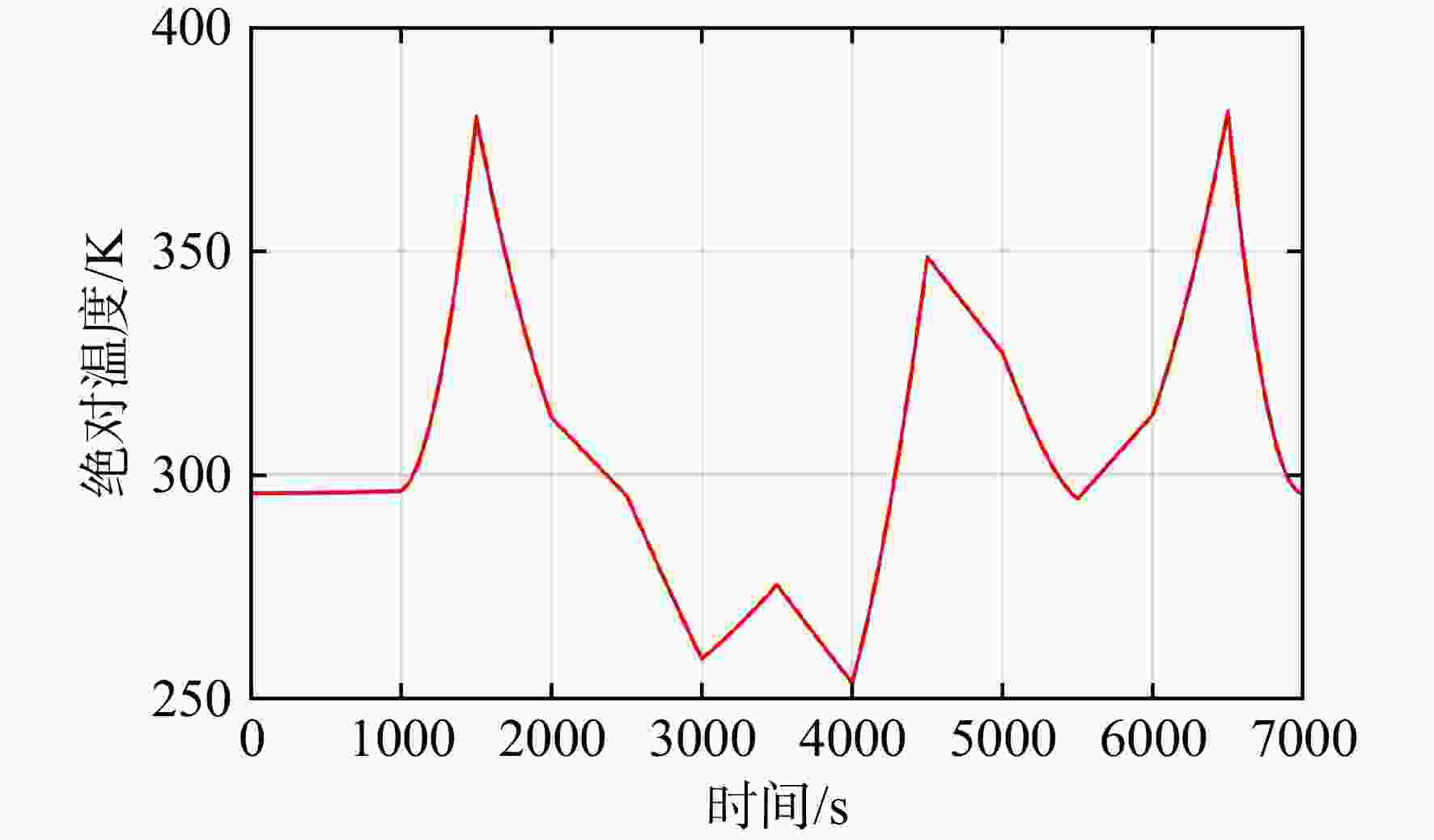

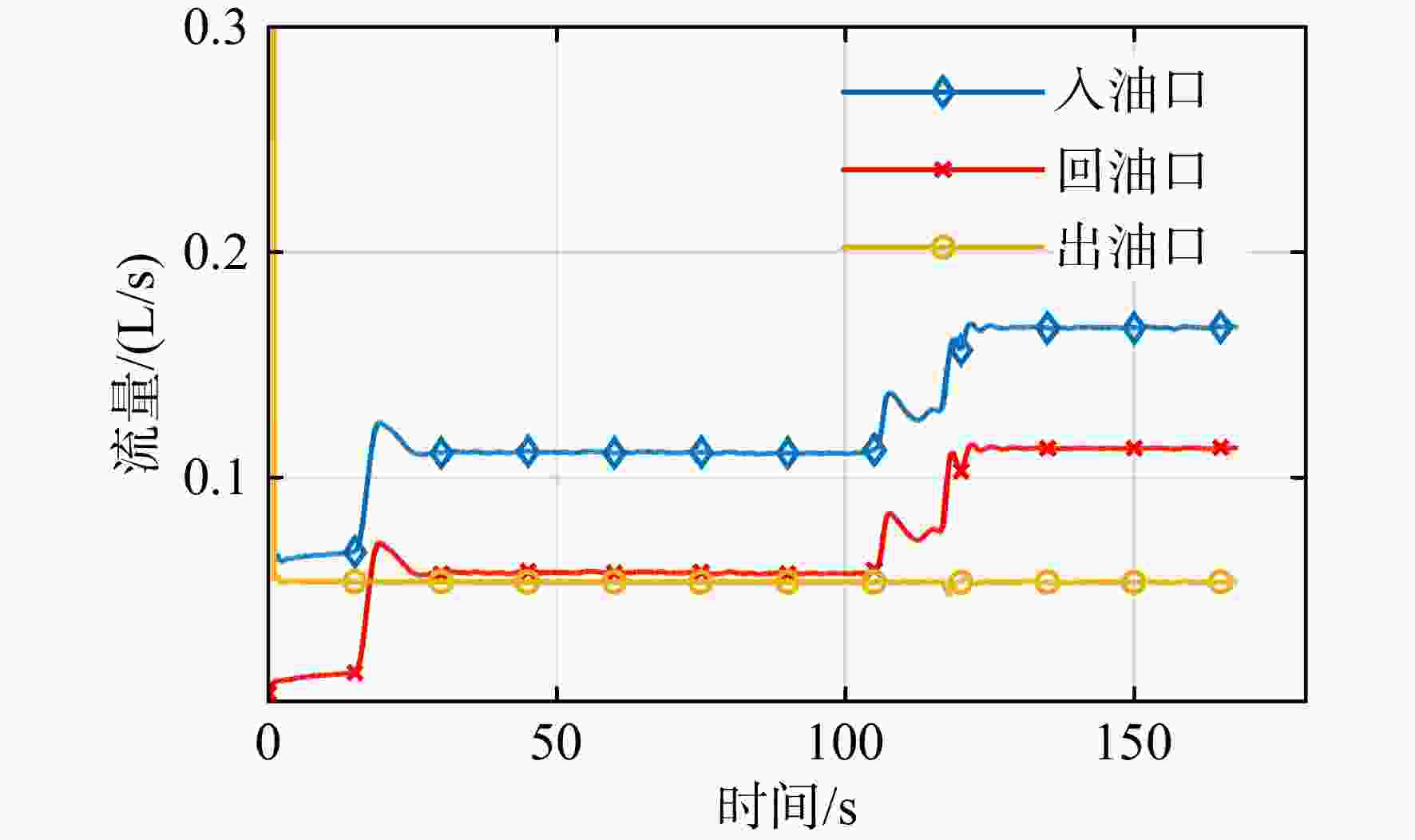

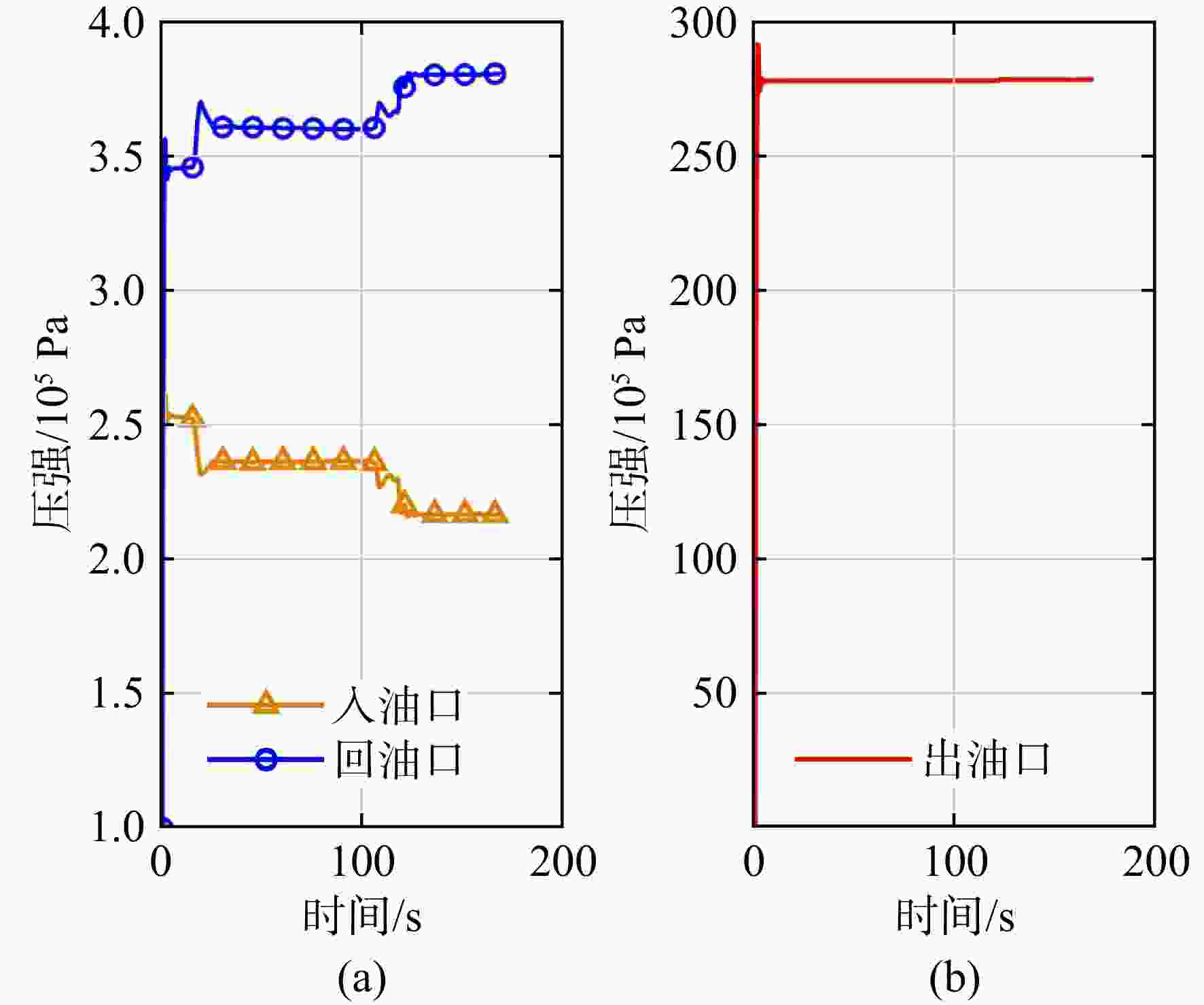

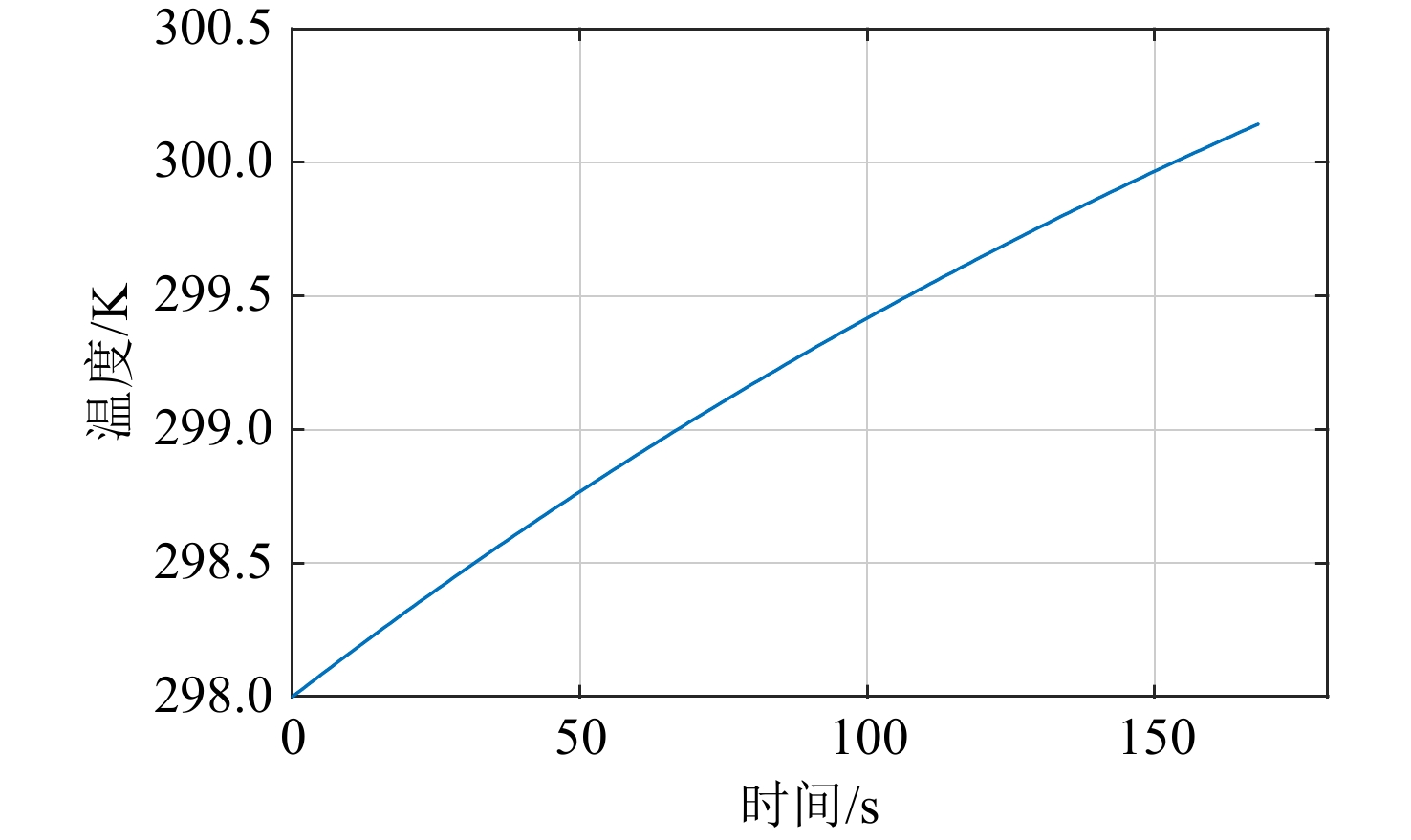

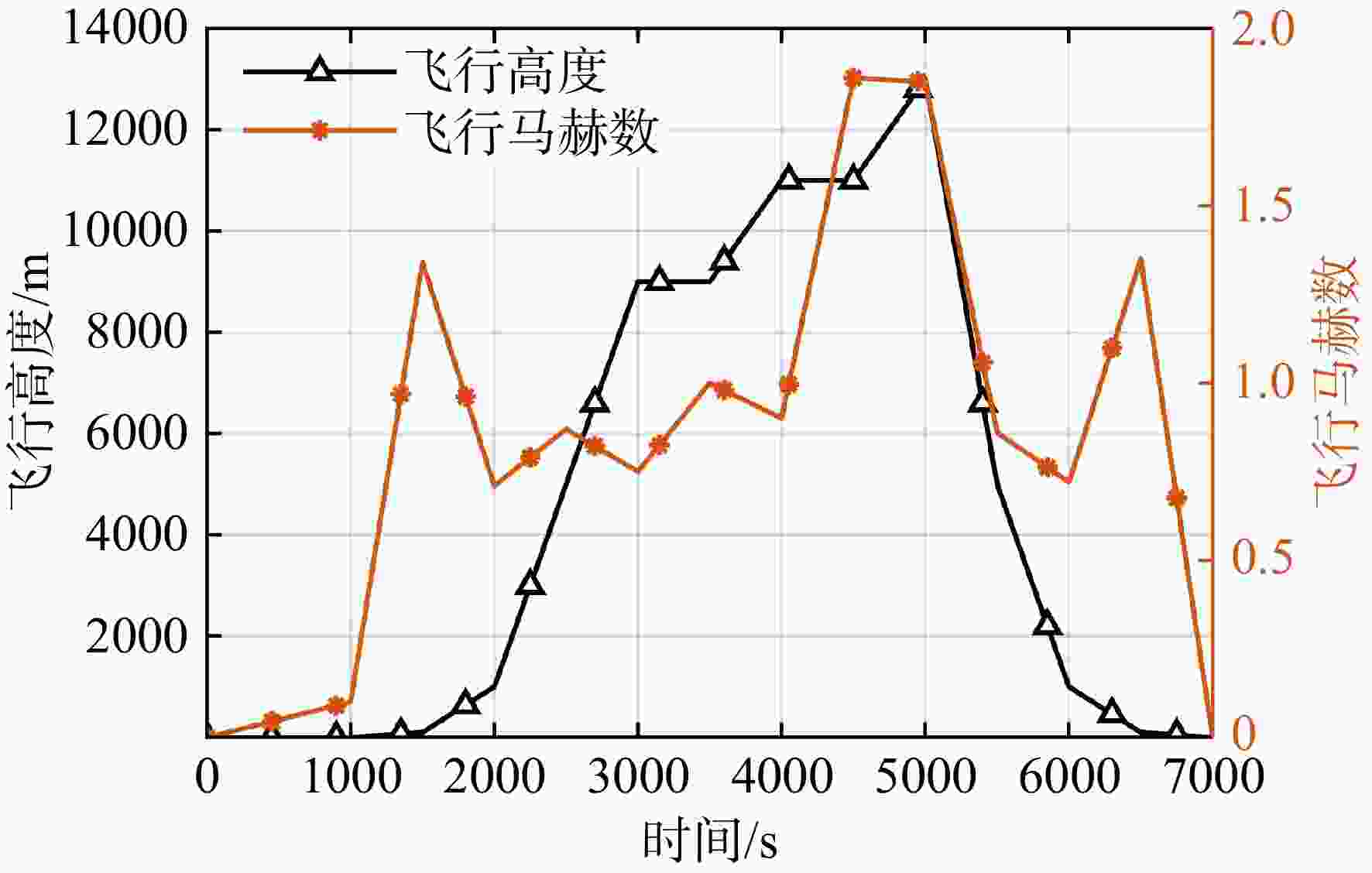

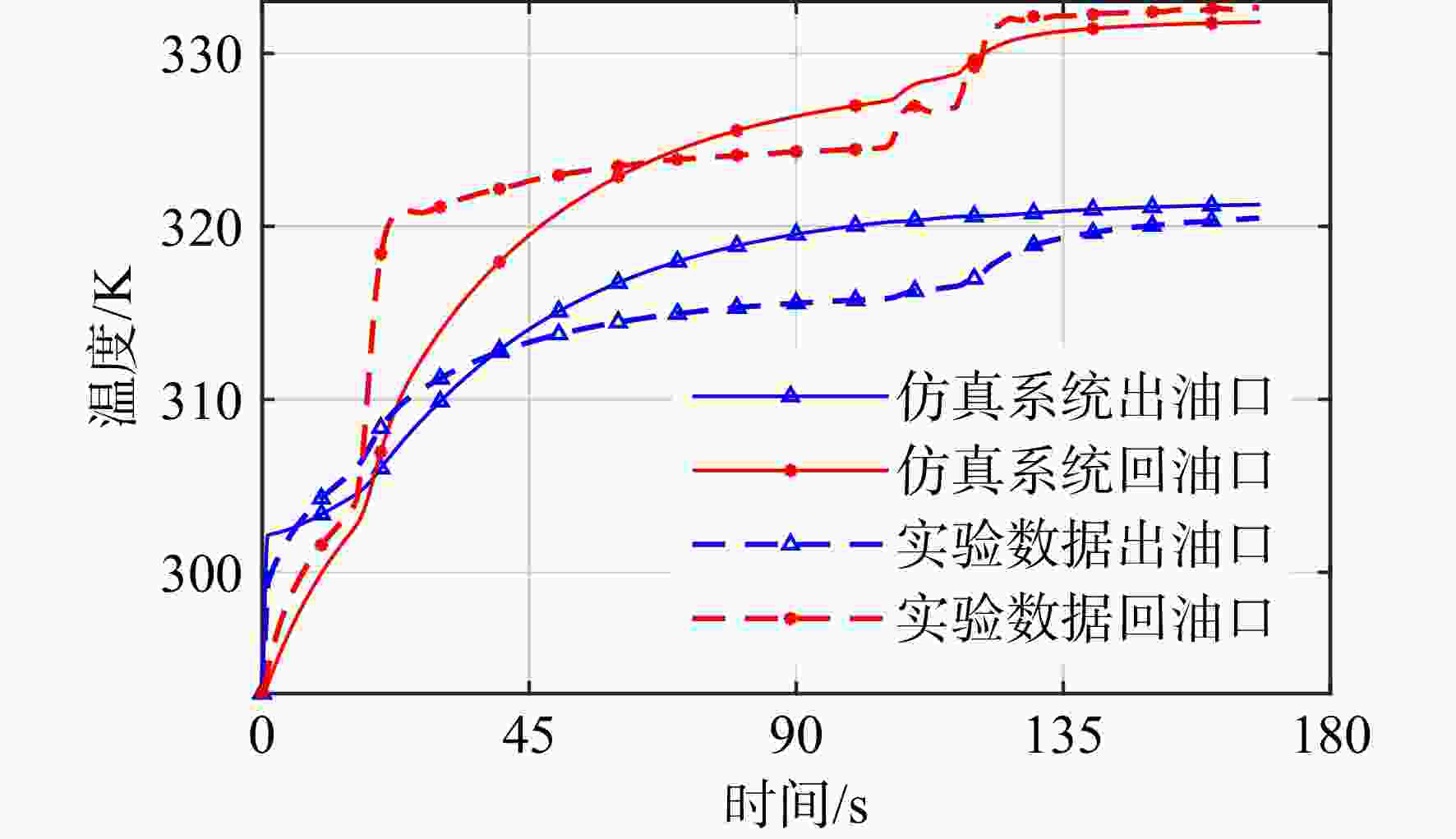

Abstract:To address the issues of fully utilizing for heat dissipation of the fighter, a thermal dynamic analysis of the aircraft thermal management system was carried out in the whole mission profile through theoretical analysis and modeling, and the temperature control strategy of the fuel system was studied. Firstly, the thermodynamic equation of the hydraulic system was proposed by using the control volume method based on power loss, and the primary factors of the heat generation of the hydraulic pump and hydraulic system were analyzed. Secondly, the simulation platform of thermal management system was established to analyze the temperature variation characteristics of thermal management system, as well as the thermal endurance of aircraft under a given flight profile. Finally, the heat sink scheduling and temperature control strategies were proposed to improve the thermal endurance of aircraft by 23.4% and 29.2%, respectively. The main results can provide an important basis for the design of the thermal management system and the temperature control of the fuel system.
-
图 10 燃油回路温度变化曲线（热沉调度）
Figure 10. Fuel loop temperature change curve （thermal sink scheduling）

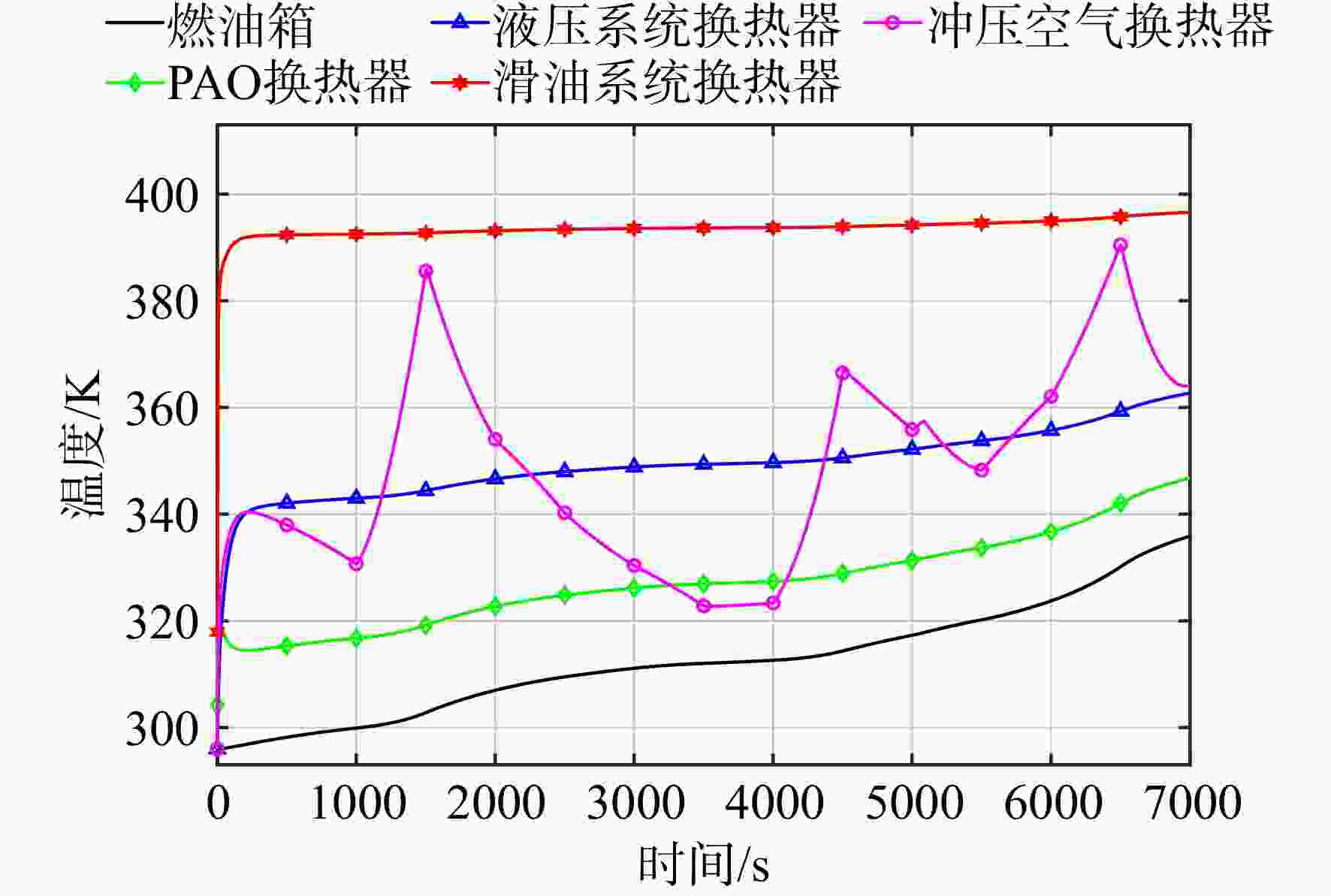

图 11 燃油回路温度变化曲线（温度控制）
Figure 11. Fuel loop temperature change curve（temperature control）

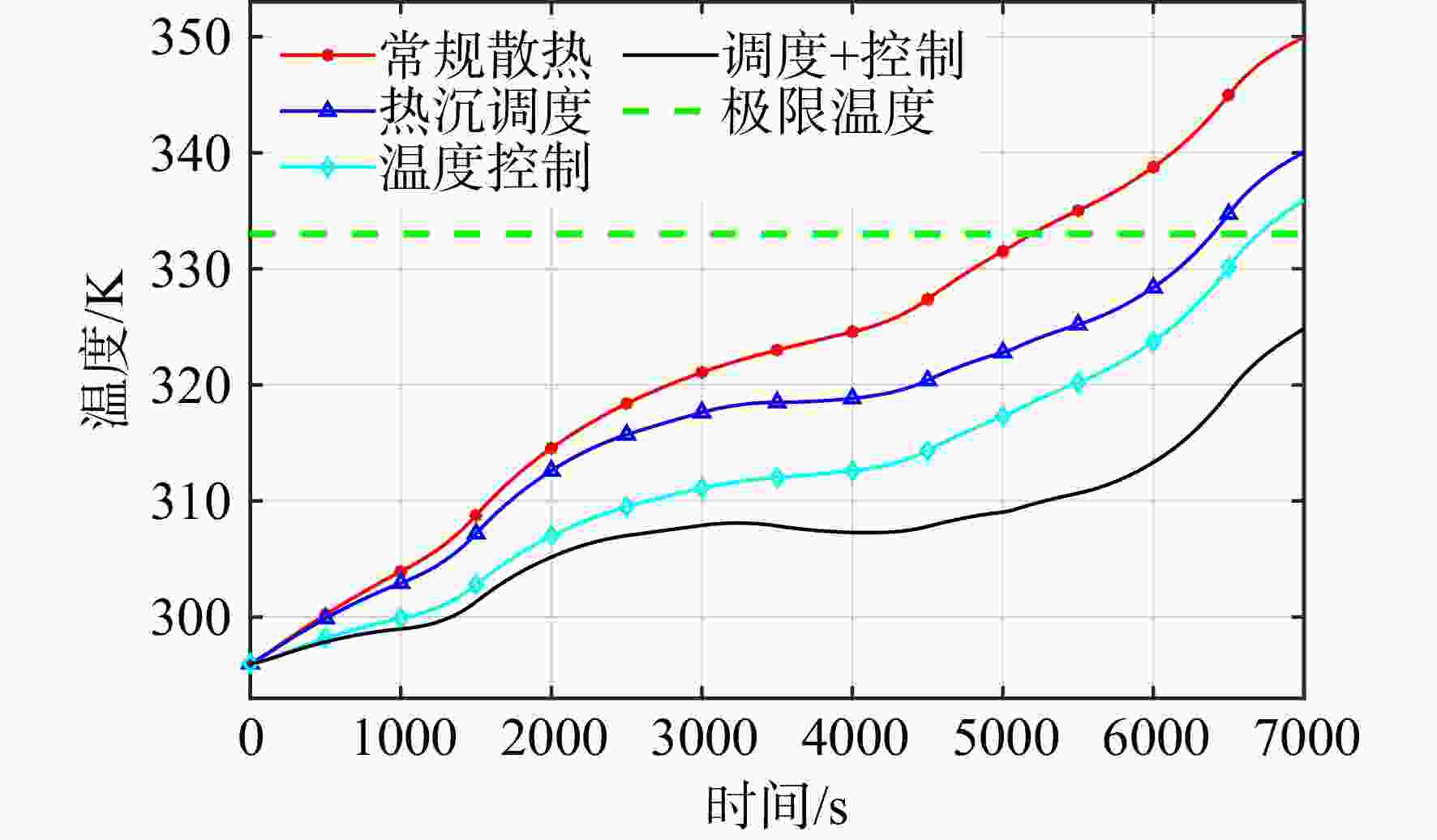

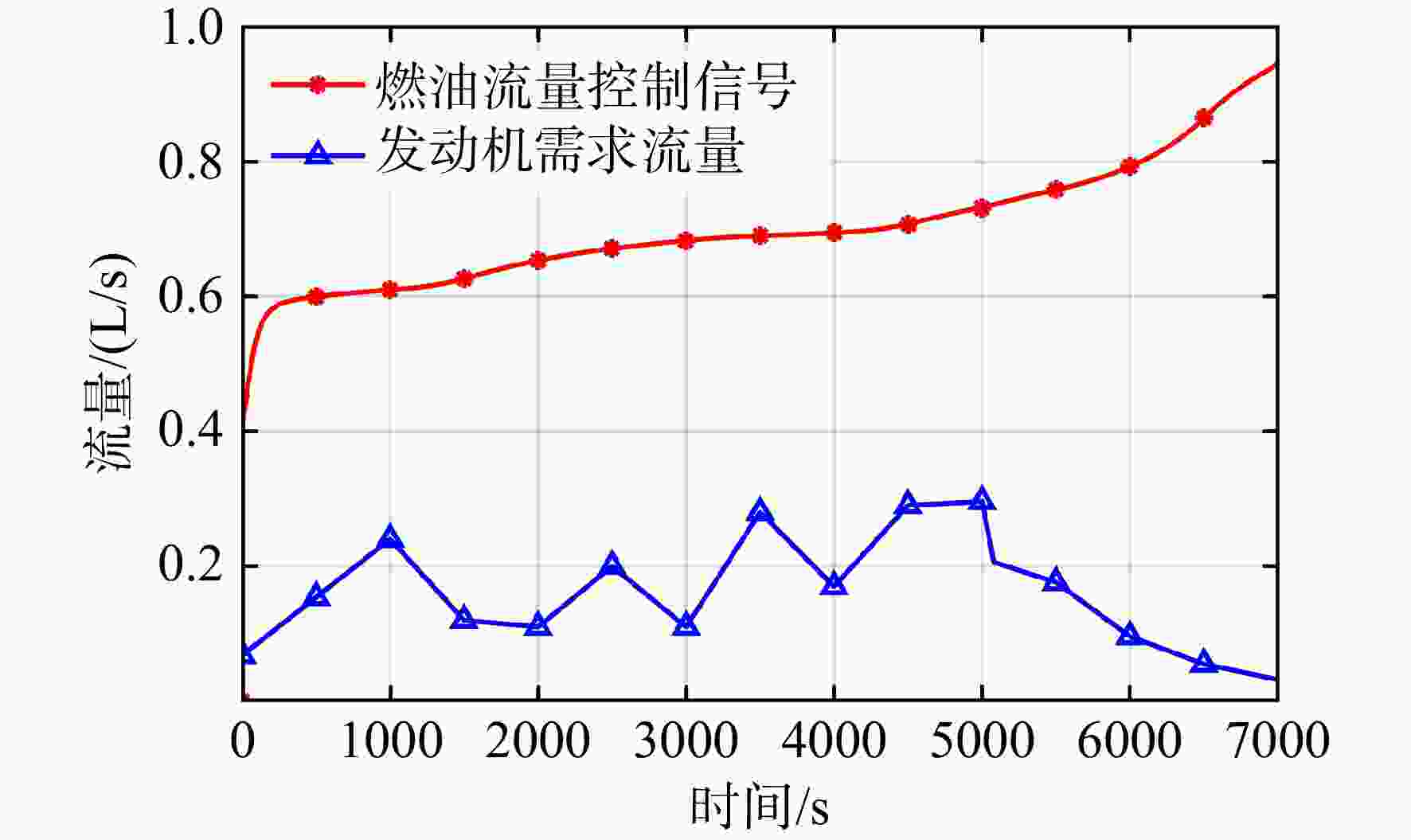

图 13 不同方案散热能力对比
Figure 13. Comparison of heat dissipation capacity of different schemes
表 1 不同温度控制策略结果对比
Table 1. Comparison of results of different temperature control strategies
K 控制 油箱 PAO 液压 滑油 常规散热 349.9 360.1 374.0 405.9 热沉调度 340.1 350.2 364.7 397.1 温度控制 335.9 346.8 362.7 396.6 调度+控制 324.8 337.6 356.3 395.1
下载: 导出CSV
-
[1] 王瑞卿,李栋,李运华,等. 飞机燃油系统全飞行剖面热边界模拟与温度预测[J]. 北京航空航天大学学报,2022,48(3): 369-375. WANG Ruiqing,LI Dong,LI Yunhua,et al. Thermal boundary simulation and temperature prediction for aircraft fuel system with full flight profile[J]. Journal of Beijing University of Aeronautics and Astronautics,2022,48(3): 369-375. (in ChineseWANG Ruiqing, LI Dong, LI Yunhua, et al. Thermal boundary simulation and temperature prediction for aircraft fuel system with full flight profile[J]. Journal of Beijing University of Aeronautics and Astronautics, 2022, 48(3): 369-375. (in Chinese) [2] PETLEY D H,JONES S C. Thermal management for a Mach 5 cruise aircraft using endothermic fuel[J]. Journal of Aircraft,1992,29(3): 384-389. doi: 10.2514/3.46173 [3] QIN Jiang,ZHANG Silong,BAO Wen,et al. Thermal management method of fuel in advanced aeroengines[J]. Energy,2013,49: 459-468. doi: 10.1016/j.energy.2012.10.050 [4] BERGHOLZ R,HITCH B. Thermal management systems for high Mach airbreathing propulsion: AIAA 1992-515[R]. Reno,US,30th Aerospace Sciences Meeting and Exhibit,1992. [5] DOMAN D B. Fuel flow topology and control for extending aircraft thermal endurance[J]. Journal of Thermophysics and Heat Transfer,2018,32(1): 35-50. doi: 10.2514/1.T5142 [6] HUANG G P,DOMAN D B,OPPENHEIMER M W,et al. Control of a switched mode fuel thermal management system[J]. Journal of Thermophysics and Heat Transfer,2022,36(1): 13-27. doi: 10.2514/1.T6044 [7] HUANG G P,DOMAN D B,ROTHENBERGER M J,et al. Dimensional analysis,modeling,and experimental validation of an aircraft fuel thermal management system[J]. Journal of Thermophysics and Heat Transfer,2019,33(4): 983-993. doi: 10.2514/1.T5660 [8] OPPENHEIMER M W,SIGTHORSSON D,DOMAN D B. Extending aircraft thermal endurance by fuel pump sizing: AIAA 2018-0856[R]. Kissimmee: 2018 AIAA Guidance,Navigation,and Control Conference,2018. [9] 高峰,袁修干. 高性能战斗机燃油热管理系统[J]. 北京航空航天大学学报,2009,35(11): 1353-1356. GAO Feng,YUAN Xiugan. Fuel thermal management system of high performance fighter aircraft[J]. Journal of Beijing University of Aeronautics and Astronautics,2009,35(11): 1353-1356. (in ChineseGAO Feng, YUAN Xiugan. Fuel thermal management system of high performance fighter aircraft[J]. Journal of Beijing University of Aeronautics and Astronautics, 2009, 35(11): 1353-1356. (in Chinese) [10] 郝毓雅,王婕. 飞机燃油热管理系统分析[J]. 现代机械,2015(3): 77-82. HAO Yuya,WANG Jie. The analysis of aircraft fuel thermal management system[J]. Modern Machinery,2015(3): 77-82. (in ChineseHAO Yuya, WANG Jie. The analysis of aircraft fuel thermal management system[J]. Modern Machinery, 2015(3): 77-82. (in Chinese) [11] LI Chenggong,JIAO Zongxia. Calculation method for thermal-hydraulic system simulation[J]. Journal of Heat Transfer,2008,130(8): 084503. doi: 10.1115/1.2928006 [12] 于喜奎,毛羽丰. 高超声速飞机热管理系统控制模型构建与仿真[J]. 航空动力学报,2018,33(3): 741-751. YU Xikui,MAO Yufeng. Research and simulation of hypersonic aircraft thermal management system and its control model[J]. Journal of Aerospace Power,2018,33(3): 741-751. (in ChineseYU Xikui, MAO Yufeng. Research and simulation of hypersonic aircraft thermal management system and its control model[J]. Journal of Aerospace Power, 2018, 33(3): 741-751. (in Chinese) [13] PEDDADA S R T,HERBER D R,PANGBORN H C,et al. Optimal flow control and single split architecture exploration for fluid-based thermal management[R]. Quebec City: 44th Design Automation Conference. American Society of Mechanical Engineers,2018. [14] HERBER D R,ALLISON J T,BUETTNER R,et al. Architecture generation and performance evaluation of aircraft thermal management systems through graph-based techniques: AIAA 2020-0159 [R]. Orlando: AIAA Scitech 2020 Forum,2020. [15] 周旭,姜春英,李胜宇,等. 机载综合热管理系统控制特性分析[J]. 航空动力学报,2022,37(3): 511-522. ZHOU Xu,JIANG Chunying,LI Shengyu,et al. Analysis of control characteristics of airborne integrated thermal management system[J]. Journal of Aerospace Power,2022,37(3): 511-522. (in ChineseZHOU Xu, JIANG Chunying, LI Shengyu, et al. Analysis of control characteristics of airborne integrated thermal management system[J]. Journal of Aerospace Power, 2022, 37(3): 511-522. (in Chinese) [16] LI Dong,DONG Sujun,WANG Jun,et al. Thermal dynamics and thermal management strategy for a civil aircraft hydraulic system[J]. Thermal Science,2020,24(4): 2311-2318. doi: 10.2298/TSCI2004311L [17] 于磊,梁兴壮,李国强. 飞机热管理系统动态仿真[J]. 飞机设计,2021,41(3): 9-13. YU Lei,LIANG Xingzhuang,LI Guoqiang. Dynamic simulation of aircraft thermal management system[J]. Aircraft Design,2021,41(3): 9-13. (in ChineseYU Lei, LIANG Xingzhuang, LI Guoqiang. Dynamic simulation of aircraft thermal management system[J]. Aircraft Design, 2021, 41(3): 9-13. (in Chinese) [18] 屠敏,袁耿民,薛飞,等. 综合热管理在先进战斗机系统研制中的应用[J]. 航空学报,2020,41(6): 523629. TU Min,YUAN Gengmin,XUE Fei,et al. Application of integrated thermal management in development of advanced fighter system[J]. Acta Aeronautica et Astronautica Sinica,2020,41(6): 523629. (in ChineseTU Min, YUAN Gengmin, XUE Fei, et al. Application of integrated thermal management in development of advanced fighter system[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41(6): 523629. (in Chinese) [19] 曹克强,李永林,任博,等. 现代飞机液压系统热特性建模仿真与热设计[M]. 北京: 国防工业出版社,2013. CAO Keqiang,LI Yonglin,REN Bo,et al. Modeling,simulation and thermal design of modern aircraft hydraulic system[M]. Beijing: National Defense Industry Press,2013. (in ChineseCAO Keqiang, LI Yonglin, REN Bo, et al. Modeling, simulation and thermal design of modern aircraft hydraulic system[M]. Beijing: National Defense Industry Press, 2013. (in Chinese) -
