Dynamic thermal protection characteristics of cooling circuit of aero-vector-nozzle actuator
-
摘要:

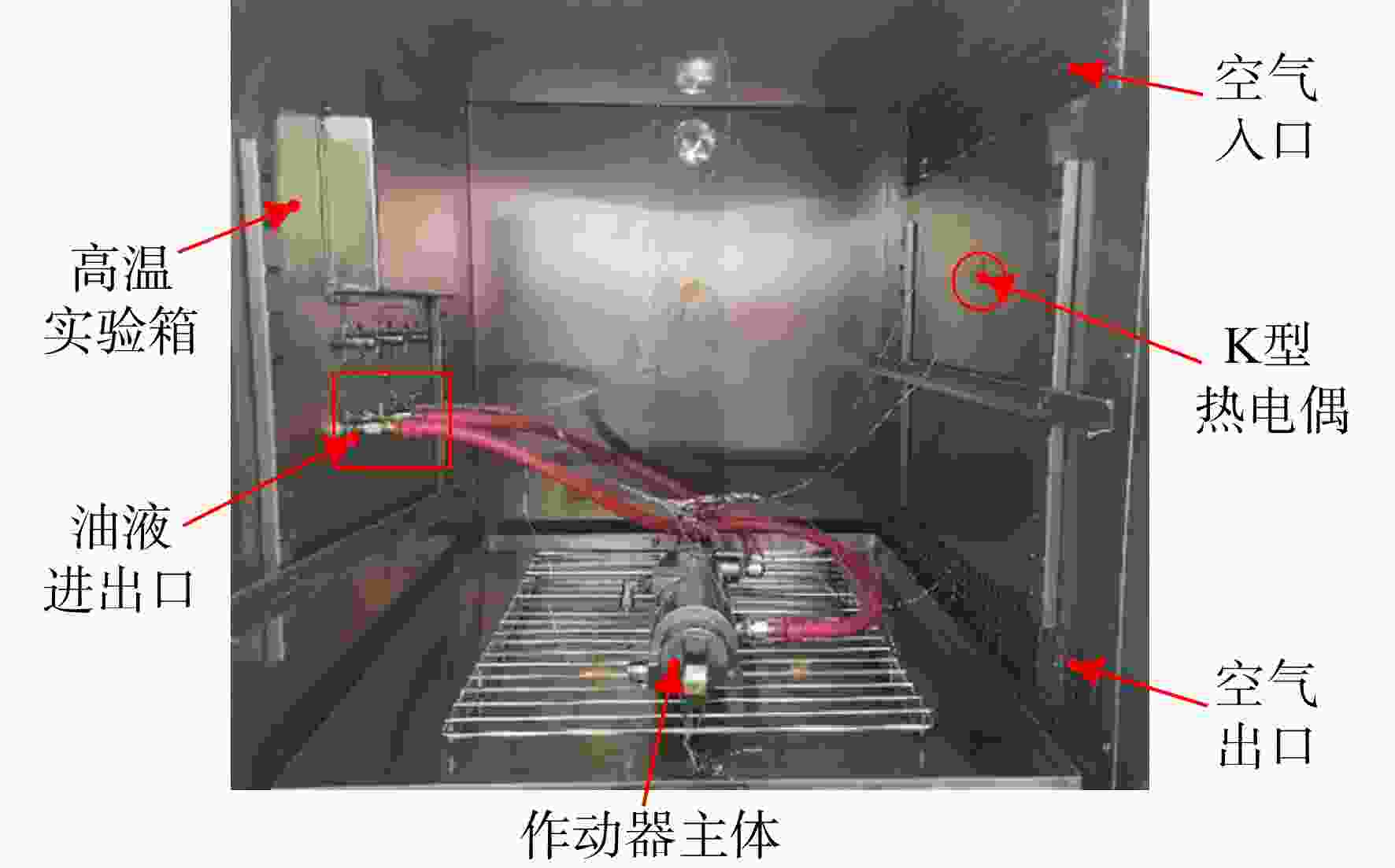

为了研究航空矢量喷管作动器冷却回路在动态工况下的热防护特性，利用Fluent动网格技术对作动器往复运动过程进行数值模拟，并搭建高温试验台对仿真模型正确性进行了验证。对比分析了活塞杆在全伸出静止工况和往复运动工况下作动器冷却回路热防护效果，获取了作动器动态工况下的流场、压力、流量、温度分布规律。结果表明：在活塞杆运动时进出口流量较静止时有较大提升，使得动态工况下冷却回路的热防护效果显著优于静止工况，动态工况下定子和密封套密封温度相较于静止工况分别降低了29.2、8.0 ℃，筒体温度降低了35 ℃，这表明开展动态计算可以更准确预测作动器真实工况下的热防护性能。本文研究为矢量喷管作动器结构改进提供了有力分析工具与设计参考。
Abstract:In order to study the thermal protection characteristics of the cooling circuit of the aero-vector nozzle actuator under dynamic conditions, the reciprocating motion process of the actuator was numerically simulated by using the Fluent dynamic grid technology, and a high temperature test bench was built to verify the correctness of the simulation model. The thermal protection effect of the actuator cooling circuit under the static and reciprocating conditions of the piston rod was compared and analyzed, and the distribution law of the flow field, pressure, flow rate and temperature of the actuator under dynamic condition was obtained. The results showed that the inlet and outlet flow rate increased greatly when the piston rod moved, so the thermal protection effect of the cooling circuit under dynamic condition was significantly better than that under static condition. The stator and sleeve sealing temperatures under dynamic condition were reduced by 29.2 ℃ and 8.0 ℃, respectively, and the cylinder temperature was reduced by 35 ℃ compared with the static condition. This indicated that dynamic calculation can predict the thermal protection performance of the actuator in real working condition more accurately. The research could provide a powerful analysis tool and design reference for improving the structure of vector nozzle actuator.
-

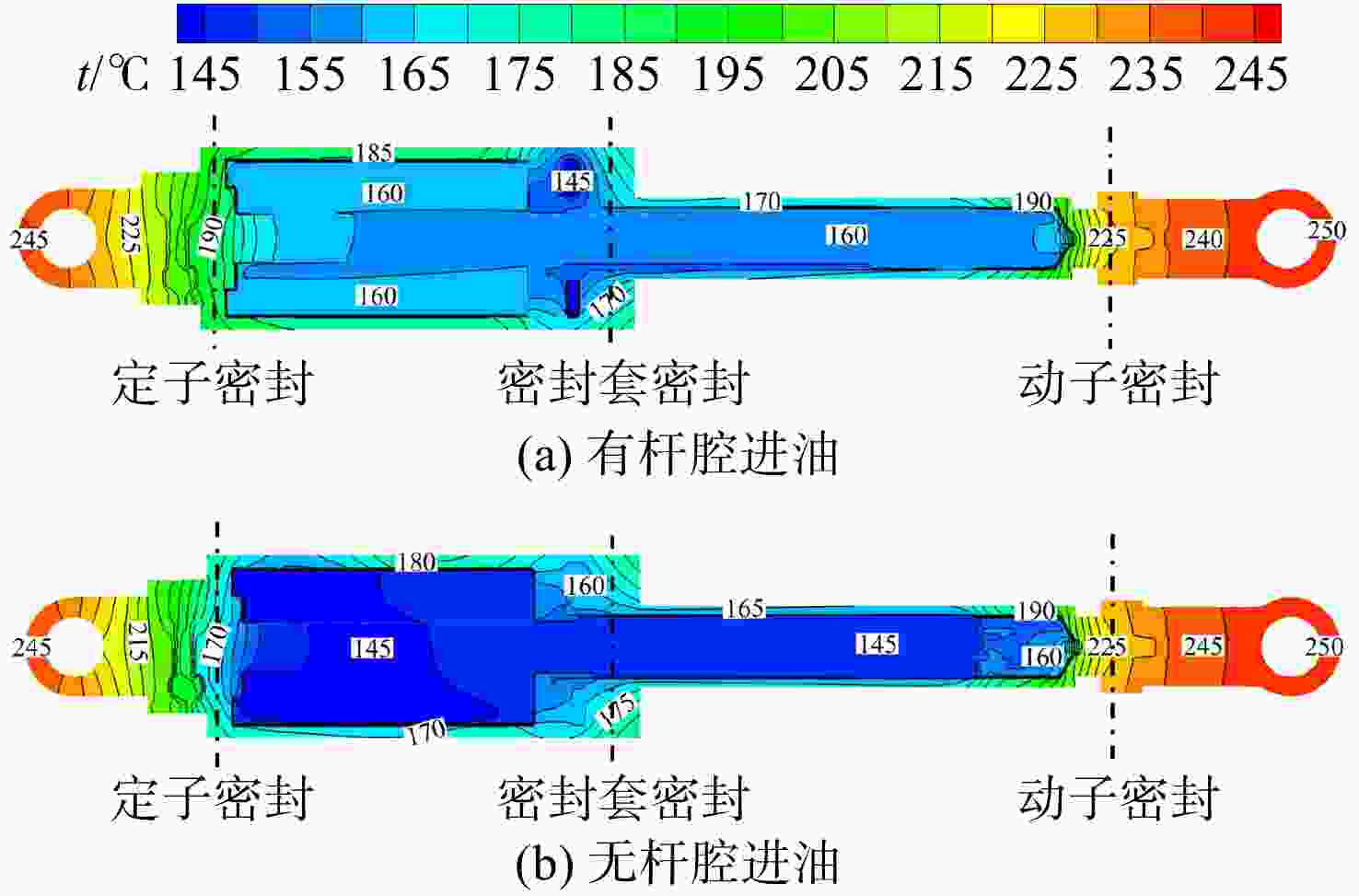

图 7 两种进油方式下温度云图（仿真时刻为1 000 s）
Figure 7. Temperature cloud map under two feeding modes （current simulation time is 1 000 seconds）

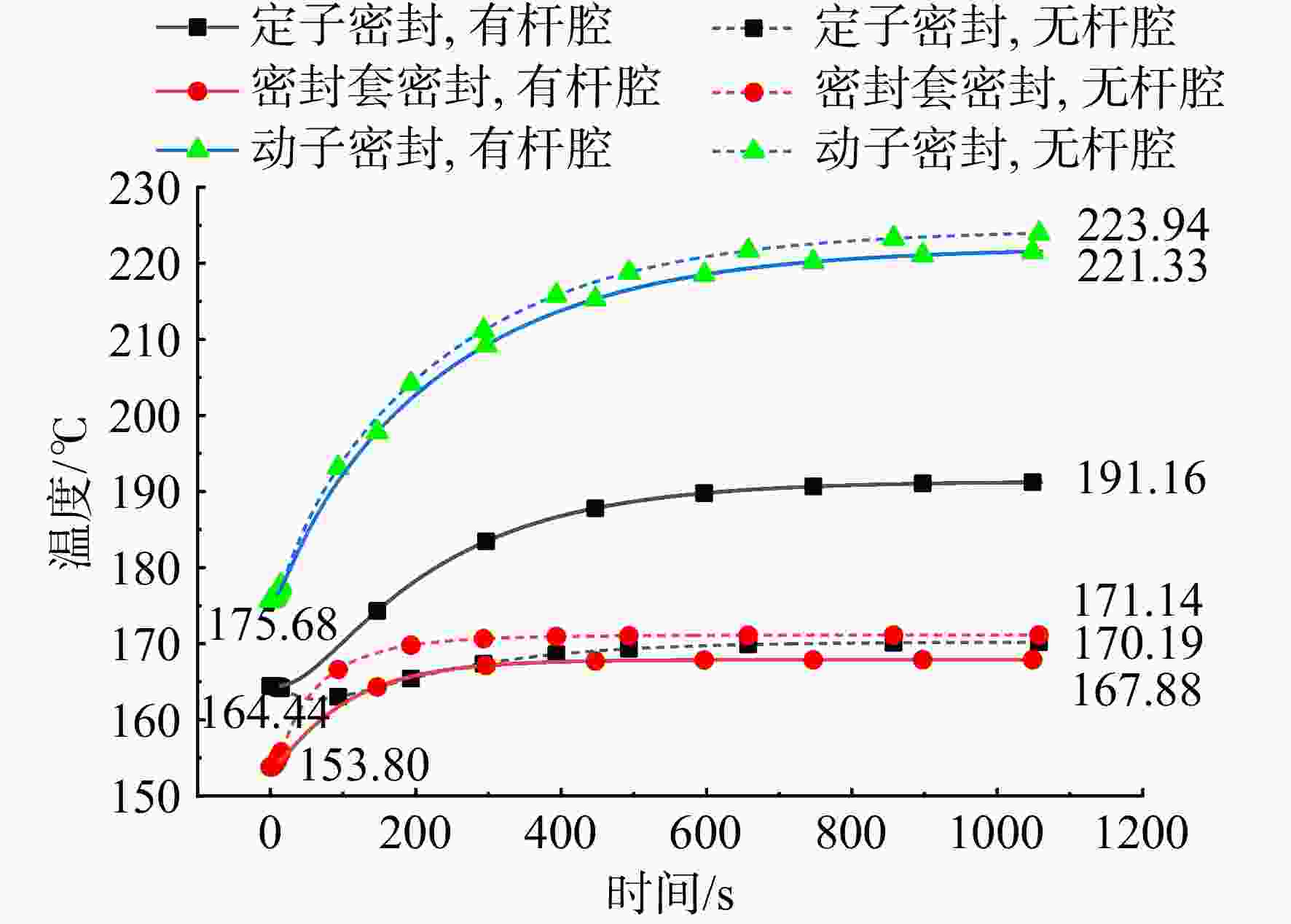

图 8 静止工况3处密封位置温升曲线
Figure 8. Temperature rise curves of three sealing positions in static condition

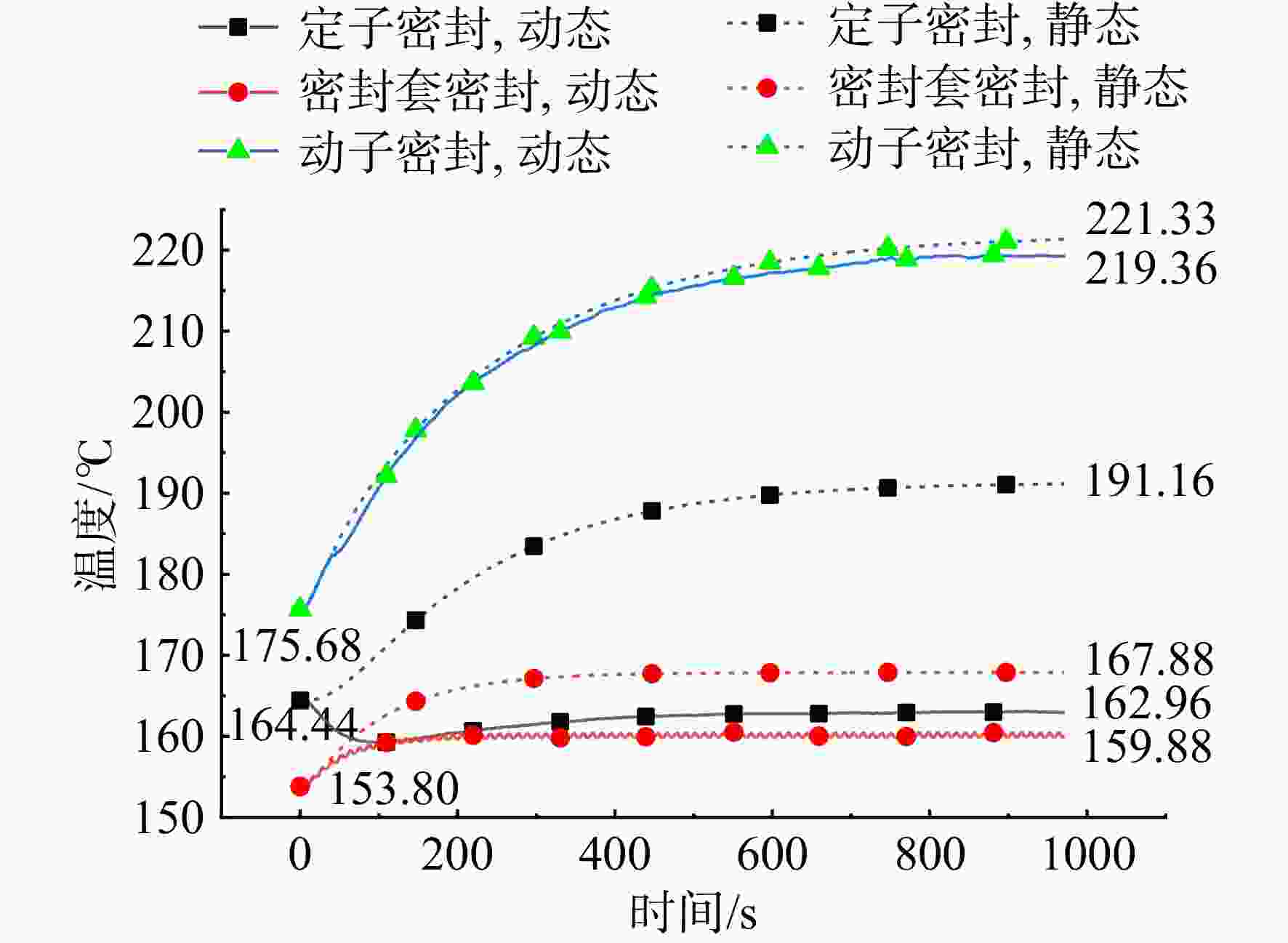

图 10 3处密封位置动态温升曲线
Figure 10. Dynamic temperature rise curves of three sealing positions

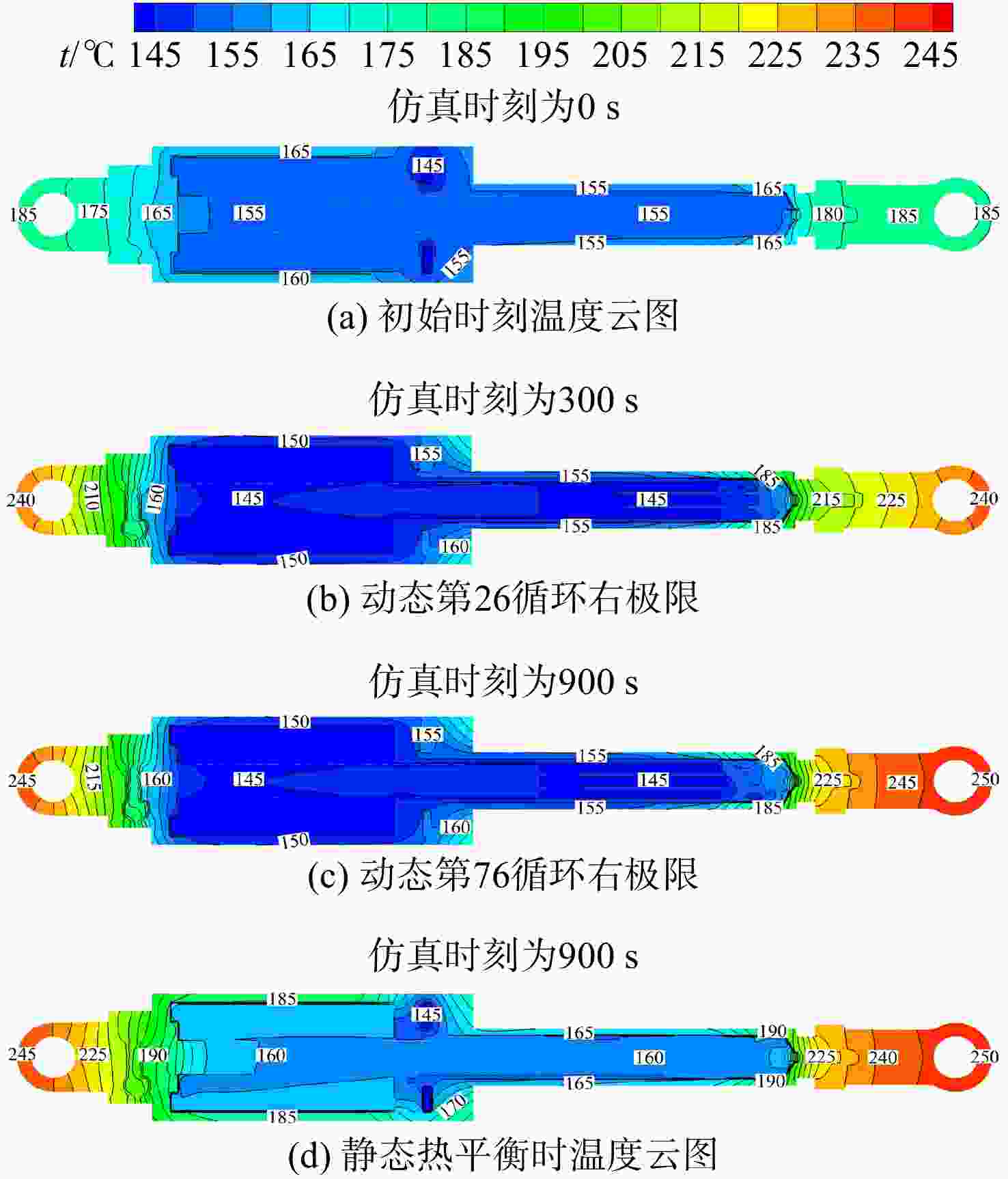

图 11 动静态工况温升过程温度云图
Figure 11. Temperature cloud map of temperature rise under dynamic and static conditions
表 1 作动器工作行程规律
Table 1. Actuator working stroke rule
参数 收杆 左极限停留 伸杆 右极限停留 行程/m 0.147 0 0.147 0 时间/s 0.85 5.0 1.0 5.0 平均速度/（m/s） −0.173 0 0.147 0
下载: 导出CSV
表 2 材料物性
Table 2. Material property
计算域 材料 导热系数
$\lambda $/（W/（m·℃））密度
$\rho $/（kg/m3）比热容
C/（J/（kg·℃））动力黏度
$\mu $/（kg/（m·s））筒体、活塞 钛合金TC6 8.88 4500 464 密封套、定子 钛合金TC4 7.40 4440 624 冷却套筒 2A12-T4 121.10 2800 902 传感器动子 316L 8.40 7980 502 燃油介质 RP-3 0.11 731.71 2693 0.000641 高温箱空气 0.035 0.83 1017 0.0000239
下载: 导出CSV
-
[1] 陈杰. 航空发动机轴对称矢量喷管控制技术研究[D]. 南京: 南京航空航天大学, 2012. CHEN Jie. Research on control technology of axisymmetric vector nozzle for aero-engine[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2012. (in ChineseCHEN Jie. Research on control technology of axisymmetric vector nozzle for aero-engine[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2012. (in Chinese) [2] NAUPARAC D, PRSIC D, MILOS M. Nonlinearities in control description and design of an electro hydraulic actuator for flexible nozzle thrust vector control[J]. Actuators, 2018, 7(2): 15. doi: 10.3390/act7020015 [3] 是介, 周莉, 史经纬, 等. 三轴承矢量喷管红外辐射特性[J]. 航空动力学报, 2022, 37(6): 1195-1205. SHI Jie, ZHOU Li, SHI Jingwei, et al. Infrared radiation signature of three bearing swivel nozzle[J]. Journal of Aerospace Power, 2022, 37(6): 1195-1205. (in ChineseSHI Jie, ZHOU Li, SHI Jingwei, et al. Infrared radiation signature of three bearing swivel nozzle[J]. Journal of Aerospace Power, 2022, 37(6): 1195-1205. (in Chinese) [4] 苏宁. 液压作动筒类零件的加工方案及技术分析[D]. 大连: 大连理工大学, 2015. SU Ning. Machining scheme and technical analysis of hydraulic cylinder parts[D]. Dalian: Dalian University of Technology, 2015. (in ChineseSU Ning. Machining scheme and technical analysis of hydraulic cylinder parts[D]. Dalian: Dalian University of Technology, 2015. (in Chinese) [5] 满春雷, 贾涛, 陆畅, 等. 基于Fluent的矢量喷管作动器温度场仿真[J]. 液压与气动, 2020, 44(7): 9-15. MAN Chunlei, JIA Tao, LU Chang, et al. Temperature field simulation of vector nozzle actuator under two operating conditions[J]. Chinese Hydraulics & Pneumatics, 2020, 44(7): 9-15. (in Chinese doi: 10.11832/j.issn.1000-4858.2020.07.002MAN Chunlei, JIA Tao, LU Chang, et al. Temperature field simulation of vector nozzle actuator under two operating conditions[J]. Chinese Hydraulics & Pneumatics, 2020, 44(7): 9-15. (in Chinese) doi: 10.11832/j.issn.1000-4858.2020.07.002 [6] 陈永琴, 汪天兴, 苏三买, 等. 反推力装置液压作动系统AMESim建模与仿真[J]. 航空动力学报, 2017, 32(11): 2791-2799. CHEN Yongqin, WANG Tianxing, SU Sanmai, et al. Modeling and simulation of thrust reverser hydraulic actuation system based on AMESim[J]. Journal of Aerospace Power, 2017, 32(11): 2791-2799. (in ChineseCHEN Yongqin, WANG Tianxing, SU Sanmai, et al. Modeling and simulation of thrust reverser hydraulic actuation system based on AMESim[J]. Journal of Aerospace Power, 2017, 32(11): 2791-2799. (in Chinese) [7] ZHOU Jun, ZHANG Jiao, ZHOU Feng. Research on multi-objective optimization design of thrust vector control actuator[J]. Advanced Materials Research, 2012, 591/592/593: 15-20. [8] FERLAUTO M, MARSILIO R. Numerical investigation of the dynamic characteristics of a dual-throat-nozzle for fluidic thrust-vectoring[J]. AIAA Journal, 2017, 55(1): 86-98. doi: 10.2514/1.J055044 [9] 刘友宏, 丁玉林, 罗一夫. 航空发动机矢量喷管作动器伺服阀非稳态热分析[J]. 南京航空航天大学学报, 2017, 49(3): 313-319. LIU Youhong, DING Yulin, LUO Yifu. Transient heat transfer analysis for servo valve of aero engine vectoring nozzle[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2017, 49(3): 313-319. (in ChineseLIU Youhong, DING Yulin, LUO Yifu. Transient heat transfer analysis for servo valve of aero engine vectoring nozzle[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2017, 49(3): 313-319. (in Chinese) [10] 刘友宏, 丁玉林, 常正则, 等. 发动机矢量喷管作动器电磁阀非稳态热分析[J]. 科学技术与工程, 2016, 16(16): 285-289. LIU Youhong, DING Yulin, CHANG Zhengze, et al. Transient heat transfer analysis for actuator solenoid-valve of aero engine vectoring nozzle[J]. Science Technology and Engineering, 2016, 16(16): 285-289. (in Chinese doi: 10.3969/j.issn.1671-1815.2016.16.049LIU Youhong, DING Yulin, CHANG Zhengze, et al. Transient heat transfer analysis for actuator solenoid-valve of aero engine vectoring nozzle[J]. Science Technology and Engineering, 2016, 16(16): 285-289. (in Chinese) doi: 10.3969/j.issn.1671-1815.2016.16.049 [11] 刘友宏, 丁玉林. 航空发动机矢量喷管作动筒非稳态热分析[C]//2015年第二届中国航空科学技术大会论文集. 北京, 中国航空学会, 2015: 329-332. LIU Youhong, DING Yulin. Transient heat transfer analysis foractuator of aero engine vectoring nozzle [C]// Proceedings of The 2nd China Aeronautical Science and Technology Conference (CASTC2015). Beijing: Chinese Society of Aeronautics and Astronautics, 2015: 329-332. (in ChineseLIU Youhong, DING Yulin. Transient heat transfer analysis foractuator of aero engine vectoring nozzle [C]// Proceedings of The 2nd China Aeronautical Science and Technology Conference (CASTC2015). Beijing: Chinese Society of Aeronautics and Astronautics, 2015: 329-332. (in Chinese) [12] 丁玉林, 刘友宏, 牛俊杰. 航空发动机矢量喷管作动器电磁阀通油不冷却工况热分析[J]. 科学技术与工程, 2018, 18(22): 302-307. DING Yulin, LIU Youhong, NIU Junjie. Heat analysis of solenoid valve of aeroengine thrust vector control actuator while cooling system is out of work[J]. Science Technology and Engineering, 2018, 18(22): 302-307. (in ChineseDING Yulin, LIU Youhong, NIU Junjie. Heat analysis of solenoid valve of aeroengine thrust vector control actuator while cooling system is out of work[J]. Science Technology and Engineering, 2018, 18(22): 302-307. (in Chinese) [13] SNYDER L, ESCHER D, DEFRANCESCO R, et al. Turbine based combination cycle (TBCC) propulsion subsystem integration: AIAA 2004-3649 [R]. Reston, US: 40th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit, 2004. [14] KWAK Y K, KIM S H, AHN J H. Improvement of positioning accuracy of magnetostrictive actuator by means of built-in air cooling and temperature control[J]. International Journal of Precision Engineering and Manufacturing, 2011, 12(5): 829-834. doi: 10.1007/s12541-011-0110-z [15] CHANG Zhengze. Heat transfer experimental investigation for piston rod sensor in hydraulic servo actuator of hypersonic combustion ramjet engine vectoring nozzle: AIAA 2017-2128[R]. Reston, US: 21st AIAA International Space Planes and Hypersonics Technologies Conference, 2017. [16] 刘友宏, 明泽鹏, 吴振源, 等. 航空发动机矢量喷管位移传感器冷却研究[J]. 推进技术, 2022, 43(4): 200335. LIU Youhong, MING Zepeng, WU Zhenyuan, et al. Displacement sensor cooling of aero engine vectoring nozzle[J]. Journal of Propulsion Technology, 2022, 43(4): 200335. (in ChineseLIU Youhong, MING Zepeng, WU Zhenyuan, et al. Displacement sensor cooling of aero engine vectoring nozzle[J]. Journal of Propulsion Technology, 2022, 43(4): 200335. (in Chinese) [17] 訚耀保, 刘小雪, 李双路, 等. 具有回油冷却结构的航空伺服作动器热力学建模与分析[J]. 北京理工大学学报, 2023, 43(2): 143-150. YIN Yaobao, LIU Xiaoxue, LI Shuanglu, et al. Thermodynamic modeling and analysis of aviation servo actuator with return oil cooling structure[J]. Transactions of Beijing Institute of Technology, 2023, 43(2): 143-150. (in ChineseYIN Yaobao, LIU Xiaoxue, LI Shuanglu, et al. Thermodynamic modeling and analysis of aviation servo actuator with return oil cooling structure[J]. Transactions of Beijing Institute of Technology, 2023, 43(2): 143-150. (in Chinese) [18] 隋洪涛, 李鹏飞, 马世虎, 等. 精通CFD动网格工程仿真与案例实战[M]. 北京: 人民邮电出版社, 2013. SUI Hongtao, LI Pengfei, MA Shihu, et al. Proficient in CFD dynamic grid engineering simulation and case actual combat[M]. Beijing: Posts & Telecom Press, 2013. (in ChineseSUI Hongtao, LI Pengfei, MA Shihu, et al. Proficient in CFD dynamic grid engineering simulation and case actual combat[M]. Beijing: Posts & Telecom Press, 2013. (in Chinese) [19] 谷萌, 谢刚, 周志宇, 等. 旋转条件下动叶前缘气膜孔排布局影响分析[J]. 航空动力学报, 2023, 38(6): 1340-1349. GU Meng, XIE Gang, ZHOU Zhiyu, et al. Analysis on film cooling hole arrangement effect for rotating blade leading edge[J]. Journal of Aerospace Power, 2023, 38(6): 1340-1349. (in ChineseGU Meng, XIE Gang, ZHOU Zhiyu, et al. Analysis on film cooling hole arrangement effect for rotating blade leading edge[J]. Journal of Aerospace Power, 2023, 38(6): 1340-1349. (in Chinese) [20] JIAN Jie, SHUAI Zhijun, YU Tao, et al. Research on stability characteristics of a spring-loaded valve with two outlets[J]. Annals of Nuclear Energy, 2022, 175: 109250. doi: 10.1016/j.anucene.2022.109250 [21] GUO Jin, LIU Li, CHEN Peng, et al. Flow field numerical simulation of straight line conjugate internal meshing gear pump[J]. Applied Mechanics and Materials, 2013, 433/434/435: 40-43. -
