低温压缩机叶顶间隙传感器低温验证试验

张文; 叶德超; 周恩民; 李刚; 沈嘉琪

doi:10.13224/j.cnki.jasp.20230061

低温压缩机叶顶间隙传感器低温验证试验

doi: 10.13224/j.cnki.jasp.20230061

张文^1,,
叶德超²,
周恩民^{1, 3,*, ,},
李刚⁴,
沈嘉琪⁵

1.
中国空气动力研究与发展中心高速空气动力研究所，四川绵阳 621000
2.
天津大学精密测试技术及仪器国家重点实验室，天津 300072
3.
南京航空航天大学航空学院，南京 210016
4.
中国空气动力研究与发展中心设备设计与测试技术研究所，四川绵阳 621000
5.
上海电气鼓风机厂有限公司，上海 200040

详细信息

作者简介:
张文（1984-），男，工程师，硕士，主要从事动力系统及装置控制研究。E-mail：myzwabc@163.com

通讯作者:
周恩民（1980-）男，高级工程师，硕士，主要从事动力系统研发与应用。E-mail：zemcompreesor@163.com

中图分类号: V211.73；TH453
计量
- 文章访问数: 343
- HTML浏览量: 234
- PDF量: 20
- 被引次数: 0
出版历程
- 收稿日期: 2023-02-08
- 网络出版日期: 2025-05-22

Cryogenic verification test of tip clearance sensor in cryogenic compressor

ZHANG Wen^1
,,
YE Dechao²,
ZHOU Enmin^{1, 3,*
, ,},
LI Gang⁴,
SHEN Jiaqi⁵

1.
High Speed Aerodynamics Institute，China Aerodynamics Research and Development Center，Mianyang Sichuan 621000，China
2.
State Key Laboratory of Precision Measuring Technology and Instruments，Tianjin University，Tianjin 300072，China
3.
College of Aerospace Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China
4.
Facility Design and Instrumentation Institute，China Aerodynamics Research and Development Center，Mianyang Sichuan 621000，China
5.
Shanghai Electric Blower Works Company Limited，Shanghai 200040，China

摘要

摘要:
为验证低温轴流压缩机叶顶间隙传感器在−196 ℃环境下的工作性能，温度频繁交变、持续深低温下的使用寿命以及快速降温时的性能适应性，解决传感器深低温应用适应性问题，设计了低温循环和快速降温装置，开展了传感器低温循环、耐久性验证和分段快速降温等静态验证，并通过低温轴流压缩机平台开展了动态验证。结果表明：传感器有效电压值远大于0.2 V，信噪比显著优于26 dB；传感器材料、结构和制造工艺满足深低温环境下温度多次循环交变、持续深低温和快速降温工作需求；传感器性能稳定，激光光强无明显衰减。动态测量结果与设计结果及运行特性相符，精度和灵敏度满足工程应用所需，适用于低温轴流压缩机叶片运行监测。
- 低温轴流压缩机 /
- 叶片 /
- 叶顶间隙 /
- 传感器 /
- 低温循环 /
- 快速降温
Abstract:
The performance of tip clearance sensor at −196 ℃ was studied. Both static and dynamic tests of the sensor were conducted. A cryogenic cyclic device and a cryogenic rapid temperature drop device were developed to perform the static test of the sensor, including cryogenic cycle, sensor durability and piecewise rapid temperature drop tests. Dynamic test was carried out on a cryogenic compressor platform. The results showed that: effective voltage exported by the sensor was far more than 0.2 V, and the signal-to-noise ratio was better than 26 dB under cryogenic condition. Material, structure and manufacturing process of the sensor satisfied the requirements of multiple temperature cycle alternation, persistent hypothermia and rapid temperature drop in cryogenic situation. Performance of the sensor was stable, and intensity of the laser had no obvious attenuation. Dynamic measurement results of sensor consistent with the design and operation characters of blade, accuracy and sensitivity met the needs of engineering applications. The tip clearance sensor could be applicative in blade operation monitoring situation of cryogenic compressor.
- cryogenic axial compressor /
- blade /
- tip clearance /
- sensor /
- cryogenic cycle /
- rapid temperature drop

HTML

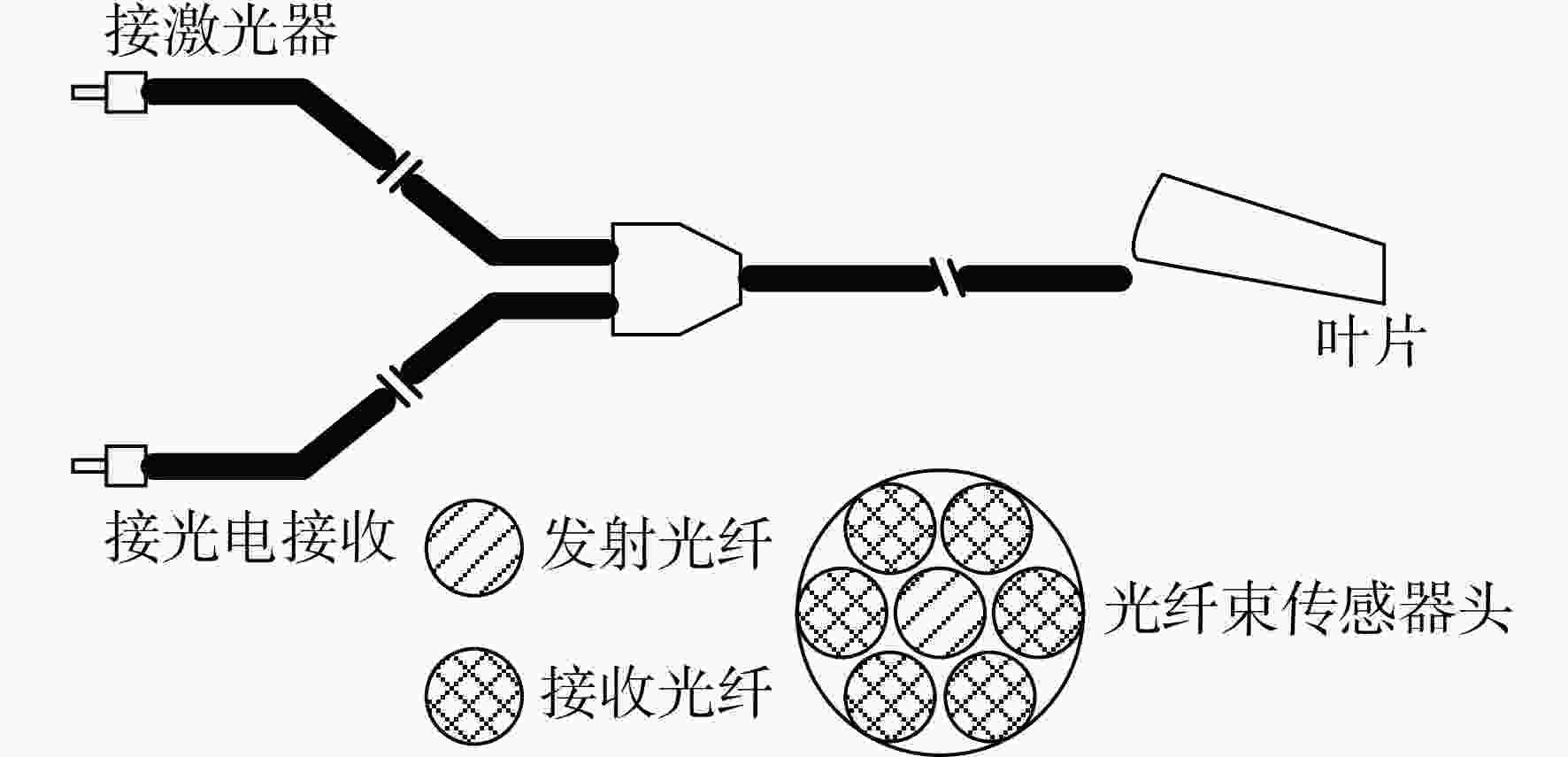

图 1 光纤传感器工作原理图

Figure 1. Schematic diagram of optical fiber sensor

下载: 全尺寸图片幻灯片

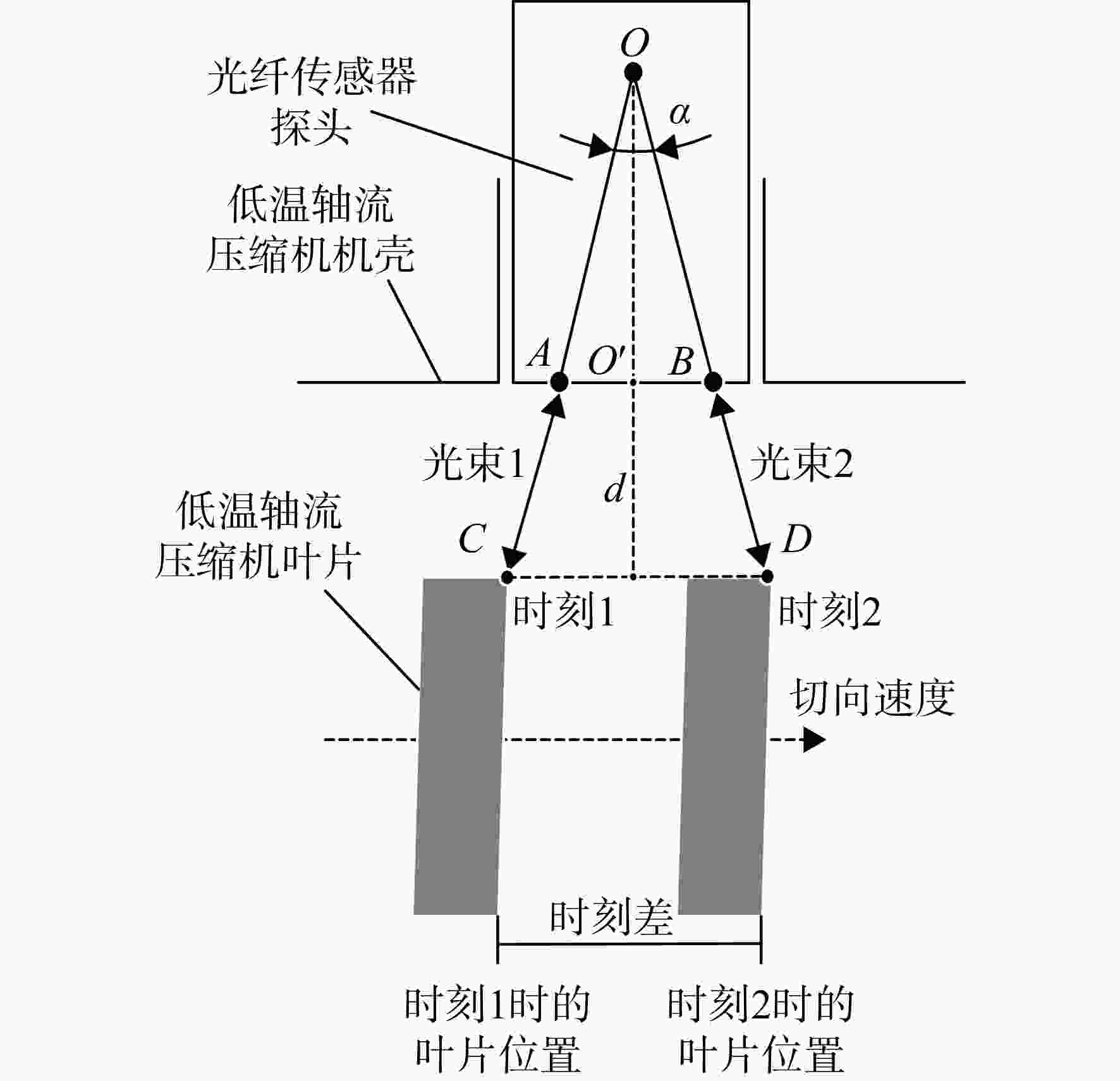

图 2 双光束定时测量原理

Figure 2. Schematic diagram of double beam tip timing measurement

下载: 全尺寸图片幻灯片

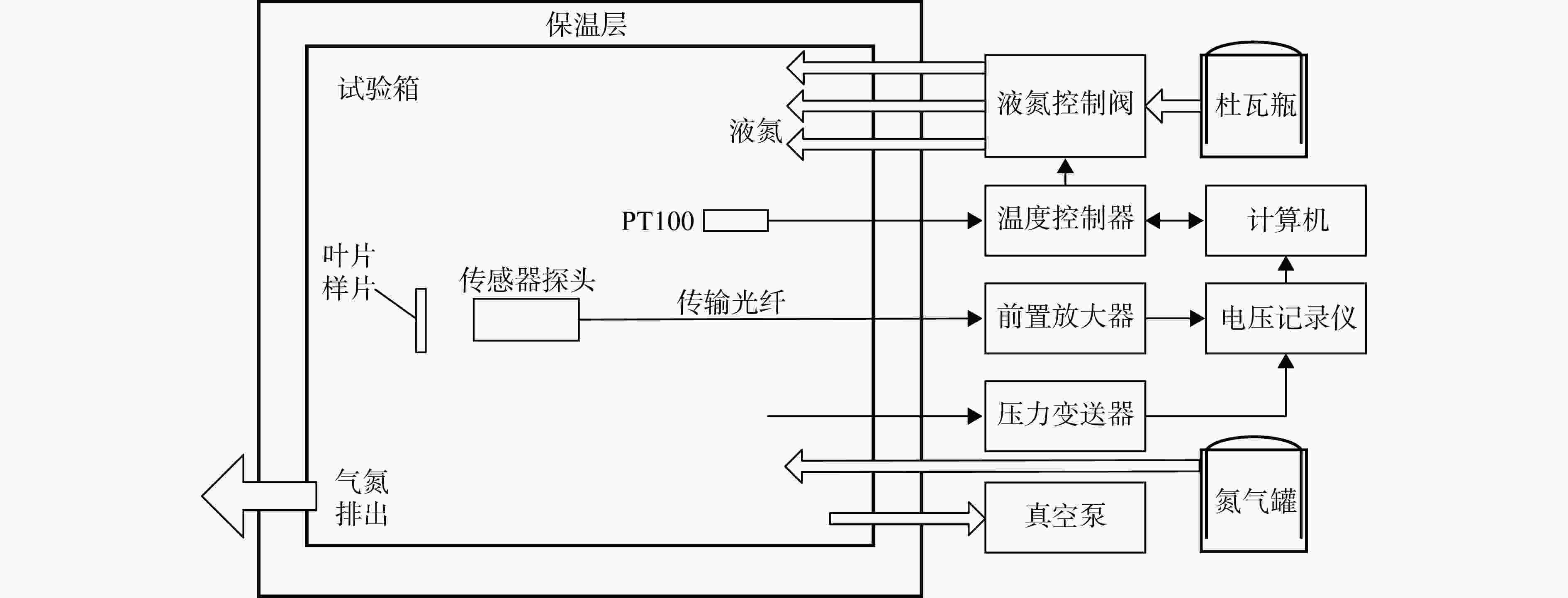

图 3 低温循环试验装置

Figure 3. Diagram of cryogenic cyclic test device

下载: 全尺寸图片幻灯片

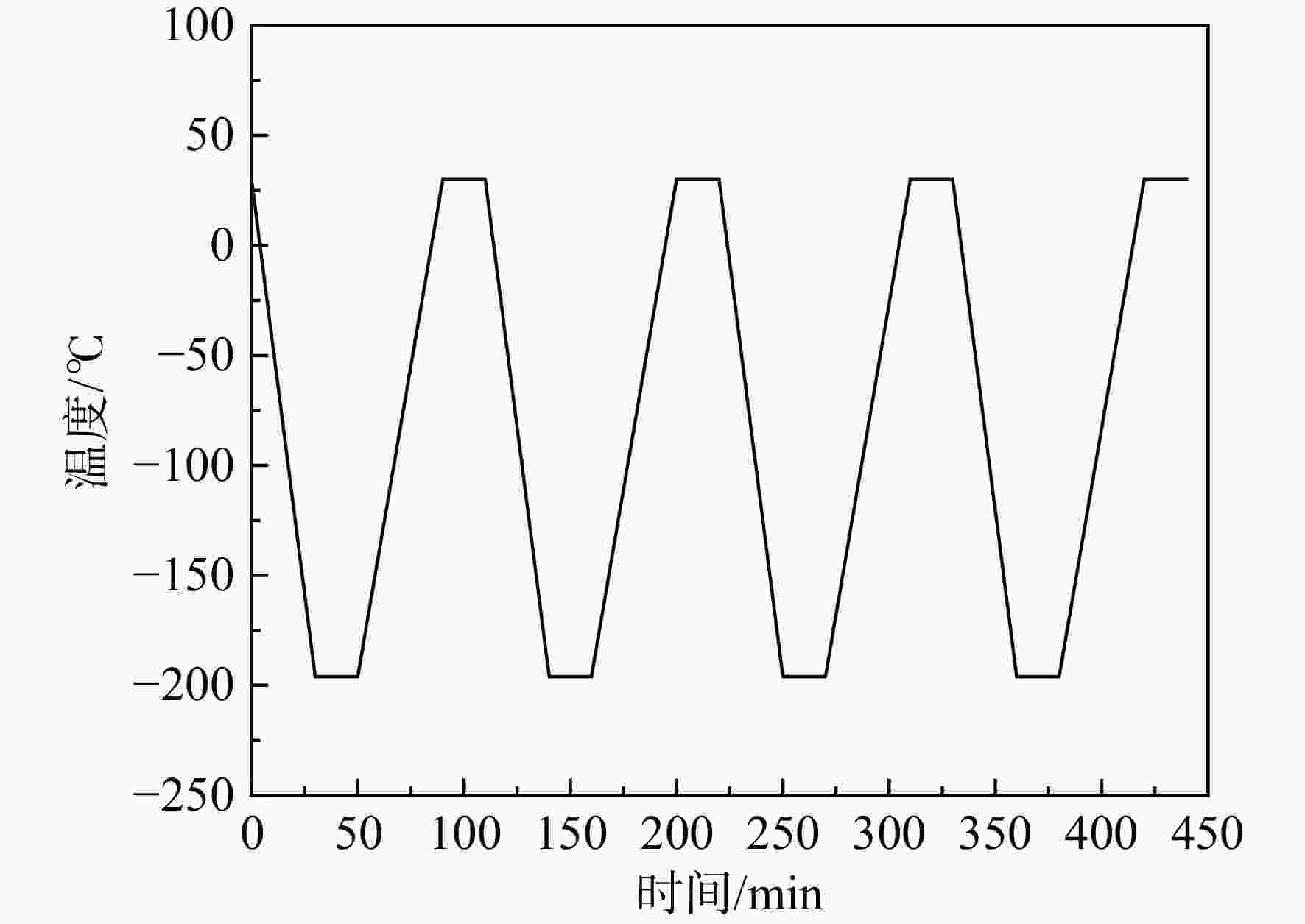

图 4 低温循环试验温度曲线

Figure 4. Temperature curve of cryogenic cyclic test

下载: 全尺寸图片幻灯片

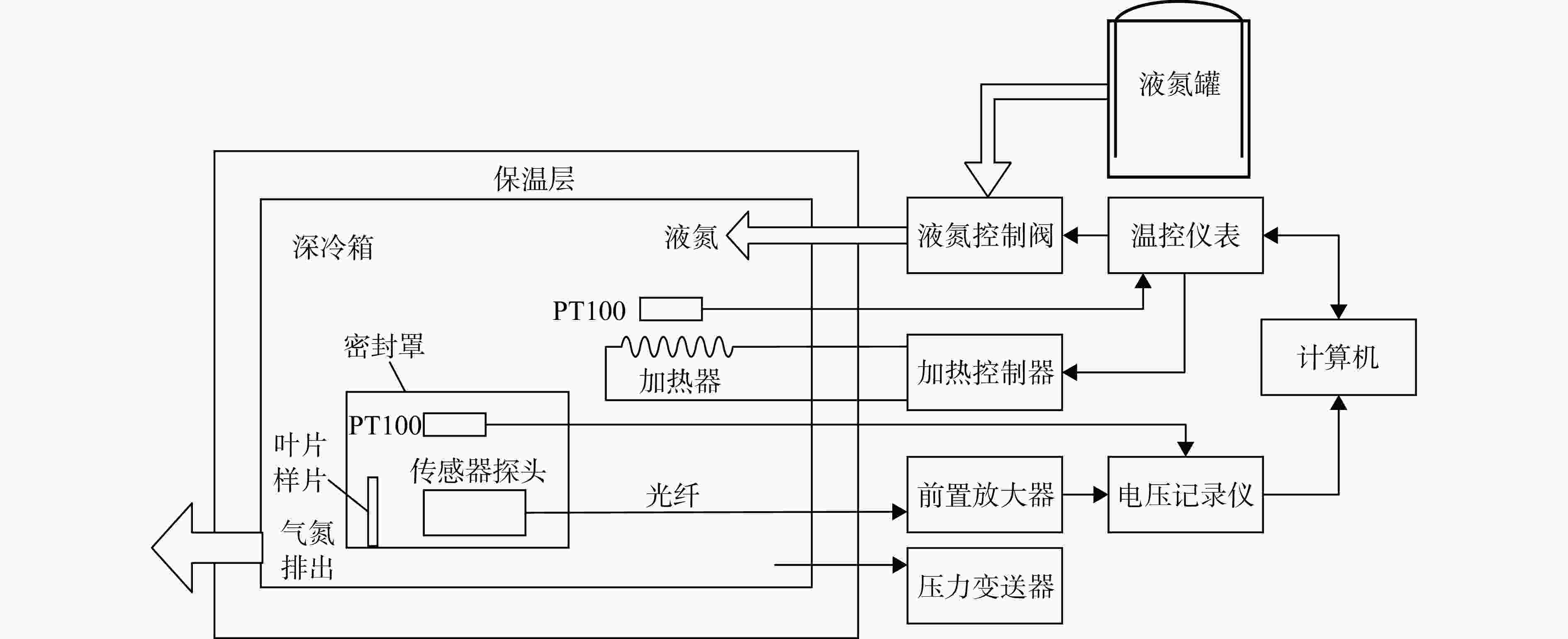

图 5 低温快速降温试验装置

Figure 5. Diagram of cryogenic rapid temperature drop test device

下载: 全尺寸图片幻灯片

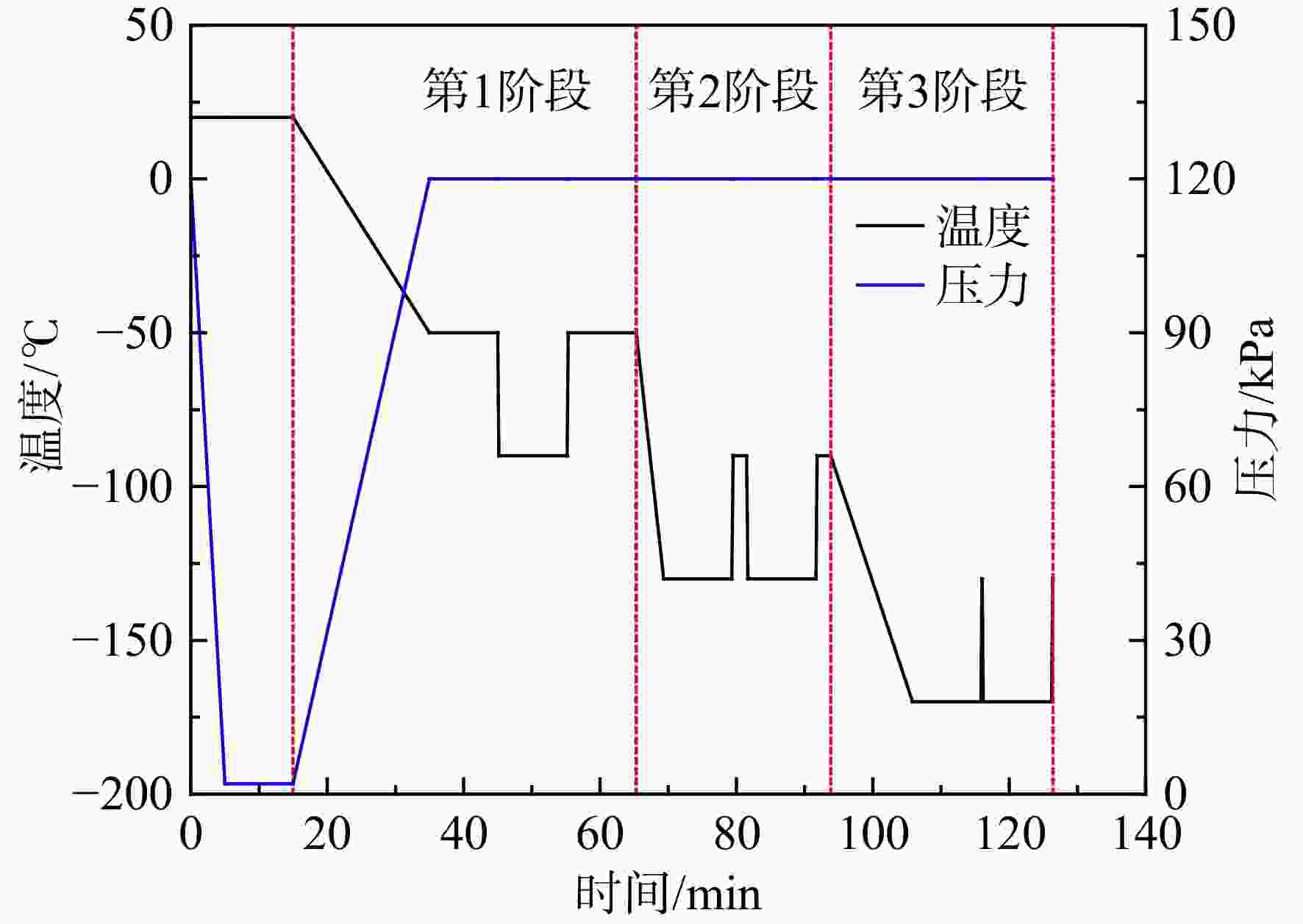

图 6 低温快速降温试验温度和压力曲线

Figure 6. Temperature and pressure curve of cryogenic rapid temperature drop test

下载: 全尺寸图片幻灯片

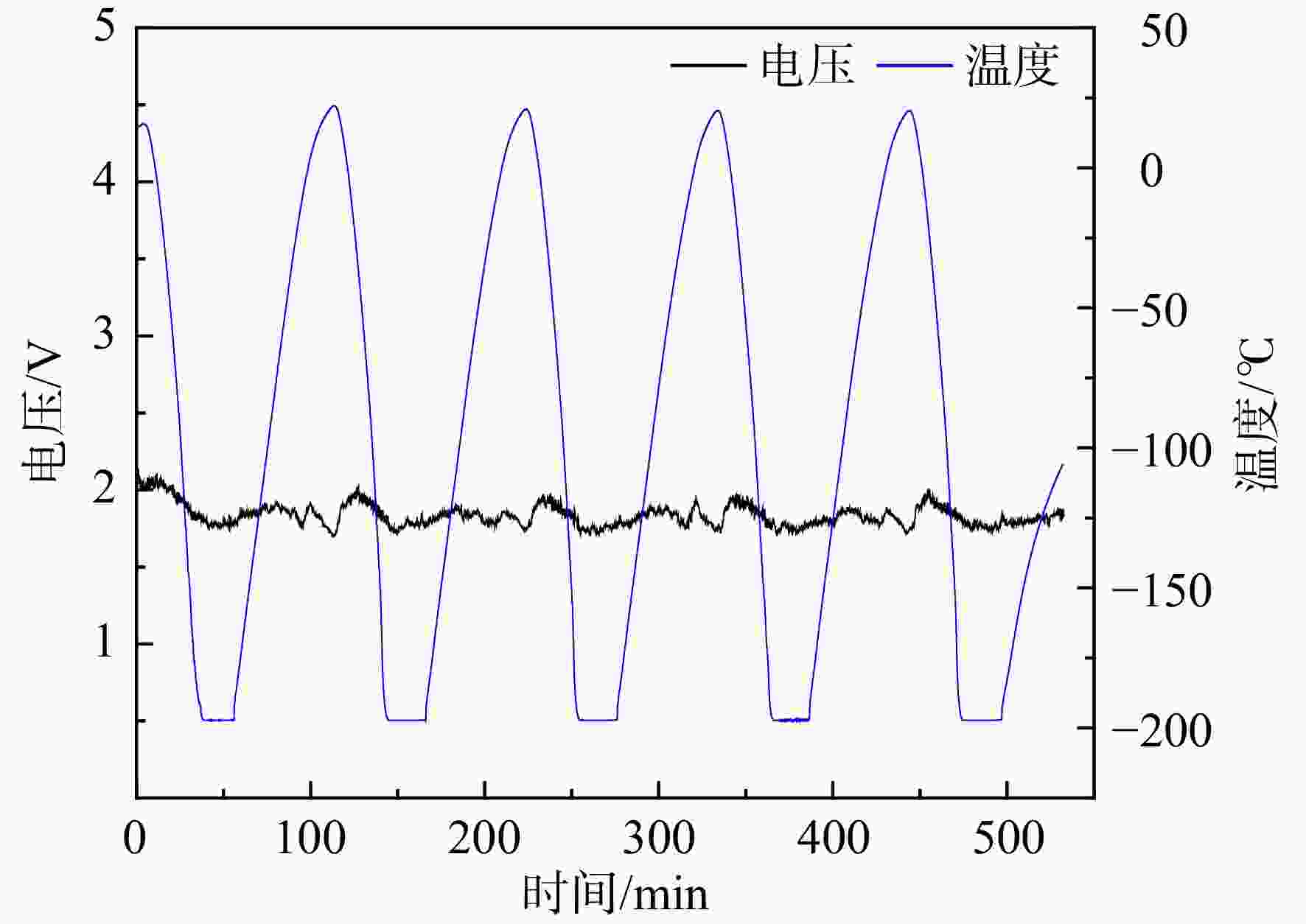

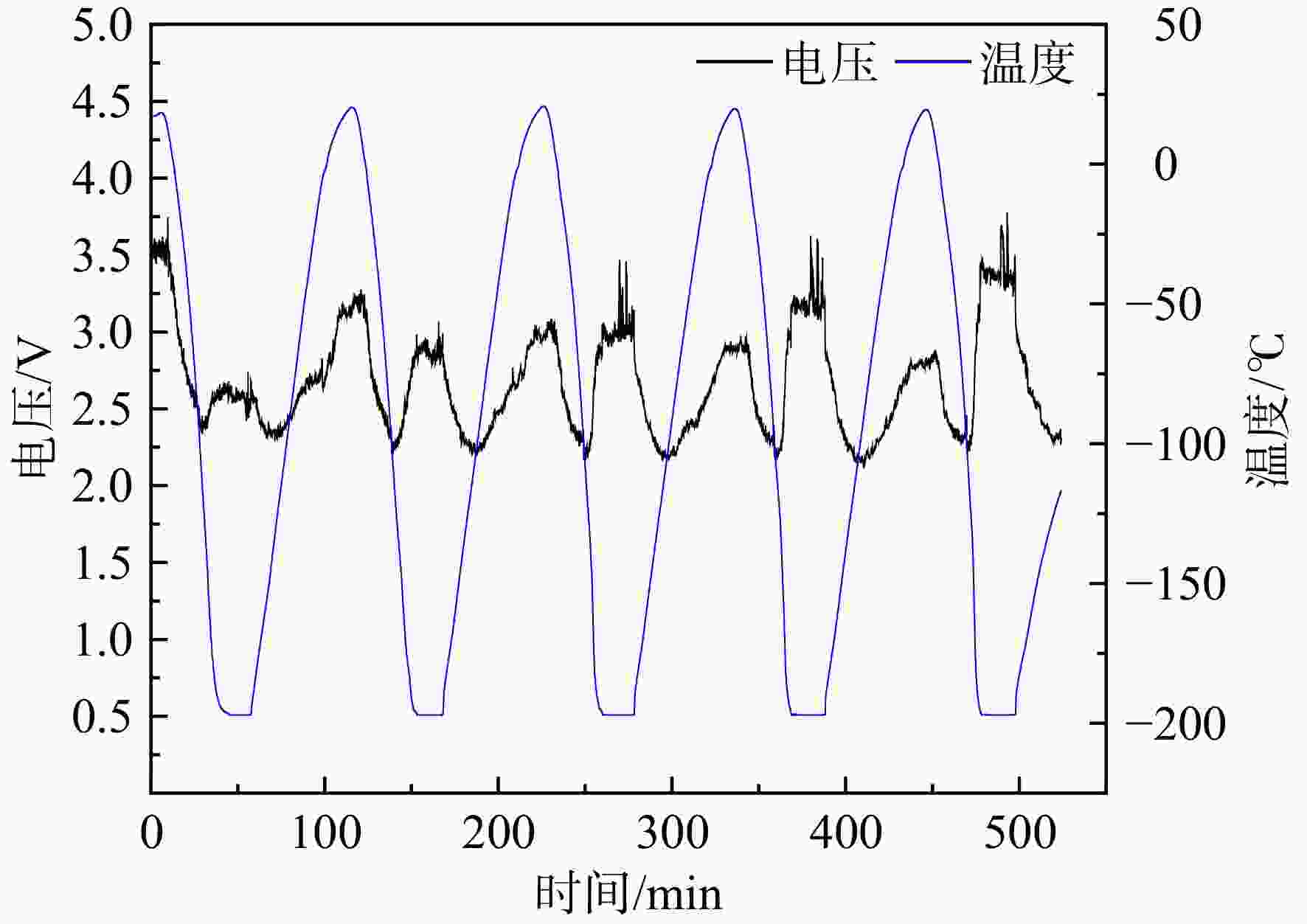

图 7 低温循环试验典型测试结果

Figure 7. Typical results of cryogenic cyclic test

下载: 全尺寸图片幻灯片

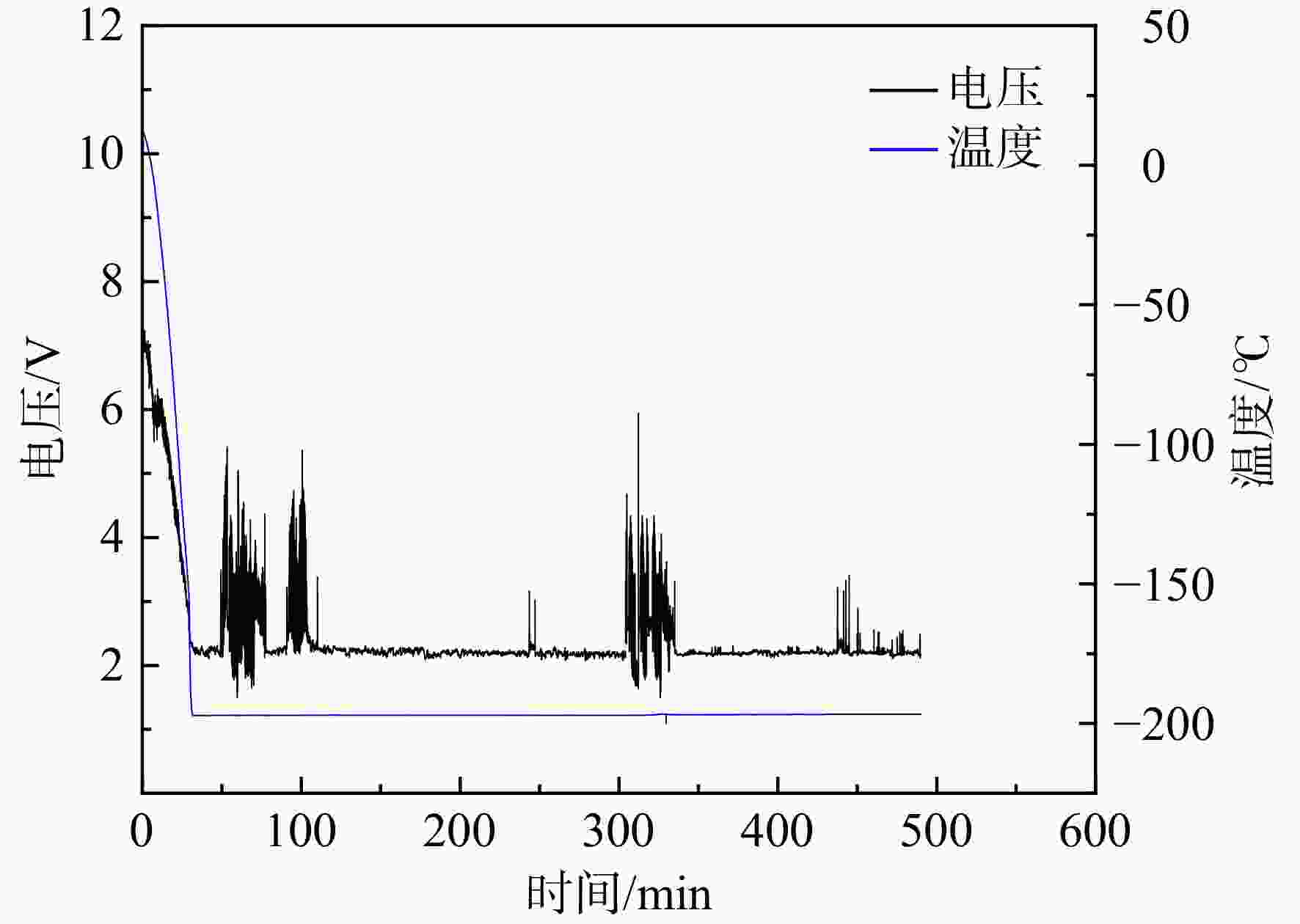

图 8 深低温耐久性验证典型结果

Figure 8. Typical results of cryogenic durable test

下载: 全尺寸图片幻灯片

图 9 低温循环试验典型测试结果（增益×10）

Figure 9. Typical results of cryogenic cyclic test （gain×10）

下载: 全尺寸图片幻灯片

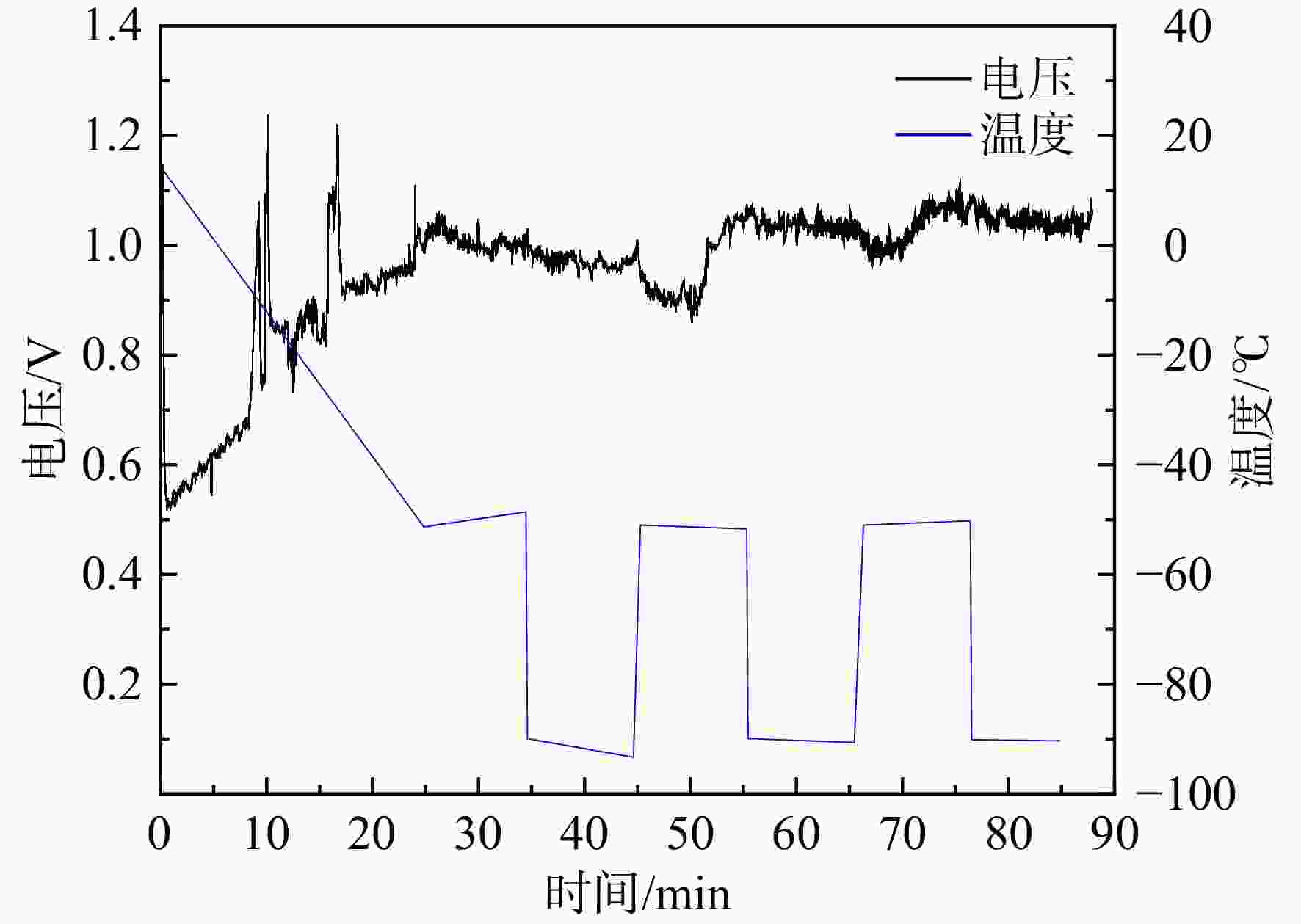

图 10 −50～−90 ℃快速降温试验结果

Figure 10. Results of −50— −90 ℃ rapid temperature drop test

下载: 全尺寸图片幻灯片

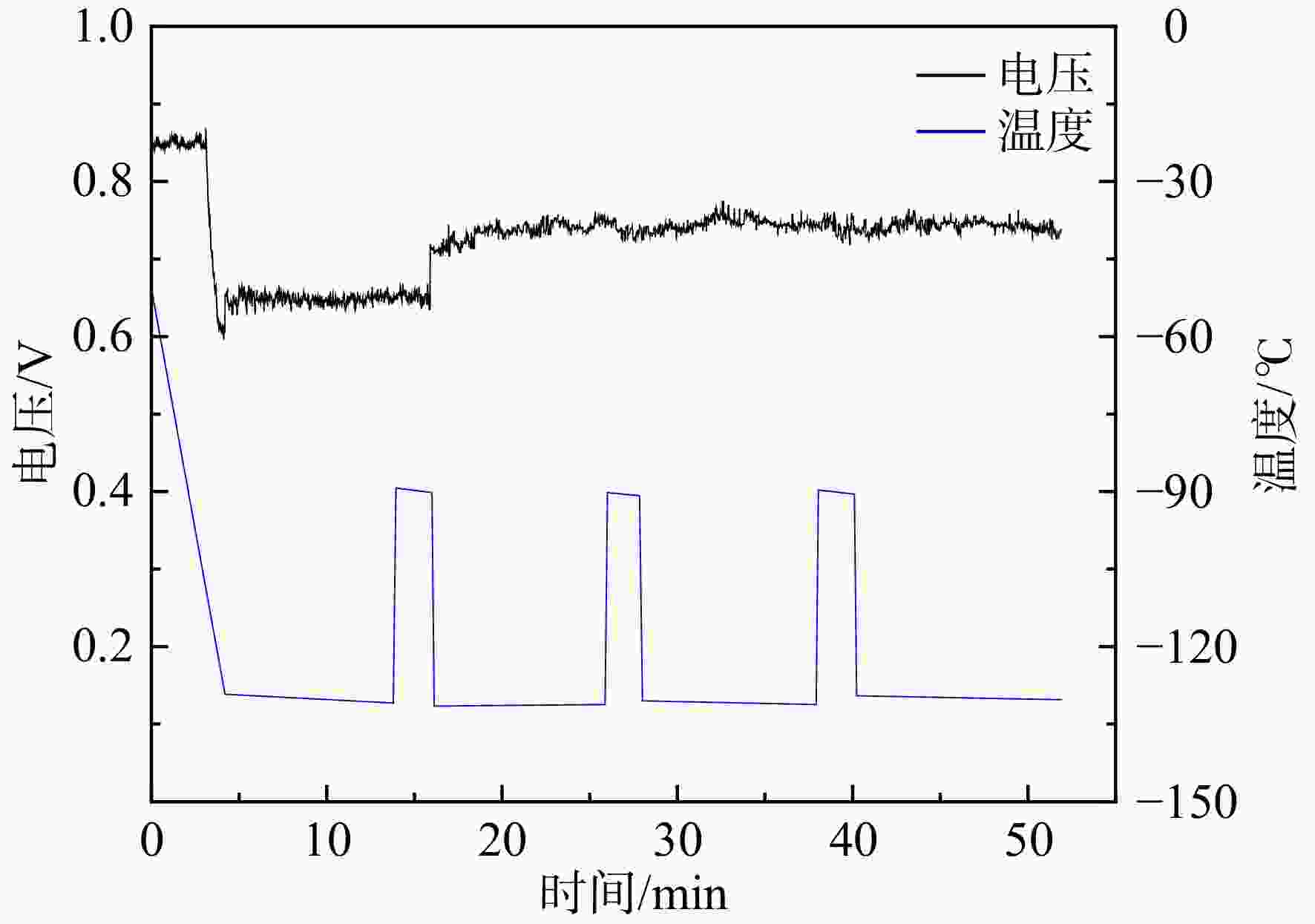

图 11 −90～−130 ℃快速降温试验结果

Figure 11. Results of −90— −130 ℃ rapid temperature drop test

下载: 全尺寸图片幻灯片

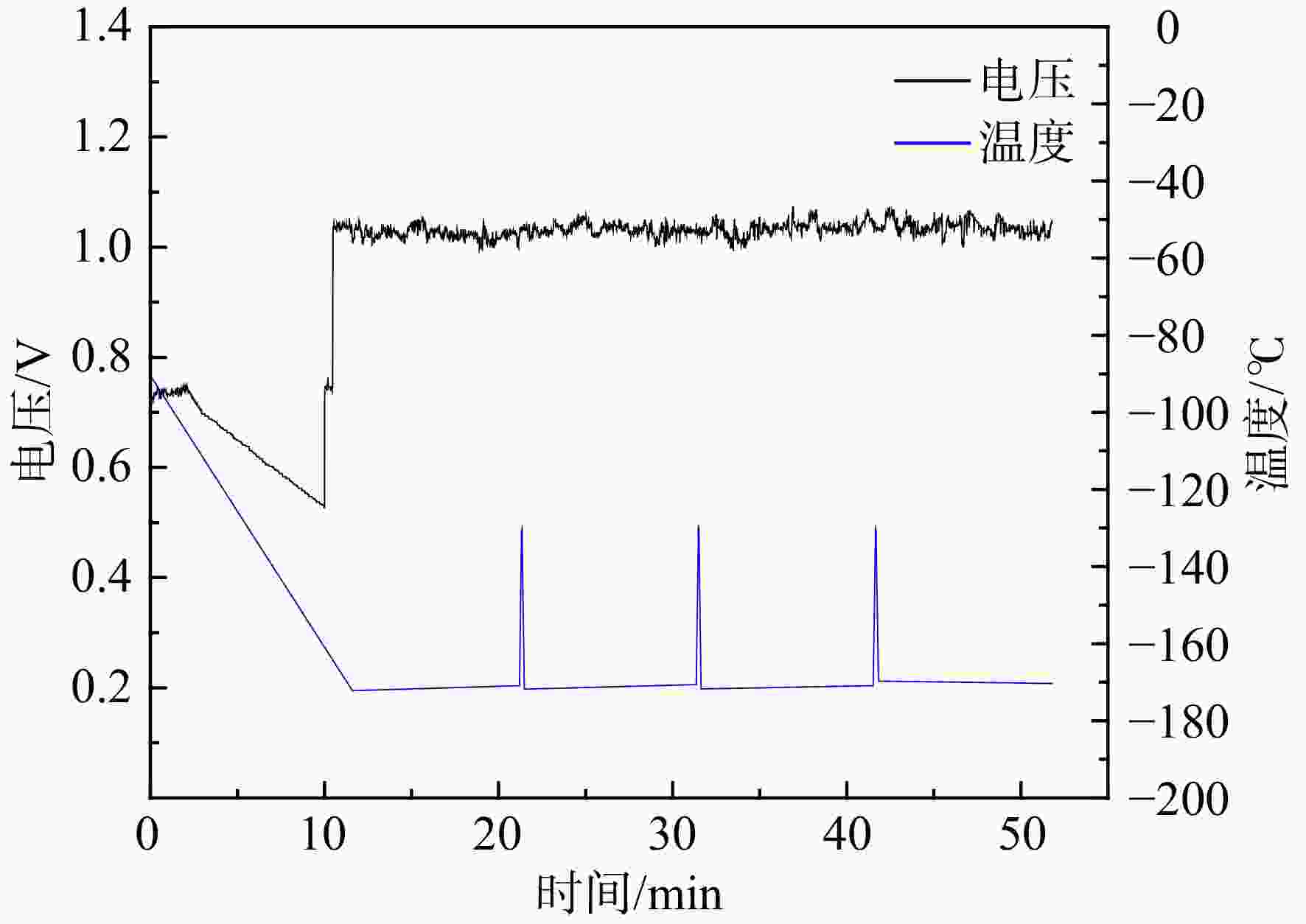

图 12 −130～−170 ℃快速降温试验结果

Figure 12. Results of −130—−170 ℃ rapid temperature drop test

下载: 全尺寸图片幻灯片

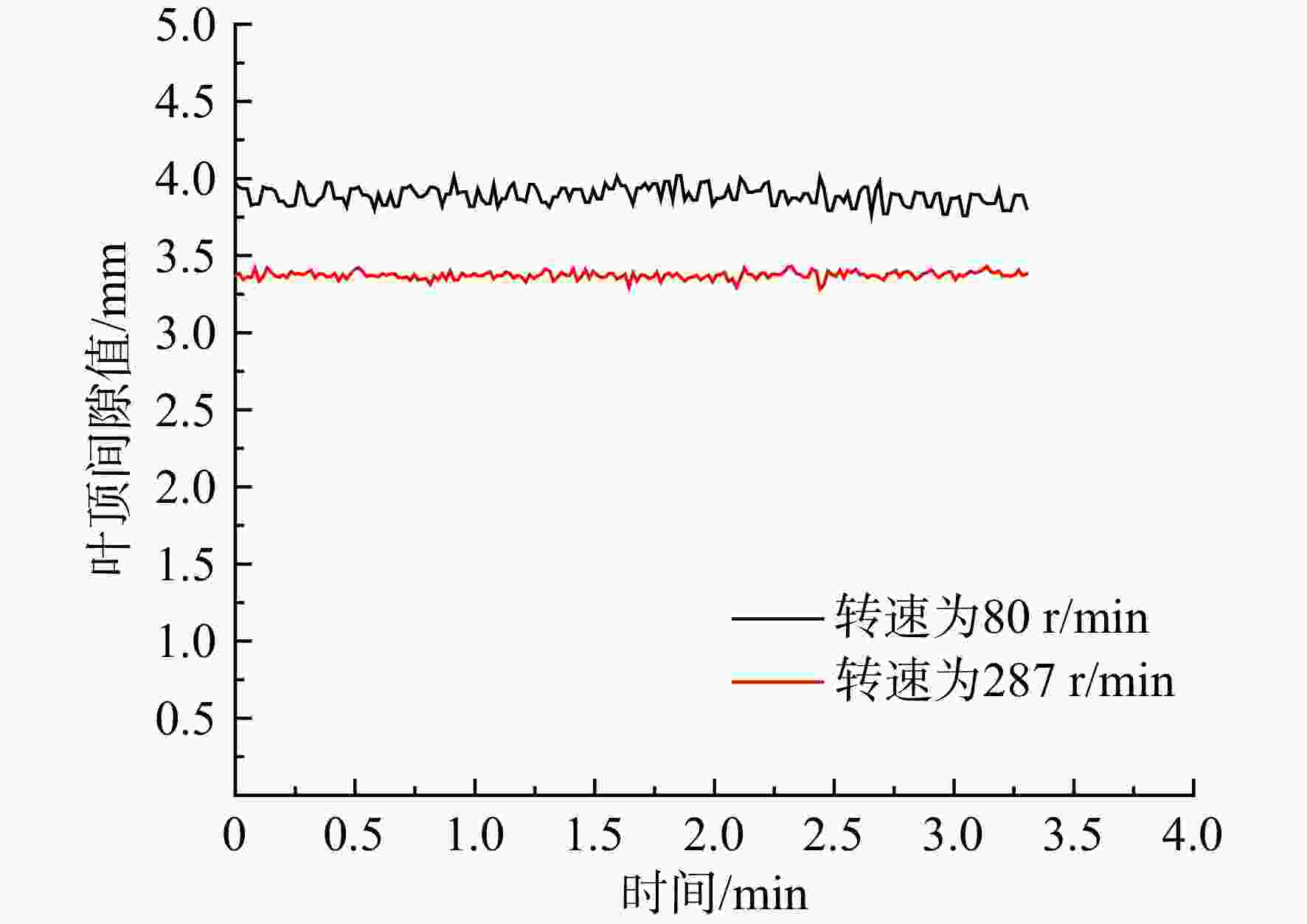

图 13 叶顶间隙传感器动态验证试验结果

Figure 13. Results of tip clearance sensor dynamic test

下载: 全尺寸图片幻灯片
