Optimization of compressor variable stator vane angles based on particle swarm algorithm
-
摘要:

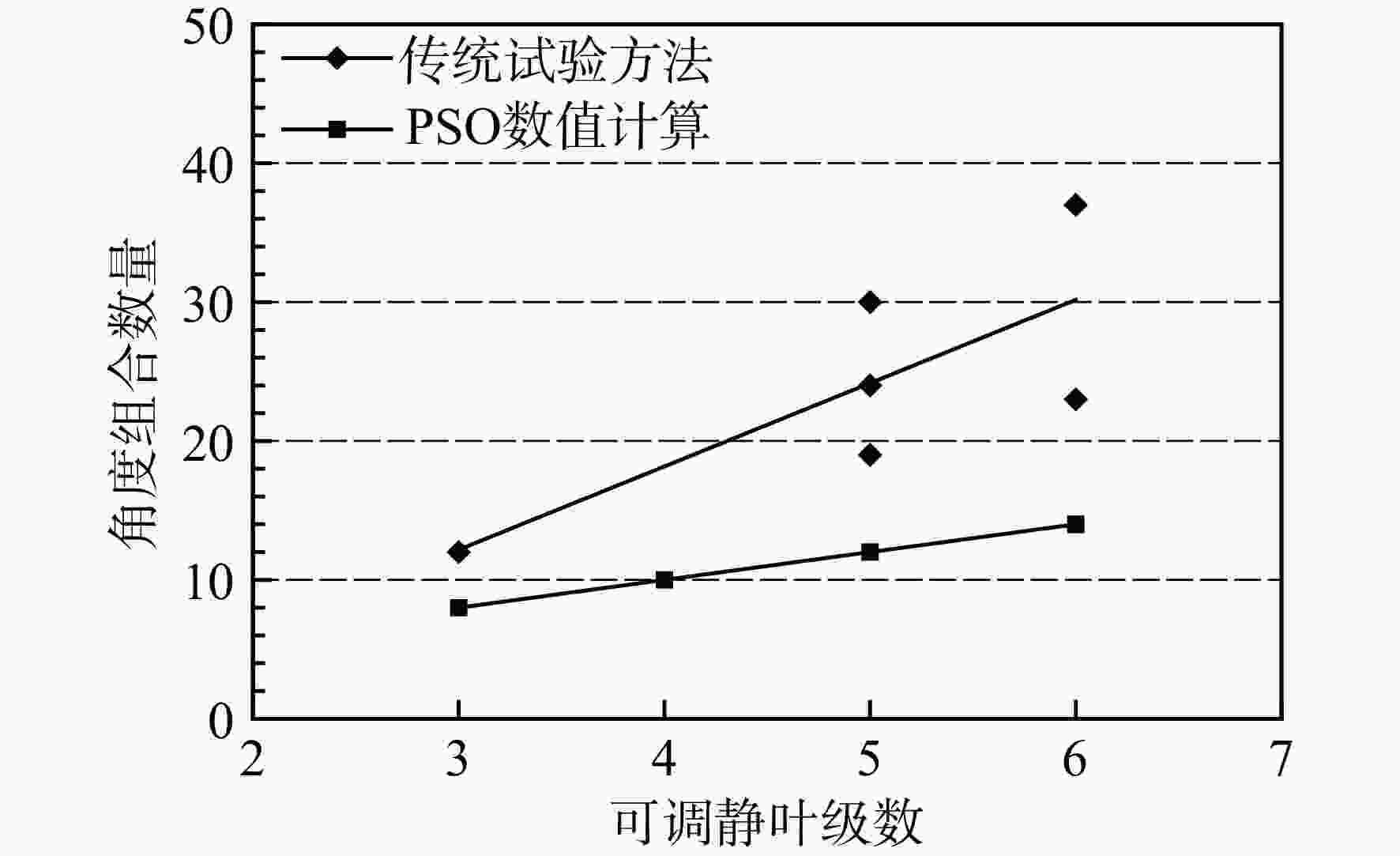

为加速多级轴流压气机可调静叶角度优化试验，降低试验成本，提出一种利用数值计算指导试验的方法。将压气机级负荷与设计目标的匹配作为优化方向，基于粒子群算法建立了优化模型，利用少量试验数据作为输入，实现了多级静叶角度同步寻优。利用CFD数据代替试验数据进行了模型验证，优化角度下压气机可调级的负荷匹配明显优于初始角度。两台压气机的性能试验结果表明：优化角度下压气机可调级的单级换算流量和单级压比与设计目标的平均偏差均在±0.5%以内，匹配精度高。此外，对于共同工作线附近的状态点，压气机的绝热效率得到了提升。相比于传统的试验方法，利用粒子群优化数值计算指导5级可调静叶的角度优化试验，需要测试的角度组合数量减少约50%。
Abstract:In order to speed up the optimization test of variable stator vane angle of multistage compressor and reduce the test cost, a method using numerical computation to guide test was proposed. Target on matching of the compressor stage load with the design intent, the model was established based on particle swarm optimization. Using a small amount of test data as input, multistage stator vane angles could be optimized synchronously. Taking CFD data instead of test data, optimized angle combination was proposed using the model herein. The outcomes showed that the load distribution of compressor variable stages at optimized angle was significantly improved than the original one. The performance test result of two compressors showed that the deviations of stage mass flow and stage pressure ratio for variable stages were both within ±0.5% to the design intent, presenting a high accuracy. In addition, the adiabatic efficiency of the compressor was improved at operation points near the working line. Taking the advantage of particle swarm optimization, the tested angle combinations were approximately 50% less required than the conventional methodology.
-

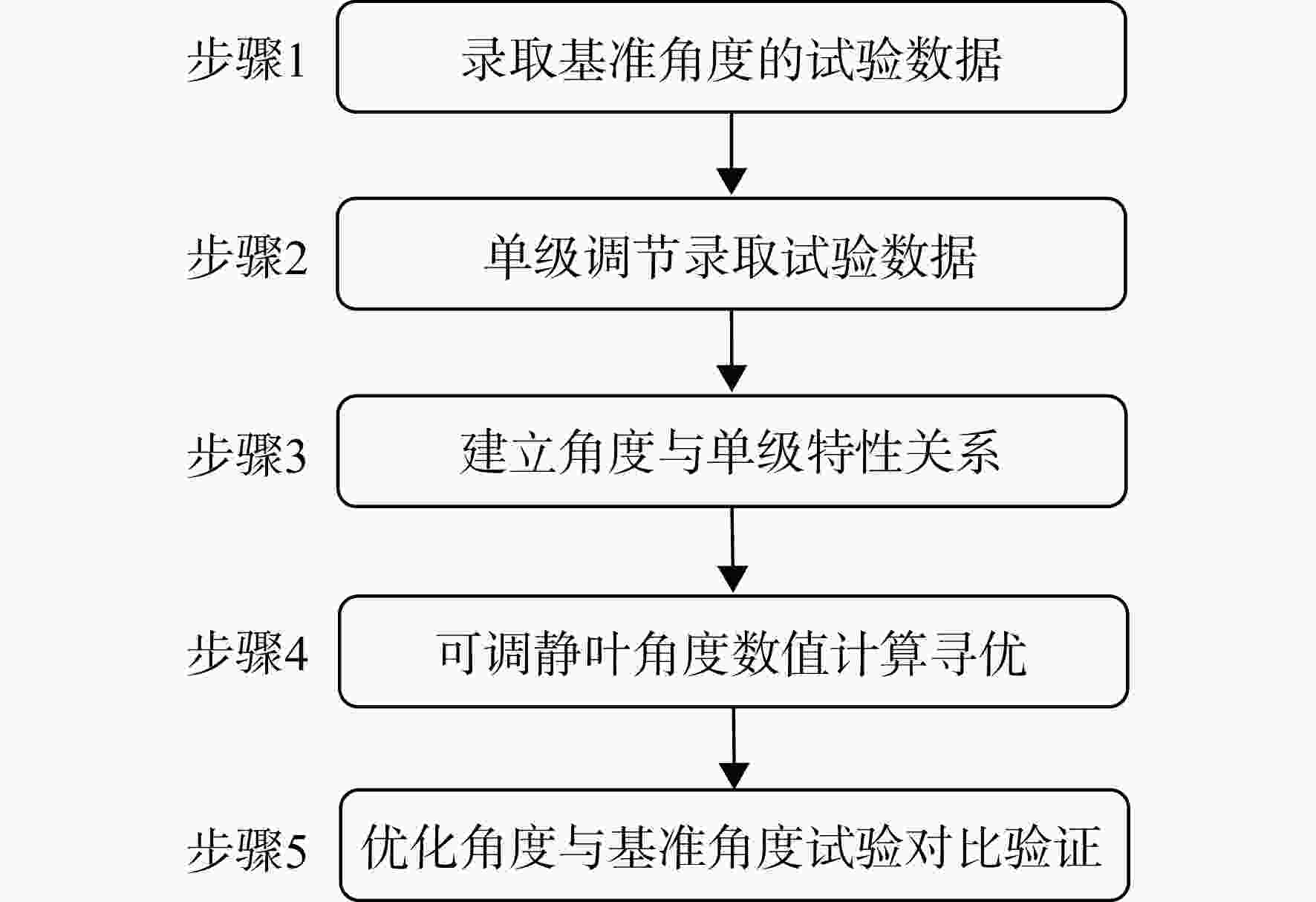

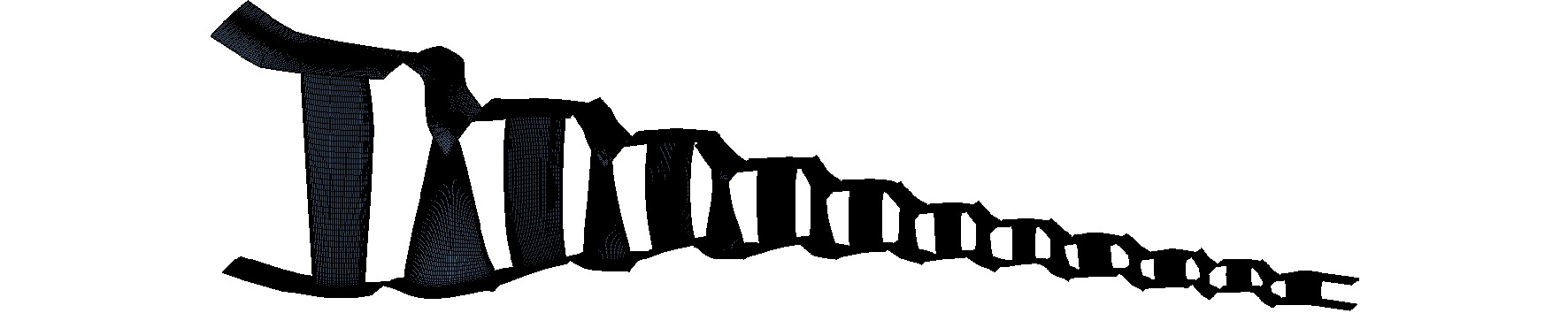

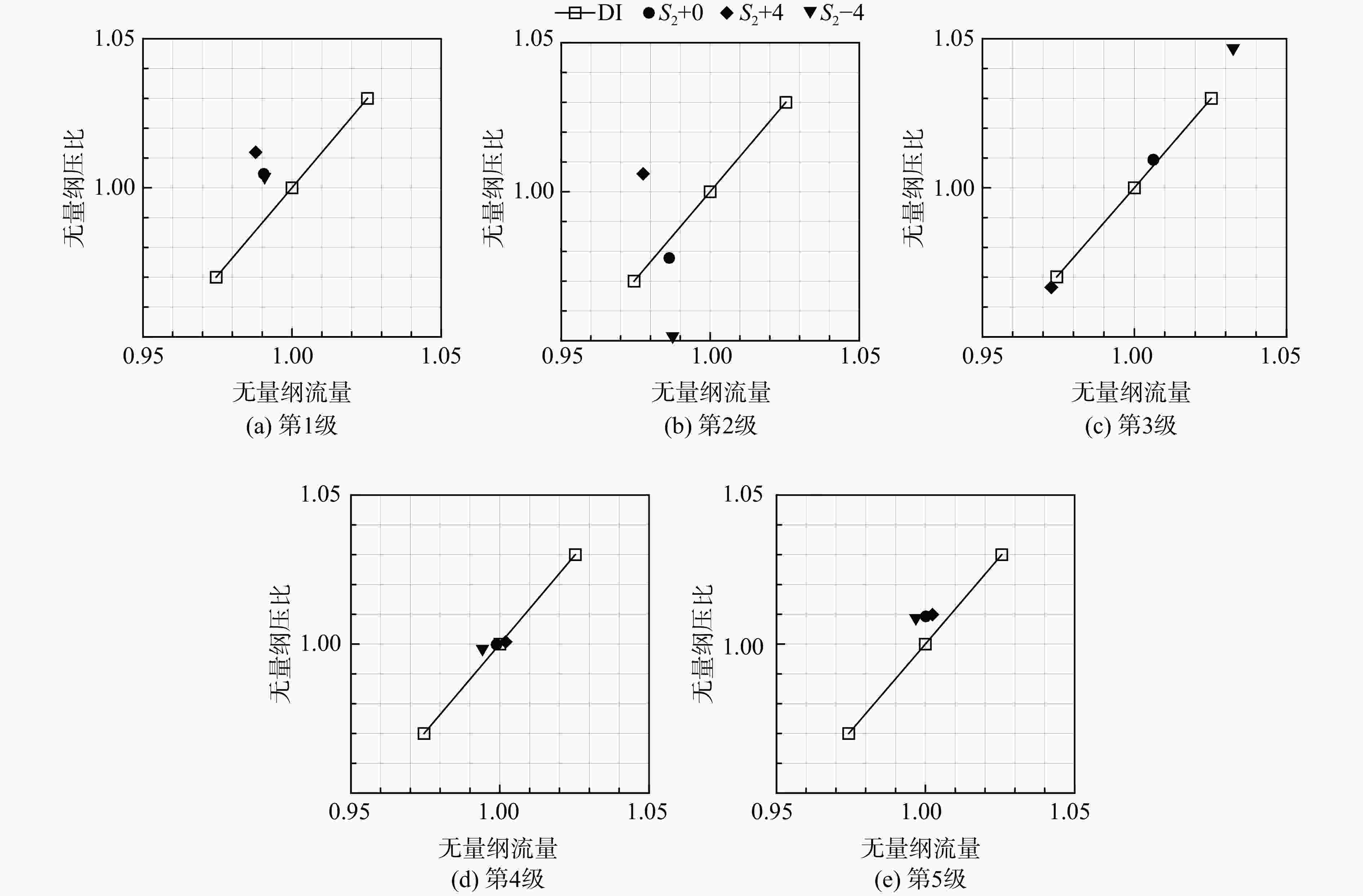

图 3 S2不同角度下压气机可调级的归一化单级特性
Figure 3. Normalized stage characteristics of the variable stages of compressor at different S2 angles

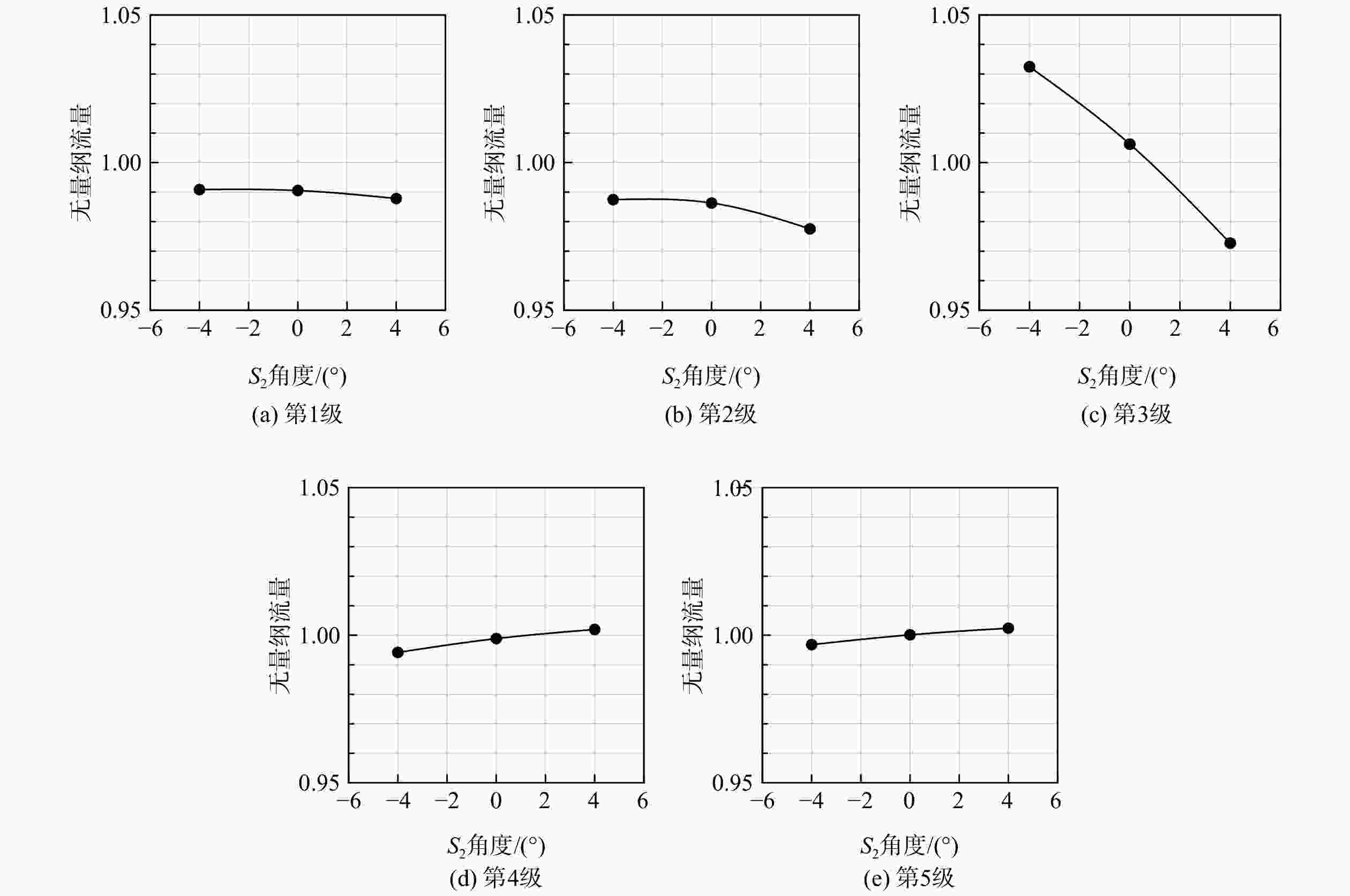

图 4 S2角度对压气机可调级换算流量的影响
Figure 4. Influence of S2 angle on mass flow of the variable stages of compressor

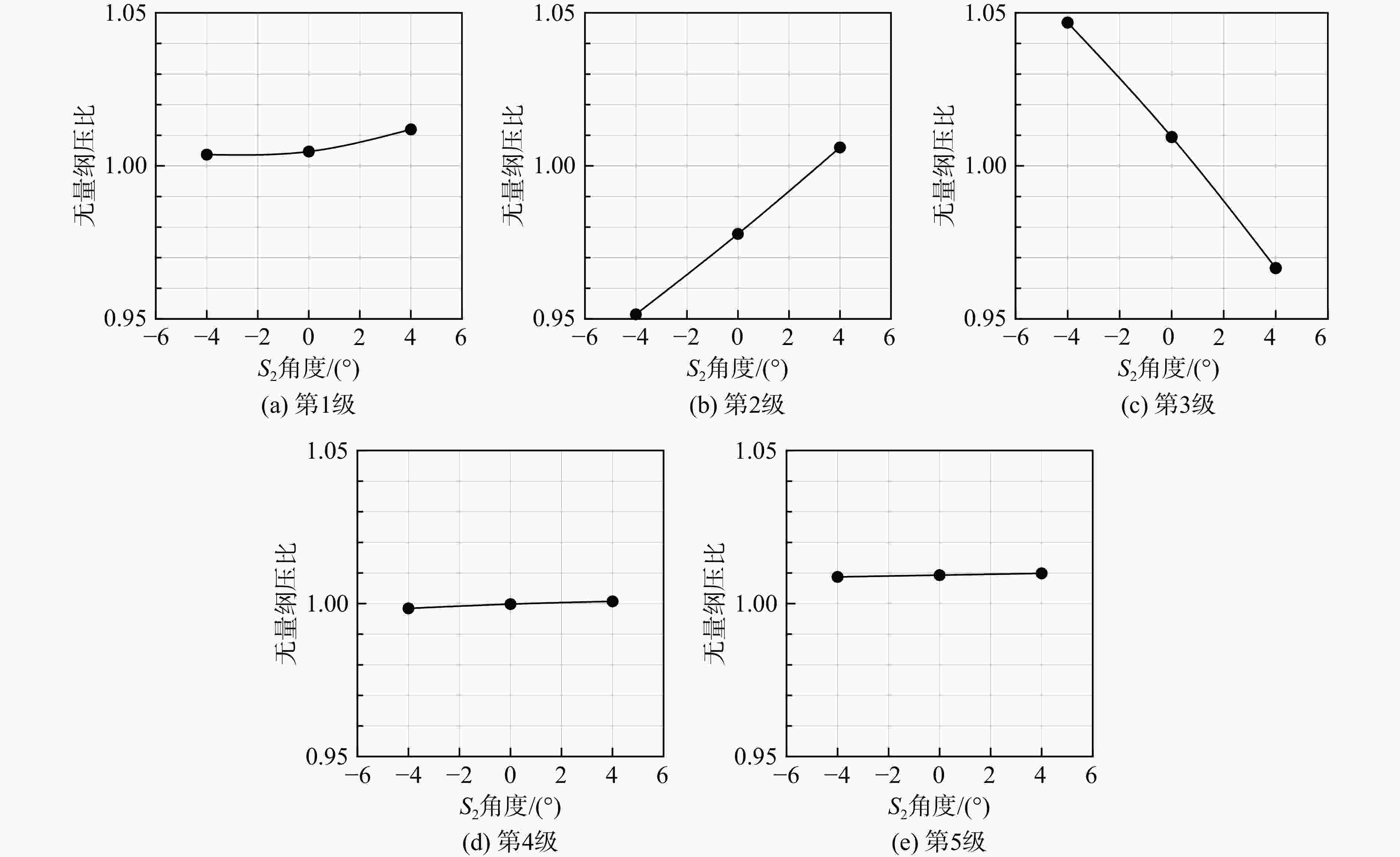

图 5 S2角度对压气机可调级压比的影响
Figure 5. Influence of S2 angle on pressure ratio of the variable stages of compressor

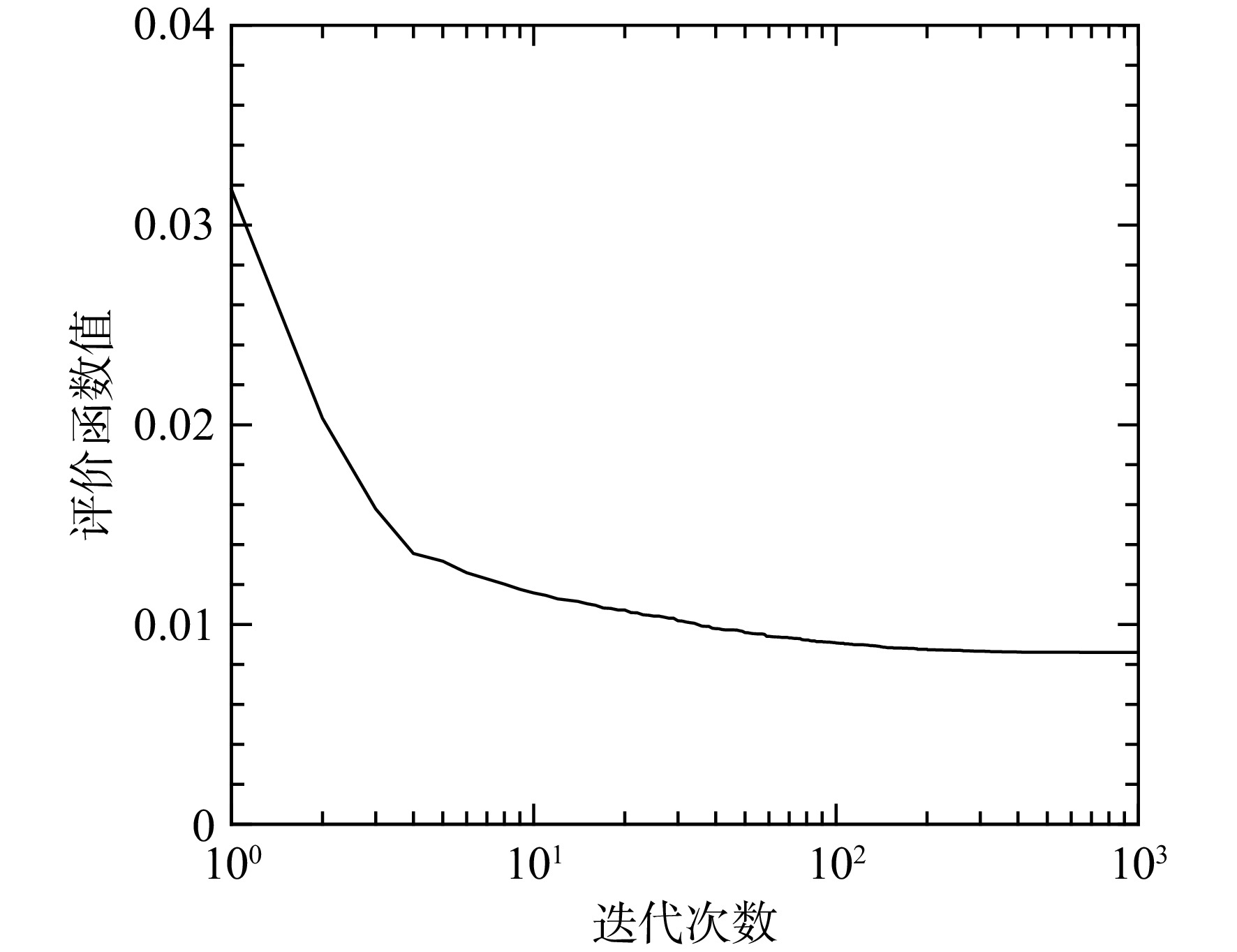

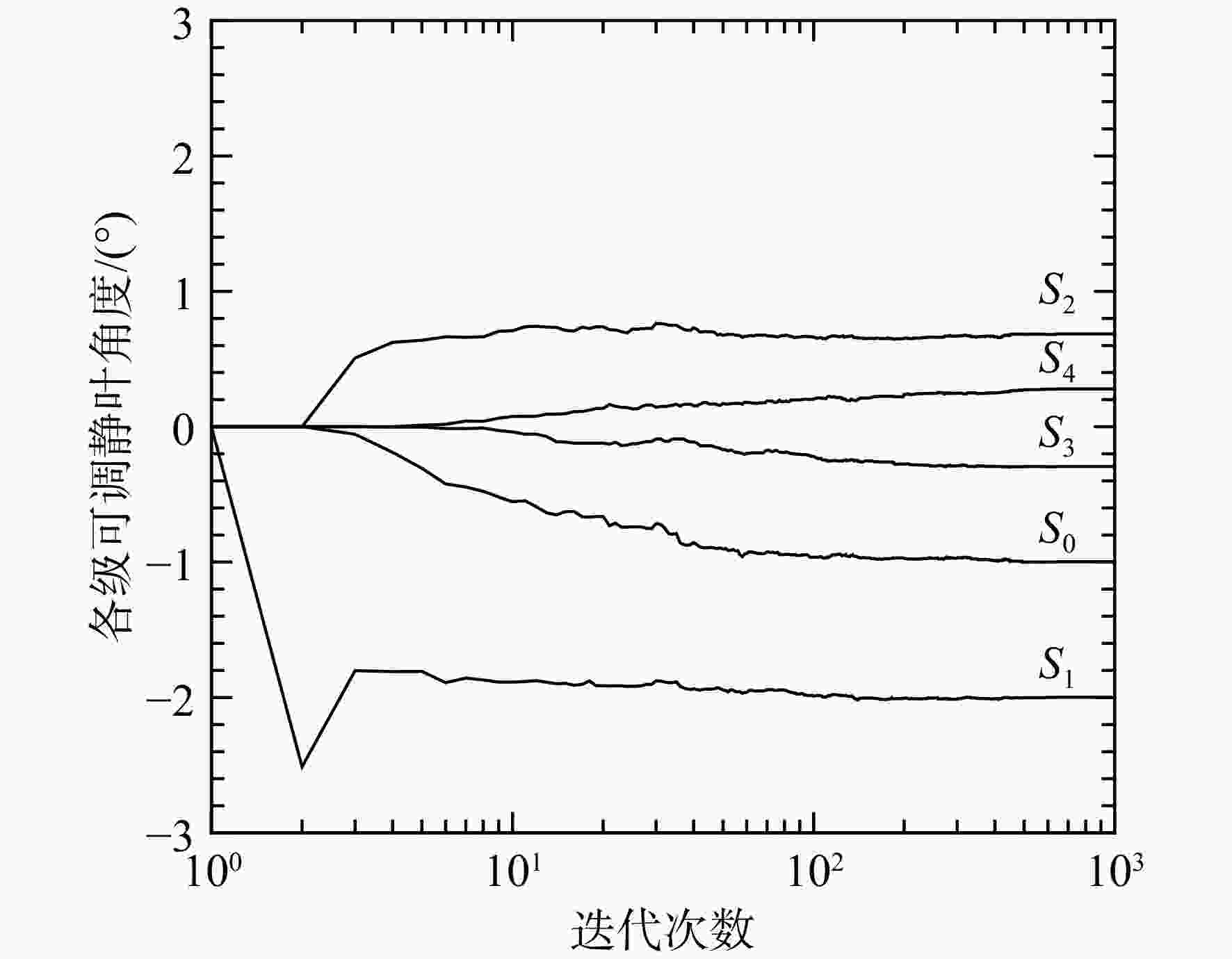

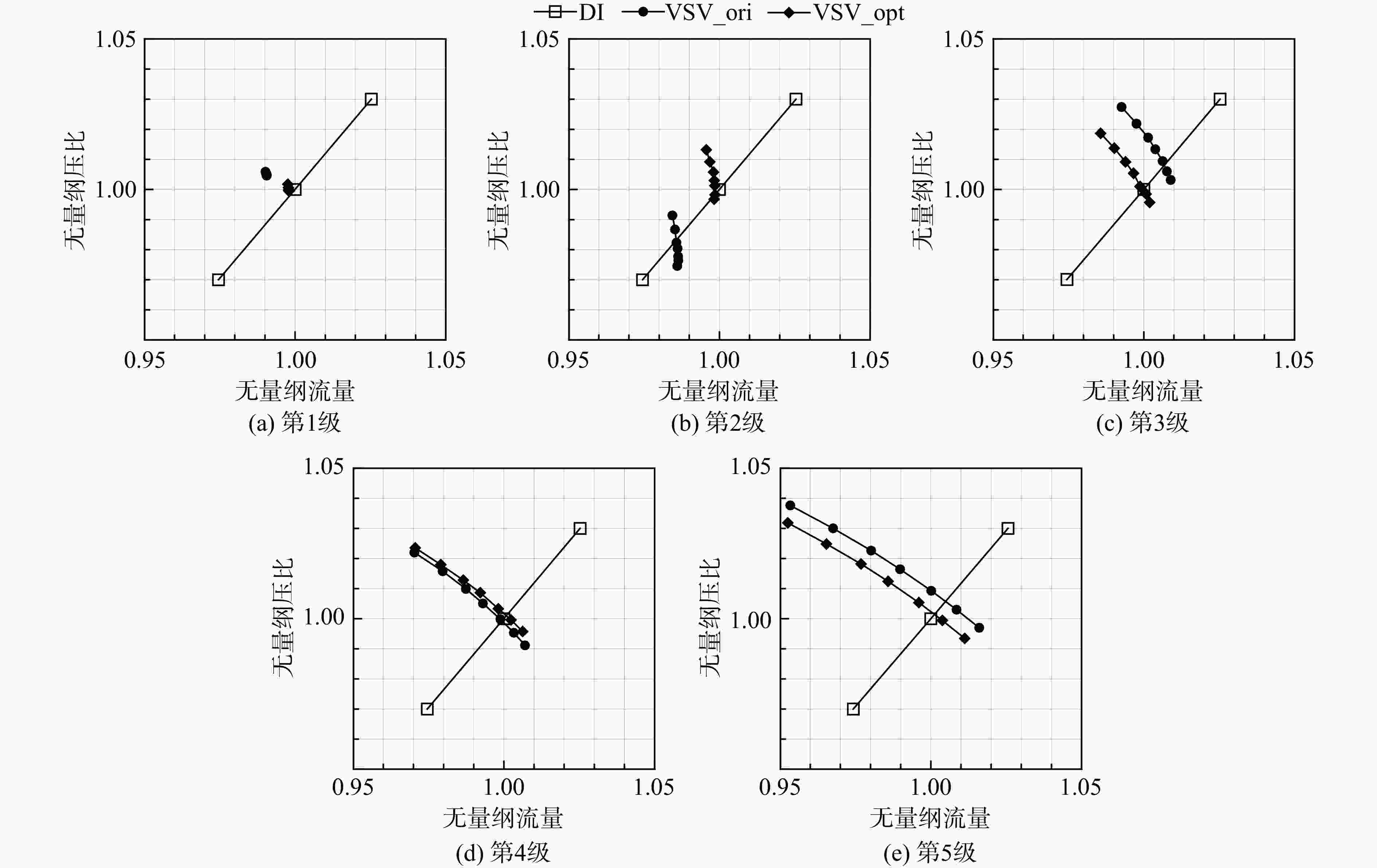

图 8 优化角度与初始角度下的单级特性对比
Figure 8. Stage characteristics comparison between optimized angles and original angles

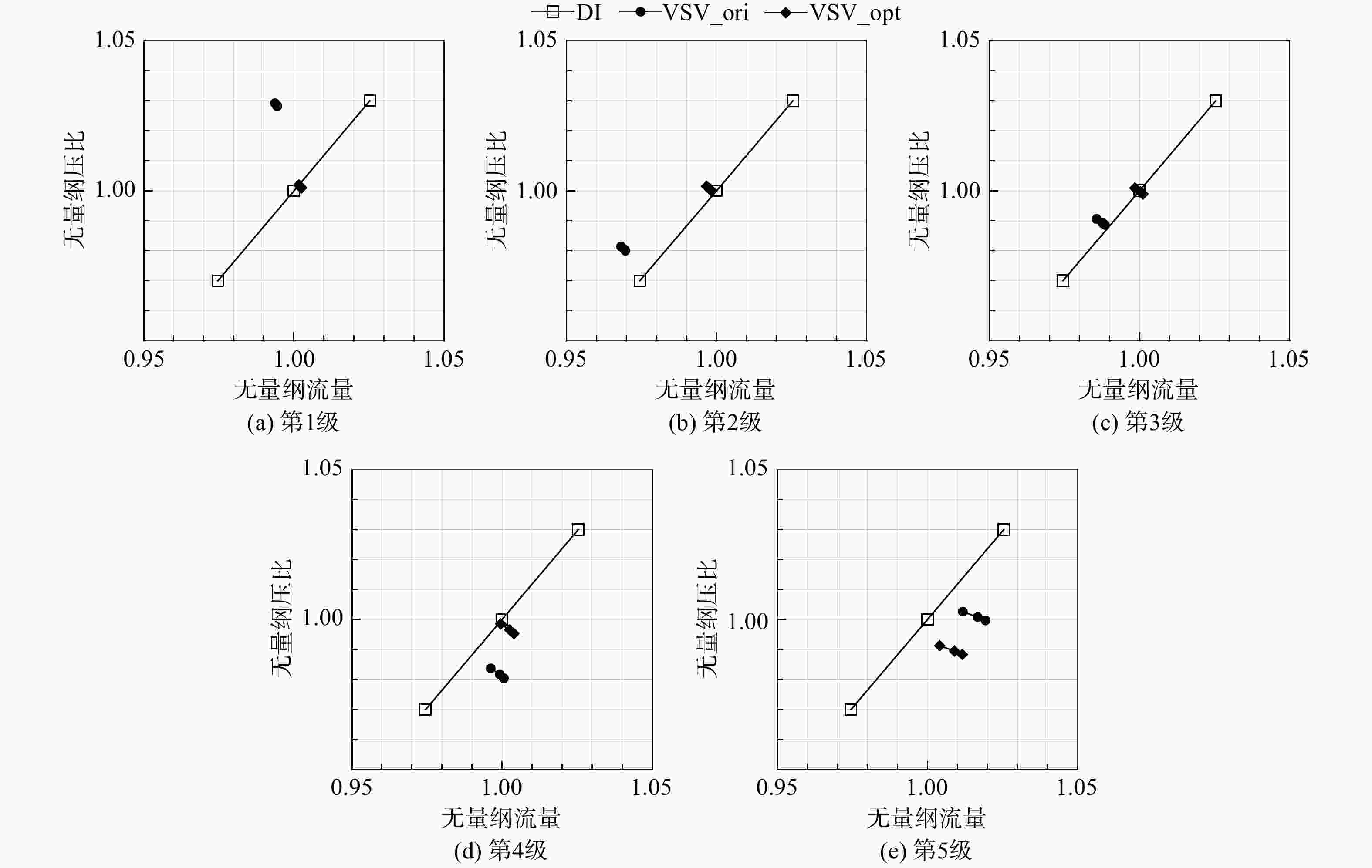

图 9 优化角度与初始角度下的单级特性对比（压气机#1）
Figure 9. Stage characteristics comparison between optimized angles and original angles （compressor #1）

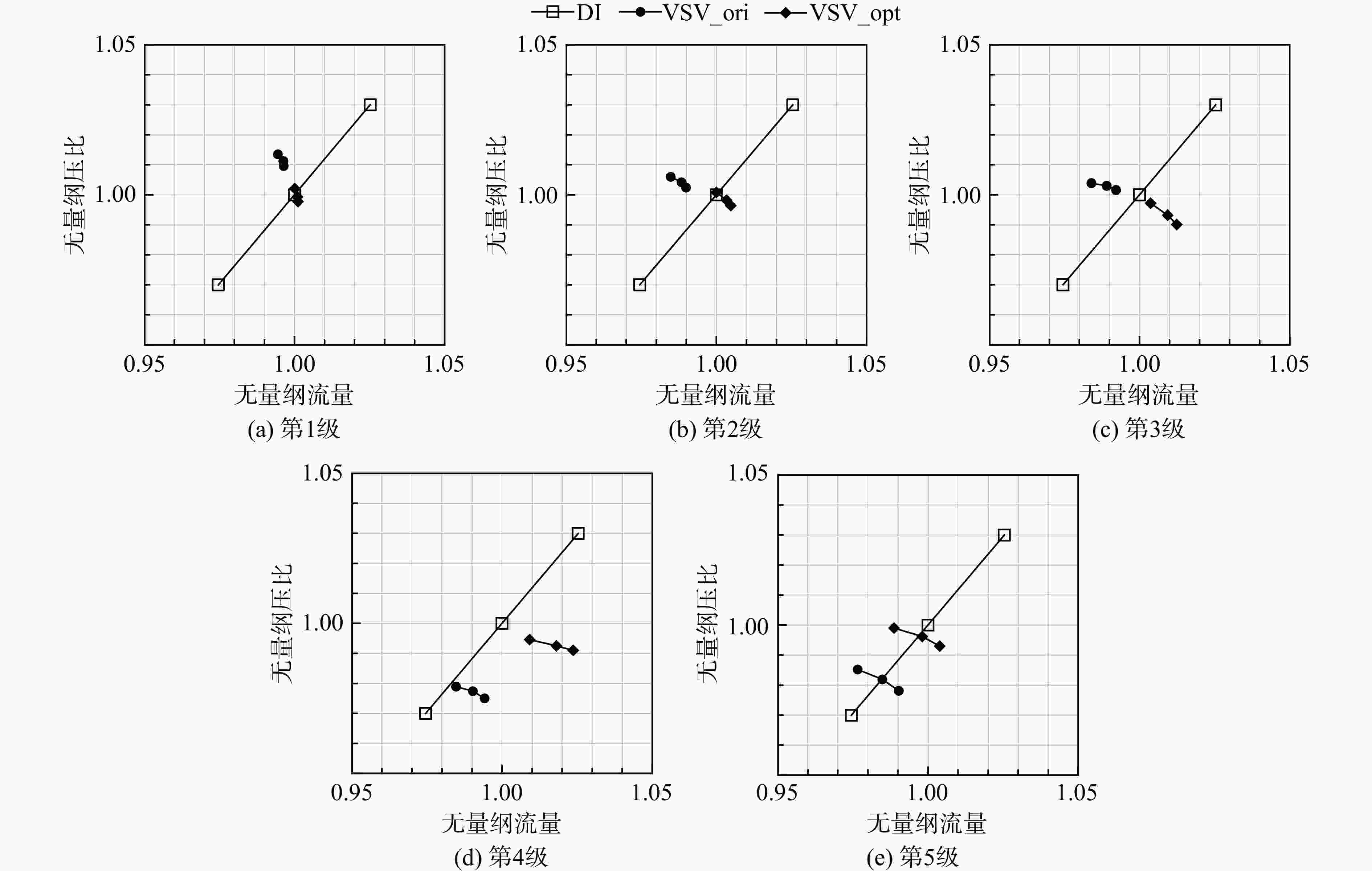

图 10 优化角度与初始角度下的单级特性对比（压气机#2）
Figure 10. Stage characteristics comparison between optimized angles and original angles （compressor #2）

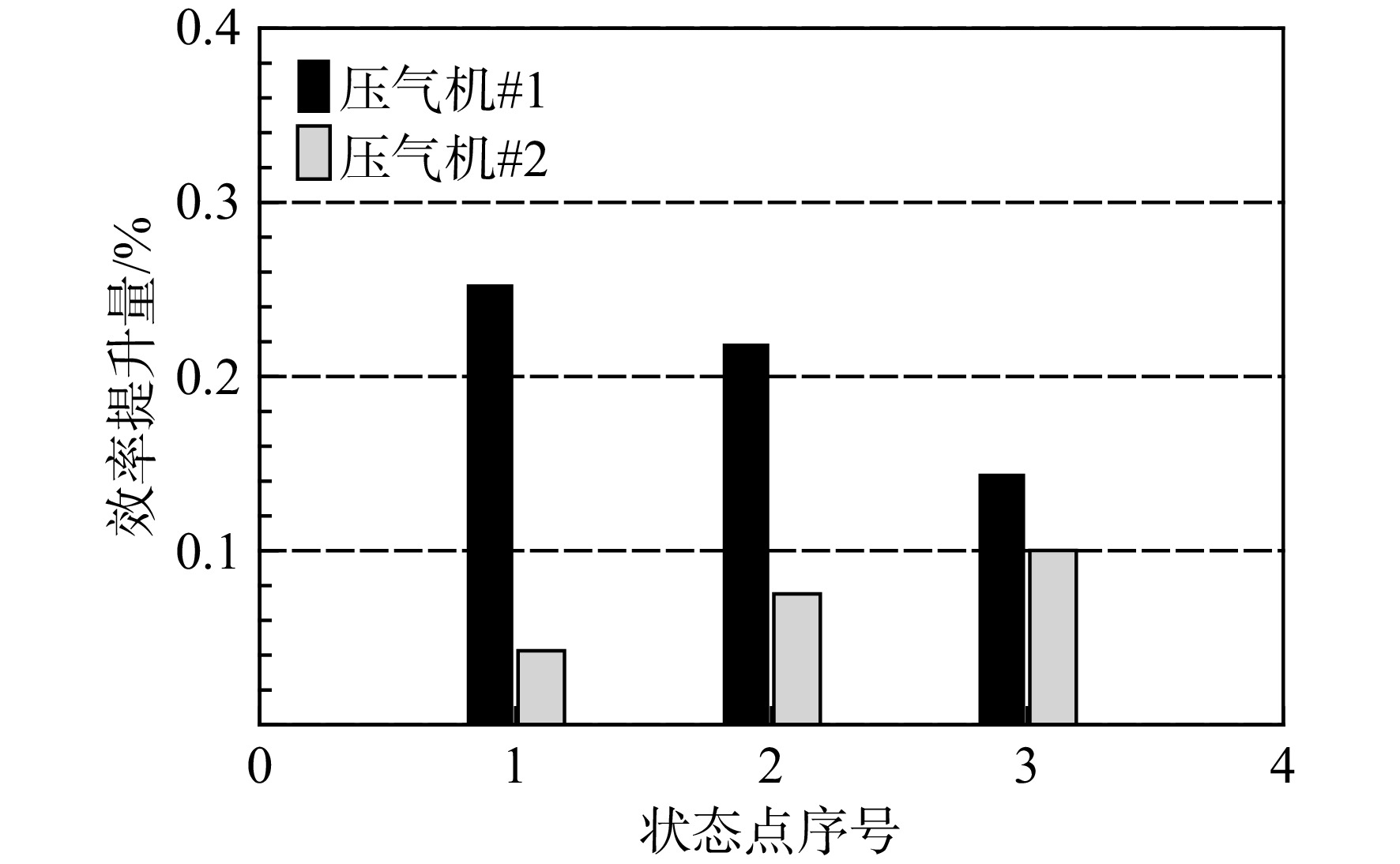

图 11 共同工作线附近状态点的效率提升量
Figure 11. Efficiency improvement at operation points near working line
表 1 优化角度下单级特性与设计目标的平均偏差
Table 1. Average deviation between stage characteristics and design intent at optimized angles
% 压气机序号 换算流量偏差 压比偏差 #1 0.33 0.32 #2 0.49 0.23
