Numerical simulation of influence of heat shield structure on nozzle wall cooling
-
摘要:

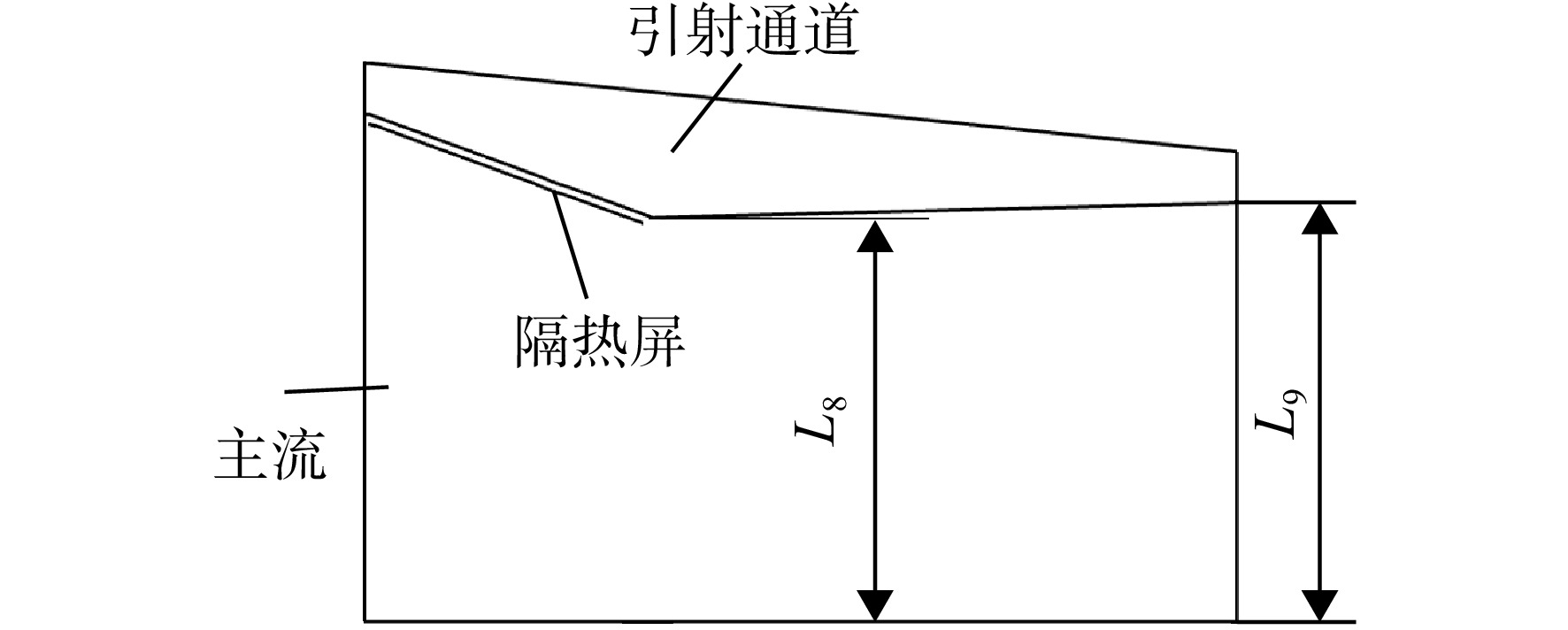

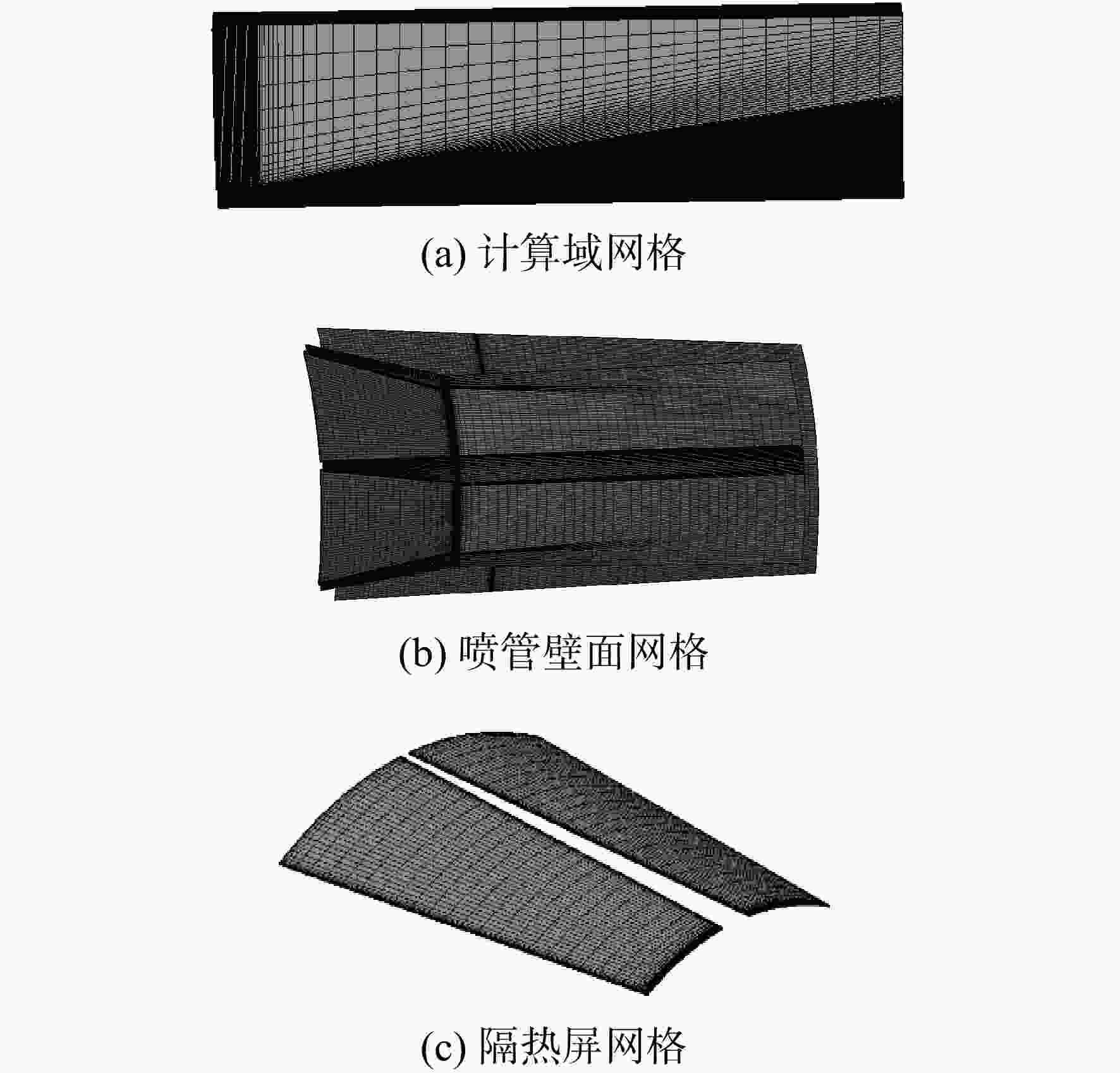

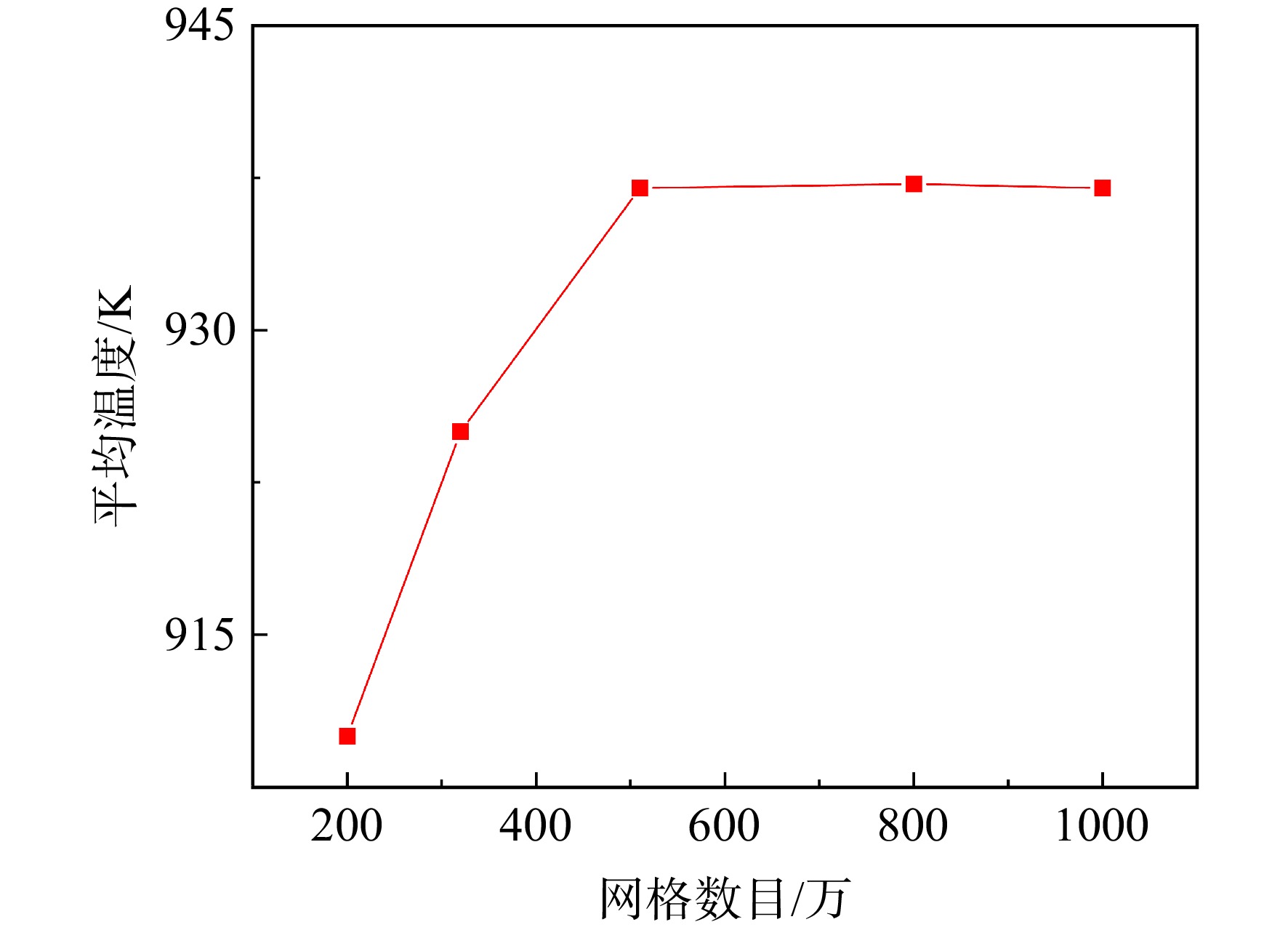

以加力状态下的轴对称喷管为研究对象，数值对比研究了隔热屏翻边方式对喷管壁面冷却的影响。结果表明：无论对隔热屏进行两侧翻边还是出口翻边，隔热屏的最高温度和平均温度随着翻边高度的增加呈现先减小后增加的变化规律；对隔热屏进行两侧翻边会增加收敛段壁面的平均温度和最高温度。相反，出口翻边则会降低收敛段壁面的最高温度和平均温度；两侧翻边时，扩张段壁面最高温度和平均温度最多可以降低2.6%和1.1%。出口翻边时，扩张段壁面的最高温度和平均温度受翻边高度影响较大，分别最多可以下降14.6%和23.5%。当以喷管扩张段壁面的冷却为研究目标时，则出口翻边更有利于喷管壁面冷却。
Abstract:Using the axisymmetric nozzle under the afterburner as the research object, the effects of flanging methods of heat shield on nozzle cooling were studied numerically. The results show that regardless of whether the heat shield is flanged on both sides or at the outlet, the maximum and average temperatures of the heat shield show a pattern of first decreasing and then increasing with the increase of flanging height; flipping both sides of the heat shield can increase the average and maximum temperatures of the convergent section wall. On the contrary, outlet flanging can reduce the maximum and average temperatures of the convergent section wall; in case of flanging on both sides, the maximum and average wall temperatures of the divergent section can be reduced by up to 2.6% and 1.1%. During outlet flanging, the maximum and average temperatures of the divergent section wall are greatly affected, and can be reduced by up to 14.6% and 23.5%, respectively. When the cooling of the nozzle divergent section wall is taken as the research objective, the outlet flanging is more conducive to the cooling of the nozzle wall.
-

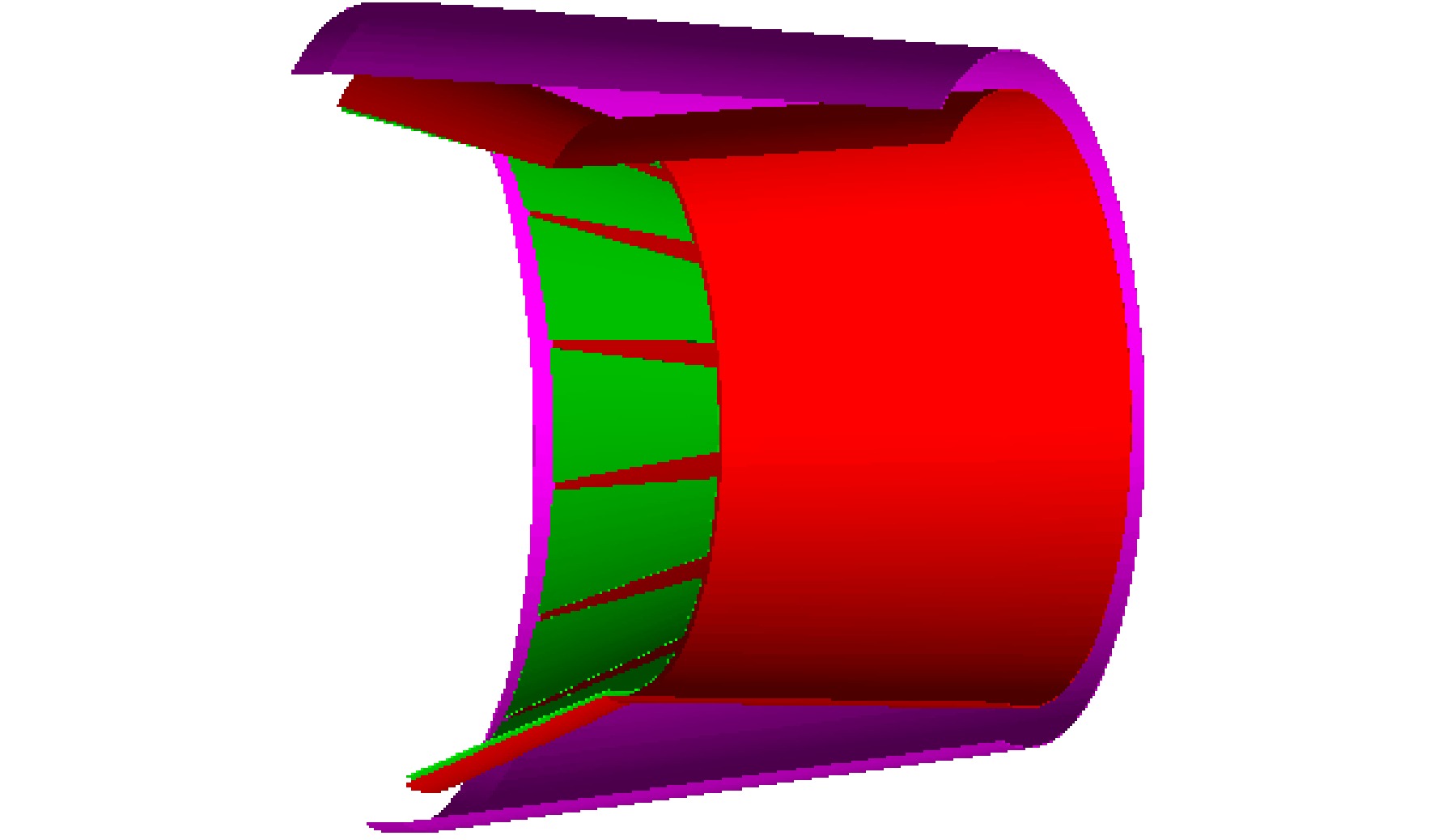

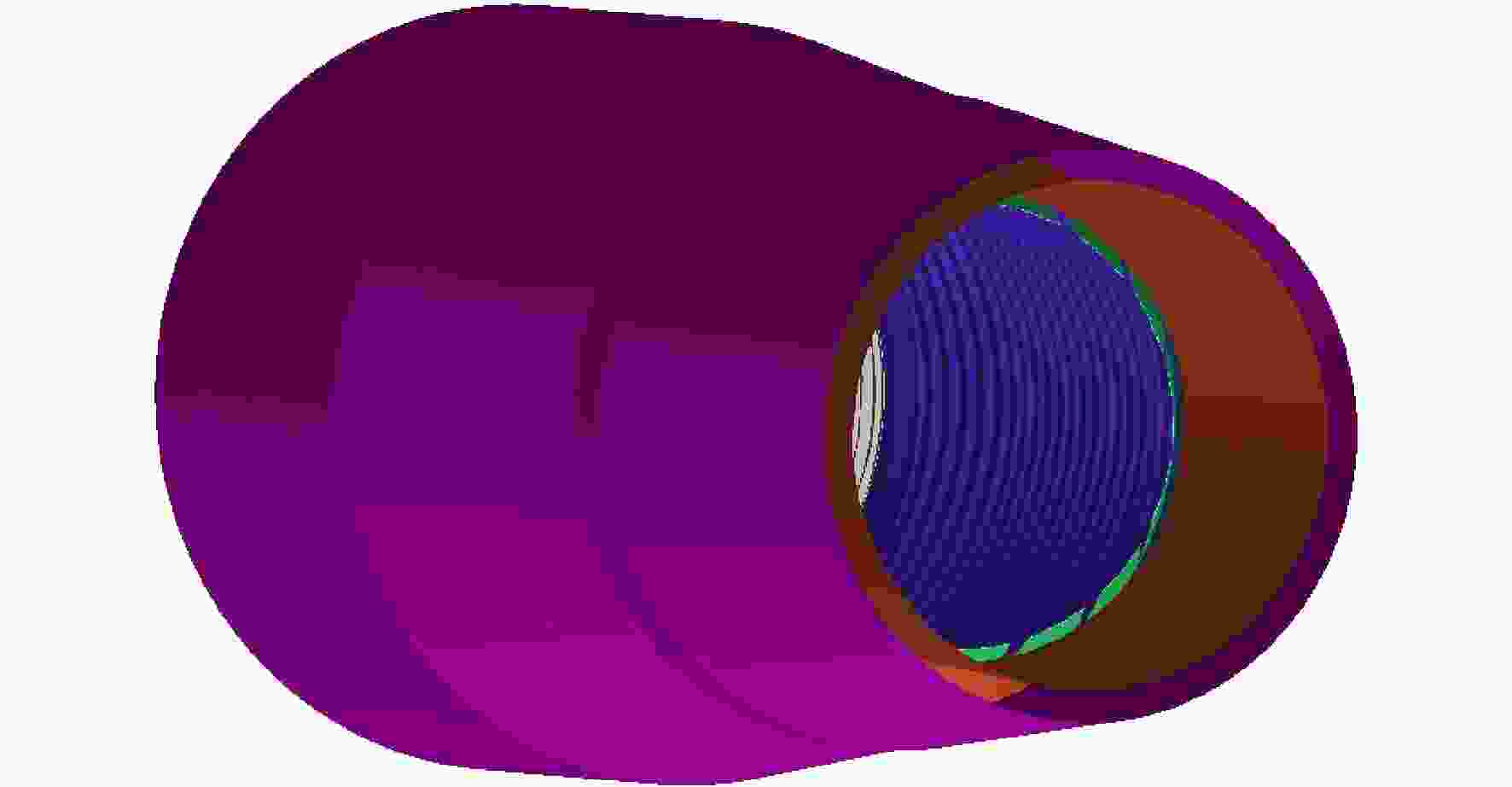

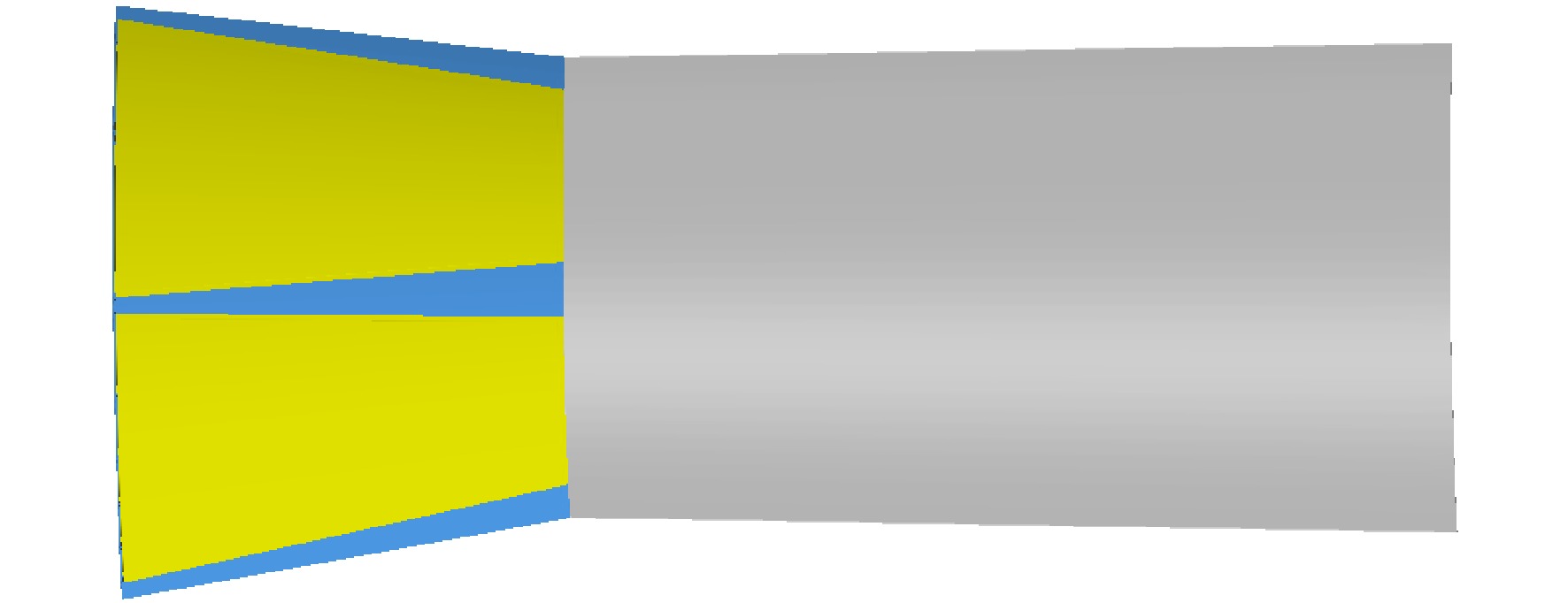

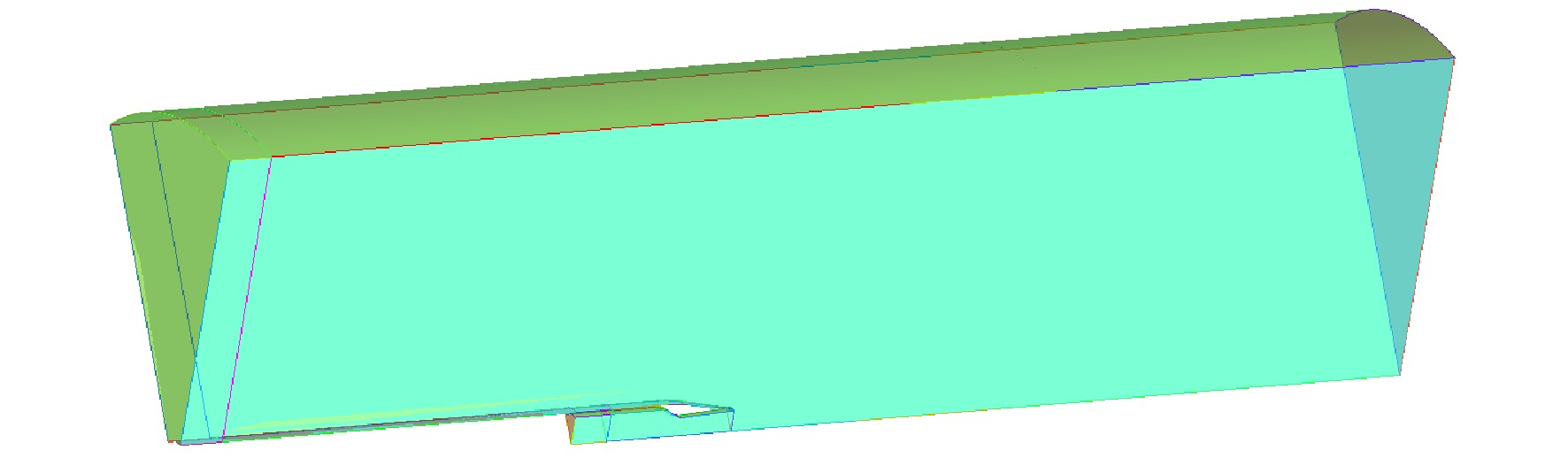

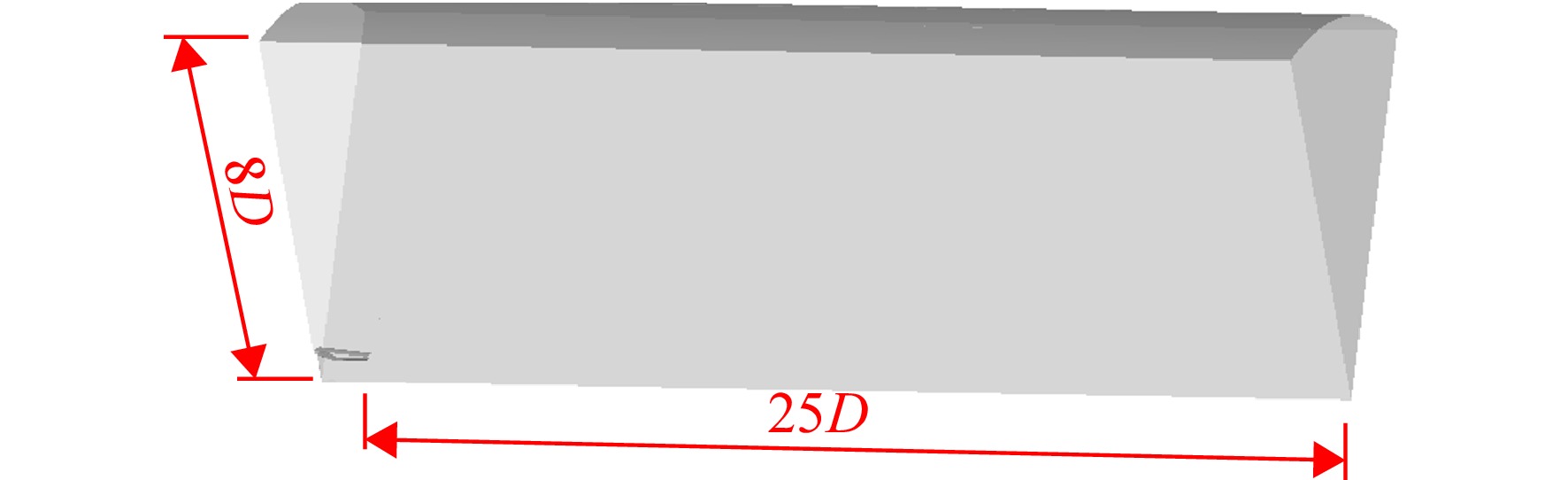

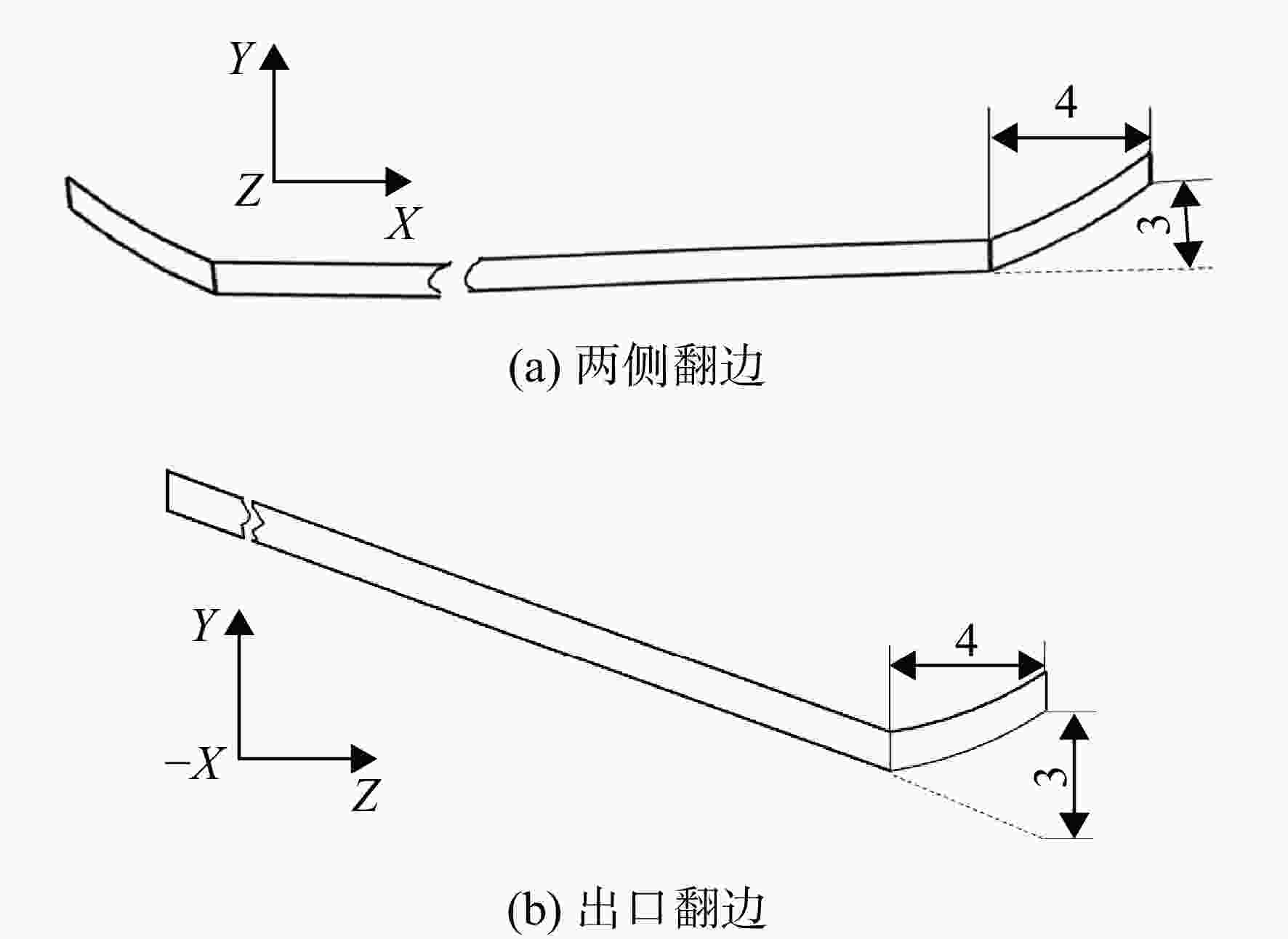

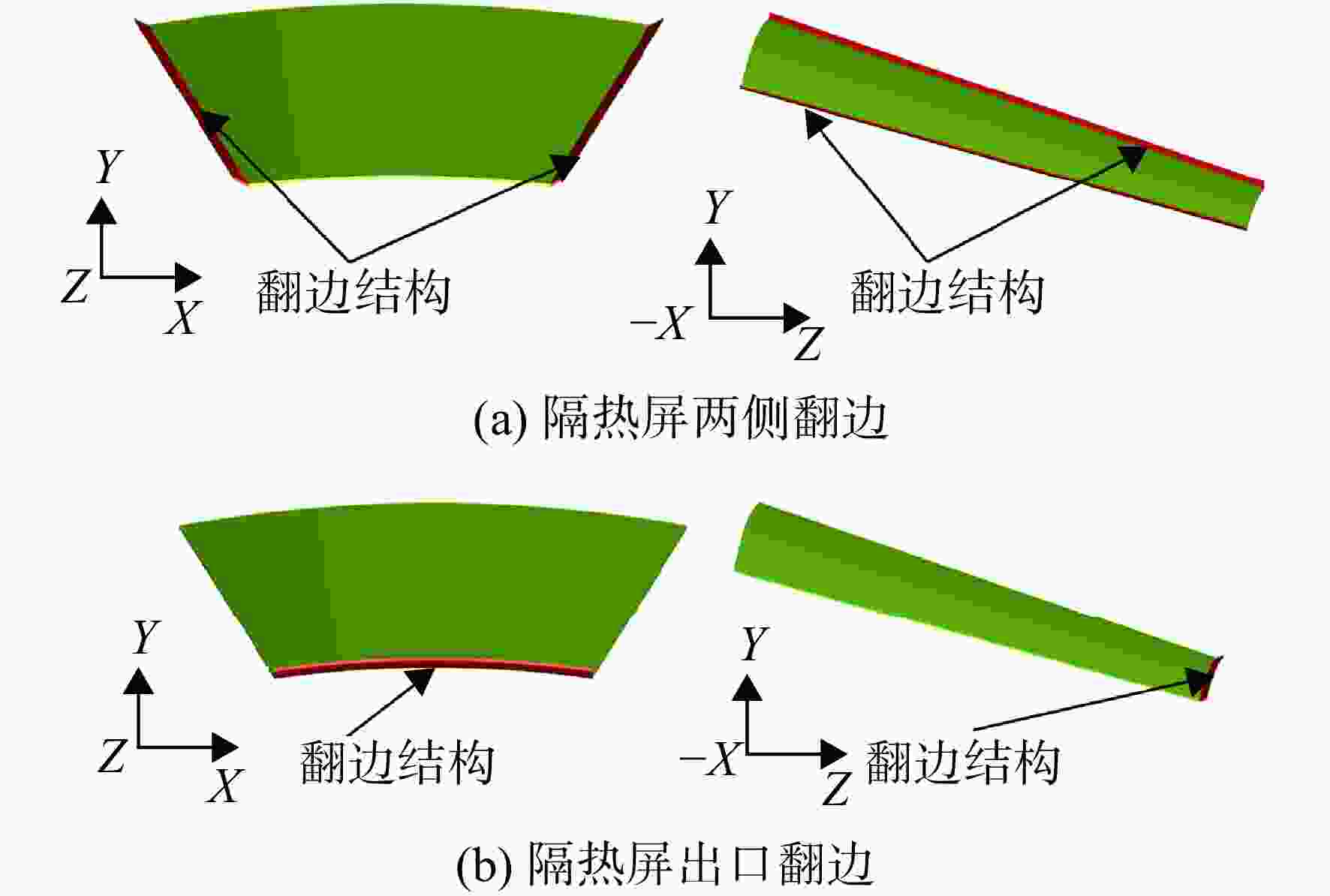

图 4 翻边隔热屏局部示意图（单位：mm）
Figure 4. Partial schematic diagram of flanging heat shield（unit：mm）

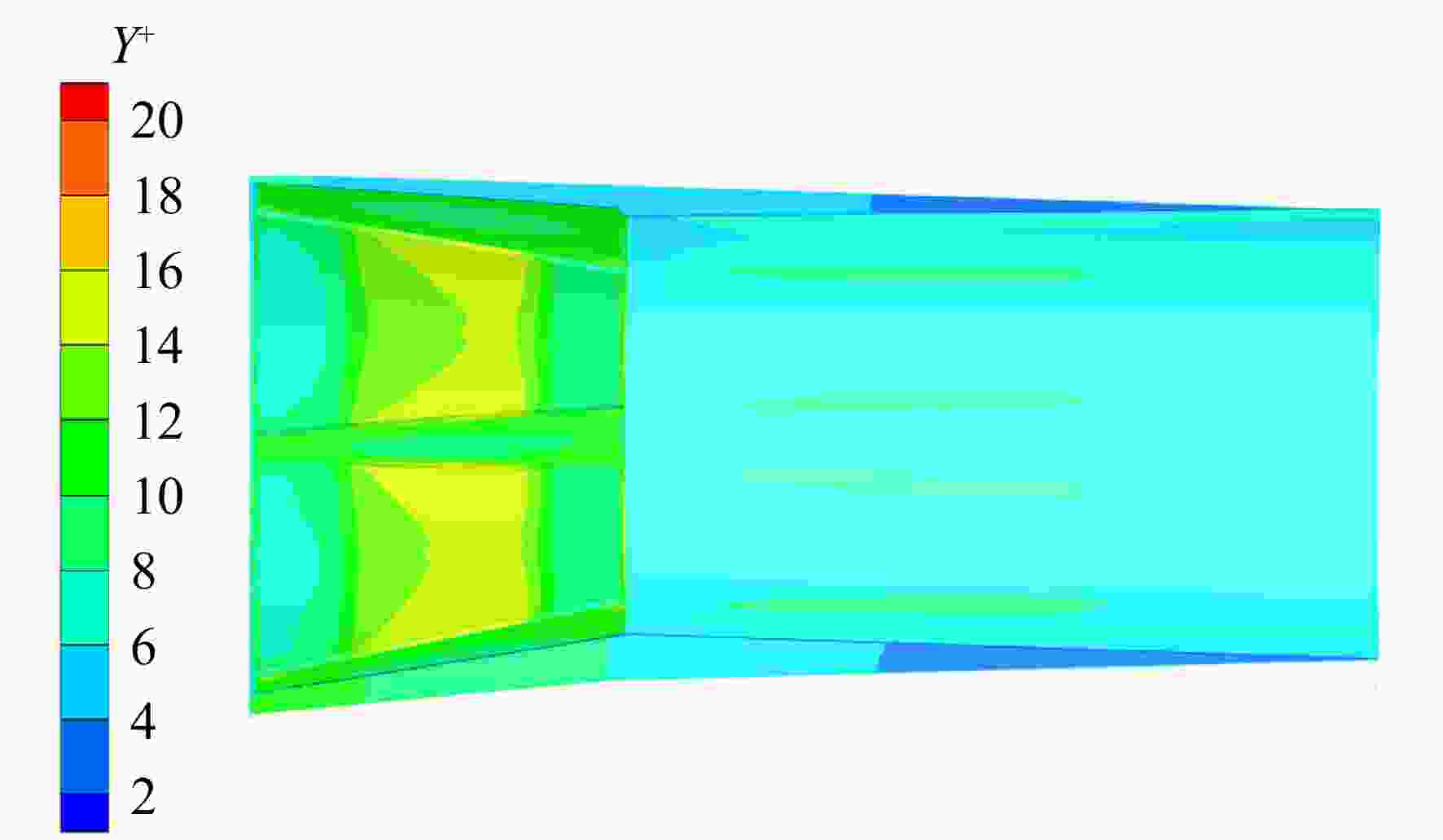

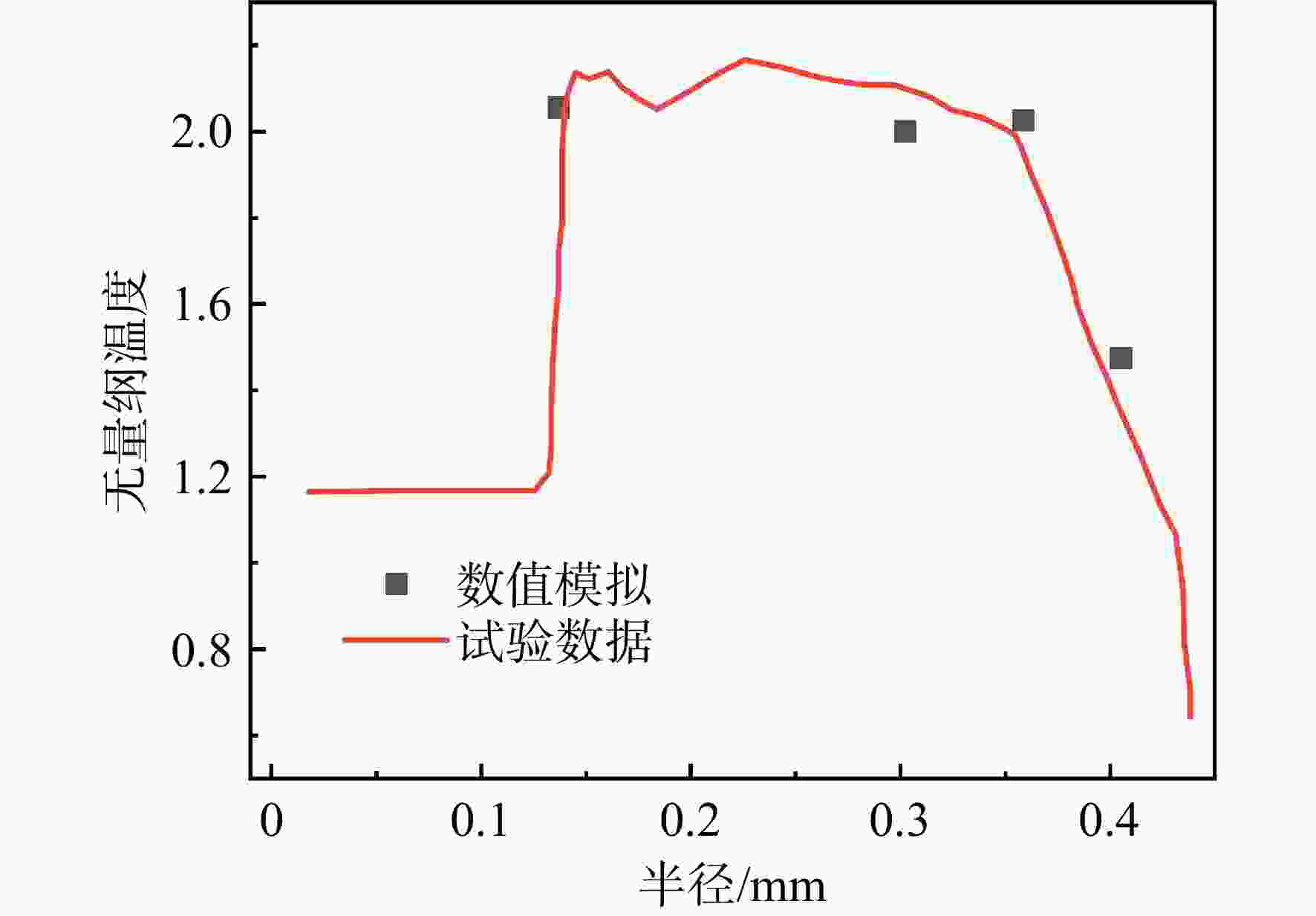

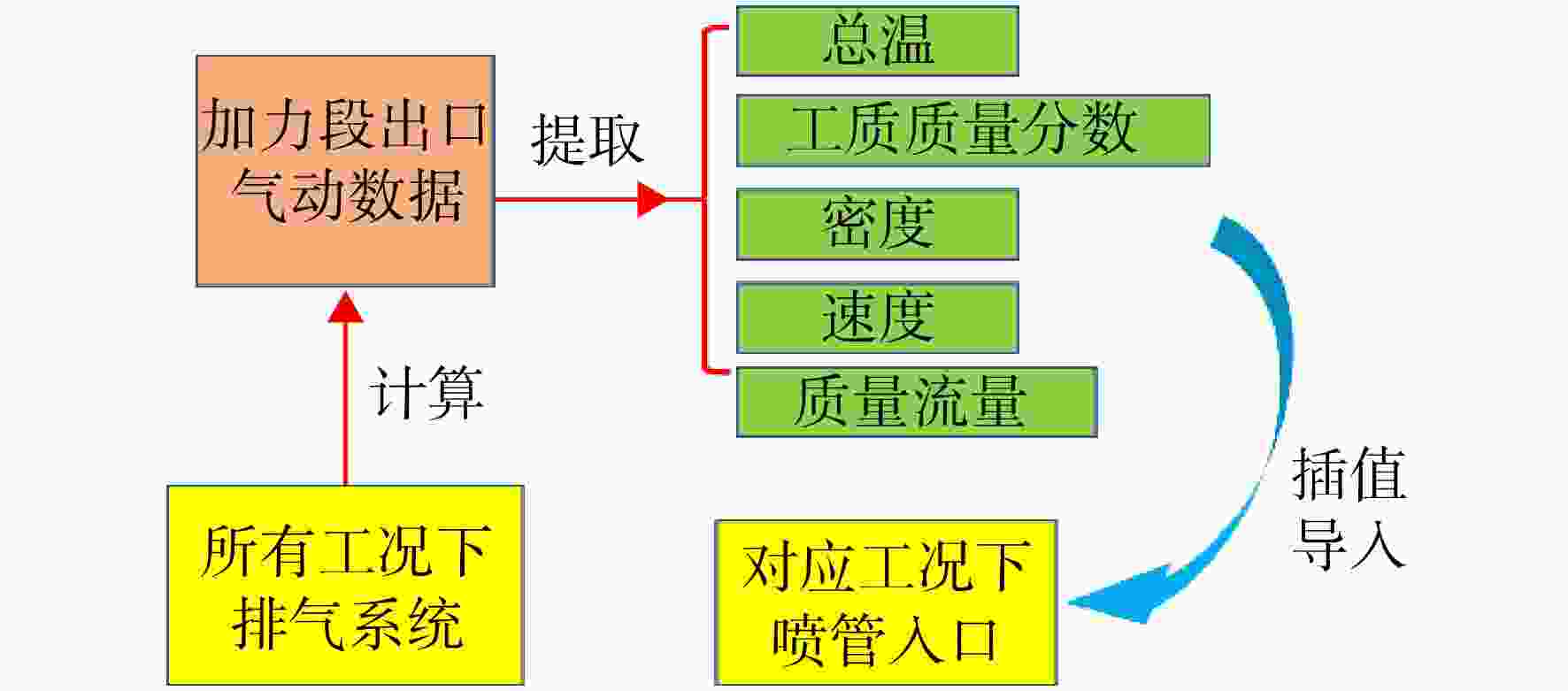

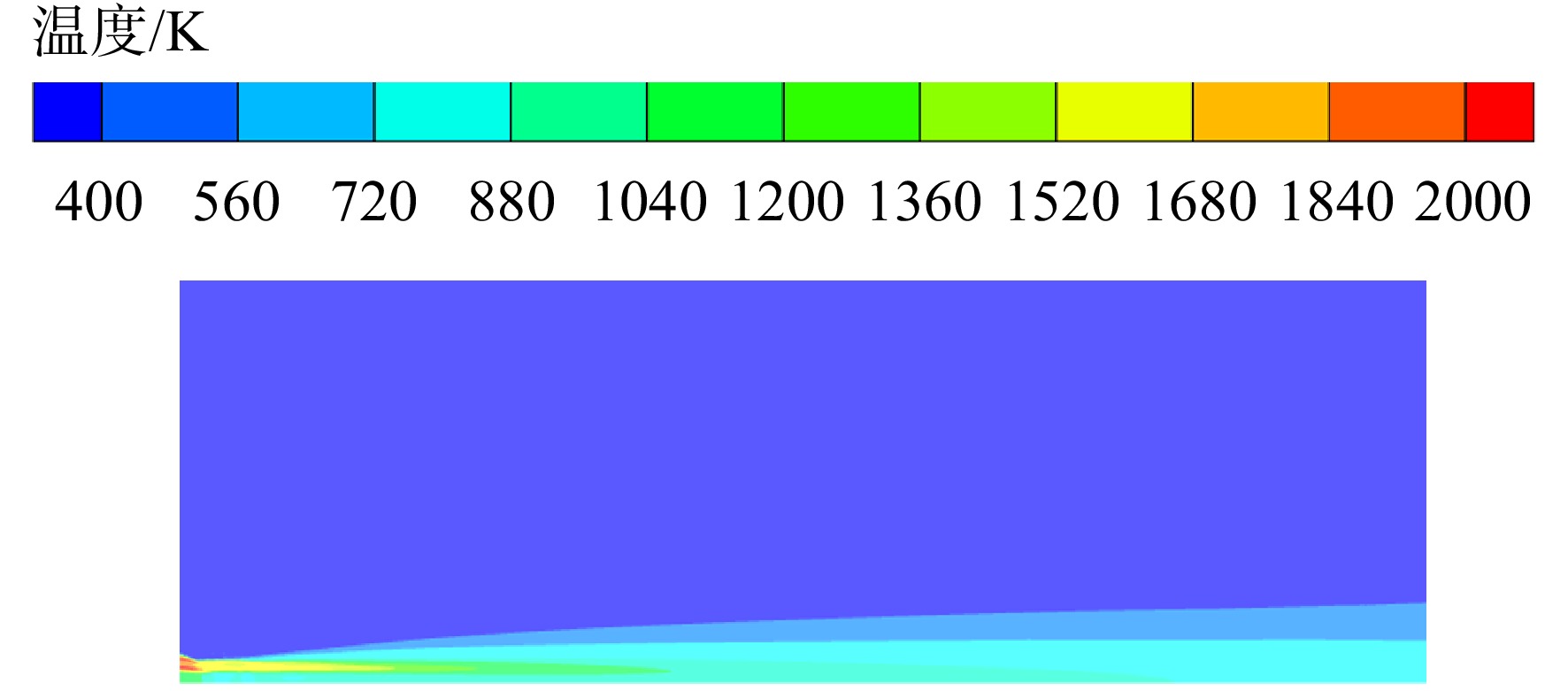

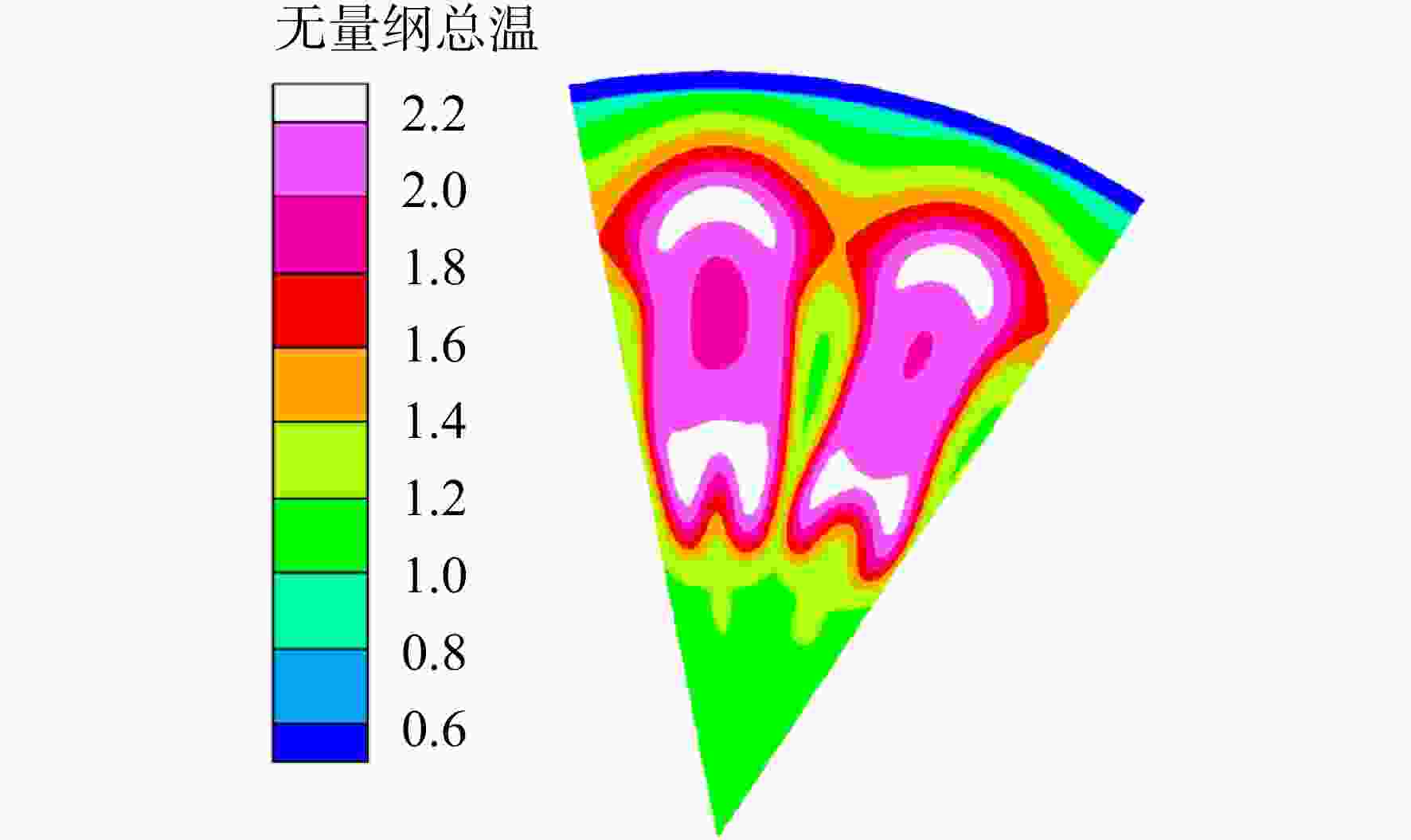

图 13 加力燃烧室出口温度对比验证
Figure 13. Comparison and verification of afterburner outlet temperature and test data

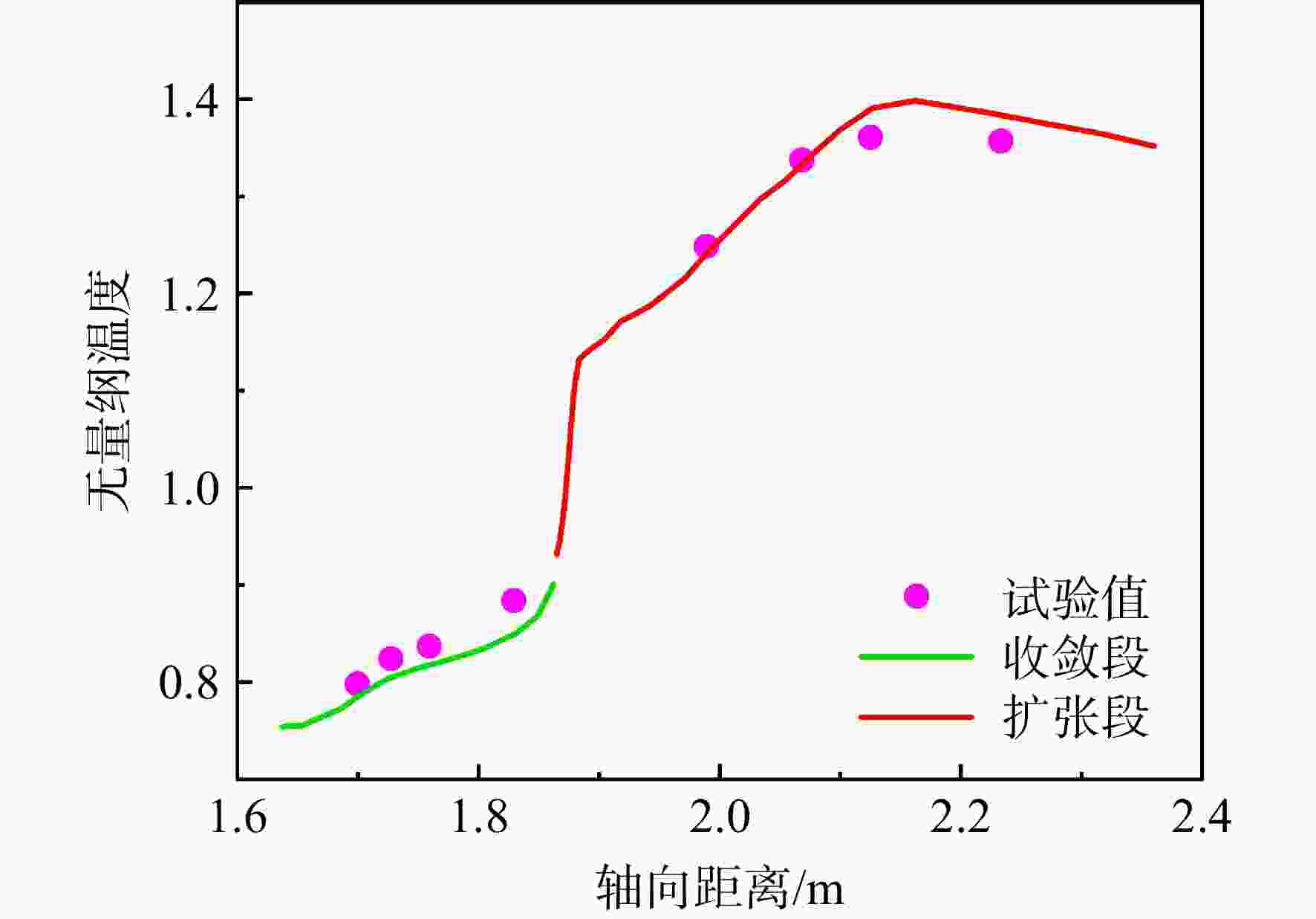

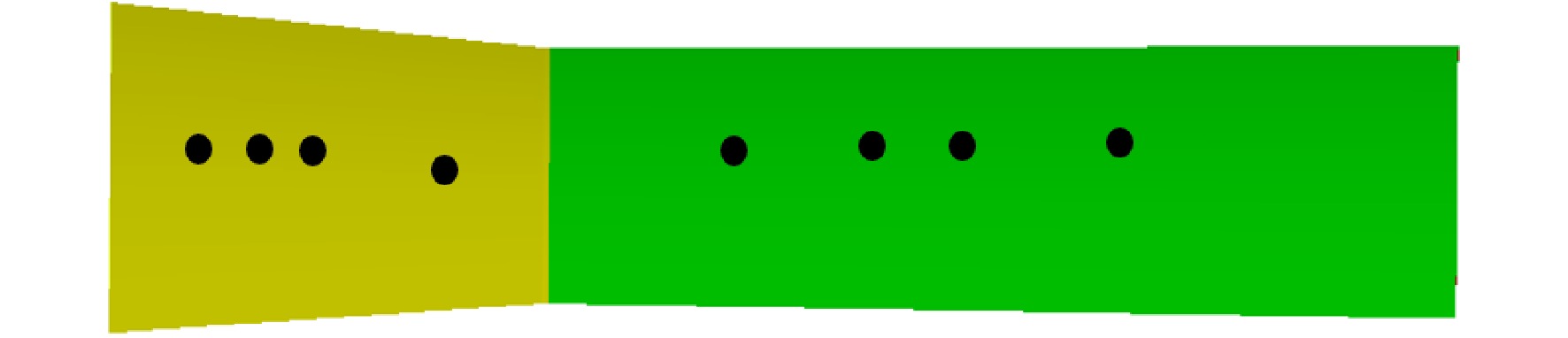

图 14 调节片壁面温度对比验证
Figure 14. Comparative verification of the wall temperature of the regulating plate

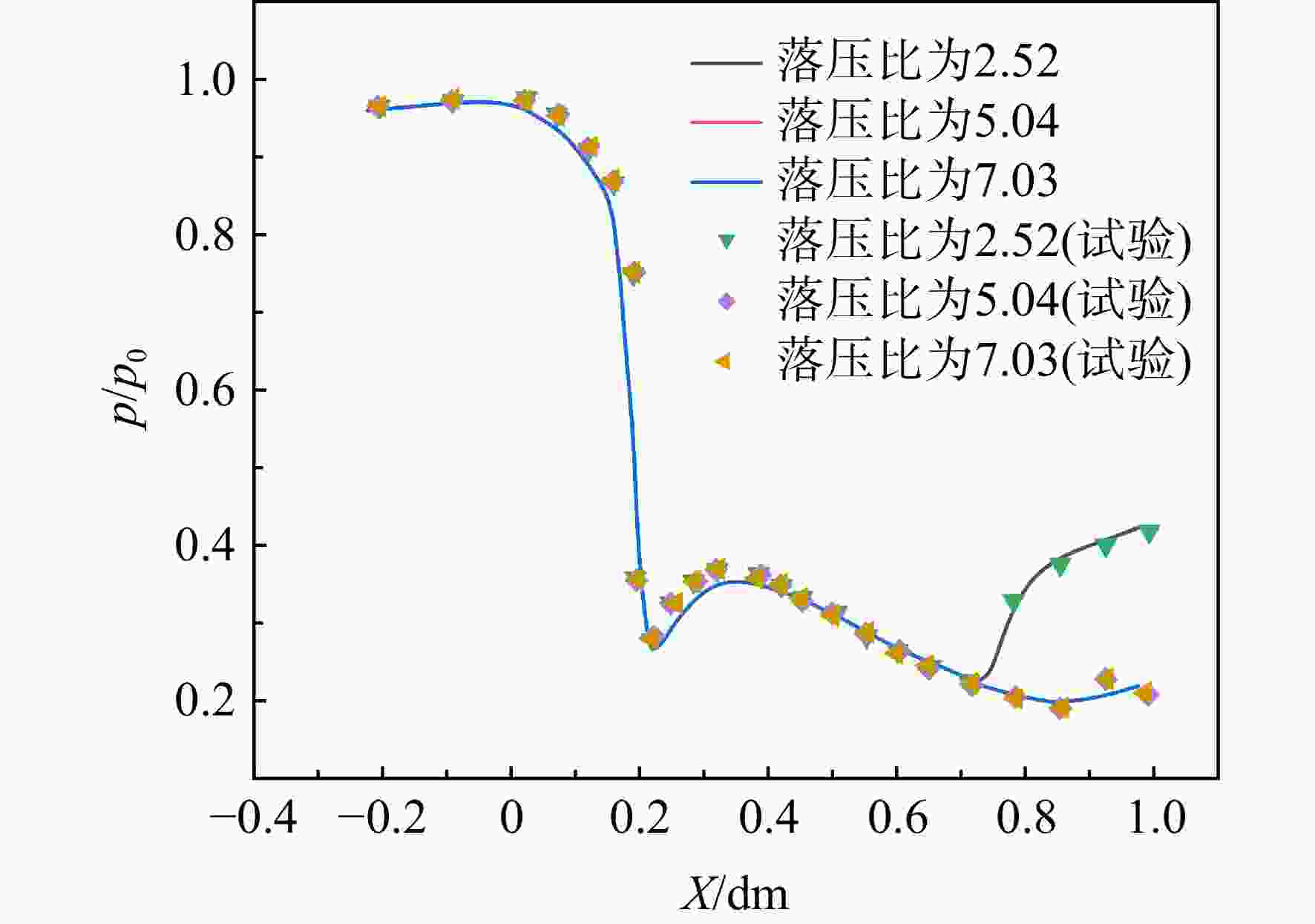

图 17 喷管内外壁面压力分布与试验数据对比图
Figure 17. Comparison between pressure distribution on the inner and outer walls of the nozzle and experimental data

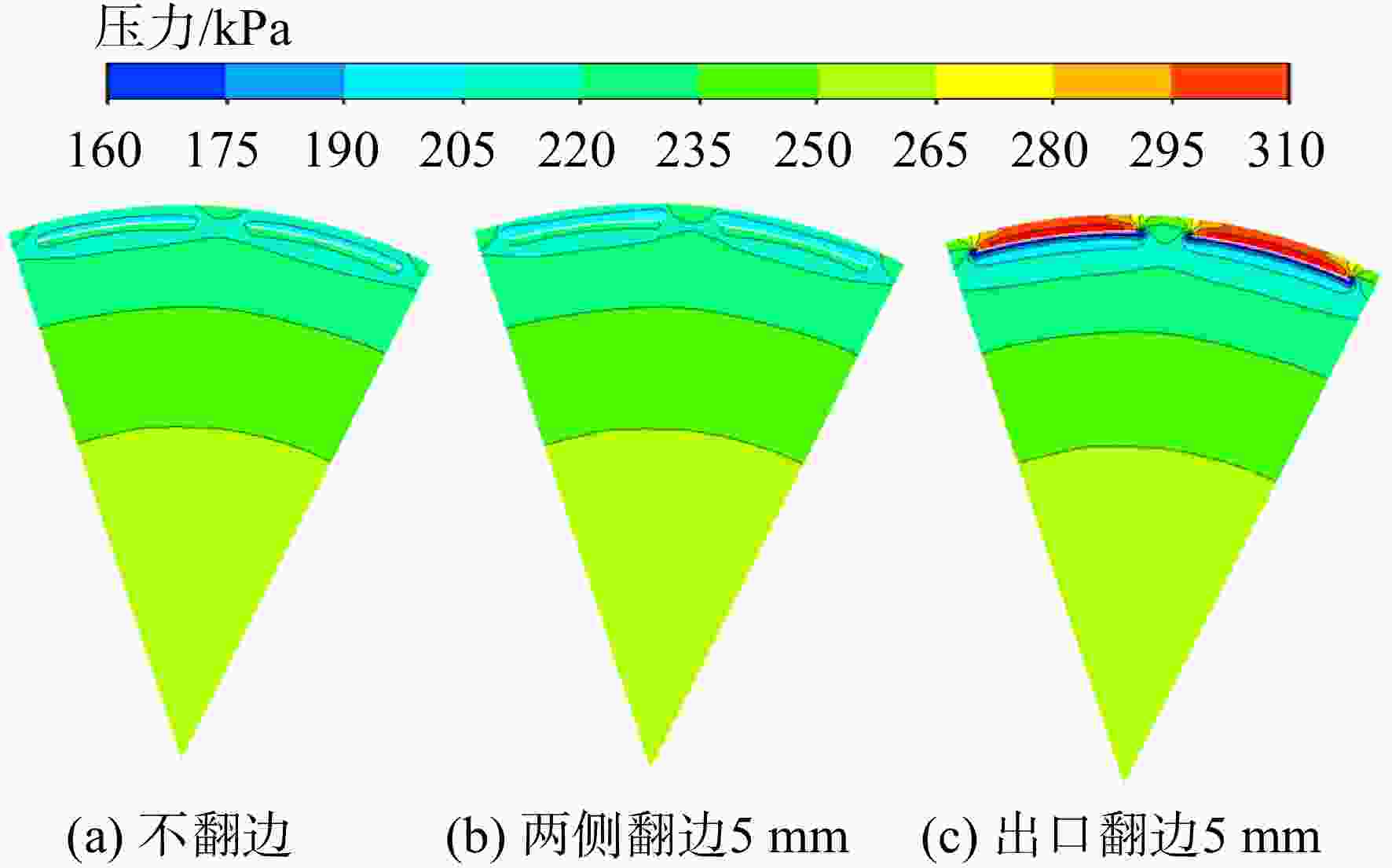

图 18 不同翻边结构下的压力对比云图
Figure 18. Comparison contours of pressure under different flanging structures

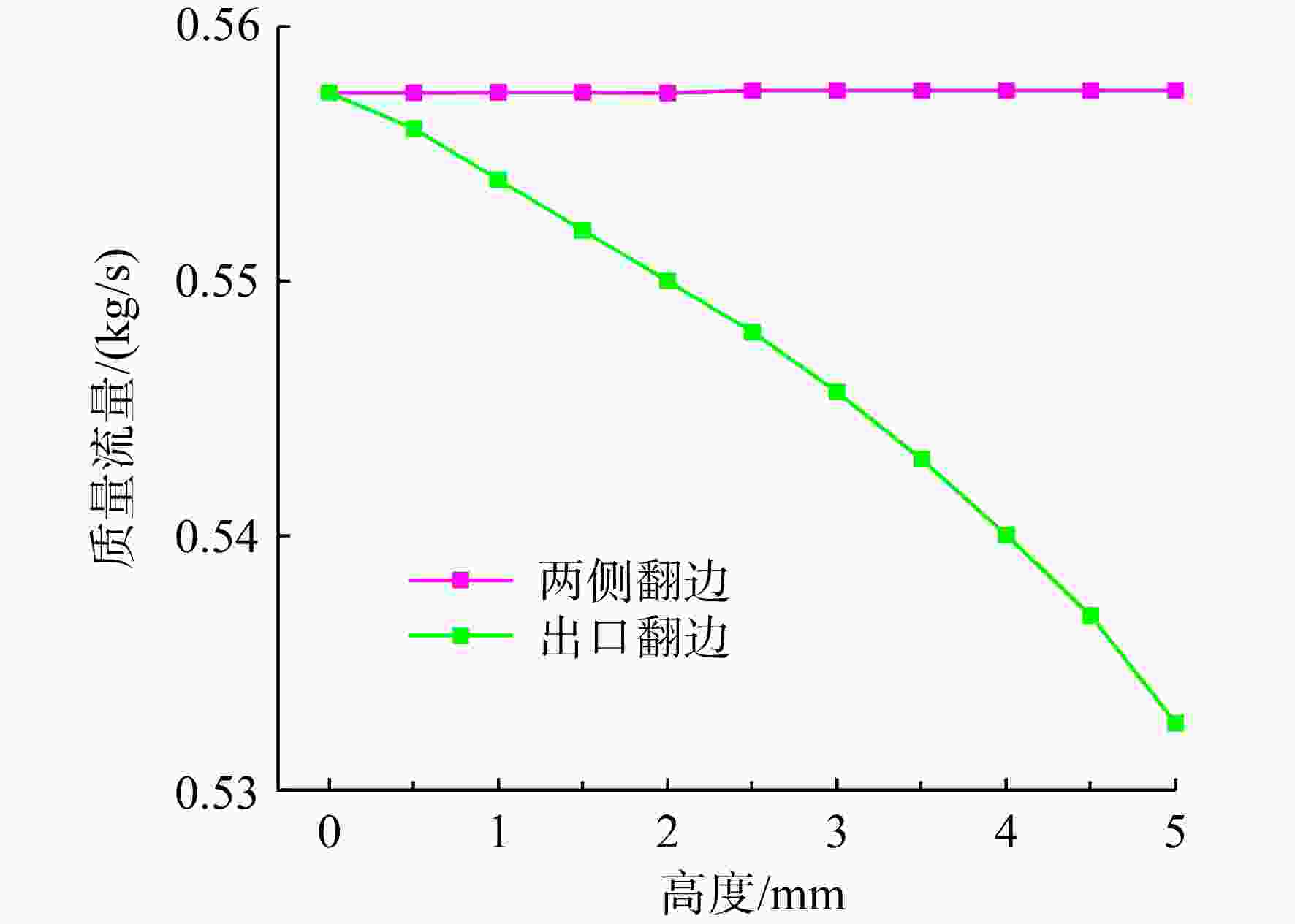

图 19 不同翻边结构下的冷却气体质量流量对比图
Figure 19. Comparison diagram of cooling gas mass flow rate under different flanging structures

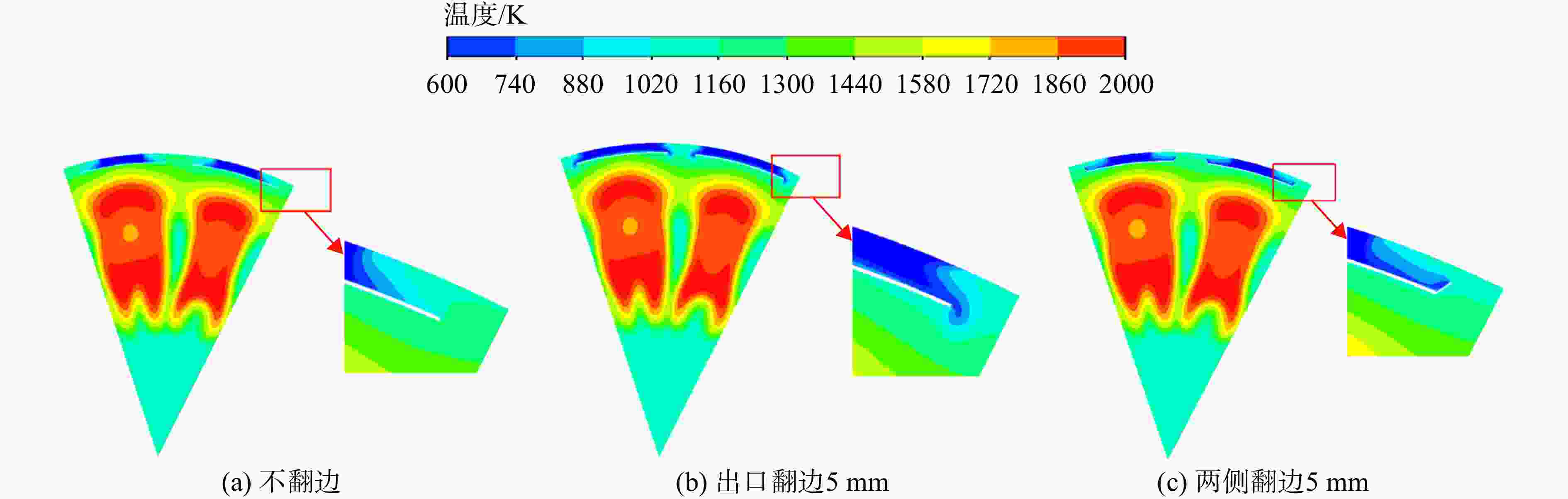

图 20 不同翻边结构下的温度对比云图
Figure 20. Comparison contours of temperature under different flanging structures

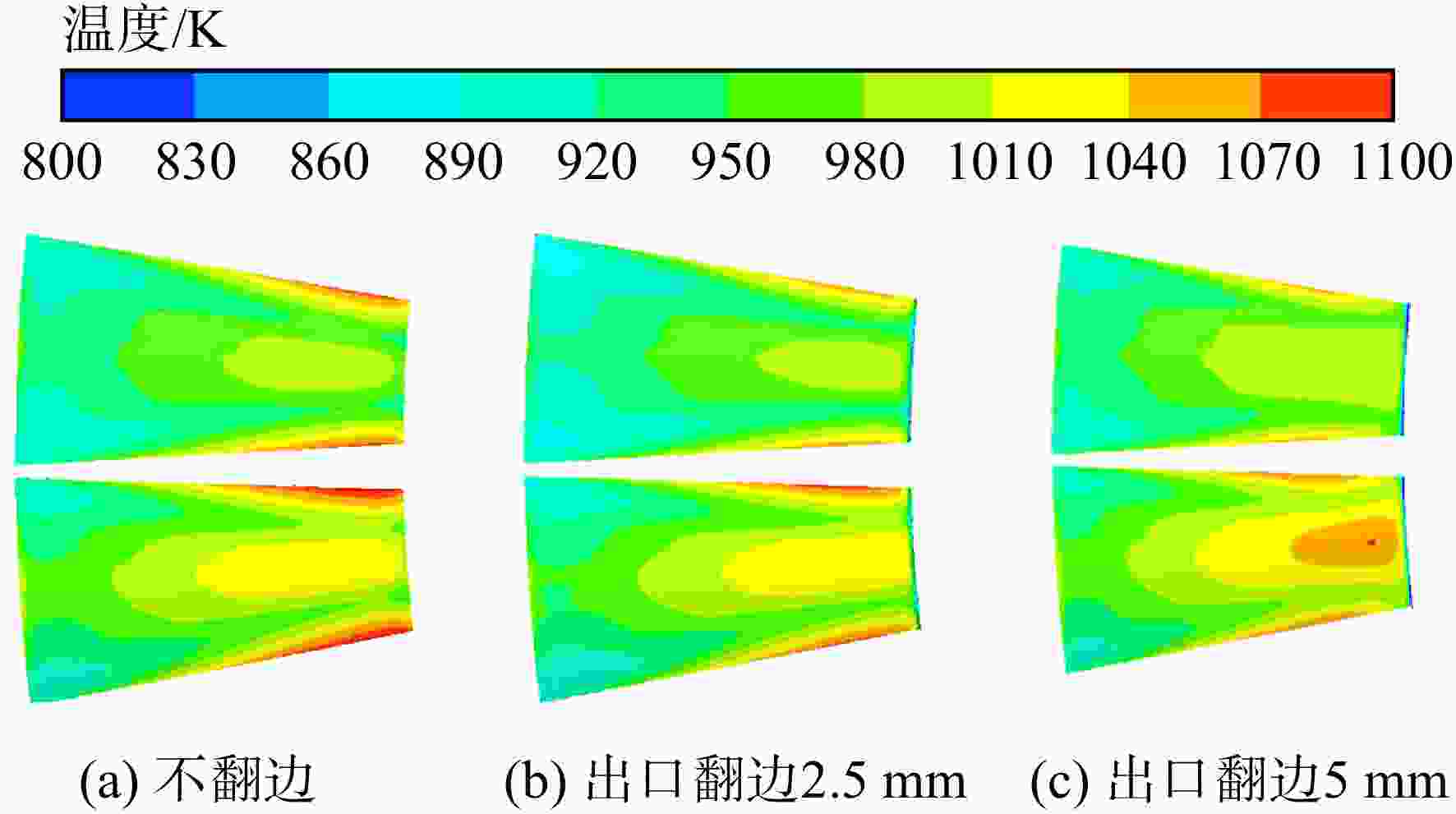

图 21 隔热屏温度对比云图（出口翻边）
Figure 21. Comparison contours of heat shield temperature （outlet flanging）

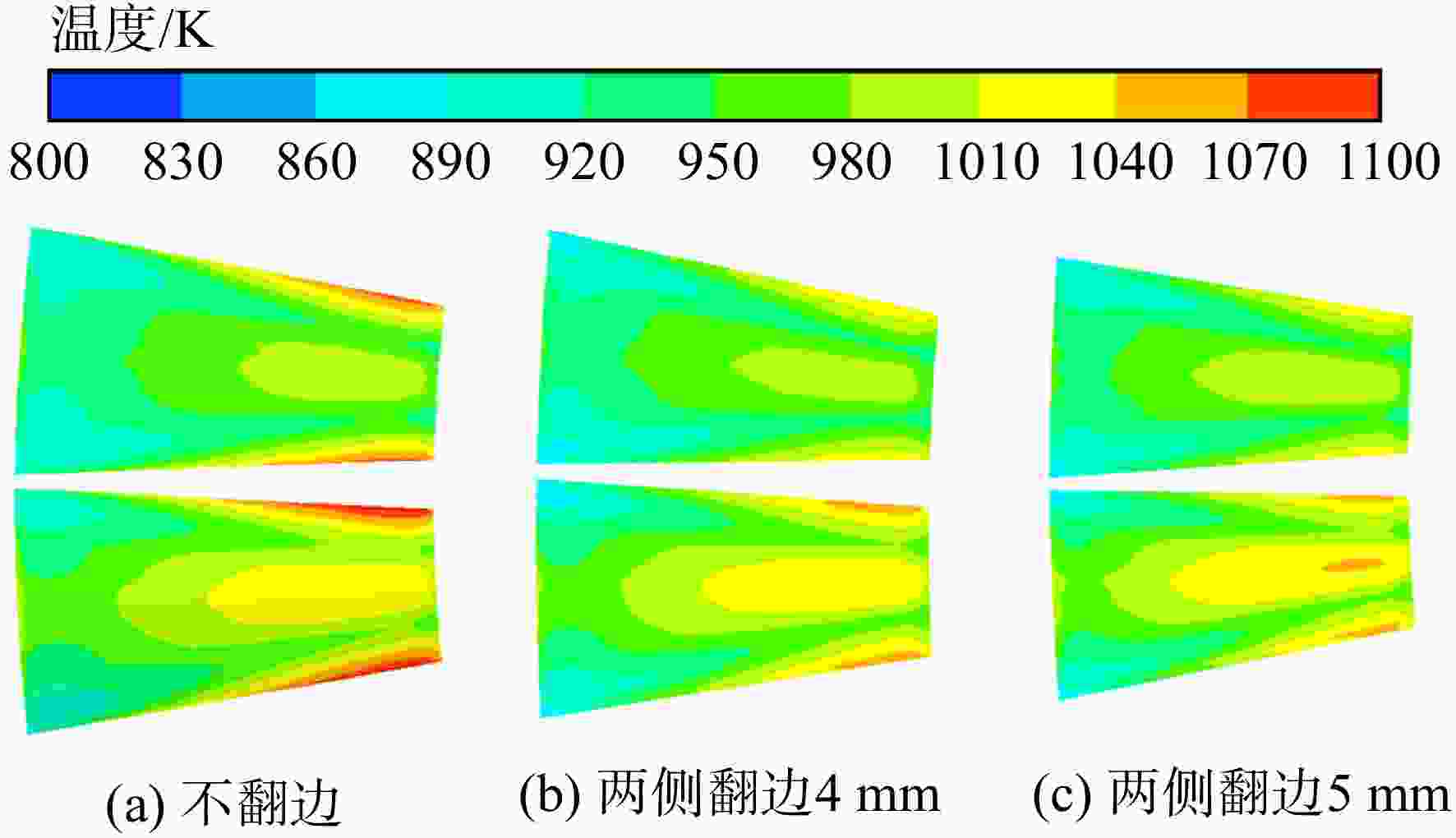

图 22 隔热屏温度对比云图（两侧翻边）
Figure 22. Comparison contours of heat shield temperature（both sides flanging）

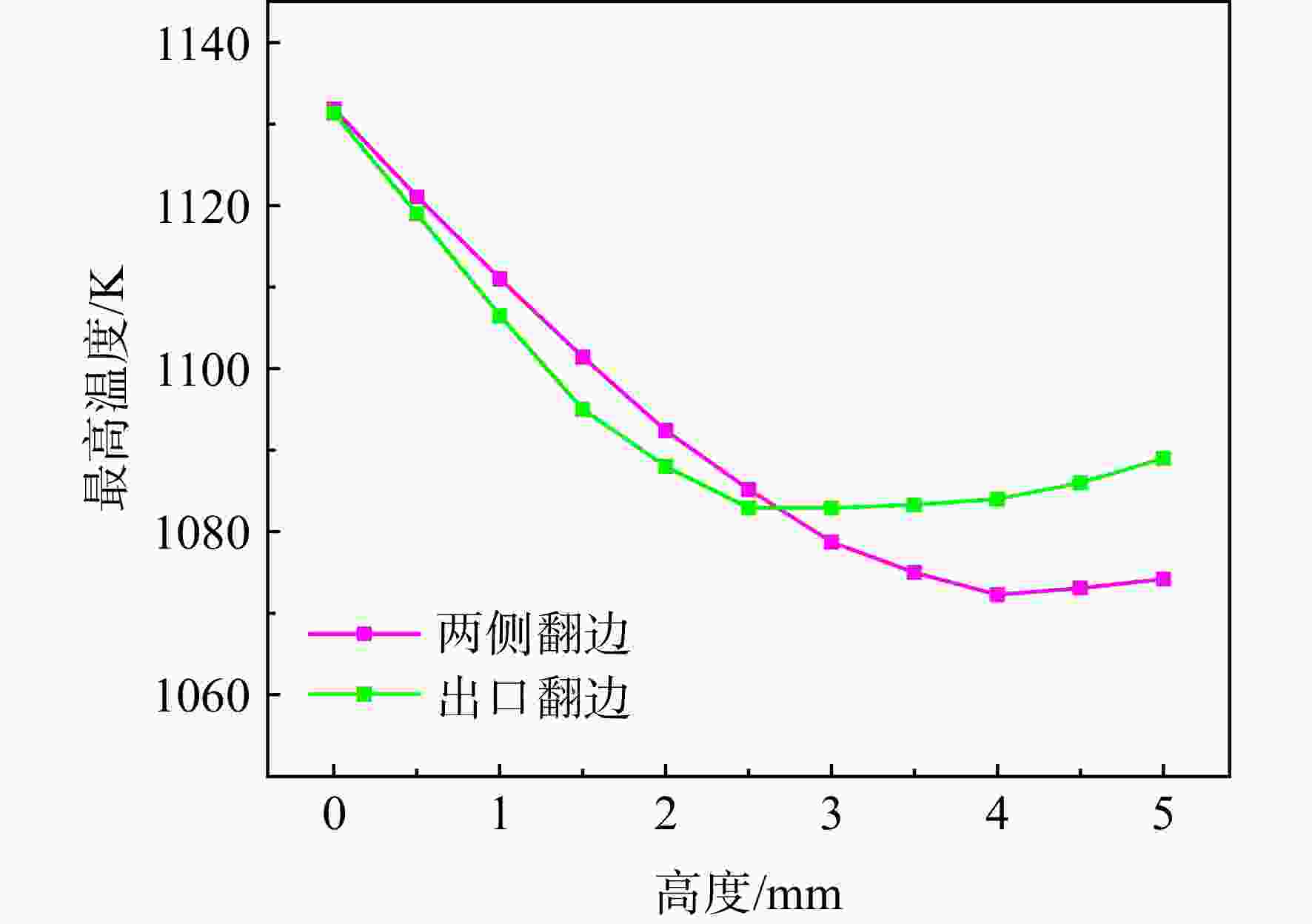

图 23 不同翻边结构下的隔热屏最高温度对比图
Figure 23. Comparison diagram of maximum temperature of heat shield under different flanging structures

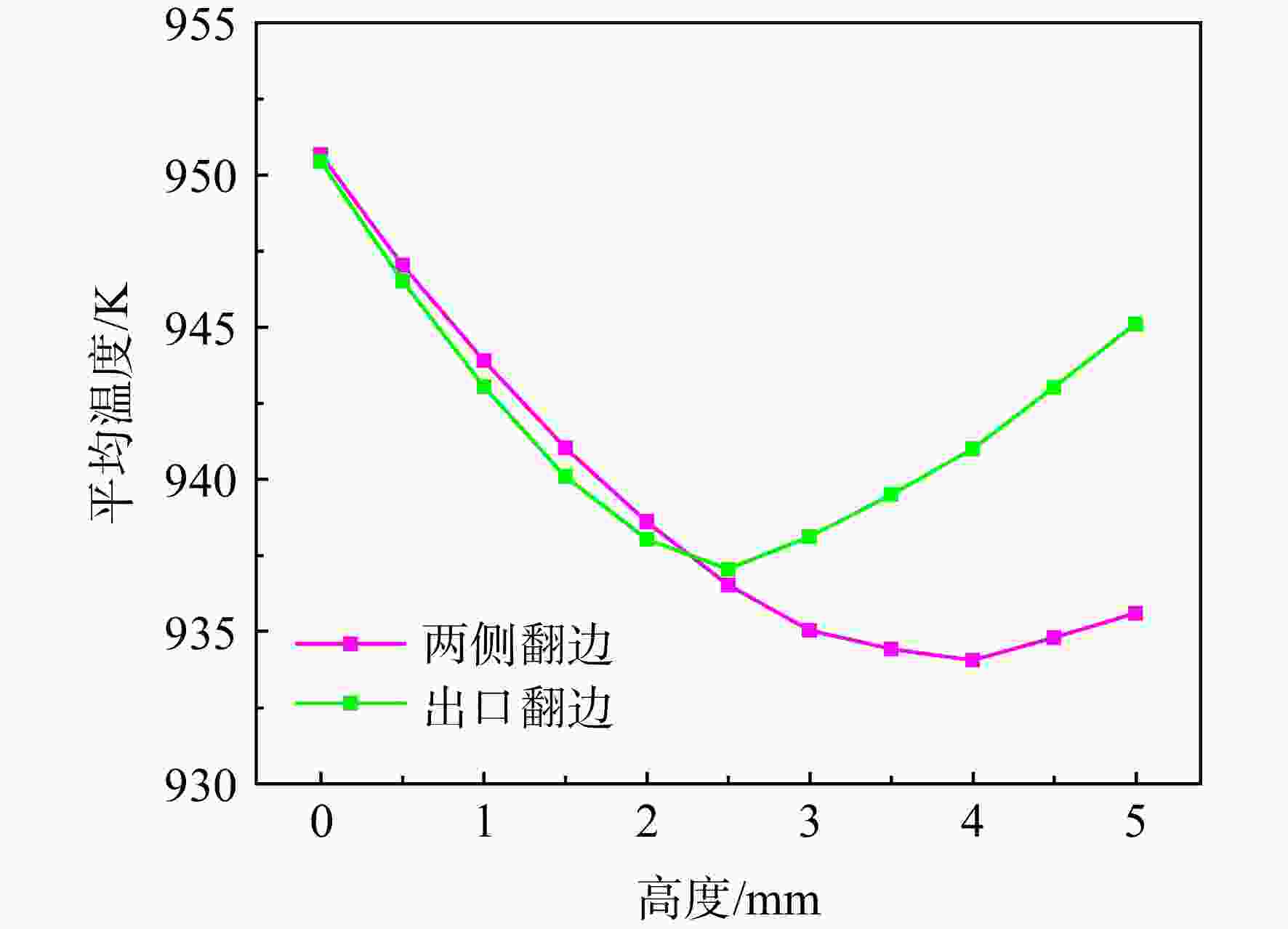

图 24 不同翻边结构下的隔热屏平均温度对比图
Figure 24. Comparison diagram of average temperature of heat shield under different flange structures

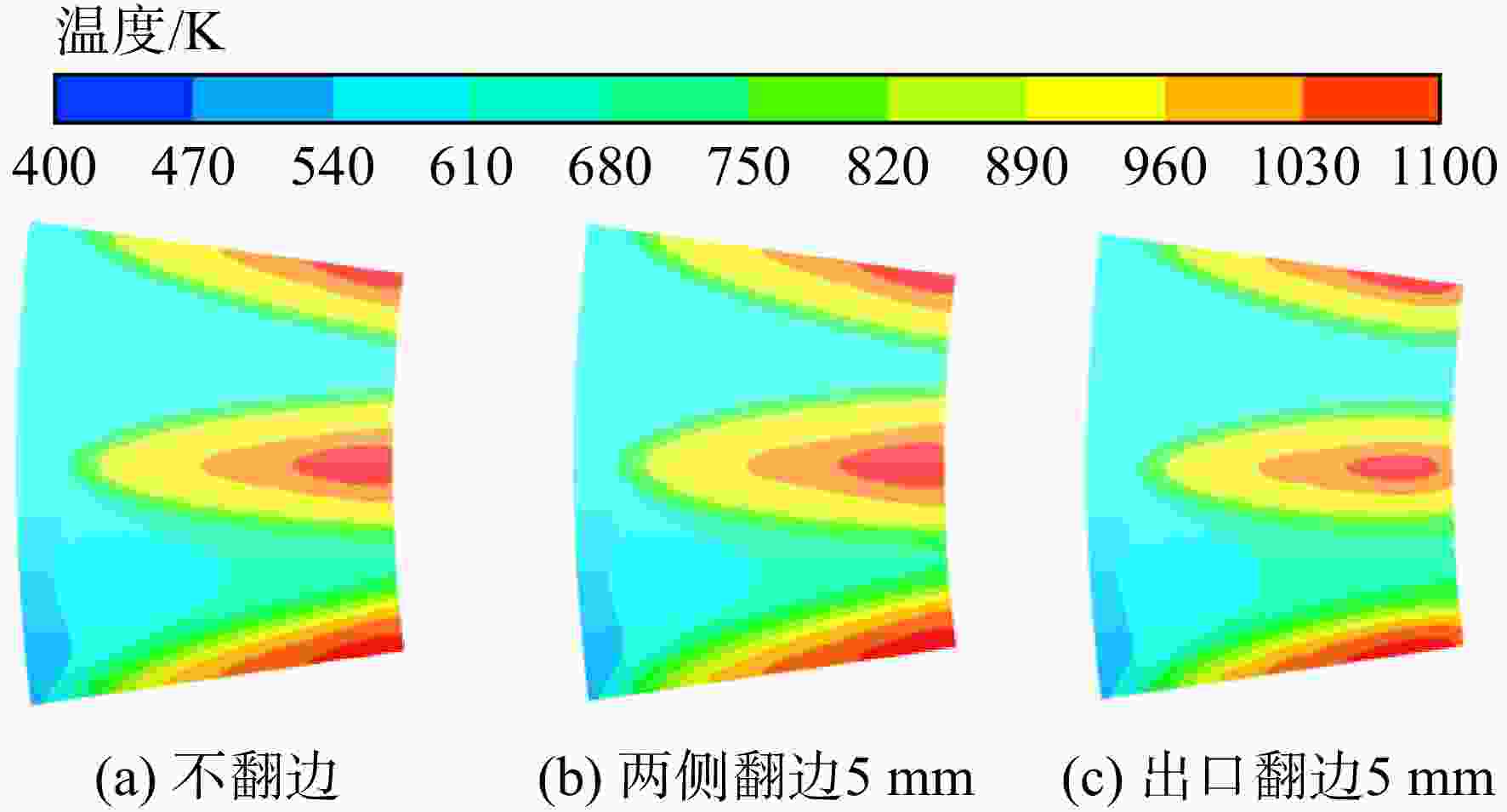

图 25 不同翻边结构下的收敛段壁面温度对比云图
Figure 25. Comparison contours of wall temperature at convergence section under different flanging structures

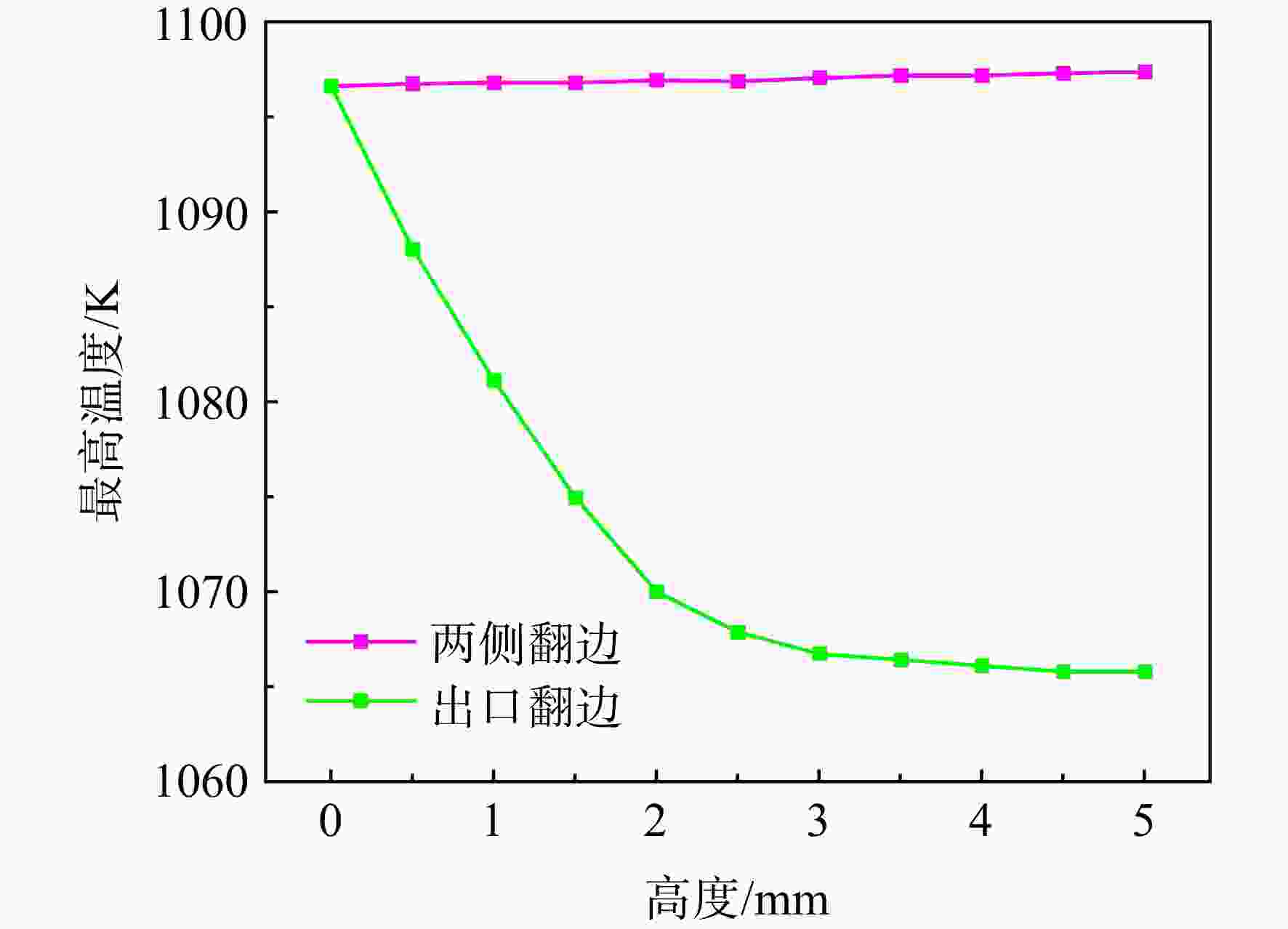

图 26 不同翻边结构下的收敛段最高温度对比图
Figure 26. Comparison diagram of maximum temperature at convergence section under different flanging structures

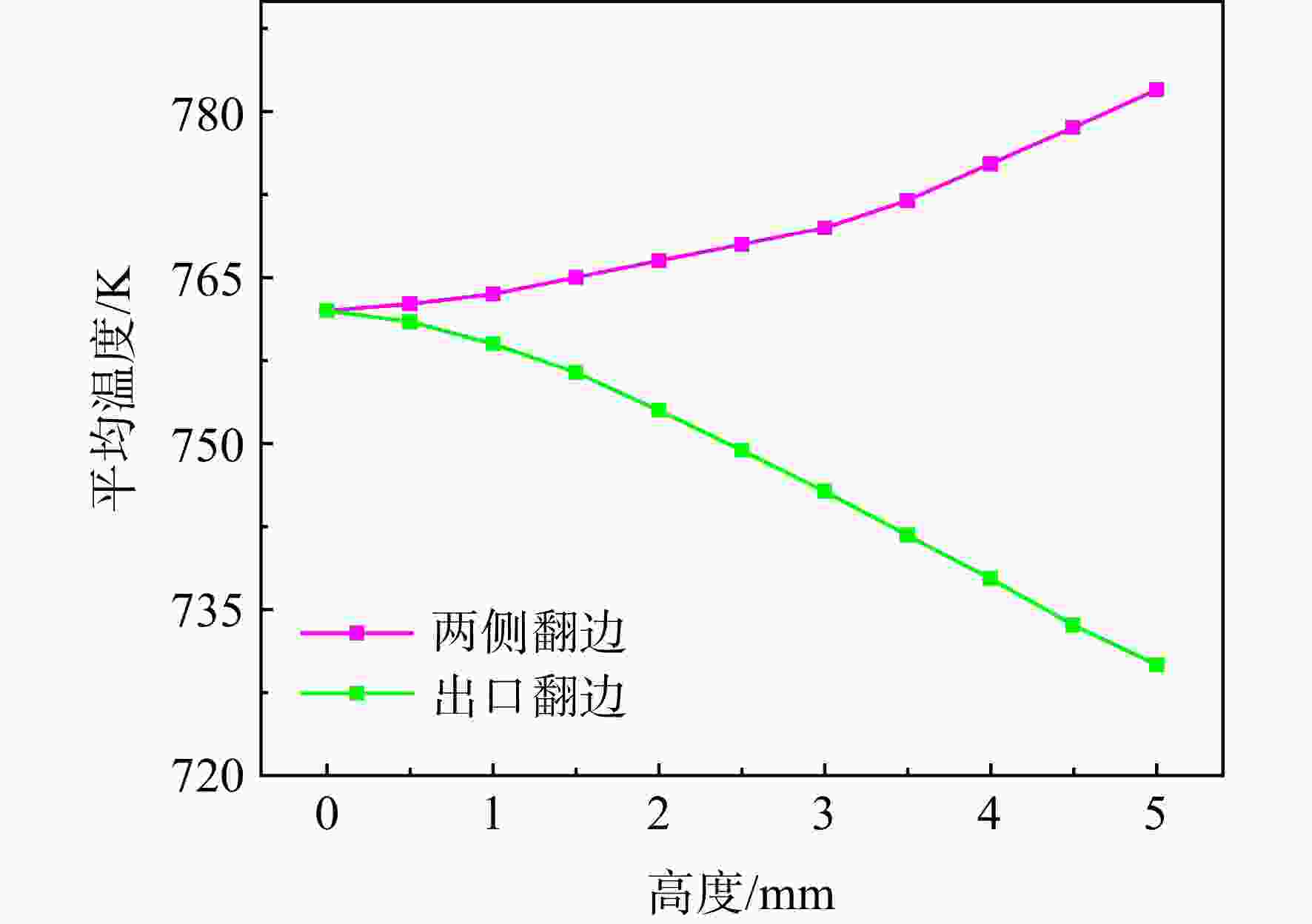

图 27 不同翻边结构下的收敛段平均温度对比图
Figure 27. Comparison diagram of average temperature of convergence section under different flanging structures

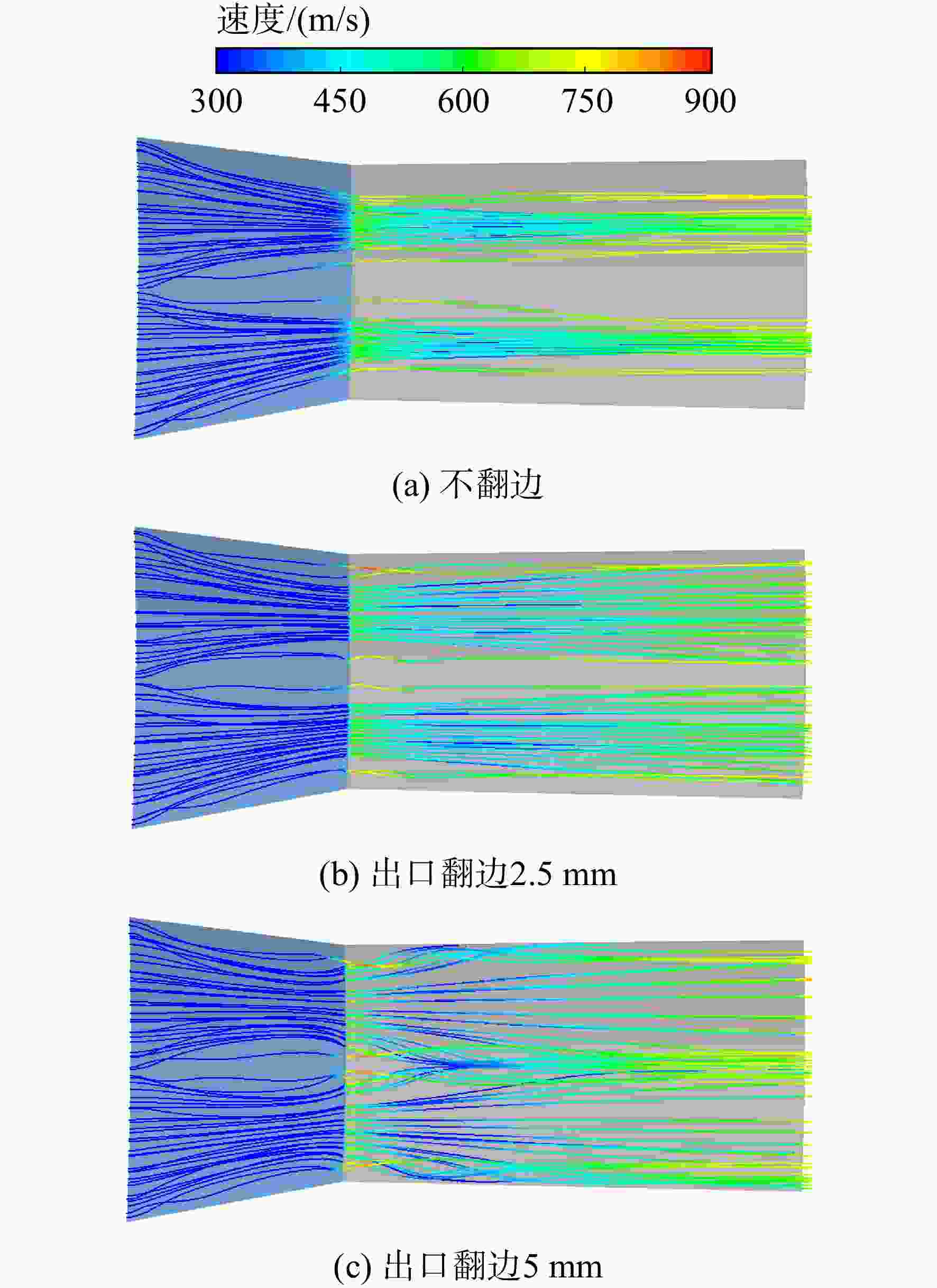

图 29 不同翻边高度下的流线图（出口翻边）
Figure 29. Streamline diagram under different flanging heights （outlet flanging）

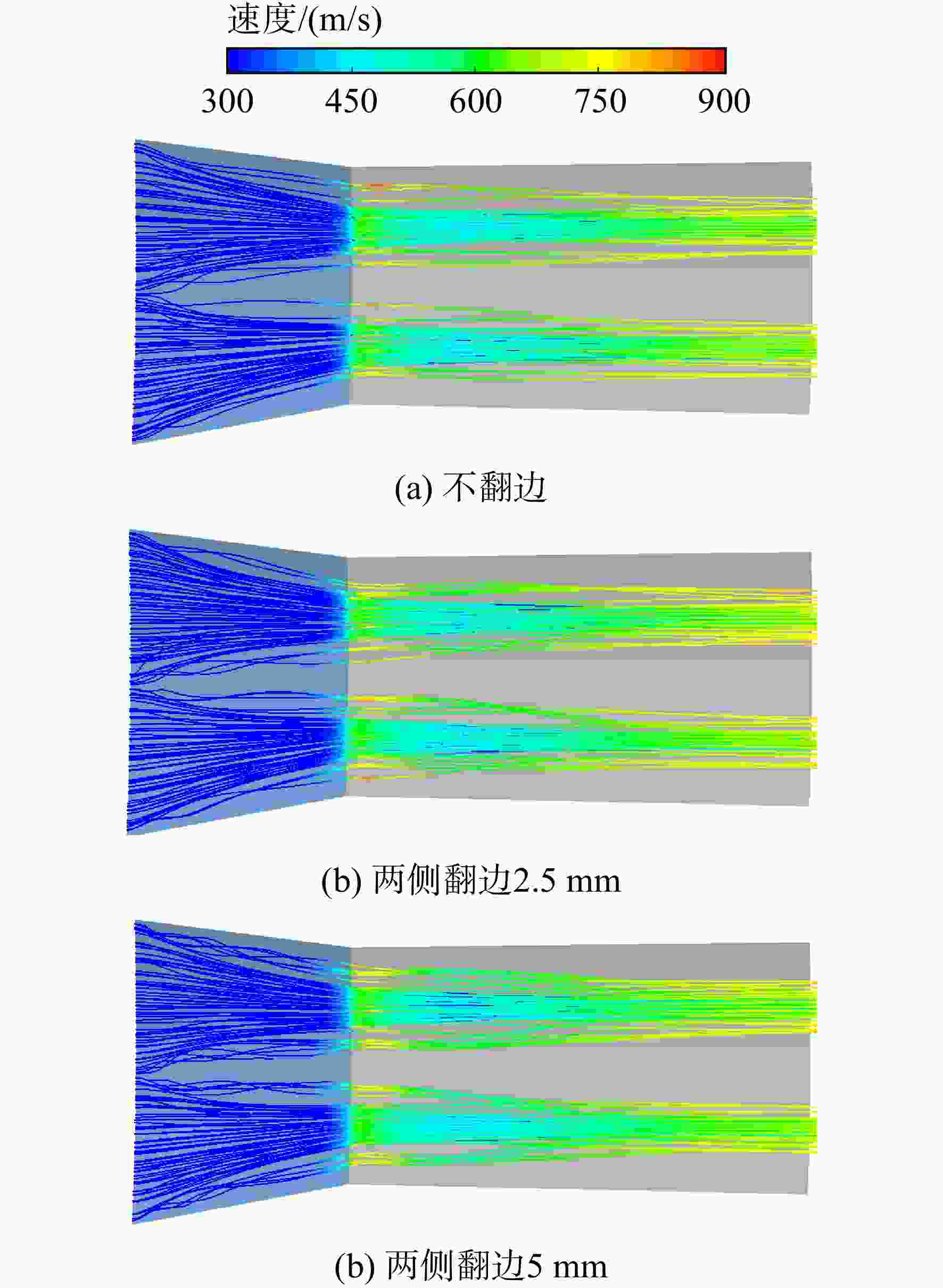

图 30 不同翻边高度下的流线图（两侧翻边）
Figure 30. Streamline diagram under different flanging heights （both sides flanging）

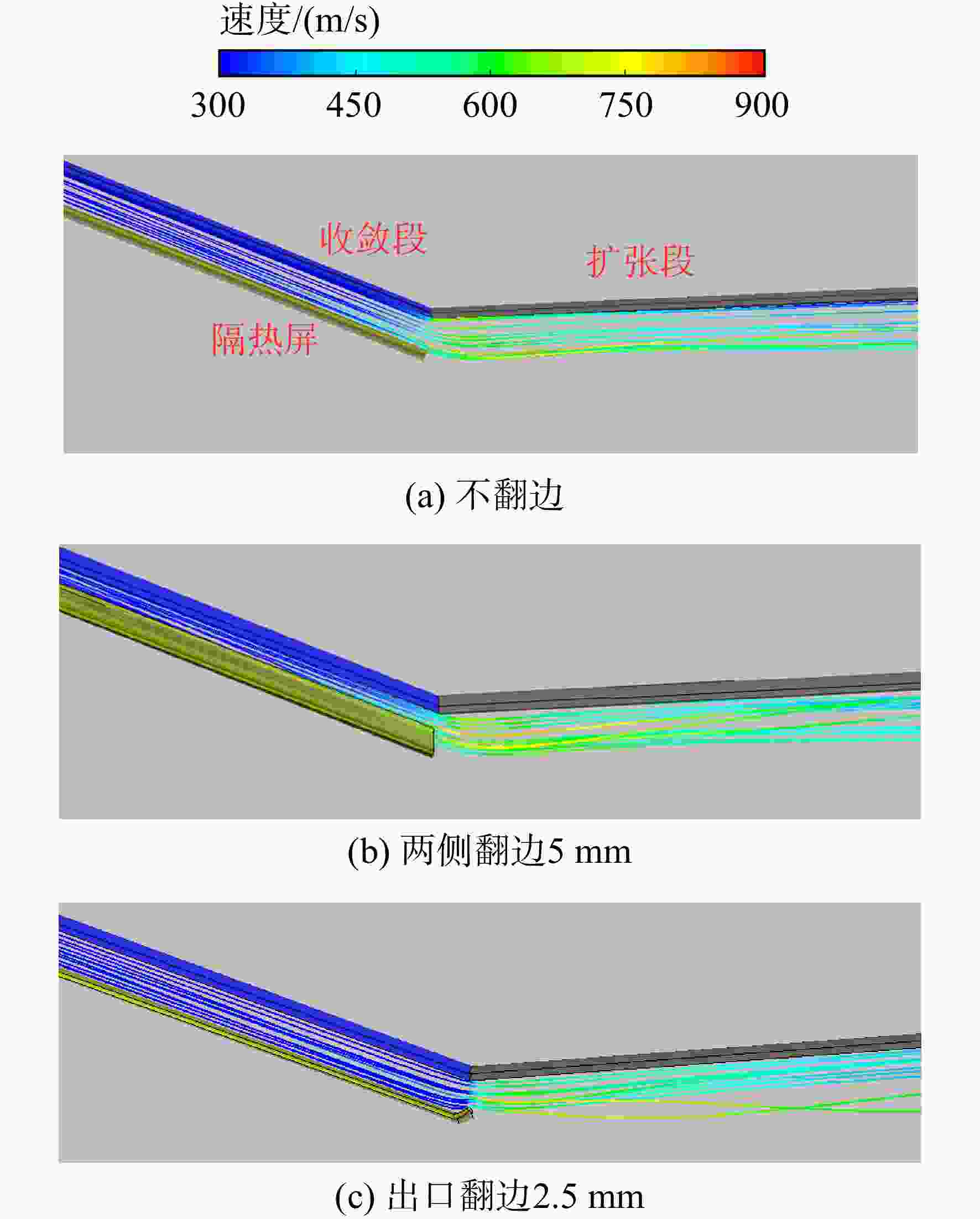

图 31 不同翻边结构下的流线侧视图
Figure 31. Streamline side view under different flanging structures

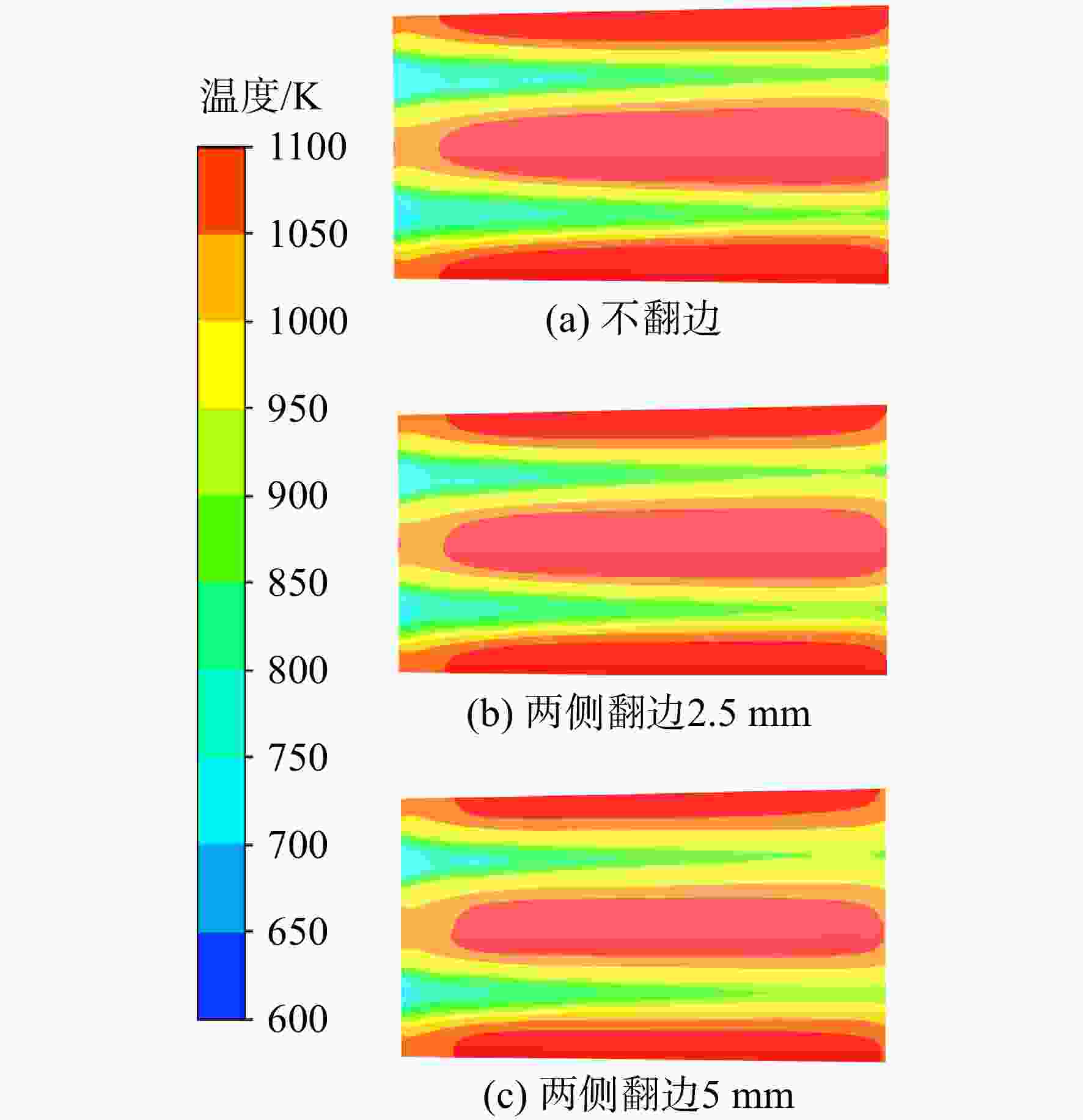

图 32 扩张段温度分布图（两侧翻边）
Figure 32. Temperature distribution diagram of expansion section （both sides flanging）

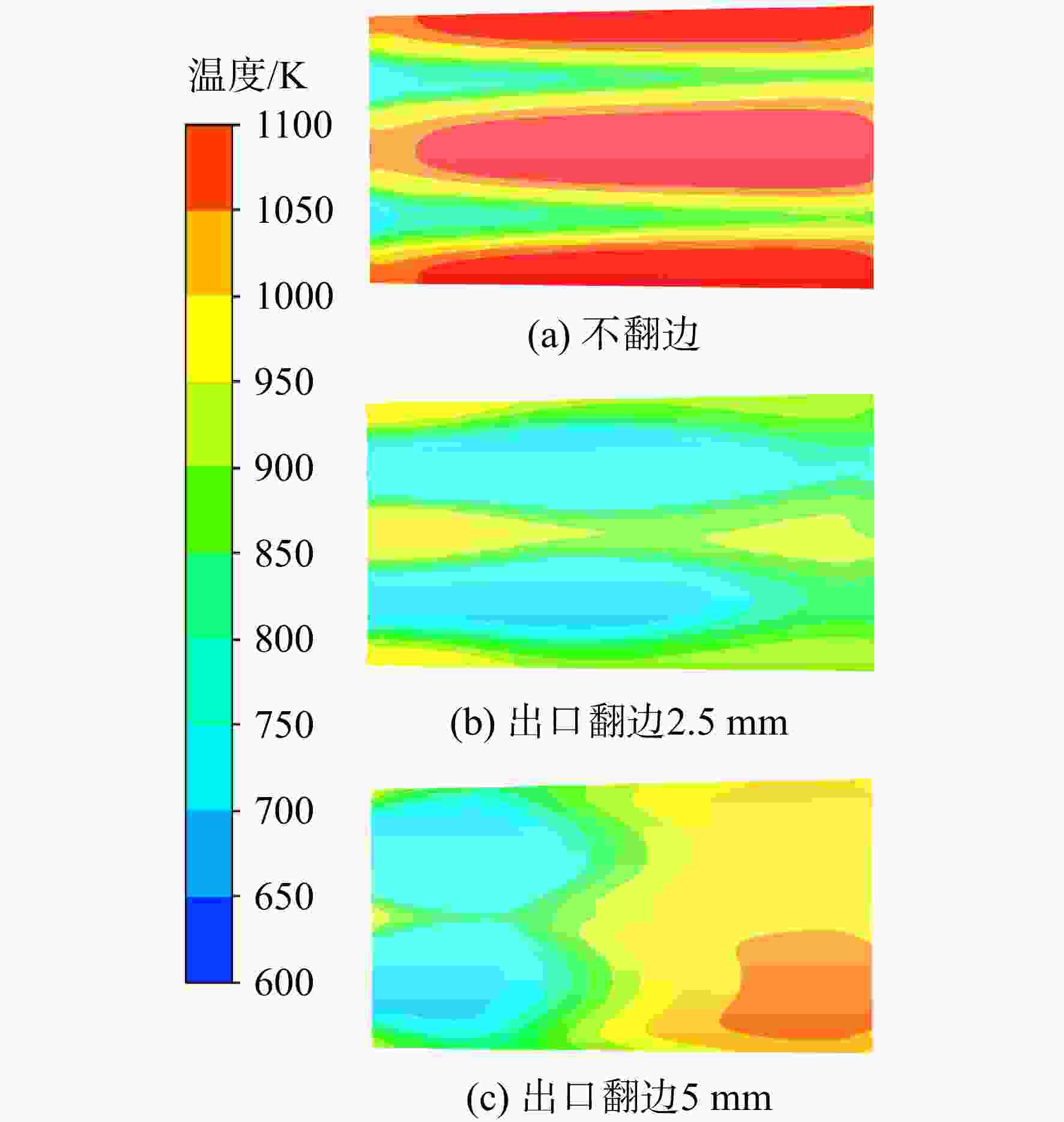

图 33 扩张段温度分布图（出口翻边）
Figure 33. Temperature distribution diagram of expansion section （outlet flanging）

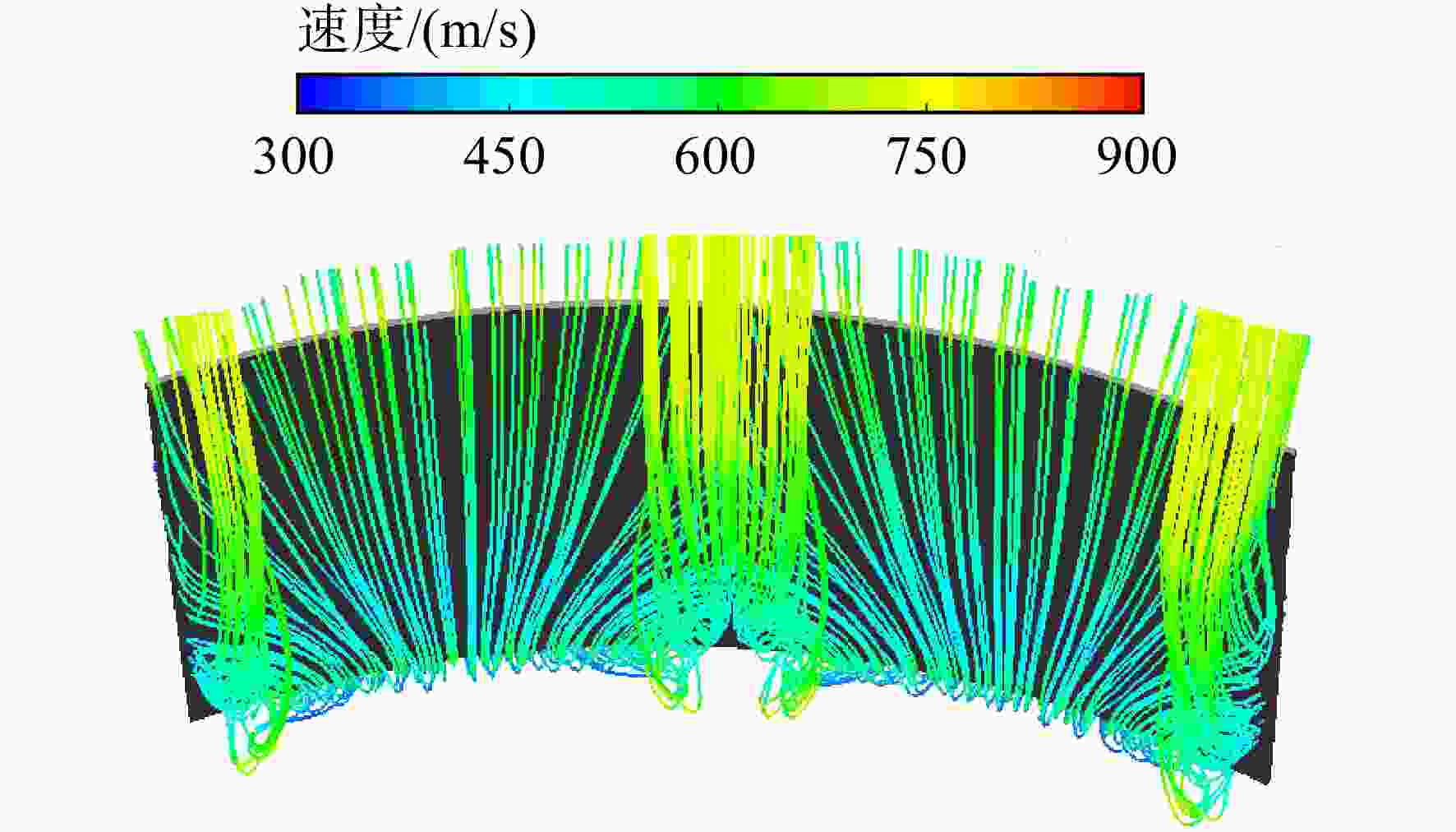

图 34 扩张段流线图（出口翻边5 mm）
Figure 34. Expansion section streamline diagram（outlet flanging 5 mm）

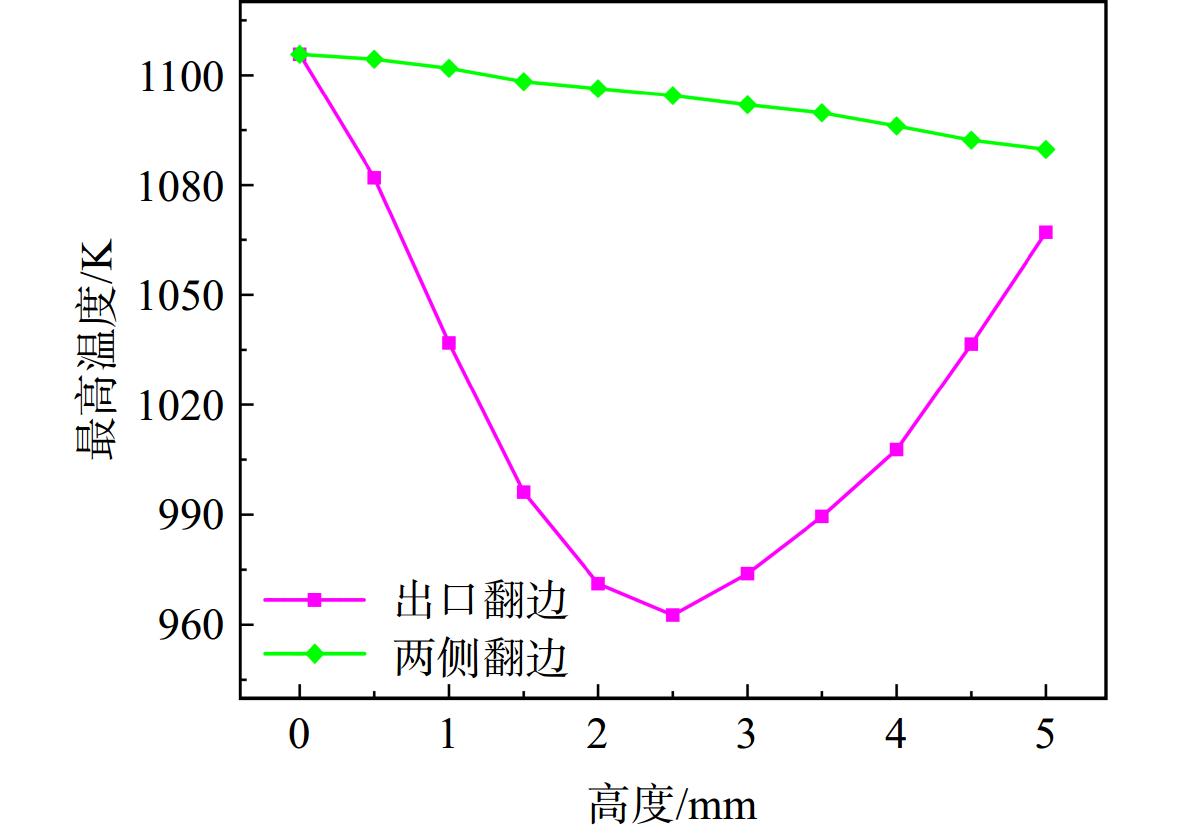

图 35 不同翻边结构下的扩张段最高温度对比图
Figure 35. Comparison diagram of maximum temperature of expansion section under different flanging structures

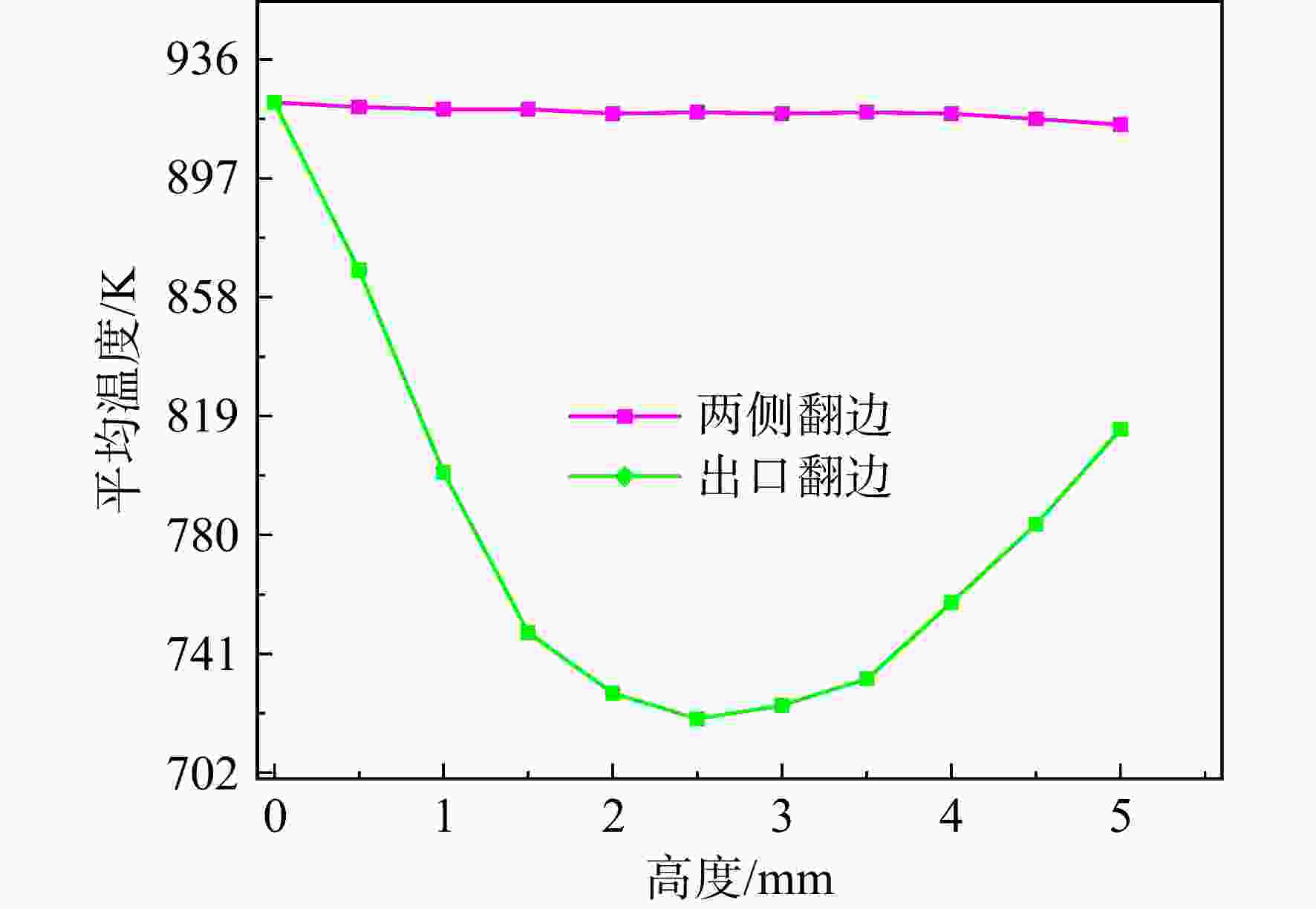

图 36 不同翻边结构下的扩张段平均温度对比图
Figure 36. Comparison diagram of average temperature of expansion section under different flanging structures
-

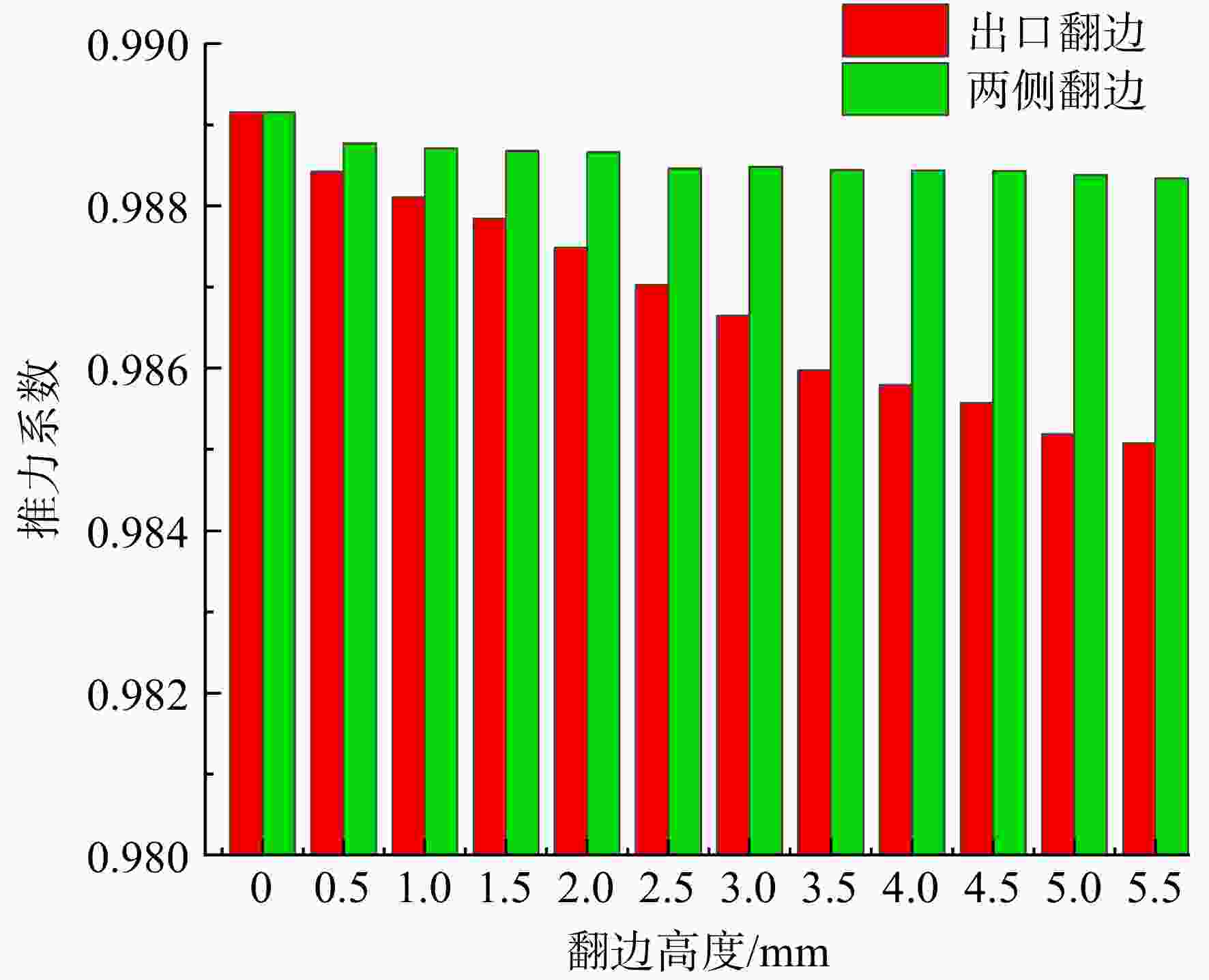

[1] HOU Shengwen,WANG Qiang,HU Haiyang,et al. Numerical study on the influence of turbine swirl on exhaust system[J]. Physics of Fluids,2024,36(4): 046118. [2] 季鹤鸣. 第四代歼击机发动机加力燃烧室的技术特点[J]. 航空发动机,1996,22(4): 3-12. JI Heming. Technical characteristics of afterburner of the fourth generation fighter engine[J]. Aeroengine,1996,22(4): 3-12. (in ChineseJI Heming. Technical characteristics of afterburner of the fourth generation fighter engine[J]. Aeroengine, 1996, 22(4): 3-12. (in Chinese) [3] 林鹏,庄福建,曲林锋,等. 高超声速飞机尾喷管设计-制造与验证技术发展综述[J]. 航空学报,2022,43(6): 526160. LIN Peng,ZHUANG Fujian,QU Linfeng,et al. Technological development in hypersonic nozzle design,manufacture and validation: a review[J]. Acta Aeronautica et Astronautica Sinica,2022,43(6): 526160. (in ChineseLIN Peng, ZHUANG Fujian, QU Linfeng, et al. Technological development in hypersonic nozzle design, manufacture and validation: a review[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(6): 526160. (in Chinese) [4] 吉洪湖. 飞发一体化设计中的发动机隐身问题[J]. 航空动力,2018(2): 67-71. JI Honghu. Fundamental issues of aircraft/engine integration for low observability[J]. Aerospace Power,2018(2): 67-71. (in ChineseJI Honghu. Fundamental issues of aircraft/engine integration for low observability[J]. Aerospace Power, 2018(2): 67-71. (in Chinese) [5] 张志学,王强,邵万仁,等. 航空发动机排气系统设计 [M]. 北京: 科学出版社,2022. ZHANG Zhixue,WANG Qiang,SHAO Wanren,et al. Design of exhaust system for aero-engine[M]. Beijing: Science Press,2022. (in ChineseZHANG Zhixue, WANG Qiang, SHAO Wanren, et al. Design of exhaust system for aero-engine[M]. Beijing: Science Press, 2022. (in Chinese) [6] 潘思霖. 涡扇发动机排气系统气膜冷却及红外隐身特性数值研究[D]. 北京: 北京航空航天大学,2021. PAN Silin. Numerical study on film cooling and infrared stealth characteristics of turbofan engine exhaust system[D]. Beijing: Beihang University,2021. (in ChinesePAN Silin. Numerical study on film cooling and infrared stealth characteristics of turbofan engine exhaust system[D]. Beijing: Beihang University, 2021. (in Chinese) [7] BOCCALETTO L,REIJASSE P,DUSSAUGE J P. Dynamic behaviour of a separation oblique shock during film cooling transient injection[C]//Proceedings of the 37th AIAA Fluid Dynamics Conference and Exhibit. Miami,US: AIAA,2007: 4003-4014. [8] HUNT M,JUHANY K,SIVO J. Supersonic film cooling effectiveness using air and helium for a range of injectant temperatures and Mach numbers: AIAA1991-1416[R]. Reston,US: AIAA,1991. [9] 额日其太,王志杰,吴寿生. 高速热喷流条件下二元收扩喷管扩张段壁面冷却的初步试验研究[J]. 航空动力学报,2002,17(1): 40-44. Eriqitai,WANG Zhijie,WU Shousheng. Preliminary experimental investigation on the divergent wall cooling of two dimensional C-D nozzles at high speed and hot jet conditions[J]. Journal of Aerospace Power,2002,17(1): 40-44. (in ChineseEriqitai, WANG Zhijie, WU Shousheng. Preliminary experimental investigation on the divergent wall cooling of two dimensional C-D nozzles at high speed and hot jet conditions[J]. Journal of Aerospace Power, 2002, 17(1): 40-44. (in Chinese) [10] 斯仁,吉洪湖,刘常春,等. 冷却抑制二元收扩喷管红外特征的模型试验与数值研究[J]. 推进技术,2014,35(4): 463-469. SI Ren,JI Honghu,LIU Changchun,et al. Model experiment and numerical analysis on infrared character and infrared suppression by cooling of two-dimensional convergent-divergent nozzle[J]. Journal of Propulsion Technology,2014,35(4): 463-469. (in ChineseSI Ren, JI Honghu, LIU Changchun, et al. Model experiment and numerical analysis on infrared character and infrared suppression by cooling of two-dimensional convergent-divergent nozzle[J]. Journal of Propulsion Technology, 2014, 35(4): 463-469. (in Chinese) [11] 周兵,吉洪湖. 塞锥气膜冷却对二元塞式喷管红外特征的影响[J]. 航空动力学报,2016,31(12): 2895-2903. ZHOU Bing,JI Honghu. Effect of wedge film cooling on the infrared signature of two-dimensional wedge nozzle[J]. Journal of Aerospace Power,2016,31(12): 2895-2903. (in ChineseZHOU Bing, JI Honghu. Effect of wedge film cooling on the infrared signature of two-dimensional wedge nozzle[J]. Journal of Aerospace Power, 2016, 31(12): 2895-2903. (in Chinese) [12] 张小英,王先炜. 比较研究多种气膜冷却模型的冷却效果[J]. 航空动力学报,2002,17(4): 475-479. ZHANG Xiaoying,WANG Xianwei. Study on cooling effectiveness of various film coolings[J]. Journal of Aerospace Power,2002,17(4): 475-479. (in ChineseZHANG Xiaoying, WANG Xianwei. Study on cooling effectiveness of various film coolings[J]. Journal of Aerospace Power, 2002, 17(4): 475-479. (in Chinese) [13] 张小英,朱谷君,王先炜. 矢量喷管壁温分布的数值计算研究[J]. 航空动力学报,2003,18(5): 634-638. ZHANG Xiaoying,ZHU Gujun,WANG Xianwei. Numerical study of temperature distribution on vectored nozzle wall[J]. Journal of Aerospace Power,2003,18(5): 634-638. (in ChineseZHANG Xiaoying, ZHU Gujun, WANG Xianwei. Numerical study of temperature distribution on vectored nozzle wall[J]. Journal of Aerospace Power, 2003, 18(5): 634-638. (in Chinese) [14] 吴博. 二元喷管出口宽高比和扩张段冷却对红外辐射特性的影响[D]. 南京: 南京航空航天大学,2012. WU Bo. Influence of aspect ratio and divergent wall cooling on infrared radiation characteristics of two dimensional nozzle[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2012. (in ChineseWU Bo. Influence of aspect ratio and divergent wall cooling on infrared radiation characteristics of two dimensional nozzle[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2012. (in Chinese) [15] 袁帅. 主流超音速条件下喷管壁面气膜冷却特性研究[D]. 南京: 南京航空航天大学,2016. YUAN Shuai. Study on film cooling characteristics of nozzle wall under mainstream supersonic condition[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2016. (in ChineseYUAN Shuai. Study on film cooling characteristics of nozzle wall under mainstream supersonic condition[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2016. (in Chinese) [16] 张婷. 尾喷管气膜冷却结构设计研究[D]. 辽宁 大连: 大连理工大学,2021. ZHANG Ting. Research on the design of film cooling structure of exhaust nozzle[D]. Dalian Liaoning: Dalian University of Technology,2021. (in ChineseZHANG Ting. Research on the design of film cooling structure of exhaust nozzle[D]. Dalian Liaoning: Dalian University of Technology, 2021. (in Chinese) [17] JOHANSSON A V,WALLIN S. A new explicit algebraic Reynolds stress model[C]//Gavrilakis S,Machiels L,Monkewitz P A. Advances in Turbulence VI. Dordrecht,Holland: Springer,1996: 31-34. [18] WALLIN S,JOHANSSON A V. An explicit algebraic Reynolds stress model for incompressible and compressible turbulent flows[J]. Journal of Fluid Mechanics,2000,403(1): 89-132. [19] CHO H H,GOLDSTEIN R J. An improved low- reynolds number k-ε turbulence model for reticulating flows[J]. Heat Mass Transfer,1994,37(10): 1495-1508. doi: 10.1016/0017-9310(94)90151-1 [20] PAL G,MODEST M F. A new hybrid full-spectrum correlated k-distribution method for radiative transfer calculations in nonhomogeneous gas mixtures: ASME Paper HT2007-32673 [R]. Vancouver,Canada: ASME,2007. [21] PAL G,GUPTA A,MODEST M F,et al. Comparison of accuracy and computational expense of radiation models in simulation of non-premixed turbulent jet flames[J]. Combustion and Flame,2015,162(6): 2487-2495. doi: 10.1016/j.combustflame.2015.02.017 [22] 吴越,胡海洋,王强,等. 多尺度多线组宽带k分布模型参数优化方法[J]. 航空动力学报,2024,39(2): 37-51. WU Yue,HU Haiyang,WANG Qiang,et al. Parameter optimization of multi-scale multi-group wide-band k-distribution models[J]. Journal of Aerospace Power,2024,39(2): 37-51. (in ChineseWU Yue, HU Haiyang, WANG Qiang, et al. Parameter optimization of multi-scale multi-group wide-band k-distribution models[J]. Journal of Aerospace Power, 2024, 39(2): 37-51. (in Chinese) [23] CARSON G T,LEE E E. Experimental and analytical investigation of axisymmetric supersonic cruise nozzle geometry at Mach numbers from 0.60 to 1.30: NASA-TP-1953[R]. Hampton,US: NASA,1981. [24] CARLSON J R. Computation prediction of isolated performance of an axisymmetric nozzle at Mach number 0.90: NASA-TM-4506[R]. Hampton,US : NASA Langley Research Center,1994. [25] CORSON B W,RUNCKEL J F,IGOE W. Calibration of the Langley 16-foot transonic tunnel with test section air removal: NASA TR R-42 [R]. Hampton,US: NASA,1974. -
