Experiment for particle deposition in turbine blade cooling channel
-
摘要:
进入涡轮叶片内部的微尘颗粒易沉积并削弱内冷通道的换热。为了探究叶片内冷通道中微尘颗粒的沉积特性，实验研究了微尘颗粒直径和冷气雷诺数对颗粒沉积的影响。实验结果表明：内冷通道的沉积率随冷气雷诺数先增大后减小，当雷诺数为
23810 时沉积率达到峰值，但冷气雷诺数继续增大时，沉积率出现了明显下降趋势；当微尘颗粒直径增大时，叶片通道中的沉积率相应增大；叶片前腔处的沉积率要大于中弦腔及后腔处的沉积率，尾缘处的收集率要大于后腔出口及除尘孔处的收集率；在叶片通道中，扰流肋背风面处的颗粒沉积量大于迎风面处的颗粒沉积量，前腔拐角处的颗粒沉积量大于中弦腔拐角处的颗粒沉积量。Abstract:The fine dust particles entering turbine blades are easy to deposit and weaken the heat transfer performance of the internal cooling channels. In order to explore the deposition characteristics of fine dust particles in the cooling channel inside the blade, the effects of fine dust particle diameter and Reynolds number of cooling air on the deposition of fine dust particles were experimentally studied. The experimental results showed that the deposition rate of the internal cooling channel increased firstly and then decreased with the Reynolds number of the cooling air. When the Reynolds number was up to
23810 , the deposition rate reached the peak. However, when the Reynolds number of the cooling air continued to increase, the deposition rate showed an obvious downward trend. When the diameter of fine dust particle increased, the deposition rate in the blade channel increased. The deposition rate at the front cavity of the blade was higher than that at the middle chord cavity and the back cavity, and the collection rate at the trailing edge was higher than that at the exit of the back cavity and the dust removal hole. In the blade channel, the amount of particles deposited on the leeward side of the ribs was greater than that on the windward side, and the amount of particles deposited at the corner of the front cavity was greater than that at the corner of the middle chord cavity.-
Key words:
- particle deposition /
- deposition rate /
- collection rate /
- turbine blade /
- internal cooling channel
-
图 3 叶片内流通道中3个出口示意图
Figure 3. Schematic diagram of three exits in the flow passage in the blade
图 4 冷气雷诺数为
27211 下微尘沉积形貌（dp=24 μm）Figure 4. Appearance of fine dust deposition under the condition that the Reynolds number of cold air is
27211 （dp=24 μm）
图 5 不同冷气雷诺数下压力面整体沉积形貌（dp=24 μm）
Figure 5. Overall deposition morphology of pressure surface under different cold air Reynolds number （dp=24 μm）

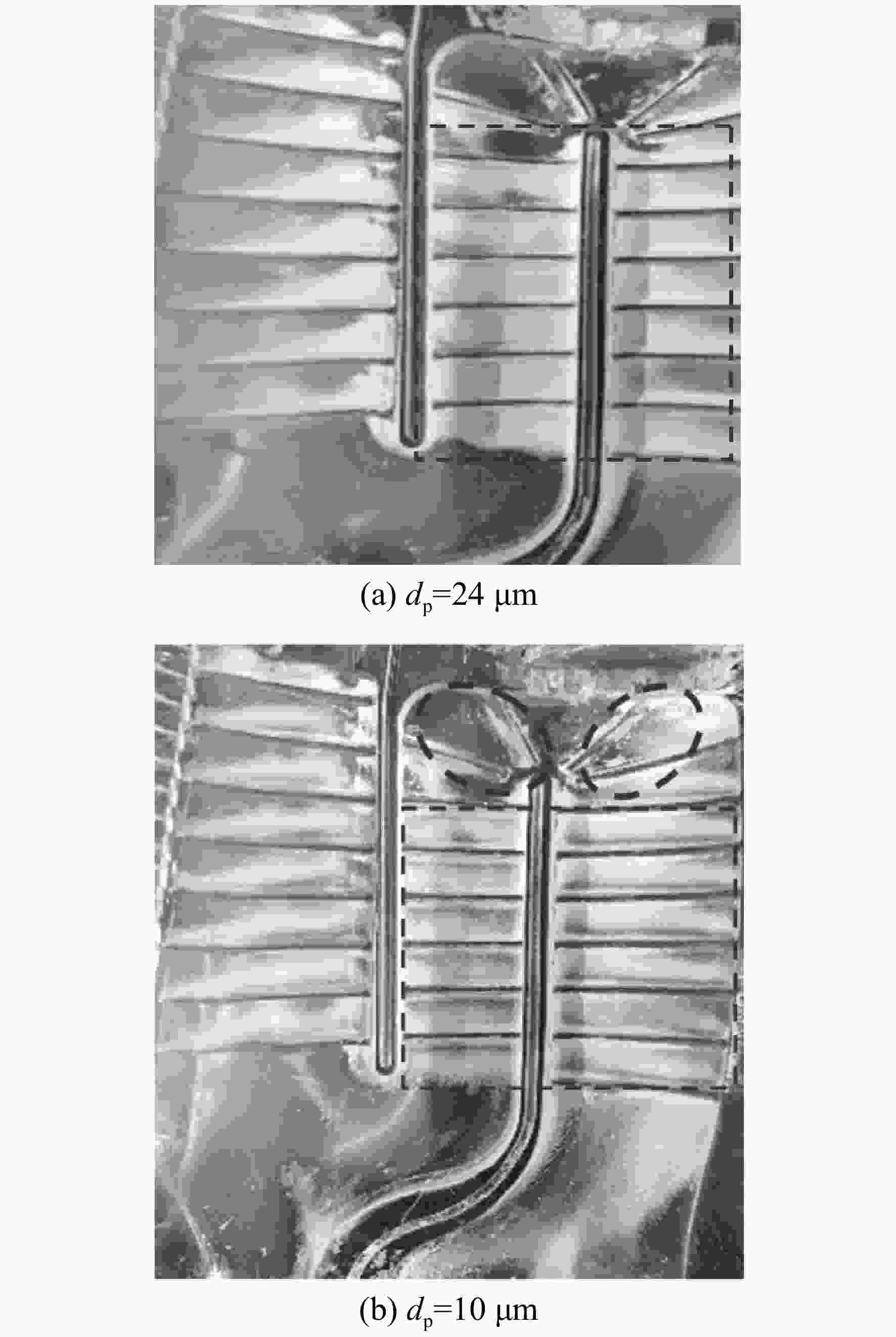

图 6 不同微尘直径下吸力面整体沉积形貌（Re=
27211 ）Figure 6. Overall sediment morphology of suction surface under different dust diameters （Re=
27211 ）
图 7 不同微尘直径在不同冷气雷诺数下的沉积率
Figure 7. Deposition rate of different dust diameters under different cold air Reynolds numbers

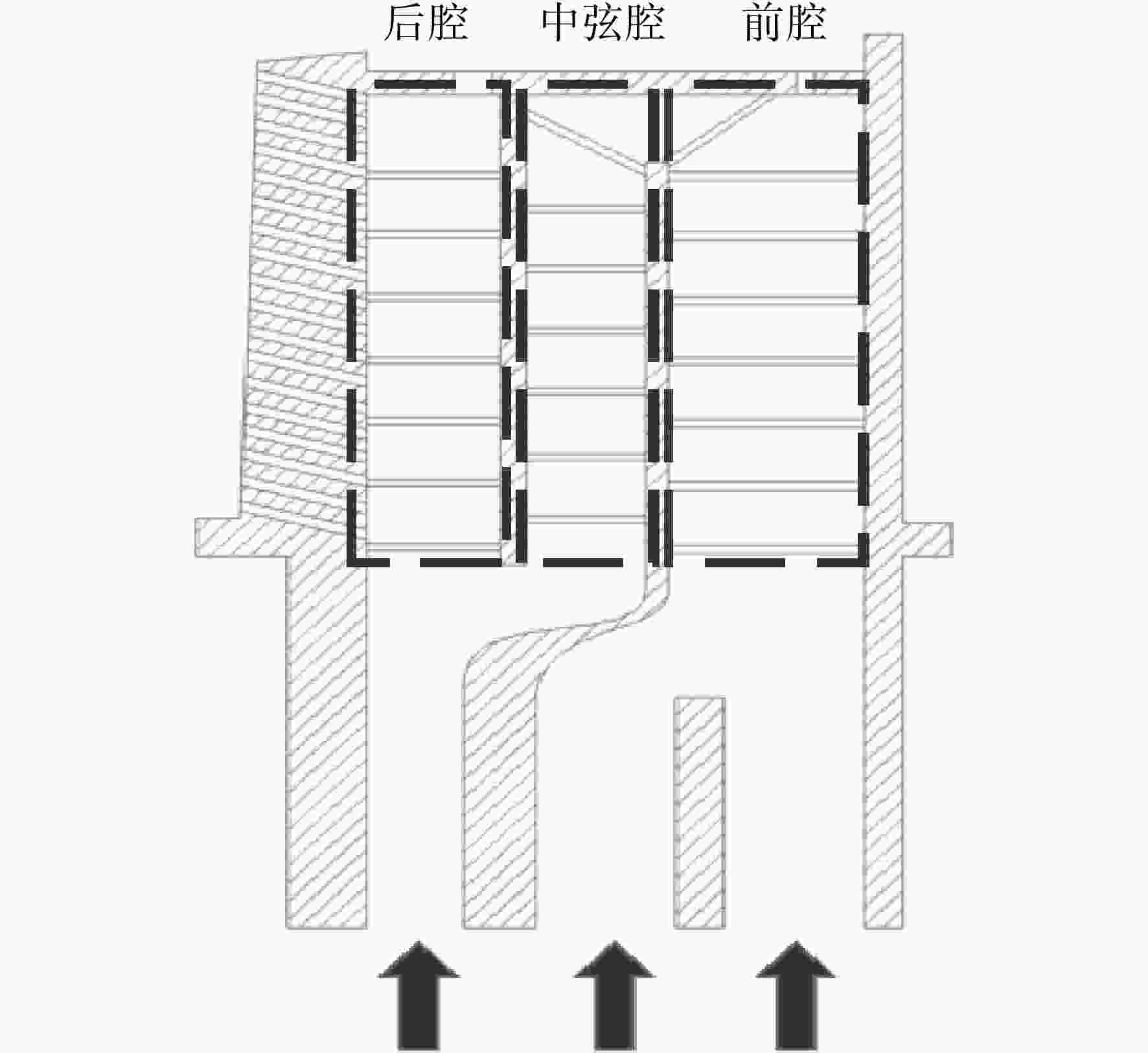

图 8 不同微尘直径下前腔、中弦腔及后腔沉积率
Figure 8. Deposition rates of front, middle and back cavities under different dust diameters
-
[1] JENSEN J W,SQUIRE S W,BONS J P,et al. Simulated land-based turbine deposits generated in an accelerated deposition facility[C]//Proceedings of ASME Turbo Expo: Power for Land,Sea,and Air. Vienna,Austria: ASME,2004: 341-351. [2] WAMMACK J E,CROSBY J,FLETCHER D,et al. Evolution of surface deposits on a high pressure turbine blade: Part Ⅰ physical characteristics[C]//Proceedings of ASME Turbo Expo 2006: Power for Land,Sea,and Air. Barcelona,Spain: ASME,2006: 1055-1063. [3] CROSBY J M,LEWIS S,BONS J P,et al. Effects of temperature and particle size on deposition in land based turbines[J]. Journal of Engineering for Gas Turbines and Power,2008,130(5): 819-825. [4] BONS J P,WAMMACK J E,CROSBY J,et al. Evolution of surface deposits on a high pressure turbine blade: Part Ⅱ convective heat transfer[C]//Proceedings of ASME Turbo Expo 2006: Power for Land,Sea,and Air. Barcelona,Spain: ASME,2006: 1075-1082. [5] CROSBY J M,LEWIS S,BONS J P,et al. Effects of particle size,gas temperature and metal temperature on high pressure turbine deposition in land based gas turbines from various synfuels[C]//Proceedings of ASME Turbo Expo 2007: Power for Land,Sea,and Air. Montreal,Canada: ASME,2007,1365-1376. [6] LAWSON S A,THOLE K A. Effects of simulated particle deposition on film cooling[J]. Journal of Turbomachinery,2011,133(2): 41-51. [7] BONILLA C,WEBB J,CLUM C,et al. The effect of particle size and film cooling on nozzle guide vane deposition[J]. Journal of Engineering for Gas Turbines and Power,2012,134(10): 101901. doi: 10.1115/1.4007057 [8] CARDWELL N D,THOLE K A,BURD S W. Investigation of sand blocking within impingement and film-cooling holes[J]. Journal of Turbomachinery,2010,132(2): 021020. doi: 10.1115/1.3106702 [9] WHITAKER S M,BONS J P,BLUNT R A. The effects of turning angle on particle deposition in turbine cooling holes[C]//Proceedings of the 46th AIAA Fluid Dynamics Conference. Reston,US: AIAA,2016. [10] LIU Zhengang,LIU Zhenxia,ZHANG Fei,et al. An experimental study of the effects of different transverse trenches on depositing and temperature on a plate with film cooling holes[J]. Aerospace Science and Technology,2019,88: 40-50. doi: 10.1016/j.ast.2019.02.044 [11] ZHANG Fei,LIU Zhenxia,LIU Zhengang,et al. Experimental study of sand particle deposition on a film-cooled turbine blade at different gas temperatures and angles of attack[J]. Energies,2020,13(4): 811. doi: 10.3390/en13040811 [12] 张斐,刘振侠,刘振刚,等. 不同来流条件对涡轮叶片表面颗粒沉积影响的实验研究[J]. 推进技术,2019,40(7): 1536-1545. ZHANG Fei,LIU Zhenxia,LIU Zhengang,et al. Experimental simulation of particle deposition on turbine blade surface with different free stream conditions[J]. Journal of Propulsion Technology,2019,40(7): 1536-1545. (in ChineseZHANG Fei, LIU Zhenxia, LIU Zhengang, et al. Experimental simulation of particle deposition on turbine blade surface with different free stream conditions[J]. Journal of Propulsion Technology, 2019, 40(7): 1536-1545. (in Chinese) [13] WANG Jin,CUI Pei,SUNDÉN B,et al. Effects of deposition height and width on film cooling[J]. Numerical Heat Transfer,Part A: Applications,2016,70(6): 673-687. doi: 10.1080/10407782.2016.1193351 [14] COWAN J B,TAFTI D K,KOHLI A. Investigation of sand particle deposition and erosion within a short pin fin array[C]// Proceedings of ASME Turbo Expo: Power for Land,Sea,and Air. Glasgow,UK: ASME,2010,139-149. [15] TASLIM M E,HUANG X. Experimental/numerical investigation on the effects of trailing-edge cooling hole blockage on heat transfer in a trailing-edge cooling channel[J]. Journal of Engineering for Gas Turbines and Power,2014,136(8): 082603. doi: 10.1115/1.4026845 [16] SINGH S,TAFTI D,REAGLE C,et al. Sand transport in a two pass internal cooling duct with rib turbulators[J]. International Journal of Heat and Fluid Flow,2014,46: 158-167. doi: 10.1016/j.ijheatfluidflow.2014.01.006 [17] SHAH A,TAFTI D K. Transport of particulates in an internal cooling ribbed duct[J]. Journal of Turbomachinery,2007,129(4): 816-825. doi: 10.1115/1.2720509 [18] CASADAY B P,AMERI A A,BONS J P. Numerical investigation of ash deposition on nozzle guide vane endwalls[J]. Journal of Engineering for Gas Turbines and Power,2013,135(3): 032001. doi: 10.1115/1.4007736 [19] AL-DULAIMI M J,RASOOL A A A,HAMAD F A. Investigation of impingement heat transfer for air-sand mixture flow[J]. The Canadian Journal of Chemical Engineering,2016,94(1): 134-141. doi: 10.1002/cjce.22364 [20] SEYFI S,MIRZAYI B,SEYYEDBAGHERI H. CFD modeling of black powder particles deposition in 3D 90-degree bend of natural gas pipelines[J]. Journal of Natural Gas Science and Engineering,2020,78: 103330. doi: 10.1016/j.jngse.2020.103330 [21] BAGHDAR H S,HAGHIGHI K R,JAVADI M S M. Experimental and numerical investigation on particle deposition in a compact heat exchanger[J]. Applied Thermal Engineering,2017,115: 406-417. doi: 10.1016/j.applthermaleng.2016.12.110 [22] HONG Wenpeng,WANG Bihui,LIU Yan,et al. Numerical study of the fine particle deposition behaviors on three-dimensional random rough walls[J]. Powder Technology,2020,375: 233-243. doi: 10.1016/j.powtec.2020.07.066 [23] HONG Wenpeng,WANG Bihui,ZHENG Jianxiang. Numerical study on the influence of fine particle deposition characteristics on wall roughness[J]. Powder Technology,2020,360: 120-128. doi: 10.1016/j.powtec.2019.09.079 [24] LU Hao,MA Tao,LU Lin. Deposition characteristics of particles in inclined heat exchange channel with surface ribs[J]. International Journal of Heat and Mass Transfer,2020,161: 120289. doi: 10.1016/j.ijheatmasstransfer.2020.120289 [25] 周君辉,张靖周. 涡轮叶栅内粒子沉积特性的数值研究[J]. 航空学报,2013,34(11): 2492-2499. ZHOU Junhui,ZHANG Jingzhou. Numerical investiga tion on particle deposition characteristic inside turbine cascade[J]. Acta Aeronautica et Astronautica Sinica,2013,34(11): 2492-2499. (in ChineseZHOU Junhui, ZHANG Jingzhou. Numerical investiga tion on particle deposition characteristic inside turbine cascade[J]. Acta Aeronautica et Astronautica Sinica, 2013, 34(11): 2492-2499. (in Chinese) -
