Flow pulsation characteristics in multi-tooth cavity of arc aero gear pump
-
摘要:
为研究齿轮齿数对燃油圆弧齿轮泵流量脉动特性的影响规律，利用RNG（re-normalization group）
k-ε 湍流模型对6～9齿的圆弧齿轮泵进行三维瞬态流场数值模拟，推导其瞬时流量的数学模型，揭示齿数对该泵流量特性的影响规律。结果表明：齿轮齿数对该齿轮泵性能有显著影响，以转速为2000 r/min、进出口压差为8 MPa工况为例，7齿、8齿、9齿泵的出口容积效率较6齿泵相比依次变化：+18.34%、+7.15%、+20.70%。随着齿轮齿数的增加，齿轮所受径向、轴向激励力脉动幅值显降低，7齿、8齿、9齿齿轮径向激励力均值较6齿齿轮相比依次变化：−19.84%、−26.77%、−29.82%，轴向激励力均值较6齿齿轮相比依次变化：−10.37%、−77.64%、−61.49%。通过小波变换对齿轮径向、轴向受力脉动频率进行分析，其脉动频率与齿轮啮合次数呈周期性相关。Abstract:To explore the influence of the number of gear teeth on the performance parameters of the fuel arc gear pump, the three-dimensional transient flow field of the number of teeth for 6- to 9-tooth arc gear pumps was numerically simulated based on the RNG (re-normalization group)
k-ε turbulence model. The mathematical model of the instantaneous flow rate was derived, and the influence of the number of gear teeth on the flow performance of the gear pump was revealed. The results showed that the number of gear teeth had a significant impact on the performance of this pump. The outlet volumetric efficiency of the 7-tooth, 8-tooth, and 9-tooth gear pumps was successively changed compared with the 6-tooth gear pump: +18.34%, +7.15%, +20.70% under 8 MPa,2000 r/min operating condition. The pulsation characteristics of the radial force and axial force of gears decreased significantly with the increase of the number of gear teeth. The mean value of the radial exciting force of the 7-tooth, 8-tooth, and 9-tooth gear pumps was successively changed compared with the 6-tooth: −19.84%, −26.77%, −29.82%, and the mean value of axial exciting force changed compared with the 6-tooth: −10.37%, −77.64%, −61.49%. The radial force and axial force pulsation frequency of the gear meshing frequency was analyzed by the wavelet transform.-
Key words:
- arc gear pump /
- number of gear teeth /
- flow characteristics /
- exciting force /
- wavelet transform
-

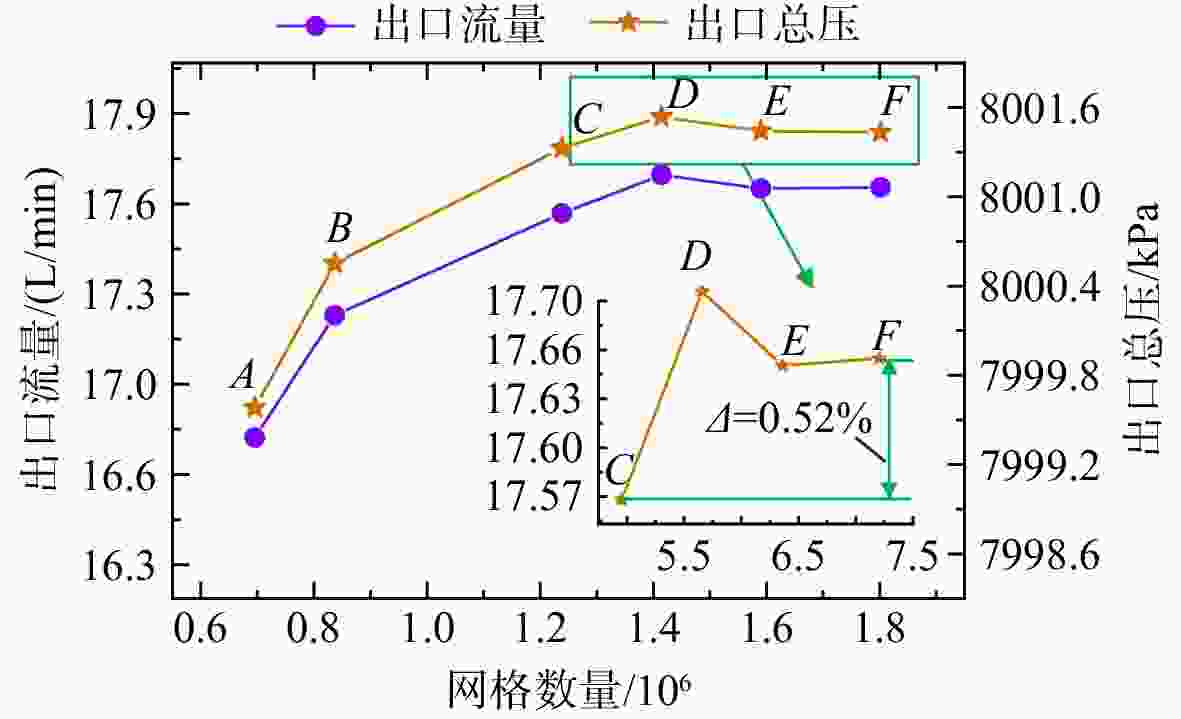

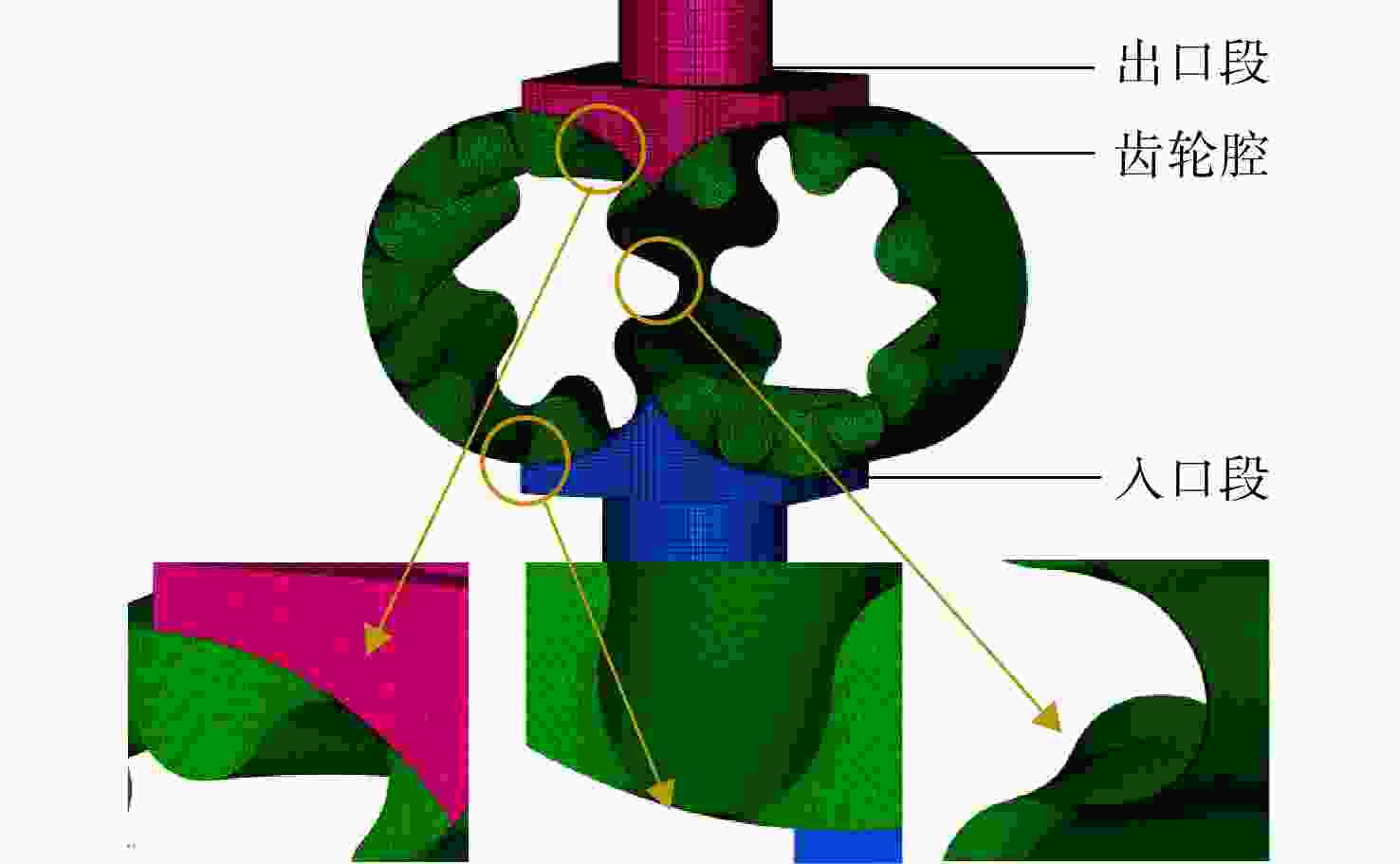

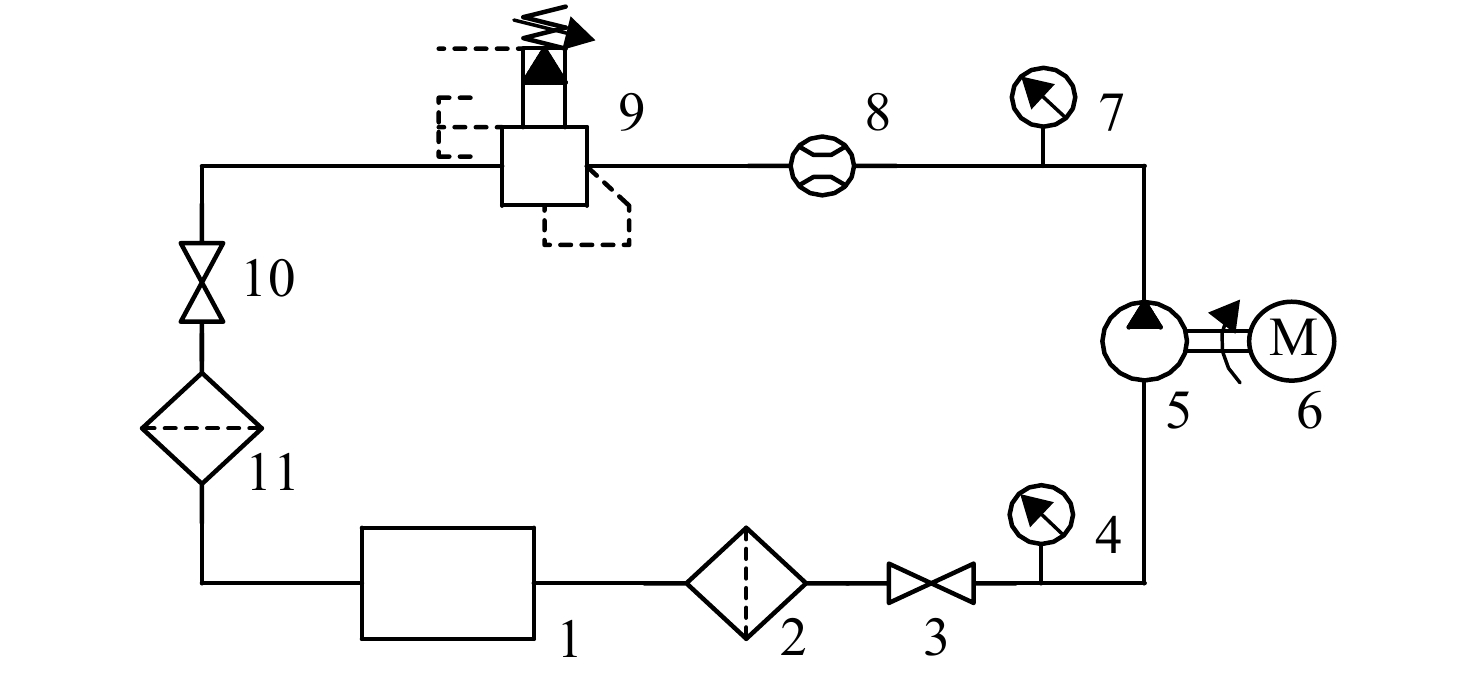

图 5 齿轮泵试验台示意图

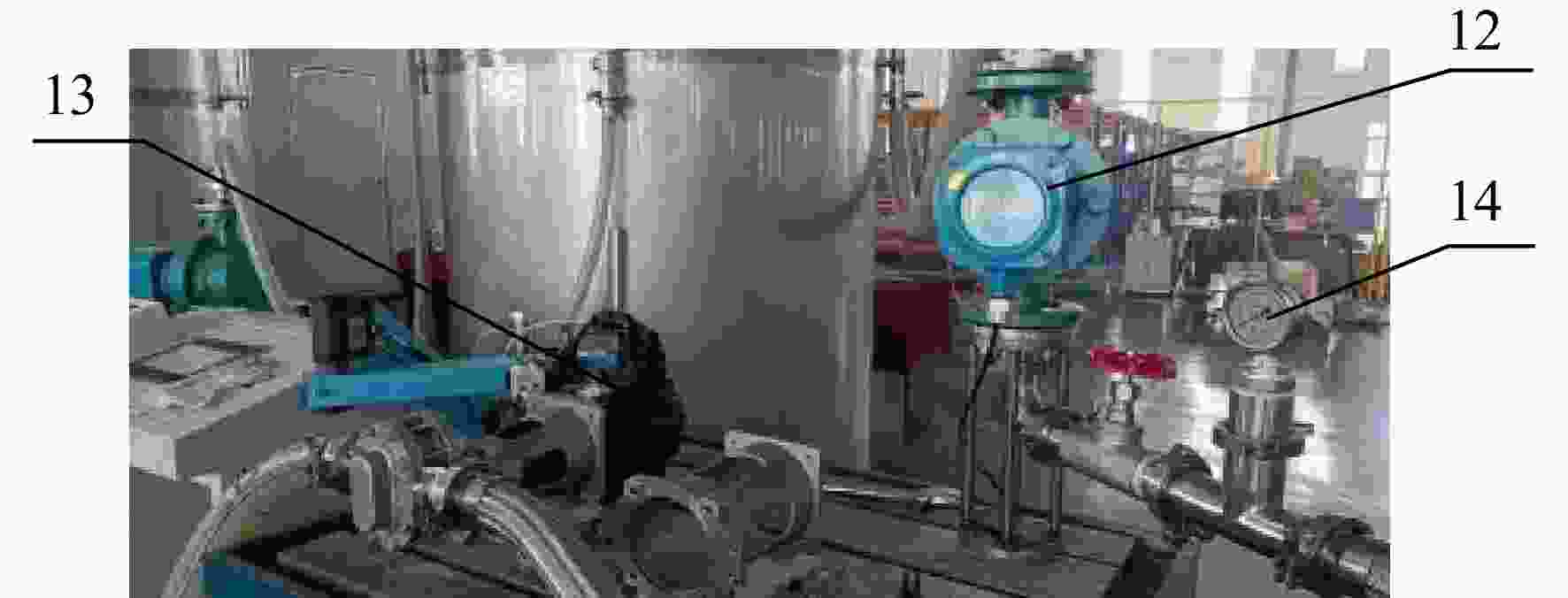

1 油箱；2、11 过滤器；3、10 截止阀；4、7 压力表；5 样机；6 电动机；8 流量计；9 压力控制阀。
Figure 5. Schematic diagram of gear pump test bench

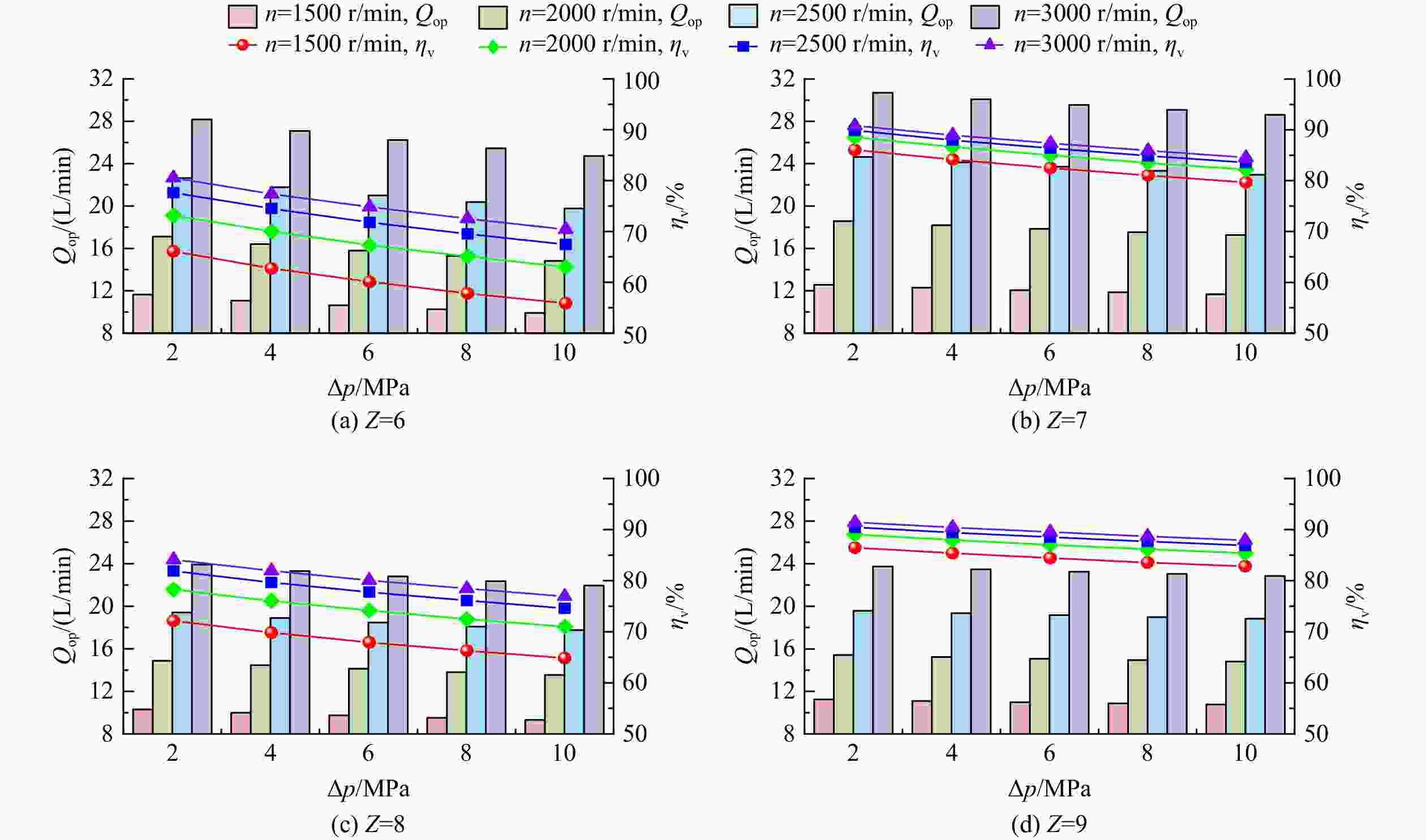

图 8 不同工况下Qop、ηv与齿数的关系
Figure 8. Relationship between Qop，ηv and the number of gear teeth under different operating conditions

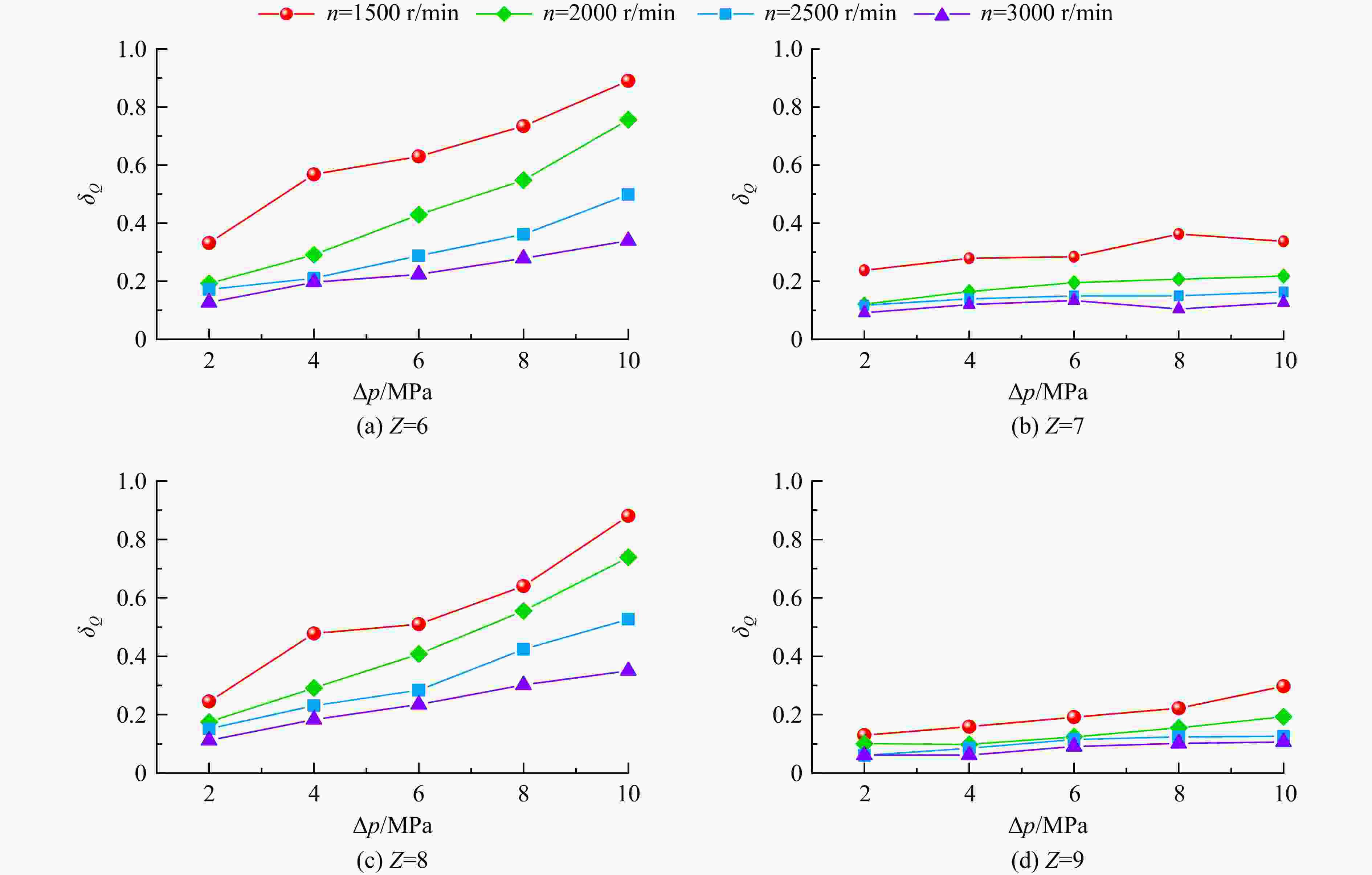

图 9 不同工况下δQ与齿数的关系
Figure 9. Relationship between δQ and the number of gear teeth under different operating conditions

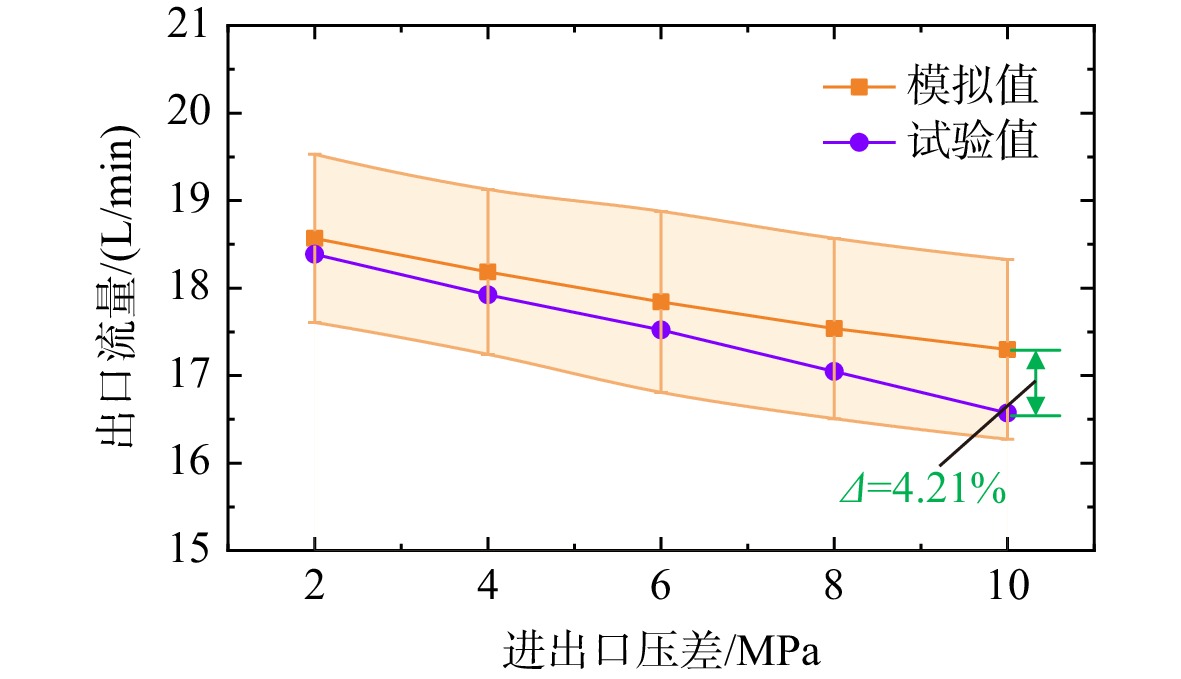

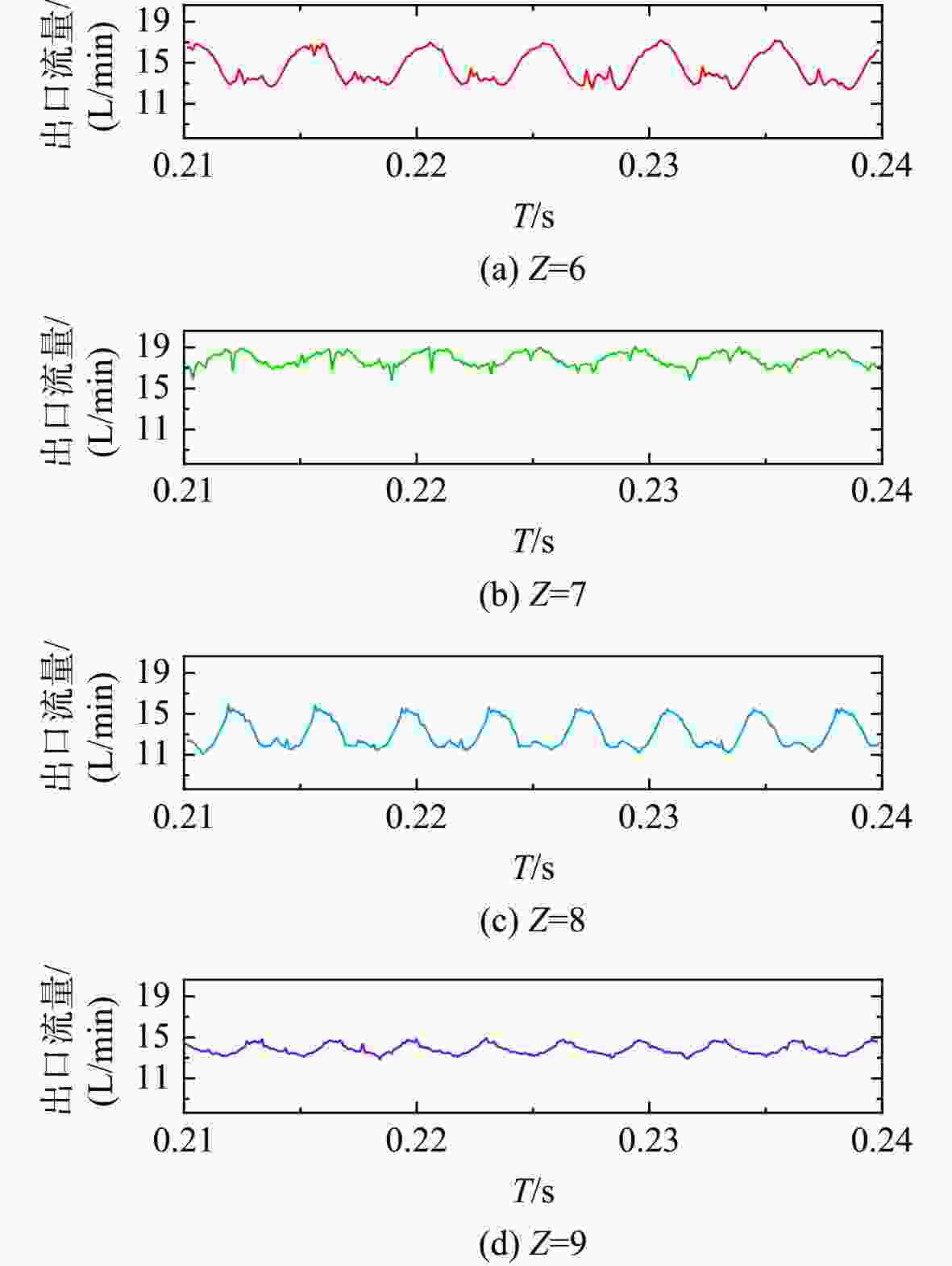

图 10 出口流量与齿数的关系
Figure 10. Relationship between the number of gear teeth and outlet flow

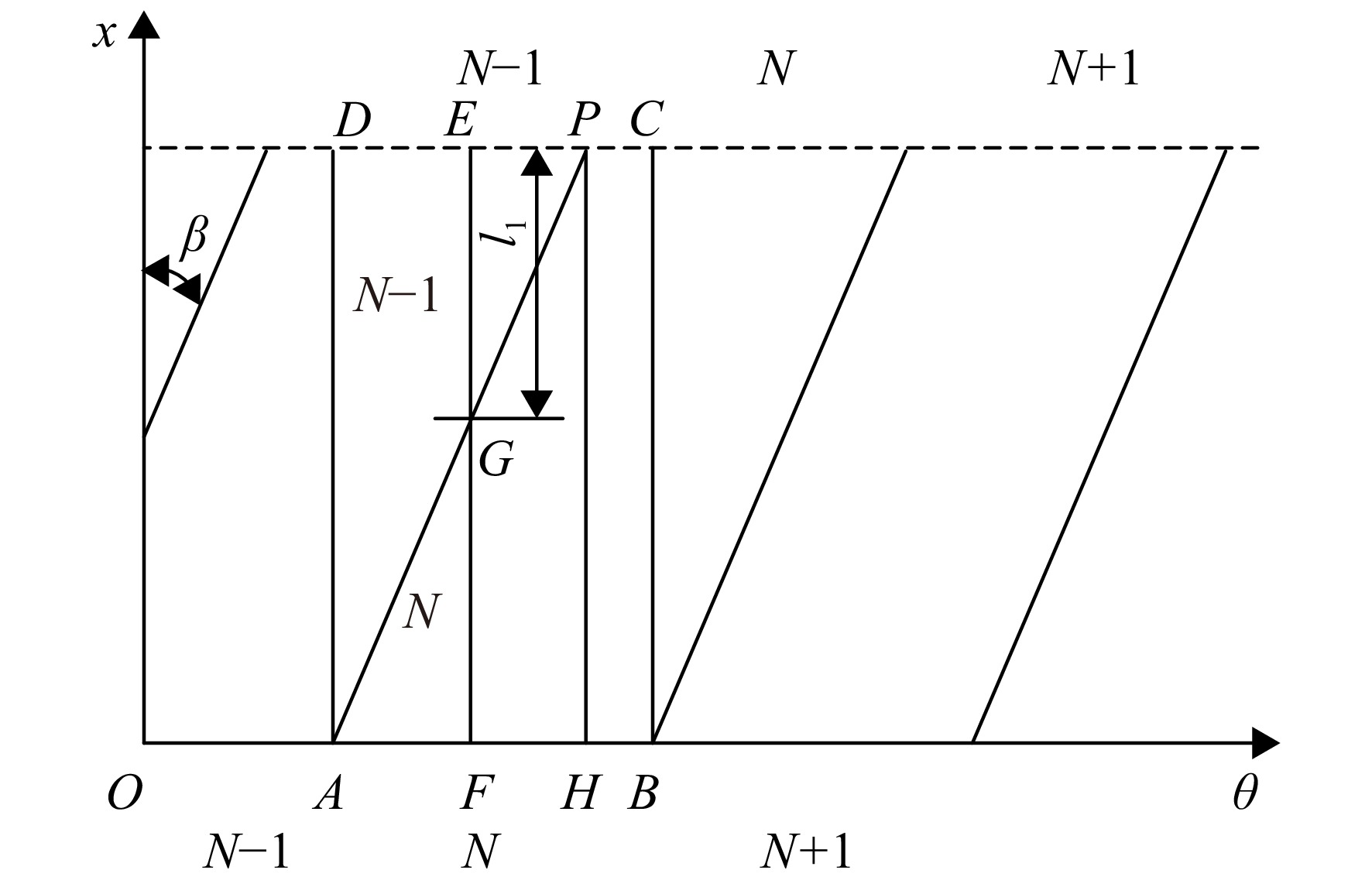

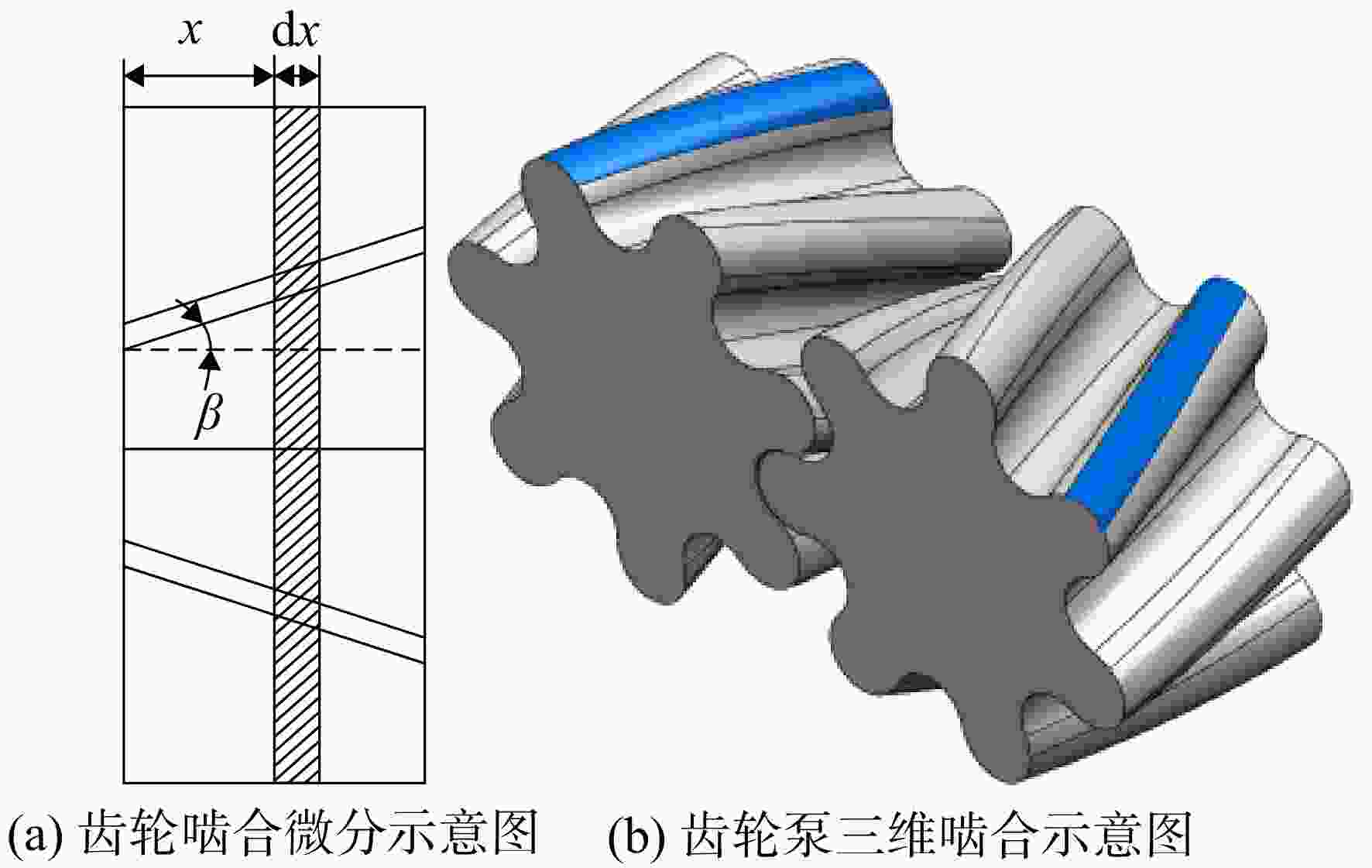

图 12 齿轮啮合理论瞬时流量示意图
Figure 12. Schematic diagram of gear pump’s theory instantaneous flow

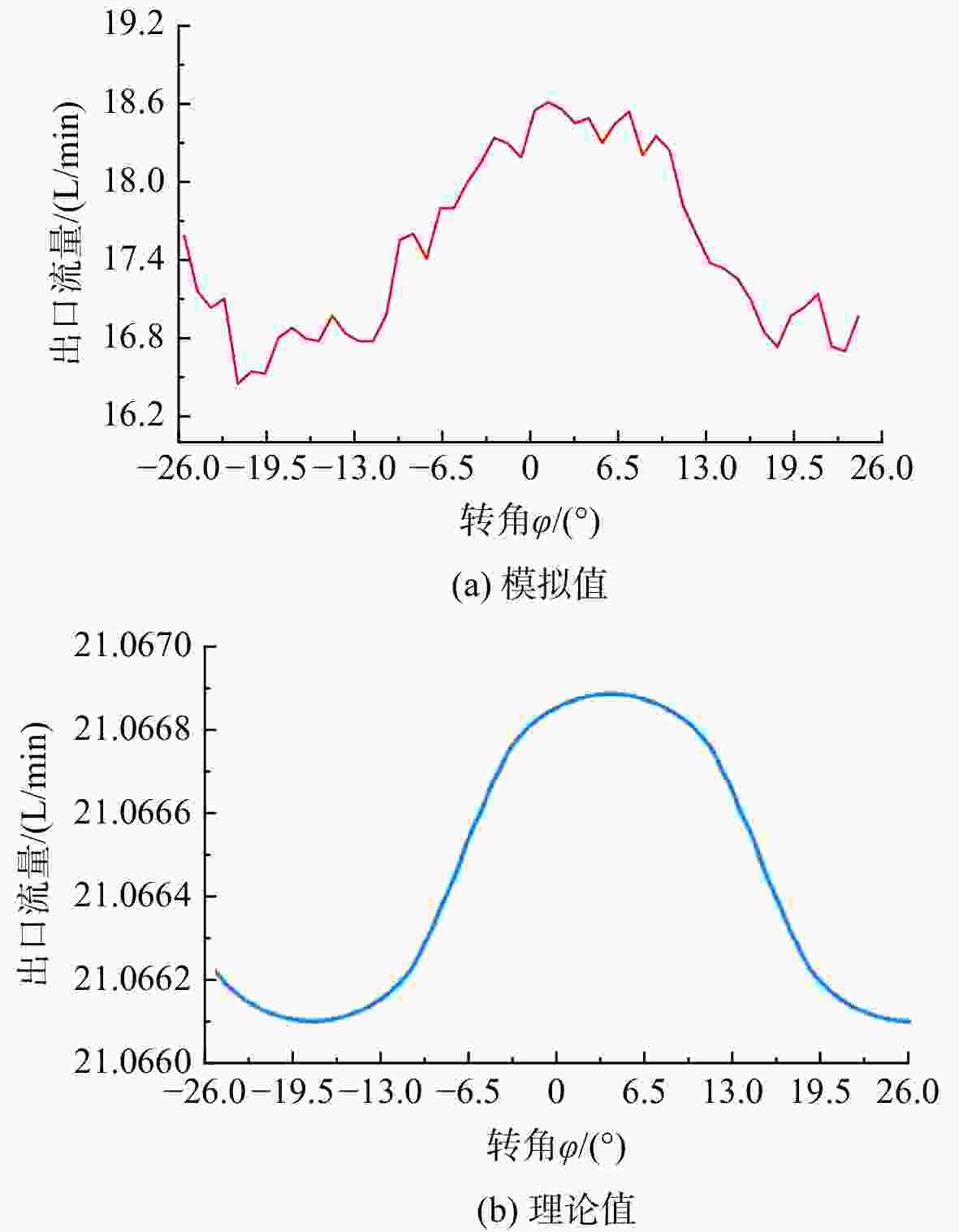

图 13 7齿泵的理论瞬时流量和模拟瞬时流量对比图
Figure 13. Comparison of instantaneous flow of 7-tooth gear pump’s theory and simulation values

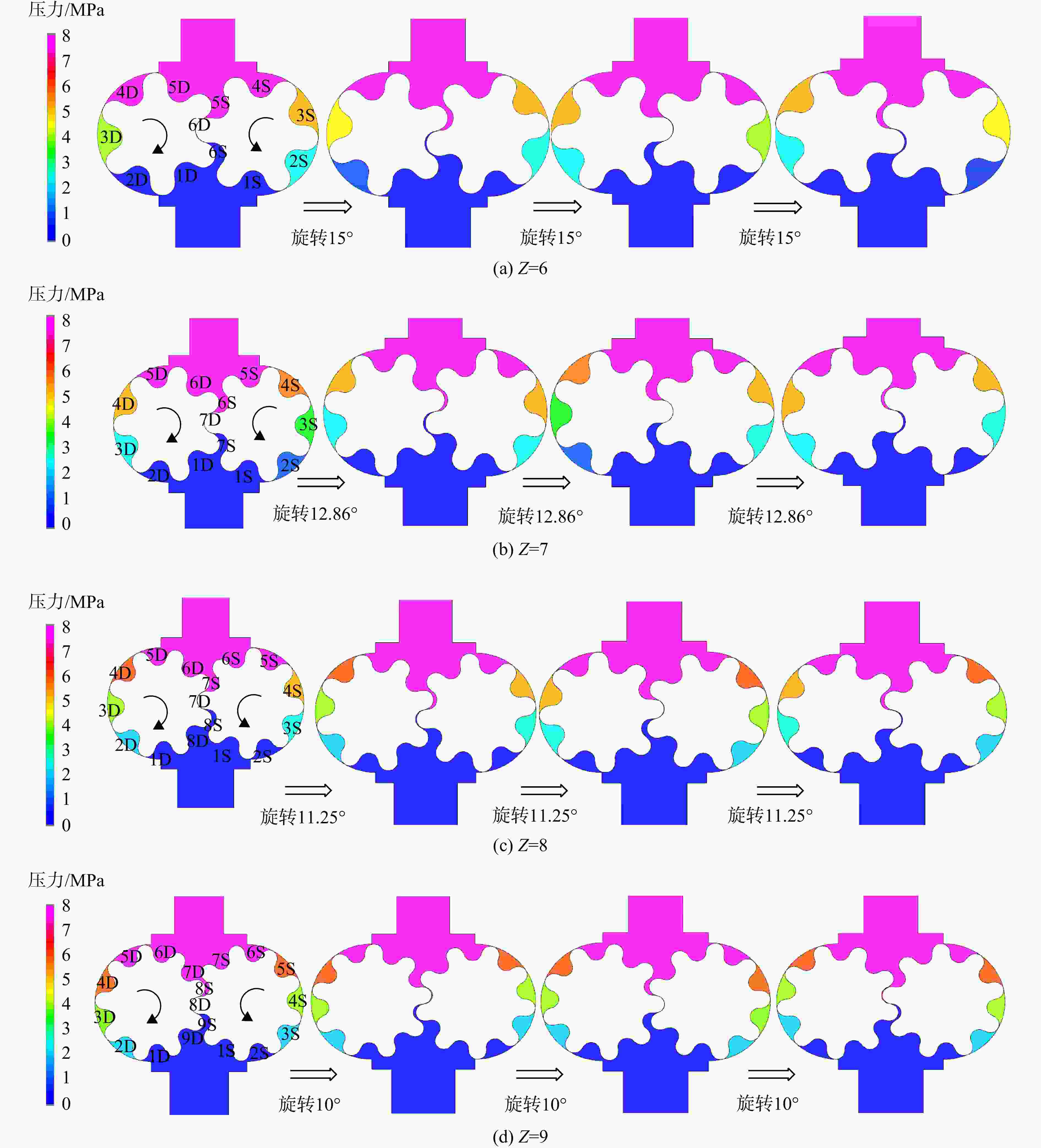

图 14 6～9齿泵的压力分布示意图
Figure 14. Schematic diagram of pressure distribution of the 6- to 9-tooth pump

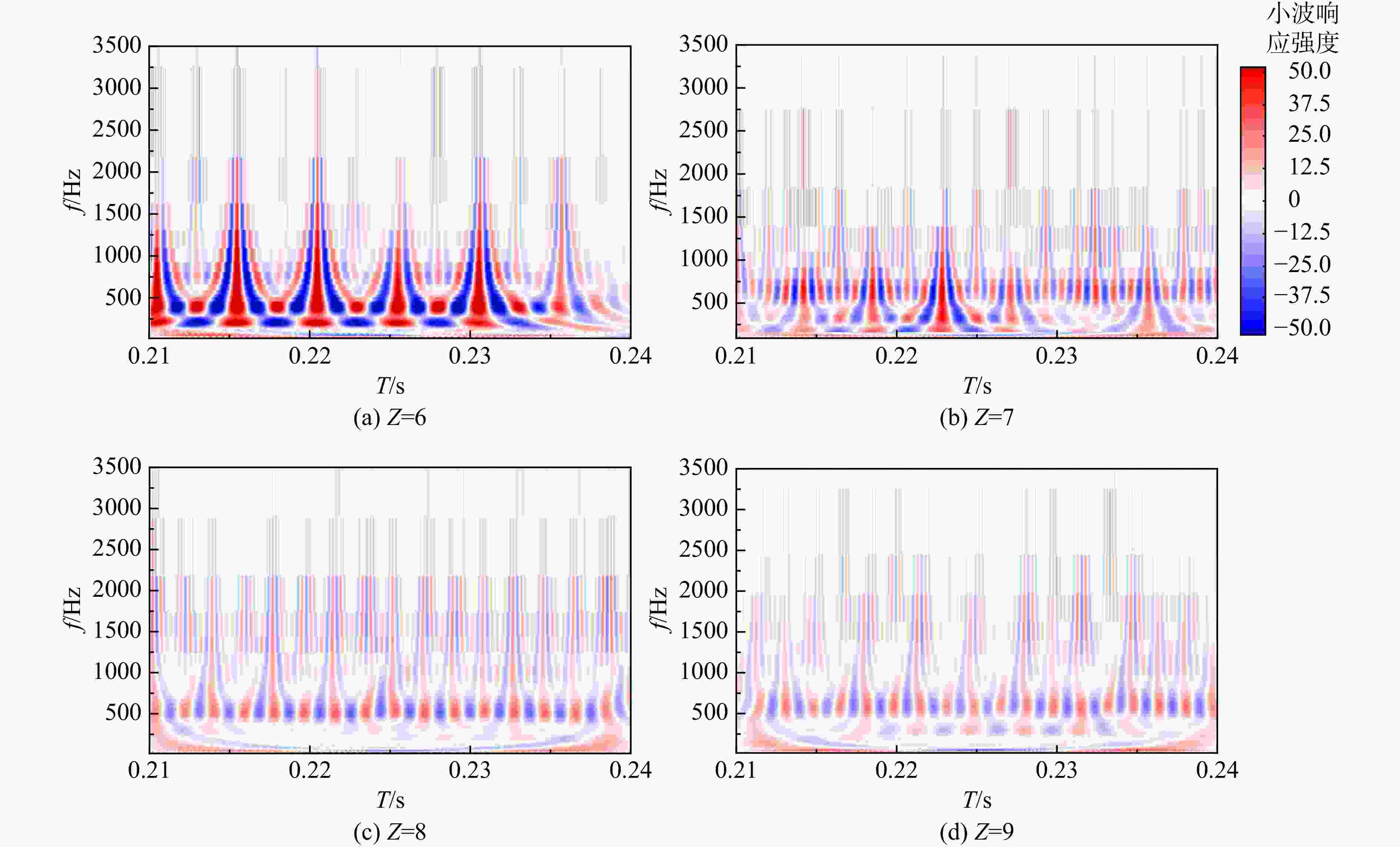

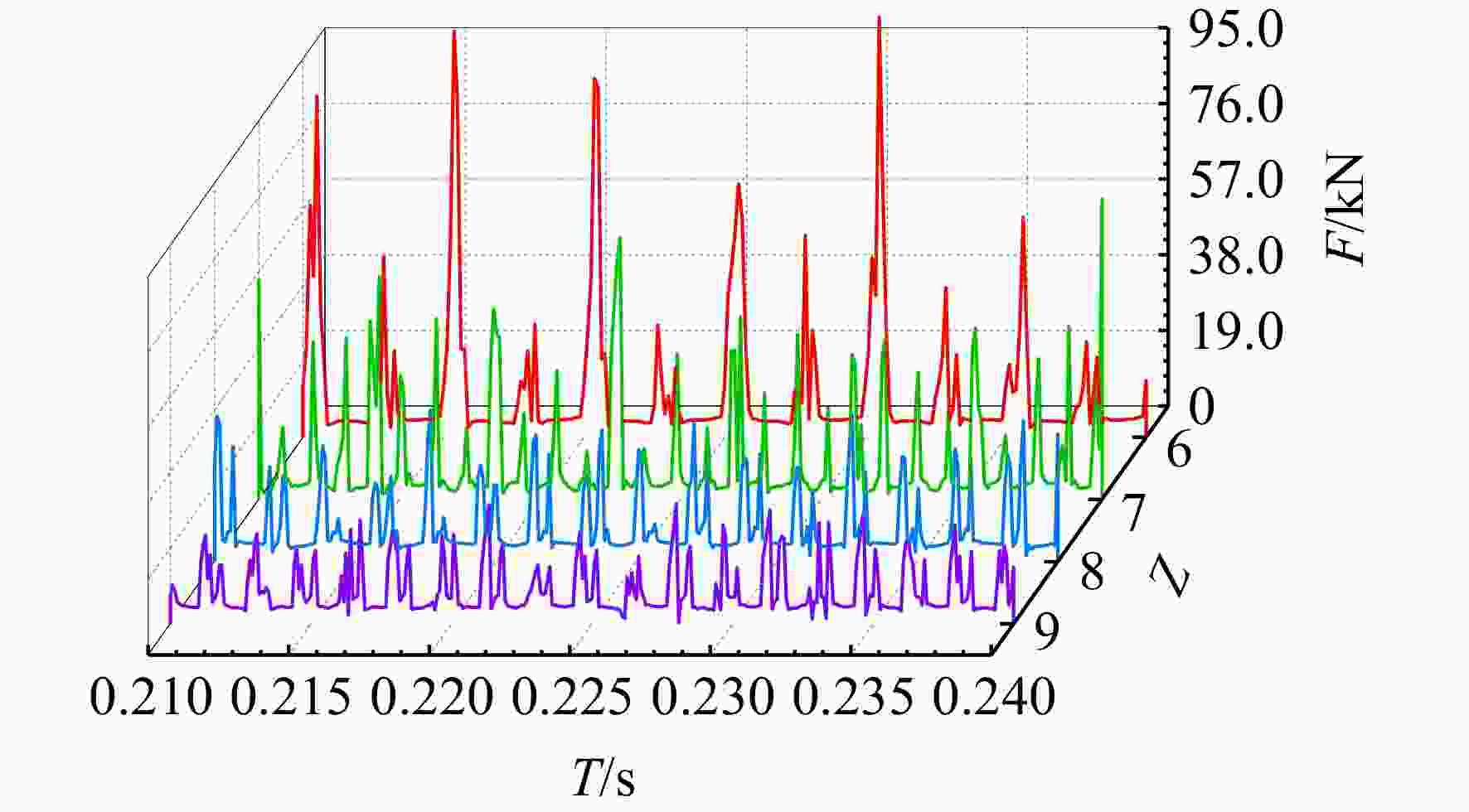

图 17 6～9齿从动齿轮径向激励力的脉动特性
Figure 17. Radial force pulsation spectrum of the 6- to 9-tooth slave gear

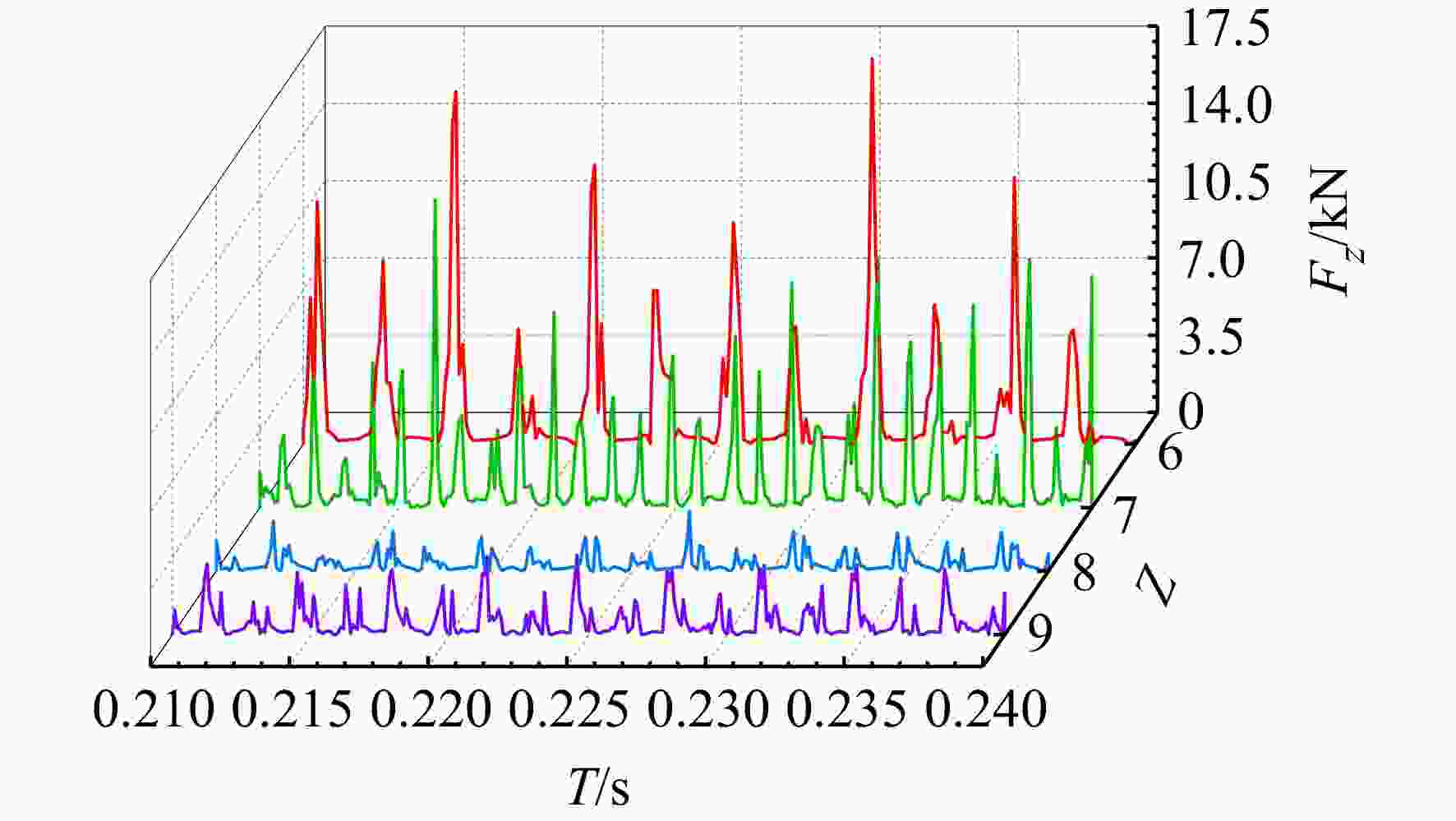

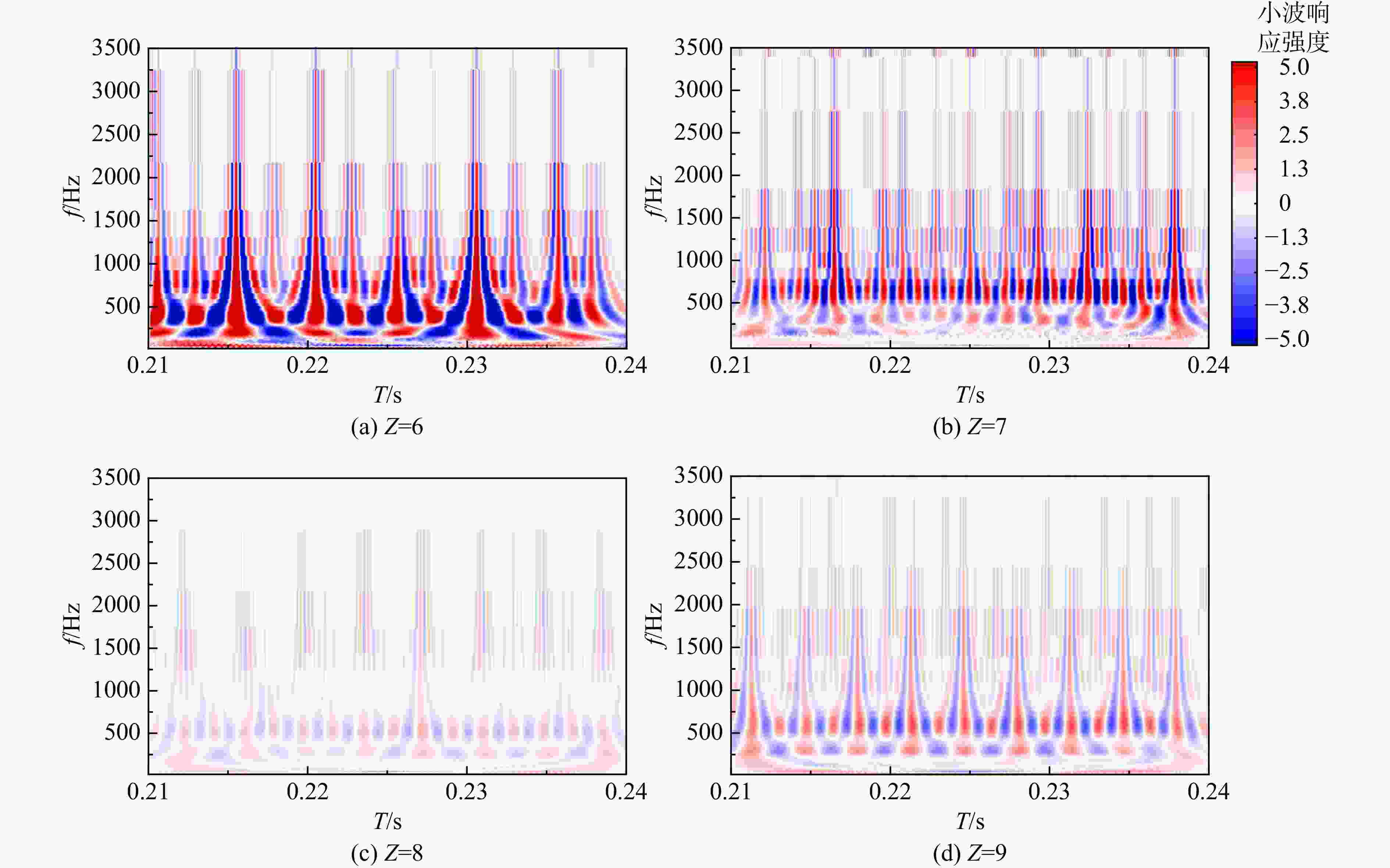

图 18 6～9齿从动齿轮轴向激励力的脉动特性
Figure 18. Axial force pulsation spectrum of the 6- to 9-tooth slave gear

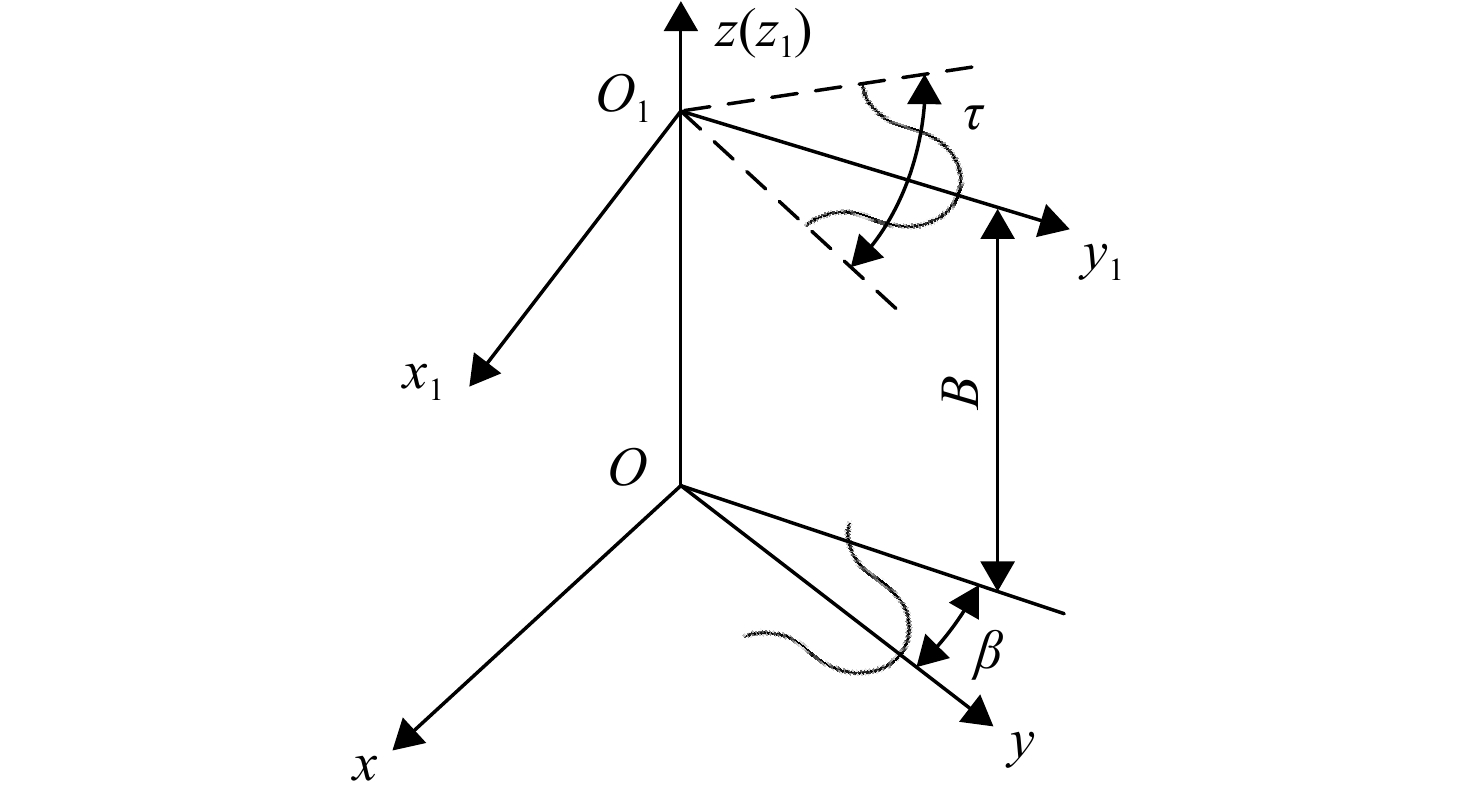

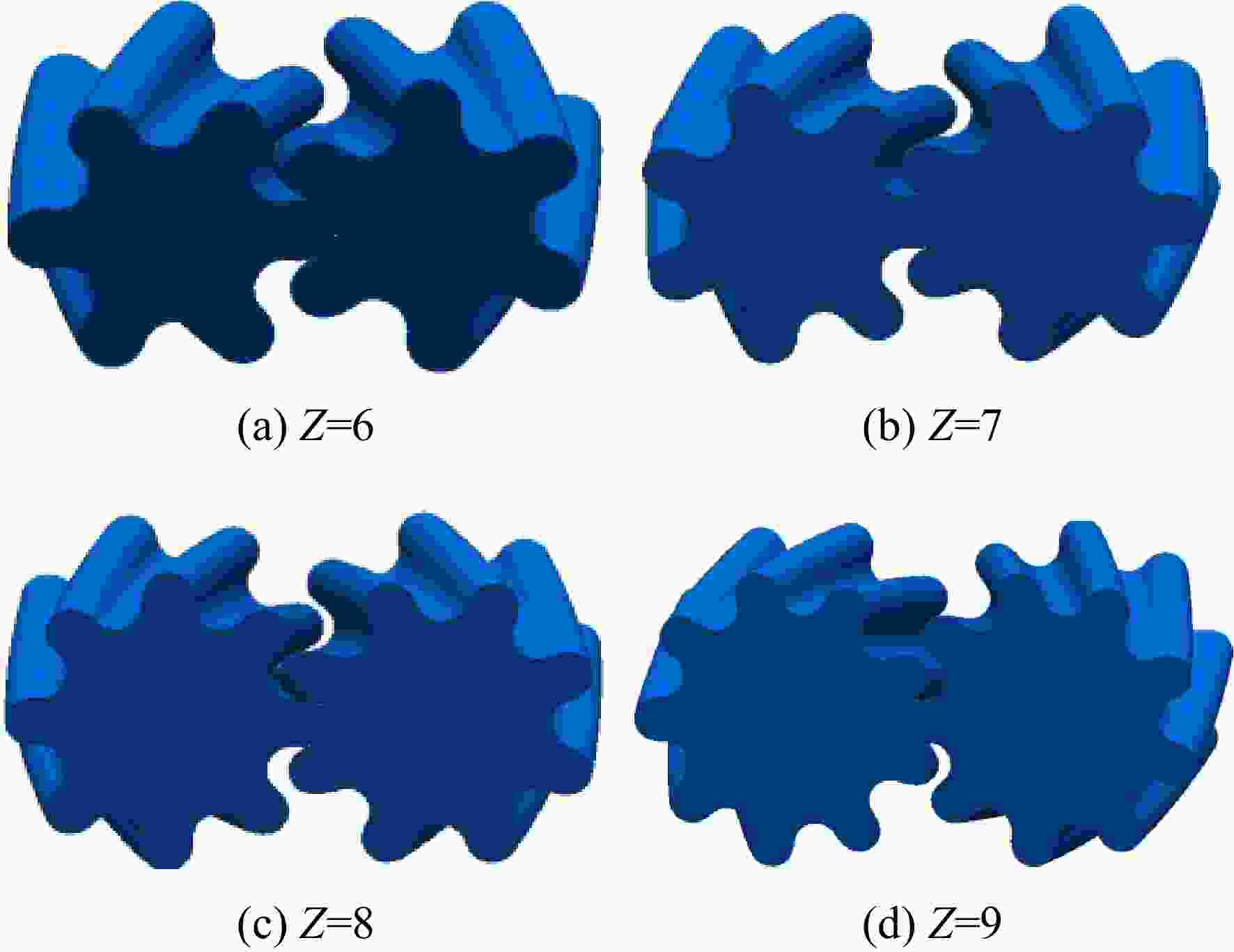

表 1 6～9齿齿轮几何参数
Table 1. Geometric parameters of 6- to 9-tooth gear
Z β/（°） A/mm 6 35.45 27.20 7 32.14 28.00 8 29.35 28.64 9 26.97 29.16
