氧质量分数对弱旋流燃烧影响的试验探究

孔令伟; 方刚毅; 魏骏豪; 邢菲

doi:10.13224/j.cnki.jasp.20230157

氧质量分数对弱旋流燃烧影响的试验探究

doi: 10.13224/j.cnki.jasp.20230157

厦门大学航空航天学院，福建厦门 361005

详细信息

作者简介:
孔令伟（1998-），男，硕士生，研究领域为航空推进系统燃烧与流动

通讯作者:
邢菲（1980-），男，教授，博士，研究领域为航空推进系统燃烧与流动。E-mail：f.xing@xmu.edu.cn

中图分类号: V231.1
计量
- 文章访问数: 885
- HTML浏览量: 315
- PDF量: 38
- 被引次数: 0
出版历程
- 收稿日期: 2023-03-14
- 网络出版日期: 2024-09-19

Experimental study on effect of oxygen mass fraction on low-swirl combustion

School of Aerospace Engineering，Xiamen University，Xiamen Fujian 361005，China

摘要

摘要:
为充分发挥弱旋流燃烧技术低污染排放的特点，通过试验来探究氧质量分数的改变对弱旋流燃烧造成的影响。基于弱旋流燃烧器，采用丙烷为燃料，通过改变通入系统的CO₂质量流量来调节预混氧质量分数，通过控制喷嘴出口处的空气流速、当量比以及预混氧质量分数，探究氧质量分数对弱旋流燃烧在火焰形态、火焰温度以及燃烧排放产物NOx的影响。试验系统条件下，可以达到最低氧质量分数的试验工况是喷嘴出口处流速为3.0 m/s、当量比为0.65，最低的临界氧质量分数为17.43%。试验发现：随着喷嘴出口处空气流速增大，燃料熄火下极限呈现线性增大的趋势；随着氧质量分数的降低，弱旋流燃烧中心区不完全性逐渐变小，燃烧喷嘴的稳焰能力逐渐变强；火焰的整体温度呈现下降趋势；燃烧排放产物NOx的体积分数逐渐减少。
- 弱旋流燃烧 /
- 氧质量分数 /
- 火焰温度 /
- NOx /
- 污染排放
Abstract:
In order to give full play to the low pollution emission characteristics of the low-swirl combustion technology, the influence of oxygen concentration change on low-swirl combustion was investigated experimentally. Based on the low swirl burner, using propane as fuel, by changing the CO₂ mass flow rate through the system to adjust the premixed oxygen concentration and by controlling the air flow rate out of the nozzle, gas ratio and premixed oxygen concentration, the impact of oxygen concentration on low-swirl premixed combustion in flame form, combustion flame temperature and combustion emission product NOx was explored. Under the conditions of the test system, the lowest oxygen concentration can be achieved at the flow rate of 3.0 m/s at the nozzle, the gas ratio of 0.65, and the lowest critical oxygen concentration of 17.43%. It was found that the limit of fuel flameout increased linearly with the increase of air velocity at nozzle. With the decrease of oxygen concentration, the central incompleteness of low-swirl combustion became smaller and the flame stability of combustion nozzle became stronger. The overall temperature of the flame showed a decreasing trend. The emission of NOx from combustion was gradually reduced.
- low-swirl combustion /
- oxygen mass fraction /
- flame temperature /
- NOx /
- pollution emissions

HTML

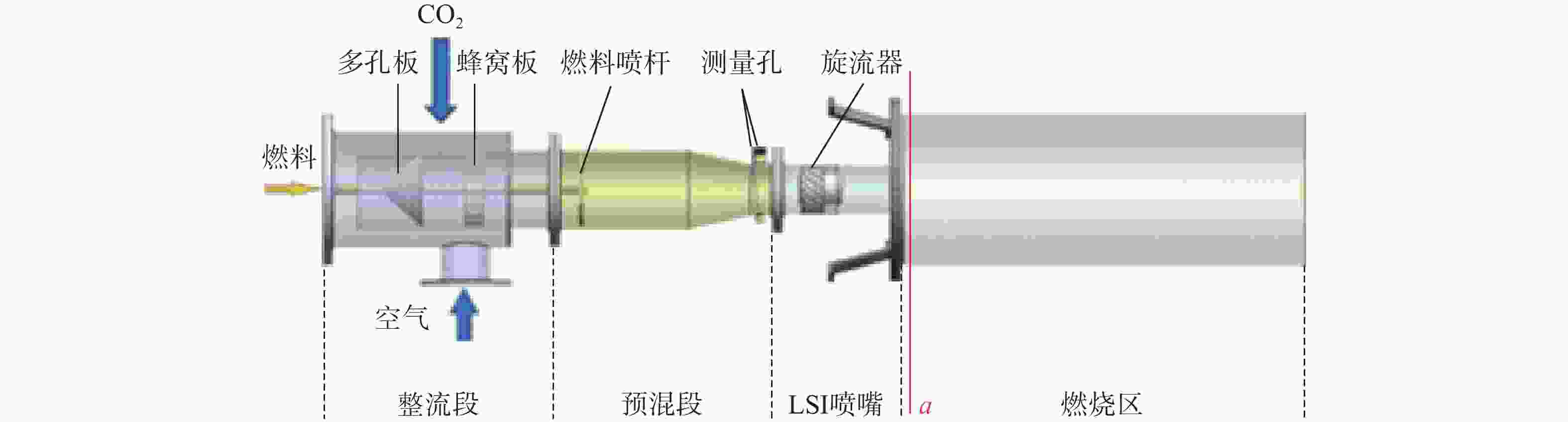

图 1 试验系统示意图

Figure 1. Schematic diagram of test system

下载: 全尺寸图片幻灯片

图 2 试验段示意图

Figure 2. Schematic diagram of test device

下载: 全尺寸图片幻灯片

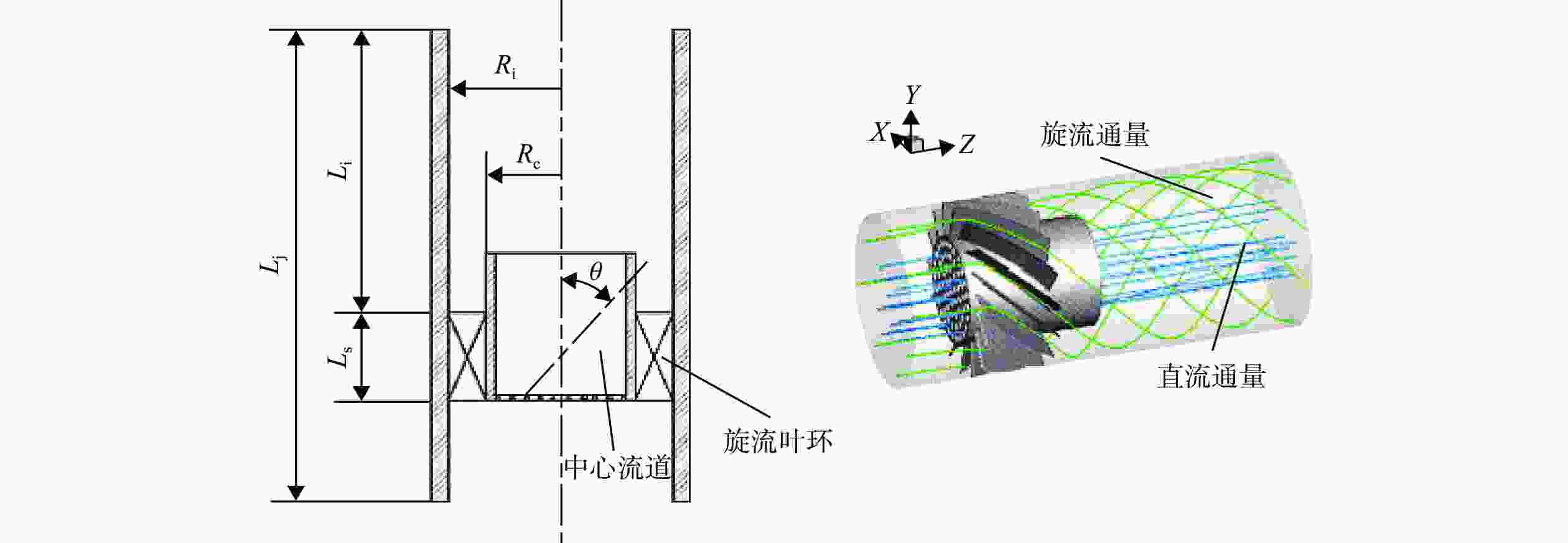

图 3 旋流器示意图

Figure 3. Schematic diagram of swirler

下载: 全尺寸图片幻灯片

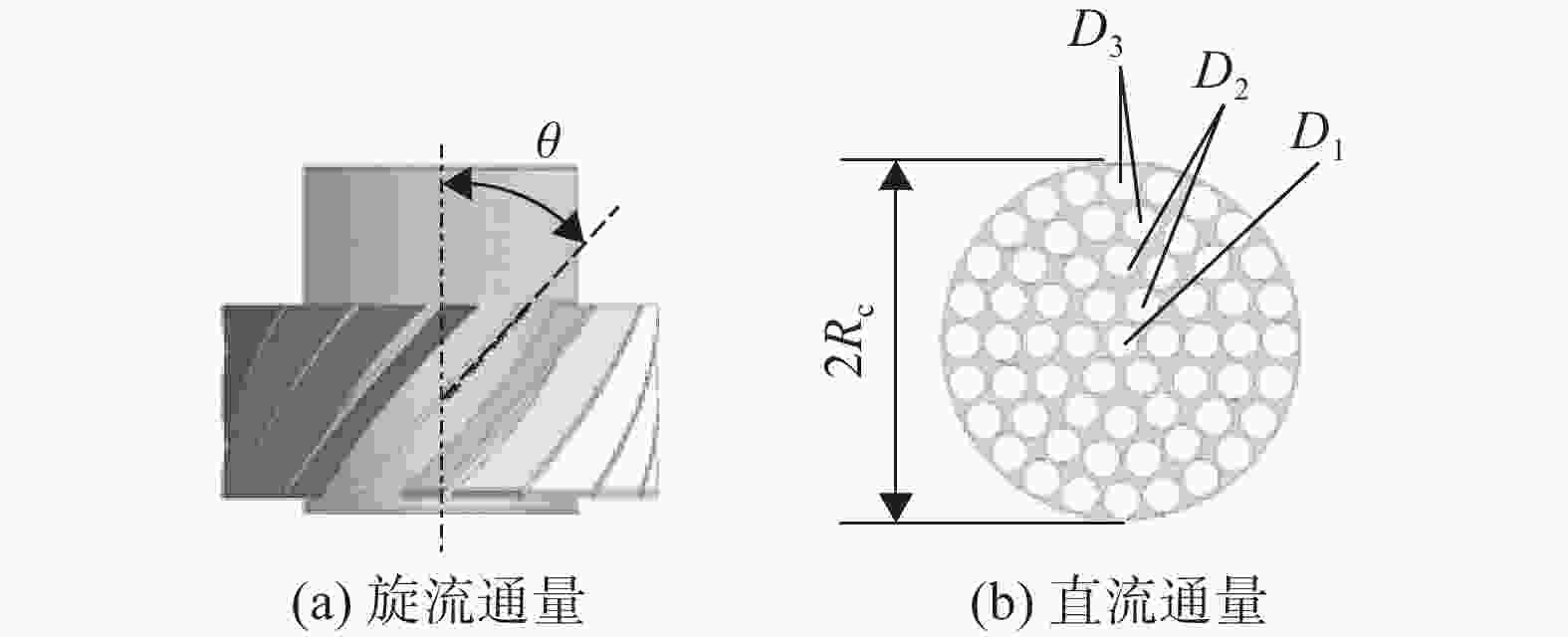

图 4 旋流器内外环结构参数示意图

Figure 4. Schematic diagram of structural parameters of inner and outer ring of swirler

下载: 全尺寸图片幻灯片

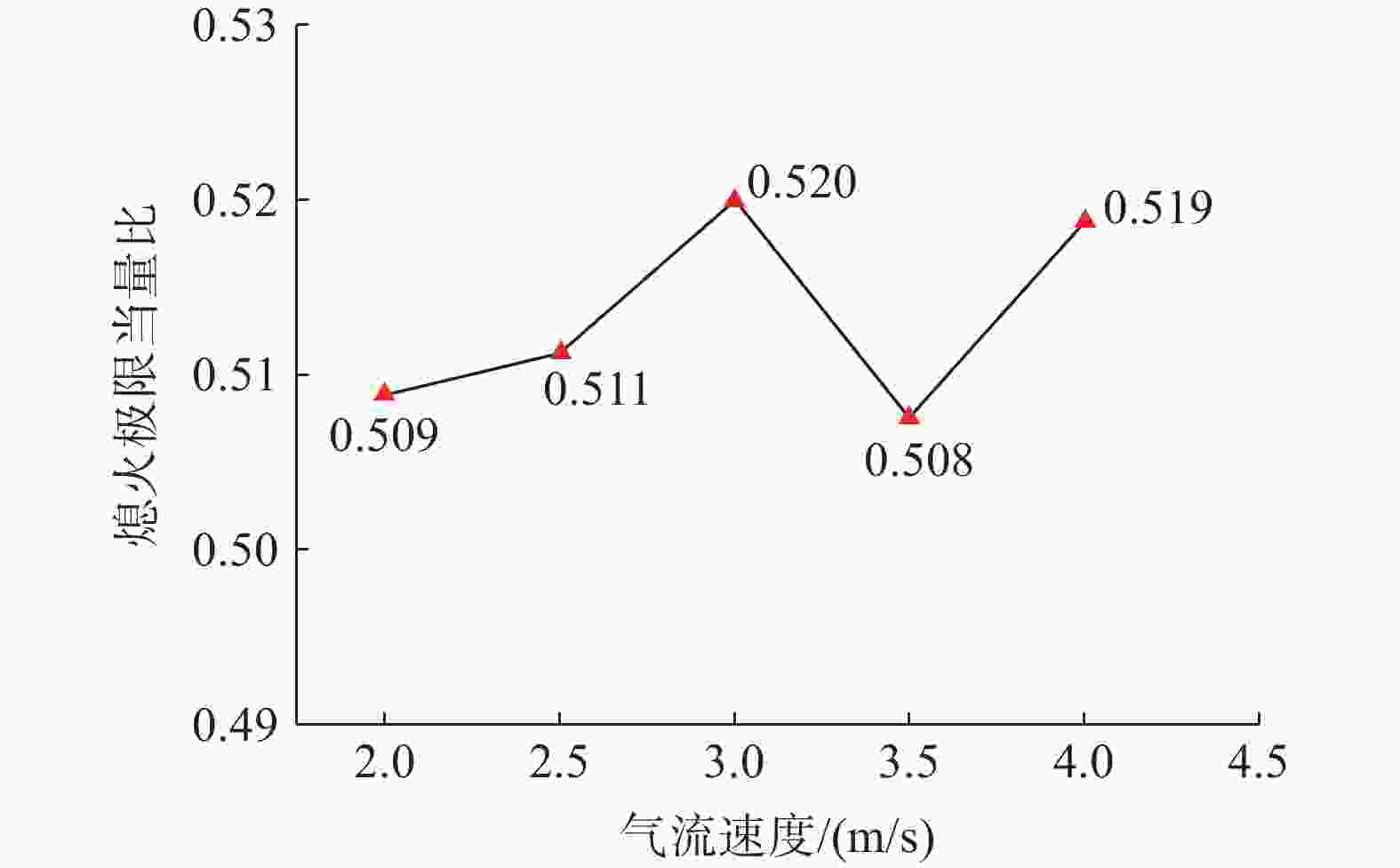

图 5 无CO₂入口熄火试验数据分布图

Figure 5. Distribution diagram of point flameout experimental data without CO₂ inlet

下载: 全尺寸图片幻灯片

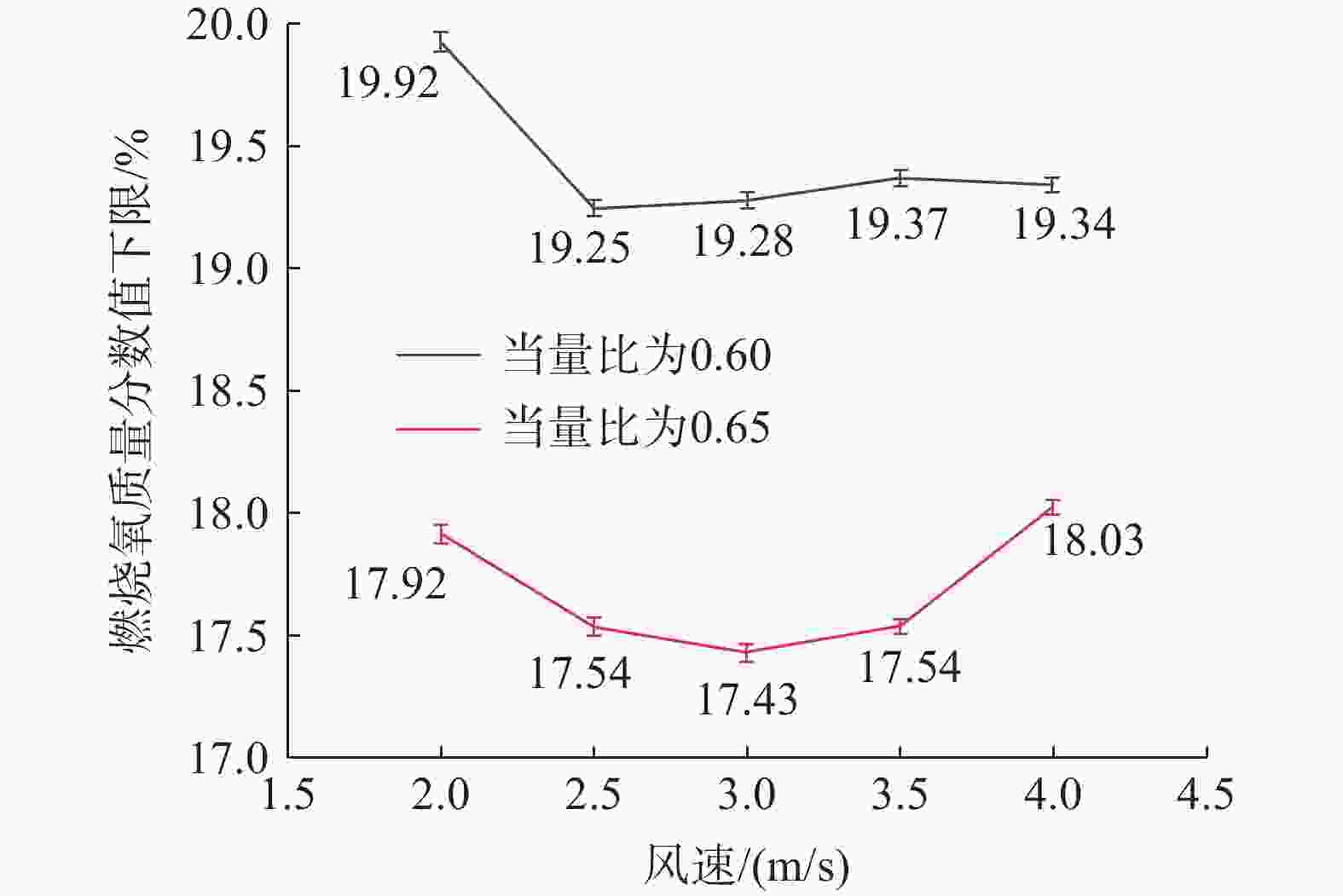

图 6 不同当量比下熄火极限氧质量分数数据分布图

Figure 6. Data distribution diagram of flameout limit oxygen mass fraction at different equivalent ratios

下载: 全尺寸图片幻灯片

图 7 不同氧质量分数下的燃烧火焰形态

Figure 7. Combustion flame morphology under different oxygen mass fractions

下载: 全尺寸图片幻灯片

图 8 测量耙测量点分布图

Figure 8. Distribution diagram of measuring points of measuring rake

下载: 全尺寸图片幻灯片

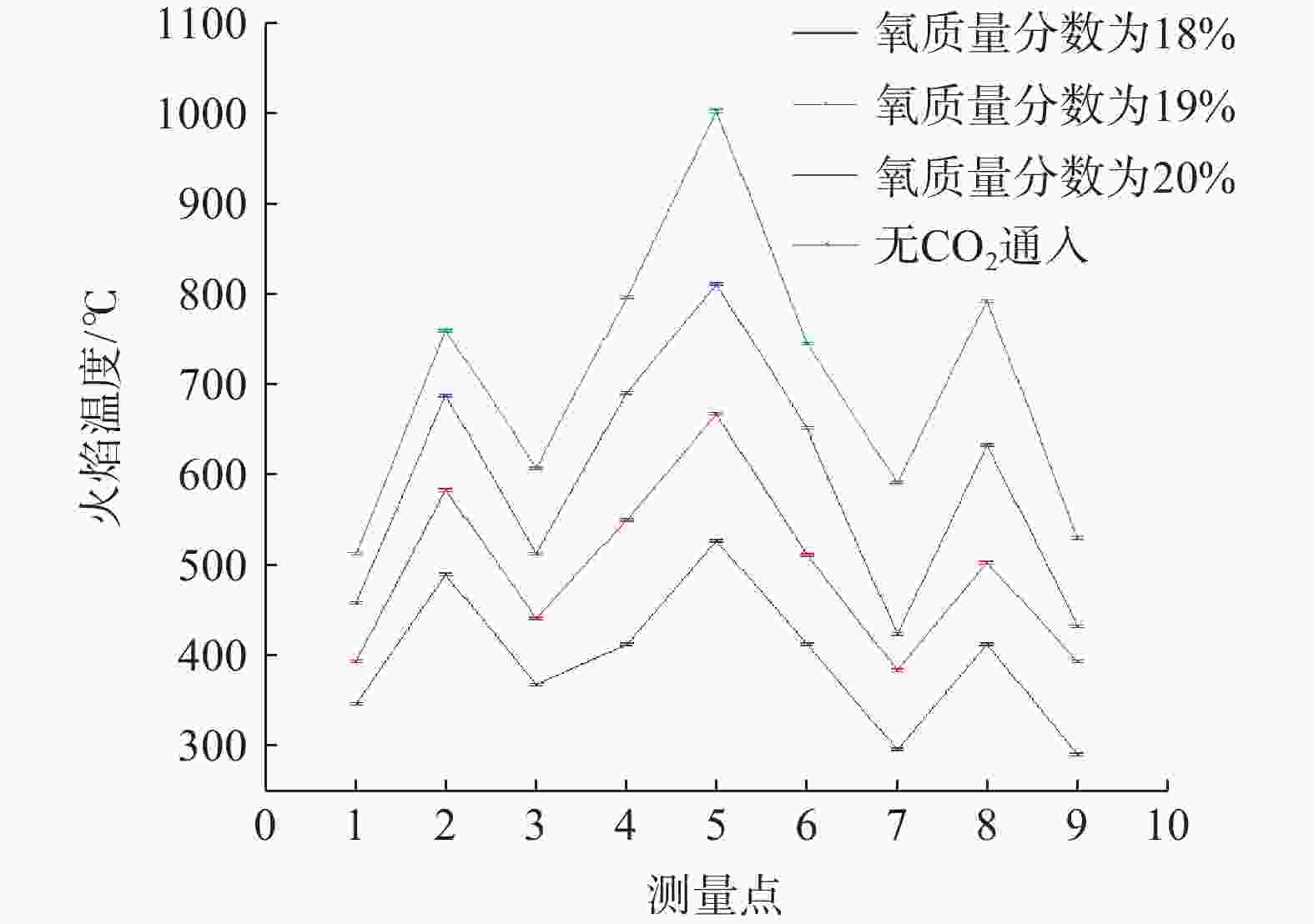

图 9 火焰温度分布图

Figure 9. Flame temperature distribution

下载: 全尺寸图片幻灯片

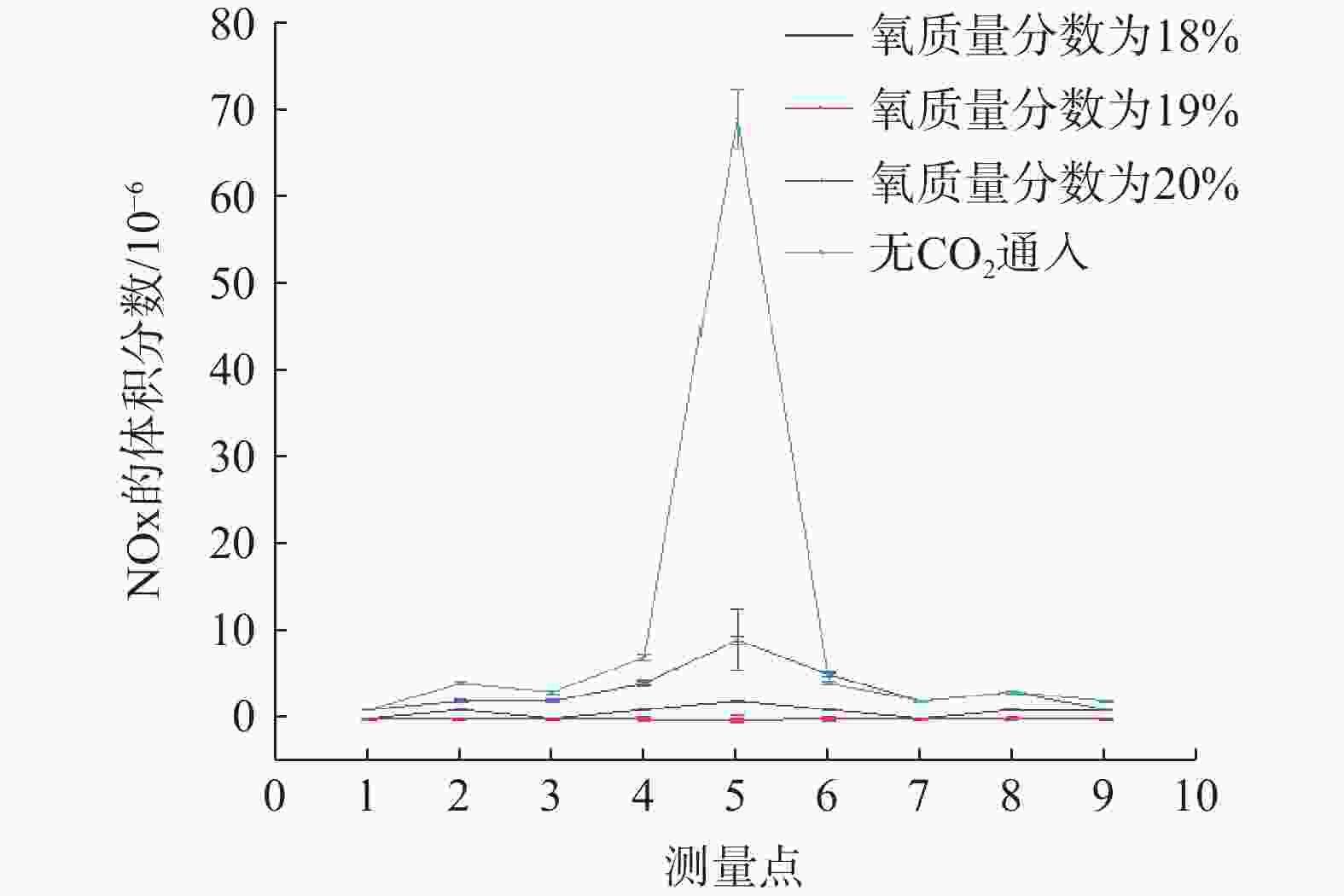

图 10 燃烧排放产物NOx分布图

Figure 10. NOx distribution of combustion emission products

下载: 全尺寸图片幻灯片

表 1 旋流器结构参数

Table 1. Swirler structure parameters

参数	数值
$ \theta $/（°）	42
孔板阻塞比	0.58
S	0.512
R_c/mm	20
D₁/mm	3.0
D₂/mm	3.2
D₃/mm	3.4
R_i/mm	31.7

下载: 导出CSV

表 2 NOVA plus烟气分析仪技术参数

Table 2. NOVA plus technical parameters of flue gas analyzer

组分	测量方法	体积分数
组分	测量方法	测量范围/10⁻⁶	分辨率/10⁻⁶	精度/%
NOx	电化学	0～1000	1	±5
CO	红外吸收	0～4000	1	±5
O₂	电化学	0～210000	1000	±0.2
CO₂	红外吸收	0～200000	100	±5

下载: 导出CSV
