RP-3航空燃油在惰化气体条件下的闭口闪点测定

王悦; 刘屹; 高经诚; 柴婷; 冯诗愚

doi:10.13224/j.cnki.jasp.20230186

RP-3航空燃油在惰化气体条件下的闭口闪点测定

doi: 10.13224/j.cnki.jasp.20230186

王悦^1,,
刘屹²,
高经诚¹,
柴婷¹,
冯诗愚^1,*, ,

1.
南京航空航天大学航空学院飞行器环境控制与生命保障工业和信息化重点实验室，南京 210016
2.
中国航空工业集团有限公司南京机电液压工程研究中心航空机电系统综合航空科技重点实验室，南京 211106

基金项目: 国家自然科学基金（52372331）；中央高校基本科研业务费专项资金；南京航空航天大学研究生科研与实践创新计划项目（xcxjh20220113，xcxjh20220102）；江苏高校优势学科建设工程

详细信息

作者简介:
王悦（1999-），女，硕士生，主要从事油箱惰化技术与机载中空纤维膜系统方面的研究。E-mail：2058296261@qq.com

通讯作者:
冯诗愚（1974-），男，副教授、硕士生导师，博士，主要从事油箱惰性化和飞机燃油系统方面的研究。E-mail：shiyuf@nuaa.edu.cn

中图分类号: V228.1；TQ021.4
计量
- 文章访问数: 521
- HTML浏览量: 376
- PDF量: 26
- 被引次数: 0
出版历程
- 收稿日期: 2023-03-27
- 网络出版日期: 2025-06-19

Closed cup flash point determination of RP-3 aviation fuel under inerting gas conditions

WANG Yue^1
,,
LIU Yi²,
GAO Jingcheng¹,
CHAI Ting¹,
FENG Shiyu^{1,*
, ,}

1.
Key Laboratory of Aircraft Environmental Control and Life Support Industry and Information Technology，College of Aerospace Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China
2.
Aviation Key Laboratory of Science and Technology on Aero Electromechanical System Integration，Nanjing Engineering Institute of Aircraft Systems，Aviation Industry Corporation of China Limited，Nanjing 211106，China

摘要

摘要:
闪点作为燃油的安全衡量标准，为预防混合蒸汽进入可燃性区域燃爆提供了必要信息。基于GB/T 261-2008《闪点的测定宾斯基-马丁闭口杯法》标准，搭建了惰化气体环境下的闪点测定装置，选取了N₂和CO₂两种不同的惰化气体，先测定了RP-3燃油在空气中的闪点，再测定了5%～20%N₂和5%～20%CO₂摩尔分数对RP-3燃油闪点的影响效果，同时与已有文献数据对比，验证了实验数据的可靠性。结果显示：闪点随N₂与CO₂摩尔分数的增加而不断上升，且CO₂对闪点的影响效果明显强于N₂，与文献中Jet A煤油受两种惰性气体的影响趋势相似，由此，在油箱惰化应用中可以根据实际需要选择惰化气体摩尔分数方案。
- 闪点 /
- RP-3航空燃油 /
- 实验测定 /
- 宾斯基-马丁闭口杯法 /
- 氮气 /
- 二氧化碳
Abstract:
As a safety measure of fuel, flash point can provide necessary information for preventing mixed vapors from entering combustible areas and igniting. Based on the standard GB/T 261-2008 “Determination of Flash Point Binsky-Martin Closed Cup Method”, an experimental device was built to determine the closed cup flash point of RP-3 fuel under the inert gas environment, and two different inert gases, N₂ and CO₂, were selected. The effects of the mole fraction of 5%—20% N₂ and 5%—20% CO₂ on the flash point of RP-3 fuel were measured, and the reliability of the experimental data was verified by comparing with existing literature data. The results indicated that with the increase of mole fraction of N₂ and CO₂, the flash point rose. At the same time, the effect of CO₂ to inhibit combustion was significantly higher than that of N₂, which was similar to the trend of Jet A kerosene being influenced by two inert gases in the literature. Therefore, the inerting gas mole fraction scheme can be chosen according to the actual needs in inerting applications.
- flash point /
- RP-3 aviation fuel /
- experimental determination /
- Binsky-Martin closed cup method /
- nitrogen /
- carbon dioxide

HTML

图 1 机载燃油箱燃烧三角形

Figure 1. Burning triangle of airborne fuel tank

下载: 全尺寸图片幻灯片

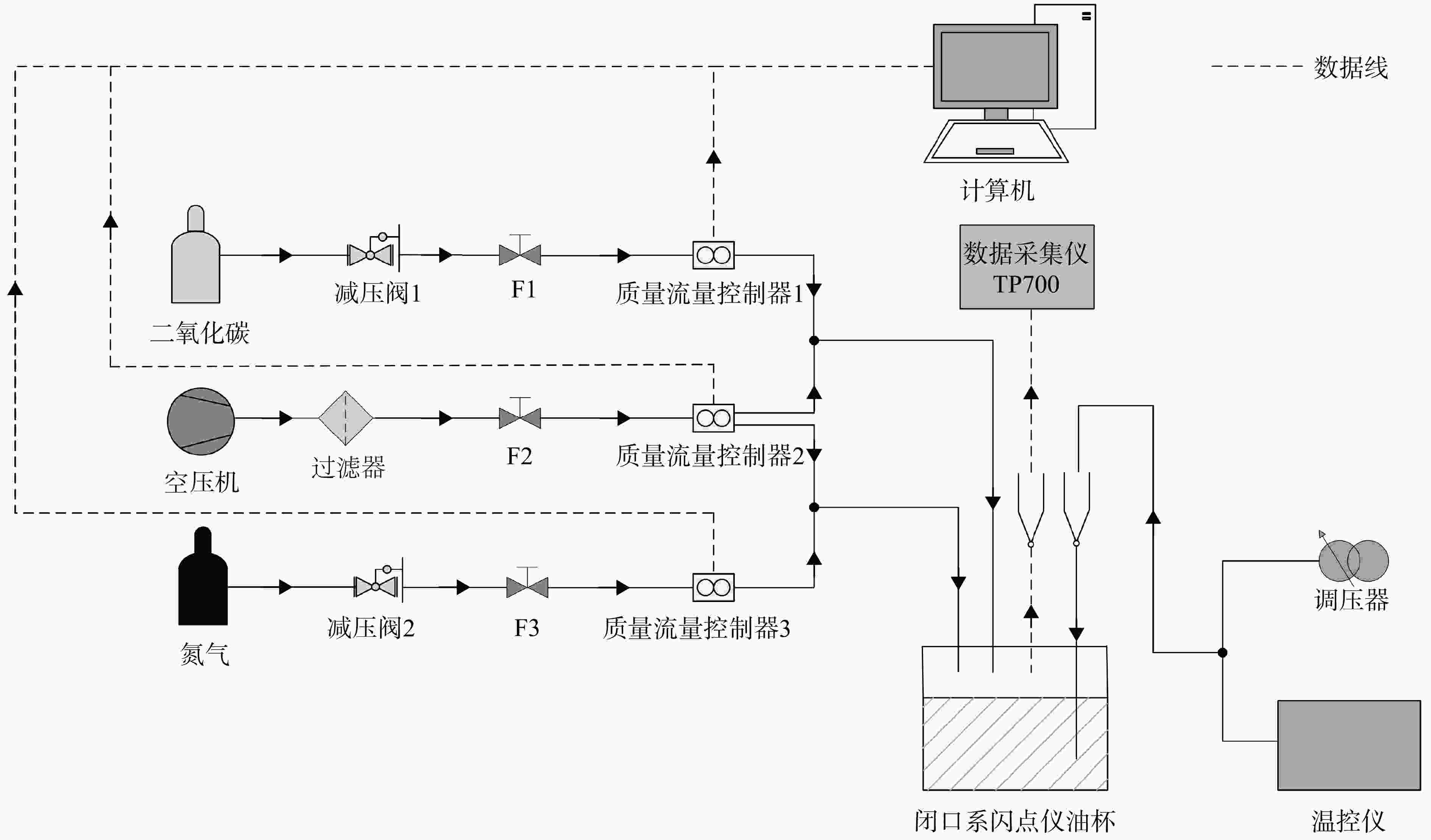

图 2 闭口闪点测定实验装置示意图

Figure 2. Schematic diagram of the experimental apparatus for closed cup flash point determination

下载: 全尺寸图片幻灯片

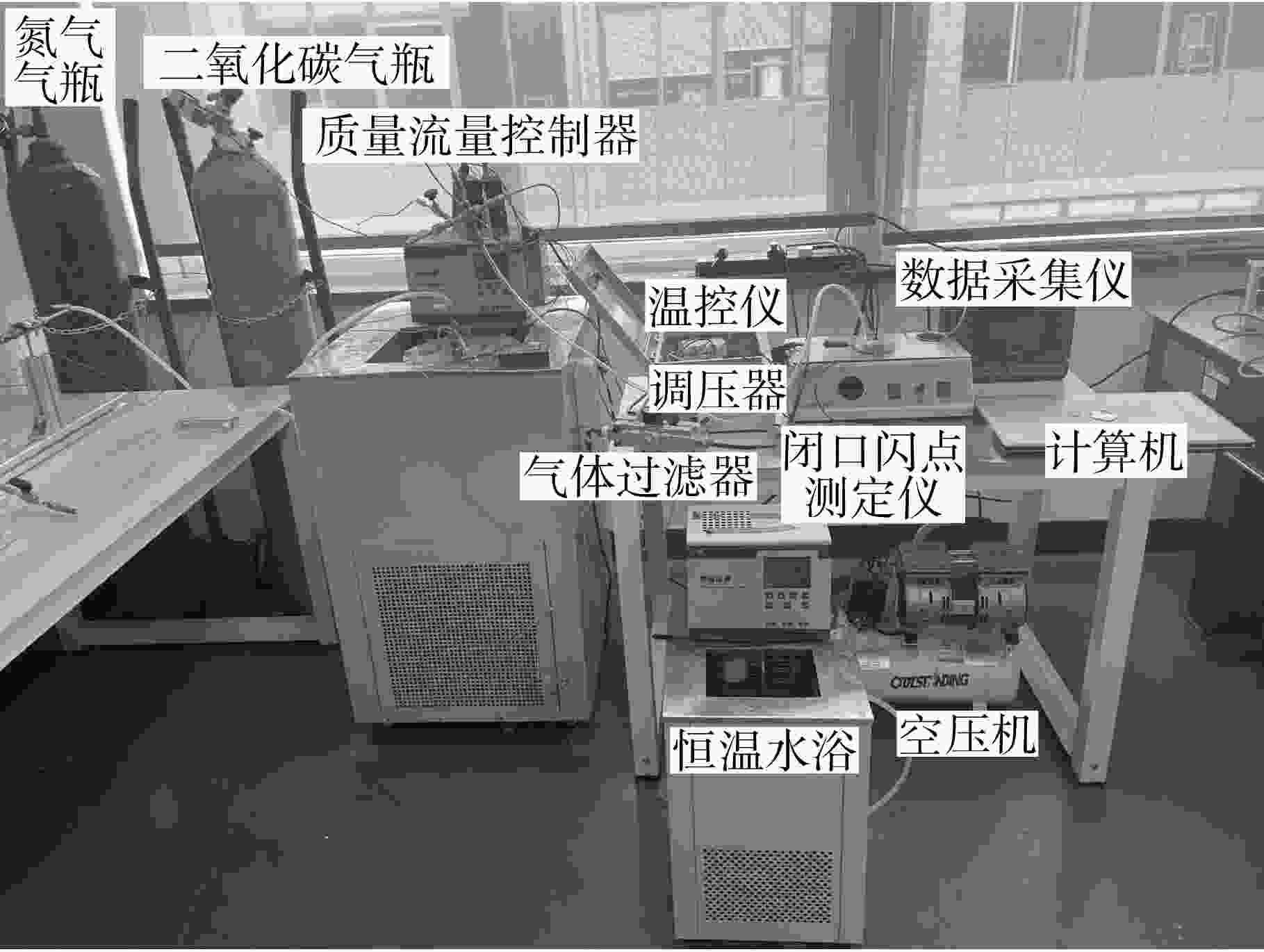

图 3 闭口闪点测定实验系统

Figure 3. Closed cup flash point determination experiment system

下载: 全尺寸图片幻灯片

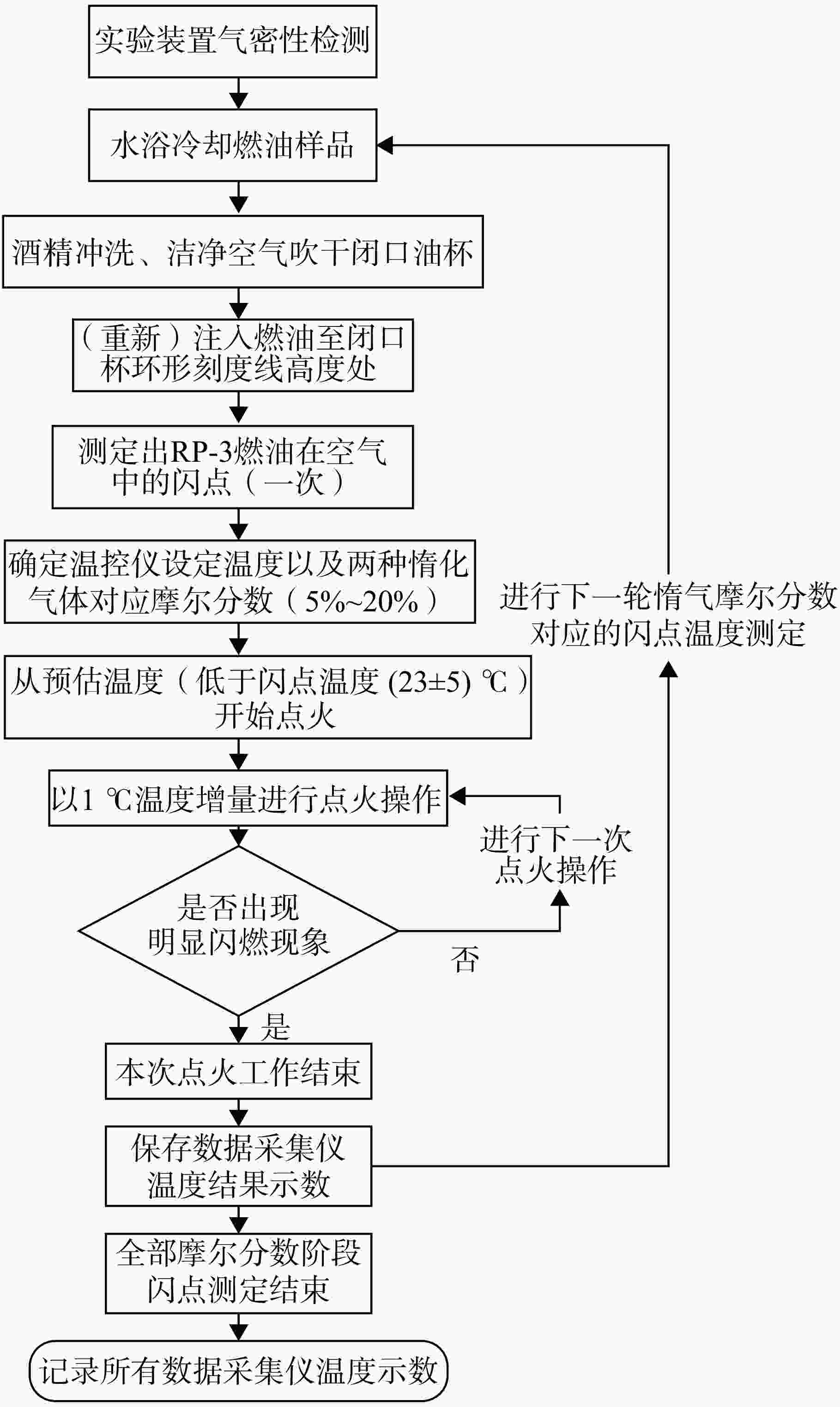

图 4 闭口闪点实验系统测定流程图

Figure 4. Flow chart of closed cup flash point experiment system determination

下载: 全尺寸图片幻灯片

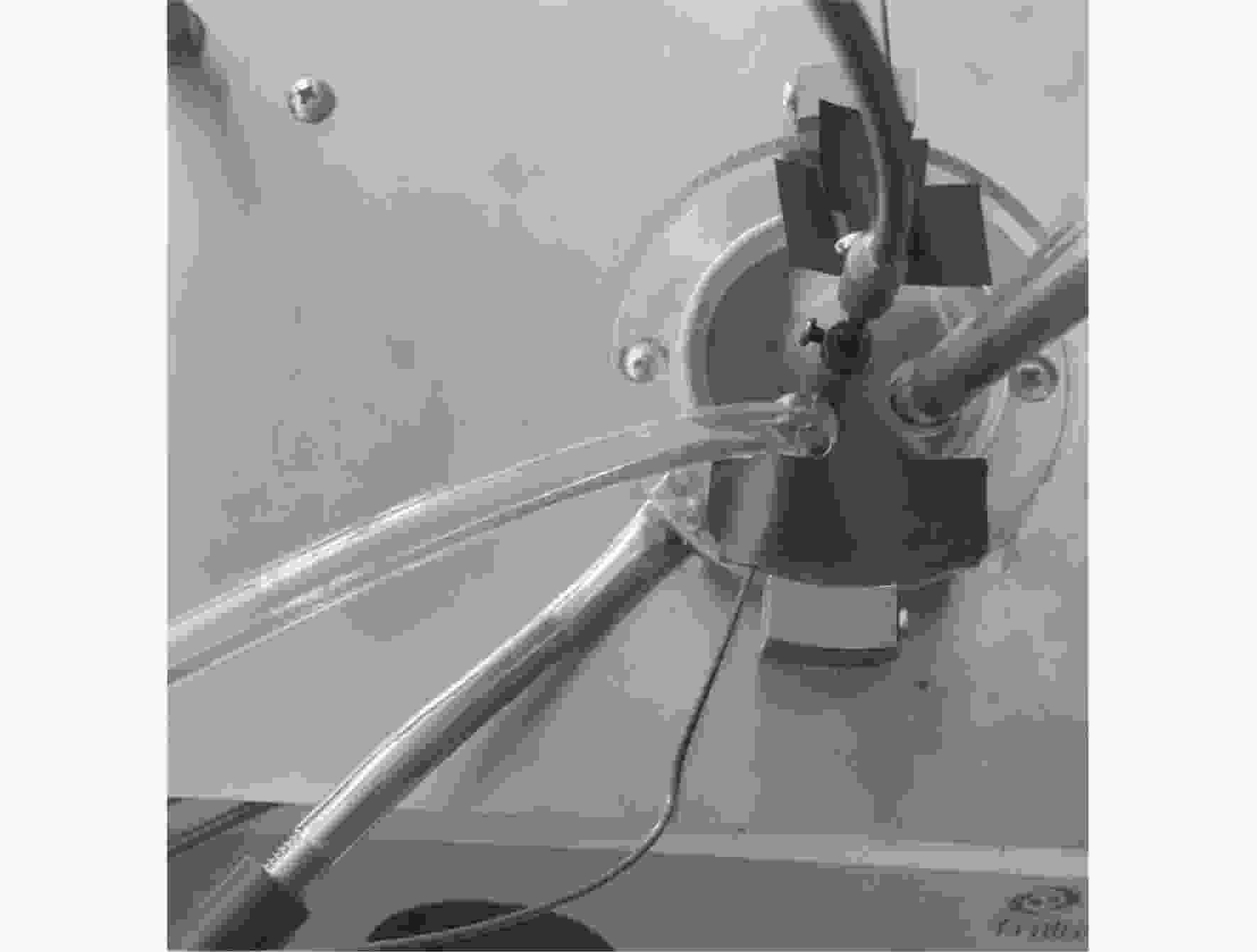

图 5 在空气中测定闪点的闪燃现象

Figure 5. Flash ignition in air for determination of flash point

下载: 全尺寸图片幻灯片

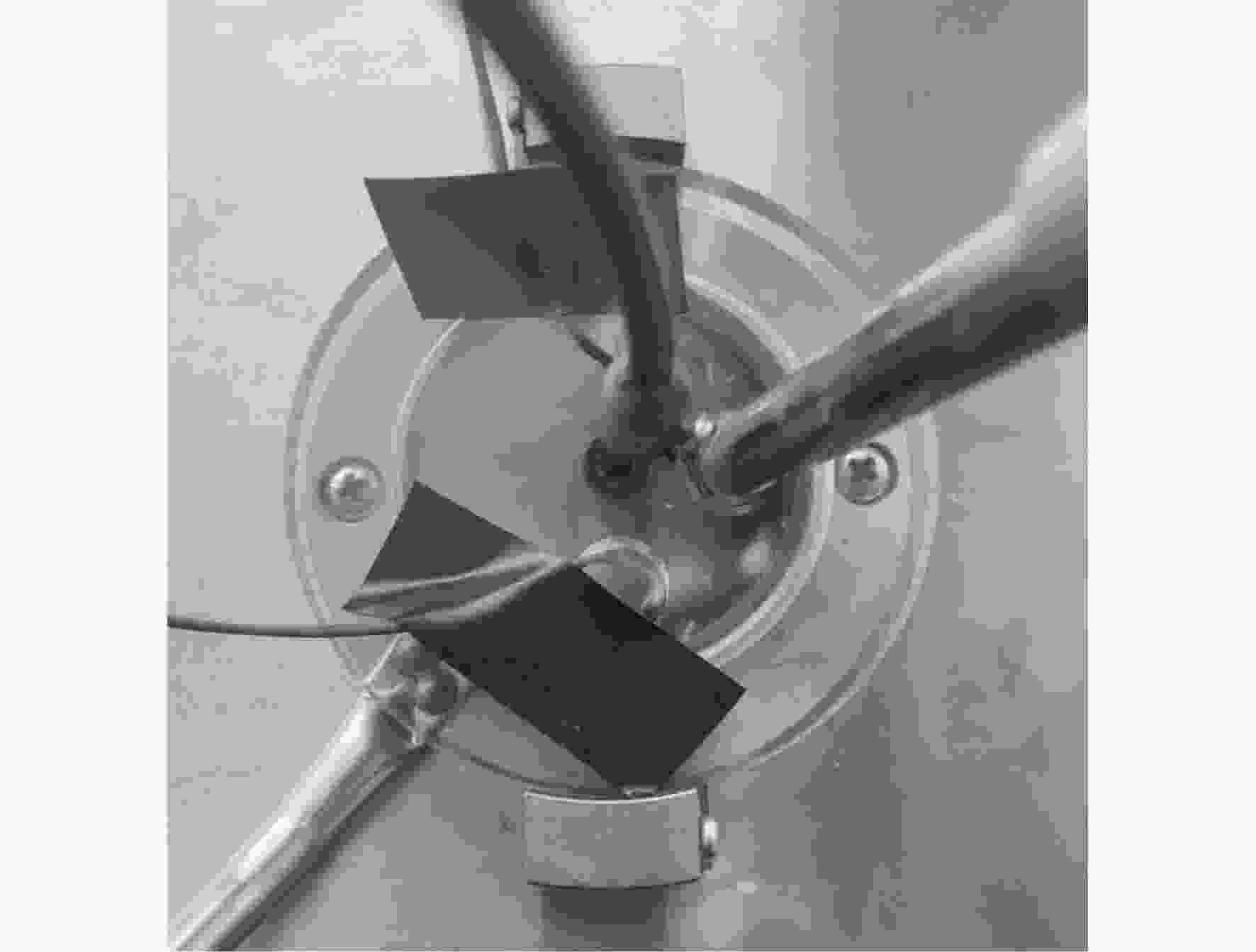

图 6 在惰性气体条件下测定闪点的闪燃现象

Figure 6. Flash ignition under inert gas conditions for determination of flash point

下载: 全尺寸图片幻灯片

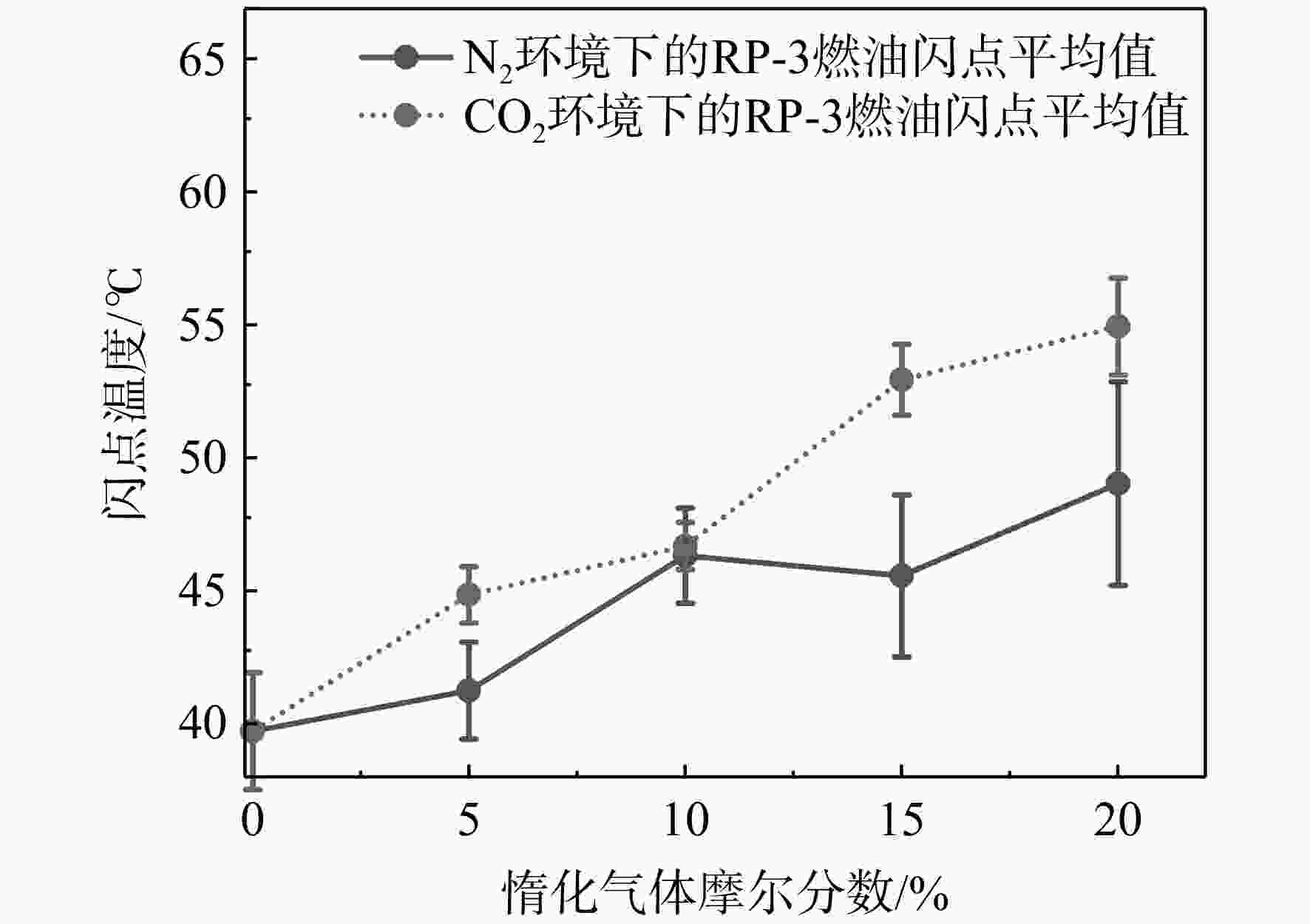

图 7 N₂和CO₂环境变化对RP-3燃油闪点影响的误差棒图

Figure 7. Error bar plot of the influence of N₂ and CO₂ environmental changes on RP-3 fuel flash point changes

下载: 全尺寸图片幻灯片

图 8 惰化气体摩尔分数变化对RP-3燃油与Jet A煤油闪点影响的对比

Figure 8. Comparison of the effect of molar concentration change of inerting gas on the flash point of RP-3 fuel and Jet A kerosene

下载: 全尺寸图片幻灯片

表 1 实验设备及参数汇总表

Table 1. Experimental equipment and parameters

设备	制造商与型号	测试/工作范围	精度
闭口闪点测试仪	上海精析 SYD-261-I	t_c≥40 ℃	±0.5%
数据采集仪	Toprie TP700	温度−10～150 ℃	±0.5 ℃
调压器	Ioncont H3P70YB	电压220～380 V
温控仪	辉控 DIN35	温度−10～150 ℃	±0.5 ℃
热电偶	四氟乙烯T型热电偶	温度0～100 ℃	±0.5 ℃
空压机	OUTSTANDING550-8L	压力0～0.5 MPa
气体过滤器	AC 3000-03D	压力0～0.5 MPa
质量流量控制器	CS200-C MFC	流量0～10 SL/min	±0.2%F.S.
调压阀	TWSNS IR3000-03	压力0～0.5 MPa	±1.0%F.S.
恒温水浴	DC-3030	温度0～20 ℃	±0.1 ℃

下载: 导出CSV
