偏转板射流伺服阀前置级液流力数学建模与实验研究

葛声宏; 程文豪; 谢张辰; 朱玉川

doi:10.13224/j.cnki.jasp.20230213

偏转板射流伺服阀前置级液流力数学建模与实验研究

doi: 10.13224/j.cnki.jasp.20230213

葛声宏^{1, 2,},
程文豪¹,
谢张辰¹,
朱玉川^1,*, ,

1.
南京航空航天大学机电学院，南京 210016
2.
中国航空工业集团有限公司南京伺服控制系统有限公司科技发展部，南京 210032

基金项目: 国家自然科学基金（51975275）；江苏省重点研发计划（BE2021034）

详细信息

作者简介:
葛声宏（1980-），男，研究员，博士生，主要从事航空电液伺服阀技术研究。E-mail：smilegeshenghong@163.com

通讯作者:
朱玉川（1974-），男，教授、博士生导师，博士，主要从事高性能电液伺服阀研究。E-mail：meeyczhu@nuaa.edu.cn

中图分类号: V219；TH137
计量
- 文章访问数: 916
- HTML浏览量: 256
- PDF量: 77
- 被引次数: 0
出版历程
- 收稿日期: 2023-04-04
- 网络出版日期: 2023-12-25

Mathematical modeling and experimental study of flow force in the prestage of deflector-jet servo valve

GE Shenghong^{1, 2
,},
CHENG Wenhao¹,
XIE Zhangchen¹,
ZHU Yuchuan^{1,*
, ,}

1.
College of Mechanical and Electrical Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China
2.
Department of Science and Technology Development，Nanjing Servo Control System Company，Limited，Aviation Industry Corporation of China，Limited，Nanjing 210032，China

摘要

摘要:
偏转板所受液流力对偏转板射流伺服阀振动与啸叫故障分析具有重要意义。针对传统偏转板所受液流力建模中只考虑射流冲击力而忽略V型槽侧壁静压力的不足，提出前置级液流力由两部分组成：其一，一次射流阶段中油液撞到V型槽侧壁产生的冲击力；其二，压力恢复阶段中V型槽侧壁所受静压力。基于质量守恒，动量守恒和连续体假设，研究了射流冲击力与静压力随偏转板位移变化规律，推导出前置级液流力数学模型。通过前置级压力特性实验与流场CFD仿真分析，验证了所建液流力模型有效性。结果表明：偏转板位移越大，V型槽两侧压力作用面积差越大，静压力对前置级液流力结果影响效果越明显；经有限元仿真结果验证，所建模型可提高偏转板液流力计算精度，为偏转板伺服阀的振动与谐振分析提供了理论支撑。
- 偏转板射流伺服阀 /
- 偏转板射流放大器 /
- 前置级液流力 /
- 数学建模 /
- 流场仿真
Abstract:
The fluid flow force on the deflector is of great significance for analyzing the vibration and whistling faults of the deflector-jet servo valve. The existing models of fluid flow force only consider the jet impact force while neglecting the static pressure on the walls of the V-shaped groove. For this, it was proposed that the fluid flow force was mainly composed of two parts: the impact force generated by the oil impacting the walls of the V-shaped groove in the primary jet phase, and the static pressure on the walls of the V-shaped groove in the pressure recovery phase. Based on the mass conservation law, the momentum conservation law, and the continuum hypothesis, the variation of jet impact force and static pressure with aspect to the deflector displacement was investigated, and a novel mathematical model of flow force was derived. Then, experiment and CFD simulation for the pressure characteristic of the deflector-jet amplifier were conducted to verify the accuracy of the proposed flow force model. The results showed that the larger deflector displacement indicated the larger difference of pressure area between the two sides of the V-shaped groove, and the more obvious effect of static pressure on the flow force. Validated by the CFD simulation, the mathematical model of high accuracy can provide the theoretical support for the vibration and resonance analysis of deflector-jet servo valve.
- deflector-jet servo valve /
- deflector-jet amplifier /
- flow force in the prestage /
- mathematical modeling /
- CFD numerical simulation

HTML

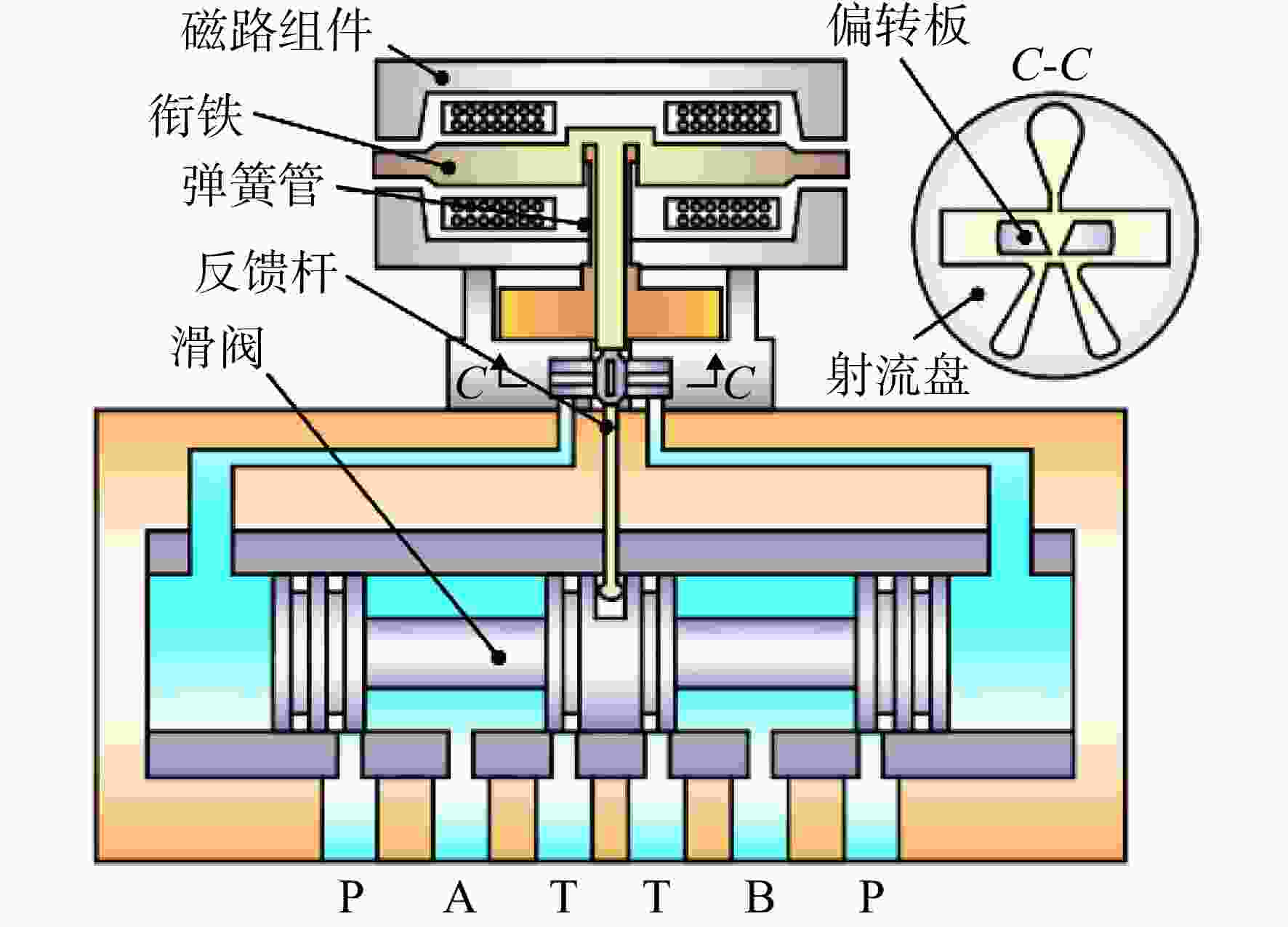

图 1 偏转板电液伺服阀结构示意图

Figure 1. Structure schematic of deflector servo valve

下载: 全尺寸图片幻灯片

图 2 偏转板射流放大器流动阶段划分

Figure 2. Deflector-jet amplifier flow phase division

下载: 全尺寸图片幻灯片

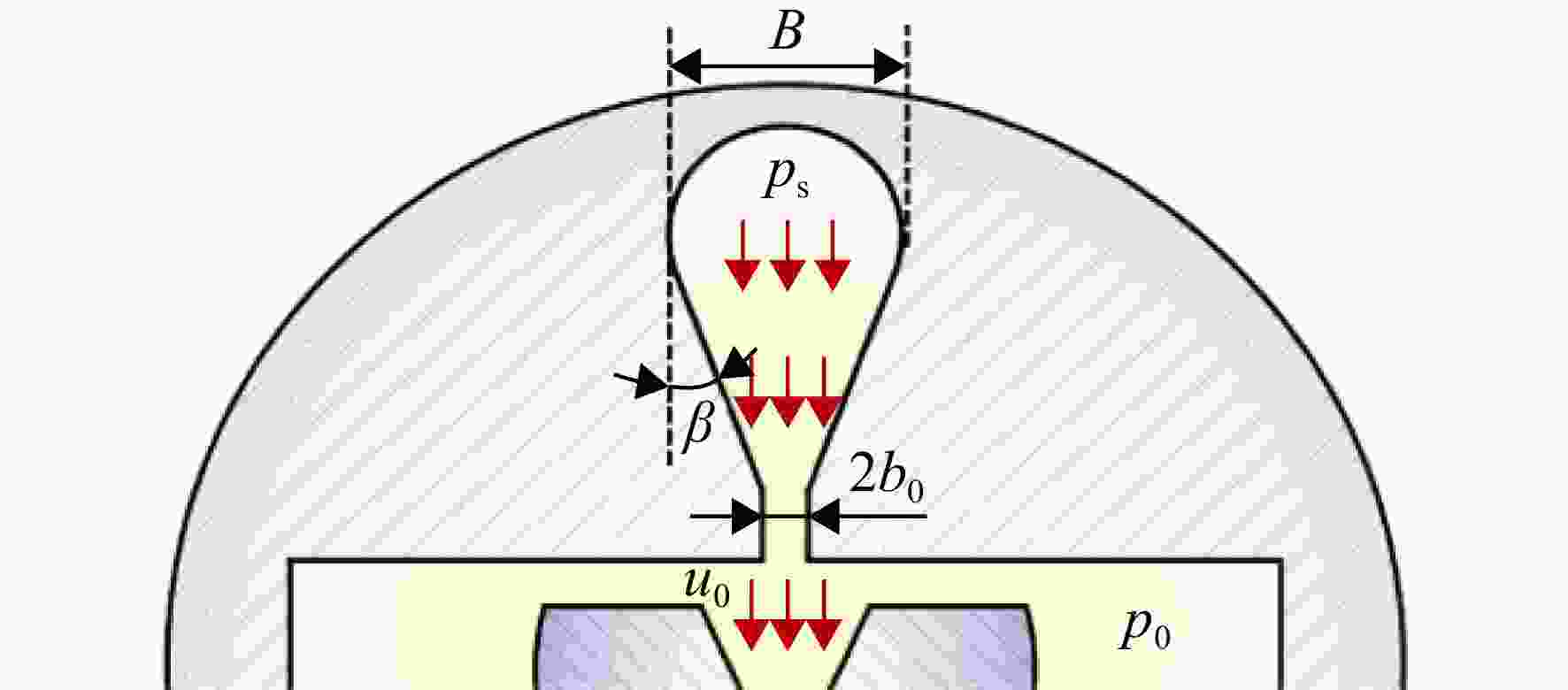

图 3 管内流动阶段流道结构

Figure 3. Pipeline structure of flow stage

下载: 全尺寸图片幻灯片

图 4 平面自由紊动射流区域划分

Figure 4. Regional division of planar free turbulent jet

下载: 全尺寸图片幻灯片

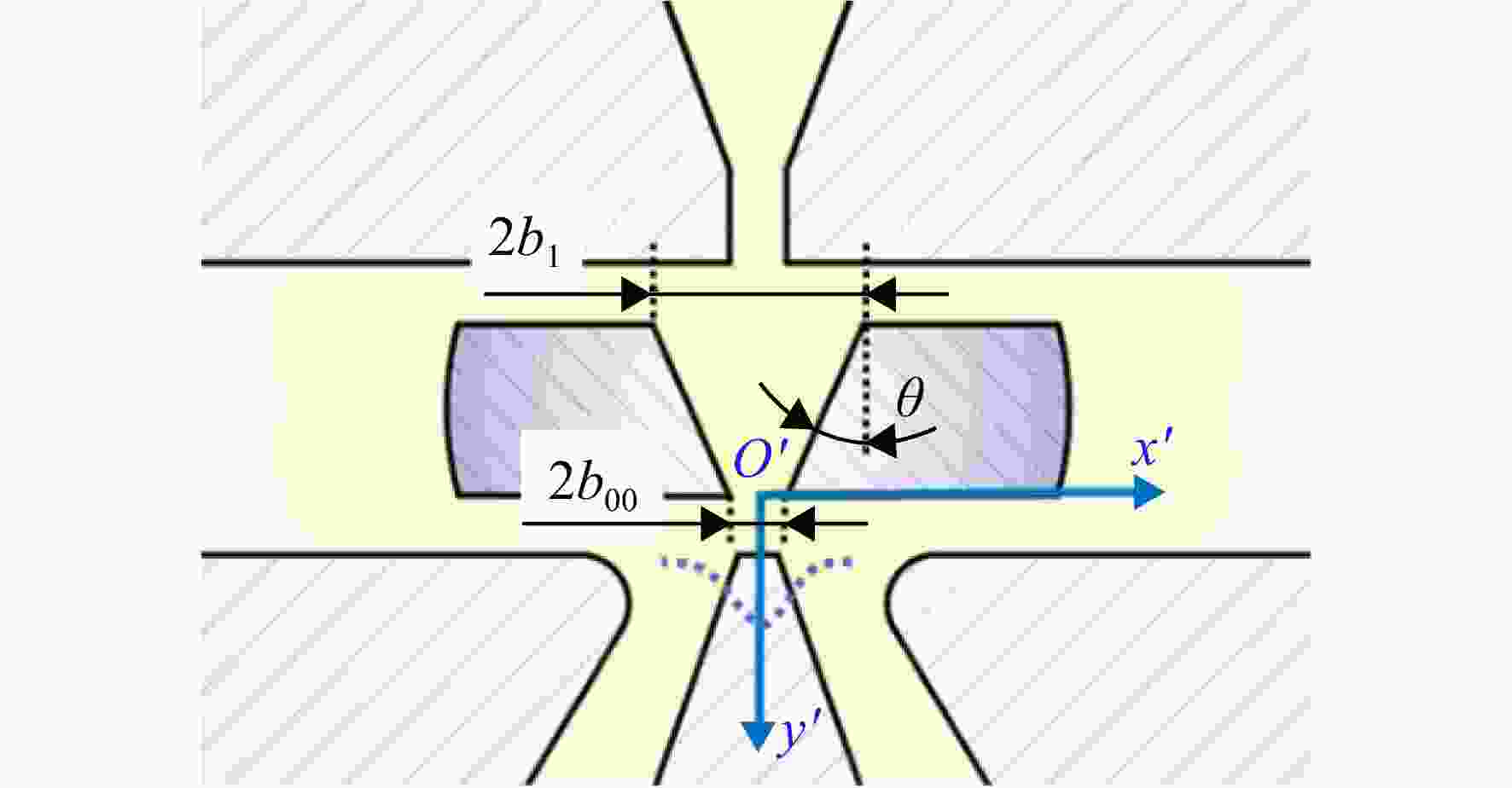

图 5 偏转板压力恢复阶段流道结构

Figure 5. Pipeline structure of deflector pressure recovery stage

下载: 全尺寸图片幻灯片

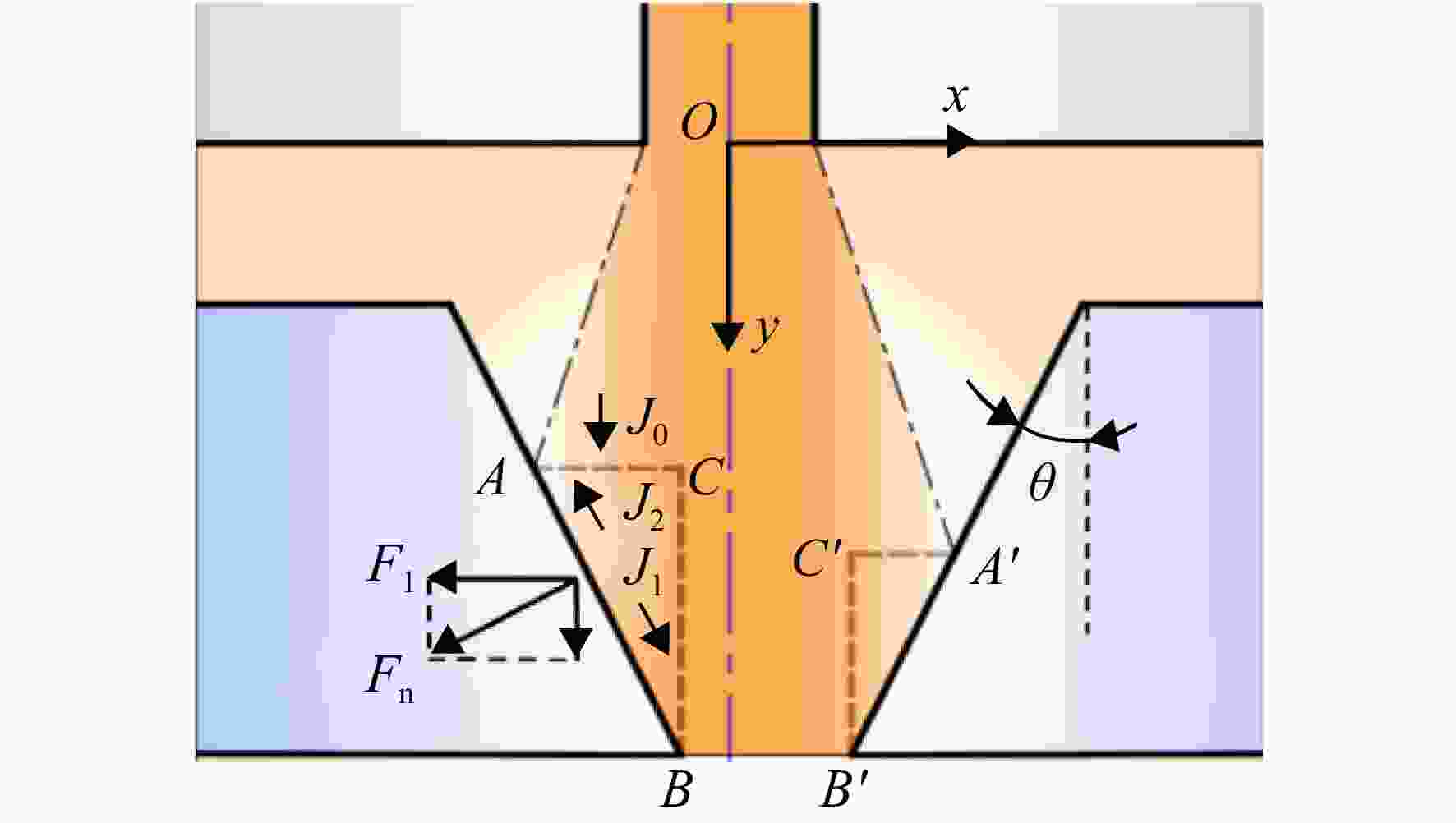

图 6 油液冲击V型槽侧壁示意图

Figure 6. Schematic diagram of oil impact on side wall of V-shaped groove

下载: 全尺寸图片幻灯片

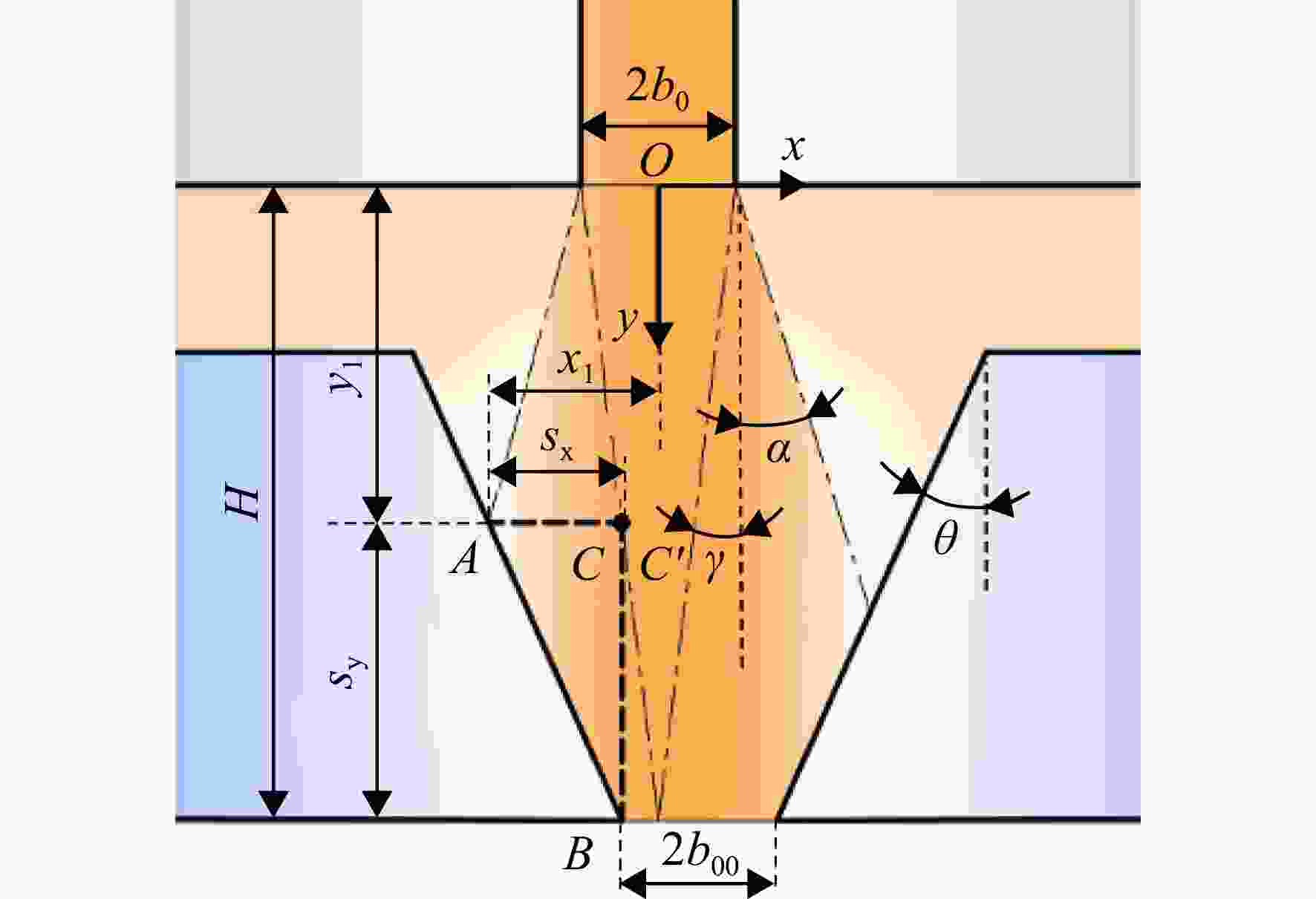

图 7 射流各区域边界示意图

Figure 7. Schematic diagram of the boundary of each jet region

下载: 全尺寸图片幻灯片

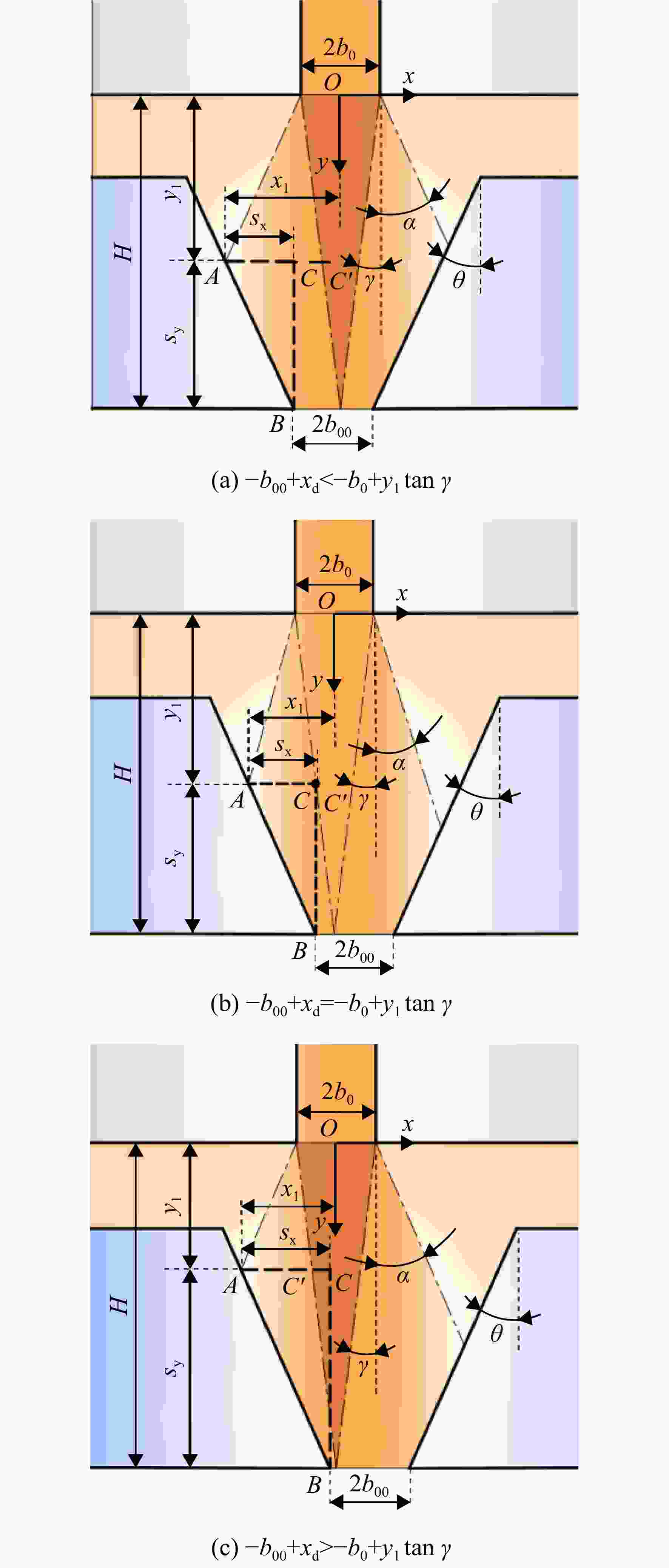

图 8 有效射流宽度随偏转板位移变化示意图

Figure 8. Schematic diagram of effective jet width changing with deflector displacement

下载: 全尺寸图片幻灯片

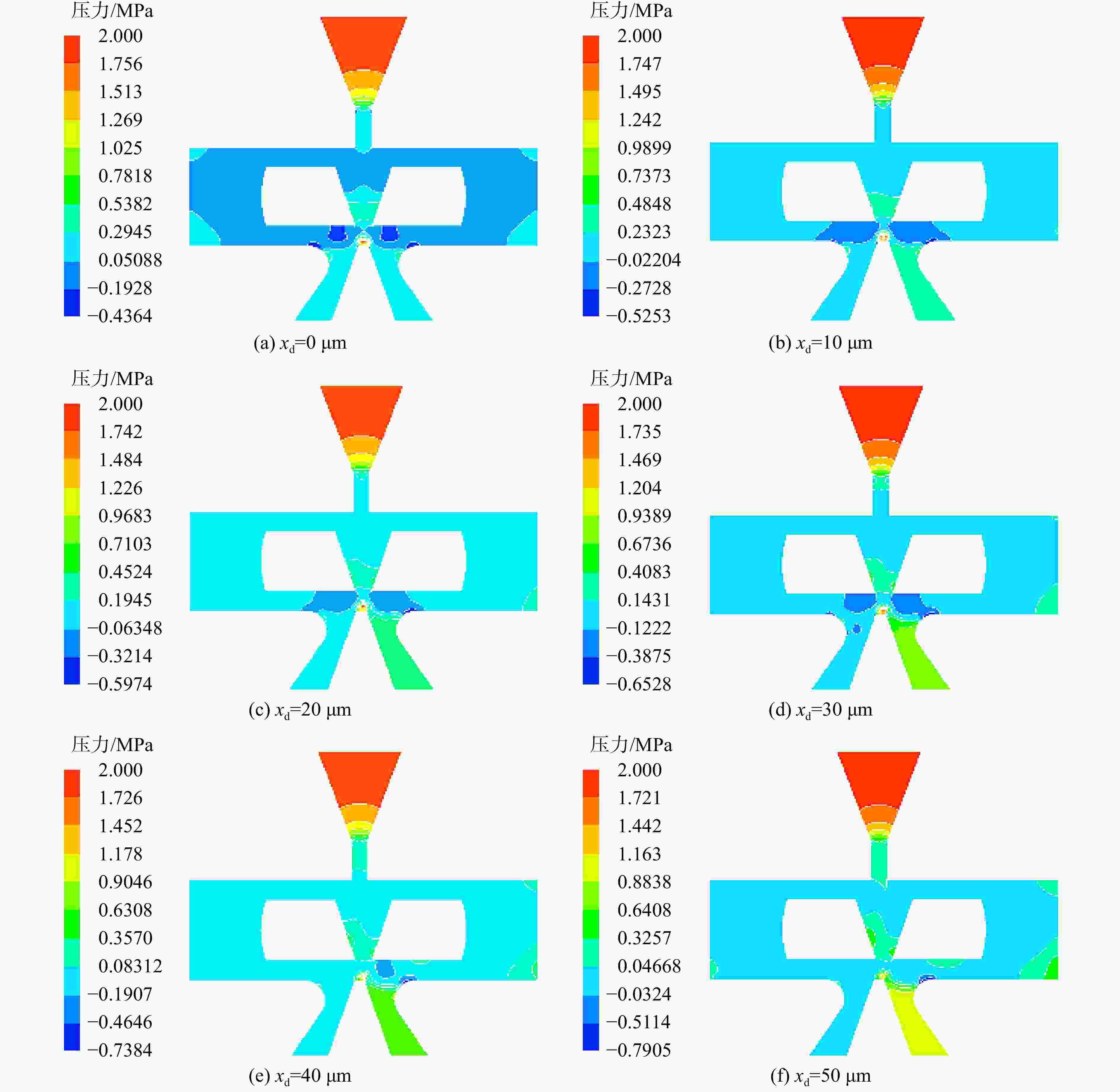

图 9 不同偏转板位移下流场压力云图

Figure 9. Flow field pressure cloud map with different deflector displacements

下载: 全尺寸图片幻灯片

图 10 偏转板射流放大器压力特性实验原理

Figure 10. Experimental principle of pressure characteristics of deflector-jet amplifiers

下载: 全尺寸图片幻灯片

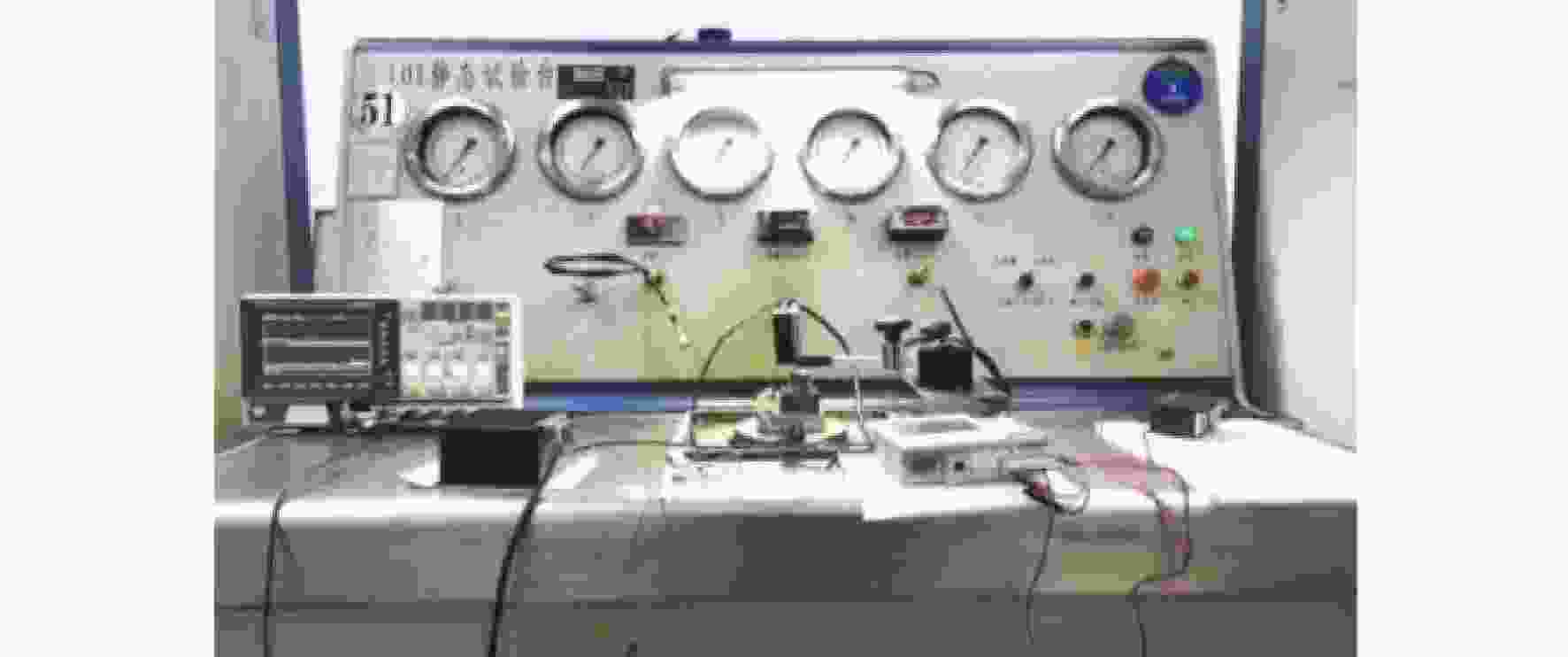

图 11 偏转板射流放大器压力特性实验系统

Figure 11. Experimental system for pressure characteristics of deflector jet amplifier

下载: 全尺寸图片幻灯片

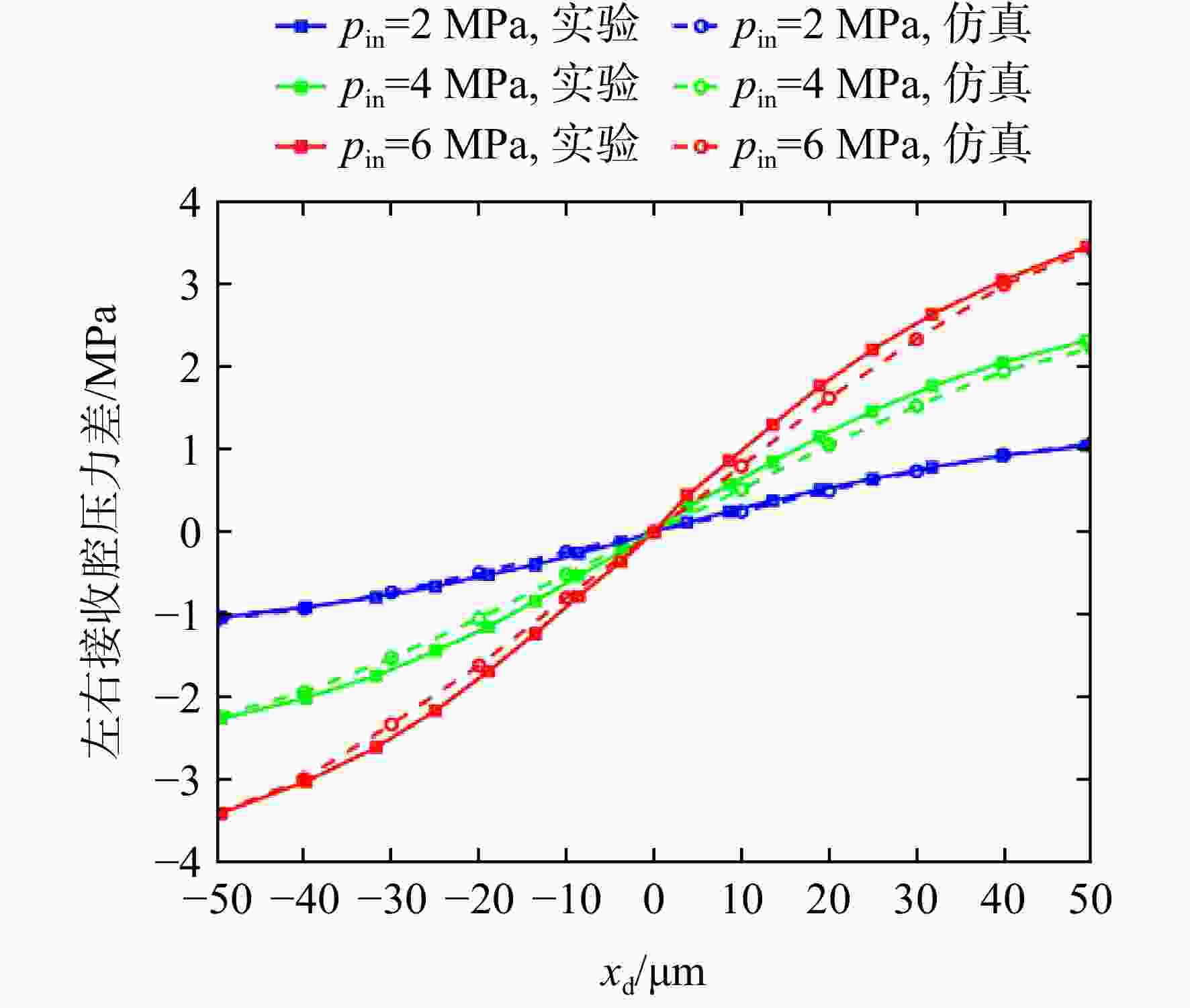

图 12 压力特性实验与仿真结果对比

Figure 12. Comparison of experimental and simulation results on pressure characteristics

下载: 全尺寸图片幻灯片

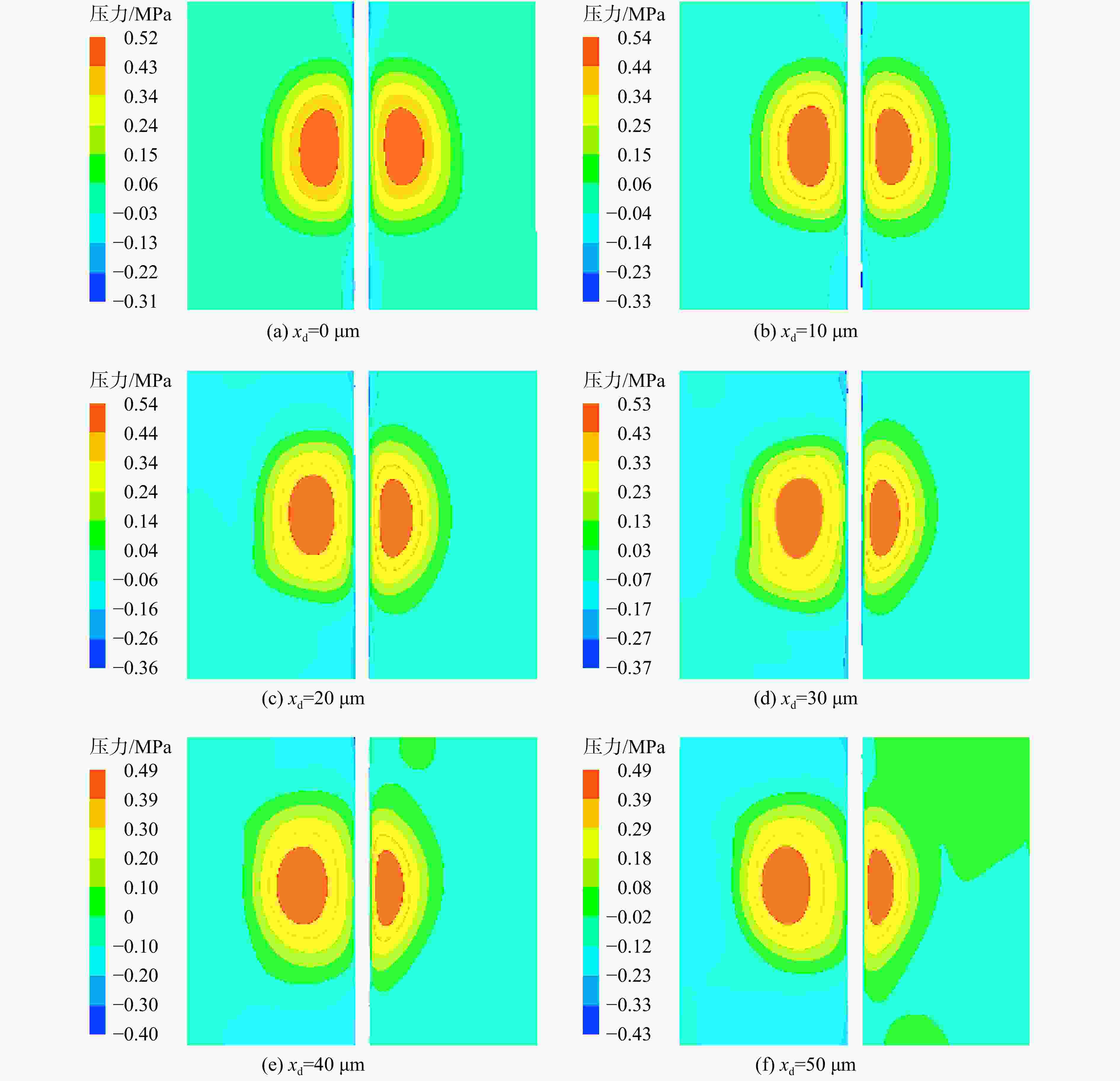

图 13 不同偏转板位移下V型槽侧壁压力分布

Figure 13. Wall pressure distribution of V-shaped groove with different deflector displacements

下载: 全尺寸图片幻灯片

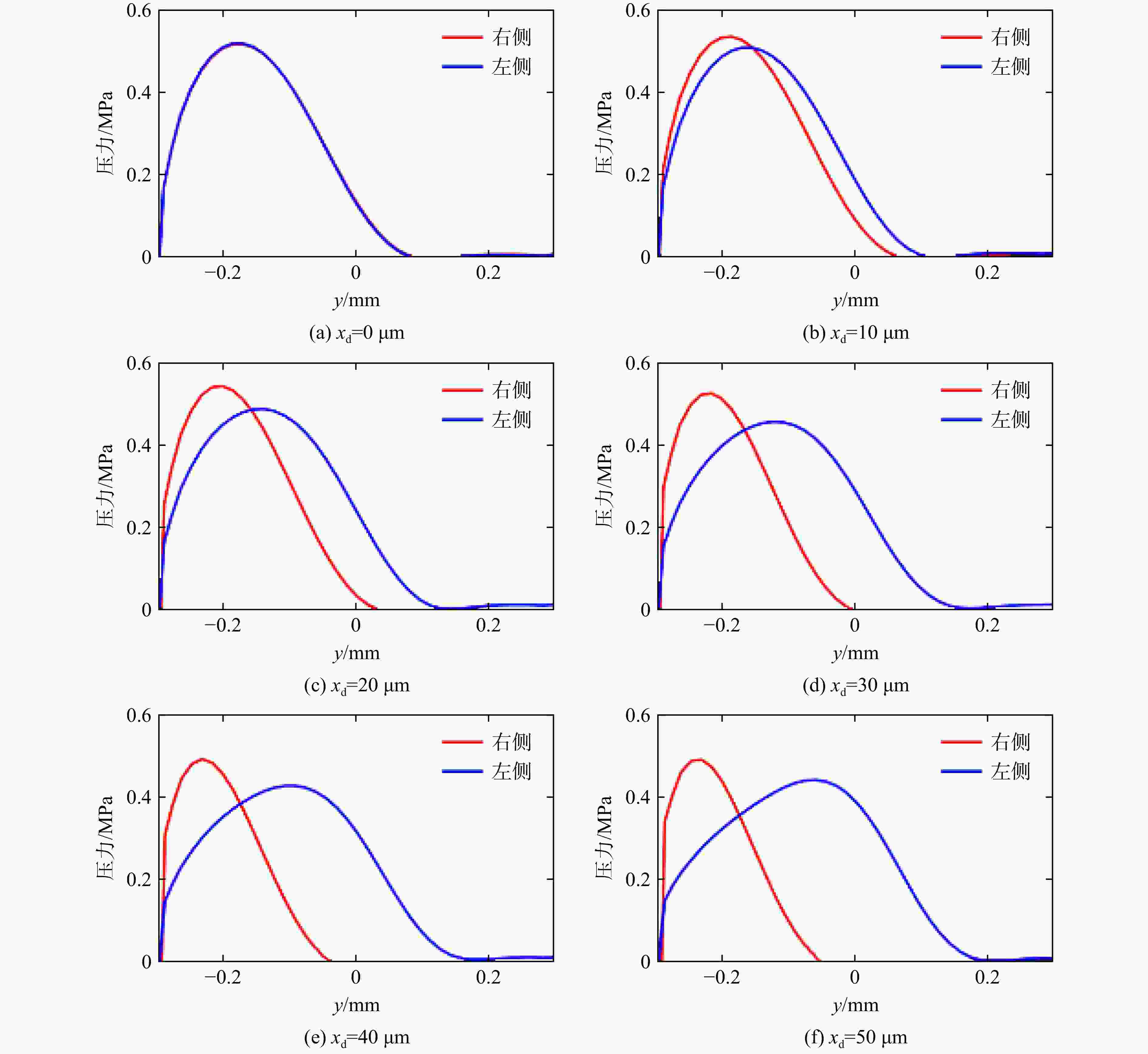

图 14 V型槽侧壁压力分布

Figure 14. Pressure distribution on the side wall of V-shaped groove

下载: 全尺寸图片幻灯片

图 15 压力作用长度仿真与理论结果对比

Figure 15. Comparison between simulation and theoretical results of pressure action length

下载: 全尺寸图片幻灯片

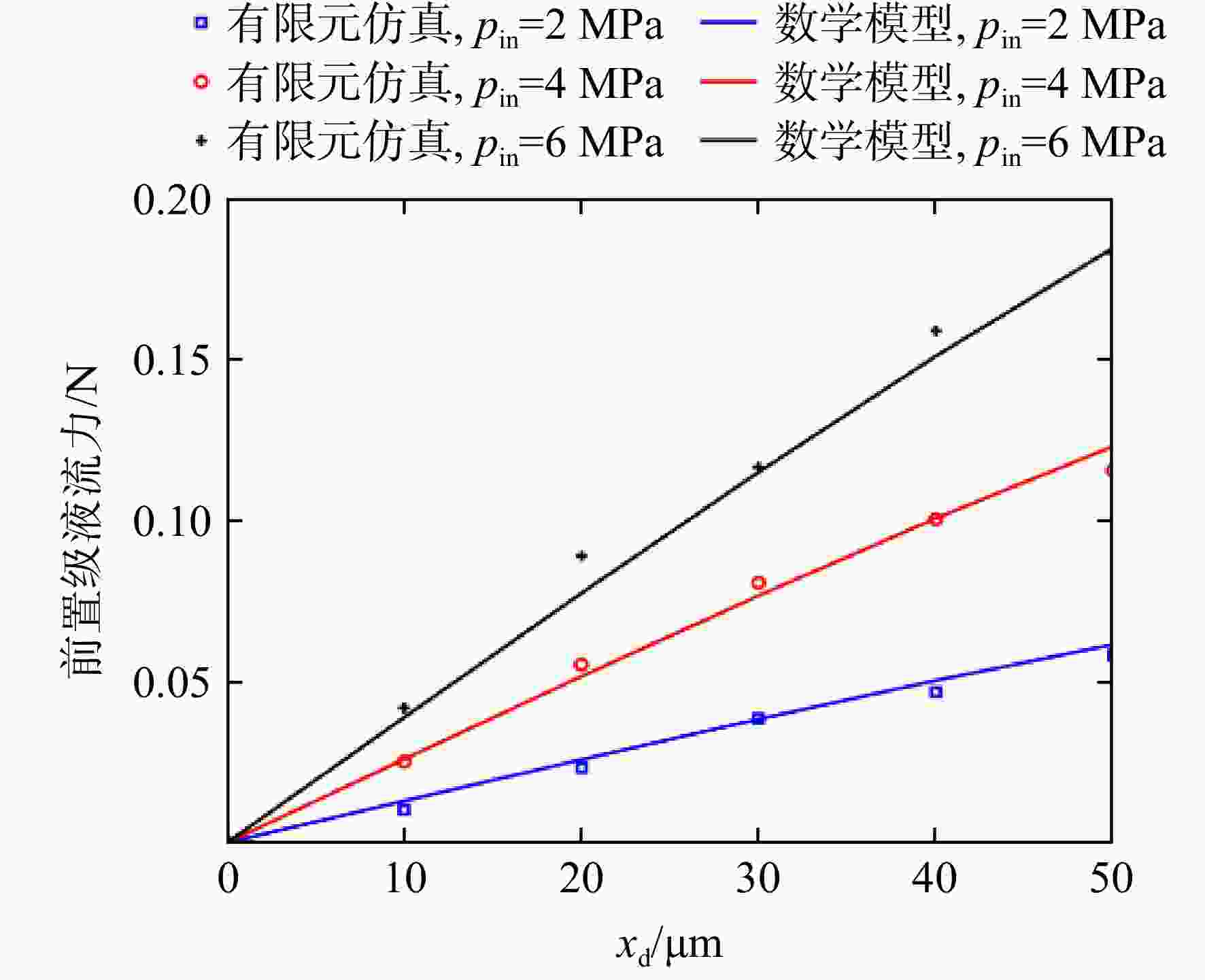

图 16 液流力仿真与理论结果对比

Figure 16. Comparison between simulation and theoretical results of flow force

下载: 全尺寸图片幻灯片

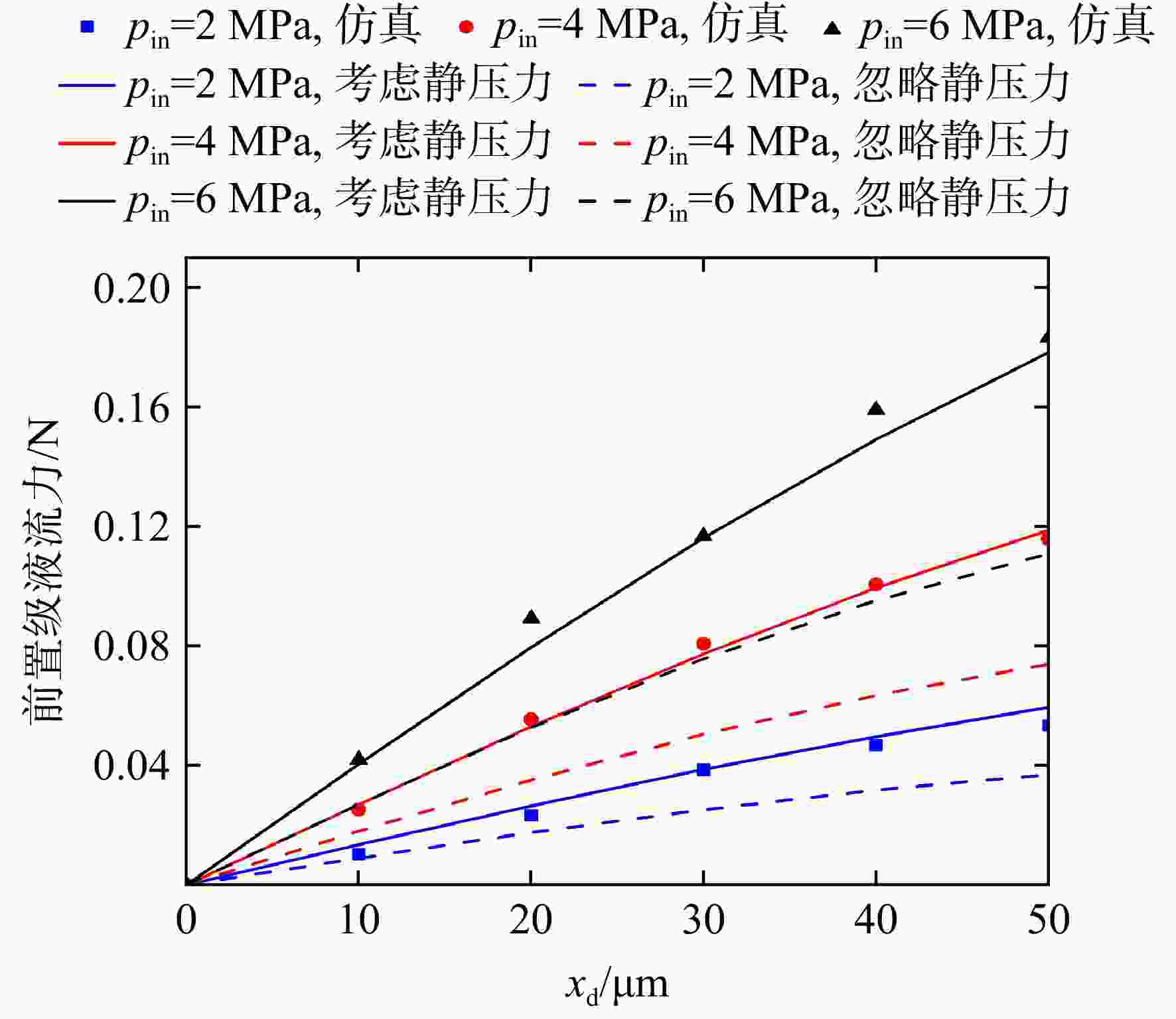

图 17 静压力对液流力影响

Figure 17. Influence of static pressure on flow force

下载: 全尺寸图片幻灯片
