Dynamic performance analysis of double interlocking padded finger seal based on fluid-structure interaction
-
摘要:

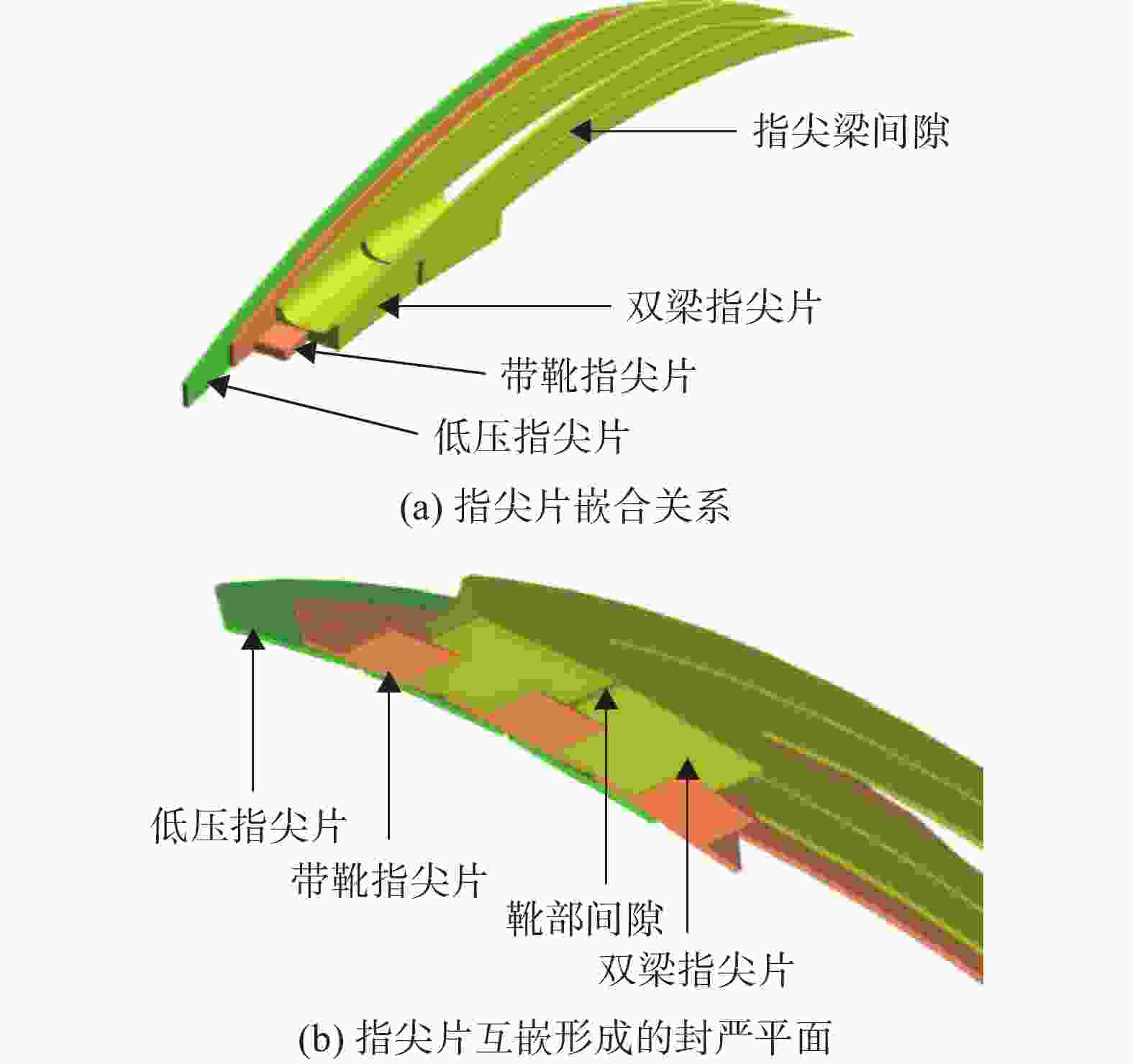

提出一种具有双梁、双靴互嵌式非接触指尖密封结构，建立了密封系统动态性能流固耦合数值分析模型，对转子施加正弦激励，分别研究转速、压差以及转子激励幅值对双靴互嵌式指尖密封的动态气膜承载力、密封靴最大变形以及泄漏率的影响，并与典型单靴非接触式指尖密封结构性能进行对比。结果表明：在低速低压工况下，双靴互嵌式指尖密封对不同幅值转子激励的跟随性均良好；高速高压工况时，跟随性有所降低。此外，在高速高压工况时，气膜承载力明显提升，且在转子向上跳动阶段泄漏率随激励幅值增大而明显减小。与典型单靴式流体静动压式指尖密封相比，双靴互嵌式指尖密封泄漏因子平均降低约25%。合理设计初始安装间隙，可避免转子与靴底发生碰撞。该研究结果为设计满足高工况的非接触式指尖密封提供一种思路。
Abstract:A non-contact finger seal structure with double beams and double boots interlocking was proposed. A fluid-structure coupling numerical analysis model of dynamic performance of the sealing system was established. Sinusoidal excitation was applied to the rotor, and the effects of rotor speed, pressure difference and rotor excitation amplitude on dynamic air film bearing capacity, maximum deformation and leakage rate of the double interlocking padded finger seal were studied respectively, and compared with the typical single padded non-contact finger seal structure performance. The results showed that under low speed and low pressure conditions, the double interlocking padded finger seal shoe had good tracking performance against different amplitude rotor excitation; at high speed and high pressure, the following performance was reduced. In addition, under high speed and high pressure conditions, the gas film bearing capacity significantly increased, and the leakage rate significantly decreased with the increase of excitation amplitude during the upward run-out stage of the rotor. Compared with a typical single padded finger seal, the leakage factor of the double interlocking padded finger seal decreased by an average of about 25%. The reasonable design of the initial installation clearance can avoid the collision between the rotor and the sole of the shoe. This work can provide an idea for designing non-contact finger seal meeting high operating conditions.
-

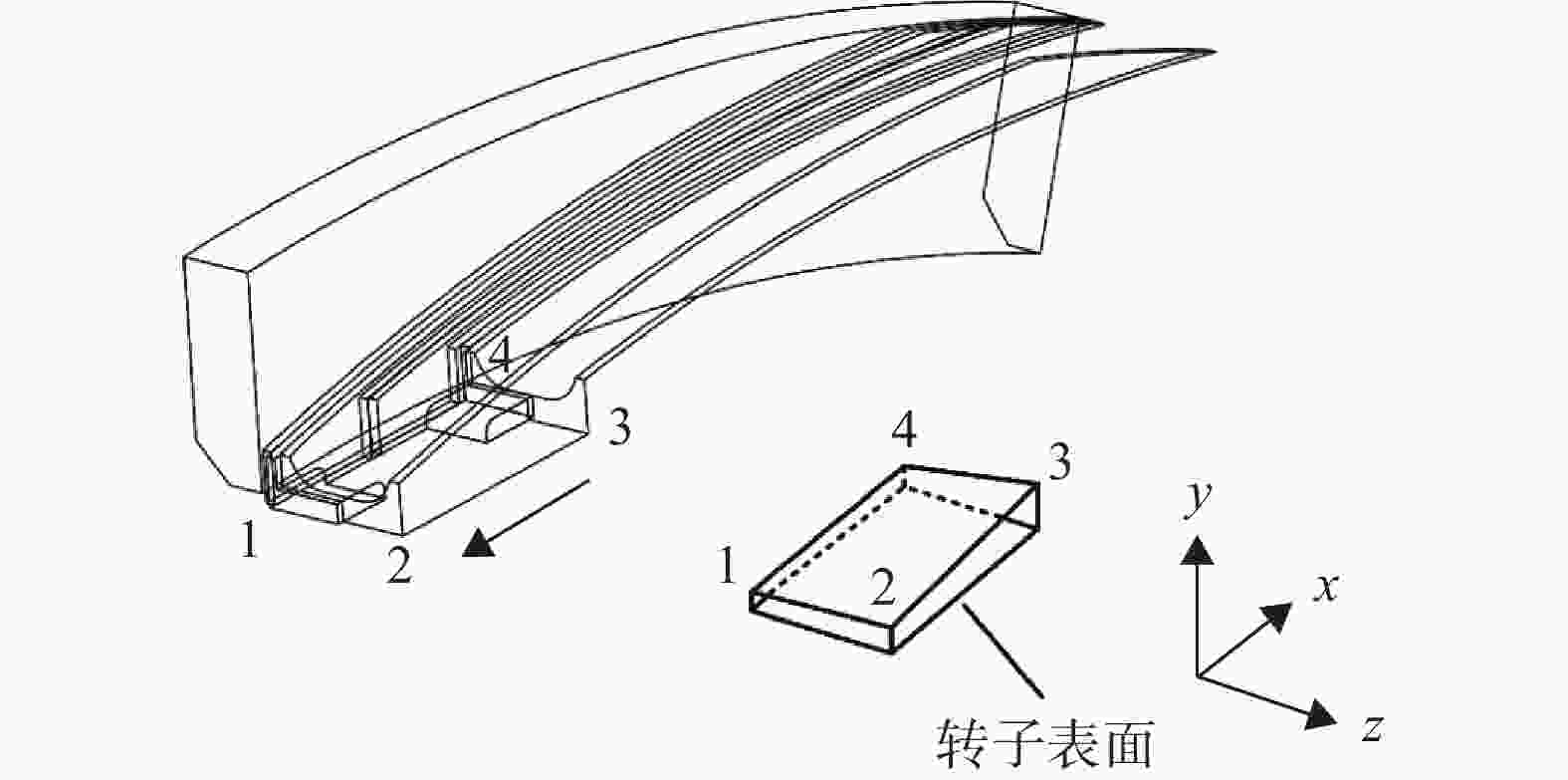

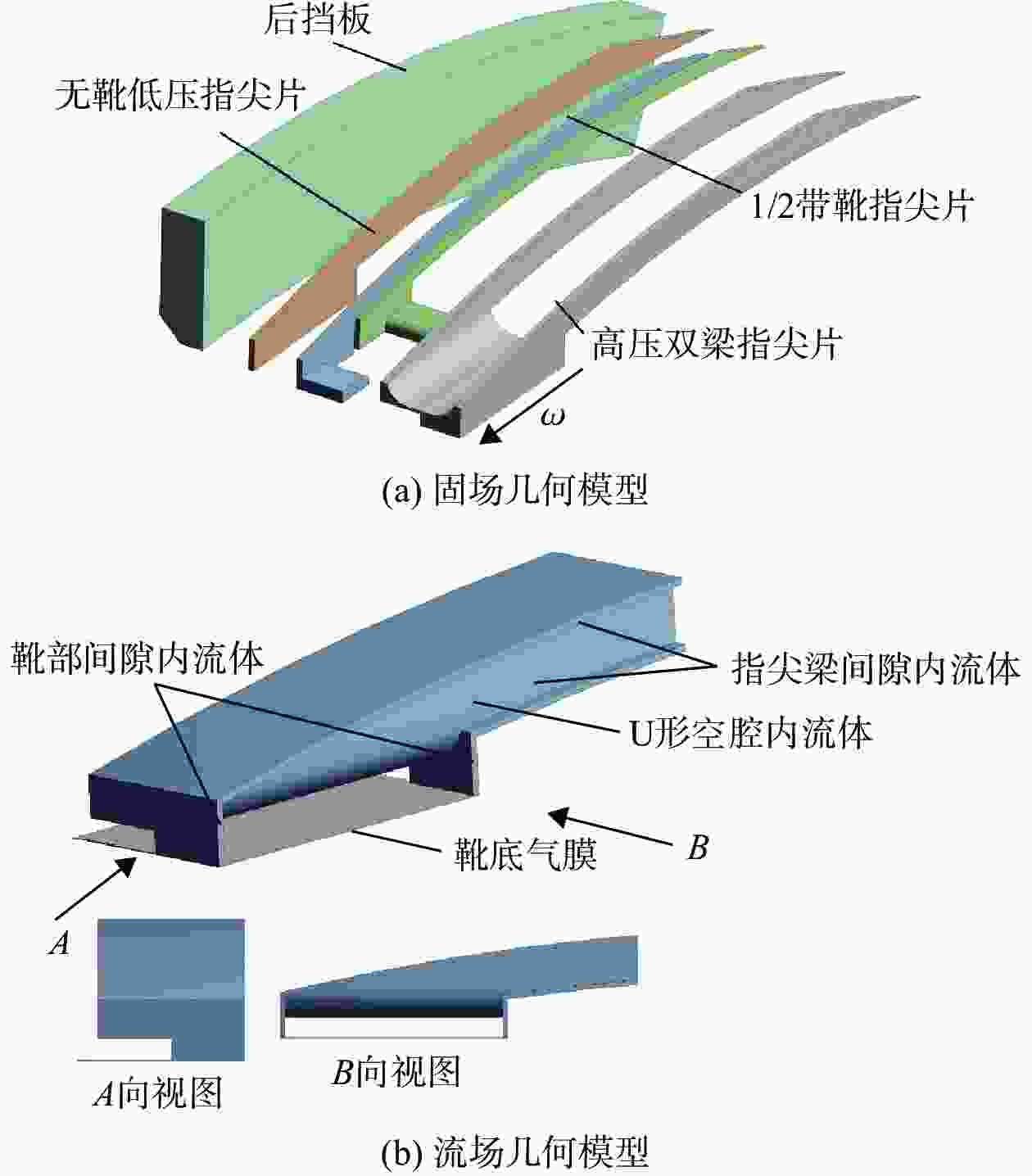

图 3 双靴互嵌式指尖密封固场、流场几何模型
Figure 3. Geometric model of solid field and flow field for double interlocking padded finger seal

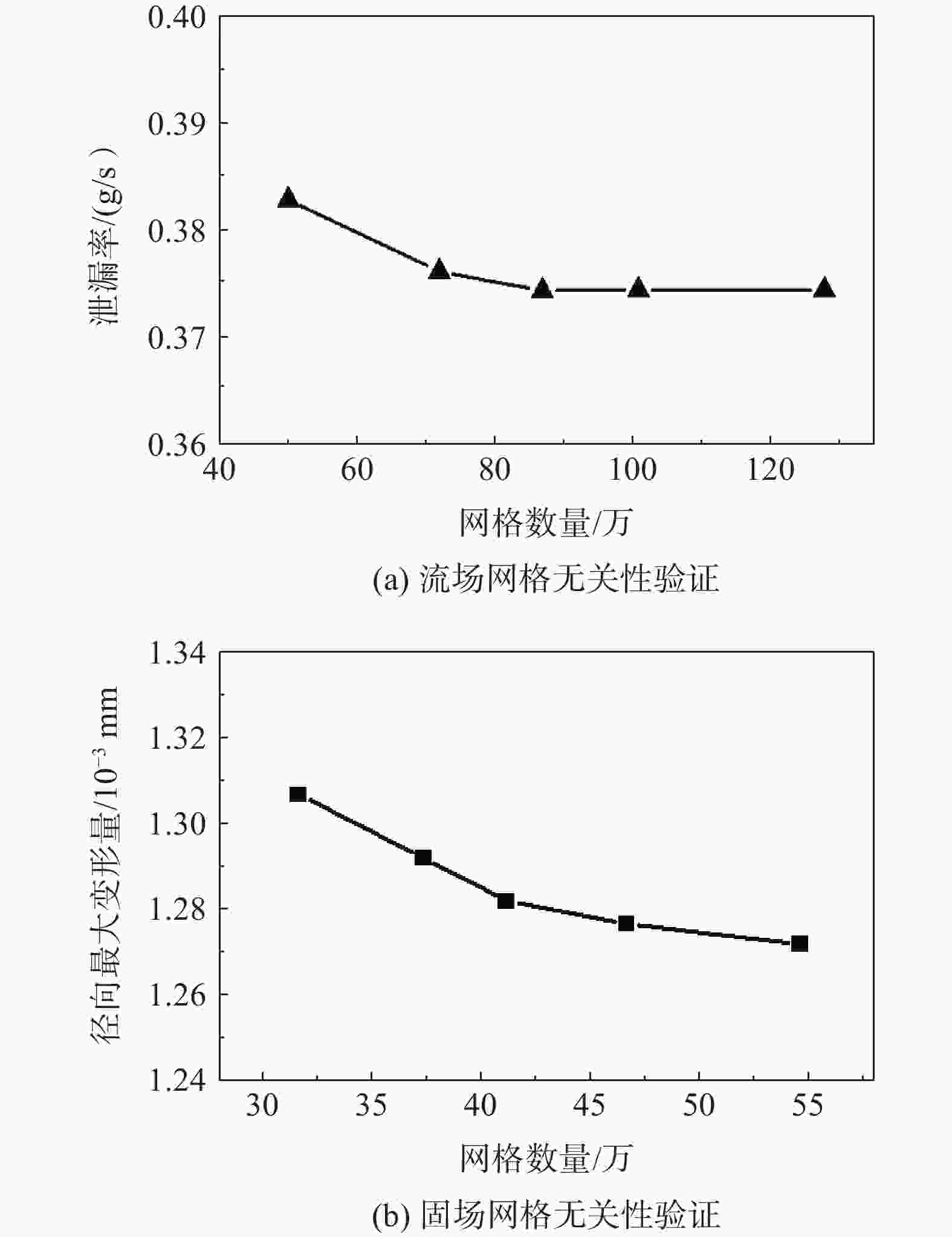

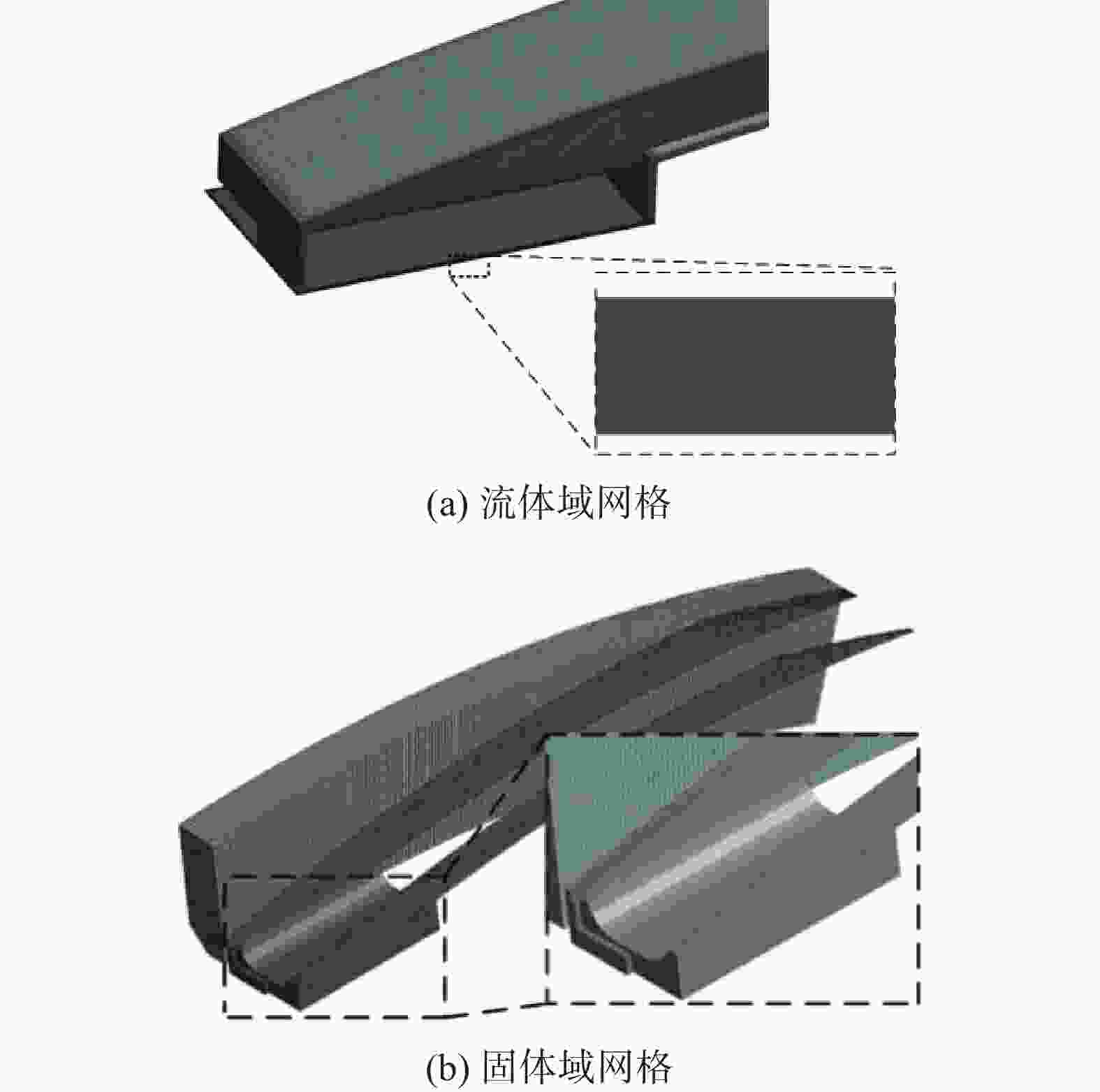

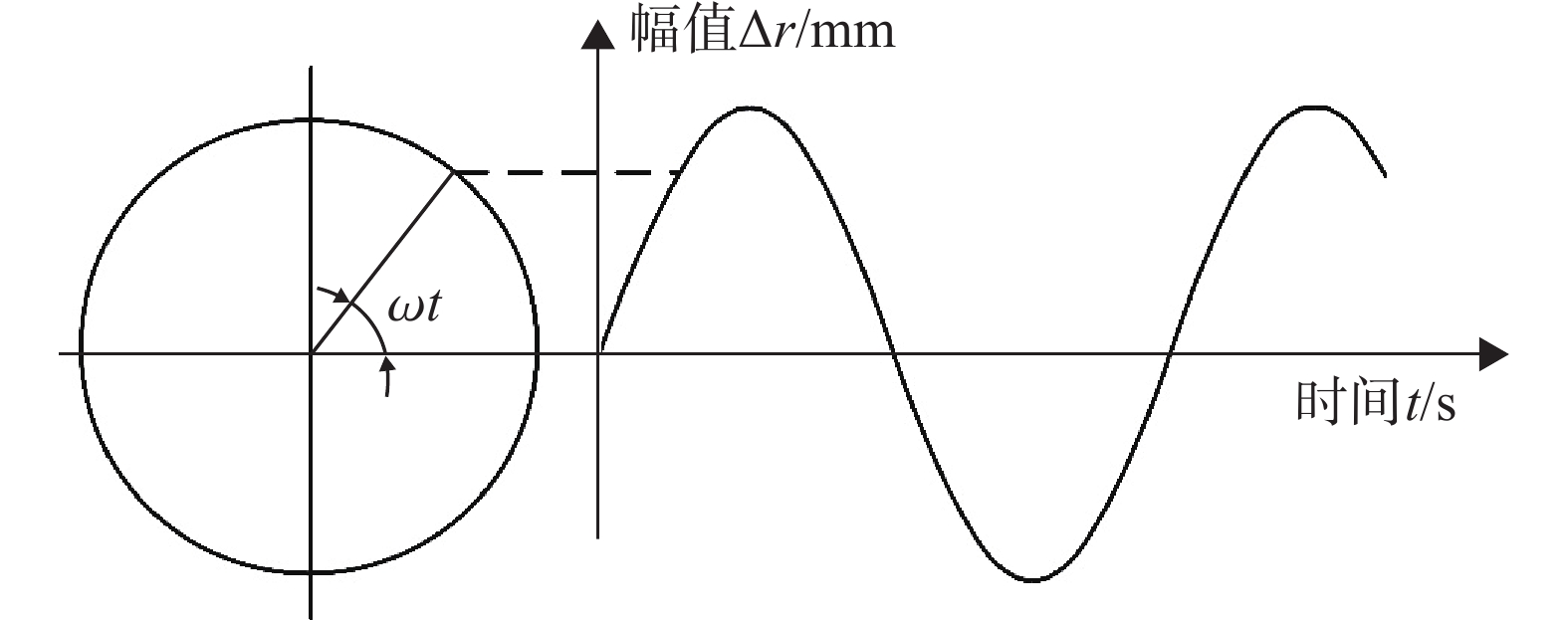

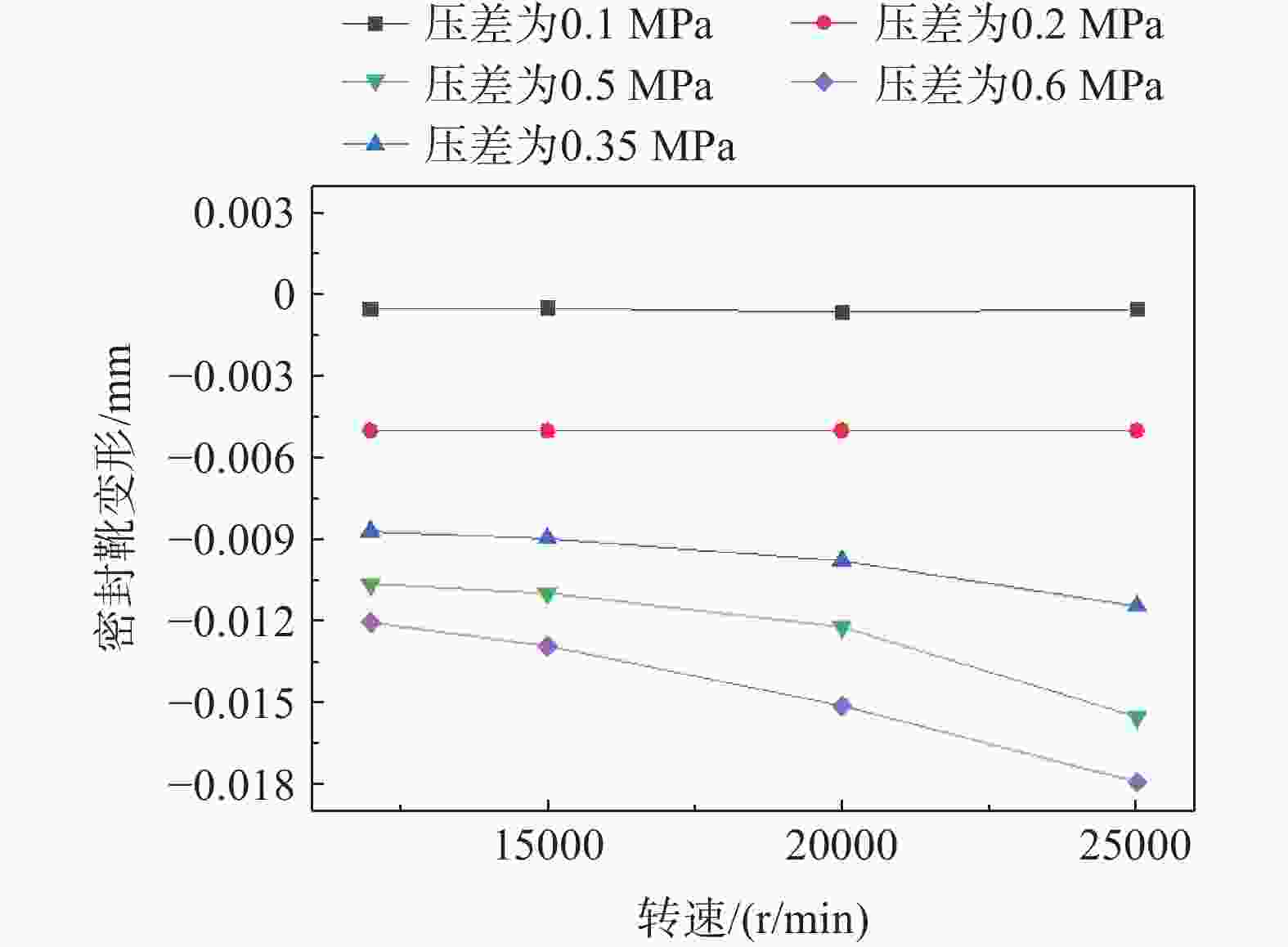

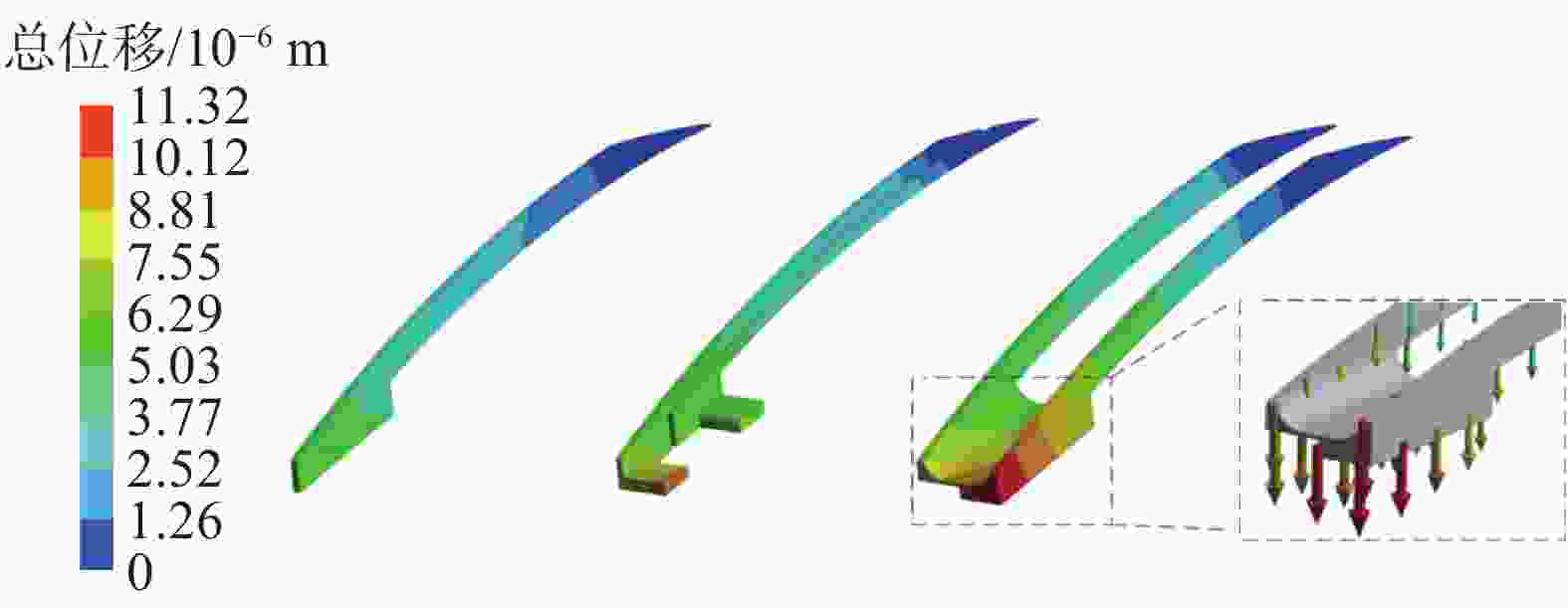

图 12 靴底变形（压差为0.6 MPa，室温，转速为25 000 r/min）
Figure 12. Shoe sole deformation （pressure difference of 0.6 MPa, room temperature, rotation speed of 25 000 r/min）

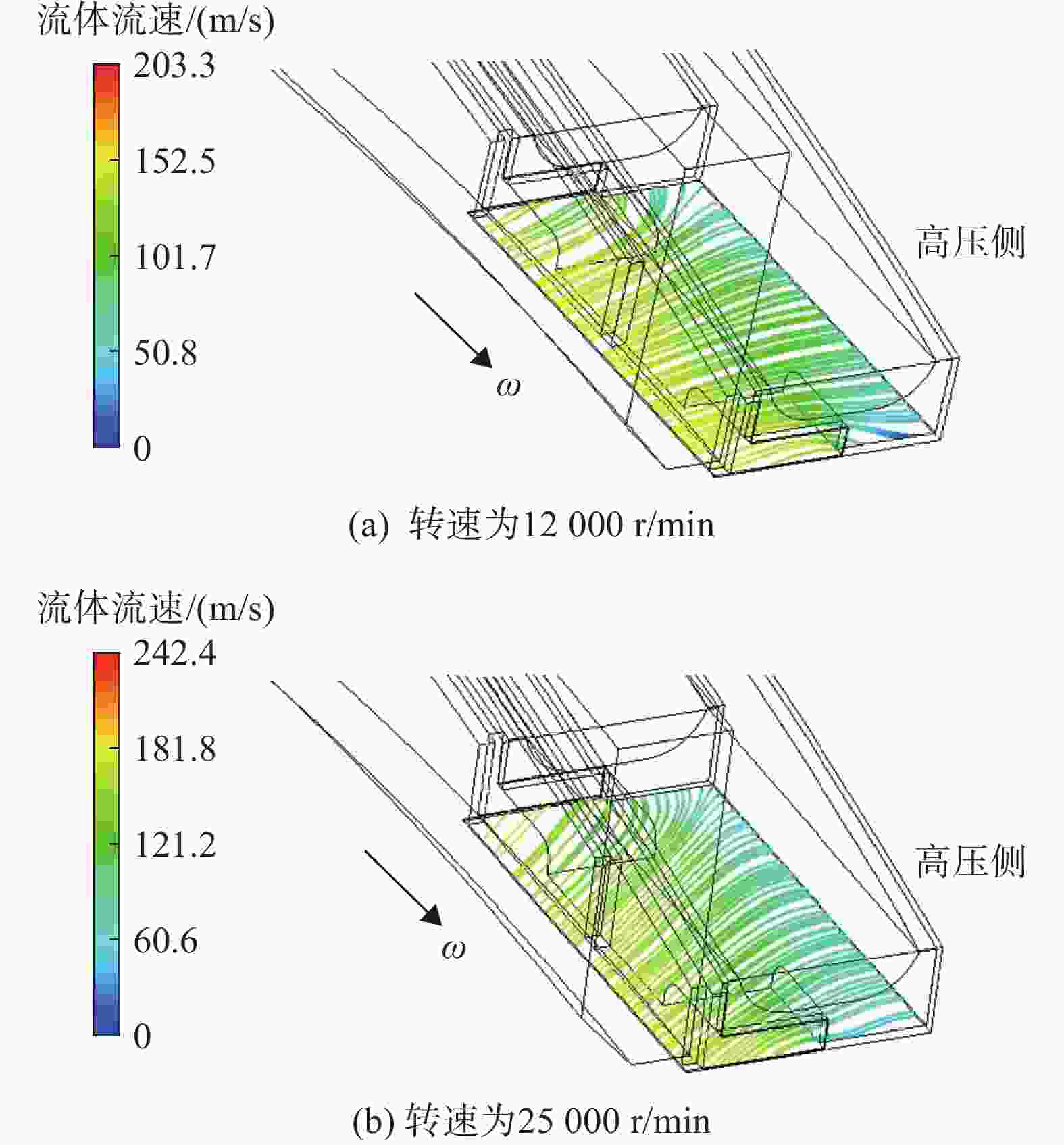

图 13 低压差（0.1 MPa）下流体流线图
Figure 13. Fluid streamline diagram under low pressure difference （0.1 MPa）

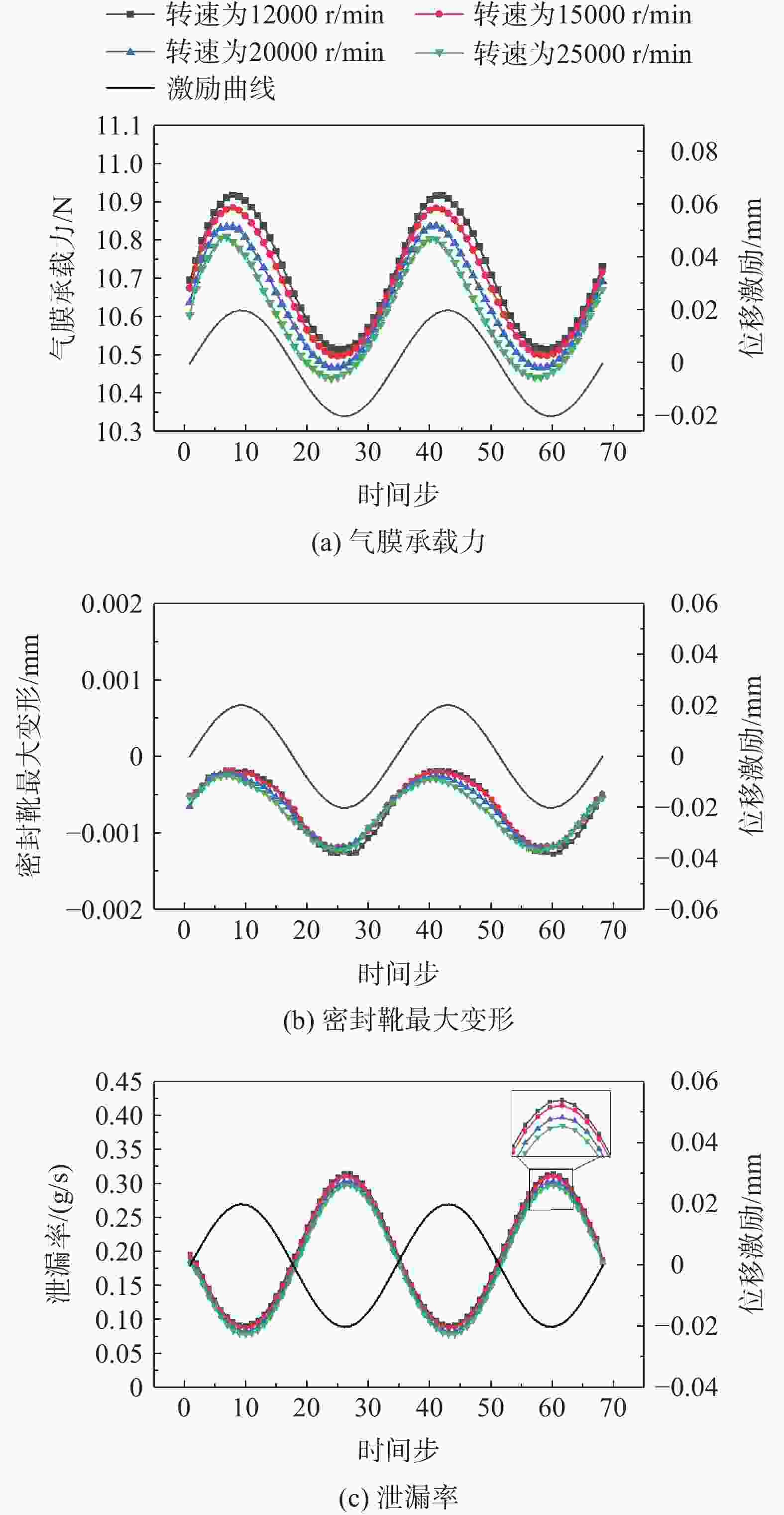

图 14 低压差（0.1 MPa）下转速对密封动态性能影响
Figure 14. Effect of rotational speed on dynamic performance of seal under low pressure difference （0.1 MPa）

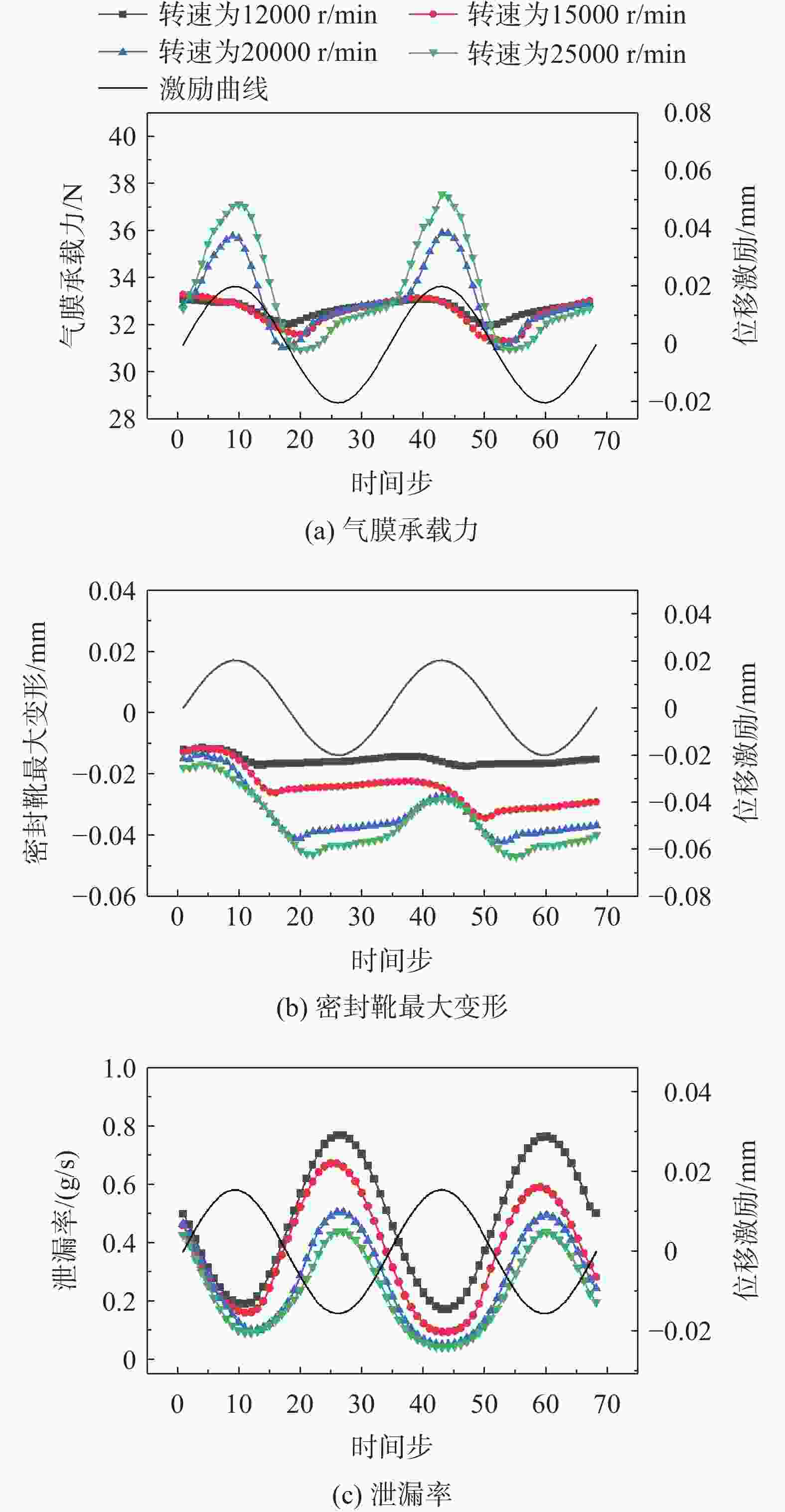

图 15 高压差（0.6 MPa）下转速对密封动态性能影响
Figure 15. Effect of rotational speed on dynamic performance of seal under high pressure difference （0.6 MPa）

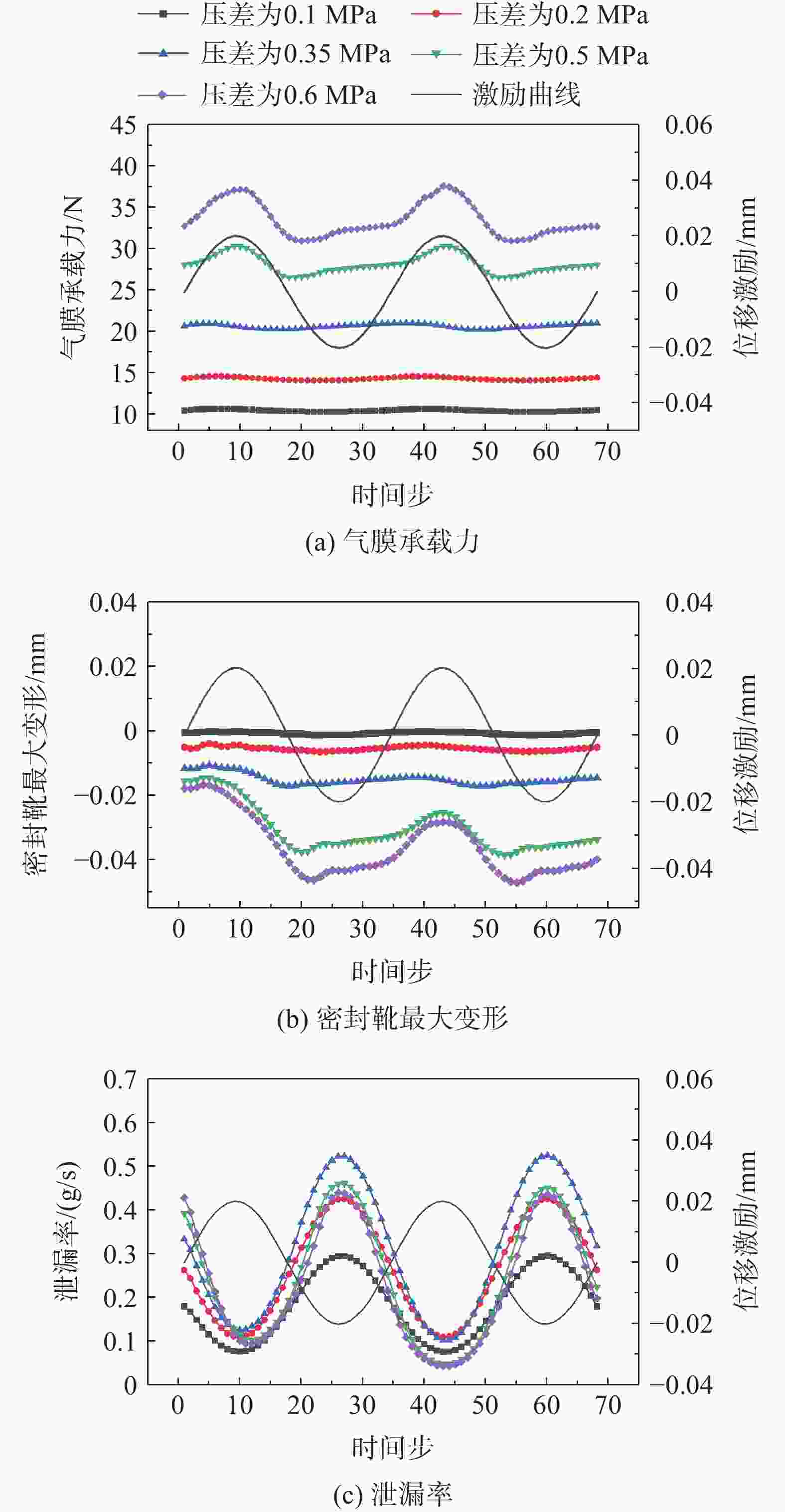

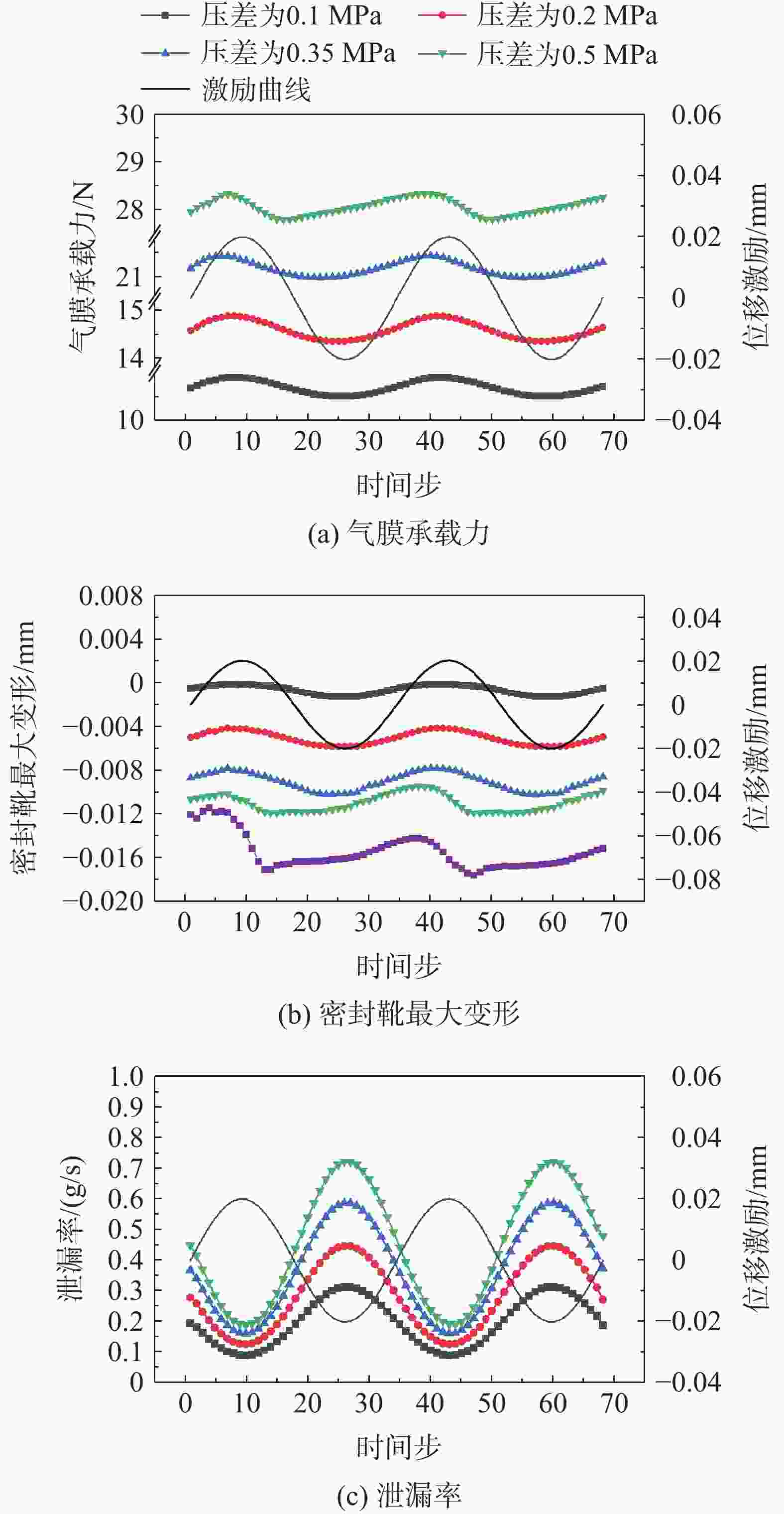

图 17 低转速下（12 000 r/min）压差对密封动态性能的影响
Figure 17. Effect of pressure difference on dynamic performance of seals at low speed （
12000 r/min）
图 18 高转速下（
25000 r/min）压差对密封动态性能的影响Figure 18. Effect of pressure difference on dynamic performance of seals at high speed （
25000 r/min）

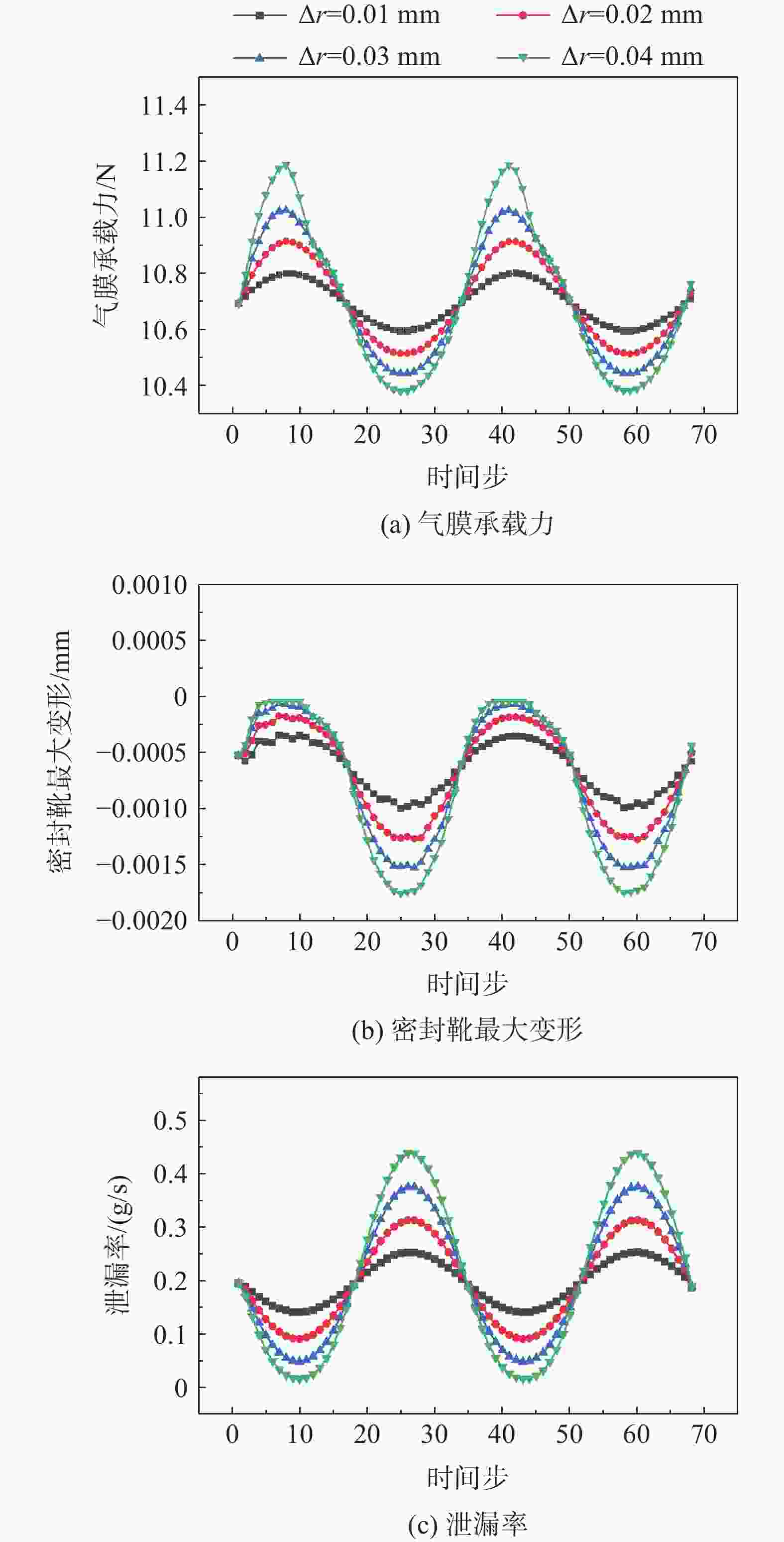

图 19 低速低压时激励幅值对动态性能的影响
Figure 19. Effect of excitation amplitude on dynamic performance at low speed and low pressure

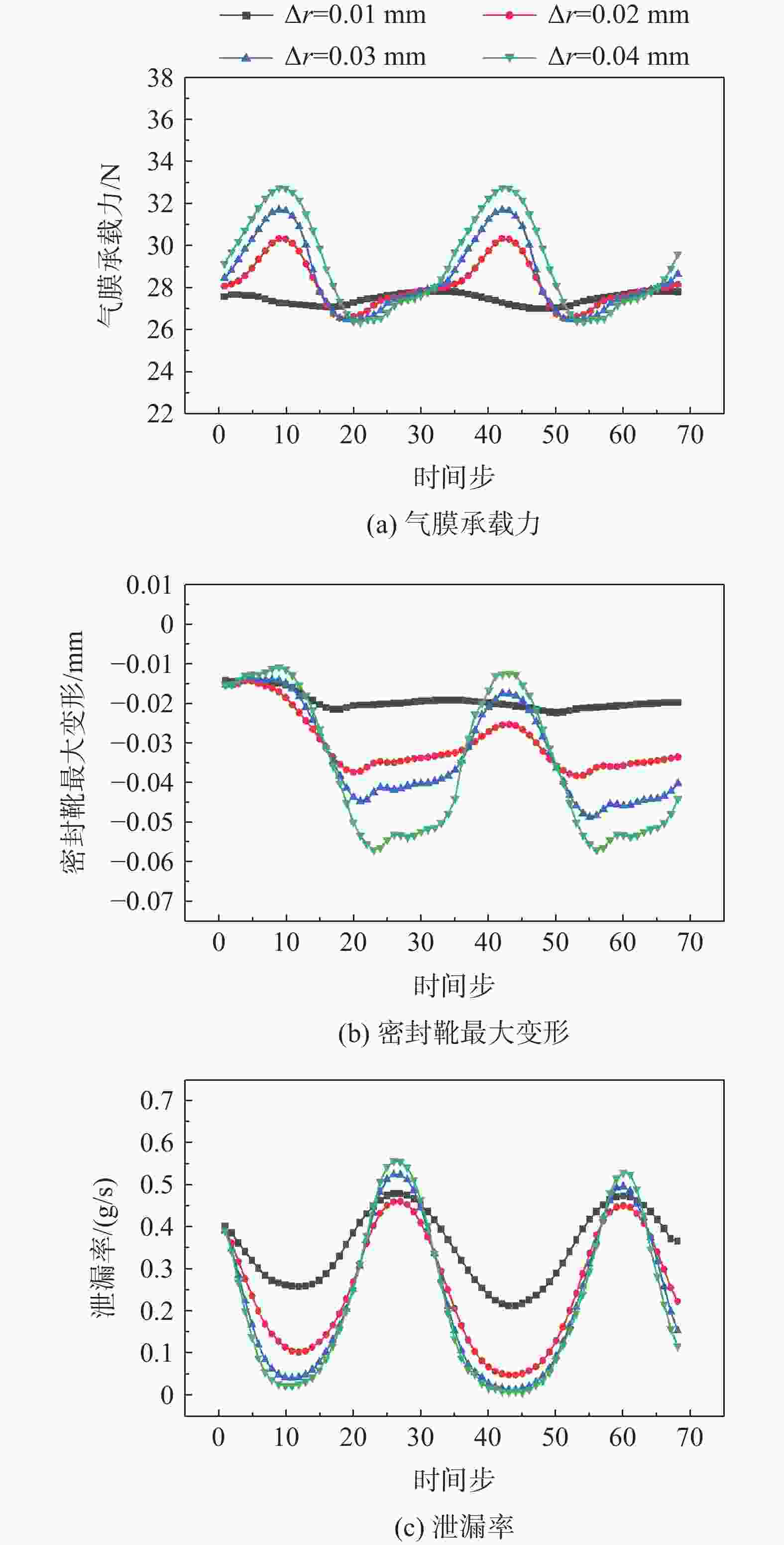

图 20 高速高压时激励幅值对动态性能的影响
Figure 20. Effect of excitation amplitude on dynamic performance at high speed and high pressure

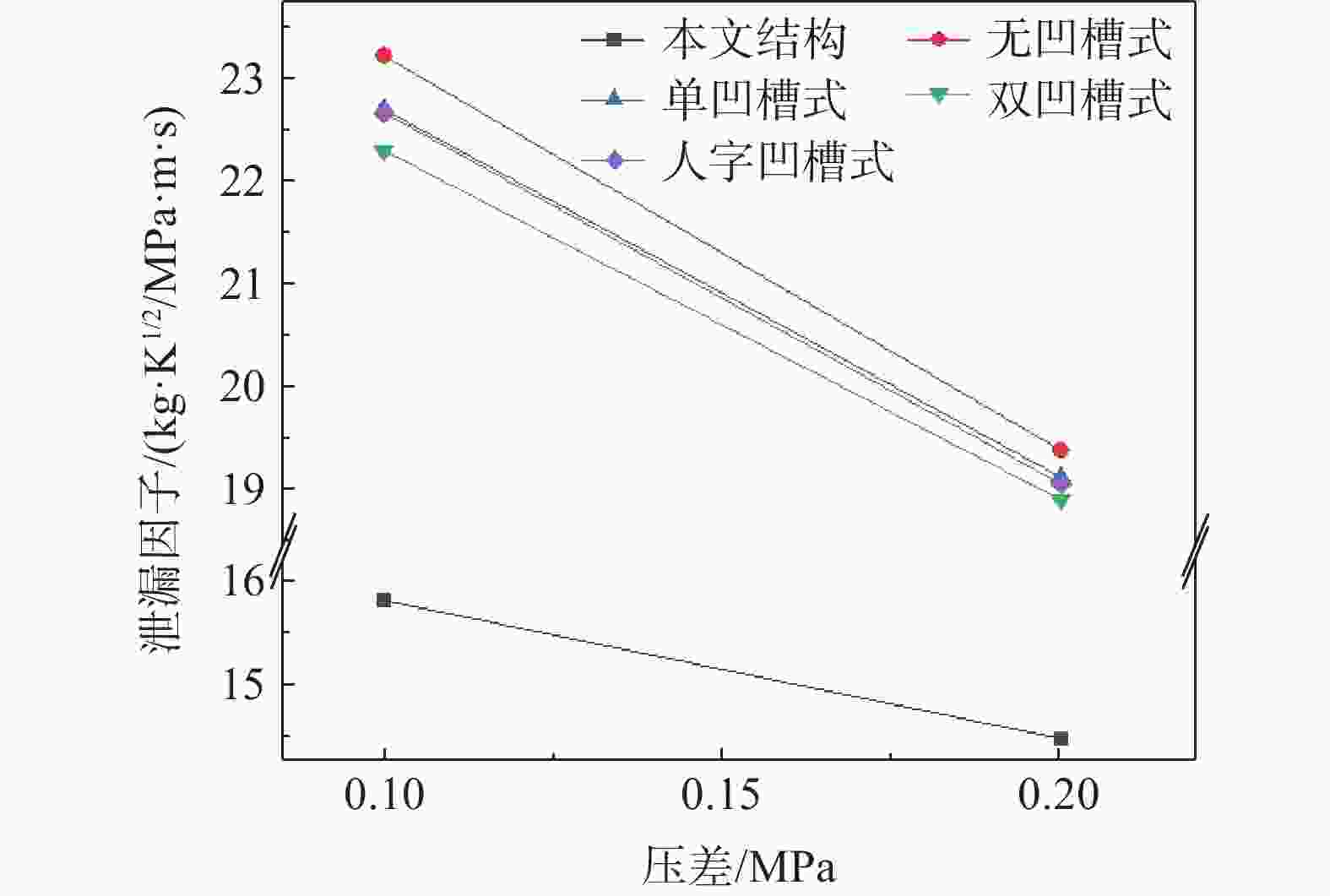

表 1 密封结构参数
Table 1. Seal structure parameters
参数 数值 D/mm 220 Dr/mm 220.1 Db/mm 240 Do/mm 255 Df/mm 224.1 h/mm 0.05 Bh/mm 4 Bd/mm 5 Bq/mm 3 r/mm 1.5 B/mm 0.4 fm 0.2 fh 0.15
下载: 导出CSV
表 2 密封材料参数
Table 2. Seal material parameters
材料 GH4169 GH605 $ \rho $/（g/cm3） 8.24 9.13 E/GPa 201 201 μ 0.3 0.286 α/10−6 K−1 13.5 13.5
下载: 导出CSV
表 3 工况参数
Table 3. Working condition parameters
参数 数值及说明 $ {p}_{\mathrm{c}} $/MPa 0.1 $ {p}_{\mathrm{u}} $/MPa 0.2，0.3，0.45，0.6，0.7 $ {n}_{\mathrm{c}} $/（r/min） 12000 ，15000 ，20000 ，25000 $T$/K 298.15 $\Delta r$/mm 0.01，0.02，0.03，0.04 h/mm 0.05 流体介质 理想空气
下载: 导出CSV
表 4 最小安装密封间隙
Table 4. Minimum mounting seal clearance
$\Delta r$/mm ${c_{\min }}$/mm 0.01 0.024 0.02 0.032 0.03 0.056 0.04 0.068
下载: 导出CSV
-
[1] ARORA G,PROCTOR M,STEINETZ B,et al. Pressure balanced,low hysteresis,finger seal test results: AIAA-1999-2686[R]. Los Angeles,US: American Institute of Aeronautics and Astronautics,1999. [2] 陈国定,徐华,虞烈,等. 指尖密封的迟滞特性分析[J]. 机械工程学报,2003,39(5): 121-124. CHEN Guoding,XU Hua,YU Lie,et al. Analysis to the hysteresis of finger seal[J]. Chinese Journal of Mechanical Engineering,2003,39(5): 121-124. (in Chinese doi: 10.3321/j.issn:0577-6686.2003.05.024CHEN Guoding, XU Hua, YU Lie, et al. Analysis to the hysteresis of finger seal[J]. Chinese Journal of Mechanical Engineering, 2003, 39(5): 121-124. (in Chinese) doi: 10.3321/j.issn:0577-6686.2003.05.024 [3] PROCTOR M P,KUMAR A,DELGADO I R. High-speed,high-temperature finger seal test results[J]. Journal of Propulsion and Power,2004,20(2): 312-318. doi: 10.2514/1.9256 [4] ARORA G K. Noncontacting finger seal with hydrodynamic foot portion: US5755445[P]. 1998-05-26. [5] DATTA A. Non-contacting seal for rotating surfaces: US7216871[P]. 2007-05-15. [6] MARIE H. Dynamic simulation of finger seal-rotor interaction using variable dynamic coefficients: AIAA-2006-4931[R]. Sacramento,US: American Institute of Aeronautics and Astronautics,2006. [7] 郎达学,苏华. 表面织构靴底流体动压指尖密封的性能分析[J]. 航空学报,2012,33(8): 1540-1546. LANG Daxue,SU Hua. Performance analysis of surface texture padded finger seal[J]. Acta Aeronautica et Astronautica Sinica,2012,33(8): 1540-1546. (in ChineseLANG Daxue, SU Hua. Performance analysis of surface texture padded finger seal[J]. Acta Aeronautica et Astronautica Sinica, 2012, 33(8): 1540-1546. (in Chinese) [8] ZHANG Hai,ZHENG Qun,YUE Guoqiang,et al. Unsteady numerical analysis of a whole ring of finger seal with grooves on finger pads[C]//Proceedings of ASME Turbo Expo 2013: Turbine Technical Conference and Exposition. San Antonio,US: American Society of Mechanical Engineers,2013: 1-12. [9] 张海,郑群,岳国强. 指尖密封靴部结构对气动性能影响的分析[J]. 工程热物理学报,2012,33(12): 2076-2079. ZHANG Hai,ZHENG Qun,YUE Guoqiang. Analysis on effect of aerodynamic performance of finger seal pad structure[J]. Journal of Engineering Thermophysics,2012,33(12): 2076-2079. (in ChineseZHANG Hai, ZHENG Qun, YUE Guoqiang. Analysis on effect of aerodynamic performance of finger seal pad structure[J]. Journal of Engineering Thermophysics, 2012, 33(12): 2076-2079. (in Chinese) [10] PROCTOR M P,KUCZMARSKI M A,JOHNSTON J C,et al. Comparison of performance test results to CFD and structural models of non-contacting finger seals[C]//Proceedings of 2018 STLE Annual Meeting and Exhibition. Minneapolis,US: National Aeronautics and Space Administration,2018: 1-12. [11] BRAUN M J,MARIE H,SMITH I. Double padded finger seal: US7735833[P]. 2010-06-15. [12] BRAUN M J,KUDRIAVTSEV V V,STEINETZ B M,et al. Two- and three-dimensional numerical experiments representing two limiting cases of an in-line pair of finger seal components[J]. International Journal of Rotating Machinery,2003,9(3): 171-179. [13] 张延超,陈国定,申晓龙. 指尖密封动态性能分析与泄漏量计算[J]. 航空学报,2009,30(11): 2193-2199. ZHANG Yanchao,CHEN Guoding,SHEN Xiaolong. Analysis of dynamic performance and leakage for finger seal[J]. Acta Aeronautica et Astronautica Sinica,2009,30(11): 2193-2199. (in Chinese doi: 10.3321/j.issn:1000-6893.2009.11.027ZHANG Yanchao, CHEN Guoding, SHEN Xiaolong. Analysis of dynamic performance and leakage for finger seal[J]. Acta Aeronautica et Astronautica Sinica, 2009, 30(11): 2193-2199. (in Chinese) doi: 10.3321/j.issn:1000-6893.2009.11.027 [14] DU Kaibing,LI Yongjian,SUO Shuangfu,et al. Semi-analytical dynamic analysis of noncontacting finger seals[J]. International Journal of Structural Stability and Dynamics,2015,15(4): 1450060. doi: 10.1142/S0219455414500606 [15] ZHANG Hai,CHAI Baiqing,JIANG Bin,et al. Numerical analysis of finger seal with grooves on lifting pads[J]. Journal of Propulsion and Power,2015,31(3): 805-814. doi: 10.2514/1.B35377 [16] 李志刚. 袋型阻尼密封泄漏特性和转子动力特性的研究[D]. 西安: 西安交通大学,2017. LI Zhigang. Investigations on the leakage flow and rotordynamic characteristics of the pocket damper seal[D]. Xi’an: Xi’an Jiaotong University,2017. (in ChineseLI Zhigang. Investigations on the leakage flow and rotordynamic characteristics of the pocket damper seal[D]. Xi’an: Xi’an Jiaotong University, 2017. (in Chinese) [17] 唐家鹏. ANSYS FLUENT 16.0超级学习手册[M]. 北京: 人民邮电出版社,2016. TANG Jiapeng. ANSYS FLUENT 16.0 super learning manual[M]. Beijing: Posts & Telecom Press,2016. (in ChineseTANG Jiapeng. ANSYS FLUENT 16.0 super learning manual[M]. Beijing: Posts & Telecom Press, 2016. (in Chinese) [18] ANSYS Incorporation. ANSYS CFX-solver modeling guide[EB/OL]. (2017-04-07)[2023-01-01]. https://www.baidu.com/link?url=2oChpbvspS_I82VaJRGEClCm2hju0xU6cvYfd59Lj3sRwBFTfCdguVnhMPXNWFIjE5F4UwJuUcWP23FezaXY-_&wd=&eqid=85e0a22b0007997d0000000366584d8c [19] 安胜利,杨黎明. 转子现场动平衡技术[M]. 北京: 国防工业出版社,2007. AN Shengli,YANG Liming. On-site dynamic balance technology of rotor[M]. Beijing: National Defense Industry Press,2007. (in ChineseAN Shengli, YANG Liming. On-site dynamic balance technology of rotor[M]. Beijing: National Defense Industry Press, 2007. (in Chinese) [20] PROCTOR M,DELGADO I. Preliminary test results of non-contacting finger seal on herringbone-grooved rotor: AIAA-2008-4506 [R]. Hartford,US: American Institute of Aeronautics and Astronautics,2008. -
