Experimental study on film cooling characteristics of U-shaped crater holes
-
摘要:
利用压力敏感漆技术对平板上带深度及张角的U形凹坑孔进行实验研究，测量对比了圆孔与凹坑孔的绝热气膜冷却效率。结果表明：凹坑孔结构的冷却性能均优于圆孔结构，而带有张角的凹坑孔结构冷却性能优于深度凹坑孔结构。最优深度凹坑孔（坑深
d =0.5D ，吹风比M =2.0，D 为圆孔直径）平均气膜冷却效率相比于圆孔，在X /D <5（X 为主流方向的位置）区域提高了近800%，在5<X /D< 14区域提高了近700%；最优张角凹坑孔（张角α =30°，M =2.0）平均气膜冷却效率相比于张角为0°凹坑孔，在X /D <5区域提高了近180%，在5<X /D< 14区域提高了近170%。凹坑孔深度的增加，有利于气膜在壁面上的扩展；张角凹坑孔结构，有利于扩大冷却射流在展向及流向的覆盖范围。深度及张角对凹坑孔结构气膜冷却性能的提升幅度随吹风比增大而增大。Abstract:Experimental study of U-shaped crater holes with depth and expansion angle on a flat plate using pressure sensitive paint technique was conducted to measure and compare the adiabatic film cooling efficiency of cylindrical holes and crater holes. The results showed that the cooling performance of the cratered hole structure was better than that of the cylindrical hole structure, while the cooling performance of the cratered hole structure with expansion angle was better than that of the depth crater hole structure. The average film cooling efficiency of the optimal depth crater hole (crater depth
d =0.5D , blowing ratioM =2.0,D meant diameter of cylindrical hole) compared with the cylindrical was improved by nearly 800% in the region ofX /D <5 (X meant the position in mainstream direction) and nearly 700% in the region of 5<X /D <14; the average film cooling efficiency of the optimal expansion angle crater hole (expansion anglesα =30°,M =2.0) compared with the non-expansion crater hole was improved by nearly 180% in the region ofX /D <5 and nearly 170% in the region of 5<X /D <14. The increased depth of the crater hole facilitated the expansion of the coolant on the wall surface; the expansion angle crater hole structure facilitated the expansion of the cooling jet coverage in the spreading and flow direction. The magnitude of the enhancement of the crater depth and expansion angle on the film cooling performance of the crater hole structure increased with the increasing blowing ratio. -

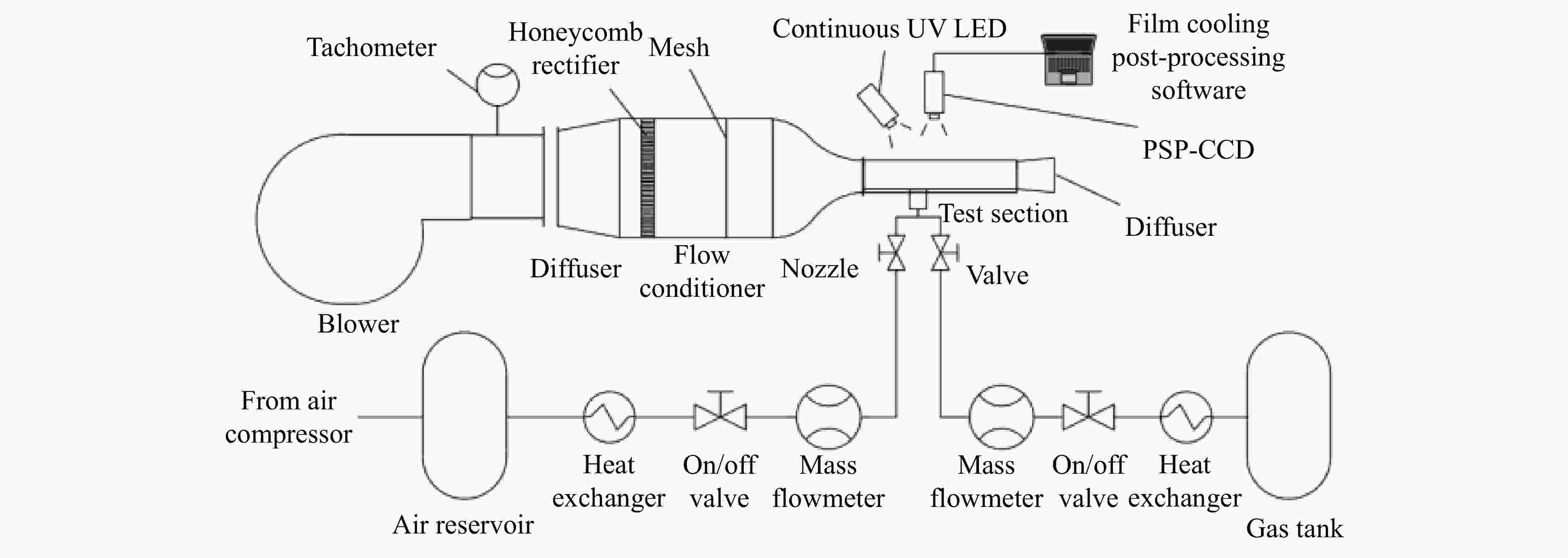

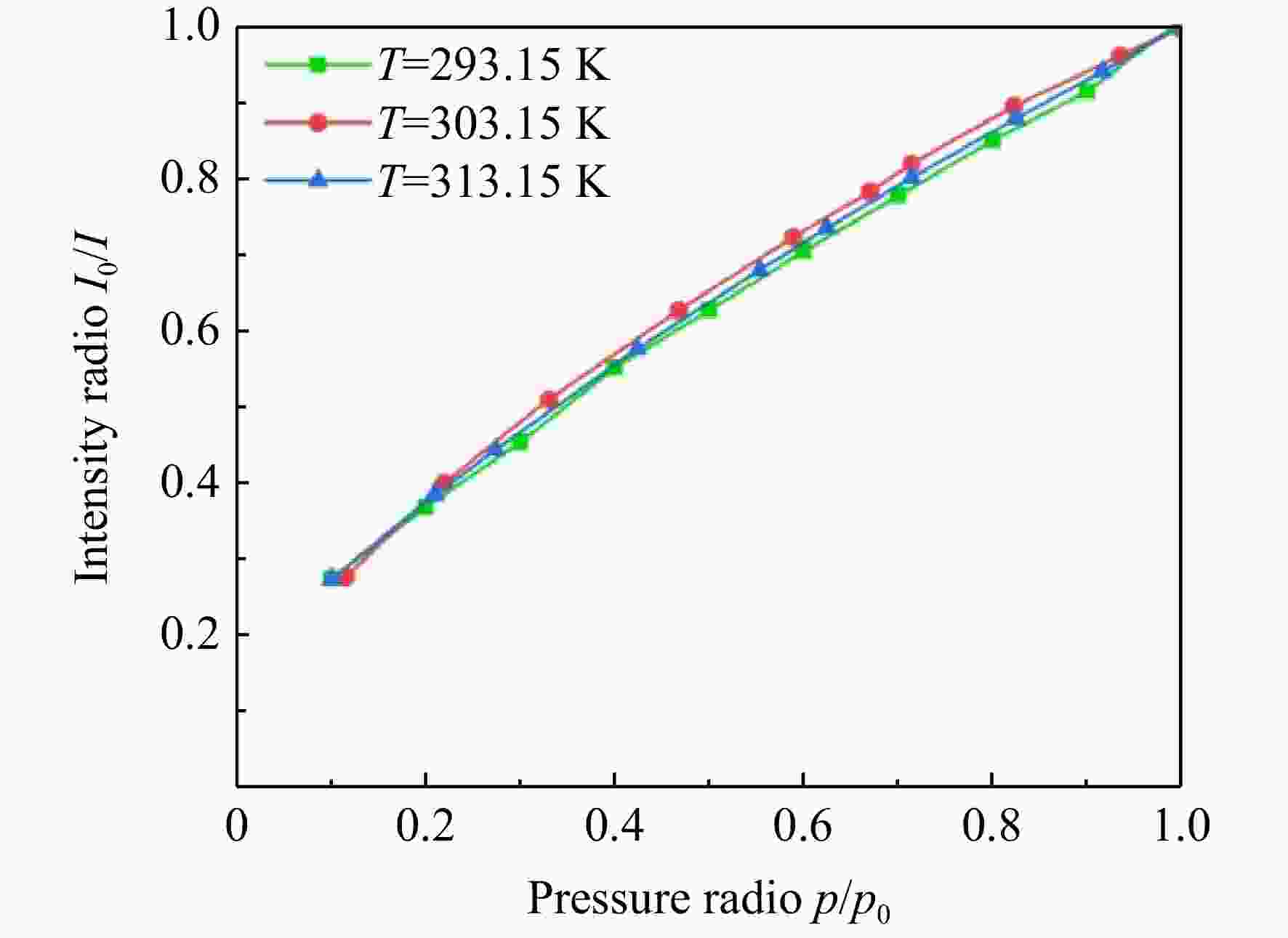

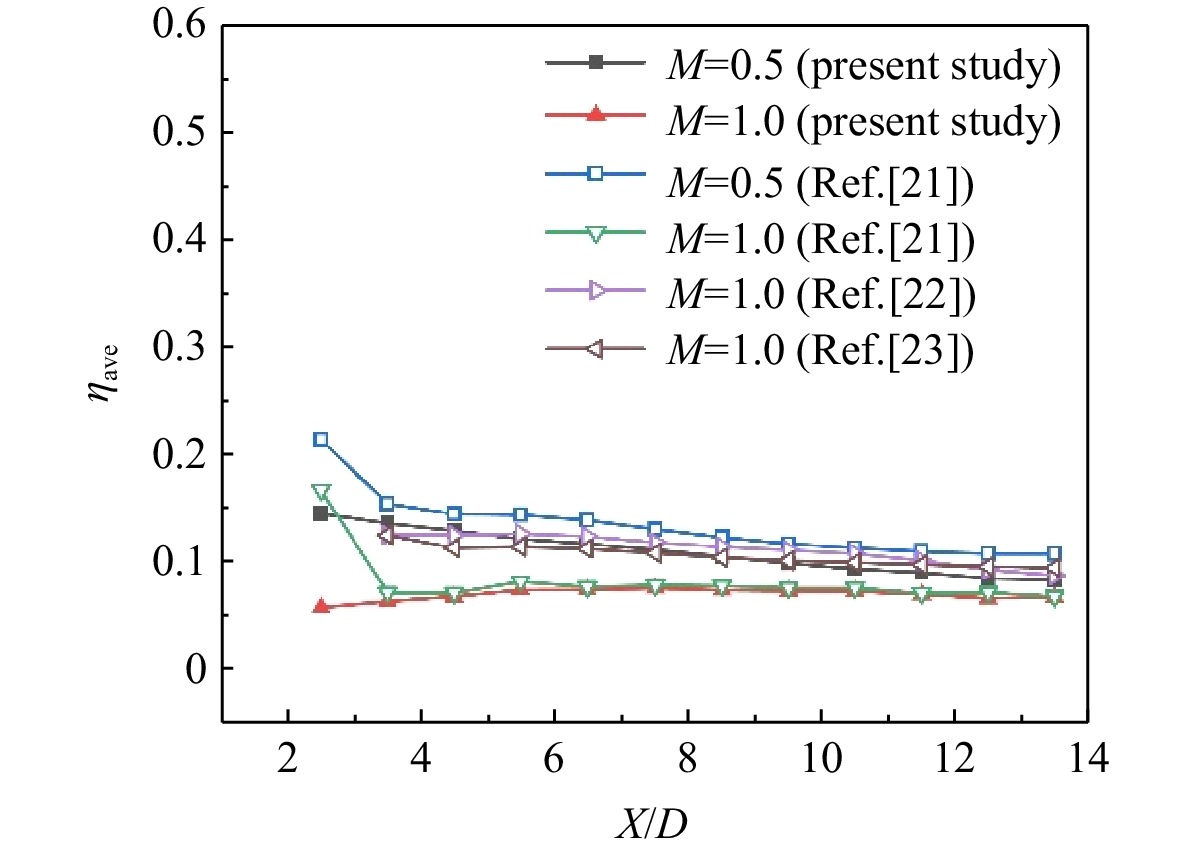

图 4 本研究与以往研究圆孔平均气膜冷却效率对比
Figure 4. Comparison of averaged film cooling efficiency of a cylindrical hole for this study and previous studies

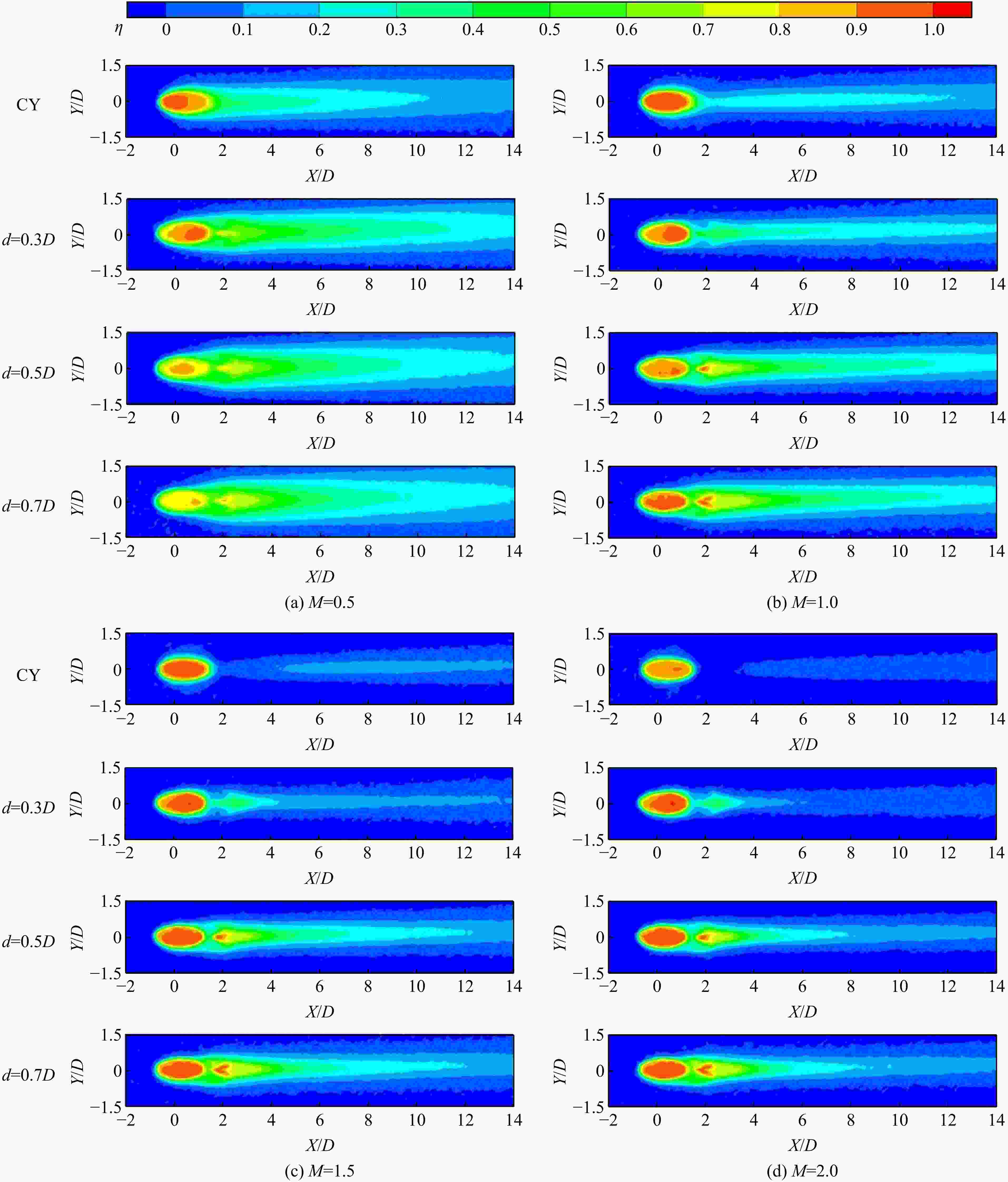

图 5 圆孔和不同深度凹坑孔冷却效率云图
Figure 5. Contour of film cooling efficiency of cylindrical hole and crater holes with different depths

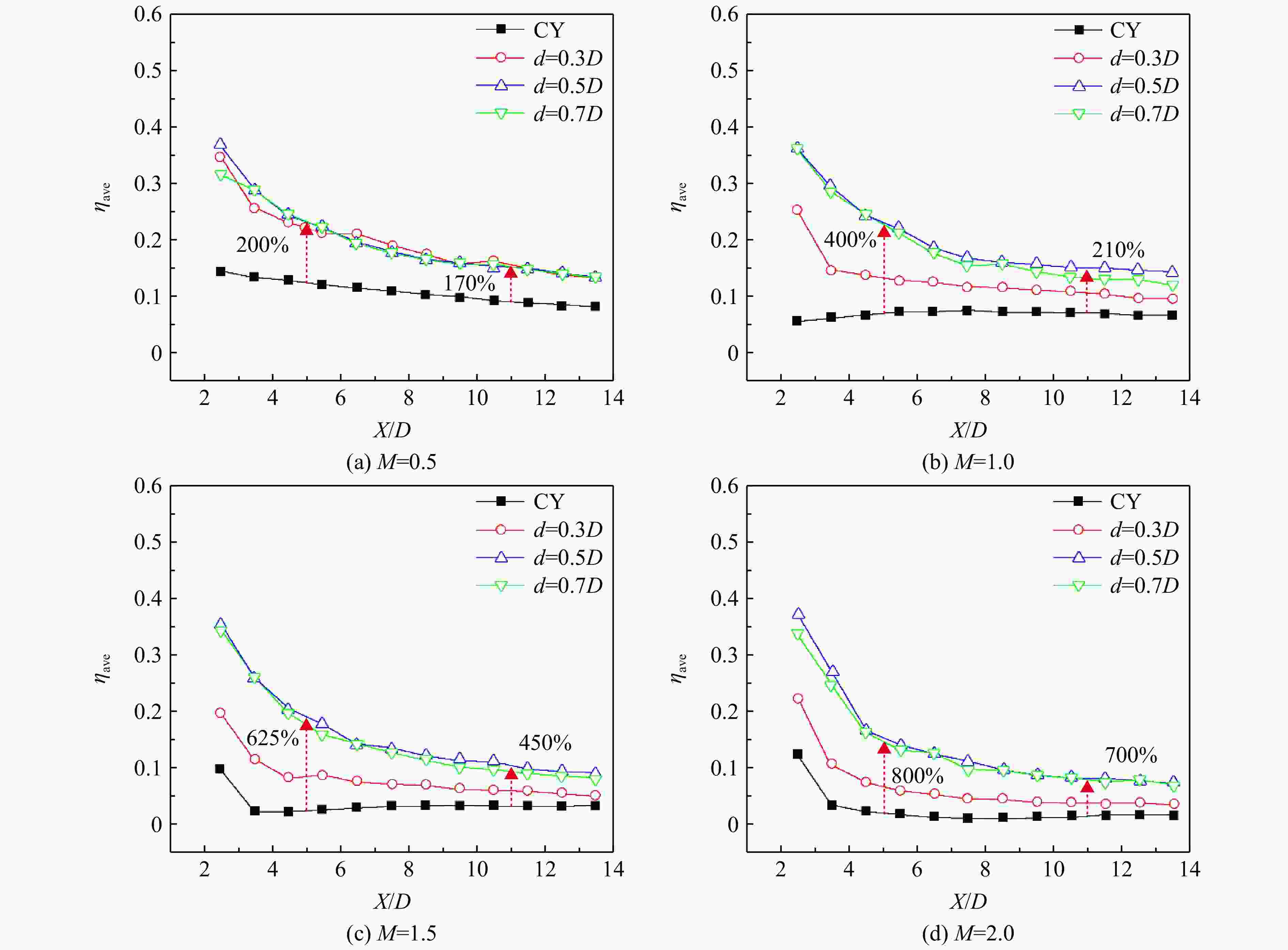

图 6 不同吹风比下凹坑孔与圆孔平均气膜冷却效率
Figure 6. Averaged film cooling efficiency of crater holes and cylindrical hole at different blowing ratios

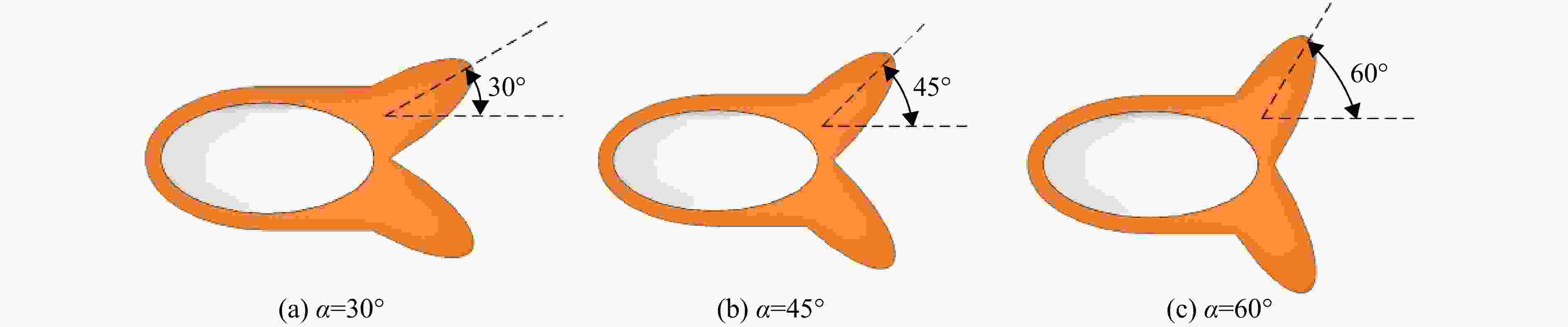

图 7 不同张角的凹坑孔结构
Figure 7. Structures of contoured crater hole with different expansion angles

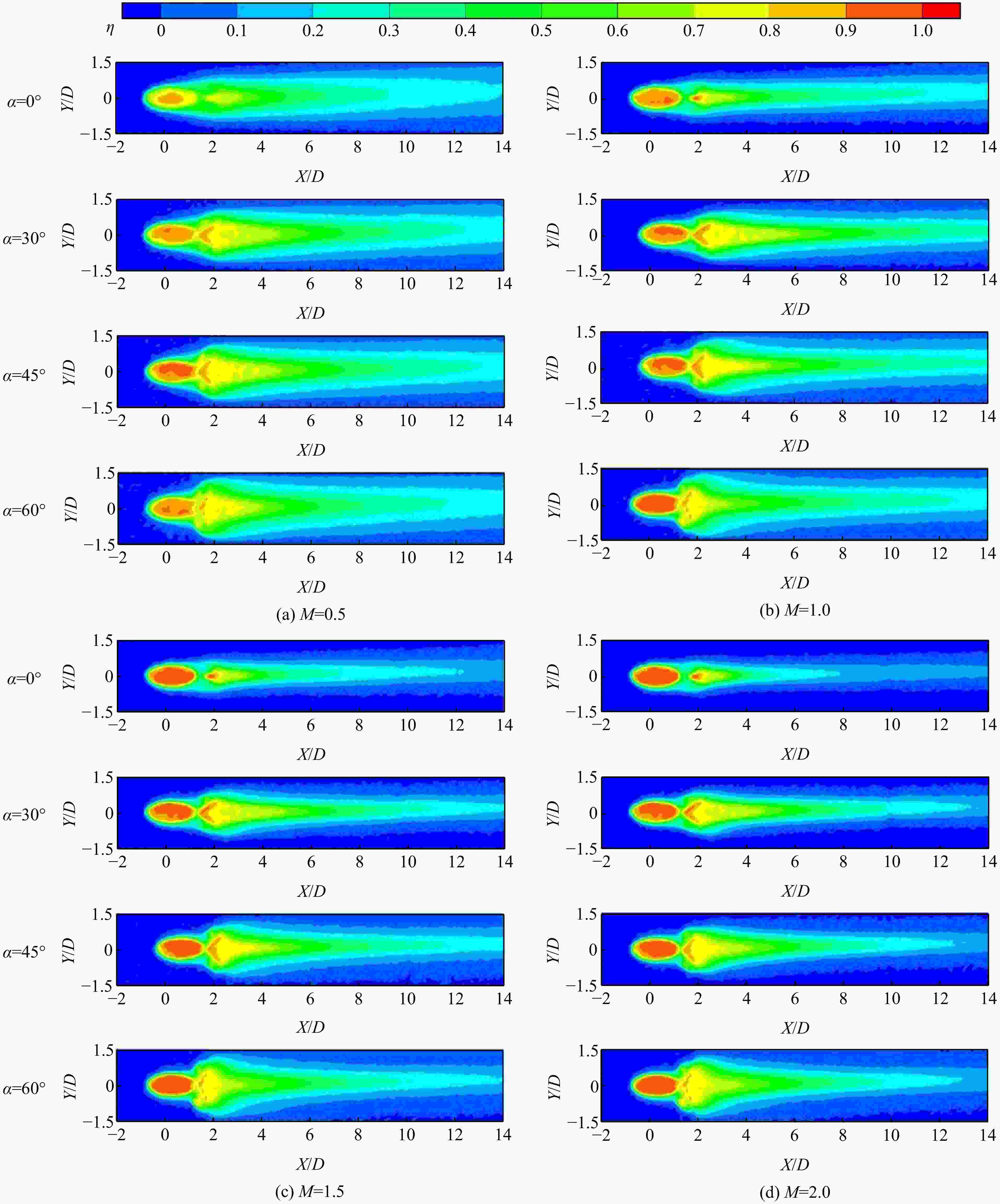

图 8 不同张角的凹坑孔冷却效率云图
Figure 8. Contour of film cooling efficiency of crater holes with different expansion angles

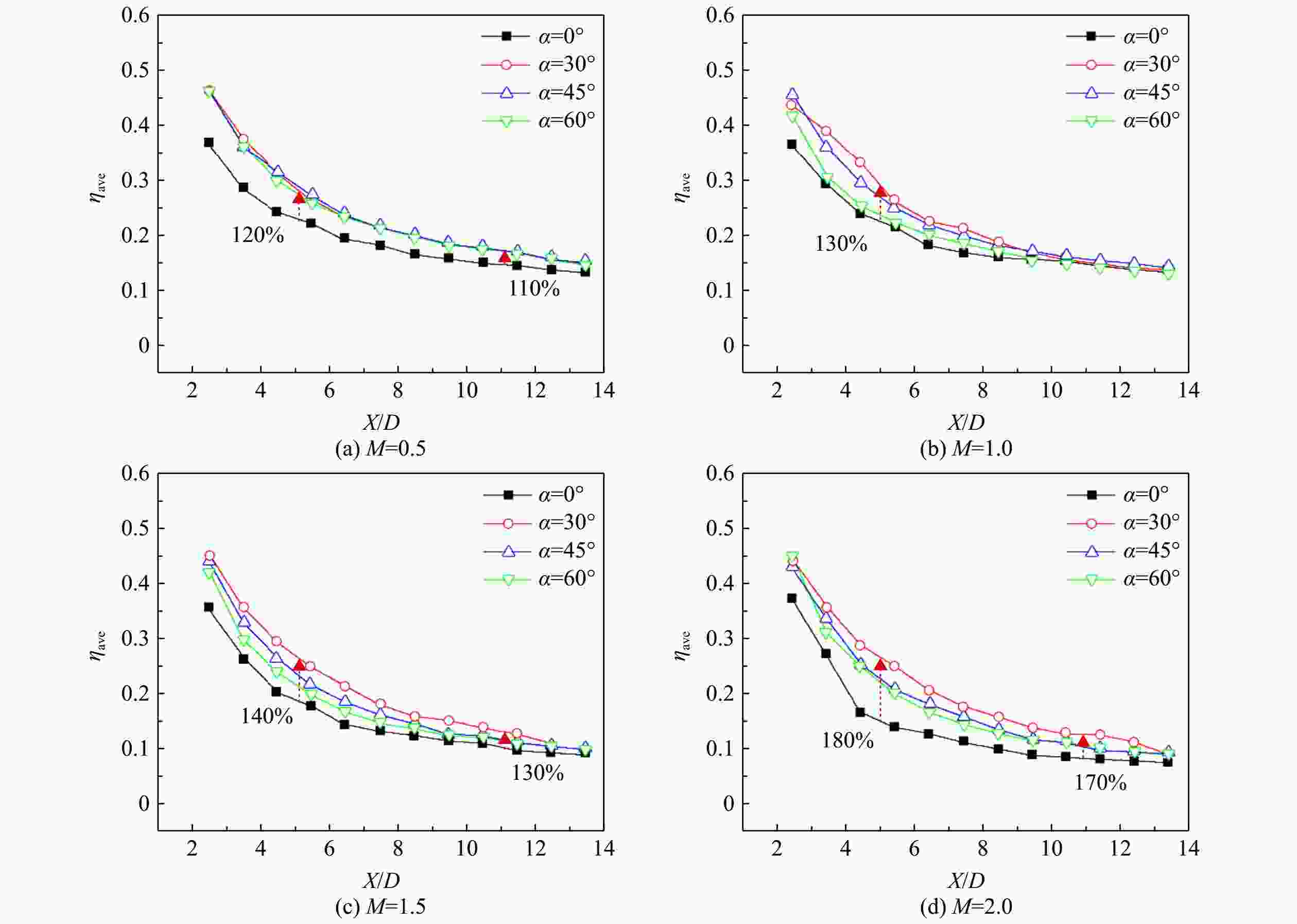

图 9 不同吹风比下张角凹坑孔平均气膜冷却效率
Figure 9. Averaged film cooling efficiency of expansion crater holes at different blowing ratios
表 1 气膜冷却效率的测量不确定度
Table 1. Measurement uncertainty of film cooling effectiveness
η （Δη/η）/% 0.1 15.8 0.25 5.7 0.4 3.2 0.5 2.8
下载: 导出CSV
-
[1] 谭艳青,姜东坡. 燃气轮机叶片冷却技术的发展[J]. 装备制造技术,2014(7): 208-210. TAN Yanqing,JIANG Dongpo. The development of cooling technology for gas turbine blade[J]. Equipment Manufacturing Technology,2014(7): 208-210. (in Chinese doi: 10.3969/j.issn.1672-545X.2014.07.075TAN Yanqing, JIANG Dongpo. The development of cooling technology for gas turbine blade[J]. Equipment Manufacturing Technology, 2014(7): 208-210. (in Chinese) doi: 10.3969/j.issn.1672-545X.2014.07.075 [2] HAVEN B A,YAMAGATA D K,KUROSAKA M,et al. Anti-kidney pair of vortices in shaped holes and their influence on film cooling effectiveness[R]. ASME 97-GT-45,1997. [3] ZHANG Jingzhou,ZHANG Shengchang,WANG Chunhua,et al. Recent advances in film cooling enhancement: a review[J]. Chinese Journal of Aeronautics,2020,33(4): 1119-1136. doi: 10.1016/j.cja.2019.12.023 [4] ZHANG Guohua,ZHU Rui,XIE Gongnan,et al. Optimization of cooling structures in gas turbines: a review[J]. Chinese Journal of Aeronautics,2022,35(6): 18-46. doi: 10.1016/j.cja.2021.08.029 [5] GOLDSTEIN R J,ECKERT E R G,BURGGRAF F. Effects of hole geometry and density on three-dimensional film cooling[J]. International Journal of Heat and Mass Transfer,1974,17(5): 595-607. doi: 10.1016/0017-9310(74)90007-6 [6] 朱惠人,许都纯,刘松龄,等. 簸箕形排孔气膜冷却实验研究[J]. 航空学报,1997(5): 25-28. ZHU Huiren,XU Duchun,LIU Songlin,et al. Film cooling experimental investigation of a row of dust-pan shaped holes[J]. Acta Aeronautica et Astronautica Sinica,1997(5): 25-28. (in ChineseZHU Huiren, XU Duchun, LIU Songlin, et al. Film cooling experimental investigation of a row of dust-pan shaped holes[J]. Acta Aeronautica et Astronautica Sinica, 1997(5): 25-28. (in Chinese) [7] 戴萍,林枫. 气膜孔形状对冷却效率影响的数值研究[J]. 动力工程,2009,29(2): 117-122. Dai Ping,LIN Feng. Numerical investigation on the influence of transverse slot configurations on film cooling effect[J]. Journal of Propulsion Technology,2009,29(2): 117-122. (in ChineseDai Ping, LIN Feng. Numerical investigation on the influence of transverse slot configurations on film cooling effect[J]. Journal of Propulsion Technology, 2009, 29(2): 117-122. (in Chinese) [8] 朱惠人,许都纯,刘松龄. 气膜孔形状对排孔下游冷却效率的影响[J]. 航空学报,2002,23(1): 75-78. ZHU Huiren,XU Duchun,LIU Songling. Effects of hole shape on film cooling effectiveness[J]. Acta Aeronautica et Astronautica Sinica,2002,23(1): 75-78. (in Chinese doi: 10.3321/j.issn:1000-6893.2002.01.015ZHU Huiren, XU Duchun, LIU Songling. Effects of hole shape on film cooling effectiveness[J]. Acta Aeronautica et Astronautica Sinica, 2002, 23(1): 75-78. (in Chinese) doi: 10.3321/j.issn:1000-6893.2002.01.015 [9] 张盛昌,张靖周,谭晓茗. 利用上游沙丘形斜坡增强气膜冷却[J]. 航空动力学报,2020,35(5): 973-982. ZHANG Shengchang,ZHANG Jingzhou,TAN Xiaoming. Film cooling enhancement by using upstream sand-dune-shaped ramp[J]. Journal of Aerospace Power,2020,35(5): 973-982. (in ChineseZHANG Shengchang, ZHANG Jingzhou, TAN Xiaoming. Film cooling enhancement by using upstream sand-dune-shaped ramp[J]. Journal of Aerospace Power, 2020, 35(5): 973-982. (in Chinese) [10] KALGHATGI P,ACHARYA S. Improved film cooling effectiveness with a round film cooling hole embedded in a contoured crater[J]. Journal of Turbomachinery,2015,137(10): 101006. doi: 10.1115/1.4030395 [11] 王海,范芳苏,浦健,等. 带凹坑圆孔气膜冷却流动传热特性[J]. 航空动力学报,2022,37(3): 492-501. WANG Hai,FAN Fangsu,PU Jian,et al. Flow and heat transfer characteristics of round-hole film cooling with crater[J]. Journal of Aerospace Power,2022,37(3): 492-501. (in ChineseWANG Hai, FAN Fangsu, PU Jian, et al. Flow and heat transfer characteristics of round-hole film cooling with crater[J]. Journal of Aerospace Power, 2022, 37(3): 492-501. (in Chinese) [12] AN Baitao,LIU Jianjun,ZHANG Xiaodong,et al. Film cooling effectiveness measurements of a near surface streamwise diffusion hole[J]. International Journal of Heat and Mass Transfer,2016,103: 1-13. doi: 10.1016/j.ijheatmasstransfer.2016.07.028 [13] KIM J H,KIM K Y. Surrogate-based optimization of a cratered cylindrical hole to enhance film-cooling effectiveness[J]. Journal of Thermal Science and Technology,2016,11(2): JTST0025. doi: 10.1299/jtst.2016jtst0025 [14] BAI Linchao,ZHANG Chao. Flow mechanism of cooling effectiveness improvement for the cylindrical film cooling hole with contoured craters[J]. IOP Conference Series: Materials Science and Engineering,2019,473: 012033. doi: 10.1088/1757-899X/473/1/012033 [15] ZHANG Zong,QIAN Wei,HU Jing. A numerical research on diverse cratered film cooling hole geometries[J]. Key Engineering Materials,2016,693: 491-497. doi: 10.4028/www.scientific.net/KEM.693.491 [16] WU Xiaojun,DU Xin,WANG Chunhua. Study on film cooling performance of round hole embedded in different shaped craters and trenches[J]. Aerospace,2021,8(6): 147. doi: 10.3390/aerospace8060147 [17] KHALATOV A,SHI-JU E,WANG Dongyun,et al. Film cooling evaluation of a single array of triangular craters[J]. International Journal of Heat and Mass Transfer,2020,159: 120055. doi: 10.1016/j.ijheatmasstransfer.2020.120055 [18] LU Yiping,DHUNGEL A,EKKAD S V,et al. Effect of trench width and depth on film cooling from cylindrical holes embedded in trenches[J]. Journal of Turbomachinery,2009,131(1): 011003. doi: 10.1115/1.2950057 [19] LU Yiping,DHUNGEL A,EKKAD S V,et al. Film cooling measurements for cratered cylindrical inclined holes[J]. Journal of Turbomachinery,2009,131(1): 011005. doi: 10.1115/1.2950055 [20] RALLABANDI A P,LI S J,HAN J C. Unsteady wake and coolant density effects on turbine blade film cooling using pressure sensitive paint technique[J]. Journal of Heat Transfer,2012,134(8): 081701. doi: 10.1115/1.4006748 [21] 李佳. 燃气轮机透平气膜冷却机理的实验与理论研究[D]. 北京: 清华大学,2011. LI Jia. Experimental and theoretical study on gas turbine film cooling mechanism[D]. Beijing: Tsinghua University,2011. (in ChineseLI Jia. Experimental and theoretical study on gas turbine film cooling mechanism[D]. Beijing: Tsinghua University, 2011. (in Chinese) [22] LI Guangchao,YANG Peng,ZHANG Wei,et al. Enhanced film cooling performance of a row of cylindrical holes embedded in the saw tooth slot[J]. International Journal of Heat and Mass Transfer,2019,132: 1137-1151. doi: 10.1016/j.ijheatmasstransfer.2018.12.080 [23] LIU Cunliang,ZHU Huiren,BAI Jiangtao,et al. Film cooling performance of converging-slot holes with different exit-entry area ratios[J]. Journal of Turbomachinery,2011,133(1): 011020. doi: 10.1115/1.4000543 -
