Effect of end-slot based on the incoming flow momentum on the corner separation of compressor cascade
-
摘要:
为控制压气机叶栅中的角区分离现象，以某高亚声速压气机叶栅为对象，通过参数化研究设计了一种基于来流动量的叶根开槽叶栅，并探究了其流动控制机理与低叶栅稠度下的自适应能力。结果表明：开槽叶栅能有效抑制角区分离，尤其对正攻角下的角区失速流动控制效果显著，降低总压损失的同时也提高了叶片整体的负荷和扩压能力。然而，对于不同的分离形态其控制机理不同，在弱角区分离形态下，主要通过消除集中脱落涡从而减少了0%～25%叶高的总压损失，而对于角区失速形态，由于吸力面分离涡的削弱，显著降低了0%～40%叶高的总压损失。此外，与设计稠度（1.82）相比，更低的稠度下开槽叶栅的性能收益进一步提升。对于稠度为1.33时的开槽叶栅，全攻角范围内的总压损失平均降低29.53%，静压系数平均提高26.06%。因此，在不降低叶栅性能前提下，叶根开槽叶栅可进一步减小叶栅设计稠度，对提高航空发动机的推质比具有极大潜力。
Abstract:To control the corner separation in subsonic compressor cascade, an incoming flow momentum-based slotted cascade was designed through parametric study, and its flow control mechanism and adaptive capabilities under low cascade solidity were investigated. The results showed that the slotted cascade can effectively inhibit the corner separation. Especially the control effect was remarkable on the corner stall at the positive incidence angles. In addition to reducing the total pressure loss, the overall blade load and diffusion capacity were also improved. However, the control mechanisms of the slotted cascade varied for different separation forms. For the weak corner separation form, the total pressure loss within 0%—25% blade span was reduced mainly by eliminating the concentrated shedding vortex, while for the corner stall form the total pressure loss within 0%—40% blade span was greatly reduced due to the weakening of the separation vortex near the blade suction surface. Moreover, compared with the slotted cascade at the design solidity (1.82), the performance gain of the slotted cascade with a lower solidity was further enhanced. For a slotted cascade with the solidity of 1.33, its total pressure loss was reduced by an average of 29.53% and the static pressure rise coefficient was increased by an average of 26.06% within the range of full incidence angles. Therefore, the design solidity can be further reduced for an end-slotted cascade without reducing the cascade performance, indicating that the end-slotted cascade had a significant potential to improve the thrust-to-weight ratio of aero-engines.
-
Key words:
- compressor cascade /
- corner separation /
- corner stall /
- cascade solidity /
- vortex structure
-

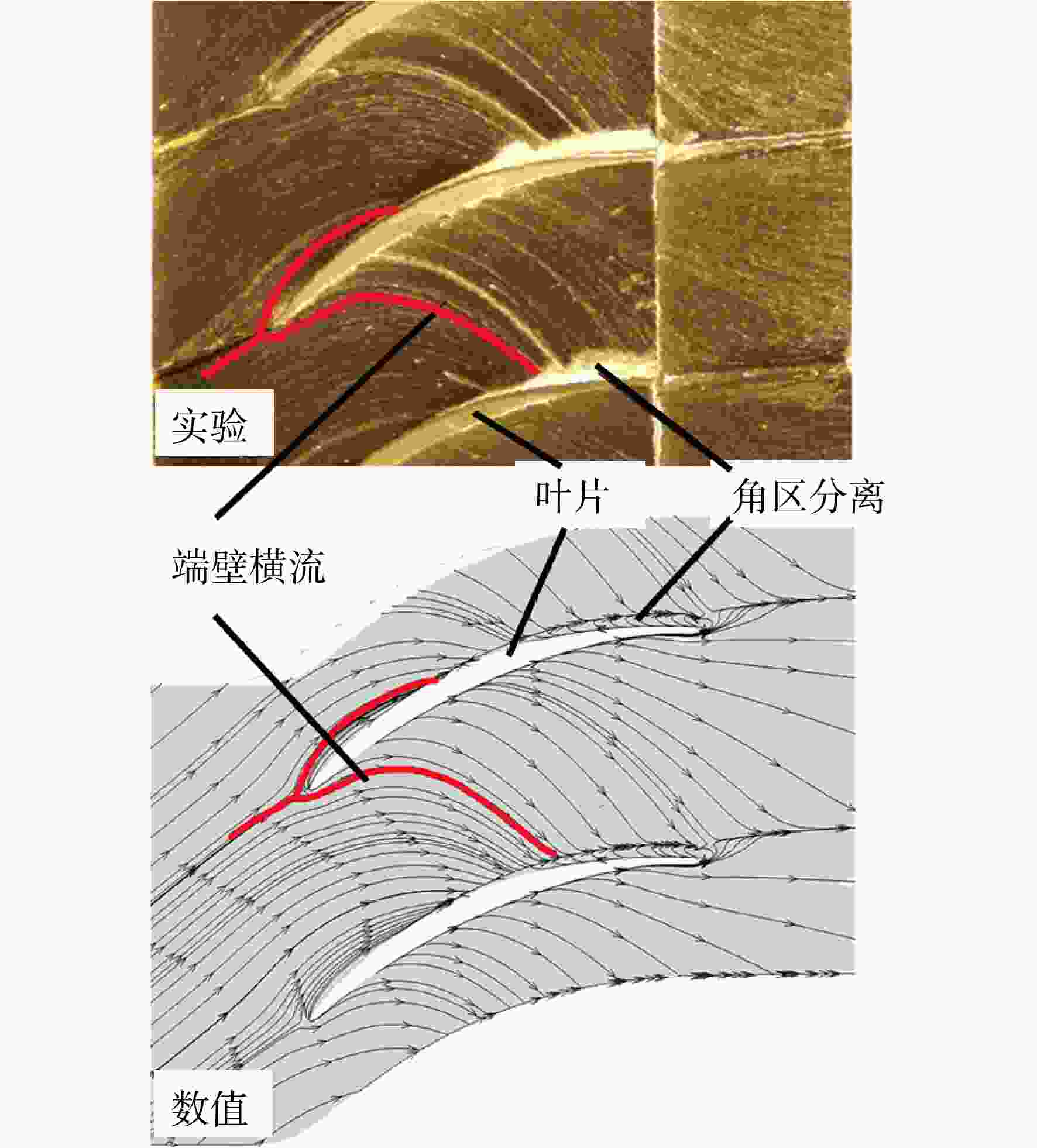

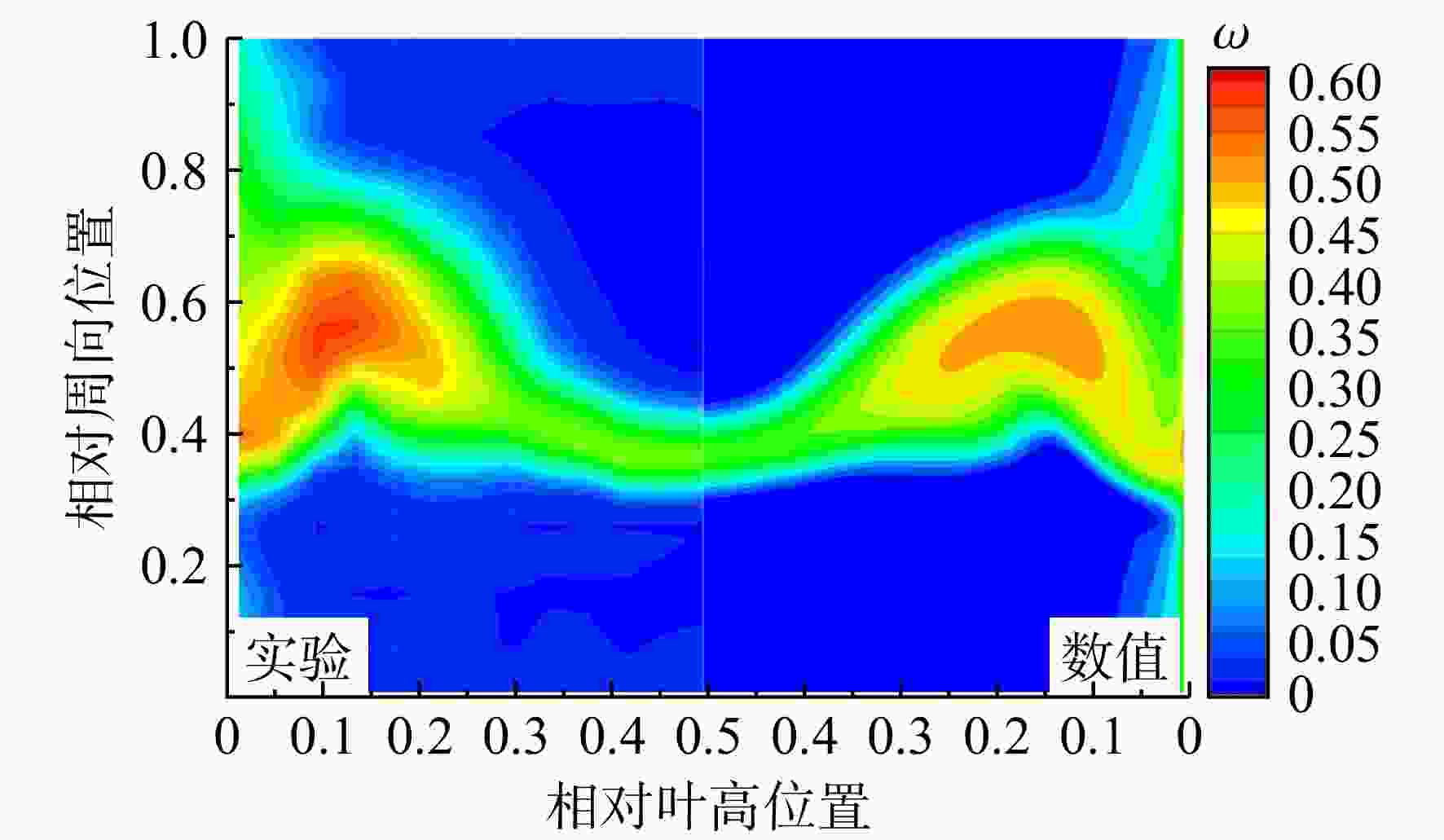

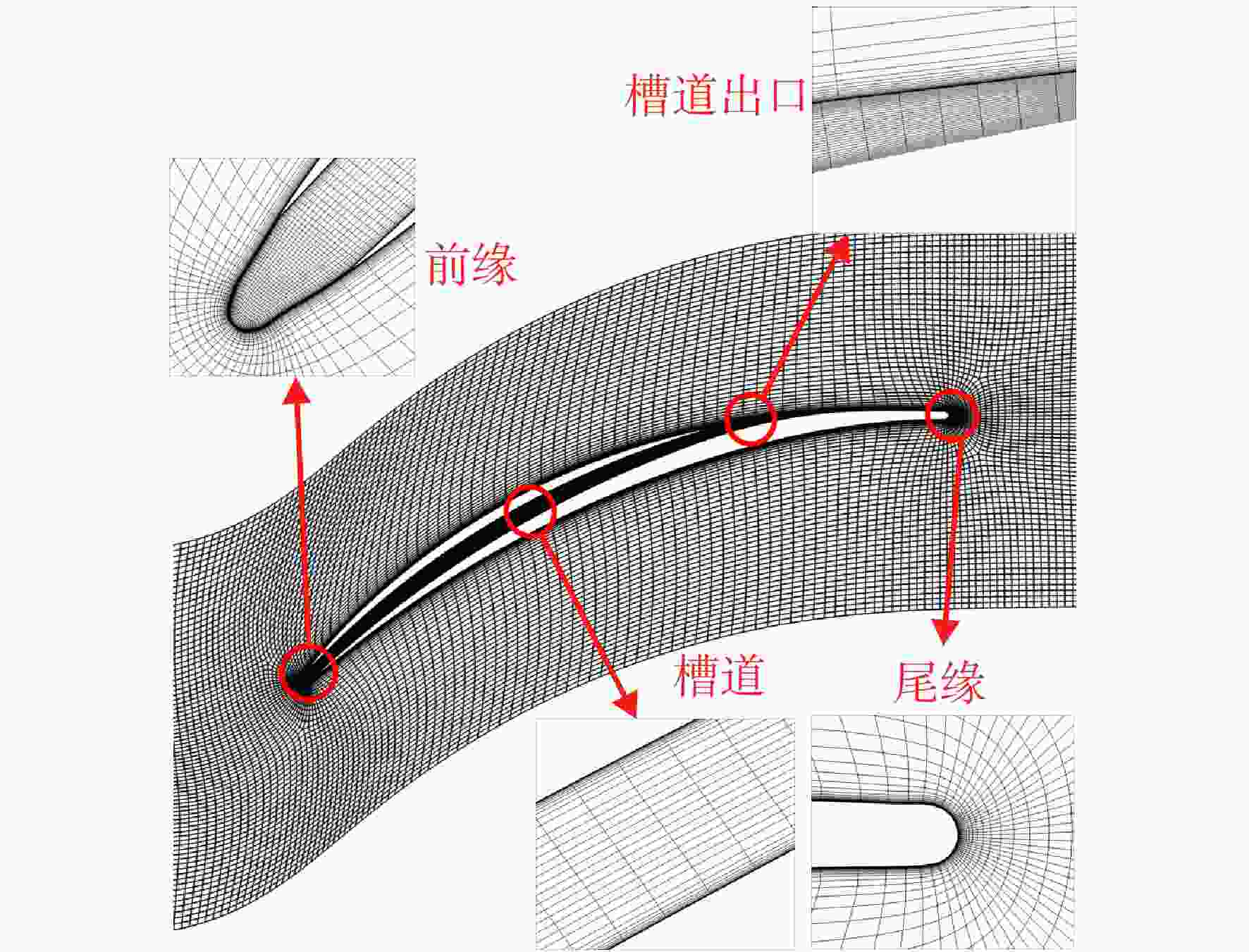

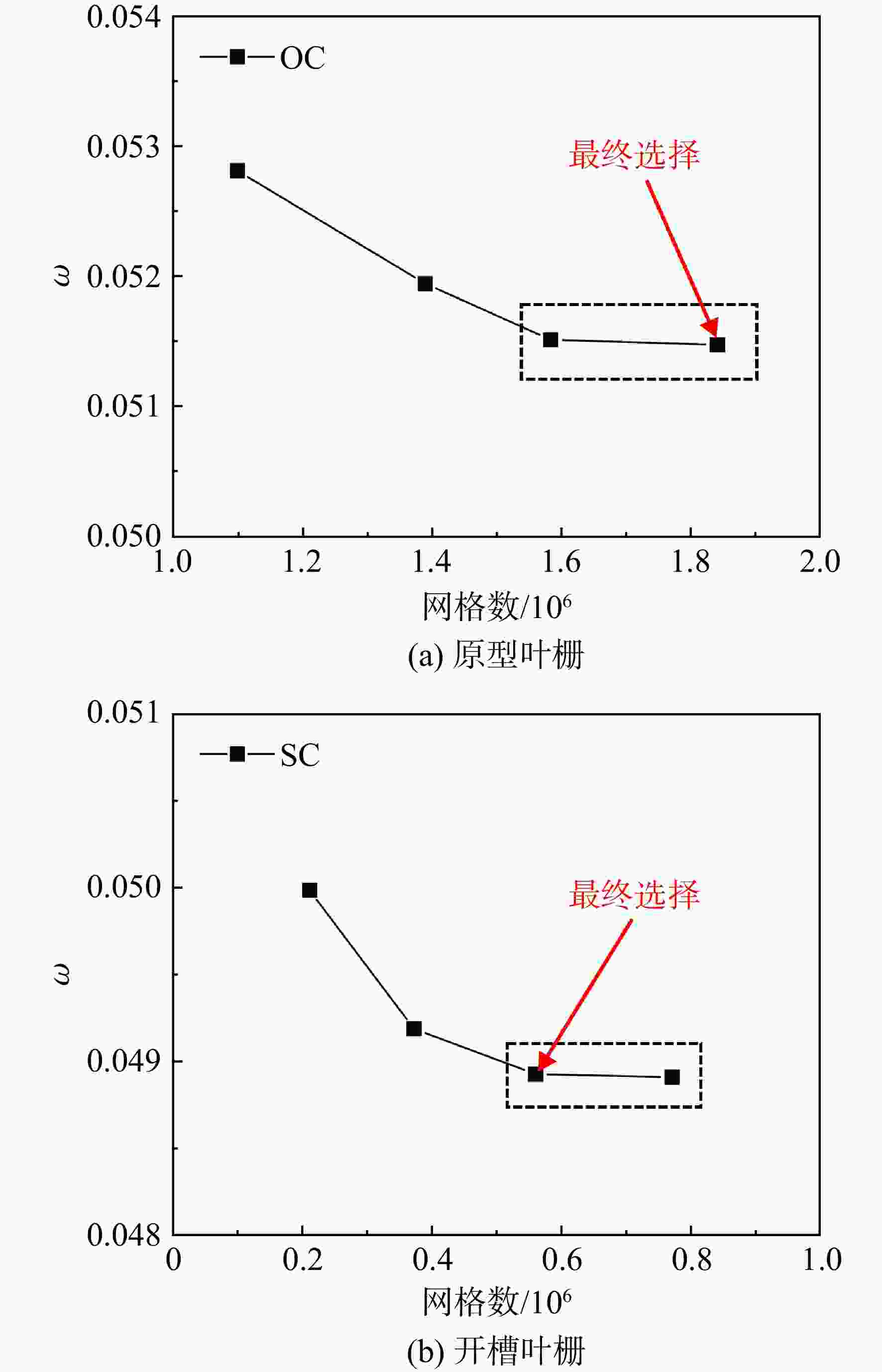

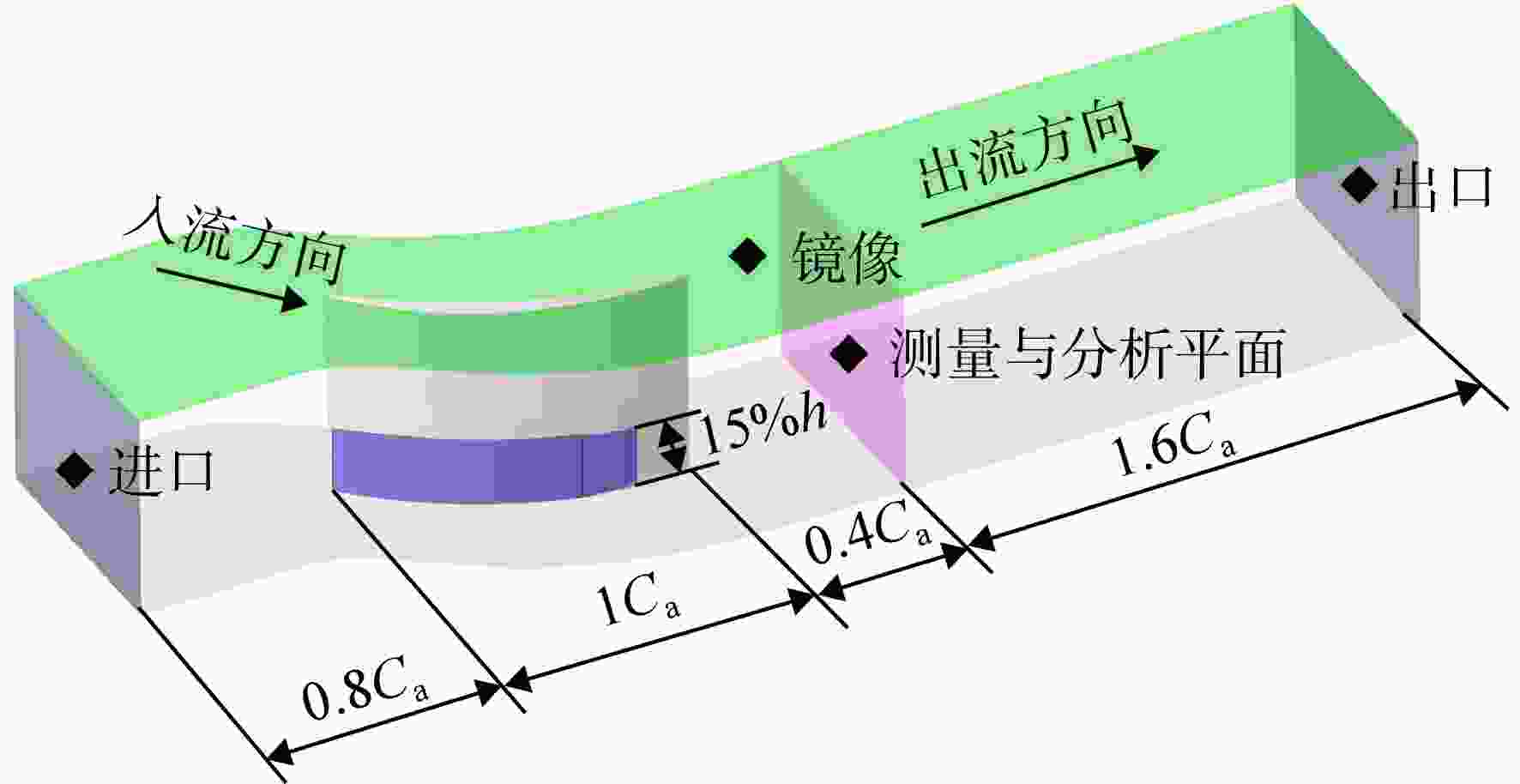

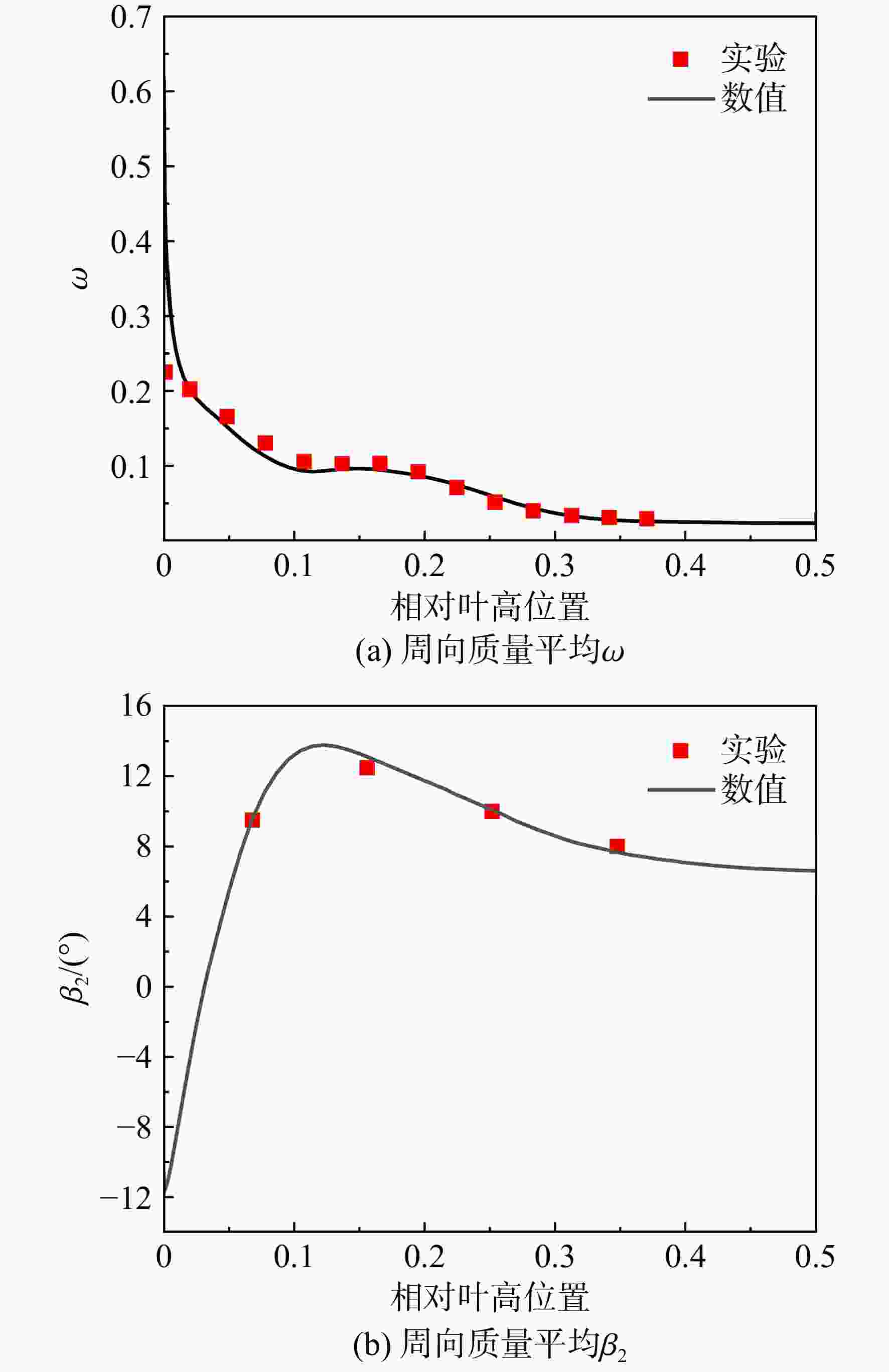

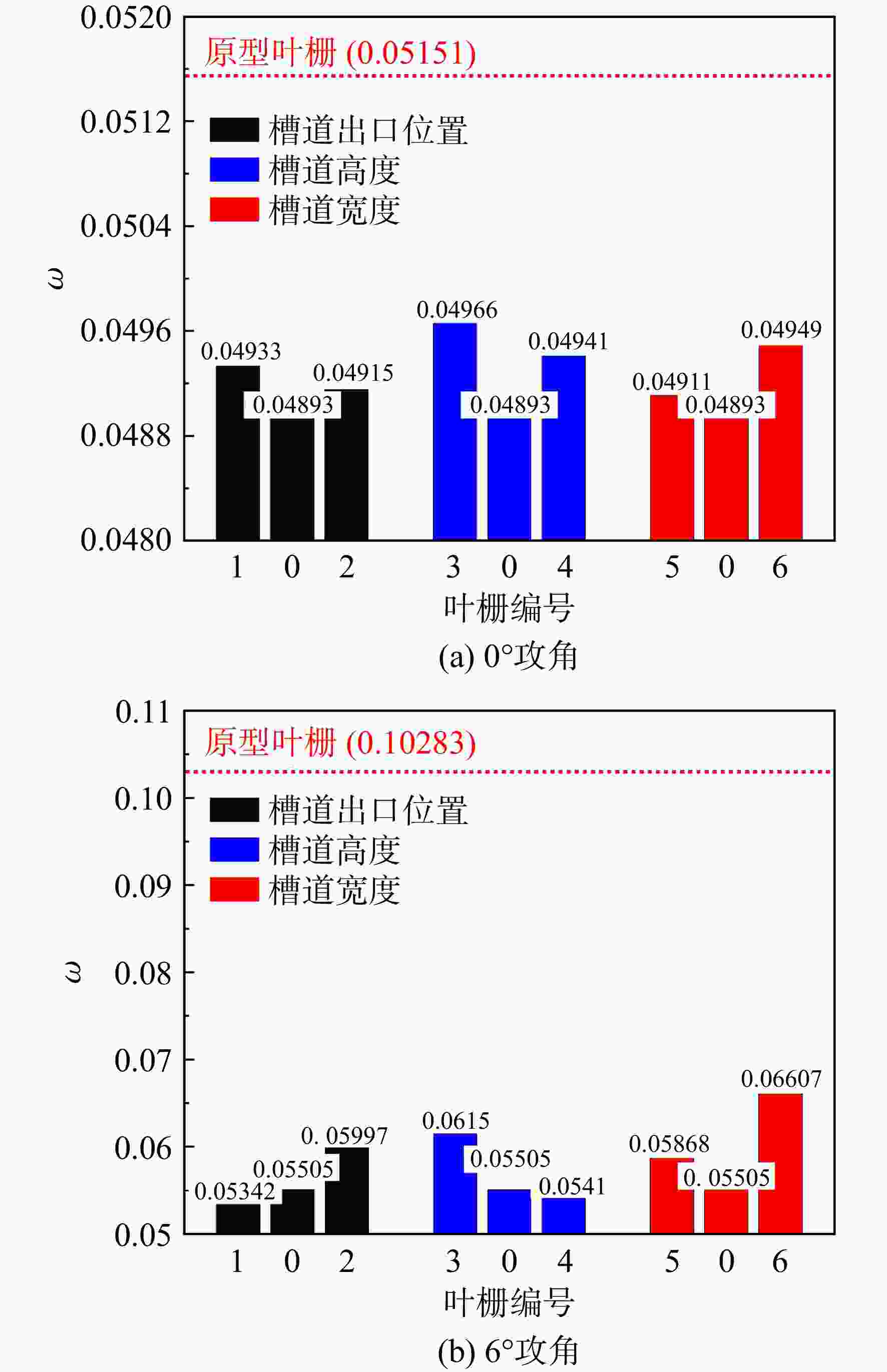

图 10 0°与6°攻角下不同叶栅编号的总压损失系数
Figure 10. Total pressure loss coefficient of different cascade schemes under the incidence angles of 0° and 6°

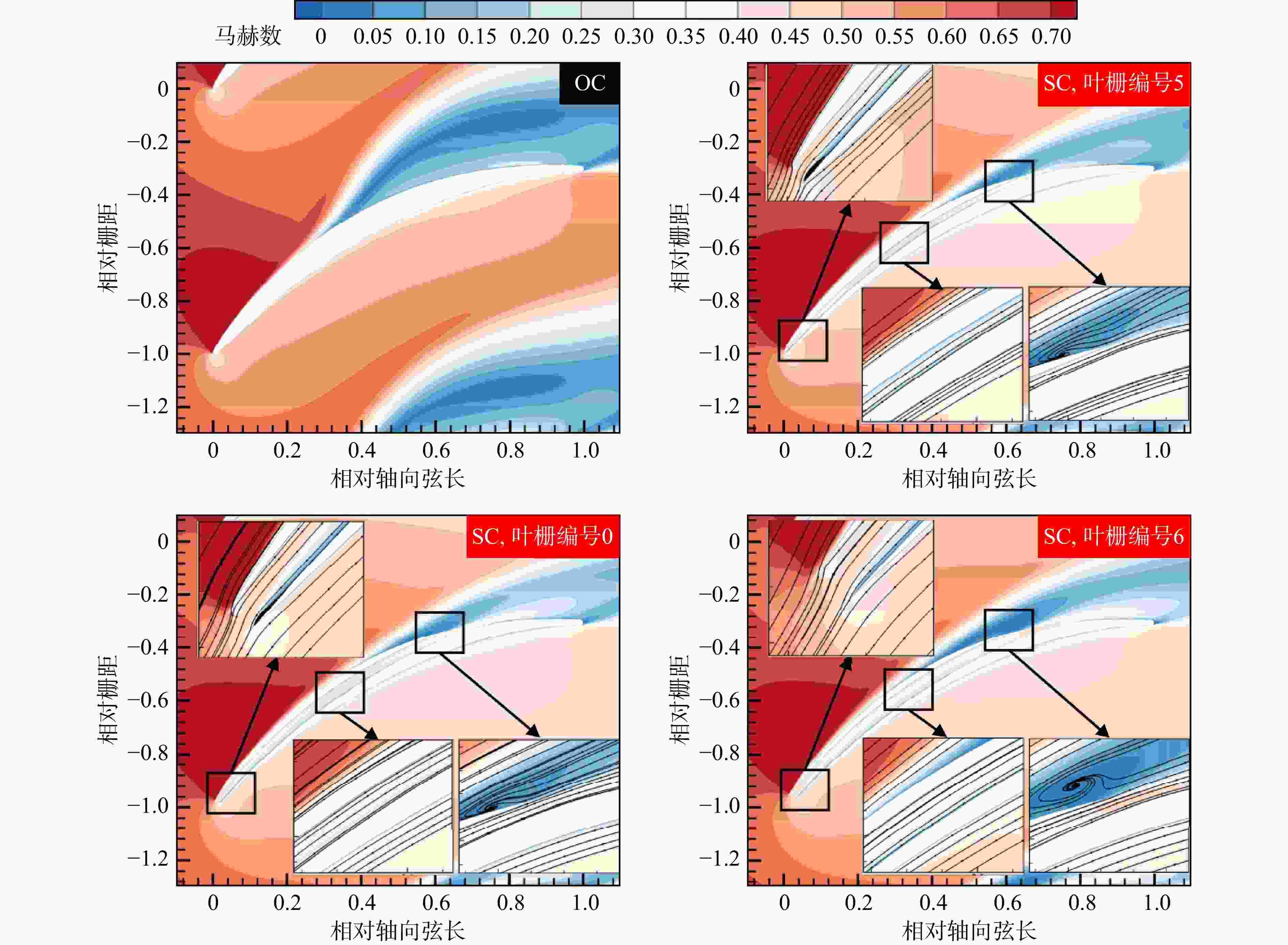

图 11 6°攻角下原型叶栅和不同槽道宽度的开槽叶栅在7.5%叶高处的马赫数云图
Figure 11. Mach number contours at 7.5% blade span for the original and slotted cascades with different slot widths under the incidence angle of 6°

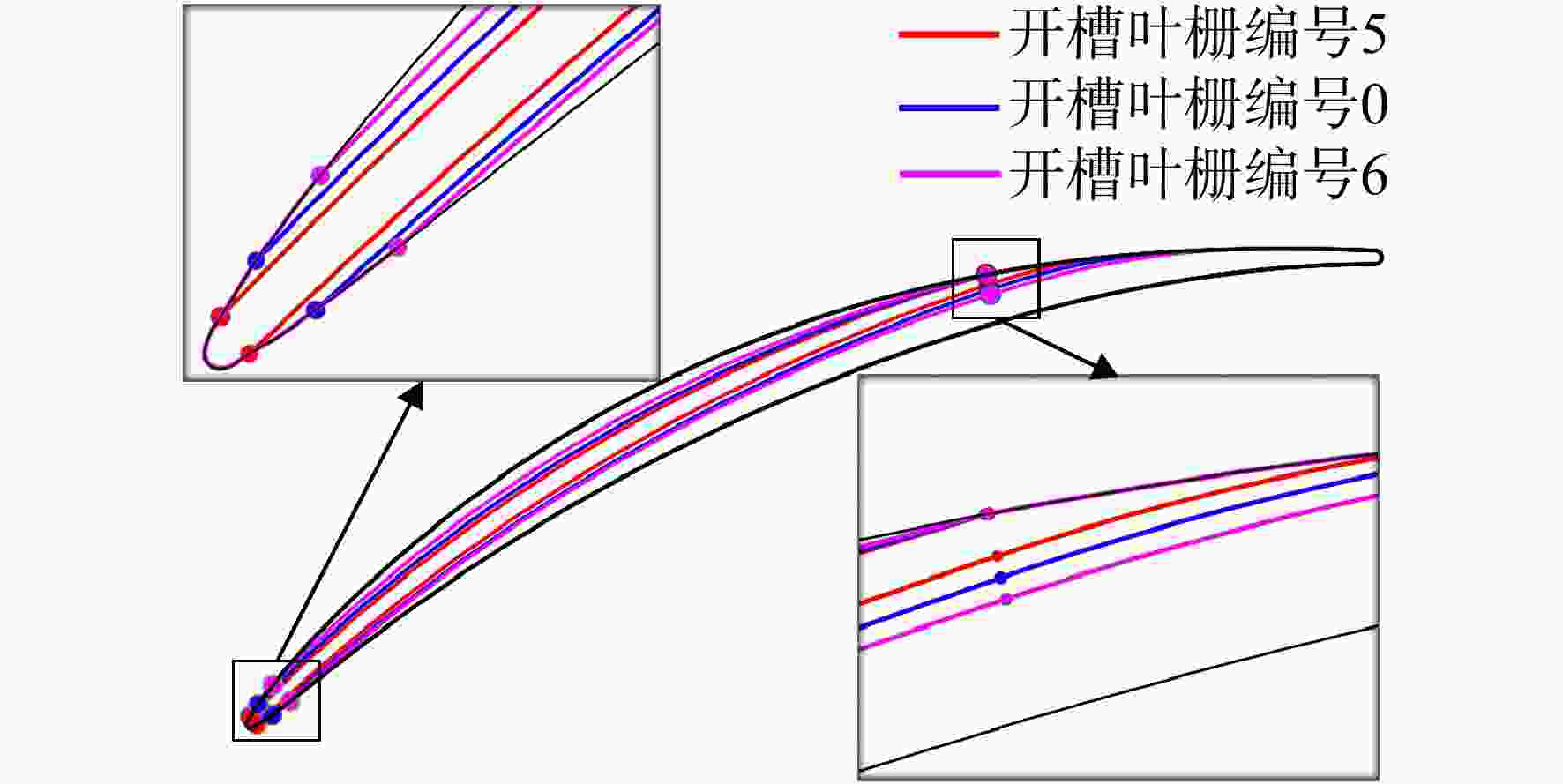

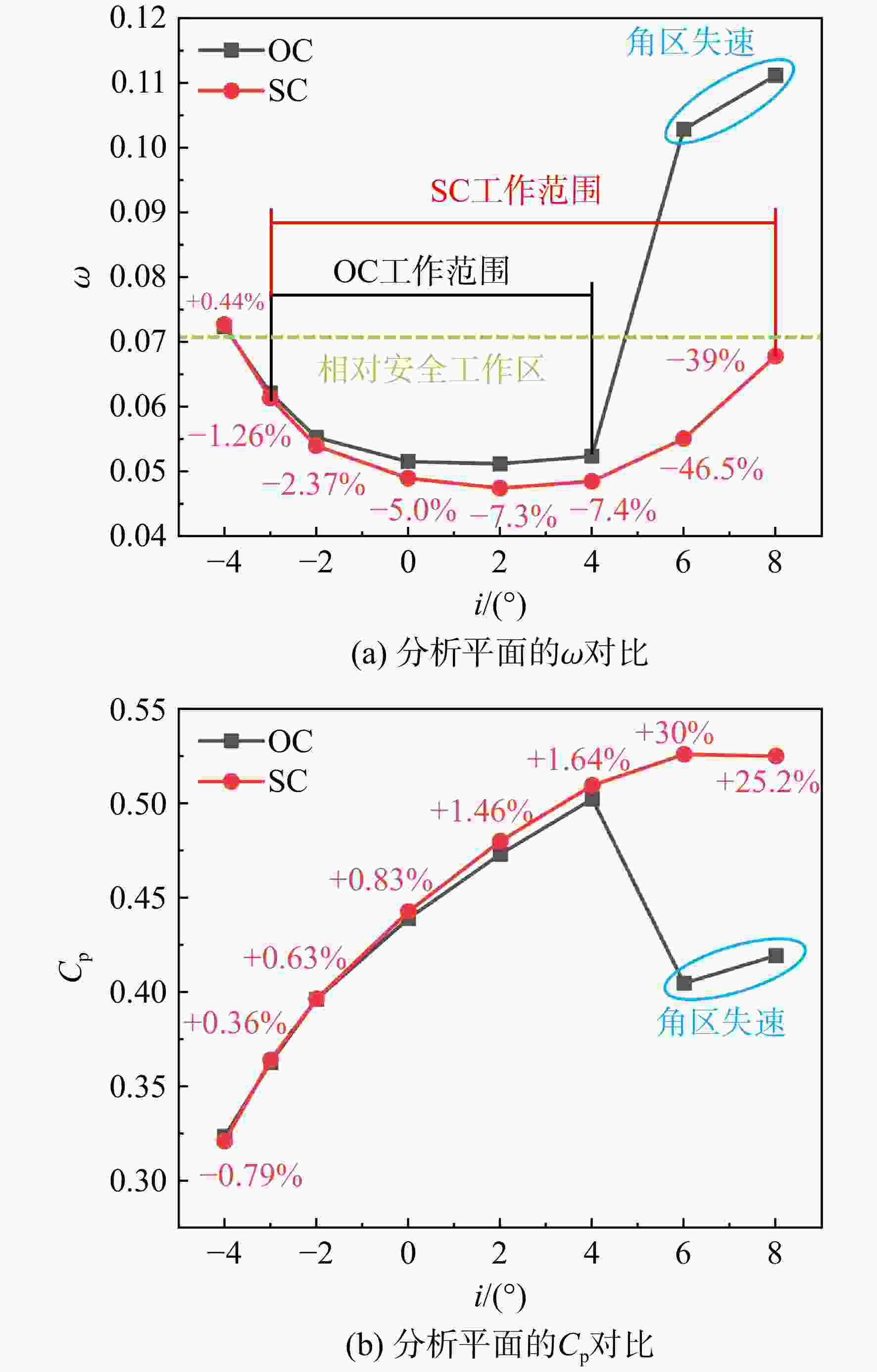

图 13 原型叶栅与开槽叶栅的总压损失系数和静压系数攻角特性图
Figure 13. Coefficients of total pressure loss and static pressure for the original cascade and slotted cascade at different incidence angles

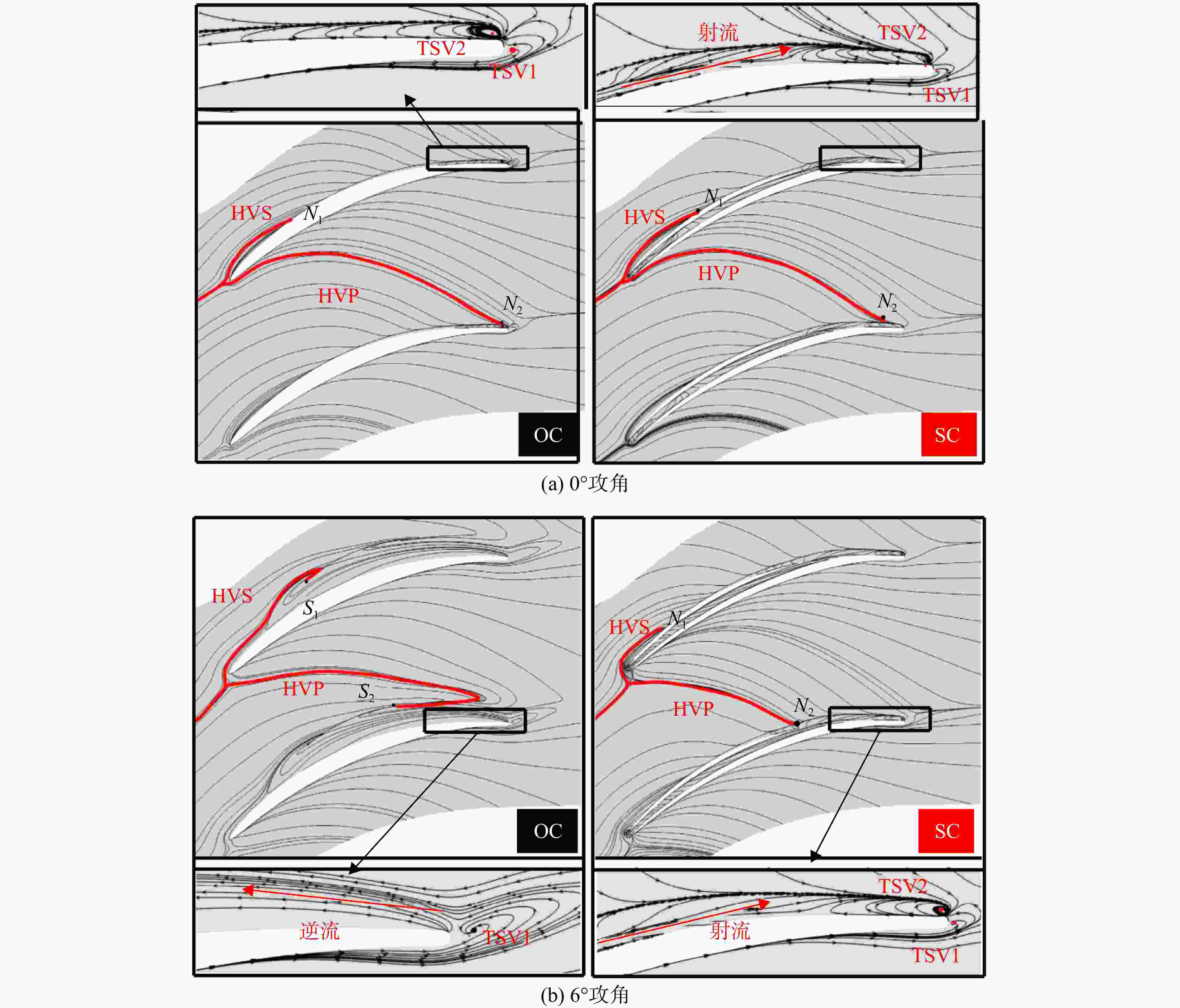

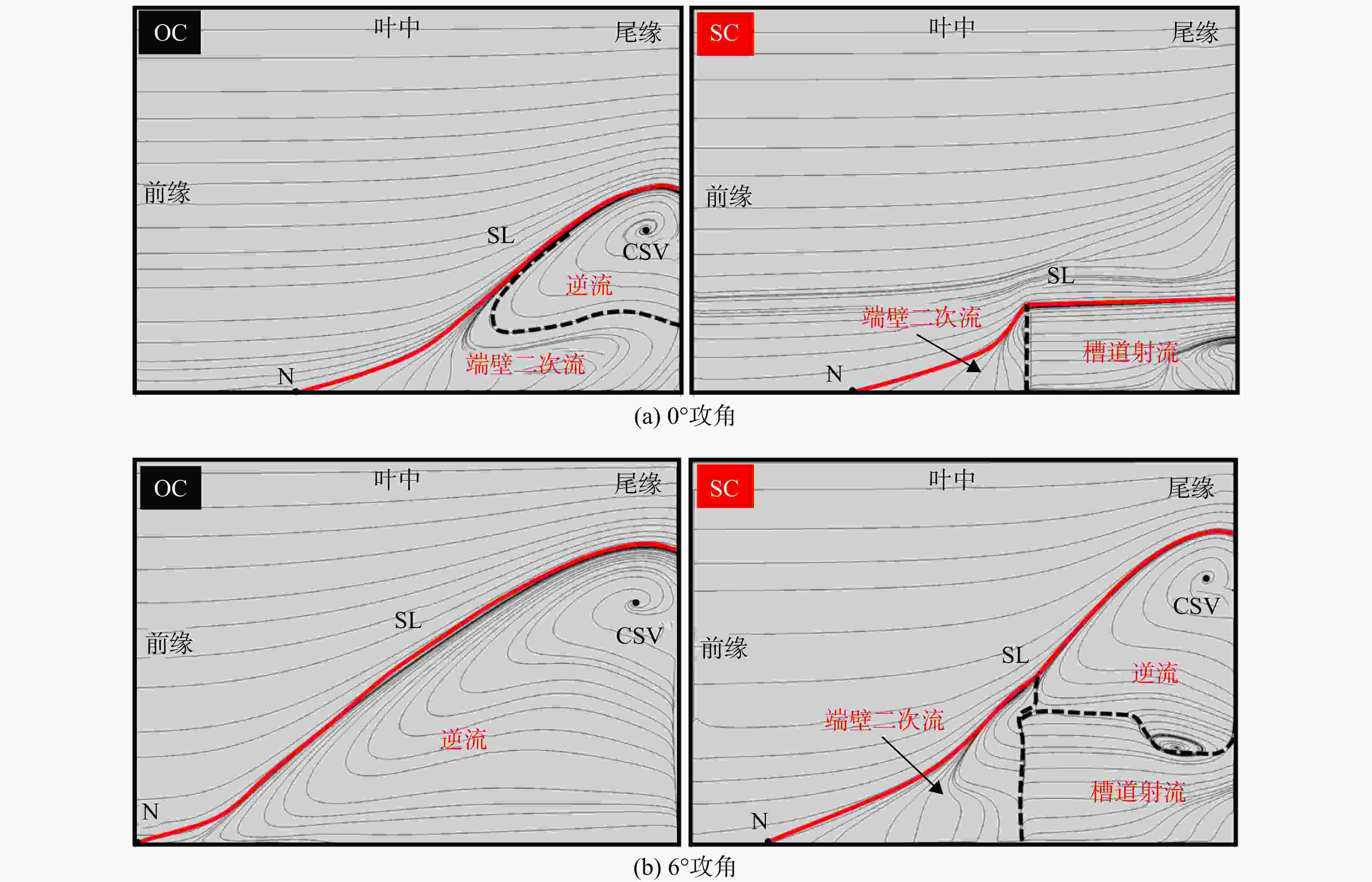

图 14 $ {0}{\text{°} } $和$ {6}{\text{°} } $攻角下原型叶栅和开槽叶栅的端壁流线图
Figure 14. Endwall limiting streamlines for the original and slotted cascades under the incidence angles of 0° and 6°
图 15 0°和6°攻角下原型叶栅和开槽叶栅的吸力面流线图
Figure 15. Limiting streamlines of suction surface for the original and slotted cascades under the incidence angles of 0° and 6°

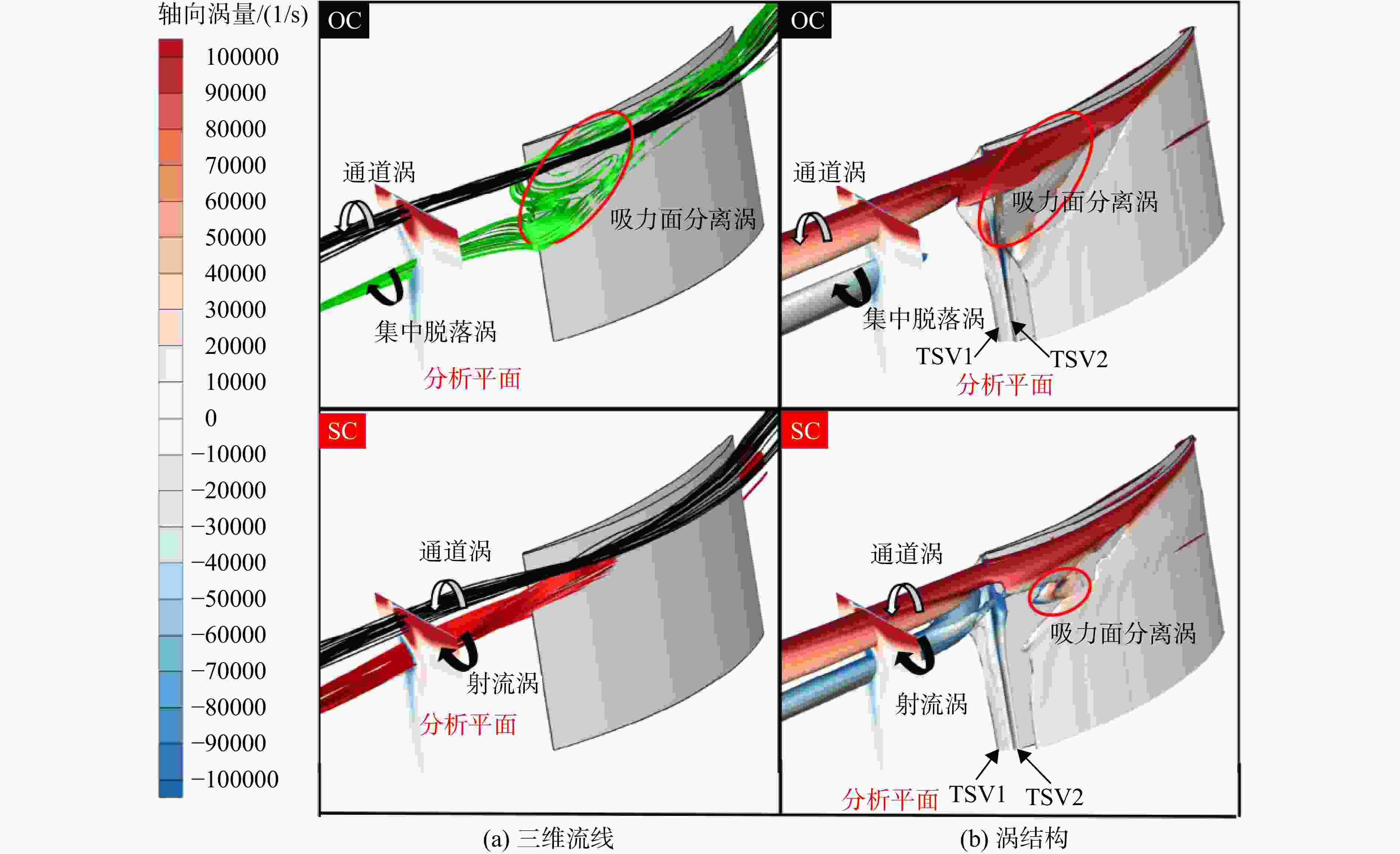

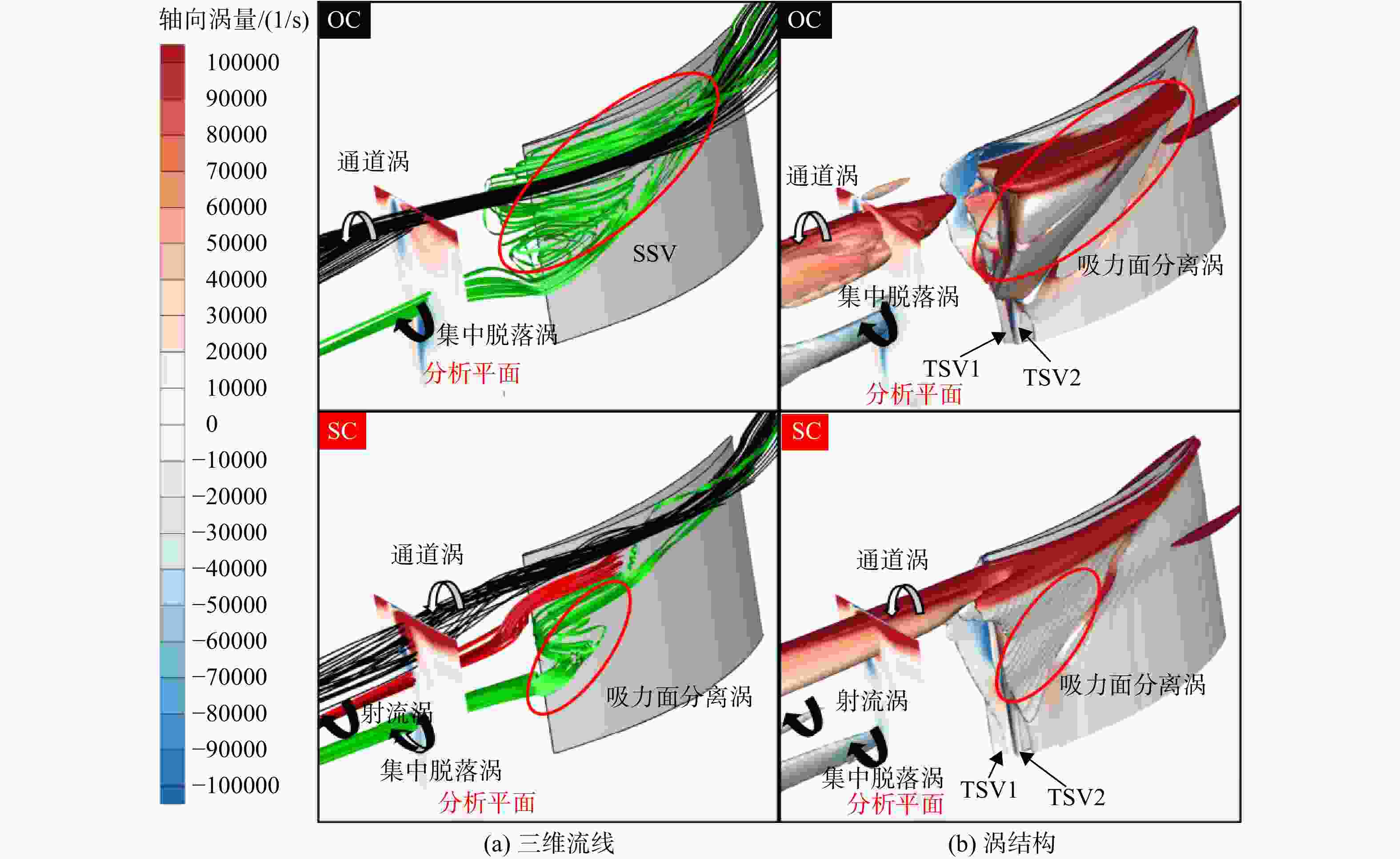

图 16 0°攻角下原型叶栅与开槽叶栅三维流线和涡结构图
Figure 16. 3D streamline and vortex structures of the original and slotted cascades under the incidence angle of 0°
图 17 6°攻角下原型叶栅与开槽叶栅三维流线和涡结构图
Figure 17. 3D streamline and vortex structures of the original and slotted cascades under the incidence angle of 6°

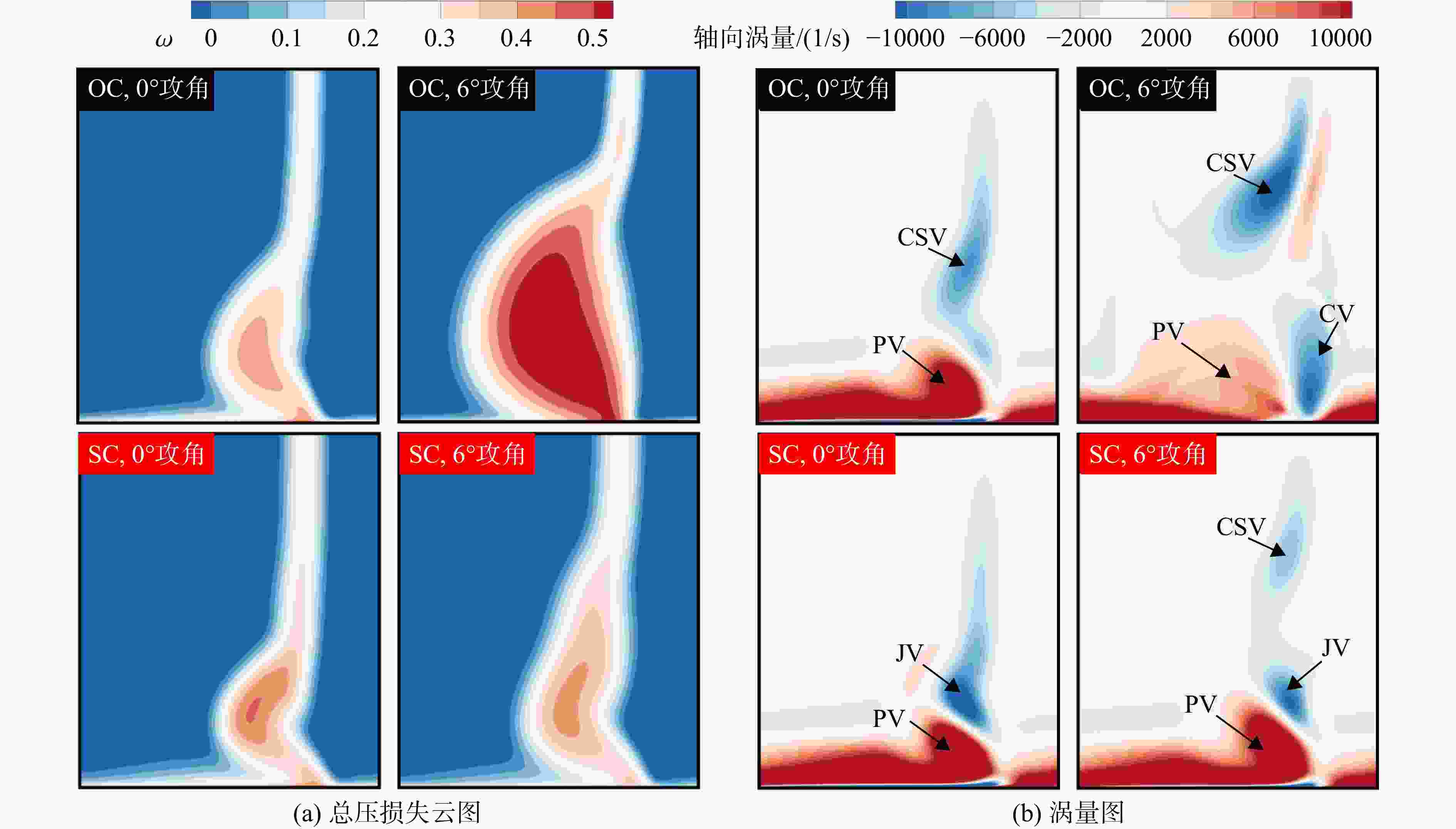

图 18 0°和6°攻角下原型叶栅与开槽叶栅在分析平面处的总压损失云图与涡量图
Figure 18. ω and vorticity contours of the original and slotted cascades under the incidence angles of 0° and 6° on the analysis plane

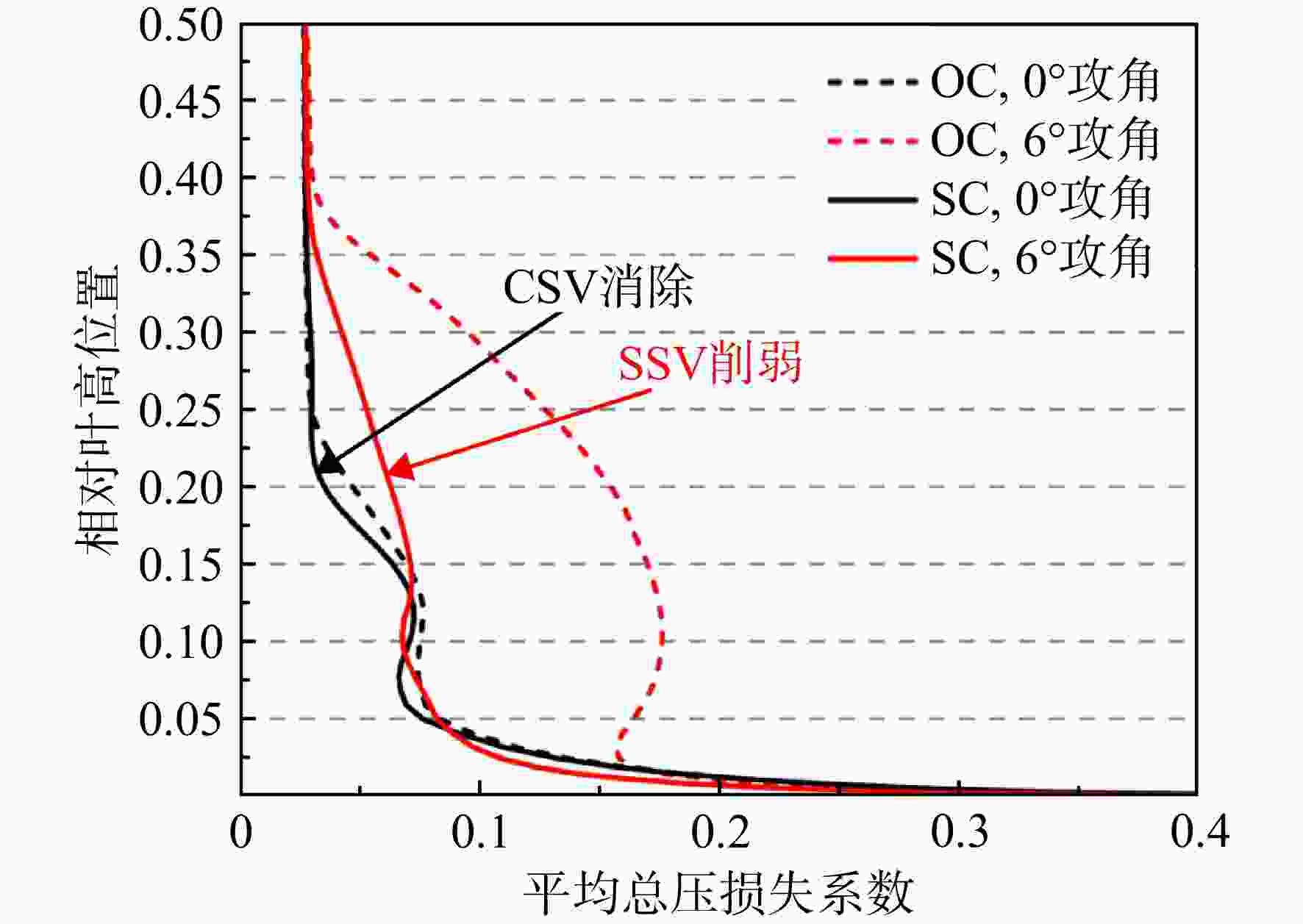

图 19 原型叶栅与开槽叶栅的周向平均总压损失系数沿展向的分布图
Figure 19. Spanwise distribution of pitch-averaged ω for original cascade and slotted cascade

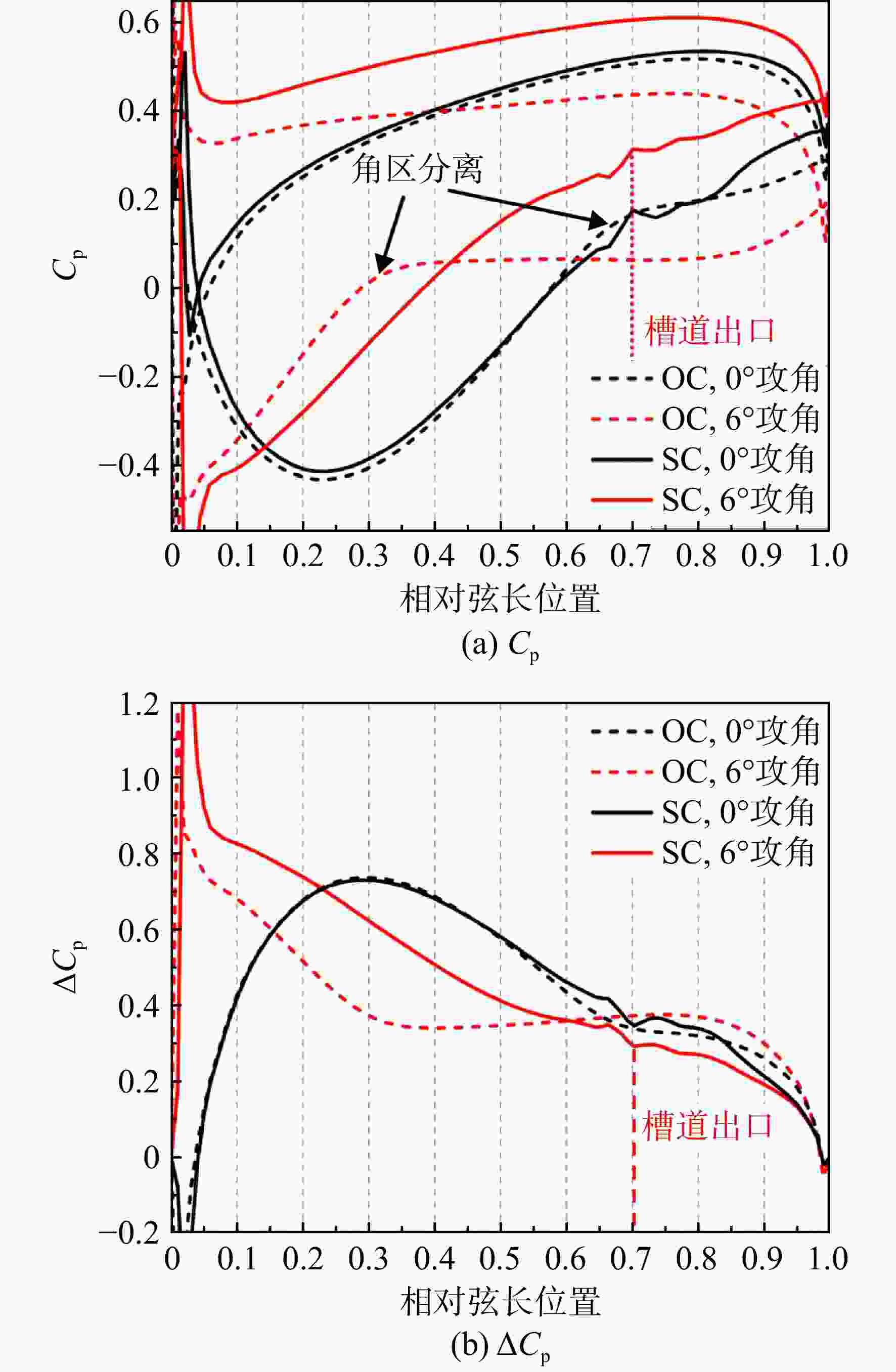

图 20 0°和 6°攻角下7.5%叶高位置处叶片表面静压系数与负荷沿相对弦长的分布图
Figure 20. Distribution of $ {C}_{{\mathrm{p}}} $ and $ \Delta {C}_{{\mathrm{p}}} $ on blade surface along relative chord length at 7.5% h under the incidence angles of 0° and 6°

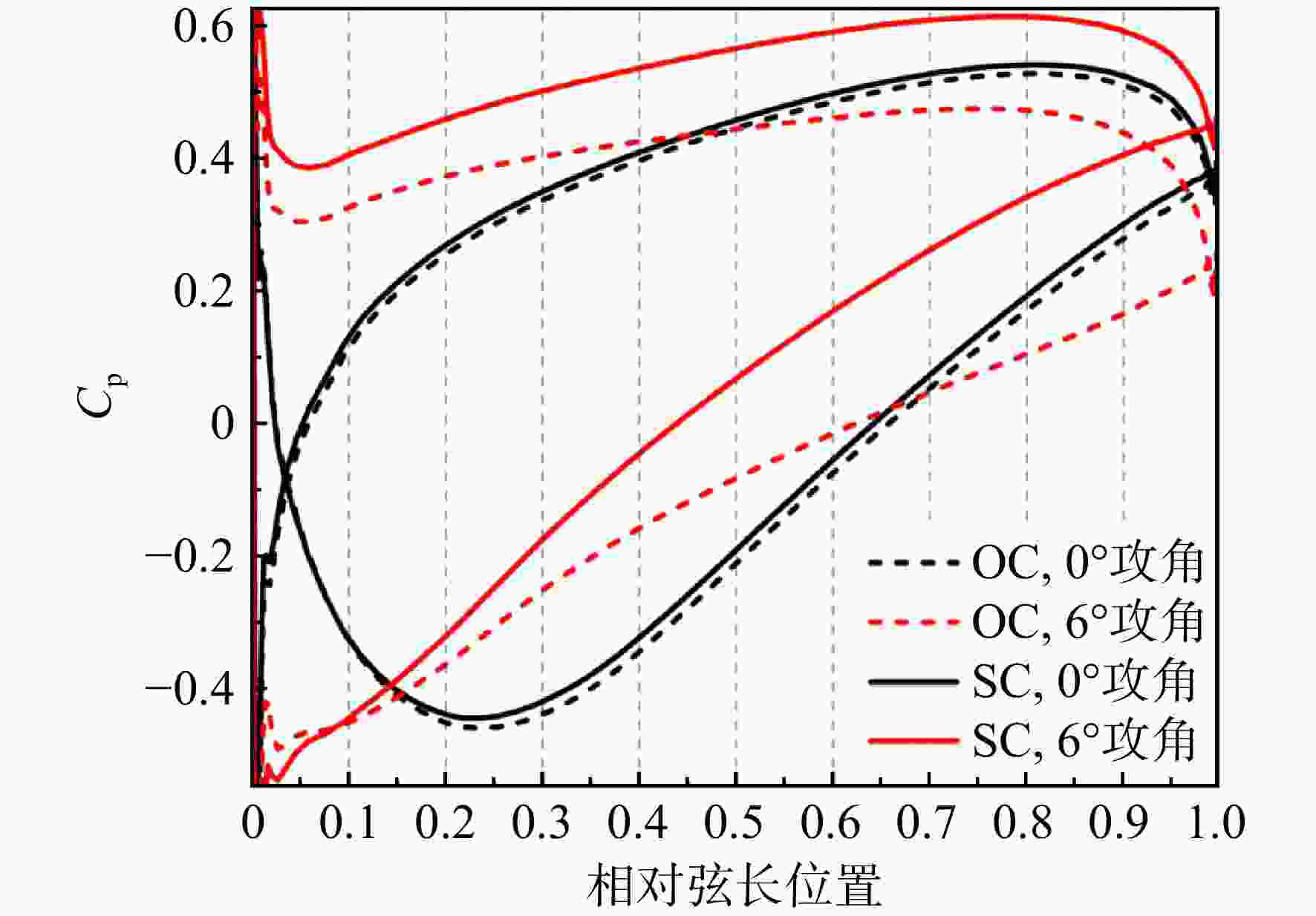

图 21 0°和 6°攻角下50%叶展位置处叶片表面静压系数沿相对弦长的分布图
Figure 21. Distribution of static pressure coefficient on blade surface along relative chord length at 50% blade span under the incidence angles of 0° and 6°

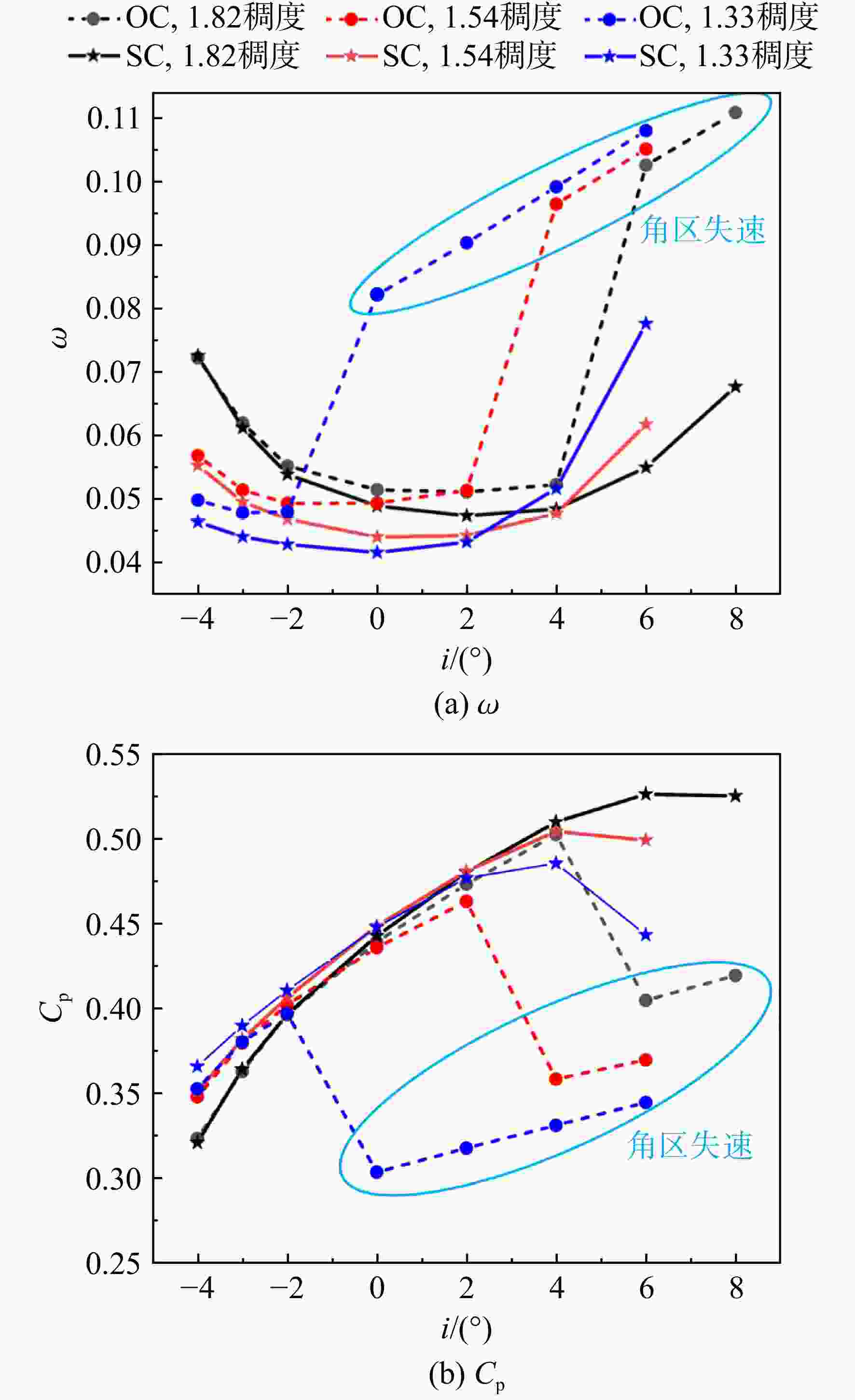

图 22 不同叶栅稠度下原型叶栅和开槽叶栅的总压损失系数与静压系数攻角特性图
Figure 22. Coefficients of total pressure loss and static pressure rise of the original cascade and slotted cascade at different incidence angles and cascade solidities

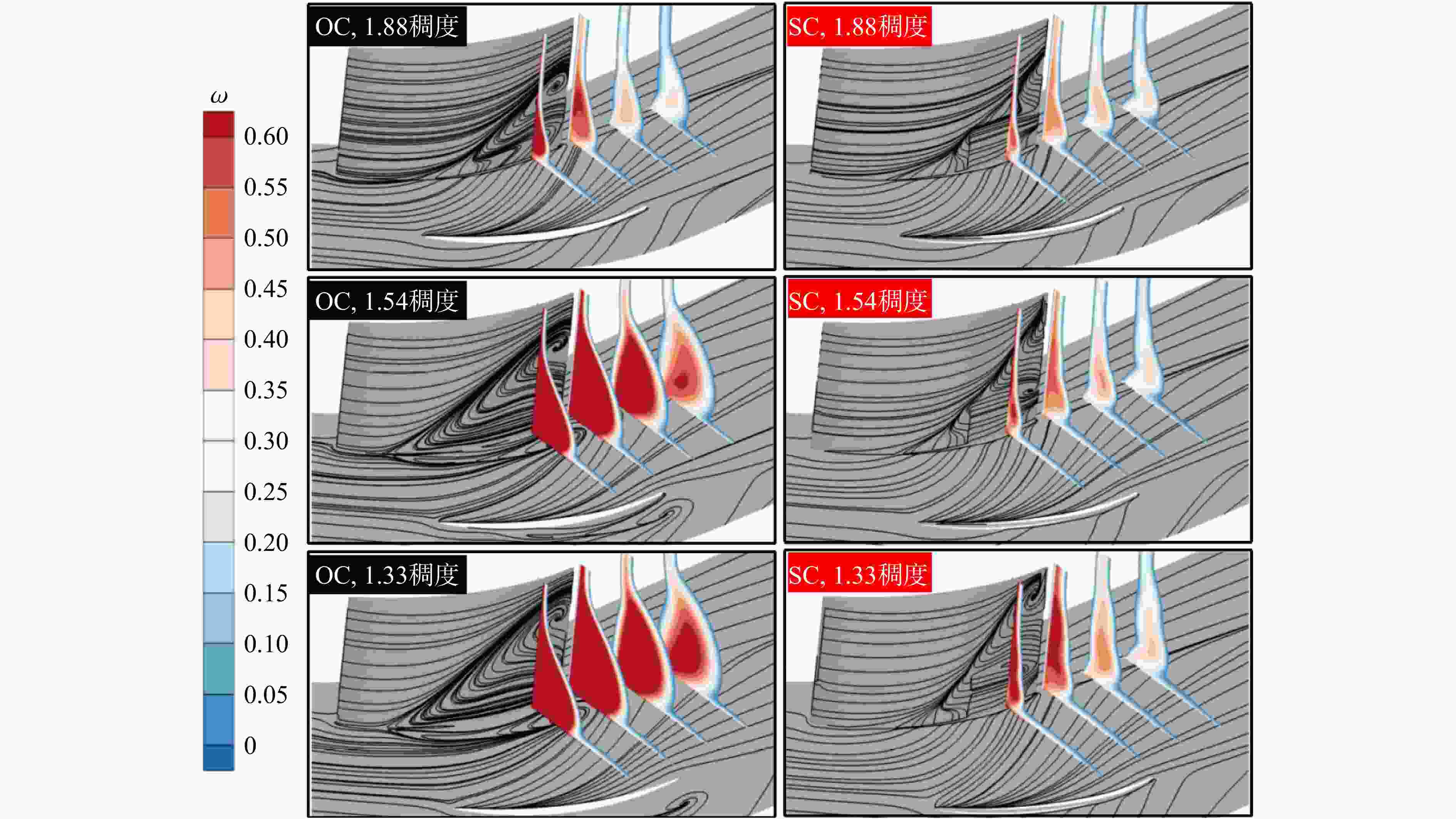

图 23 4°攻角下不同叶栅稠度叶片吸力面和端壁的极限流线与总压损失系数云图
Figure 23. Limiting streamlines on the blade surface and endwall together with the contours of total pressure loss coefficient at different solidities under the incidence angle of 4°

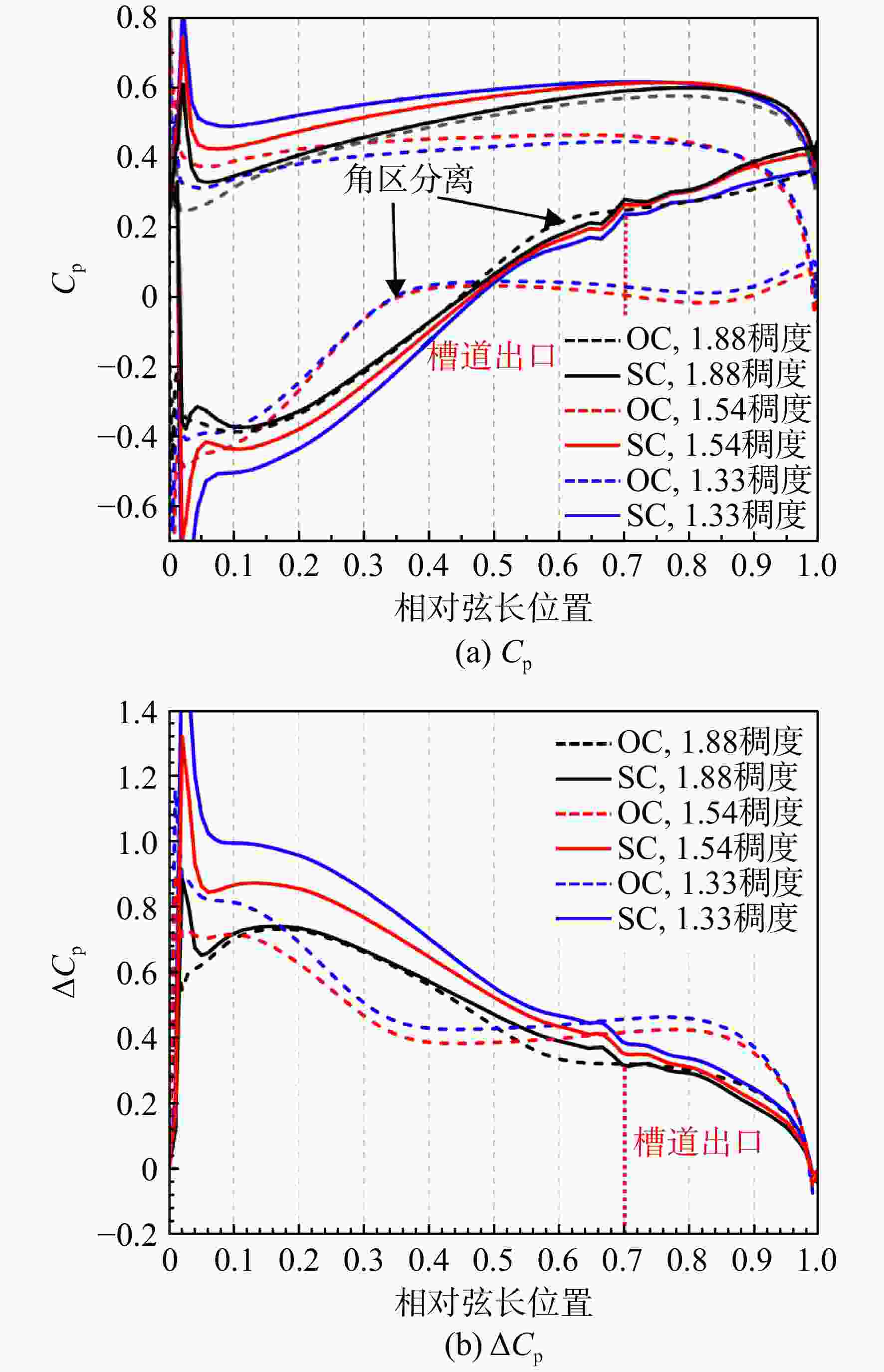

图 24 4°攻角下在7.5%叶高叶片表面的静压系数分布和负荷分布
Figure 24. Distributions of static pressure coefficient and load on the blade surfaces with different solidities at 7.5% blade span under the incidence angle of 4°
表 1 原型叶栅设计参数
Table 1. Design parameters of the original cascade
参数 数值 弦长 $ C $/mm 40 展向高度 $ H $/mm 52 周向长度 $ S $/mm 22 展弦比 $ h/S $ 1.3 叶栅稠度 $ \sigma $ 1.82 安装角 $ {\beta }_{s} $/（°） 22.5 弯角 $ \theta $/（°） 48 进口气流角$ {\beta }_{1} $/（°） 42 进口马赫数 $ M{a}_{1} $ 0.67
下载: 导出CSV

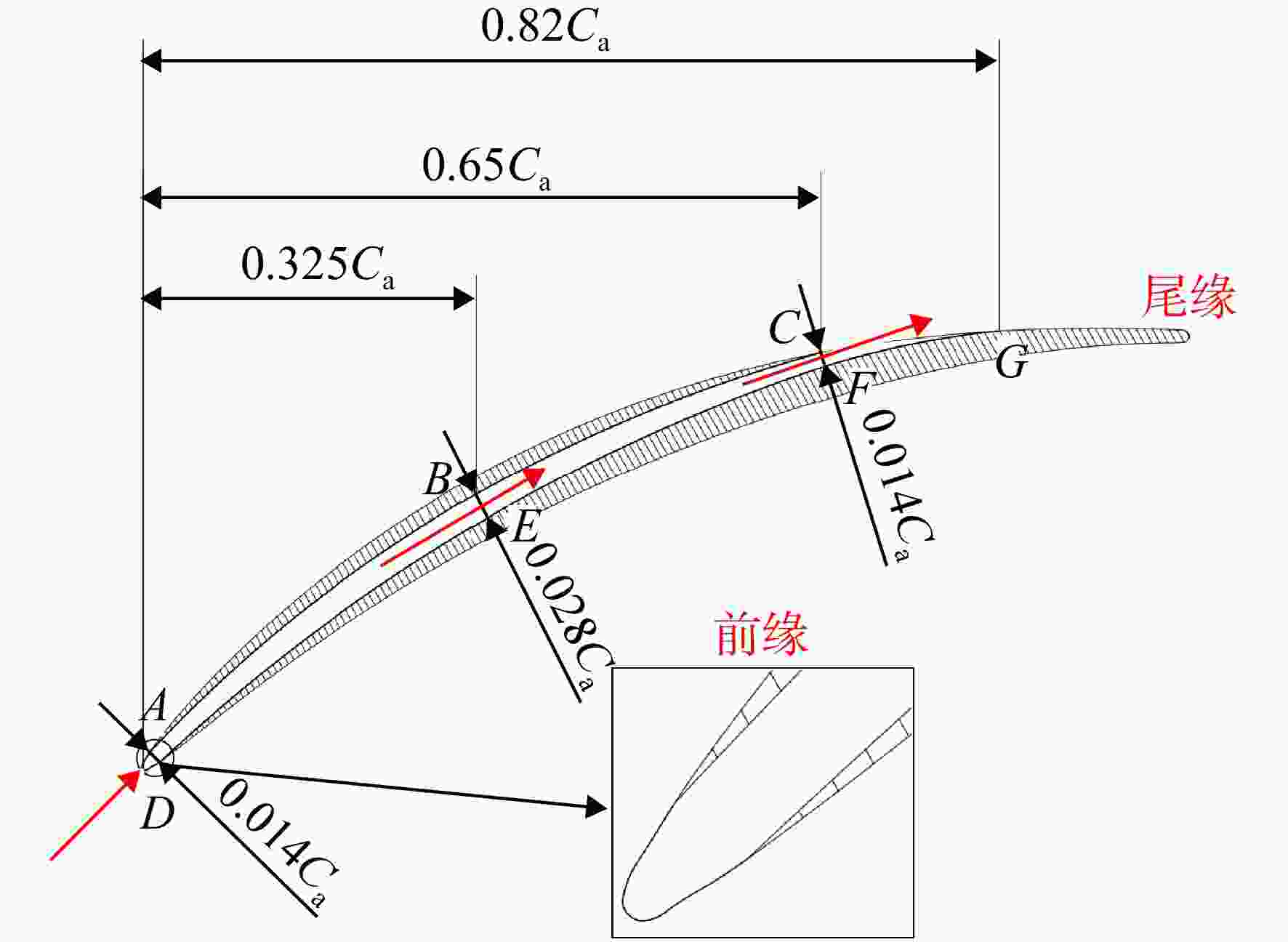

表 2 槽关键几何参数及其取值
Table 2. Key geometric parameters of the slot and their values
参数 参数值1 参数值2 参数值3 槽出口位置 55%Ca 65%Ca 75%Ca 槽高度 7.5%h 15%h 22.5%h 槽宽度 1.1%Ca 1.4%Ca 1.7%Ca
下载: 导出CSV
表 3 控制变量表
Table 3. Table of controlled variable experiments
叶栅
编号影响因素与参数值 槽出口位置 槽高度 槽宽度 0（对照） 2（65%Ca） 2（15%h） 2（1.4%Ca） 1 1（55%Ca） 2（15% h） 2（1.4%Ca） 2 3（75%Ca） 2（15% h） 2（1.4%Ca） 3 2（65%Ca） 1（7.5% h） 2（1.4%Ca） 4 2（65%Ca） 3（22.5% h） 2（1.4%Ca） 5 2（65%Ca） 2（15% h） 1（1.1%Ca） 6 2（65%Ca） 2（15% h） 3（1.7%Ca）
下载: 导出CSV
-
[1] GBADEBO S A, CUMPSTY N A, HYNES T P. Three-dimensional separations in axial compressors: GT2004-53617 [R]. New York: ASME, 2004. [2] SANS J, RESMINI M, BROUCKAERT J F, et al. Numerical investigation of the solidity effect on linear compressor cascades: GT2014-25532 [R]. New York: ASME, 2015. [3] 秦勇. 合成射流控制压气机叶栅角区分离的机理研究[D]. 哈尔滨: 哈尔滨工业大学, 2018. QIN Yong. Mechanisms of corner separation control in compressor cascades with synthetic jets[D]. Harbin: Harbin Institute of Technology, 2018. (in ChineseQIN Yong. Mechanisms of corner separation control in compressor cascades with synthetic jets[D]. Harbin: Harbin Institute of Technology, 2018. (in Chinese) [4] LI Longting, SONG Yanping, CHEN Fu, et al. Flow control on bowed compressor cascades using vortex generator jet at different incidences[J]. Journal of Aerospace Engineering, 2017, 30(5): 04017028. doi: 10.1061/(ASCE)AS.1943-5525.0000738 [5] 李艺雯. 康达喷气叶型设计方法及其在高负荷压气机中的应用研究[D]. 北京: 中国科学院大学(中国科学院工程热物理研究所), 2018. LI Yiwen. Design method of coanda-jet blade profile and its application in a highly load compressor[D]. Beijing: University of Chinese Academy of Sciences, 2018. (in ChineseLI Yiwen. Design method of coanda-jet blade profile and its application in a highly load compressor[D]. Beijing: University of Chinese Academy of Sciences, 2018. (in Chinese) [6] TANG Yumeng, LIU Yangwei, LU Lipeng. Solidity effect on corner separation and its control in a high-speed low aspect ratio compressor cascade[J]. International Journal of Mechanical Sciences, 2018, 142: 304-321. [7] CAO Zhiyuan, GAO Xi, ZHANG Xiang, et al. Effect of endwall passage vortex generator on corner stall of a tandem compressor cascade[J]. International Journal of Heat and Fluid Flow, 2022, 94: 108946. doi: 10.1016/j.ijheatfluidflow.2022.108946 [8] HU Jiaguo, WANG Rugen, LI Renkang, et al. Effects of slot jet and its improved approach in a high-load compressor cascade[J]. Experiments in Fluids, 2017, 58(11): 155-167. doi: 10.1007/s00348-017-2437-4 [9] 王若玉. 射流旋涡控制高速扩压叶栅分离流动的数值研究[D]. 哈尔滨: 哈尔滨工业大学, 2017. WANG Nuoyu. Numerical study on the flow control effect of vortex generator jet on a high-speed compressor cascade[D]. Harbin: Harbin Institute of Technology, 2017. (in ChineseWANG Nuoyu. Numerical study on the flow control effect of vortex generator jet on a high-speed compressor cascade[D]. Harbin: Harbin Institute of Technology, 2017. (in Chinese) [10] HU Jiaguo, WANG Rugen, HUANG Danqin. Flow control mechanisms of a combined approach using blade slot and vortex generator in compressor cascade[J]. Aerospace Science and Technology, 2018, 78: 320-331. doi: 10.1016/j.ast.2018.04.034 [11] 周敏, 王如根, 曹朝辉, 等. 开槽位置和槽道结构对叶栅性能的影响[J]. 空气动力学学报, 2008(3): 400-404. ZHOU Min, WANG Rugen, CAO Zhaohui, et al. Effect of slot position and slot structure on performance of cascade[J]. Acta Aerodynamica Sinica, 2008(3): 400-404. (in Chinese doi: 10.3969/j.issn.0258-1825.2008.03.023ZHOU Min, WANG Rugen, CAO Zhaohui, et al. Effect of slot position and slot structure on performance of cascade[J]. Acta Aerodynamica Sinica, 2008(3): 400-404. (in Chinese) doi: 10.3969/j.issn.0258-1825.2008.03.023 [12] 吴培根, 王如根, 罗凯, 等. 开槽叶片对大转角扩压叶栅性能的影响[J]. 航空动力学报, 2013, 28(11): 2503-2509. WU Peigen, WANG Rugen, LUO Kai, et al. Effect of slotted blade on performance of high-turning angle compressor cascades[J]. Journal of Aerospace Power, 2013, 28(11): 2503-2509. (in ChineseWU Peigen, WANG Rugen, LUO Kai, et al. Effect of slotted blade on performance of high-turning angle compressor cascades[J]. Journal of Aerospace Power, 2013, 28(11): 2503-2509. (in Chinese) [13] 唐雨萌, 柳阳威, 陆利蓬. 叶根开槽对高速常规负荷压气机叶栅性能影响[J]. 工程热物理学报, 2019, 40(11): 2491-2501. TANG Yumeng, LIU Yangwei, LU Lipeng, et al. Performance of the high-Speed conventional loading cascade influenced by the blade end slots[J]. Journal of Engineering Thermophysics, 2019, 40(11): 2491-2501. (in ChineseTANG Yumeng, LIU Yangwei, LU Lipeng, et al. Performance of the high-Speed conventional loading cascade influenced by the blade end slots[J]. Journal of Engineering Thermophysics, 2019, 40(11): 2491-2501. (in Chinese) [14] TANG Yumeng, LIU Yangwei, LU Lipeng, et al. Passive separation control with blade-end slots in a highly loaded compressor cascade[J]. AIAA Journal, 2020, 58(1): 85-97. doi: 10.2514/1.J058488 [15] WANG Hejian, LIU Bo, MAO Xiaochen, et al. Combined flow control strategy investigation for corner separation and mid-span boundary layer separation in a high-turning compressor cascade[J]. Entropy, 2022, 24(5): 570. doi: 10.3390/e24050570 [16] BENONI A, WILLINGER R. Design modification of a passive tip-leakage control method for axial turbines: linear cascade wind tunnel results: TBTS2013-2056 [R]. New York: ASME, 2013. [17] LIESNER K, MEYER R. Combination of active and passive flow control in a high speed compressor cascade: GT2014-25662 [R]. New York: ASME, 2014. [18] YANG Zonghao, LIU Bo, MAO Xiaochen, et al. Numerical investigation of inlet boundary layer in an axial compressor tandem Cascade[J]. Energies, 2022, 15(18): 6850. doi: 10.3390/en15186850 [19] 蔡乐. 超高负荷扩压叶栅分离结构及其定常与非定常控制研究[D]. 哈尔滨: 哈尔滨工业大学, 2015: 109-126. CAI Le. Investigation on separation structure and its steady & unsteady control in super highly loaded compressor cascade[D]. Harbin: Harbin Institute of Technology, 2015: 121-125. (in ChineseCAI Le. Investigation on separation structure and its steady & unsteady control in super highly loaded compressor cascade[D]. Harbin: Harbin Institute of Technology, 2015: 121-125. (in Chinese) [20] TANG Yumeng, LIU Yangwei, LU Lipeng. Evaluation of Compressor blading with blade end slots and full-span slots in a highly loaded compressor cascade[J]. Journal of Turbomachinery, 2019, 141(12): 121002. doi: 10.1115/1.4044693 [21] 王何建, 刘波, 张博涛, 等. 槽道射流及端壁抽吸对角区分离的组合控制研究[J]. 推进技术, 2022, 43(4): 200858. WANG Hejian, LIU Bo, ZHANG Botao, et al. Combined control effect of slot jet and endwall suction on corner separation[J]. Journal of Propulsion Technology, 2022, 43(4): 200858. (in ChineseWANG Hejian, LIU Bo, ZHANG Botao, et al. Combined control effect of slot jet and endwall suction on corner separation[J]. Journal of Propulsion Technology, 2022, 43(4): 200858. (in Chinese) [22] MEYER R, BECHERT D W, HAGE W. Secondary flow control on compressor blades to improve the performance of axial turbomachines[C]//Prague: European Conference on Turbomachinery, 2003. [23] LIESNER K, MEYER R, LEMKE M, et al. On the Efficiency of Secondary Flow Suction in a Compressor Cascade: GT2010-22336 [R]. New York: ASME, 2010. [24] HERGT A, MEYER R, LIESNER K, et al. A New approach for compressor endwall contouring: GT2011-45858 [R]. New York: ASME, 2011. [25] CHEN Pingping, QIAO Weiyang, LIESNER K, et al. Location effect of boundary layer suction on compressor hub-corner separation: GT2014-25043 [R]. New York: ASME, 2011. [26] 茅晓晨, 杨宗豪, 刘波等. 进口附面层对串列叶栅气动性能的影响研究[J]. 推进技术, 2023, 44(1): 210738. MAO Xiaochen, YANG Zonghao, LIU Bo, et al. Effects of inlet boundary layer on aerodynamic performance of tandem cascade[J]. Journal of Propulsion Technology, 2023, 44(1): 210738. (in ChineseMAO Xiaochen, YANG Zonghao, LIU Bo, et al. Effects of inlet boundary layer on aerodynamic performance of tandem cascade[J]. Journal of Propulsion Technology, 2023, 44(1): 210738. (in Chinese) [27] 朱寅鑫, 彭文强, 罗振兵, 等. 全叶高合成双射流对大折转角扩压叶栅的影响[J]. 航空学报, 2023, 44(12): 127734. ZHU Yuxin, PENG Wenqiang, LUO Zhenbin, et al. Influence of full-span dual synthetic jets on the high-turning compressor cascade[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(12): 127734. (in ChineseZHU Yuxin, PENG Wenqiang, LUO Zhenbin, et al. Influence of full-span dual synthetic jets on the high-turning compressor cascade[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44（12）: 127734. (in Chinese) [28] 王何建, 刘波, 张博涛. 大弯角开槽叶栅槽道位置与结构研究[J]. 推进技术, 2021, 42(12): 2675-2683. WANG Hejian, LIU Bo, ZHANG Botao. Slot position and structure of large camber slotted cascades[J]. Journal of Propulsion Technology, 2021, 42(12): 2675-2683. (in ChineseWANG Hejian, LIU Bo, ZHANG Botao. Slot position and structure of large camber slotted cascades[J]. Journal of Propulsion Technology, 2021, 42(12): 2675-2683. (in Chinese) [29] WANG Hejian, MAO Xiaochen, LIU Bo, et al. Combined flow control with full-span slot and end-wall boundary layer suction in a large-camber compressor cascade[J]. Aerospace Science and Technology, 2021, 119: 107121. doi: 10.1016/j.ast.2021.107121 [30] WANG Hejian, MAO Xiaochen, LIU Bo, et al. Effect investigation of single-slotted and double-slotted configurations on the corner separation and aerodynamic performance in a high-load compressor cascade[J]. Aerospace Science and Technology, 2023, 135: 108203. doi: 10.1016/j.ast.2023.108203 [31] TAYLOR J V, MILLER R J. Competing three-dimensional mechanisms in compressor flows[J]. Journal of Turbomachinery, 2017, 139(2): 021009. doi: 10.1115/1.4034685 [32] LIU Chaoqun, WANG Yiqian, YANG Yong, et al. New omega vortex identification method[J]. Science China Physics, Mechanics & Astronomy, 2016, 59(8): 684711. [33] 刘超群. Liutex-涡定义和第三代涡识别方法[J]. 空气动力学学报, 2020, 38(3): 413-431. LIU Chaoqun. Liutex-third generation of vortex definition and identification methods[J]. Acta Aerodynamica Sinica, 2020, 38(3): 413-431. (in ChineseLIU Chaoqun. Liutex-third generation of vortex definition and identification methods[J]. Acta Aerodynamica Sinica, 2020, 38(3): 413-431. (in Chinese) [34] ZHANG Yuning, QIU Xu, CHEN Feipeng, et al. A selected review of vortex identification methods with applications[J]. Journal of Hydrodynamics, 2018, 30(5): 767-779. doi: 10.1007/s42241-018-0112-8 [35] DONG Xiangrui, WANG Yiqian, CHEN Xiaoping, et al. Determination of epsilon for Omega vortex identification method[J]. Journal of Hydrodynamics, 2018, 30(4): 541-548. doi: 10.1007/s42241-018-0066-x [36] LIU Yangwei, SUN Jinjing, TANG Yumeng, et al. Effect of slot at blade root on compressor cascade performance under different aerodynamic parameters[J]. Applied Sciences, 2016, 6(12): 421. doi: 10.3390/app6120421 -
