典型涡轮气冷叶片参数化建模及优化设计

董少静; 杨傲然; 苑旺; 张立章; 方宇凡; 申秀丽

doi:10.13224/j.cnki.jasp.20230316

典型涡轮气冷叶片参数化建模及优化设计

doi: 10.13224/j.cnki.jasp.20230316

董少静^{1, 2,},
杨傲然^{1, 2},
苑旺³,
张立章⁴,
方宇凡^{1, 2},
申秀丽^{1, 2}

1.
北京航空航天大学能源与动力工程学院，北京 100191
2.
北京航空航天大学航空发动机结构强度北京市重点实验室，北京 100191
3.
中国航空工业集团有限公司沈阳飞机设计研究所，沈阳 110035
4.
中国航发湖南动力机械研究所，湖南株洲 412002

详细信息

作者简介:
董少静（1986—），女，副研究员，博士，主要从事航空发动机热端部件结构、材料及工艺方面的研究。E-mail：dongshaojing@buaa.edu.cn

中图分类号: V232.4
计量
- 文章访问数: 15
- HTML浏览量: 9
- PDF量: 6
- 被引次数: 0
出版历程
- 收稿日期: 2023-05-13
- 网络出版日期: 2024-06-07

Parametric modeling and optimization design of typical turbine air-cooled blade

DONG Shaojing^{1, 2
,},
YANG Aoran^{1, 2},
YUAN Wang³,
ZHANG Lizhang⁴,
FANG Yufan^{1, 2},
SHEN Xiuli^{1, 2}

1.
School of Energy and Power Engineering，Beihang University，Beijing 100191，China
2.
Beijing Key Laboratory of Aero-Engine Structure and Strength，Beihang University，Beijing 100191，China
3.
Shenyang Aircraft Design and Research Institute，Aviation Industry Corporation of China，Shenyang 110035，China
4.
Hunan Aviation Powerplant Research Institute，Aero Engine Corporation of China，Zhuzhou Hunan 412002，China

摘要

摘要:
为更好保证涡轮气冷叶片结构强度设计阶段的气动综合性能，在二维叶栅传统四线造型方法的基础上，引入了喉道宽度和尾缘弯折角两个参数以保证相关气动指标，同时，提出了一种基于自由曲线的异形冷气入口建模方法以改善冷气入口处的应力集中问题并通过优化算例证明了其潜在价值。在此基础上，对涡轮气冷叶片内部典型冷却结构进行参数化建模。最后，以涡轮叶片质量和叶身最大拉伸应力为优化目标，选取参数对涡轮气冷叶片进行优化，优化后涡轮叶片质量和优化前相比下降0.99%，最大拉伸应力下降6.55%。优化结果表明，相关参数化方法可以满足具有复杂内冷结构的涡轮叶片的设计需求，可以有效提高涡轮设计效率。
- 涡轮气冷叶片 /
- 参数化建模 /
- 二维叶栅 /
- 冷却结构 /
- 优化设计
Abstract:
In order to better ensure the comprehensive aerodynamic performance of turbine air-cooled blades in the structural strength design stage, based on the traditional four-line modeling method of two-dimensional cascade, two parameters, i.e. throat width and trailing edge bending angle, were introduced to ensure the aerodynamic performance. A modeling method based on free curve for irregular cooling air inlet was proposed to alleviate the stress concentration problem at the cold air inlet and its potential value was demonstrated by optimization calculation. On this basis, the typical cooling structure inside the turbine air-cooled blade was modeled parametrically. The mass of blade and the maximal tensile stress of blade body were taken as the optimization objectives, and parameters were selected to optimize turbine air-cooled blades. After optimization, the mass of blade decreased by 0.99% and maximum tensile stress decreased by 6.55%. The optimization results showed that the relevant parameterization method can meet the design requirements of turbine blades with complex internal cooling structure, and can effectively improve turbine design efficiency.
- air-cooled blade /
- parametric modeling /
- two-dimensional aerofoil /
- cooling structure /
- optimization design

HTML

图 1 涡轮叶片叶型造型参数

Figure 1. Turbine two-dimensional cascade parameter

下载: 全尺寸图片幻灯片

图 2 叶栅造型曲线类型

Figure 2. Curve types of aerofoil

下载: 全尺寸图片幻灯片

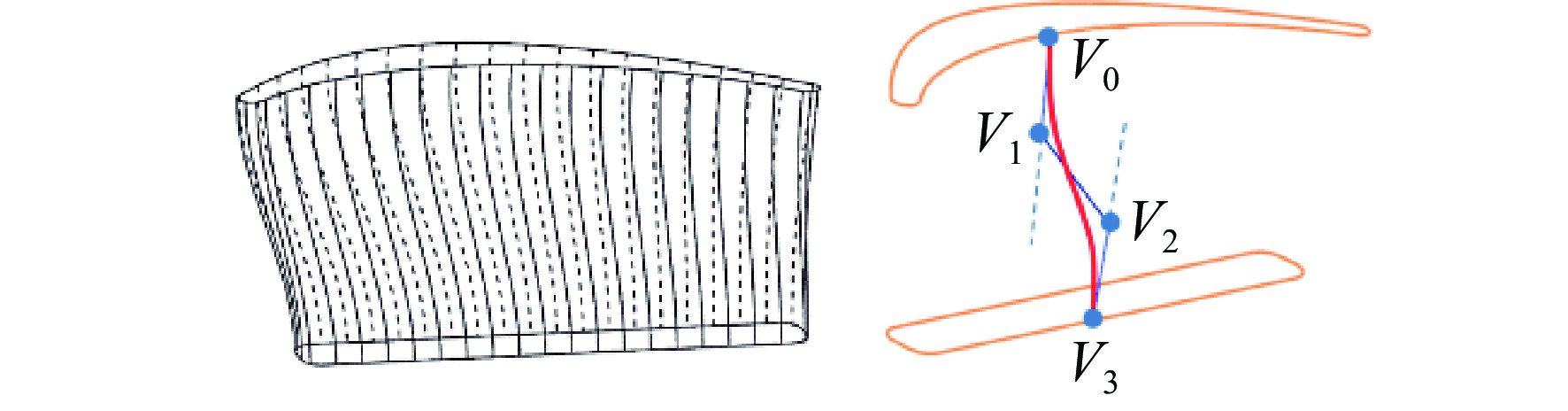

图 3 造型曲线控制多边形

Figure 3. Aerofoil and control polygon

下载: 全尺寸图片幻灯片

图 4 原始模型及重构模型对比

Figure 4. Comparison of reconstruction model and original model

下载: 全尺寸图片幻灯片

图 5 变壁厚内腔

Figure 5. Variable thickness of inner cavity

下载: 全尺寸图片幻灯片

图 6 内腔前缘曲线造型

Figure 6. Leading edge curve modeling of inner cavity

下载: 全尺寸图片幻灯片

图 7 伸根段内腔面

Figure 7. Inner cavity surface of root extending segment

下载: 全尺寸图片幻灯片

图 8 伸根段内腔面造型

Figure 8. Modeling of root extending segment inner cavity surface

下载: 全尺寸图片幻灯片

图 9 冷却通道造型

Figure 9. Cooling channal modeling

下载: 全尺寸图片幻灯片

图 10 冷气入口参数化曲线

Figure 10. Paramtric curves of cooling air inlet

下载: 全尺寸图片幻灯片

图 11 冷气入口模型

Figure 11. Cooling air inlet model

下载: 全尺寸图片幻灯片

图 12 带扰流肋的冷气通道模型

Figure 12. Cooling channal model with ribs

下载: 全尺寸图片幻灯片

图 13 尾缘孔模型

Figure 13. Tail edge holes model

下载: 全尺寸图片幻灯片

图 14 参数化造型流程图

Figure 14. Work flow of parametric modeling

下载: 全尺寸图片幻灯片

图 15 叶片温度分布

Figure 15. Temperature distribution of blade

下载: 全尺寸图片幻灯片

图 16 原始模型叶身拉伸应力及弯曲应力合力

Figure 16. Resultant force of tensile stress and bending stress of blade

下载: 全尺寸图片幻灯片

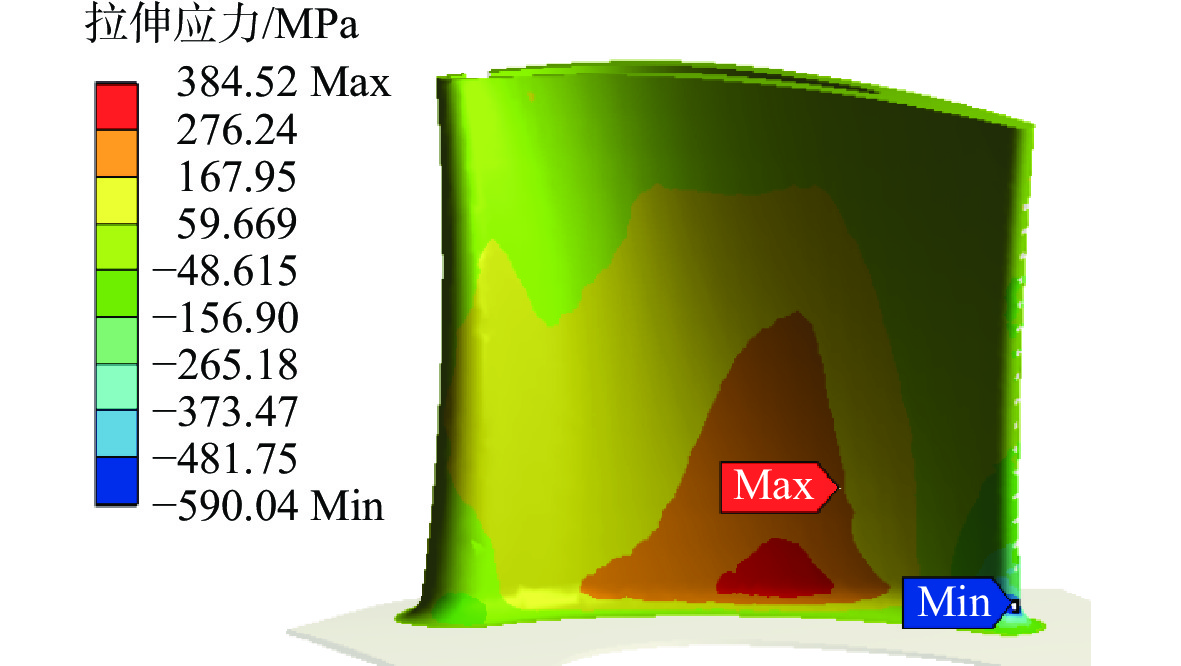

图 17 原始模型叶身拉伸应力

Figure 17. Tensile stress of blade

下载: 全尺寸图片幻灯片

图 18 优化流程

Figure 18. Work flow of optimization

下载: 全尺寸图片幻灯片

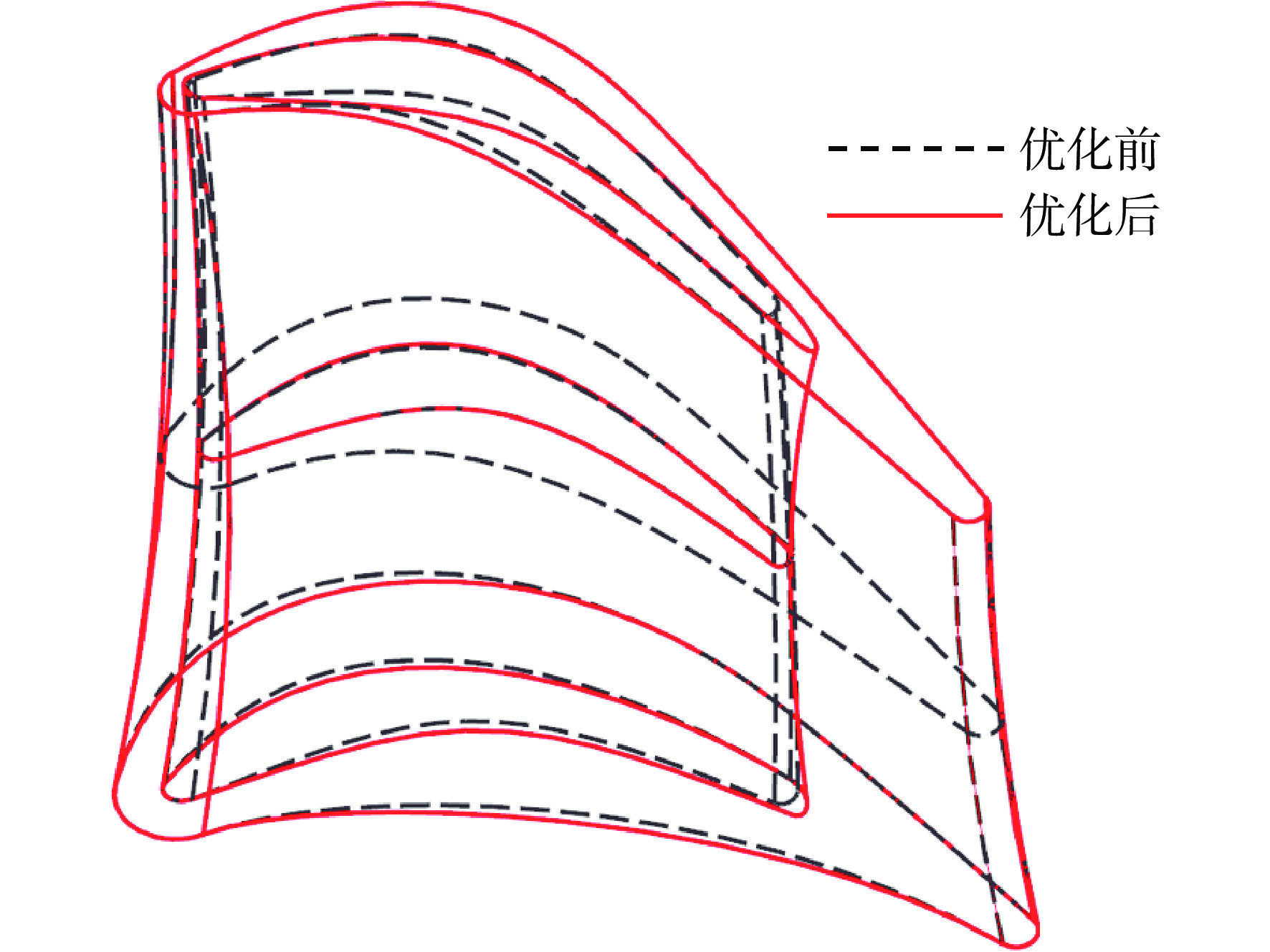

图 19 优化前后叶片叶型对比

Figure 19. Comparison of blade before and after optimization

下载: 全尺寸图片幻灯片

图 20 优化前后叶片尾缘圆角对比

Figure 20. Comparison of blade before and after optimization

下载: 全尺寸图片幻灯片

图 21 优化后叶身拉伸应力及弯曲应力合力大小

Figure 21. Resultant stress of tensile stress and bending stress of blade

下载: 全尺寸图片幻灯片

图 22 优化后叶身拉伸应力

Figure 22. Tensile stress of blade

下载: 全尺寸图片幻灯片

图 23 冷气入口处结构强度分析结果

Figure 23. Strength of structure analysis result in cooling inlet

下载: 全尺寸图片幻灯片

图 24 冷气入口面积控制流程

Figure 24. Work flow of cooling inlet aera control

下载: 全尺寸图片幻灯片

图 25 冷气入口面积控制

Figure 25. Cooling inlet aera control

下载: 全尺寸图片幻灯片

图 26 优化前后冷气入口形状对比

Figure 26. Comparison of cooling inlet before and after optimization

下载: 全尺寸图片幻灯片

图 27 优化后冷气入口最大应力

Figure 27. Maximum stress of optimized cooling inlet

下载: 全尺寸图片幻灯片

叶尖高度	h_t/mm	几何出气角	α_out/（°）
叶根高度	h_r/mm	进气角	β₁/（°）
弦长中心	（x_cc, y_cc）/mm	出气角	β₂/（°）
前缘半径	r_l/mm	攻角	i/（°）
尾缘半径	r_t/mm	喉部宽度	w_th/mm
轴向弦长	L/mm	尾缘弯折角	α_tur/（°）
安装角	α_ins/（°）	前楔角	α_wf/（°）
几何进气角	α_in/（°）	后楔角	α_wb/（°）

下载: 导出CSV

表 1 重构误差

Table 1. Reconstruction error

比较项目	最大值	平均值	标准差
整体误差/mm	0.173	0.032	0.075
弯曲度/mm	0.2341	0.2509	0.0168
扭曲度/（°）	17.6304	17.5290	0.1014

下载: 导出CSV

表 2 边界条件设置表

Table 2. Boundary conditions table

参数	设置
旋转周期对称	设置于涡轮盘的一对周期对称面上
转速/（r/min）	根据实际工况给定（优化算例中为 35 000 r/min）
接触	榫头榫槽对应榫齿面施加bonded约束
涡轮盘温度/℃	见式（2）
叶片温度/℃	由CFX固体域温度导入
叶片表面压力/MPa	CFX固体域表面压力

下载: 导出CSV

表 3 优化变量

Table 3. Optimization variable

截面位置		参数
叶尖	叶型参数	B_ep2
叶尖	壁厚参数	h_b2、h_b3
叶中	叶型参数
叶中	壁厚参数	h_b1
叶根	叶型参数	B_eb1、B_ep2、B_ep1
叶根	壁厚参数	h_b3

下载: 导出CSV

表 4 设计变量前后对比

Table 4. Comparison of design variable

截面位置	变量	优化前	优化后
叶根	B_eb1	0.531	0.889
	B_ep2	0.574	0.417
	B_ep1	0.351	0.889
	h_b3	1.336	1.292
叶中	h_b1	0.781	0.753
叶尖	h_b2	1.164	1.079
	h_b3	0.738	0.656
	B_ep2	0.881	0.764

下载: 导出CSV

表 5 叶身最大拉伸应力及质量优化结果

Table 5. Optimized result of blade maximum stress and mass

模型	最大拉伸应力/MPa	质量/g
原始设计	590.04	28.32
优化设计	551.37	28.04
变化幅度/%	6.55	0.99

下载: 导出CSV

表 6 优化结果

Table 6. Optimized result

模型	最大等效应力/MPa
原始设计	663.97
优化设计	637.59
变化幅度/%	3.97

下载: 导出CSV
