两级推进单轨火箭橇试验研究

夏有财; 孔维红; 孙其会; 张浩; 刘奎显; 安明明; 李俊耀; 马骏

doi:10.13224/j.cnki.jasp.20230370

两级推进单轨火箭橇试验研究

doi: 10.13224/j.cnki.jasp.20230370

中国华阴兵器试验中心，陕西华阴 714200

详细信息

作者简介:
夏有财（1994-），男，工程师，硕士，主要从事火箭橇试验技术研究。E-mail：xiayoucai16@nudt.edu.cn

中图分类号: V411.3
计量
- 文章访问数: 788
- HTML浏览量: 381
- PDF量: 50
- 被引次数: 0
出版历程
- 收稿日期: 2023-06-04
- 网络出版日期: 2024-06-23

Experimental study on two-stage propulsion monorail rocket sled

China Huayin Ordnance Test Center，Huayin Shaanxi 714200，China

摘要

摘要:
为了在现有条件下提高火箭橇试验速度，设计了两级推进单轨火箭橇车结构，开发了软件进行试验弹道设计和计算。采用减速伞对一级橇车、泡沫水盒对二级橇车进行减速回收，试验验证了减速效果；研究了多级单轨橇车高速运动过程中发动机动点火技术和橇车级间分离技术，试验验证了时控器控制二级发动机点火和减速伞抛出方案效果；使用高速相机、网靶等进行测量，得到了橇车运动速度、图像等数据。结果表明：两级橇车结构合理可靠，较好完成试验任务；时控器按设定时间触发二级发动机和减速装置，表明其能安全、可靠应用于火箭橇试验；减速伞在高过载下被提前甩出，需对减速装置改进设计；二级橇车在轨道上成功刹车回收，泡沫水盒对单轨橇车减速效果高效可靠。
- 两级火箭橇 /
- 单轨火箭橇 /
- 火箭橇试验 /
- 弹道计算 /
- 火箭橇车回收 /
- 减速伞
Abstract:
In order to improve the speed of rocket sled test under existing conditions, a two-stage propulsion monorail rocket sled structure was designed, and the test trajectory was designed and calculated according to the sled structure and the use of engines. Decelerating parachute and foam water tank were used to decelerate and recover the first and second stage sleds respectively, and the deceleration effect was verified by tests; the engine ignition technology and the separation technology between the stages of the multi-stage monorail sled during high-speed movement were studied, and the effect of the time controller controlling the ignition of the secondary engine and the throwing of the parachute was verified; the sled moving speed during the test was obtained by using high-speed camera and net target. It was concluded that, with the smooth completion of the test task, the structure of the two-stage sled was proved reasonable and reliable; the time controller triggered the secondary engine and deceleration device according to the set time, indicating that it can be safely and reliably applied to the rocket sled test; the deceleration parachute was thrown out in advance under high overload, so the design of the deceleration device needs to be improved; the secondary sled was successfully braked and recovered on the track, and the foam water tank had an efficient and reliable deceleration effect on the monorail sled.
- two-stage rocket sled /
- monorail sled /
- rocket sled test /
- trajectory calculation /
- rocket sled recovery /
- deceleration parachute

HTML

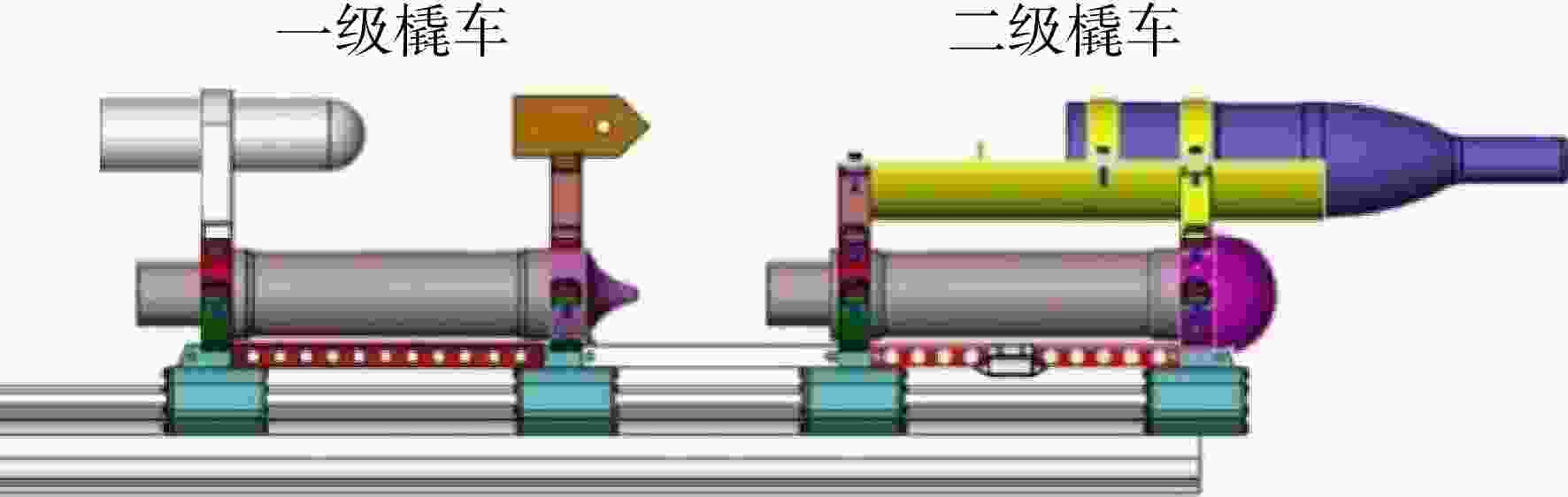

图 1 两级单轨橇车结构示意图

Figure 1. Structural diagram of two-stage monorail sled

下载: 全尺寸图片幻灯片

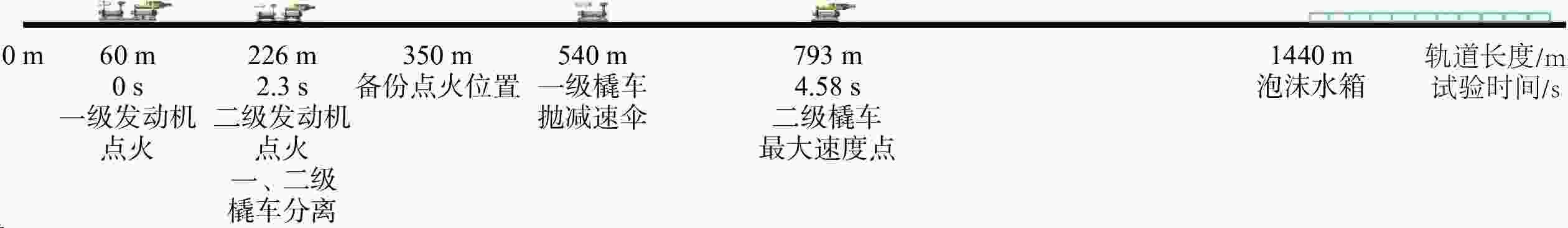

图 2 试验流程图

Figure 2. Test flow diagram

下载: 全尺寸图片幻灯片

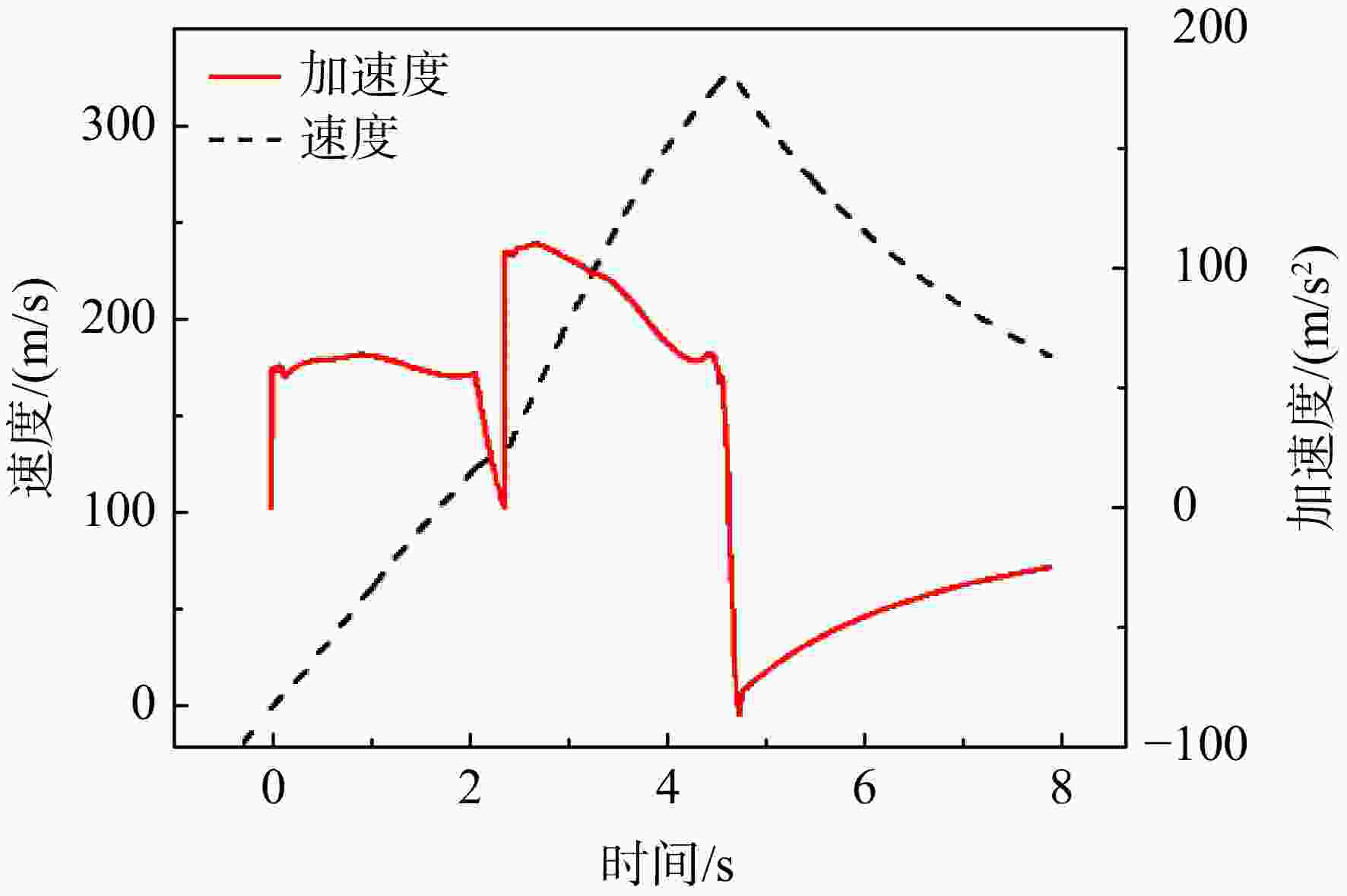

图 3 橇车运动速度、加速度与时间关系图

Figure 3. Graph of relationship between sled speed,acceleration and time

下载: 全尺寸图片幻灯片

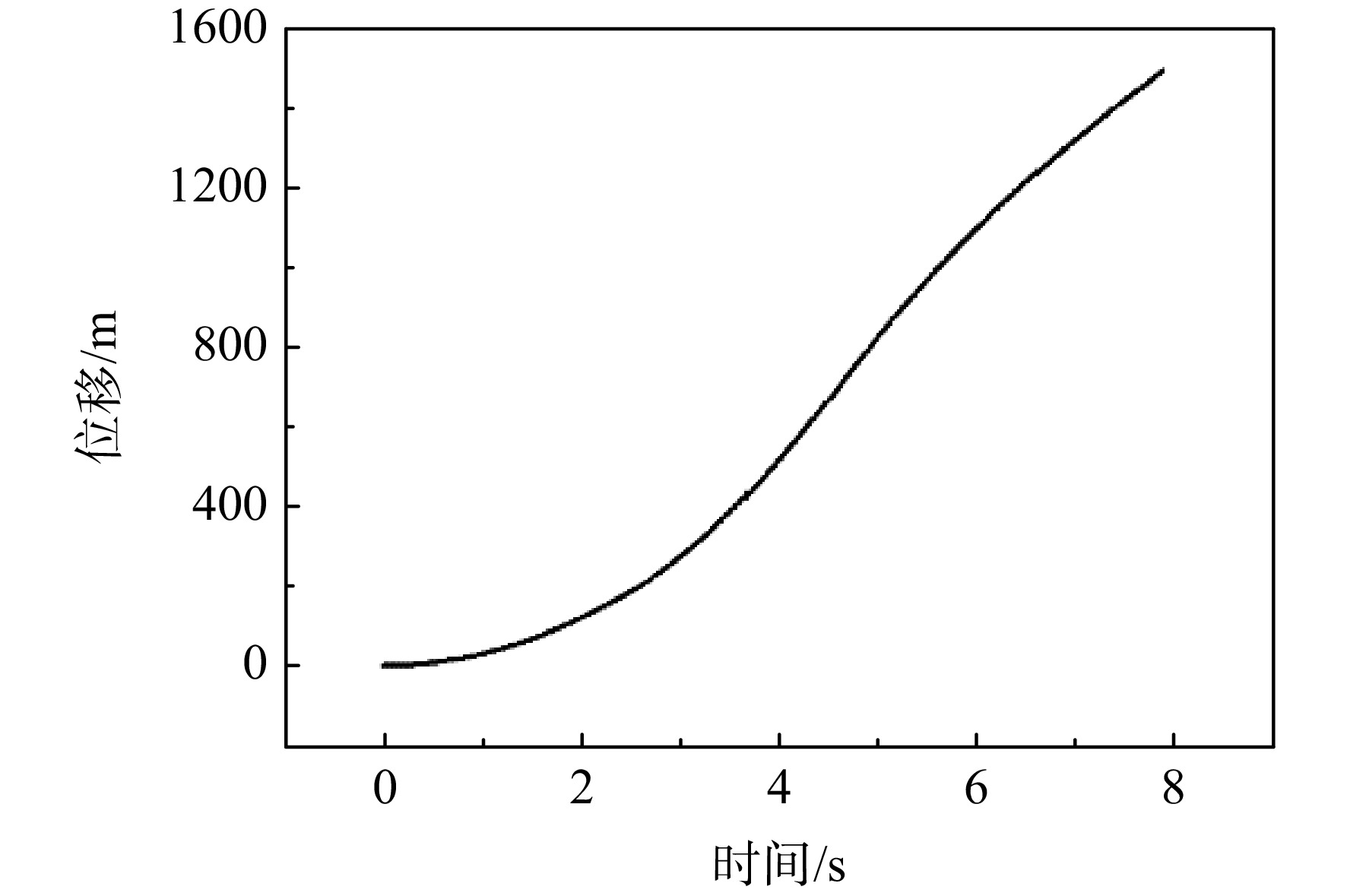

图 4 橇车运动位移-时间关系图

Figure 4. Graph of relationship between sled displacement and time

下载: 全尺寸图片幻灯片

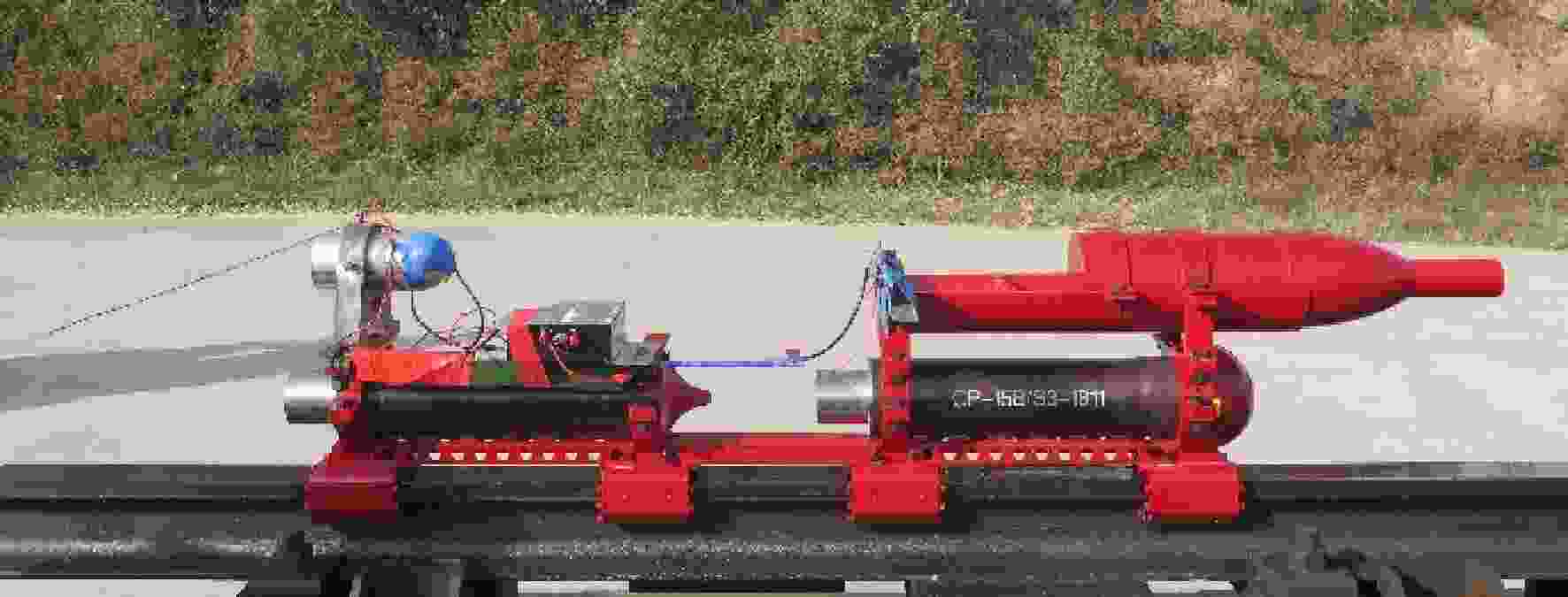

图 5 火箭橇试验前状态

Figure 5. Status of rocket sled before test

下载: 全尺寸图片幻灯片

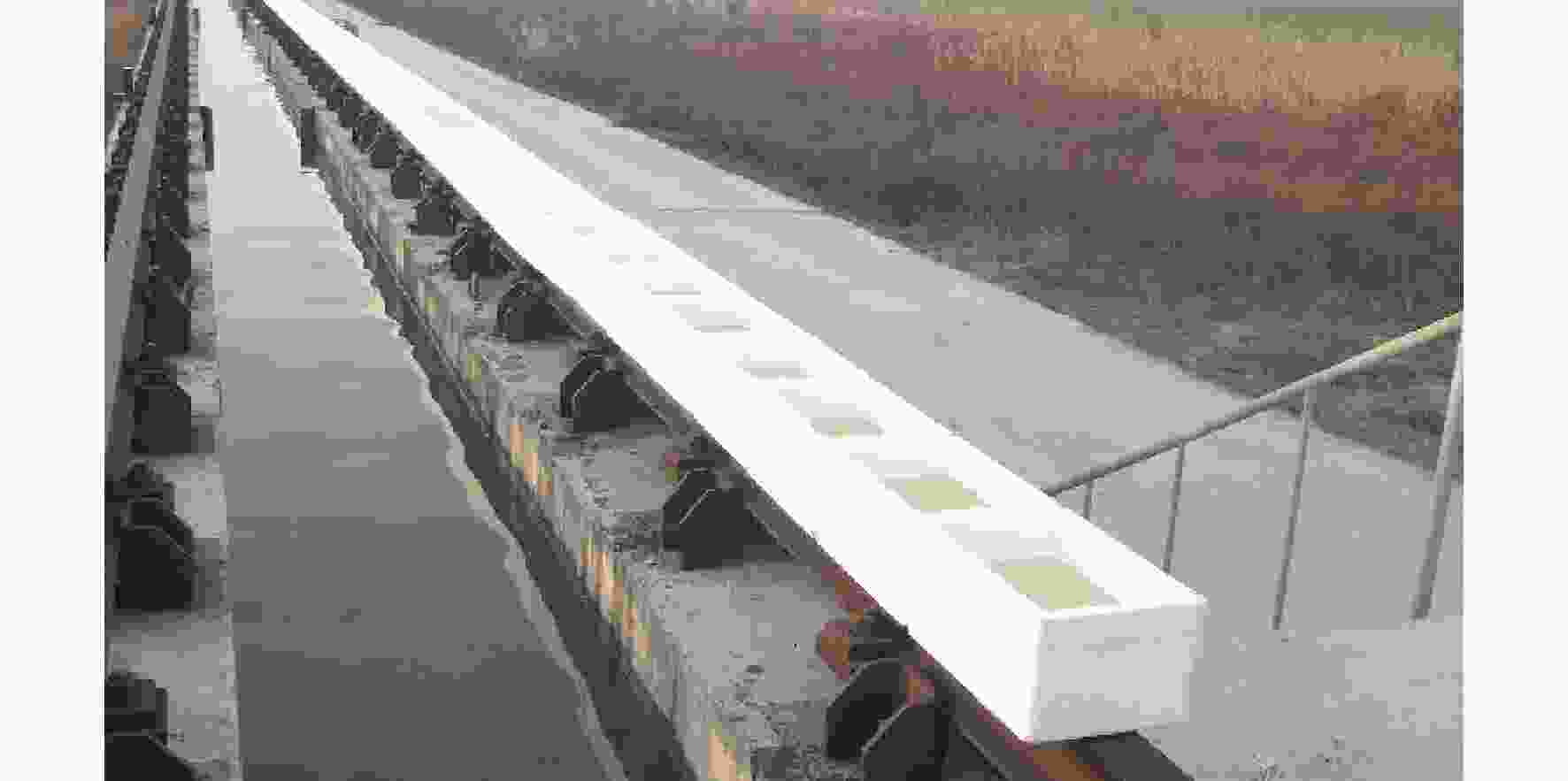

图 6 泡沫水盒布设情况

Figure 6. Layout of foam water tank

下载: 全尺寸图片幻灯片

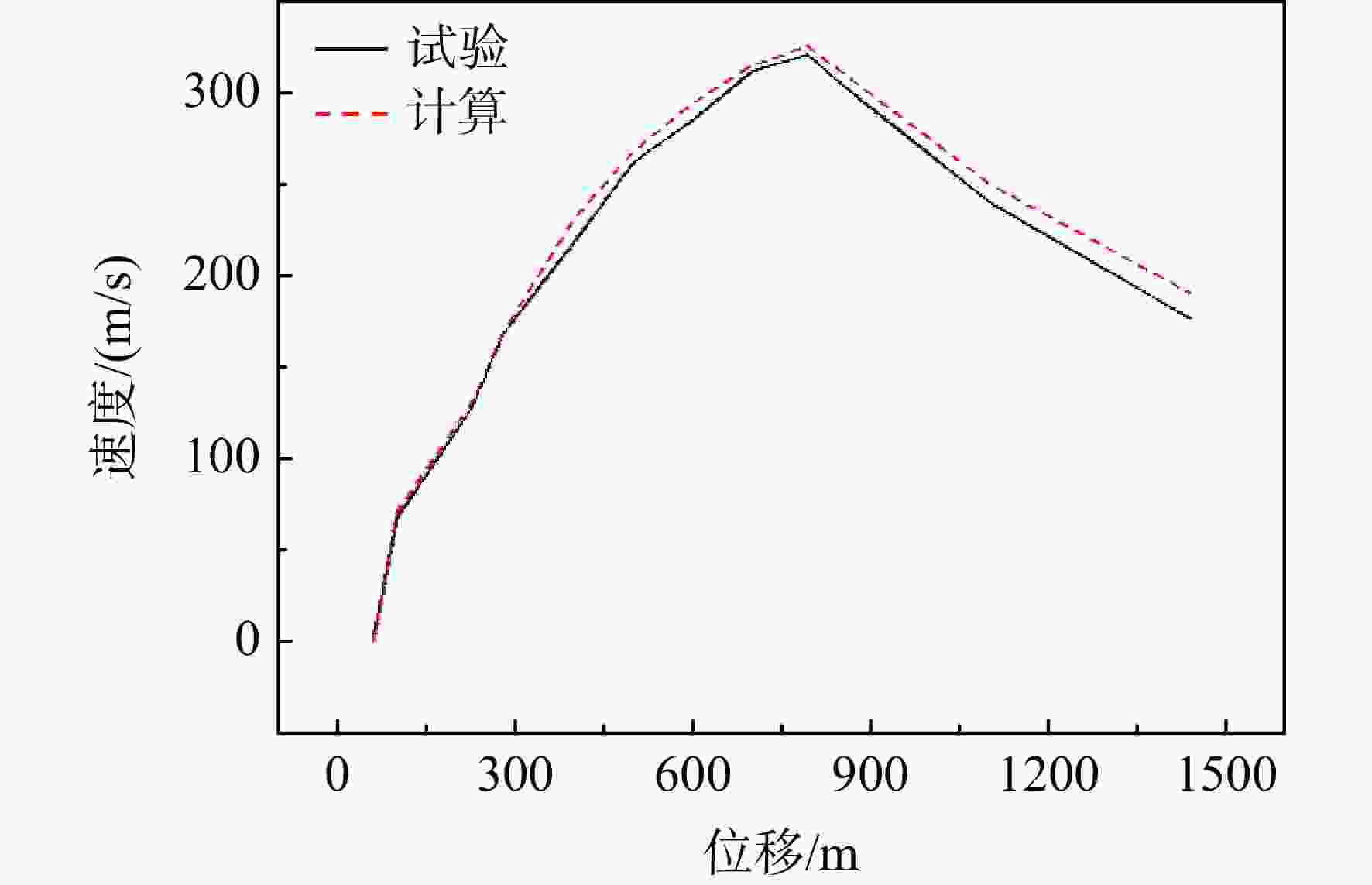

图 7 橇车运动速度计算与试验结果对比

Figure 7. Comparison of sled motion speed calculation and test results

下载: 全尺寸图片幻灯片

图 8 试验中一级橇车运动状态

Figure 8. Movement status of the first stage during test

下载: 全尺寸图片幻灯片

图 9 试验中二级橇车运动状态

Figure 9. Movement status of the second stage during test

下载: 全尺寸图片幻灯片

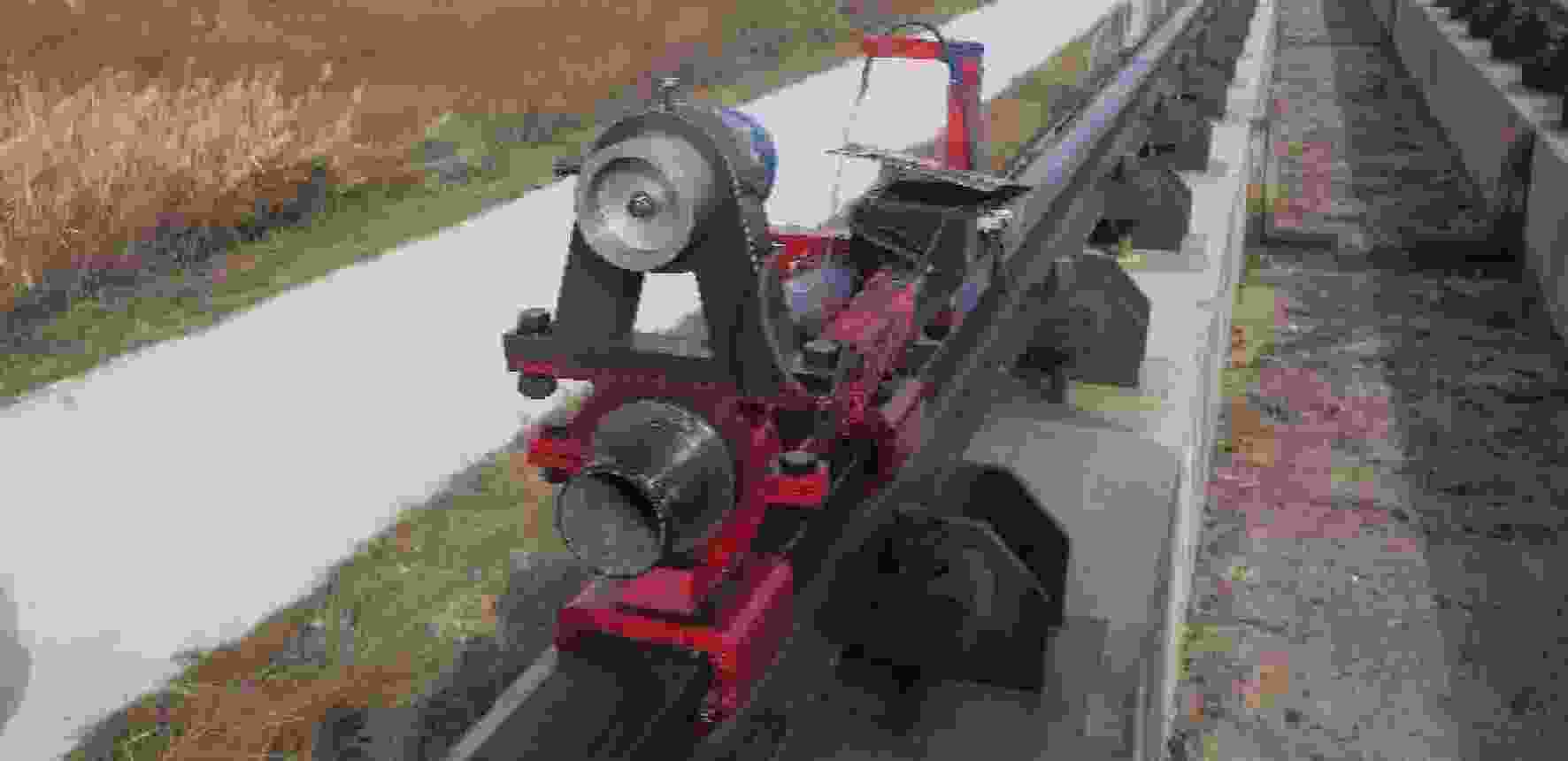

图 10 试验后一级橇车状态

Figure 10. First stage status after test

下载: 全尺寸图片幻灯片

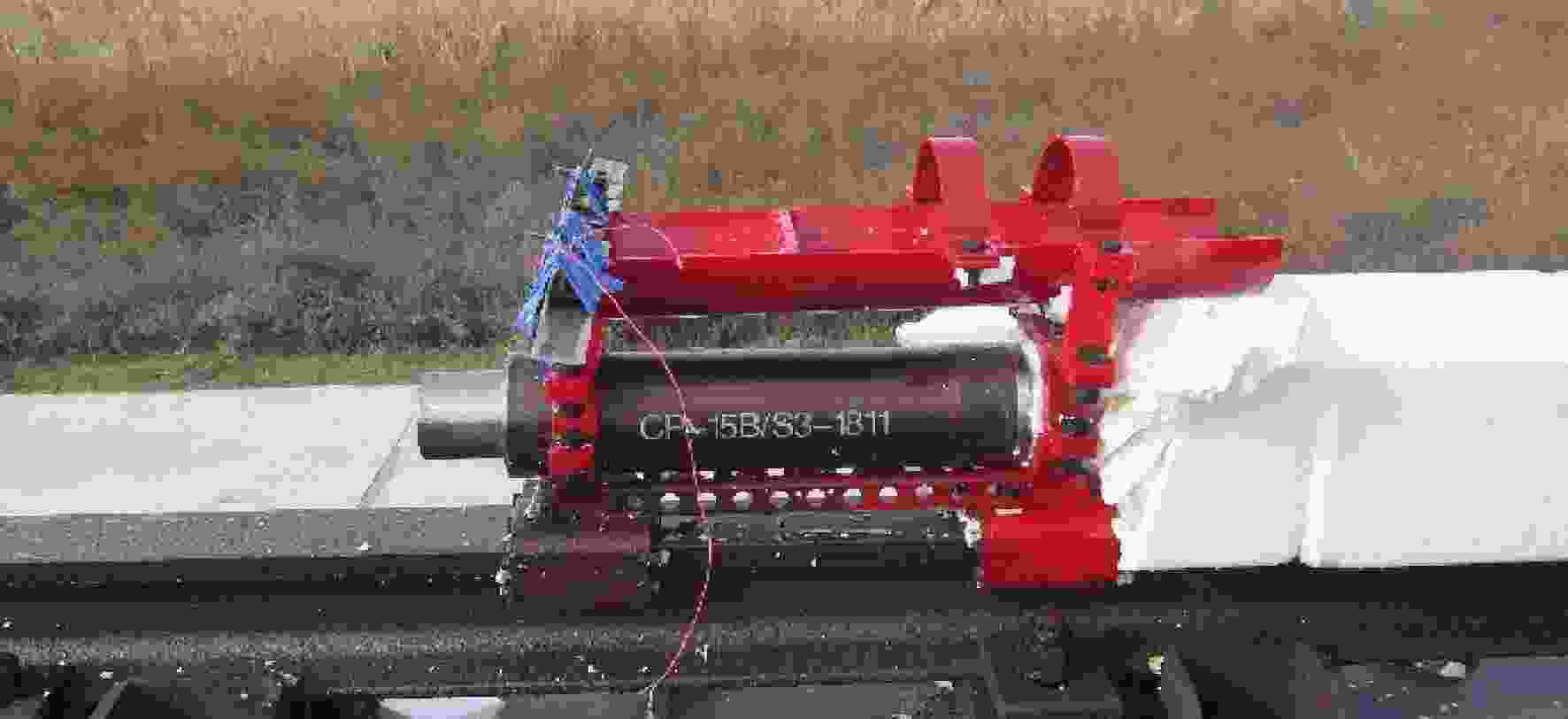

图 11 试验后二级橇车状态

Figure 11. Second stage status after test

下载: 全尺寸图片幻灯片

表 1 计算结果与试验结果对比

Table 1. Comparison between calculation and test results

参数试验编号
1 2 3

试验速度/（m/s） 273.00 398.00 514.00
计算速度/（m/s） 272.71 384.16 541.30
误差/% 0.11 3.48 5.31

下载: 导出CSV
