失速先兆与叶尖端壁流场特性的关联性试验

马彩东; 韩冬; 程邦勤; 尉洋; 张小博; 张斐

doi:10.13224/j.cnki.jasp.20230453

失速先兆与叶尖端壁流场特性的关联性试验

doi: 10.13224/j.cnki.jasp.20230453

1.
空军工程大学航空工程学院，西安 710038
2.
中国人民解放军 93313部队，长春 130000

基金项目: 国家重大科技专项（2017-Ⅱ-0005）；陕西省自然科学基础研究计划项目（2023-JC-QN-0590）

详细信息

作者简介:
马彩东（1985-），男，讲师，博士，主要从事叶轮机械气动热力学研究。E-mail：m020510637@163.com

中图分类号: V231.3
计量
- 文章访问数: 731
- HTML浏览量: 368
- PDF量: 38
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-13
- 网络出版日期: 2024-05-21

Experiment on the relationship between stall inception and flow field characteristics on rotor tip casing-wall

1.
Aviation Engineering School，Air Force Engineering University，Xi’an 710038，China
2.
No. 93313 Unit，the Chinese People’s Liberation Army，Changchun 130000，China

摘要

摘要:
为了研究失速先兆与转子叶尖端壁流场特性的关联性，对一台单转子低速轴流压气机进行了节流特性试验，采用转子叶尖端壁周向和弦向布置动态压力传感器的方法，测得了整个节流过程的动态压力信号，系统分析了失速先兆前后叶尖端壁流场特性的变化规律，结果表明：近失速工况点，叶片通道中存在叶顶泄漏流与叶顶二次泄漏流两种不同的泄漏流形态，失速先兆形成前叶顶泄漏流稳定在叶尖前缘；形成突尖型失速先兆时，失速扰动区域的叶顶泄漏流在叶尖前缘摆动；突尖型失速先兆的形成与叶尖局部区域叶顶泄漏流的不稳定性相关，是叶顶泄漏流不稳定性的外在表象；压气机失速后，失速扰动区域的叶顶泄漏流从叶尖前缘溢出，失速扰动演变为周向传播的失速团。试验测量过程中，动态压力传感器的布置方法可有效捕捉产生失速先兆时叶尖端壁的流场特性。
- 轴流压气机 /
- 失速先兆 /
- 节流特性 /
- 叶顶泄漏流 /
- 失速团
Abstract:
In order to study the relationship between the stall inception and the flow field characteristics on rotor tip casing-wall, the throttling characteristics of a low-speed isolated rotor axial compressor was experimentally investigated. Dynamic pressure signals were measured during the throttling process by dynamic pressure sensors on the casing-wall at the rotor tip circumferential and chord-wise locations. The flow field characteristics on rotor tip casing-wall before and after the stall inception were analyzed systematically. The results showed that at the near stall condition, the tip leakage flow and the tip secondary leakage flow were in the blade passage, the tip leakage flow was stable at the rotor tip leading-edge; the tip leakage flow in the stall disturbance region swung at the rotor tip leading-edge when the spike-type stall inception occurred, the formation of spike-type stall inception was related to the instability of tip leakage flow in the local area of rotor tip as an external appearance of the tip leakage flow instability; after stall of the compressor, the tip leakage flow in the stall disturbance region spilled from the rotor tip leading-edge, the stall disturbance evolved into stall cell which rotated in circumference. During the experiment, the arrangement method of dynamic pressure sensors can effectively capture the flow field characteristics on rotor tip casing-wall when stall inception occurred.
- axial compressor /
- stall inception /
- throttling characteristic /
- tip leakage flow /
- stall cell

HTML

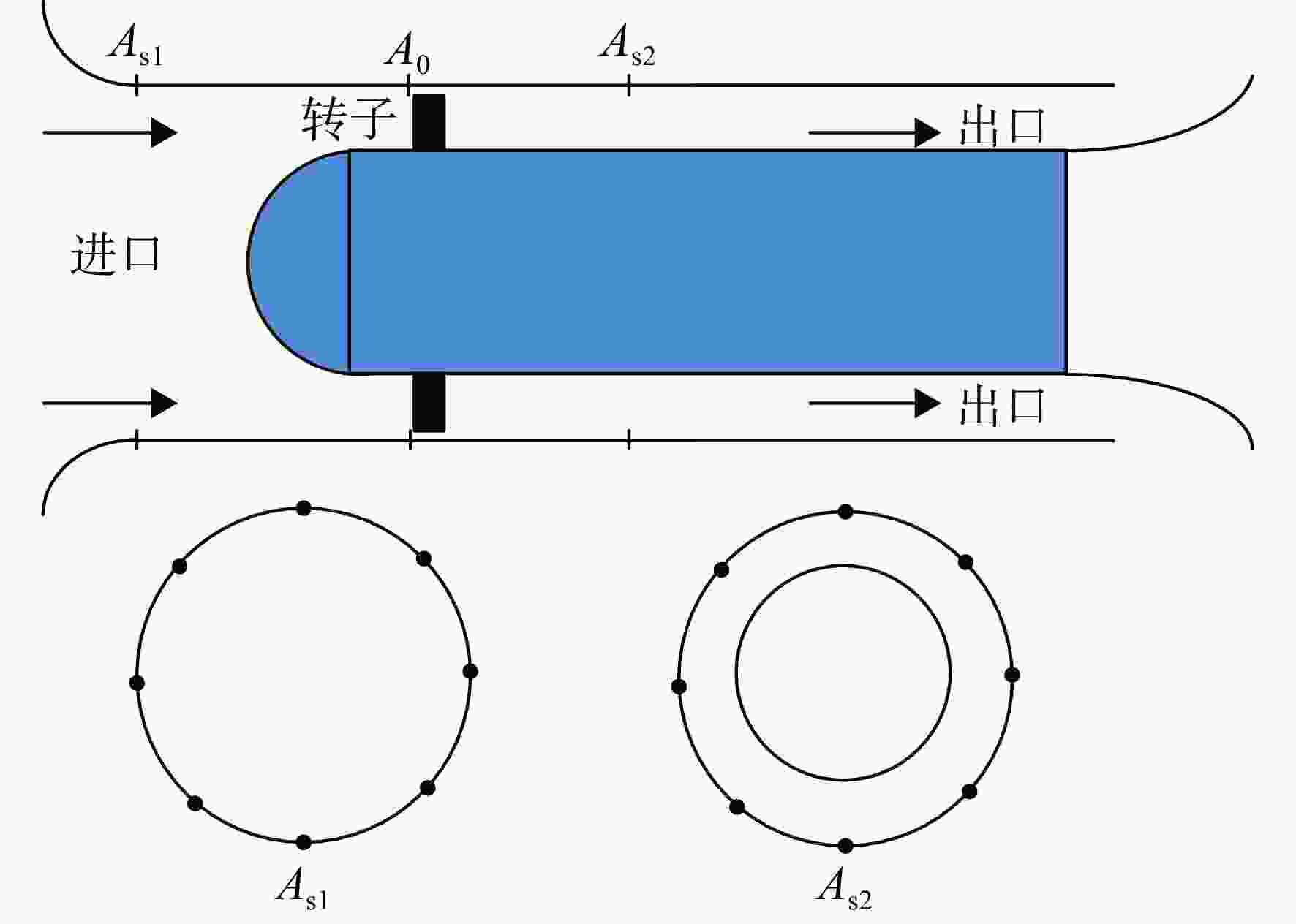

图 1 压气机结构及压力测量位置示意图

Figure 1. Configuration of the compressor

下载: 全尺寸图片幻灯片

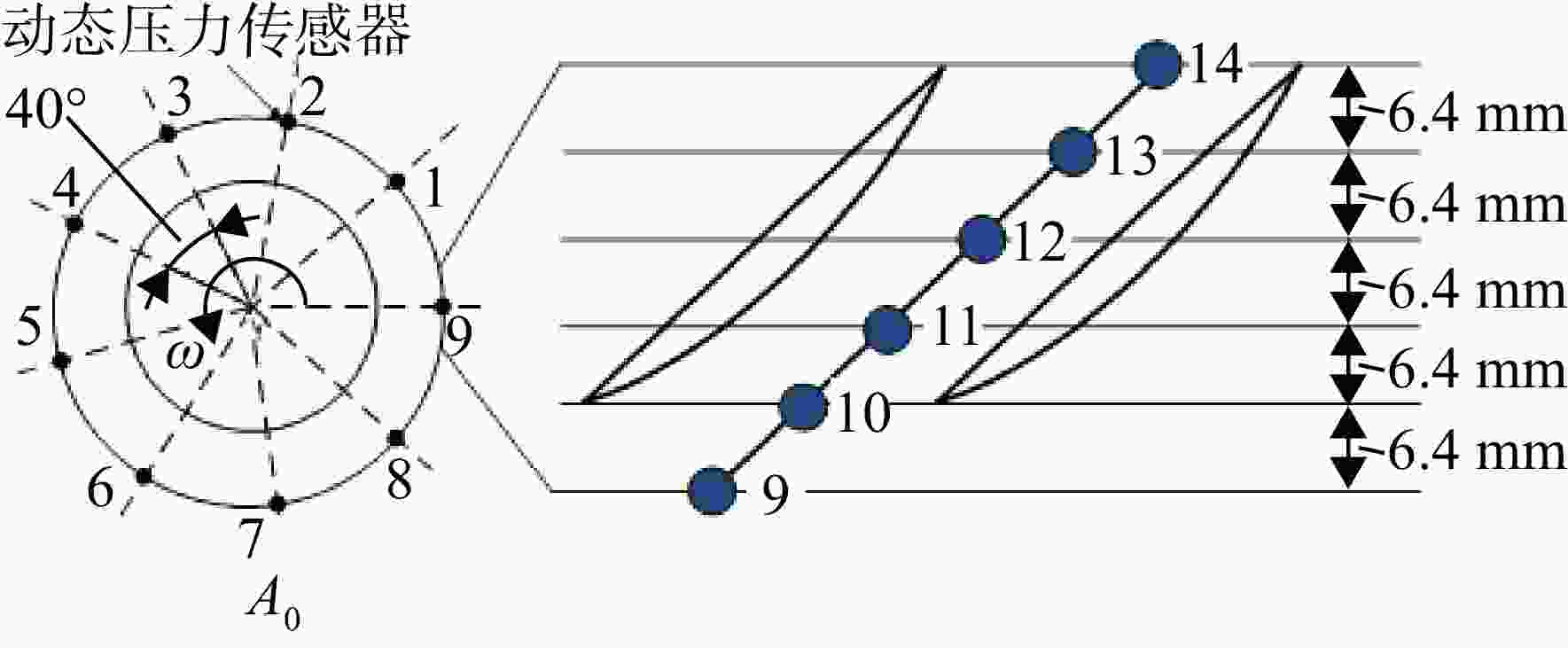

图 2 周向和弦向传感器的安装位置

Figure 2. Installation position of circumferential and chord-wise sensors

下载: 全尺寸图片幻灯片

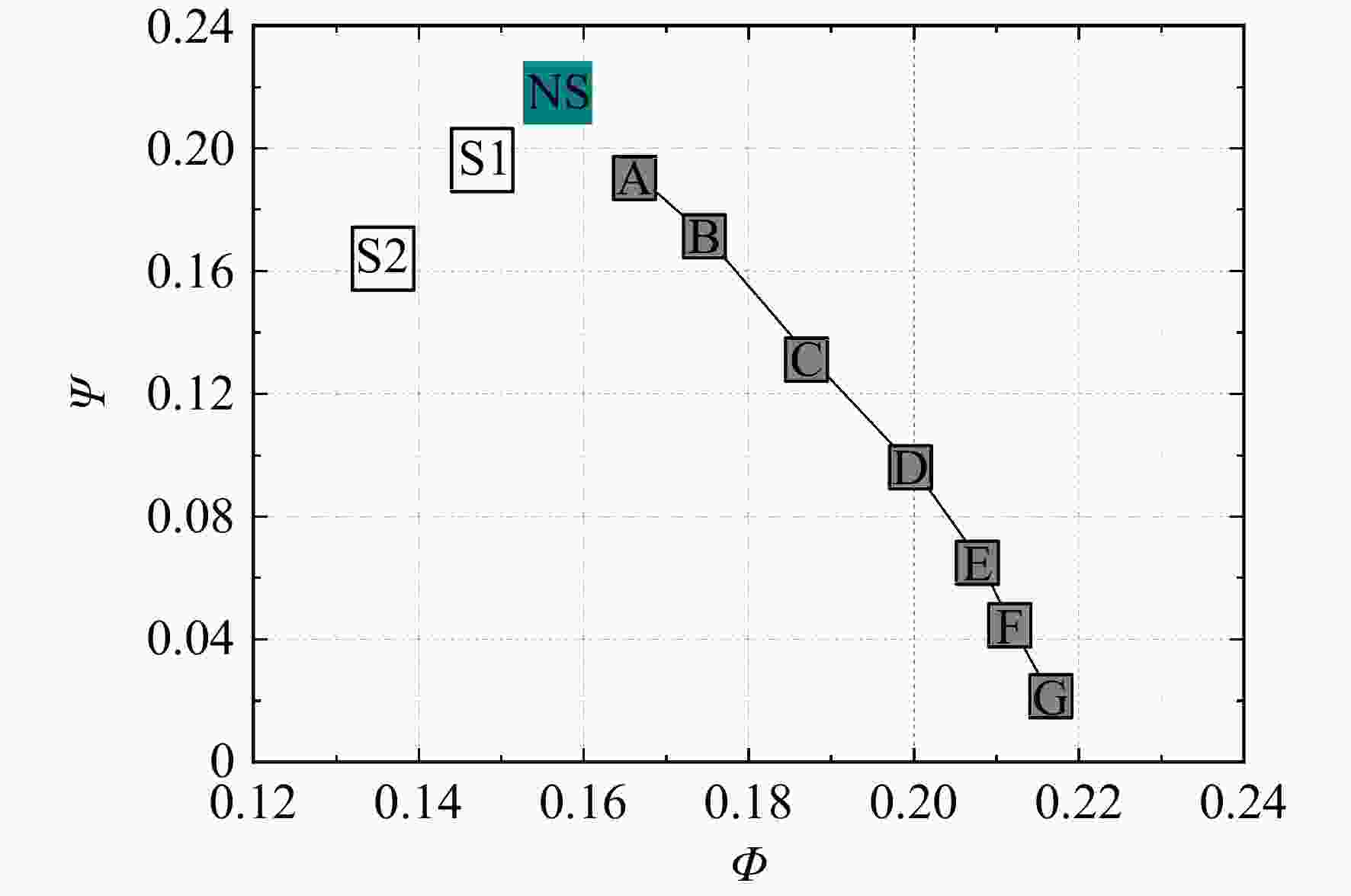

图 3 3 000 r/min转速下压气机流量系数-总静压升特性曲线

Figure 3. Compressor performance curve at rotating speed of 3 000 r/min

下载: 全尺寸图片幻灯片

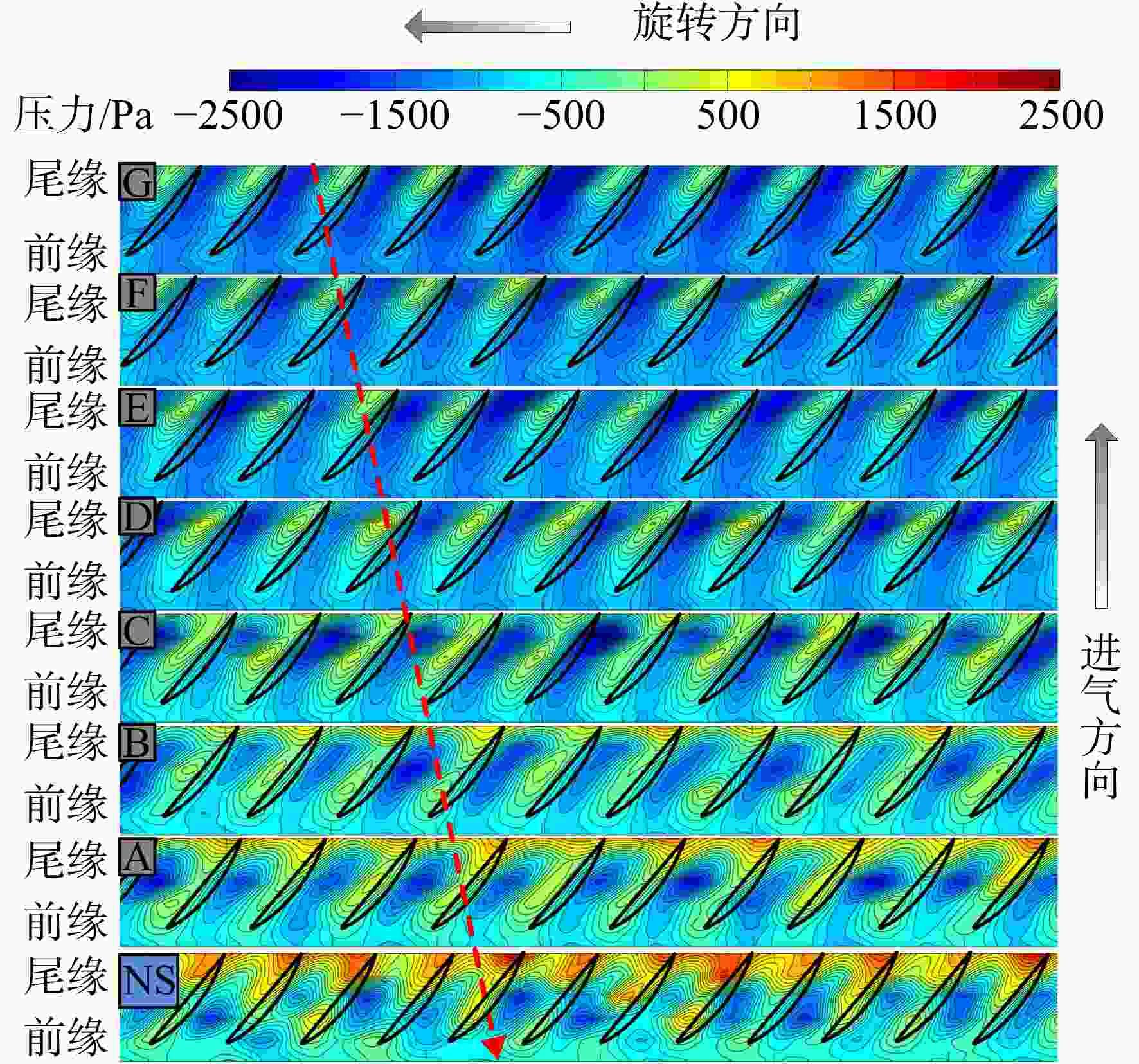

图 4 压气机不同工况点的壁面压力云图

Figure 4. Casing pressure contours at different throttling conditions

下载: 全尺寸图片幻灯片

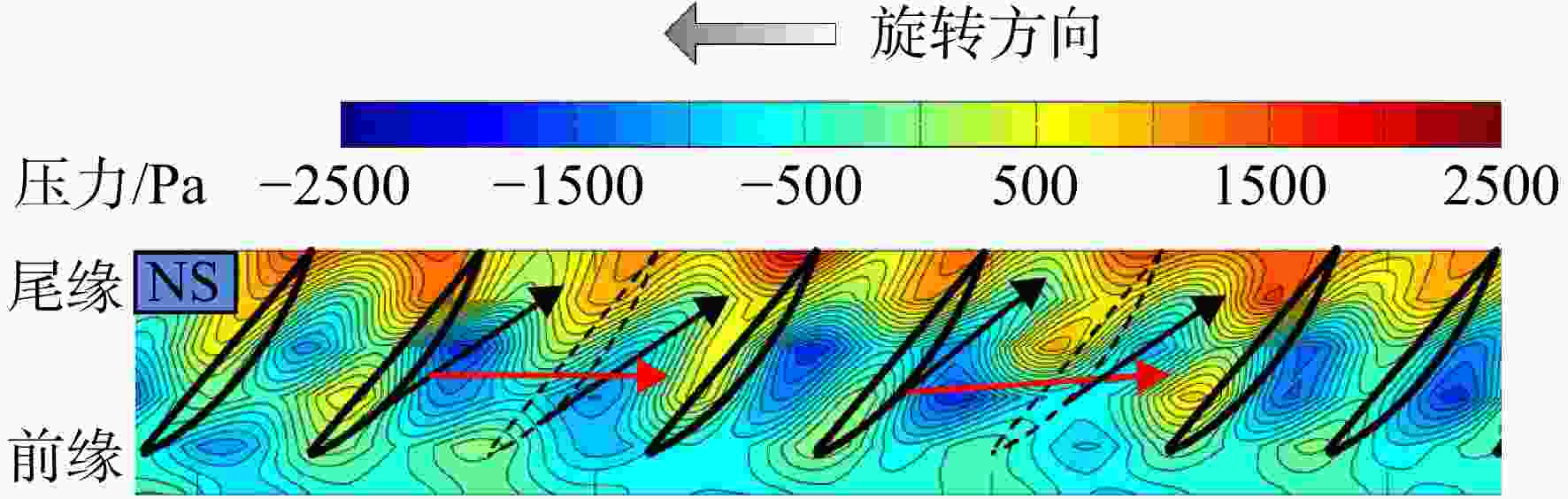

图 5 近失速工况点的壁面压力云图

Figure 5. Casing pressure contours at near stall condition

下载: 全尺寸图片幻灯片

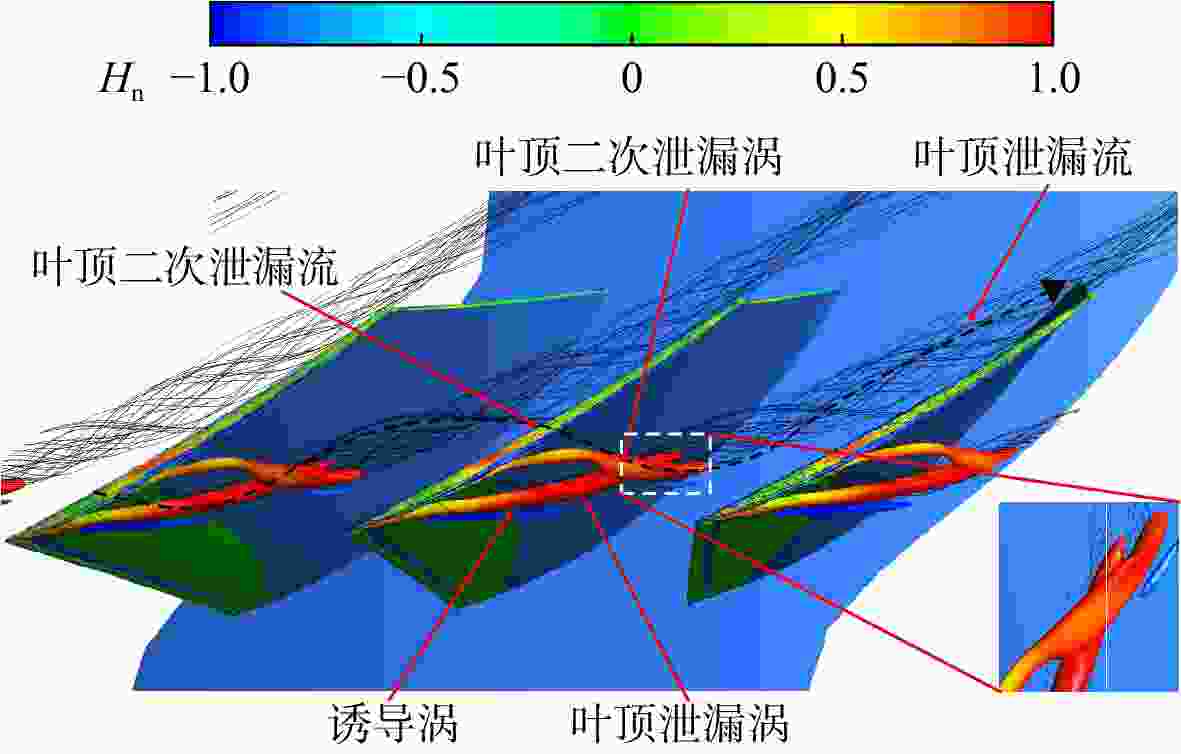

图 6 叶顶涡结构及泄漏流粒子示踪^[9]

Figure 6. Vortex cores and tip leakage streamline^[9]

下载: 全尺寸图片幻灯片

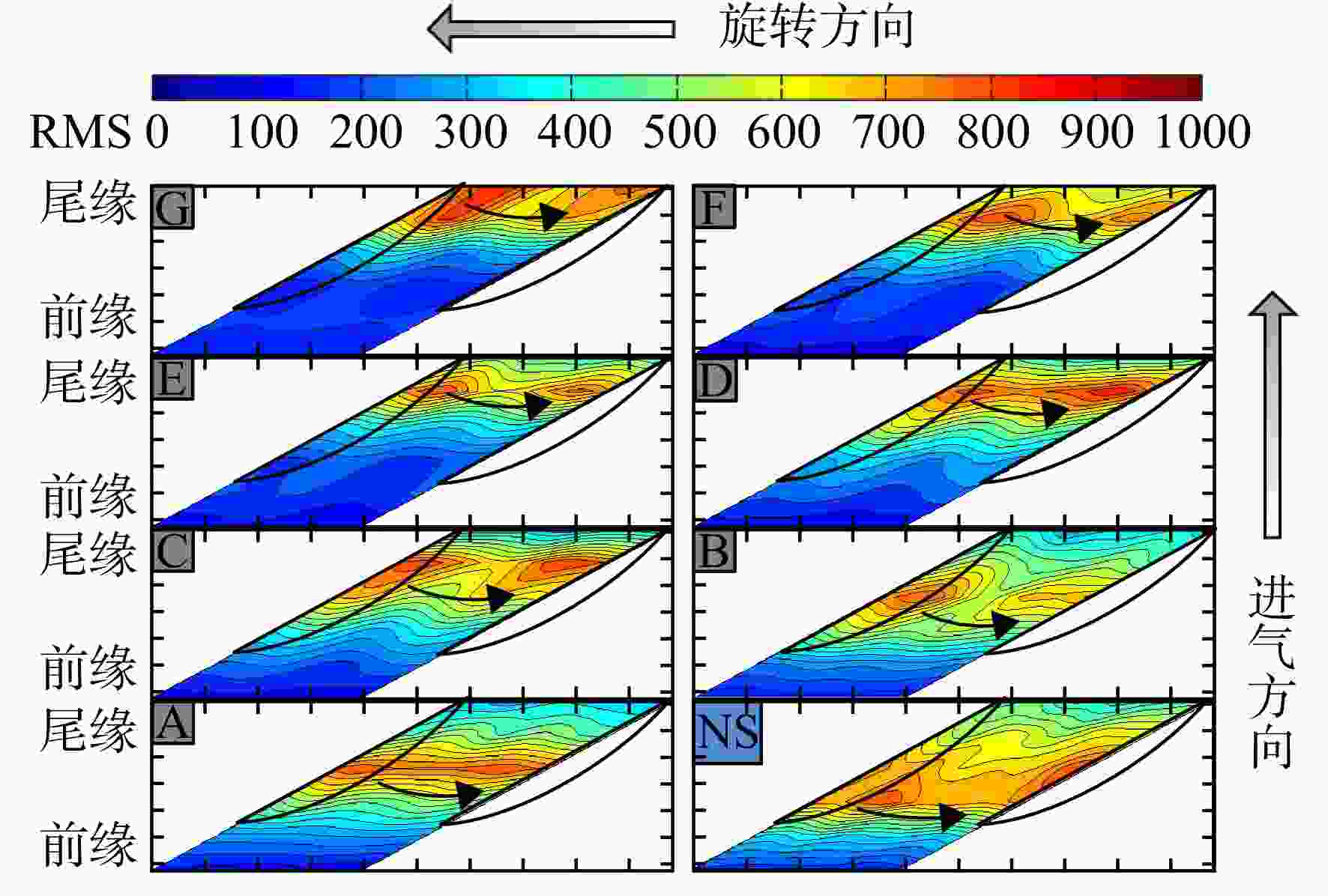

图 7 叶尖端壁锁相RMS压力脉动云图

Figure 7. Casing pressure RMS contours

下载: 全尺寸图片幻灯片

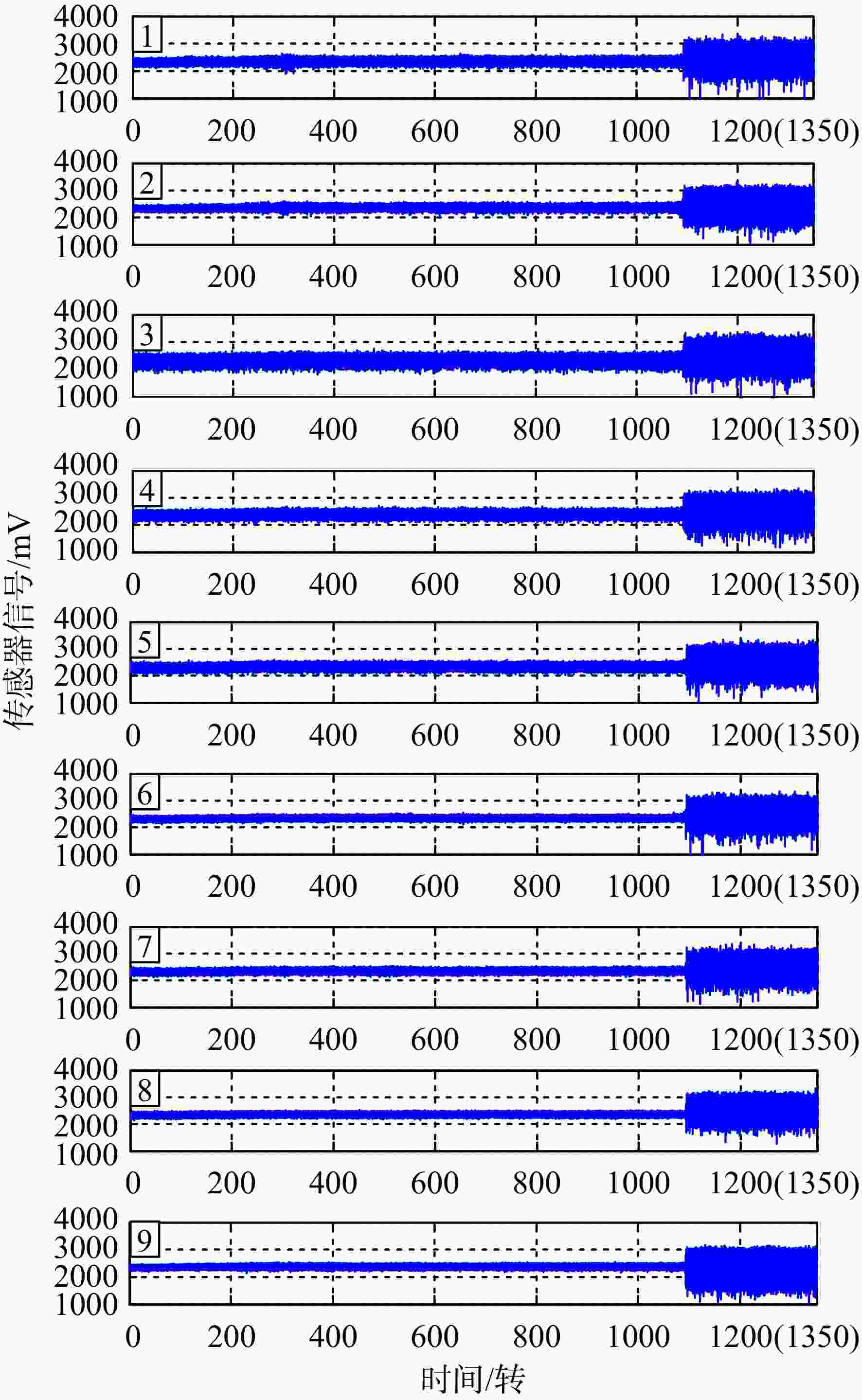

图 8 周向传感器的动态压力信号

Figure 8. Dynamic pressure signal of circumferential sensors

下载: 全尺寸图片幻灯片

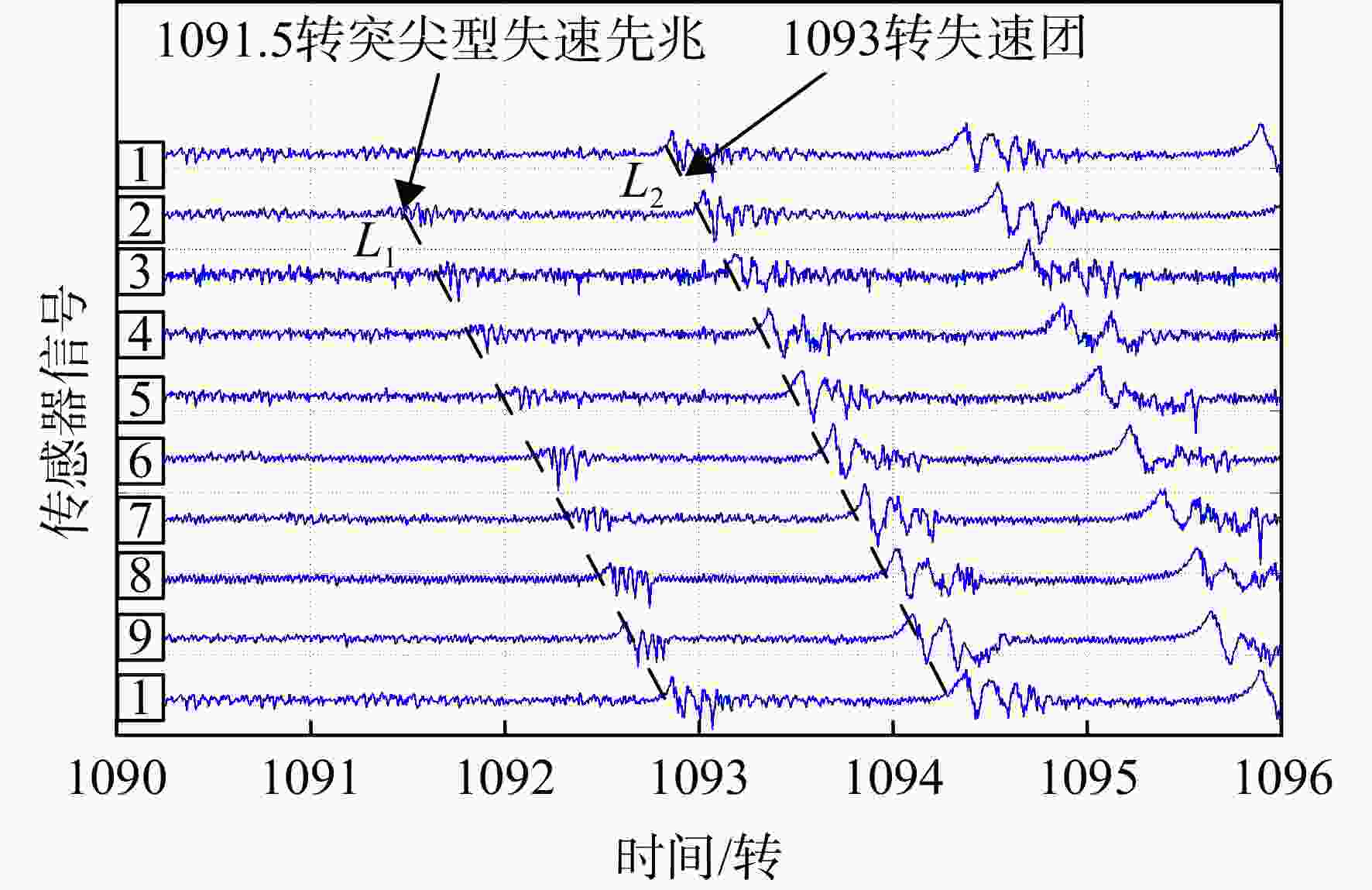

图 9 周向传感器的动态压力信号1090～1096转

Figure 9. Dynamic pressure signal of circumferential sensors at 1090—1096 revolution

下载: 全尺寸图片幻灯片

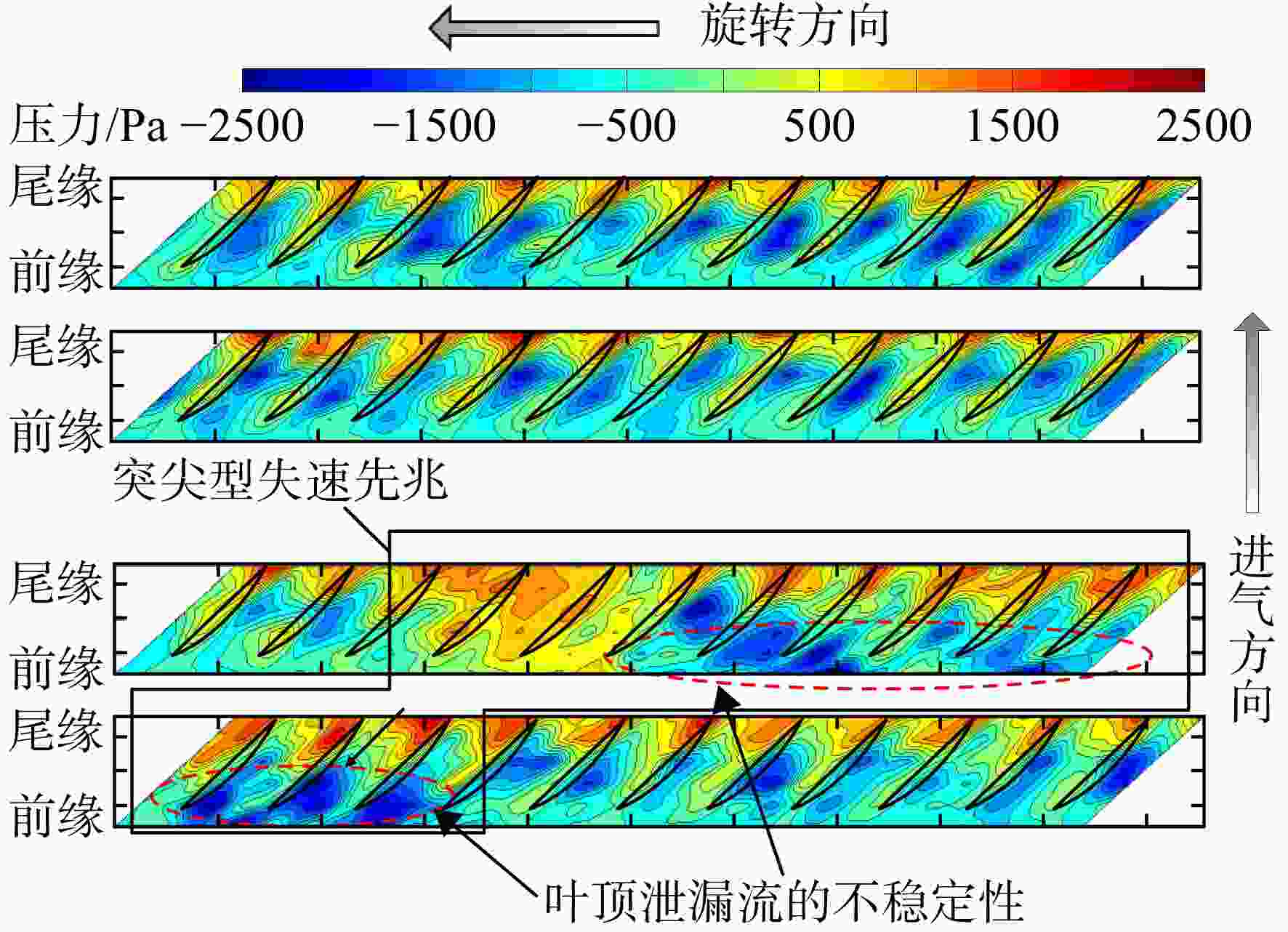

图 10 1 092～1 093转叶尖端壁的壁面压力云图

Figure 10. Casing pressure contours at 1 092—1 093 revolution

下载: 全尺寸图片幻灯片

图 11 1 092～1 095转弦向传感器的动态压力信号

Figure 11. Dynamic pressure signal of chord-wise sensors at1 092—1 095 revolution

下载: 全尺寸图片幻灯片

图 12 1094～1095转叶尖端壁的壁面压力云图

Figure 12. Casing pressure contours at 1094—1095 revolution

下载: 全尺寸图片幻灯片

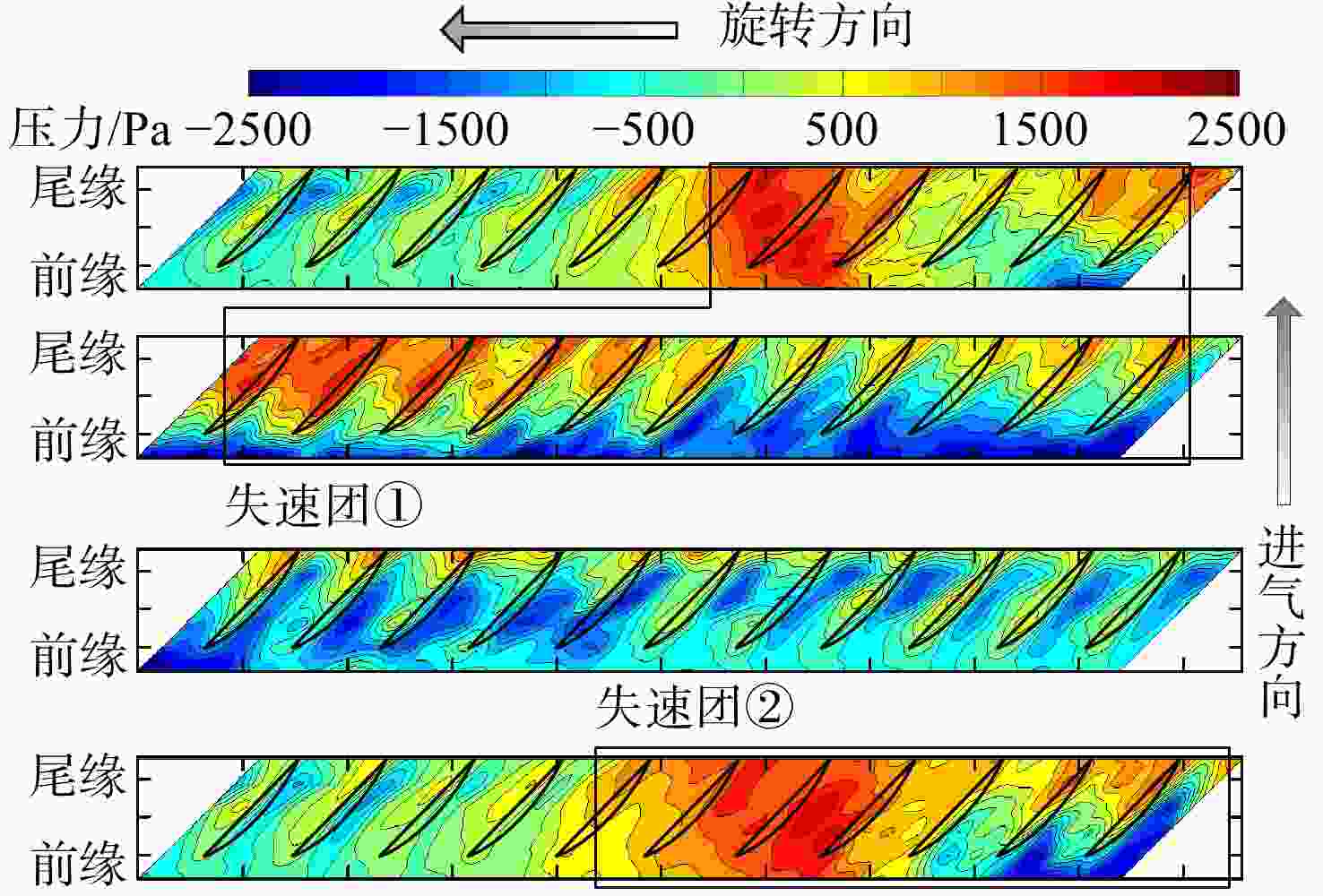

图 13 1 098.5～1 101.5转叶尖端壁的壁面压力云图

Figure 13. Casing pressure contours at 1098.5—1101.5 revolution

下载: 全尺寸图片幻灯片

图 14 1 345～1 346转叶尖端壁的壁面压力云图

Figure 14. Casing pressure contours at 1 345—1 346 revolution

下载: 全尺寸图片幻灯片

表 1 转子的设计参数

Table 1. Design specifications of the rotor

设计参数	数值
设计转速/（r/min）	3000
转子叶尖周向速度/（m/s）	94.11
设计流量/（kg/s）	6.5
总压比	1.025
叶尖间隙/mm	1
平均展弦比	1.87
转子叶片稠度	1.28
轮毂比	0.67
叶片数	45

下载: 导出CSV

参考文献(19)

[1]	EMMONS H W,PEARSON C E,GRANT H P. Compressor surge and stall propagation[J]. Journal of Fluids Engineering,1955,77(4): 455-467.
[2]	屠宝锋,胡骏,王志强,等. 低速轴流压气机旋转失速特性试验[J]. 航空动力学报,2009,24(1): 143-149. TU Baofeng,HU Jun,WANG Zhiqiang,et al. Experimental investigation on characteristic of rotating stall in a low-speed axial compressor[J]. Journal of Aerospace Power,2009,24(1): 143-149. (in Chinese TU Baofeng, HU Jun, WANG Zhiqiang, et al. Experimental investigation on characteristic of rotating stall in a low-speed axial compressor[J]. Journal of Aerospace Power, 2009, 24(1): 143-149. (in Chinese)
[3]	MOORE F K,GREITZER E M. A theory of post-stall transients in axial compression systems: Part Ⅰ development of equations[J]. Journal of Engineering for Gas Turbines and Power,1986,108(1): 68-76. doi: 10.1115/1.3239887
[4]	DAY I J. Stall inception in axial flow compressors[J]. Journal of Turbomachinery,1993,115(1): 1-9. doi: 10.1115/1.2929209
[5]	CAMP T,DAY I. A study of spike and modal stall phenomena in a low-speed axial compressor[R]. ASME Paper 1997-GT-526,1997.
[6]	PAN Tianyu,LI Qiushi,LI Zhiping,et al. Effects of radial loading distribution on partial-surge-initiated instability in a transonic axial flow compressor[J]. Journal of Turbomachinery,2017,139(10): 101010. doi: 10.1115/1.4036646
[7]	VO H D,TAN C S,GREITZER E M. Criteria for spike initiated rotating stall[R]. ASME Paper 2005-GT-68374,2005.
[8]	张皓光,谭锋,安康,等. 不同转速下跨声速轴流压气机内部流动失稳的机理[J]. 航空动力学报,2018,33(6): 1370-1380. ZHANG Haoguang,TAN Feng,AN Kang,et al. Mechanism of internal flow instability in transonic axial flow compressor at different rotating speeds[J]. Journal of Aerospace Power,2018,33(6): 1370-1380. (in Chinese ZHANG Haoguang, TAN Feng, AN Kang, et al. Mechanism of internal flow instability in transonic axial flow compressor at different rotating speeds[J]. Journal of Aerospace Power, 2018, 33(6): 1370-1380. (in Chinese)
[9]	马彩东,吴云,张志波,等. 单转子轴流压气机涡动力学失稳机理研究[J]. 推进技术,2016,37(12): 2201-2209. MA Caidong,WU Yun,ZHANG Zhibo,et al. Research on stall mechanism based on vorticity dynamics in a single-rotor axial compressor[J]. Journal of Propulsion Technology,2016,37(12): 2201-2209. (in Chinese MA Caidong, WU Yun, ZHANG Zhibo, et al. Research on stall mechanism based on vorticity dynamics in a single-rotor axial compressor[J]. Journal of Propulsion Technology, 2016, 37(12): 2201-2209. (in Chinese)
[10]	马彩东,吴云,张志波,等. 内流近壁区非定常等离子体的流动控制机理[J]. 高电压技术,2017,43(6): 1901-1909. MA Caidong,WU Yun,ZHANG Zhibo,et al. Internal flow control mechanism near wall region with unsteady plasma actuation[J]. High Voltage Engineering,2017,43(6): 1901-1909. (in Chinese MA Caidong, WU Yun, ZHANG Zhibo, et al. Internal flow control mechanism near wall region with unsteady plasma actuation[J]. High Voltage Engineering, 2017, 43(6): 1901-1909. (in Chinese)
[11]	杜娟,王偲臣,李继超,等. 轴流压气机叶顶泄漏流与突尖先兆失稳机理的研究进展[J]. 推进技术,2017,38(10): 2208-2217. DU Juan,WANG Sichen,LI Jichao,et al. Research progress on tip leakage flow and spike-inception stall mechanism in axial compressors[J]. Journal of Propulsion Technology,2017,38(10): 2208-2217. (in Chinese DU Juan, WANG Sichen, LI Jichao, et al. Research progress on tip leakage flow and spike-inception stall mechanism in axial compressors[J]. Journal of Propulsion Technology, 2017, 38(10): 2208-2217. (in Chinese)
[12]	李继超,雷建伟,刘洋,等. 周向畸变条件下压气机失速先兆分布特征[J]. 航空动力学报,2021,36(7): 1356-1366. LI Jichao,LEI Jianwei,LIU Yang,et al. Distribution characteristics of compressor stall precursor under circumferential distortion[J]. Journal of Aerospace Power,2021,36(7): 1356-1366. (in Chinese LI Jichao, LEI Jianwei, LIU Yang, et al. Distribution characteristics of compressor stall precursor under circumferential distortion[J]. Journal of Aerospace Power, 2021, 36(7): 1356-1366. (in Chinese)
[13]	刘洋,李继超,杜娟,等. 周向畸变下轴流压气机的失速预警方法研究及应用[J]. 推进技术,2020,41(9): 1967-1974. LIU Yang,LI Jichao,DU Juan,et al. Stall warning method investigation and application in an axial-flow compressor with circumferential distortion[J]. Journal of Propulsion Technology,2020,41(9): 1967-1974. (in Chinese LIU Yang, LI Jichao, DU Juan, et al. Stall warning method investigation and application in an axial-flow compressor with circumferential distortion[J]. Journal of Propulsion Technology, 2020, 41(9): 1967-1974. (in Chinese)
[14]	屠宝锋,胡骏. 轴流压气机失速起始特性试验[J]. 中国科技论文,2014,9(8): 953-956,960. TU Baofeng,HU Jun. Experimental investigation on stall inception in an axial compressor[J]. China Sciencepaper,2014,9(8): 953-956,960. (in Chinese doi: 10.3969/j.issn.2095-2783.2014.08.023 TU Baofeng, HU Jun. Experimental investigation on stall inception in an axial compressor[J]. China Sciencepaper, 2014, 9(8): 953-956, 960. (in Chinese) doi: 10.3969/j.issn.2095-2783.2014.08.023
[15]	高曼,楚武利,吴艳辉,等. 亚声速轴流压气机失速监测方法试验[J]. 推进技术,2012,33(3): 398-404. GAO Man,CHU Wuli,WU Yanhui,et al. Experiment of the algorithm of detecting the stall inception for the subsonic compressor[J]. Journal of Propulsion Technology,2012,33(3): 398-404. (in Chinese GAO Man, CHU Wuli, WU Yanhui, et al. Experiment of the algorithm of detecting the stall inception for the subsonic compressor[J]. Journal of Propulsion Technology, 2012, 33(3): 398-404. (in Chinese)
[16]	孙鹏,傅文广,钟兢军. 跨声速压气机突尖波型失速特征的数值研究[J]. 工程热物理学报,2018,39(1): 76-81. SUN Peng,FU Wenguang,ZHONG Jingjun. Numerical research of spike-like stall feature on transonic compressor[J]. Journal of Engineering Thermophysics,2018,39(1): 76-81. (in Chinese SUN Peng, FU Wenguang, ZHONG Jingjun. Numerical research of spike-like stall feature on transonic compressor[J]. Journal of Engineering Thermophysics, 2018, 39(1): 76-81. (in Chinese)
[17]	PULLAN G,YOUNG A M,DAY I J,et al. Origins and structure of spike-type rotating stall[J]. Journal of Turbomachinery,2015,137(5): 051007. doi: 10.1115/1.4028494
[18]	INOUE M,KUROUMARU M. Structure of tip clearance flow in an isolated axial compressor rotor[J]. Journal of Turbomachinery,1989,111(3): 250-256. doi: 10.1115/1.3262263
[19]	马彩东,李应红,吴云,等. 转子叶尖端壁失速特性试验研究[J]. 推进技术,2015,36(5): 722-728. MA Caidong,LI Yinghong,WU Yun,et al. Experimental investigation on stall characteristics on rotor tip end-wall[J]. Journal of Propulsion Technology,2015,36(5): 722-728. (in Chinese MA Caidong, LI Yinghong, WU Yun, et al. Experimental investigation on stall characteristics on rotor tip end-wall[J]. Journal of Propulsion Technology, 2015, 36(5): 722-728. (in Chinese)
