Influence of thermal and mechanical effects from NS-DBD actuation on water collection efficiency distribution on airfoil surface
-
摘要:
建立了纳秒脉冲表面介质阻挡放电（NS-DBD）激励条件下空气-过冷水滴两相流动的计算模型，采用计算流体力学的方法对NS-DBD激励条件下翼型的水滴撞击特性进行了数值模拟，研究了来流迎角、液态水含量、水滴平均直径、激励强度对翼型表面水收集系数的影响。最后，结合短脉冲等离子体放电过程中产生的气动力效应和热效应，分析了热力效应对翼型表面水收集系数的影响。研究发现，NS-DBD短脉冲等离子体放电产生的热力耦合效应可以降低水收集系数峰值，但不改变水滴撞击极限，最佳效果在激励后10～15 μs。激励强度越大，水收集系数降低就越明显，但回升也越慢，水滴平均直径越大激励的影响越弱。激励产生的力效应和热效应在翼型表面形成一层波浪形高温气膜，降低了翼型表面的水收集系数分布。
Abstract:The computational model for two-phase flow including air and supercooled water droplet was established under nanosecond pulse dielectric barrier discharge （NS-DBD） actuation. The compu-tational fluid dynamics method was adopted to simulate the water impingement characteristics of airfoil under NS-DBD actuation. The influences of angle of attack, liquid water content, mean volume diameter and intensity of actuation on the water collection coefficient were studied. Finally, the aerodynamic effect and thermal effect during the process of plasma discharge were coupled to analyze the anti-icing mechanism of plasma actuation. It showed that, the thermal and mechanic effects coupled resulting from the NS-DBD plasma discharge can reduce the peak value of water collection coefficient, but can’t change the water impingement limit of airfoil. The best effect of actuation appeared at the time of 10—15 μs. The higher the strength of actuation increased, the lower the water collection coefficient decreased and the slower it rose again. The actuation had a weaker influence on the larger mean volume diameter. The mechanics and thermal effect from plasma actuation can generate a layer of wavy high temperature air film on the surface of airfoil to decrease the water collection coefficient distribution.
-

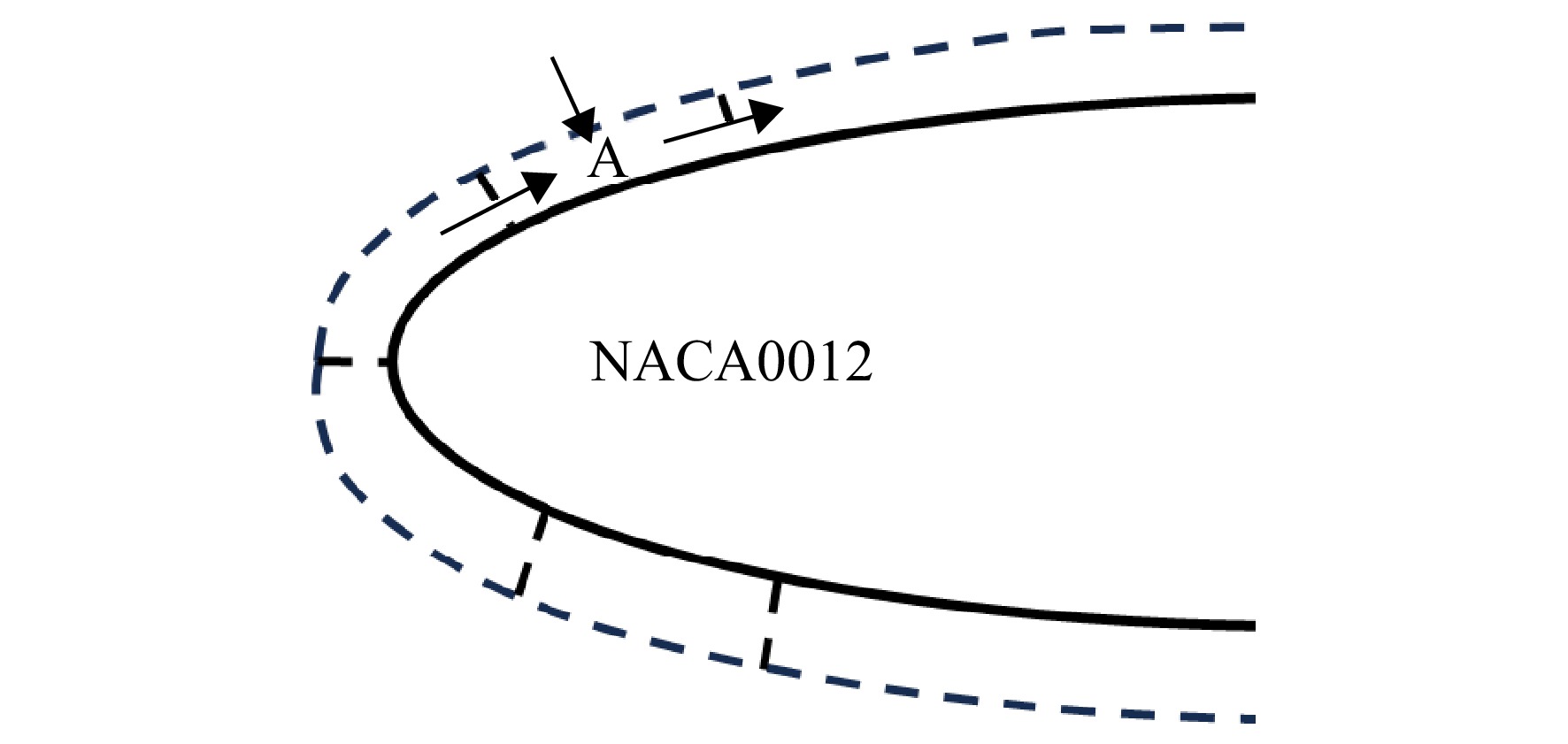

图 1 翼型近壁网格控制体的质量和动量守恒示意图
Figure 1. Schematic diagram of mass and momentum conservation of mesh control body near airfoil wall

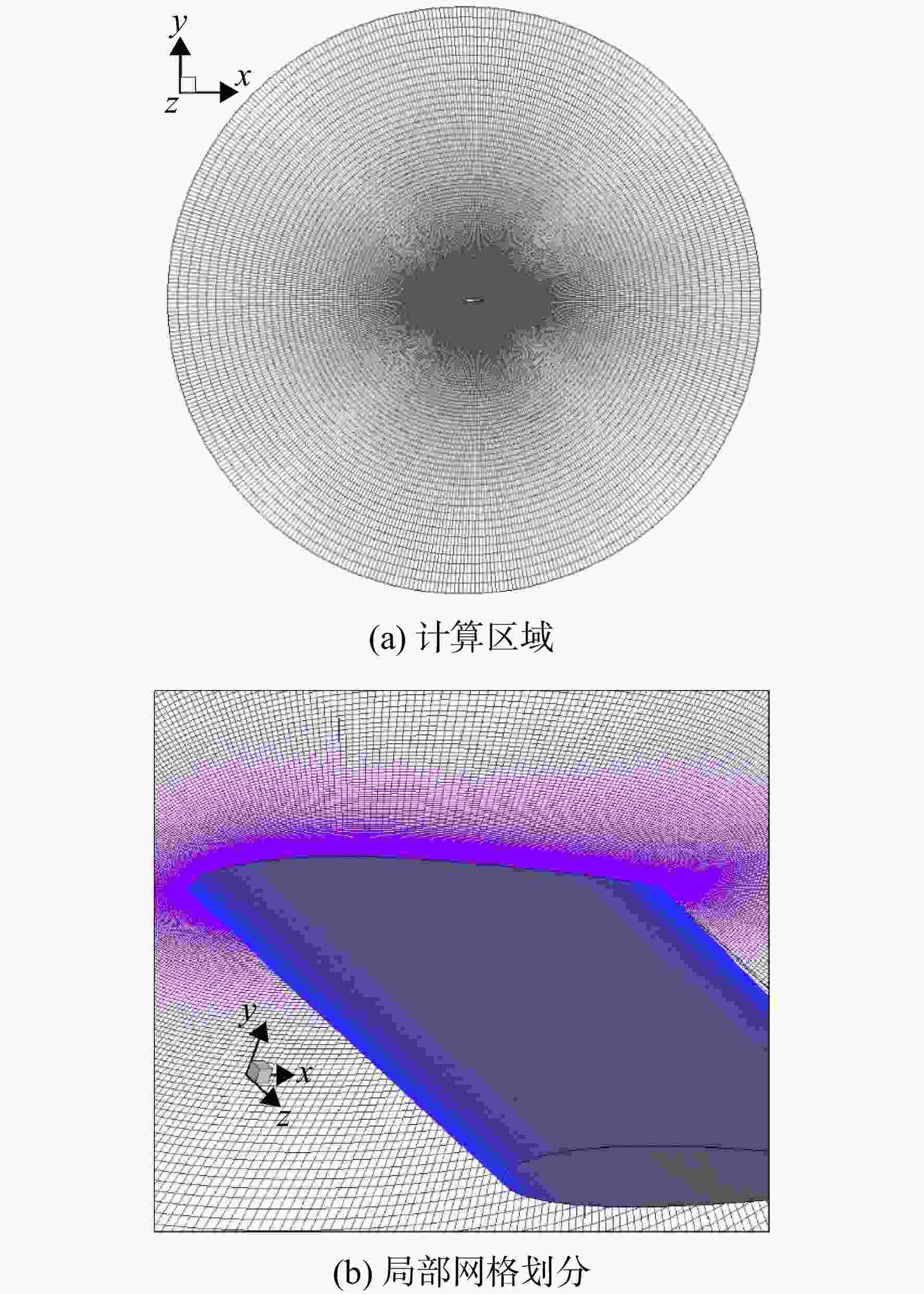

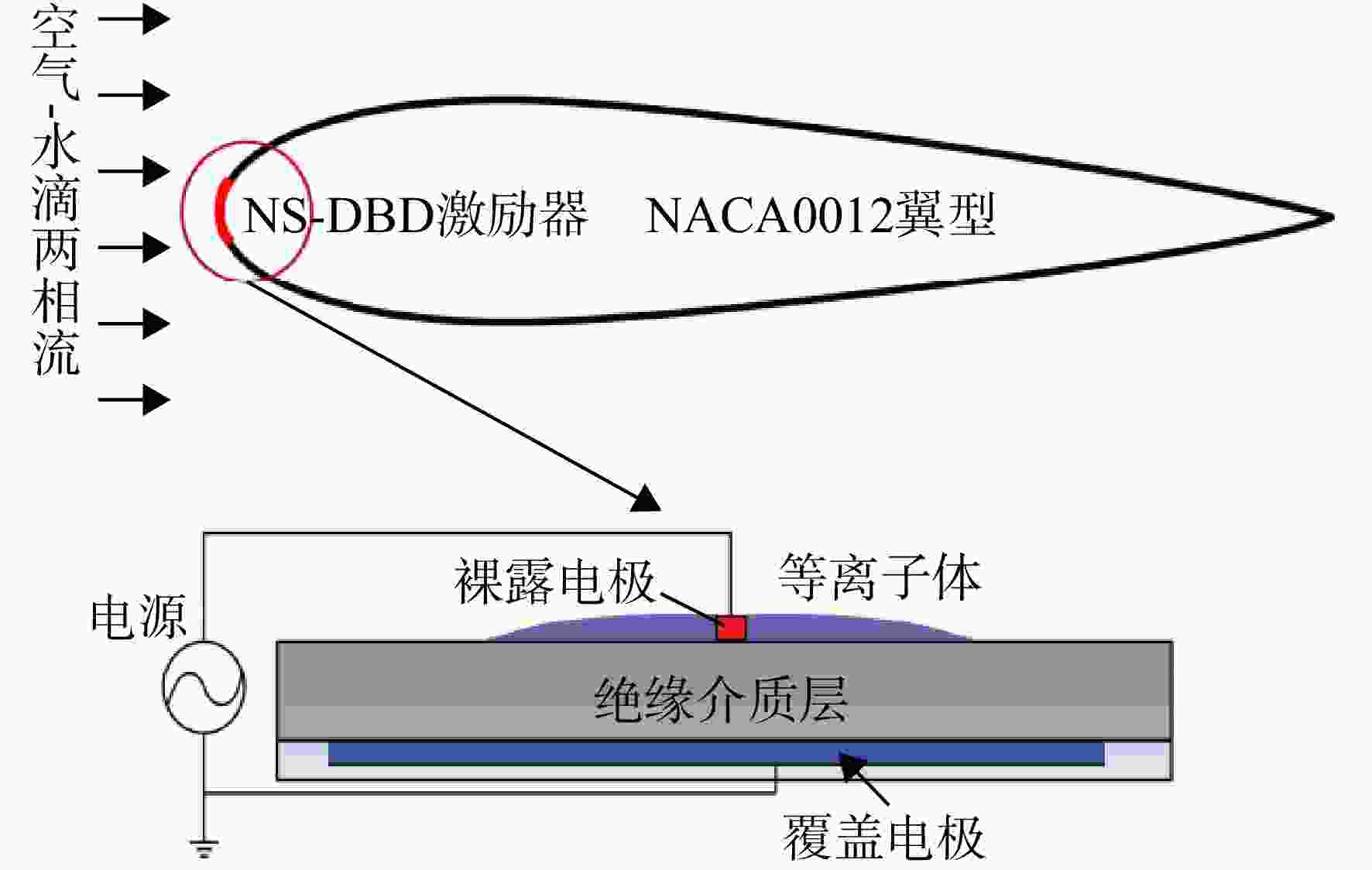

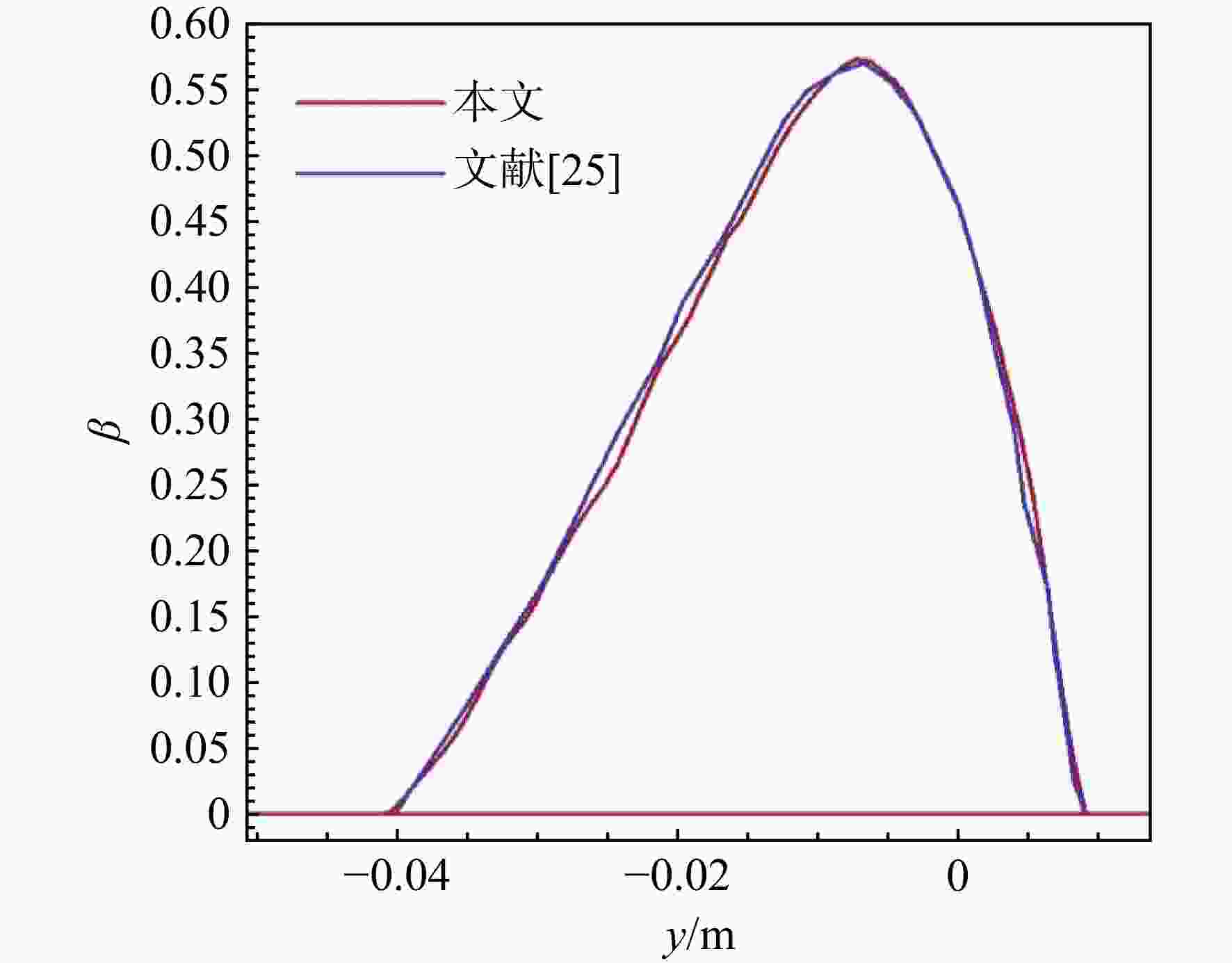

图 4 NACA0012翼型表面水收集系数分布比较
Figure 4. Comparison of water collection coefficient distribution on the surface of NACA0012 airfoil

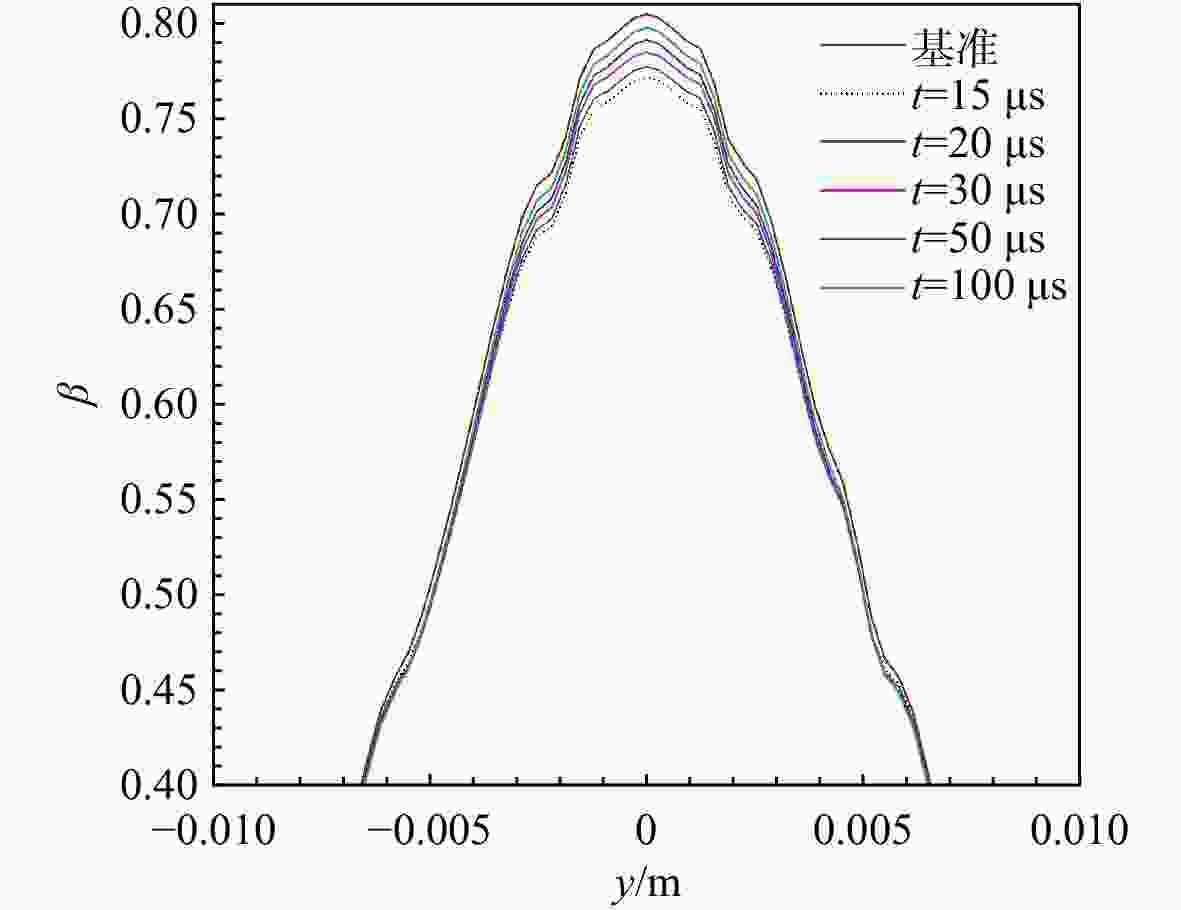

图 5 α=0°时翼型表面水收集系数分布随激励时间的变化
Figure 5. Variation of water collection coefficient distribution on the airfoil surface with respect to actuation time at α=0°

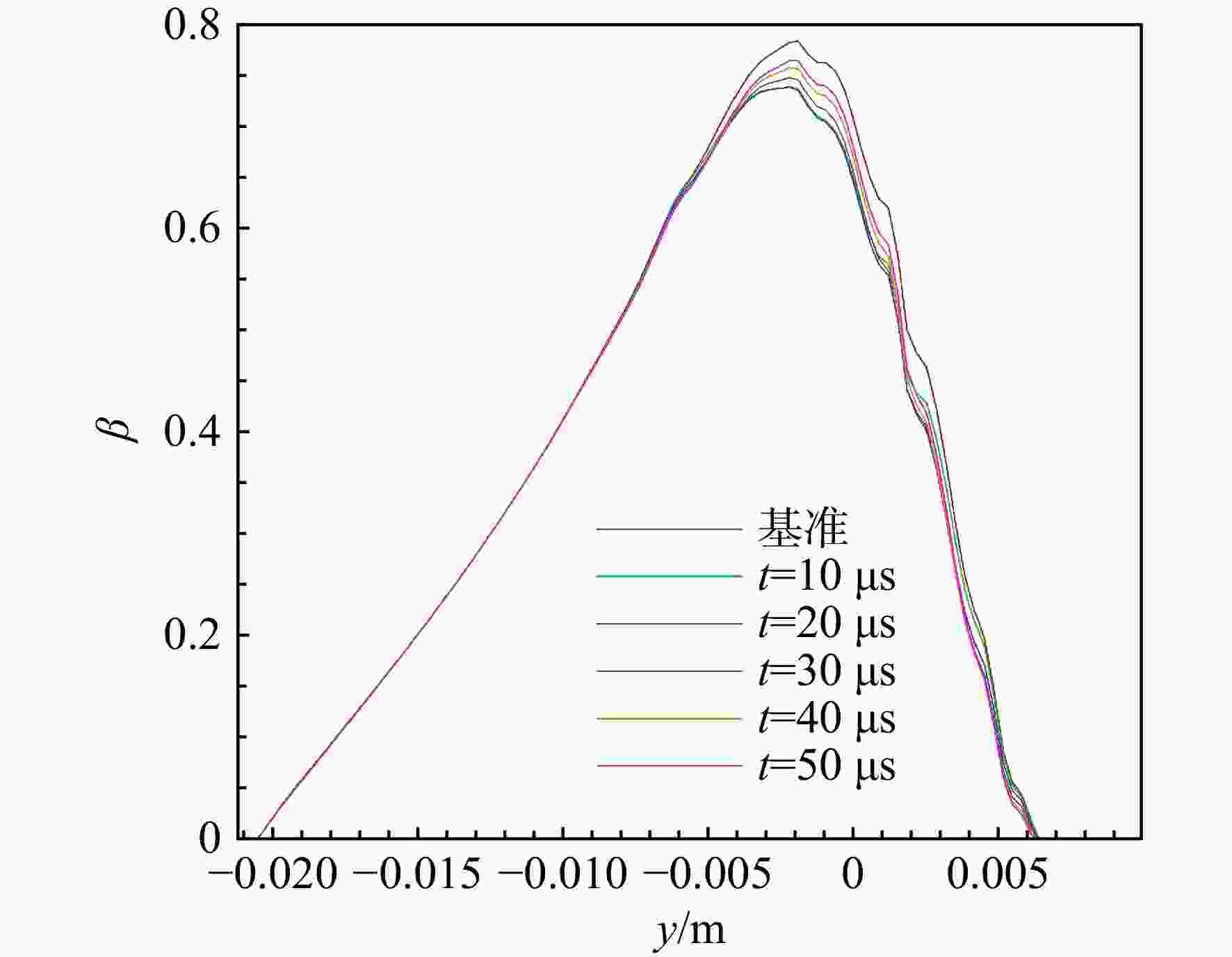

图 6 α=6°时翼型表面水收集系数分布随激励关闭后时间的变化
Figure 6. Variation of water collection coefficient distribution on the airfoil surface with respect to actuation time at α=6°

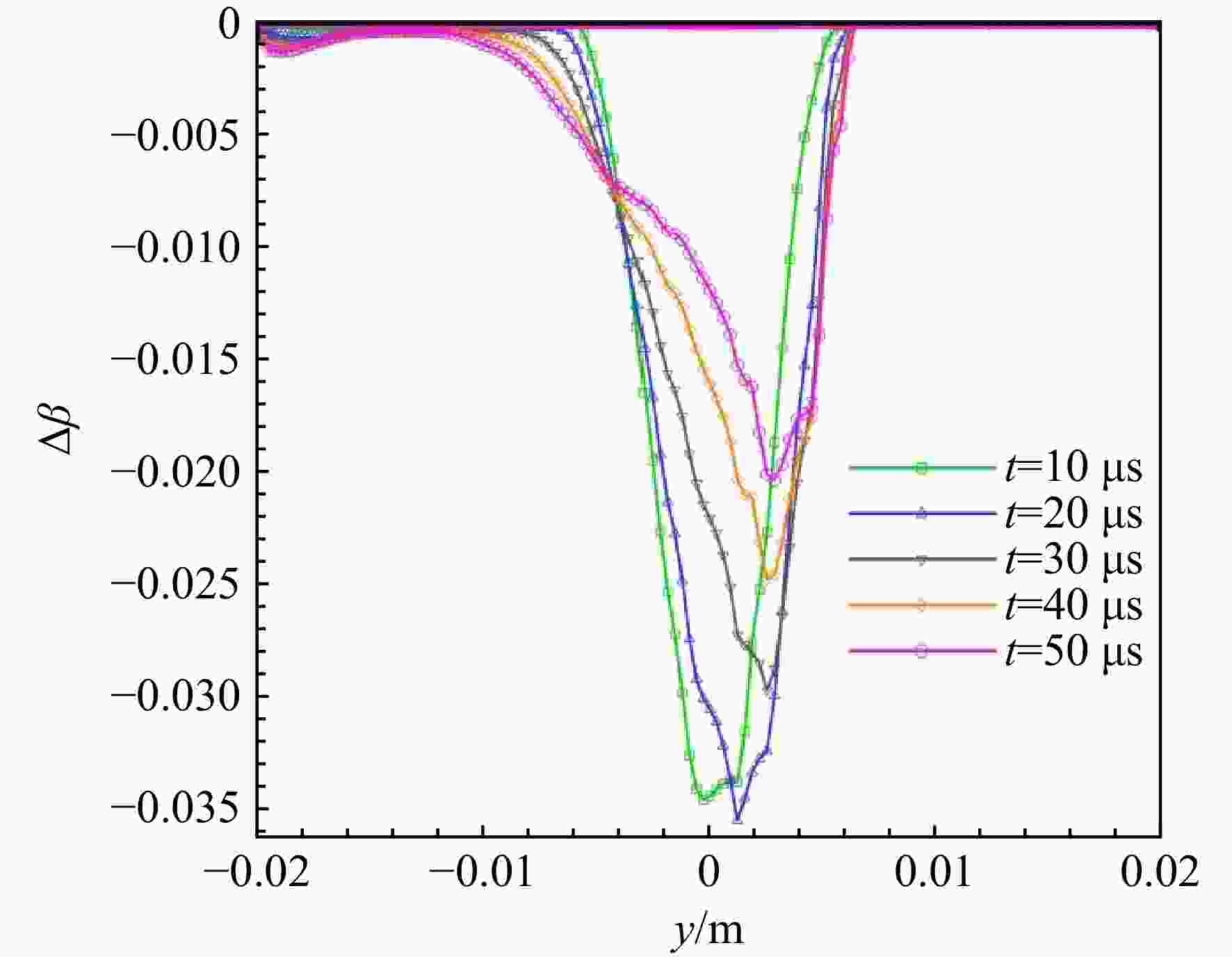

图 7 α=6°时激励关闭后不同时刻翼型表面水收集系数与激励前的差值
Figure 7. Difference of water collection coefficient on the airfoil surface between different actuation times and before actuation at α=6°

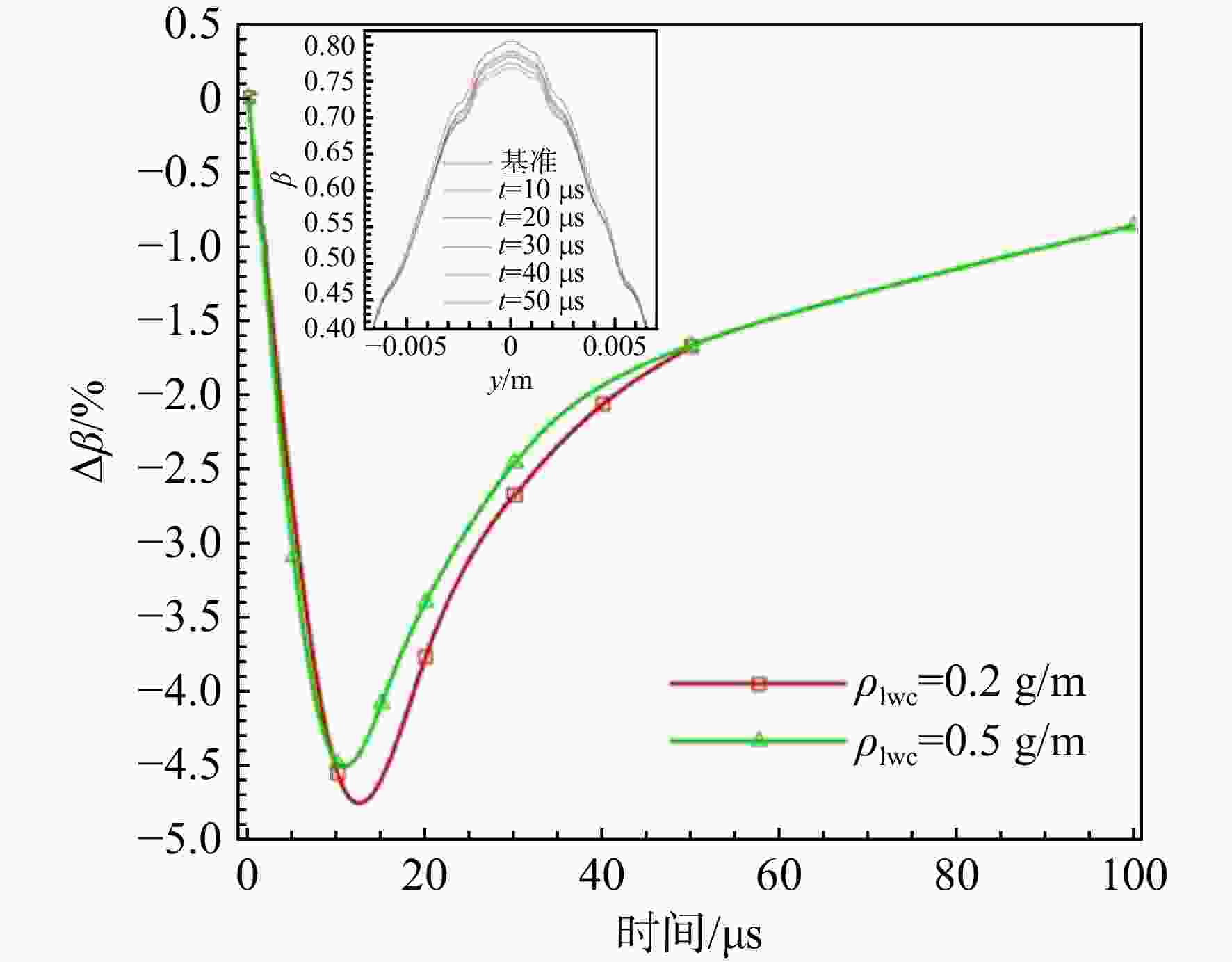

图 8 不同液态水含量下激励前后翼型表面水收集系数峰值的百分比差值（Dmv=20 μm，α=0°）
Figure 8. Percentage difference of water collection coefficient peak on the airfoil surface before and after actuation under different liquid water contents （Dmv=20 μm, α=0°）

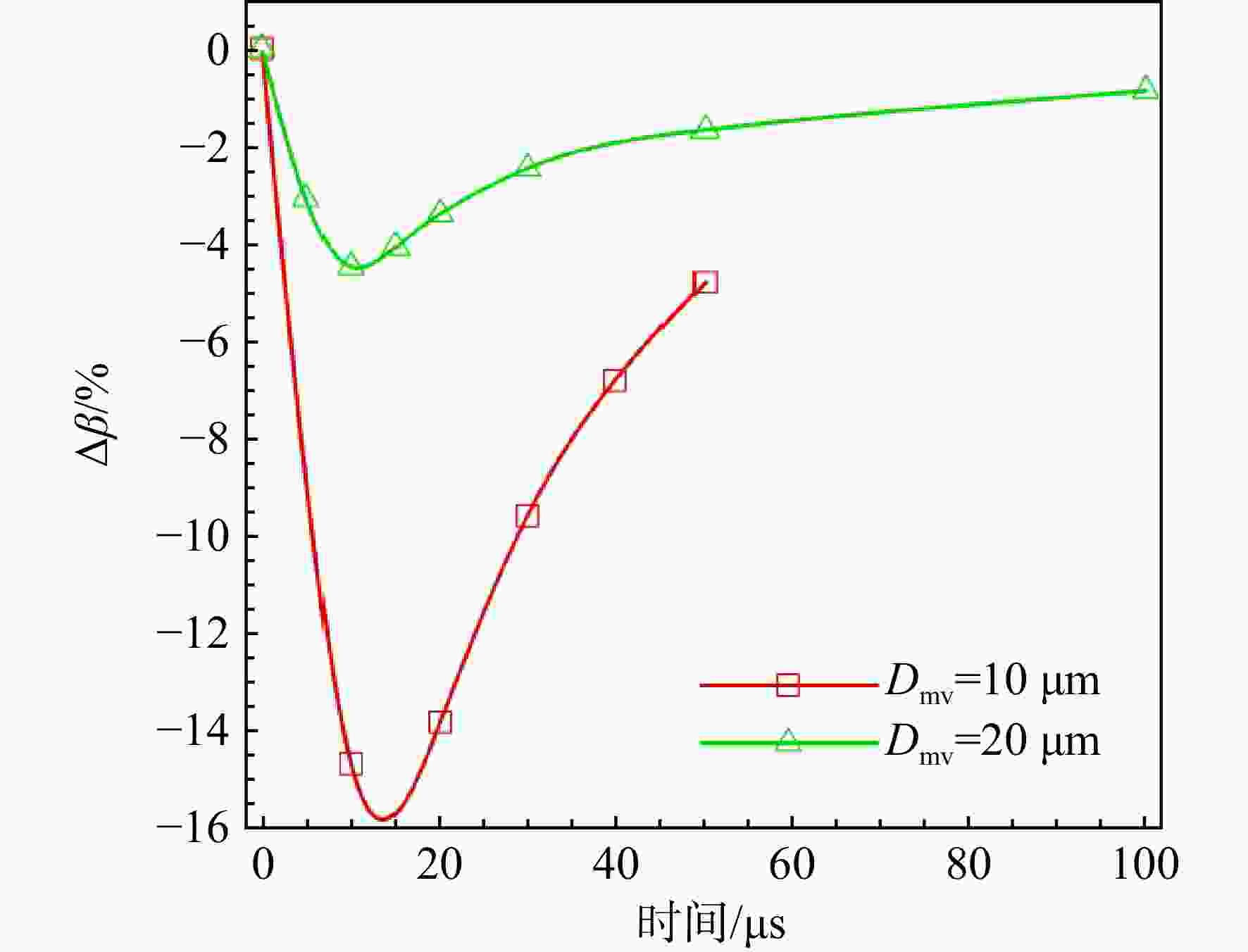

图 9 不同水滴平均直径时激励前后翼型表面水收集系数峰值的百分比差值（ρlwc=0.5 g/m3，Dmv=10，20 μm）
Figure 9. Percentage difference of water collection coefficient peak on the airfoil surface before and after actuation for different mean volume diameter of water droplets （ρlwc=0.5 g/m3, Dmv=10, 20 μm）

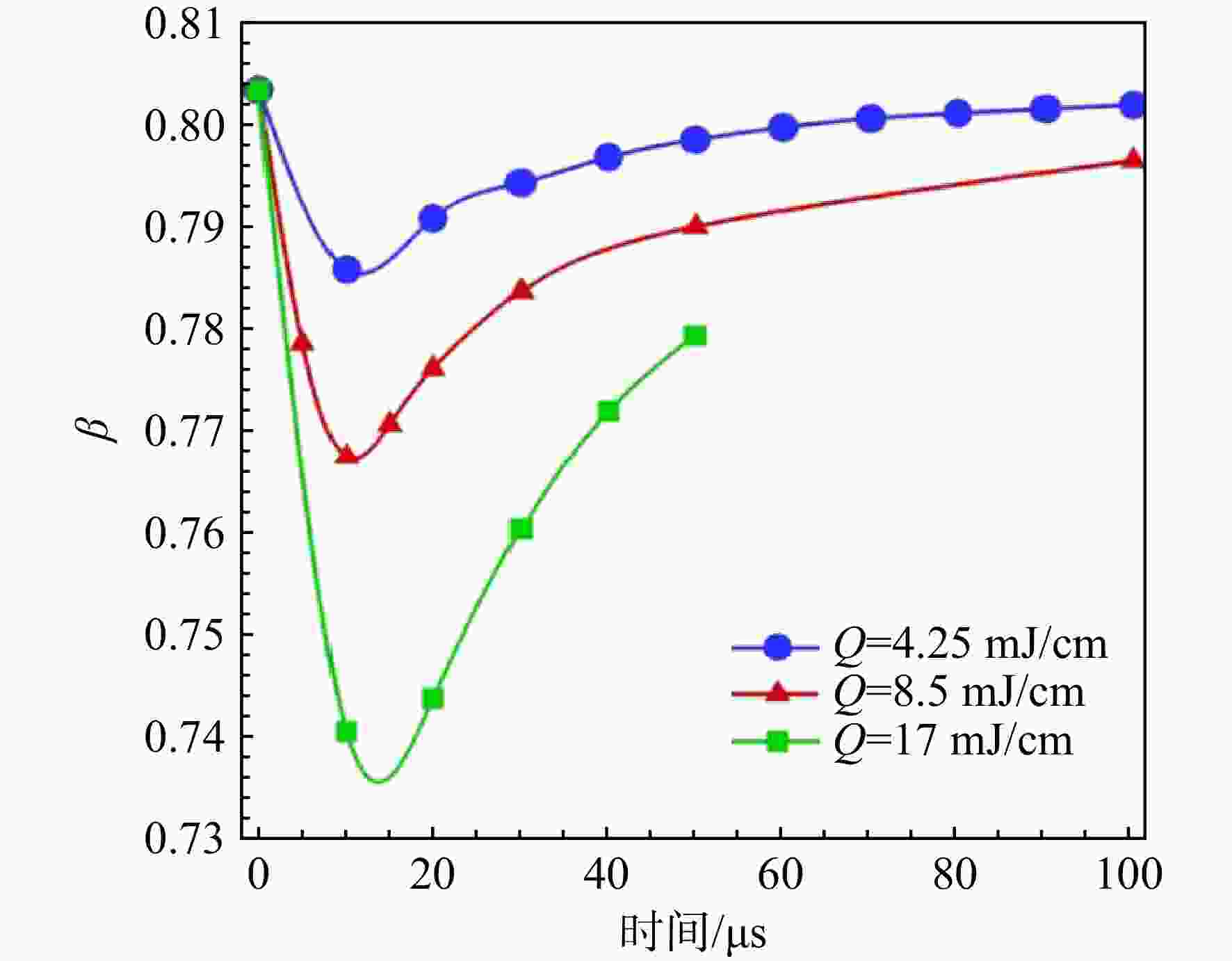

图 10 不同激励强度翼型表面水收集系数峰值的时间历程（ρlwc=0.5 g/m3，Dmv=20 μm，α=0°）
Figure 10. Time history of water collection coefficient peak on the airfoil surface with different actuation intensities（ρlwc=0.5 g/m3, Dmv=20 μm, α=0°）

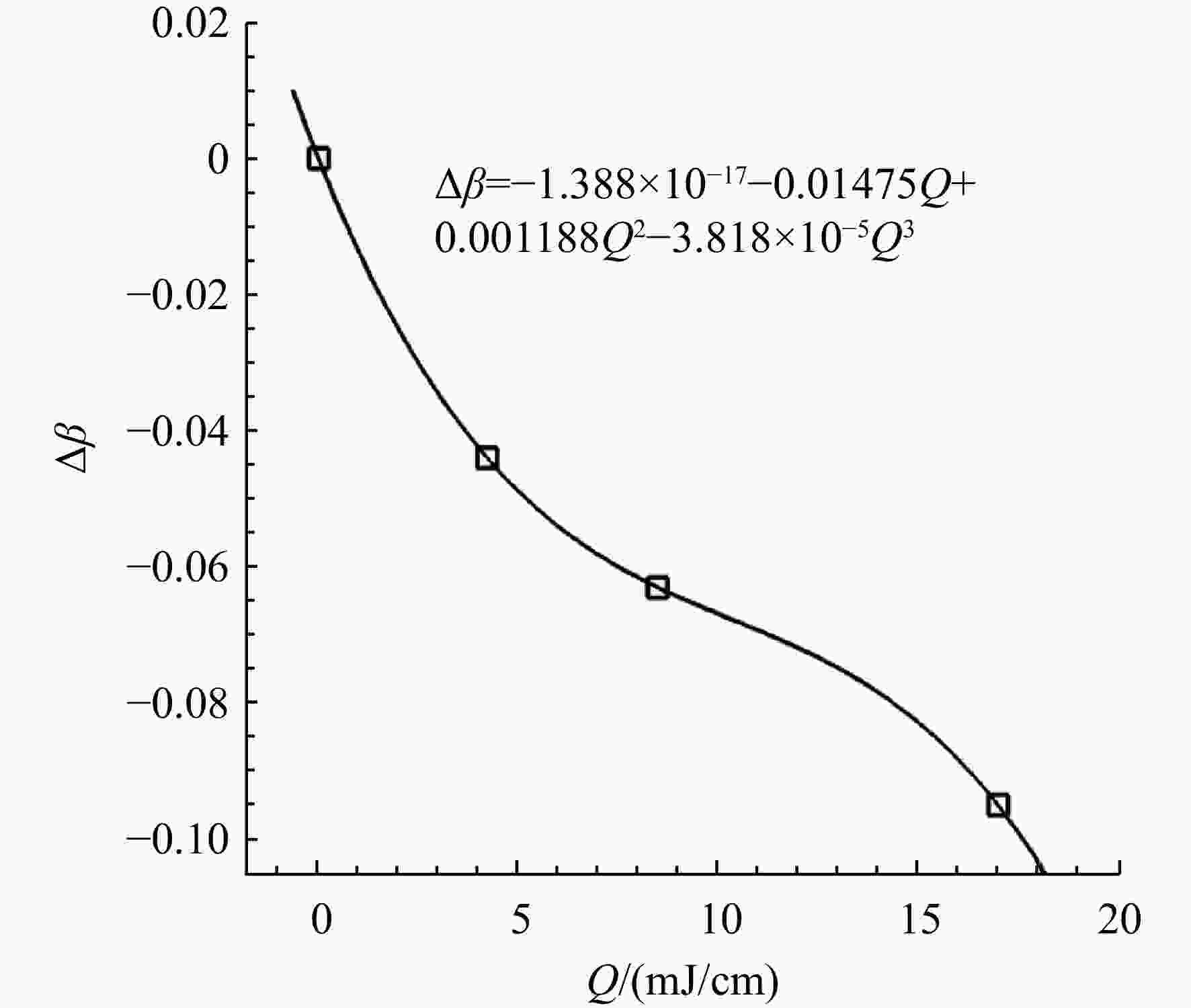

图 11 不同激励强度激励前后翼型表面水收集系数峰值的最大变化量（ρlwc=0.5 g/m3，Dmv=20 μm，α=0°）
Figure 11. Variation of water collection coefficient peak on the airfoil surface before and after actuation for different actuation intensities （ρlwc=0.5 g/m3, Dmv=20 μm, α=0°）

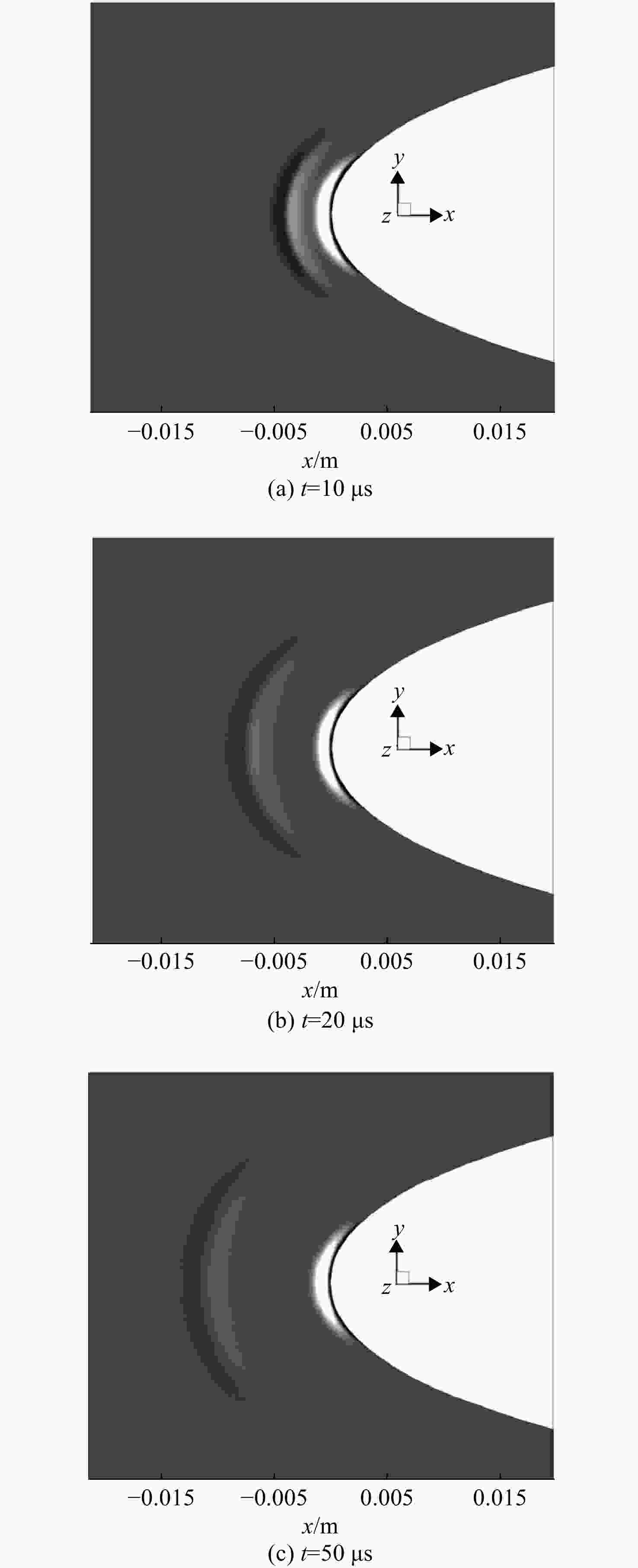

图 12 激励关闭后不同时刻的翼型流场中压力冲击波（ρlwc=0.5 g/m3，Dmv=20 μm，α=0°，Q=8.5 mJ/cm）
Figure 12. Pressure shock waves in flow field around the airfoil at different actuation time （ρlwc=0.5 g/m3, Dmv=20 μm, α=0°, Q=8.5 mJ/cm）

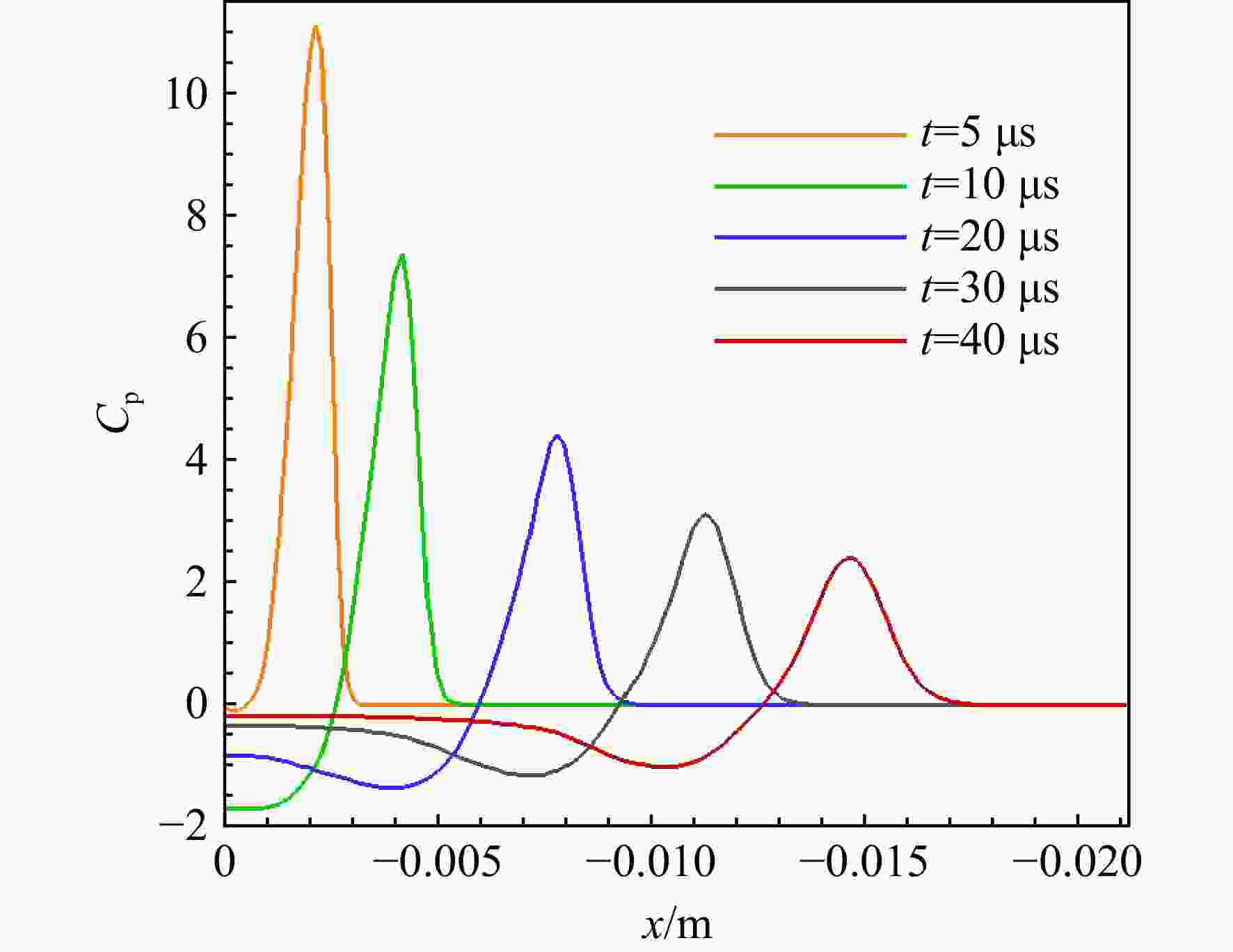

图 13 激励关闭后不同时刻的翼型表面压力系数分布
Figure 13. Distribution of pressure coefficient of airfoil surface at different actuation time

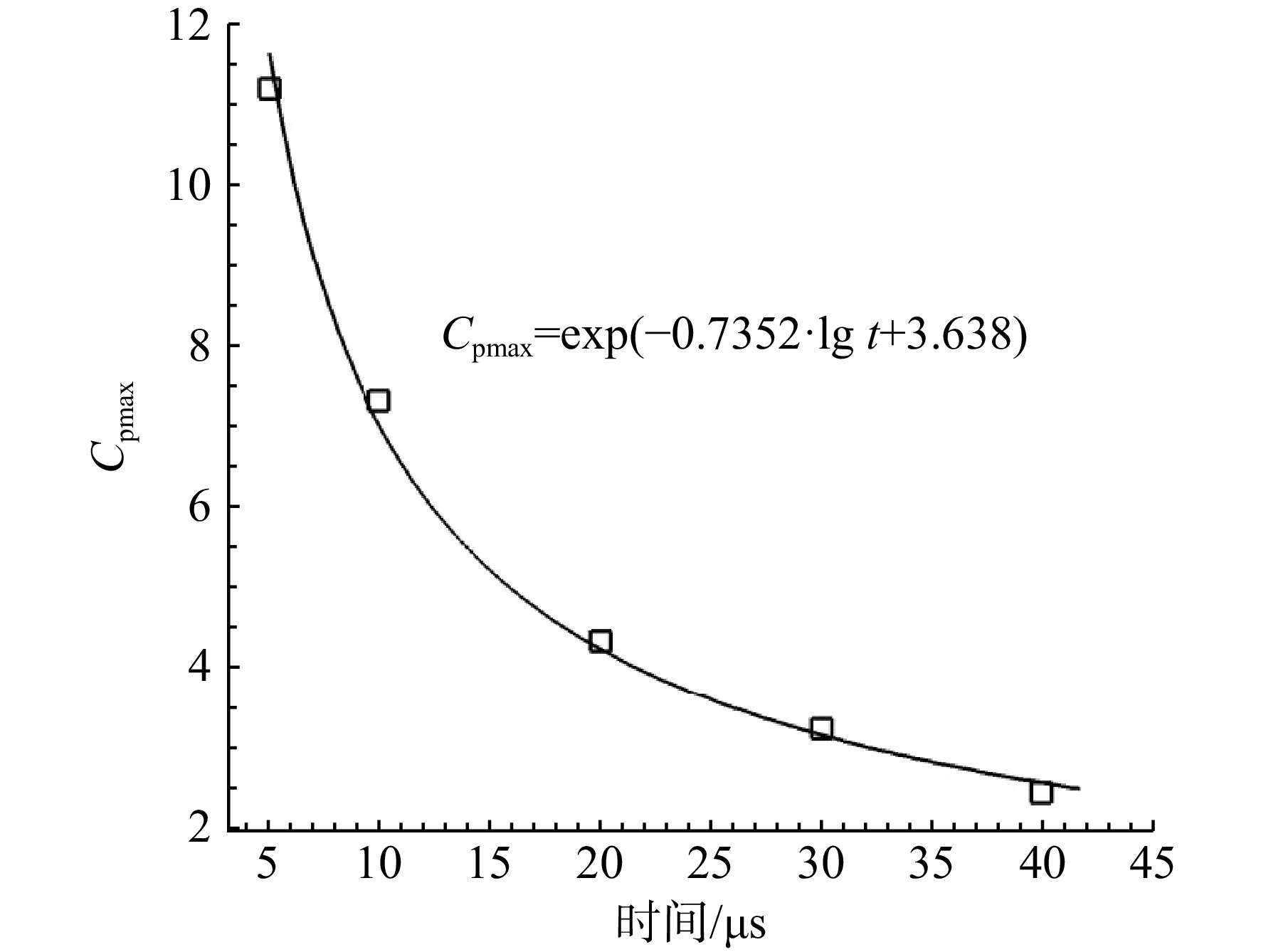

图 14 翼型表面压力系数最大值随激励关闭后时间的变化
Figure 14. Variation of the maximum pressure coefficient of the airfoil surface with actuation time

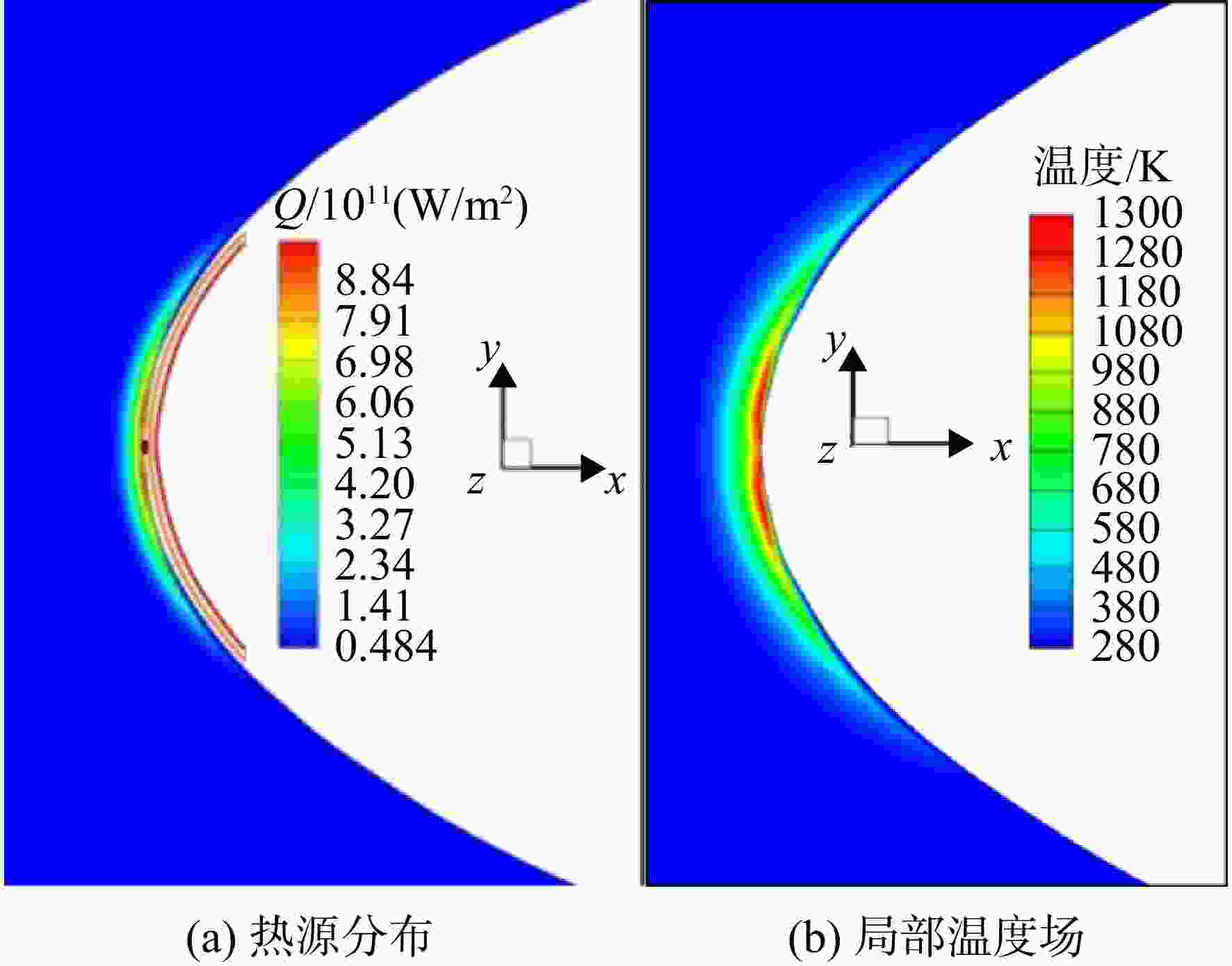

图 15 NS-DBD激励初期的翼型前缘热源和局部温度分布（t=1 μs）
Figure 15. Heat source and local temperature distribution of leading edge of the airfoil during the initial stage of NS-DBD actuation （t=1 μs）

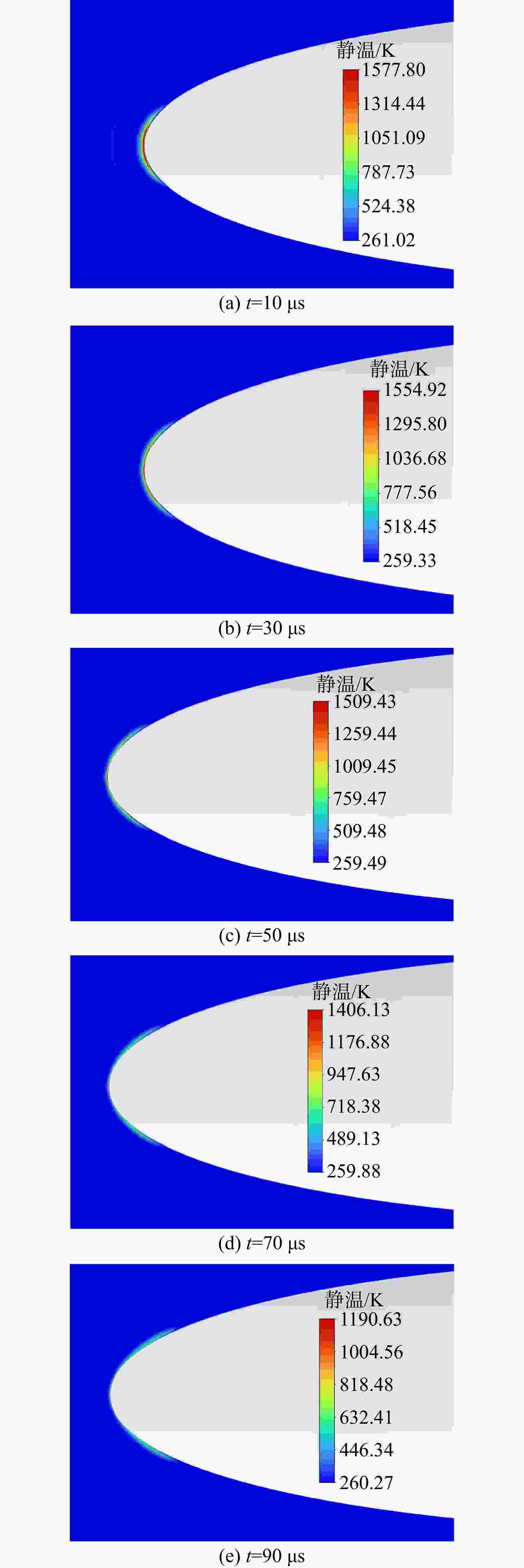

图 16 激励关闭后不同时刻的翼型前缘附近温度场云图（t=10，30，50，70，90 μs）
Figure 16. Temperature field contour near leading edge of the airfoil at different actuation times （t=10, 30, 50, 70, 90 μs）

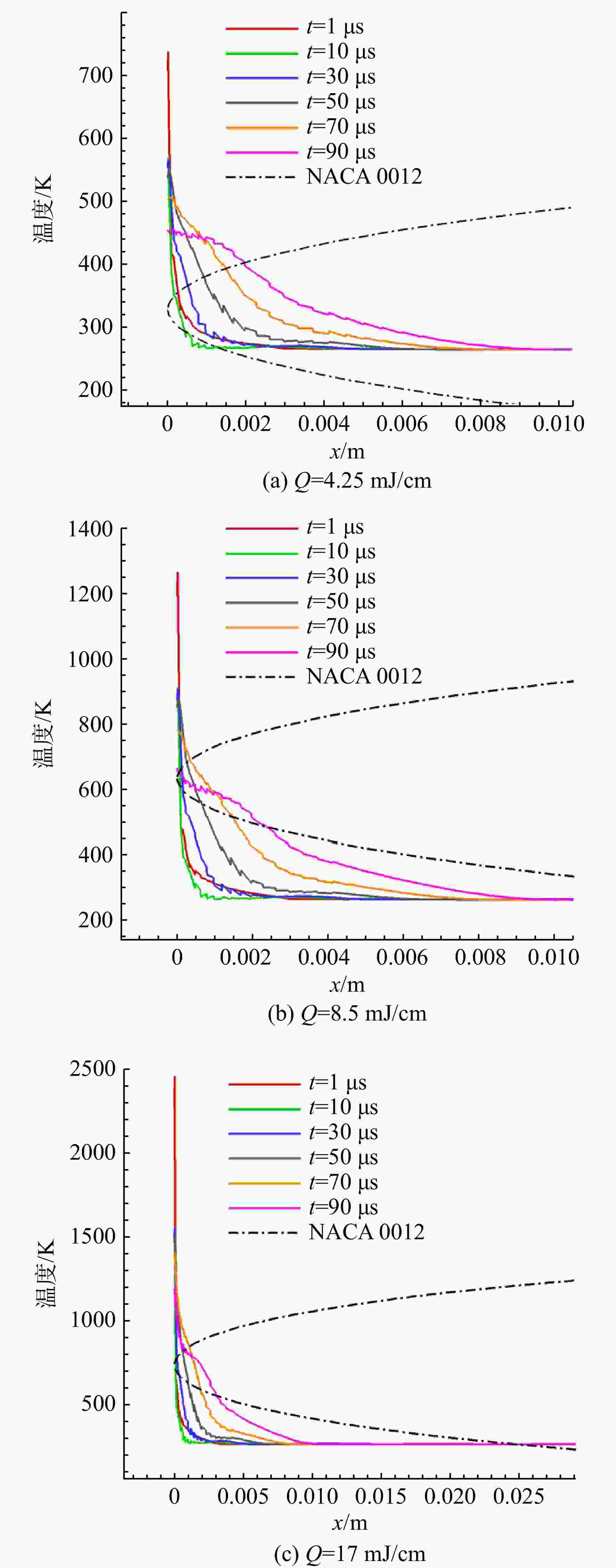

图 17 激励关闭后不同时刻的x向翼型表面温度分布比较（ρlwc=0.5 g/m3，Dmv=20 μm，α=0°）
Figure 17. Comparison of temperature distribution on the x-direction airfoil surface at different actuation times （ρlwc=0.5 g/m3，Dmv=20 μm，α=0°）

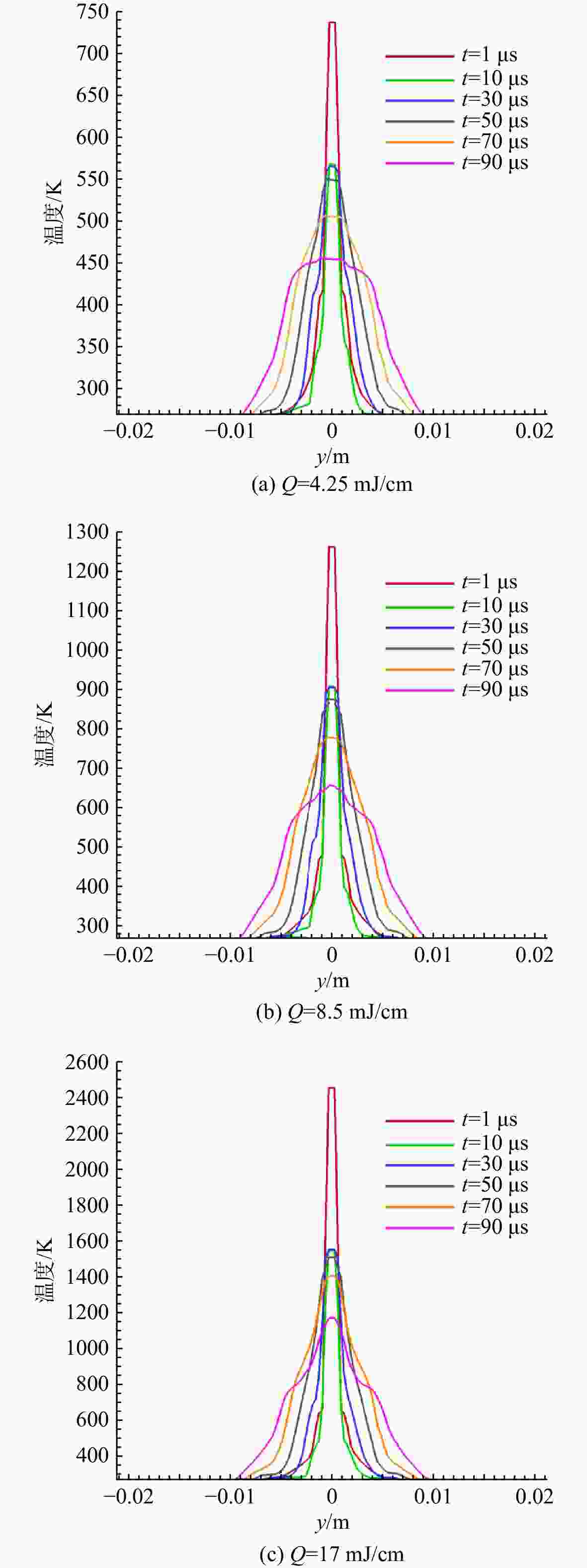

图 18 激励关闭后不同时刻的y向翼型表面温度分布比较（ρlwc=0.5 g/m3，Dmv=20 μm，α=0°）
Figure 18. Comparison of temperature distribution on the y-direction airfoil surface at different actuation times （ρlwc=0.5 g/m3，Dmv=20 μm，α=0°）

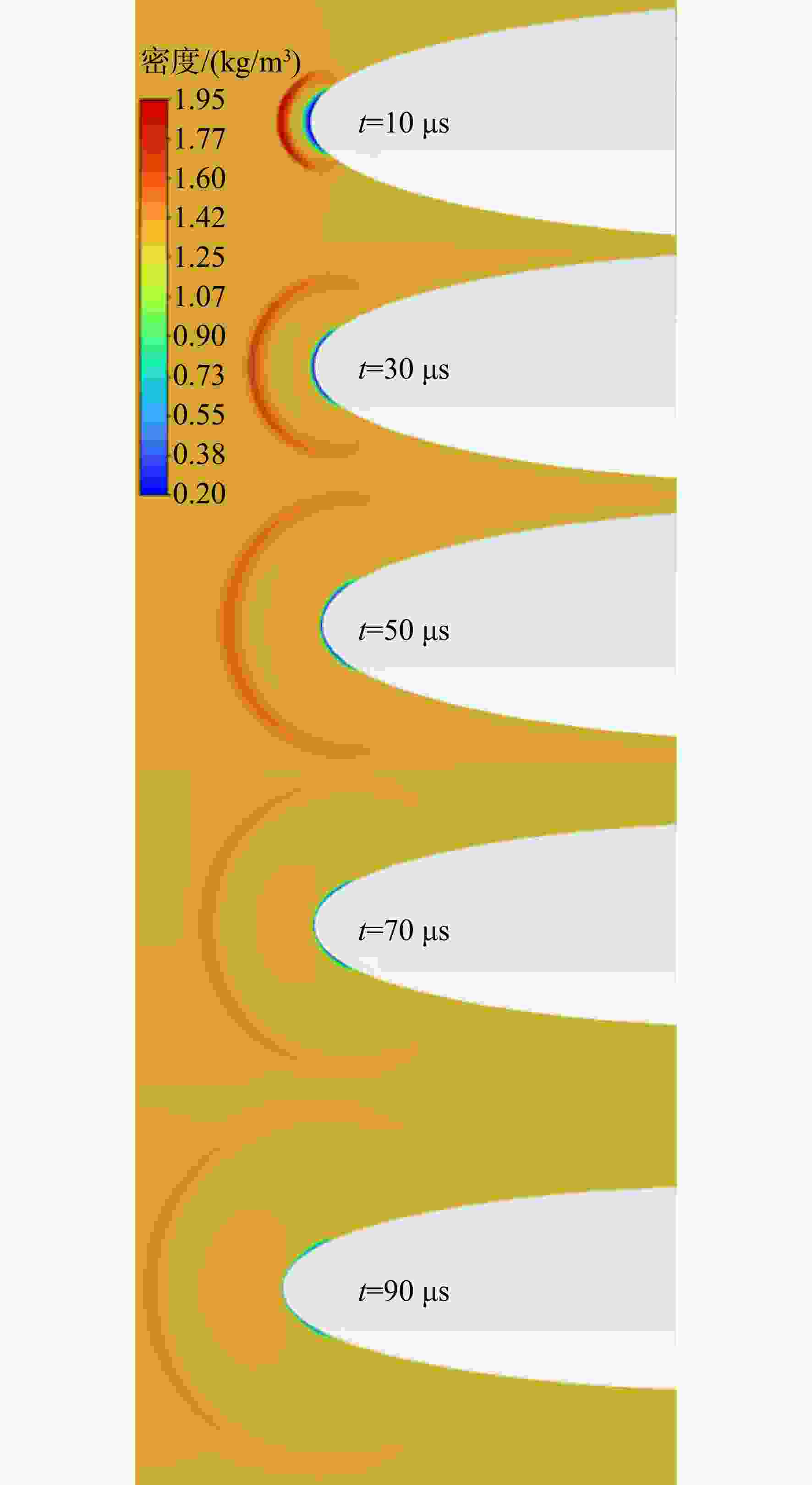

图 19 激励关闭后不同时刻的翼型前缘附近密度场云图（t=10，30，50，70，90 μs）
Figure 19. Density field contour near leading edge of the airfoil at different actuation times （t=10，30，50，70，90 μs）

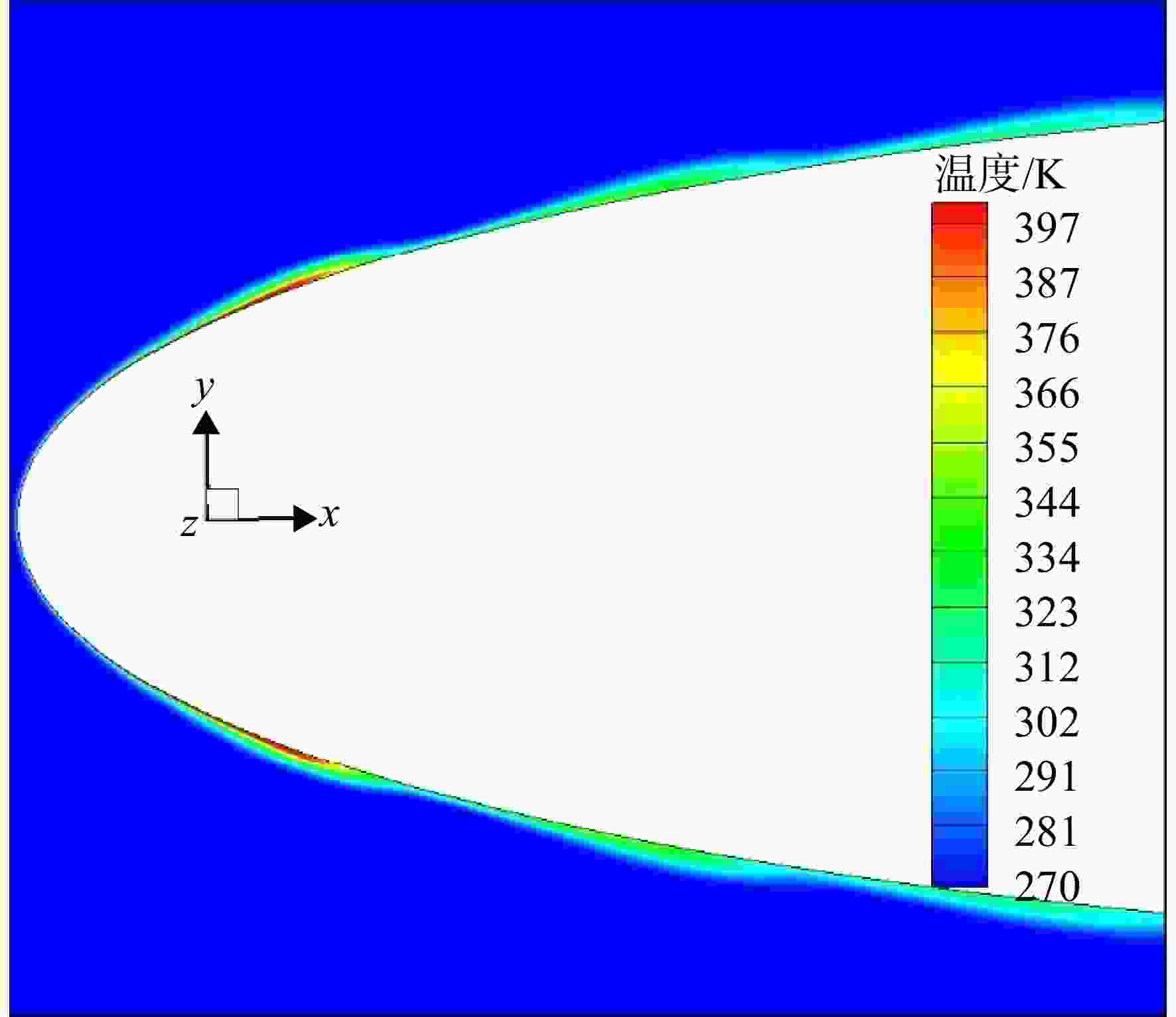

图 20 多个周期激励后翼型的温度场云图（f=
6000 Hz，t=25.96/6000 s）Figure 20. Temperature field contour of airfoil after long-term actuation （f=
6000 Hz，t=25.96/6000 s）表 1 20 μm平均水滴直径的Langmuir E分布
Table 1. Langmuir E distribution of mean volume diameter of droplet at 20 μm
水滴直径/μm 体积分数/% 54.2 5 40.0 10 29.6 20 20.0 30 13.0 20 8.8 10 4.6 5
下载: 导出CSV
表 2 验证计算的工况
Table 2. Validation computation conditions
参数 数值 翼型弦长c/m 1.0 来流速度V∞/（m/s） 138.88 来流静压p∞/105 Pa 1.0 来流静温T∞/K 300 机翼迎角α/（°） 5 水滴平均直径Dmv/μm 16 云层液态水含量ρlwc/（g/m3） 1.0
下载: 导出CSV
表 3 来流迎角影响的计算工况
Table 3. Computational conditions for the influence of angle of attack of incoming flow
参数 数值 翼型弦长c/m 0.35306 来流速度V∞/（m/s） 95.22 来流静压p∞/105 Pa 1.0 来流静温T∞/K 262.85 机翼迎角α/（°） 0，6 水滴平均直径Dmv/μm 20 云层液态水含量ρlwc/（g/m3） 0.5
下载: 导出CSV
表 4 液态水含量影响的计算工况
Table 4. Computational conditions for the influence of liquid water content
参数 数值 翼型弦长c/m 0.35306 来流速度V∞/（m/s） 95.22 来流静压p∞/105 Pa 1.0 来流静温T∞/K 262.85 机翼迎角α/（°） 0 水滴平均直径Dmv/μm 20 云层液态水含量ρlwc/（g/m3） 0.2，0.5
下载: 导出CSV
表 5 水滴平均直径影响的计算工况
Table 5. Computational conditions for the influence of mean volume diameter of water droplets
参数 数值 翼型弦长c/m 0.35306 来流速度V∞/（m/s） 95.22 来流静压p∞/105 Pa 1.0 来流静温T∞/K 262.85 机翼迎角α/（°） 0 水滴平均直径Dmv/μm 10，20 云层液态水含量ρlwc/（g/m3） 0.5
下载: 导出CSV
表 6 激励强度影响的计算工况
Table 6. Computational conditions for the influence of actuation intensity
ρlwc/（g/m3） Dmv/μm α/（°） Q/（mJ/cm） 0.5 20 0 4.25，8.5，17
下载: 导出CSV
-
[1] LEE S,KIM H,BRAGG M. Investigation of factors that influence iced-airfoil aerodynamics[R]. AIAA 2000-99,2000. [2] CEBECI T,KAFYEKE F. Aircraft icing[J]. Annual Review of Fluid Mechanics,2003,35: 11-21. doi: 10.1146/annurev.fluid.35.101101.161217 [3] STALLABRASS J R. Thermal aspects of de-icer design[R]. Ottawa,Canada: The International Helicopter Icing Conference,1972. [4] 林贵平,卜雪琴,申晓斌,等. 飞机结冰与防除冰技术[M]. 北京: 北京航空航天大学出版社,2015. [5] 肖春华. 飞机电热除冰过程的传热特性及其影响研究[D]. 四川 绵阳: 中国空气动力研究与发展中心,2010. XIAO Chunhua. Study on heat transfer characteristics and its influence in aircraft electrothermal deicing process[D]. Mianyang,Sichuan: China Aerodynamics Research and Development Center,2010. (in ChineseXIAO Chunhua. Study on heat transfer characteristics and its influence in aircraft electrothermal deicing process[D]. Mianyang, Sichuan: China Aerodynamics Research and Development Center, 2010. (in Chinese) [6] 常士楠,杨波,冷梦尧,等. 飞机热气防冰系统研究[J]. 航空动力学报,2017,32(5): 1025-1034. CHANG Shinan,YANG Bo,LENG Mengyao,et al. Study on bleed air anti-icing system of aircraft[J]. Journal of Aerospace Power,2017,32(5): 1025-1034. (in ChineseCHANG Shinan, YANG Bo, LENG Mengyao, et al. Study on bleed air anti-icing system of aircraft[J]. Journal of Aerospace Power, 2017, 32(5): 1025-1034. (in Chinese) [7] 李应红,吴云. 等离子体激励调控流动与燃烧的研究进展与展望[J]. 中国科学(技术科学),2020,50(10): 1252-1273. LI Yinghong,WU Yun. Research progress and outlook of flow control and combustion control using plasma actuation[J]. Scientia Sinica (Technologica),2020,50(10): 1252-1273. (in Chinese doi: 10.1360/SST-2020-0111LI Yinghong, WU Yun. Research progress and outlook of flow control and combustion control using plasma actuation[J]. Scientia Sinica (Technologica), 2020, 50(10): 1252-1273. (in Chinese) doi: 10.1360/SST-2020-0111 [8] 李应红,梁华,马清源,等. 脉冲等离子体气动激励抑制翼型吸力面流动分离的实验[J]. 航空学报,2008,29(6): 1429-1435. LI Yinghong,LIANG Hua,MA Qingyuan,et al. Experimental investigation on airfoil suction side flow separation by pulse plasma aerodynamic actuation[J]. Acta Aeronautica et Astronautica Sinica,2008,29(6): 1429-1435. (in Chinese doi: 10.3321/j.issn:1000-6893.2008.06.004LI Yinghong, LIANG Hua, MA Qingyuan, et al. Experimental investigation on airfoil suction side flow separation by pulse plasma aerodynamic actuation[J]. Acta Aeronautica et Astronautica Sinica, 2008, 29(6): 1429-1435. (in Chinese) doi: 10.3321/j.issn:1000-6893.2008.06.004 [9] 孟宣市,杨泽人,陈琦,等. 低雷诺数下层流分离的等离子体控制[J]. 航空学报,2016,37(7): 2112-2122. MENG Xuanshi,YANG Zeren,CHEN Qi,et al. Laminar separation control at low Reynolds numbers using plasma actuation[J]. Acta Aeronautica et Astronautica Sinica,2016,37(7): 2112-2122. (in ChineseMENG Xuanshi, YANG Zeren, CHEN Qi, et al. Laminar separation control at low Reynolds numbers using plasma actuation[J]. Acta Aeronautica et Astronautica Sinica, 2016, 37(7): 2112-2122. (in Chinese) [10] 赵光银,梁华,牛中国,等. NS-DBD激励控制非细长三角翼前缘涡仿真研究[J]. 航空动力学报,2019,34(2): 423-433. ZHAO Guangyin,LIANG Hua,NIU Zhongguo,et al. Numerical investigation on leading-edge vortex control for non-slender delta wing by nanosecond pulse dielectric barrier discharge actuation[J]. Journal of Aerospace Power,2019,34(2): 423-433. (in ChineseZHAO Guangyin, LIANG Hua, NIU Zhongguo, et al. Numerical investigation on leading-edge vortex control for non-slender delta wing by nanosecond pulse dielectric barrier discharge actuation[J]. Journal of Aerospace Power, 2019, 34(2): 423-433. (in Chinese) [11] 李钢,聂超群,朱俊强,等. 介质阻挡放电等离子体对压气机叶栅性能影响的实验[J]. 航空动力学报,2008,23(3): 522-526. LI Gang,NIE Chaoqun,ZHU Junqiang,et al. Experimental investigations of the effect of dielectric barrier discharge plasma on performance of compressor cascade[J]. Journal of Aerospace Power,2008,23(3): 522-526. (in ChineseLI Gang, NIE Chaoqun, ZHU Junqiang, et al. Experimental investigations of the effect of dielectric barrier discharge plasma on performance of compressor cascade[J]. Journal of Aerospace Power, 2008, 23(3): 522-526. (in Chinese) [12] GAITONDE D V,SAHIN M,SHALER K,et al. High-fidelity simulations of NS-DBD-based control of a stalled NACA0015 airfoil[R]. AIAA 2013-1118,2013. [13] CHEN Zhenli,HAO Linzhao,ZHANG Binqian. A model for nanosecond pulsed dielectric barrier discharge (NSDBD) actuator and its investigation on the mechanisms of separation control over an airfoil[J]. Science China Technological Sciences,2013,56(5): 1055-1065. doi: 10.1007/s11431-013-5179-4 [14] ZHENG J G,ZHAO Z J,LI J,et al. Numerical simulation of nanosecond pulsed dielectric barrier discharge actuator in a quiescent flow[J]. Physics of Fluids,2014,26(3): 036102. doi: 10.1063/1.4867708 [15] 田永强,蔡晋生,杨磊磊,等. 脉冲介质阻挡放电等离子体热效应实验[J]. 航空动力学报,2019,34(12): 2663-2676. TIAN Yongqiang,CAI Jinsheng,YANG Leilei,et al. Experimental on the thermal effects of pulsed dielectric barrier discharge plasma[J]. Journal of Aerospace Power,2019,34(12): 2663-2676. (in ChineseTIAN Yongqiang, CAI Jinsheng, YANG Leilei, et al. Experimental on the thermal effects of pulsed dielectric barrier discharge plasma[J]. Journal of Aerospace Power, 2019, 34(12): 2663-2676. (in Chinese) [16] 赵光银,李应红,梁华,等. 纳秒脉冲表面介质阻挡等离子体激励唯象学仿真[J]. 物理学报,2015,64(1): 015101. ZHAO Guangyin,LI Yinghong,LIANG Hua,et al. Phenomenological mo deling of nanosecond pulsed surface dielectric barrier discharge plasma actuation for flow control[J]. Acta Physica Sinica,2015,64(1): 015101. (in Chinese doi: 10.7498/aps.64.015101ZHAO Guangyin, LI Yinghong, LIANG Hua, et al. Phenomenological mo deling of nanosecond pulsed surface dielectric barrier discharge plasma actuation for flow control[J]. Acta Physica Sinica, 2015, 64(1): 015101. (in Chinese) doi: 10.7498/aps.64.015101 [17] 赵光银,梁华,李应红,等. 表面介质阻挡纳秒脉冲放电能量特性和诱导流动特性研究[J]. 中国科学(技术科学),2015,45(11): 1195-1206. ZHAO Guangyin,LIANG Hua,LI Yinghong,et al. Study of electrical characterization and induced flow by nanosecond pulsed dielectric barrier discharge actuator[J]. Scientia Sinica (Technologica),2015,45(11): 1195-1206. (in Chinese doi: 10.1360/N092014-00389ZHAO Guangyin, LIANG Hua, LI Yinghong, et al. Study of electrical characterization and induced flow by nanosecond pulsed dielectric barrier discharge actuator[J]. Scientia Sinica (Technologica), 2015, 45(11): 1195-1206. (in Chinese) doi: 10.1360/N092014-00389 [18] KOLBAKIR C,LIU Y,HU H,et al. An experiment investigation on the thermal effects of NS-DBD and AC-DBD plasma actuators for aircraft icing mitigation[R]. AIAA 2018-0164,2018. [19] MENG X S,CAI J S,TIAN Y Q,et al. Experiment study of deicing and anti-icing on a cylinder by DBD plasma actuation[R]. AIAA 2016-4019,2016. [20] 赵彬彬,董威,刘娟,等. 等离子体射流防冰性能实验研究Ⅰ:DBD-PA参数化分析及防冰效果验证[J]. 上海交通大学学报,2018,52(8): 924-929. ZHAO Binbin,DONG Wei,LIU Juan,et al. Experimental study on the anti-icing performance of plasma jet Ⅰ:parametric analysis of DBD-PA and verification on the anti-icing performance[J]. Journal of Shanghai Jiao Tong University,2018,52(8): 924-929. (in ChineseZHAO Binbin, DONG Wei, LIU Juan, et al. Experimental study on the anti-icing performance of plasma jet Ⅰ: parametric analysis of DBD-PA and verification on the anti-icing performance[J]. Journal of Shanghai Jiao Tong University, 2018, 52(8): 924-929. (in Chinese) [21] 赵彬彬. 基于DBD-PA的等离子体射流防冰实验研究[D]. 上海: 上海交通大学,2017. ZHAO Binbin. Experimental study on plasma jet anti-icing based on DBD-PA[D]. Shanghai: Shanghai Jiao Tong University,2017. (in ChineseZHAO Binbin. Experimental study on plasma jet anti-icing based on DBD-PA[D]. Shanghai: Shanghai Jiao Tong University, 2017. (in Chinese) [22] 梁华,谢理科,吴云,等. 等离子体冰形调控改善翼型/机翼气动性能的试验研究[J]. 空气动力学学报,2021,25(2): 284-290. LIANG Hua,XIE Like,WU Yun,et. al. Experimental study on aerodynamic performance improvement of airfoil/wing based on plasma ice shape modulation[J]. Acta Aerodynamica Sinica,2021,25(2): 284-290. (in ChineseLIANG Hua, XIE Like, WU Yun, et. al. Experimental study on aerodynamic performance improvement of airfoil/wing based on plasma ice shape modulation[J]. Acta Aerodynamica Sinica, 2021, 25(2): 284-290. (in Chinese) [23] 杨胜华,林贵平,申晓斌. 三维复杂表面水滴撞击特性计算[J]. 航空动力学报,2010,25(2): 284-290. YANG Shenghua,LIN Guiping,SHEN Xiaobin. Water droplet impingement prediction for three-dimensional complex surfaces[J]. Journal of Aerospace Power,2010,25(2): 284-290. (in ChineseYANG Shenghua, LIN Guiping, SHEN Xiaobin. Water droplet impingement prediction for three-dimensional complex surfaces[J]. Journal of Aerospace Power, 2010, 25(2): 284-290. (in Chinese) [24] 陈维建,张大林. 飞机机翼结冰过程的数值模拟[J]. 航空动力学报,2005,20(6): 1010-1017. CHEN Weijian,ZHANG Dalin. Numerical simulation of ice accretion on airfoils[J]. Journal of Aerospace Power,2005,20(6): 1010-1017. (in ChineseCHEN Weijian, ZHANG Dalin. Numerical simulation of ice accretion on airfoils[J]. Journal of Aerospace Power, 2005, 20(6): 1010-1017. (in Chinese) [25] WIROGO S,SRIRAMBHATLA S. An Eulerian method to calculate the collection efficiency on two and three dimensional bodies[R]. AIAA 2003-1073,2003. [26] 肖春华,桂业伟,杨升科,等. 热/力耦合作用下基于应力分析的冰破坏准则[J]. 航空动力学报,2019,34(12): 2626-2626. XIAO Chunhua,GUI Yewei,YANG Shengke,et. al. Ice fracture criterion coupled thermal/mechanical effect based on stress analysis[J]. Journal of Aerospace Power,2019,34(12): 2626-2626. (in ChineseXIAO Chunhua, GUI Yewei, YANG Shengke, et. al. Ice fracture criterion coupled thermal/mechanical effect based on stress analysis[J]. Journal of Aerospace Power, 2019, 34(12): 2626-2626. (in Chinese) [27] 郑玉巧,潘永祥,魏剑峰,等. 叶片翼型结冰形态及其气动特性[J]. 南京航空航天大学学报,2020,52(4): 632-638. ZHENG Yuqiao,PAN Yongxiang,WEI Jianfeng,et al. Icing morphology and aerodynamic characteristics of blade airfoil[J]. Journal of Nanjing University of Aeronautics & Astronautics,2020,52(4): 632-638. (in ChineseZHENG Yuqiao, PAN Yongxiang, WEI Jianfeng, et al. Icing morphology and aerodynamic characteristics of blade airfoil[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2020, 52(4): 632-638. (in Chinese) -
