Research progress in application of carbon graphite sealing materials for aero-engine
-
摘要:
针对航空发动机用炭石墨密封材料及封严技术，详细概述炭石墨密封材料在航空发动机封严系统中的典型应用场景、发展历程、失效模式、国内外研究现状和服役性能要求等，重点阐述其不同制备工艺存在的优劣，并为其未来发展方向提出建议。结果表明：炭石墨密封材料在航空发动机中应用较为普遍，国内自主研制炭石墨密封材料的物理性能与国外非常接近，部分指标甚至更为优异，基本满足了我国新一代高性能航空发动机的选材要求，重要型号已实现自主可控。但在长期服役过程中，部分国产炭石墨密封材料的批次稳定性、可加工性、均质性、高温抗氧化性、成膜性、摩擦因数、磨损率和服役寿命等与国外原装航空发动机用炭石墨密封材料仍存在一定差距。这主要归因于国产炭石墨密封材料未能实现结构-功能一体化的有效构建。
Abstract:Targeting the carbon graphite sealing materials and sealing technology for aero-engine, the typical application scenarios, development history, failure modes, research status at home and abroad, as well as the service performance requirements of carbon-graphite sealing materials in aero-engine sealing systems were described in detail. The advantages and disadvantages of its different preparation processes were emphasized, and suggestions were made for its future development direction. The results showed that carbon graphite sealing materials are widely used in aero engines. The physical properties of carbon graphite sealing materials independently developed in China were very close to those abroad, and some indicators were even better. They basically met the material selection requirements for China’s new generation of high-performance aero-engine, and important models achieved independent controllability. However, the batch stability, processability, homogeneity, high temperature oxidation resistance, film formation, friction factor, wear rate and service life of some domestic carbon graphite sealing materials still had a certain gap with foreign original carbon graphite sealing materials for aircraft engines in the process of long-term service, mainly due to the failure of domestic carbon graphite sealing materials to achieve the effective construction of structure-function integration.
-

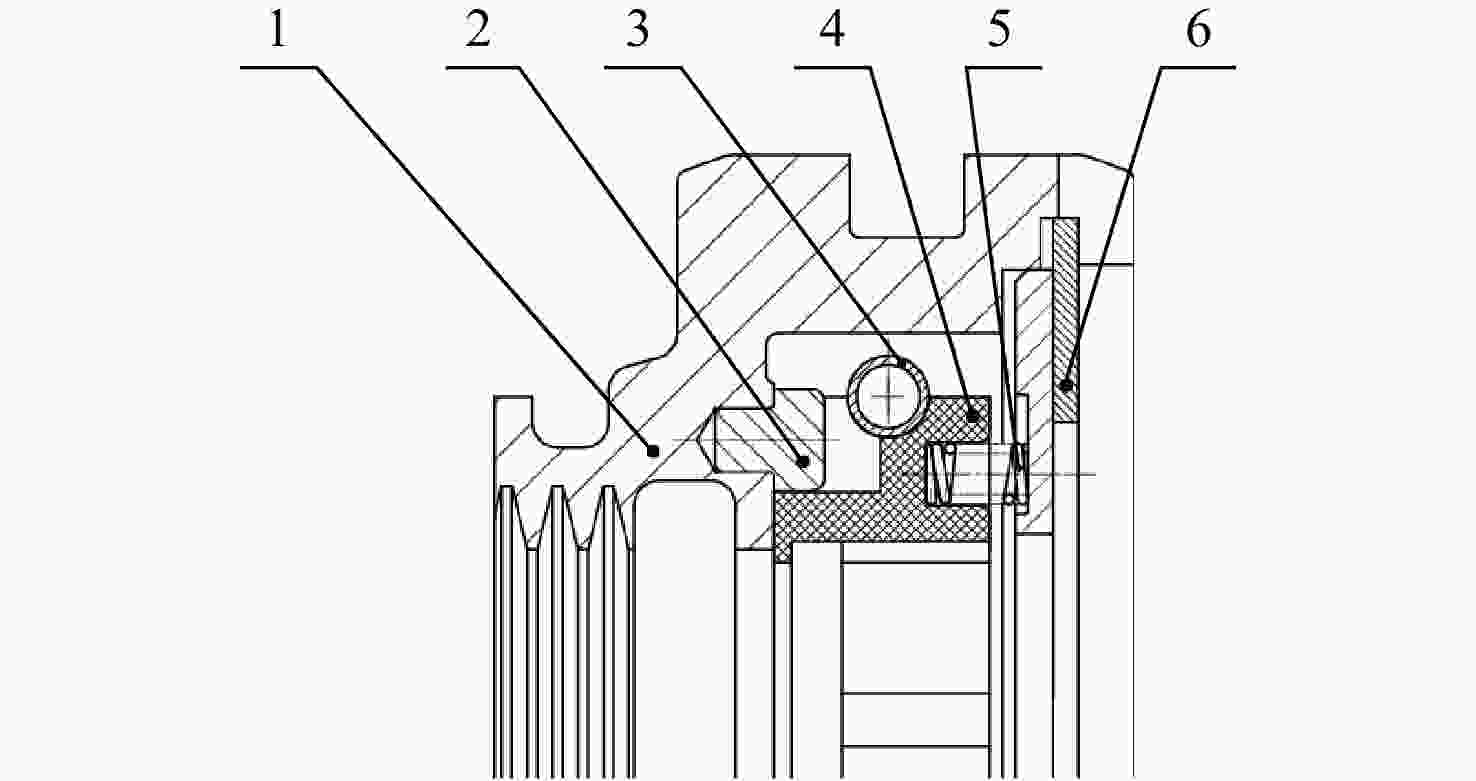

图 3 圆周石墨密封结构
1 密封座；2 防转销；3 拉簧；4 石墨环；5 压缩弹簧；6 卡圈。
Figure 3. Circular graphite seal structure

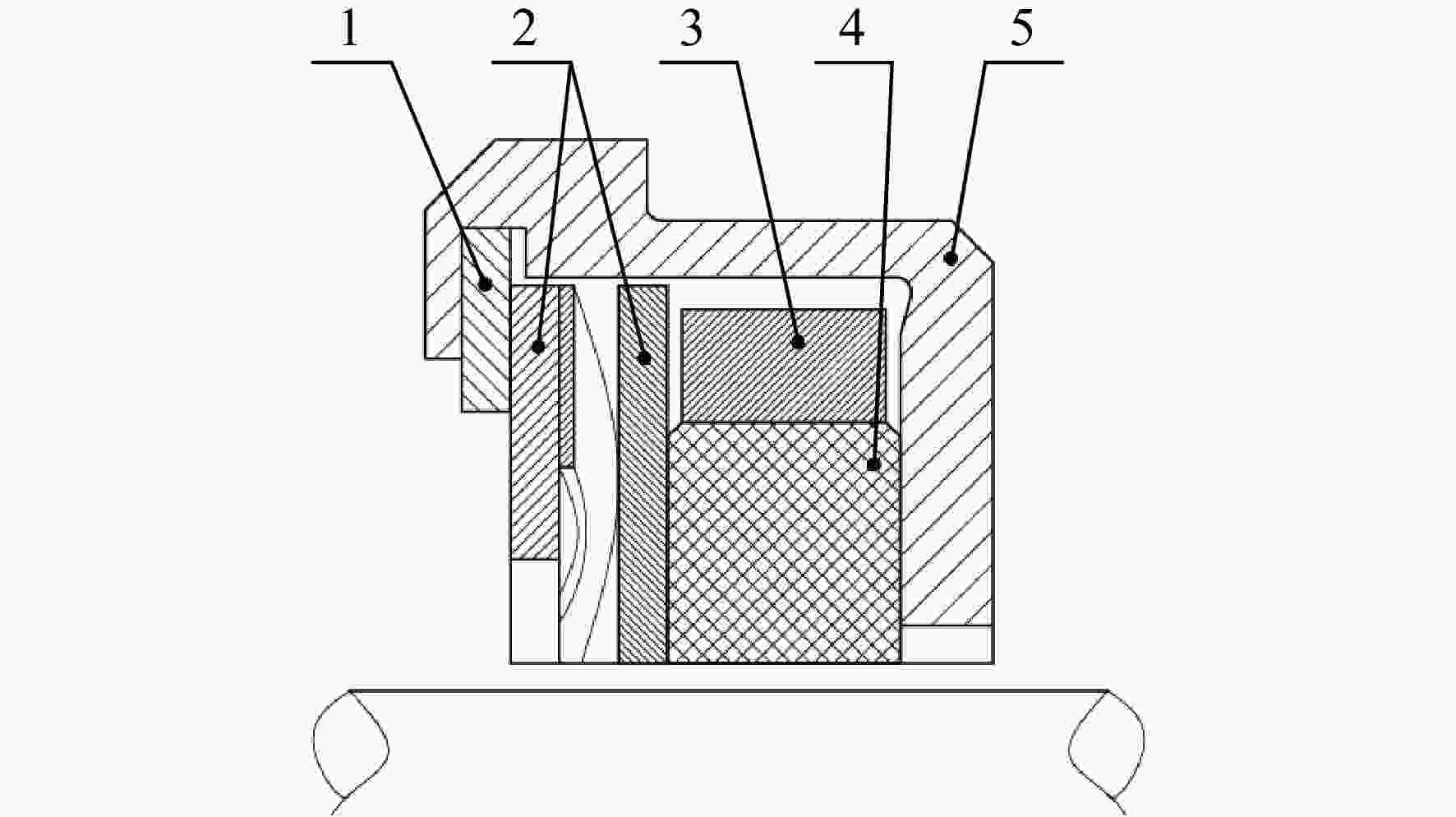

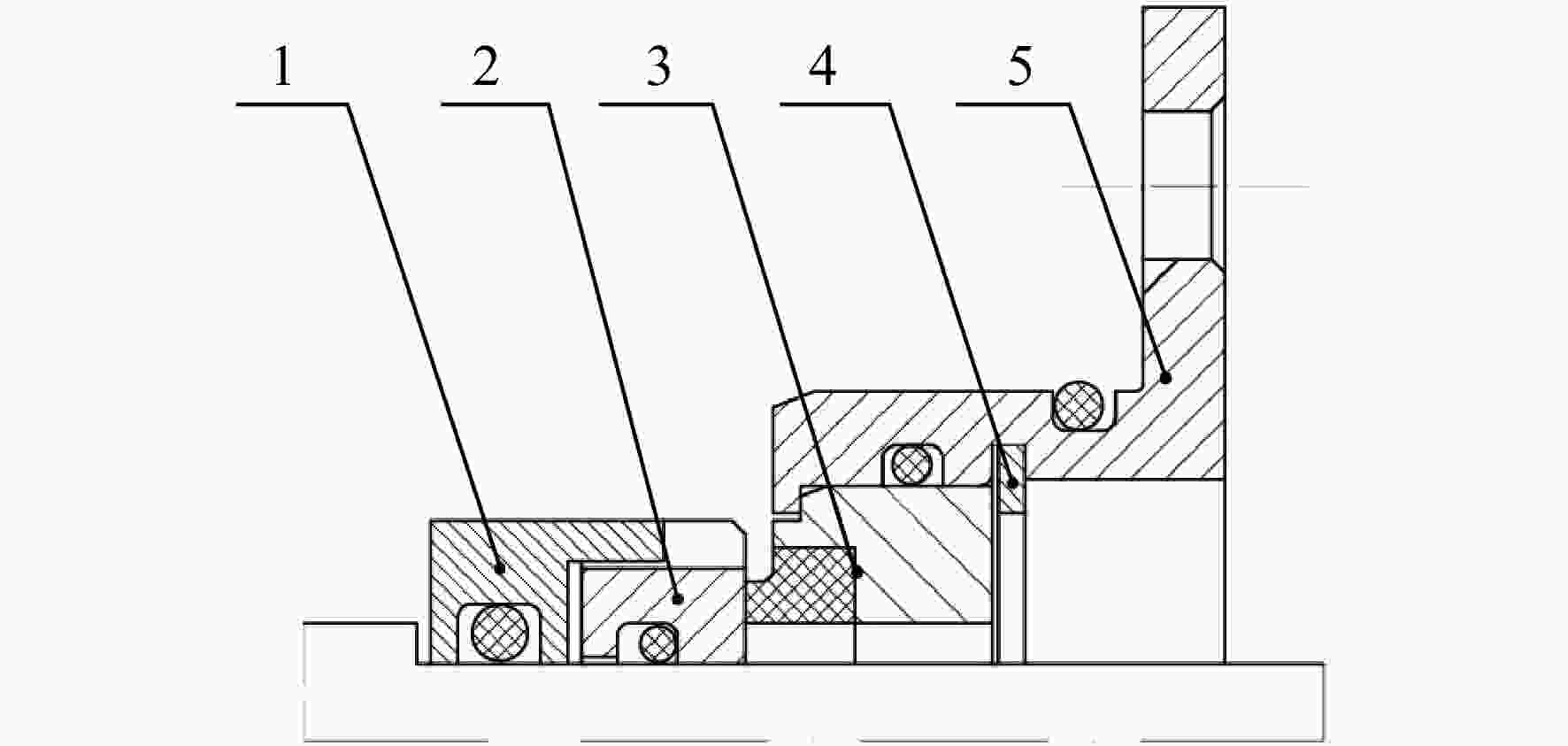

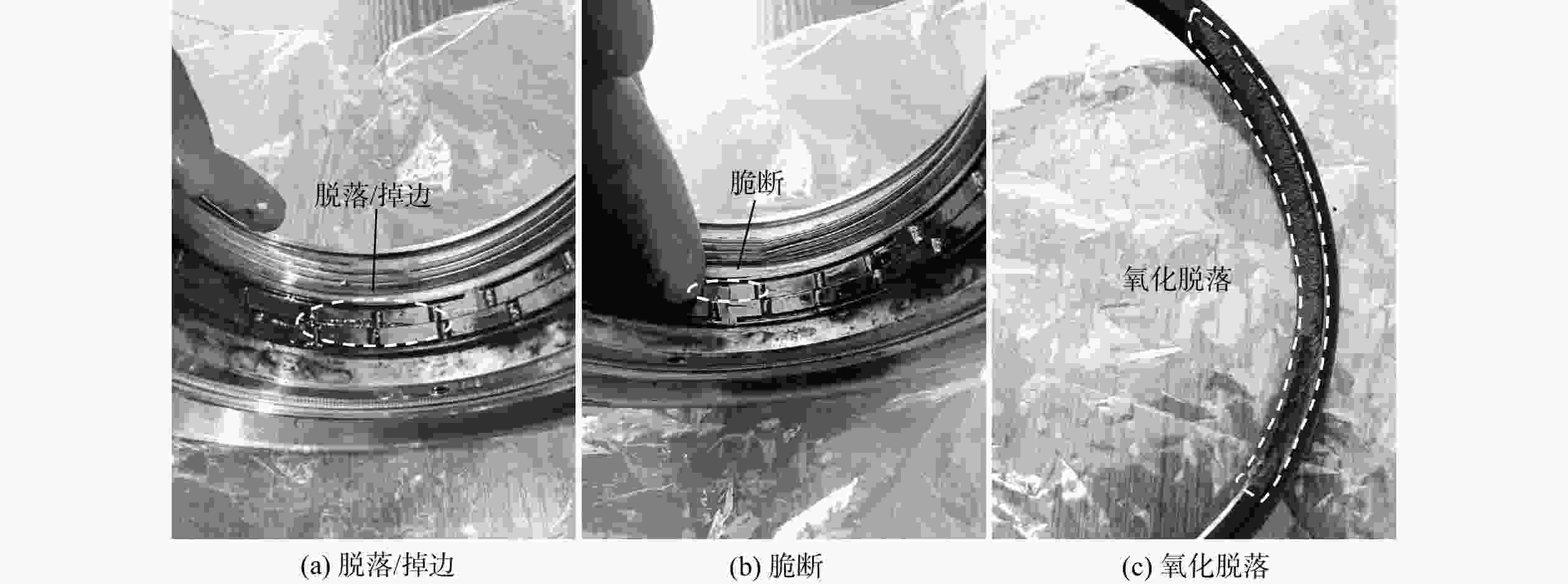

图 7 航空发动机用炭石墨密封材料脱落/掉边、脆断和氧化脱落的电子照片
Figure 7. Electronic photographs of carbon graphite seals falling off, brittle break and oxidative fall off for aircraft engines
表 1 航空发动机用炭石墨密封材料的型号、工作条件及使用部位[34]
Table 1. Type, working conditions and use position of carbon graphite sealing materials for aircraft engines[34]
类别 型号 工作条件 使用部位 电化石墨 HT-1 1） 适用介质：热空气、航空滑油、液压油、燃油等。
2） 使用温度：≤ 773.15 K。
3） 线速度：98 m/s。主轴承端面密封，放气活门（涨圈、衬套）液压系统，燃油系统 电化石墨 HT-2 1） 适用介质：热空气、航空滑油、液压油、燃油等。
2） 使用温度：≤ 773.15 K。
3） 线速度：110 m/s。主轴承密封、液压系统、
燃油系统电化石墨 HT-3 1） 适用介质：热空气、航空滑油、液压油、燃油等。
2） 使用温度：≤ 637.15 K。
3） 线速度：30 m/s。主轴承涨圈密封 电化石墨 HT-4 1） 适用介质：热空气。
2） 使用温度：≤ 773.15 K。
3） 压力：≤ 0.98 MPa。放气活门（涨圈、衬套） 浸渍碳-石墨 HT-H-1 1） 适用介质：航空滑油、液压油、燃油。
2） 使用温度：≤ 498.15 K。
3） 压力：≤ 1.08 MPa。涡轴发动机转轴密封、液压系统、燃油系统 浸渍碳-石墨 HT-H-2 1） 适用介质：航空滑油、热空气。
2） 使用温度：≤ 498.15 K。
3） 线速度：37 m/s。主轴涨圈密封
下载: 导出CSV
表 2 HT-1、HT-2、HT-3、HT-4、HT-H-1和HT-H-2的主要物理性能参数[34]
Table 2. Main physical performance parameters of HT-1，HT-2，HT-3，HT-4，HT-H-1 and HT-H-2[34]
物理性能参数 HT-1 HT-2 HT-3 HT-4 HT-H-1 HT-H-2 体积密度/（g/cm3） ≥1.80 ≥1.80 ≥1.90 ≥1.75 ≥1.60 ≥1.80 肖氏硬度（HS） 45～70 70～80 50～70 ≥60 洛氏硬度（HR 10/60） 110～125 120～128 抗折强度/MPa ≥44 ≥39 ≥55 ≥39 ≥49 ≥63 抗压强度/MPa ≥98 ≥98 ≥127 ≥88 ≥118 ≥186 开口气孔率/% ≤7.0 ≤7.0 ≤5.0 ≤8.0 ≤2.0 ≤2.0 弹性模量/GPa 10.8～14.7 12.5～16.9 12.5～16.9 9.3～12.7 10.0～13.5 11.7～15.8 热膨胀系数/10−6·K−1 ≤5.3 ≤4.0 ≤4.5 ≤5.0 ≤5.5 ≤5.5 导热系数/（W/（m·K）） ≥21 ≥69 ≥69 ≥30 ≥4 ≥12 摩擦因数（45#钢） ≤0.15 ≤0.20 ≤0.20 ≤0.15 ≤0.20 摩擦因数（45#钢镀铬） ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25 抗氧化失重/
（mg/cm3·h）498.15 K, 2 h① ≤4.0 ≤2.0 723.15 K, 2 h② ≤0.5 ≤0.5 773.15 K, 2 h③ ≤4.5 ≤4.5 ≤4.5 ≤4.5 注：表中上标①为空气氛围下，498.15 K处理2 h；②为空气氛围下，723.15 K处理2 h；③为空气氛围下，773.15 K处理2 h。
下载: 导出CSV
物理性能 ATΓ HИΓPAH-B KC170 JP932 P-03XHT EY9106 M234AO 体积密度/（g/cm3） 1.80 1.80 1.60 1.85 1.91 1.7 ≥1.8 肖氏硬度（HS） 65 75 75 50 抗折强度/MPa 50 60 25 70 55 31 ≥44 抗压强度/MPa 120 160 50 210 155 70 ≥98 开气孔率/% 8 5 ≤7 弹性模量/GPa 14 14 17 4.7 导热系数/（W/（m·K）） 95 28 25 69 热膨胀系数/10−6·K−1 7.0 5.0 4.0 4.2 3.8 最高使用温度/K 573.15 873.15 923.15 浸渍物质 树脂 磷酸盐 树脂 磷酸盐
下载: 导出CSV
表 4 国产部分炭石墨密封材料的物理性能参数
Table 4. Physical properties parameters of some domestic carbon graphite sealing materials
物理性能 T482-Ⅰ M272 M106H ASG-P IPG M210W M211W 体积密度/（g/cm3） ≥1.95 ≥1.75 ≥1.60 1.95～2.05 >1.8 ≥1.9 ≥1.8 肖氏硬度（HS） 75～95 50～70 ≥60 70～95 40～65 55～65 显微硬度/MPa 300～700 抗折强度/MPa ≥70 ≥39 ≥60 ≥60 >90 ≥40 ≥45 抗压强/MPa ≥150 ≥88 ≥49 ≥150 >190 ≥100 ≥98 开气孔率/% ≤3 ≤8 ≤2 ≤0.5 ≤4 ≤3 弹性模量/GPa ≥13 9.3～12.7 10.0～13.5 12～18 9～14 12.5～16.9 导热系数/（W/（m·K）） ≥40 ≥30 ≥4 ≥40 30～50 ≥60 热膨胀系数/10−6·K−1 ≤5.5 ≤5.0 ≤5.5 5.0～7.0 6.5～8.5 3.0～5.5 ≤6 摩擦因数 ≤0.1 ≤0.25 ≤0.25 ≤0.3 ≤0.3 ≤0.3 抗氧化失重率/%
（923.15 K×50 h）≤5 ≤5 ≤5 ≤5 石墨化度/% ≥80 ≥85 ≥85 PV值/（MPa·m/s） ≥20 浸渍物质 磷酸盐 磷酸盐 环氧树脂 磷酸盐 磷酸盐 磷酸盐 参考文献来源 文献[65] 文献[35] 文献[35] 文献[77] 文献[88] 文献[69] 文献[69]
下载: 导出CSV
-
[1] LEEFE S. Seals research to boost rocket engines into the 21st century[J]. Sealing Technology,1998,1998(53): 7-9. doi: 10.1016/S1350-4789(00)87565-0 [2] 陈礼顺,王彦岭,卢建红,等. 航空发动机封严技术的研究和应用进展[J]. 航空制造技术,2008,51(8): 82-84,95. CHEN Lishun,WANG Yanling,LU Jianhong,et al. Development of study and application of aeroengine sealing technology[J]. Aeronautical Manufacturing Technology,2008,51(8): 82-84,95. (in Chinese doi: 10.3969/j.issn.1671-833X.2008.08.015CHEN Lishun, WANG Yanling, LU Jianhong, et al. Development of study and application of aeroengine sealing technology[J]. Aeronautical Manufacturing Technology, 2008, 51(8): 82-84, 95. (in Chinese) doi: 10.3969/j.issn.1671-833X.2008.08.015 [3] 张家远,王利恒,顾健. 石墨密封基础理论及工程应用技术研究进展[J]. 装备制造技术,2018(6): 93-100. ZHANG Jiayuan,WANG Liheng,GU Jian. Some reviews of graphite seal fundament theories and its technical researches[J]. Equipment Manufacturing Technology,2018(6): 93-100. (in Chinese doi: 10.3969/j.issn.1672-545X.2018.06.027ZHANG Jiayuan, WANG Liheng, GU Jian. Some reviews of graphite seal fundament theories and its technical researches[J]. Equipment Manufacturing Technology, 2018(6): 93-100. (in Chinese) doi: 10.3969/j.issn.1672-545X.2018.06.027 [4] 沈虹,郑天慧,陈玉洁. 航空发动机封严技术的进展[J]. 燃气涡轮试验与研究,2011,24(4): 51-55. SHEN Hong,ZHENG Tianhui,CHEN Yujie. Improvement of aero-engine sealing technology[J]. Gas Turbine Experiment and Research,2011,24(4): 51-55. (in Chinese doi: 10.3969/j.issn.1672-2620.2011.04.014SHEN Hong, ZHENG Tianhui, CHEN Yujie. Improvement of aero-engine sealing technology[J]. Gas Turbine Experiment and Research, 2011, 24(4): 51-55. (in Chinese) doi: 10.3969/j.issn.1672-2620.2011.04.014 [5] 陈光. 航空发动机结构设计分析[M]. 2版. 北京: 北京航空航天大学出版社,2014. CHEN Guang. Structural design analysis of aero-engine[M]. 2nd ed. Beijing: Beihang University Press,2014. (in ChineseCHEN Guang. Structural design analysis of aero-engine[M]. 2nd ed. Beijing: Beihang University Press, 2014. (in Chinese) [6] 胡广阳. 航空发动机密封技术应用研究[J]. 航空发动机,2012,38(3): 1-4. HU Guangyang. Application research of seal technologies for aeroengine[J]. Aeroengine,2012,38(3): 1-4. (in Chinese doi: 10.3969/j.issn.1672-3147.2012.03.002HU Guangyang. Application research of seal technologies for aeroengine[J]. Aeroengine, 2012, 38(3): 1-4. (in Chinese) doi: 10.3969/j.issn.1672-3147.2012.03.002 [7] 马庆春,梁世林,殷景峰. 航空航天炭/石墨密封材料的研究[J]. 炭素,2019(1): 22-26. MA Qingchun,LIANG Shilin,YIN Jingfeng. Study on aerospace carbon and graphite sealing materials[J]. Carbon,2019(1): 22-26. (in ChineseMA Qingchun, LIANG Shilin, YIN Jingfeng. Study on aerospace carbon and graphite sealing materials[J]. Carbon, 2019(1): 22-26. (in Chinese) [8] BRAUN M J,KUDRIAVTSEV V V,STEINETZ B M,et al. Two- and three-dimensional numerical experiments representing two limiting cases of an In-line pair of finger seal components[J]. International Journal of Rotating Machinery,2003,9(3): 171-179. [9] POVINELLI V P,Jr. Current seal designs and future requirements for turbine engine seals and bearings[J]. Journal of Aircraft,1975,12(4): 266-273. doi: 10.2514/3.44443 [10] 林基恕,张振波. 21世纪航空发动机动力传输系统的展望[J]. 航空动力学报,2001,16(2): 108-114,118. LIN Jishu,ZHANG Zhenbo. Prospects of aeroengine power transmission system in the 21st century[J]. Journal of Aerospace Power,2001,16(2): 108-114,118. (in Chinese doi: 10.3969/j.issn.1000-8055.2001.02.003LIN Jishu, ZHANG Zhenbo. Prospects of aeroengine power transmission system in the 21st century[J]. Journal of Aerospace Power, 2001, 16(2): 108-114, 118. (in Chinese) doi: 10.3969/j.issn.1000-8055.2001.02.003 [11] 刘振侠,江平. 航空发动机机械系统设计[M]. 北京: 科学出版社,2022. [12] DING Yuxiao,QIAO Zhenan. Carbon surface chemistry: new insight into the old story[J]. Advanced Materials,2022,34(42): 2206025.1-2206025.11. [13] 林基恕. 航空燃气涡轮发动机机械系统设计[M]. 北京: 航空工业出版社,2005. [14] LI Ruoxuan,YAMASHITA S,KITA H. Investigating the chemical bonding state of graphite powder treated with magnesium: Ⅱ phosphate through EELS,TEM,and XPS analysis[J]. Diamond and Related Materials,2021,116: 108423.1-108423.10. [15] LIU Ben,ZHAO Hongchao,LI Xiangfen,et al. Effect of pore structure on the thermophysical and frictional properties of high-density graphite[J]. Microporous and Mesoporous Materials,2022,330: 111613.1-111613.9. [16] XU Yuxuan,TU Chuanjun,LIU Yanli,et al. Superior tribology property of zinc phosphate impregnated graphite block at high-temperature oxidative friction[J]. Carbon Letters,2022,32(5): 1365-1376. doi: 10.1007/s42823-022-00363-5 [17] PARK M S,LEE J,LEE J W,et al. Tuning the surface chemistry of natural graphite anode by H3PO4 and H3BO3 treatments for improving electrochemical and thermal properties[J]. Carbon,2013,62: 278-287. doi: 10.1016/j.carbon.2013.05.065 [18] 马也,王庆锋,施任杰,等. 航空发动机气膜浮环密封上浮性能研究[J]. 润滑与密封,2021,46(1): 38-44,50. MA Ye,WANG Qingfeng,SHI Renjie,et al. Research on floating performance of aeroengine air film floating ring seal[J]. Lubrication Engineering,2021,46(1): 38-44,50. (in ChineseMA Ye, WANG Qingfeng, SHI Renjie, et al. Research on floating performance of aeroengine air film floating ring seal[J]. Lubrication Engineering, 2021, 46(1): 38-44, 50. (in Chinese) [19] 胡文颖,张生光,李雯. 接触式石墨端面密封材料磨损行为预测[J]. 推进技术,2022,43(11): 332-341. HU Wenying,ZHANG Shengguang,LI Wen. Prediction for wear behavior of graphite material in end face seal[J]. Journal of Propulsion Technology,2022,43(11): 332-341. (in ChineseHU Wenying, ZHANG Shengguang, LI Wen. Prediction for wear behavior of graphite material in end face seal[J]. Journal of Propulsion Technology, 2022, 43(11): 332-341. (in Chinese) [20] 何强,黄伟峰,胡广阳,等. 航空发动机气膜密封技术的发展[J]. 航空发动机,2021,47(4): 106-113. HE Qiang,HUANG Weifeng,HU Guangyang,et al. Research status of the film-riding gas seal technologies in aeroengine[J]. Aeroengine,2021,47(4): 106-113. (in ChineseHE Qiang, HUANG Weifeng, HU Guangyang, et al. Research status of the film-riding gas seal technologies in aeroengine[J]. Aeroengine, 2021, 47(4): 106-113. (in Chinese) [21] 陈聪慧,葛泉江,李季,等. 航空发动机机械系统技术研究[J]. 航空发动机,2015,41(5): 86-91. CHEN Conghui,GE Quanjiang,LI Ji,et al. Study on aeroengine mechanical system technology[J]. Aeroengine,2015,41(5): 86-91. (in ChineseCHEN Conghui, GE Quanjiang, LI Ji, et al. Study on aeroengine mechanical system technology[J]. Aeroengine, 2015, 41(5): 86-91. (in Chinese) [22] SONG Yongzhong,ZHAI Gengtai,SONG Jinren,et al. Seal and wear properties of graphite from MCMBs/pitch-based carbon/phenolic-based carbon composites[J]. Carbon,2006,44(13): 2793-2796. doi: 10.1016/j.carbon.2006.03.028 [23] SONG Jinliang,ZHAO Yanling,ZHANG Junpeng,et al. Preparation of binderless nanopore-isotropic graphite for inhibiting the liquid fluoride salt and Xe135 penetration for molten salt nuclear reactor[J]. Carbon,2014,79: 36-45. doi: 10.1016/j.carbon.2014.07.022 [24] HE Zhao,LIU Zhanjun,SONG Jinliang,et al. Fine-grained graphite with super molten salt barrier property produced from filler of natural graphite flake by a liquid-phase mixing process[J]. Carbon,2019,145: 367-377. doi: 10.1016/j.carbon.2019.01.029 [25] 闫玉涛,李雪娟,胡广阳,等. 石墨密封材料高温摩擦磨损行为及预测[J]. 航空动力学报,2014,29(2): 314-320. YAN Yutao,LI Xuejuan,HU Guangyang,et al. Friction/wear behaviors and predication of graphite seal material under high temperature[J]. Journal of Aerospace Power,2014,29(2): 314-320. (in ChineseYAN Yutao, LI Xuejuan, HU Guangyang, et al. Friction/wear behaviors and predication of graphite seal material under high temperature[J]. Journal of Aerospace Power, 2014, 29(2): 314-320. (in Chinese) [26] 胡广阳,闫玉涛,郑利胜,等. 航空发动机石墨圆周密封接触特性分析[J]. 润滑与密封,2018,43(11): 102-107. HU Guangyang,YAN Yutao,ZHENG Lisheng,et al. Analysis of contact characteristics for graphite circumferential seal in aeroengine[J]. Lubrication Engineering,2018,43(11): 102-107. (in Chinese doi: 10.3969/j.issn.0254-0150.2018.11.018HU Guangyang, YAN Yutao, ZHENG Lisheng, et al. Analysis of contact characteristics for graphite circumferential seal in aeroengine[J]. Lubrication Engineering, 2018, 43(11): 102-107. (in Chinese) doi: 10.3969/j.issn.0254-0150.2018.11.018 [27] 闫玉涛,张博,胡广阳,等. 石墨圆周密封热-结构耦合分析[J]. 航空动力学报,2018,33(2): 273-281. YAN Yutao,ZHANG Bo,HU Guangyang,et al. Analysis on thermal-structure coupling for graphite circumferential seal[J]. Journal of Aerospace Power,2018,33(2): 273-281. (in ChineseYAN Yutao, ZHANG Bo, HU Guangyang, et al. Analysis on thermal-structure coupling for graphite circumferential seal[J]. Journal of Aerospace Power, 2018, 33(2): 273-281. (in Chinese) [28] 胡廷勋,周坤,王晓燕,等. 浮环密封泄漏特性数值计算与试验[J]. 航空动力学报,2020,35(4): 888-896. HU Tingxun,ZHOU Kun,WANG Xiaoyan,et al. Numerical calculation and experiment on leakage characteristics of floating ring seal[J]. Journal of Aerospace Power,2020,35(4): 888-896. (in ChineseHU Tingxun, ZHOU Kun, WANG Xiaoyan, et al. Numerical calculation and experiment on leakage characteristics of floating ring seal[J]. Journal of Aerospace Power, 2020, 35(4): 888-896. (in Chinese) [29] 胡国桢. 化工密封技术[M]. 北京: 化学工业出版社,1990. HU Guozhen. Chemical sealing technology[M]. Beijing: Chemical Industry Press,1990. (in ChineseHU Guozhen. Chemical sealing technology[M]. Beijing: Chemical Industry Press, 1990. (in Chinese) [30] 孙晓萍. 航空发动机磁力密封设计与试验研究[J]. 航空发动机,2003,29(1): 1-4,26. SUN Xiaoping. Design and experimental investigation of aeroengine magnetic seal[J]. Aeroengine,2003,29(1): 1-4,26. (in Chinese doi: 10.3969/j.issn.1672-3147.2003.01.001SUN Xiaoping. Design and experimental investigation of aeroengine magnetic seal[J]. Aeroengine, 2003, 29(1): 1-4, 26. (in Chinese) doi: 10.3969/j.issn.1672-3147.2003.01.001 [31] 石川敏功,长冲通. 新炭素工业[M]. 陆玉峻,李洁,刘建东,等,译. 哈尔滨: 哈尔滨工业大学出版社,1990. ISHIKAWA Toshigong,Nagatokitsu. New carbon industry[M]. Translated by LU Yujun,LI Jie,LIU Jiandong,et al. Harbin: Harbin Institute of Technology Press,1990. (in ChineseISHIKAWA Toshigong, Nagatokitsu. New carbon industry[M]. Translated by LU Yujun, LI Jie, LIU Jiandong, et al. Harbin: Harbin Institute of Technology Press, 1990. (in Chinese) [32] 谢有赞. 炭石墨材料工艺[M]. 长沙: 湖南大学出版社,1988. XIE Youzan. Technology of carbon and graphite materials[M]. Changsha: Hunan University Press,1988. (in ChineseXIE Youzan. Technology of carbon and graphite materials[M]. Changsha: Hunan University Press, 1988. (in Chinese) [33] 蒋文忠. 炭素工艺学[M]. 北京: 冶金工业出版社,2009. JIANG Wenzhong. Carbon technology[M]. Beijing: Metallurgical Industry Press,2009. (in ChineseJIANG Wenzhong. Carbon technology[M]. Beijing: Metallurgical Industry Press, 2009. (in Chinese) [34] 李金富,汪武祥,杨金媛,等. 航空用碳石墨密封材料: HB 5366-86[S]. 北京: 中华人民共和国航空工业部,1986: 1-5. [35] 沈运湘,陈健. 碳石墨密封材料及其选型[J]. 电碳,1995(1): 9-15. SHEN Yunxiang,CHEN Jian. Carbon-graphite sealing materials and their selection[J]. Electric Carbon,1995(1): 9-15. (in Chinese).SHEN Yunxiang, CHEN Jian. Carbon-graphite sealing materials and their selection[J]. Electric Carbon, 1995(1): 9-15. (in Chinese). [36] 项启贤. 国外碳—石墨制品发展简介[J]. 碳素,1983(3): 31-39. XIANG Qixian. Brief introduction of carbon-graphite products development abroad[J]. Carbon,1983(3): 31-39. (in ChineseXIANG Qixian. Brief introduction of carbon-graphite products development abroad[J]. Carbon, 1983(3): 31-39. (in Chinese) [37] 孙见君,魏龙,顾伯勤. 机械密封的发展历程与研究动向[J]. 润滑与密封,2004,29(4): 128-131,134. SUN Jianjun,WEI Long,GU Boqin. Development course and research trend on the mechanical seal[J]. Lubrication Engineering,2004,29(4): 128-131,134. (in Chinese doi: 10.3969/j.issn.0254-0150.2004.04.050SUN Jianjun, WEI Long, GU Boqin. Development course and research trend on the mechanical seal[J]. Lubrication Engineering, 2004, 29(4): 128-131, 134. (in Chinese) doi: 10.3969/j.issn.0254-0150.2004.04.050 [38] LEBECK A O. Principles and design of mechanical face seals[M]. New York: Wiley & Sons,1991. [39] 李璇,吴涛,潘柳,等. 发动机石墨密封环断裂分析[J]. 失效分析与预防,2015,10(3): 173-176. LI Xuan,WU Tao,PAN Liu,et al. Failure analysis of graphite seal ring in engine[J]. Failure Analysis and Prevention,2015,10(3): 173-176. (in Chinese doi: 10.3969/j.issn.1673-6214.2015.03.009LI Xuan, WU Tao, PAN Liu, et al. Failure analysis of graphite seal ring in engine[J]. Failure Analysis and Prevention, 2015, 10(3): 173-176. (in Chinese) doi: 10.3969/j.issn.1673-6214.2015.03.009 [40] BILL R C,LUDWIG L P. Wear of seal materials used in aircraft propulsion systems[J]. Wear,1980,59(1): 165-189. doi: 10.1016/0043-1648(80)90277-X [41] 张栋,李权. 发动机石墨密封环失效分析[J]. 失效分析与预防,2006,1(2): 56-60. ZHANG Dong,LI Quan. Failure analysis of graphite seal ring in engine[J]. Failure Analysis and Prevention,2006,1(2): 56-60. (in Chinese doi: 10.3969/j.issn.1673-6214.2006.02.012ZHANG Dong, LI Quan. Failure analysis of graphite seal ring in engine[J]. Failure Analysis and Prevention, 2006, 1(2): 56-60. (in Chinese) doi: 10.3969/j.issn.1673-6214.2006.02.012 [42] WANG Zhanbin,FAN Jinjuan,ZHANG Bing. Failure analysis of the aircraft accessories graphite seal ring[J]. IOP Conference Series: Earth and Environmental Science,2021,781(2): 022059.1-022059.9. [43] SONG Yuheng,ZENG Shengkui,MA Jiming,et al. Failure analysis of graphite stationary ring utilized in one type of mechanical seal[J]. Engineering Failure Analysis,2020,108: 104259.1-104259. 12. [44] 董直强,殷景峰. 炭石墨材料结构缺陷研究进展[J]. 炭素,2019(4): 35-38. DONG Zhiqiang,YIN Jingfeng. Research progress on structural defects of carbon graphite materials[J]. Carbon,2019(4): 35-38. (in ChineseDONG Zhiqiang, YIN Jingfeng. Research progress on structural defects of carbon graphite materials[J]. Carbon, 2019(4): 35-38. (in Chinese) [45] 邓祖柱. 浸渍金属碳石墨的性能和应用[J]. 固体润滑,1989,9(4): 239-242,246. DENG Zuzhu. Properties and applications of metal impregnated carbon-graphite materials[J]. Tribology,1989,9(4): 239-242,246. (in ChineseDENG Zuzhu. Properties and applications of metal impregnated carbon-graphite materials[J]. Tribology, 1989, 9(4): 239-242, 246. (in Chinese) [46] 冯勇祥. 国外浸金属碳-石墨材料的发展概况[J]. 新型碳材料,1989,4(1): 4-13. FENG Yongxiang. Development of metal impregnated carbon-graphite materials abroad[J]. New Carbon Materials,1989,4(1): 4-13. (in ChineseFENG Yongxiang. Development of metal impregnated carbon-graphite materials abroad[J]. New Carbon Materials, 1989, 4(1): 4-13. (in Chinese) [47] 吴强,涂湘华,朱斌,等. 机械密封用碳石墨密封环技术条件: JB/T 8872-2016[S]. 北京: 中华人民共和国工业和信息化部. 2016: 1-10. [48] 中华人民共和国工业和信息化部. 重点新材料首批次应用示范目录(2021年版)[EB/OL]. (2022-01-01). [2023-06-07] http://gxt.shanxi.gov.cn/xwdt/tzgg/202209/P020220913594620865146.pdf [49] 刘占军,郭全贵,史景利,等. 制备工艺对炭/石墨密封材料性能及其结构的影响[J]. 炭素技术,2010,29(4): 1-4,24. LIU Zhanjun,GUO Quangui,SHI Jingli,et al. Effect of preparation procedure on properties and microstructure of carbon/graphite seal materials[J]. Carbon Techniques,2010,29(4): 1-4,24. (in Chinese doi: 10.3969/j.issn.1001-3741.2010.04.001LIU Zhanjun, GUO Quangui, SHI Jingli, et al. Effect of preparation procedure on properties and microstructure of carbon/graphite seal materials[J]. Carbon Techniques, 2010, 29(4): 1-4, 24. (in Chinese) doi: 10.3969/j.issn.1001-3741.2010.04.001 [50] LEE S H,HWANG Y M,BYUN T S,et al. Effect of heating rate,temperature,and residence time during graphitization on the mechanical and electrical properties of isotropic graphite blocks[J]. Carbon,2023,208: 443-451. doi: 10.1016/j.carbon.2023.03.069 [51] CAMPBELL A A,SNEAD M A,KATOH Y. Understanding the effect of specimen size on the properties of fine-grain isotropic nuclear graphite for irradiation studies: physical,electrical,thermal properties[J]. Journal of Nuclear Materials,2023,576: 154269.1-154269. 18. [52] 谢刚,于站良,李怀仁,等. 等静压成型工艺参数对高纯石墨制品的影响研究[J]. 云南冶金,2013,42(5): 59-62. XIE Gang,YU Zhanliang,LI Huairen,et al. Research on the effect of isostatic pressing moulding parameters on high purity graphite products[J]. Yunnan Metallurgy,2013,42(5): 59-62. (in Chinese doi: 10.3969/j.issn.1006-0308.2013.05.014XIE Gang, YU Zhanliang, LI Huairen, et al. Research on the effect of isostatic pressing moulding parameters on high purity graphite products[J]. Yunnan Metallurgy, 2013, 42(5): 59-62. (in Chinese) doi: 10.3969/j.issn.1006-0308.2013.05.014 [53] 宋延礼,刘平,鄢鹏,等. 发动机支点柔性圆周炭石墨密封材料PV值试验[J]. 航空动力学报,2022,37(12): 2830-2839. SONG Yanli,LIU Ping,YAN Peng,et al. Experiment on PV value of fulcrum flexible circumferential carbon graphite sealing material for engine[J]. Journal of Aerospace Power,2022,37(12): 2830-2839. (in ChineseSONG Yanli, LIU Ping, YAN Peng, et al. Experiment on PV value of fulcrum flexible circumferential carbon graphite sealing material for engine[J]. Journal of Aerospace Power, 2022, 37(12): 2830-2839. (in Chinese) [54] JIN Jie,PENG Xudong,JIANG Jinbo,et al. Frictional characteristics of impregnated graphite with different graphitization degree versus chromium stainless steel under varying PV values[J]. Tribology International,2020,146: 106063. 1-106063. 9. [55] ZHOU Shengmai,XIA Jintong,YAN Lianchen. Binderless carbon/graphite materials[J]. Journal of Materials Science and Technology,1997,13(3): 184-188. [56] SHEN Ke,HUANG Zhenghong,SHEN Wanci,et al. Homogenous and highly isotropic graphite produced from mesocarbon microbeads[J]. Carbon,2015,94: 18-26. doi: 10.1016/j.carbon.2015.06.034 [57] FANG M D,TSENG W L,JOW J J,et al. Improving the self-sintering of mesocarbon-microbeads for the manufacture of high performance graphite-parts[J]. Carbon,2012,50(3): 906-913. doi: 10.1016/j.carbon.2011.09.052 [58] ZHAO Hongchao,HE Zhao,GUO Xiaohui,et al. Effect of the average grain size of green pitch coke on the microstructure and properties of self-sintered graphite blocks[J]. New Carbon Materials,2020,35(2): 184-192. doi: 10.1016/S1872-5805(20)60483-8 [59] LIU Ping,TU Chuanjun,GONG Pei,et al. Effect of dichloromethane on the performance and yield rate of pure green petroleum coke products[J]. Materials Letters,2022,309: 131387. [60] LIU Ping,TU Chuanjun,LIU Yanli,et al. Carbon sealing materials with low-density and high-strength fabricated by a new process[J]. Materials Letters,2023,336: 133826.1-133826. 4. [61] TAN Jiao,LIU Ping,GONG Pei,et al. Enhanced self-sintering mechanical strength of carbon blocks via removal of light molecular-weight compound in green petroleum coke[J]. Fuel,2023,343: 127912.1-127912. 10. [62] HE Zhao,SONG Jinliang,WANG Zheng,et al. Comparison of ultrafine-grain isotropic graphite prepared from microcrystalline graphite and pitch coke[J]. Fuel,2021,290: 120055.1-120055. 9 [63] 沈志麟,李正祥,张真芳,等. T482石墨密封材料技术条件. Q/75473491[S]. 四川 自贡: 自贡东新电碳有限责任公司,2015: 1-6. [64] 沈欣,叶大鑫,宋延礼,等. T482-Ⅰ石墨密封技术条件: DTJ658-2021[S]. 四川 自贡: 自贡东新电碳有限责任公司 2021: 1-6. [65] TU Chuanjun,HONG Lirui,SONG Tenghui,et al. Superior mechanical properties of sulfonated graphene reinforced carbon-graphite composites[J]. Carbon,2019,148: 378-386. doi: 10.1016/j.carbon.2019.04.001 [66] SHEN Ke,HUANG Zhenghong,YANG Junhe,et al. Effect of oxidative stabilization on the sintering of mesocarbon microbeads and a study of their carbonization[J]. Carbon,2011,49(10): 3200-3211. doi: 10.1016/j.carbon.2011.03.044 [67] SHEN Ke,HUANG Zhenghong,HU Kaixin,et al. Advantages of natural microcrystalline graphite filler over petroleum coke in isotropic graphite preparation[J]. Carbon,2015,90: 197-206. doi: 10.1016/j.carbon.2015.03.068 [68] 陈明礼,周冬梅,刘重德. 航空发动机石墨密封材料规范: GJB 9278-2017[S]. 哈尔滨: 哈尔滨电碳厂,2017: 1-8. [69] LIU Zhanjun,GUO Quangui,SONG Yan,et al. Carbon seal materials with superior mechanical properties and fine-grained structure fabricated by a new process[J]. Materials Letters,2007,61(8/9): 1816-1819. [70] 刘朗,刘占军,郭全贵,等. 一种高强度炭/石墨材料的制备方法. CN 1792781 A [P]. 2005-12-27. [71] LIN Xiangbao,HUI Chen,WU Jing,et al. TiC-modified CNTs as reinforcing fillers for isotropic graphite produced from mesocarbon microbeads[J]. New Carbon Materials,2021,36(5): 961-969. doi: 10.1016/S1872-5805(21)60067-7 [72] LIU Zhanjun,GUO Quangui,LIU Lang,et al. Improvements in performance and microstructure of doped graphites as plasma-facing materials by a new process[J]. Fusion Engineering and Design,2007,82(1): 55-59. doi: 10.1016/j.fusengdes.2006.07.028 [73] LIU Zhanjun,GUO Quangui,SHI Jingli,et al. Preparation of doped graphite with high thermal conductivity by a liquid mixing process[J]. Carbon,2007,45(9): 1914-1916. doi: 10.1016/j.carbon.2007.05.016 [74] LIAN Pengfei,SONG Jinliang,LIU Zhanjun,et al. Preparation of ultrafine-grain graphite by liquid dispersion technique for inhibiting the liquid fluoride salt infiltration[J]. Carbon,2016,102: 208-215. doi: 10.1016/j.carbon.2016.02.018 [75] 刘占军,赵红超,连鹏飞,等. 一种微细结构石墨的制备方法. CN 107265450 A [P]. 2017-06-20. [76] 张俊鹏,翟更太,徐鹏飞. 航空用石墨: Q/140100ZKMH004-2017[S]. 太原: 中国科学院山西煤炭化学研究所,2017: 1-4. [77] HE Xiujie,SONG Jinliang,XIA Huihao,et al. Direct characterization of ion implanted pyrolytic carbon coatings deposited from natural gas[J]. Carbon,2014,68: 95-103. doi: 10.1016/j.carbon.2013.10.058 [78] XU Li,WU Junfeng,BAI Shuo. Fabrication and microstructure of boron-doped isotropic pyrolytic carbon[J]. Carbon,2012,50(12): 4705-4710. doi: 10.1016/j.carbon.2012.05.062 [79] FENG Shanglei,XU Li,LI Li,et al. Sealing nuclear graphite with pyrolytic carbon[J]. Journal of Nuclear Materials,2013,441(1/2/3): 449-454. [80] HE Xiujie,SONG Jinliang,XU Li,et al. Protection of nuclear graphite toward liquid fluoride salt by isotropic pyrolytic carbon coating[J]. Journal of Nuclear Materials,2013,442(1/2/3): 306-308. [81] 朱振国,王硕,任勇,等. 机械密封用炭石墨材料摩擦磨损性能研究[J]. 炭素技术,2017,36(6): 34-37. ZHU Zhenguo,WANG Shuo,REN Yong,et al. Friction and wear behavior of carbon graphite materials in mechanical seal[J]. Carbon Techniques,2017,36(6): 34-37. (in ChineseZHU Zhenguo, WANG Shuo, REN Yong, et al. Friction and wear behavior of carbon graphite materials in mechanical seal[J]. Carbon Techniques, 2017, 36(6): 34-37. (in Chinese) [82] 白朔,徐红军,吴峻峰,等. 一种制备大尺寸机械密封用各向同性热解炭材料的设备: CN 1778671 A [P]. 2004-11-24. [83] 吴峻峰,许力,白朔,等. 一种制备硼掺杂各向同性热解炭材料的方法: CN 102115073 A [P]. 2009-12-31. [84] 贺晔红. 各向同性热解石墨材料在某型发动机中的应用研究[D]. 沈阳: 中国科学院金属研究所,2010. HE Yehong. Application of isotropic pyrolytic carbon material in the aero engine[D]. Shenyang: Institute of Metal Research,Chinese Academy of Sciences,2010. (in ChineseHE Yehong. Application of isotropic pyrolytic carbon material in the aero engine[D]. Shenyang: Institute of Metal Research, Chinese Academy of Sciences, 2010. (in Chinese) [85] 冯托. 热处理调控各向同性热解石墨微观结构及性能研究[D]. 沈阳: 中国科学院金属研究所,2014. FENG Tuo. Optimizing the microstructure and properties of isotropic pyrolytic graphite by heat treatment[D]. Shenyang: Institute of Metal Research,Chinese Academy of Sciences,2014. (in ChineseFENG Tuo. Optimizing the microstructure and properties of isotropic pyrolytic graphite by heat treatment[D]. Shenyang: Institute of Metal Research, Chinese Academy of Sciences, 2014. (in Chinese) [86] 白朔,吴峻峰. 各向同性热解石墨(IPG)技术条件: Q/KJ. J05 12-2011[S]. 沈阳: 中国科学院金属研究所,2011: 1-23. [87] 刘占军,郭全贵,曹雅秀,等. 利用“二次焦” 制备高强炭/石墨材料[J]. 新型炭材料,2006,21(4): 302-306. LIU Zhanjun,GUO Quangui,CAO Yaxiu,et al. High strength carbon/graphite composite materials by using “second coke” as starting material[J]. New Carbon Materials,2006,21(4): 302-306. (in Chinese doi: 10.3969/j.issn.1007-8827.2006.04.003LIU Zhanjun, GUO Quangui, CAO Yaxiu, et al. High strength carbon/graphite composite materials by using “second coke” as starting material[J]. New Carbon Materials, 2006, 21(4): 302-306. (in Chinese) doi: 10.3969/j.issn.1007-8827.2006.04.003 [88] ZHAO Hongchao,HE Zhao,LIU Zhanjun,et al. Self-sintered nanopore-isotropic graphite derived from green pitch coke for application in molten salt nuclear reactor[J]. Annals of Nuclear Energy,2019,131: 412-416. doi: 10.1016/j.anucene.2019.04.015 [89] 涂川俊,刘平,巩佩. 一种低成本高纯石墨材料的制备方法及应用: ZL202210294674.1 [P]. 2022-03-23. [90] 涂川俊,刘平,游睿智,等. 一种等静压石墨废料短流程制备特种石墨的方法: ZL202211085606.0 [P]. 2022-09-06. [91] FECHTE N J,PETRUNICH P S. Development of seal ring carbon-graphite materials (tasks 1 and 10) [M]. Danbury,US: Union Carbide Corporation Carbon Products Division,1971. [92] 冯勇祥. 国内机械用碳的发展及其现状[J]. 新型碳材料,1990,5(1): 70-77. FENG Yongxiang. Development and present situation of carbon for machinery in China[J]. New Carbon Materials,1990,5(1): 70-77. (in ChineseFENG Yongxiang. Development and present situation of carbon for machinery in China[J]. New Carbon Materials, 1990, 5(1): 70-77. (in Chinese) [93] 高亮,梁涛. 抗氧化碳-石墨密封材料的研制[J]. 机械工程材料,2004,28(7): 35-36. GAO Liang,LIANG Tao. Development of oxidation-resistant sealing material of carbon-graphite[J]. Materials for Mechanical Engineering,2004,28(7): 35-36. (in Chinese doi: 10.3969/j.issn.1000-3738.2004.07.012GAO Liang, LIANG Tao. Development of oxidation-resistant sealing material of carbon-graphite[J]. Materials for Mechanical Engineering, 2004, 28(7): 35-36. (in Chinese) doi: 10.3969/j.issn.1000-3738.2004.07.012 [94] 胡登科,刘志远,关景华,等. 碳石墨材料及制品: XX9 9912-2002[S]. 北京: XX9机冶金师系统,2002: 1-4. [95] 自贡东新电碳有限责任公司. 国外机械用碳牌号与性能汇编[R] 四川 自贡: 自贡机械用碳制品研究所,1984. [96] 孙亚林,胡小冬,徐照方,等. 航空石墨封严材料M234系列: Q31/0112000673C004-2017 [S]. 上海: 摩根新材料(上海)有限公司,2017: 1-3. [97] 周声劢,夏金童. 由生石油焦制取无黏结剂碳石墨材料的研究[J]. 湖南大学学报(自然科学版),1996,23(3): 71-75. ZHOU Shengmai,XIA Jintong. Study of the manufacture of binderlers carbon/graphite materials from green petroleun coke[J]. Journal of Hunan University (Natural Sciences),1996,23(3): 71-75. (in ChineseZHOU Shengmai, XIA Jintong. Study of the manufacture of binderlers carbon/graphite materials from green petroleun coke[J]. Journal of Hunan University (Natural Sciences), 1996, 23(3): 71-75. (in Chinese) [98] SATO S,KAWAMATA K,AIZAWA J. Formation of porosity and change in binder pitch properties during thermal treatment of green carbon materials[J]. Carbon,1996,34(12): 1493-1499. doi: 10.1016/S0008-6223(96)00111-X [99] BILL R C,LUDWIG L P. Evaluations of blister-like fractures and critical PV-values of carbon mechanical seals by thermal shock test[J]. Carbon,1989,27(6): 803-814. doi: 10.1016/0008-6223(89)90030-4 [100] 王秀钦. 首届航空发动机密封技术论坛在湖南岳阳举行[EB/OL]. (2023-06-13)[2023-07-08]. https://ep.cannews.com.cn/publish/zghkb7/html/4939/node_206663.html -
