Vibration control of active dry friction damper-dual rotor system based on rotational speed region on-off control
-
摘要:

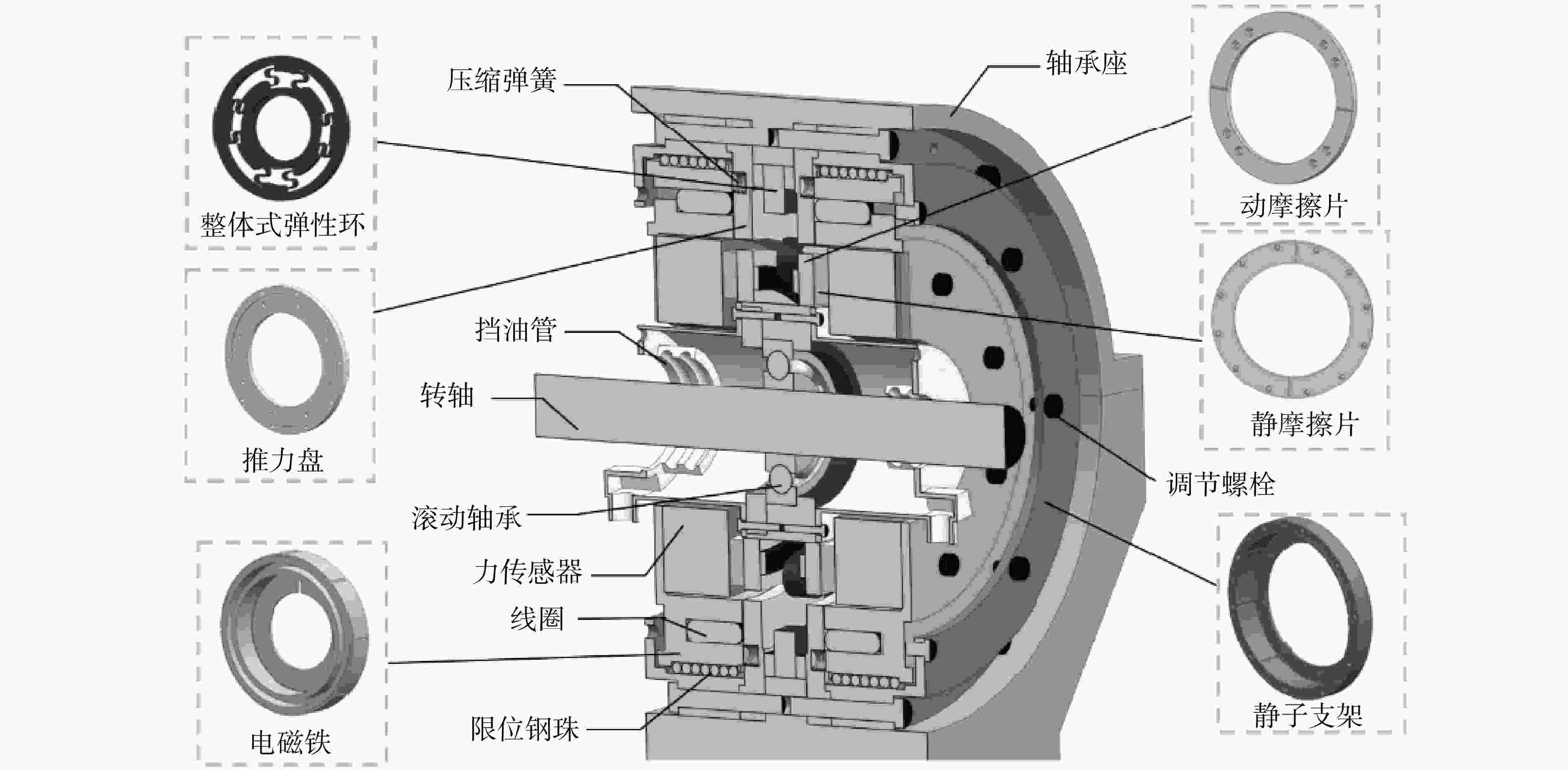

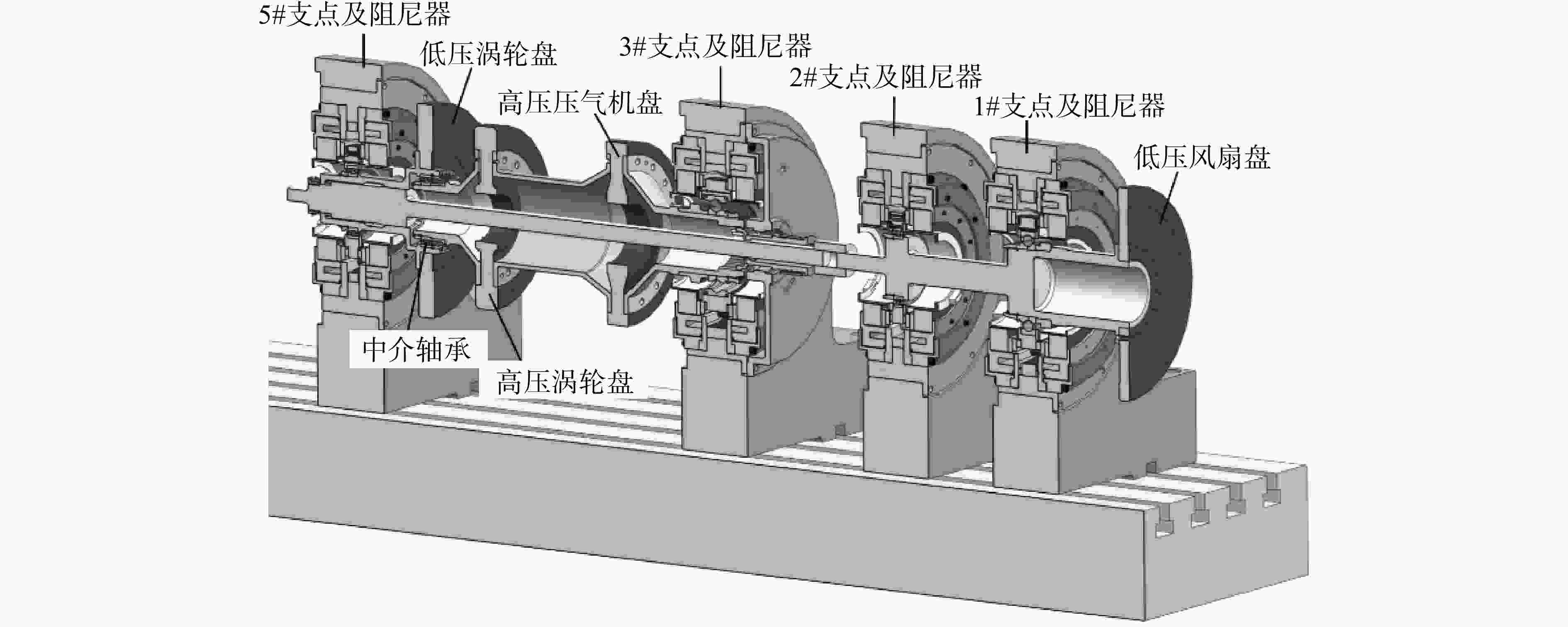

为了满足航空发动机的减振要求，设计了一种电磁型主控式弹支干摩擦阻尼器（active magnetic dry friction damper, AMDFD），通过电磁执行器来实现阻尼器阻尼特性的调节。建立了AMDFD-双转子系统的动力学模型，研究了不同支承位置AMDFD对转子系统振动特性的影响。基于AMDFD-双转子系统的振动特性，设计了一种转速区间开关控制策略，并对策略的有效性进行了仿真分析。在AMDFD -双转子系统试验台上，进行了不同支承位置AMDFD对转子系统振动特性的影响试验以及在加速过多阶临界转速区时转子振动的抑制试验。结果表明：低压风扇轴前轴承及低压涡轮轴后轴承位置的AMDFD对转子振动的抑制最为有效，所设计的控制器能够明显地抑制转子系统在通过多阶临界转速区时的振动，抑制效果最大可达89%。
-
关键词:
- 主控式弹支干摩擦阻尼器 /
- 电磁执行器 /
- 双转子系统 /
- 转速区间开关控制 /
- 振动抑制
Abstract:To meet the vibration reduction requirements, an active magnetic dry friction damper (AMDFD) was designed and the friction damping was controlled by active magnetic actuator. The model of the AMDFD-dual rotor system was established, and the effect of the damper with different support positions on the rotor vibration was analyzed. Based on the vibration characteristics of the AMDFD-dual rotor system, a rotational speed region on-off control strategy was designed and its effectiveness was simulated. On the designed test rig, the tests of the dual-rotor system with dampers at each support position under different normal forces were performed. In addition, the vibration suppression tests were carried out when the dual-rotor system accelerated past critical speed. The results showed that AMDFDs near the front/rear bearing of the low-pressure fan/turbine shaft played a dominant role in rotor vibration reduction. The designed controller can substantially suppress the rotor vibration passing the critical speed, up to 89% at maximum.
-

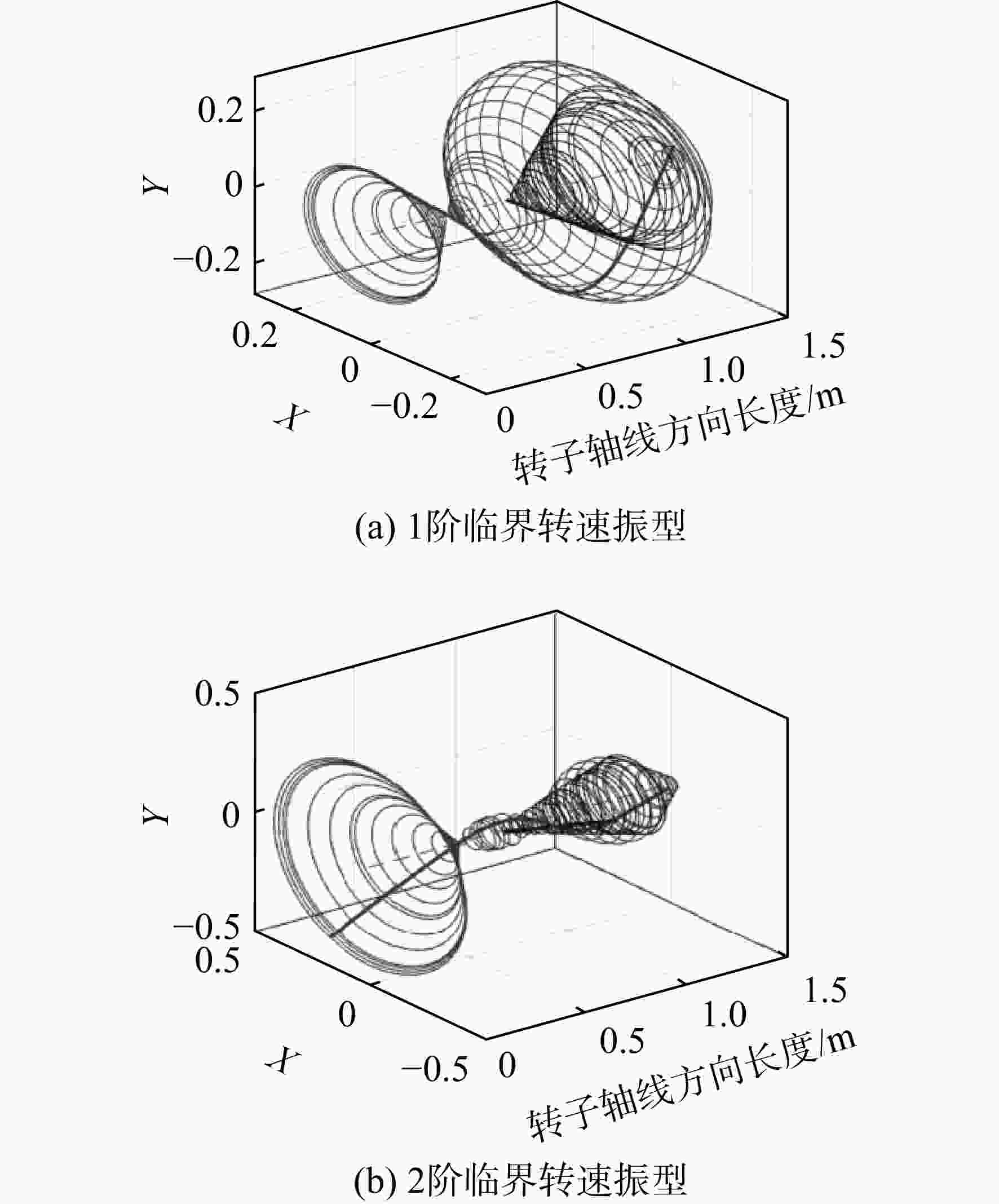

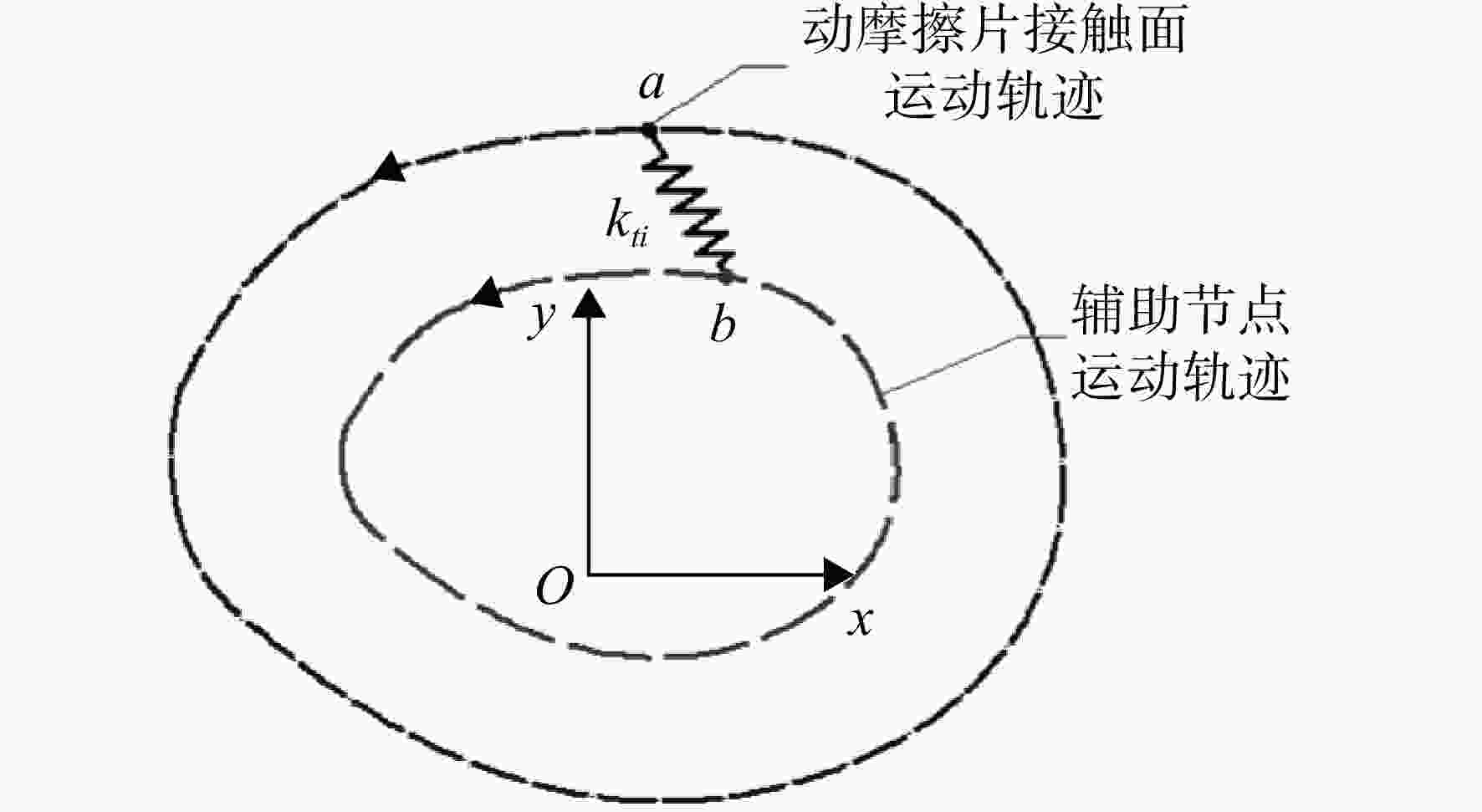

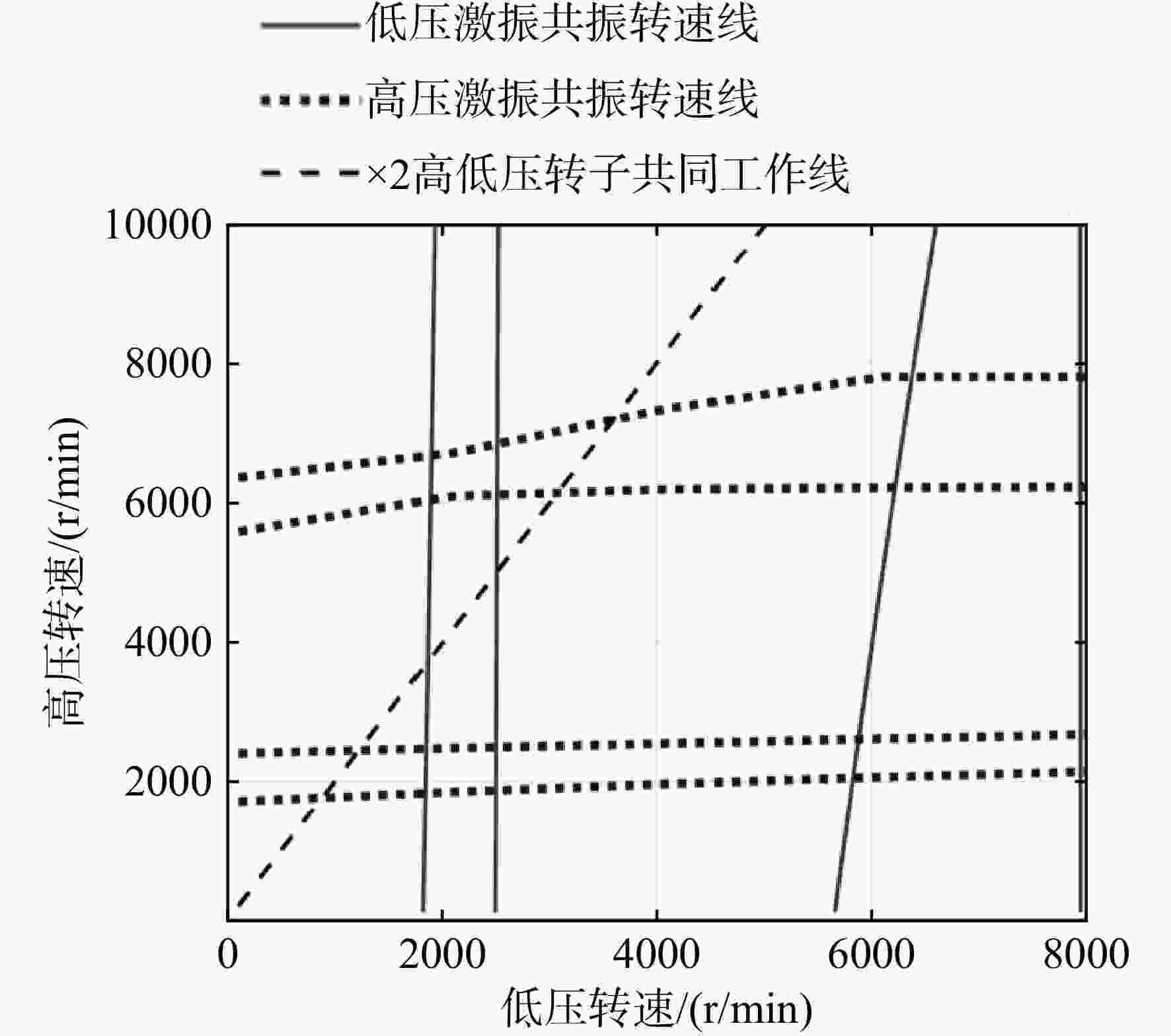

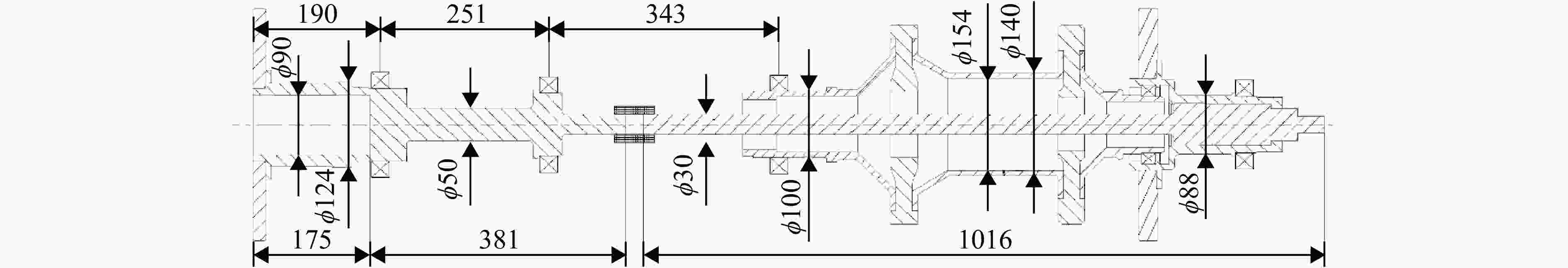

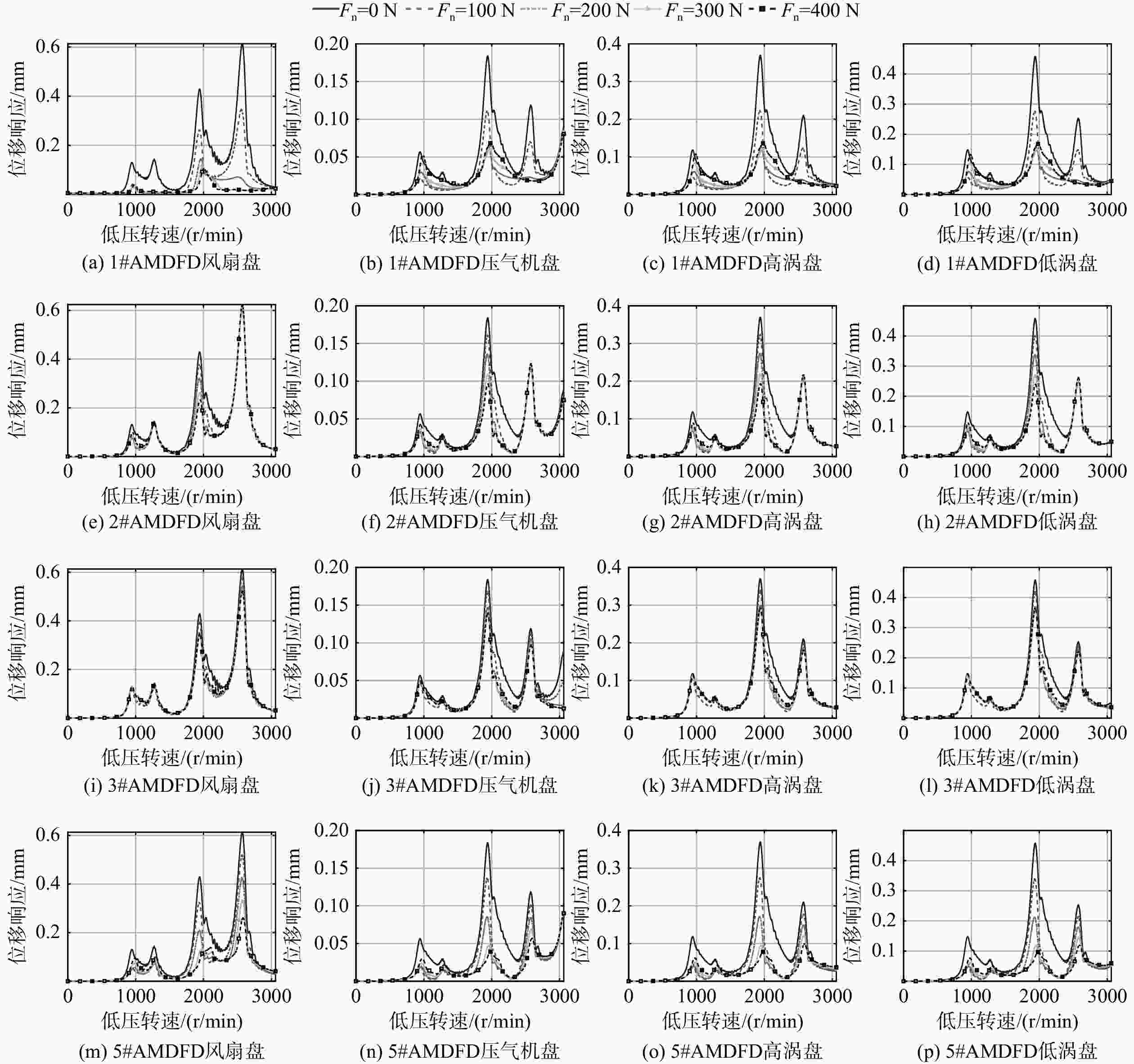

图 7 不同支承位置AMDFD对转子各圆盘沿竖直方向响应的影响
Figure 7. Effect of AMDFD with different positions on the vertical response of each disk

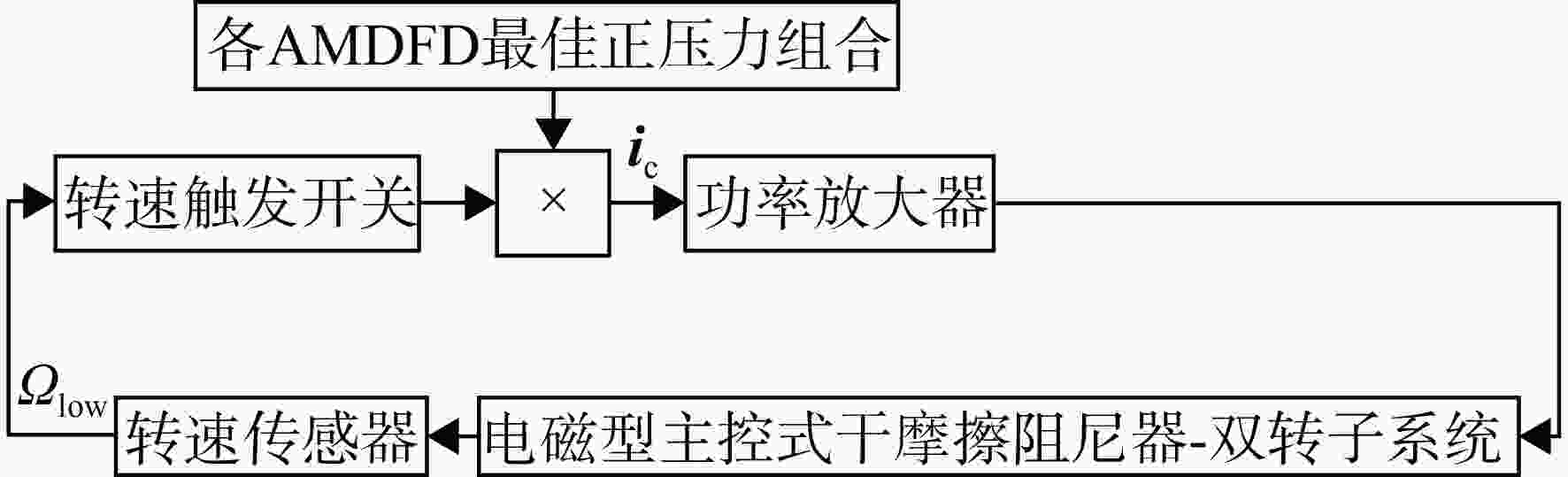

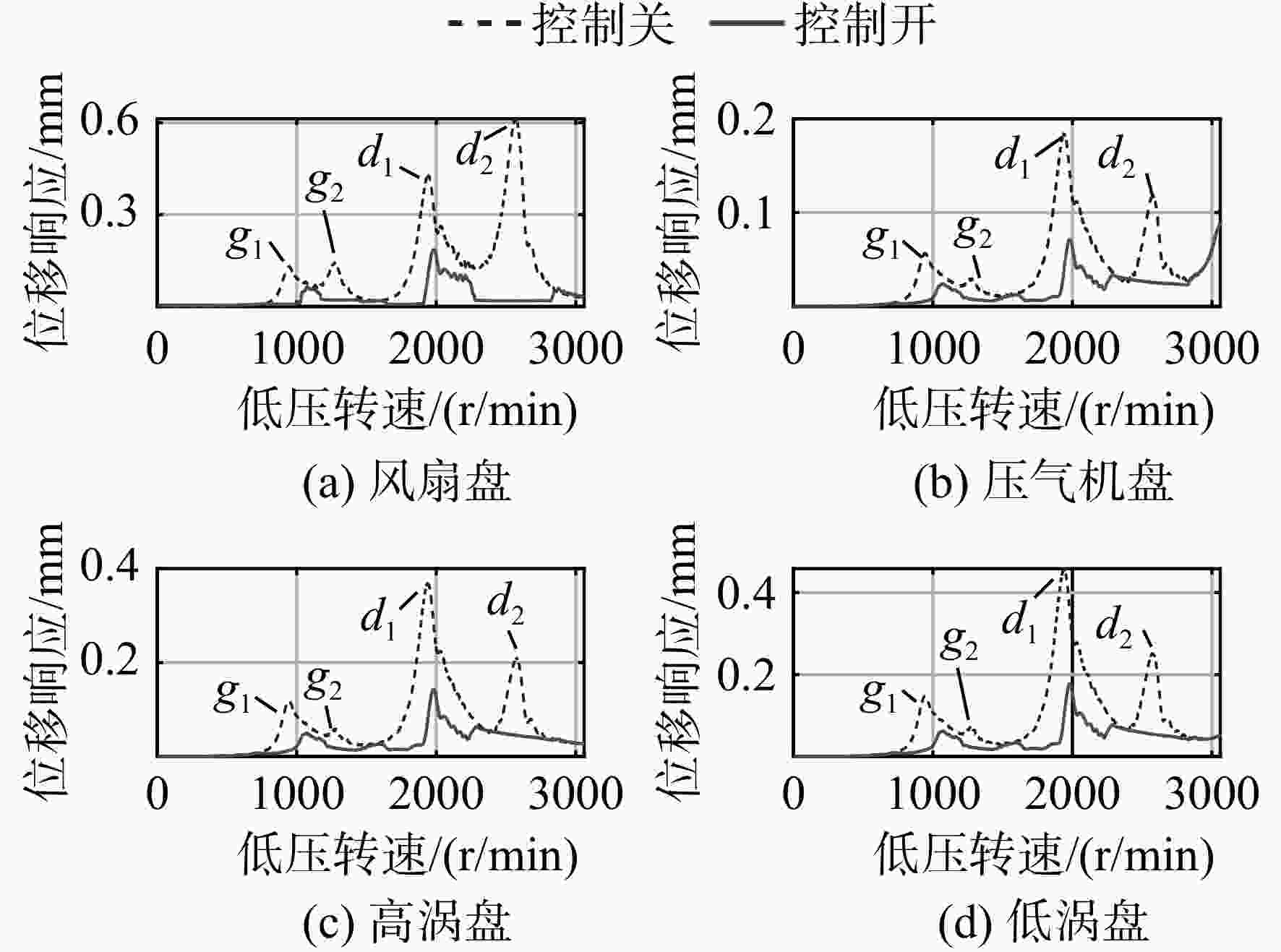

图 9 转速区间开关控制下转子沿竖直方向的加速响应仿真结果
Figure 9. Vertical response during the rotor run up under rotational speed region switch control

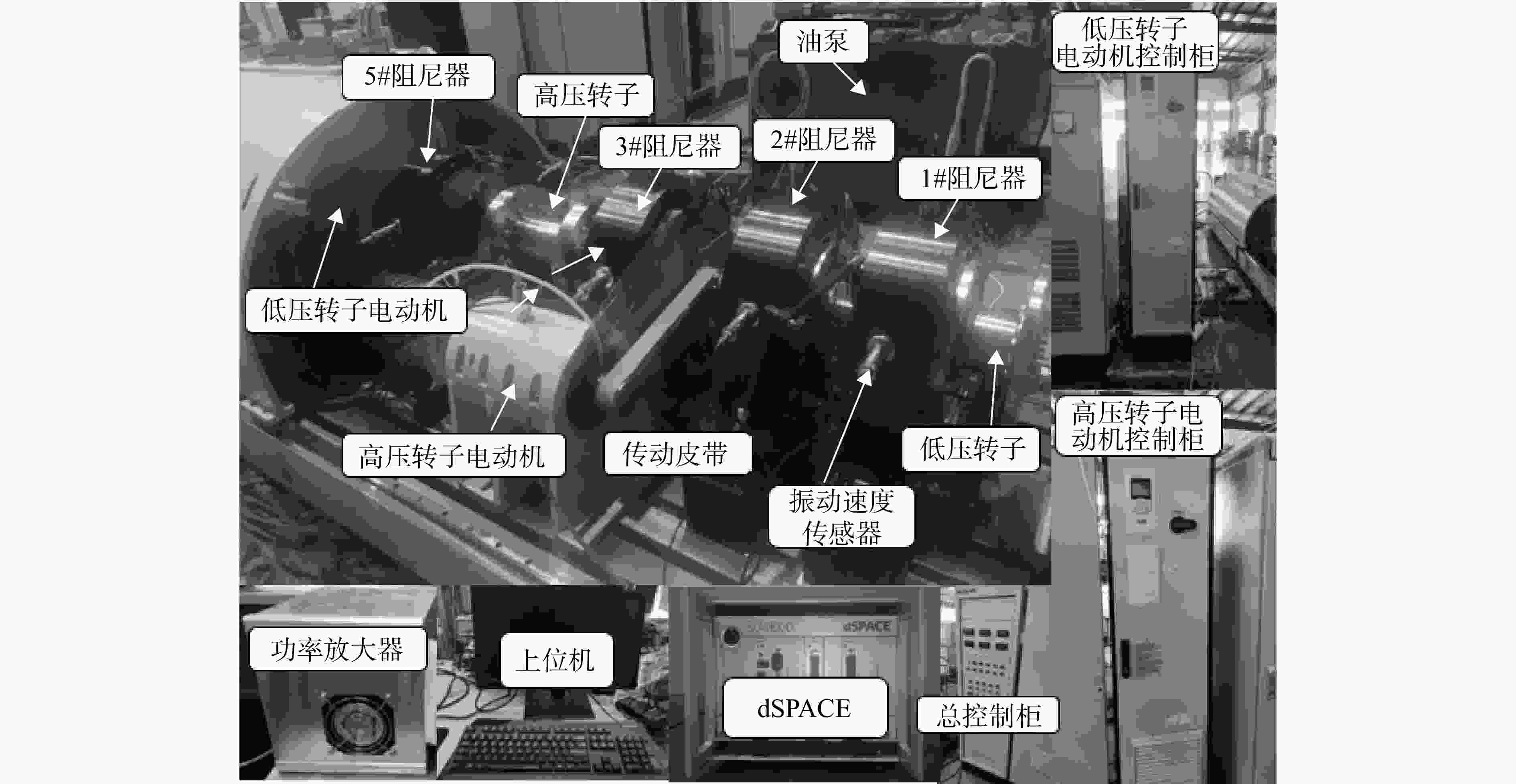

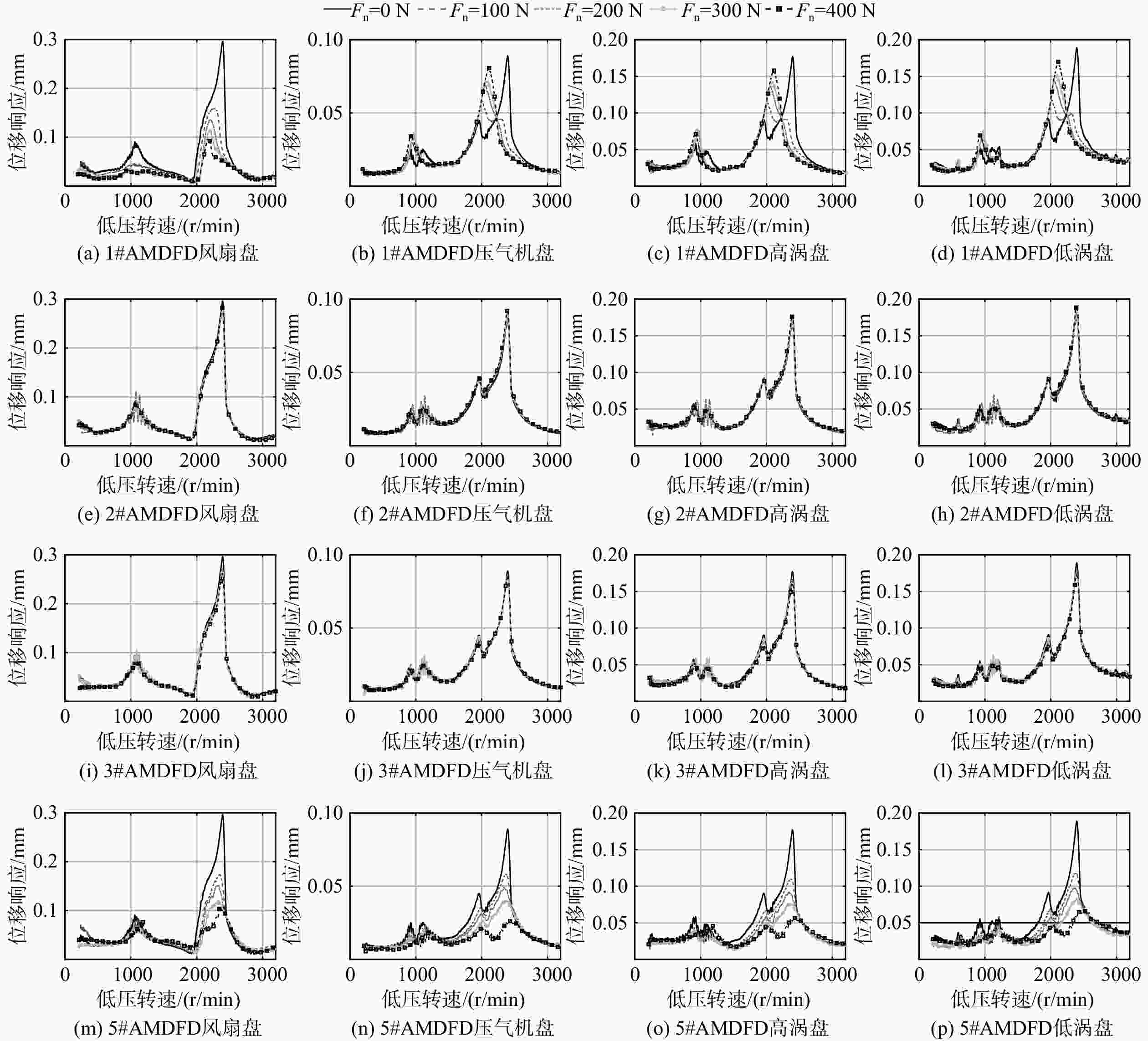

图 11 不同支承位置AMDFD对转子各圆盘沿竖直方向响应影响的试验结果
Figure 11. Experimental results on the effect of AMDFD with different positions on the vertical response of each disk

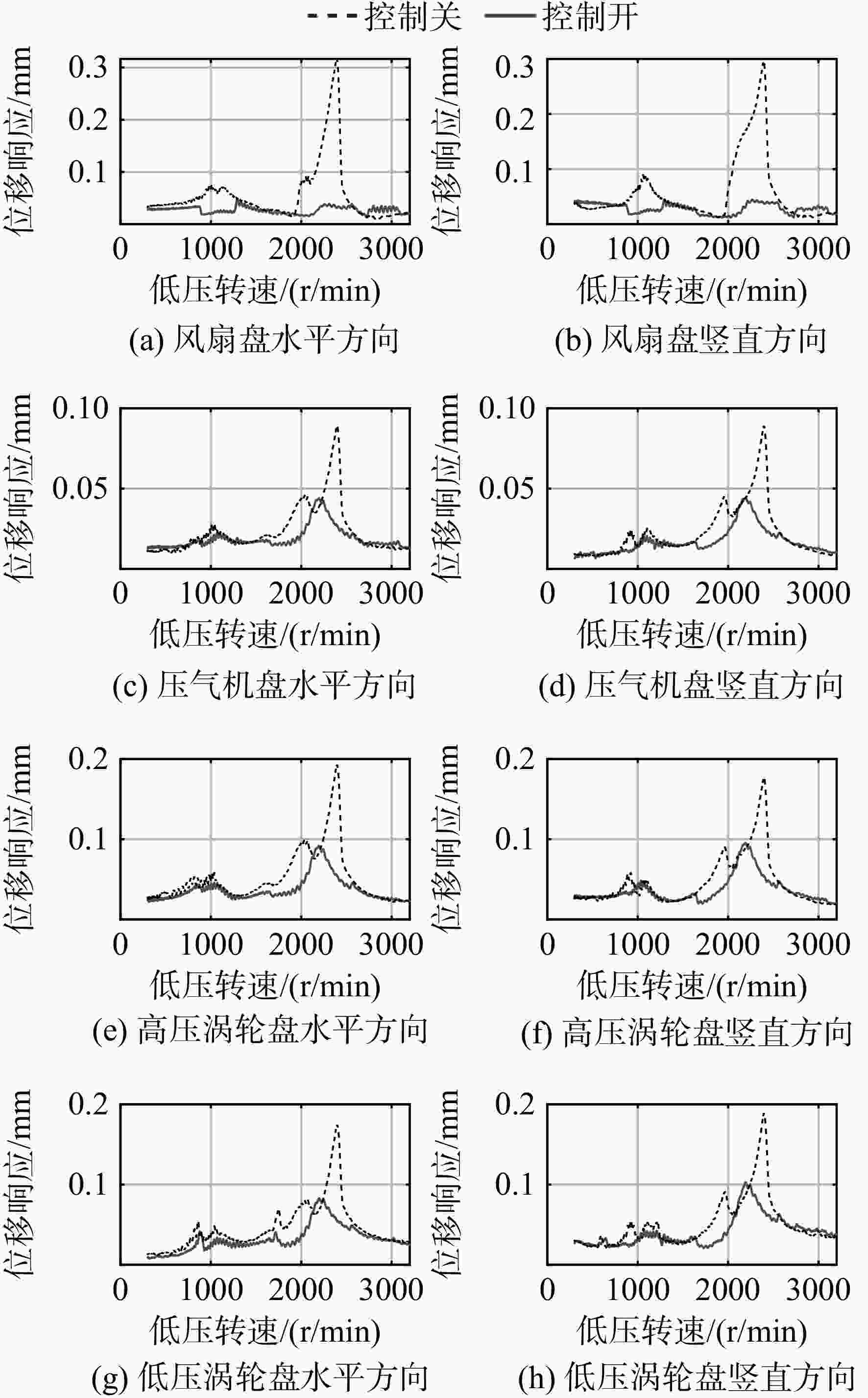

图 12 试验中控制前后双转子系统各测点响应幅值
Figure 12. Response amplitude of the twin rotor system at each measurement before and after control in the experiment
表 1 双转子系统的主要参数
Table 1. Main parameters of the twin rotor system
参数 数值 摩擦副 摩擦因数 0.3 切向刚度/107 （N/m） 2 1#支点刚度/106 （N/m） 3.13 2#支点刚度/106 （N/m） 7.16 3#支点刚度/106 （N/m） 5.12 4#支点刚度/106 （N/m） 1700 5#支点刚度/106 （N/m） 4.88 低压风扇 盘质量/kg 13.526 极转动惯量/（kg·m2） 0.1142 赤道动惯量/（kg·m2） 0.2275 低压涡轮 盘质量/kg 21.466 极转动惯量/（kg·m2） 0.1761 赤道动惯量/（kg·m2） 0.3476 高压压气机 盘质量/kg 9.285 极转动惯量/（kg·m2） 0.0764 赤道动惯量/（kg·m2） 0.1508 高压涡轮 盘质量/kg 17.02 极转动惯量/（kg·m2） 0.117 赤道动惯量/（kg·m2） 0.229
下载: 导出CSV
-
[1] 宋兆泓. 应用园盘式干摩擦减振器,对高速转子通过其临界转速时减振作用的一些分析[J]. 北京航空学院学报,1959(1): 63-77. SONG Zhaohong. Some analyses of the damping effect of a disk dry friction damper applied to a high-speed rotor passing its critical speed[J]. Journal of Beijing University of Aeronautics and Astronautics,1959(1): 63-77. (in ChineseSONG Zhaohong. Some analyses of the damping effect of a disk dry friction damper applied to a high-speed rotor passing its critical speed[J]. Journal of Beijing University of Aeronautics and Astronautics, 1959(1): 63-77. (in Chinese) [2] 范天宇. 弹性支承干摩擦阻尼器减振研究[D]. 西安: 西北工业大学,2006. FAN Tianyu. Vibration reduction by elastic support dry friction damper[D]. Xi’an: Northwestern Polytechnical University,2006. (in ChineseFAN Tianyu. Vibration reduction by elastic support dry friction damper[D]. Xi’an: Northwestern Polytechnical University, 2006. (in Chinese) [3] NIKHAMKIN M S,SEMENOV S V,MEKHONOSHIN G V,et al. Twin shaft rotor system vibration damping experimental investigation[J]. Applied Mechanics and Materials,2015,752/753: 918-921. doi: 10.4028/www.scientific.net/AMM.752-753.918 [4] 宋明波,廖明夫,王四季. 折返式可控弹支干摩擦阻尼器设计及减振试验研究[J]. 振动与冲击,2019,38(14): 18-22. SONG Mingbo,LIAO Mingfu,WANG Siji. Experimental investigation on the vibration reduction performance of a damper with C-shape tunable elastic support and dry friction[J]. Journal of Vibration and Shock,2019,38(14): 18-22. (in ChineseSONG Mingbo, LIAO Mingfu, WANG Siji. Experimental investigation on the vibration reduction performance of a damper with C-shape tunable elastic support and dry friction[J]. Journal of Vibration and Shock, 2019, 38(14): 18-22. (in Chinese) [5] 倪德,朱如鹏,陆凤霞,等. 有阻尼智能弹簧减振系统参数的一种设计方法[J]. 振动与冲击,2014,33(23): 116-121,144. NI De,ZHU Rupeng,LU Fengxia,et al. A parametric design method for a smart damped spring vibration reduction system[J]. Journal of Vibration and Shock,2014,33(23): 116-121,144. (in ChineseNI De, ZHU Rupeng, LU Fengxia, et al. A parametric design method for a smart damped spring vibration reduction system[J]. Journal of Vibration and Shock, 2014, 33(23): 116-121, 144. (in Chinese) [6] 彭勃. 多跨轴系动力学及其智能弹簧支承减振研究[D]. 南京: 南京航空航天大学,2017. PENG Bo. Research on multi-span shaft dynamics and vibration reduction via smart spring support[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2017. (in ChinesePENG Bo. Research on multi-span shaft dynamics and vibration reduction via smart spring support[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2017. (in Chinese) [7] 王四季,廖明夫,杨伸记. 主动式弹支干摩擦阻尼器控制转子振动的实验[J]. 航空动力学报,2007,22(11): 1893-1897. WANG Siji,LIAO Mingfu,YANG Shenji. Experimental investigation on rotor vibration control by elastic support/dry friction damper[J]. Journal of Aerospace Power,2007,22(11): 1893-1897. (in Chinese doi: 10.3969/j.issn.1000-8055.2007.11.019WANG Siji, LIAO Mingfu, YANG Shenji. Experimental investigation on rotor vibration control by elastic support/dry friction damper[J]. Journal of Aerospace Power, 2007, 22(11): 1893-1897. (in Chinese) doi: 10.3969/j.issn.1000-8055.2007.11.019 [8] WANG Siji,LIAO Mingfu. Experimental investigation of an active elastic support/dry friction damper on vibration control of rotor systems[J]. International Journal of Turbo & Jet-Engines,2014,31(1): 13-17. [9] 王四季,廖明夫. 带弹支干摩擦阻尼器的转子振动控制策略和方法[J]. 航空动力学报,2011,26(10): 2214-2219. WANG Siji,LIAO Mingfu. Control strategy and methods of rotor systems by an elastic support/dry friction damper[J]. Journal of Aerospace Power,2011,26(10): 2214-2219. (in ChineseWANG Siji, LIAO Mingfu. Control strategy and methods of rotor systems by an elastic support/dry friction damper[J]. Journal of Aerospace Power, 2011, 26(10): 2214-2219. (in Chinese) [10] LIU Di,ZHOU Liang,ZHANG Dayi,et al. A strategy of vibration control for rotors with dry friction dampers[J]. Journal of Vibration and Control,2023,29(13/14): 2907-2920. [11] 蒋明宏,祝长生. 干摩擦阻尼器转子系统无模型自适应振动控制[J]. 振动工程学报,2024,37(12): 2114-2123. JIANG Minghong,ZHU Changsheng. Model free adaptive control of rotor system with active friction damper[J]. Journal of Vibration Engineering,2024,37(12): 2114-2123. (in ChineseJIANG Minghong, ZHU Changsheng. Model free adaptive control of rotor system with active friction damper[J]. Journal of Vibration Engineering, 2024, 37(12): 2114-2123. (in Chinese) [12] 路凯华. 基于整体式挤压油膜阻尼器的转子及齿轮系统振动控制研究[D]. 北京: 北京化工大学,2019. LU Kaihua. Research on vibration control of rotor and gear system based on integral squeeze film damper[D]. Beijing: Beijing University of Chemical Technology,2019. (in ChineseLU Kaihua. Research on vibration control of rotor and gear system based on integral squeeze film damper[D]. Beijing: Beijing University of Chemical Technology, 2019. (in Chinese) [13] WIJATA A,AWREJCEWICZ J,MATEJ J,et al. Mathematical model for two-dimensional dry friction modified by dither[J]. Mathematics and Mechanics of Solids,2017,22(10): 1936-1949. doi: 10.1177/1081286516650483 [14] MARIA C,ZUCC S. Modelling friction contacts in structural dynamics and its application to turbine bladed disks[J]. Numerical Analysis-Theory and Application,2011,14: 301-334. [15] SANLITURK K Y,EWINS D J. Modelling two-dimensional friction contact and its application using harmonic balance method[J]. Journal of Sound and Vibration,1996,193(2): 511-523. doi: 10.1006/jsvi.1996.0299 [16] MENQ C H,CHIDAMPARAM P,GRIFFIN J H. Friction damping of two-dimensional motion and its application in vibration control[J]. Journal of Sound and Vibration,1991,144(3): 427-447. doi: 10.1016/0022-460X(91)90562-X [17] 郑坚强. 电磁轴承有限元分析、结构设计及控制[D]. 杭州: 浙江大学,2004. ZHENG Jianqiang. Finite element analysis,structural design and control of electromagnetic bearing[D]. Hangzhou: Zhejiang University,2004. (in ChineseZHENG Jianqiang. Finite element analysis, structural design and control of electromagnetic bearing[D]. Hangzhou: Zhejiang University, 2004. (in Chinese) [18] 王飞. 挤压油膜转子系统建模方法研究及动力特性分析[D]. 南京: 南京航空航天大学,2018. WANG Fei. Research on modeling method and dynamic characteristic analysis for squeeze film damper rotor system[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2018. (in ChineseWANG Fei. Research on modeling method and dynamic characteristic analysis for squeeze film damper rotor system[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2018. (in Chinese) [19] HIBNER D H,BHAT S T,BUONO D F. Optimum friction damping of a flexible rotor[R]. Houston,US: ASME International Gas Turbine Conference and Products Show,1981. -
