基于单步与多步H<sub>2</sub>/Air机理的爆震波模拟网格尺度研究

李清安; 张永辉; 王可; 范玮; 陈梁霄; 杨海; 韩俊德; 康健

doi:10.13224/j.cnki.jasp.20230481

基于单步与多步H₂/Air机理的爆震波模拟网格尺度研究

doi: 10.13224/j.cnki.jasp.20230481

李清安^1,,
张永辉²,
王可^{2, 3,*, ,},
范玮^{2, 3},
陈梁霄¹,
杨海¹,
韩俊德¹,
康健¹

1.
中国航天科技集团有限公司四川航天系统工程研究所，成都 610100
2.
西北工业大学动力与能源学院，西安 710129
3.
西北工业大学陕西省航空动力系统热科学重点实验室，西安 710129

基金项目: 国家自然科学基金（52176133）；陕西省创新能力支撑计划（2021KJXX-93）

详细信息

作者简介:
李清安（1992-），男，工程师，博士，主要研究方向为燃烧流动与控制。E-mail：mcraecolin@163.com

通讯作者:
王可（1986-），男，教授，博士，主要研究方向为爆震推进理论与工程。E-mail：wangk@nwpu.edu.cn

中图分类号: V231.2
计量
- 文章访问数: 471
- HTML浏览量: 359
- PDF量: 37
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-25
- 网络出版日期: 2024-08-29

Grid resolution study for detonation wave utilizing single-step and multi-step H₂/Air mechanisms

LI Qingan^1
,,
ZHANG Yonghui²,
WANG Ke^{2, 3,*
, ,},
FAN Wei^{2, 3},
CHEN Liangxiao¹,
YANG Hai¹,
HAN Junde¹,
KANG Jian¹

1.
Sichuan Aerospace System Engineering Research Institute，China Aerospace Science and Technology Corporation，Chengdu 610100，China
2.
School of Power and Energy，Northwestern Polytechnical University，Xi’an 710129，China
3.
Shaanxi Key Laboratory of Thermal Sciences in Aero-engine System，Northwestern Polytechnical University，Xi’an 710129，China

摘要

摘要:
为简化爆震推进系统仿真过程机理与网格的遴选工作，提高计算效率，分别采用单步与19步H₂/Air化学反应机理在长宽比为20的计算域中开展了爆震波的二维数值模拟，详细计算了0.5、0.4、0.2、0.1、0.08、0.04、0.02 mm共7种网格尺度下爆震波的传播过程，得到了爆震波胞格结构、爆震波特征参数等的变化规律。研究表明：采用单步或19步机理模拟得到的爆震波胞格结构的临界网格尺度分别为0.1 mm与0.4 mm，且网格尺度越小越容易获得爆震波胞格结构；爆震波胞格结构平均宽度与网格尺度呈线性关系；较大网格尺度会高估爆震波波峰面的静温与静压，但压力平台区的模拟结果几乎不受网格尺度与机理的影响；相较于多步机理，单步机理表现出的较短的点火延迟特性使模拟出的爆震波胞格结构边缘更细腻，使自持传播的爆震波更易获得。
- 爆震波 /
- 单步机理 /
- 胞格结构 /
- 网格无关性 /
- 爆震推进
Abstract:
In order to efficiently simplify the process of mechanism selection and resolution studies for detonation propulsion simulation, a series of detonation wave propagation simulations were conducted in a field with an aspect ratio of 20 using both the single-step and the multi-step H₂/Air mechanisms, all 7 sizes of grid were considered, including 0.5, 0.4, 0.2, 0.1, 0.08, 0.04, 0.02 mm. The cellular structure and the characteristic parameters of a detonation wave were obtained. The study showed that the cellular structure can be obtained when the grid size was smaller than a critical one, which was 0.1 mm and 0.4 mm for the single-step and multi-step mechanism, respectively. And the cellular structure was easier to be obtained when utilizing a smaller grid size. It was found that the averaged cell width was proportional to the grid size. Larger size of grid can enlarge the static pressure and temperature near the detonation peak, while the pressure plateau was weakly affected by both grid size and mechanism. Compared with the multi-step mechanism, the shorter ignition delay characteristics of the single-step mechanism contributed to a more clear edge of cellular structure, making it easier to obtain the self-sustained propagation of detonation wave.
- detonation wave /
- single-step mechanism /
- cellular structure /
- grid independence /
- detonation propulsion

HTML

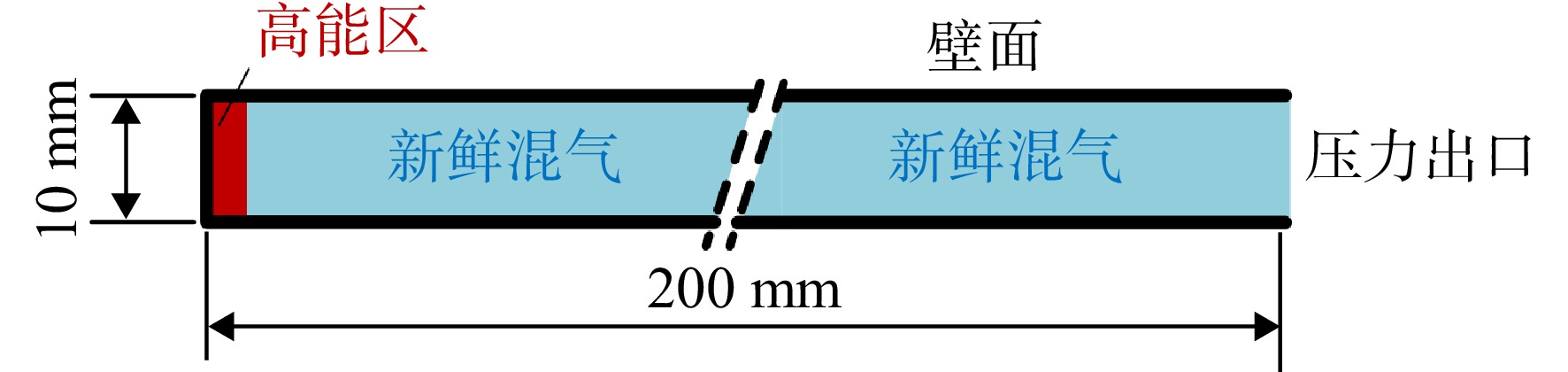

图 1 计算域示意图

Figure 1. Schematic of the computation zone

下载: 全尺寸图片幻灯片

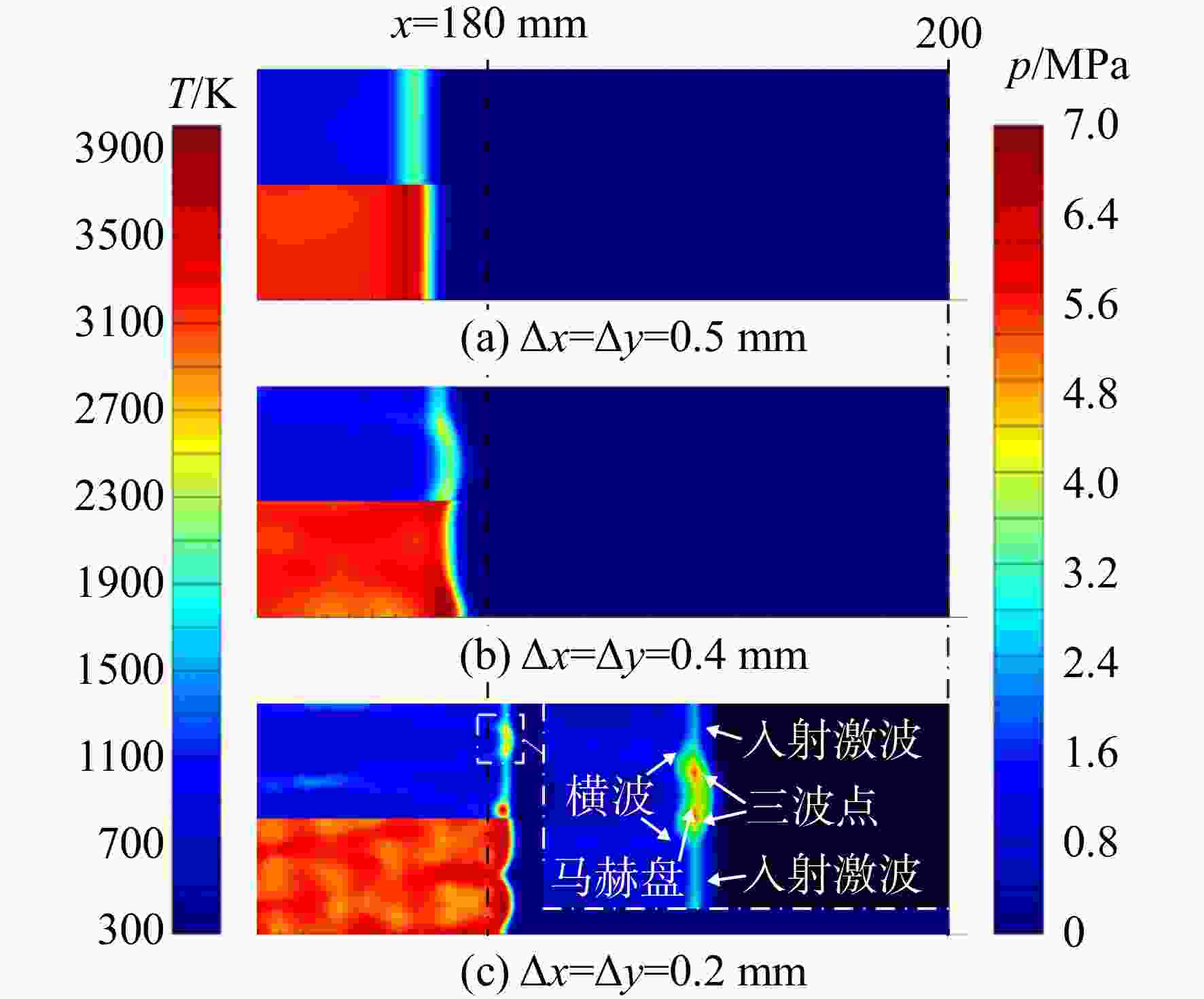

图 2 单步机理在0.5、0.4、0.2 mm网格尺度下的静压（上）与静温（下）云图

Figure 2. Static pressure （upper） and temperature （lower） contours using the single-step mechanism under0.5，0.4，0.2 mm grid settings

下载: 全尺寸图片幻灯片

图 3 多步机理在0.5、0.4、0.2 mm网格尺度下的静压（上）与静温（下）云图

Figure 3. Static pressure (upper) and temperature (lower) contours using the multi-step mechanism under 0.5，0.4，0.2 mm grid settings

下载: 全尺寸图片幻灯片

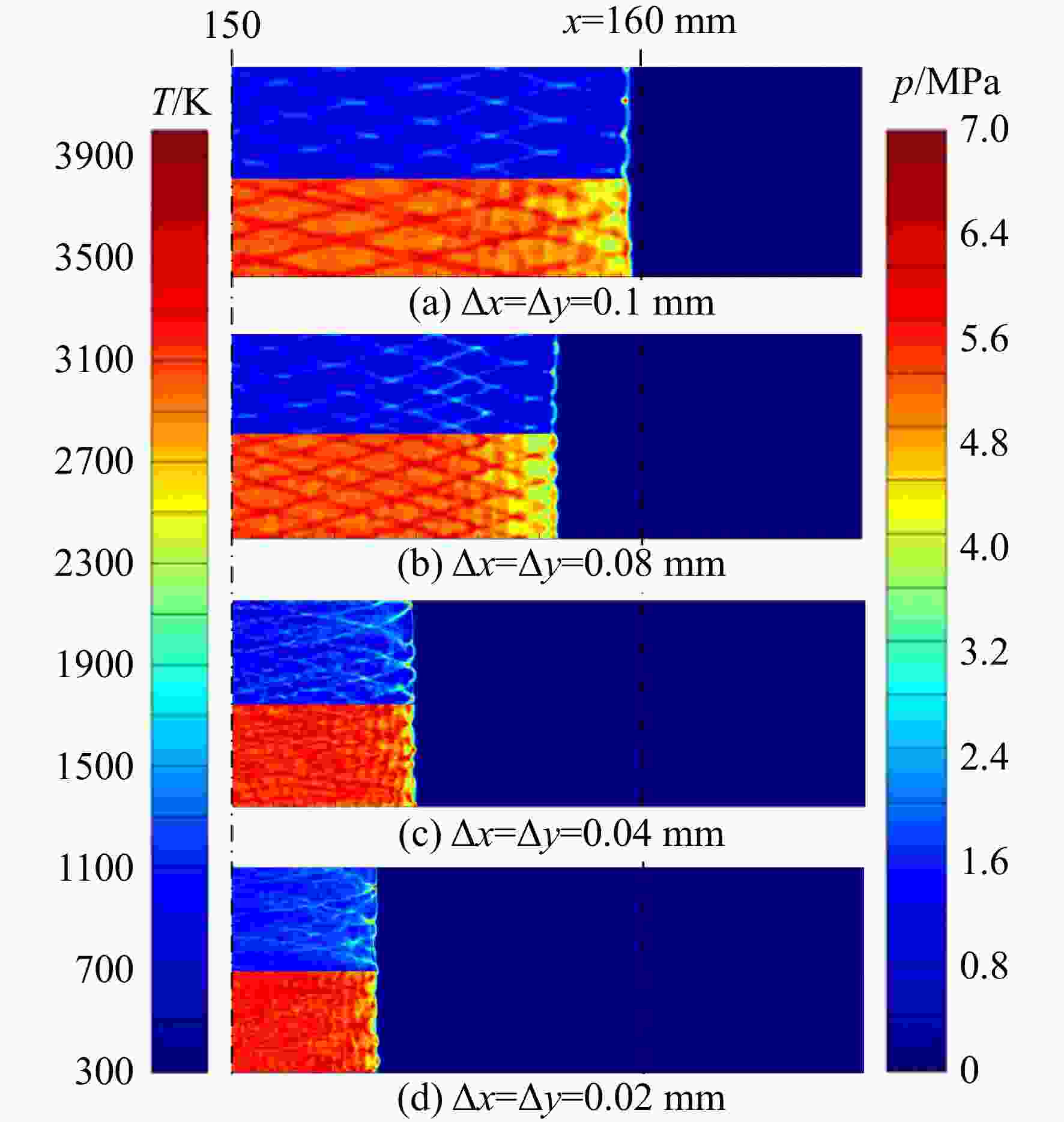

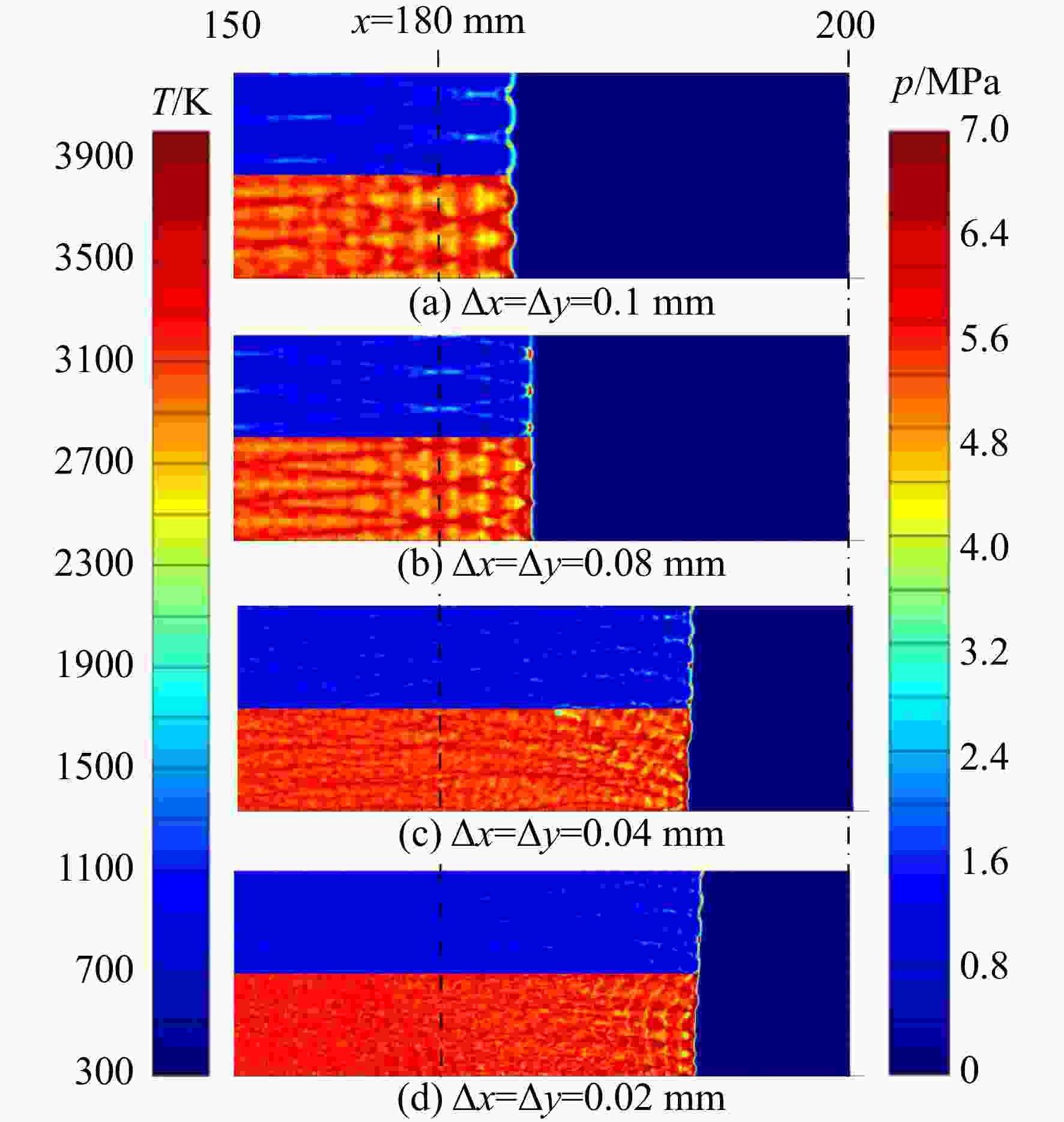

图 4 单步机理在0.1、0.08、0.04、0.02 mm网格尺度下的静压（上）与静温（下）云图

Figure 4. Static pressure （upper） and temperature （lower） contours using the single-step mechanism under0.1，0.08，0.04，0.02 mm grid settings

下载: 全尺寸图片幻灯片

图 5 多步机理在0.1、0.08、0.04、0.02 mm网格尺度下的静压（上）与静温（下）云图

Figure 5. Static pressure （upper） and temperature （lower） contours using the multi-step mechanism under0.1，0.08，0.04，0.02 mm grid settings

下载: 全尺寸图片幻灯片

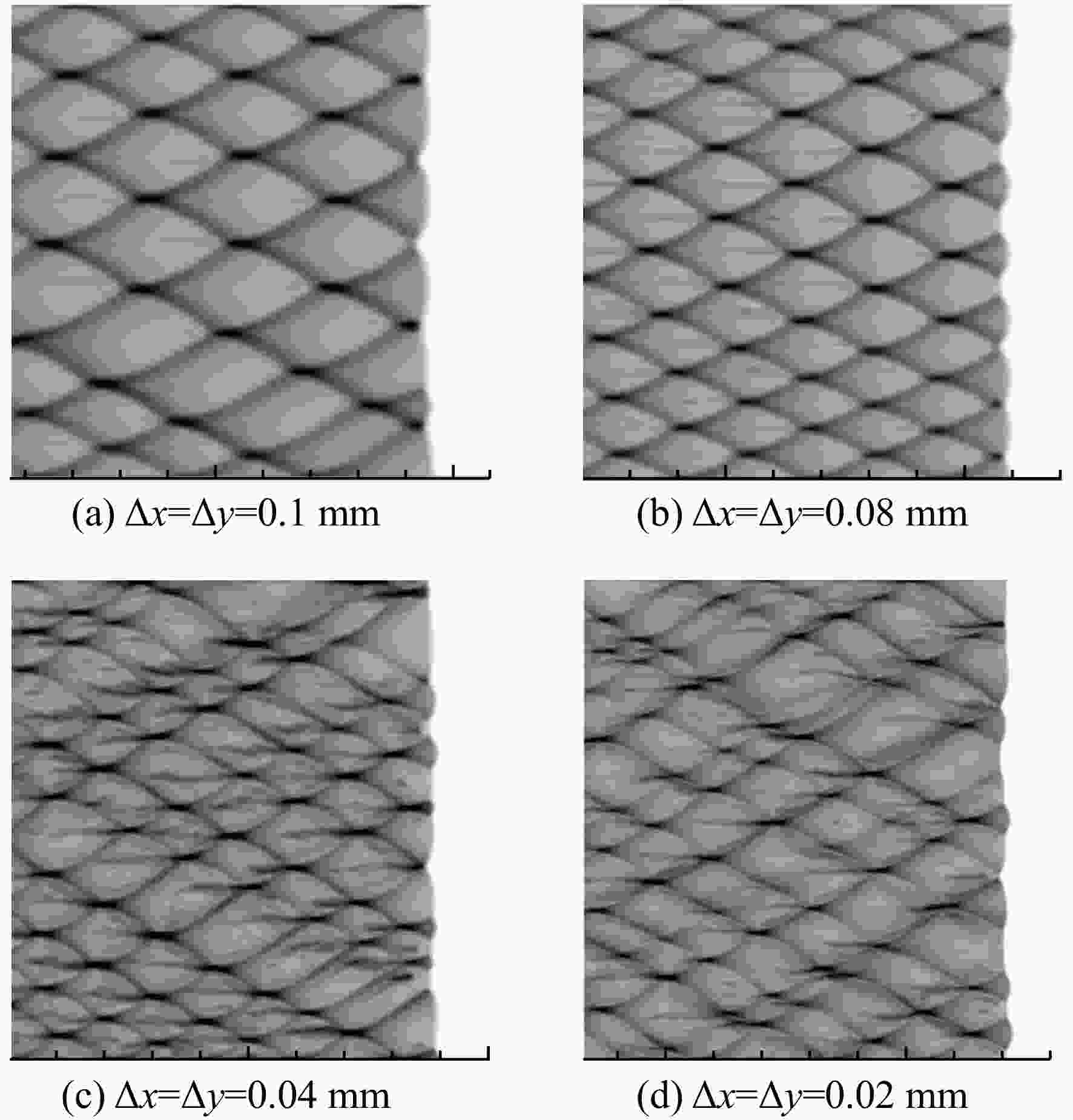

图 6 单步机理在0.1、0.08、0.04、0.02 mm网格尺度下爆震波波锋附近的胞格结构

Figure 6. Cellular structure near the detonation wave peak using the single-step mechanism under 0.1，0.08，0.04，0.02 mm grid settings

下载: 全尺寸图片幻灯片

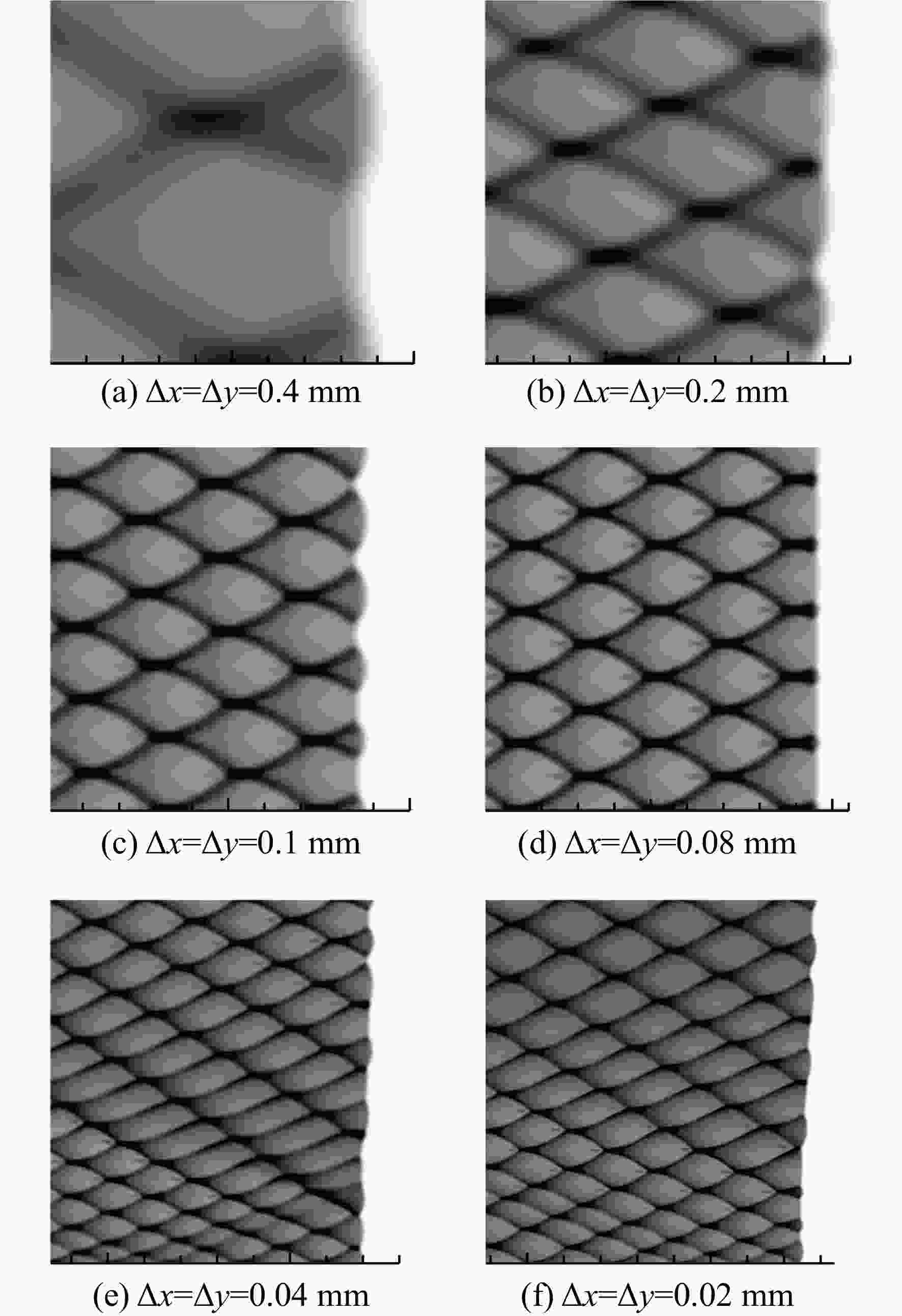

图 7 多步机理在0.4、0.2、0.1、0.08、0.04、0.02 mm网格尺度下爆震波波锋附近的胞格结构

Figure 7. Cellular structure near the detonation wave peak using the multi-step mechanism under 0.4，0.2，0.1，0.08，0.04，0.02 mm grid settings

下载: 全尺寸图片幻灯片

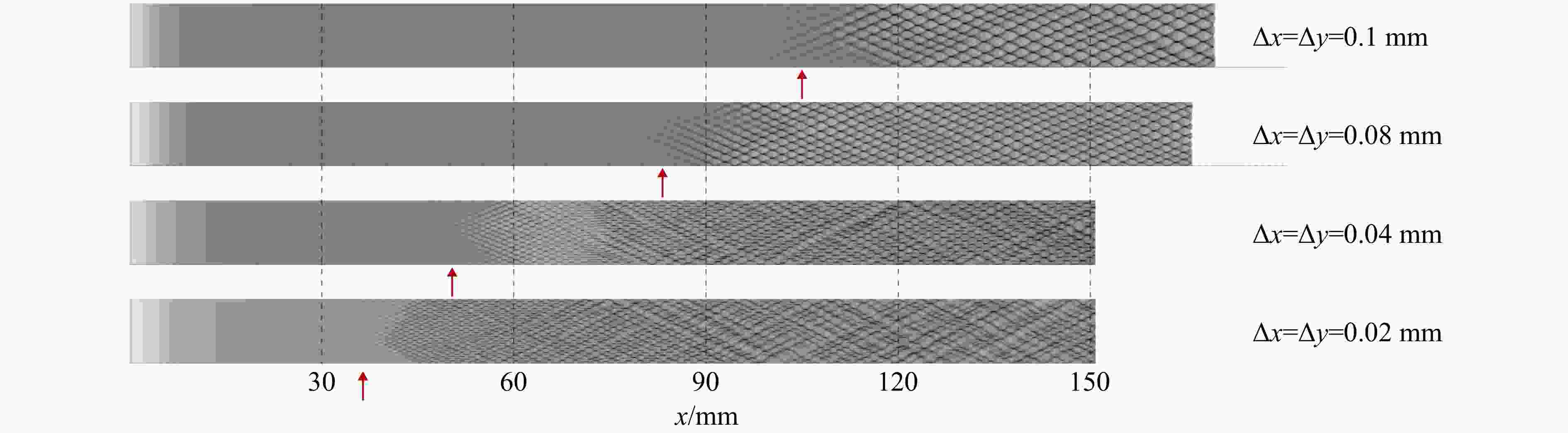

图 8 单步机理在0.1、0.08、0.04、0.02 mm网格尺度下的胞格结构

Figure 8. Cellular structure using the single-step mechanism under 0.1，0.08，0.04，0.02 mm grid settings

下载: 全尺寸图片幻灯片

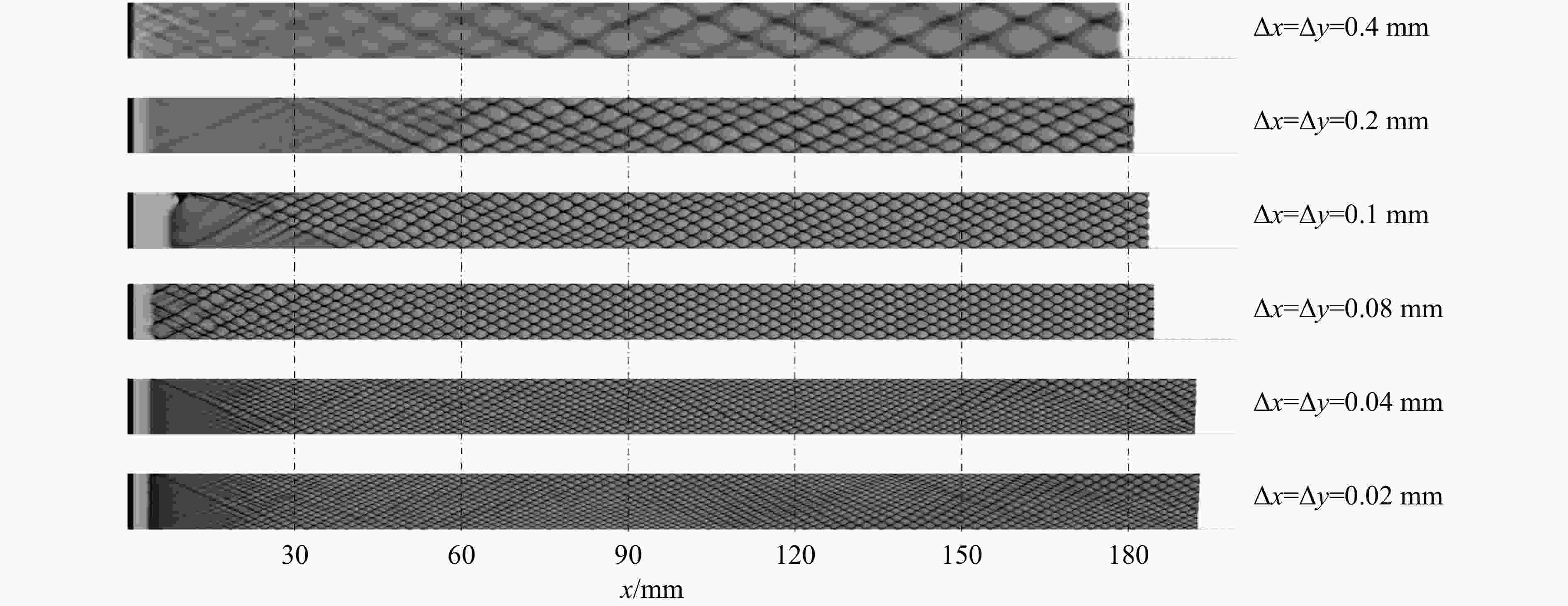

图 9 多步机理在0.4、0.2、0.1、0.08、0.04、0.02 mm网格尺度下的胞格结构

Figure 9. Cellular structure using the multi-step mechanism under 0.4，0.2，0.1，0.08，0.04，0.02 mm grid settings

下载: 全尺寸图片幻灯片

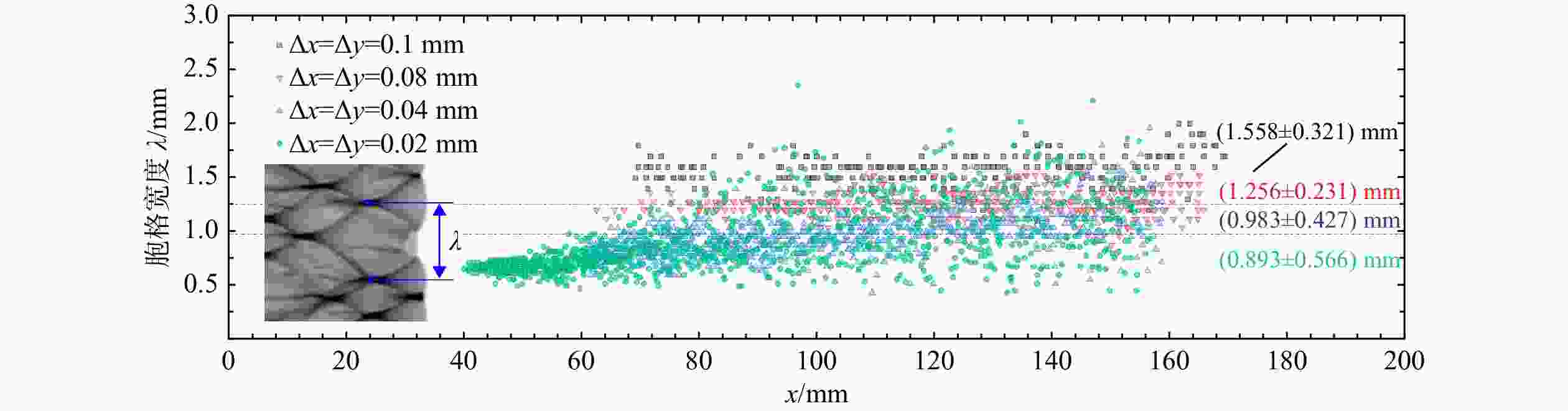

图 10 单步机理在0.1、0.08、0.04、0.02 mm网格尺度下的胞格宽度统计结果

Figure 10. Cell width statistics with 0.1，0.08，0.04，0.02 mm grids settings using the single-step mechanism

下载: 全尺寸图片幻灯片

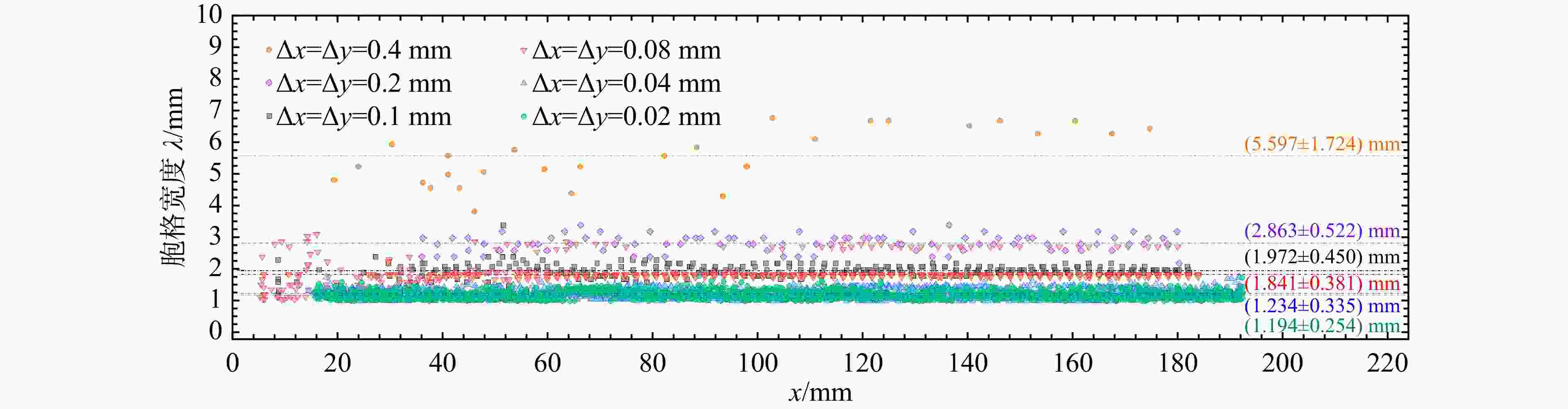

图 11 多步机理在0.4、0.2、0.1、0.08、0.04、0.02 mm网格尺度下的胞格宽度统计结果

Figure 11. Cell width statistics with 0.4，0.2，0.1，0.08，0.04，0.02 mm grids settings using the multi-step mechanism

下载: 全尺寸图片幻灯片

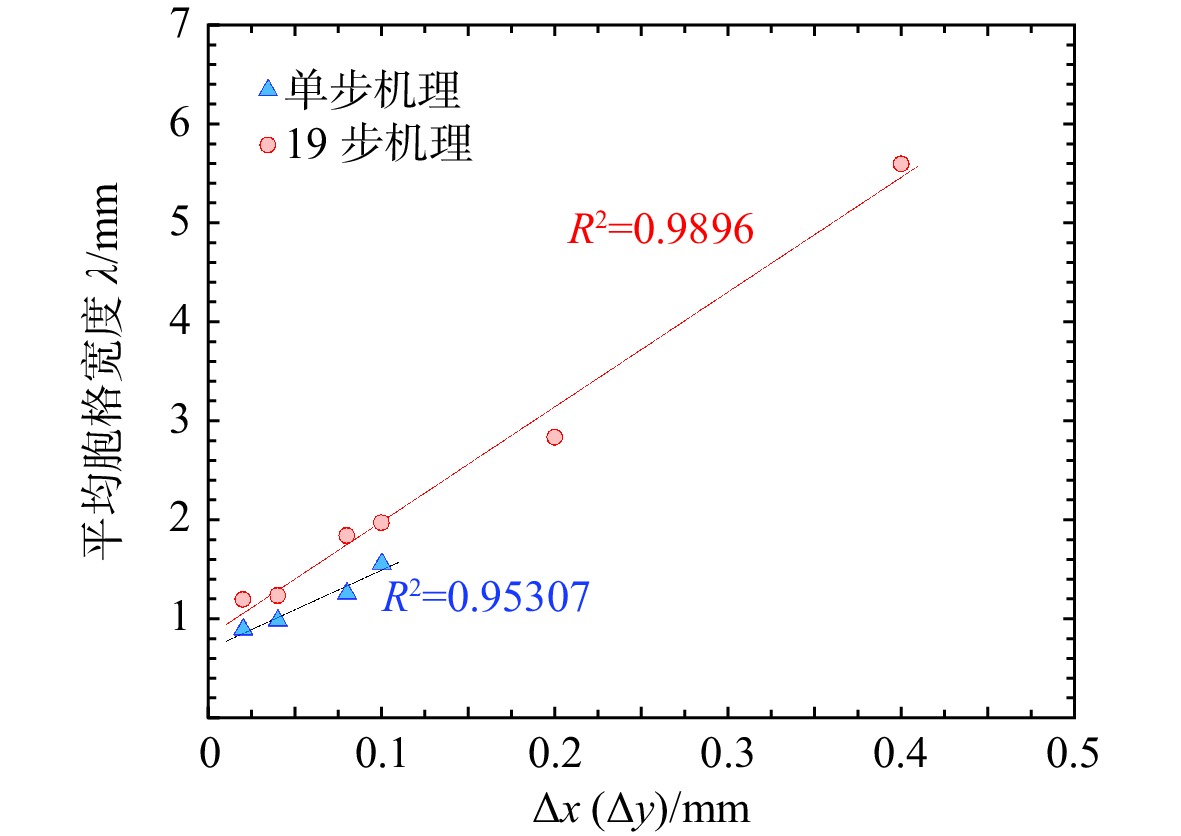

图 12 平均胞格宽度与网格尺度的关系

Figure 12. Averaged cell width versus grid settings

下载: 全尺寸图片幻灯片

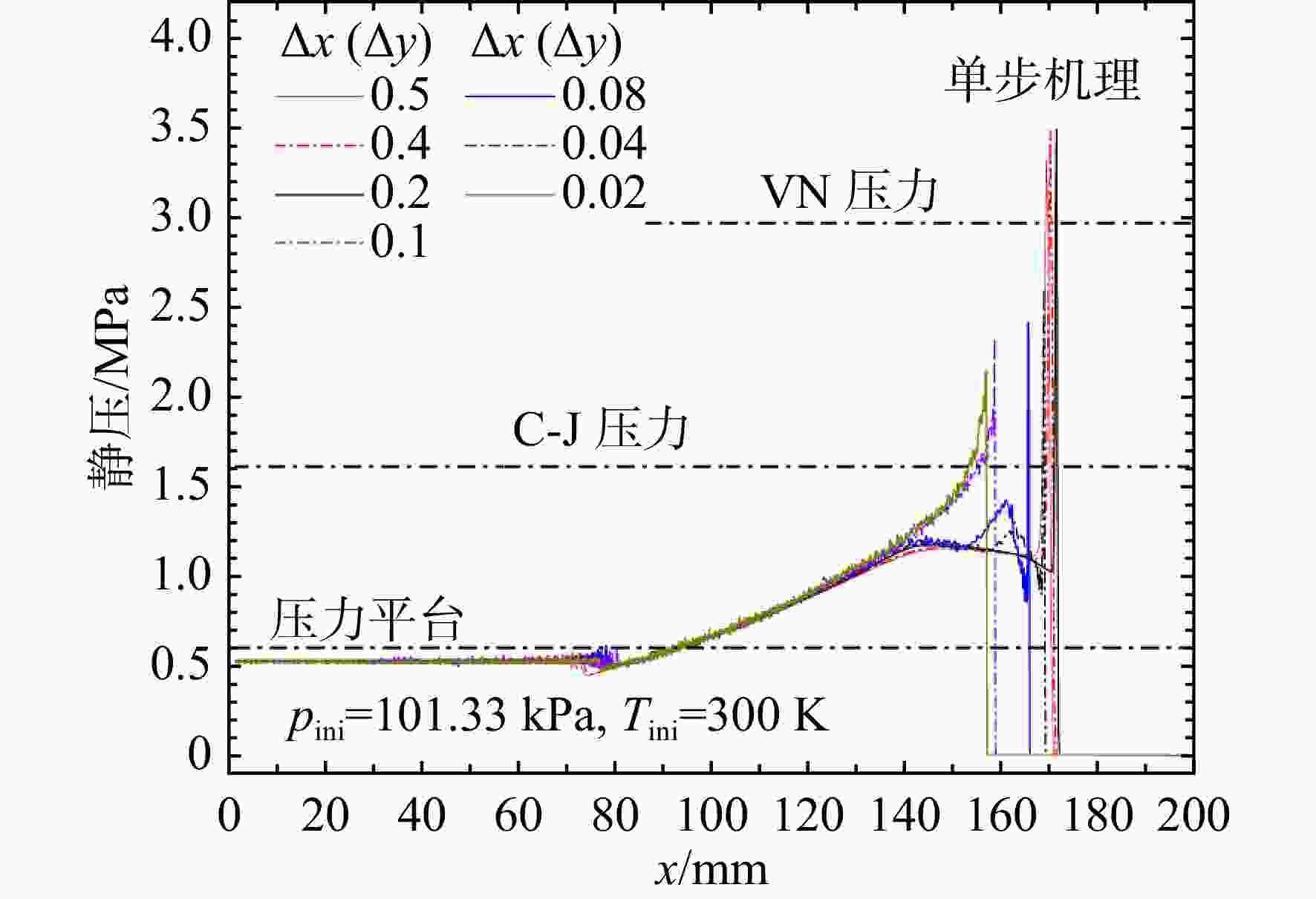

图 13 单步机理不同网格尺度的特征静压沿x轴的分布

Figure 13. Characteristic static pressure along the x axis using the single-step mechanism for different grids settings

下载: 全尺寸图片幻灯片

图 14 多步机理不同网格尺度的特征静压沿x轴的分布

Figure 14. Characteristic static pressure along the x axis using the multi-step mechanism for different grids settings

下载: 全尺寸图片幻灯片

图 15 单步机理不同网格尺度的特征静温沿x轴的分布

Figure 15. Characteristic static temperature along the x axis using the single-step mechanism for different grids settings

下载: 全尺寸图片幻灯片

图 16 多步机理不同网格尺度的特征静温沿x轴的分布

Figure 16. Characteristic static temperature along the x axis using the multi-step mechanism

下载: 全尺寸图片幻灯片

图 17 单步机理不同网格尺度的爆震波波速

Figure 17. Propagation speed detonation wave using the single-step mechanism for different grids settings

下载: 全尺寸图片幻灯片

图 18 多步机理不同网格尺度的爆震波波速

Figure 18. Propagation speed detonation wave using the multi-step mechanism for different grids settings

下载: 全尺寸图片幻灯片

图 19 不同机理的点火延迟时间与起始温度的关系

Figure 19. Ignition delay versus initial temperature for different mechanisms under the same initial mixtures

下载: 全尺寸图片幻灯片

图 20 不同机理的点火延迟时间与起始压力的关系

Figure 20. Ignition delay versus initial pressure for different mechanisms under the same initial mixtures

下载: 全尺寸图片幻灯片
