Numerical and experimental study on leakage characteristics of combined elastic metal seal
-
摘要:

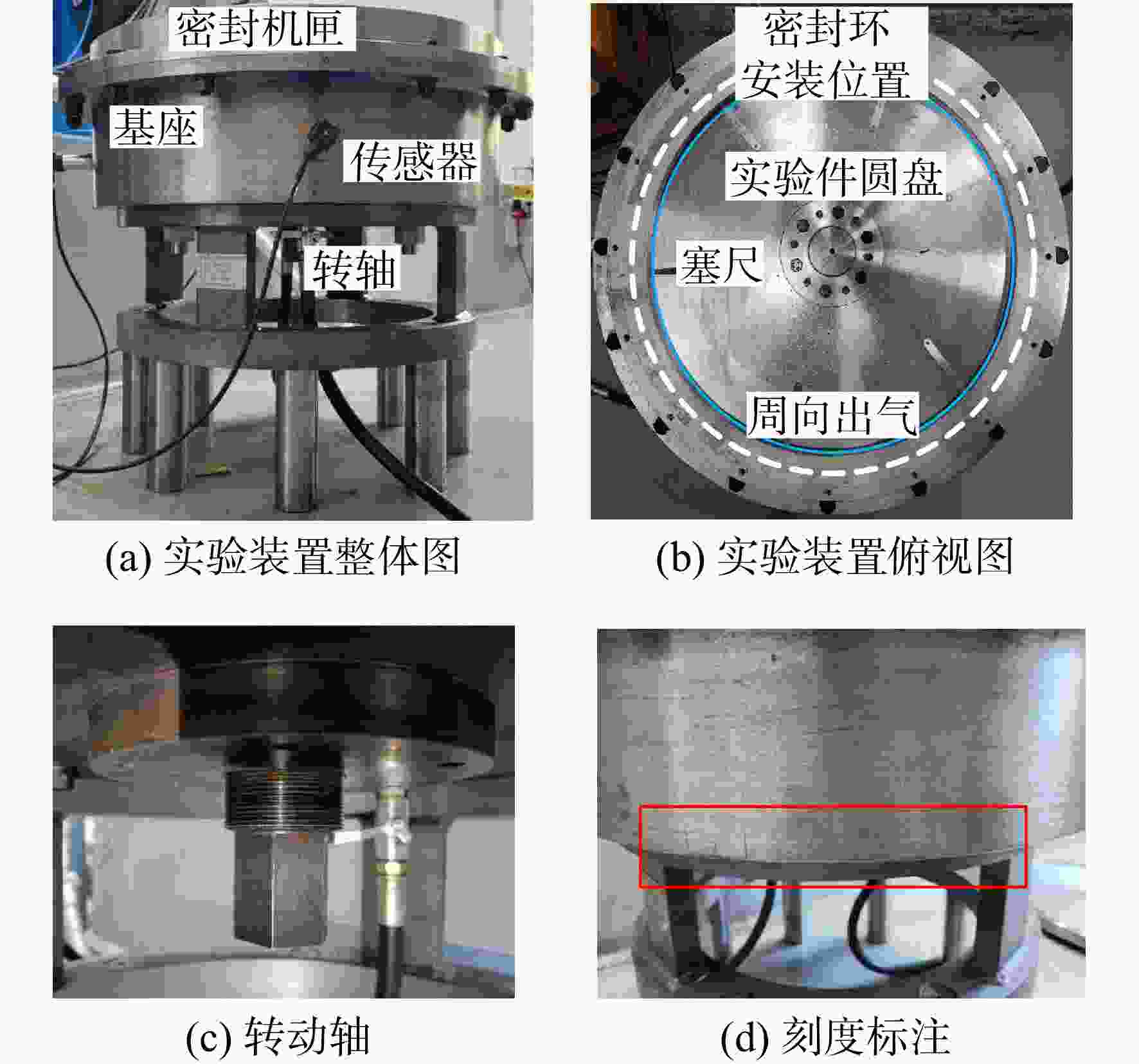

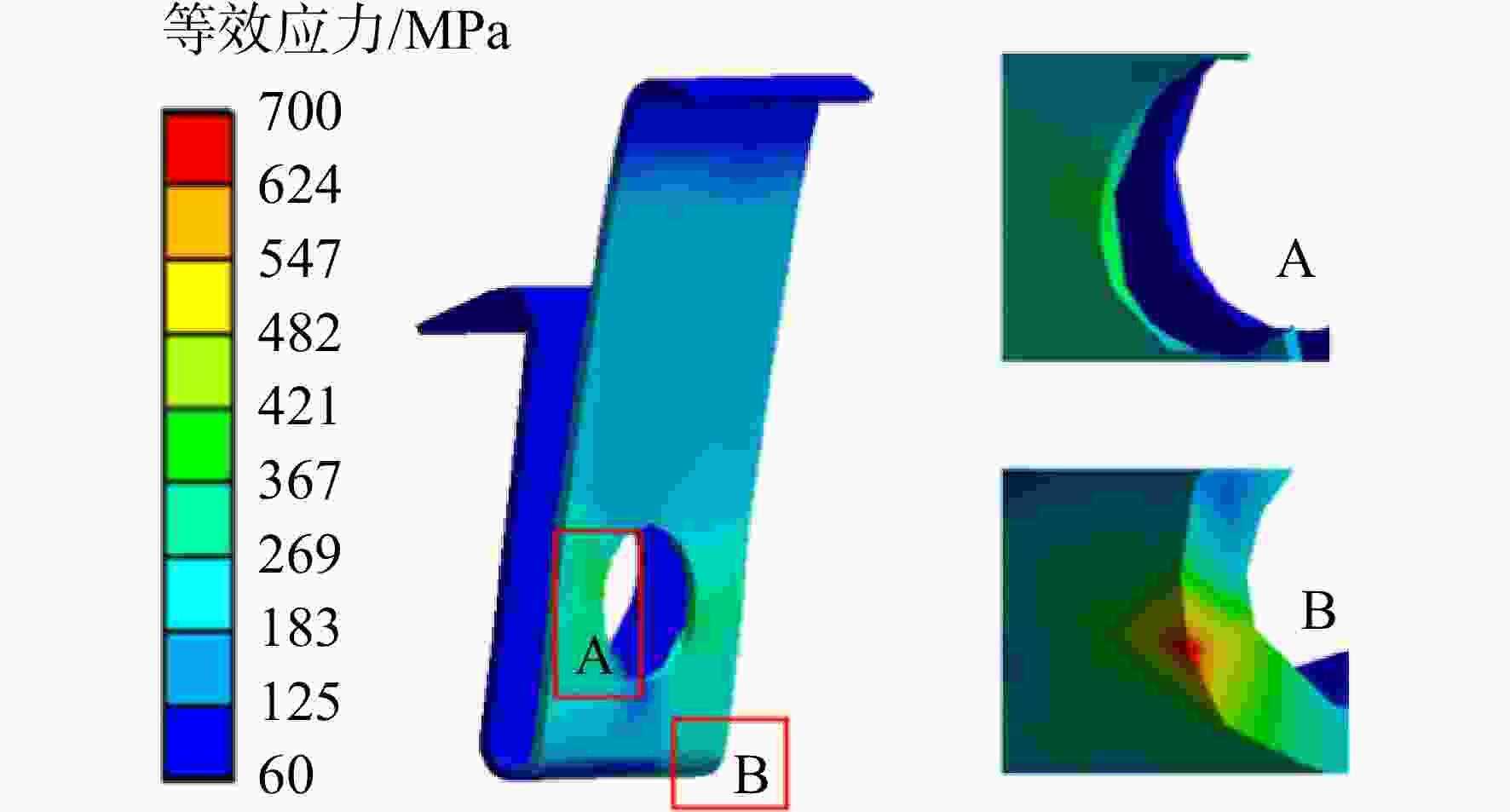

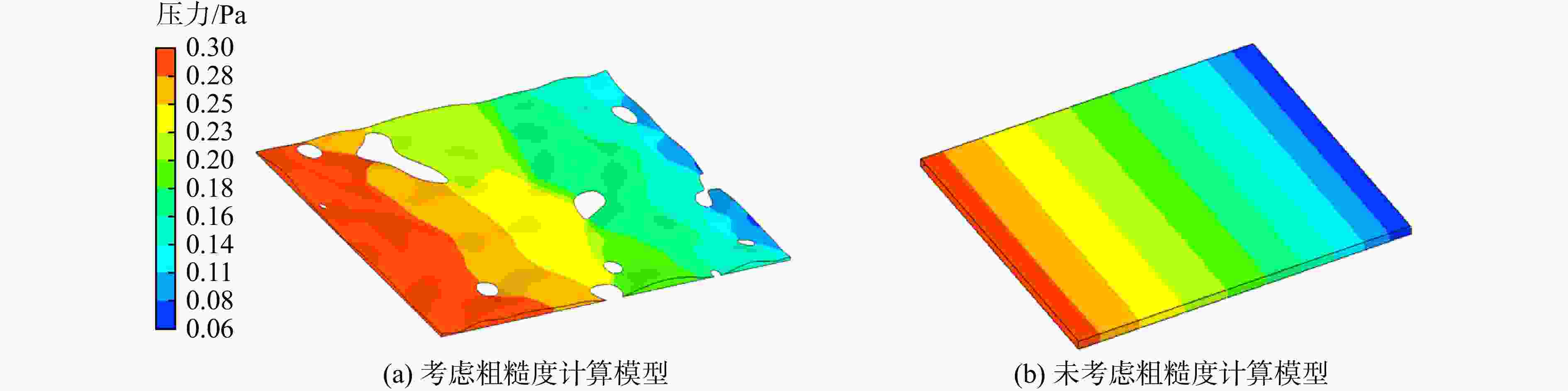

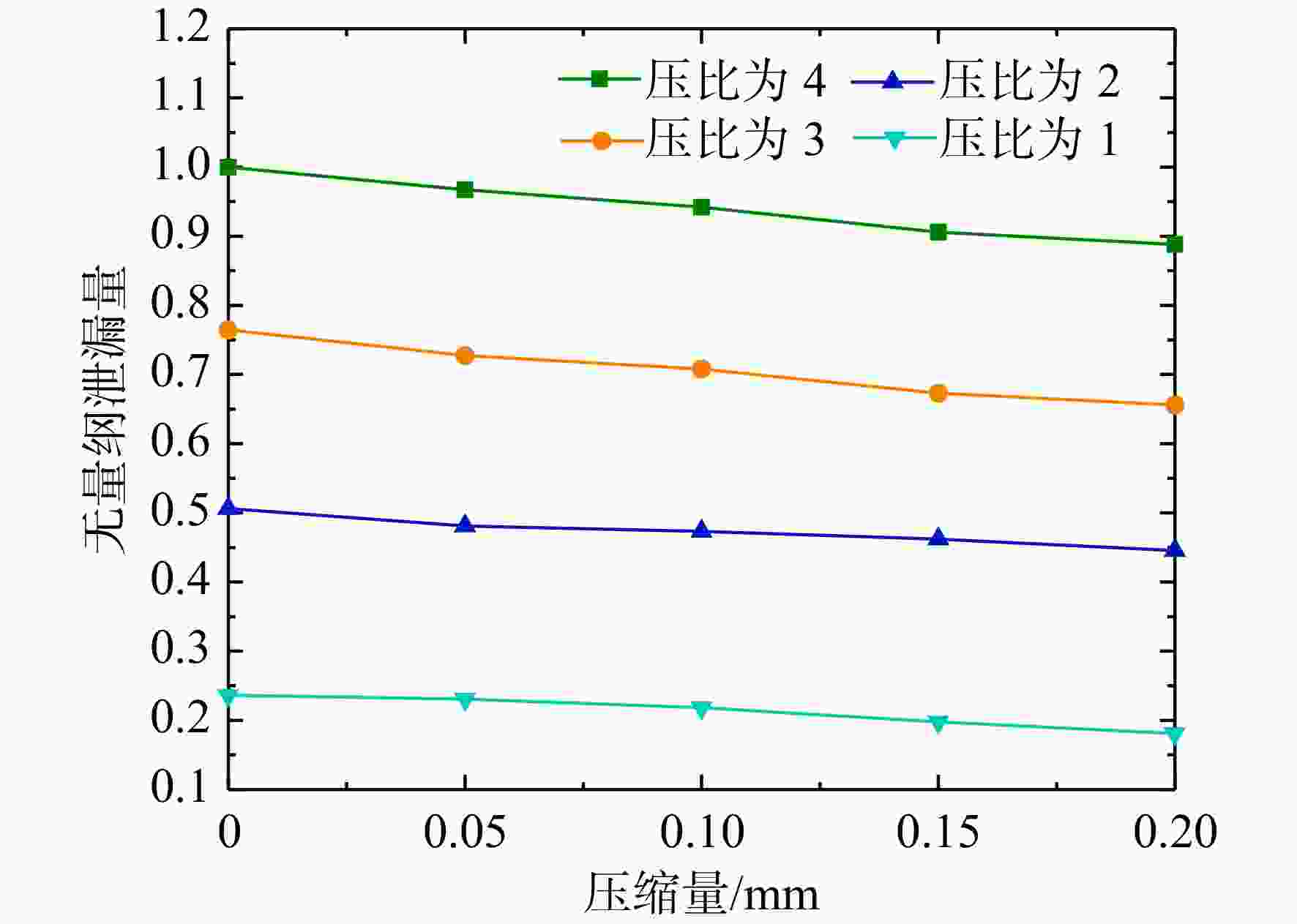

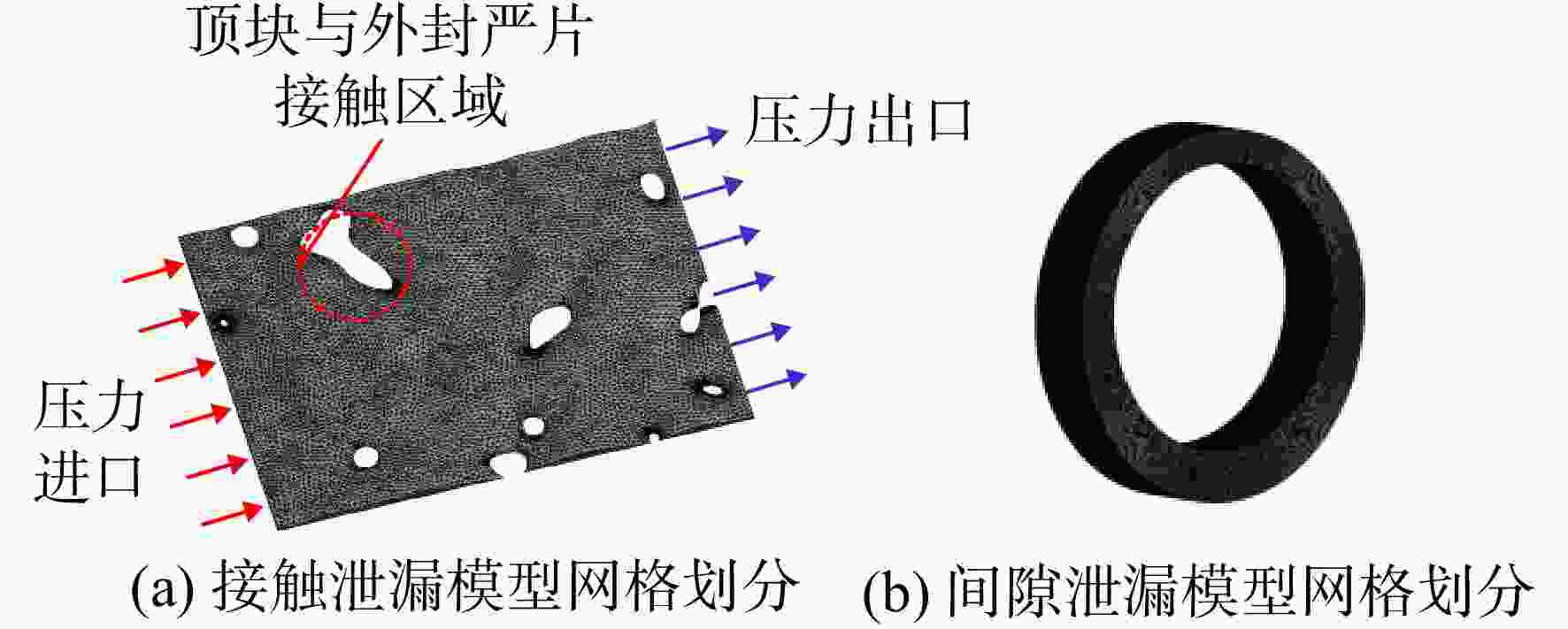

为研究组合式弹性金属密封泄漏特性，针对接触泄漏通道、间隙泄漏通道建立两种泄漏特性数值计算模型，在宏观力学特性数值计算结果的基础上，基于分形理论建立了考虑实际粗糙接触表面的组合式弹性金属密封泄漏特性求解模型，并设计搭建了组合式弹性金属密封泄漏特性实验装置，在实验验证数值求解模型准确性的基础上，研究了组合式弹性金属密封在不同内外腔压差、压缩量下的力学特性与泄漏特性，并分析表面粗糙度影响下的密封机理。研究结果表明：等效应力随着内外腔压差的增大、压缩量的增加而不断增大；而泄漏量随压缩量的增加、温度的增加而逐渐减小，在最大压比、最大压缩量条件下泄漏量较初始条件减少24.12%；表面粗糙度对组合式弹性金属密封的泄漏量影响较大，表面粗糙度以及压缩量会影响接触处泄漏通道间隙进而影响其流场分布，本文提出的考虑表面粗糙度的数值计算方法较传统方法误差较小，可较为准确计算组合式弹性金属密封的泄漏量，为组合式弹性金属密封泄漏特性分析提供理论依据。

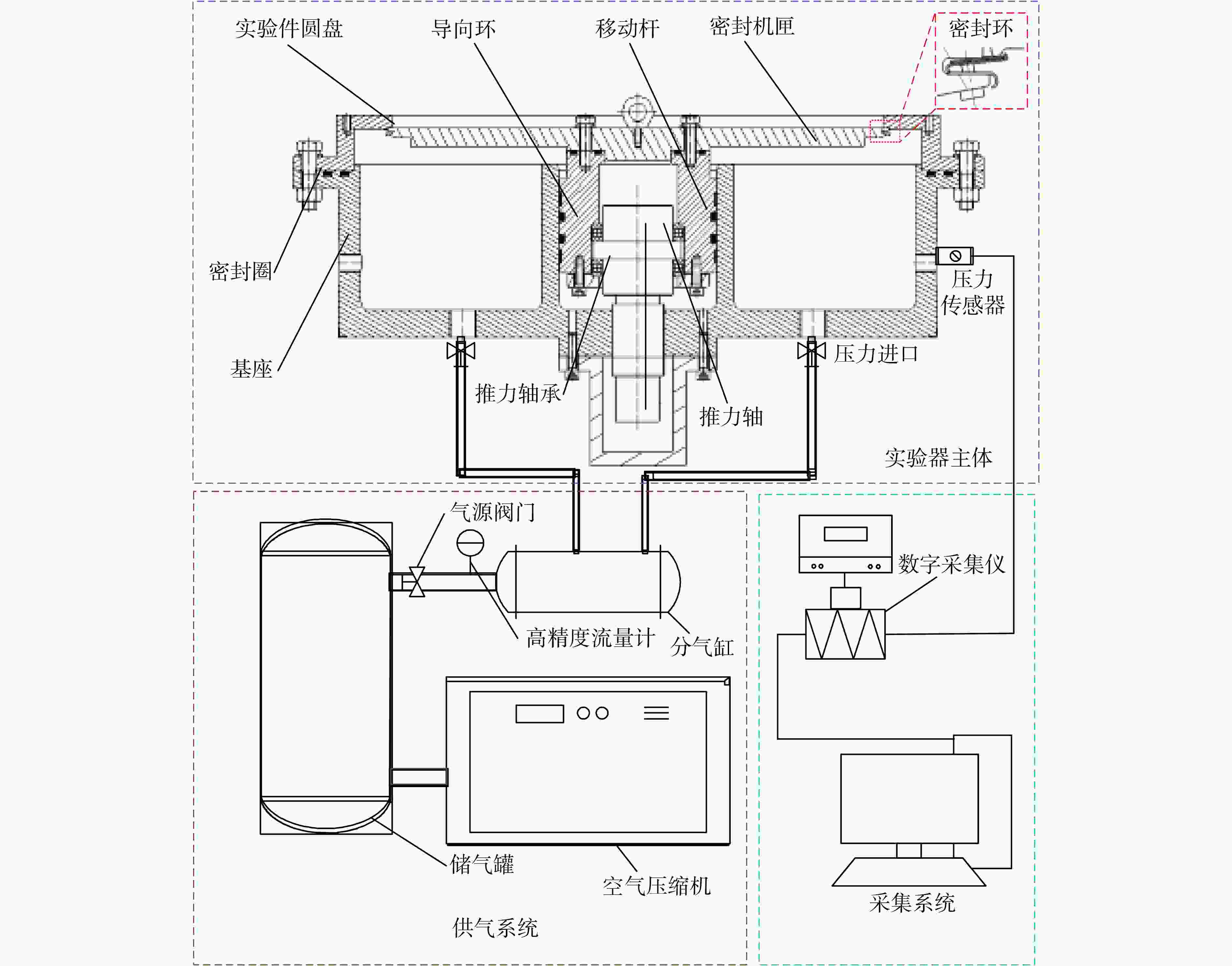

Abstract:In order to study the leakage characteristics of the combined elastic metal seal, two kinds of numerical calculation models for the leakage characteristics of the contact leakage channel and the gap leakage channel were established. On basis of the numerical calculation results of the macroscopic mechanical characteristics, a solution model for the leakage characteristics of the combined elastic metal seal considering the actual rough contact surface was established based on the fractal theory. An experimental device for leakage characteristics of the combined elastic metal seal was designed and built. Based on experimental verification of the accuracy of the numerical solution model, the mechanical characteristics and leakage characteristics of the combined elastic metal seal under different pressure difference and compression amount of the internal and external cavities were studied, and the sealing mechanism under the influence of roughness was analyzed. The results showed that the equivalent stress increased with the increase of pressure difference and compression quantity. The leakage decreased gradually with the increase of compression and temperature, and the leakage decreased by 24.12% under the conditions of maximum pressure ratio and maximum compression. Surface roughness had a great influence on the leakage amount of the combined elastic metal seal, and roughness and compression could affect the leakage channel gap at the contact and then affect the flow field distribution. The numerical calculation method considering roughness had less error than the traditional method, and can calculate the leakage amount of the combined elastic metal seal more accurately, providing a theoretical basis for analysis of leakage characteristics of the combined elastic metal seal.
-

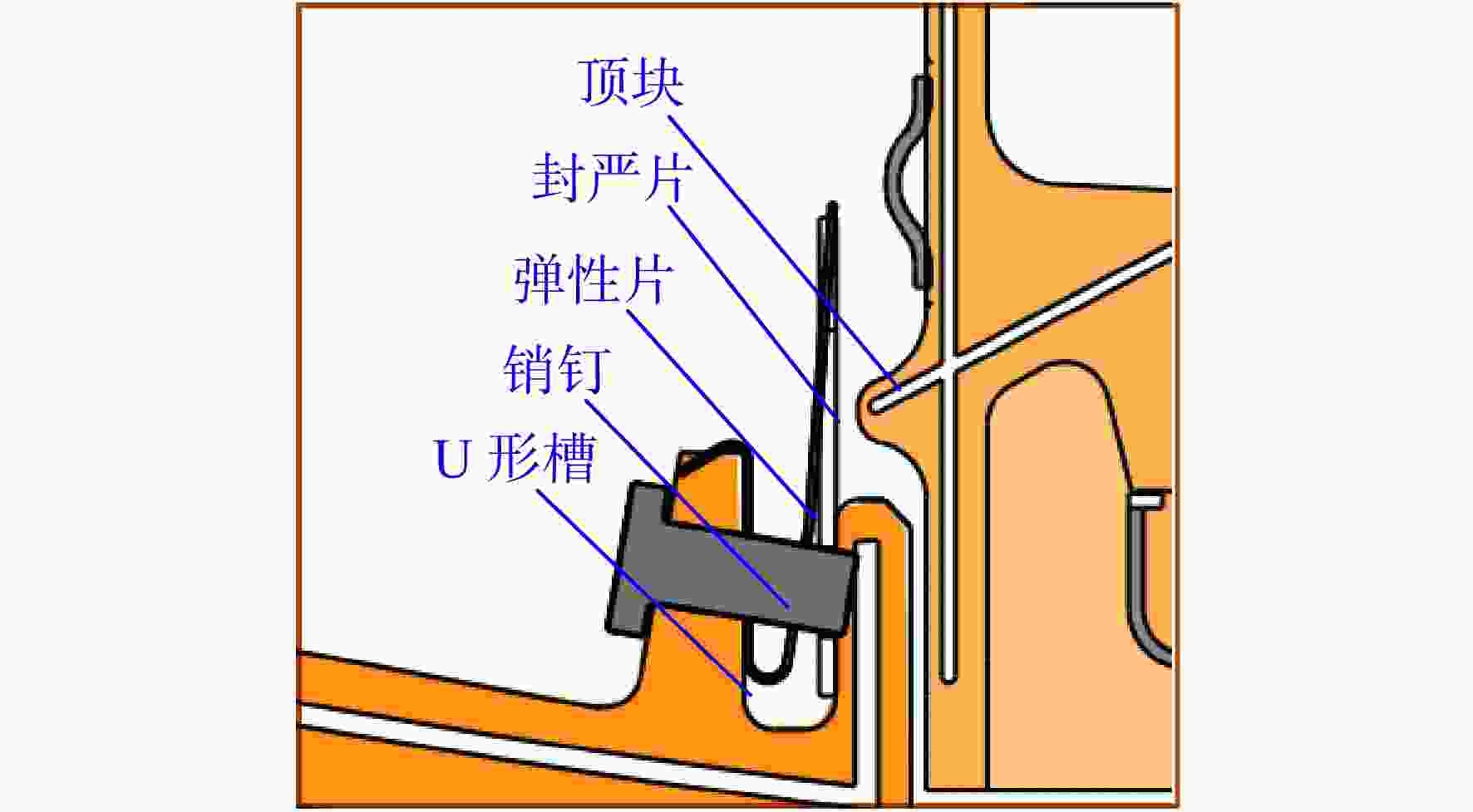

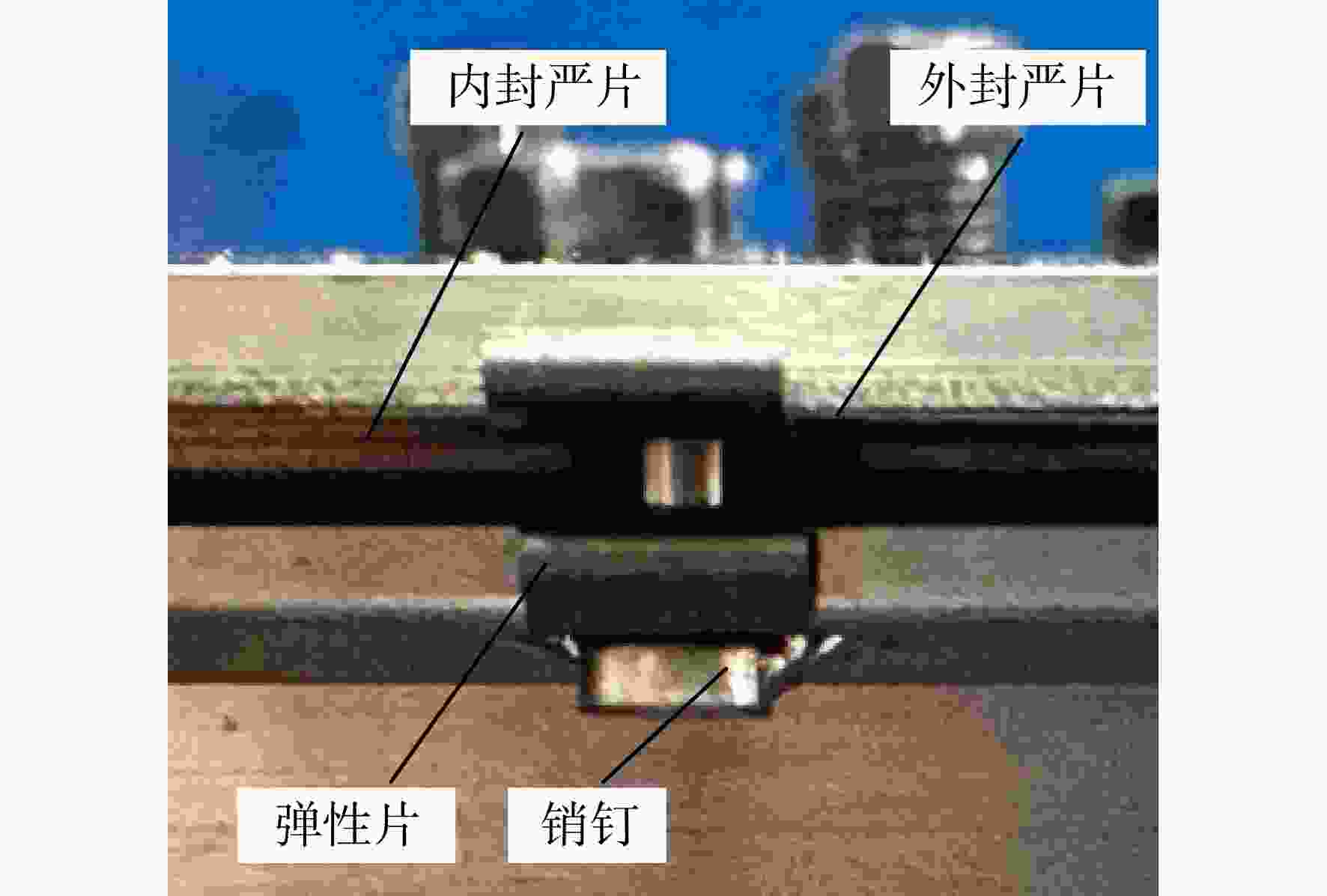

图 1 组合式弹性金属密封位置图
Figure 1. Schematic diagram of the position for combined elastic metal seal

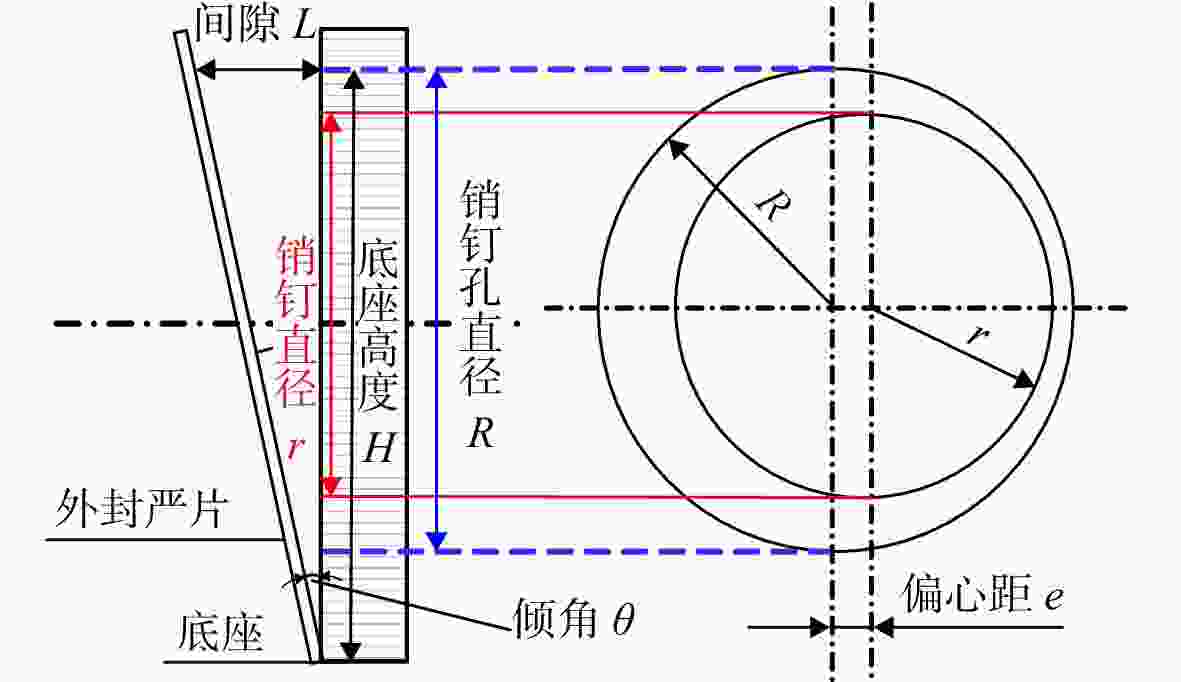

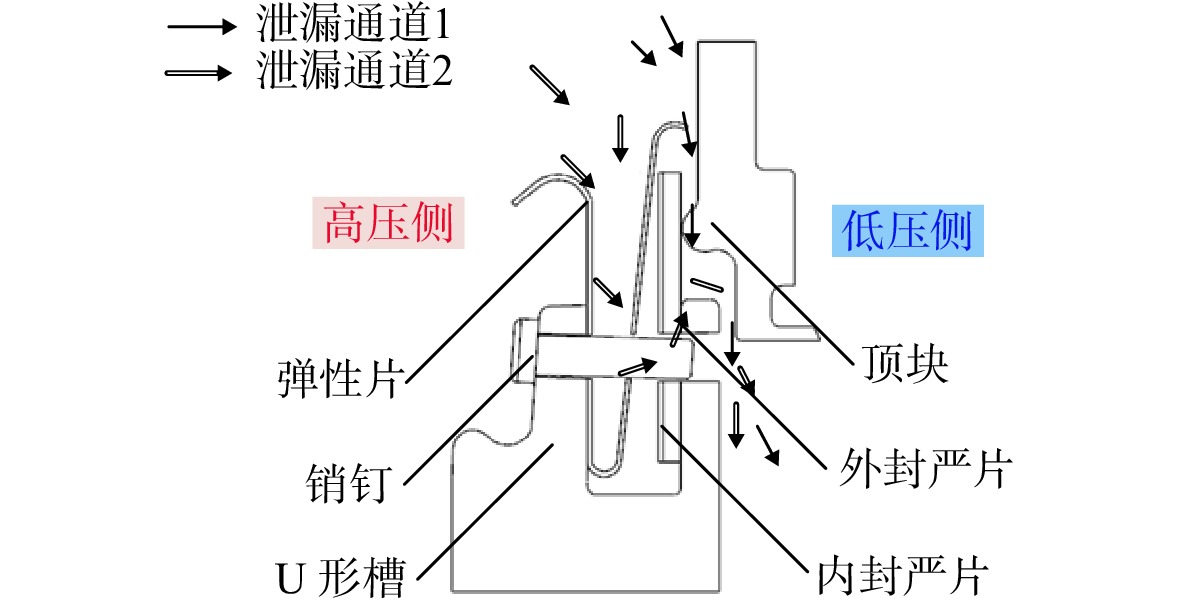

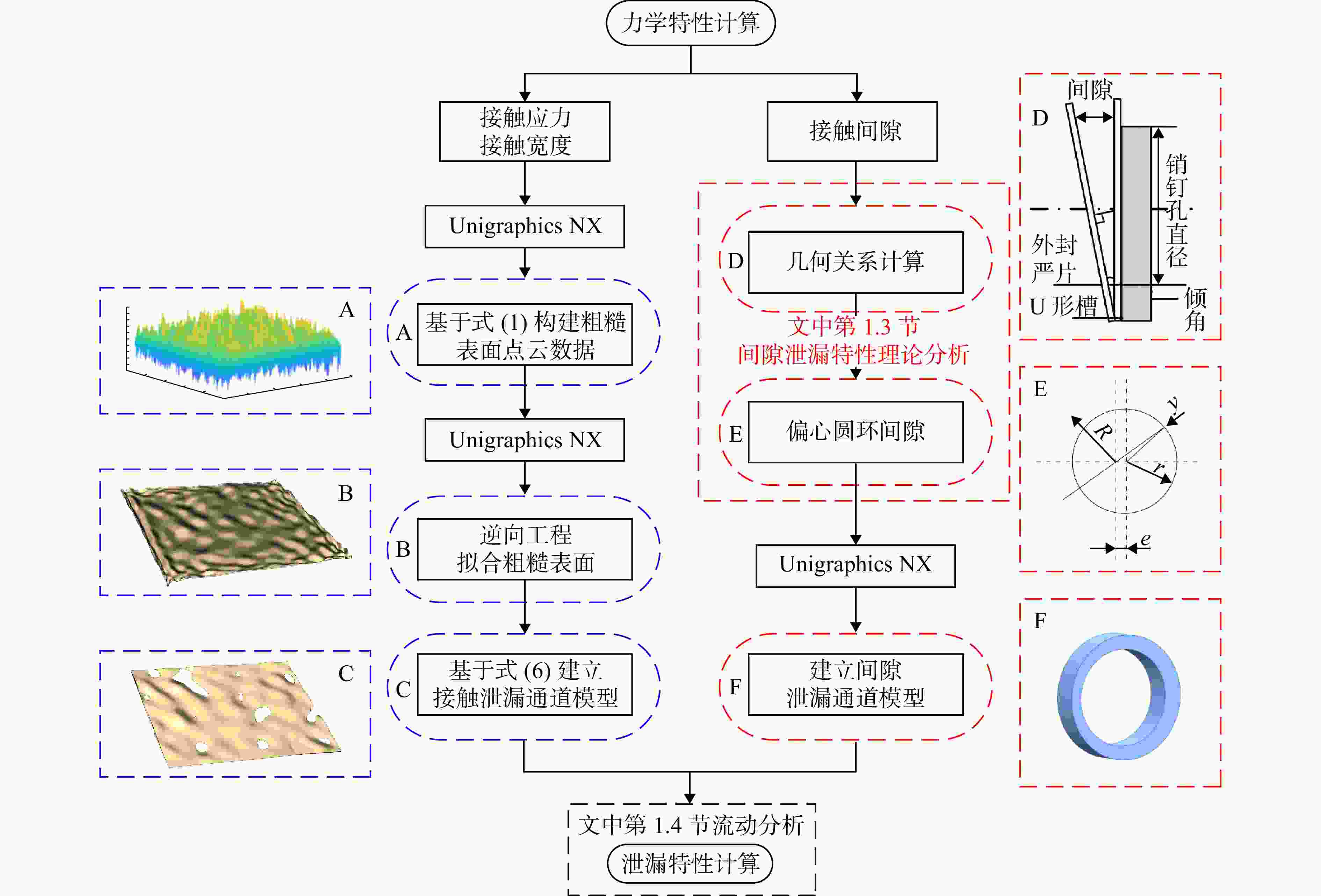

图 2 组合式弹性金属密封泄漏通道表征图
Figure 2. Schematic diagram of leakage passage for combined elastic metal seal
图 3 粗糙接触表面接触示意图
Figure 3. Schematic diagram of the contact between rough and smooth surface

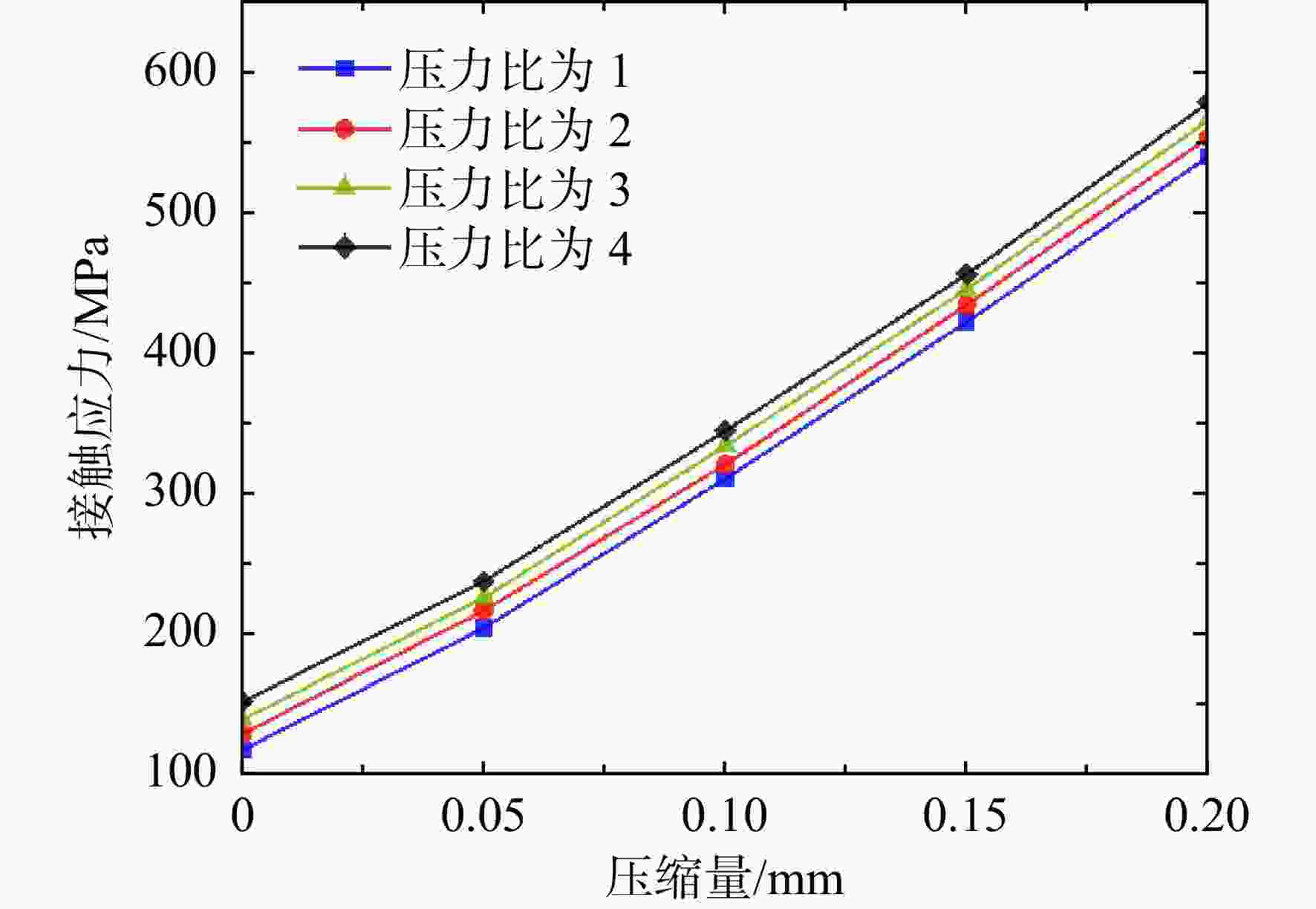

图 14 接触应力随压缩量变化关系
Figure 14. Relationship between contact stress and compression amount

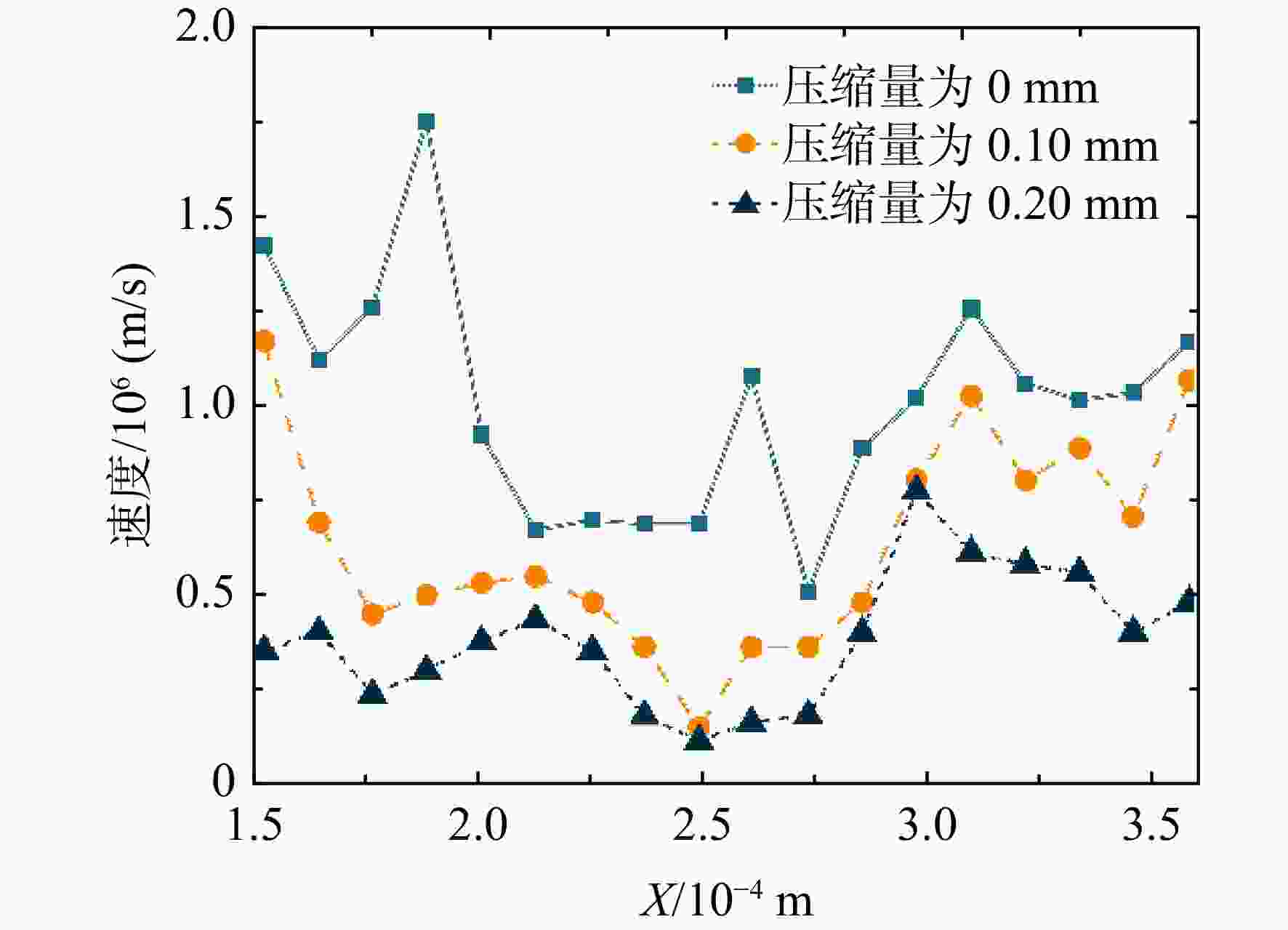

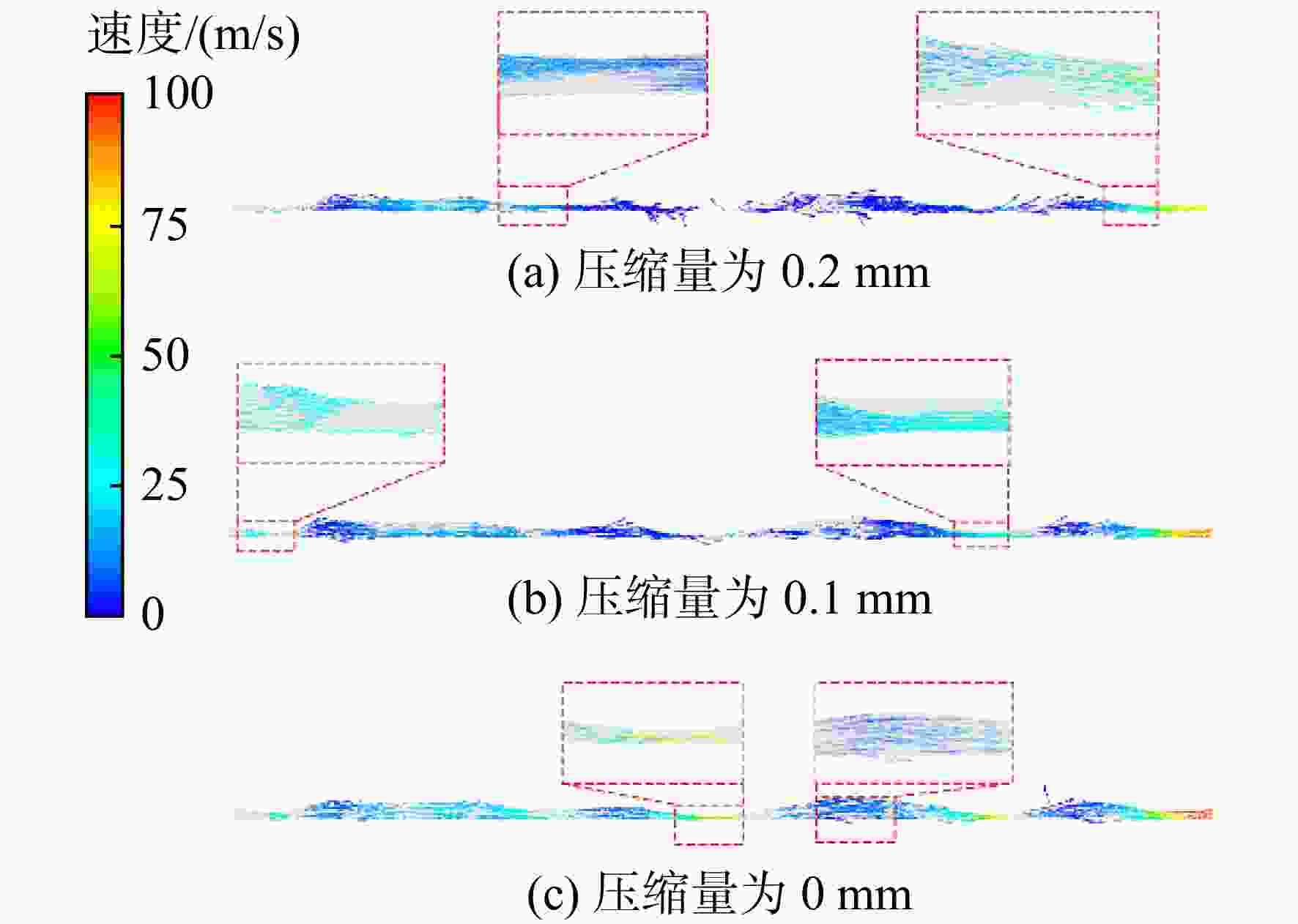

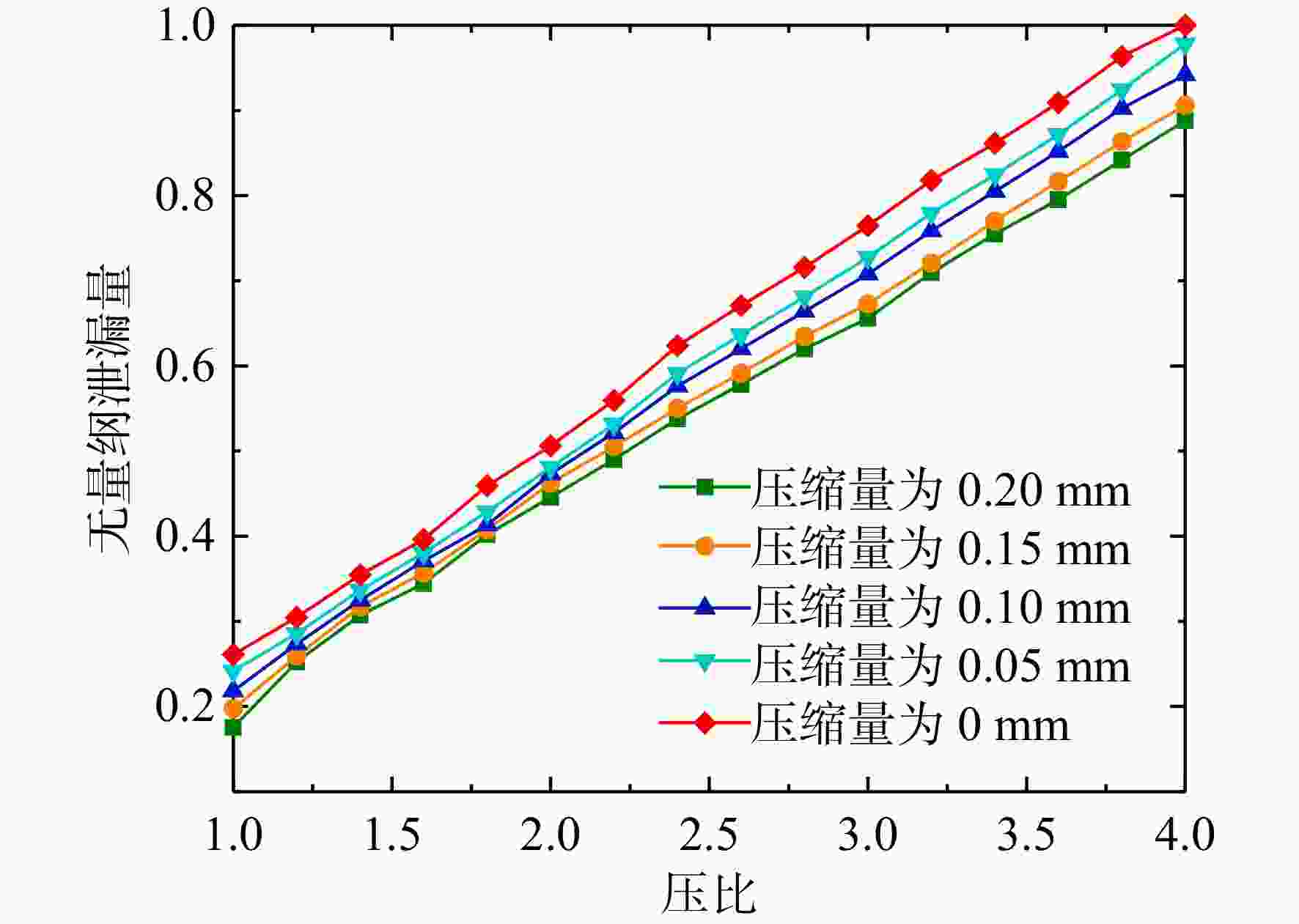

图 23 不同压缩量下速度变化关系
Figure 23. Relationship of velocity change under different compression
表 1 材料参数
Table 1. Material parameters
温度
T/K抗拉强度
σb/MPa屈服强度
σs/MPa弹性模量
E/GPa293 1465 1265 203 923 1180 1030 167
下载: 导出CSV

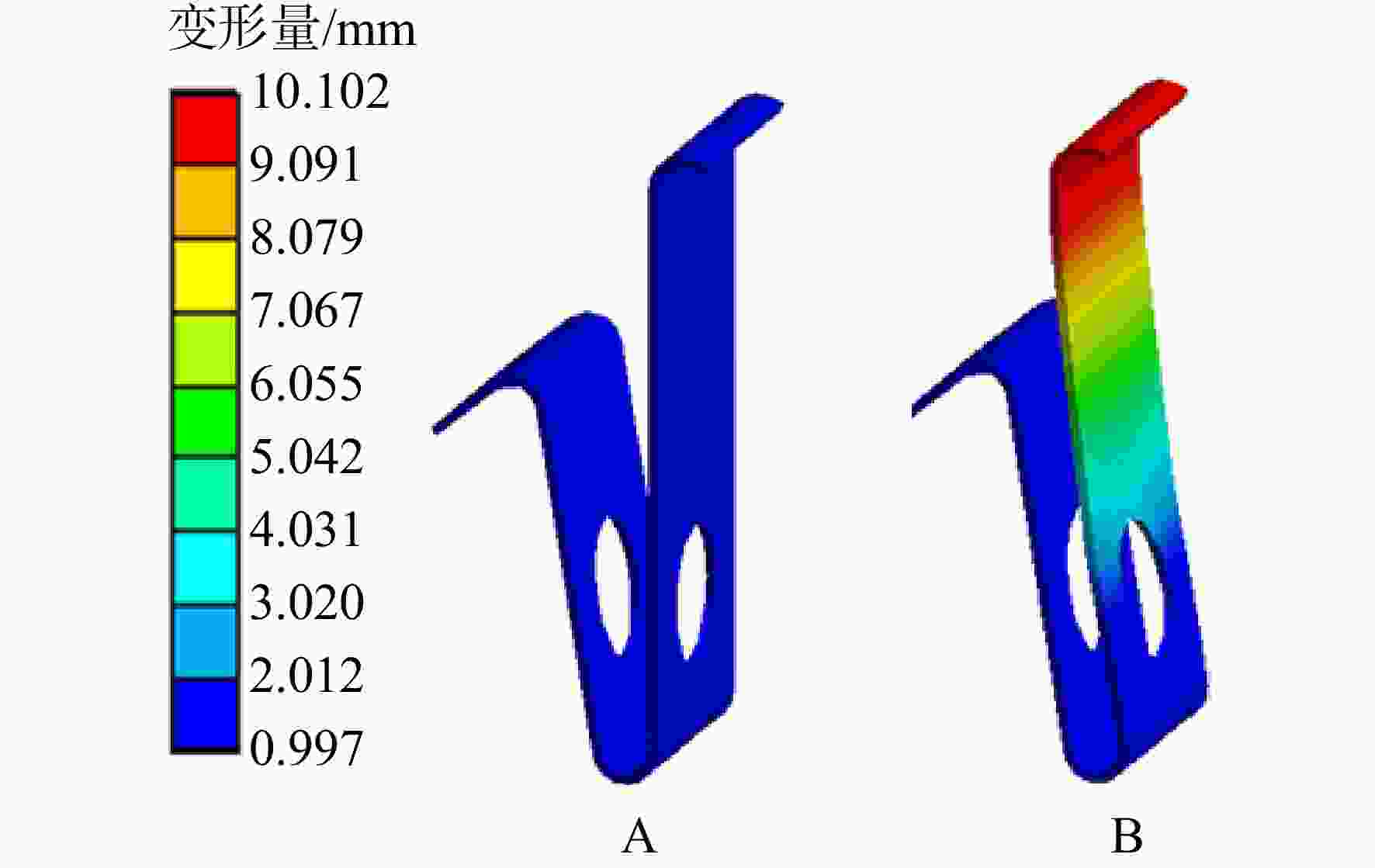

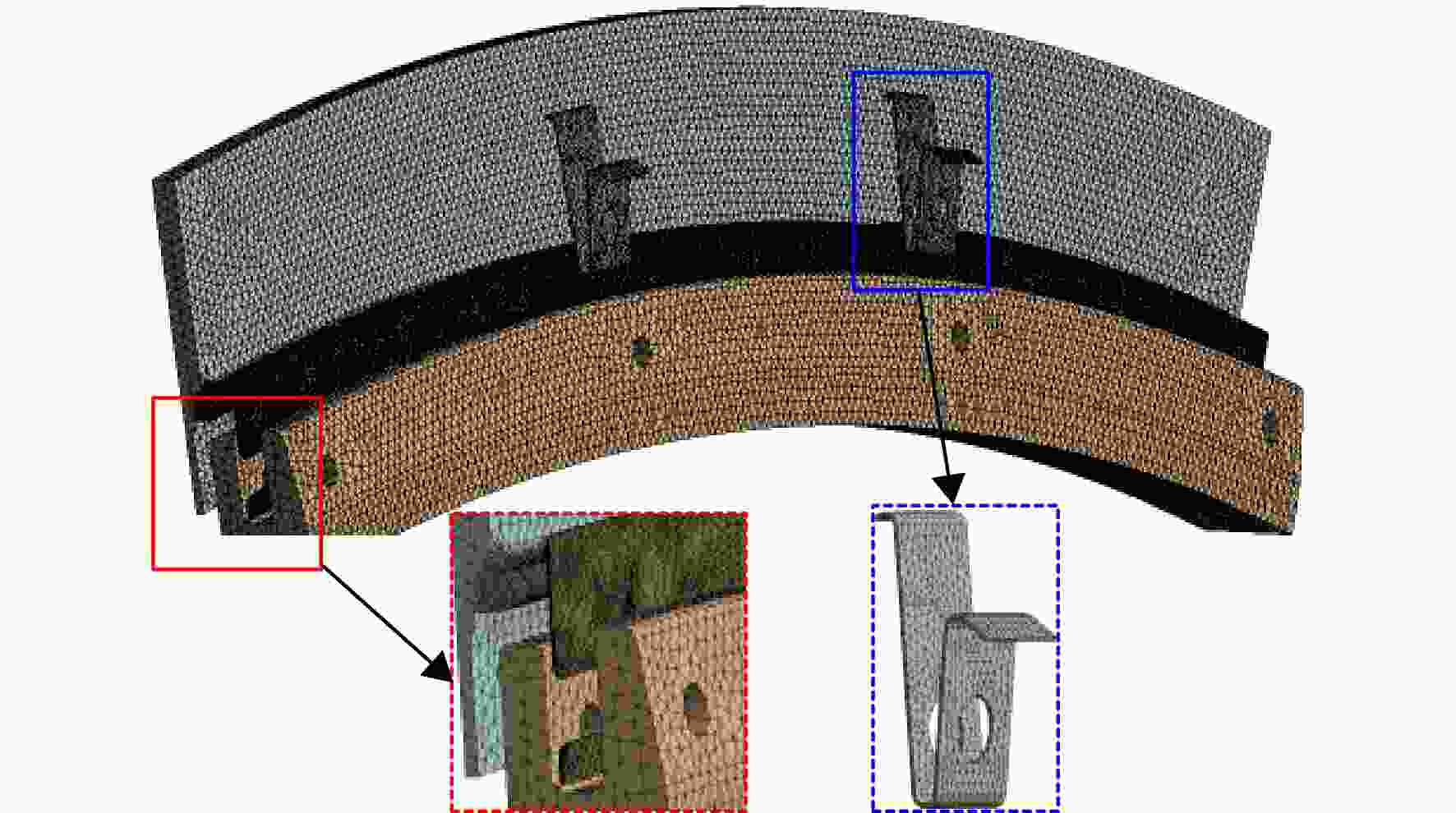

表 2 力学特性求解模型边界条件
Table 2. Boundary conditions of the mechanical properties solving model
部件 接触设置模块 内、外封严片 Bond 外封严片与顶块 Rough 弹性片与封严片 Frictional 封严片与底座 Frictional
下载: 导出CSV

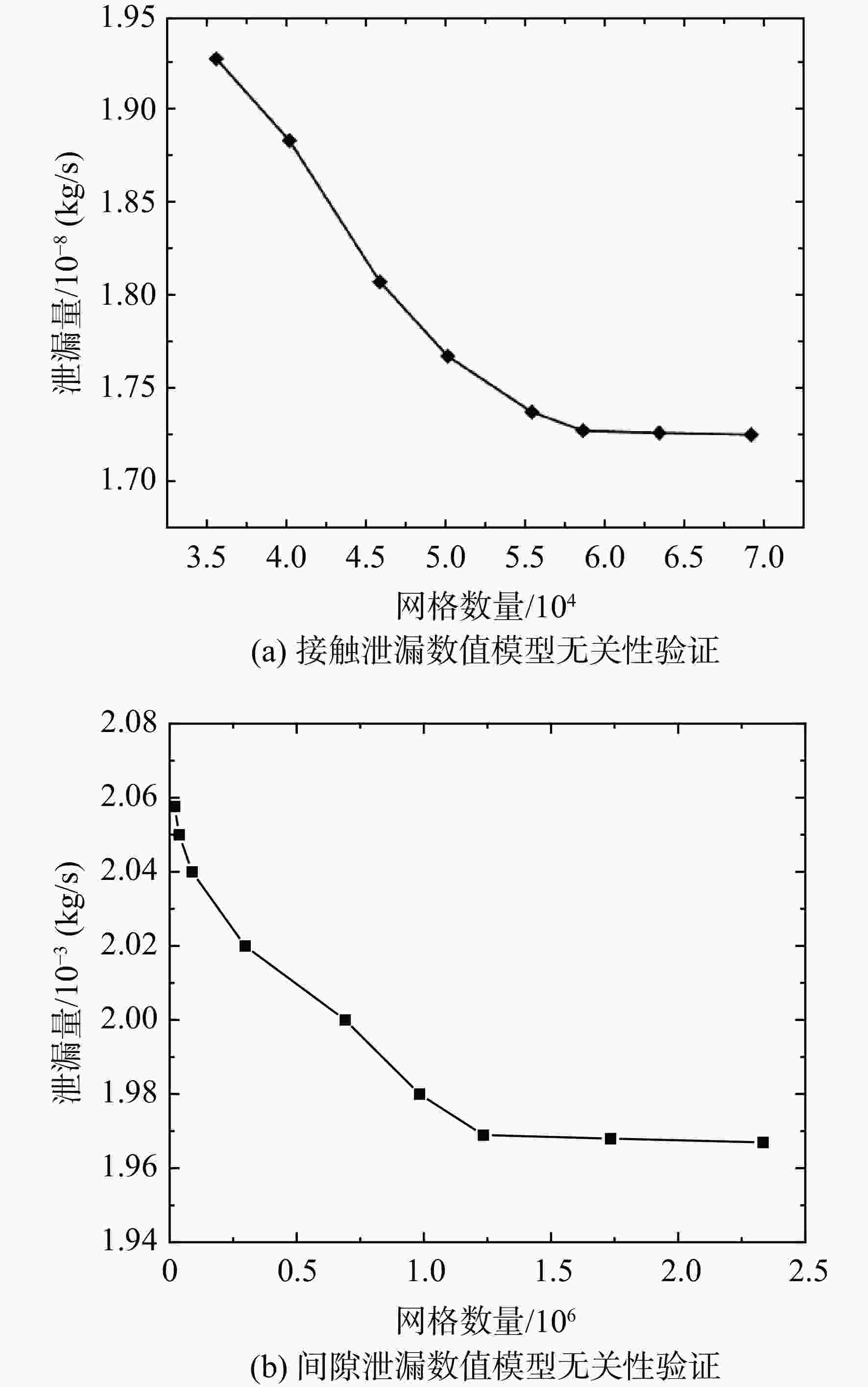

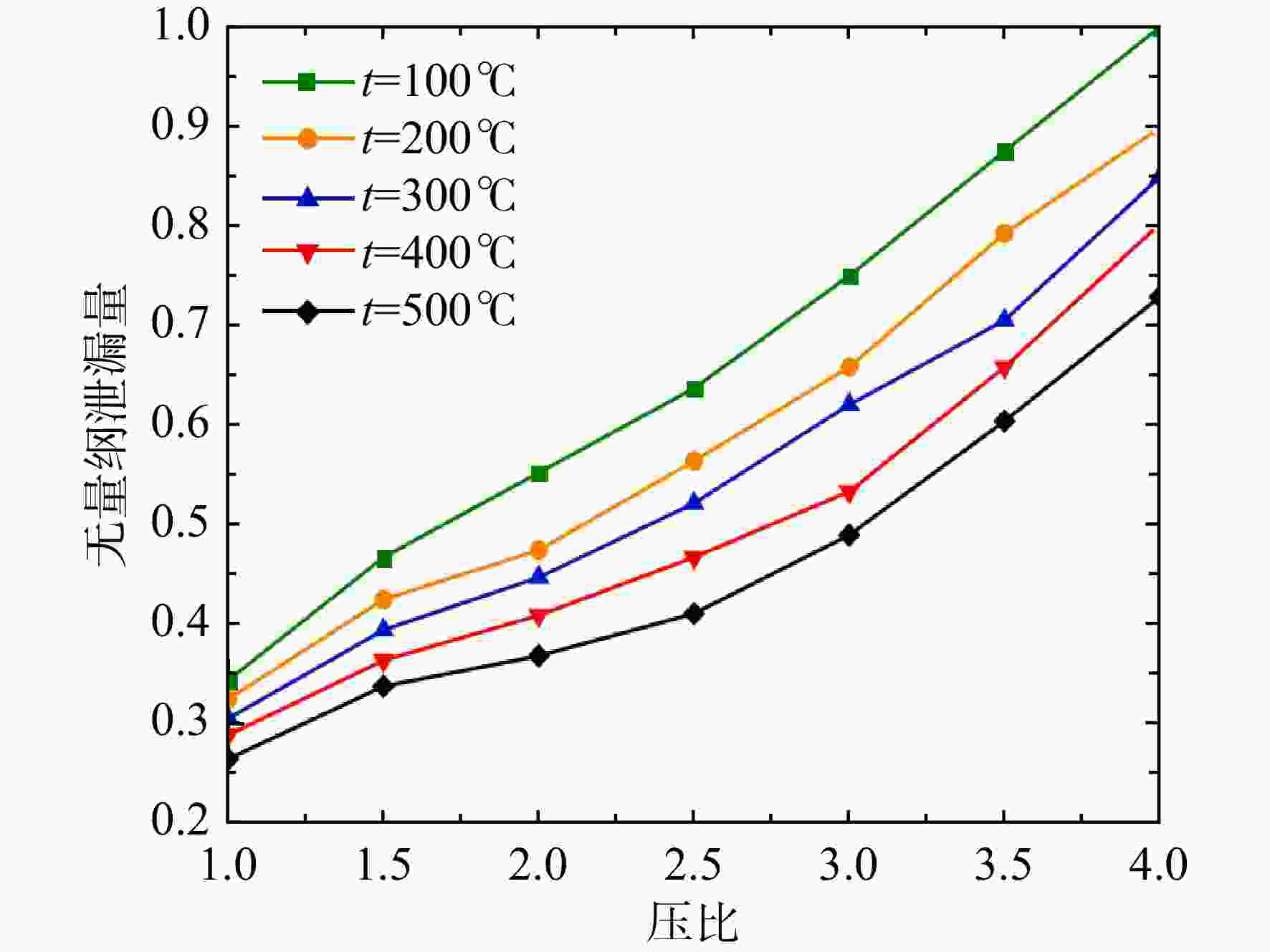

表 3 泄漏模型工况参数
Table 3. Operating parameters of the leakage model
参数 数值 出口压力/MPa 0.1 进口压比 1～4 接触应力/MPa 60～160 表面粗糙度/μm 0.8～3.2
下载: 导出CSV
-
[1] 彭旭东,王玉明,黄兴,等. 密封技术的现状与发展趋势[J]. 液压气动与密封,2009,29(4): 4-11. PENG Xudong,WANG Yuming,HUANG Xing,et al. State-of-the-art and future development of sealing technology[J]. Hydraulics Pneumatics & Seals,2009,29(4): 4-11. (in Chinese doi: 10.3969/j.issn.1008-0813.2009.04.002PENG Xudong, WANG Yuming, HUANG Xing, et al. State-of-the-art and future development of sealing technology[J]. Hydraulics Pneumatics & Seals, 2009, 29(4): 4-11. (in Chinese) doi: 10.3969/j.issn.1008-0813.2009.04.002 [2] 杜宸宇,孙丹,赵磊,等. 异形结构弹性金属密封环力学特性数值研究[J]. 润滑与密封,2021,46(7): 114-120,127. DU Chenyu,SUN Dan,ZHAO Lei,et al. Numerical investigation on mechanical characteristics of elastic metallic sealing rings with different structures[J]. Lubrication Engineering,2021,46(7): 114-120,127. (in Chinese doi: 10.3969/j.issn.0254-0150.2021.07.017DU Chenyu, SUN Dan, ZHAO Lei, et al. Numerical investigation on mechanical characteristics of elastic metallic sealing rings with different structures[J]. Lubrication Engineering, 2021, 46(7): 114-120, 127. (in Chinese) doi: 10.3969/j.issn.0254-0150.2021.07.017 [3] 艾延廷,吴天元,孙丹,等. 组合式弹性片金属密封环密封特性有限元分析[J]. 润滑与密封,2016,41(7): 65-69,73. AI Yanting,WU Tianyuan,SUN Dan,et al. Finite element analysis on sealing characteristics of composited elastic metal sealing ring[J]. Lubrication Engineering,2016,41(7): 65-69,73. (in Chinese doi: 10.3969/j.issn.0254-0150.2016.07.011AI Yanting, WU Tianyuan, SUN Dan, et al. Finite element analysis on sealing characteristics of composited elastic metal sealing ring[J]. Lubrication Engineering, 2016, 41(7): 65-69, 73. (in Chinese) doi: 10.3969/j.issn.0254-0150.2016.07.011 [4] 王晨希,杨义勇,索双富,等. W形金属密封环回弹与密封性能研究[J]. 润滑与密封,2016,41(1): 50-54,69. WANG Chenxi,YANG Yiyong,SUO Shuangfu,et al. Research on compression-resilience and sealing performance of metallic W-ring[J]. Lubrication Engineering,2016,41(1): 50-54,69. (in Chinese doi: 10.3969/j.issn.0254-0150.2016.01.009WANG Chenxi, YANG Yiyong, SUO Shuangfu, et al. Research on compression-resilience and sealing performance of metallic W-ring[J]. Lubrication Engineering, 2016, 41(1): 50-54, 69. (in Chinese) doi: 10.3969/j.issn.0254-0150.2016.01.009 [5] 金冠男,孙丹,赵磊,等. 弹性金属密封环力学特性与泄漏特性数值研究[J]. 润滑与密封,2022,47(7): 16-25. JIN Guannan,SUN Dan,ZHAO Lei,et al. Numerical investigation on mechanical and leakage characteristics of elastic metallic sealing ring[J]. Lubrication Engineering,2022,47(7): 16-25. (in Chinese doi: 10.3969/j.issn.0254-0150.2022.07.003JIN Guannan, SUN Dan, ZHAO Lei, et al. Numerical investigation on mechanical and leakage characteristics of elastic metallic sealing ring[J]. Lubrication Engineering, 2022, 47(7): 16-25. (in Chinese) doi: 10.3969/j.issn.0254-0150.2022.07.003 [6] 艾延廷,来纯强,郝燕平,等. 航空发动机组合式弹性片金属密封环结构密封特性研究[J]. 推进技术,2018,39(2): 426-432. AI Yanting,LAI Chunqiang,HAO Yanping,et al. Study on sealing characteristics of composited elastic metal sealing rings used in aeroengine[J]. Journal of Propulsion Technology,2018,39(2): 426-432. (in ChineseAI Yanting, LAI Chunqiang, HAO Yanping, et al. Study on sealing characteristics of composited elastic metal sealing rings used in aeroengine[J]. Journal of Propulsion Technology, 2018, 39(2): 426-432. (in Chinese) [7] 宁志星,陈平,汪朝阳. 金属“C”形密封环密封性能有限元分析[J]. 管道技术与设备,2019(6): 43-47,51. NING Zhixing,CHEN Ping,WANG Zhaoyang. Finite element analysis of sealing performance of metallic “C”-ring[J]. Pipeline Technique and Equipment,2019(6): 43-47,51. (in Chinese doi: 10.3969/j.issn.1004-9614.2019.06.013NING Zhixing, CHEN Ping, WANG Zhaoyang. Finite element analysis of sealing performance of metallic “C”-ring[J]. Pipeline Technique and Equipment, 2019(6): 43-47, 51. (in Chinese) doi: 10.3969/j.issn.1004-9614.2019.06.013 [8] KIM G H,HER N I,KIM H T. A design study on metal C-ring seals[J]. Vacuum,2022,205: 111401. doi: 10.1016/j.vacuum.2022.111401 [9] 李伟平,王立功,贾占举,等. 航空发动机用W形金属封严环结构优化设计[J]. 润滑与密封,2019,44(3): 12-16. LI Weiping,WANG Ligong,JIA Zhanju,et al. Structure optimization design of metallic W-ring used in aviation engine[J]. Lubrication Engineering,2019,44(3): 12-16. (in ChineseLI Weiping, WANG Ligong, JIA Zhanju, et al. Structure optimization design of metallic W-ring used in aviation engine[J]. Lubrication Engineering, 2019, 44(3): 12-16. (in Chinese) [10] 冯秀,顾伯勤,孙见君,等. 金属垫片密封机制研究[J]. 润滑与密封,2007,32(10): 97-99. FENG Xiu,GU Boqin,SUN Jianjun,et al. Research on sealing mechanism of metallic gaskets[J]. Lubrication Engineering,2007,32(10): 97-99. (in Chinese doi: 10.3969/j.issn.0254-0150.2007.10.028FENG Xiu, GU Boqin, SUN Jianjun, et al. Research on sealing mechanism of metallic gaskets[J]. Lubrication Engineering, 2007, 32(10): 97-99. (in Chinese) doi: 10.3969/j.issn.0254-0150.2007.10.028 [11] 冯秀,顾伯勤. 金属垫片密封表面形貌的分形表征[J]. 化工学报,2006,57(10): 2367-2371. FENG Xiu,GU Boqin. Fractal characterization of seal surface topography of metallic gaskets[J]. Journal of Chemical Industry and Engineering (China),2006,57(10): 2367-2371. (in Chinese doi: 10.3321/j.issn:0438-1157.2006.10.019FENG Xiu, GU Boqin. Fractal characterization of seal surface topography of metallic gaskets[J]. Journal of Chemical Industry and Engineering (China), 2006, 57(10): 2367-2371. (in Chinese) doi: 10.3321/j.issn:0438-1157.2006.10.019 [12] 赵剑,谭永华,陈建华,等. 自紧式K形金属密封组件密封特性研究[J]. 火箭推进,2013,39(6): 35-41. ZHAO Jian,TAN Yonghua,CHEN Jianhua,et al. Research on sealing characteristics of pressure-actuated K-shaped metal sealing component[J]. Journal of Rocket Propulsion,2013,39(6): 35-41. (in Chinese doi: 10.3969/j.issn.1672-9374.2013.06.007ZHAO Jian, TAN Yonghua, CHEN Jianhua, et al. Research on sealing characteristics of pressure-actuated K-shaped metal sealing component[J]. Journal of Rocket Propulsion, 2013, 39(6): 35-41. (in Chinese) doi: 10.3969/j.issn.1672-9374.2013.06.007 [13] 崔颖,于颖嘉,张宏翔,等. 基于多孔介质理论的双粗糙面金属静密封泄漏模型[J]. 机械工程学报,2022,58(21): 215-224. CUI Ying,YU Yingjia,ZHANG Hongxiang,et al. Leakage model of metal static seal with two rough surfaces based on the theory of porous medium[J]. Journal of Mechanical Engineering,2022,58(21): 215-224. (in Chinese doi: 10.3901/JME.2022.21.215CUI Ying, YU Yingjia, ZHANG Hongxiang, et al. Leakage model of metal static seal with two rough surfaces based on the theory of porous medium[J]. Journal of Mechanical Engineering, 2022, 58(21): 215-224. (in Chinese) doi: 10.3901/JME.2022.21.215 [14] 黄晓明,姚博,许国良,等. 基于分形多孔介质输运的金属垫片泄漏研究[J]. 华中科技大学学报(自然科学版),2016,44(10): 1-5. HUANG Xiaoming,YAO Bo,XU Guoliang,et al. Research on leakage of metallic gasket based on fractal porous seepage[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition),2016,44(10): 1-5. (in ChineseHUANG Xiaoming, YAO Bo, XU Guoliang, et al. Research on leakage of metallic gasket based on fractal porous seepage[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition), 2016, 44(10): 1-5. (in Chinese) [15] ZHANG Qiang,CHEN Xiaoqian,HUANG Yiyong,et al. An experimental study of the leakage mechanism in static seals[J]. Applied Sciences,2018,8(8): 1404. doi: 10.3390/app8081404 [16] ZHANG Bao,ZHOU Laihong. Feature analysis of fractal surface roughness based on three-dimensional W-M function[J]. Journal of Physics: Conference Series,2021,1906(1): 012020. doi: 10.1088/1742-6596/1906/1/012020 [17] YAN W,KOMVOPOULOS K. Contact analysis of elastic-plastic fractal surfaces[J]. Journal of Applied Physics,1998,84(7): 3617-3624. doi: 10.1063/1.368536 [18] 李伟平,贾占举,路茜,等. 金属封严环泄漏率预测方法[J]. 航空动力学报,2019,34(2): 368-375. LI Weiping,JIA Zhanju,LU Xi,et al. Method to predict leakage rate of metal seal ring[J]. Journal of Aerospace Power,2019,34(2): 368-375. (in ChineseLI Weiping, JIA Zhanju, LU Xi, et al. Method to predict leakage rate of metal seal ring[J]. Journal of Aerospace Power, 2019, 34(2): 368-375. (in Chinese) [19] ROTH A. The interface-contact vacuum sealing processes[J]. Journal of Vacuum Science and Technology,1972,9(1): 14-23. doi: 10.1116/1.1316537 [20] QU Weilin,MOHIUDDIN MALA G,LI Dongqing. Pressure-driven water flows in trapezoidal silicon microchannels[J]. International Journal of Heat and Mass Transfer,2000,43(3): 353-364. doi: 10.1016/S0017-9310(99)00148-9 [21] GAD-EL-HAK M. The fluid mechanics of microdevices: the freeman scholar lecture[J]. Journal of Fluids Engineering,1999,121(1): 5-33. doi: 10.1115/1.2822013 -
