Unsteady characteristics of turbine flow field driven by pulse detonation

LIU Junyu^1
,,
WANG Zhiwu^{1, 2,*
, ,},
LI Junlin¹,
ZHANG Zixu¹

1.
School of Power and Energy，Northwestern Polytechnical University，Xi’an 710072，China
2.
Shenzhen Research Institute，Northwestern Polytechnical University，Shenzhen Guangdong 518057，China

摘要

摘要:
为了揭示脉冲爆震的非定常性对涡轮流场的影响，建立了GE-E³两级高压涡轮的三维数值模型，以研究爆震驱动下涡轮的流场特征。对50%叶高处的基元级流动进行分析，对动叶表面的分离流动以及叶顶间隙的泄漏流动进行了研究。结果表明：前导激波驱动燃气以超声速流过涡轮流道，导致燃气在叶栅斜切口出现了明显的超声速斜切口膨胀以及叶栅外的自由膨胀。前导激波与叶片相互作用会造成气流攻角的大幅变化，并产生多处局部逆压梯度，导致叶片表面出现严重的流动分离。此外，前导激波作用于动叶会增大叶顶间隙两侧的压差，使得间隙泄漏流量急剧增大，这增强了泄漏流与主流的剪切和掺混，导致主流区出现明显的熵增。
- 脉冲爆震涡轮发动机 /
- 轴流涡轮 /
- 基元级流动 /
- 分离流动 /
- 叶顶泄漏流动
Abstract:
To reveal the influence of the pulse detonation unsteady characteristics on the turbine flow field, a three-dimensional numerical model of the GE-E³ two-stage high pressure turbine was established. The detonation chamber outlet parameters were used as the boundary conditions of the turbine inlet to study the turbine flow driven by detonation. The elementary flow at 50% blade height was analyzed, and then the separation flow on the blade surface and the leakage flow in the tip clearance were studied. The results showed that the gas flow ran at supersonic speeds through the turbine channel, resulting in obvious oblique incision expansion and free expansion outside the cascade. The interaction between the leading shock and the blade changed the airflow attack angle significantly and produced local adverse pressure gradients, resulting in severe flow separation on the blade surface. The leading shock acting on the rotor blade increased the pressure difference on both sides of the tip clearance, and enhanced shearing and mixing between the leakage flow and the mainstream, resulting in a significant increase in entropy in the mainstream area.
- pulse detonation turbine engine /
- axial turbine /
- elementary stage flow /
- separation flow /
- tip leakage flow

HTML

图 1 GE-E³两级高压涡轮几何模型及网格划分

Figure 1. GE-E³ two-stage high pressure turbine geometry model and meshing

下载: 全尺寸图片幻灯片

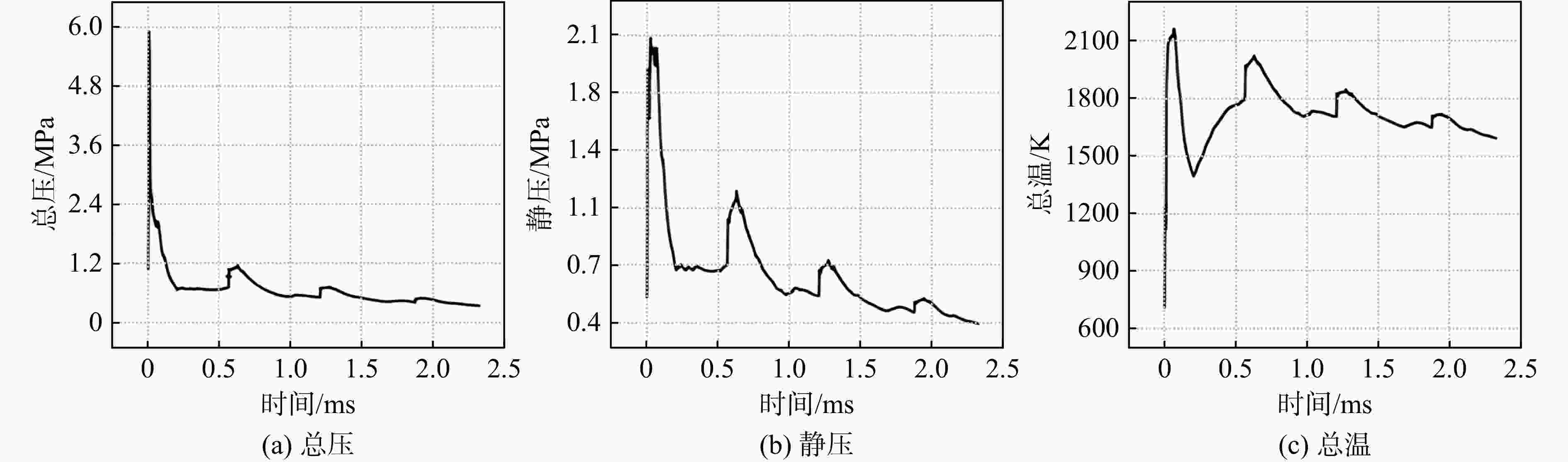

图 2 爆震驱动下涡轮入口参数随时间的变化

Figure 2. Variation of turbine inlet parameters with time under detonation driving

下载: 全尺寸图片幻灯片

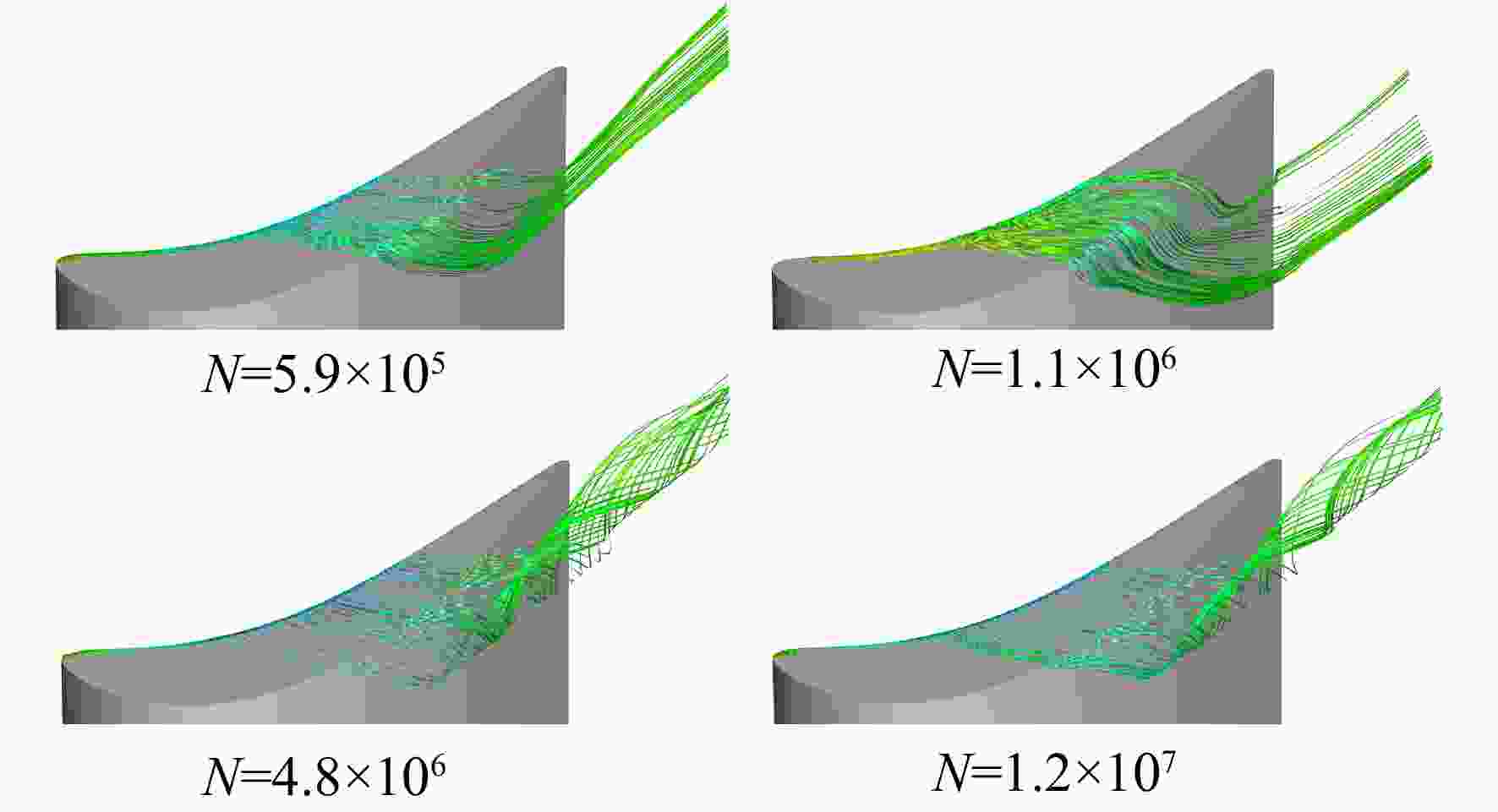

图 3 不同网格尺寸划分下第一级动叶叶顶间隙泄漏流线

Figure 3. Rotor 1 tip clearance leakage streamline under different mesh sizes

下载: 全尺寸图片幻灯片

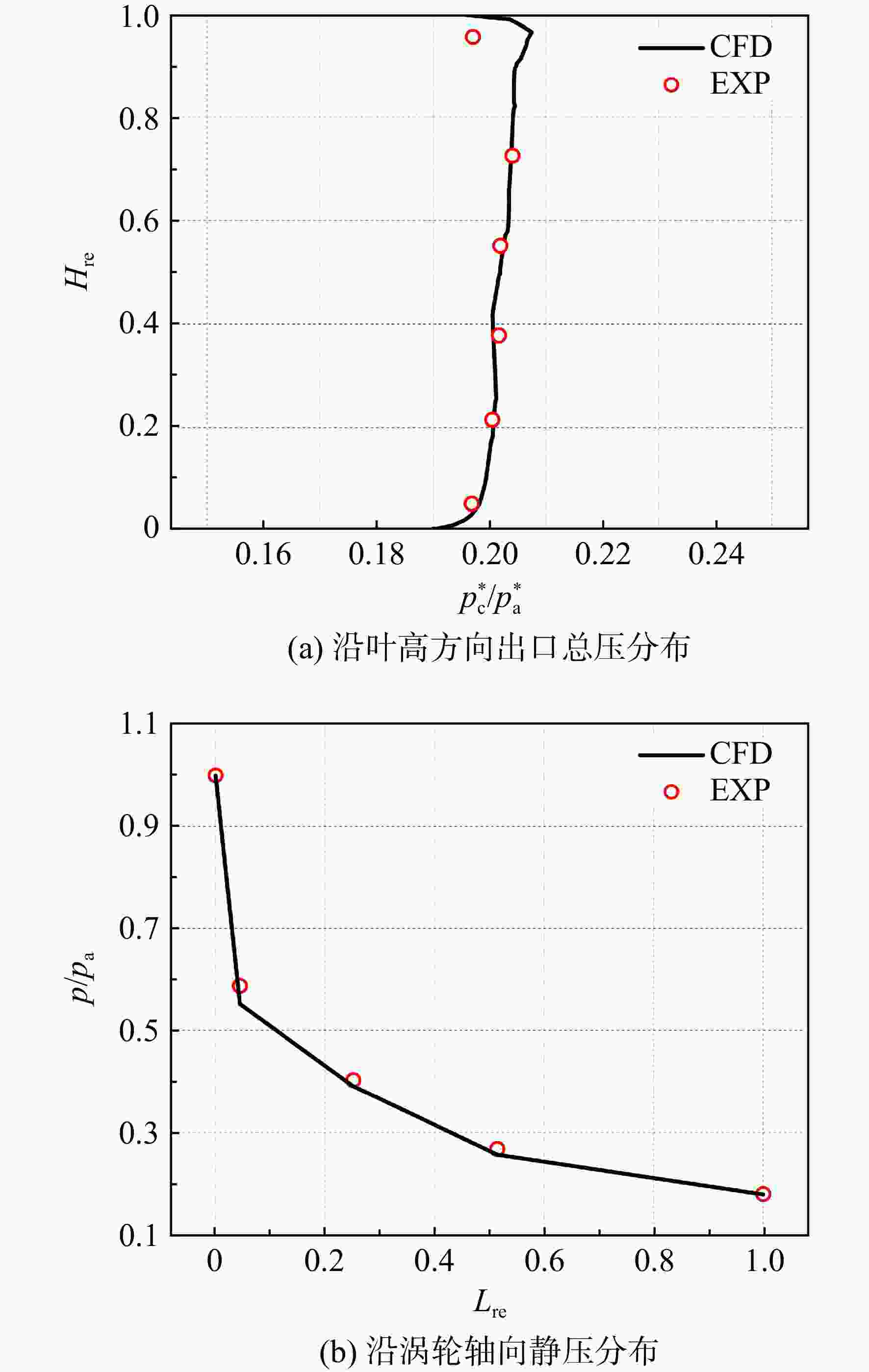

图 4 数值模拟与试验参数的对比

Figure 4. Comparison of simulation and experimental results

下载: 全尺寸图片幻灯片

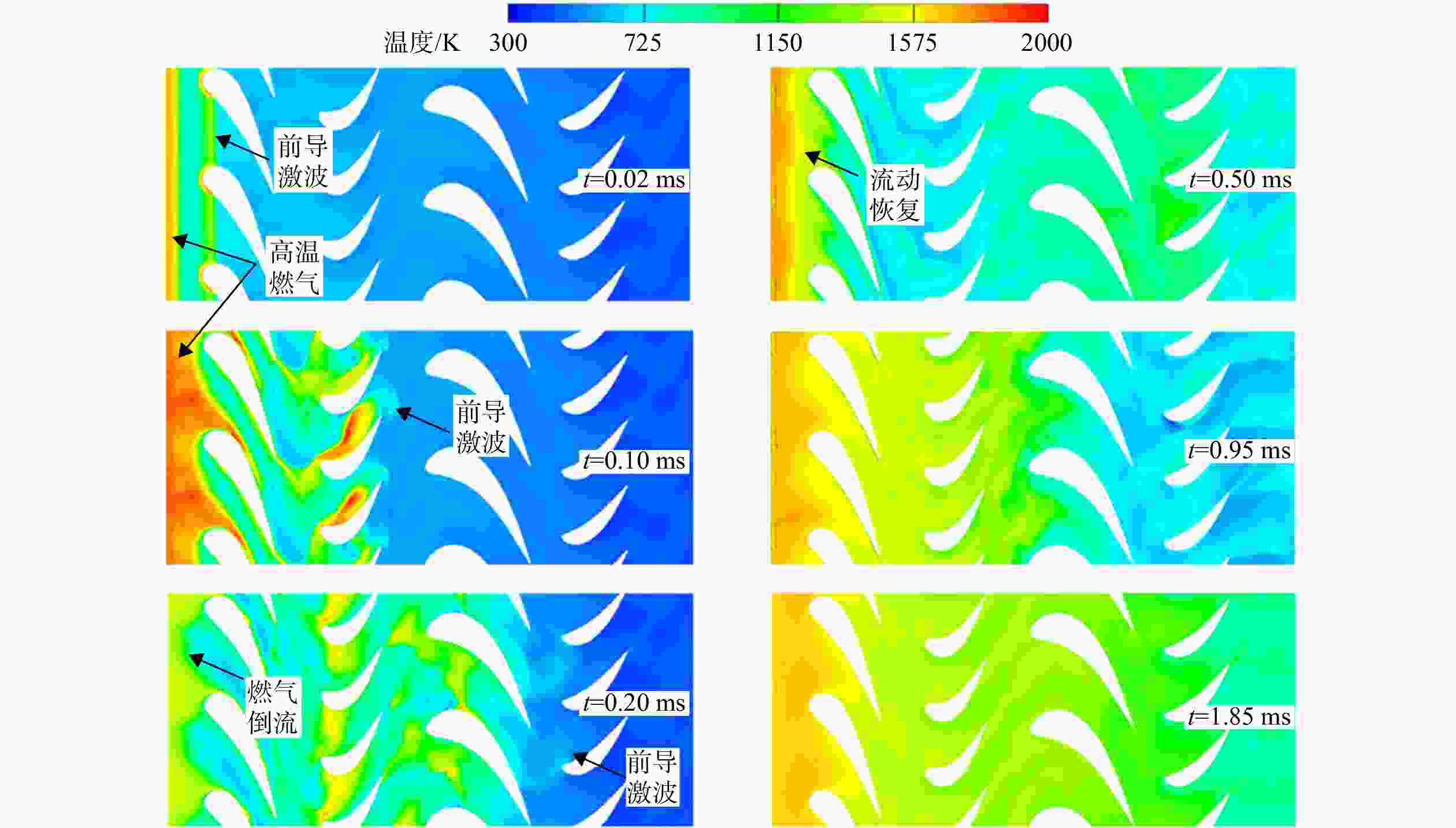

图 5 50%叶高处的基元级温度分布随时间的变化

Figure 5. Temperature of elementary stage with 50% blade height changes with time

下载: 全尺寸图片幻灯片

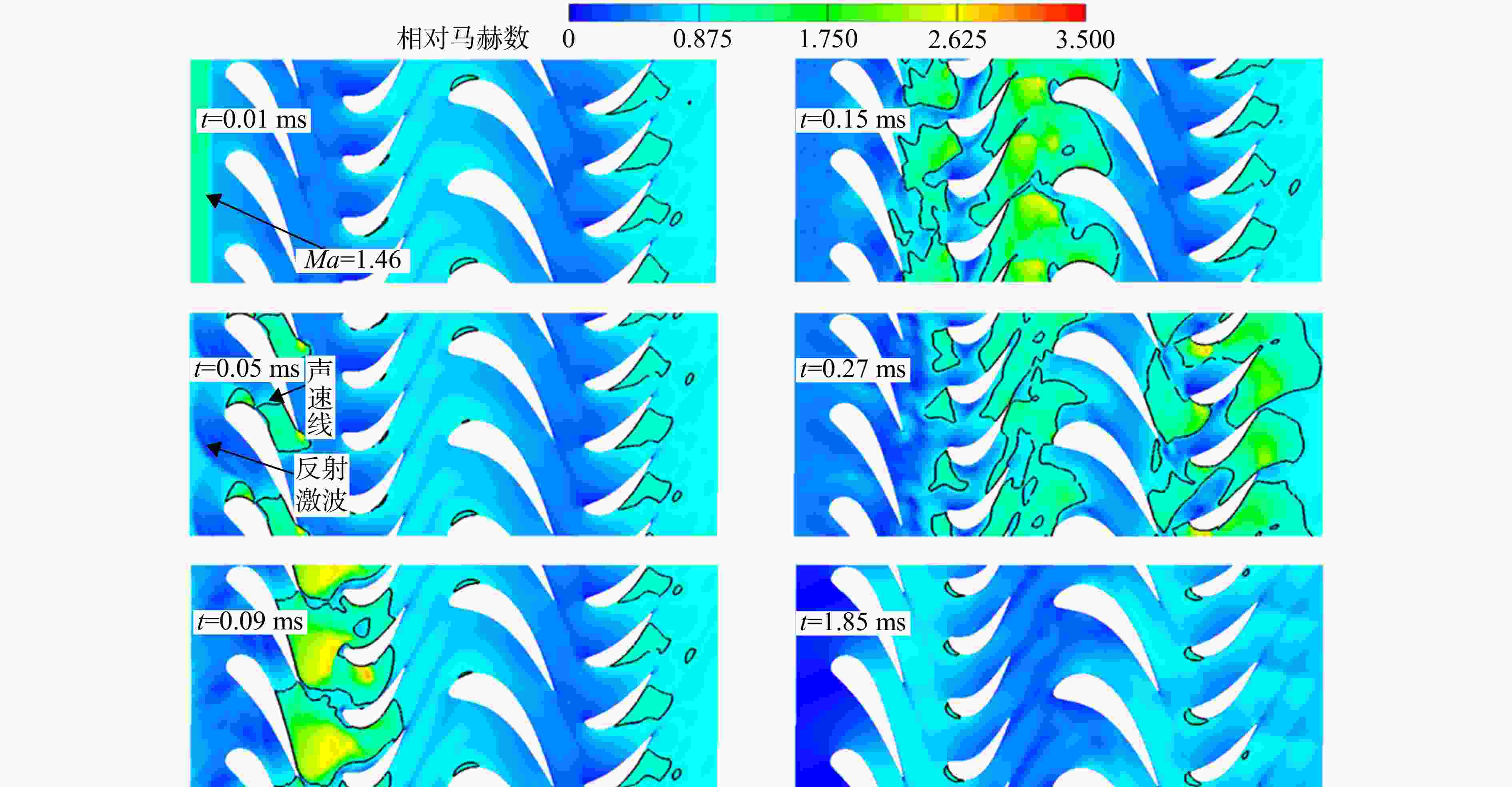

图 6 50%叶高处的基元级相对马赫数分布随时间的变化

Figure 6. Relative Mach number of elementary stage with 50% blade height changes with time

下载: 全尺寸图片幻灯片

图 7 动叶入口气流角和速度三角形示意图

Figure 7. Inlet flow angle and velocity triangle of rotor blade

下载: 全尺寸图片幻灯片

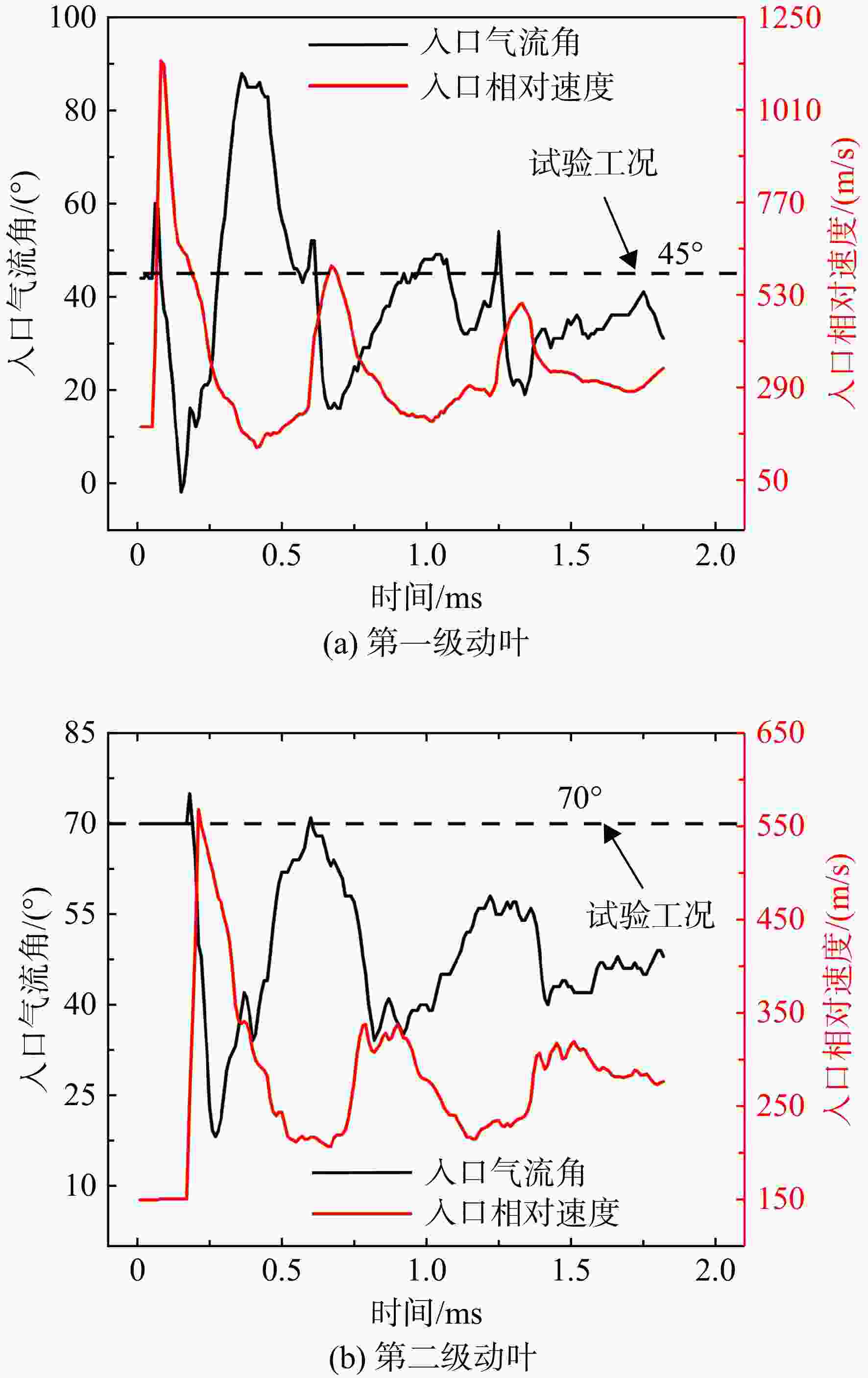

图 8 两级动叶的入口平均相对气流角和相对速度

Figure 8. Average inlet relative flow angle and relative velocity of two-stage rotor blades

下载: 全尺寸图片幻灯片

图 9 前导激波与作用于第一级动叶的相对速度和流线分布

Figure 9. Relative velocity and streamline distribution under the interaction between leading shock wave and Rotor 1

下载: 全尺寸图片幻灯片

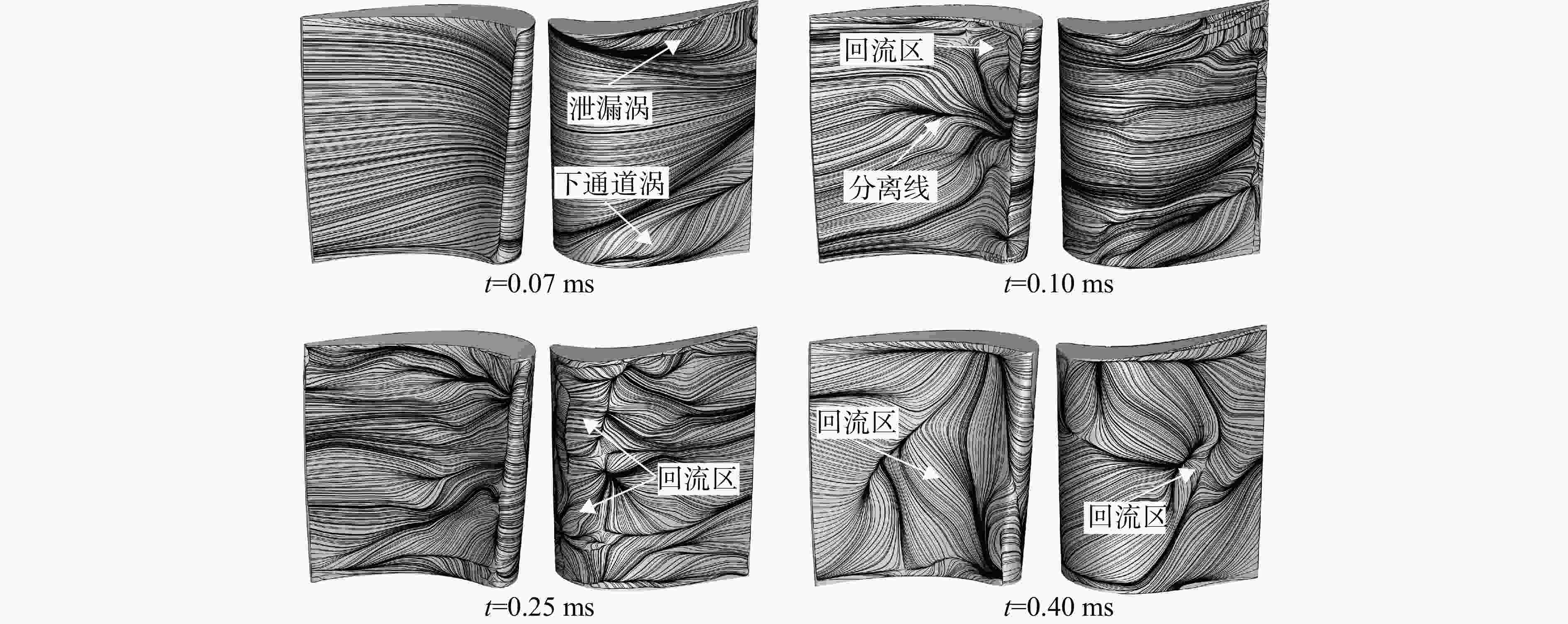

图 10 第一级动叶压力面和吸力面处的极限流线

Figure 10. Limiting streamlines at the pressure and suction surfaces of Rotor 1

下载: 全尺寸图片幻灯片

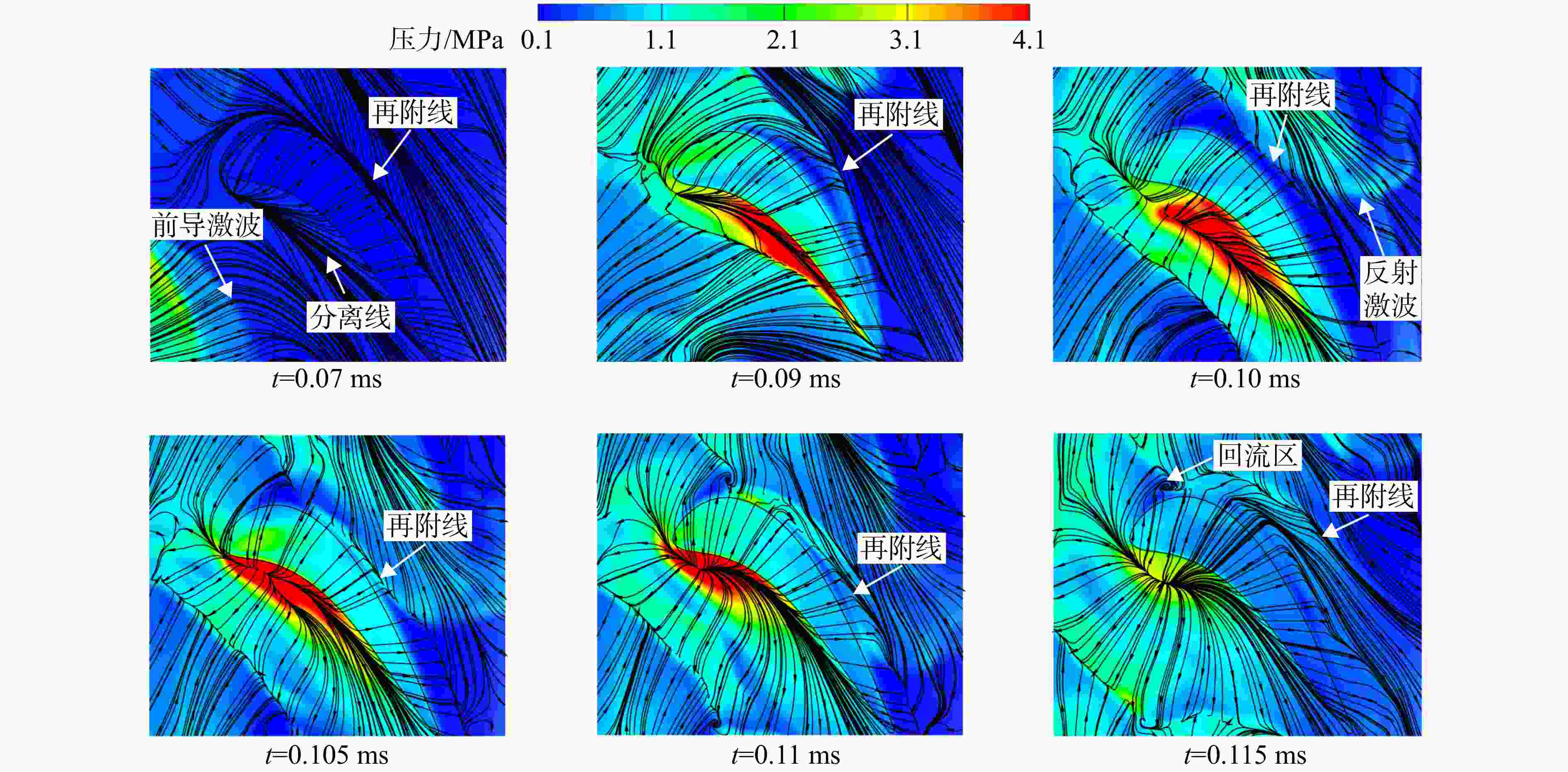

图 11 前导激波作用下第一级动叶叶顶间隙中部的流线和压力分布

Figure 11. Streamline and pressure distribution in the middle of Rotor 1 tip clearance under the action of leading shock wave

下载: 全尺寸图片幻灯片

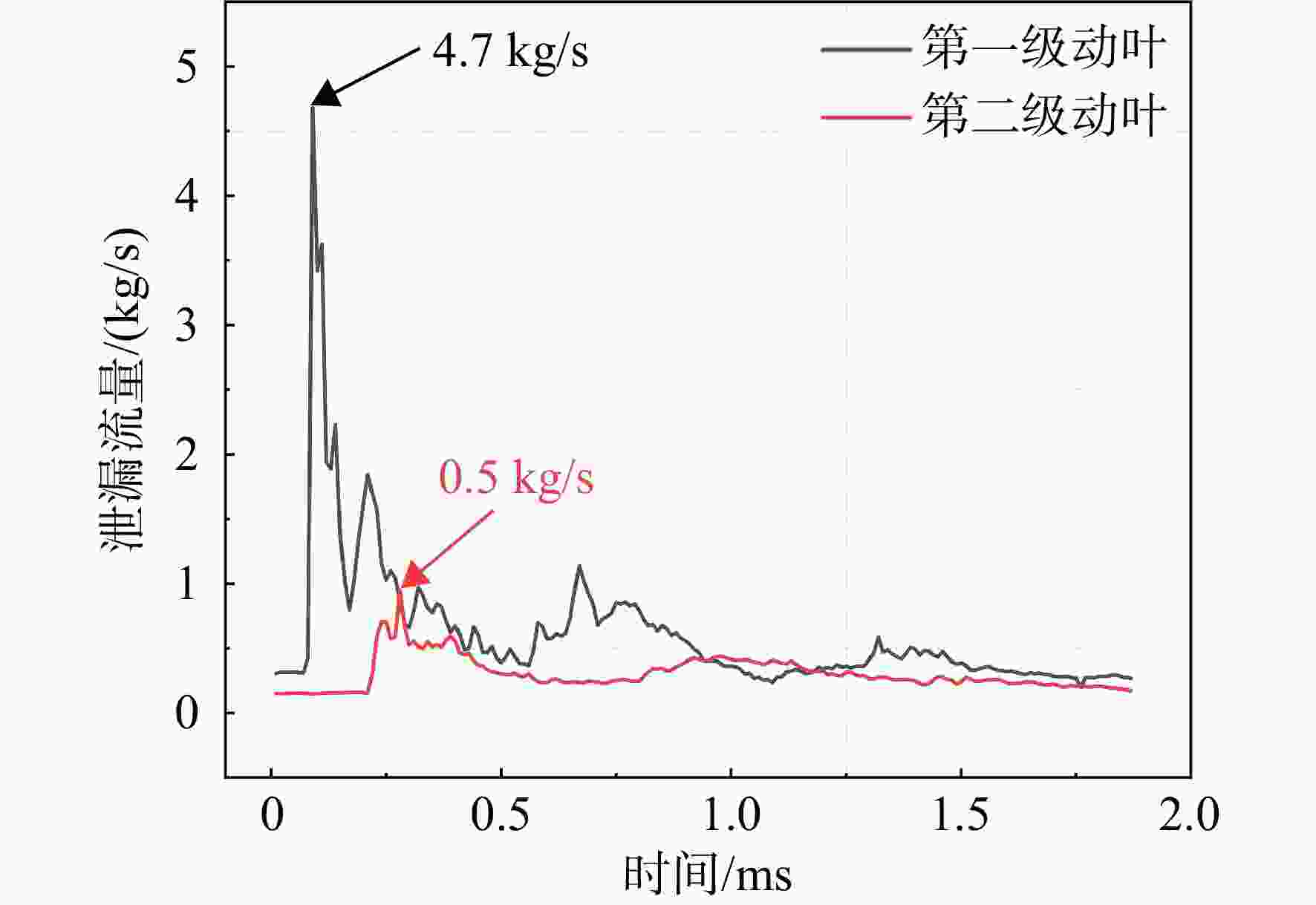

图 12 两级动叶的泄漏流量随时间的变化

Figure 12. Variation of leakage flow rate of two-stage rotor with time

下载: 全尺寸图片幻灯片

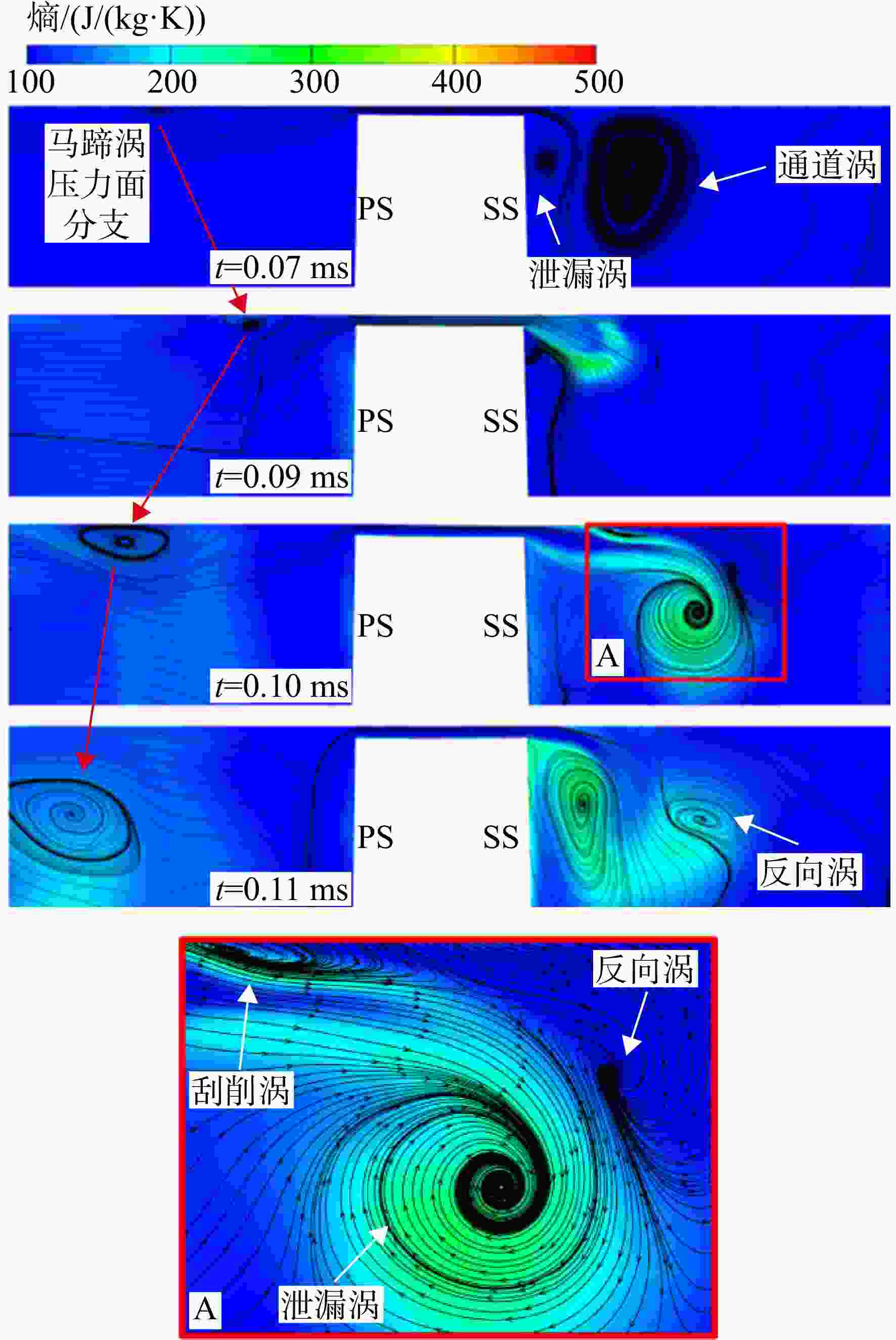

图 13 前导激波作用下第一级动叶50%弦长处的熵与流线

Figure 13. Entropy and streamline at 50% chord of Rotor 1 under leading shock

下载: 全尺寸图片幻灯片

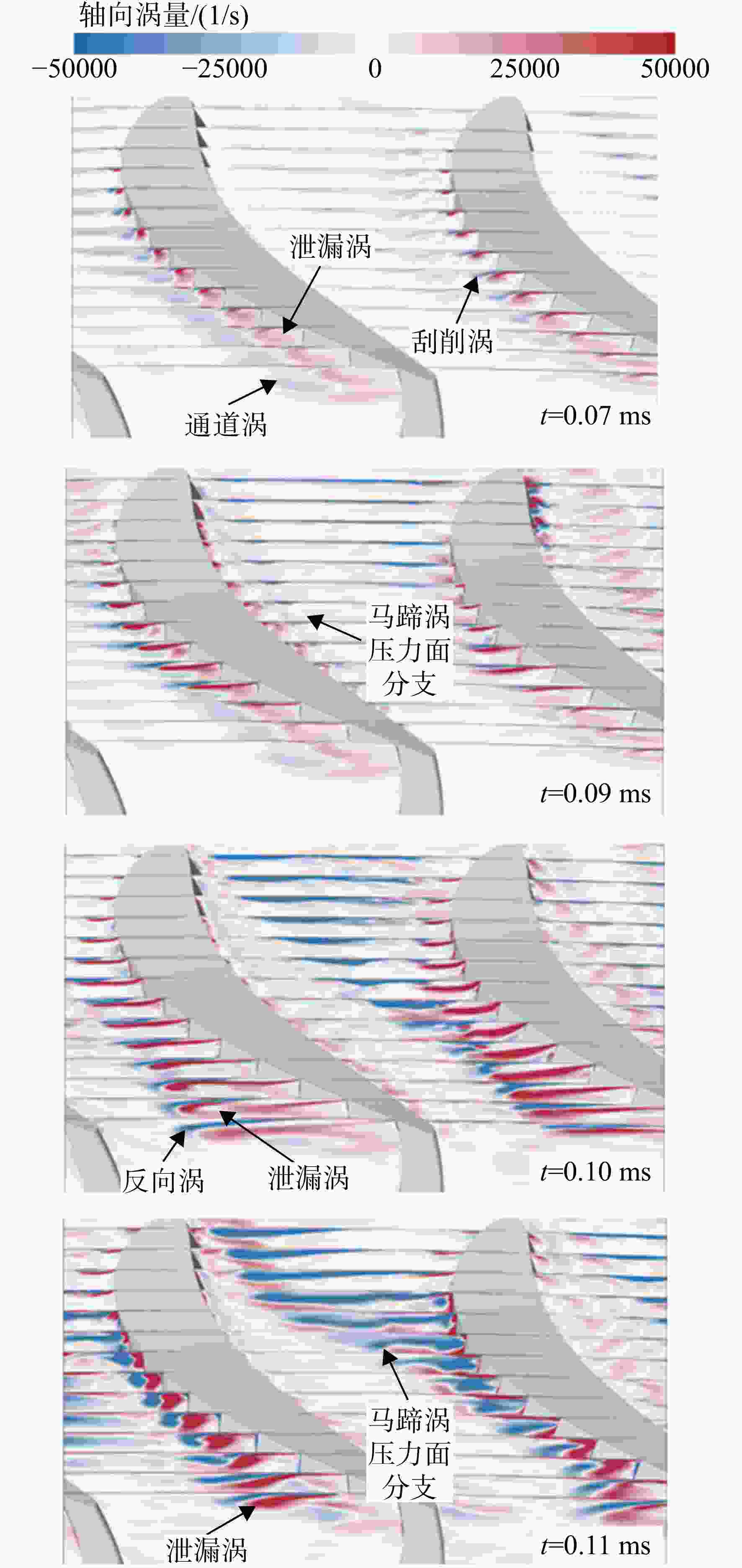

图 14 前导激波作用下第一级动叶机匣端区的轴向涡量

Figure 14. Axial vorticity in the end region of Rotor 1 casing under the action of leading shock wave

下载: 全尺寸图片幻灯片

表 1 试验工况下涡轮性能参数的对比

Table 1. Comparison of turbine performance parameters under test conditions

参数试验结果数值结果

涡轮效率/% 92.53 93.33
落压比 5.014 4.969
流量/（kg/s） 11.80 12.54
功率/kW 2973 3066

下载: 导出CSV

表 2 两级动叶的总压恢复系数

Table 2. Total pressure recovery coefficient of two-stage rotor

工况条件总压恢复系数
第一级动叶处第二级动叶处

爆震驱动 0.81 0.87
NASA试验 0.94 0.96

下载: 导出CSV
