Study on coupling mechanism between offset paired vortex distortion and fan
-
摘要:
根据典型大S弯进气道出口偏置对涡畸变的速度、压力分布特征，利用涡团模型建立了一种偏置对涡边界条件定义方法，并进行数值模拟研究探索了偏置对涡畸变与风扇的耦合影响机理。研究结果表明：在风扇吸力作用下，上游畸变流掺混加强，切向速度增大。偏置对涡进气条件会使风扇性能下降，稳定裕度损失严重，其中在涡旋环量35 m2/s相斥对涡进气条件下风扇稳定裕度损失7.1%，相吸对涡进气条件下稳定裕度损失达到了7.9%。随着偏置对涡强度的增大，风扇性能下降更多，稳定裕度损失也更大。偏置对涡进气条件下风扇轴向速度损失以及切向预旋造成的风扇叶尖出现大范围大攻角区，造成风扇部分叶片通道压比较大，而风扇其余位置仍处于较低压比水平，导致近失速点附近风扇整体总压比下降，失速点提前。
Abstract:In accordance with the velocity and pressure distribution features of the offset paired vortex distortion at the exit of a typical large S-bend inlet, a method for defining the offset paired vortex boundary conditions was established by using a vortex model. The coupling effect mechanism between offset paired vortex distortion and fan was explored by carrying out numerical simulation research. From the research results, it indicated that the upstream distorted flow mixing was strengthened, and the tangential velocity increased under the suction effect of the fan. The condition of the offset paired vortex inlet caused the deterioration of fan performance, and a serious loss of stability margin. Among them, the loss of stability margin was 7.1% under the condition of mutual exclusion vortex with 35 m2/s vortex circulation, and 7.9% under the condition of mutual attraction vortex. As the strength of offset paired vortex increased, the fan performance deteriorated more, and the loss of stability margin was also greater. Under the condition of the offset paired vortex embodied in the large area of attack angle was caused by the axial speed loss and tangential pre-rotation of the fan blade tip. This caused a relatively high total pressure ratio in some blade channels of the fan, while the remaining positions of the fan were still at a relatively low total pressure ratio level, resulting in a decrease in the fan overall total pressure ratio near the stall point of the fan and an advance in the stall point.
-
Key words:
- coupling mechanism /
- large S-bend inlet /
- inlet/engine matching /
- paired vortex distortion /
- vortex model /
- fan stall
-

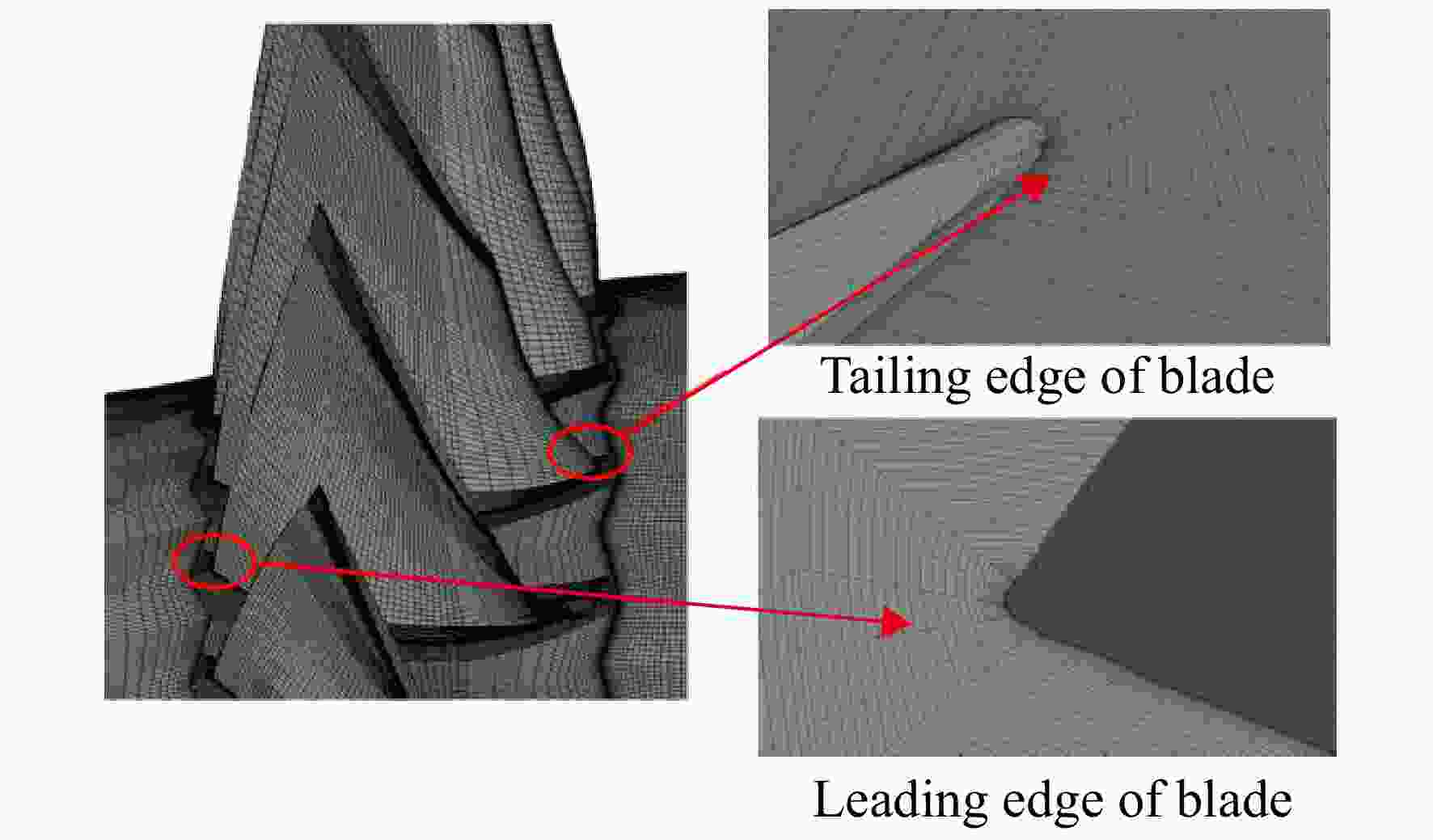

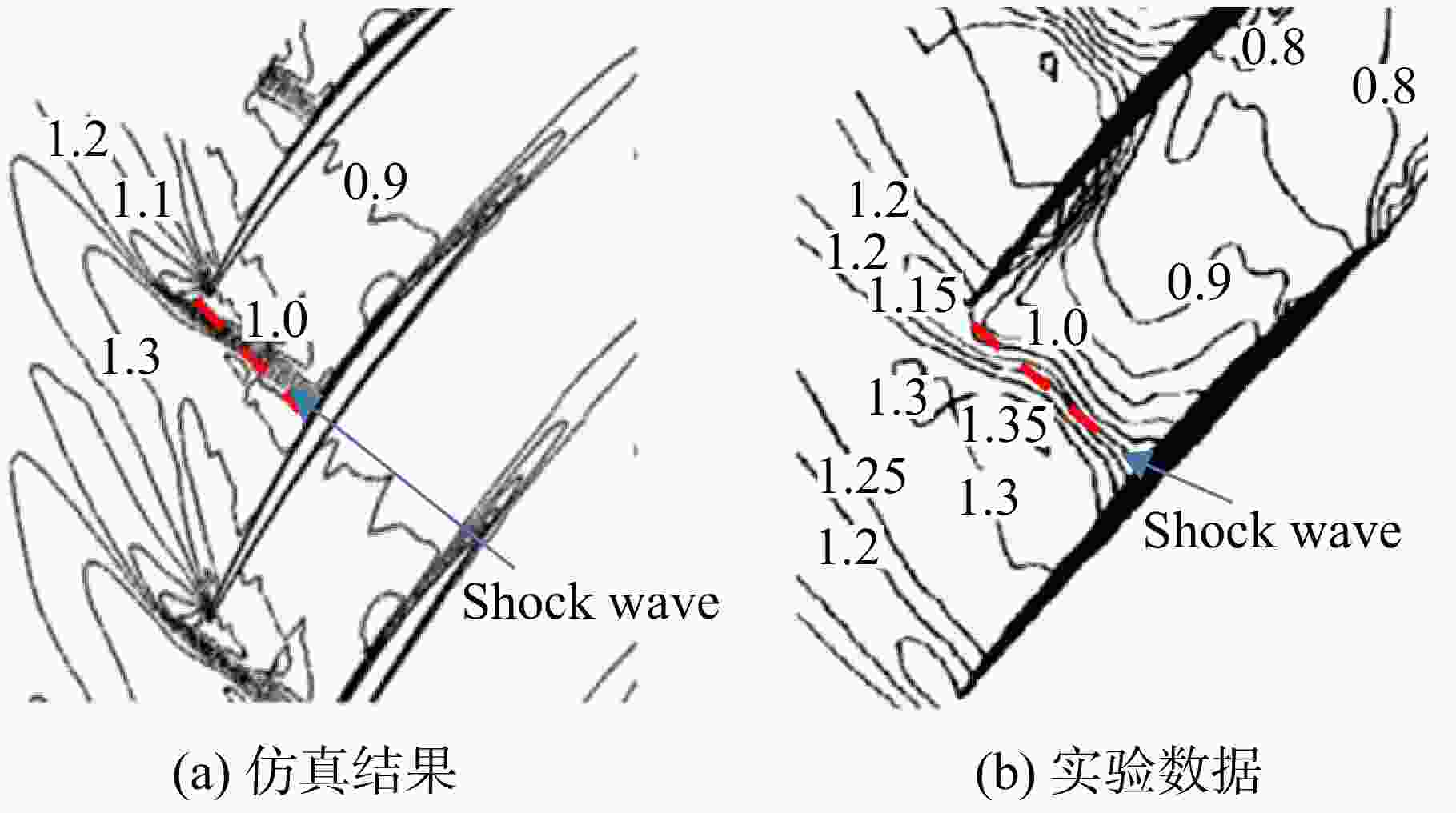

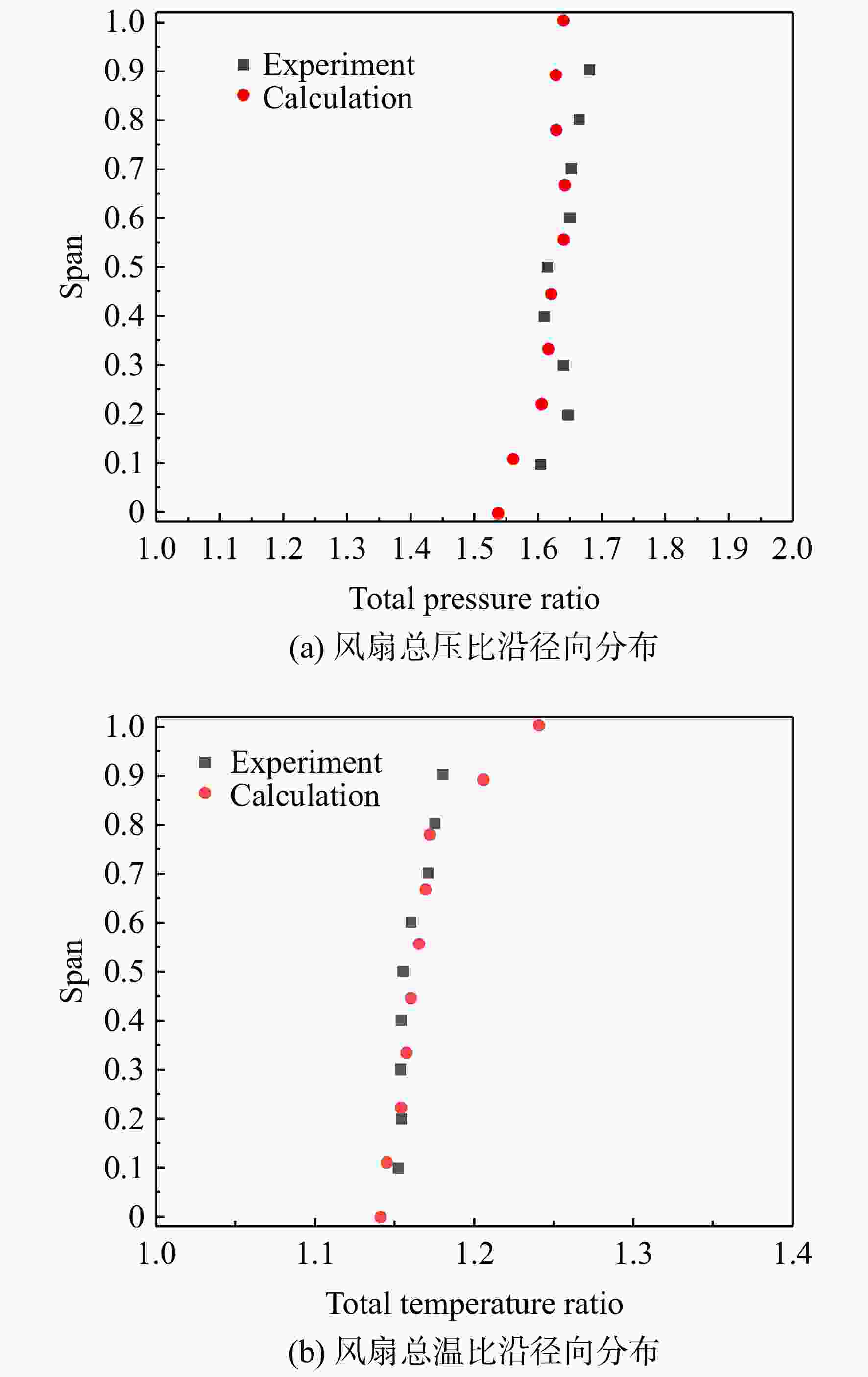

图 4 风扇总压比和总温比沿径向分布
Figure 4. Radial distribution of total pressure ratio and total temperature ratio of fan

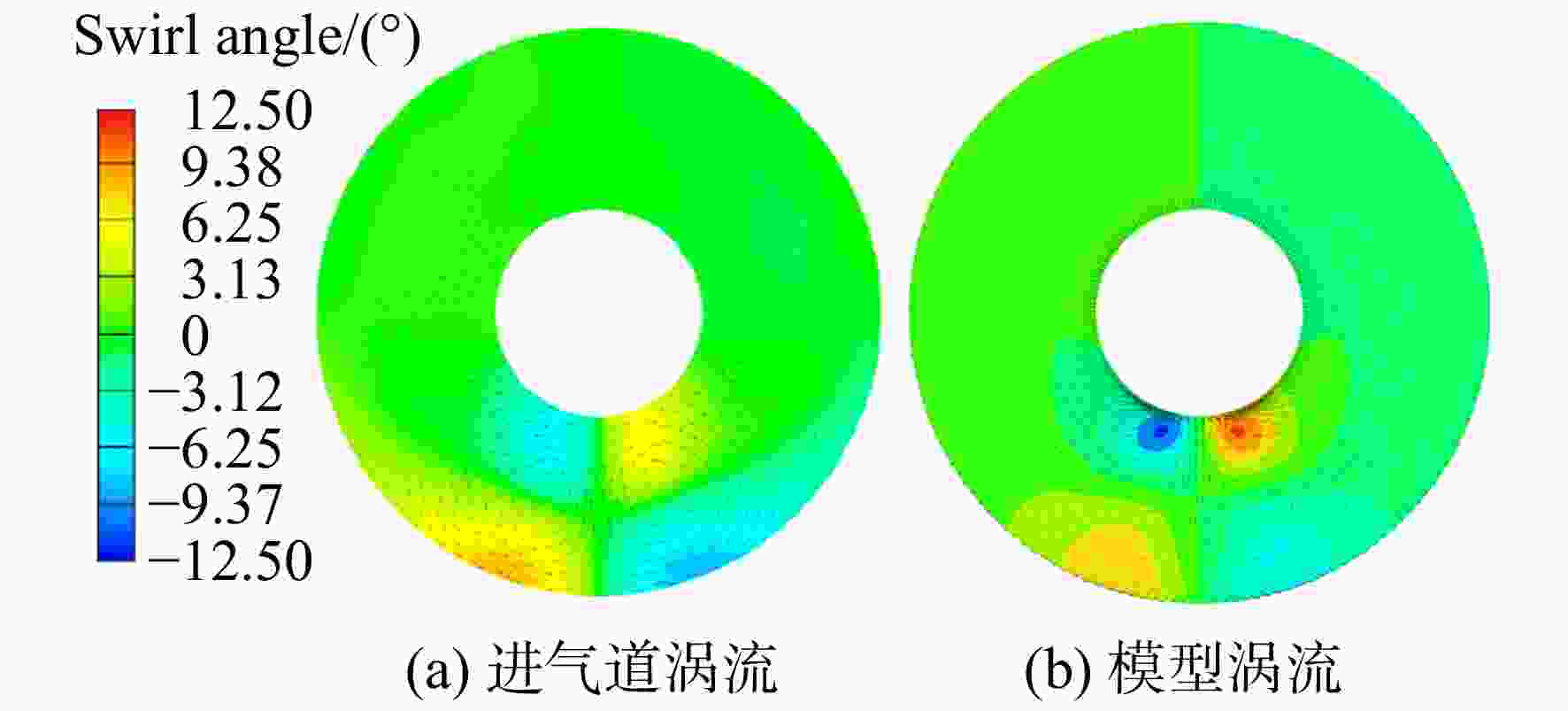

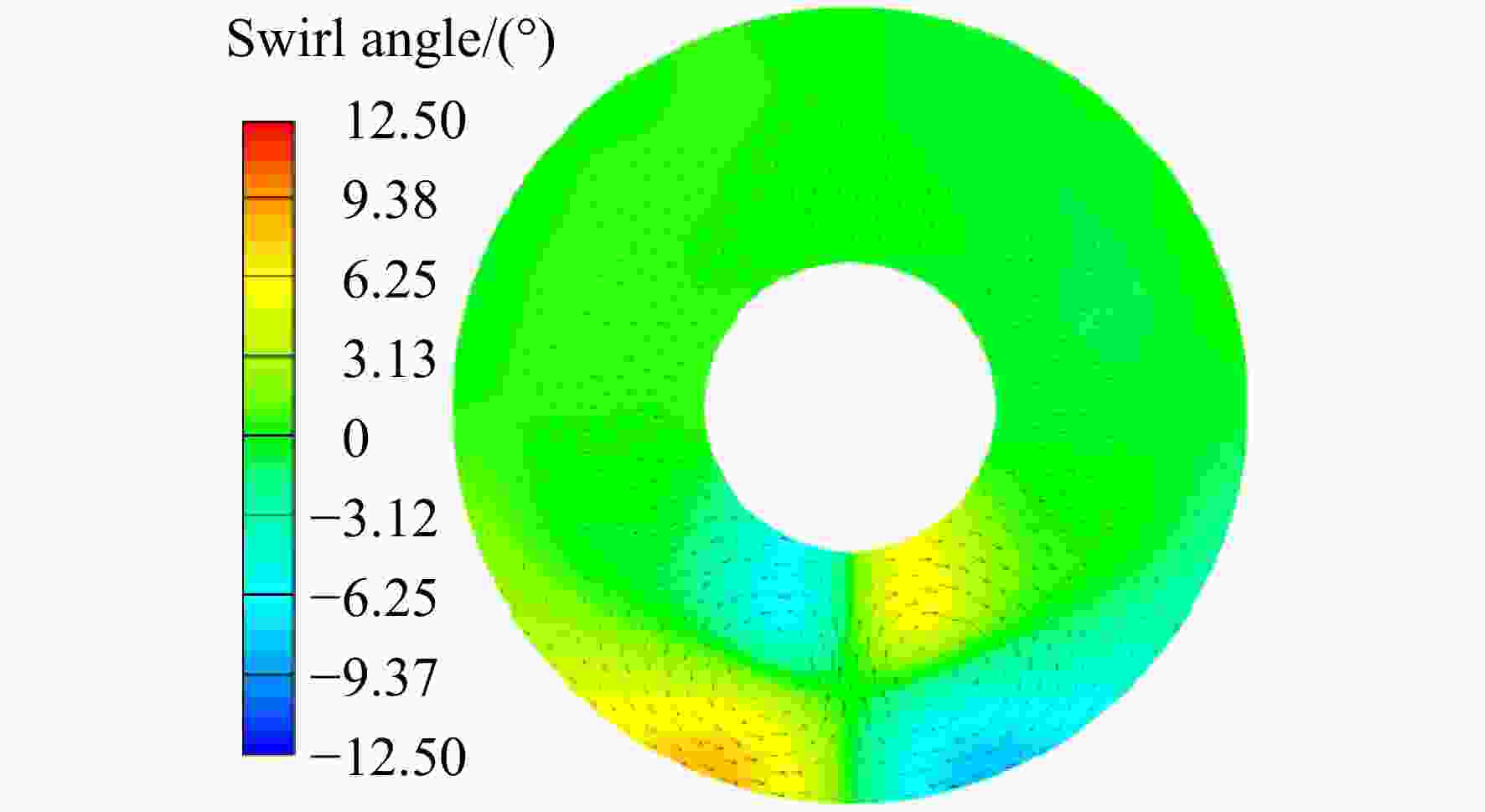

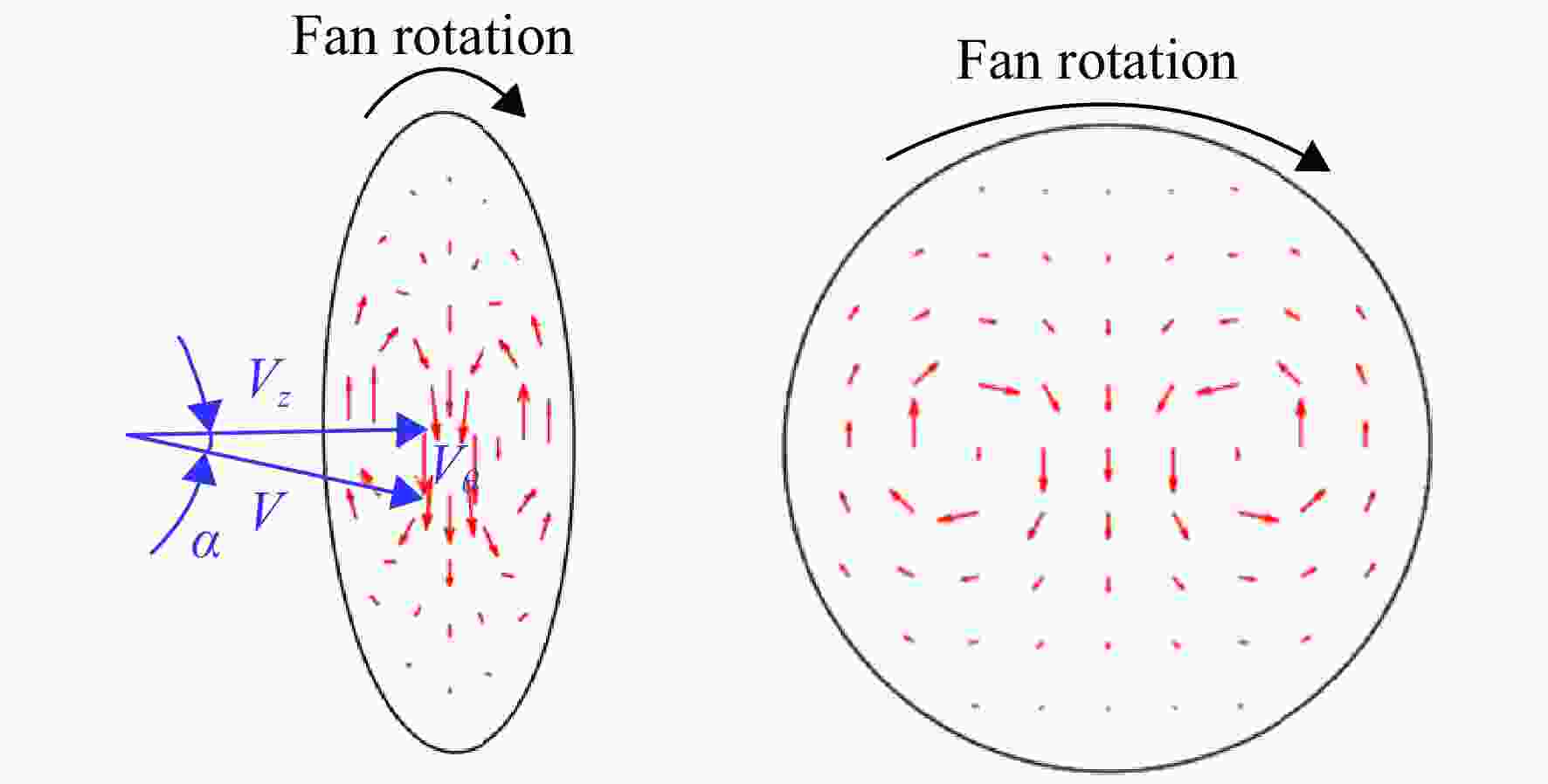

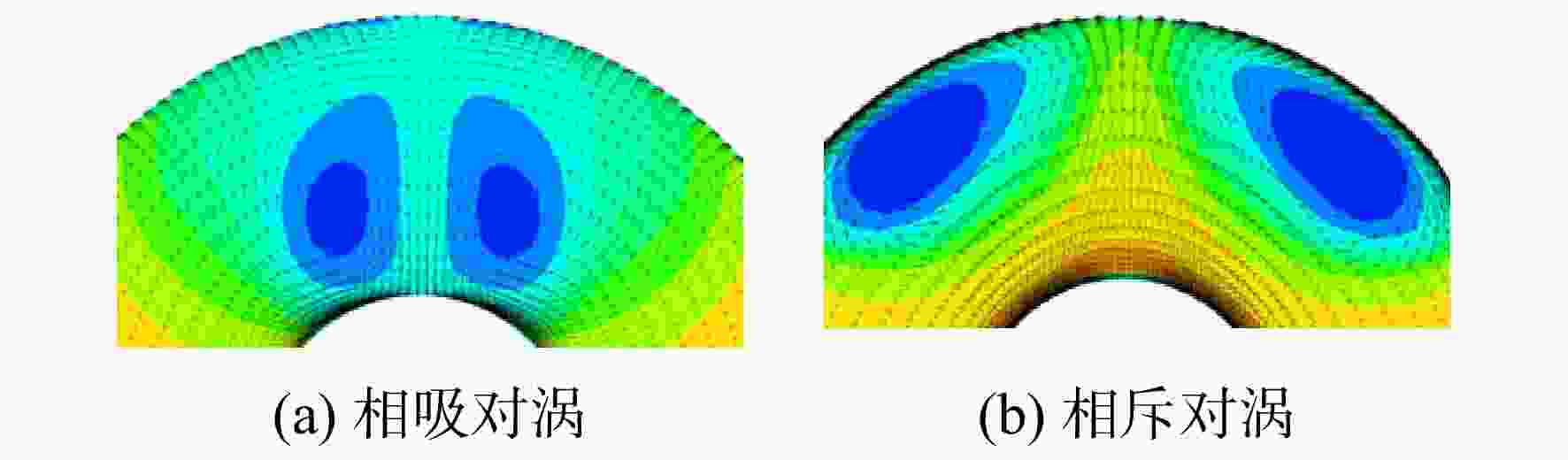

图 10 对涡的总压云图和速度矢量场
Figure 10. Total pressure contours and velocity vectors of paired vortex

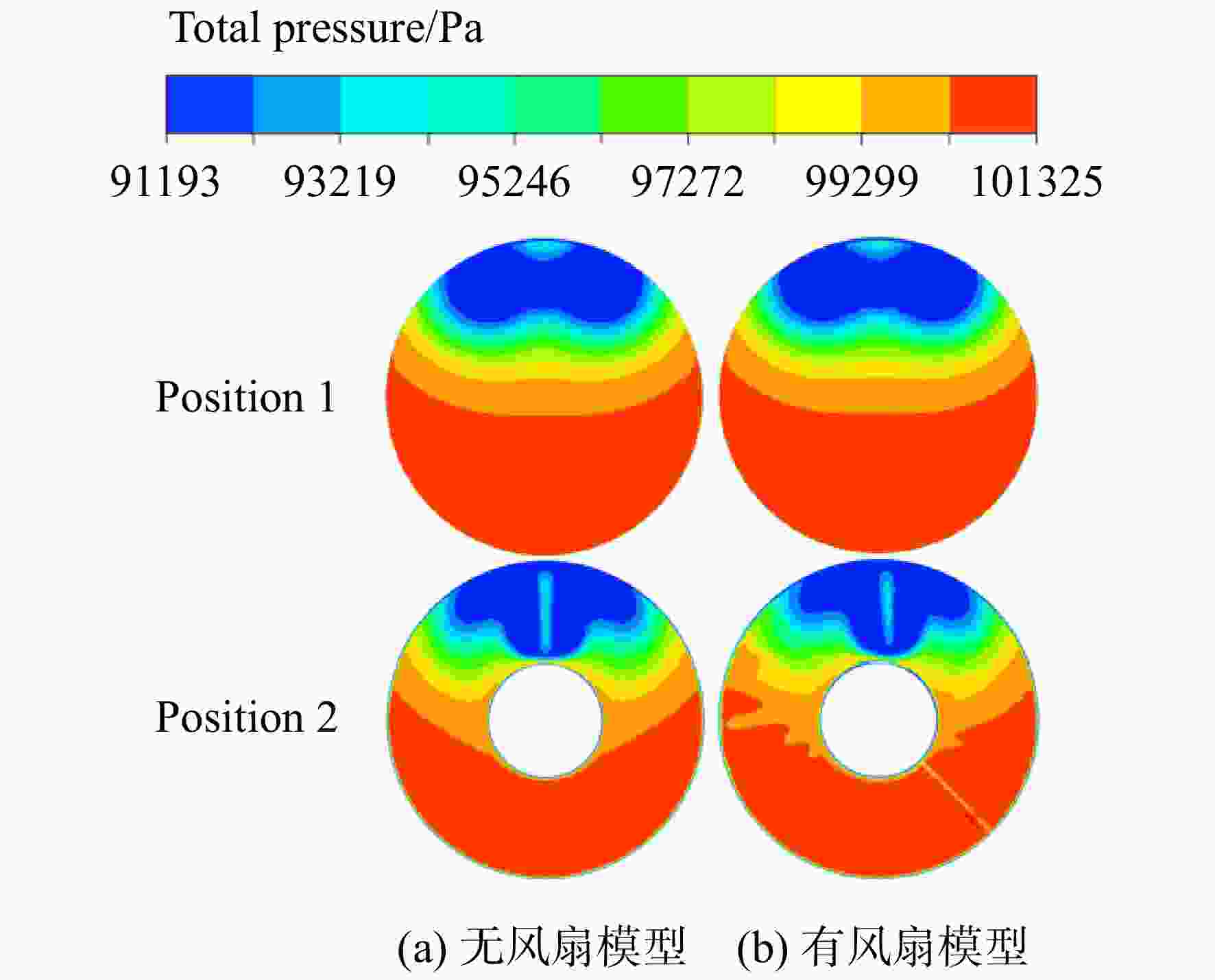

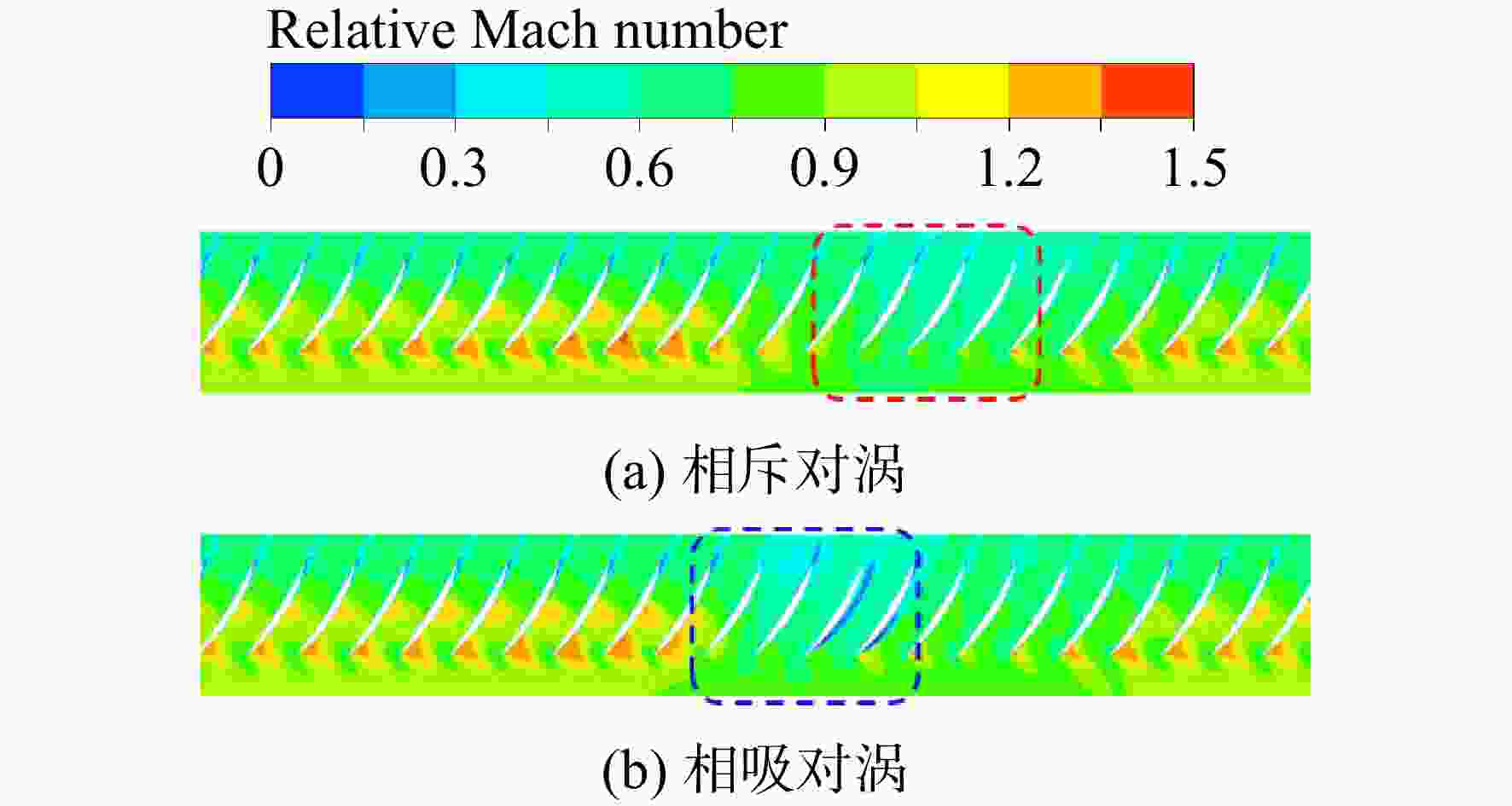

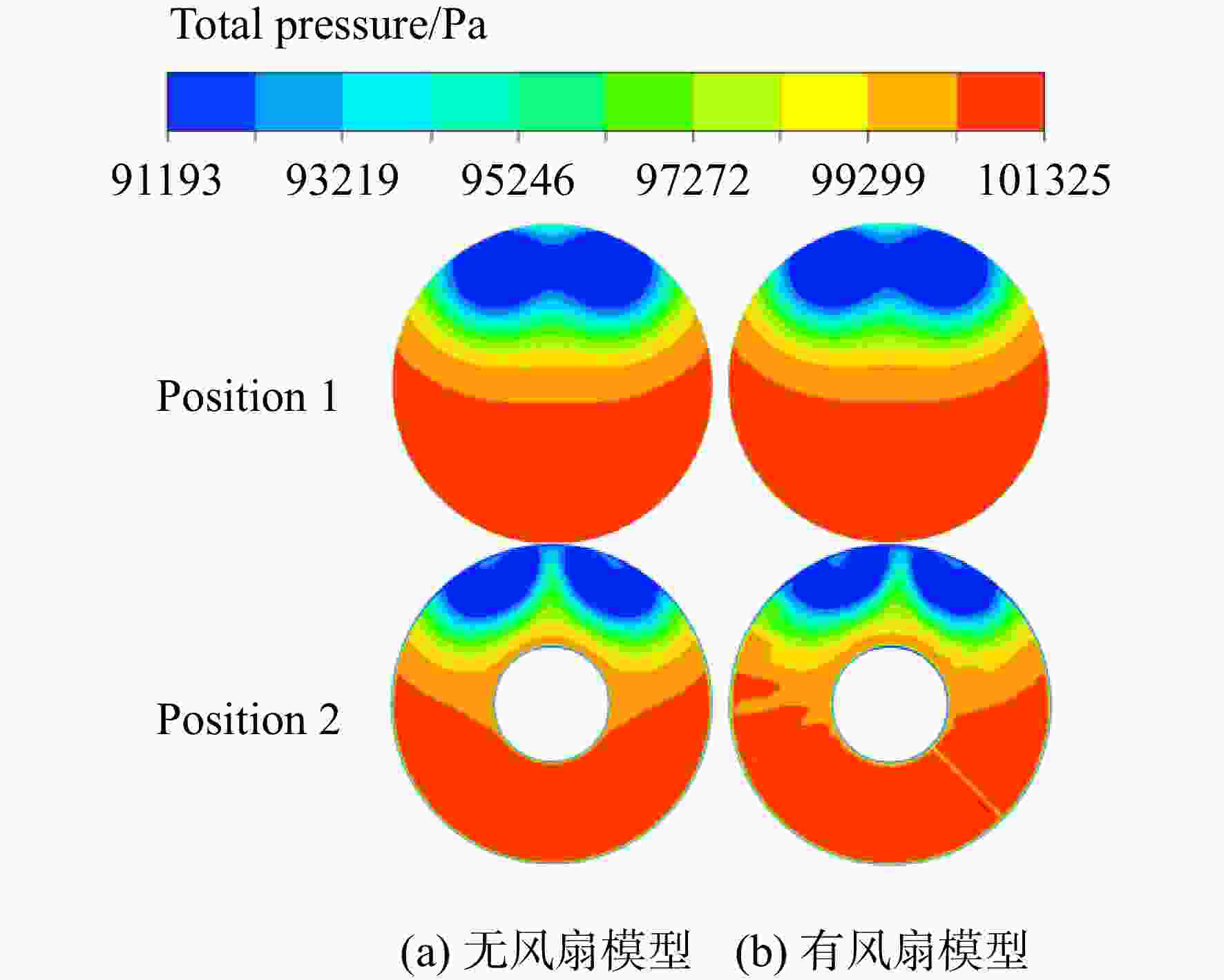

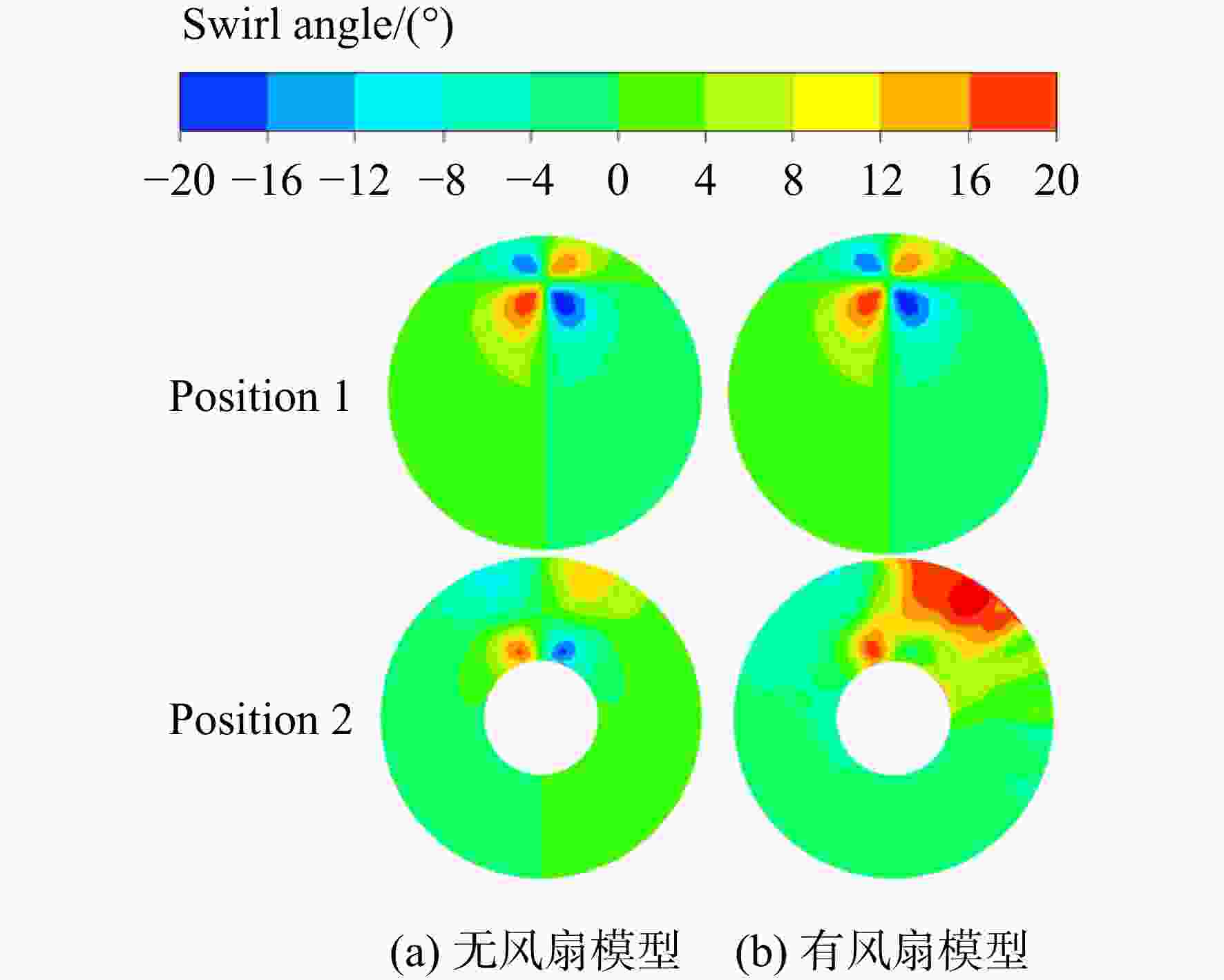

图 22 30%叶高处绝对轴向速度与切向速度周向分布曲线
Figure 22. Absolute axial and tangential velocity circumferential distribution curves at 30% span

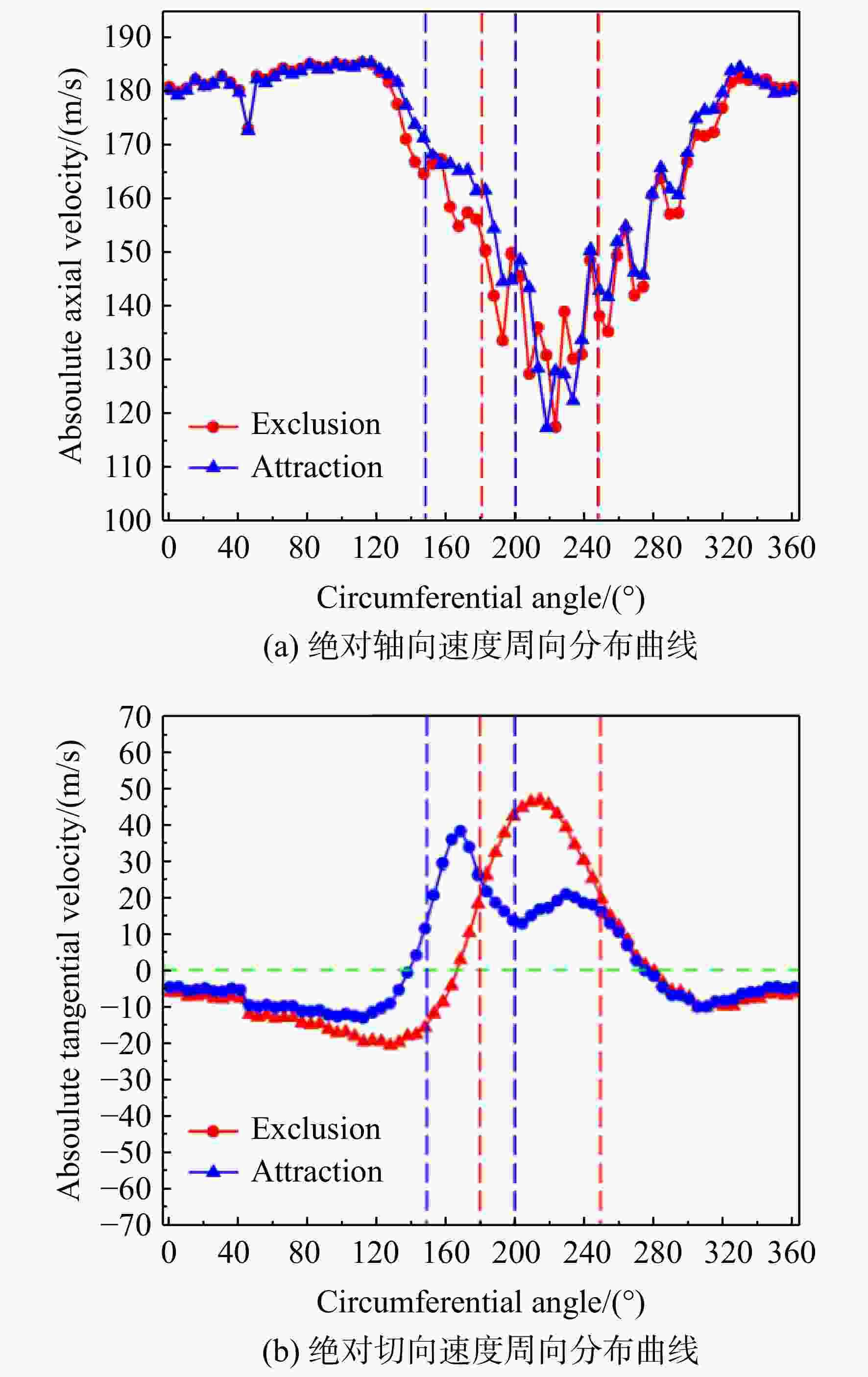

图 23 95%叶高处绝对轴向速度与切向速度周向分布曲线
Figure 23. Absolute axial and tangential velocity circumferential distribution curves at 95% span
图 25 95%叶高处总压比周向分布曲线
Figure 25. Total pressure ratio circumferential distribution curves at 95% span

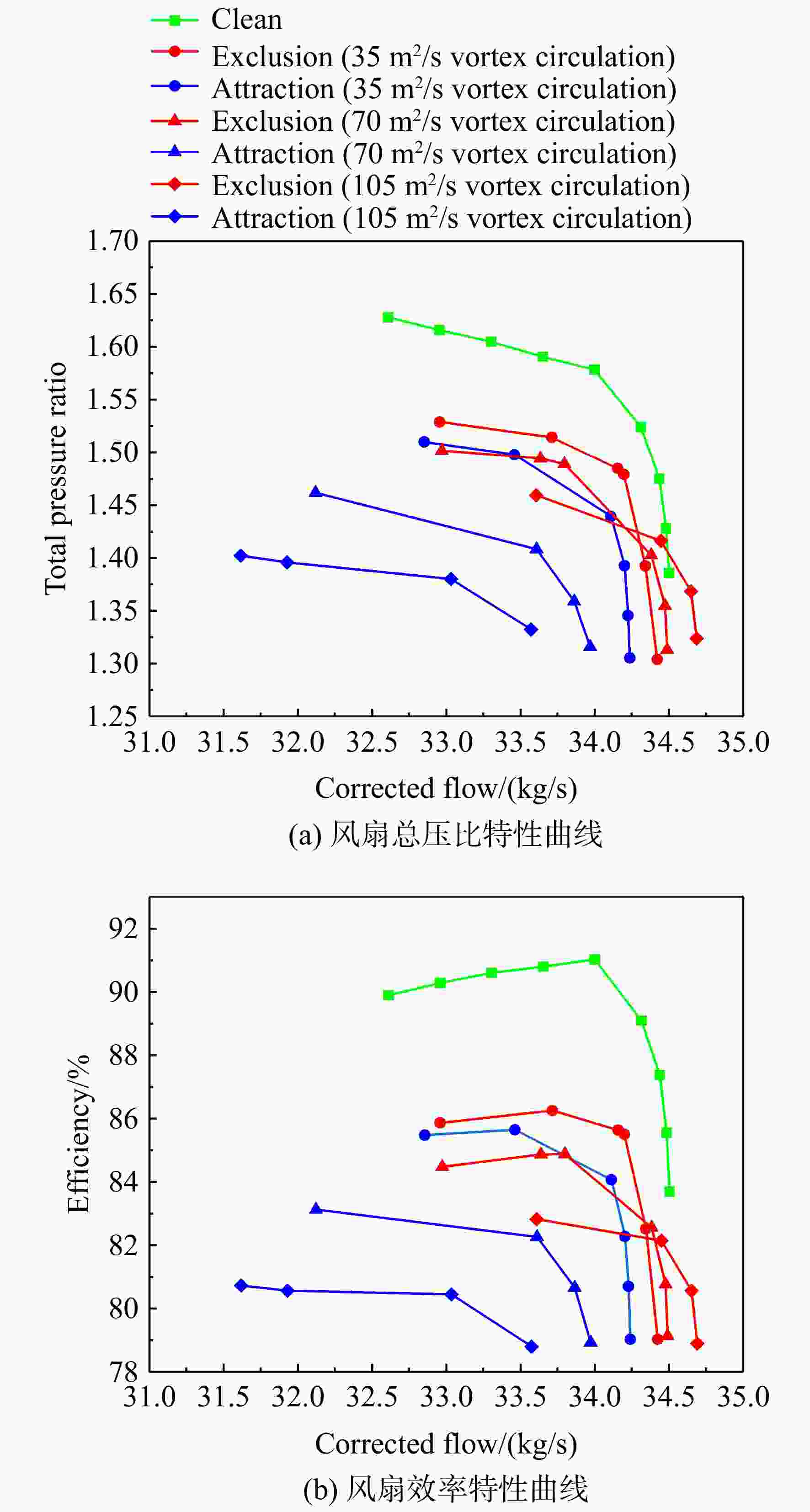

图 26 不同进气条件下风扇特性曲线
Figure 26. Fan characteristic curves under different inlet conditions

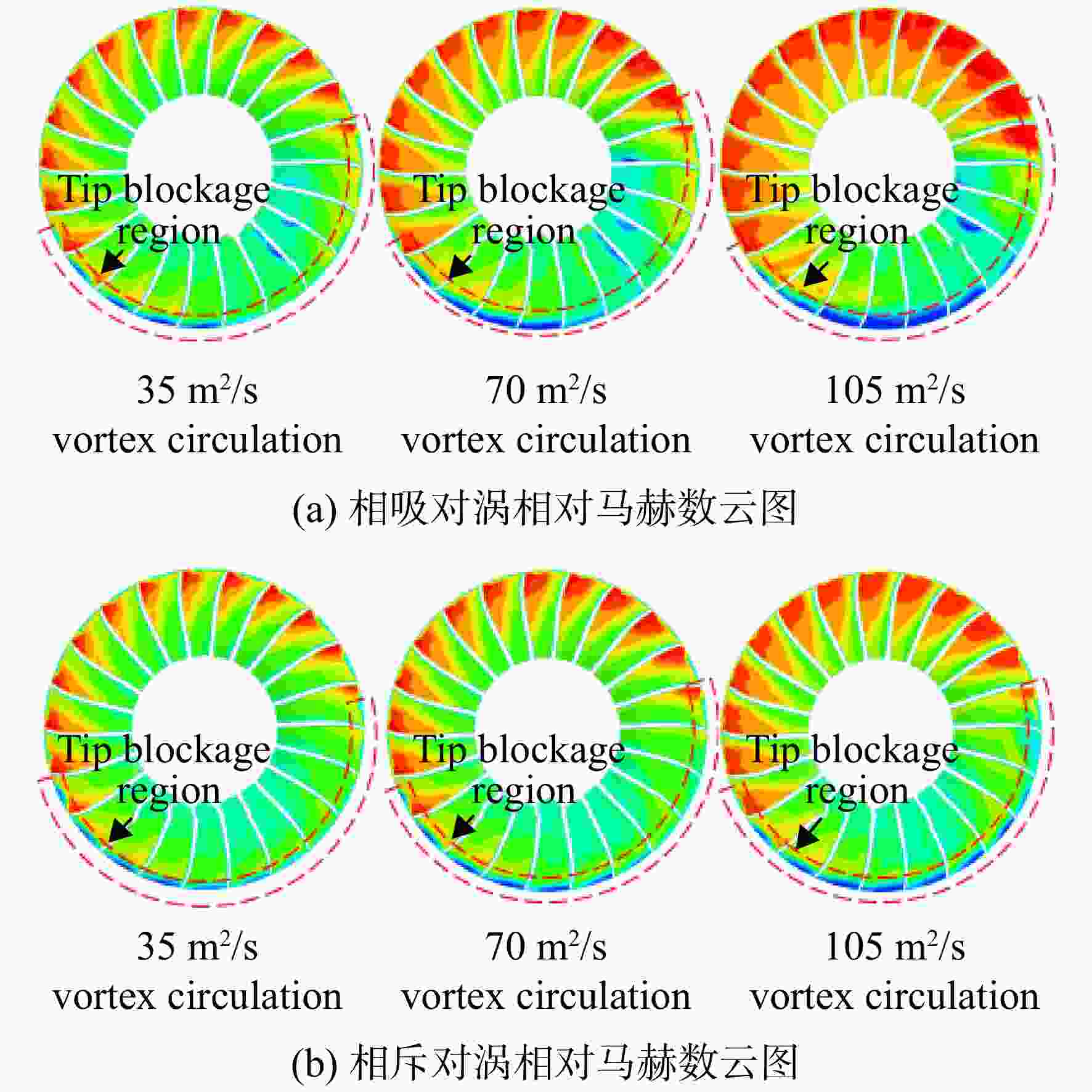

图 28 99%叶高处相对马赫数云图（相吸对涡）
Figure 28. Relative Mach number contours at 99% span （attraction）

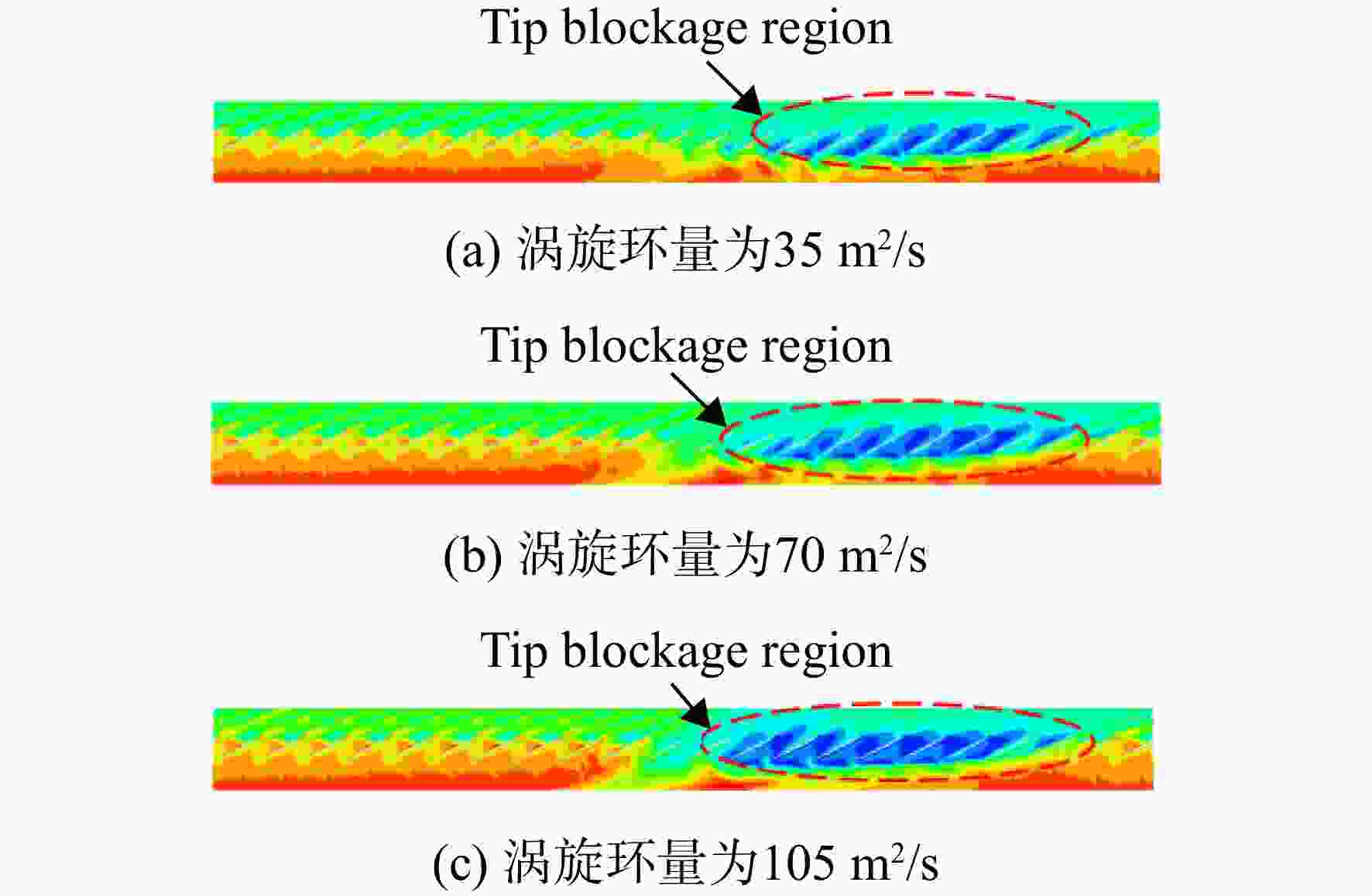

图 29 99%叶高处相对马赫数云图（相斥对涡）
Figure 29. Relative Mach number contours at 99% span （exclusion）

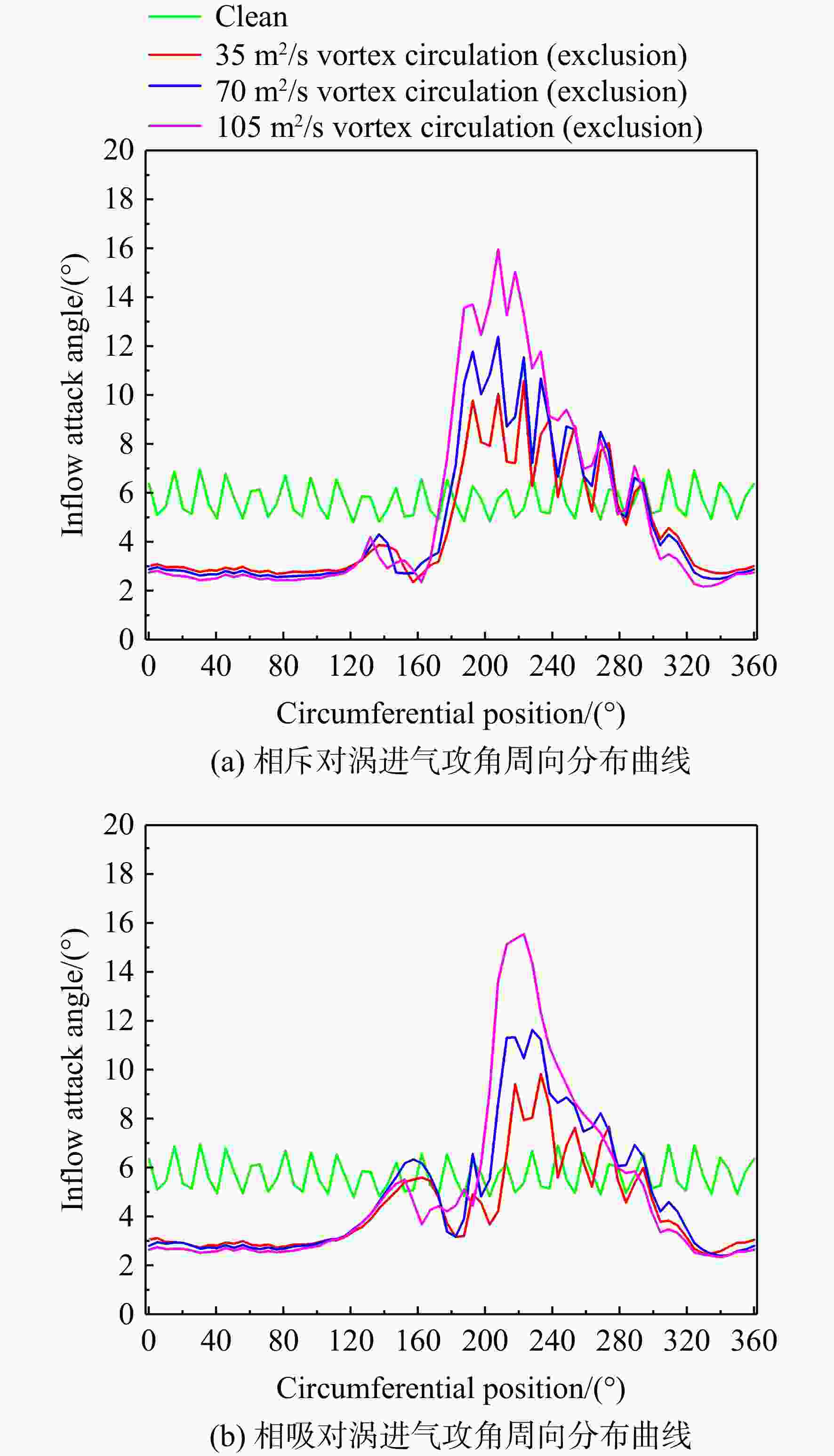

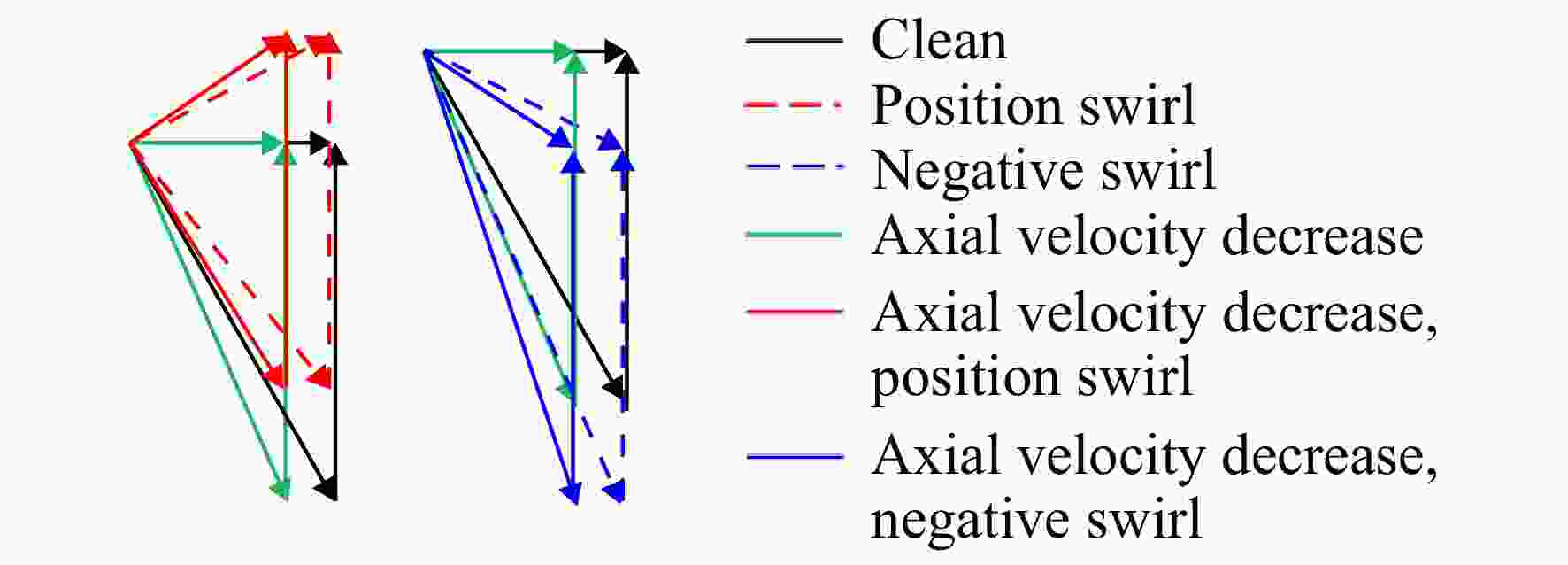

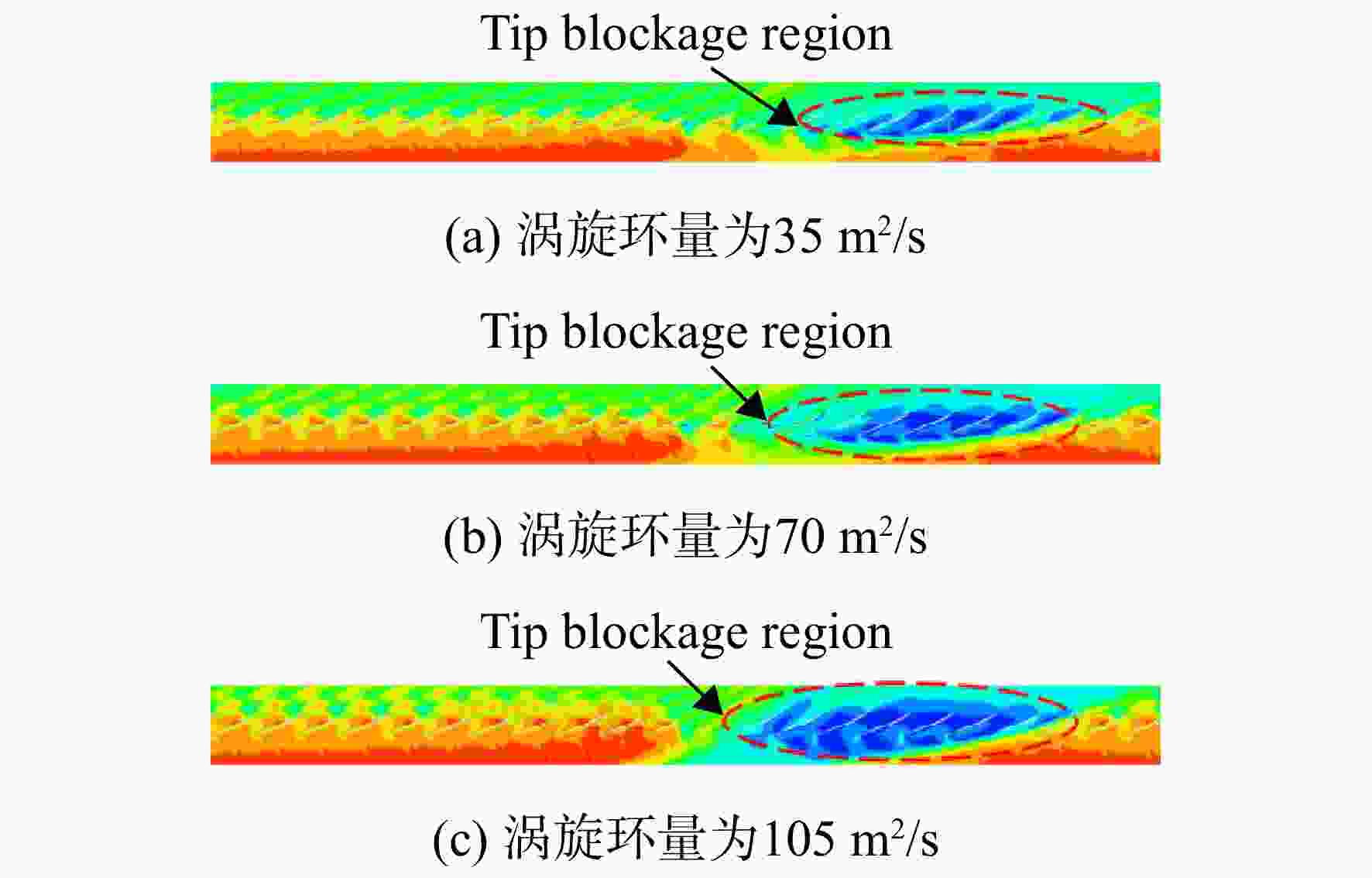

图 31 85%叶高处进气攻角周向分布曲线
Figure 31. Circumferential distribution curves of inflow attack angle at 85% span
图 32 90%叶高处进气攻角周向分布曲线
Figure 32. Circumferential distribution curves of inflow attack angle at 90% span
表 1 Rotor 67设计参数
Table 1. Design parameters of rotor 67
参数 数值 参数 数值 叶片数 22 设计转速/（r/min） 16043 进口直径/mm 511.4 设计点流量/（kg/s） 33.25 出口直径/mm 485 设计压比 1.63 进口轮毂比 0.375 进口叶尖相对马赫数 1.38 出口轮毂比 0.487 设计点效率 0.92 叶尖间隙/mm 1.01 展弦比 1.56
下载: 导出CSV

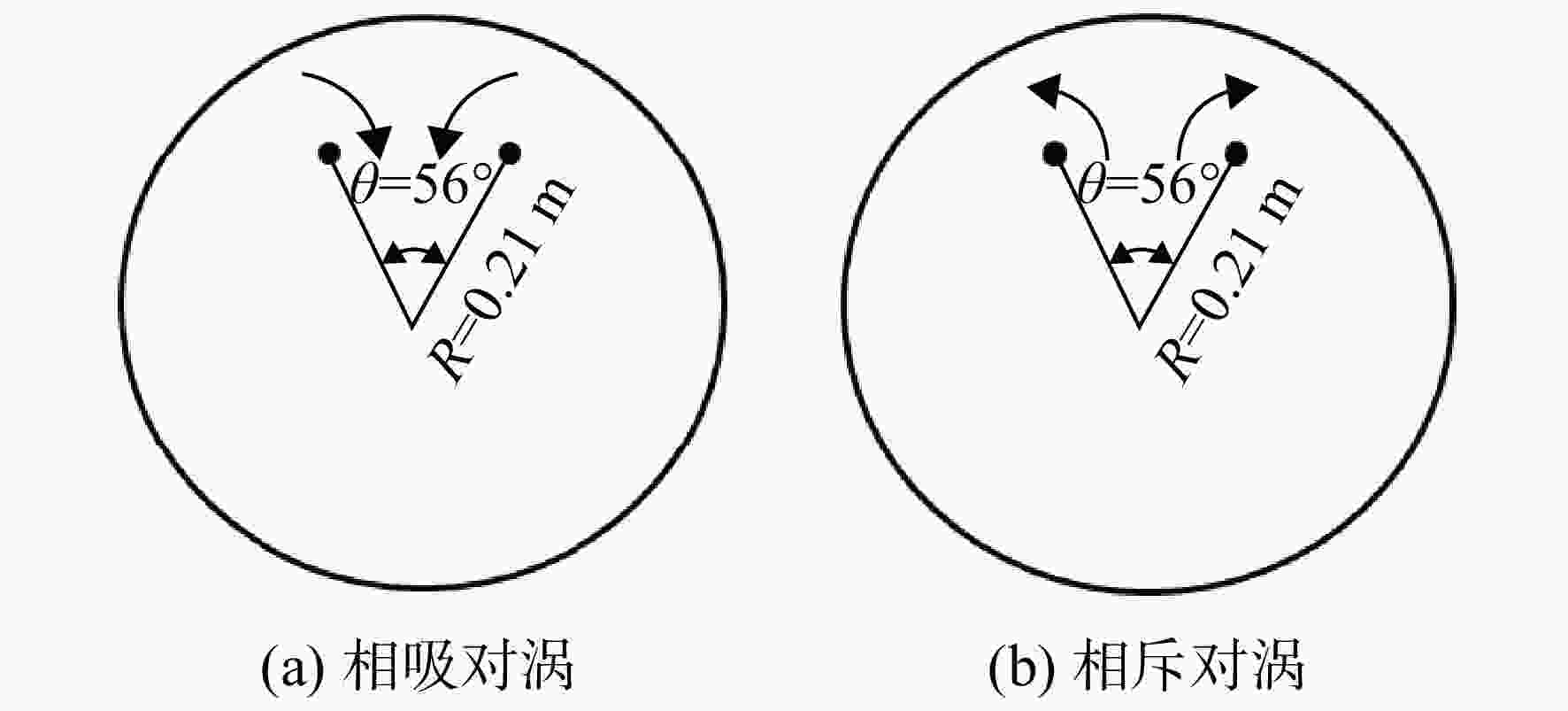

表 2 涡团特征参数
Table 2. Vortex characteristic parameter
类型 涡核半径
rc/m轴向速度
损失系数
（A/z）/（m/s）涡旋环量
Γ0/（m2/s）相吸对涡 0.1 175 35 70 105 相斥对涡 0.1 175 35 70 105
下载: 导出CSV
-
[1] SEDDON J,GOLDSMITH E. Intake aerodynamics[M]. Reston,US: AIAA Education Series,1985. [2] 黄河峡,孙姝,于航,等. 亚声速S弯进气道研究的新进展[J]. 推进技术,2020,41(12): 2641-2658. HUANG Hexia,SUN Shu,YU Hang,et al. Recent progress in subsonic S-shaped inlets[J]. Journal of Propulsion Technology,2020,41(12): 2641-2658. (in ChineseHUANG Hexia, SUN Shu, YU Hang, et al. Recent progress in subsonic S-shaped inlets[J]. Journal of Propulsion Technology, 2020, 41(12): 2641-2658. (in Chinese) [3] WILLIAMS D D,YOST J O. Some aspects of inlet/engine flow compatibility[J]. The Aeronautical Journal,1973,77(753): 483-492. doi: 10.1017/S0001924000041610 [4] LUDWIG G. Tomahawk engine/inlet compatibility study for f107-wr-400/402 engines[R]. Williams International Report 5003-2025,2002. [5] Society of Automotive Engineers. A method for assessing inlet swirl distortion[R]. S16 Turbine Engine Inlet Flow Distortion Committee,AIR 5686,2010. [6] SHEORAN Y,BOULDIN B,KRISHNAN P M. Compressor performance and operability in swirl distortion[J]. Journal of Turbomachinery,2012,134(4): 041008. [7] LI J,DU J,LIU Y,et al. Effect of inlet radial distortion on aerodynamic stability in a multi-stage axial flow compressor[J]. Aerospace Science and Technology,2020,105: 105886. doi: 10.1016/j.ast.2020.105886 [8] LI Jichao,DU Juan,GENG Shaojuan,et al. Tip air injection to extend stall margin of multi-stage axial flow compressor with inlet radial distortion[J]. Aerospace Science and Technology,2020,96: 105554. doi: 10.1016/j.ast.2019.105554 [9] 张兴发,李军,宋国兴,等. 轴流压气机插板式进气畸变数值仿真[J]. 航空动力学报,2019,34(5): 1153-1165. ZHANG Xingfa,LI Jun,SONG Guoxing,et al. Numerical simulation on flat baffle inlet distortion of axial compressor[J]. Journal of Aerospace Power,2019,34(5): 1153-1165. (in ChineseZHANG Xingfa, LI Jun, SONG Guoxing, et al. Numerical simulation on flat baffle inlet distortion of axial compressor[J]. Journal of Aerospace Power, 2019, 34(5): 1153-1165. (in Chinese) [10] 蒋华兵,陆亚钧,袁巍,等. 进气畸变对低速轴流压气机失速特性的影响[J]. 航空动力学报,2008,23(2): 355-360. JIANG Huabing,LU Yajun,YUAN Wei,et al. Influence of inlet distortion on the stall character of a low speed axial compressor[J]. Journal of Aerospace Power,2008,23(2): 355-360. (in ChineseJIANG Huabing, LU Yajun, YUAN Wei, et al. Influence of inlet distortion on the stall character of a low speed axial compressor[J]. Journal of Aerospace Power, 2008, 23(2): 355-360. (in Chinese) [11] PAZUR W,FOTTNER L. The influence of inlet swirl distor-tions on the performance of a jet propulsion two-stage axial compressor[J]. Journal of Turbomachinery,1991,113(2): 233-240. doi: 10.1115/1.2929091 [12] SCHMID N R,LEINHOS D C,FOTTNER L. Steady performance measurements of a turbofan engine with inlet distortions containing co- and counter-rotating swirl from an intake diffuser for hypersonic flight[J]. Journal of Turbomachinery,2001,123(2): 379-385. doi: 10.1115/1.1343466 [13] SHEORAN Y,BOULDIN B,KRISHNAN P M. Compressor performance and operability in swirl distortion[R]. Glasgow,UK: ASME Turbo Expo 2010: Power for Land,Sea,and Air,2010. [14] 屠宝锋,胡骏,张凯. 对涡旋流影响压气机转子性能和稳定性的研究[J]. 推进技术,2016,37(4): 640-645. TU Baofeng,HU Jun,ZHANG Kai. Effects of twin swirl on performance and stability of compressor rotor[J]. Journal of Propulsion Technology,2016,37(4): 640-645. (in ChineseTU Baofeng, HU Jun, ZHANG Kai. Effects of twin swirl on performance and stability of compressor rotor[J]. Journal of Propulsion Technology, 2016, 37(4): 640-645. (in Chinese) [15] 王加乐,程邦勤,张磊,等. 特定涡旋流畸变对跨声速压气机性能的影响[J]. 航空动力学报,2020,35(3): 540-551. WANG Jiale,CHENG Bangqin,ZHANG Lei,et al. Effects of specific swirl distortion on performance of transonic compressor[J]. Journal of Aerospace Power,2020,35(3): 540-551. (in ChineseWANG Jiale, CHENG Bangqin, ZHANG Lei, et al. Effects of specific swirl distortion on performance of transonic compressor[J]. Journal of Aerospace Power, 2020, 35(3): 540-551. (in Chinese) [16] 黄顺洲,胡骏. 组合畸变对某型发动机稳定性的影响[J]. 航空动力学报,2006,21(6): 1085-1091. HUANG Shunzhou,HU Jun. Investigation of the effect of combined distortion on engine stability[J]. Journal of Aerospace Power,2006,21(6): 1085-1091. (in ChineseHUANG Shunzhou, HU Jun. Investigation of the effect of combined distortion on engine stability[J]. Journal of Aerospace Power, 2006, 21(6): 1085-1091. (in Chinese) [17] SAE S-16 Turbine Engine Inlet Flow Distortion Committee. A methodology for assessing inlet swirl distortion[J]. AIAA Journal,2017,55(7): 2395-2409. doi: 10.2514/1.J054905 [18] 陈峰,宗有海,马护生,等. 总压和对涡旋流组合畸变发生器流场S-PIV测试[J]. 航空动力学报,2021,36(4): 874-884. CHEN Feng,ZONG Youhai,MA Husheng,et al. Combined total pressure and paired swirl distortion generator flow field tests using S-PIV[J]. Journal of Aerospace Power,2021,36(4): 874-884. (in ChineseCHEN Feng, ZONG Youhai, MA Husheng, et al. Combined total pressure and paired swirl distortion generator flow field tests using S-PIV[J]. Journal of Aerospace Power, 2021, 36(4): 874-884. (in Chinese) [19] AREND D,CASTNER R,FRATE F. A low cost,compact and versatile rig for integrated inlet and propulsion systems research[R]. Reno,US: 44th AIAA Aerospace Sciences Meeting and Exhibit,2006. [20] HALE Alan,DAVIS M,SIRBAUGH J. A numerical simulation capability for analysis of aircraft inlet-engine compatibility[J]. Journal of Engineering for Gas Turbines and Power,2006,128(3): 473-481. doi: 10.1115/1.1925649 [21] GIULIANI J E,CHEN J P. Fan response to boundary-layer ingesting inlet distortions[J]. AIAA Journal,2016,54(10): 3232-3243. doi: 10.2514/1.J054762 [22] VATISTAS G H,KOZEL V,MIH W C. A simpler model for concentrated vortices[J]. Experiments in Fluids,1991,11(1): 73-76. doi: 10.1007/BF00198434 [23] STRAZISAR A J,POWELL J A. Laser anemometer measurements in a transonic axial flow compressor rotor[J]. Journal of Engineering for Power,1981,103(2): 430-437. doi: 10.1115/1.3230738 [24] KHALEGHI H,TOUSI A M,BOROOMAND M,et al. Recirculation casing treatment by using a vaned passage for a transonic axial-flow compressor[J]. Proceedings of the Institution of Mechanical Engineers: Part A Journal of Power and Energy,2007,221(8): 1153-1162. doi: 10.1243/09576509JPE444 [25] KHALEGHI H,BOROOMAND M,TEIXEIRA J A,et al. A numerical study of the effects of injection velocity on stability improvement in high-speed compressors[J]. Proceedings of the Institution of Mechanical Engineers: Part A Journal of Power and Energy,2008,222(2): 189-198. doi: 10.1243/09576509JPE443 [26] 孙姝,郭荣伟,伍贻兆. 一种平面埋入式进气道的地面工作特性及流态特征[J]. 航空动力学报,2007,22(3): 390-395. SUN Shu,GUO Rongwei,WU Yizhao. Experimental and computational study of a submermerged inlet on the plane surface under ground running[J]. Journal of Aerospace Power,2007,22(3): 390-395. (in ChineseSUN Shu, GUO Rongwei, WU Yizhao. Experimental and computational study of a submermerged inlet on the plane surface under ground running[J]. Journal of Aerospace Power, 2007, 22(3): 390-395. (in Chinese) [27] 程邦勤,王加乐,冯路宁,等. 航空发动机进气旋流畸变研究综述[J]. 航空动力学报,2020,35(12): 2465-2481 CHENG Bangqin,WANG Jiale,FENG Luning,et al. Review of aero-engine inlet swirl distortion research[J]. Journal of Aerospace Power,2020,35(12): 2465-2481. (in ChineseCHENG Bangqin, WANG Jiale, FENG Luning, et al. Review of aero-engine inlet swirl distortion research[J]. Journal of Aerospace Power, 2020, 35(12): 2465-2481. (in Chinese) [28] BHAGWAT M J,LEISHMAN J G. Generalized viscous vortex model for application to free-vortex wake and aeroacoustic calculations[R]. American Helicopter Society 2042-2057,2008. [29] MCLELLAND G,DI CUGNO D,MACMANUS D G,et al. Boundary conditions for vortex CFD simulations[R]. Copenhagen,Denmark: ASME Turbo Expo 2012: Turbine Technical Conference and Exposition,2012. [30] DOCKRILL S. Assessment of particle image velocimetry for wing tip flows[D]. Cranfield,UK: Cranfield University,2007. [31] 钟易成,陈晓. 涡与涡以及涡与附面层之间相互作用的试验研究[J]. 航空动力学报,1999,14(1): 27-30. ZHONG Yicheng,CHEN Xiao. An experimental investigation on interactions among vortices and vortex with boundery layer[J]. Journal of Aerospace Power,1999,14(1): 27-30. (in ChineseZHONG Yicheng, CHEN Xiao. An experimental investigation on interactions among vortices and vortex with boundery layer[J]. Journal of Aerospace Power, 1999, 14(1): 27-30. (in Chinese) [32] 张磊,程邦勤,王加乐,等. 进气条件对S弯进气道出口旋流畸变影响研究[R]. 广东 江门: 第八届中国航空学会青年科技论坛,2018. -
