端壁-吸力面一体化造型在压气机级中的应用

周倩; 李相君; 尤付浩; 朱政宇; 孔令晨

doi:10.13224/j.cnki.jasp.20230524

端壁-吸力面一体化造型在压气机级中的应用

doi: 10.13224/j.cnki.jasp.20230524

大连海事大学船舶与海洋工程学院，辽宁大连 116026

基金项目: 国家自然科学基金青年项目（51906027）；辽宁省博士科研启动基金计划项目（2019-BS-027）；中央高校基本科研业务费专项资金（3132020112）；国家科技重大专项（J2019-Ⅰ-0011）；辽宁省教育厅基本科研项目面上项目（JYTMS20230160）

详细信息

作者简介:
周倩（2000-），女，硕士生，主要从事叶轮机械气动热力学研究。E-mail：zhouqian20001103@163.com

通讯作者:
李相君（1989-），男，讲师、硕士生导师，博士，主要从事叶轮机械气动热力学研究。E-mail：xjli@dlmu.edu.cn

中图分类号: V231.3
计量
- 文章访问数: 492
- HTML浏览量: 287
- PDF量: 29
- 被引次数: 0
出版历程
- 收稿日期: 2023-08-12
- 网络出版日期: 2025-04-16

Application of endwall-suction surface integrated contouring in a compressor stage

Naval Architecture and Ocean Engineering College，Dalian Maritime University，Dalian Liaoning 116026，China

摘要

摘要:
为了解决高负荷轴流压气机端壁角区分离问题，将一种多局部控制通道二次流、适用于多工况的吸力面及端壁联合造型方法应用于2.5级压气机末级静子中，探究造型方法在面对流动情况复杂的压气机环境时，所带来的效率提升或损失控制的效果。通过对最高效率点进行单目标优化，使压气机的末级峰值效率提高了约0.3%。流场分析显示，在多级压气机环境中应用端壁-吸力面一体化造型设计时，造型虽位于静子，但转子通流乃至效率亦受到一定程度的级间干涉。由于原型压气机端区流动结构不同，最优造型流动控制机理与在前期叶栅研究中所得结论有所差异。如此，可在一定程度上证明本文所采用的端壁-吸力面一体化造型方法于多种流动结构控制的可行性，其在压气机环境中的应用效果得到验证。
- 角区分离 /
- 压气机 /
- 端壁-吸力面一体化造型 /
- 流动控制 /
- 优化设计
Abstract:
In order to solve the problem of end-wall corner separation in high-load axial compressors, a combined contouring method of suction surface and end-wall with multiple local control channels for secondary flow applicable to multiple working conditions was applied to the final stage static sub of a 2.5-stage compressor, and the effects of the contouring method in terms of efficiency enhancement or loss control in the face of complex flow conditions of the pressurized gas environment were explored. A single-objective optimization of the highest efficiency point resulted in an improvement of about 0.3% in the final stage peak efficiency of the compressor. The flow field analysis showed that when the integrated end wall-suction surface contouring design was applied in a multi-stage compressor environment, the contouring was located in the static sub, but the rotor flux and even the efficiency were also subjected to a certain degree of interstage interference. Due to different flow structures in the end zone of the prototype compressor, the optimal modeling flow control mechanism differed from the conclusions obtained in the previous vane grid study. In this way, the feasibility of the integrated end-wall-suction surface contouring method adopted to the control of various flow structures can be proved to a certain extent, and its application in the compressor environment has been verified.
- corner separation /
- compressor /
- endwall-suction surface integrated contouring /
- flow control /
- optimization design

HTML

图 1 全局造型单元面定义

Figure 1. Definition of full-area modeling unit

下载: 全尺寸图片幻灯片

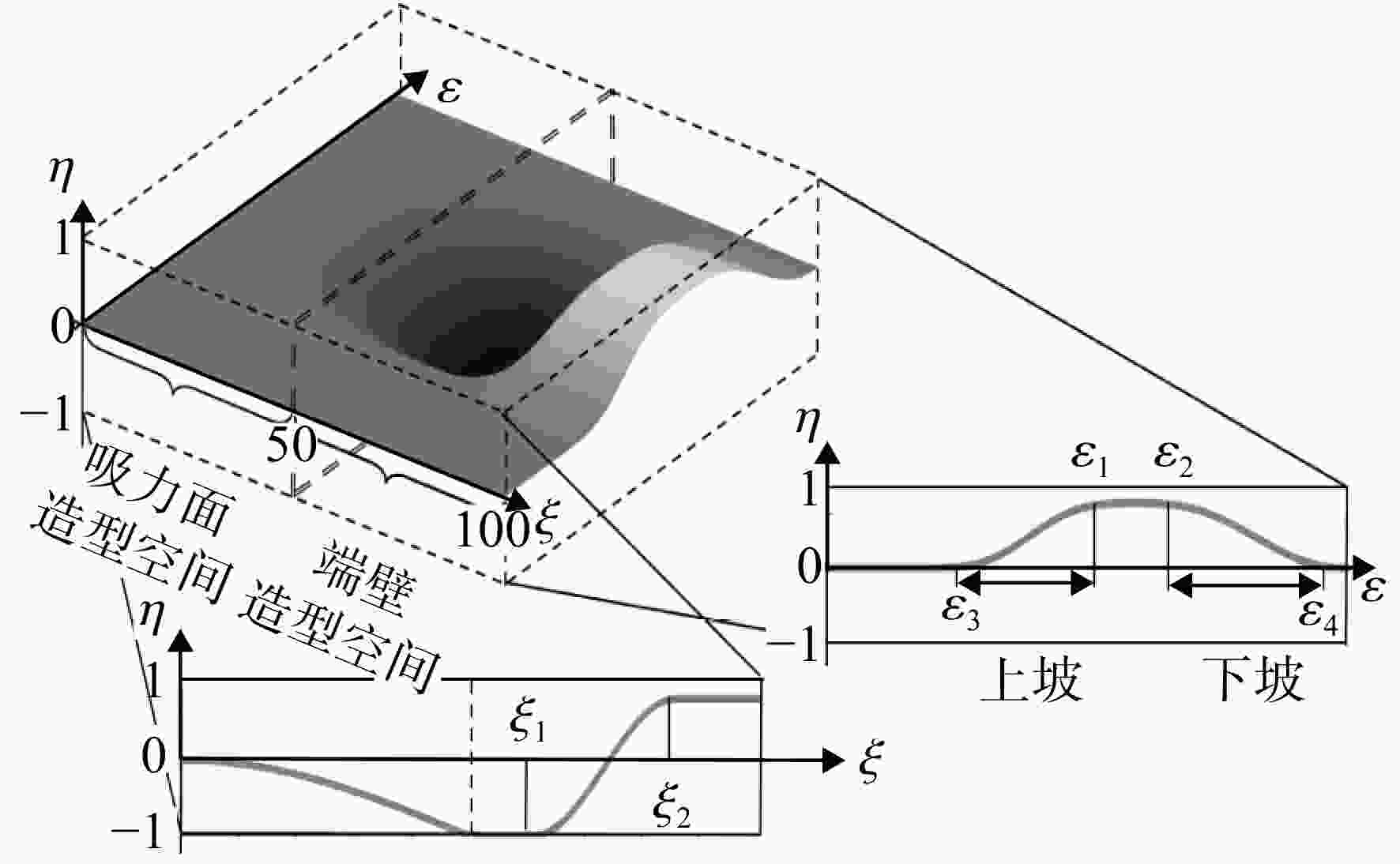

图 2 局部造型单元定义

Figure 2. Definition of localized modeling unit

下载: 全尺寸图片幻灯片

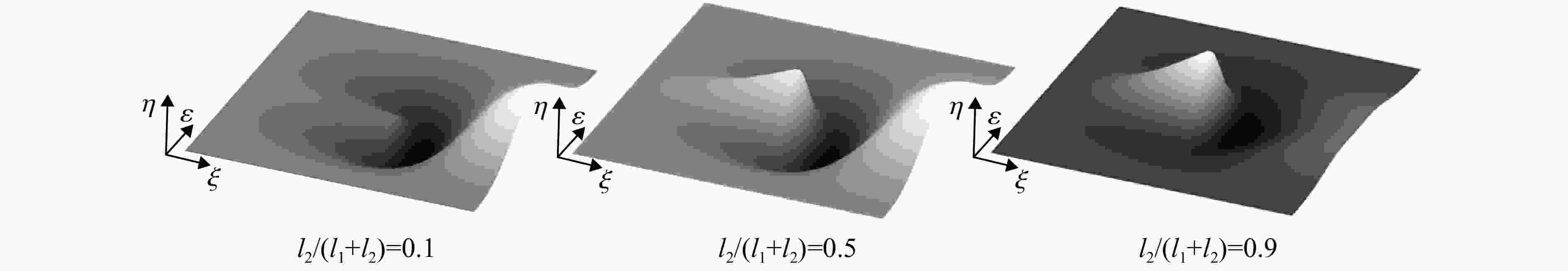

图 3 权重控制变量对吸力面及端壁造型结果的影响（I= l₁w₁+l₂u₂）

Figure 3. Influence of weight factor on variation of suction and endwall contouring （I= l₁w₁+l₂u₂）

下载: 全尺寸图片幻灯片

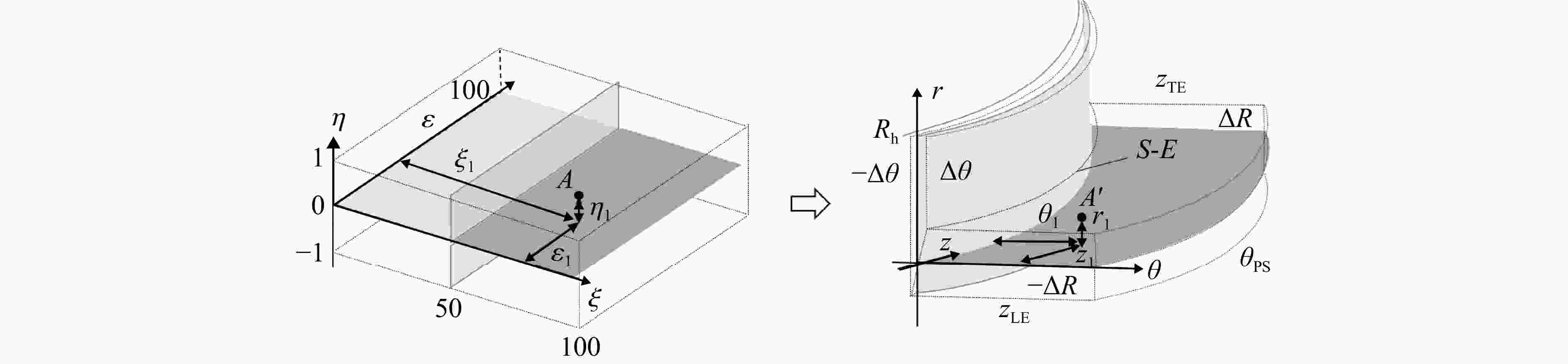

图 4 一点由标准空间向压气机吸力面及端壁空间映射示例

Figure 4. Example of mapping a point from standard space to suction and endwall region of a compressor passage

下载: 全尺寸图片幻灯片

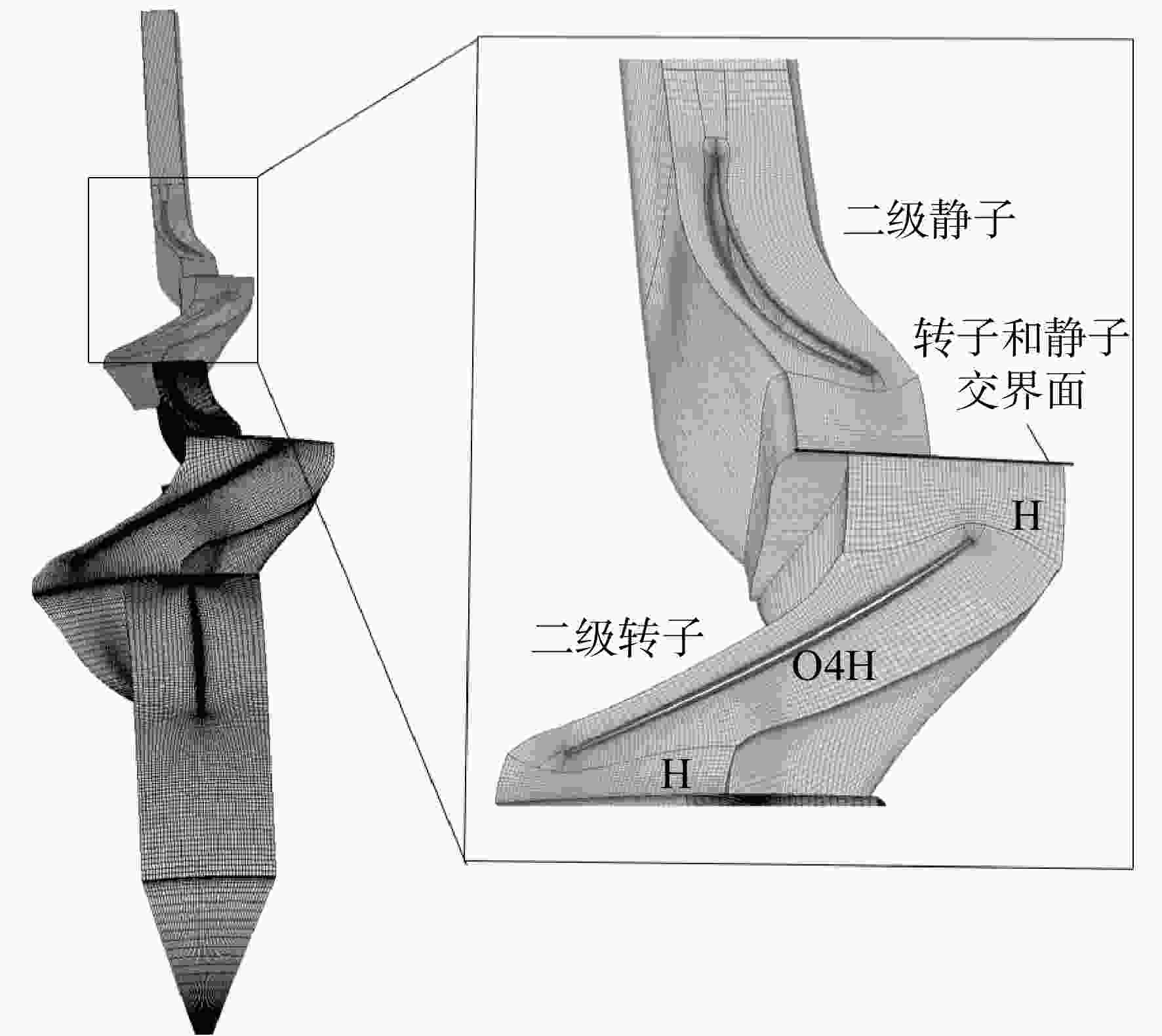

图 5 压气机末级网格图

Figure 5. Compressor final stage grid diagram

下载: 全尺寸图片幻灯片

图 6 不同网格数量特性线

Figure 6. Overall performance on different number of grids

下载: 全尺寸图片幻灯片

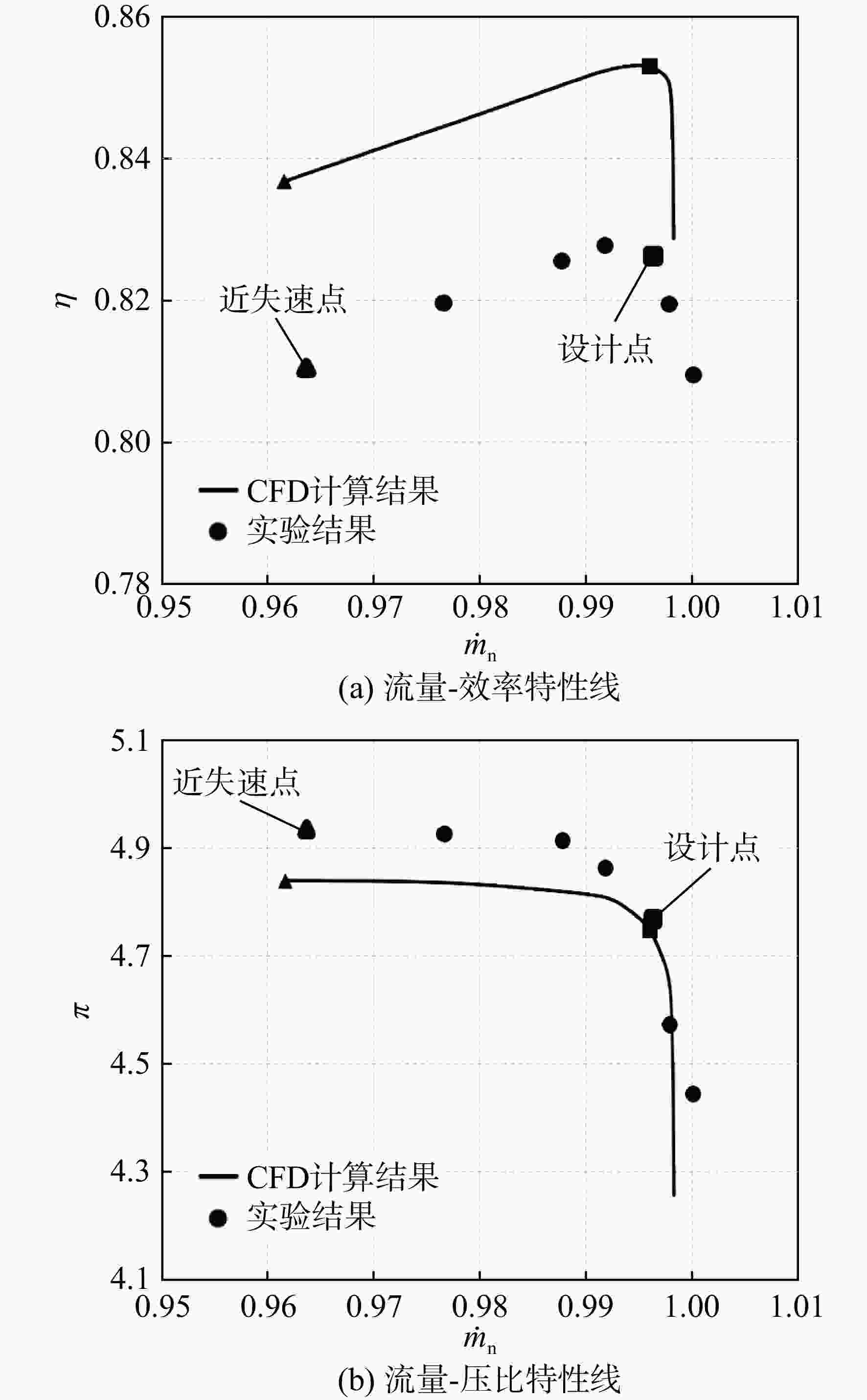

图 7 CFD与实验结果特性线

Figure 7. Overall performance obtained by CFD and experiment

下载: 全尺寸图片幻灯片

图 8 不同部位总压比沿叶高分布

Figure 8. Spanwise total pressure ratio of different parts

下载: 全尺寸图片幻灯片

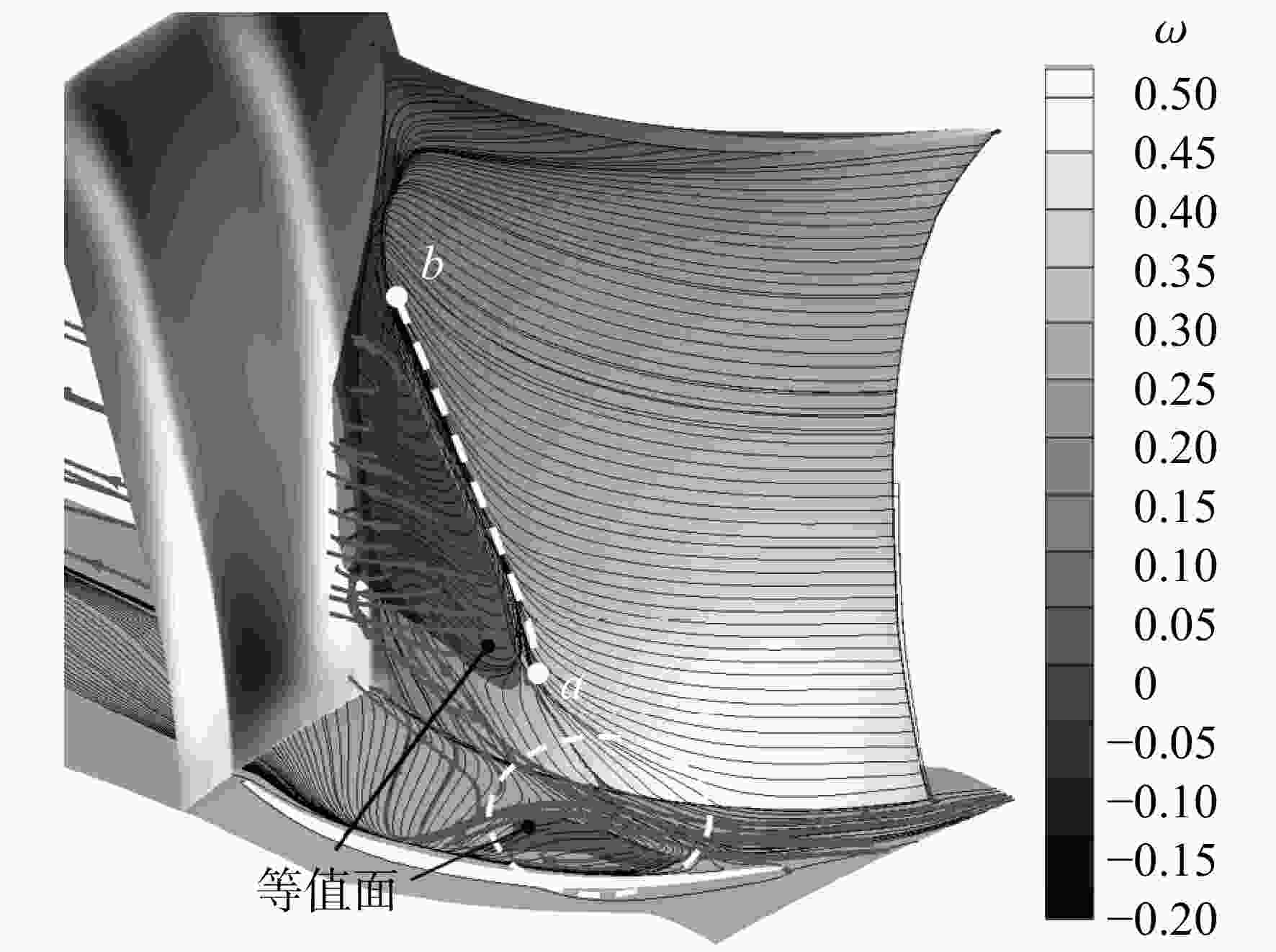

图 9 压气机末级静子三维流场

Figure 9. Three dimensional stator flow field of compressor final stage

下载: 全尺寸图片幻灯片

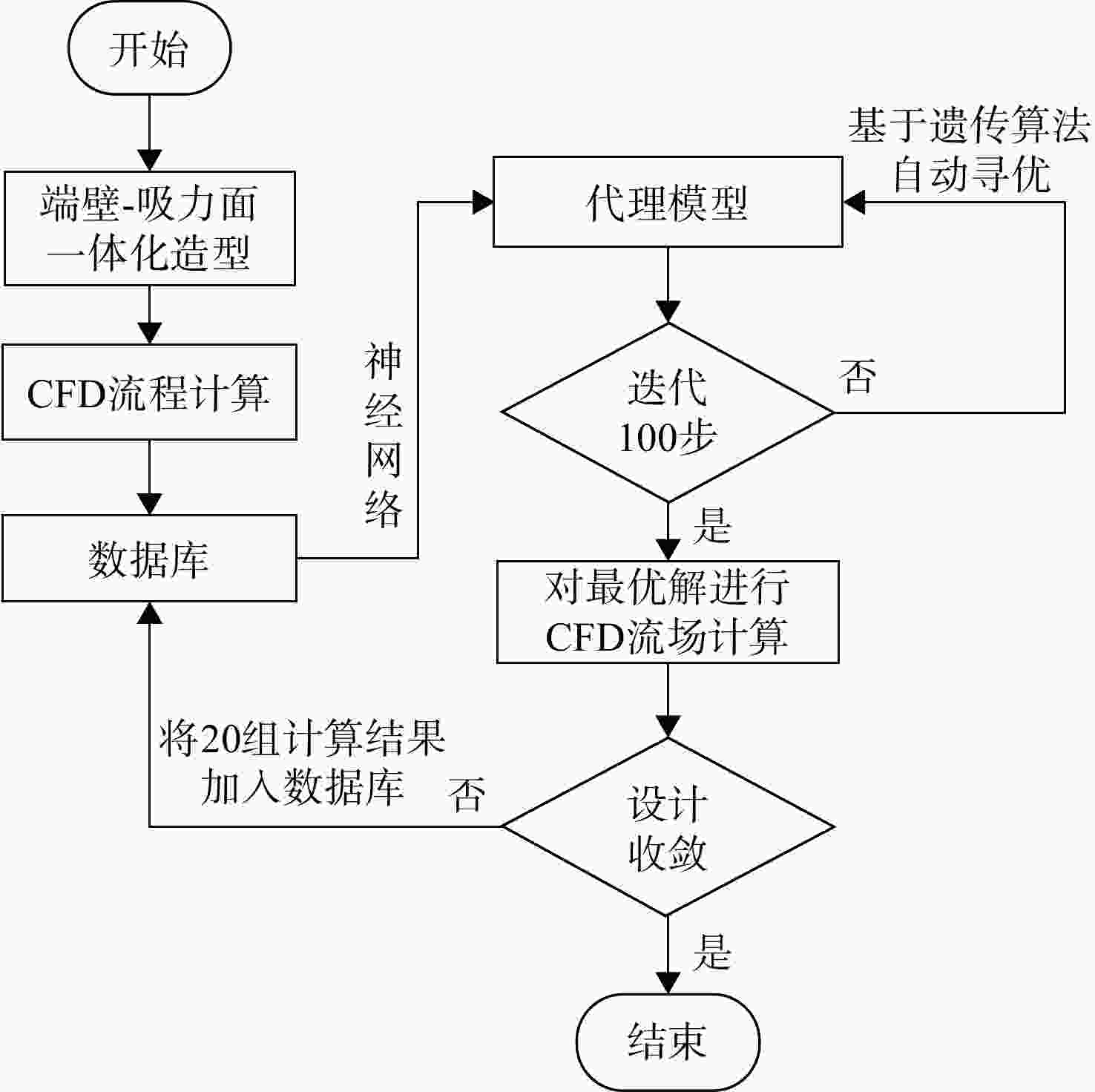

图 10 优化设计流程（多岛遗传算法）

Figure 10. Processing of optimization design（multi island genetic algorithm）

下载: 全尺寸图片幻灯片

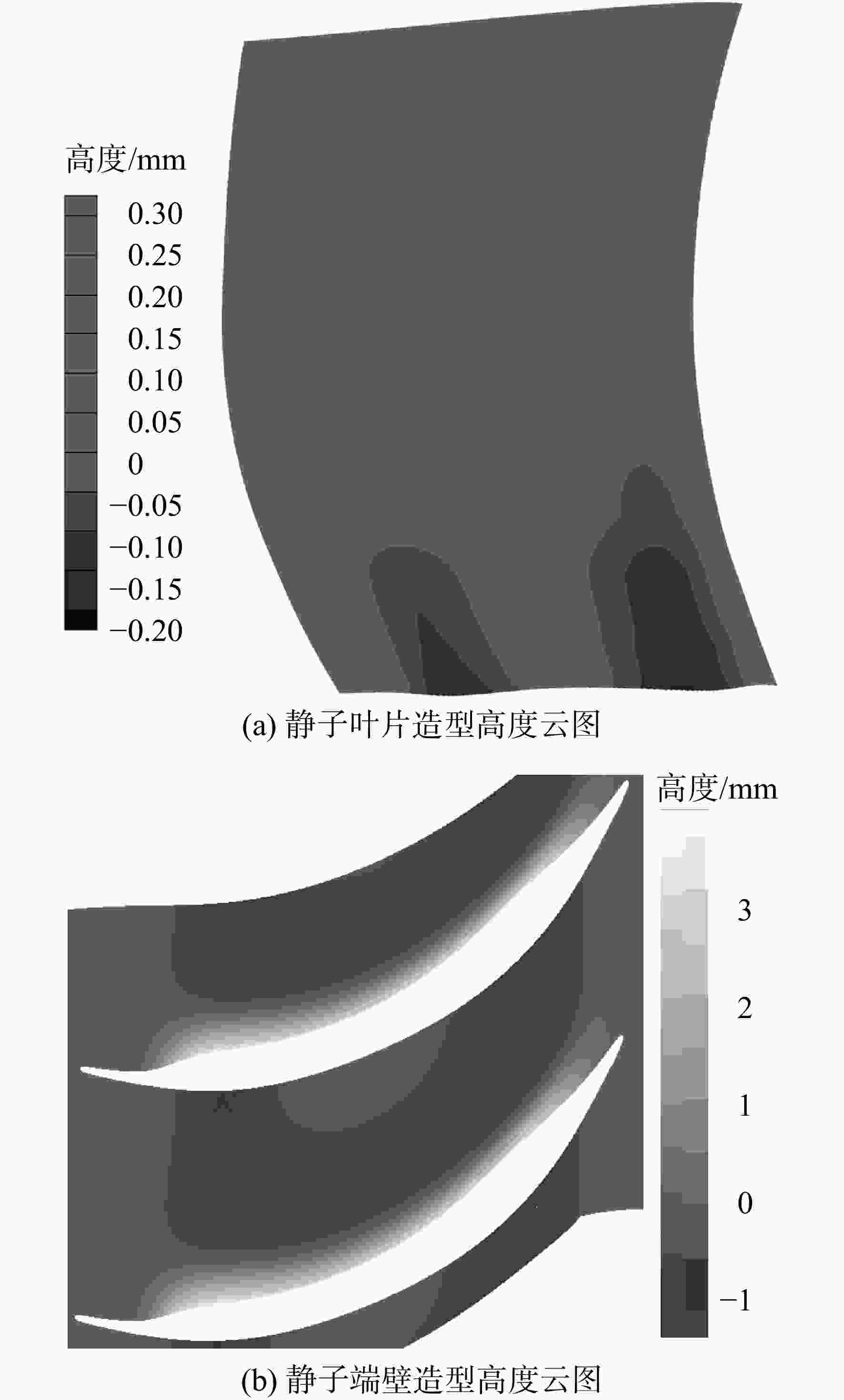

图 11 压气机末级静子优化造型结果高度云图

Figure 11. Height contours of compressor final stage stator optimization modeling results

下载: 全尺寸图片幻灯片

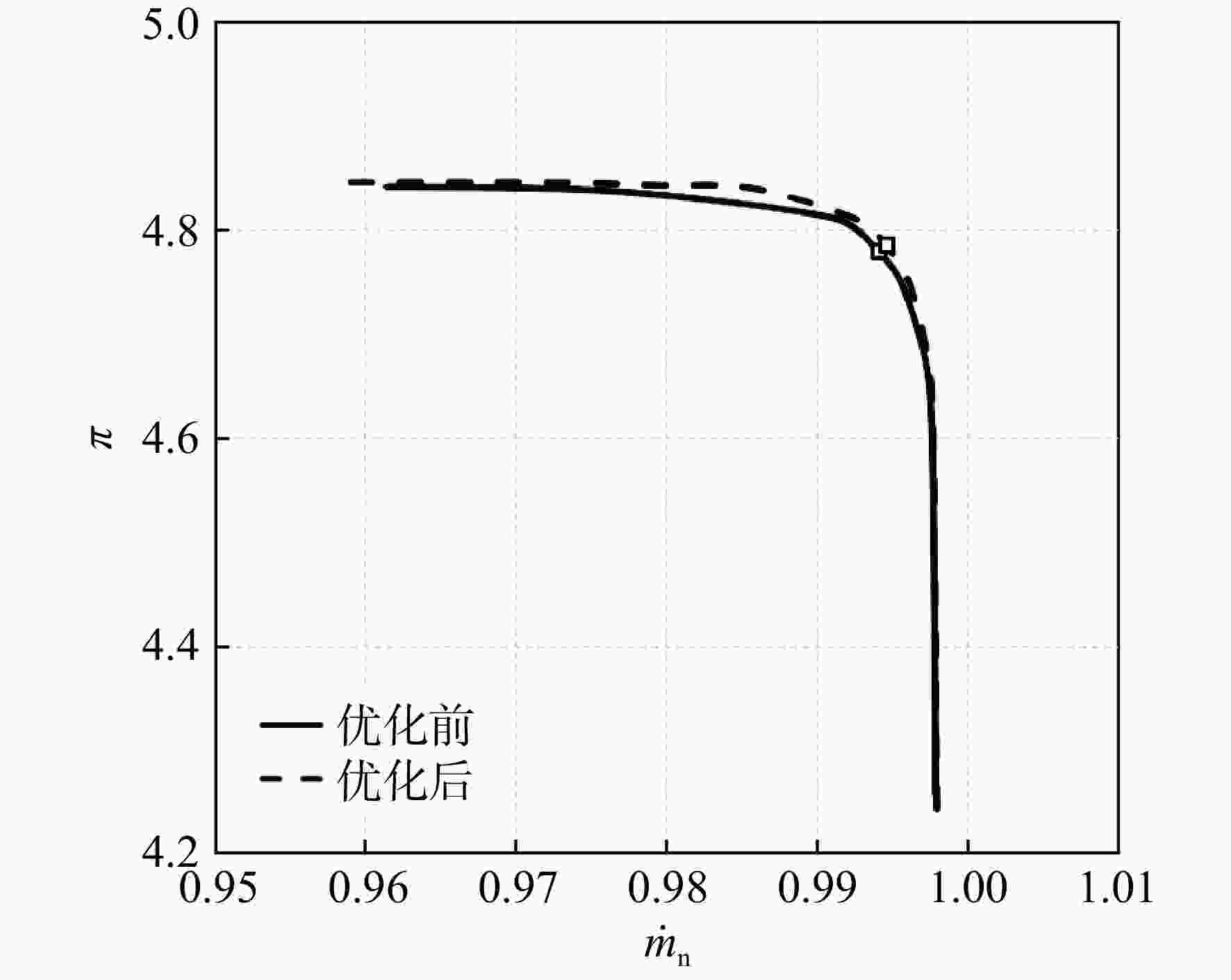

图 12 原型与优化造型末级总压比

Figure 12. Pressure ratio of final stage between original case and optimized case

下载: 全尺寸图片幻灯片

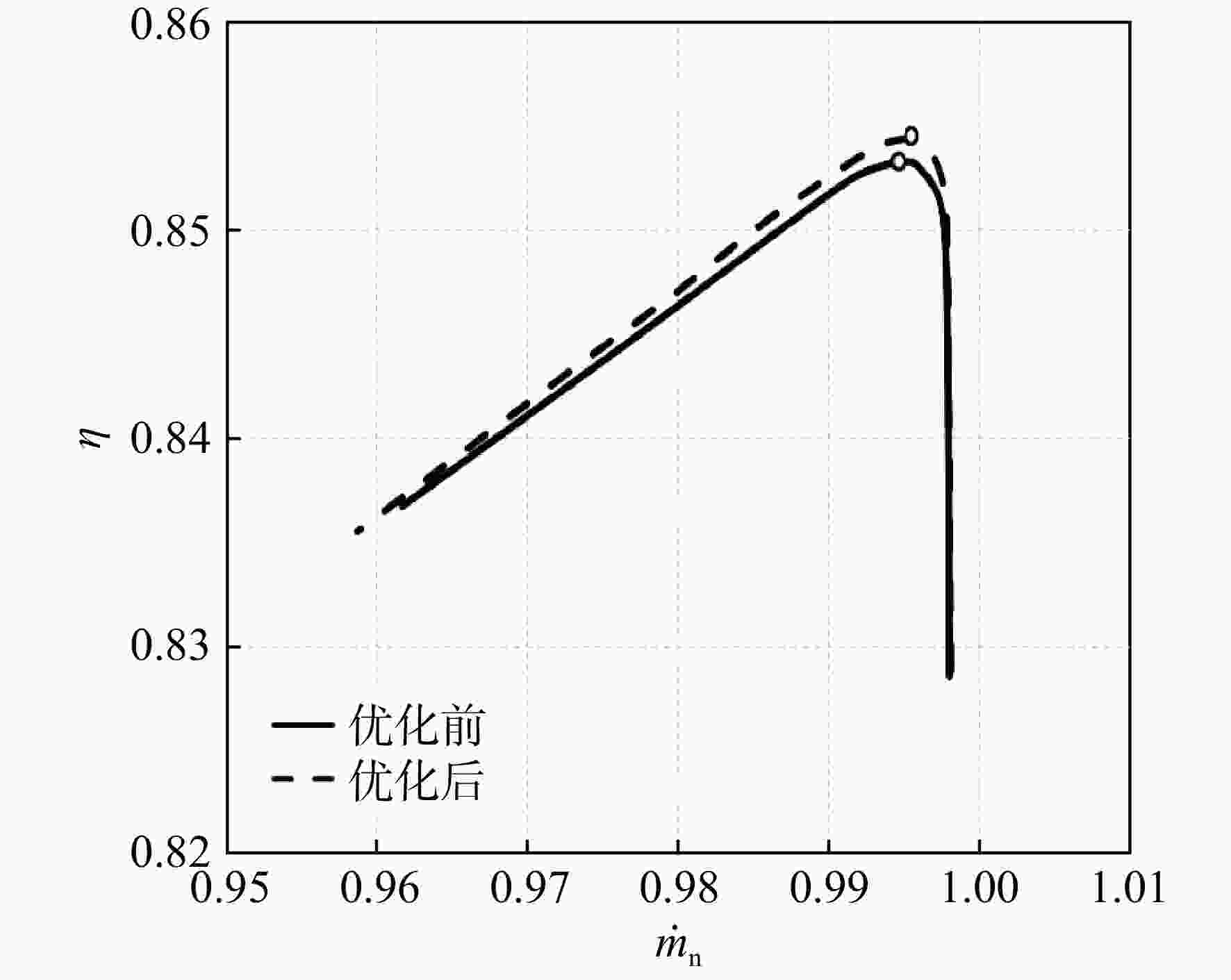

图 13 原型与优化造型末级效率

Figure 13. Efficiency of final stage between original case and optimized case

下载: 全尺寸图片幻灯片

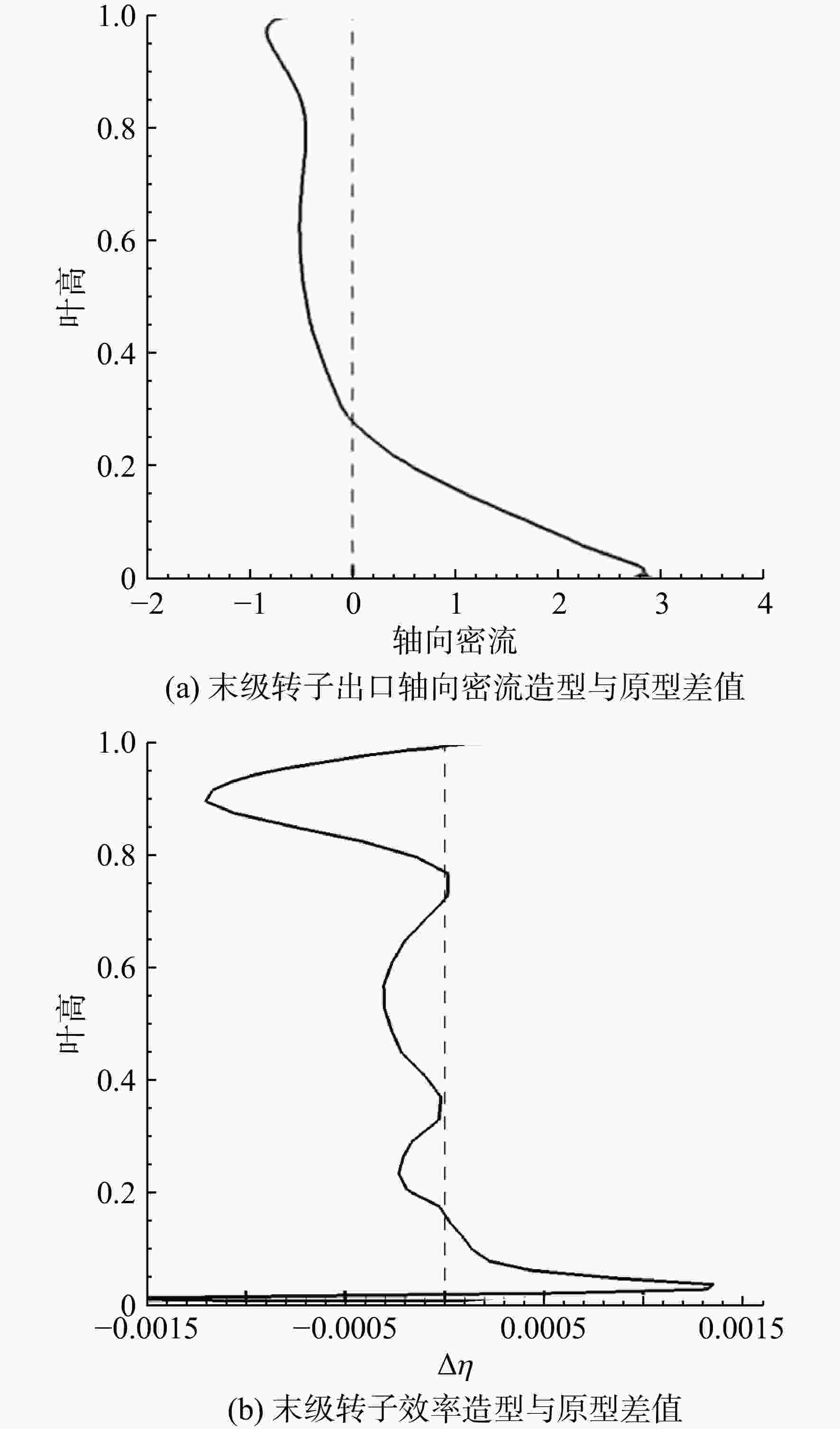

图 14 静子造型前后末级转子的性能变化

Figure 14. Change of final rotor performance before and after stator endwall modeling

下载: 全尺寸图片幻灯片

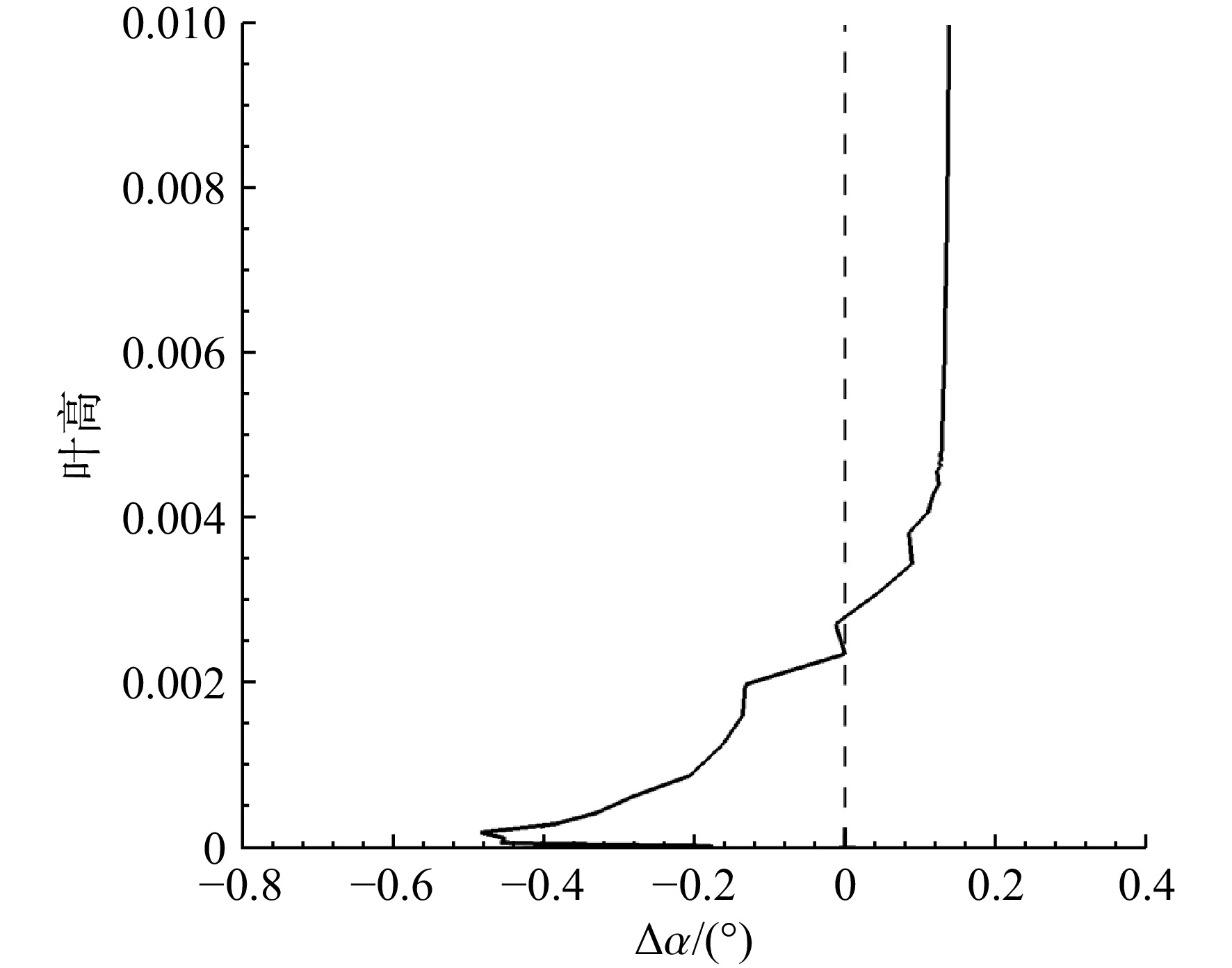

图 15 末级静子进口绝对气流角造型与原型差值

Figure 15. Modeling and prototype difference of final stator inlet absolute flow angle

下载: 全尺寸图片幻灯片

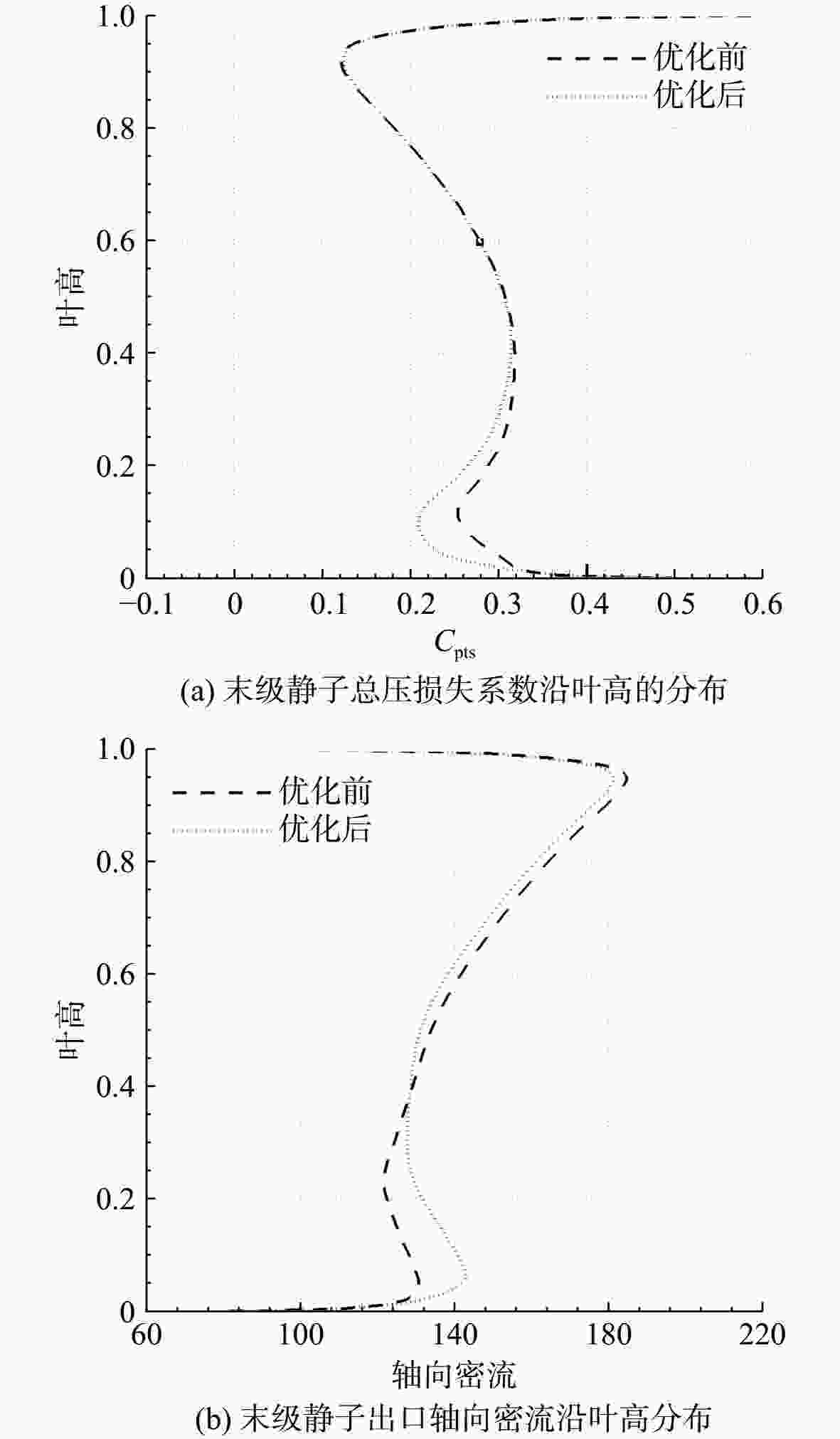

图 16 末级静子流动参数沿叶高的分布

Figure 16. Spanwise distribution of flow parameters of final stator

下载: 全尺寸图片幻灯片

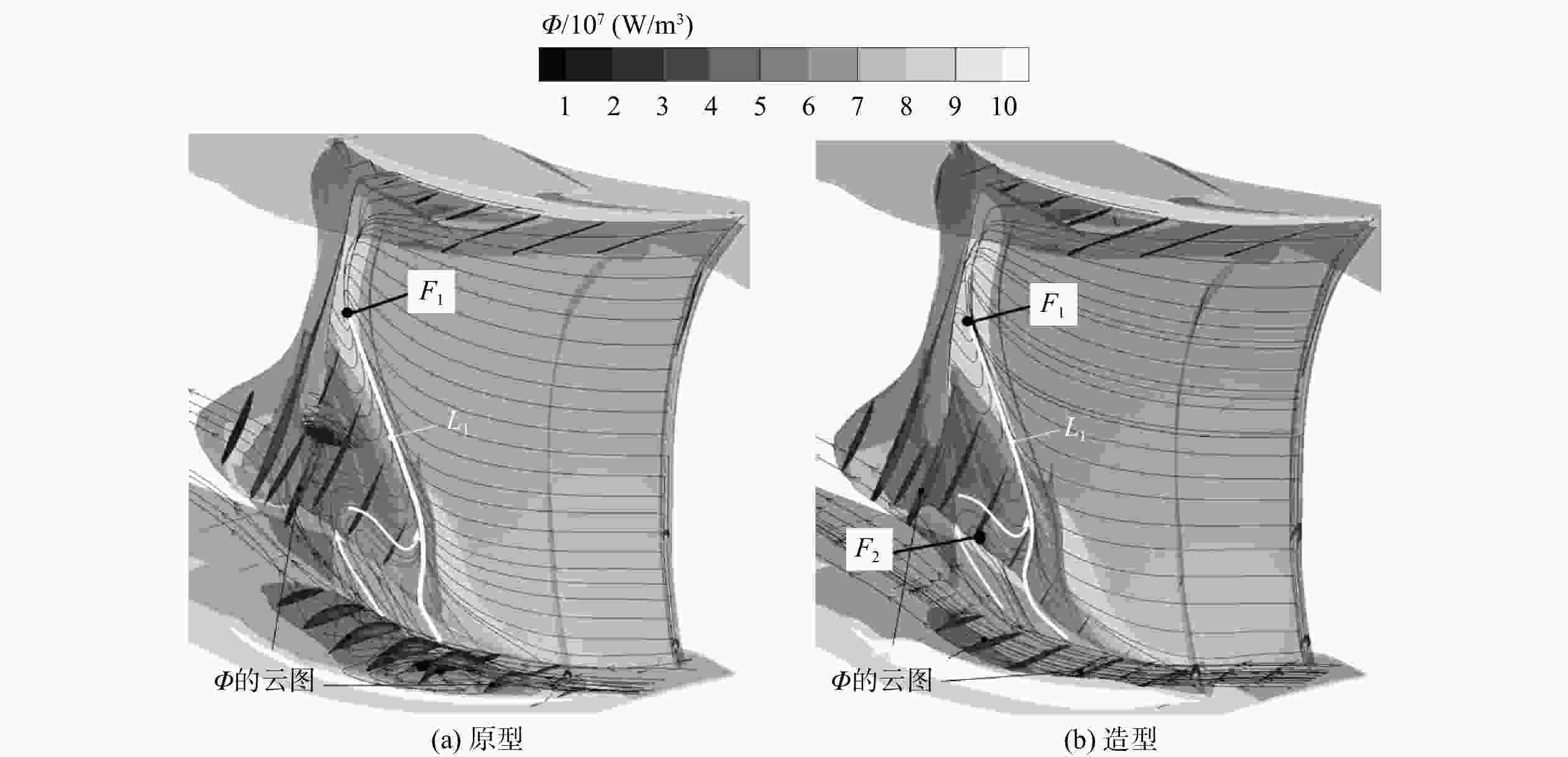

图 17 末级静子端壁-吸力面一体化造型前后耗散函数等值面及流线

Figure 17. Dissipation function and streamlines before and after final stator endwall-suction surface integrated contouring

下载: 全尺寸图片幻灯片

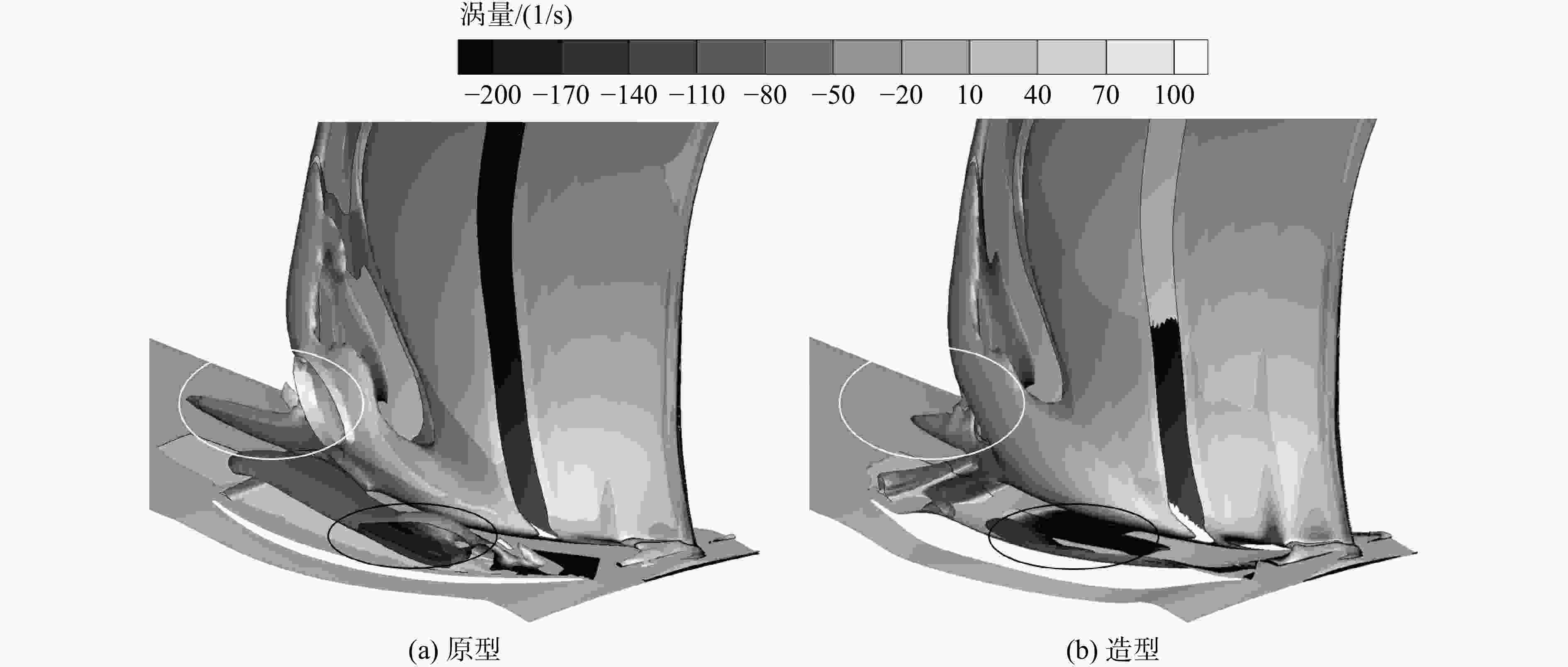

图 18 末级静子端壁-吸力面一体化造型前后涡量图

Figure 18. Vorticity before and after final stator endwall-suction surface integrated contouring

下载: 全尺寸图片幻灯片

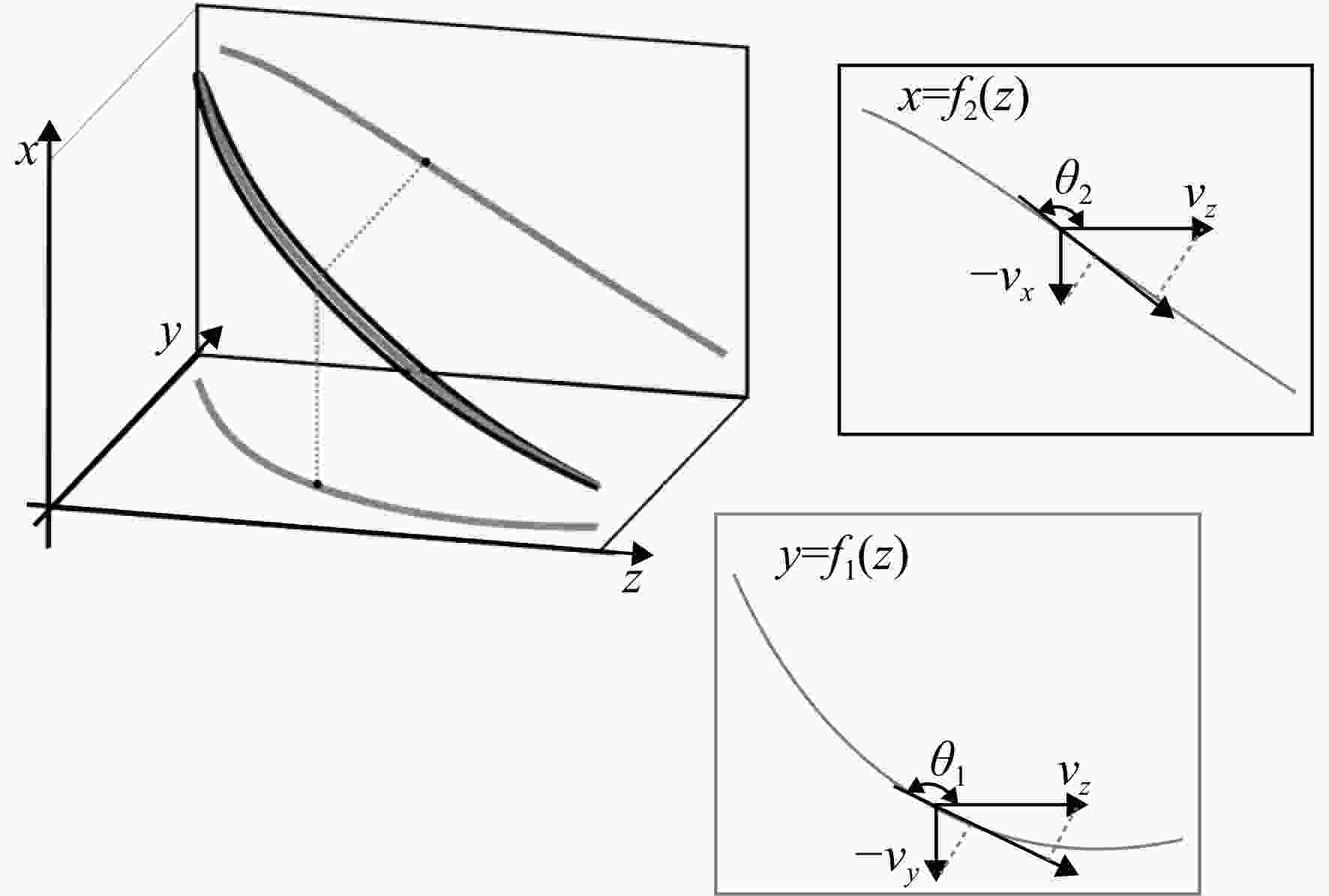

图 19 流向速度定义示意图

Figure 19. Flow velocity definition diagram

下载: 全尺寸图片幻灯片

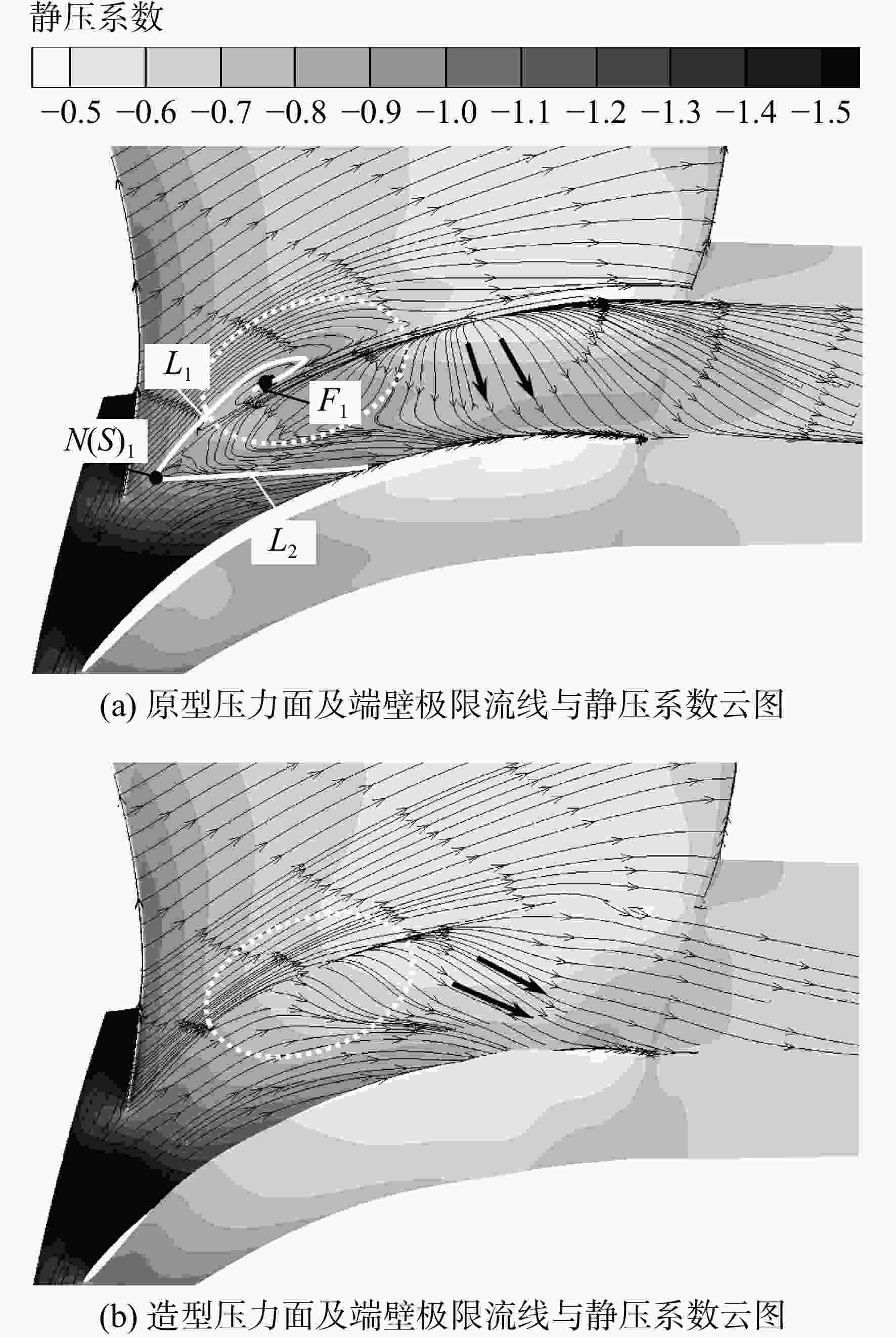

图 20 末级静子端壁-吸力面一体化造型前后流场比较

Figure 20. Comparison of flow field before and after final stator endwall-suction surface integrated contouring

下载: 全尺寸图片幻灯片

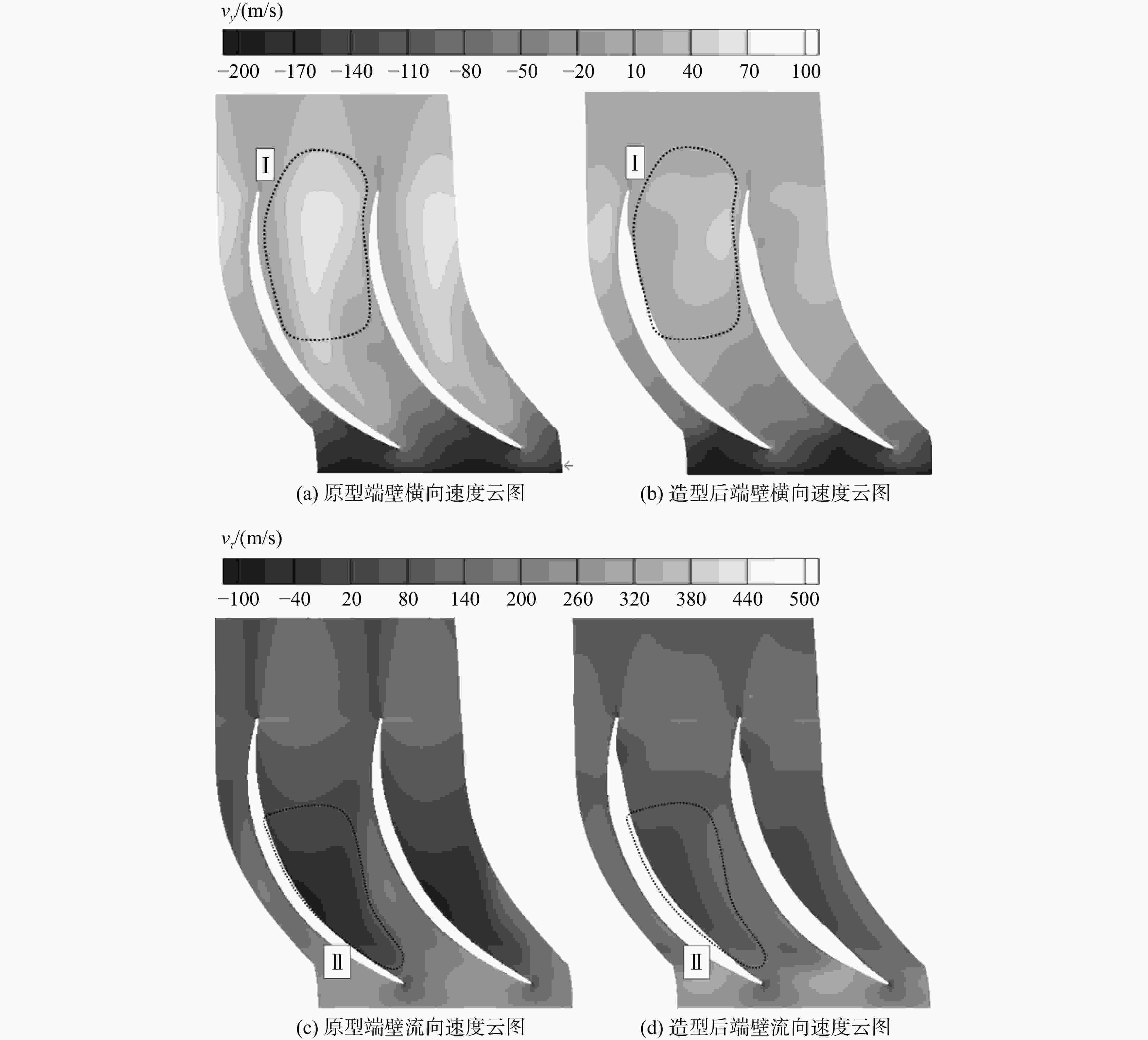

图 21 末级静子端壁-吸力面一体化造型前后端壁横向与流向速度云图

Figure 21. Lateral and flow velocity cloud maps before and after final stator endwall-suction surface integrated contouring

下载: 全尺寸图片幻灯片

表 1 压气机级设计参数

Table 1. Design parameters of compressor cascade

设计参数数值

转子展弦比 0.8
转子叶尖稠度 2.06
转子轮毂比 0.74
转子叶尖速度 0.96Ma
静子折转角/（°） 67
静子轮毂比 2.21

下载: 导出CSV

表 2 各部分效率值

Table 2. Efficiency value of each part

参数数值/%

Δη 0.334

Δη_r 0.0236

Δη_s 0.3645

Δη_τ −0.0540

下载: 导出CSV

参考文献(18)

[1]	吴艳辉, 王博, 付裕, 等. 轴流压气机角区分离的研究进展[J]. 航空学报, 2017, 38(9): 520974. WU Yanhui, WANG Bo, FU Yu, et al. Research progress of corner separation in axial-flow compressor[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(9): 520974. (in Chinese WU Yanhui, WANG Bo, FU Yu, et al. Research progress of corner separation in axial-flow compressor[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(9): 520974. (in Chinese)
[2]	郭爽, 陈绍文, 陆华伟, 等. 组合抽吸对大转角扩压叶栅性能的影响[J]. 航空动力学报, 2010, 25(12): 2697-2703. GUO Shuang, CHEN Shaowen, LU Huawei, et al. Effect of compound boundary 1ayer suction on the performance of a high-load diffusion compressor cascade with a 1arge camber angle[J]. Journal of Aerospace Power, 2010, 25(12): 2697-2703. (in Chinese GUO Shuang, CHEN Shaowen, LU Huawei, et al. Effect of compound boundary 1ayer suction on the performance of a high-load diffusion compressor cascade with a 1arge camber angle[J]. Journal of Aerospace Power, 2010, 25(12): 2697-2703. (in Chinese)
[3]	梁田, 刘波, 茅晓晨. 附面层抽吸对叶栅角区分离流动的控制研究[J]. 推进技术, 2019, 40(9): 1972-1981. LIANG Tian, LIU Bo, MAO Xiaochen. Investigation of corner separation control for cascade with boundary layer suction[J]. Journal of Propulsion Technology, 2019, 40(9): 1972-1981. (in Chinese LIANG Tian, LIU Bo, MAO Xiaochen. Investigation of corner separation control for cascade with boundary layer suction[J]. Journal of Propulsion Technology, 2019, 40(9): 1972-1981. (in Chinese)
[4]	茅晓晨, 刘波, 曹志远, 等. 端壁射流对压气机叶栅角区分离控制的研究[J]. 推进技术, 2014, 35(12): 1615-1622. MAO Xiaochen, LIU Bo, CAO Zhiyuan, et al. Research on corner separation control for compressor cascade with end-wall jet flow[J]. Journal of Propulsion Technology, 2014, 35(12): 1615-1622. (in Chinese MAO Xiaochen, LIU Bo, CAO Zhiyuan, et al. Research on corner separation control for compressor cascade with end-wall jet flow[J]. Journal of Propulsion Technology, 2014, 35(12): 1615-1622. (in Chinese)
[5]	秦勇, 宋彦萍, 陈浮, 等. 合成射流控制高速扩压叶栅二次流的数值模拟[J]. 航空动力学报, 2018, 33(4): 792-802. QIN Yong, SONG Yanping, CHEN Fu, et al. Numerical simulation of secondary flow control on high-speed compressor cascade with synthetic jets[J]. Journal of Aerospace Power, 2018, 33(4): 792-802. (in Chinese QIN Yong, SONG Yanping, CHEN Fu, et al. Numerical simulation of secondary flow control on high-speed compressor cascade with synthetic jets[J]. Journal of Aerospace Power, 2018, 33(4): 792-802. (in Chinese)
[6]	冯秀莲, 金东海, 桂幸民. 叶片弯掠对压气机静子叶片气动性能影响的三维数值模拟[J]. 航空动力学报, 2009, 24(10): 2338-2343. FENG Xiulian, JIN Donghai, GUI Xingmin. Numerical simulation of the aerodynamics performance of swept and curved blade on the compressor stator[J]. Journal of Aerospace Power, 2009, 24(10): 2338-2343. (in Chinese FENG Xiulian, JIN Donghai, GUI Xingmin. Numerical simulation of the aerodynamics performance of swept and curved blade on the compressor stator[J]. Journal of Aerospace Power, 2009, 24(10): 2338-2343. (in Chinese)
[7]	吴培根, 王如根, 郭飞飞, 等. 涡流发生器对高负荷扩压叶栅性能影响的机理分析[J]. 推进技术, 2016, 37(1): 49-56. WU Peigen, WANG Rugen, GUO Feifei, et al. Mechanism analysis of effects of vortex generator on high-load compressor cascade[J]. Journal of Propulsion Technology, 2016, 37(1): 49-56. (in Chinese WU Peigen, WANG Rugen, GUO Feifei, et al. Mechanism analysis of effects of vortex generator on high-load compressor cascade[J]. Journal of Propulsion Technology, 2016, 37(1): 49-56. (in Chinese)
[8]	李相君, 董杰忠, 崔义强, 等. 扩压叶栅角区-吸力面造型设计及流动控制机理[J]. 航空动力学报, 2020, 35(12): 2642-2653. LI Xiangjun, DONG Jiezhong, CUI Yiqiang, et al. Flow control mechanism of diffuser cascade corner-suction surface profiling design[J]. Journal of Aerospace Power, 2020, 35(12): 2642-2653. (in Chinese LI Xiangjun, DONG Jiezhong, CUI Yiqiang, et al. Flow control mechanism of diffuser cascade corner-suction surface profiling design[J]. Journal of Aerospace Power, 2020, 35(12): 2642-2653. (in Chinese)
[9]	HARVEY N W. Some effects of non-axisymmetric end wall profiling on axial flow compressor aerodynamics: Part Ⅰ linear cascade investigation[R]. Berlin, Germany: ASME Turbo Expo 2008: Power for Land, Sea, and Air, 2008.
[10]	胡书珍, 卢新根, 张宏武, 等. 亚音速轴流压气机转子非轴对称轮毂端壁的数值研究[J]. 工程热物理学报, 2009, 30(3): 385-388. HU Shuzhen, LU Xingen, ZHANG Hongwu, et al. Numerical investigation on a subsonic axial-flow compressor rotor with the implementation of non-axiasymmetric hub end wall[J]. Journal of Engineering Thermophysics, 2009, 30(3): 385-388. (in Chinese HU Shuzhen, LU Xingen, ZHANG Hongwu, et al. Numerical investigation on a subsonic axial-flow compressor rotor with the implementation of non-axiasymmetric hub end wall[J]. Journal of Engineering Thermophysics, 2009, 30(3): 385-388. (in Chinese)
[11]	唐海兵, 余又红, 李钰洁. 基于轮毂静压的非轴对称端壁造型[J]. 推进技术, 2018, 39(11): 2608-2614. TANG Haibing, YU Youhong, LI Yujie. Non-axisymmetric endwall profiling based on hub static pressure[J]. Journal of Propulsion Technology, 2018, 39(11): 2608-2614. (in Chinese TANG Haibing, YU Youhong, LI Yujie. Non-axisymmetric endwall profiling based on hub static pressure[J]. Journal of Propulsion Technology, 2018, 39(11): 2608-2614. (in Chinese)
[12]	刘波, 曹志远, 黄建, 等. 跨声速轴流压气机非轴对称端壁造型优化设计[J]. 推进技术, 2012, 33(5): 689-694. LIU Bo, CAO Zhiyuan, HUANG Jian, et al. Design optimization for a transonic compressor with implementation of non-axisymmetric endwall contouring[J]. Journal of Propulsion Technology, 2012, 33(5): 689-694. (in Chinese LIU Bo, CAO Zhiyuan, HUANG Jian, et al. Design optimization for a transonic compressor with implementation of non-axisymmetric endwall contouring[J]. Journal of Propulsion Technology, 2012, 33(5): 689-694. (in Chinese)
[13]	陈得胜, 刘波, 那振喆, 等. 针对轴流压气机的非轴对称端壁造型优化设计[J]. 燃气涡轮试验与研究, 2013, 26(1): 16-21, 52. CHEN Desheng, LIU Bo, NA Zhenzhe, et al. Optimized non-axisymmetric endwall contouring for axial compressor[J]. Gas Turbine Experiment and Research, 2013, 26(1): 16-21, 52. (in Chinese doi: 10.3969/j.issn.1672-2620.2013.01.007 CHEN Desheng, LIU Bo, NA Zhenzhe, et al. Optimized non-axisymmetric endwall contouring for axial compressor[J]. Gas Turbine Experiment and Research, 2013, 26(1): 16-21, 52. (in Chinese) doi: 10.3969/j.issn.1672-2620.2013.01.007
[14]	赵伟光, 金东海, 桂幸民. 压气机叶栅非轴对称端壁造型的优化设计[J]. 工程热物理学报, 2013, 34(6): 1047-1050. ZHAO Weiguang, JIN Donghai, GUI Xingmin. Design optimization of non-axisymmetric endwall contouring in compressor cascade[J]. Journal of Engineering Thermophysics, 2013, 34(6): 1047-1050. (in Chinese ZHAO Weiguang, JIN Donghai, GUI Xingmin. Design optimization of non-axisymmetric endwall contouring in compressor cascade[J]. Journal of Engineering Thermophysics, 2013, 34(6): 1047-1050. (in Chinese)
[15]	刘宝. 轴流压气机叶片与端区一体化优化设计[D]. 哈尔滨: 哈尔滨工业大学, 2014. LIU Bao. Integrated optimization design of axial compressor blade and end region[D]. Harbin: Harbin Institute of Technology, 2014. (in Chinese LIU Bao. Integrated optimization design of axial compressor blade and end region[D]. Harbin: Harbin Institute of Technology, 2014. (in Chinese)
[16]	REUTTER O, HEMMERT-POTTMANN S, HERGT A, et al. Endwall contouring and fillet design for reducing losses and homogenizing the outflow of a compressor cascade[R]. Dusseldorf, Germany: ASME Turbo Expo 2014: Turbine Technical Conference and Exposition, 2014.
[17]	LI Xiangjun, DONG Jiezhong, CHEN Hua, et al. The control of corner separation with parametric suction side corner profiling on a high-load compressor cascade[J]. Aerospace, 2022, 9(3): 172. doi: 10.3390/aerospace9030172
[18]	尤付浩, 李相君, 鲁庆, 等. 基于二次流控制规律的非轴对称端壁造型优化设计[J]. 航空动力学报, 2024, 39(2): 20220215. YOU Fuhao, LI Xiangjun, LU Qing, et al. Optimal design of non-axisymmetric end wall shape based on secondary flow control law[J]. Journal of Aerospace Power, 2024, 39(2): 20220215. (in Chinese YOU Fuhao, LI Xiangjun, LU Qing, et al. Optimal design of non-axisymmetric end wall shape based on secondary flow control law[J]. Journal of Aerospace Power, 2024, 39(2): 20220215. (in Chinese)
