Design method of tenon joint structure of resin matrix braided composite
-
摘要:
开展了树脂基编织复合材料榫连接结构设计方法研究。以名义许用应力为设计基准，结合涂层接触应力，对燕尾榫进行参数提取与参数化建模，给出了燕尾榫接触面榫连接结构的设计流程和设计准则。研究得到了结构参数的详细计算方法。结合燕尾榫几何尺寸和纱线密度，根据厚度确定了榫头部分的织造参数变化和增减纱工艺，建立了树脂基编织复合材料变厚度标准有限元细观模型。结合等厚度与变厚度刚度预测方法，进行尺度分离和榫连接结构应力分析。结果表明：根据此设计方法，燕尾榫榫连接结构未产生严重应力集中，接触应力与等效应力都在材料强度范围以内。

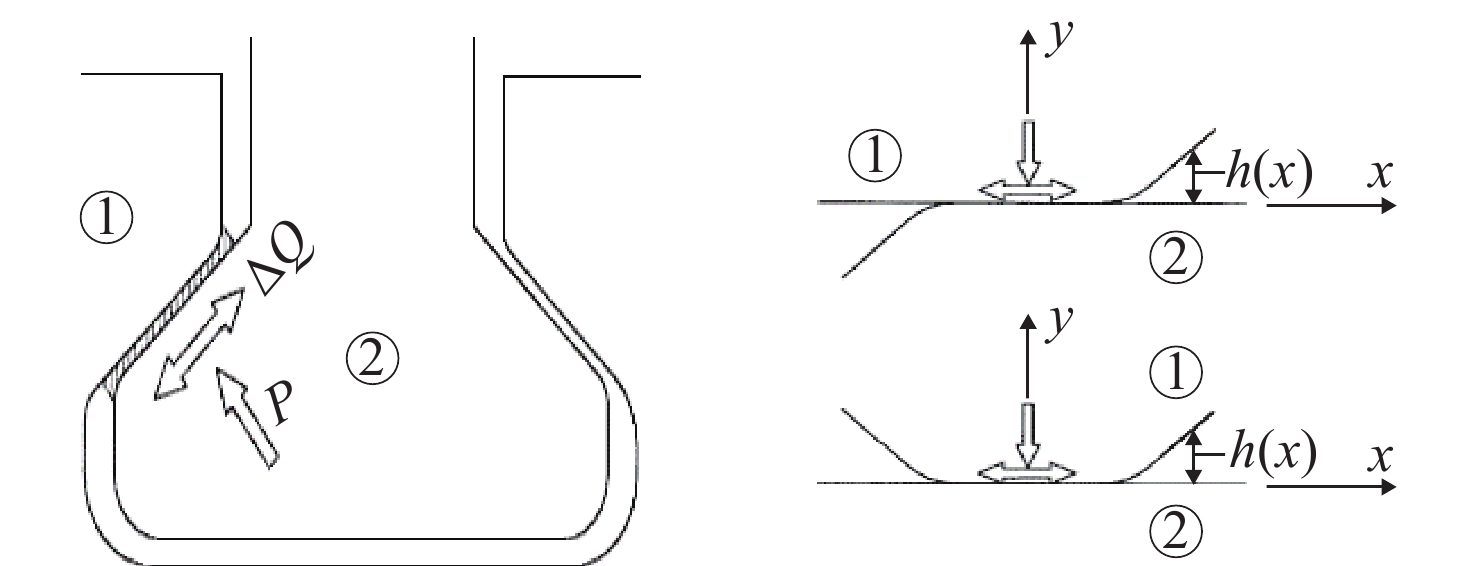

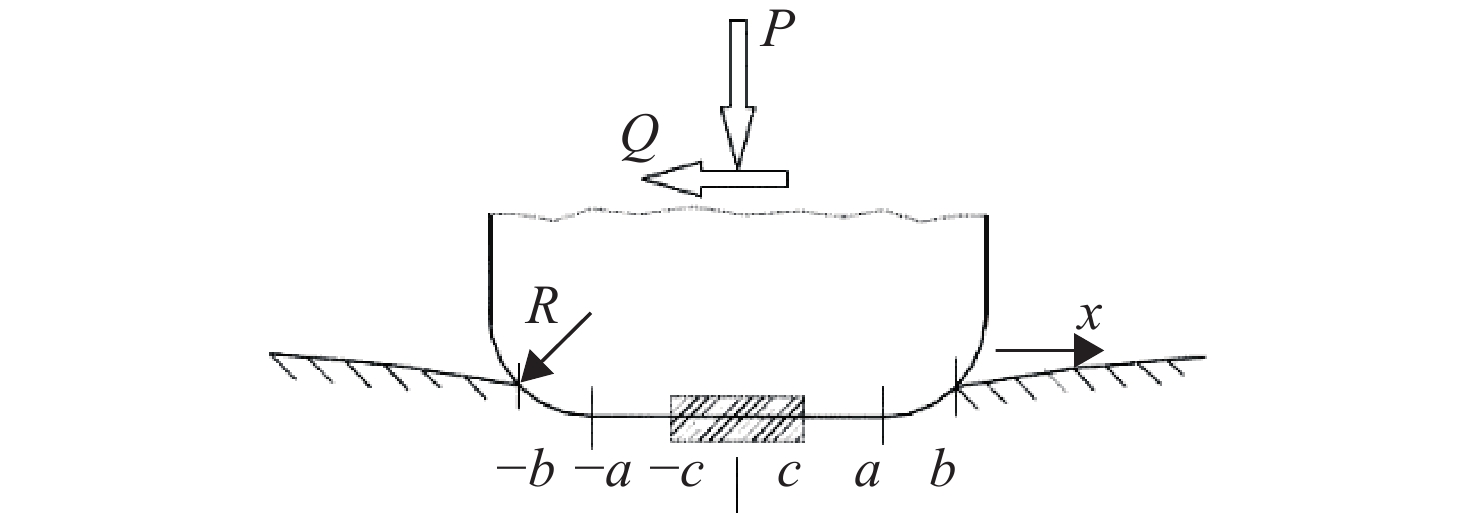

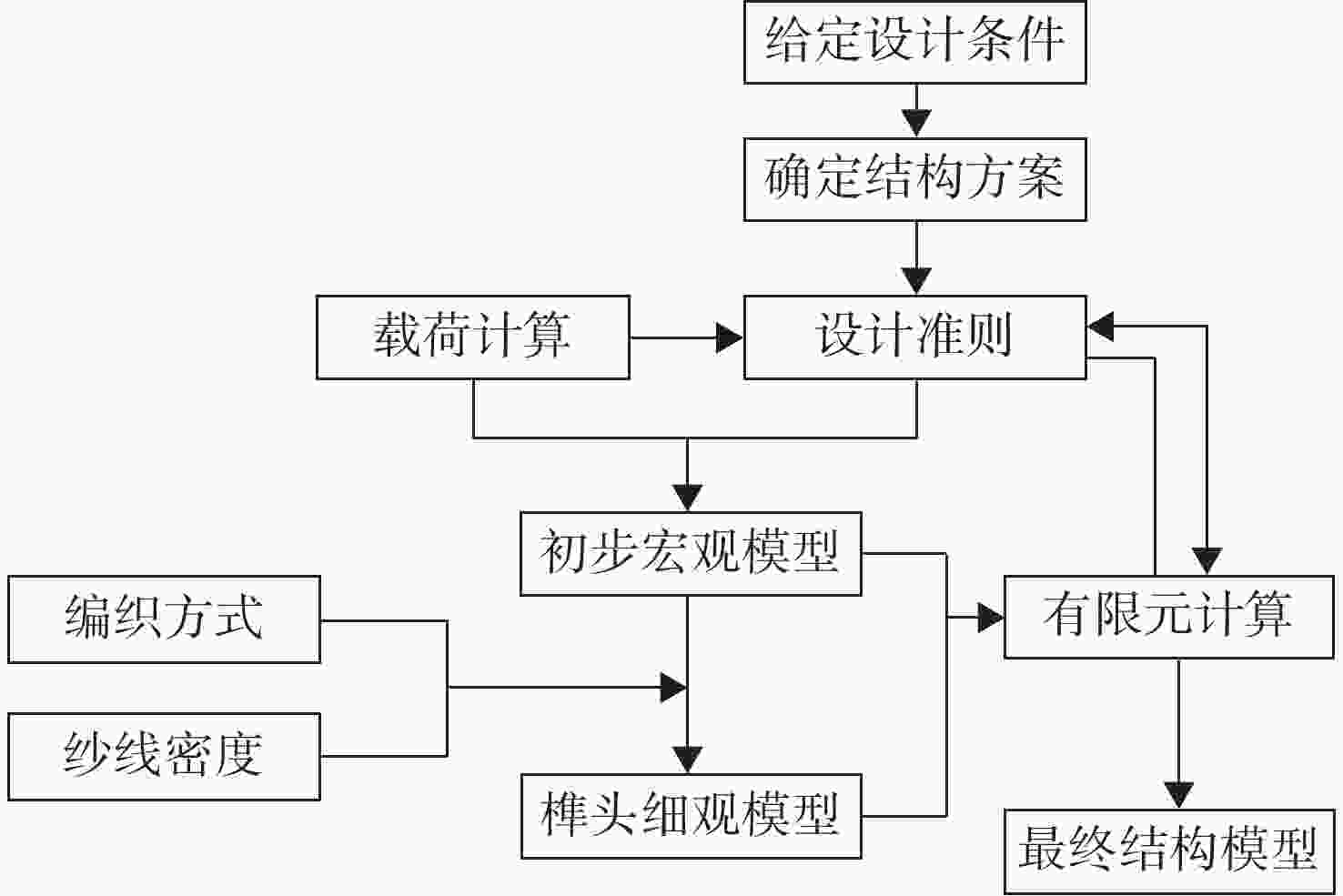

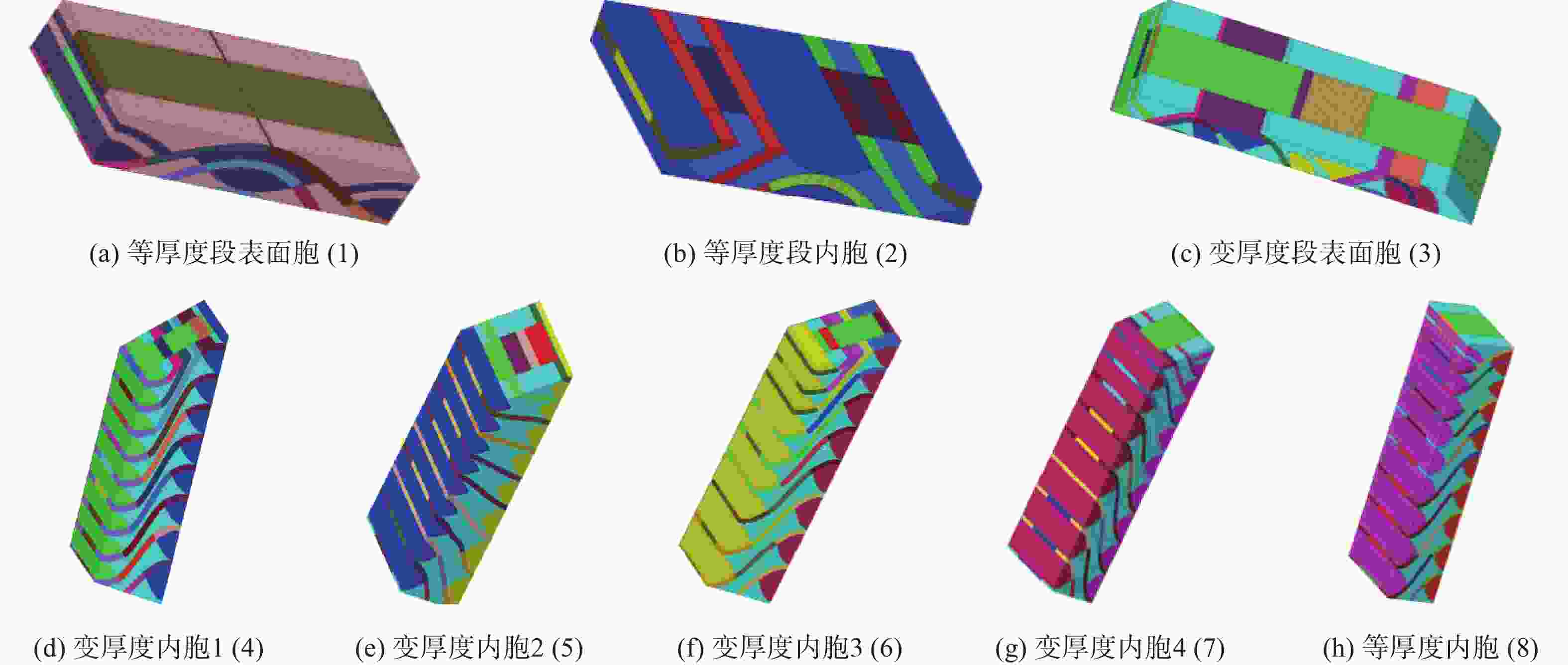

Abstract:The research on the design method of tenon joint structure of resin matrix braided composites was carried out. Taking the nominal allowable stress as the design basis, combined with the coating contact stress, the parameters of dovetail joint were extracted and modeled, and the design process and design criteria of dovetail joint were given. The detailed calculation method of structural parameters was obtained. Combined with the dovetail tenon geometric size and yarn density, the weaving parameters of the tenon part and the yarn increase and decrease process were determined according to the thickness, and the standard finite element meso model of resin matrix braided composites with variable thickness was established. The scale separation hypothesis was proposed to analyze the stress of the tenon joint structure by combining the equal thickness and variable thickness stiffness prediction methods. The results showed that the stress distribution of dovetail tenon joint structure did not have serious stress concentration due to geometry, and the contact stress and equivalent stress fell within the range of material strength.
-
图 1 树脂基编织复合材料燕尾榫榫连接结构模型
Figure 1. Model of dovetail joint structure of resin matrix braided composites

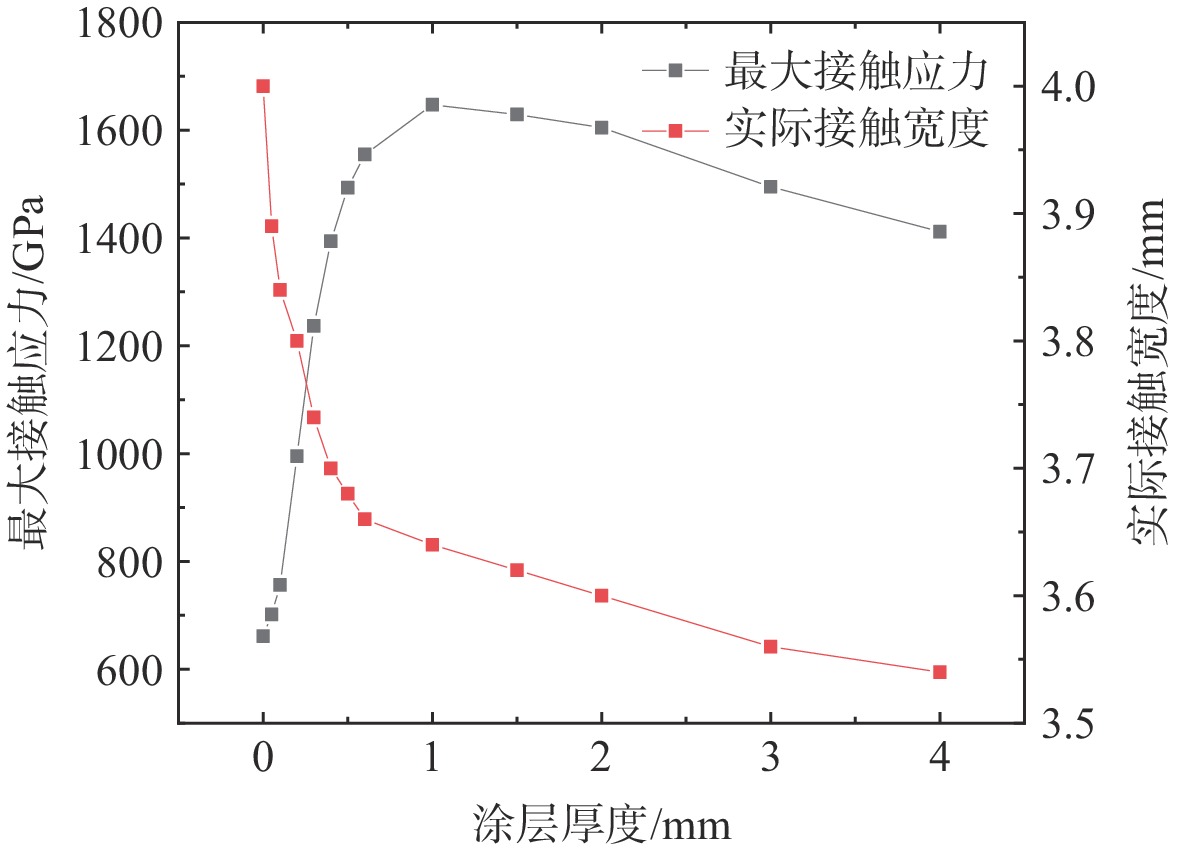

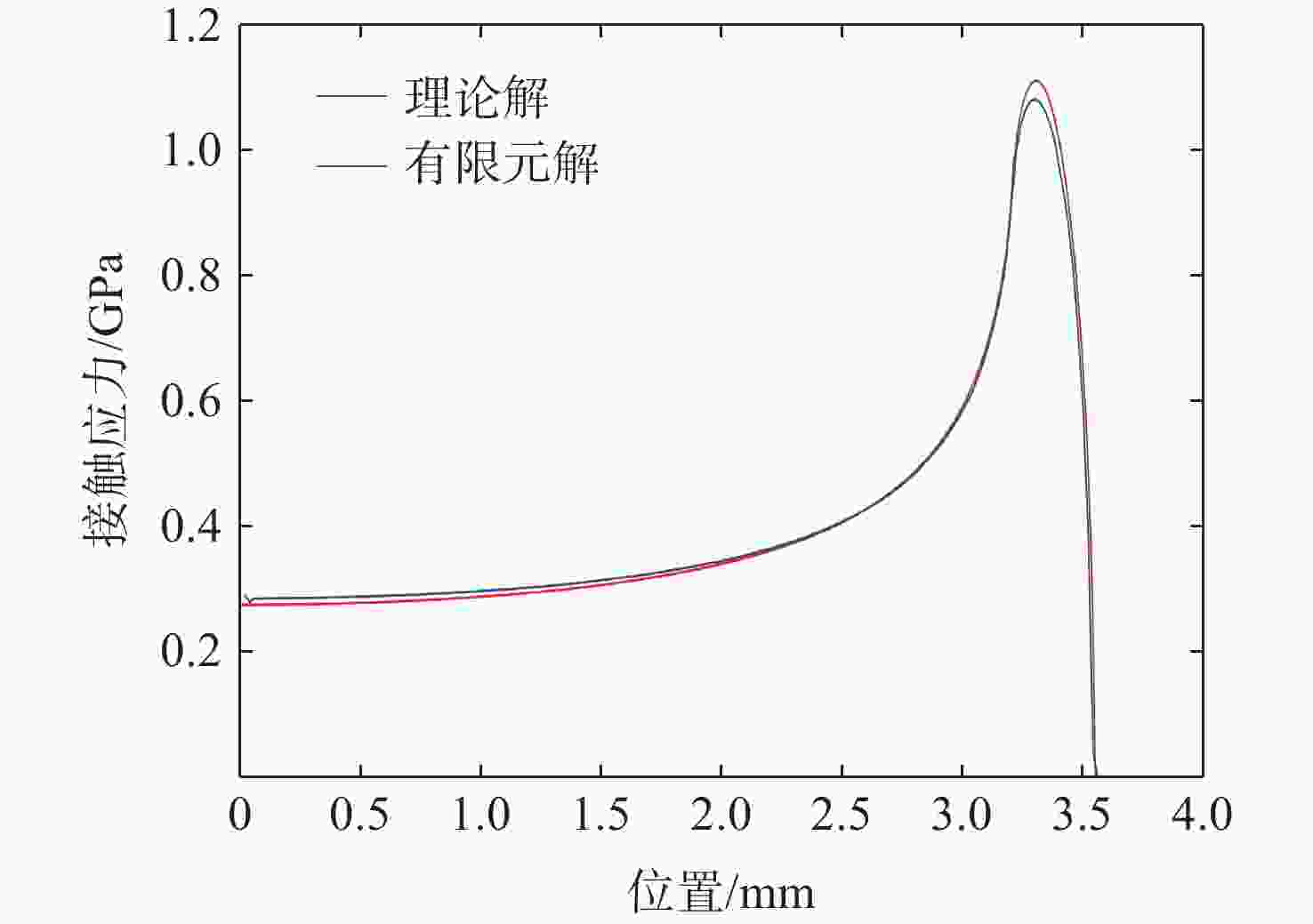

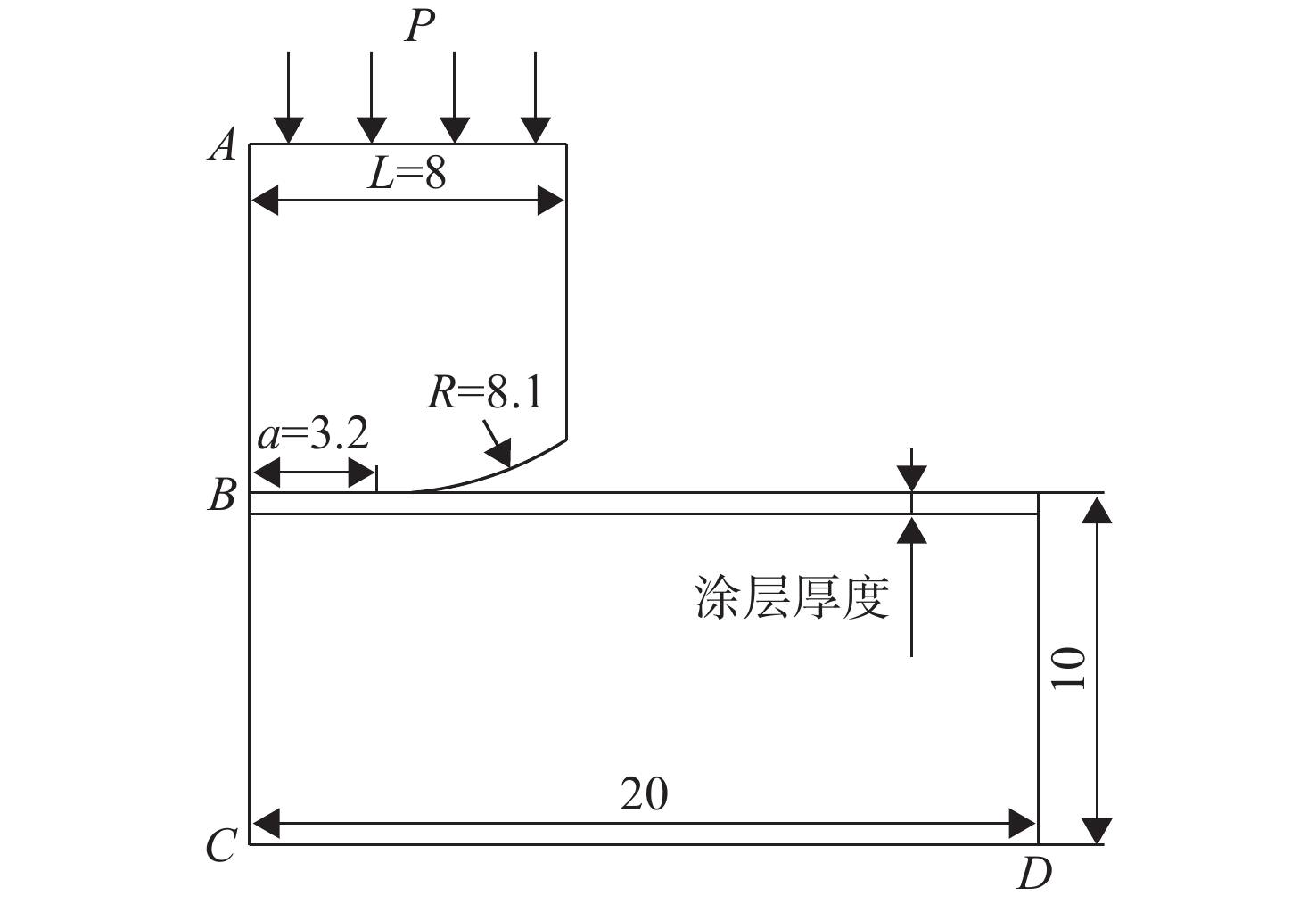

图 23 不同涂层厚度下接触应力和接触宽度变化图
Figure 23. Variation diagram of contact stress and contact width at different coating thicknesses

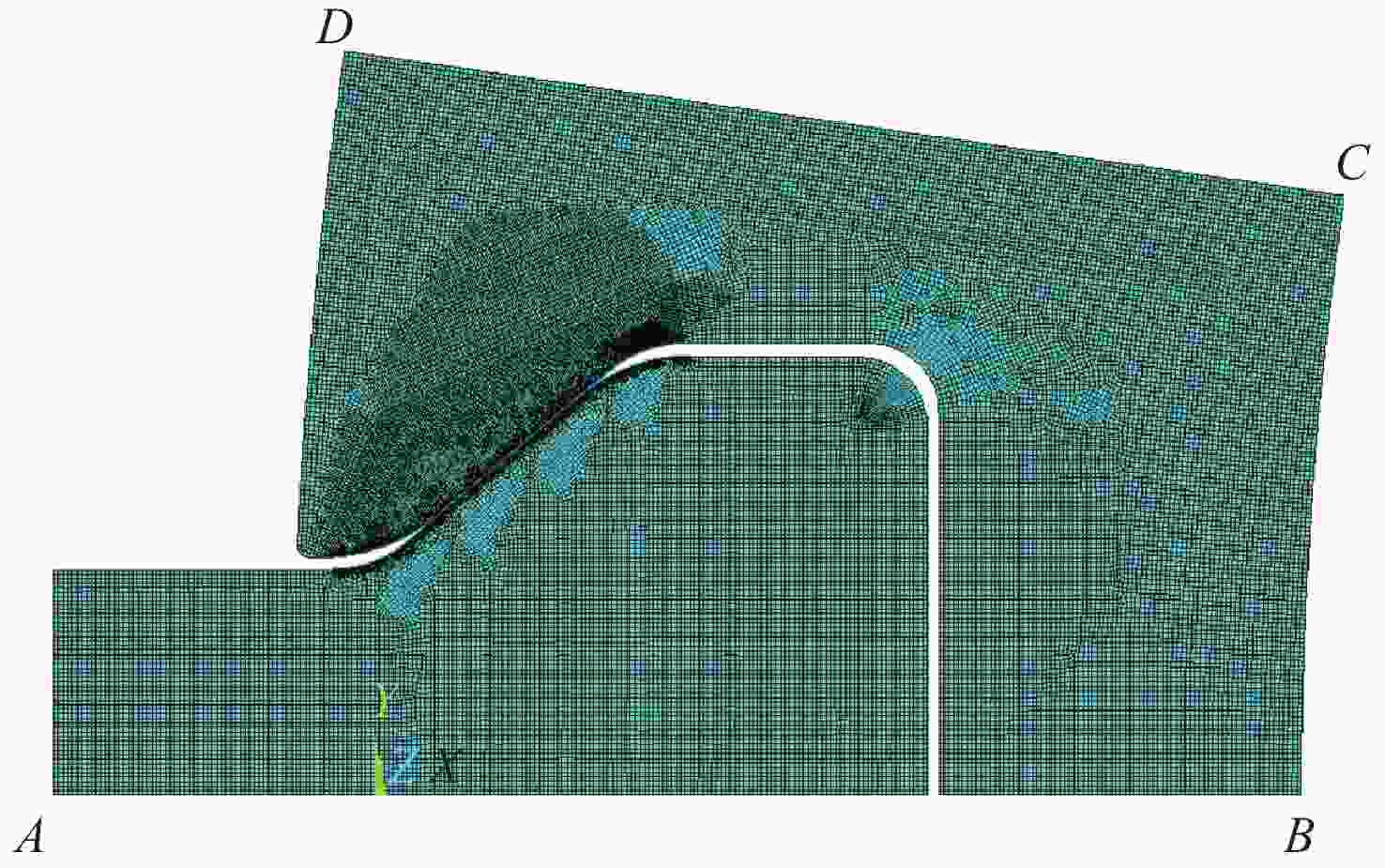

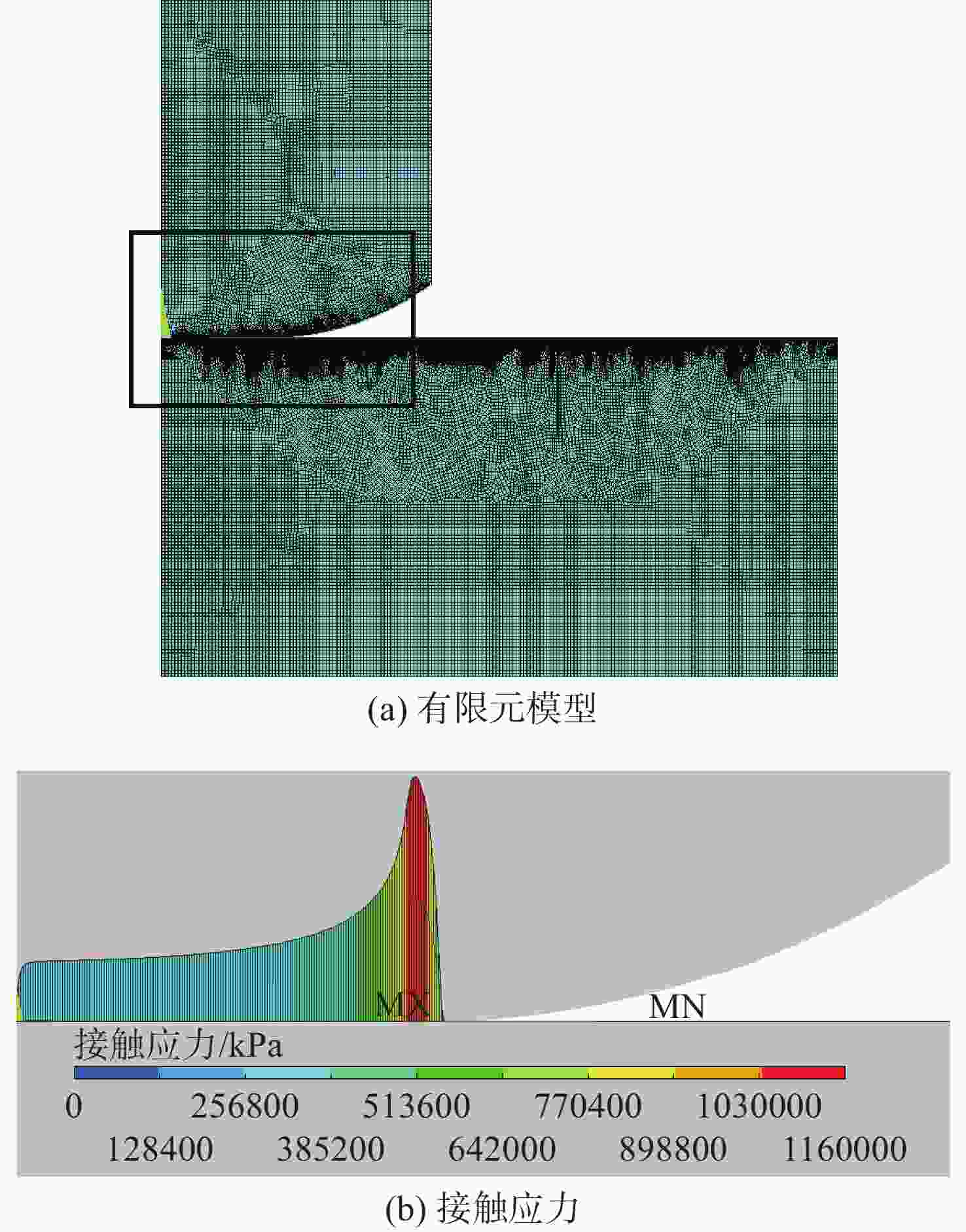

图 24 榫连接结构有限元计算模型
Figure 24. Finite element computational model of tenon joint structure

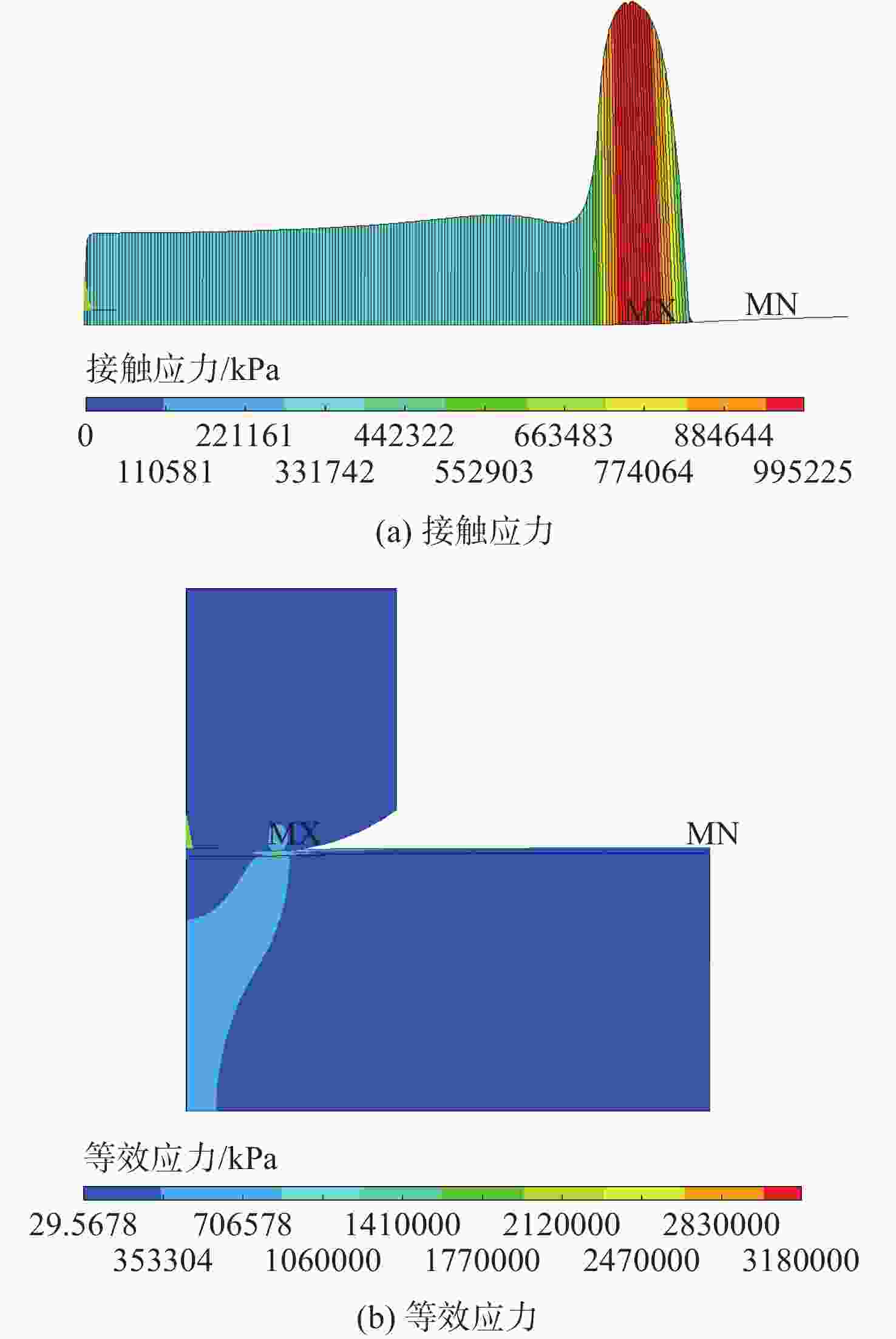

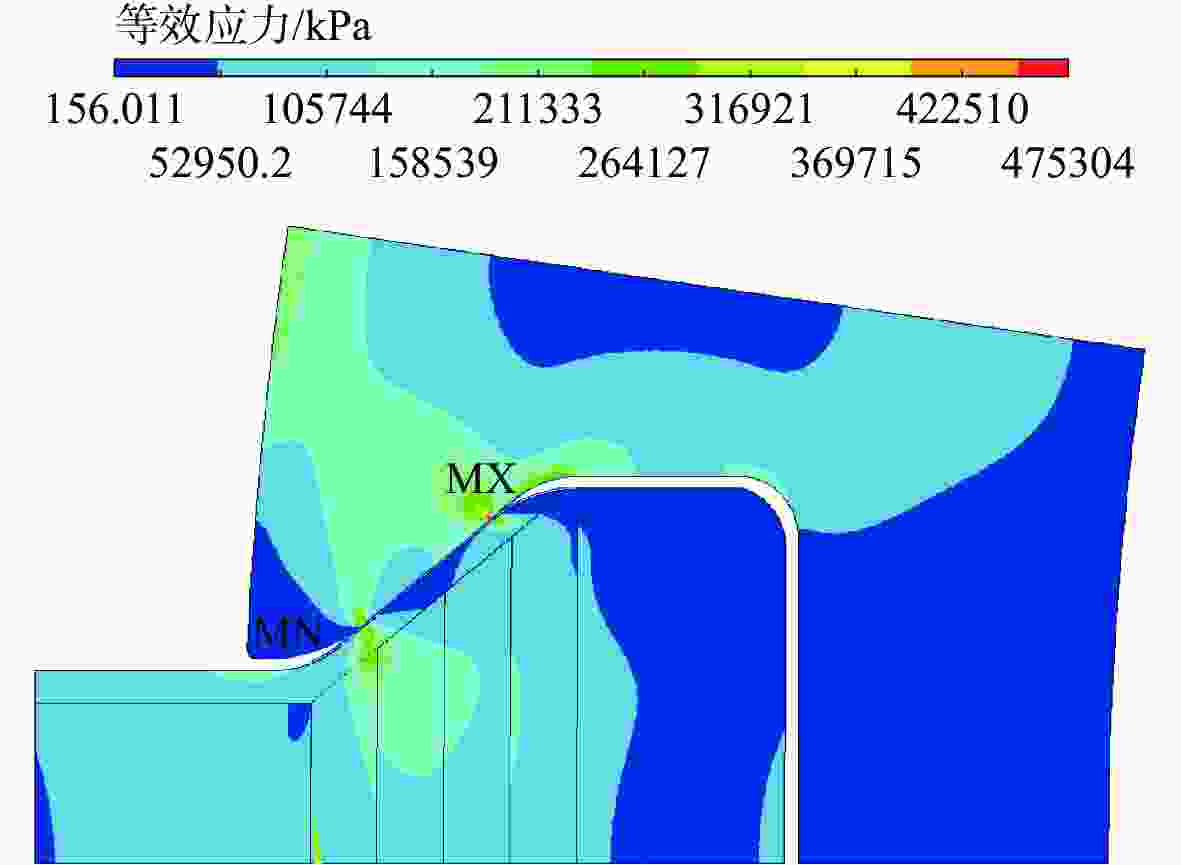

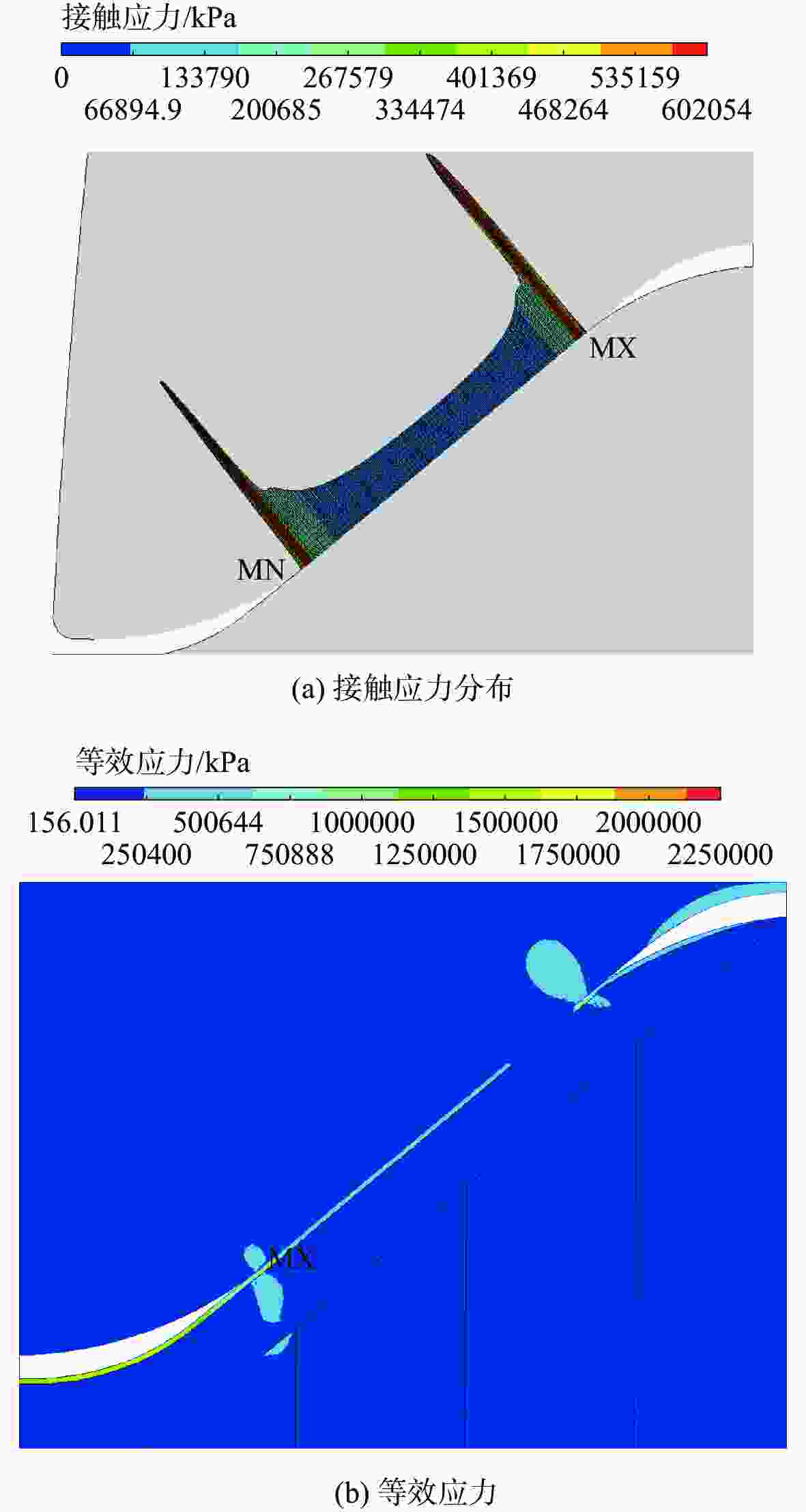

图 25 榫连接结构接触应力和等效应力示意图
Figure 25. Contact stress and equivalent stress diagram of tenon joint structure

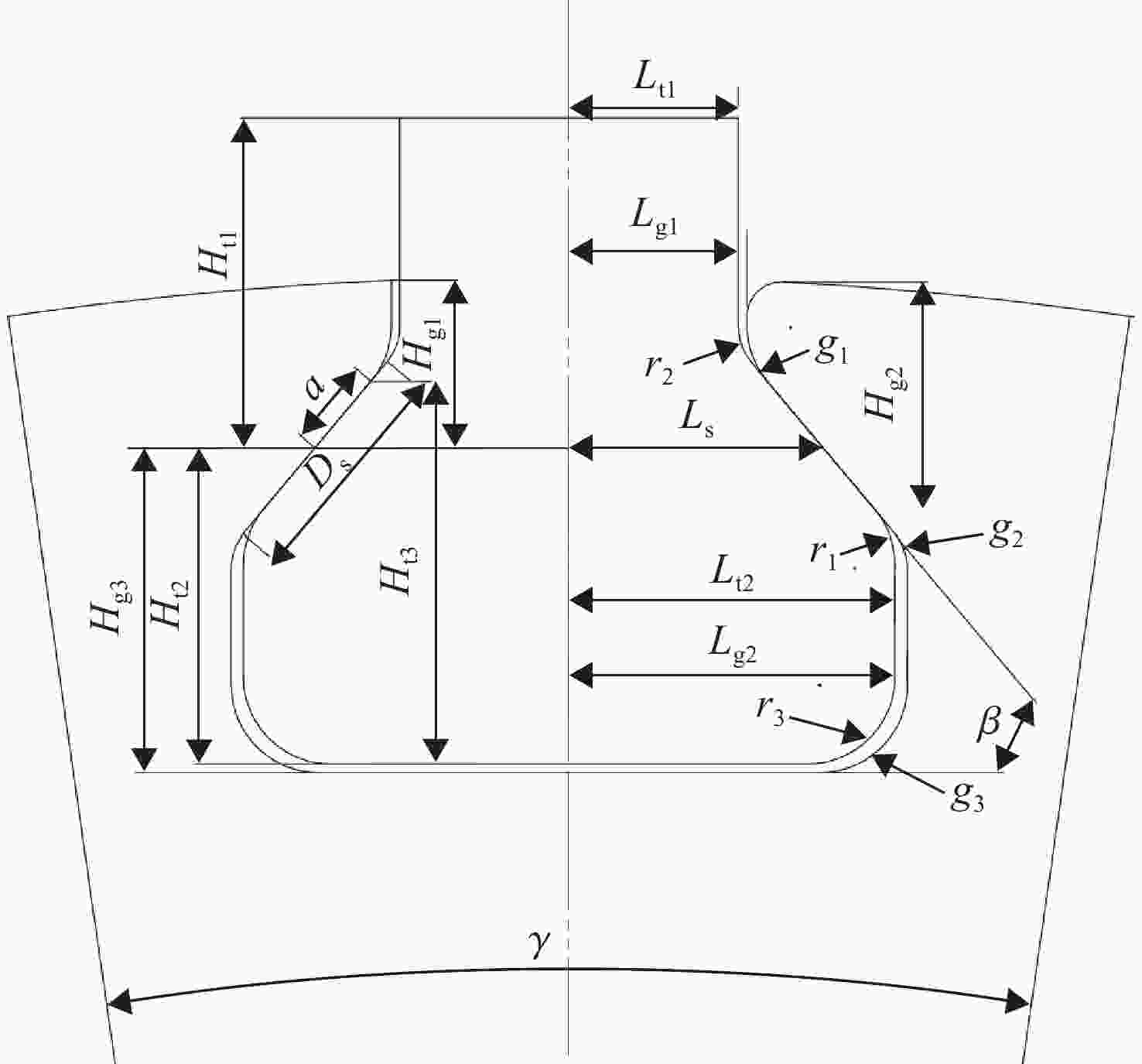

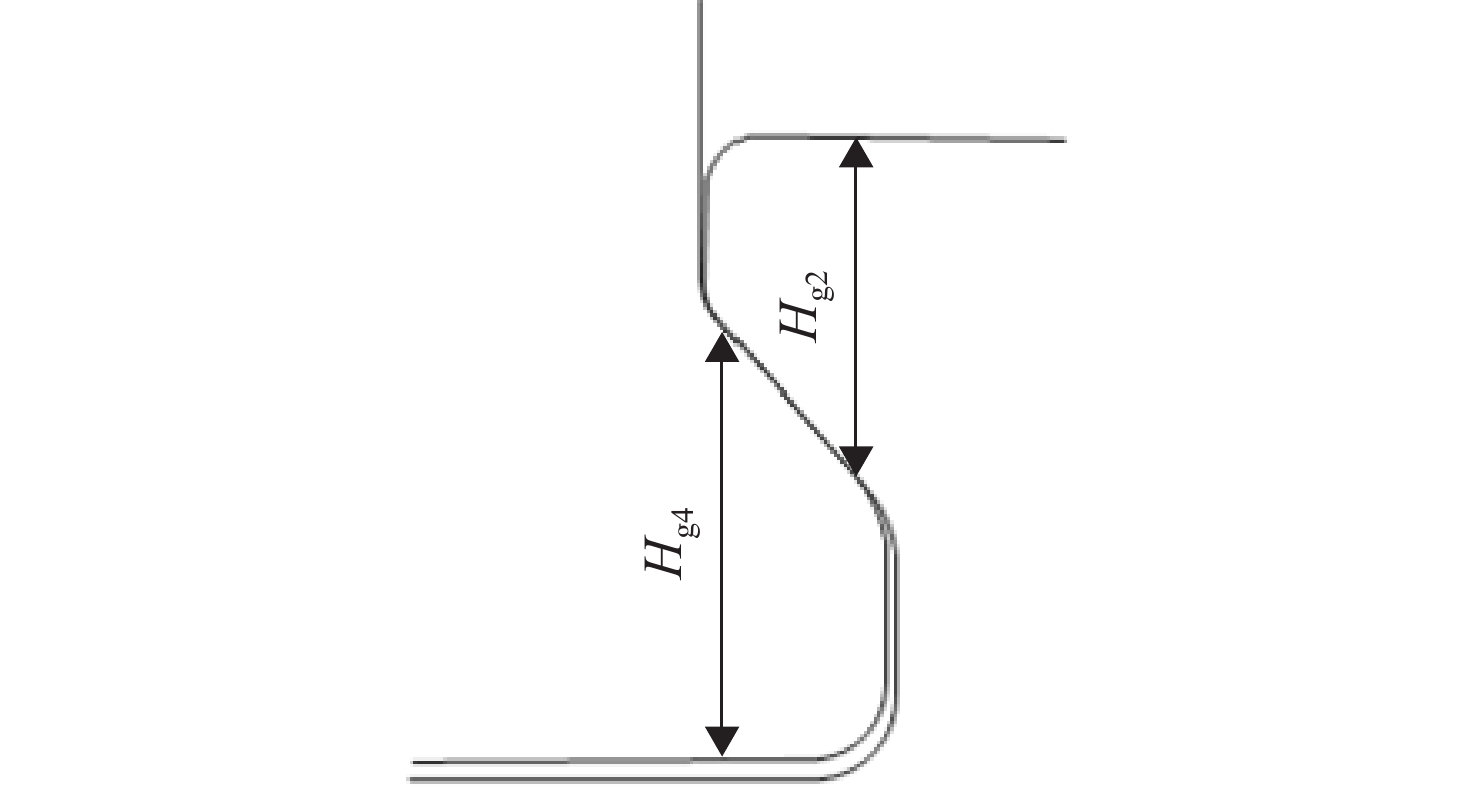

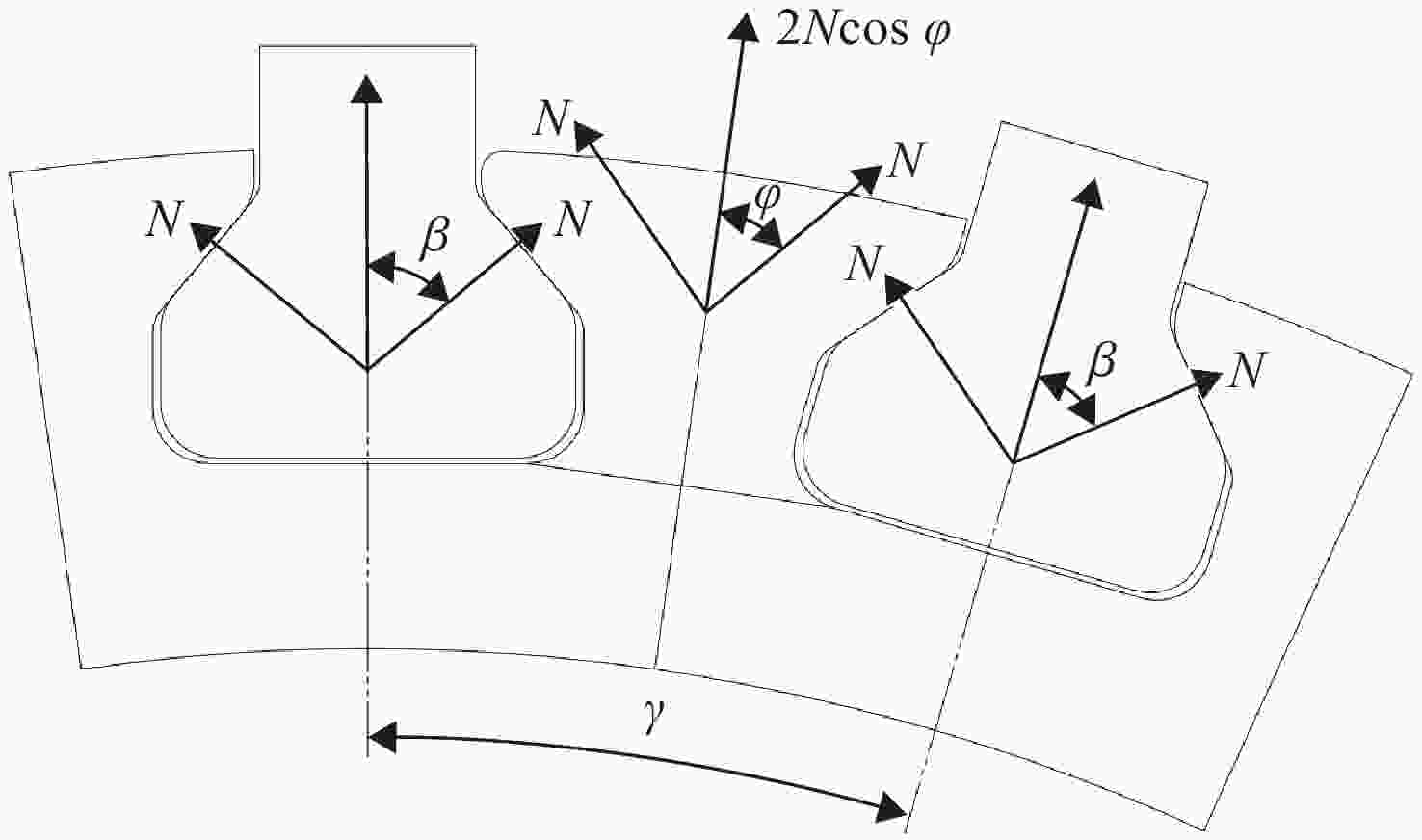

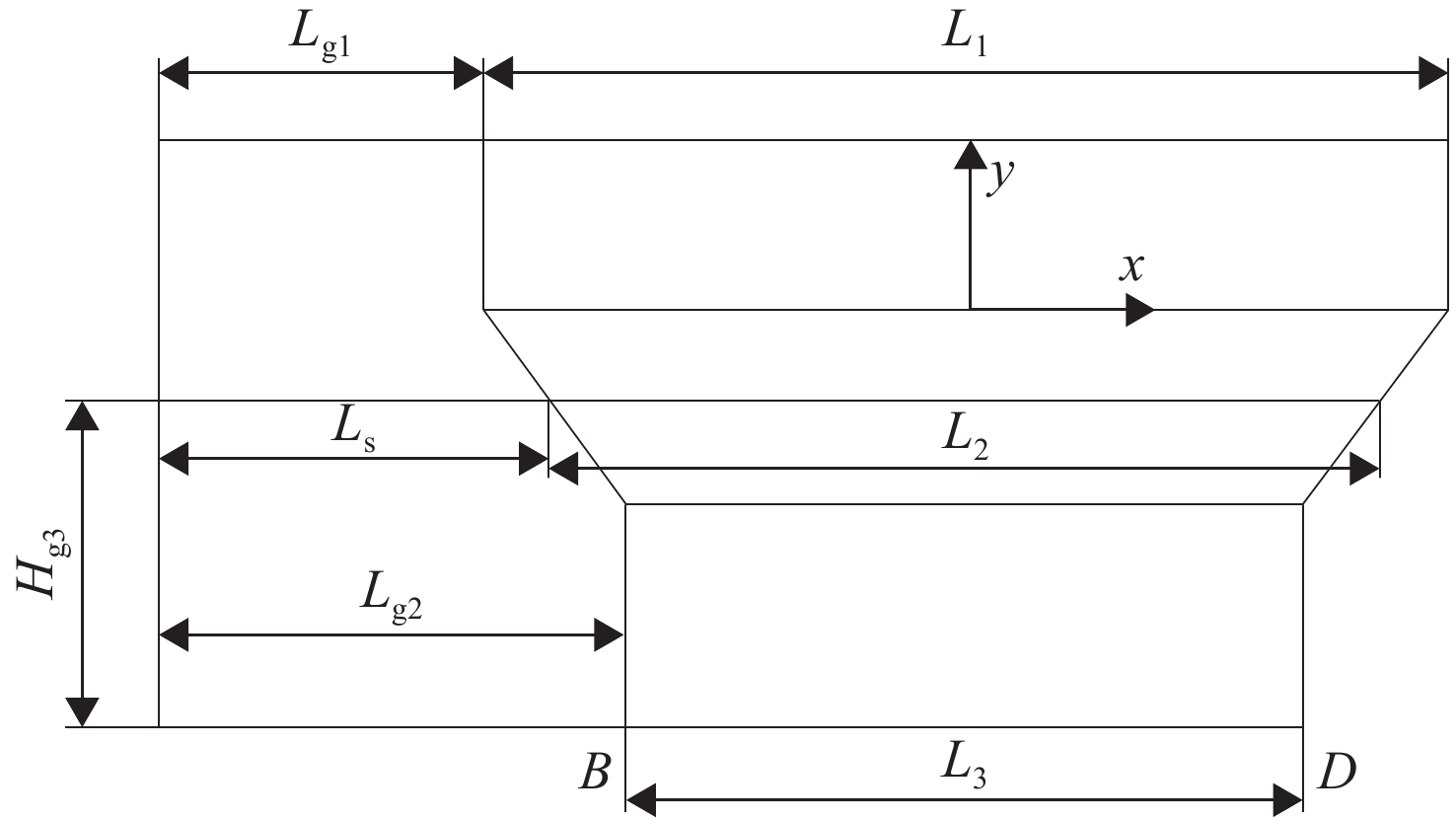

表 1 燕尾榫连接结构参量提取
Table 1. Extraction of structural parameters of dovetail tenon joint structure
参量名称 量符号 已知参量 基准面半径 ${R_{\mathrm{j}}}$ 叶片数目 ${N_{\text{u}}}$ 齿底间隙 $c$ 榫槽齿顶倒角半径 ${g_4}$ 榫头轴向长度 $d$ 伸根高 ${H_{{\mathrm{ts}}}}$ 工作转速 $n$ 设计参量 接触面侧角 $\beta $ 涂层厚度 $\delta $ 榫槽接触面下过渡圆弧半径 ${g_2}$ 榫头底面上过渡圆弧半径 ${r_3}$ 关联参量 榫头接触面上过渡圆弧半径 ${r_2}$ 榫头接触面下过渡圆弧半径 ${r_1}$ 榫槽接触面上过渡圆弧半径 ${g_1}$ 榫槽底面上过渡圆弧半径 ${g_3}$ 榫头肩宽 ${L_{\mathrm{s}}}$ 榫头颈宽 ${L_{{\mathrm{t}}1}}$ 接触直线段长度 ${D_{\mathrm{e}}}$ 榫头深 ${H_{{\mathrm{t}}1}}$ 榫槽深 ${H_{{\mathrm{g}}1}}$ 榫槽齿厚 ${H_{{\mathrm{g}}2}}$ 榫头宽 ${L_{{\mathrm{t}}2}}$ 榫槽颈宽 ${L_{{\mathrm{g}}2}}$ 轴心角 $\gamma $ 榫槽口宽 ${L_{{\mathrm{g}}1}}$
下载: 导出CSV
表 2 设计已知变量
Table 2. Known variables for design
${{{R}}_{\text{j}}}$/mm ${{n}}$/（r/min） Ns/片 ${{{g}}_2}$/（°） ${\beta}$/（°） 215.4 10000 22 5 50
下载: 导出CSV

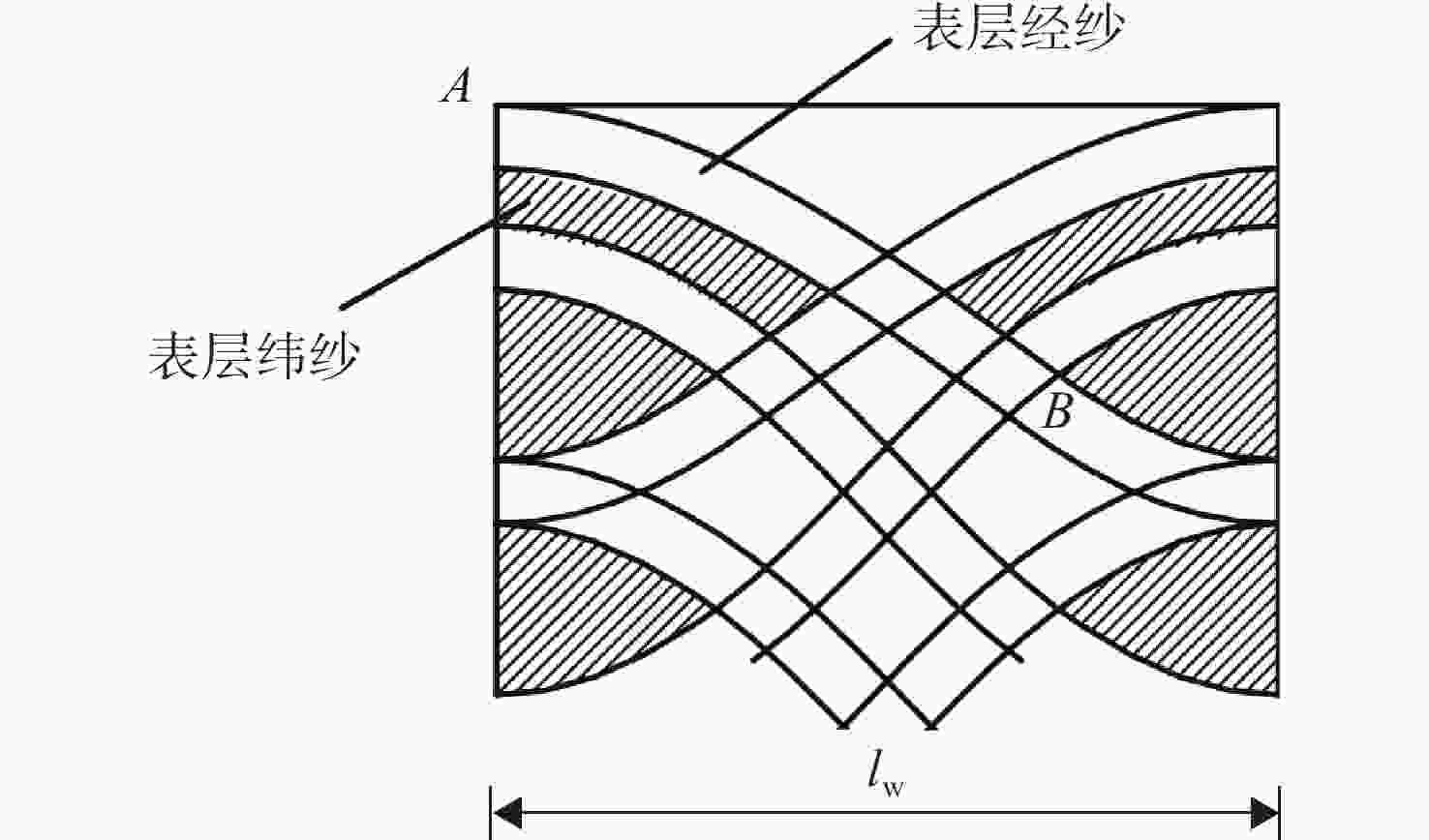

表 3 编织参数
Table 3. Braiding parameters
${{{L}}_{{\text{t}}1}}$/mm ${{{L}}_{{\text{t}}2}}$/mm ${{{P}}_{\text{j}}}$/（根/cm） ${{{P}}_{\text{w}}}$/（根/cm） 9.65 18.8 3 3
下载: 导出CSV

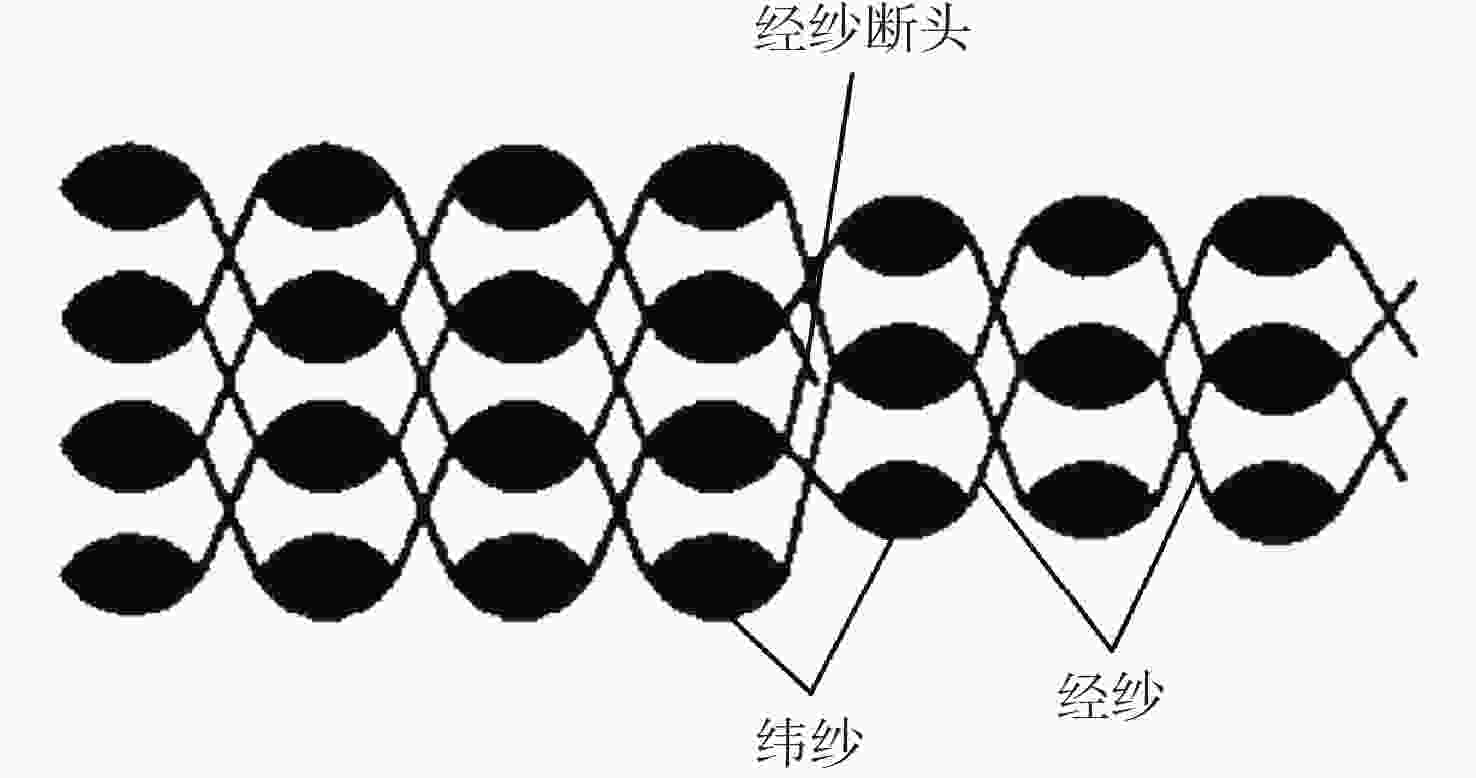

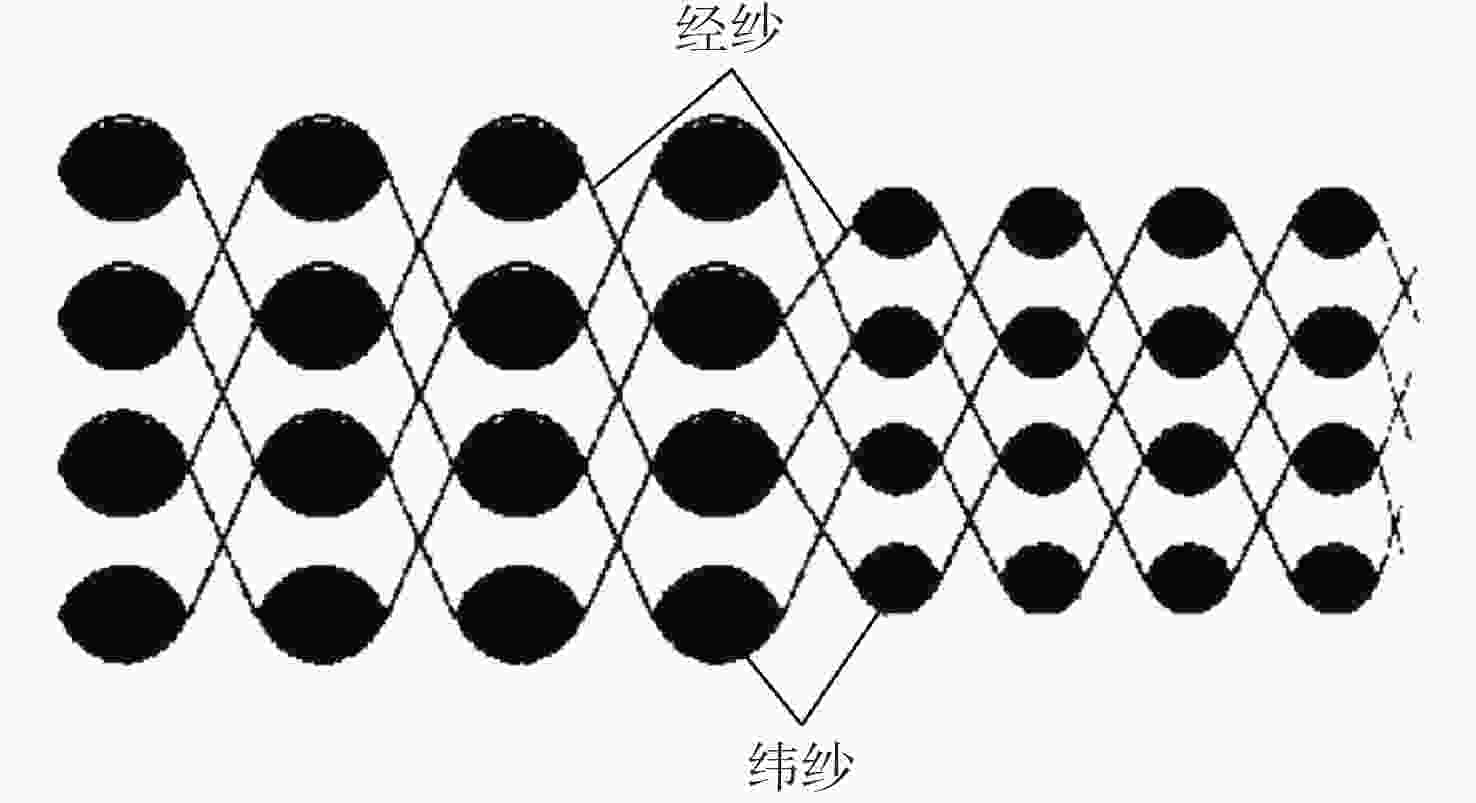

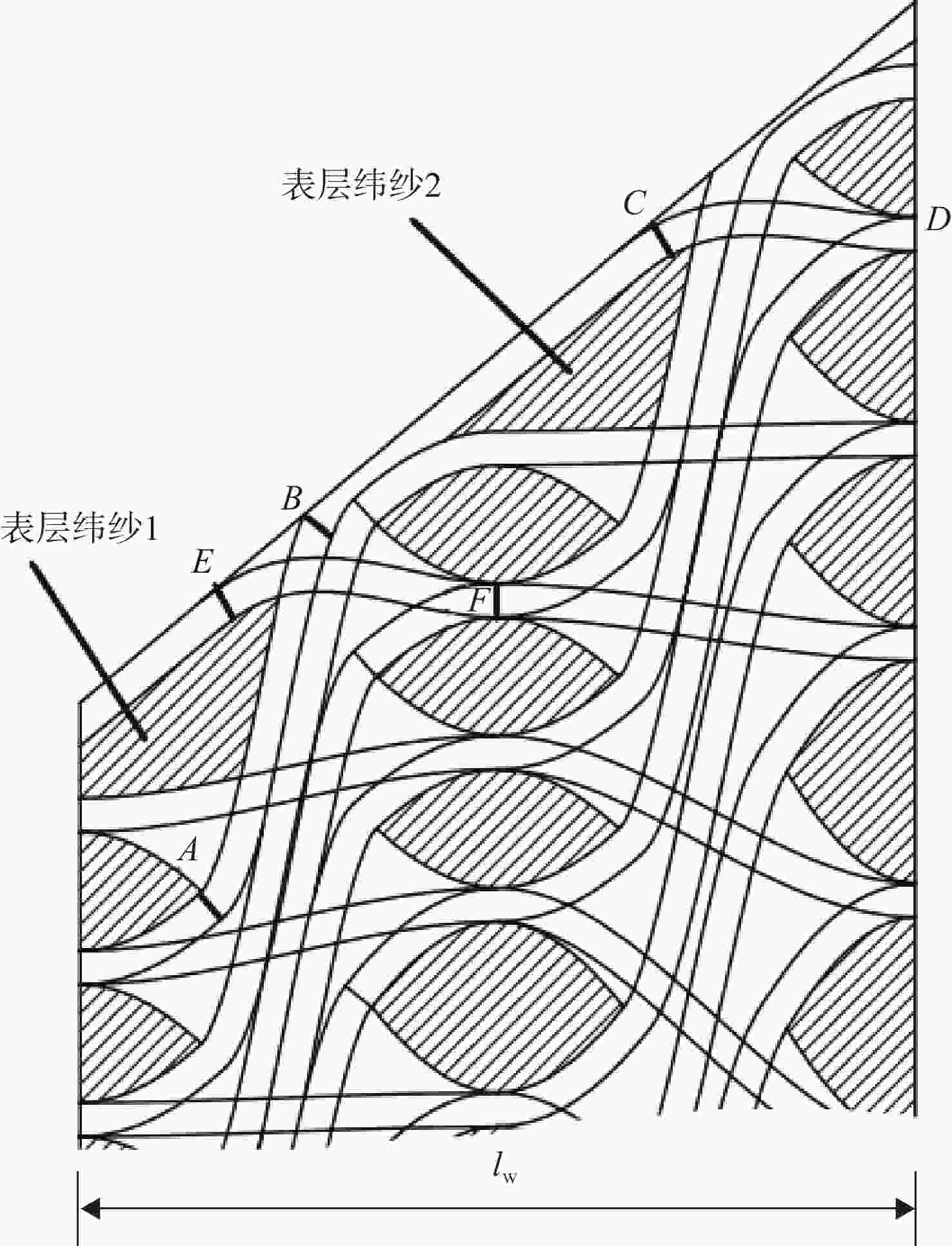

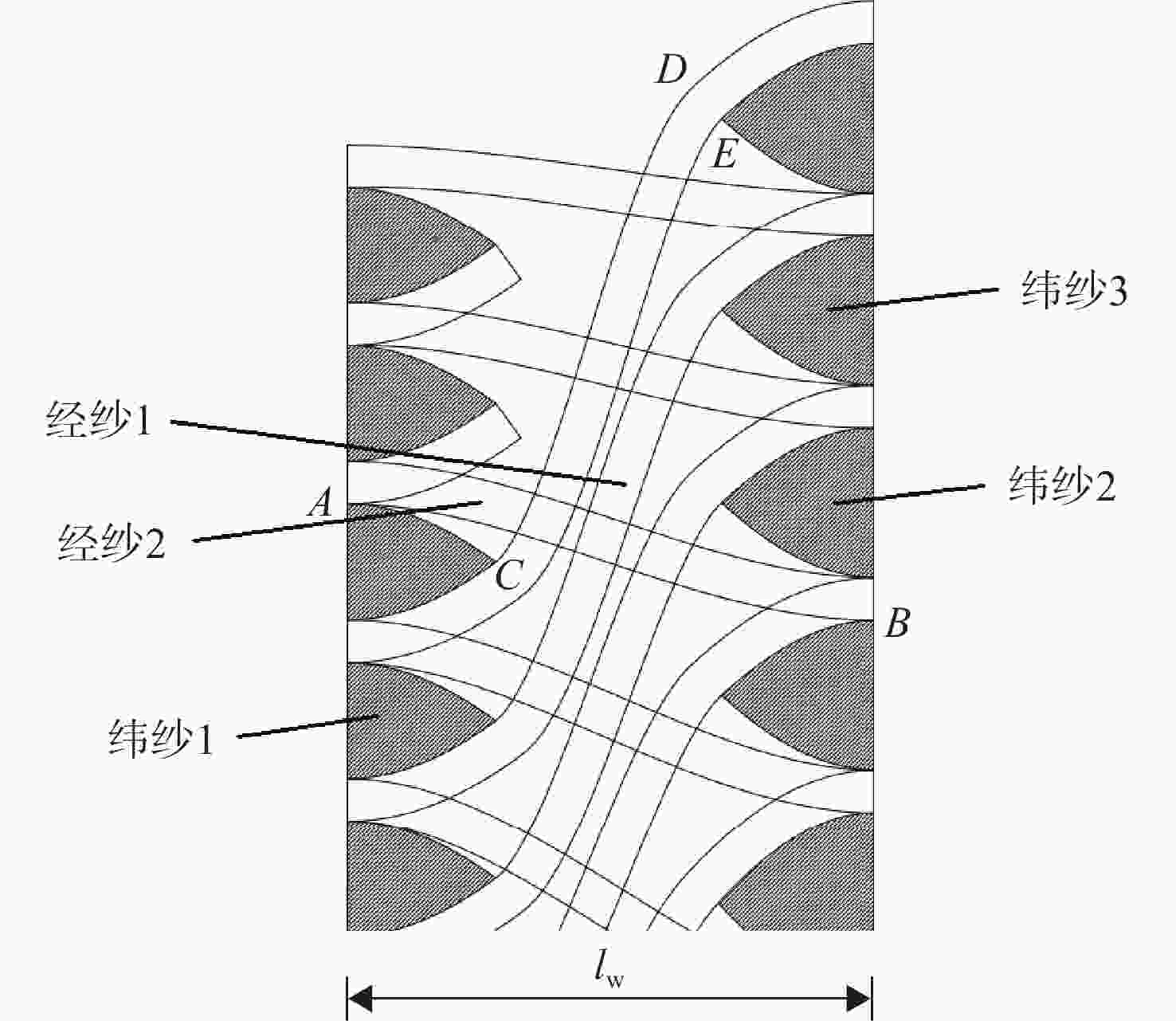

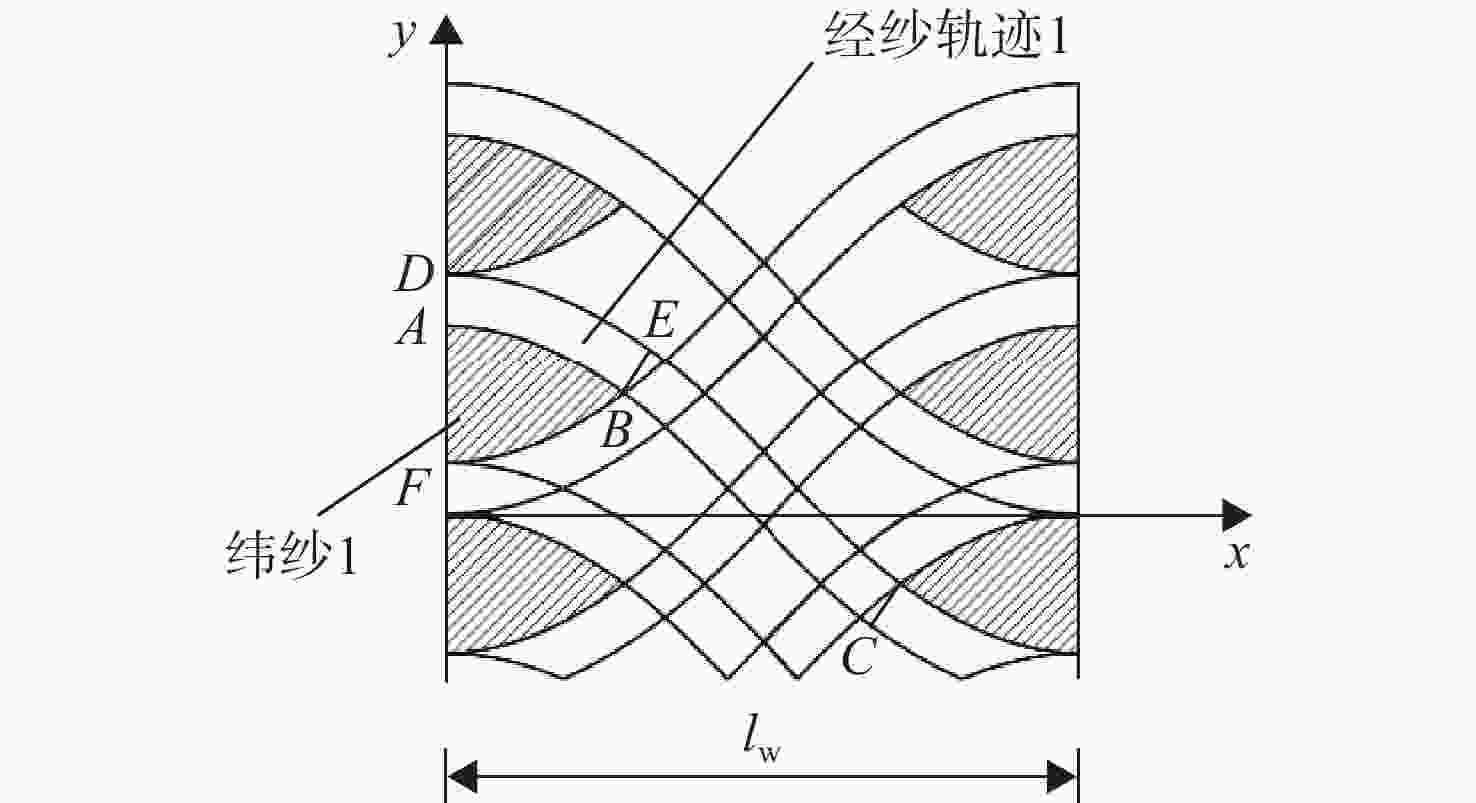

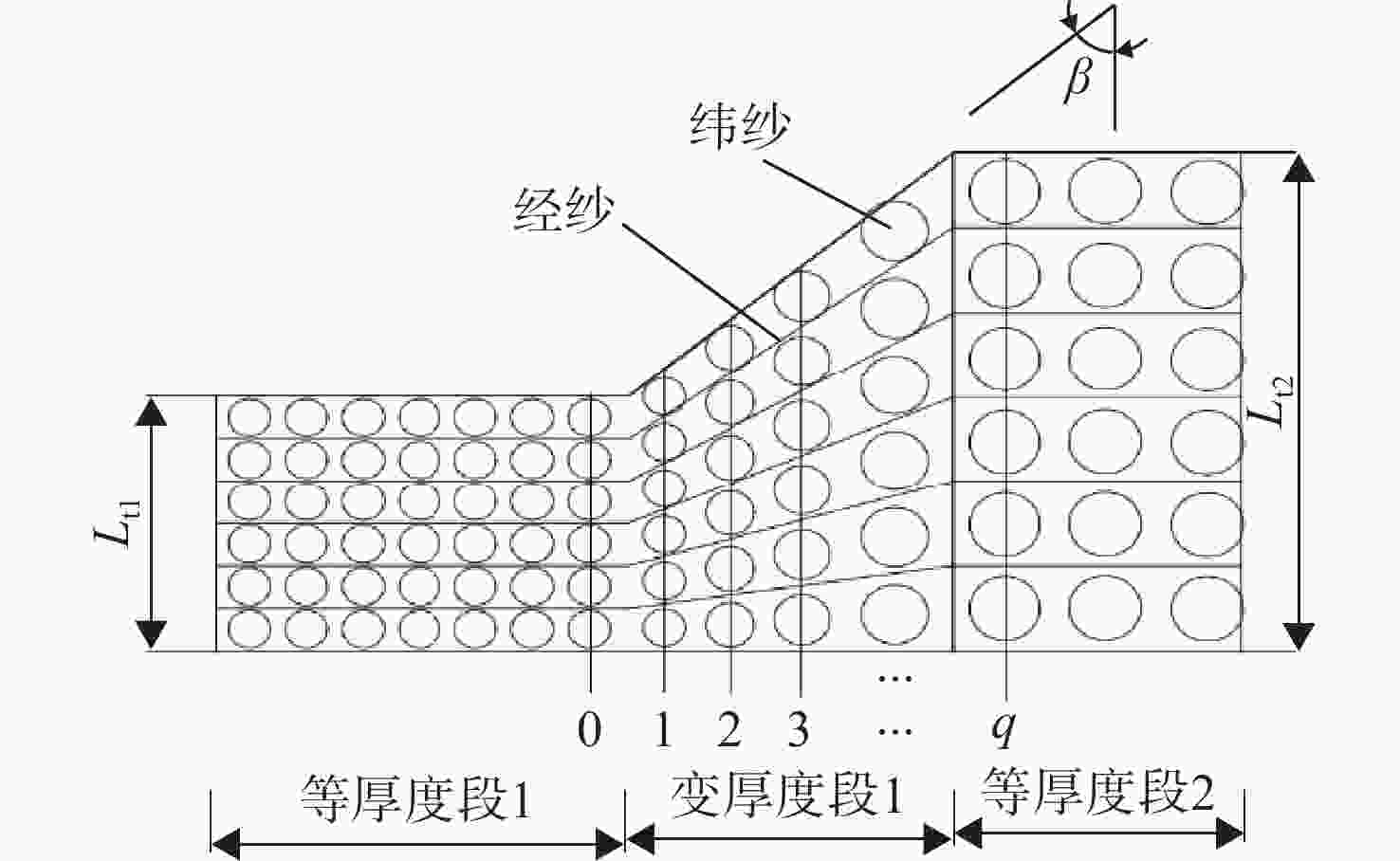

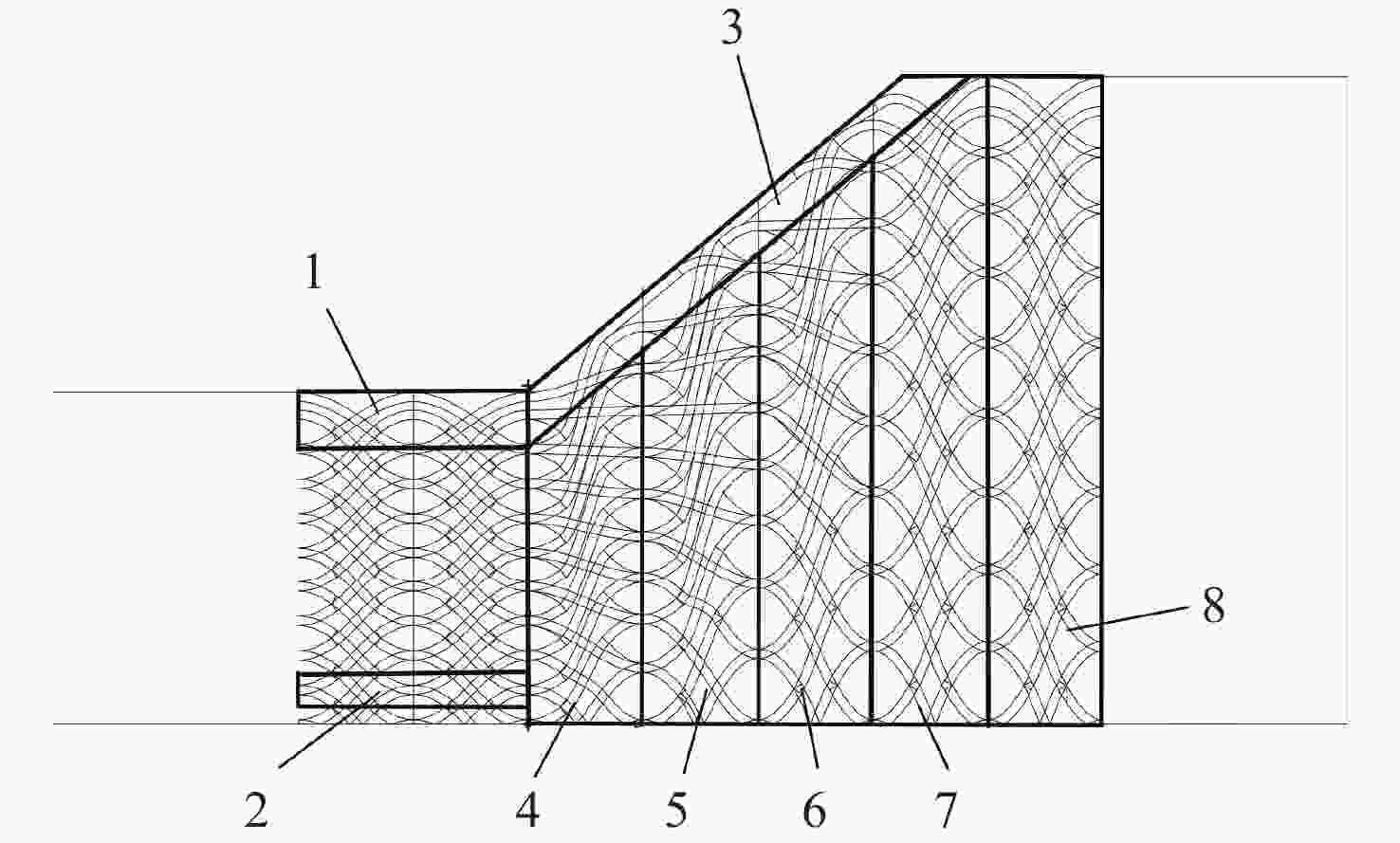

表 4 各变厚度截面纬纱股数
Table 4. Number of weft yarns per variable thickness section
位置 厚度/mm 纬纱（T300-3K合股）
根数（从中间到边缘）真实 设计 ${L_0}$ 9.65 10.14 6, 6, 6, 6, 6, 6, 6, 6, 6, 8 ${L_1}$ 12.45 12.9 12, 10, 8, 8, 8, 8, 8, 8, 8, 8 ${L_2}$ 15.24 15.82 16, 16, 14, 12, 12, 12, 8, 8, 8, 8 ${L_3}$ 18.04 18.74 18, 18, 18, 16, 16, 16, 12, 12, 8, 8 ${L_4}$ 18.8 18.95 18, 18, 18, 18, 16, 16, 14, 12, 8, 8
下载: 导出CSV
-
[1] MARSH G. Aero engines lose weight thanks to composites[J]. Reinforced Plastics,2012,56(6): 32-35. doi: 10.1016/S0034-3617(12)70146-7 [2] 杜善义. 先进复合材料与航空航天[J]. 复合材料学报,2007,24(1): 1-12. DU Shanyi. Advanced composite materials and aerospace engineering[J]. Acta Materiae Compositae Sinica,2007,24(1): 1-12. (in ChineseDU Shanyi. Advanced composite materials and aerospace engineering[J]. Acta Materiae Compositae Sinica, 2007, 24(1): 1-12. (in Chinese) [3] 马刚. 压气机燕尾榫联接结构微动疲劳寿命研究[D]. 南京: 南京航空航天大学,2004. MA Gang. Study on fretting fatigue life of compressor dovetail joint connection structure[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2004. (in ChineseMA Gang. Study on fretting fatigue life of compressor dovetail joint connection structure[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2004. (in Chinese) [4] 《国际航空》编辑部. 斯贝MK202发动机应力标准[M]. 北京: 《国际航空》编辑部,1979. International Aviation Editorial Department . Spey MK202 engine stress standard[M]. Beijing: International Aviation Editorial Department,1979. (in ChineseInternational Aviation Editorial Department . Spey MK202 engine stress standard[M]. Beijing: International Aviation Editorial Department, 1979. (in Chinese) [5] 王鹏. 变厚度三维机织物的制备与结构分析[D]. 上海: 东华大学,2012. WANG Peng. Production and structural analysis of variable thckness 3-D woven fabrics[D]. Shanghai: Donghua University,2012. (in ChineseWANG Peng. Production and structural analysis of variable thckness 3-D woven fabrics[D]. Shanghai: Donghua University, 2012. (in Chinese) [6] 谢位,马颜雪,胡吉永,等. 叶片预型件榫头部分的结构设计[J]. 国际纺织导报,2017,45(9): 38-42. XIE Wei,MA Yanxue,HU Jiyong,et al. Structure design of blade preform joint parts[J]. Melliand China,2017,45(9): 38-42. (in ChineseXIE Wei, MA Yanxue, HU Jiyong, et al. Structure design of blade preform joint parts[J]. Melliand China, 2017, 45(9): 38-42. (in Chinese) [7] CIAVARELLA M,MACINA G. New results for the fretting-induced stress concentration on Hertzian and flat rounded contacts[J]. International Journal of Mechanical Sciences,2003,45(3): 449-467. doi: 10.1016/S0020-7403(03)00061-4 [8] GIANNAKOPOULOS A E,LINDLEY T C. Similarities of stress concentrations in contact at round punches and fatigue at notches: implications to fretting fatigue crack initiation[J]. Fatigue & Fracture of Engineering Materials & Structures,2000,23(7): 561-571. [9] 张浩杰. 榫连接结构设计方法研究[D]. 南京: 南京航空航天大学,2006. ZHANG Haojie. Research on design method of tenon joint structure [D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2006. (in ChineseZHANG Haojie. Research on design method of tenon joint structure [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2006. (in Chinese) [10] 郗志东. 圆柱接触面榫连接结构的设计方法研究[D]. 南京: 南京航空航天大学,2010. XI Zhidong. Study on design method of tenon connection structure with cylindrical contact surface[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2010. (in ChineseXI Zhidong. Study on design method of tenon connection structure with cylindrical contact surface[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2010. (in Chinese) [11] 黄林. 2.5维织物及其复合件的基本力学性能分析[D]. 哈尔滨: 哈尔滨工业大学,2016. HUANG Lin. Analysis on the basic mechanical properties of 2.5D fabric and composite object[D]. Harbin: Harbin Institute of Technology,2016. (in ChineseHUANG Lin. Analysis on the basic mechanical properties of 2.5D fabric and composite object[D]. Harbin: Harbin Institute of Technology, 2016. (in Chinese) [12] 赵思波. 2.5维编织复合材料叶片振动分析方法研究[D]. 南京: 南京航空航天大学,2015. ZHAO Sibo. Research on vibration characteristic analysis of the 2.5D braided composite blades[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2015. (in ChineseZHAO Sibo. Research on vibration characteristic analysis of the 2.5D braided composite blades[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2015. (in Chinese) [13] 郭俊华. 2.5维机织复合材料多轴疲劳寿命预测模型与分析方法研究 [D] . 南京: 南京航空航天大学,2022. GUO Junhua. Research on multiaxial fatigue life prediction model and analysis method of 2.5D woven composites [D] Nanjing: Nanjing University of Aeronautics and Astronautics,2022. (in ChineseGUO Junhua. Research on multiaxial fatigue life prediction model and analysis method of 2.5D woven composites [D] Nanjing: Nanjing University of Aeronautics and Astronautics, 2022. (in Chinese) [14] 杨彩云,李嘉禄. 基于纱线真实形态的三维机织复合材料细观结构及其厚度计算[J]. 复合材料学报,2005,22(6): 178-182. YANG Caiyun,LI Jialu. Microstructure and thickness equation of 3d woven composites based on yarn’s true configuration[J]. Acta Materiae Compositae Sinica,2005,22(6): 178-182. (in ChineseYANG Caiyun, LI Jialu. Microstructure and thickness equation of 3d woven composites based on yarn’s true configuration[J]. Acta Materiae Compositae Sinica, 2005, 22(6): 178-182. (in Chinese) [15] 周喻. 三维机织树脂基复合材料本构模型研究[D]. 南京: 南京航空航天大学,2019. ZHOU Yu. Constitutive prediction model of 3D woven resin-based composite material[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2019. (in ChineseZHOU Yu. Constitutive prediction model of 3D woven resin-based composite material[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019. (in Chinese) [16] 赵哲,温卫东,宋健,等. 2.5维机织复合材料的纬向力学性能试验[J]. 航空动力学报,2017,32(11): 2729-2736. ZHAO Zhe,WEN Weidong,SONG Jian,et al. Test of the weft mechanical properties of 2.5D woven composites[J]. Journal of Aerospace Power,2017,32(11): 2729-2736. (in ChineseZHAO Zhe, WEN Weidong, SONG Jian, et al. Test of the weft mechanical properties of 2.5D woven composites[J]. Journal of Aerospace Power, 2017, 32(11): 2729-2736. (in Chinese) [17] 刘杰明,周标,温卫东,等. 2.5维树脂基编织复合材料平板固有振动分析[J]. 航空动力学报,2022,37(7): 1469-1477. LIU Jieming,ZHOU Biao,WEN Weidong,et al. Natural vibration analysis of 2.5D resin-based braided composite plates[J]. Journal of Aerospace Power,2022,37(7): 1469-1477. (in ChineseLIU Jieming, ZHOU Biao, WEN Weidong, et al. Natural vibration analysis of 2.5D resin-based braided composite plates[J]. Journal of Aerospace Power, 2022, 37(7): 1469-1477. (in Chinese) [18] LIU Jieming,ZHOU Biao,WEN Weidong. Natural vibration analysis of 2.5 dimensional resin based woven composite material flat plates[J]. Journal of Aerospace Power,2022,37(7): 1469-1477. [19] HALLAL A,YOUNES R,FARDOUN F,et al. Improved analytical model to predict the effective elastic properties of 2.5D interlock woven fabrics composite[J]. Composite Structures,2012,94(10): 3009-3028. doi: 10.1016/j.compstruct.2012.03.019 -
