粉末燃料发动机燃料供应特性

杜鑫磊; 董新刚; 黄礼铿; 何景轩; 田凌寒; 王纵涛

doi:10.13224/j.cnki.jasp.20230578

粉末燃料发动机燃料供应特性

doi: 10.13224/j.cnki.jasp.20230578

杜鑫磊^{1, 2,},
董新刚²,
黄礼铿^{1, 2,*, ,},
何景轩²,
田凌寒^{1, 2},
王纵涛²

1.
固体推进全国重点实验室，西安 710025
2.
西安航天动力技术研究所，西安 710025

详细信息

作者简介:
杜鑫磊（1999-），男，助理工程师，硕士，研究领域为粉末发动机。E-mail：duxinlei150509@163.com

通讯作者:
黄礼铿（1985-），男，高级工程师，博士，研究领域为固体火箭冲压发动机。E-mail：hjlk68@126.com

中图分类号: V435
计量
- 文章访问数: 469
- HTML浏览量: 367
- PDF量: 37
- 被引次数: 0
出版历程
- 收稿日期: 2023-09-11
- 网络出版日期: 2024-08-01

Fuel supply characteristics of powder fuel engine

DU Xinlei^{1, 2
,},
DONG Xingang²,
HUANG Likeng^{1, 2,*
, ,},
HE Jingxuan²,
TIAN Linghan^{1, 2},
WANG Zongtao²

1.
National Key Laboratory of Solid Rocket Propulsion，Xi’an 710025，China
2.
Xi’an Aerospace Propulsion Insitute，Xi’an 710025，China

摘要

摘要:
针对粉末燃料可靠流化和定量可调输送问题，开展基于活塞驱动气体流化输运的粉末供应系统特性研究。通过试验研究，开展不同活塞驱动力、流化气压强、粉末出口喉径等参数对粉末流化输运特性的影响研究。研究表明：该系统在所设工况下能够实现稳定送粉；在指定范围内活塞驱动力存在临界值。活塞驱动力小于临界值时，粉末质量流量随驱动力增大而逐步增大。当超过临界值时，可实现活塞驱动力与粉末流化输运的解耦，粉末流量与出粉口喉道面积成线性关系；驱动力增加过程中流化气流量会增加然后迅速减小，当驱动力达到上限时粉末输送的固气比达到最大；单独提高流化气压强使得固气比大幅降低，不利于气源的有效利用。
- 粉末冲压发动机 /
- 粉末流化 /
- 气力输送 /
- 质量流量 /
- 活塞式供粉装置
Abstract:
In view of the problem of reliable fluidization and quantitative adjustable transportation of powder fuel, the characteristics of powdered supply system based on piston-driven gas fluidization and transportation were studied. The influences of different piston driving forces, fluidization pressures and diameters of powder outlet throat on the fluidized transport characteristics of powder were analyzed experimentally. Experimental results showed that the system can stably feed powder under the set working conditions; there existed a critical value of piston driving force within the specified range. When the piston driving force was less than the critical value, the powder mass flow rate increased with the increase of piston driving force. When it exceeded the critical value, the piston driving force can be decoupled from the powder fluidization transport, and the powder flow rate had a linear relationship with the throat area of the powder out-let; the flow rate of fluidized gas increased and then decreased rapidly during the increase of driving force, and the solid-gas ratio of powder transportation was the maximum when the piston driving force reached the upper limit; increasing the fluidization pressure made the solid-gas ratio greatly reduce, which was not conducive to the effective utilization of gas source.
- powder ramjet /
- powder fluidization /
- pneumatic conveying /
- mass flow /
- piston powder feeding device

HTML

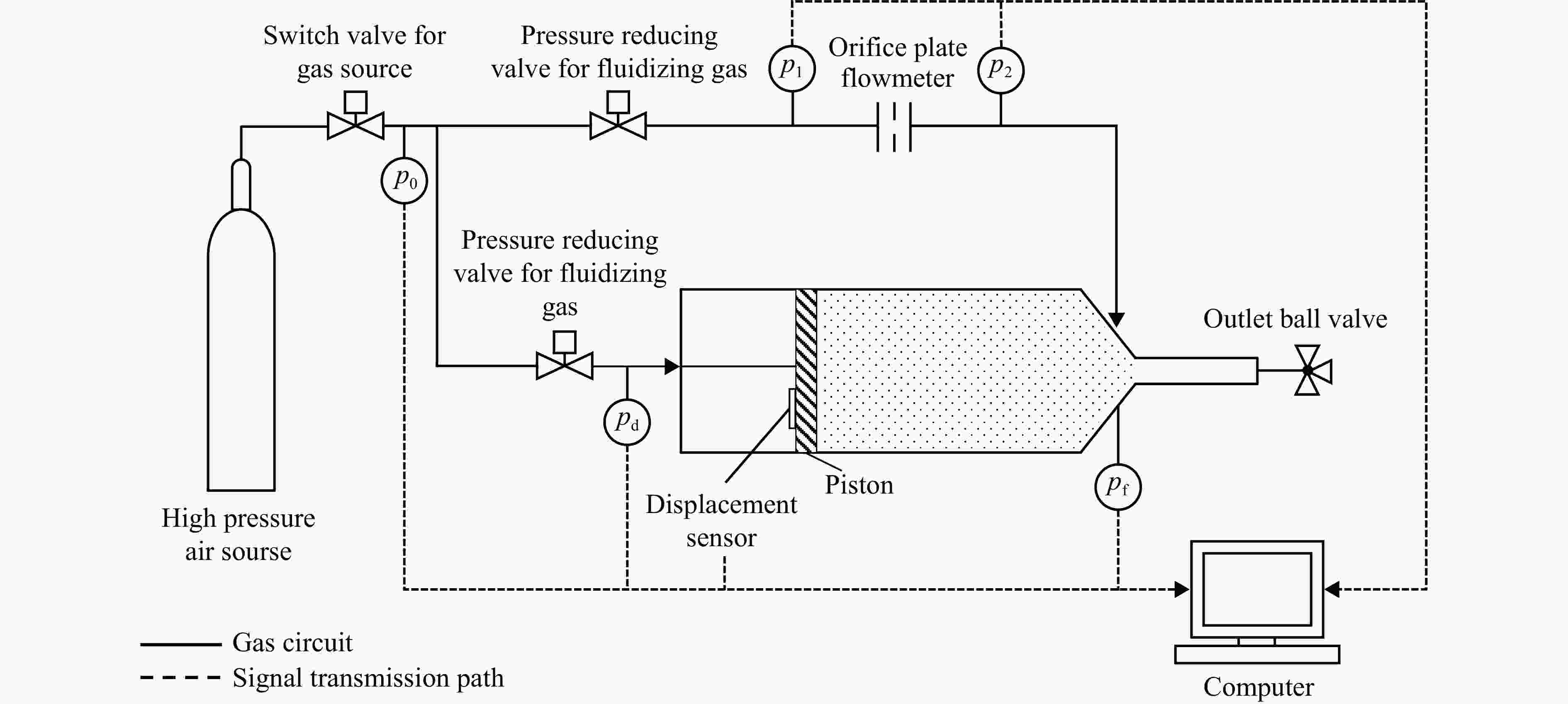

图 1 粉末输送试验系统

Figure 1. Powder fluidization system

下载: 全尺寸图片幻灯片

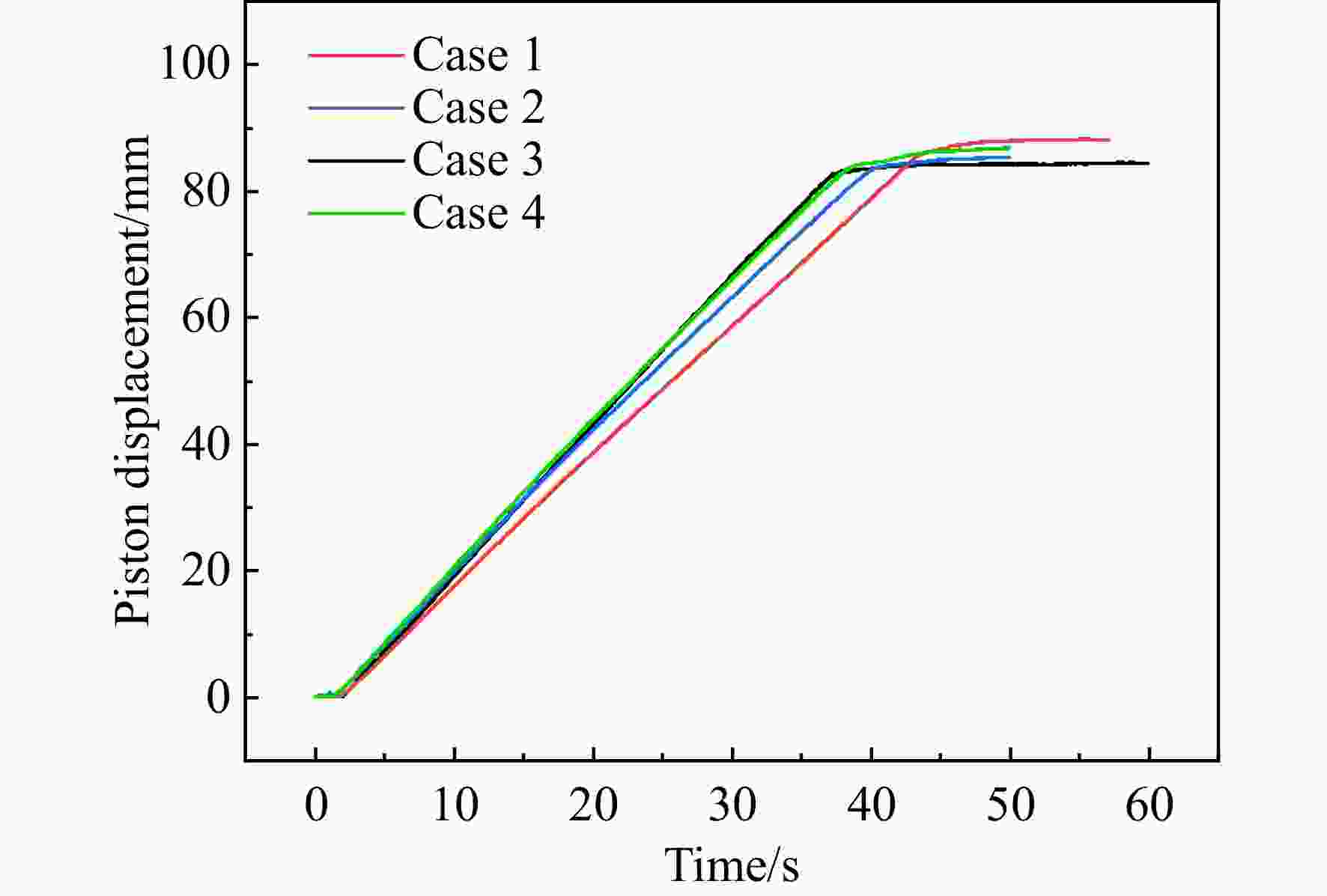

图 2 Case 1～Case 4活塞位移时间曲线

Figure 2. Displacement-time curves of piston in Case 1—Case 4

下载: 全尺寸图片幻灯片

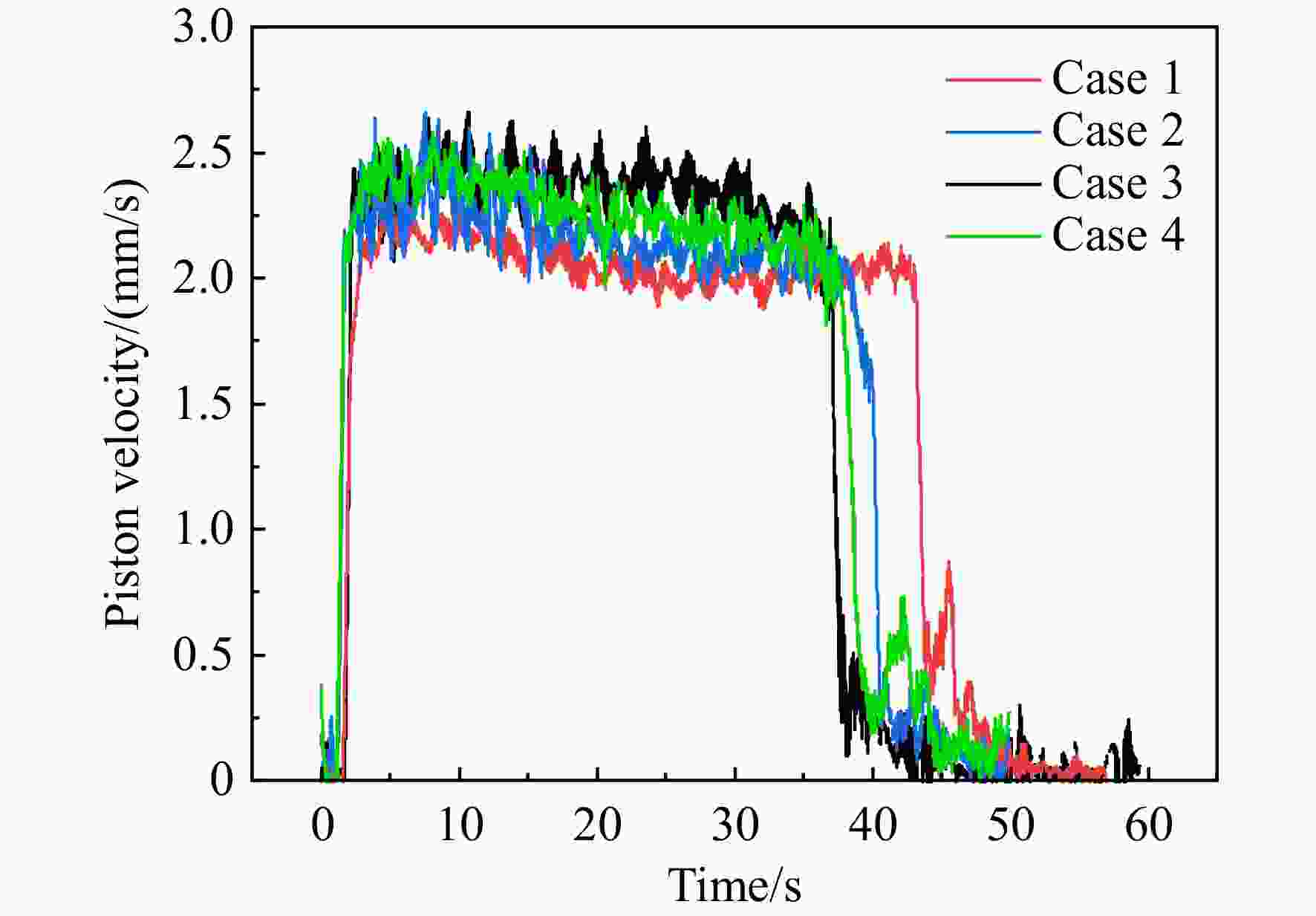

图 3 Case 1～Case 4活塞速度时间曲线

Figure 3. Velocity-time curves of piston in Case 1—Case 4

下载: 全尺寸图片幻灯片

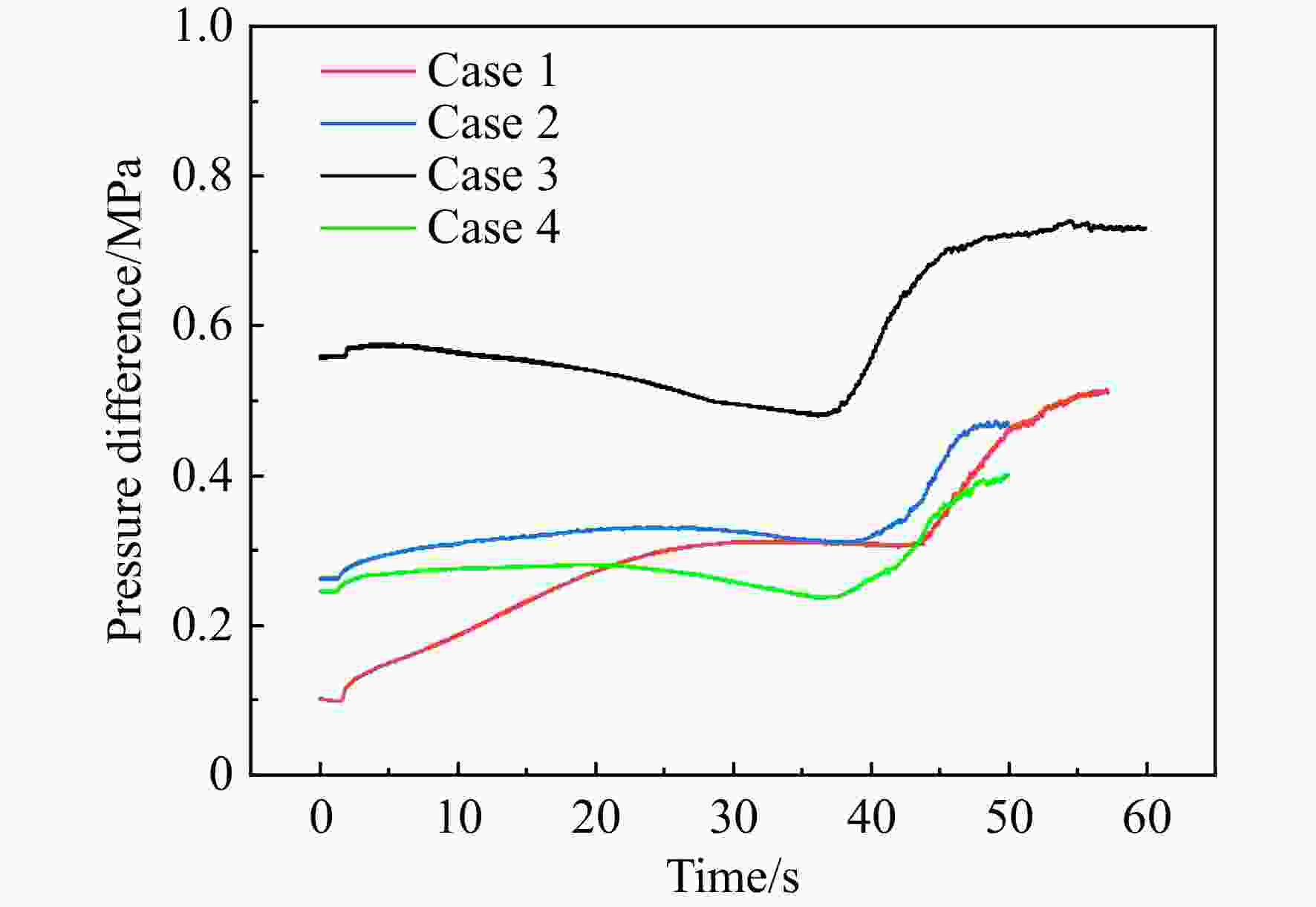

图 4 Case 1～Case 4驱动气与流化气压差时间曲线

Figure 4. Differential pressure-time curves of piston in Case 1—Case 4

下载: 全尺寸图片幻灯片

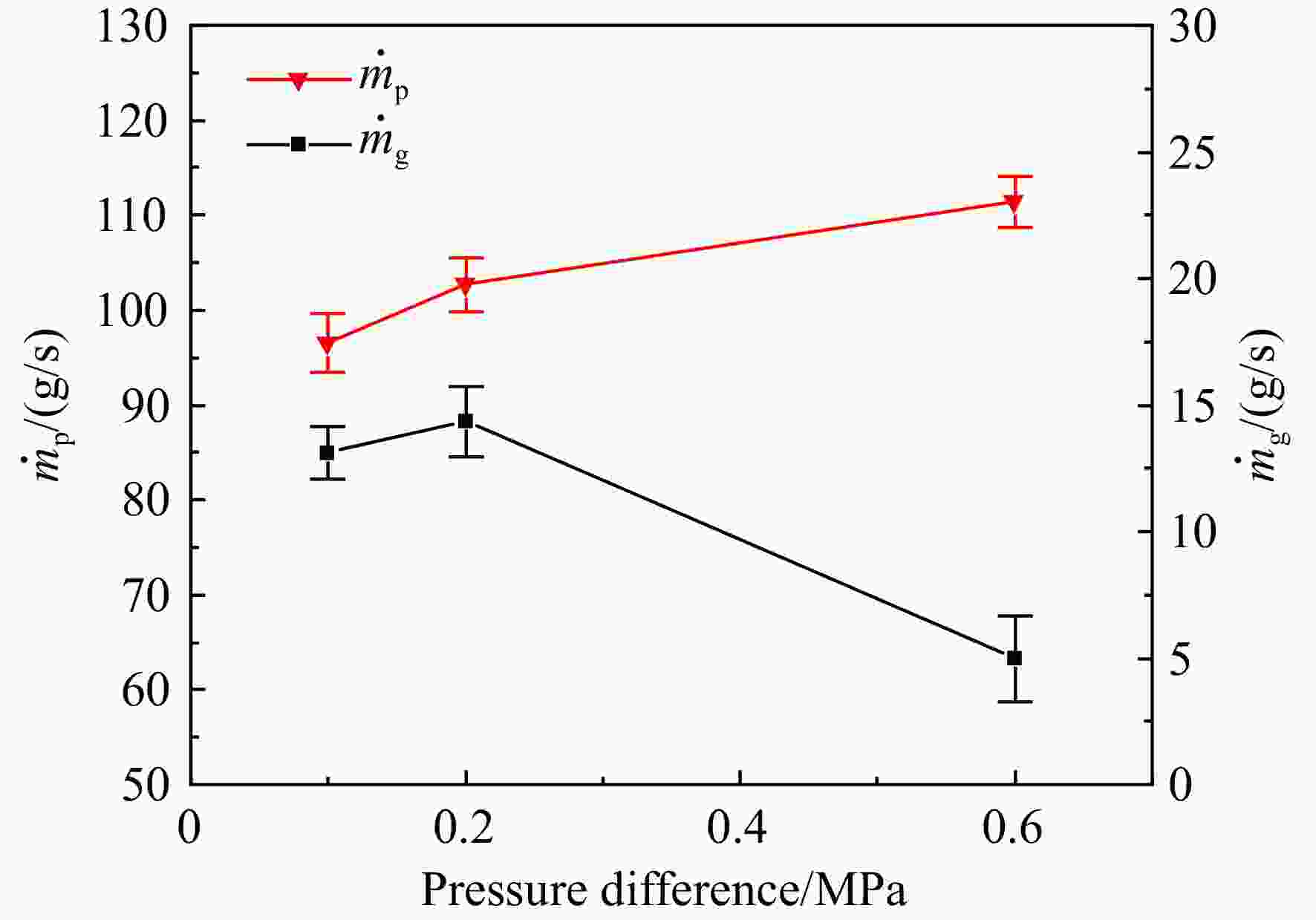

图 5 不同压差下的粉末流量和流化气流量

Figure 5. Powder flow rate and fluidized gas flow rate under different pressure differences

下载: 全尺寸图片幻灯片

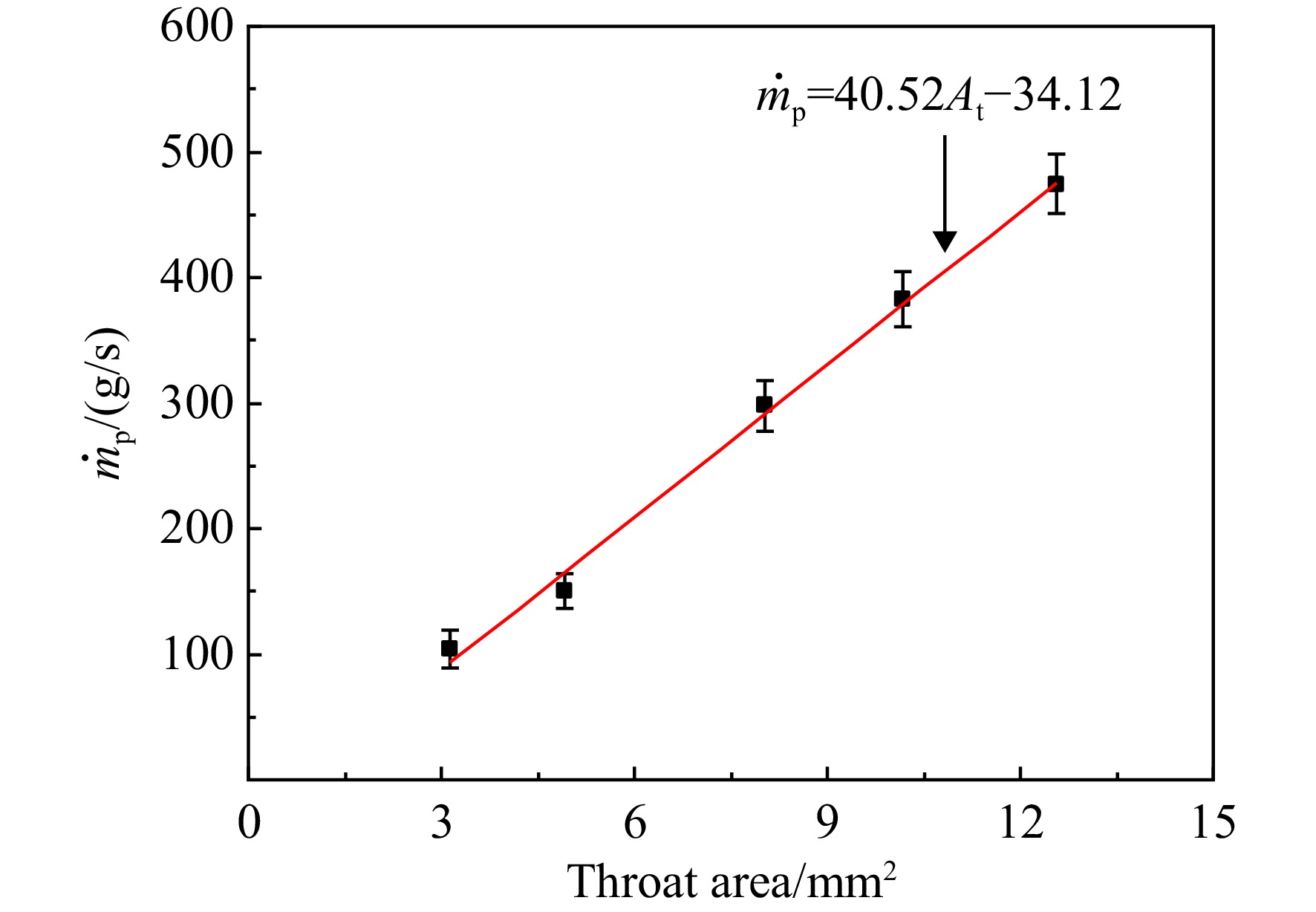

图 6 粉末流量-出粉口喉道面积关系曲线

Figure 6. Curve of powder flow rate-throat area

下载: 全尺寸图片幻灯片

表 1 定喉径试验工况

Table 1. Experimental conditions with constant throat diameter

试验工况及标号	粉末出口喉径/mm	装粉质量/kg	驱动气压强/ MPa	流化气压强/ MPa
Case 1	2	5	1.9	1.8
Case 2	2	5	2.0	1.8
Case 3	2	5	2.4	1.8
Case 4	2	5	2.1	1.9

下载: 导出CSV

表 2 Case 1～Case 4粉末输送试验结果

Table 2. Results of powder fluidization experiment under Case 1—Case 4

参数	Case 1	Case 2	Case 3	Case 4
驱动气初始压强/MPa	1.9	2.0	2.4	2.1
流化气初始压强/MPa	1.8	1.8	1.8	1.9
初始压差/MPa	0.10	0.2	0.6	0.2
平均粉末流量/（g/s）	96.54	102.63	111.39	107.21
平均流化气流量/（g/s）	13.10	14.32	4.97	17.92
平均固气比	7.37	7.17	22.41	5.98

下载: 导出CSV

表 3 变喉径试验工况

Table 3. Experimental conditions with variable throat diameter

试验工况	出粉口喉径/mm	装粉质量/kg	驱动初始压强/MPa	流化初始压强/MPa
Case 5	2	5	2.0	1.8
Case 6	2.5	5	2.0	1.8
Case 7	3.2	5	2.0	1.8
Case 8	3.6	5	2.0	1.8
Case 9	4	5	2.0	1.8

下载: 导出CSV

表 4 不同出粉口喉径下粉末输送试验结果

Table 4. Experimental results of powder conveying under different throat diameters of powder outlet

试验工况	出粉口喉径/mm	喉道面积/ mm²	粉末装填密度/（g/cm³）	粉末流量/ （g/s）
Case 5	2	3.14	1.50	103.95
Case 6	2.5	4.91	1.42	150.45
Case 7	3.2	8.04	1.51	297.80
Case 8	3.6	10.18	1.45	382.66
Case 9	4	12.57	1.49	474.56

下载: 导出CSV
