Experiment on longitudinal combustion instability of a hypergolic propellant model engine
-
摘要:

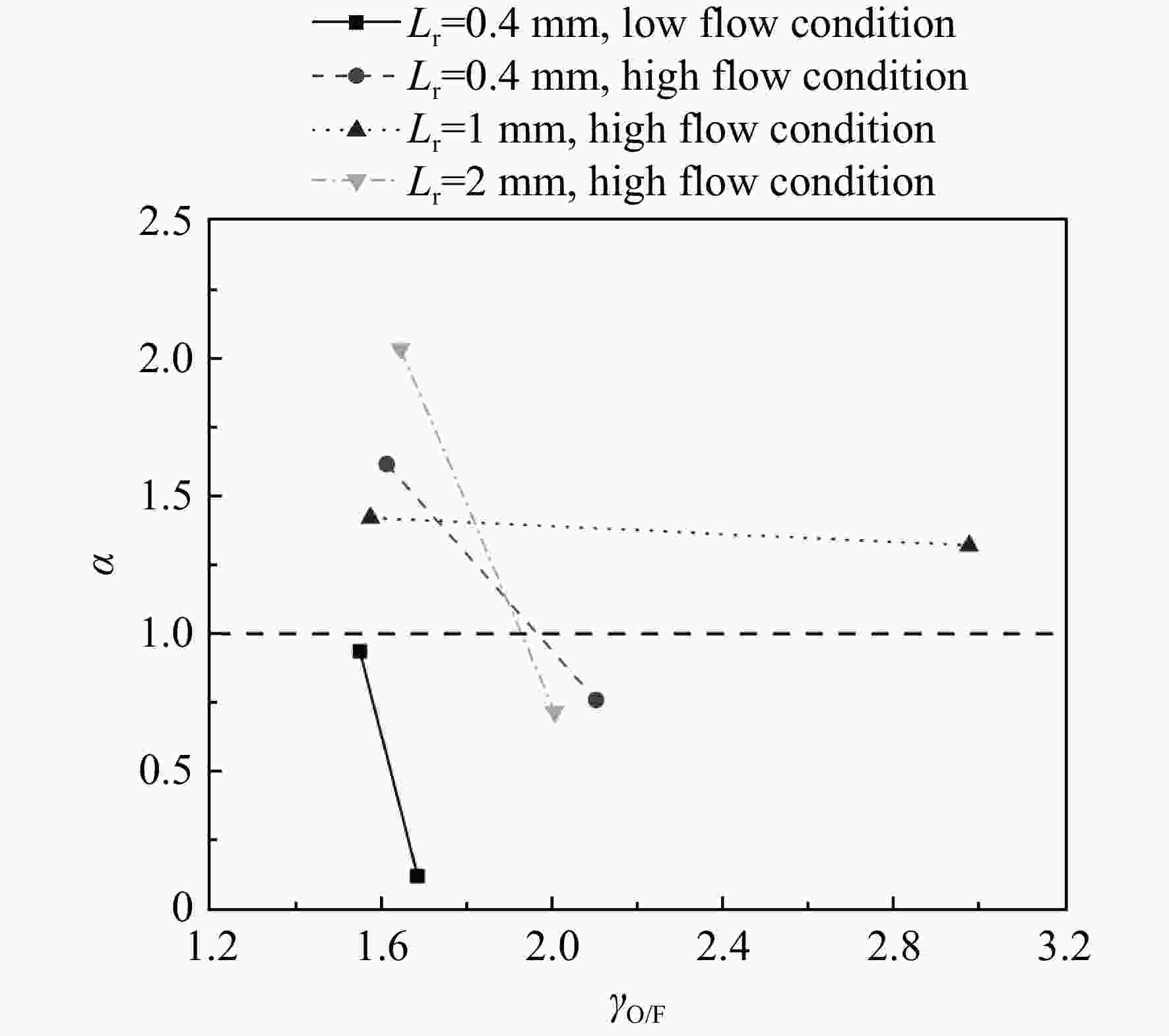

基于自燃推进剂液/液双旋流喷嘴，设计多喷嘴模型火箭发动机，通过试验研究了氧燃比、缩进长度对自燃推进剂模型火箭发动机高频纵向燃烧不稳定的影响。结果表明：在0.4 mm缩进时，2阶纵向模态会出现“分频”现象，而该现象在更大缩进长度时不会发生，推测该现象与液/液双旋流喷嘴内、外锥形液膜间撞击波动导致的释热波动有关。随着缩进长度的增大，模型发动机纵向燃烧不稳定减弱，这与燃烧释热区域向缩进室内移动，导致其抵抗燃烧室压力扰动能力增强有关。在设计流量下，增大氧燃比使得模型发动机纵向燃烧不稳定减弱，但仍有从1阶纵向模态主导向2阶纵向模态主导过渡的趋势，即2阶纵向模态振荡幅值超过1阶纵向模态振荡幅值；在推进剂总流量偏离设计流量−14%的工况下，增大氧燃比使得2阶纵向模态显著增强，1阶纵向模态会显著减弱。
Abstract:Based on dual-liquid swirl coaxial injectors of hypergolic propellant, a multi-injector model rocket engine was designed to study the effects of oxygen-fuel ratio and recess length on high-frequency longitudinal combustion instability. The results showed that there was a frequency division phenomenon in second-order longitudinal mode when recess length was 0.4 mm, while this phenomenon did not occur with a larger recess length. It was inferred that the frequency division phenomenon was related to the heat release fluctuation caused by the impact fluctuation between the inner and outer conical liquid films of the dual-liquid swirl coaxial injector. With the increase of recess length, the longitudinal combustion instability was also weakened, which was related to the movement of the combustion heat-release region towards the recess chamber, resulting in an enhancement to resist pressure disturbances in the combustion chamber. The increase of oxygen-fuel ratio weakened the longitudinal combustion instability of the model engine under the designed flow rate, while there was still a trend of transition from the first-order longitudinal mode dominant to the second-order longitudinal mode dominant, namely, the amplitude of the second-order longitudinal mode oscillation exceeded the amplitude of the first-order longitudinal mode oscillation. With the increase of oxygen-fuel ratio, the second-order longitudinal mode was significantly enhanced, and the first-order longitudinal mode was weakened under operating conditions deviating from the designed flow rate by −14%.
-

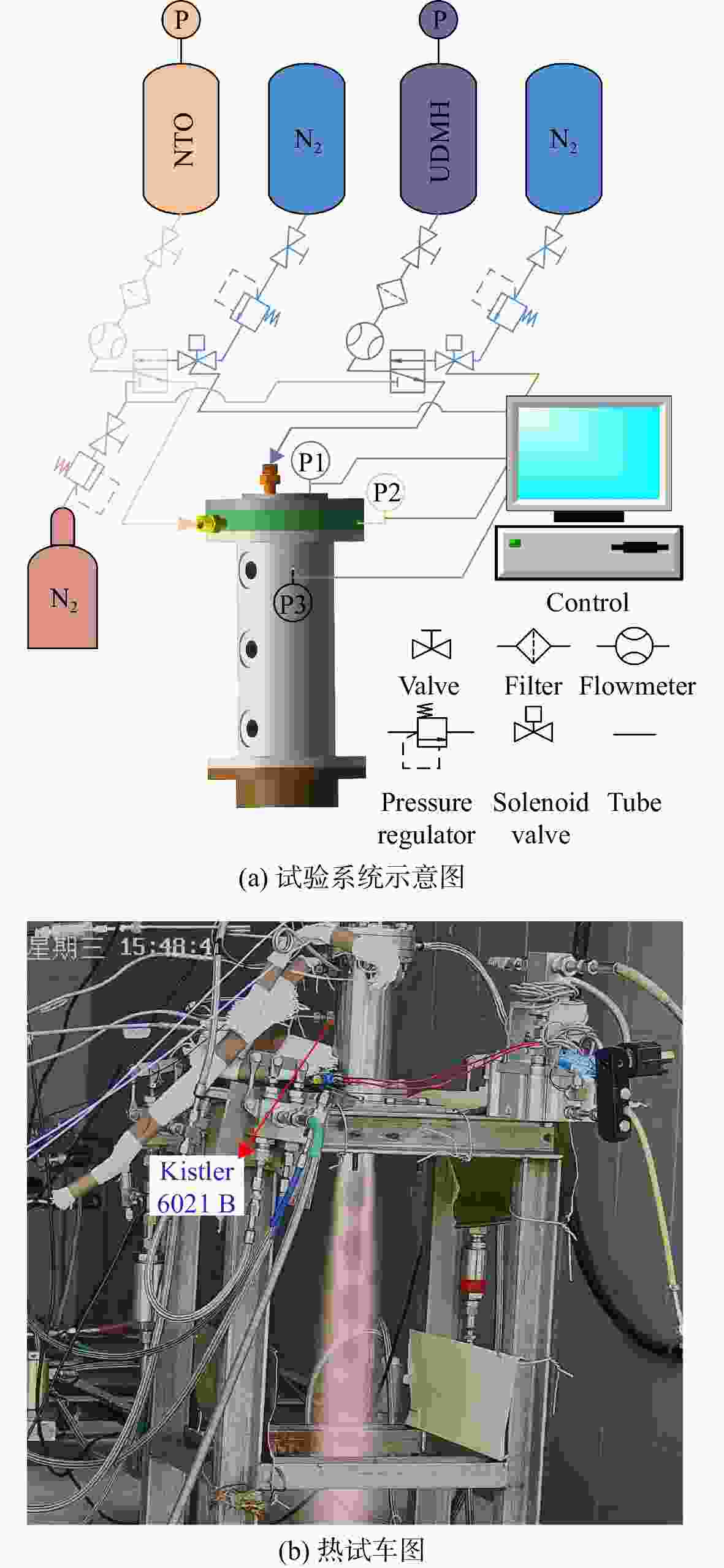

图 1 试验系统示意图和热试车图
Figure 1. Schematic of the experiment system and diagram of the combustor hot-fire test

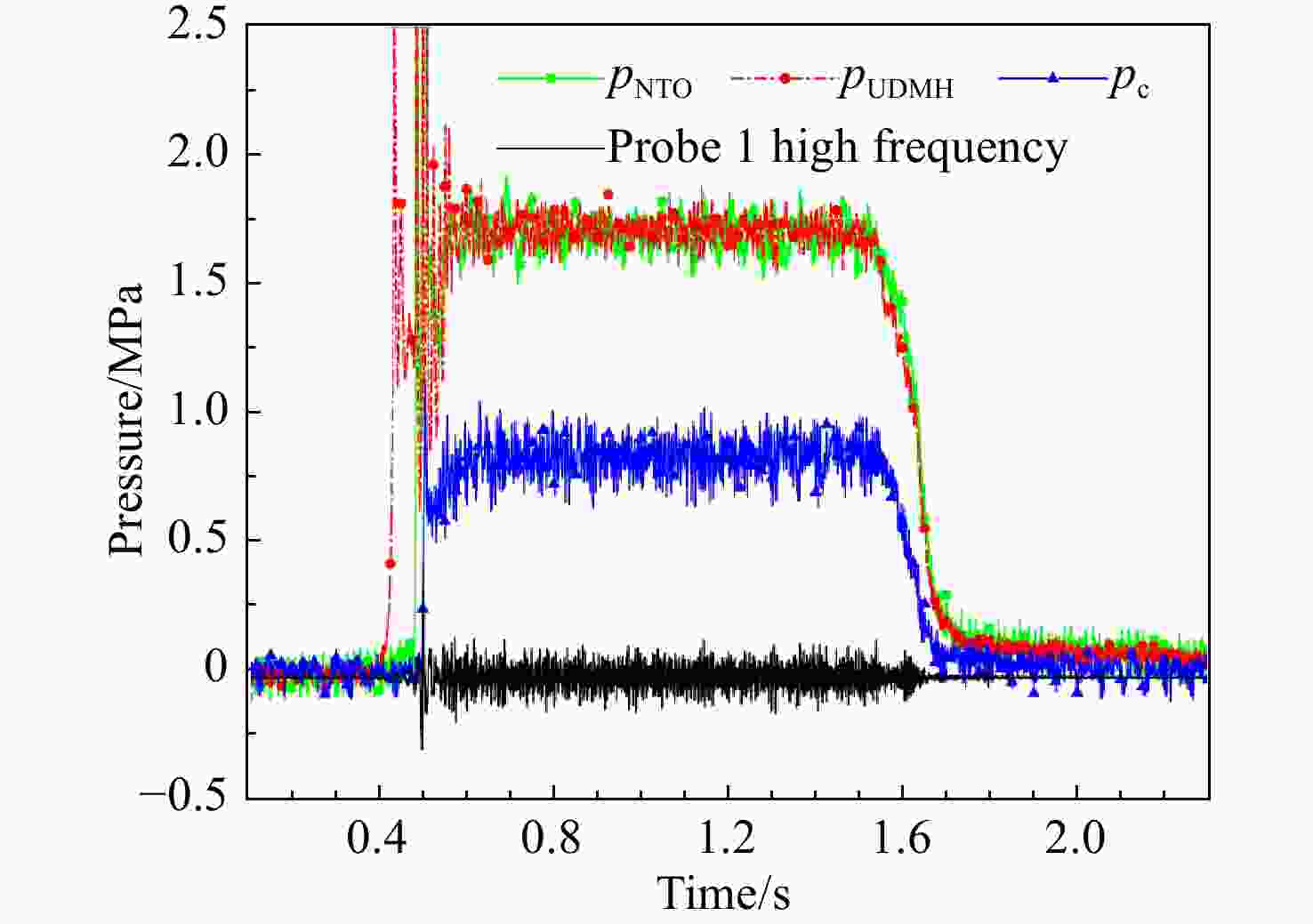

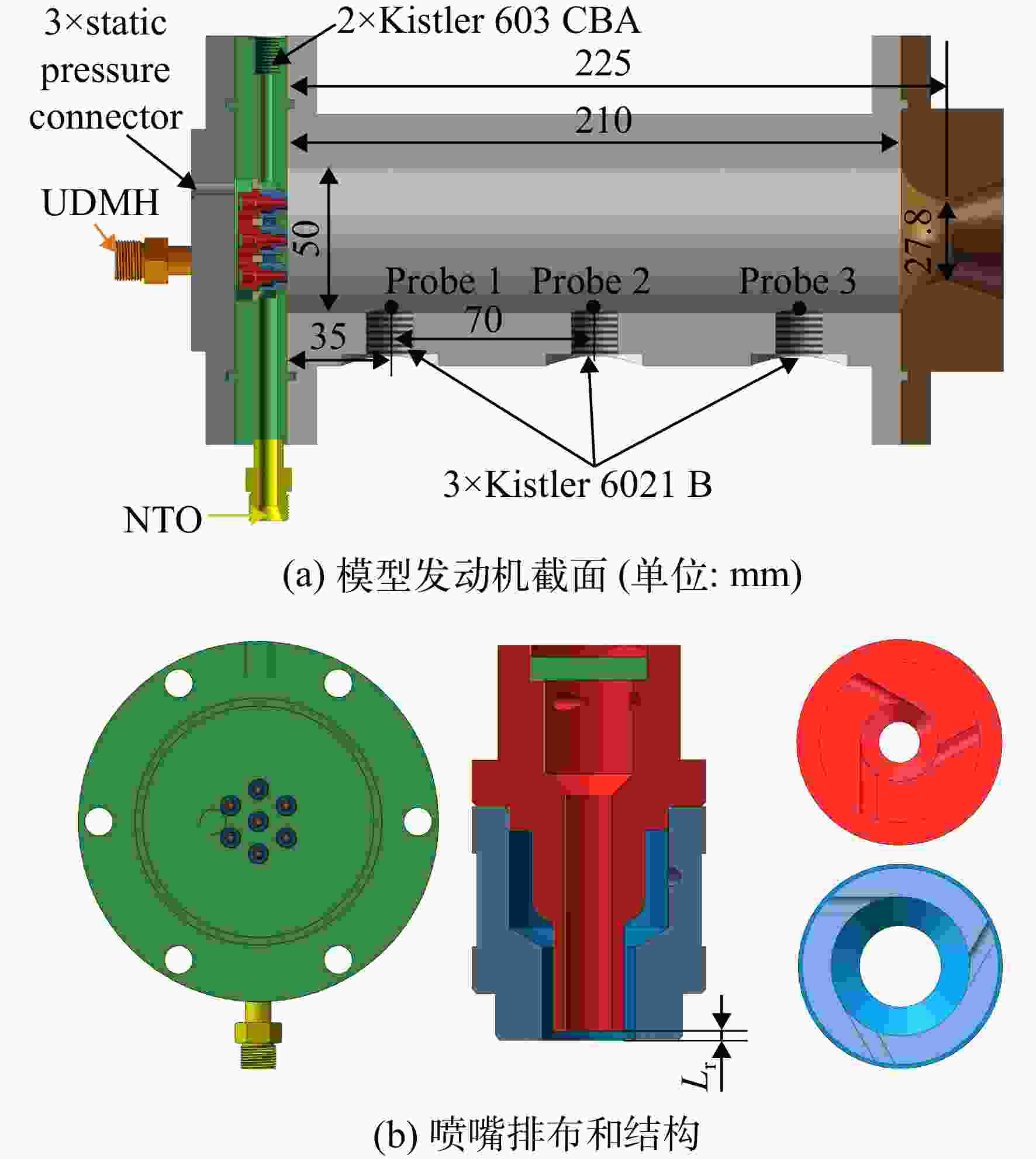

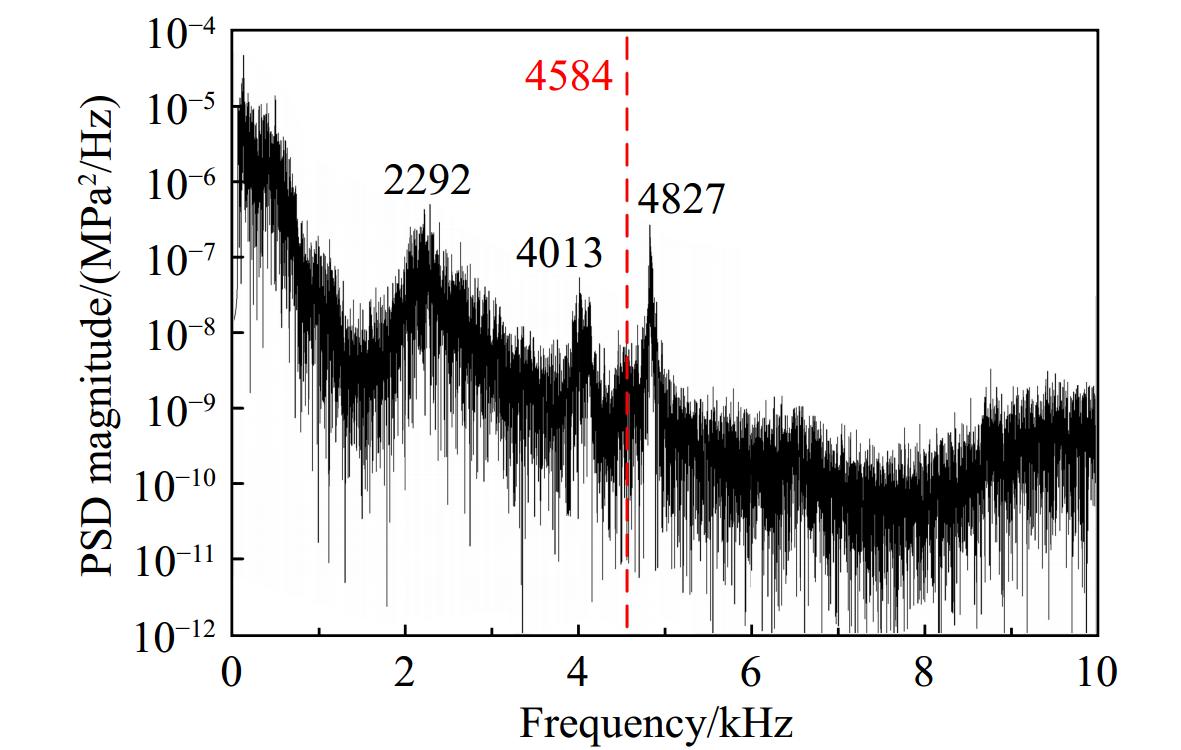

图 4 Probe 1处高频压力信号的PSD分析（试验3）
Figure 4. PSD of high frequency pressure signal at Probe 1 （test No.3）

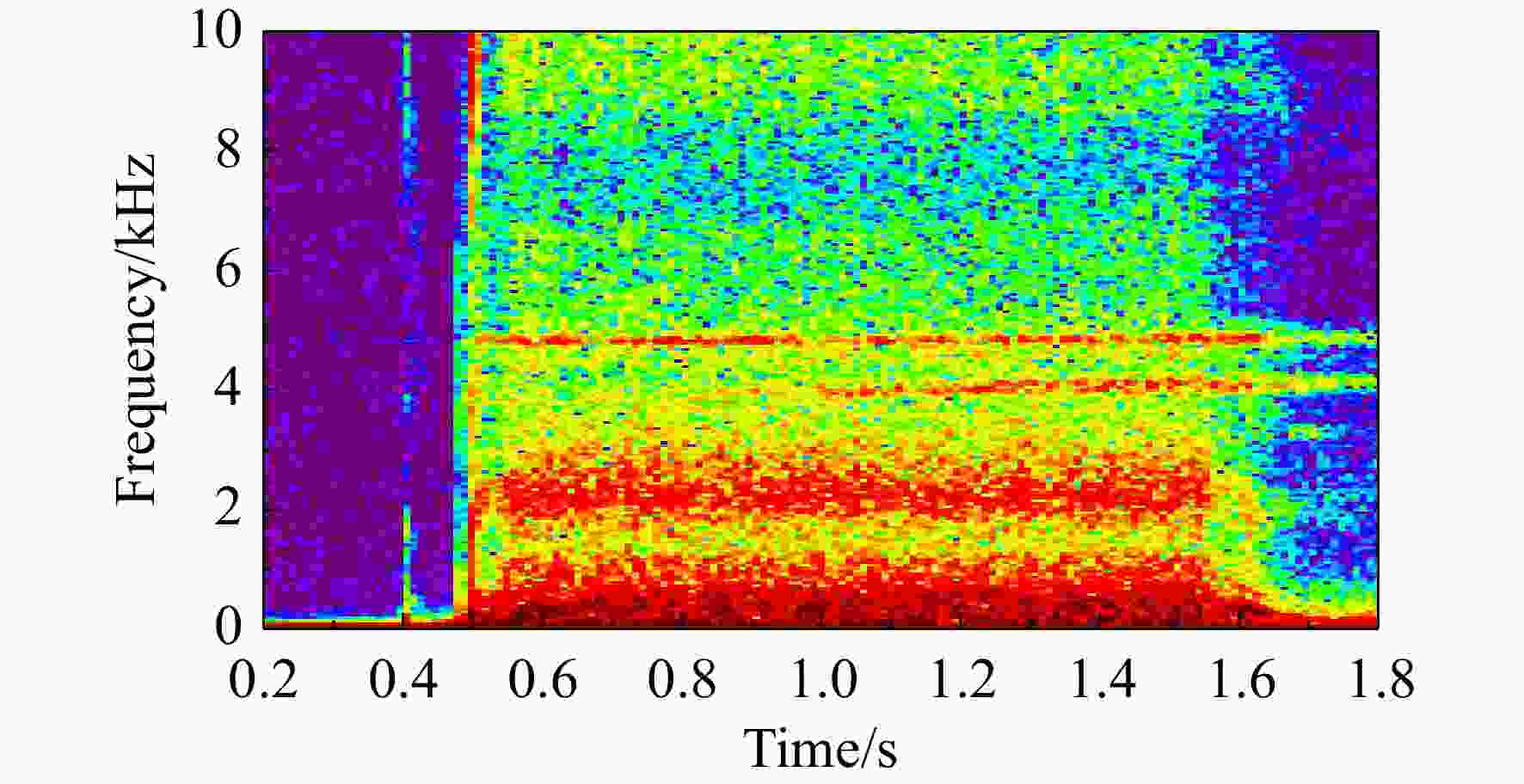

图 5 Probe 1处高频压力信号的STFT分析（试验3）
Figure 5. STFT of high frequency pressure signal at Probe 1 （test No.3）

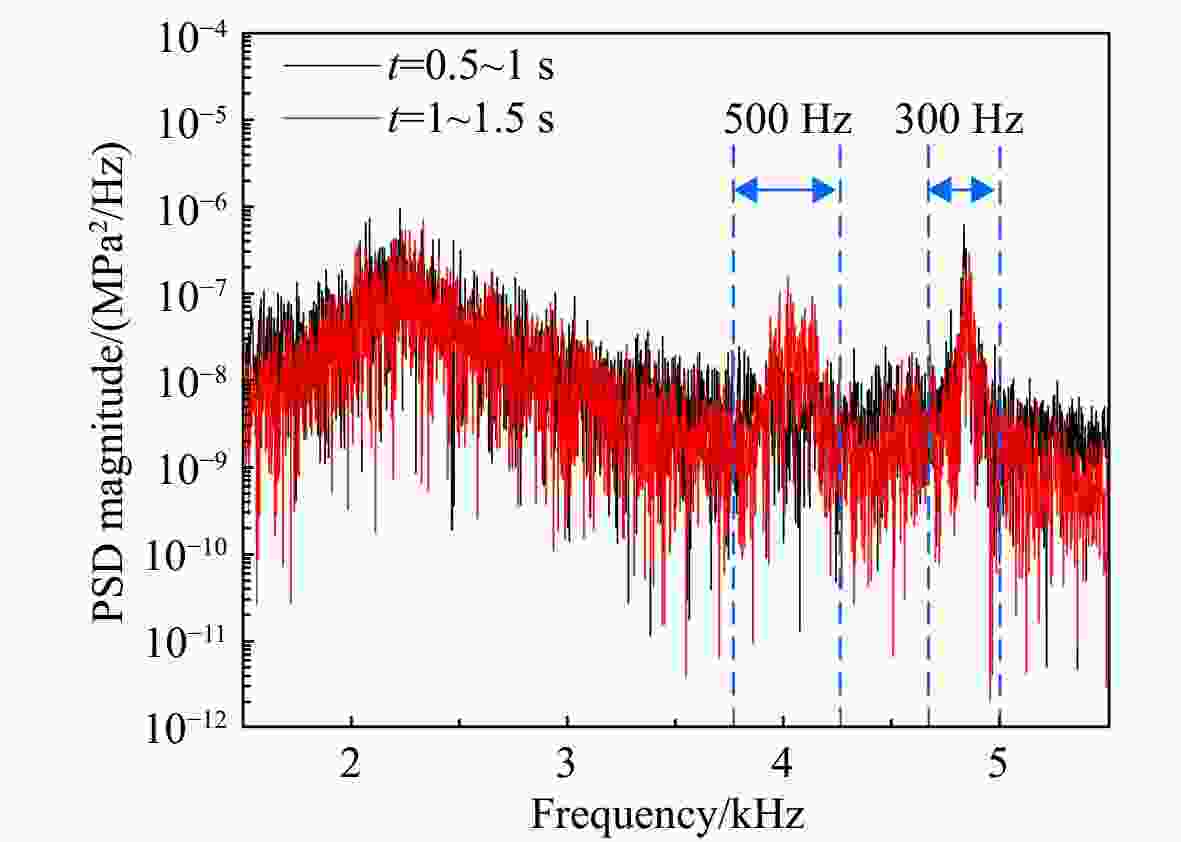

图 6 Probe 1处高频压力信号在不同时间段的PSD分析（试验3）
Figure 6. PSD of high frequency pressure signal over different time periods at Probe 1 （test No.3）

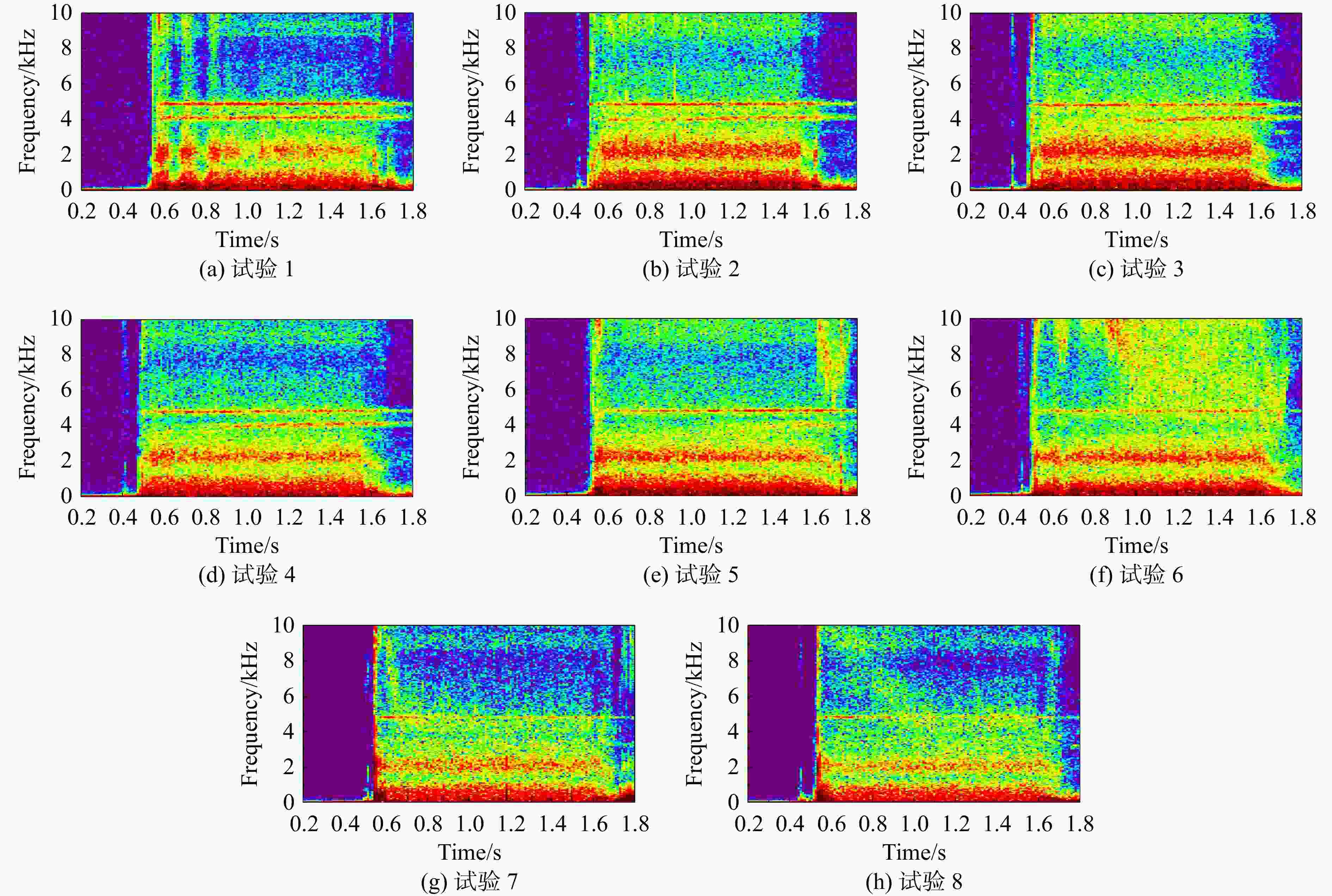

图 7 试验 1～试验 8 高频压力信号的 STFT 分析
Figure 7. STFT of high frequency pressure signal in test No.1— test No.8

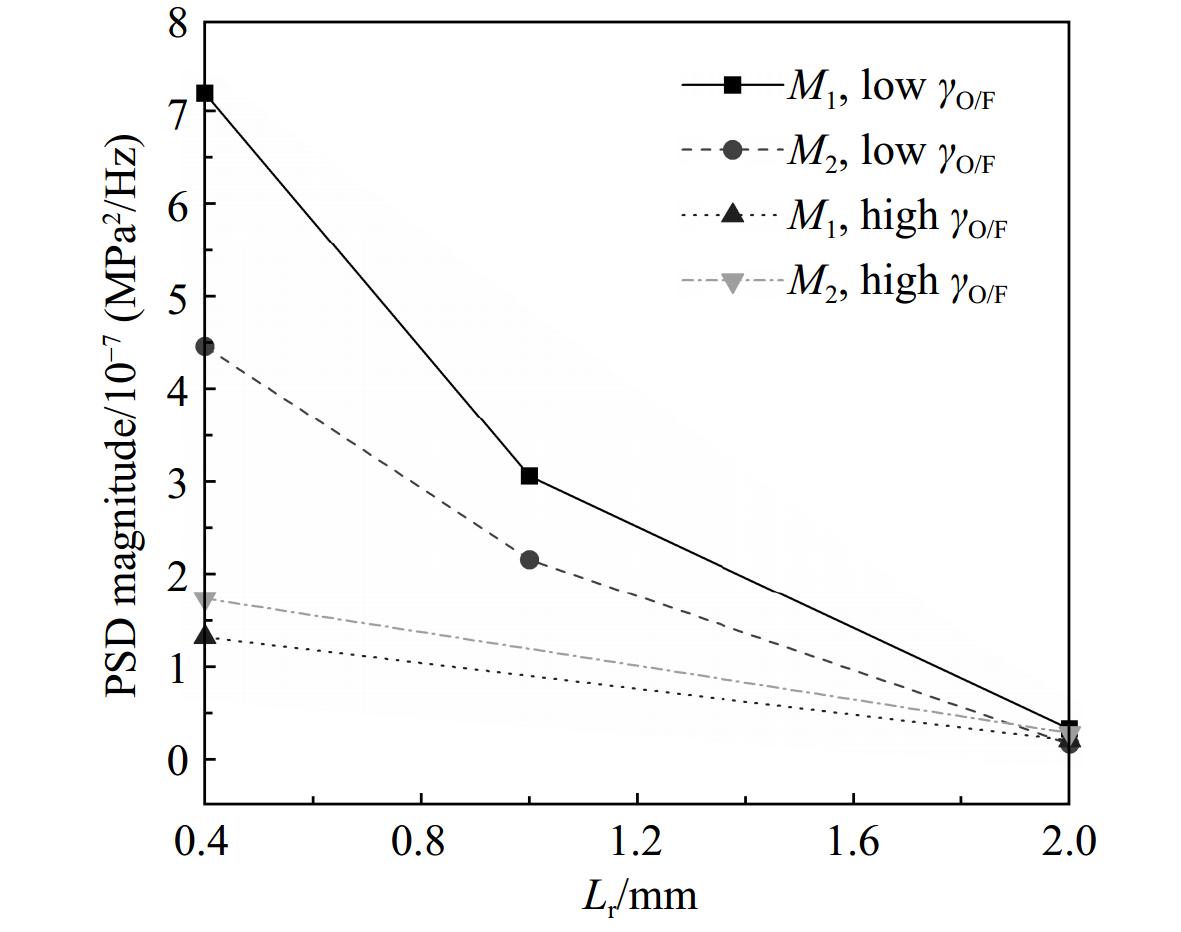

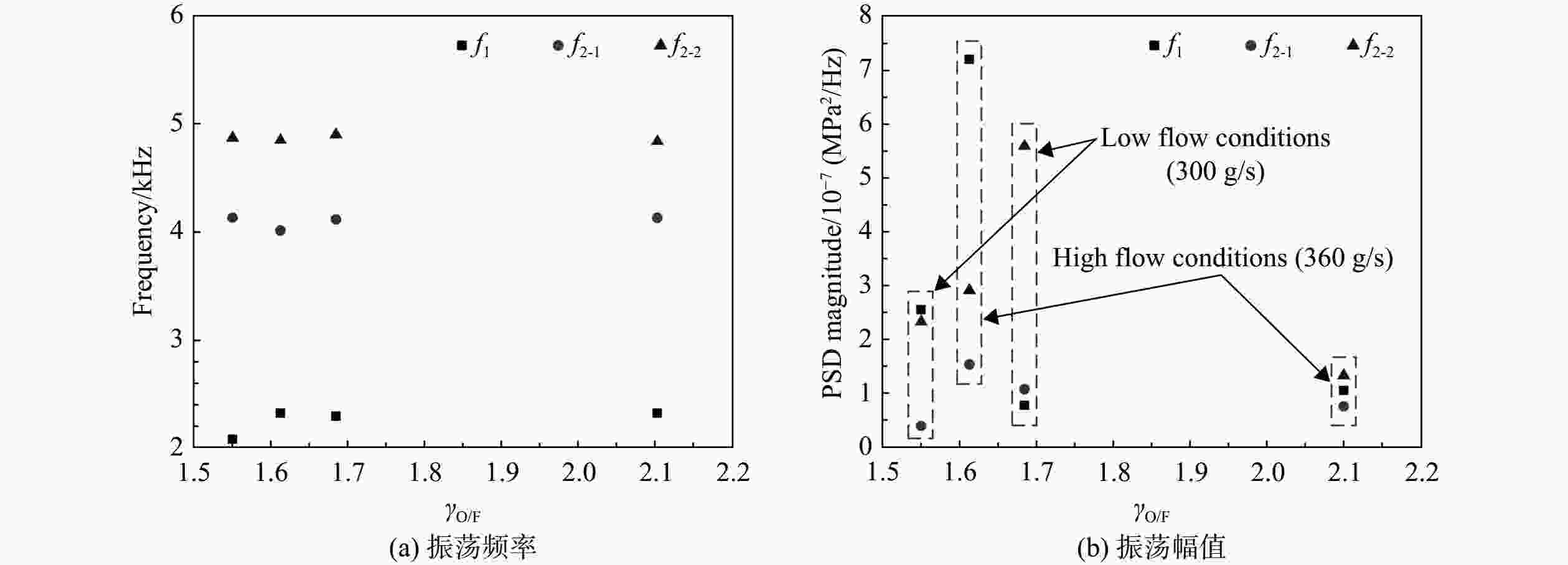

图 9 振荡频率和振荡幅值随氧燃比的变化
Figure 9. Variation of vibration frequency and magnitude with γO/F
表 1 试验工况
Table 1. Summary of the experiment conditions
试验编号 Lr/mm $ \dot{{m}_{{\mathrm{f}}}} $/（g/s） $ \dot{{m}_{{\mathrm{O}}}} $/（g/s） γO/F pc/MPa 1 0.4 111 187 1.685 0.76 2 0.4 120 186 1.550 0.78 3 0.4 137 221 1.613 0.91 4 0.4 117 246 2.103 0.98 5 1 136 214 1.574 0.90 6 1 85 253 2.976 0.84 7 2 138 227 1.645 0.93 8 2 123 247 2.006 0.98
下载: 导出CSV
表 2 不同时间段内不同频段的平均功率
Table 2. Average power in different frequency bands over different time periods
时间/s PF1/10−6 MPa2 PF2/10−6 MPa2 S/10−6 MPa2 0.5～1 2.59 8.68 11.27 1～1.5 6.30 5.24 11.54 S0.5～1 s/S1～1.5 s 0.977
下载: 导出CSV
-
[1] 杨 V,安德松 W E. 液体火箭发动机燃烧不稳定性[M]. 北京: 科学出版社,2001. [2] 哈杰 D T,里尔登 F H. 液体推进剂火箭发动机不稳定燃烧[M]. 朱昌宁,张宝炯,译. 北京: 国防工业出版社,1980. [3] 郭康康. 液氧/煤油火箭发动机高频燃烧不稳定性数值研究[D]. 北京: 航天工程大学,2018. GUO Kangkang. Numerical investigation of high frequency combustion instability in LOx/kero liquid rocket engines[D]. Beijing: Space Engineering University,2018. (in ChineseGUO Kangkang. Numerical investigation of high frequency combustion instability in LOx/kero liquid rocket engines[D]. Beijing: Space Engineering University, 2018. (in Chinese) [4] 孙敬良,张宝炯. 液氧-煤油火箭发动机的燃烧不稳定性问题[J]. 推进技术,1995,16(3): 34-41,51. SUN Jingliang,ZHANG Baojiong. Combustion instability of liquid oxygen-kerosene rocket engine[J]. Journal of Propulsion Technology,1995,16(3): 34-41,51. (in ChineseSUN Jingliang, ZHANG Baojiong. Combustion instability of liquid oxygen-kerosene rocket engine[J]. Journal of Propulsion Technology, 1995, 16(3): 34-41, 51. (in Chinese) [5] 杨立军,富庆飞. 液体火箭发动机推力室设计[M]. 北京: 北京航空航天大学出版社,2013. YANG Lijun,FU Qingfei. Design of thrust chamber of liquid rocket engine[M]. Beijing: Beijing University of Aeronautics and Astronautics Press,2013. (in ChineseYANG Lijun, FU Qingfei. Design of thrust chamber of liquid rocket engine[M]. Beijing: Beijing University of Aeronautics and Astronautics Press, 2013. (in Chinese) [6] DUTHEIL J P,LANGEL G. ARIANE 5 upper-stage ignition conditions improvement,and return to operation with “Envisat” payload[J]. Acta Astronautica,2003,53(4/5/6/7/8/9/10): 585-595. [7] 郭康康. 模型火箭发动机高频燃烧不稳定性试验与数值研究[D]. 北京: 航天工程大学,2022. GUO Kangkang. Experimental and numerical investigation of high frequency combustion instabilities in model rocket engines[D]. Beijing: Space Engineering University,2022. (in ChineseGUO Kangkang. Experimental and numerical investigation of high frequency combustion instabilities in model rocket engines[D]. Beijing: Space Engineering University, 2022. (in Chinese) [8] MILLER K,SISCO J,NUGENT N,et al. Combustion instability with a single-element swirl injector[J]. Journal of Propulsion and Power,2007,23(5): 1102-1112. doi: 10.2514/1.26826 [9] YU Y,KOEGLMEIER S,SISCO J,et al. Combustion instability of gaseous fuels in a continuously variable resonance chamber (CVRC)[R]. AIAA 2008-4657,2008. [10] YU Y,O’HARA L,SISCO J,et al. Experimental study of high-frequency combustion instability in a continuously variable resonance combustor (CVRC) [R]. AIAA 2009-234,2009. [11] MILLER K. Experimental study of longitudinal instabilities in a single element rocket combustor[D]. West Lafayette,US: Purdue Univerdity,2005. [12] MILLER K,SISCO J,NUGENT N,et al. Experimental study of combustion instabilities in a single-element coaxial swirl injector[R]. AIAA 2005-4298,2005. [13] SISCO J C. Measurement and analysis of an unstable model rocket combustor[D]. West Lafayette,US: Purdue University,2007. [14] SMITH R,XIA Guoping,ANDERSON W,et al. Computational studies of the effects of oxidizer injector length on combustion instability[R]. AIAA 2010-6564,2010. [15] SMITH R,XIA G,ANDERSON W A,et al. Computational simulations of the effect of backstep height on nonpremixed combustion instability[J]. AIAA Journal,2010,48(9): 1857-1868. doi: 10.2514/1.40385 [16] FREZZOTTI M L,TERRACCIANO A,NASUTI F,et al. Low-order model studies of combustion instabilities in a DVRC combustor[R]. AIAA 2014-3485,2014. [17] FREZZOTTI M L,NASUTI F,HUANG Cheng,et al. Response function modeling in the study of longitudinal combustion instability by a quasi-1D eulerian solver[R]. AIAA 2015-3840,2015. [18] GEJJI R M,AUSTIN B L,ANDERSON W E. Experimental investigation of transverse combustion instabilities in a high pressure multi-element combustor[R]. AIAA 2016-5083,2016. [19] GEJJI R,LEMCHERFI A I,STRELAU R,et al. Combustion response of shear coaxial injectors to transverse combustion instabilities[R]. AIAA 2020-0424,2020. [20] GRÖNING S,HARDI J S,SUSLOV D,et al. Injector-driven combustion instabilities in a hydrogen/oxygen rocket combustor[J]. Journal of Propulsion and Power,2016,32(3): 560-573. doi: 10.2514/1.B35768 [21] ARMBRUSTER W,HARDI J S,SUSLOV D,et al. Experimental investigation of self-excited combustion instabilities with injection coupling in a cryogenic rocket combustor[J]. Acta Astronautica,2018,151: 655-667. doi: 10.1016/j.actaastro.2018.06.057 [22] URBANO A,SELLE L,STAFFELBACH G,et al. Exploration of combustion instability triggering using Large Eddy Simulation of a multiple injector liquid rocket engine[J]. Combustion and Flame,2016,169: 129-140. doi: 10.1016/j.combustflame.2016.03.020 [23] 聂万胜,庄逢辰. 自燃推进剂火箭发动机燃烧不稳定性研究[J]. 推进技术,2000,21(4): 63-65,76. NIE Wansheng,ZHUANG Fengchen. Hypergolic propellant rocket engine combustion instability studies[J]. Journal of Propulsion Technology,2000,21(4): 63-65,76. (in ChineseNIE Wansheng, ZHUANG Fengchen. Hypergolic propellant rocket engine combustion instability studies[J]. Journal of Propulsion Technology, 2000, 21(4): 63-65, 76. (in Chinese) [24] 严宇,胡洪波,洪流,等. 自燃推进剂旋转爆震燃烧实验研究[J]. 推进技术,2018,39(9): 1986-1993. YAN Yu,HU Hongbo,HONG Liu,et al. Experimental investigation on rotated detonation combustion of hypergolic propellants[J]. Journal of Propulsion Technology,2018,39(9): 1986-1993. (in ChineseYAN Yu, HU Hongbo, HONG Liu, et al. Experimental investigation on rotated detonation combustion of hypergolic propellants[J]. Journal of Propulsion Technology, 2018, 39(9): 1986-1993. (in Chinese) [25] XUE Shuaijie,YANG Weidong,ZHOU Lixin,et al. Experimental investigation of self-excited combustion instabilities in a small Earth storable bipropellant rocket combustor[J]. Aerospace Science and Technology,2020,105: 106008. doi: 10.1016/j.ast.2020.106008 [26] 汪广旭,谭永华,庄逢辰,等. 喷注流强分布对高频纵向燃烧不稳定性抑制效果[J]. 航空学报,2022,43(9): 126018. WANG Guangxu,TAN Yonghua,ZHUANG Fengchen,et al. Suppression effect of injection intensity distribution on longitudinal combustion instability[J]. Acta Aeronautica et Astronautica Sinica,2022,43(9): 126018. (in ChineseWANG Guangxu, TAN Yonghua, ZHUANG Fengchen, et al. Suppression effect of injection intensity distribution on longitudinal combustion instability[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(9): 126018. (in Chinese) [27] CHU Wei,GUO Kangkang,TONG Yiheng,et al. Numerical analysis of self-excited tangential combustion instability for an MMH/NTO rocket combustor[J]. Proceedings of the Combustion Institute,2023,39(4): 5053-5061. doi: 10.1016/j.proci.2022.07.249 [28] 杨立军,葛明和,张向阳. 缩进的气液同轴离心喷嘴雾化性能[J]. 推进技术,2006,27(4): 289-293. YANG Lijun,GE Minghe,ZHANG Xiangyang. Spray characteristics of recessed gas-liquid coaxial swirl injector[J]. Journal of Propulsion Technology,2006,27(4): 289-293. (in ChineseYANG Lijun, GE Minghe, ZHANG Xiangyang. Spray characteristics of recessed gas-liquid coaxial swirl injector[J]. Journal of Propulsion Technology, 2006, 27(4): 289-293. (in Chinese) [29] SEO S,KIM S K,CHOI H S. Combustion dynamics and stability of a fuel-rich gas generator[J]. Journal of Propulsion and Power,2010,26(2): 259-266. doi: 10.2514/1.46568 [30] AHN K,LIM B,CHOI H S. Stability characteristics of bi-swirl coaxial injectors in fuel-rich combustion[J]. Transactions of The Japan Society for Aeronautical and Space Sciences,2014,57(6): 317-324. doi: 10.2322/tjsass.57.317 [31] GRÖNING S,HARDI J,SUSLOV D,et al. Influence of hydrogen temperature on the stability of a rocket engine combustor operated with hydrogen and oxygen[J]. CEAS Space Journal,2017,9(1): 59-76. doi: 10.1007/s12567-016-0130-8 -
