Study on the influence of support blade vibration on aerodynamic pulsation pressure load
-
摘要:

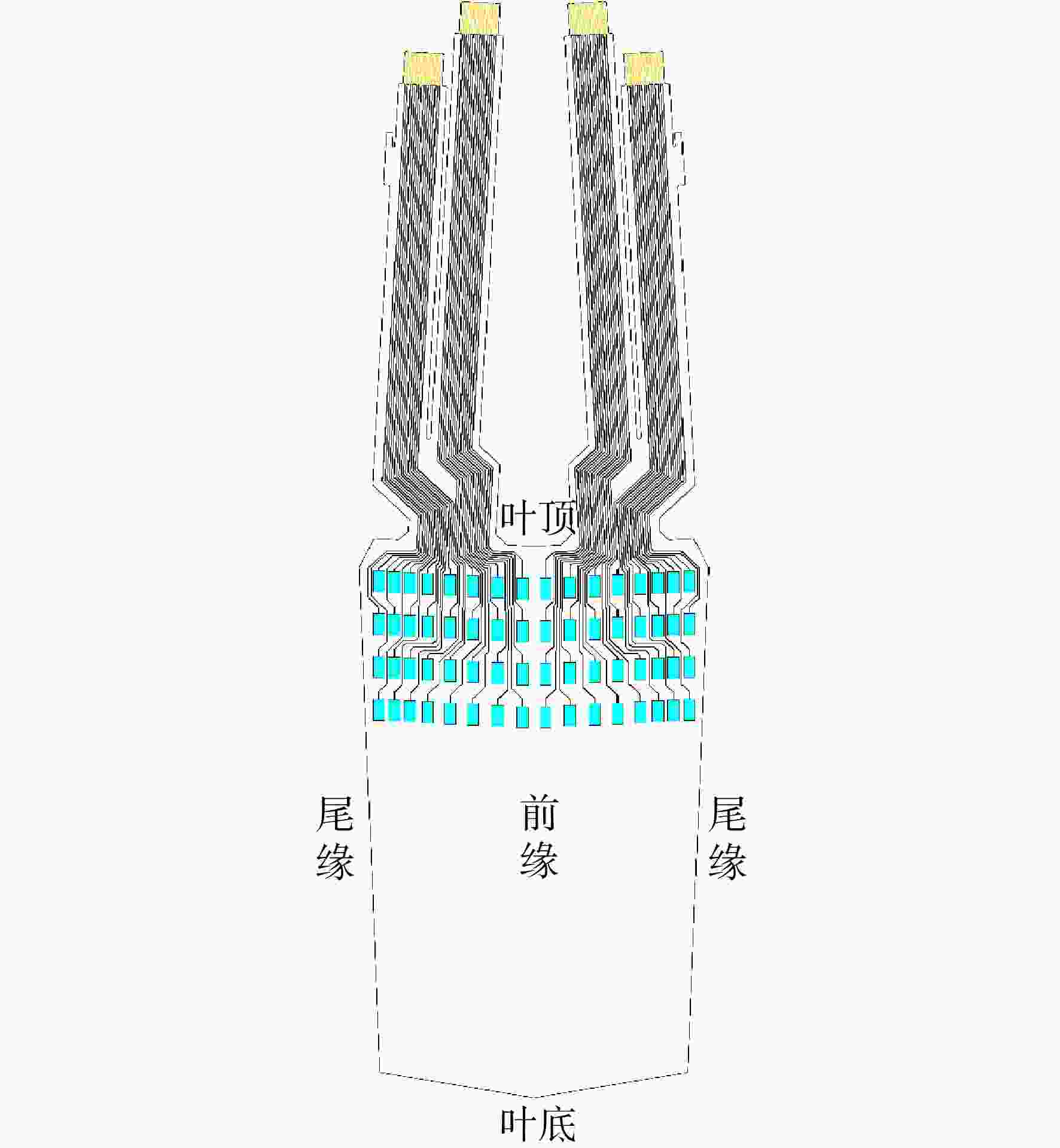

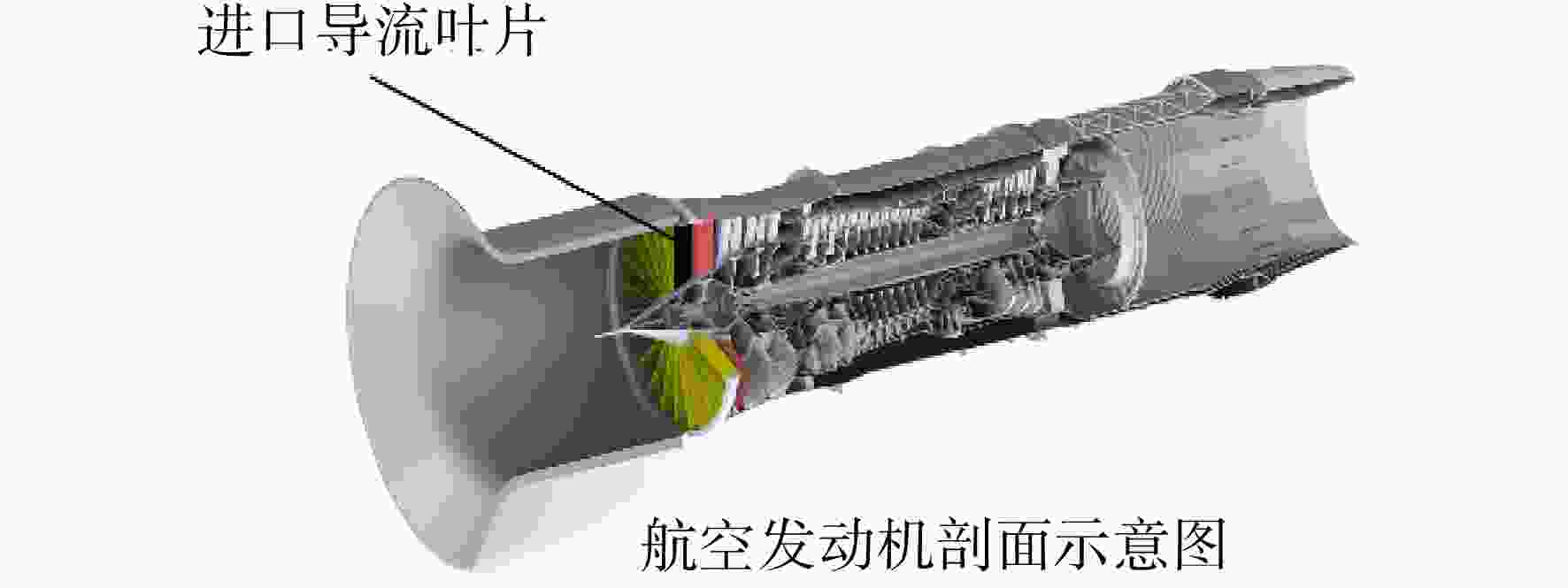

为了探究航空发动机进气支板产生裂纹的原因，设计了基于薄膜传感器的支板测试系统。通过在ANSYS中建立支板及其流场的物理模型，在支板表面施加不同频率的低幅点载荷，以模拟不同转速下后排转子通过转静干涉过程作用到支板表面的激励力，建立Fluent模块与Transient Structural模块之间的双向数据传输来实现双向流固耦合仿真。通过仿真得到瞬时分析的结果（后排转子对支板的激励力可忽略）与实际测试结果进行对比。结果表明：在共振转速附近时，支板表面压力幅值显著增大，与薄膜压力传感器测试所得结果一致。说明叶片共振时，流固耦合作用不可忽略。分析过程与结论为航空发动机进气支板裂纹产生机理分析提供了理论依据，同时为支板结构设计提供了一种思路。
Abstract:In order to investigate the cause of the crack in the aero engine intake support plate, a test system of support plate based on thin film sensor was designed. Then, the physical model of the support plate and its flow field were established in ANSYS, and low amplitude point loads of different frequencies were applied to the surface of the support plate to simulate the exciting force on the surface of the support plate through the static interference process of the rear rotor at different speeds. Two-way data transmission between Fluent module and Transient Structural module was established to realize two-way fluid-structure coupling simulation. Finally, the instantaneous analysis results (the excitation force of the rear rotor on the support plate can be ignored) were compared with the actual test results. The results showed that the surface pressure amplitude of the support plate increased significantly when the resonant speed was near, which was consistent with the measured results of the thin film pressure sensor. It showed that the fluid-structure coupling can’t be ignored when the blade resonated. The analysis process and conclusion could provide a theoretical basis for the analysis of the mechanism of crack generation in the aero-engine intake support plate, and also provide an idea for the design of support plate structure.
-

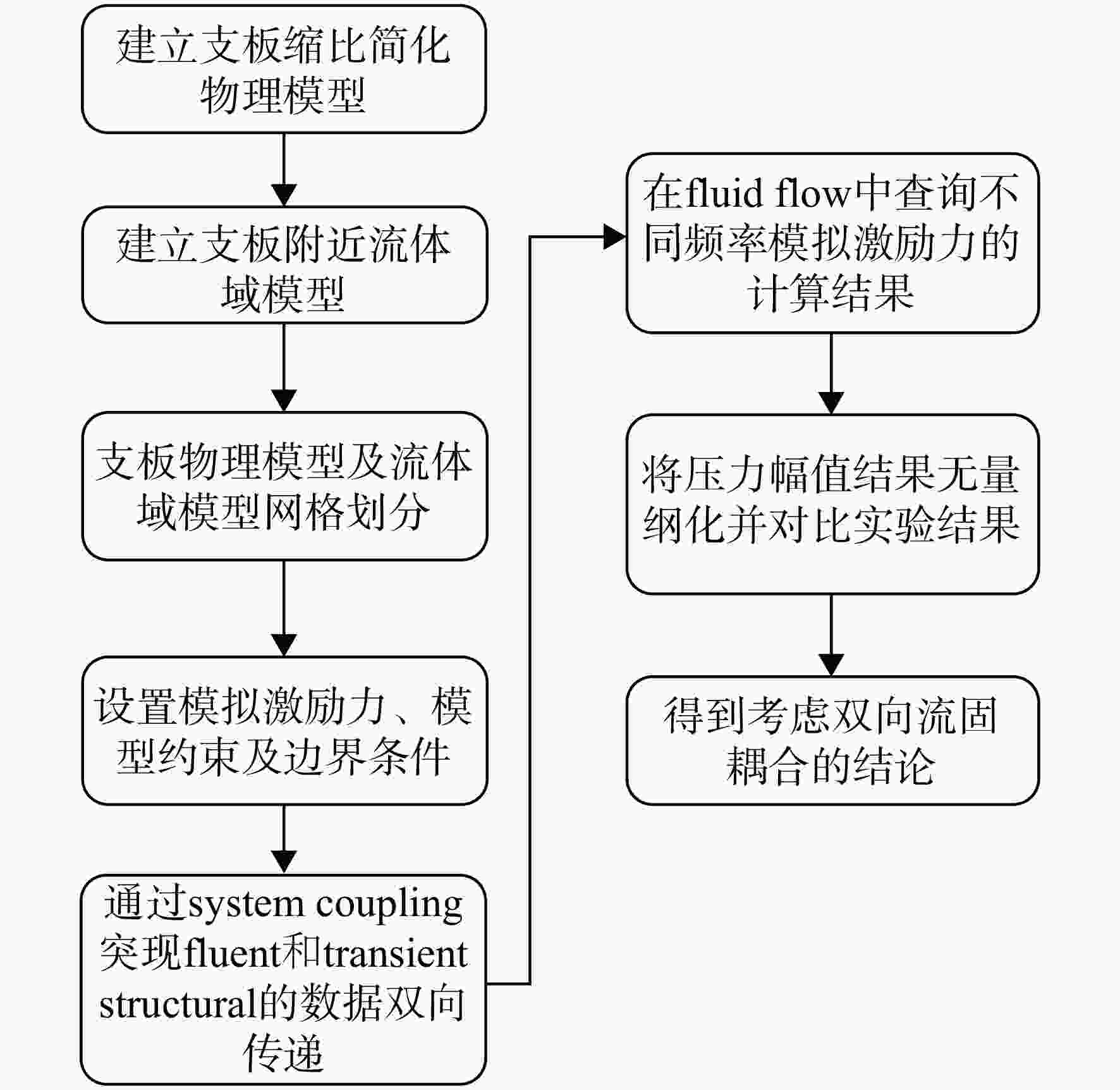

图 5 双向流固耦合仿真求解流程图
Figure 5. Two-way fluid-structure coupling simulation solution flow chart

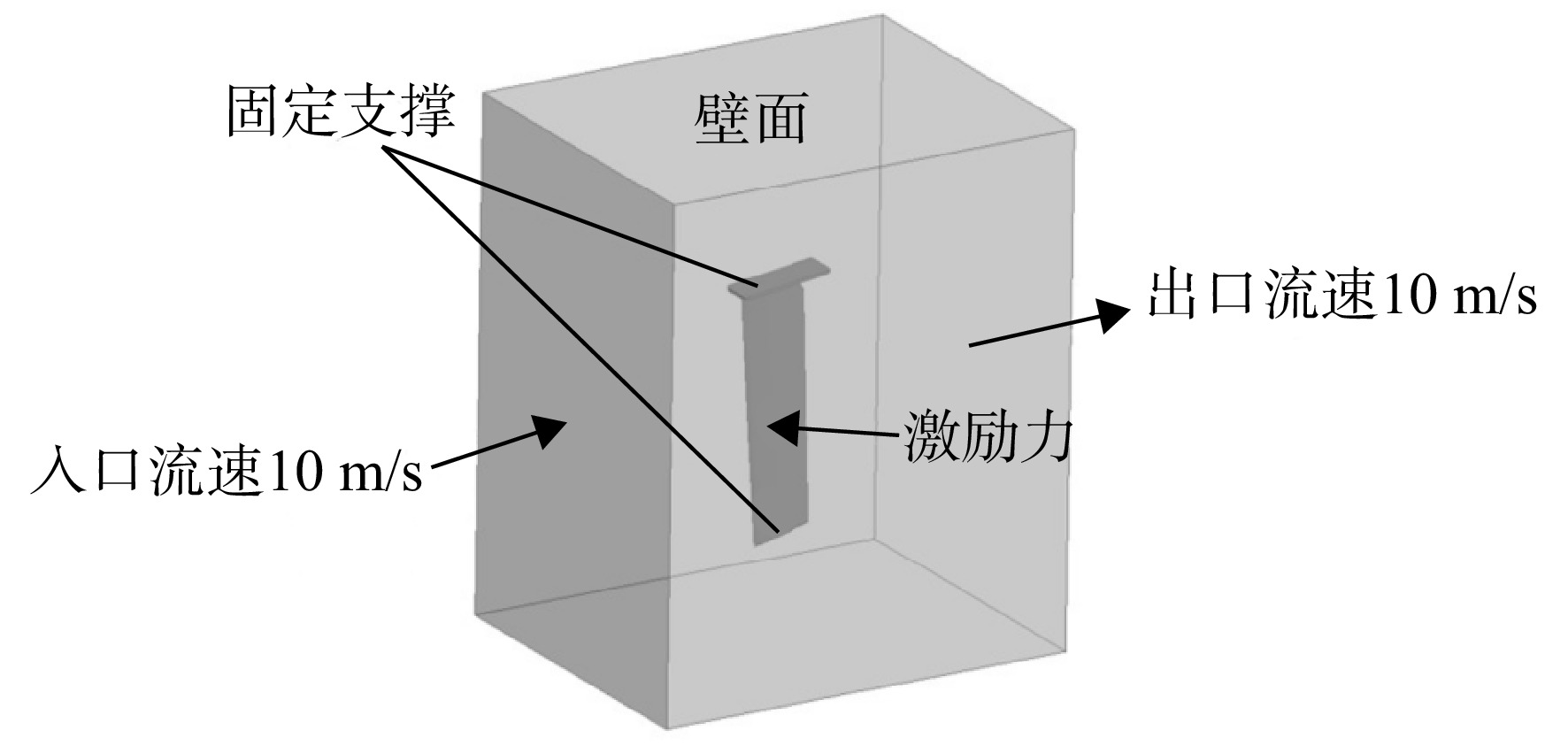

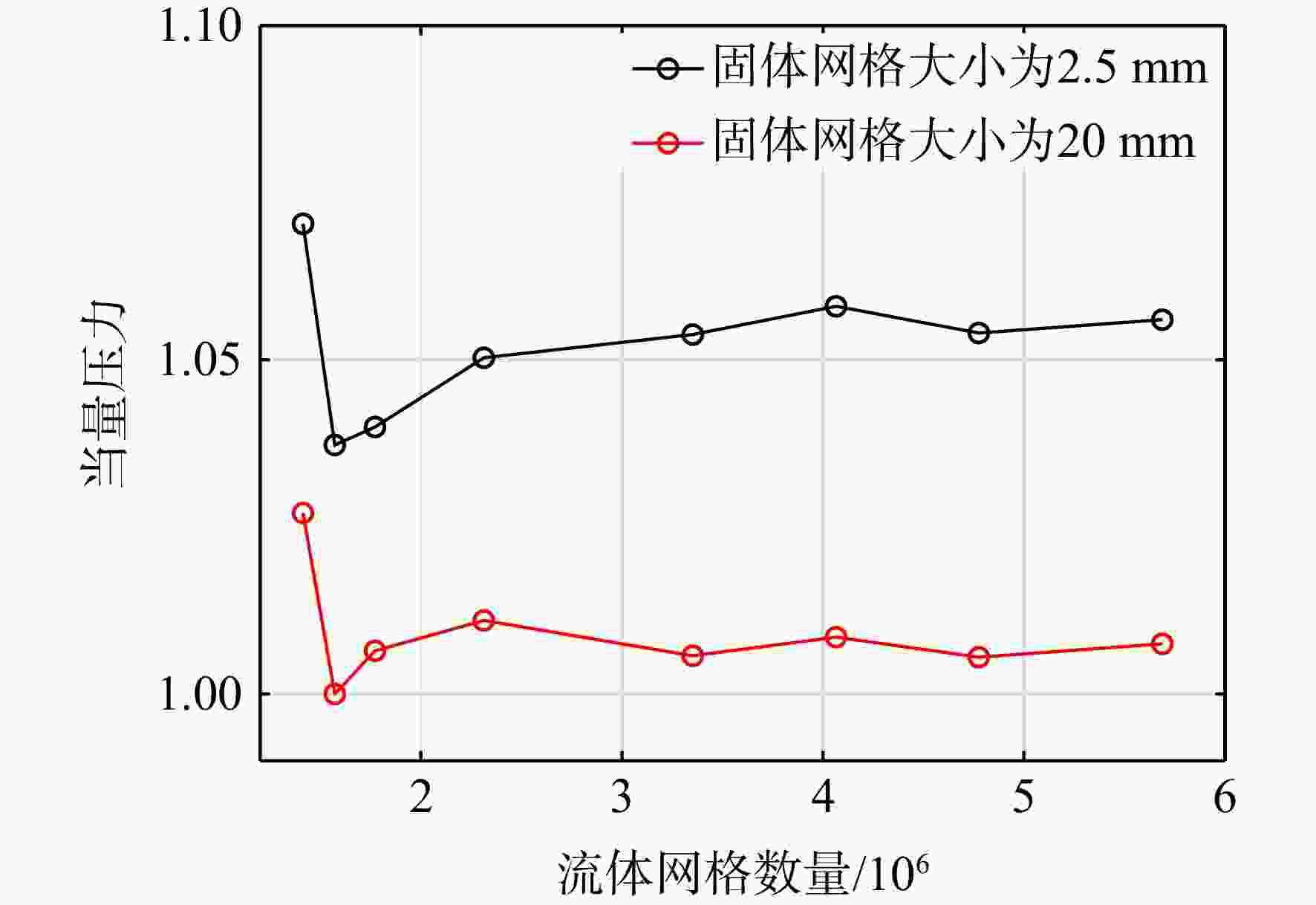

图 7 支板固、流体域模型及网格划分示意图
Figure 7. Support plate solid and fluid domain model and grid division diagram

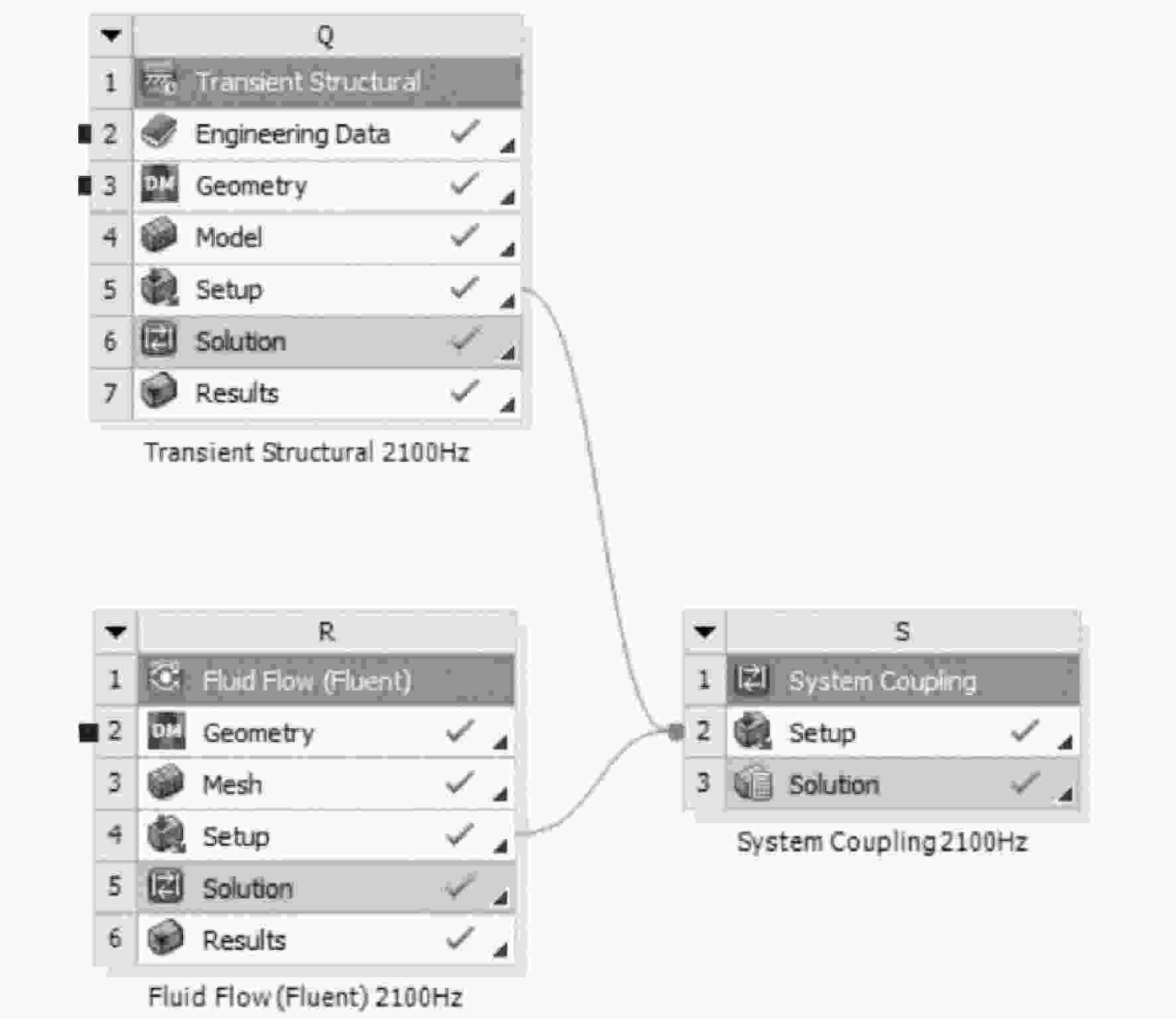

图 10 Workbench中的双向流固耦合设置界面
Figure 10. Two-way fluid-structure coupling setup interface in Workbench

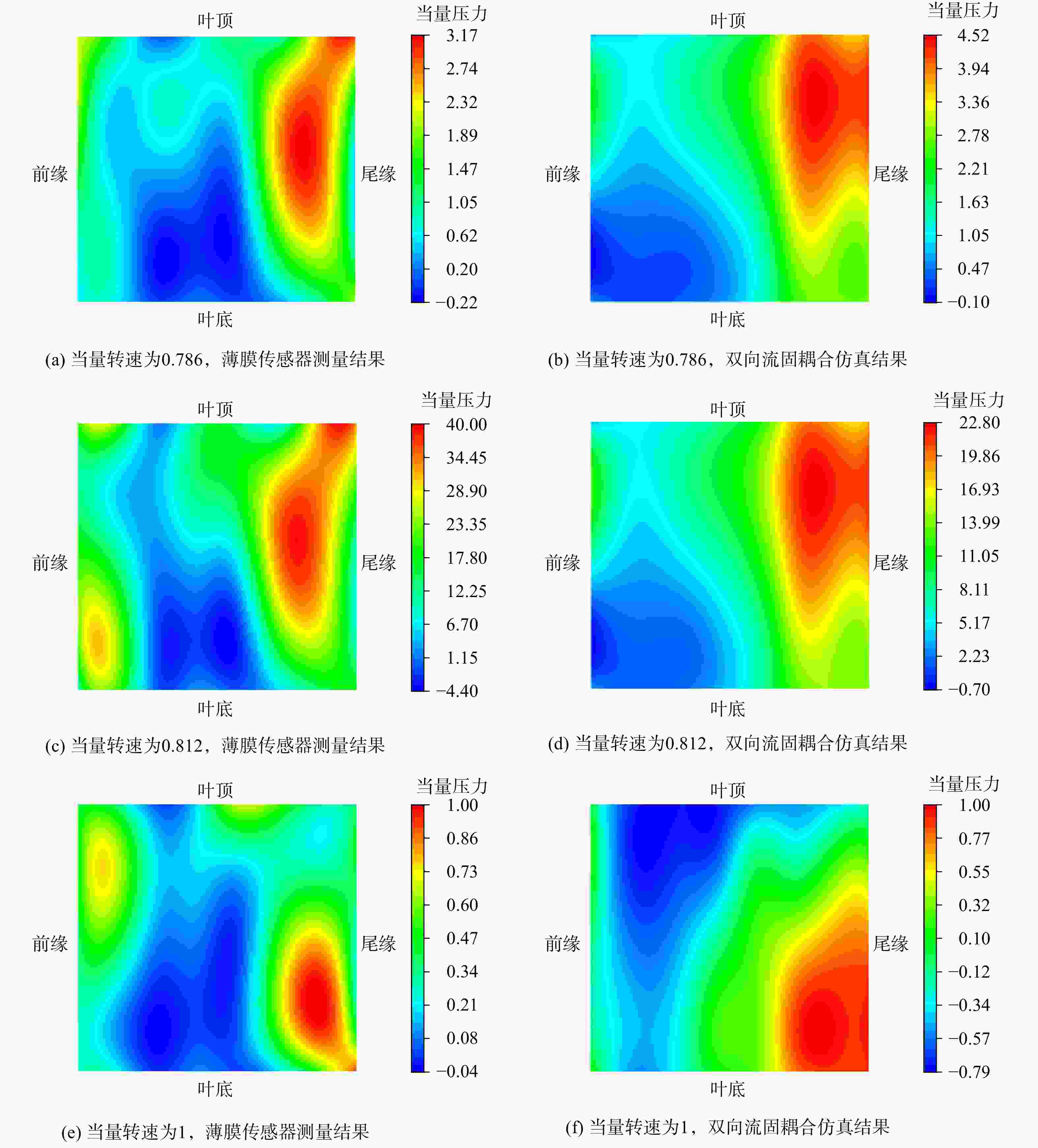

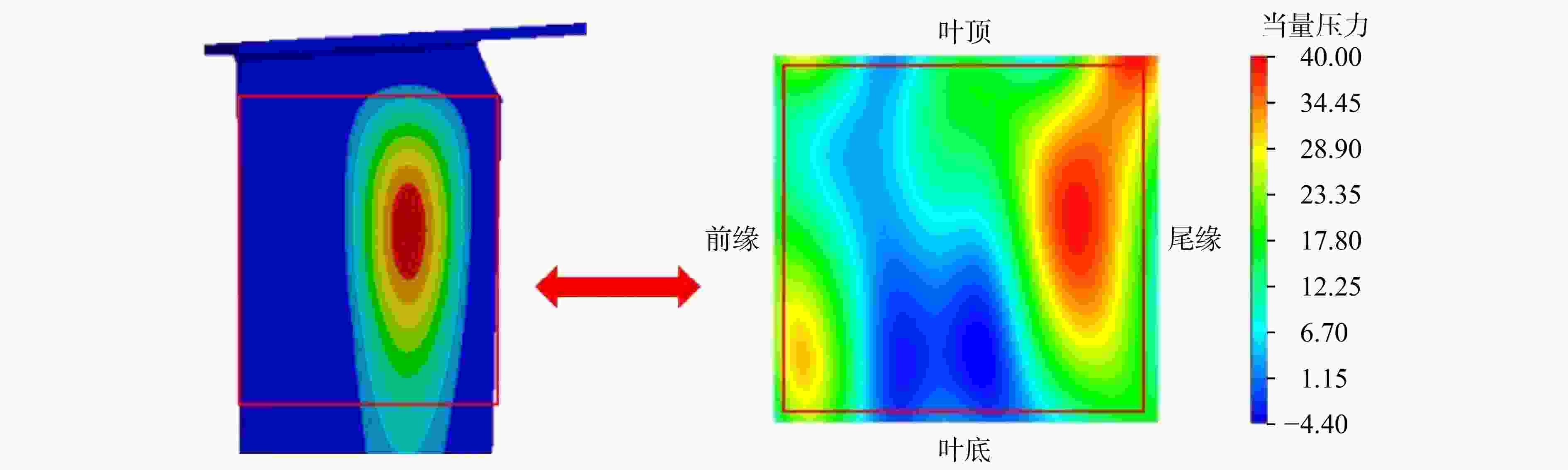

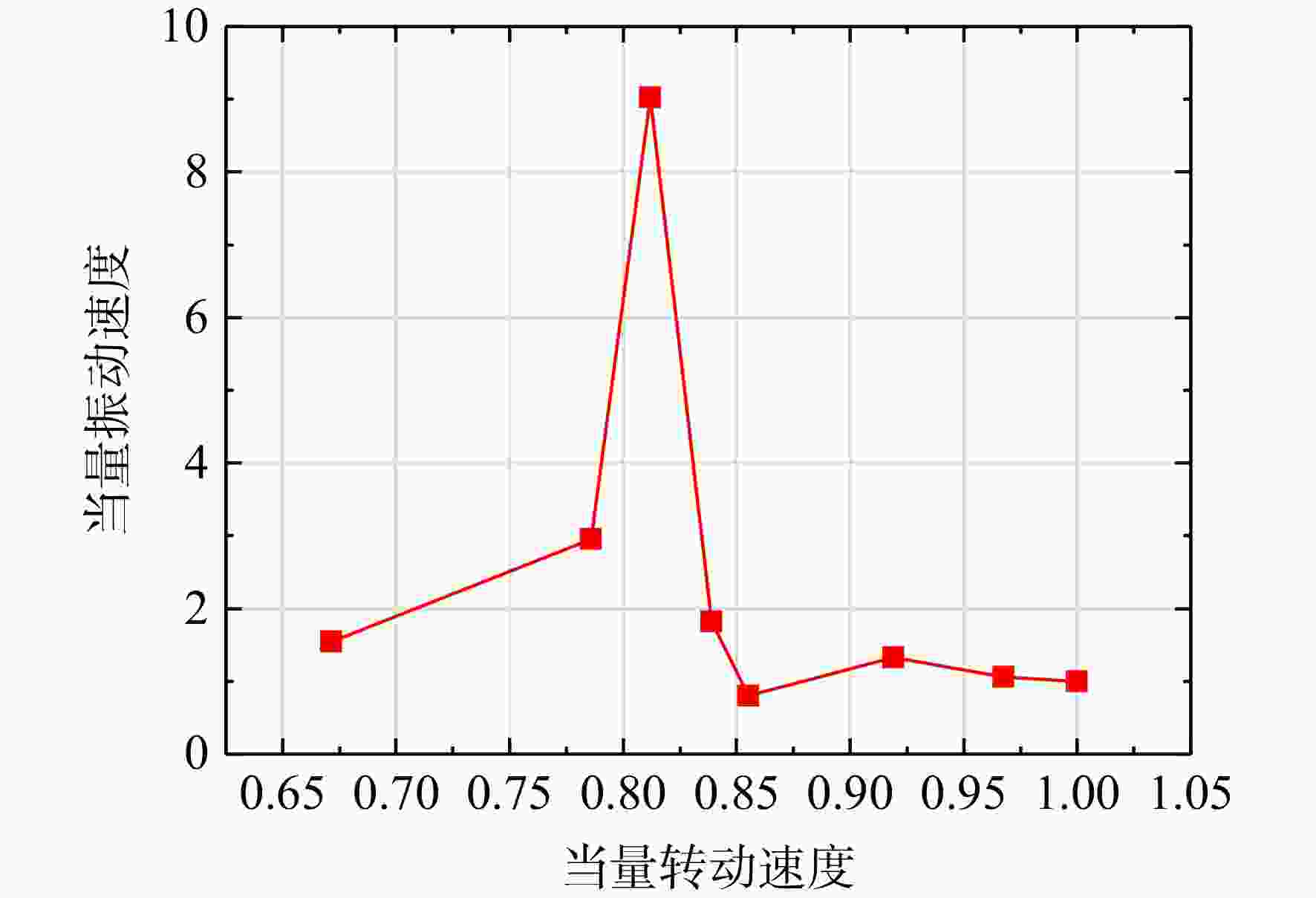

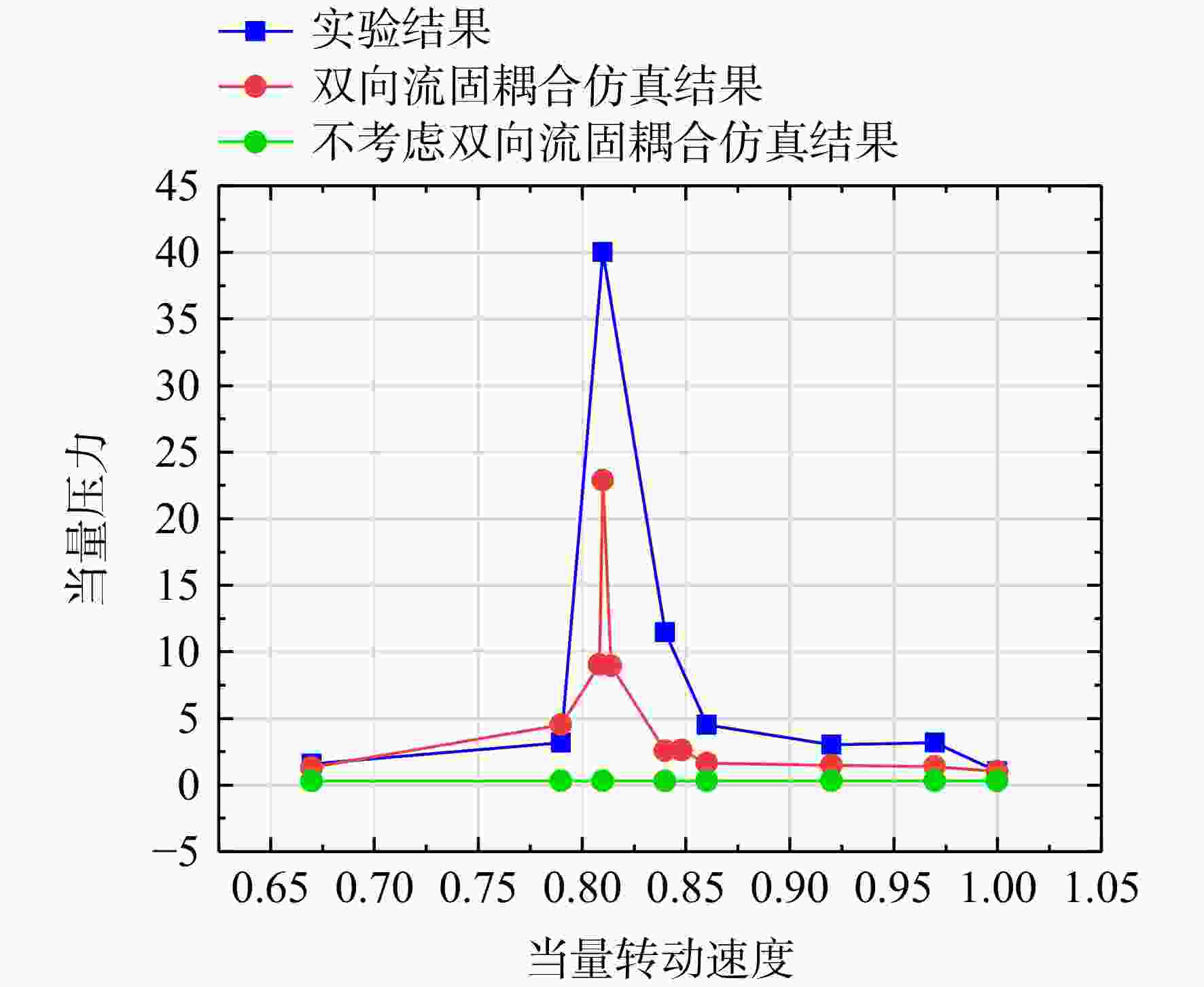

图 11 第4阶模态实际压力分布对比
Figure 11. Comparison of the fourth mode and actual pressure distribution
-
[1] 许玮健,杨明绥,王萌. 基于声纹特征识别的进气支板裂纹故障原位检测技术[J]. 航空动力,2023(3): 16-18. XU Weijian,YANG Mingsui,WANG Meng. In-situ detection technology for cracks in intake plates based on voiceprint recognition[J]. Aerospace Power,2023(3): 16-18. (in ChineseXU Weijian, YANG Mingsui, WANG Meng. In-situ detection technology for cracks in intake plates based on voiceprint recognition[J]. Aerospace Power, 2023(3): 16-18. (in Chinese) [2] LI Pengfei,ZUO Zhitao,LI Jingxin,et al. Characteristics of inlet guide vane adjustment of multi-stage axial compressor in compressed air energy storage system[J]. Journal of Energy Storage,2023,72: 108342. doi: 10.1016/j.est.2023.108342 [3] BALLI O. Failure analysis of inlet guide vane (IGV) actuator and bellcrank assembly used on J85 turbojet engines[J]. Engineering Failure Analysis,2020,115: 104700. doi: 10.1016/j.engfailanal.2020.104700 [4] 张文广,陆瑶,王维建,等. 重型燃气轮机IGV系统建模与故障仿真[J]. 自动化仪表,2022,43(2): 38-43,50. ZHANG Wenguang,LU Yao,WANG Weijian,et al. Heavy duty gas turbine IGV system modeling and fault simulation[J]. Process Automation Instrumentation,2022,43(2): 38-43,50. (in ChineseZHANG Wenguang, LU Yao, WANG Weijian, et al. Heavy duty gas turbine IGV system modeling and fault simulation[J]. Process Automation Instrumentation, 2022, 43(2): 38-43, 50. (in Chinese) [5] MISHRA R K,JOHNEY T,SRINIVASAN K,et al. Failure analysis of HP turbine blades in a low bypass turbofan engine[J]. Journal of Failure Analysis and Prevention,2013,13(3): 274-281. doi: 10.1007/s11668-013-9674-5 [6] 刘洋. 某型发动机进气机匣高循环疲劳失效分析及解决方法[C]//航空试验测试技术学术交流会论文集. 沈阳: 中航工业沈阳发动机设计研究所,2016: 136-138. LIU Yang. Analysis and solution of high cycle fatigue failure of an engine intake casing [C]// Proceedings of the Academic Exchange Conference on Aeronautical Test and Test Technology. Shenyang: Shenyang Engine Design and Research Institute of AVIC,2016: 136-138. (in ChineseLIU Yang. Analysis and solution of high cycle fatigue failure of an engine intake casing [C]// Proceedings of the Academic Exchange Conference on Aeronautical Test and Test Technology. Shenyang: Shenyang Engine Design and Research Institute of AVIC, 2016: 136-138. (in Chinese) [7] 彭威,任晓栋,李雪松,等. 进气支板周向位置对动叶激励和振动的影响[J]. 航空动力学报,2024,39(5): 20220371. PENG Wei,REN Xiaodong,LI Xuesong,et al. Influence of circumferential position of intake struts on rotor blade excitation and vibration[J]. Journal of Aerospace Power,2024,39(5): 20220371. (in ChinesePENG Wei, REN Xiaodong, LI Xuesong, et al. Influence of circumferential position of intake struts on rotor blade excitation and vibration[J]. Journal of Aerospace Power, 2024, 39(5): 20220371. (in Chinese) [8] 吴宏春,陈勇,洪志亮. 航空发动机机匣裂纹故障诊断研究[J]. 燃气涡轮试验与研究,2017,30(5): 42-46. WU Hongchun,CHEN Yong,HONG Zhiliang. Diagnosis on the casing crack failure of an aero-engine[J]. Gas Turbine Experiment and Research,2017,30(5): 42-46. (in Chinese doi: 10.3969/j.issn.1672-2620.2017.05.008WU Hongchun, CHEN Yong, HONG Zhiliang. Diagnosis on the casing crack failure of an aero-engine[J]. Gas Turbine Experiment and Research, 2017, 30(5): 42-46. (in Chinese) doi: 10.3969/j.issn.1672-2620.2017.05.008 [9] 张弛,王雅谋. 航空发动机进口整流支板防冰槽裂纹故障分析[J]. 航空发动机,2020,46(4): 47-51. ZHANG Chi,WANG Yamou. Fault analysis of anti-icing tank cracks of the aeroengine inlet vane strut[J]. Aeroengine,2020,46(4): 47-51. (in ChineseZHANG Chi, WANG Yamou. Fault analysis of anti-icing tank cracks of the aeroengine inlet vane strut[J]. Aeroengine, 2020, 46(4): 47-51. (in Chinese) [10] 霍小臭,袁帅,亓宗磊. 基于双向流固耦合的冷却风扇气动性能仿真分析[J]. 汽车零部件,2023(3): 48-51. HUO Xiaochou,YUAN Shuai,QI Zonglei. Simulation analysis of aerodynamic performance of cooling fan based on two-way fluid-structure coupling[J]. Automobile Parts,2023(3): 48-51. (in ChineseHUO Xiaochou, YUAN Shuai, QI Zonglei. Simulation analysis of aerodynamic performance of cooling fan based on two-way fluid-structure coupling[J]. Automobile Parts, 2023(3): 48-51. (in Chinese) [11] 汪思奇,汪忠睿,吴志坚,等. 压电薄膜振动传感器灵敏度与频响标定研究[J]. 压电与声光,2022,44(6): 925-928. WANG Siqi,WANG Zhongrui,WU Zhijian,et al. Study on calibration of sensitivity and frequency response characteristics of piezoelectric thin film vibration sensor[J]. Piezoelectrics & Acoustooptics,2022,44(6): 925-928. (in Chinese doi: 10.11977/j.issn.1004-2474.2022.06.019WANG Siqi, WANG Zhongrui, WU Zhijian, et al. Study on calibration of sensitivity and frequency response characteristics of piezoelectric thin film vibration sensor[J]. Piezoelectrics & Acoustooptics, 2022, 44(6): 925-928. (in Chinese) doi: 10.11977/j.issn.1004-2474.2022.06.019 [12] 董亮. 非结构化网格生成技术研究及应用[D]. 江苏 镇江: 江苏大学,2010. DONG Liang. The study and application of unstructured mesh generation technique[D]. Zhenjiang Jiangsu: Jiangsu University,2010. (in ChineseDONG Liang. The study and application of unstructured mesh generation technique[D]. Zhenjiang Jiangsu: Jiangsu University, 2010. (in Chinese) [13] 陈建军. 非结构化网格生成及其并行化的若干问题研究[D]. 杭州: 浙江大学,2006. CHEN Jianjun. Unstructured mesh generation and its parallelization[D]. Hangzhou: Zhejiang University,2006. (in ChineseCHEN Jianjun. Unstructured mesh generation and its parallelization[D]. Hangzhou: Zhejiang University, 2006. (in Chinese) [14] 李涛,左正兴,廖日东. 结构仿真高精度有限元网格划分方法[J]. 机械工程学报,2009,45(6): 304-308. LI Tao,ZUO Zhengxing,LIAO Ridong. Meshing method of high precision FEM in structural simulations[J]. Journal of Mechanical Engineering,2009,45(6): 304-308. (in Chinese doi: 10.3901/JME.2009.06.304LI Tao, ZUO Zhengxing, LIAO Ridong. Meshing method of high precision FEM in structural simulations[J]. Journal of Mechanical Engineering, 2009, 45(6): 304-308. (in Chinese) doi: 10.3901/JME.2009.06.304 [15] 邢静忠,李军. ANSYS的建模方法和网格划分[J]. 中国水运(学术版),2006,6(9): 116-118. XING Jingzhong,LI Jun. Methods of creating model and grid partition of ANSYS[J]. China Water Transport (Academic Version),2006,6(9): 116-118. (in ChineseXING Jingzhong, LI Jun. Methods of creating model and grid partition of ANSYS[J]. China Water Transport (Academic Version), 2006, 6(9): 116-118. (in Chinese) [16] 相闯. 几种典型流动的湍流模型适用性分析[D]. 武汉: 武汉理工大学,2021. XIANG Chuang. Applicability analysis of turbulence models for several typical flows[D]. Wuhan: Wuhan University of Technology,2021. (in ChineseXIANG Chuang. Applicability analysis of turbulence models for several typical flows[D]. Wuhan: Wuhan University of Technology, 2021. (in Chinese) [17] 陈争新. 航空发动机进气机匣焊接组件焊接变形控制技术[J]. 电焊机,2021,51(12): 56-62,129. CHEN Zhengxin. Welding distortion c ontrol technology on aircraft engine inlet case welding assembly[J]. Electric Welding Machine,2021,51(12): 56-62,129. (in Chinese doi: 10.7512/j.issn.1001-2303.2021.12.11CHEN Zhengxin. Welding distortion c ontrol technology on aircraft engine inlet case welding assembly[J]. Electric Welding Machine, 2021, 51(12): 56-62, 129. (in Chinese) doi: 10.7512/j.issn.1001-2303.2021.12.11 [18] 罗跃飞,吴飞,李冠. 某燃气轮机压气机可转导叶IGV流固耦合分析[J]. 东方汽轮机,2020(3): 10-13,17. LUO Yuefei,WU Fei,LI Guan. Fluid-solid interaction analysis of some gas turbine compressor inlet guide vane (IGV)[J]. Dongfang Turbine,2020(3): 10-13,17. (in ChineseLUO Yuefei, WU Fei, LI Guan. Fluid-solid interaction analysis of some gas turbine compressor inlet guide vane (IGV)[J]. Dongfang Turbine, 2020(3): 10-13, 17. (in Chinese) -
