Study on tensile properties of SiCf/TC17 composites and strength analysis of blade-ring structure
-
摘要:
对SiCf/TC17复合材料开展室/高温纵向拉伸试验，研究不同温度的拉伸性能，通过断口形貌分析阐释断裂机制，建立本构模型描述其拉伸行为。结果表明：SiCf/TC17的断裂强度随着温度升高而降低，同时应力应变曲线的非线性段增加；室温（25 ℃）的断裂机制主要是反应层断裂和纤维随机断裂，而高温下出现大规模的纤维拔出与界面脱黏、基体韧性断裂和多纤维断裂；不同强度预测模型的结果表明：25 ℃下材料的断裂模式以局部承担载荷为主，而高温更符合全局承担模型；所提出的耦合纤维累积损伤的本构模型很好地模拟了25 ℃和450 ℃的应力应变曲线。最后基于试验所得拉伸性能，开展了叶环结构的应力应变分析和静强度校核，在典型服役温度下，叶环结构具有较高的强度储备系数。
Abstract:Longitudinal tensile tests were carried out on SiCf/TC17 composites at room/high temperature to investigate the tensile behaviors. The damage evolution and failure mechanisms were revealed based on microscopic fracture morphology analysis. Afterwards, a constitutive model was developed to describe the tensile behaviors of SiCf/TC17 composites. The results showed that the ultimate tensile strength of SiCf/TC17 composites decreased with the increasing temperature, while the nonlinear segment of the stress-strain curve increased. The major failure mechanisms at room temperature (25 ℃) lied in multiple fractures of the interfacial reaction layer and random breakage of weak fibers, whereas large-scale interface debonding and fiber pullout, matrix cracking and fiber breakage were more common at high temperatures. The results of different strength-predicted models demonstrated that the failure mode of SiCf/TC17 composites at 25 ℃ was controlled by local loading sharing, while the high-temperature ultimate tensile strength was more consistent with the global loading sharing model. The stress-strain curve of SiCf/TC17 composites was simulated by the proposed constitutive model with coupling fiber cumulative damage. The simulation results exhibited a trend similar to that of the experimental data at 25 ℃ and 450 ℃. Finally, based on the tensile properties obtained from the tests, finite element stress-strain analysis and static strength calibration of the TMCs blade-ring structure were carried out. The result indicated that the blade-ring structure exhibited a significantly elevated strength reserve factor at the typical service temperature.
-

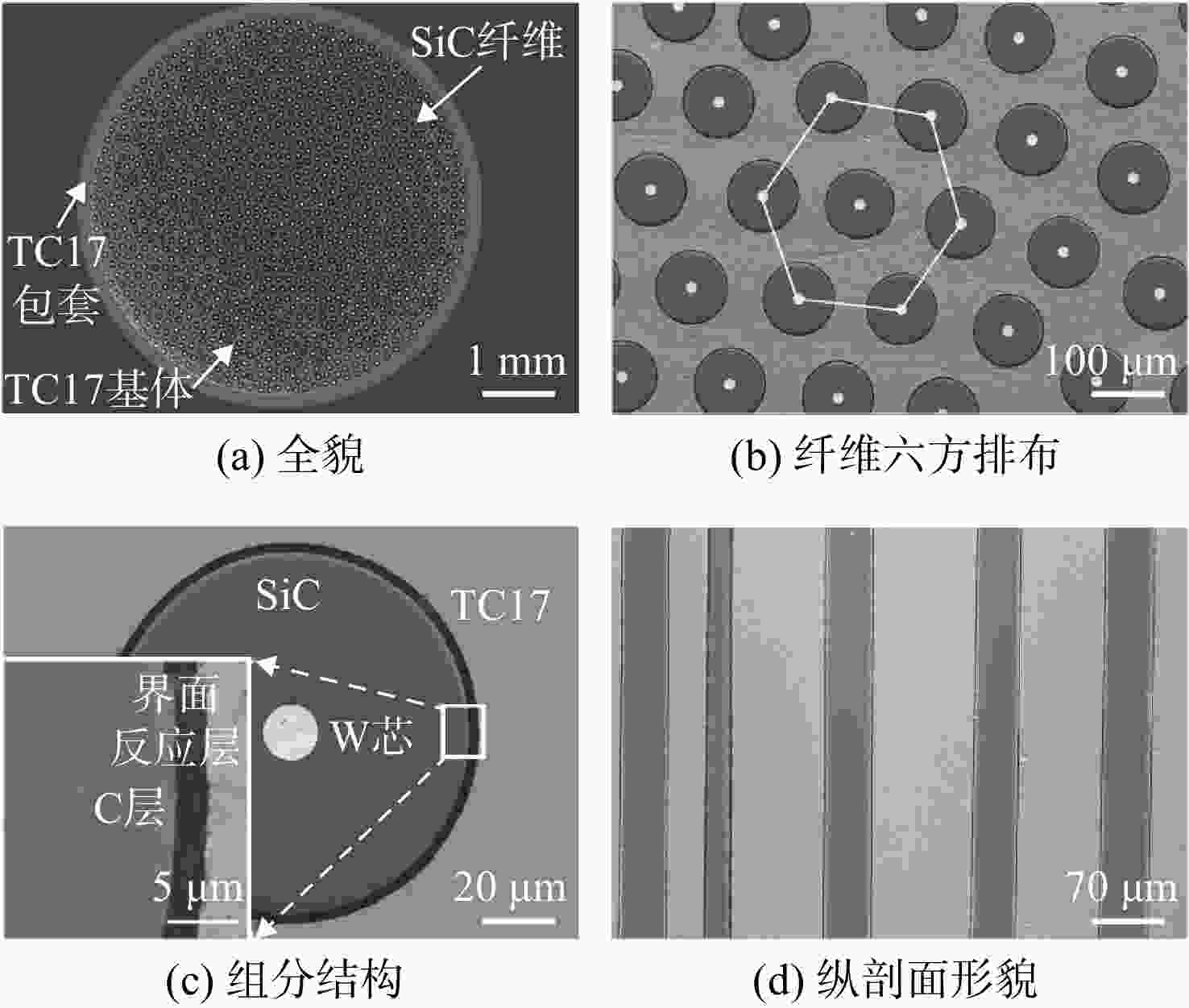

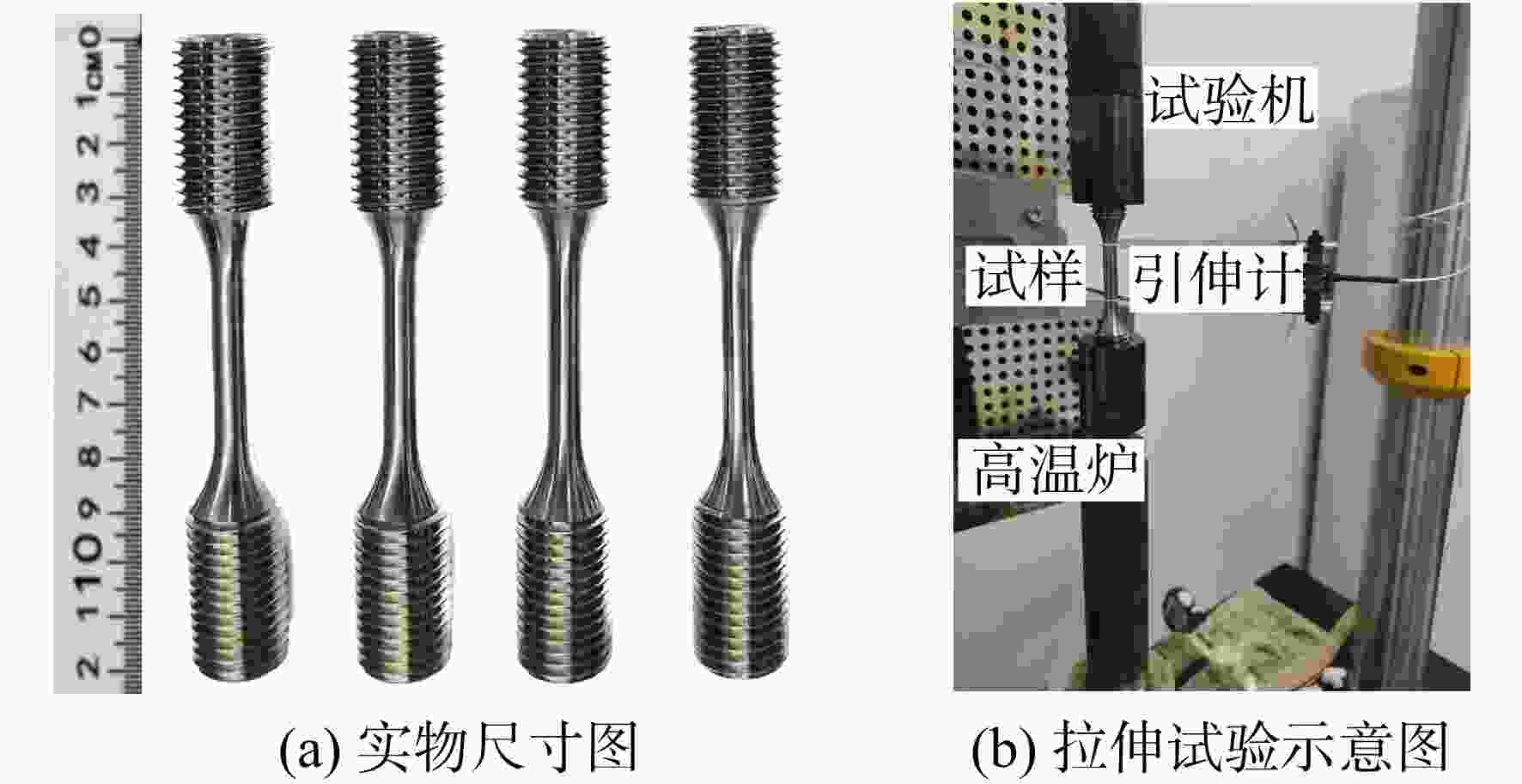

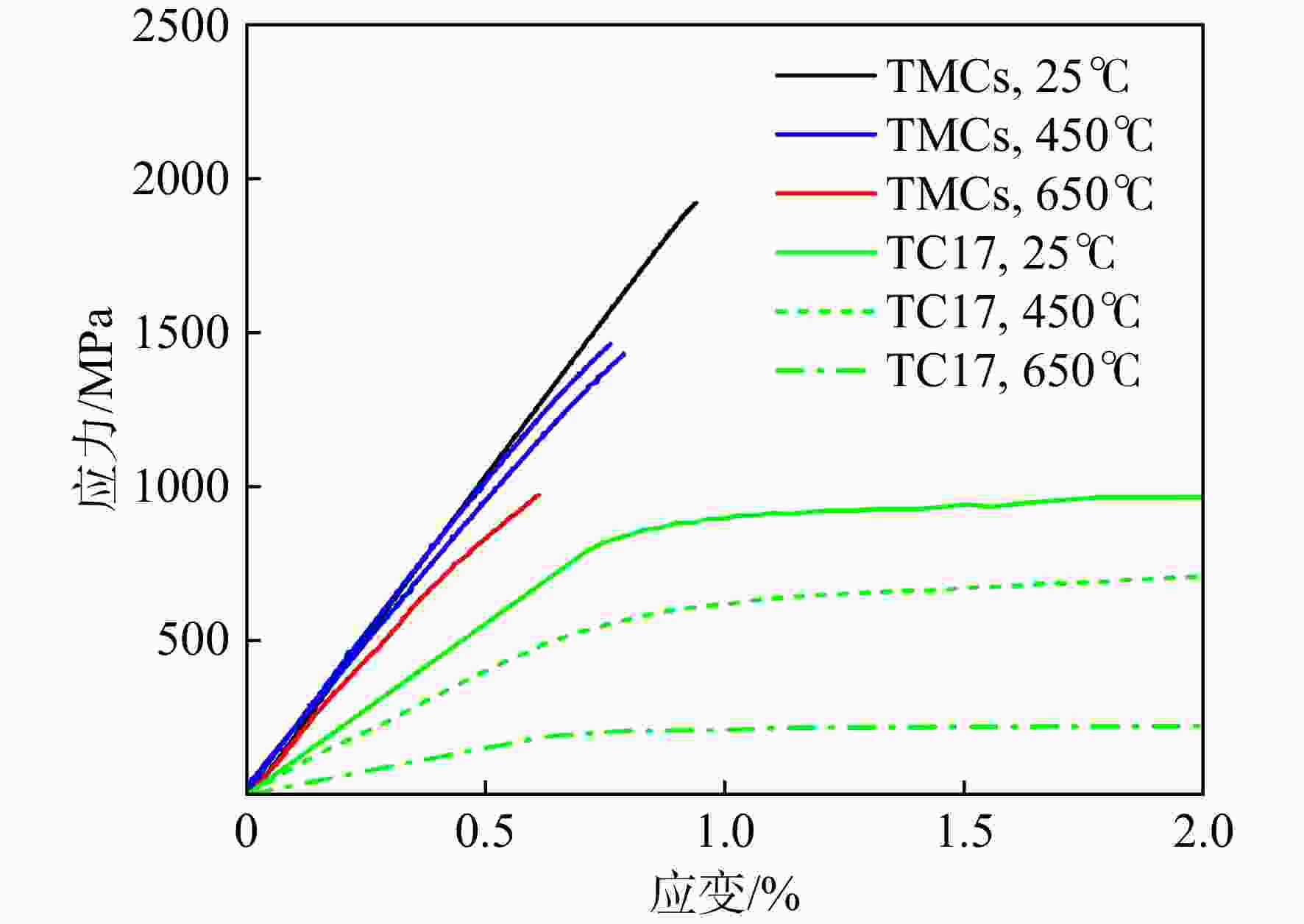

图 3 SiCf/TC17复合材料及TC17基体的应力-应变曲线
Figure 3. Stress-strain curves of SiCf/TC17 composites and TC17 matrix

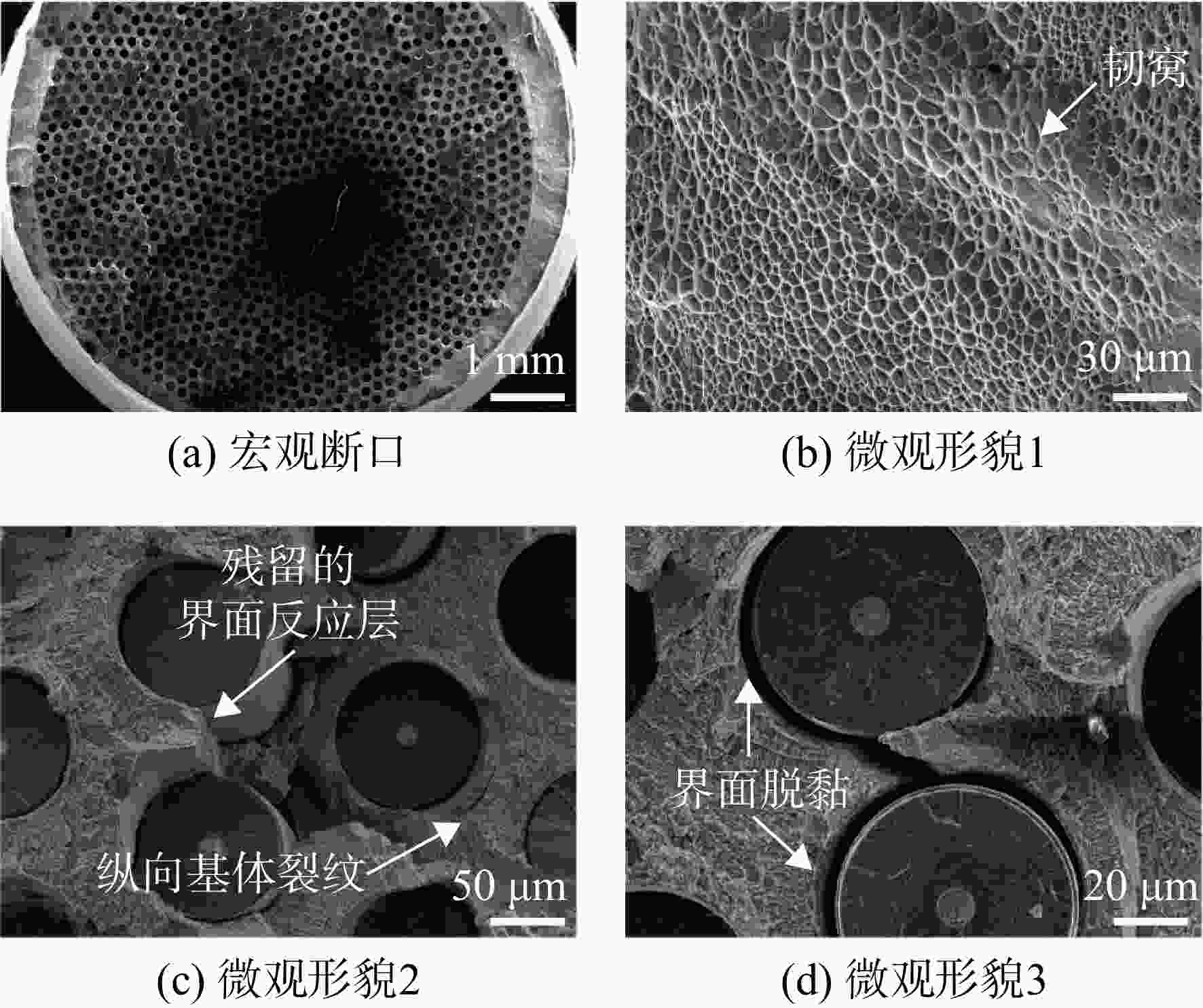

图 4 SiCf/TC17复合材料25 ℃拉伸断口SEM形貌
Figure 4. Tensile fracture morphology of SiCf/TC17 composites observed by SEM at 25 ℃
图 5 SiCf/TC17复合材料25 ℃拉伸断口X-CT形貌
Figure 5. Tensile fracture morphology of SiCf/TC17 composites captured by X-CT at 25 ℃

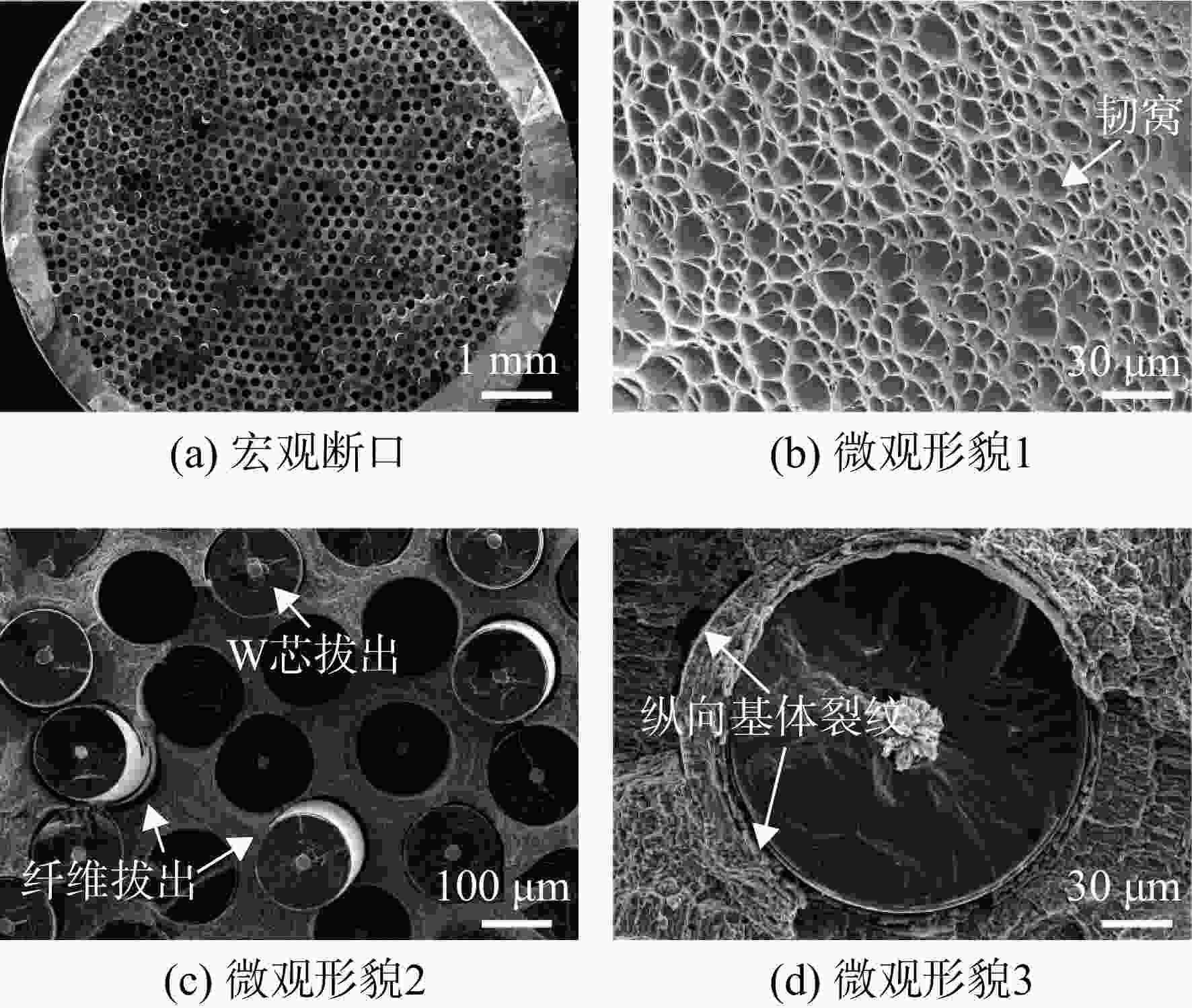

图 6 SiCf/TC17复合材料450 ℃拉伸断口SEM形貌
Figure 6. Tensile fracture morphology of SiCf/TC17 composites observed by SEM at 450 ℃

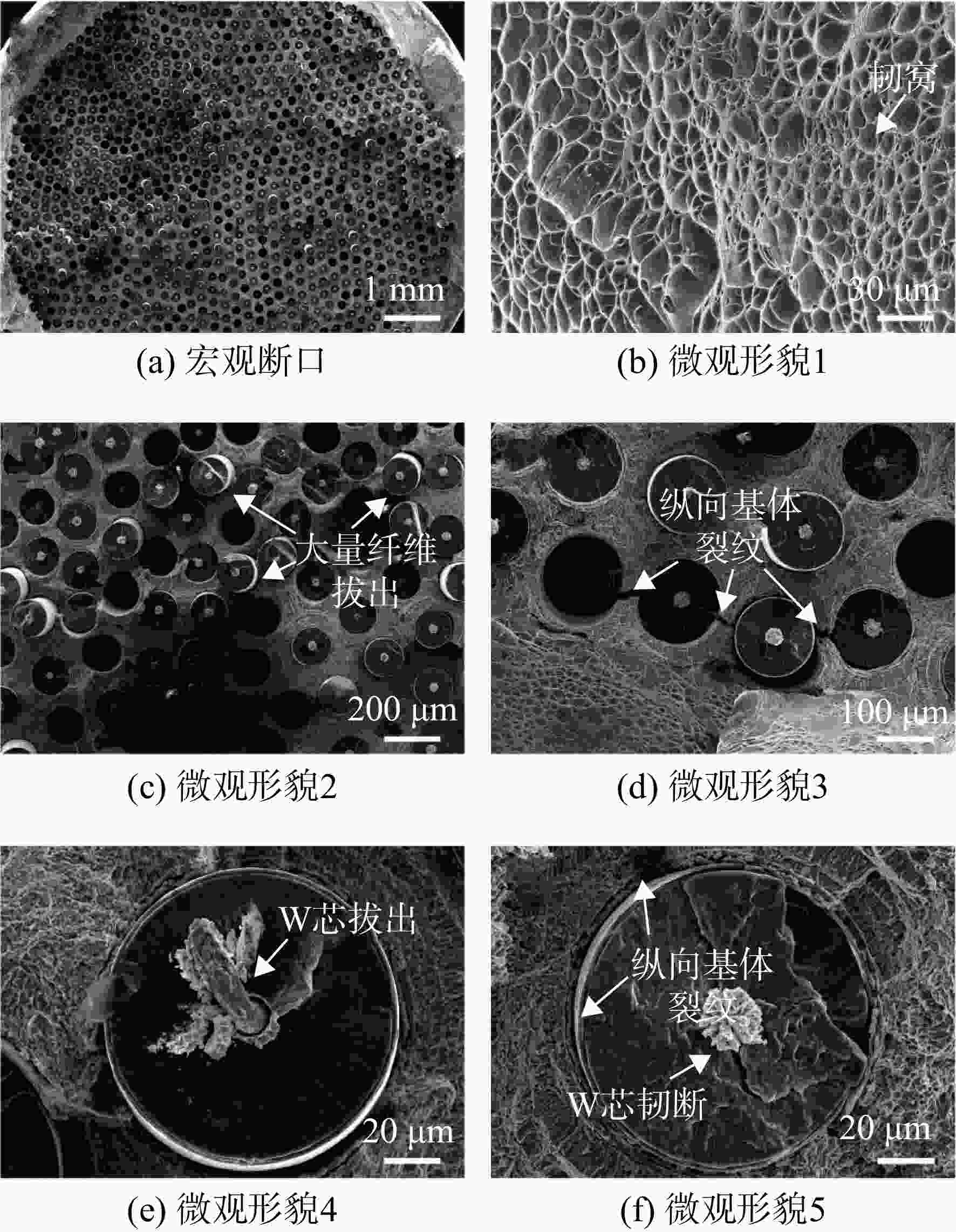

图 7 SiCf/TC17复合材料650 ℃拉伸断口SEM形貌
Figure 7. Tensile fracture morphology of SiCf/TC17 composites observed by SEM at 650 ℃

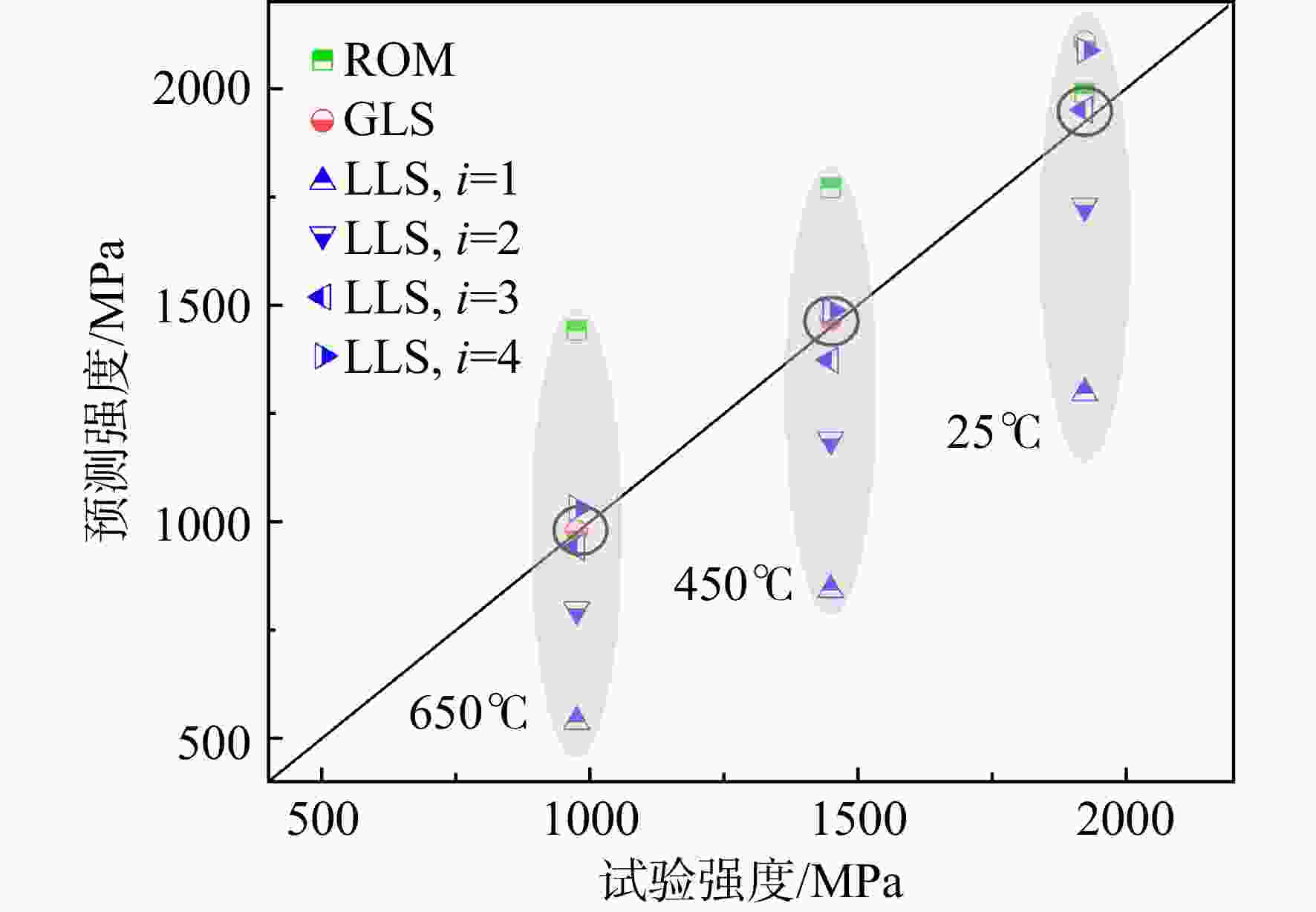

图 8 SiCf/TC17复合材料拉伸断裂强度的模型预测结果
Figure 8. Predicted results of ultimate tensile strength of SiCf/TC17 composites

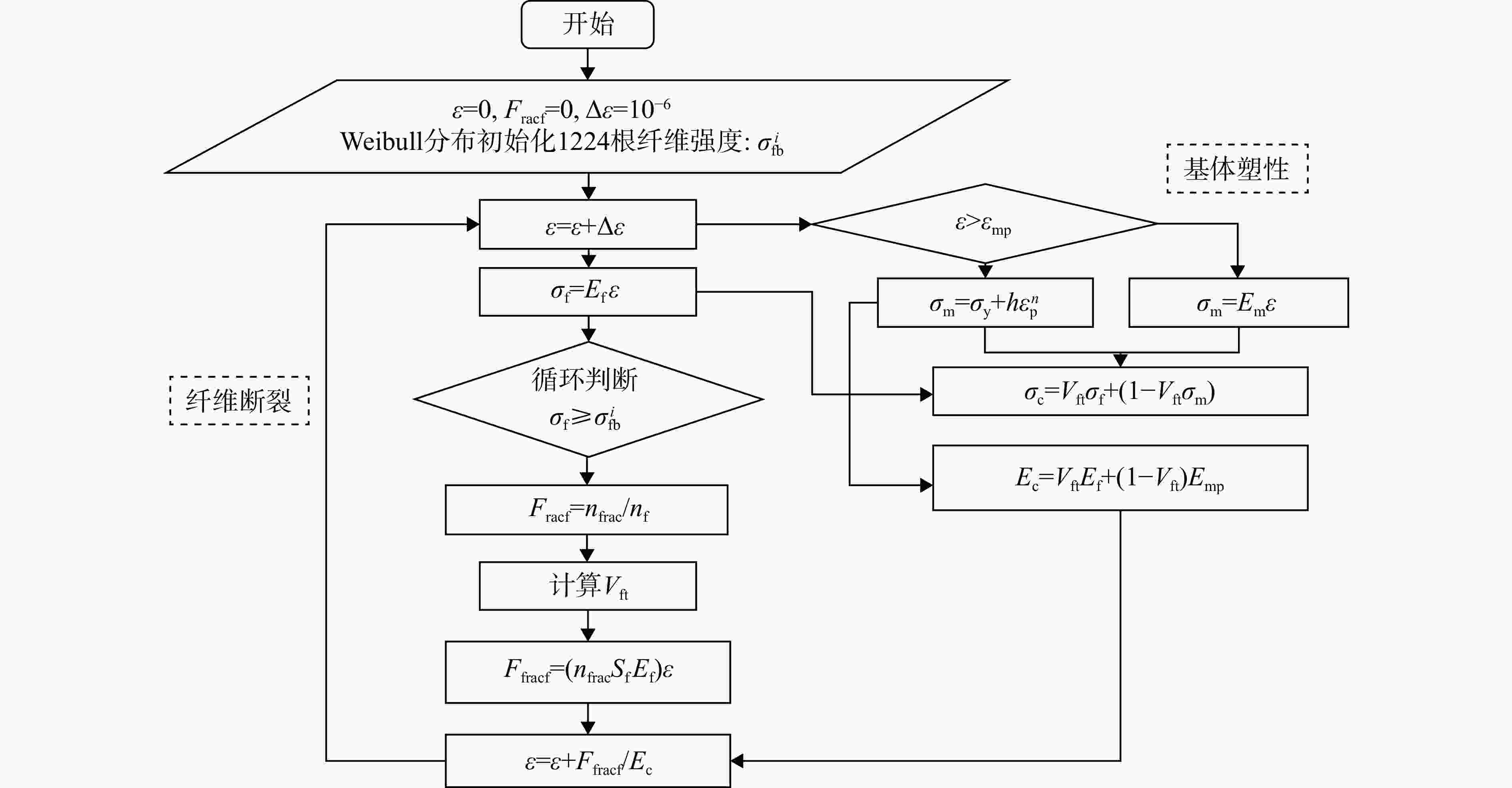

图 9 TMCs本构模型的架构图和实现流程
Figure 9. Architecture and implementation of the proposed constitutive model for TMCs

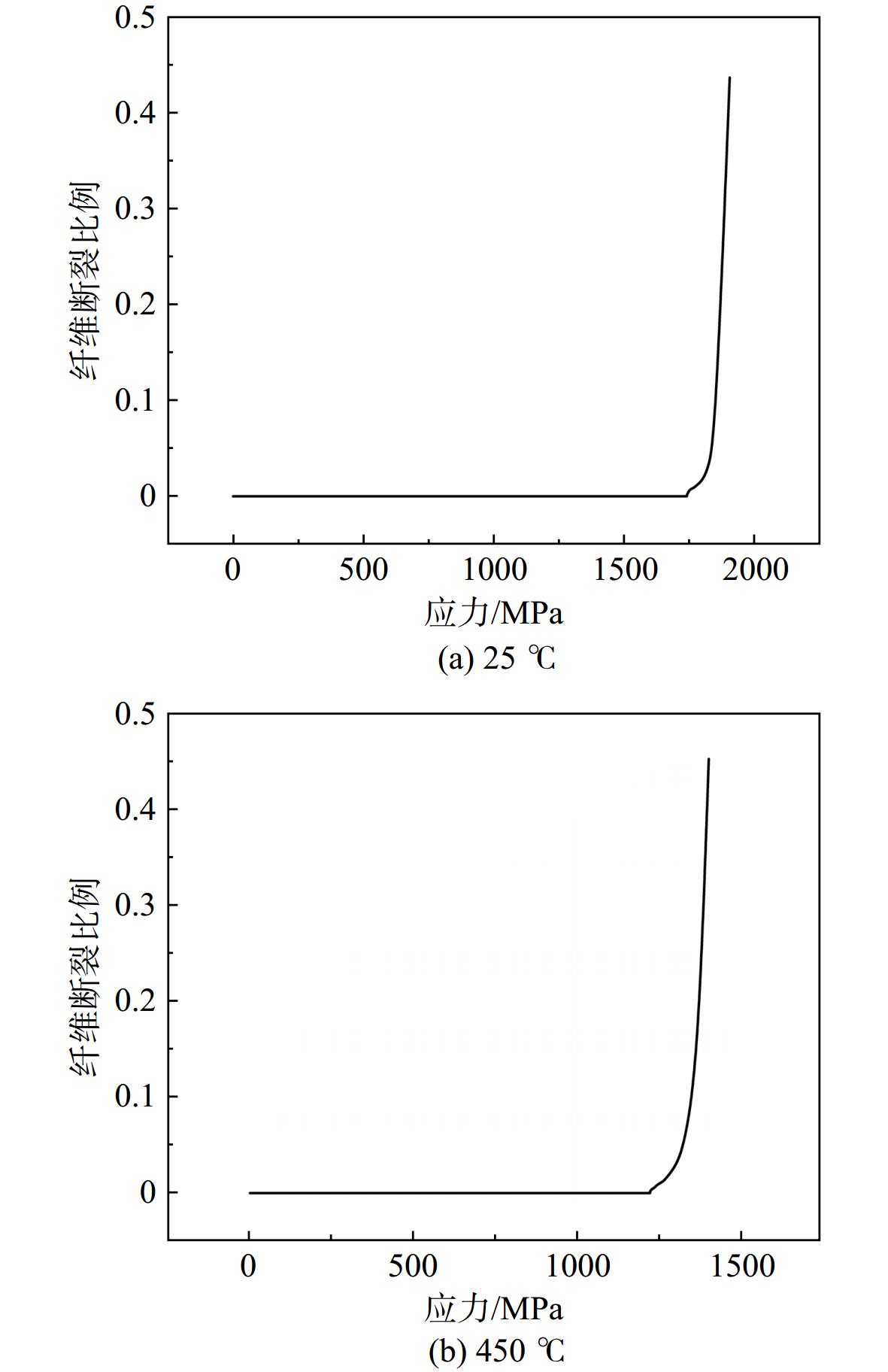

图 11 TMCs在450 ℃下的应力-应变曲线模拟结果
Figure 11. Simulated stress-strain curves of TMCs at 450 ℃
表 1 TMCs和TC17合金的拉伸性能
Table 1. Tensile properties of TMCs and TC17 alloy
材料 温度/℃ 弹性模量/GPa 屈服强度/MPa 断裂强度/MPa 断裂应变/% 屈强比 SiCf/TC17 25 208 1782 1923 0.94 0.93 SiCf/TC17 450 200±6 1177 ±71449 ±160.78±0.01 0.81 SiCf/TC17 650 178 624 975 0.61 0.64 TC17 25 113 959 1059 >8.00 0.91 TC17 450 77 613 726 >8.00 0.84 TC17 650 31 197 228 >8.00 0.86
下载: 导出CSV
表 2 SiCf/TC17复合材料拉伸断裂强度的模型预测误差
Table 2. Predicted error of ultimate tensile strength of SiCf/TC17 composites
试验温度/℃ 相对误差/% 试验 ROM GLS LLS，i = 1 LLS，i = 2 LLS，i = 3 LLS，i = 4 25 0 3.48 9.62 −32.55 −10.09 1.46 8.58 450 0 22.22 1.31 −41.89 −17.87 −5.25 2.69 650 0 47.90 0.31 −44.82 −18.15 −3.49 5.85
下载: 导出CSV

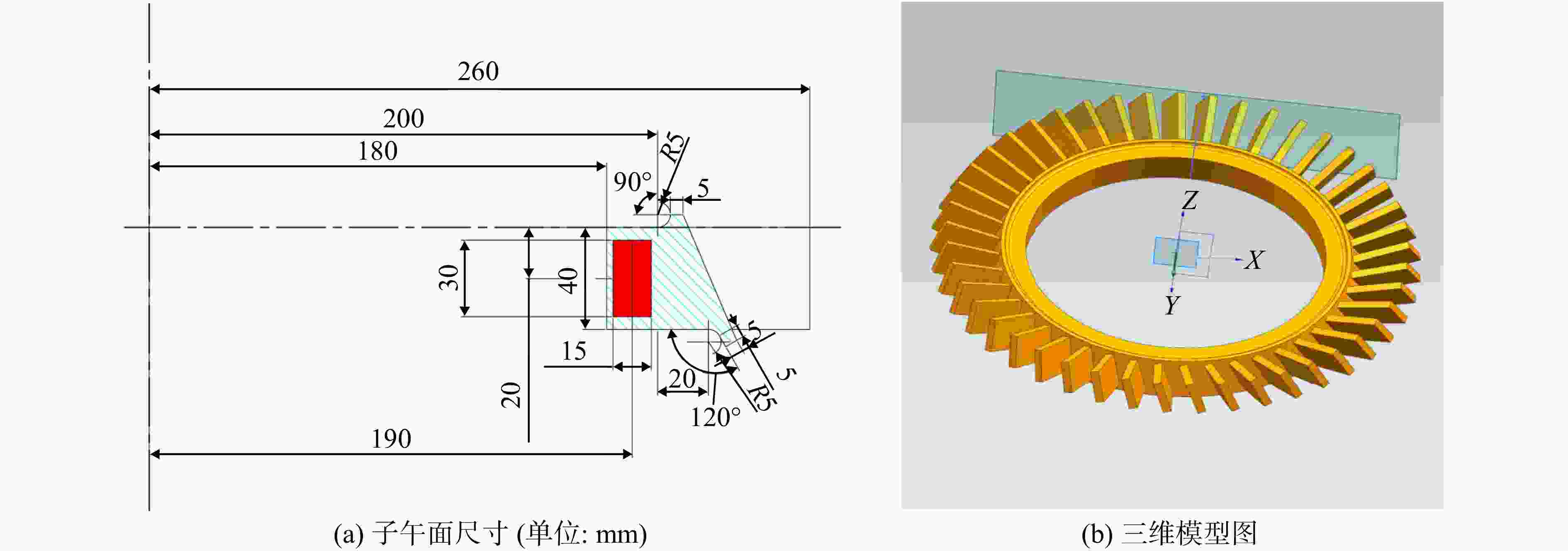

表 3 压气机叶环构件的强度安全系数
Table 3. Safety factors for strength of compressor blade-ring components
应力部位及类型 TMCs TC17 ns nb ns nb 最大径向应力 1.25 1.54 1.25 1.54 平均周向应力 1.25 1.54 1.25 1.54 环内径周向应力 1.05
下载: 导出CSV

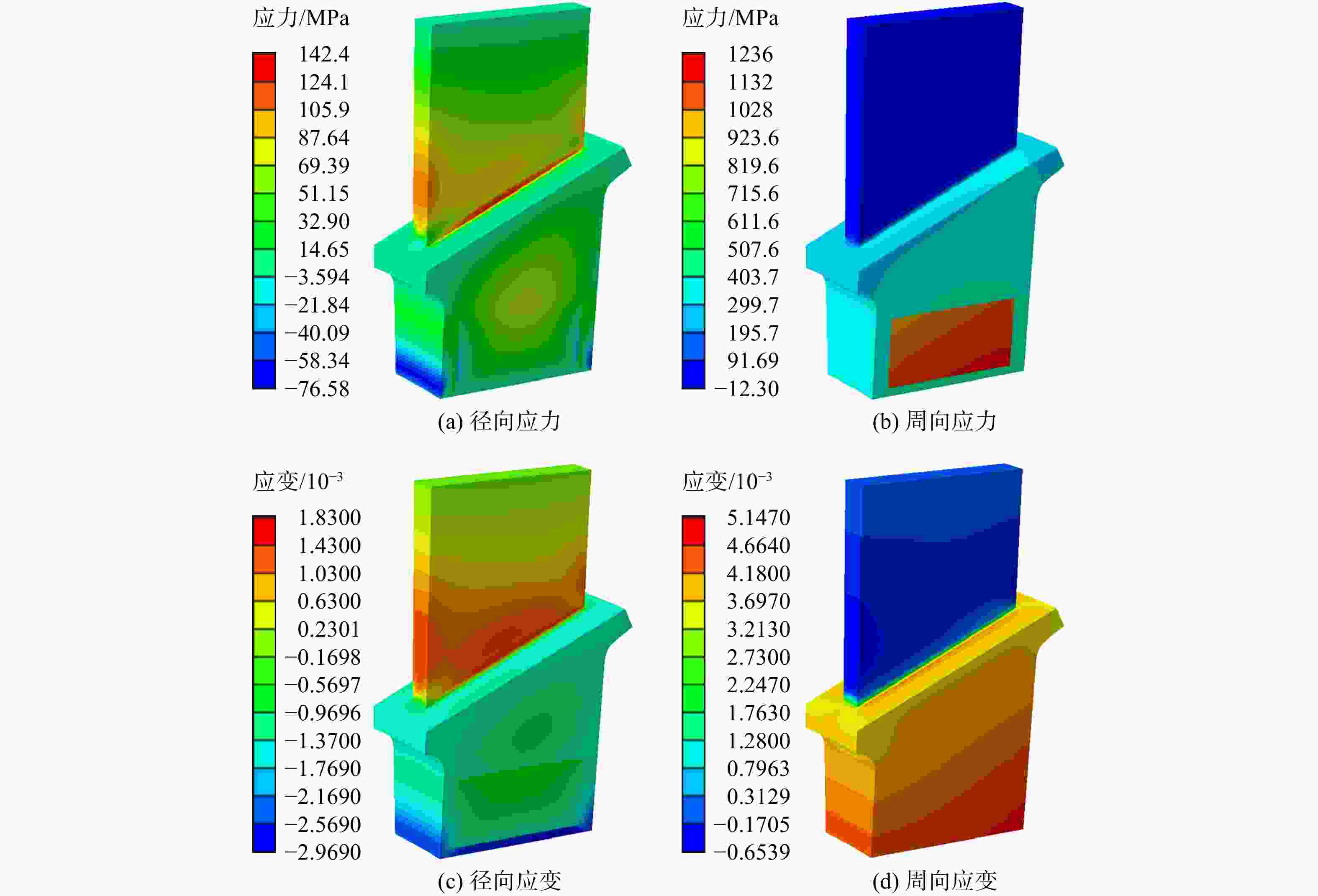

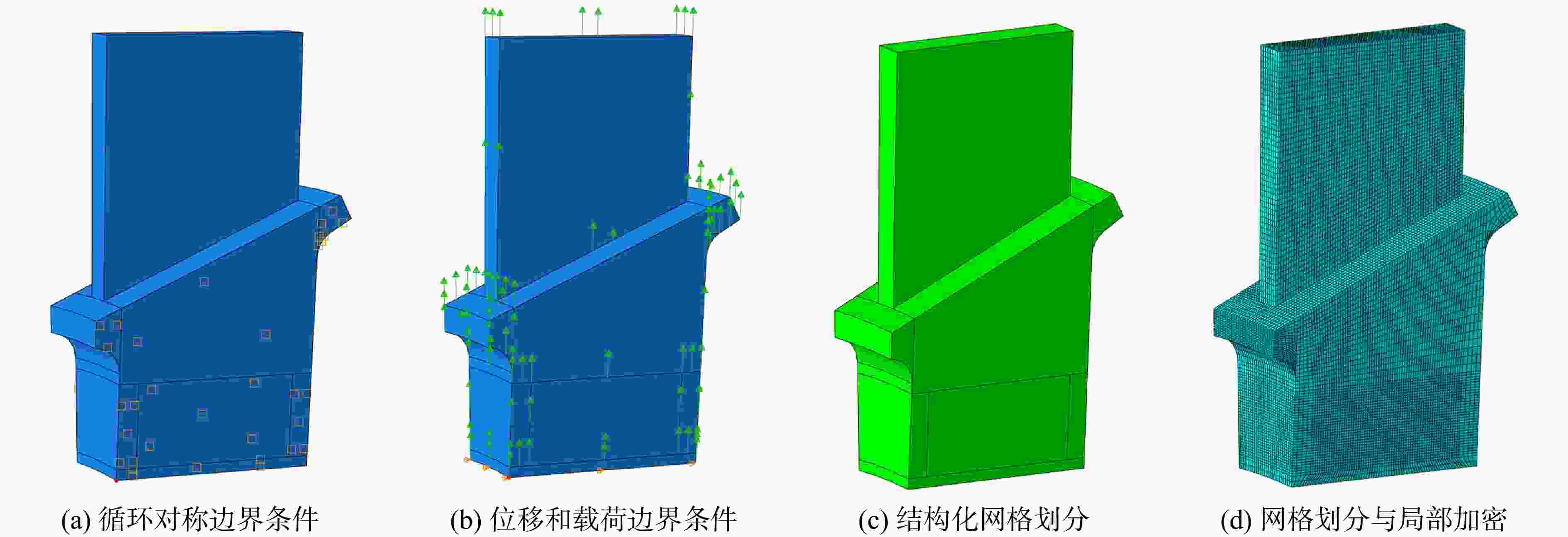

表 4 TMCs叶环结构的应力和强度储备系数
Table 4. Stress and strength reserve factors of blade-ring structures of TMCs
应力部位及类型 参数 TMCs TC17 ns nb ns nb 最大径向应力 应力值/MPa 74 74 142 142 强度系数 2.03 2.70 4.32 5.11 平均周向应力 应力值/MPa 1113 1113 334 334 强度系数 1.31 1.61 1.84 2.17 环内径周向应力 应力值/MPa 424 强度系数 1.45
下载: 导出CSV
-
[1] CLYNE T W,WITHERS P J. An introduction to metal matrix composites[M]. Cambridge,UK: Cambridge University Press,1993. [2] BAN Haoxuan,YAO Yin,CHEN Shaohua,et al. A new constitutive model of micro-particle reinforced metal matrix composites with damage effects[J]. International Journal of Mechanical Sciences,2019,152: 524-534. doi: 10.1016/j.ijmecsci.2019.01.024 [3] WANG Shisong,DENG Xingqiao,GAO Pengfei,et al. Physical constitutive modelling of hot deformation of titanium matrix composites[J]. International Journal of Mechanical Sciences,2024,262: 108712. doi: 10.1016/j.ijmecsci.2023.108712 [4] KAGAWA Y,FUJITA T,OKURA A. Temperature dependence of tensile mechanical properties in SiC fiber-reinforced Ti matrix composite[J]. Acta Metallurgica et Materialia,1994,42(9): 3019-3026. doi: 10.1016/0956-7151(94)90398-0 [5] 张旭,王玉敏,杨青,等. SiCf/TC17复合材料拉伸行为研究[J]. 金属学报,2015,51(9): 1025-1037. ZHANG Xu,WANG Yumin,YANG Qing,et al. Study on tensile behavior of SiCf/TC17 composites[J]. Acta Metallurgica Sinica,2015,51(9): 1025-1037. (in ChineseZHANG Xu, WANG Yumin, YANG Qing, et al. Study on tensile behavior of SiCf/TC17 composites[J]. Acta Metallurgica Sinica, 2015, 51(9): 1025-1037. (in Chinese) [6] 韦泽麒,杨丽娜,王玉敏,等. SiCf/Ti2AlNb复合材料高温拉伸断裂行为研究[J]. 沈阳理工大学学报,2021,40(3): 64-68. WEI Zeqi,YANG Lina,WANG Yumin,et al. Study on the high temperature tensile fracture behavior of SiCf/Ti2AlNb composites[J]. Journal of Shenyang Ligong University,2021,40(3): 64-68. (in Chinese doi: 10.3969/j.issn.1003-1251.2021.03.012WEI Zeqi, YANG Lina, WANG Yumin, et al. Study on the high temperature tensile fracture behavior of SiCf/Ti2AlNb composites[J]. Journal of Shenyang Ligong University, 2021, 40(3): 64-68. (in Chinese) doi: 10.3969/j.issn.1003-1251.2021.03.012 [7] GÁLVEZ F,GONZÁLEZ C,POZA P,et al. The effect of strain rate on the tensile deformation of Ti-6Al-4V/SiC composites[J]. Scripta Materialia,2001,44(11): 2667-2671. doi: 10.1016/S1359-6462(01)00947-2 [8] JENG S M,YANG J M,YANG C J. Fracture mechanisms of fiber-reinforced titanium alloy matrix composites: Part Ⅱ Tensile behavior[J]. Materials Science and Engineering: A,1991,138(2): 169-180. doi: 10.1016/0921-5093(91)90686-H [9] KONG Xu,WANG Yumin,YANG Qing,et al. Enhanced effect of matrix growth texture on the longitudinal modulus of a titanium matrix composite prepared from magnetron sputtering[J]. Materials Letters,2019,245: 37-40. doi: 10.1016/j.matlet.2019.02.087 [10] FUKUSHIMA A,FUJIWARA C,KAGAWA Y,et al. Effect of interfacial properties on tensile strength in SiC/Ti-15-3 composites[J]. Materials Science and Engineering: A,2000,276(1/2): 243-249. [11] GUNDEL D B,WAWNER F E. Experimental and theoretical assessment of the longitudinal tensile strength of unidirectional SiC-fiber/titanium-matrix composites[J]. Composites Science and Technology,1997,57(4): 471-481. doi: 10.1016/S0266-3538(96)00163-7 [12] JENG S M,YANG J M,YANG C J. Fracture mechanisms of fiber-reinforced titanium alloy matrix composites: Part Ⅲ Toughening behavior[J]. Materials Science and Engineering: A,1991,138(2): 181-190. doi: 10.1016/0921-5093(91)90687-I [13] CURTIN W A. Theory of mechanical properties of ceramic-matrix composites[J]. Journal of the American Ceramic Society,1991,74(11): 2837-2845. doi: 10.1111/j.1151-2916.1991.tb06852.x [14] GONZÁLEZ C,LLORCA J. Micromechanical modelling of deformation and failure in Ti-6Al-4V/SiC composites[J]. Acta Materialia,2001,49(17): 3505-3519. doi: 10.1016/S1359-6454(01)00246-4 [15] OKABE T,TAKEDA N,KAMOSHIDA Y,et al. A 3D shear-lag model considering micro-damage and statistical strength prediction of unidirectional fiber-reinforced composites[J]. Composites Science and Technology,2001,61(12): 1773-1787. doi: 10.1016/S0266-3538(01)00079-3 [16] WANG Ying,XU Xu,ZHAO Wenxia,et al. Damage accumulation during high temperature fatigue of Ti/SiCf metal matrix composites under different stress amplitudes[J]. Acta Materialia,2021,213: 116976. doi: 10.1016/j.actamat.2021.116976 [17] WANG Min,HUANG Hao,LI Si,et al. Microstructural difference between unreinforced canning of TC17 alloy and the matrix in SiCf/TC17 composite fabricated by HIP process[J]. Materials Science Forum,2016,849: 402-408. doi: 10.4028/www.scientific.net/MSF.849.402 [18] American Society for Testing and Materials. Standard test method for tensile properties of fiber reinforced metal matrix composites: ASTM D3552-17[S]. West Conshohocken,US: American Society for Testing and Materials,2013. [19] BAIK K H,GRANT P S. Chemical interaction between sigma 1140+ SiC fibre and Ti-6Al-4V[J]. Scripta Materialia,2001,44(4): 607-612. doi: 10.1016/S1359-6462(00)00649-7 [20] 崔广发,席明哲,周昊阳,等. 点式锻造激光沉积TC17钛合金热处理组织与力学性能[J]. 激光与光电子学进展,2022,59(3): 0316003. CUI Guangfa,XI Mingzhe,ZHOU Haoyang,et al. Microstructure and mechanical properties of heat-treated TC17 titanium alloy formed via point-mode forging laser deposition[J]. Laser & Optoelectronics Progress,2022,59(3): 0316003. (in ChineseCUI Guangfa, XI Mingzhe, ZHOU Haoyang, et al. Microstructure and mechanical properties of heat-treated TC17 titanium alloy formed via point-mode forging laser deposition[J]. Laser & Optoelectronics Progress, 2022, 59(3): 0316003. (in Chinese) [21] LIU Changqi,SHI Duoqi,JING Xin,et al. Multiscale investigation on fatigue properties and damage of a 3D braided SiC/SiC+ PyC/SiC composites in the full stress range at 1300 ℃[J]. Journal of the European Ceramic Society,2022,42(4): 1208-1218. doi: 10.1016/j.jeurceramsoc.2021.11.045 [22] CHANDRA N,GHONEM H. Interfacial mechanics of push-out tests: theory and experiments[J]. Composites Part A: Applied Science and Manufacturing,2001,32(3/4): 575-584. [23] KALTON A F,HOWARD S J,JANCZAK-RUSCH J,et al. Measurement of interfacial fracture energy by single fibre push-out testing and its application to the titanium-silicon carbide system[J]. Acta Materialia,1998,46(9): 3175-3189. doi: 10.1016/S1359-6454(98)00009-3 [24] 张旭. SiCf/TC17 复合材料界面反应、残余应力及力学性能研究[D]. 沈阳: 中国科学院金属研究所,2012. ZHANG Xu. Study on interface reaction,residual stress and mechanical properties of SiCf/TC17 composite[D]. Shenyang: Institute of Metal Research,Chinese Academy of Sciences,2012. (in ChineseZHANG Xu. Study on interface reaction, residual stress and mechanical properties of SiCf/TC17 composite[D]. Shenyang: Institute of Metal Research, Chinese Academy of Sciences, 2012. (in Chinese) [25] ZWEBEN C. Tensile failure of fiber composites[J]. AIAA Journal,1968,6(12): 2325-2331. doi: 10.2514/3.4990 [26] ZWEBEN C,ROSEN B W. A statistical theory of material strength with application to composite materials[J]. Journal of the Mechanics and Physics of Solids,1970,18(3): 189-206. doi: 10.1016/0022-5096(70)90023-2 [27] LIU Changqi,SHI Duoqi,ZHANG Bo,et al. A novel creep-fatigue life evaluation method for ceramic-composites components[J]. International Journal of Mechanical Sciences,2023,249: 108259. doi: 10.1016/j.ijmecsci.2023.108259 [28] XIAO Hanmin,CHEN Xihui,SUN Zhigang,et al. An elastoplastic-damage micromechanical model and its application to the mechanical analysis of SiC fibre-reinforced titanium matrix composite under complex stress states[J]. Applied Composite Materials,2022,29(6): 2095-2124. doi: 10.1007/s10443-022-10048-x [29] 张国乾,赵明,陆山,等. 航空发动机整体叶环结构的研究进展[J]. 航空制造技术,2013,56(9): 50-54. ZHANG Guoqian,ZHAO Ming,LU Shan,et al. Development of research on aeroengine bling structure[J]. Aeronautical Manufacturing Technology,2013,56(9): 50-54. (in Chinese doi: 10.3969/j.issn.1671-833X.2013.09.006ZHANG Guoqian, ZHAO Ming, LU Shan, et al. Development of research on aeroengine bling structure[J]. Aeronautical Manufacturing Technology, 2013, 56(9): 50-54. (in Chinese) doi: 10.3969/j.issn.1671-833X.2013.09.006 [30] 徐安杨. 纤维增强整体叶环动态特性仿真分析[D]. 辽宁 大连: 大连理工大学,2020. XU Anyang. Simulation analysis of dynamic characteristics of fiber reinforced integral blade ring[D]. Dalian Liaoning: Dalian University of Technology,2020. (in ChineseXU Anyang. Simulation analysis of dynamic characteristics of fiber reinforced integral blade ring[D]. Dalian Liaoning: Dalian University of Technology, 2020. (in Chinese) [31] 吕文林,陈俊勇,田德义. 航空涡喷、涡扇发动机结构设计准则: 第二册 轮盘[R]. 北京: 中国航空工业总公司发动机系统工程局,1997. -
