Numerical simulation of gliding arc ignition characteristics in aeroengine combustor
-
摘要:

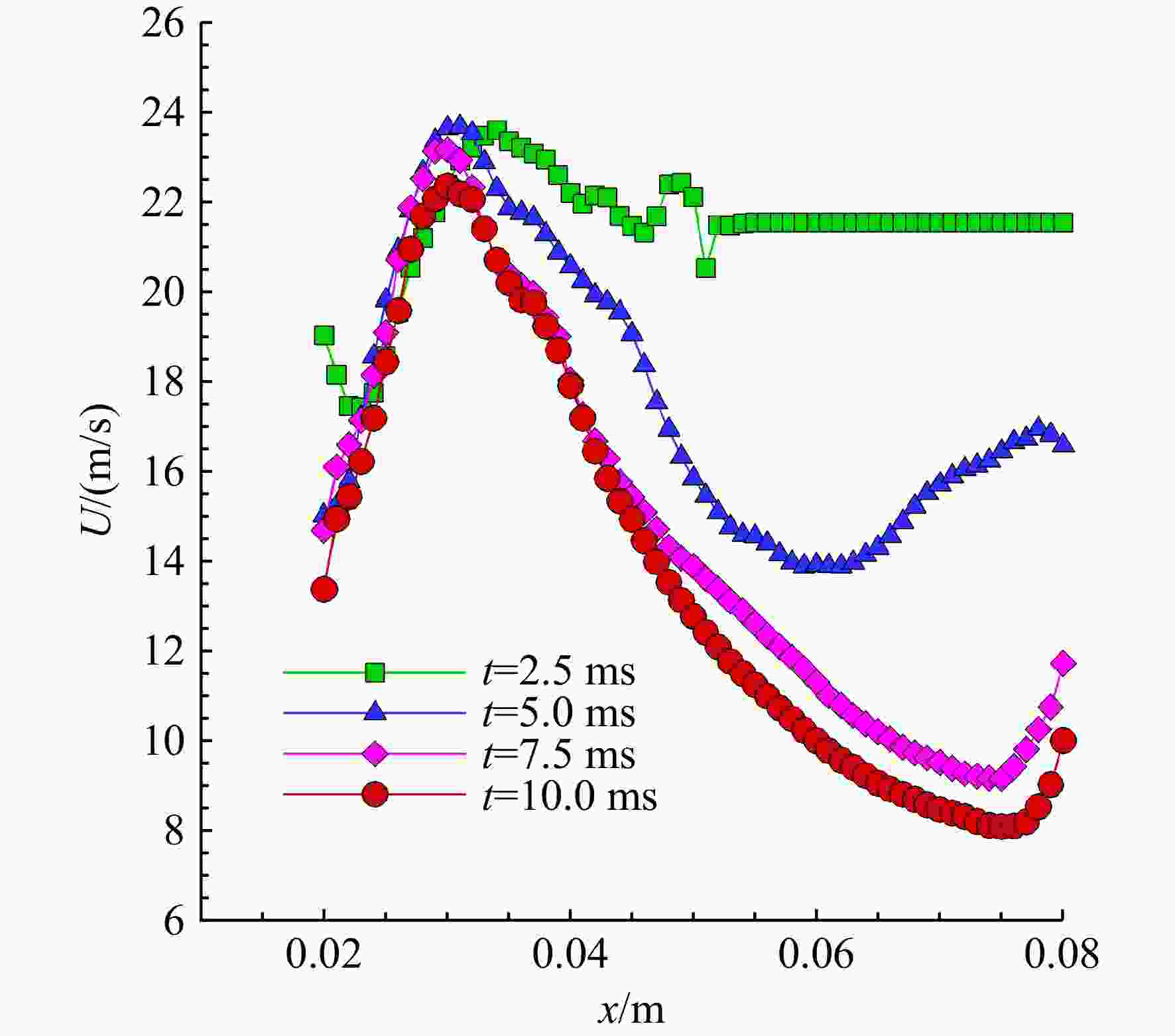

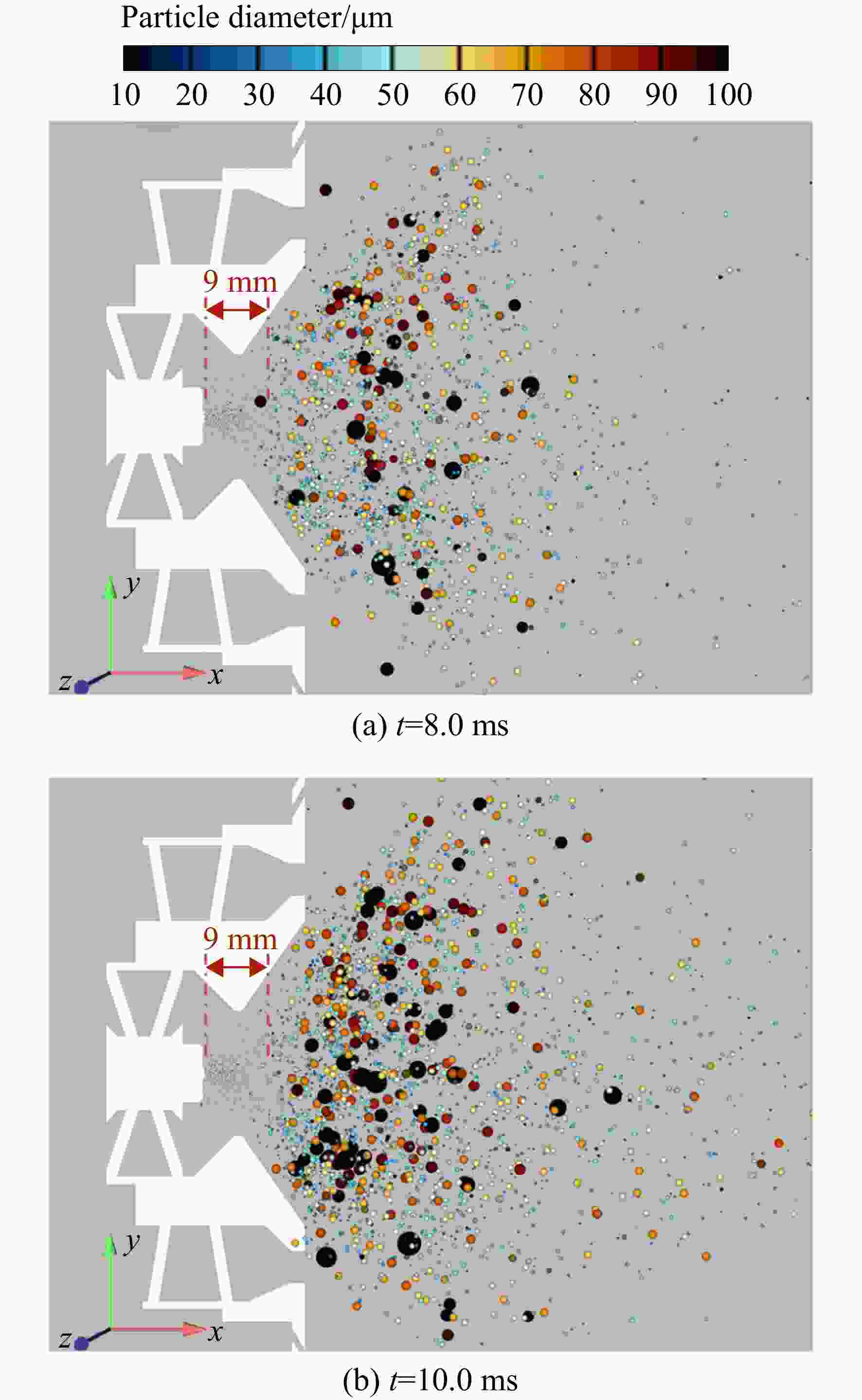

为深入了解航空发动机燃烧室中的滑动弧等离子体点火特性，基于自有CFD平台GTCC发展了滑动弧激励的数值建模与仿真方法，在单旋流模型燃烧室上测试了该方法的有效可行性。针对轴向双旋流燃烧室开展了6 km高空来流条件下滑动弧点火数值模拟，结果表明施加定轨道旋转滑动弧显著增强了燃油雾化及点火性能，在油气比为0.015、电弧半径为1.5 mm、旋转速度为100（°）/ms的条件下，旋流器出口形成了周期性振荡的值班火焰，流场整体逼近临界着火状态，并在电弧半径增加至2.0 mm后点火成功。进一步模拟了油气比降低至0.01的滑动弧点火过程，电弧半径2.0 mm增加到2.5 mm后，旋流器出口平均气态煤油比例由8.11%增加到22.70%，成功促进值班火焰突破燃烧室临界点火极限。与常规火花塞点火试验的点火极限油气比
0.0163 相比，采用滑动弧激励的数值模拟结果表明可将该型燃烧室点火边界拓宽38.65%。Abstract:To gain an improved understanding of the ignition characteristics in real aeroengine combustor with gliding arc, a modeling and numerical simulation method of the gliding arc was developed on the CFD platform GTCC and tested on a model combustor with single stage swirler. Numerical simulation of the ignition by gliding arc in real combustor with two-stage axial swirler was carried out under 6 km high-altitude inflow condition. Simulation results showed that the gliding arc on fixed track can significantly enhance the performance of fuel pulverization and ignition, induce periodically anchored flame around the swirler outlet with the fuel-air-ratio, arc radius and rotating speed equal to 0.015, 1.5 mm and 100（°）/ms, respectively. The overall flow field approached the critical status of catching fire and eventually ignited with the arc radius increasing to 2.0 mm. Afterwards, fuel-air-ratio was reduced to 0.01 and the ignition processes with arc radius of 2.0 mm and 2.5 mm were simulated. Mean gaseous kerosene proportion on the outlet of swirler increased from 8.11% to 22.70% with stronger actuation, which successfully impelled the anchored flame to break through the critical ignition limit. Compared with the fuel-air-ratio limit
0.0163 with normal spark plug, simulation results showed that the ignition boundary can be expanded up to 38.65% by the gliding arc.-
Key words:
- aeroengine /
- combustor /
- gliding arc /
- ignition /
- numerical simulation
-

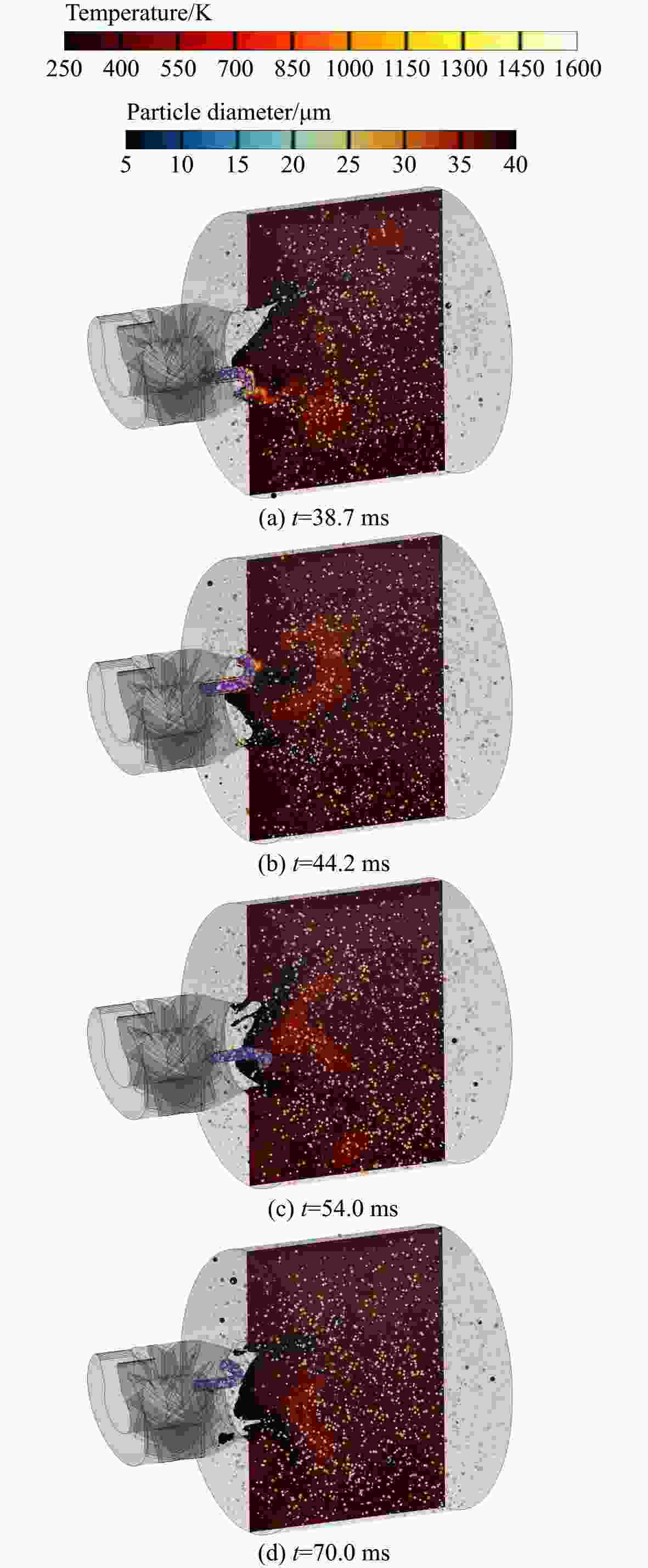

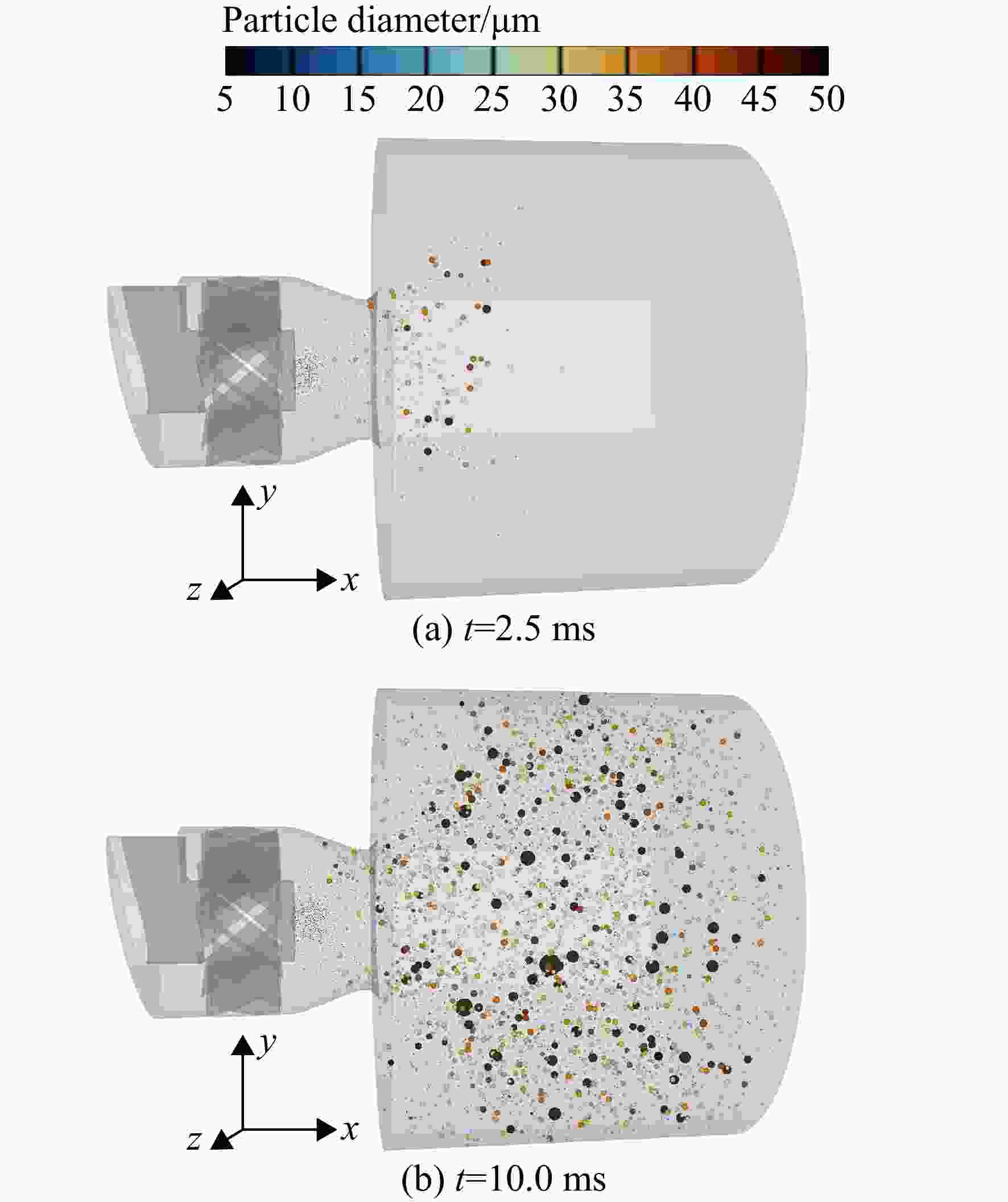

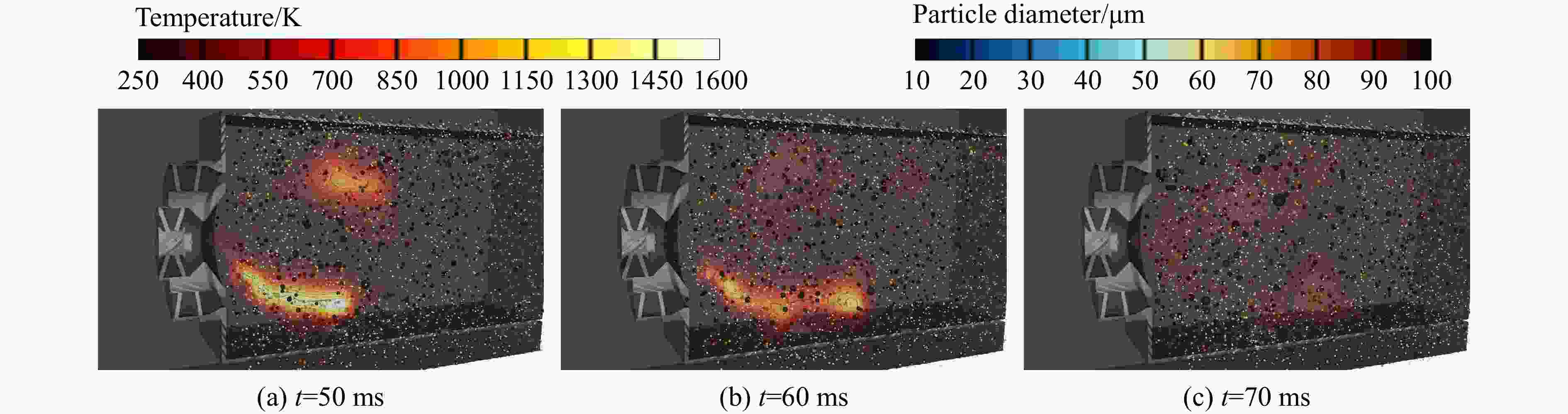

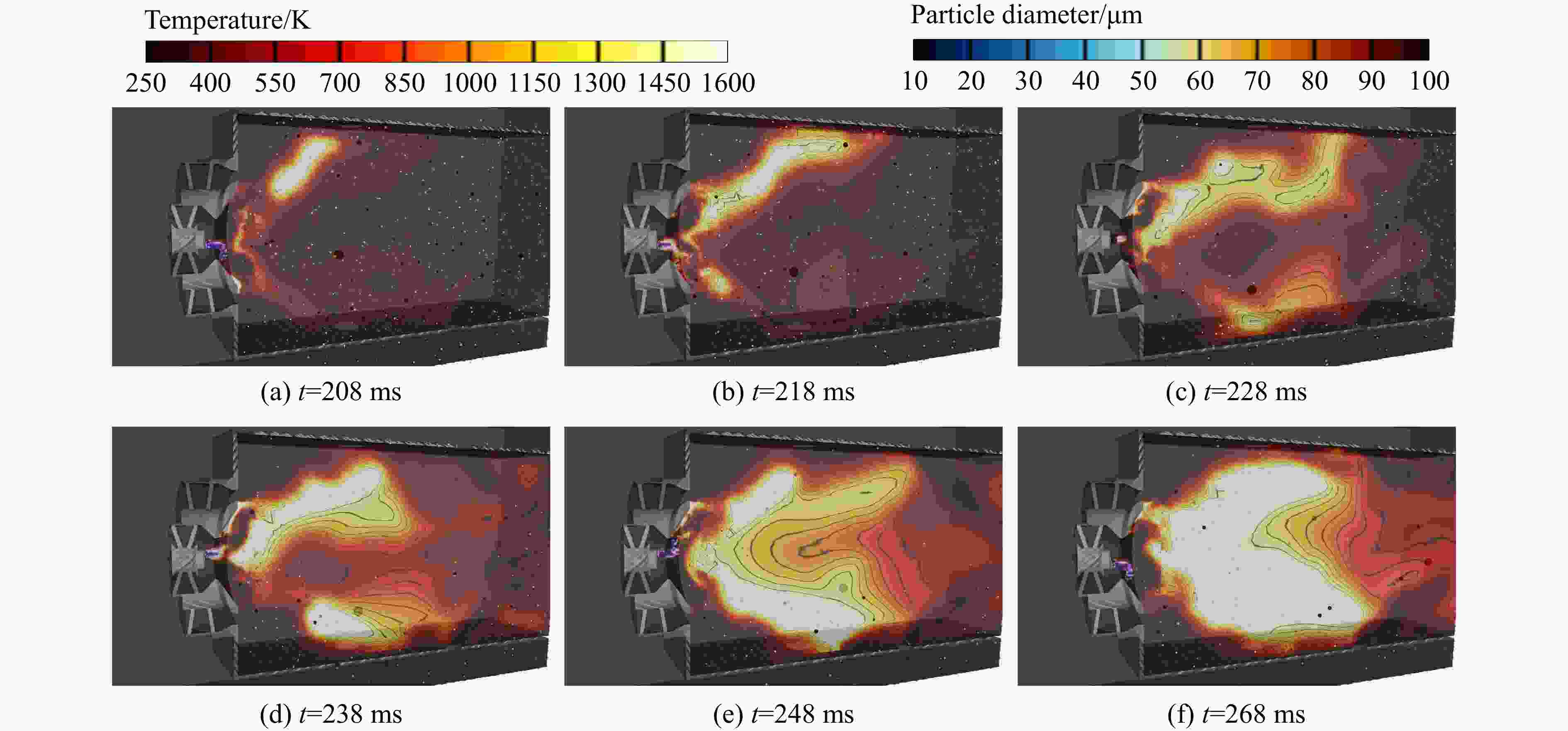

图 4 滑动弧激励下旋流器出口值班火焰
Figure 4. Anchored flame adjacent to the swirler outlet with the gliding arc actuation

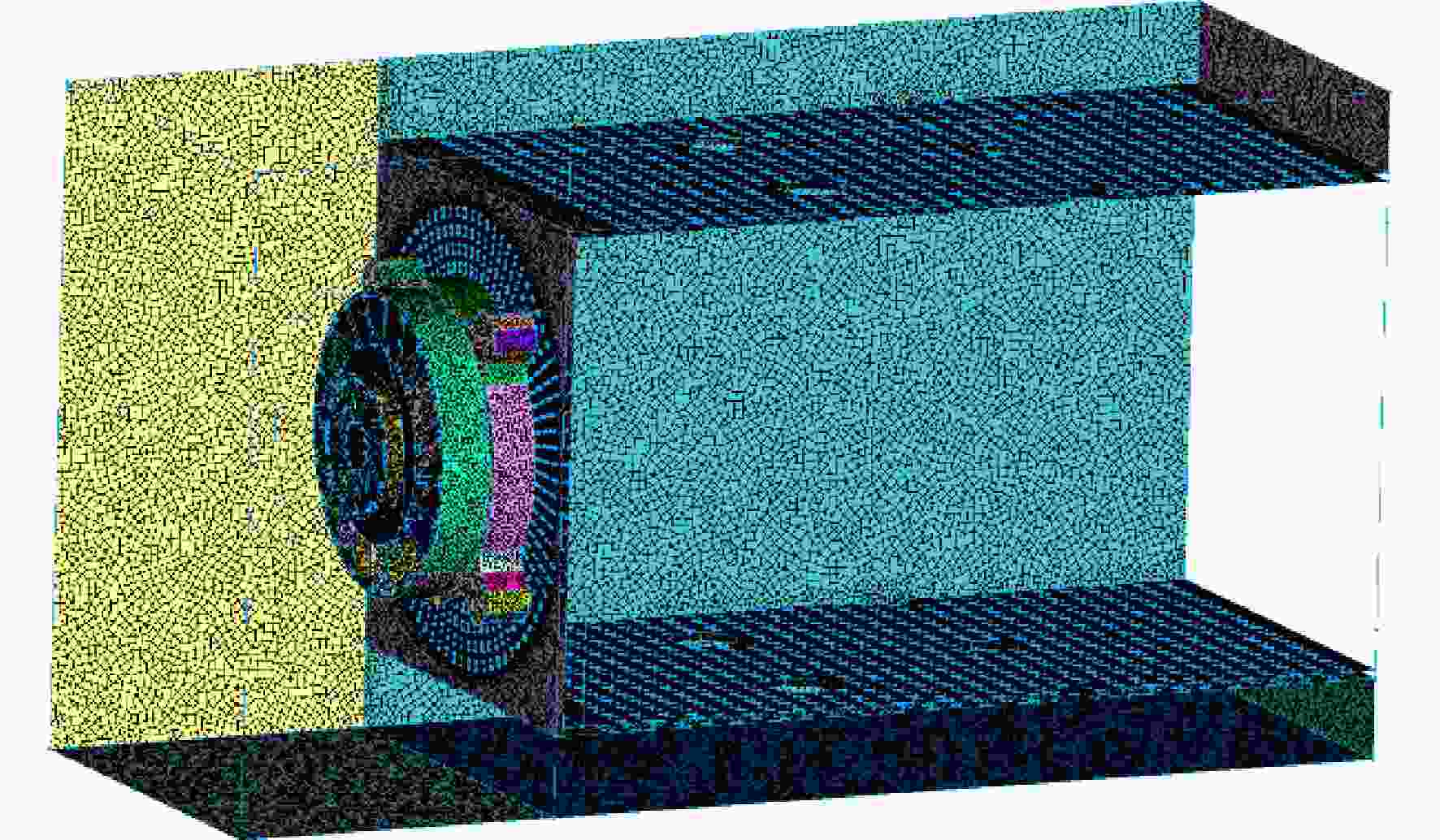

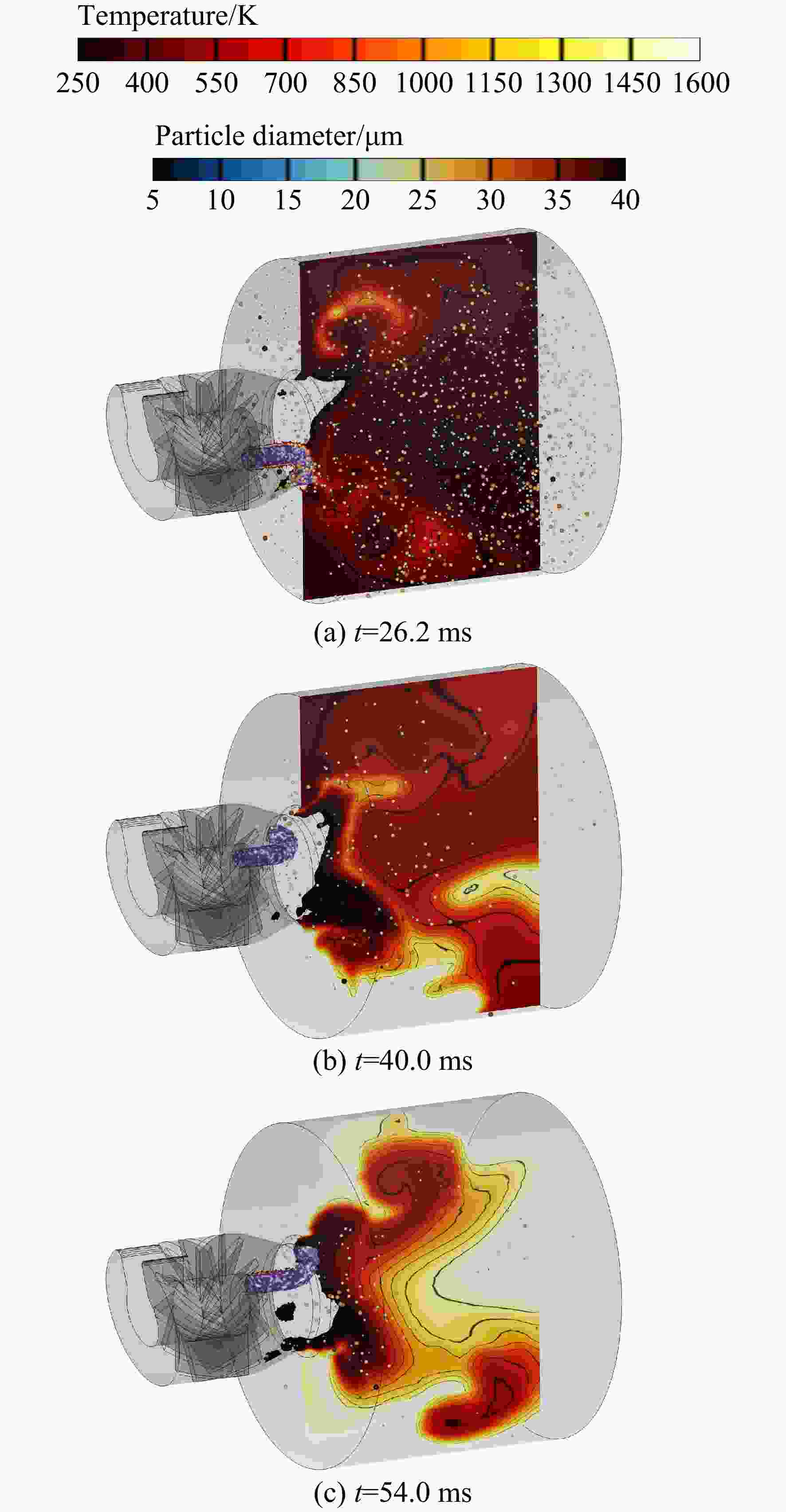

图 6 轴向双旋流燃烧室高保真网格
Figure 6. High-fidelity mesh of combustor with axial two-stage swirler

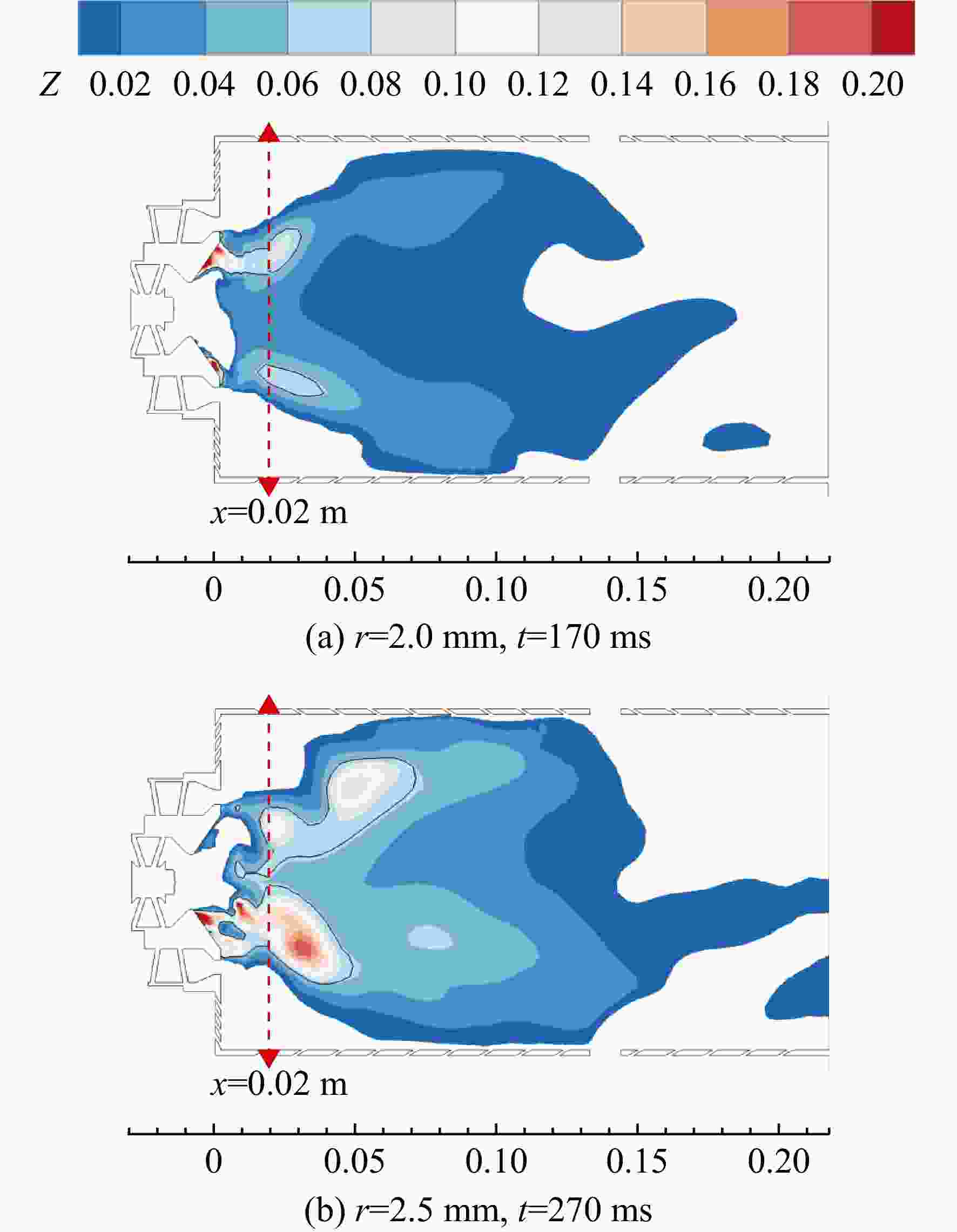

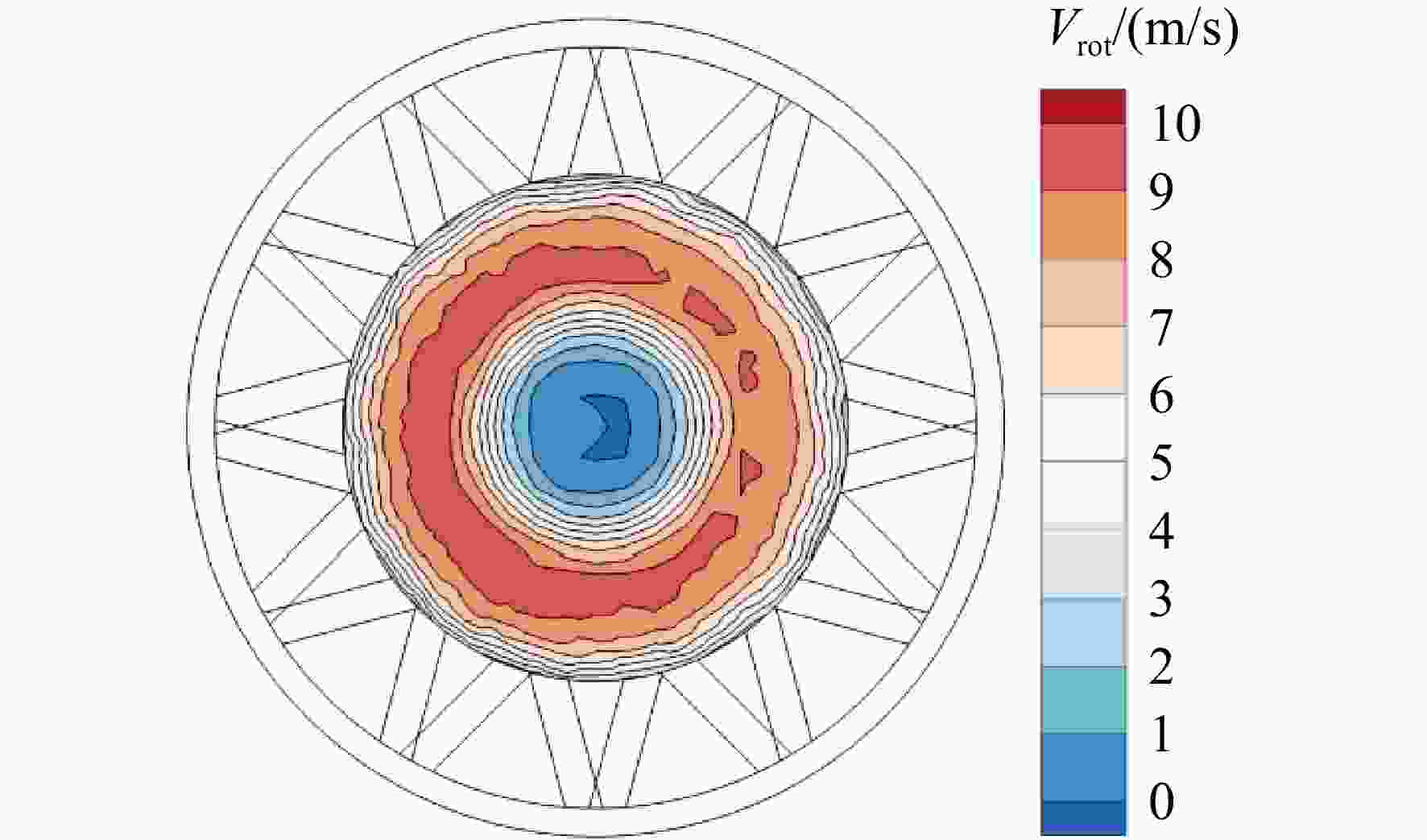

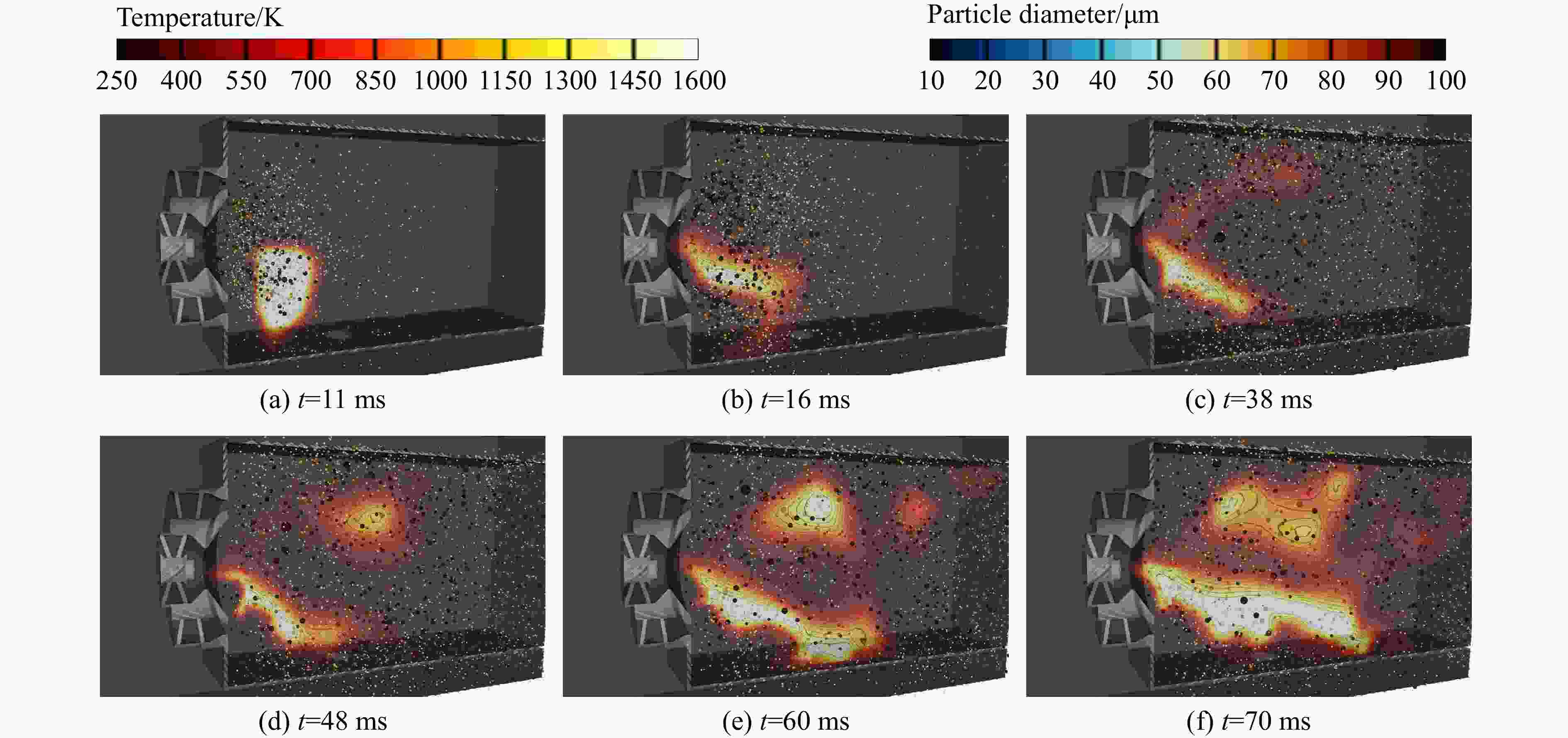

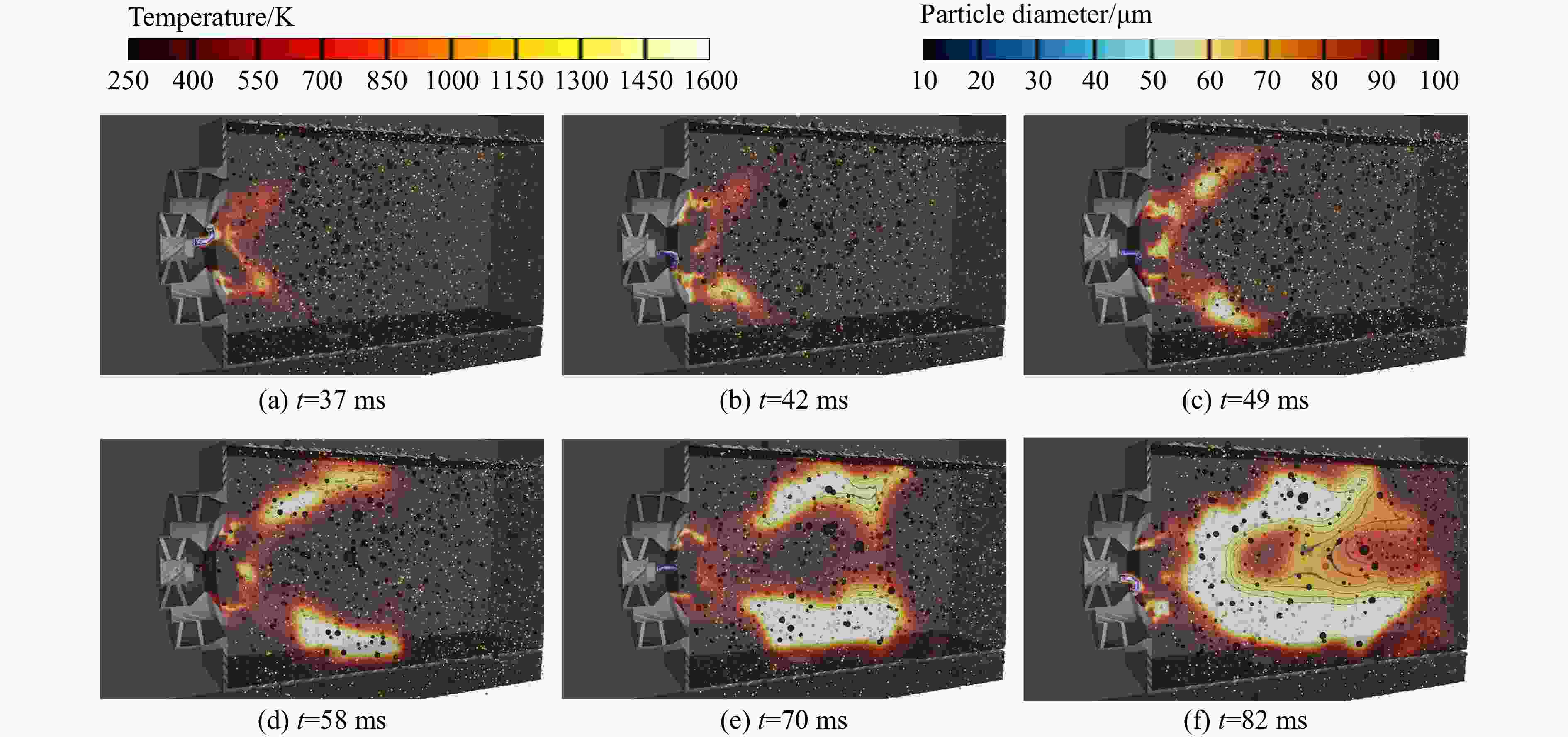

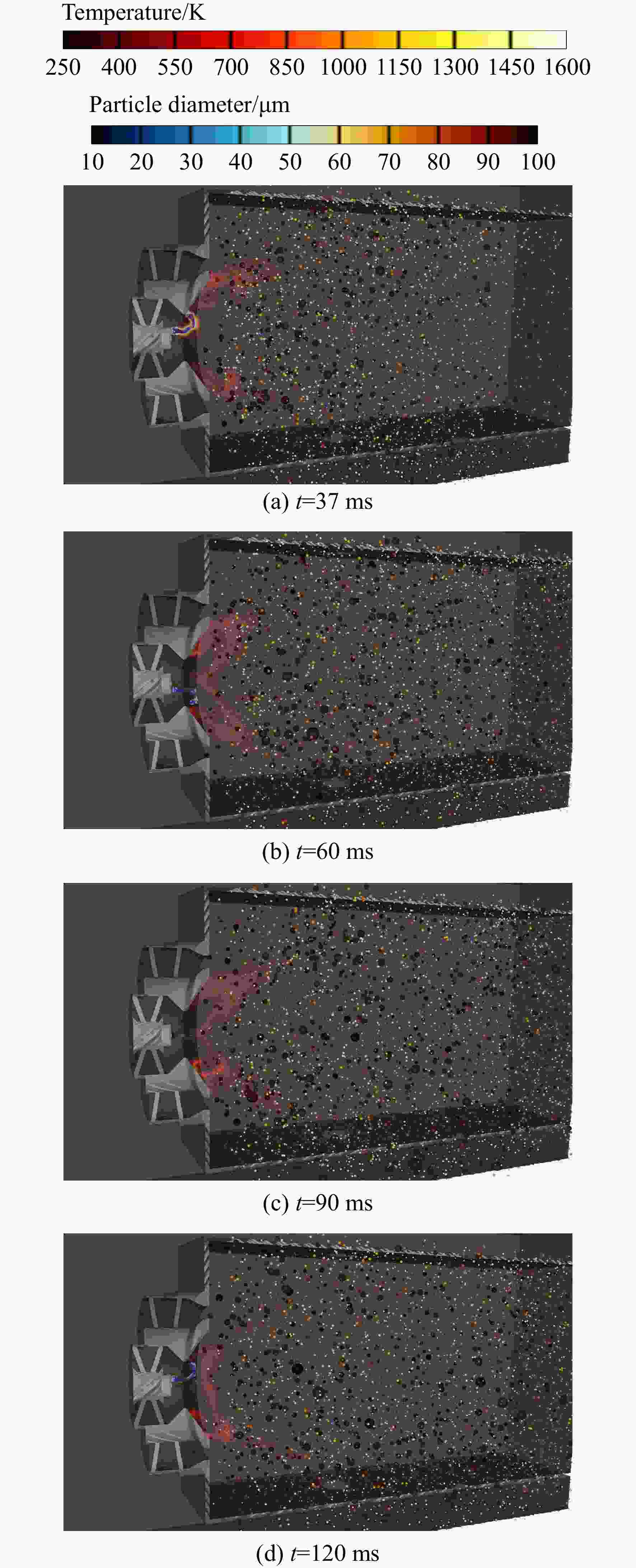

图 14 z=0 m截面上瞬时混合分数分布（等值线：Z=0.063）
Figure 14. Distribution of instantaneous mixture fraction on profile z=0 m （isoline: Z=0.063）

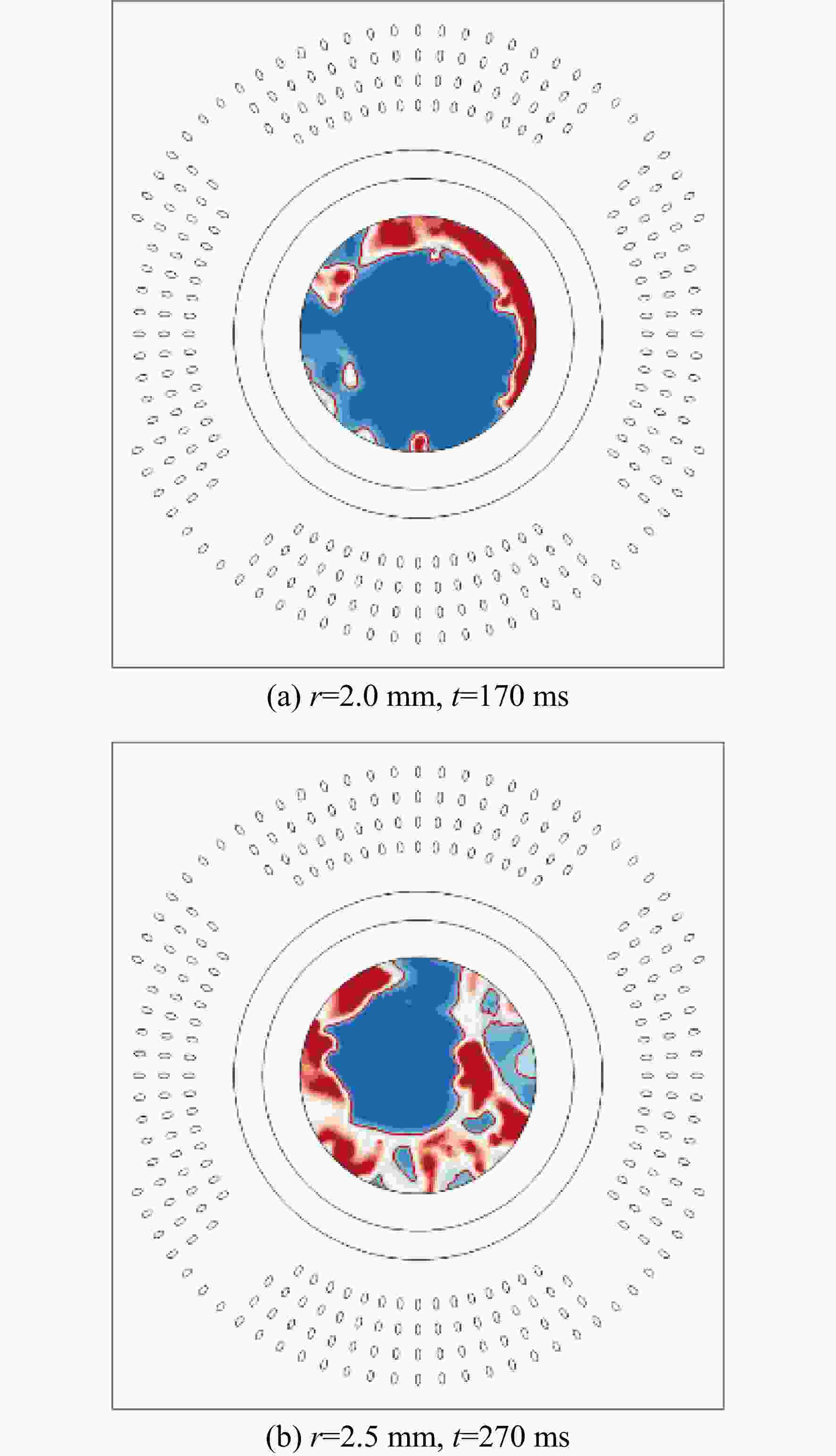

图 15 x=0 m截面上瞬时混合分数分布（等值线：Z=0.063）
Figure 15. Distribution of instantaneous mixture fraction on profile x=0 m （isoline: Z=0.063）

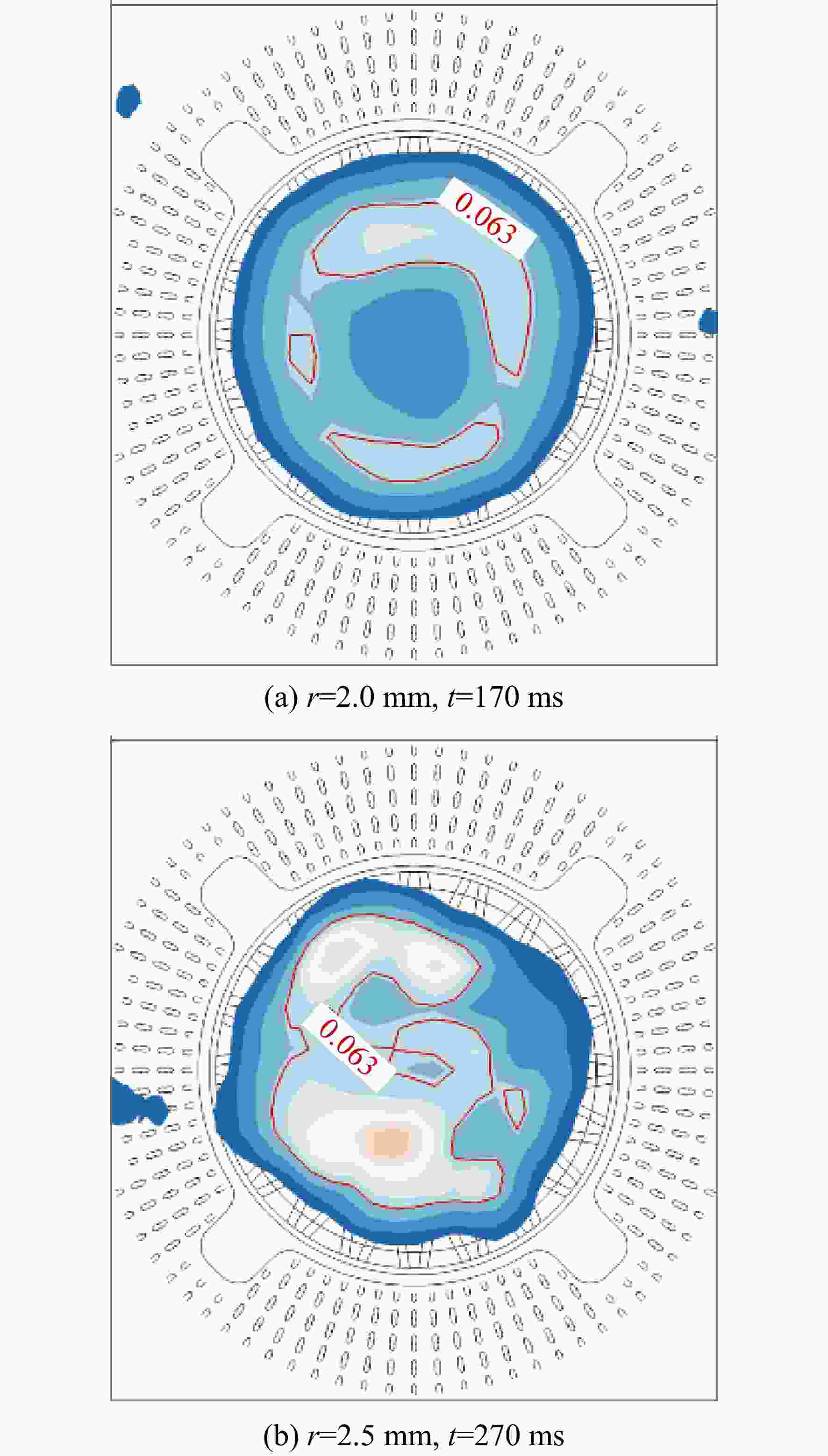

图 16 x=0.02 m截面上瞬时混合分数分布（等值线：Z=0.063）
Figure 16. Distribution of instantaneous mixture fraction on profile x=0.02 m （isoline: Z=0.063）

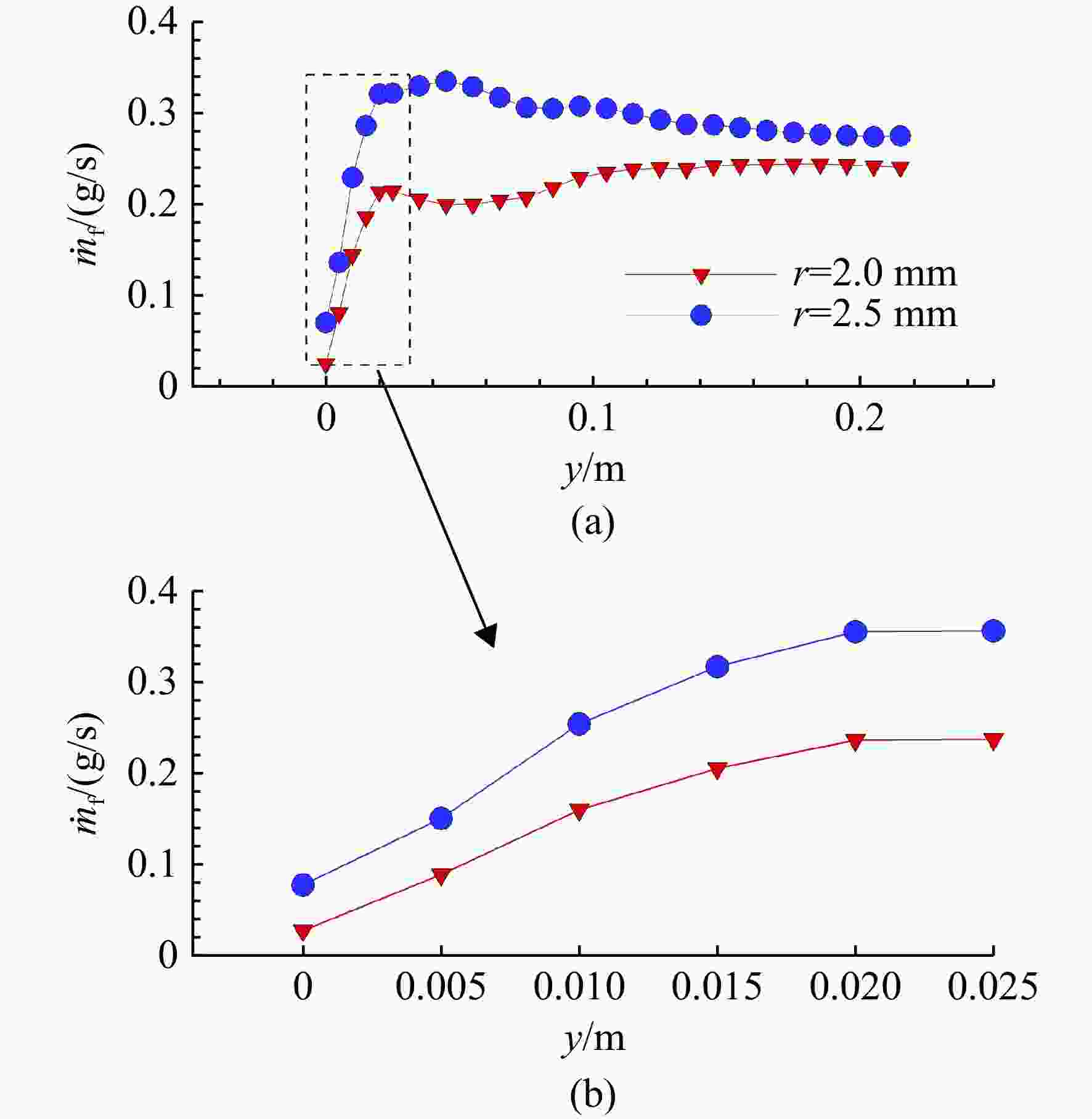

图 18 流向等x截面上时间平均气态煤油流量分布
Figure 18. Time-averaged mass flow rate of gaseous kerosene along x-profiles

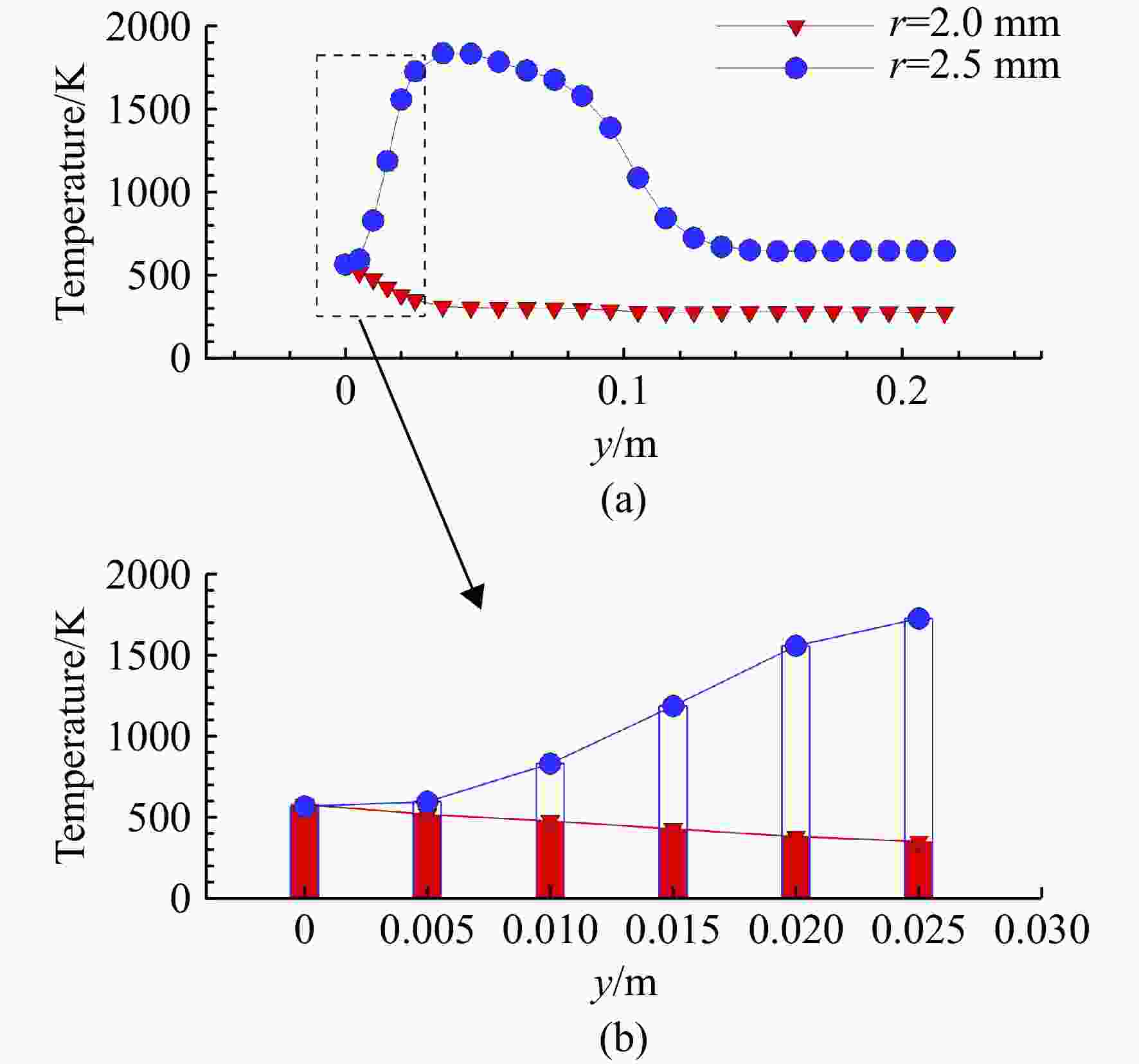

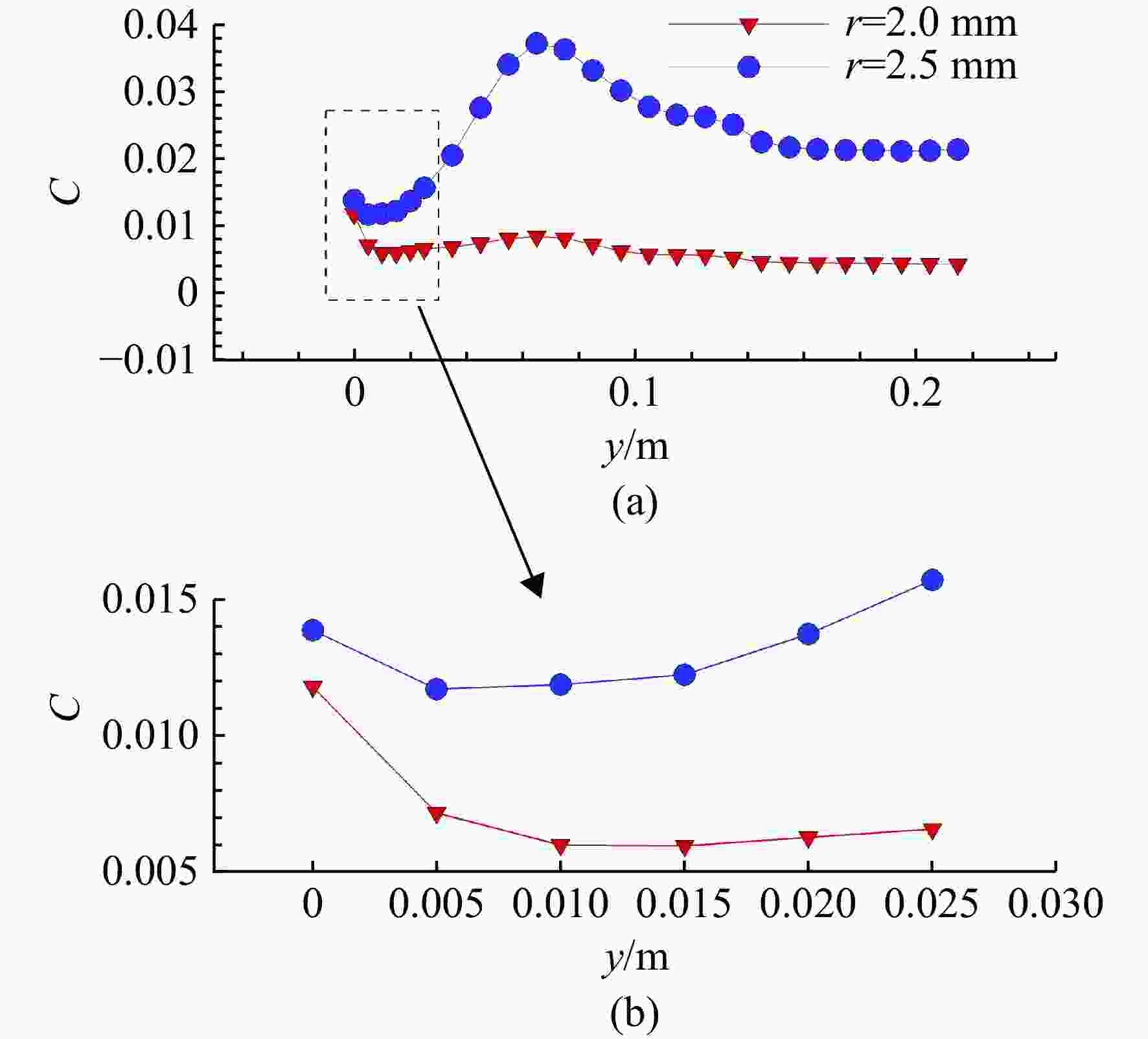

图 20 流向等x截面上时间平均温度分布（截面半径为25 mm）
Figure 20. Time-averaged temperature along x-profiles （radius of 25 mm）

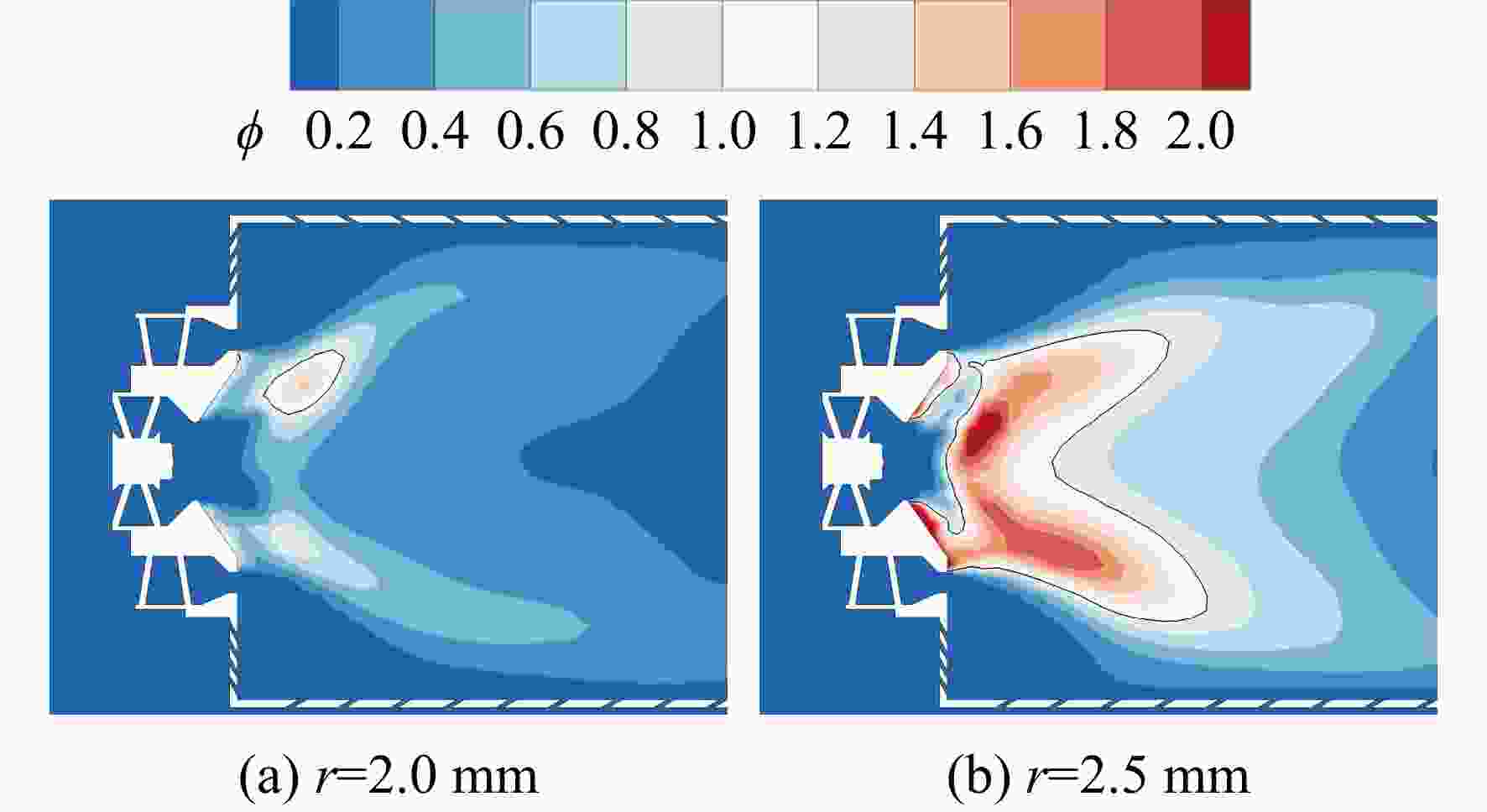

图 21 z=0 m中心截面上时间平均当量比ϕ分布（等值线：ϕ=1）
Figure 21. Distribution of time-averaged equivalence ratio ϕ on central profile z=0 m （isoline: ϕ=1）

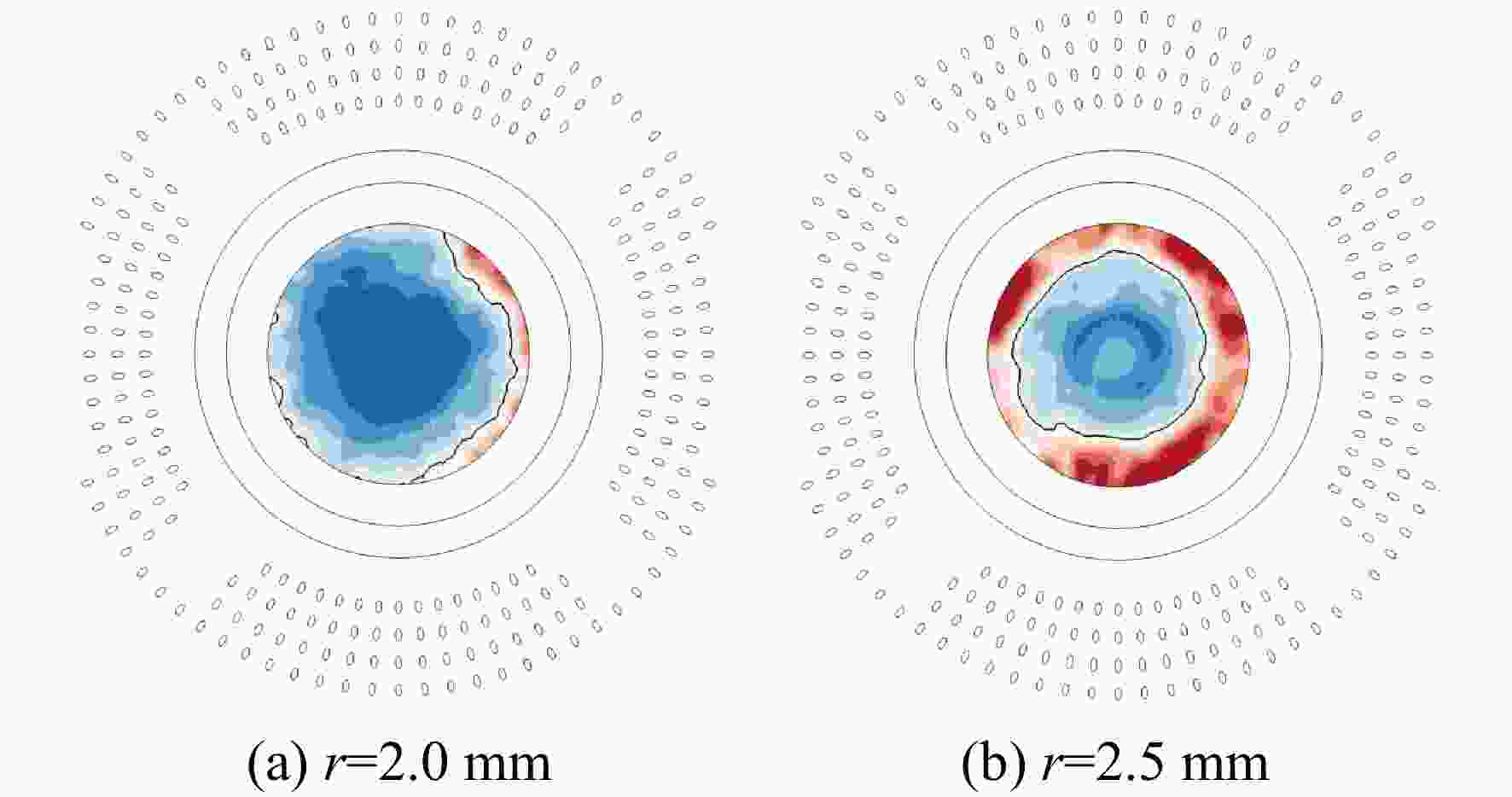

图 22 x=0 m截面上时间平均当量比ϕ分布（等值线：ϕ=1）
Figure 22. Distribution of time-averaged equivalence ratio ϕ on profile x=0 m （isoline: ϕ=1）
表 1 来流条件
Table 1. Flow condition
参数 计算状态1 计算状态2 来流温度/K 249 249 进口压力/kPa 47.2 47.2 空气流量/（g/s） 31 31 油气比 0.015 0.010 余气系数 4.47 6.70
下载: 导出CSV
表 2 流向等x截面上瞬时气态煤油流量
Table 2. Instantaneous mass flow rate of gaseous kerosene on x-profiles
r/mm x/m $\dot m_{\mathrm{f}} $/（g/s） 占比/% 2.0 0 0.046 14.84 2.0 0.02 0.219 70.65 2.5 0 0.138 44.52 2.5 0.02 0.246 79.35
下载: 导出CSV
-
[1] CHANG Y H,HAN S B. Characteristics of flame kernal radius in a spark ignition engine according to the electric spark ignition energy[J]. International Journal of Automotive Technology,2014,15(5): 715-722. [2] 肖为,江立军,陈盛. 燃烧室电火花点火模型[J]. 航空动力学报,2021,36(1): 25-33. XIAO Wei,JIANG Lijun,CHEN Sheng. Spark ignition model for combustor[J]. Journal of Aerospace Power,2021,36(1): 25-33. (in ChineseXIAO Wei, JIANG Lijun, CHEN Sheng. Spark ignition model for combustor[J]. Journal of Aerospace Power, 2021, 36(1): 25-33. (in Chinese) [3] BOILEAU M,STAFFELBACH G,CUENOT B,et al. LES of an ignition sequence in a gas turbine engine[J]. Combustion and Flame,2008,154(1/2): 2-22. [4] JONES W P,TYLISZCZAK A. Large eddy simulation of spark ignition in a gas turbine combustor[J]. Flow,Turbulence and Combustion,2010,85(3): 711-734. [5] NEOPHYTOU A,CUENOT B,DUCHAINE P. Large-eddy simulation of ignition and flame propagation in a trisector combustor[J]. Journal of Propulsion and Power,2016,32(2): 345-359. [6] MASQUELET M M,CAO Su,PAI M. Ignition and flame propagation in a liquid-fueled swirling combustor[R]. AIAA 2016-4687,2016. [7] BARRÉ D,ESCLAPEZ L,CORDIER M,et al. Flame propagation in aeronautical swirled multi-burners: experimental and numerical investigation[J]. Combustion and Flame,2014,161(9): 2387-2405. [8] KOO H,RAMAN V,MUELLER M E,et al. Large-eddy simulation of a turbulent sooting flame in a swirling combustor[R]. AIAA 2015-0167,2015. [9] FEDINA E,FUREBY C,BORZOV S,et al. Combustion LES of CESAR multi-burner annular combustor[R]. AIAA 2011-785,2011. [10] PHILIP M,BOILEAU M,VICQUELIN R,et al. Ignition sequence of an annular multi-injector combustor[J]. Physics of Fluids,2014,26(9): 091106. [11] SUBRAMANIAN V,DOMINGO P,VERVISCH L. Large eddy simulation of forced ignition of an annular bluff-body burner[J]. Combustion and Flame,2009,157(3): 579-601. [12] 李应红,吴云. 等离子体激励调控流动与燃烧的研究进展与展望[J]. 中国科学: 技术科学,2020,50(10): 1252-1273. LI Yinghong,WU Yun. Research progress and outlook of flow control and combustion control using plasma actuation[J]. Scientia Sinica (Technologica),2020,50(10): 1252-1273. (in ChineseLI Yinghong, WU Yun. Research progress and outlook of flow control and combustion control using plasma actuation[J]. Scientia Sinica (Technologica), 2020, 50(10): 1252-1273. (in Chinese) [13] 于锦禄,黄丹青,王思博,等. 等离子体点火与助燃技术在航空发动机上的应用[J]. 航空发动机,2018,44(3): 12-20. YU Jinlu,HUANG Danqing,WANG Sibo,et al. Application of plasma ignition and assisted combustion of aeroengine[J]. Aeroengine,2018,44(3): 12-20. (in ChineseYU Jinlu, HUANG Danqing, WANG Sibo, et al. Application of plasma ignition and assisted combustion of aeroengine[J]. Aeroengine, 2018, 44(3): 12-20. (in Chinese) [14] 雷健平,何立明,陈一,等. 旋转滑动弧放电等离子体滑动放电模式的实验研究[J]. 物理学报,2020,69(19): 232-243. LEI Jianping,HE Liming,CHEN Yi,et al. Experimental study on gliding discharge mode of rotating gliding arc discharge plasma[J]. Acta Physica Sinica,2020,69(19): 232-243. (in ChineseLEI Jianping, HE Liming, CHEN Yi, et al. Experimental study on gliding discharge mode of rotating gliding arc discharge plasma[J]. Acta Physica Sinica, 2020, 69(19): 232-243. (in Chinese) [15] 张磊,于锦禄,陈一,等. 基于滑动弧的航空发动机燃烧室头部喷雾特性[J]. 航空学报,2021,42(3): 124308. ZHANG Lei,YU Jinlu,CHEN Yi,et al. Spray characteristics of gliding arc discharge combustion dome of areo-engine combustors[J]. Acta Aeronautica et Astronautica Sinica,2021,42(3): 124308. (in ChineseZHANG Lei, YU Jinlu, CHEN Yi, et al. Spray characteristics of gliding arc discharge combustion dome of areo-engine combustors[J]. Acta Aeronautica et Astronautica Sinica, 2021, 42(3): 124308. (in Chinese) [16] 刘雄,何立明,戴文峰,等. 直流滑动弧等离子体点火器特性的实验研究[J]. 推进技术,2020,41(7): 1550-1559. LIU Xiong,HE Liming,DAI Wenfeng,et al. Experimental study on characteristics of DC gliding arc plasma igniter[J]. Journal of Propulsion Technology,2020,41(7): 1550-1559. (in ChineseLIU Xiong, HE Liming, DAI Wenfeng, et al. Experimental study on characteristics of DC gliding arc plasma igniter[J]. Journal of Propulsion Technology, 2020, 41(7): 1550-1559. (in Chinese) [17] 程伟达,于锦禄,陈朝,等. 基于滑动弧的燃烧室头部强化燃烧特性[J]. 航空动力学报,2022,37(7): 1392-1402. CHENG Weida,YU Jinlu,CHEN Zhao,et al. Enhanced combustion characteristics of combustor head based on gliding arc[J]. Journal of Aerospace Power,2022,37(7): 1392-1402. (in ChineseCHENG Weida, YU Jinlu, CHEN Zhao, et al. Enhanced combustion characteristics of combustor head based on gliding arc[J]. Journal of Aerospace Power, 2022, 37(7): 1392-1402. (in Chinese) [18] 耿华东,陈一,崔巍,等. 滑动弧放电等离子体激励的值班火焰头部放电特性实验[J]. 空军工程大学学报(自然科学版),2022,23(1): 53-63. GENG Huadong,CHEN Yi,CUI Wei,et al. An experiment in discharge characteristics of pilot flame dome based on gliding arc discharge plasma actuation[J]. Journal of Air Force Engineering University (Natural Science Edition),2022,23(1): 53-63. (in ChineseGENG Huadong, CHEN Yi, CUI Wei, et al. An experiment in discharge characteristics of pilot flame dome based on gliding arc discharge plasma actuation[J]. Journal of Air Force Engineering University (Natural Science Edition), 2022, 23(1): 53-63. (in Chinese) [19] 于锦禄,赵兵兵,郭昊,等. 滑动弧等离子体强化燃烧技术在航空发动机中的研究进展[J]. 航空发动机,2022,48(3): 52-59. YU Jinlu,ZHAO Bingbing,GUO Hao,et al. Research progress of sliding arc plasma assisted combustion technology in aeroengine[J]. Aeroengine,2022,48(3): 52-59. (in ChineseYU Jinlu, ZHAO Bingbing, GUO Hao, et al. Research progress of sliding arc plasma assisted combustion technology in aeroengine[J]. Aeroengine, 2022, 48(3): 52-59. (in Chinese) [20] 周瑜,乐嘉陵,陈柳君,等. 径向双旋流燃烧室流场结构大涡模拟研究[J]. 推进技术,2017,38(4): 909-917. ZHOU Yu,LE Jialing,CHEN Liujun,et al. Large eddy simulation of aeroengine combustor with counter-rotating swirler[J]. Journal of Propulsion Technology,2017,38(4): 909-917. (in ChineseZHOU Yu, LE Jialing, CHEN Liujun, et al. Large eddy simulation of aeroengine combustor with counter-rotating swirler[J]. Journal of Propulsion Technology, 2017, 38(4): 909-917. (in Chinese) [21] ZHOU Yu,LE Jialing,HUANG Yuan. LES of combustion flow field in a practical aeroengine combustor with two-stage counter-rotating swirler[J]. Journal of Propulsion Technology,2018,39(7): 1576-1589. [22] 熊模友. 非稳态火焰面/进度变量模型在航空发动机燃烧室中的应用研究[D]. 西安: 西北工业大学,2017. XIONG Moyou. Study and application of unsteady flamelet/progress variable model for aeroengine combustor[D]. Xi’an: Northwestern Polytechnical University,2017. (in ChineseXIONG Moyou. Study and application of unsteady flamelet/progress variable model for aeroengine combustor[D]. Xi’an: Northwestern Polytechnical University, 2017. (in Chinese) [23] 何立明,陈一,刘兴建,等. 大气压交流滑动弧的放电特性[J]. 高电压技术,2016,42(6): 1921-1928. HE Liming,CHEN Yi,LIU Xingjian,et al. Discharge characteristic of atmospheric pressure AC gliding arc[J]. High Voltage Engineering,2016,42(6): 1921-1928. (in ChineseHE Liming, CHEN Yi, LIU Xingjian, et al. Discharge characteristic of atmospheric pressure AC gliding arc[J]. High Voltage Engineering, 2016, 42(6): 1921-1928. (in Chinese) [24] 赵凝秋,朱益飞,李振阳,等. 氨滑动弧等离子体激励的数值建模[J]. 空军工程大学学报,2023,24(2): 10-16. ZHAO Ningqiu,ZHU Yifei,LI Zhenyang,et al. Numerical modeling of ammonia gliding arc plasma actuation[J]. Journal of Air Force Engineering University,2023,24(2): 10-16. (in Chinese doi: 10.3969/j.issn.2097-1915.2023.02.002ZHAO Ningqiu, ZHU Yifei, LI Zhenyang, et al. Numerical modeling of ammonia gliding arc plasma actuation[J]. Journal of Air Force Engineering University, 2023, 24(2): 10-16. (in Chinese) doi: 10.3969/j.issn.2097-1915.2023.02.002 -
