Design methodology of vibration reduction experiment of aero-turbine blades with underplatform damping
-
摘要:

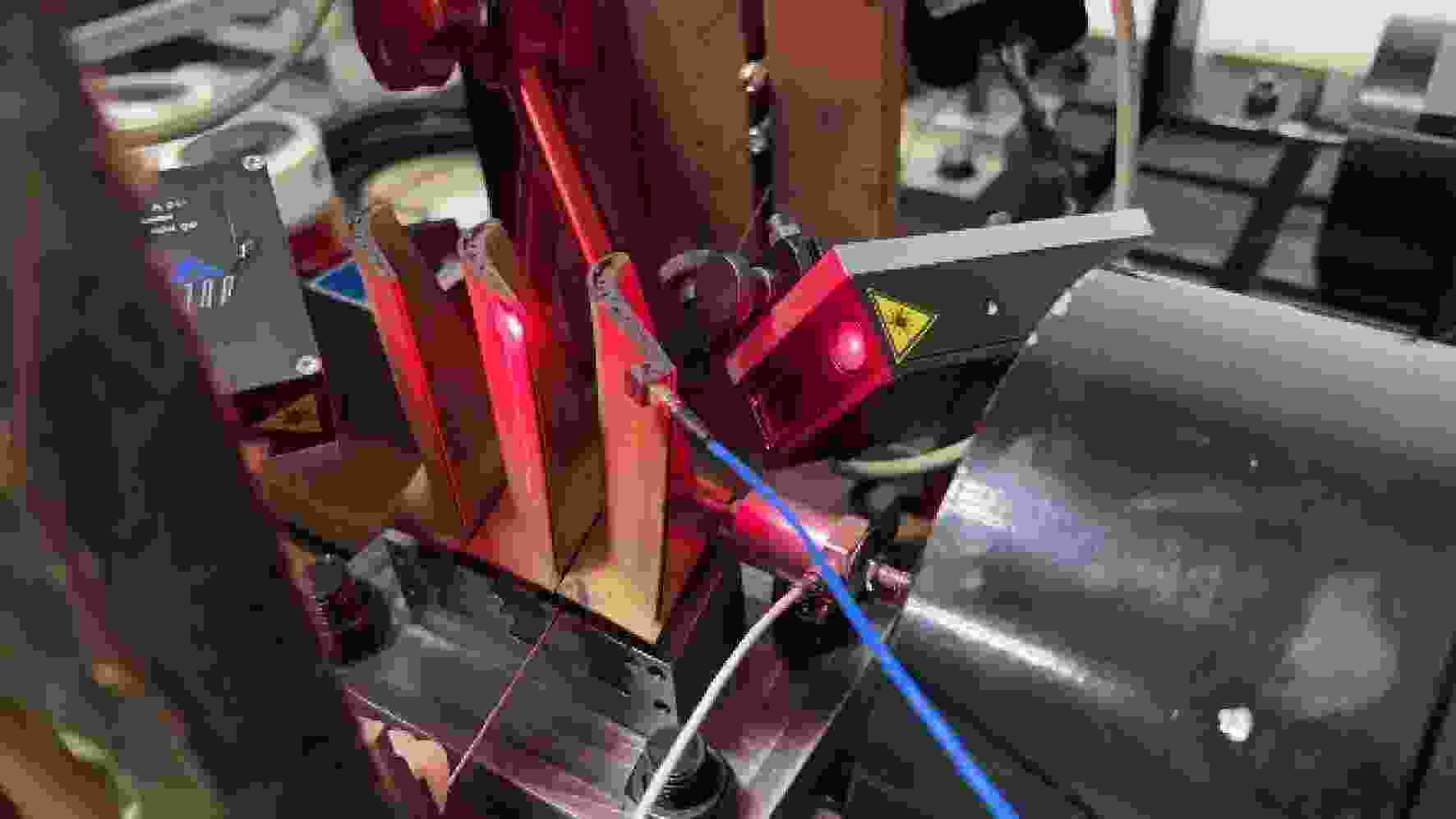

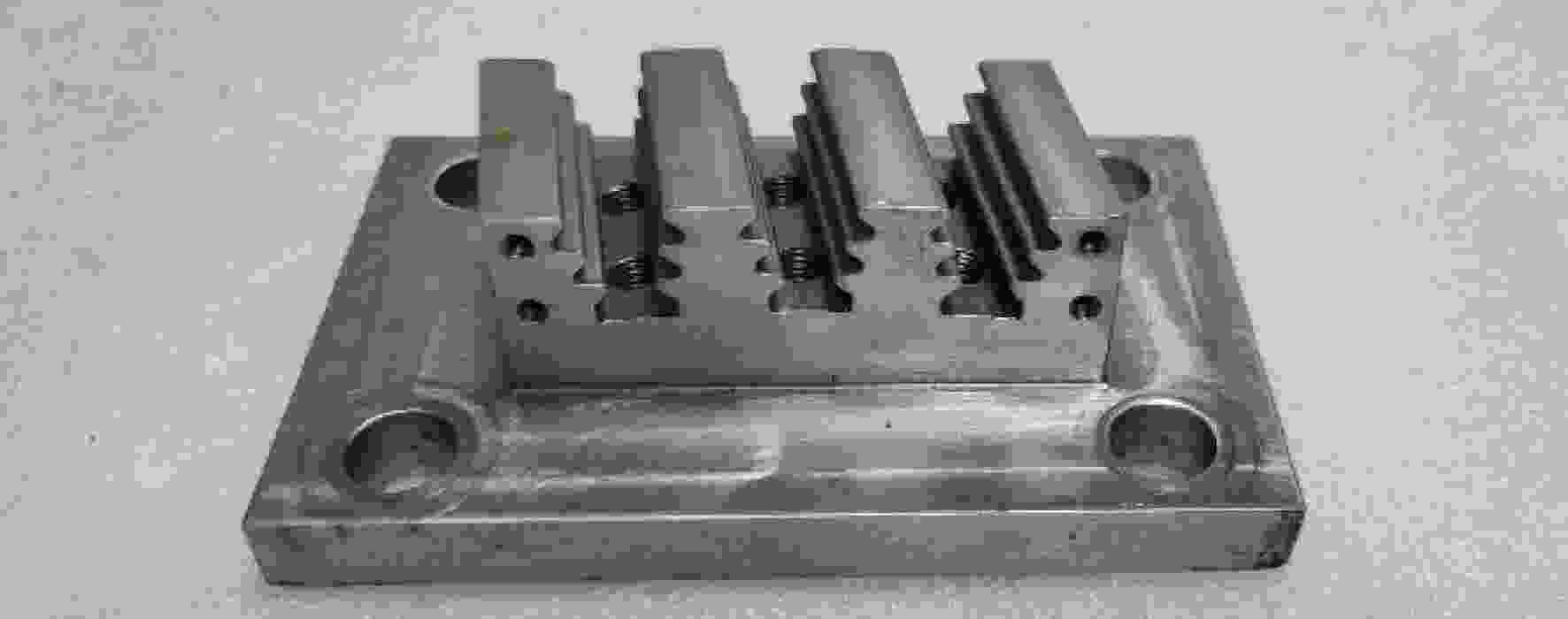

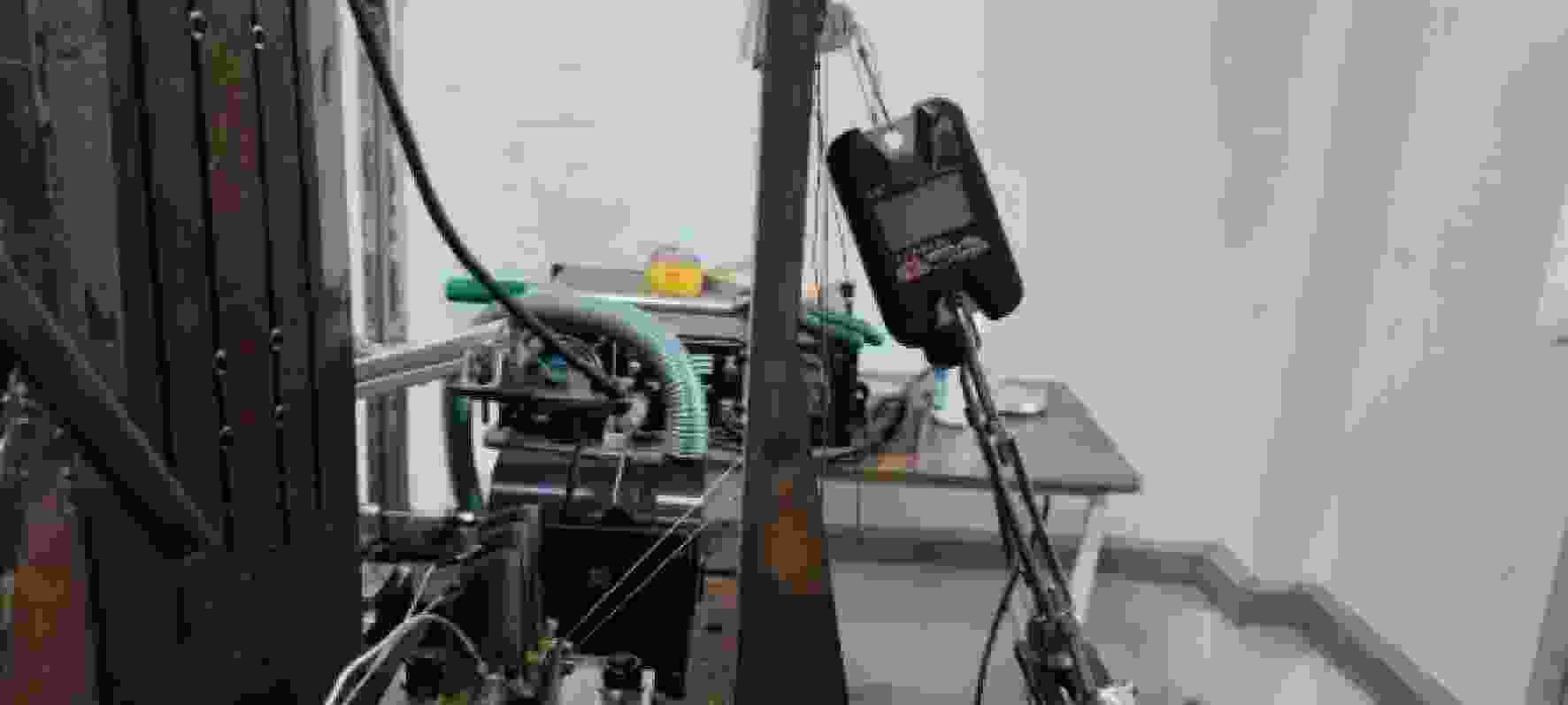

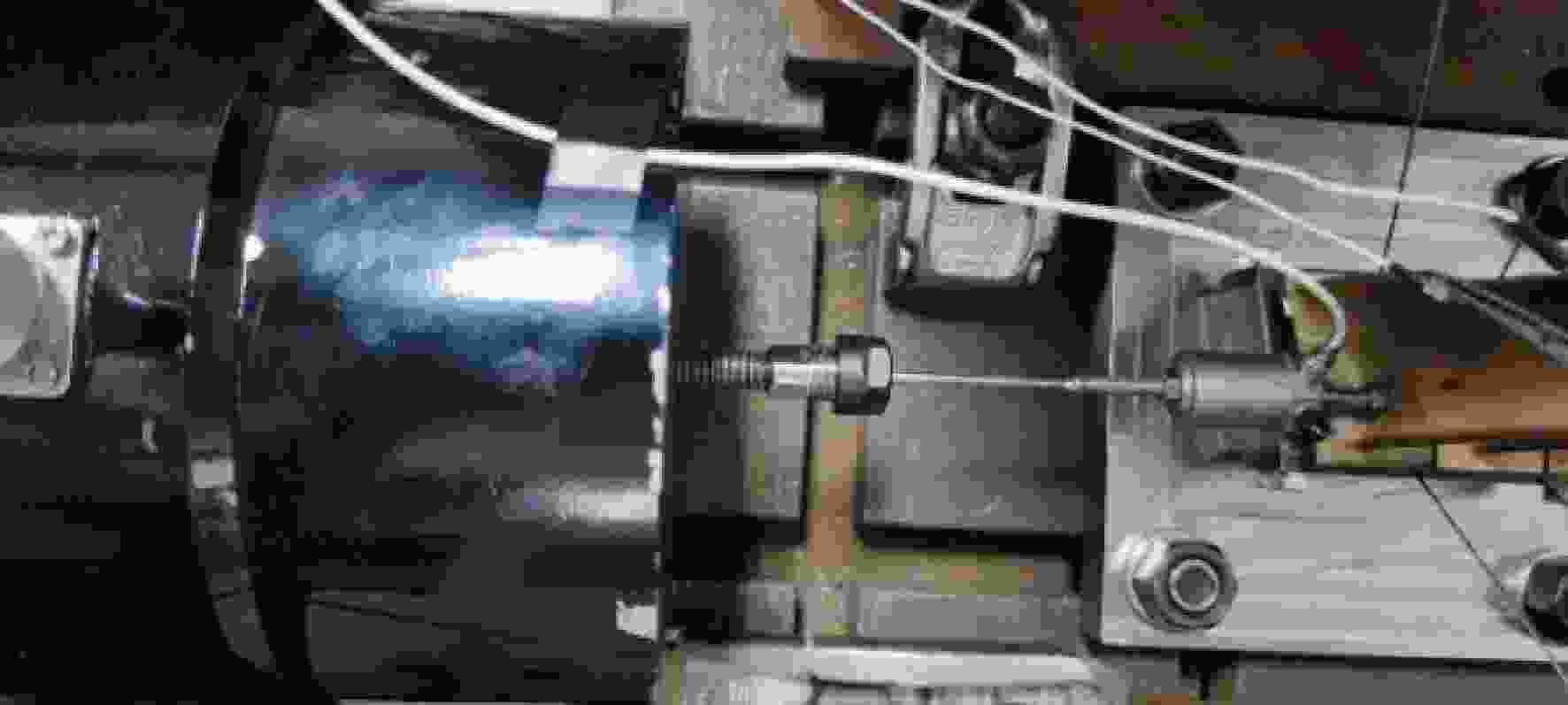

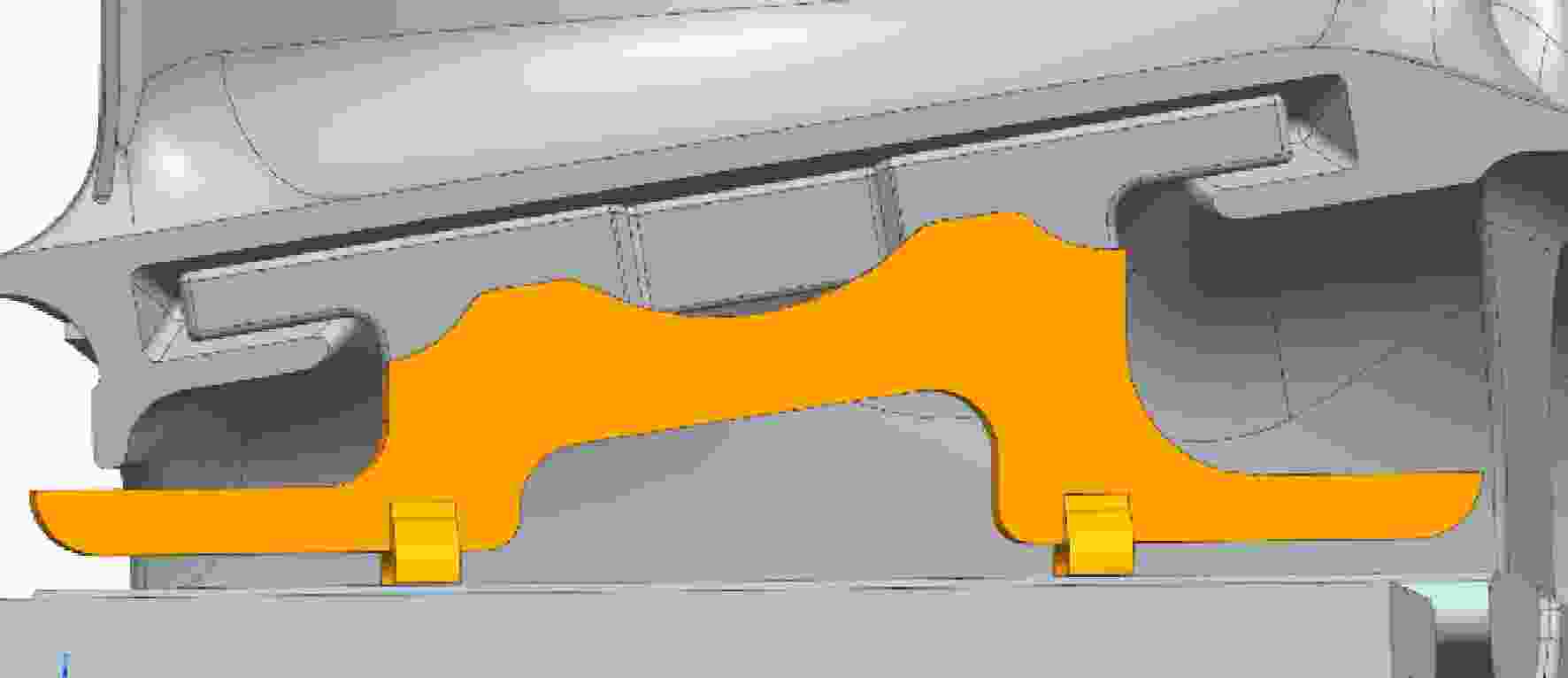

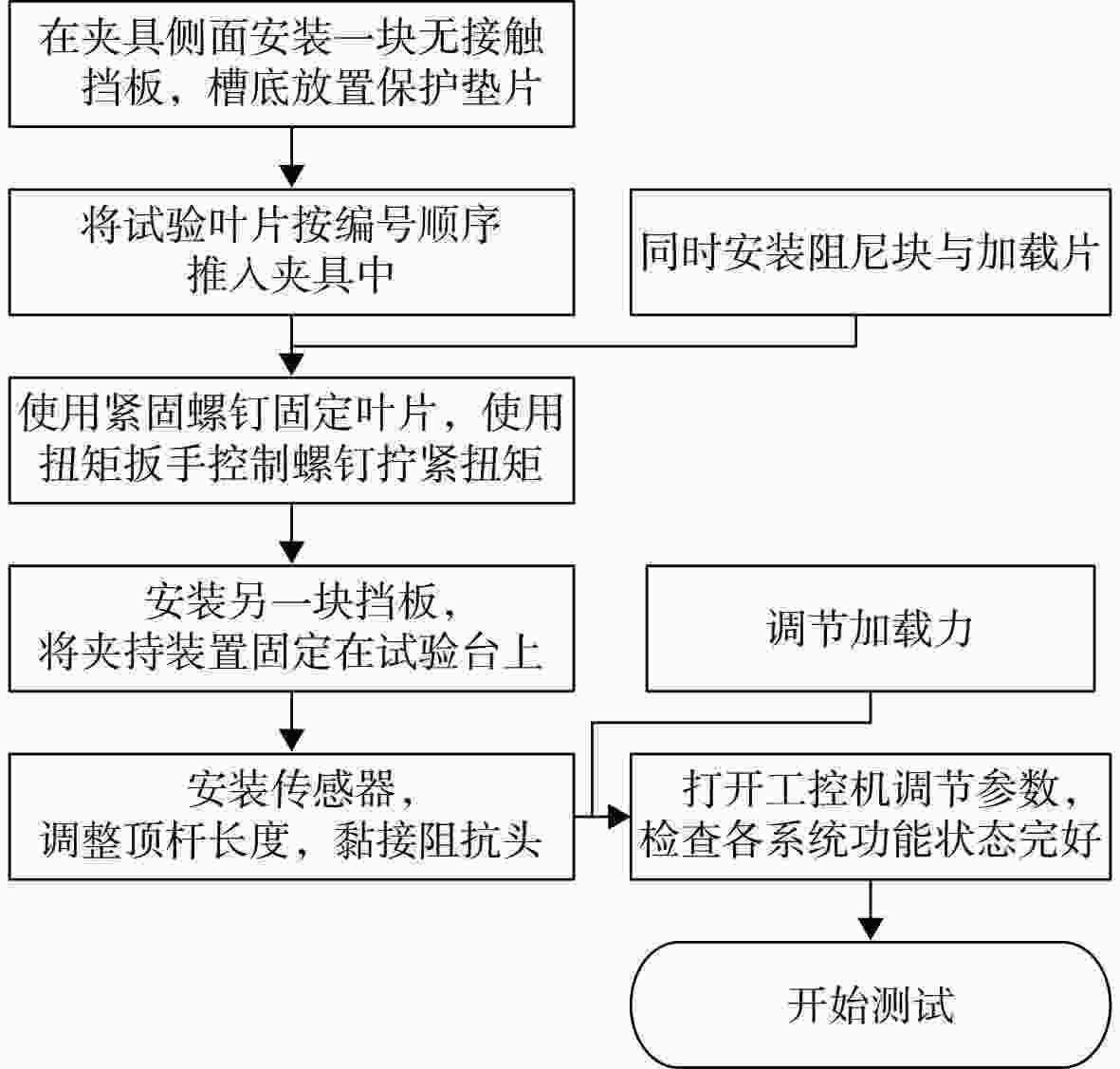

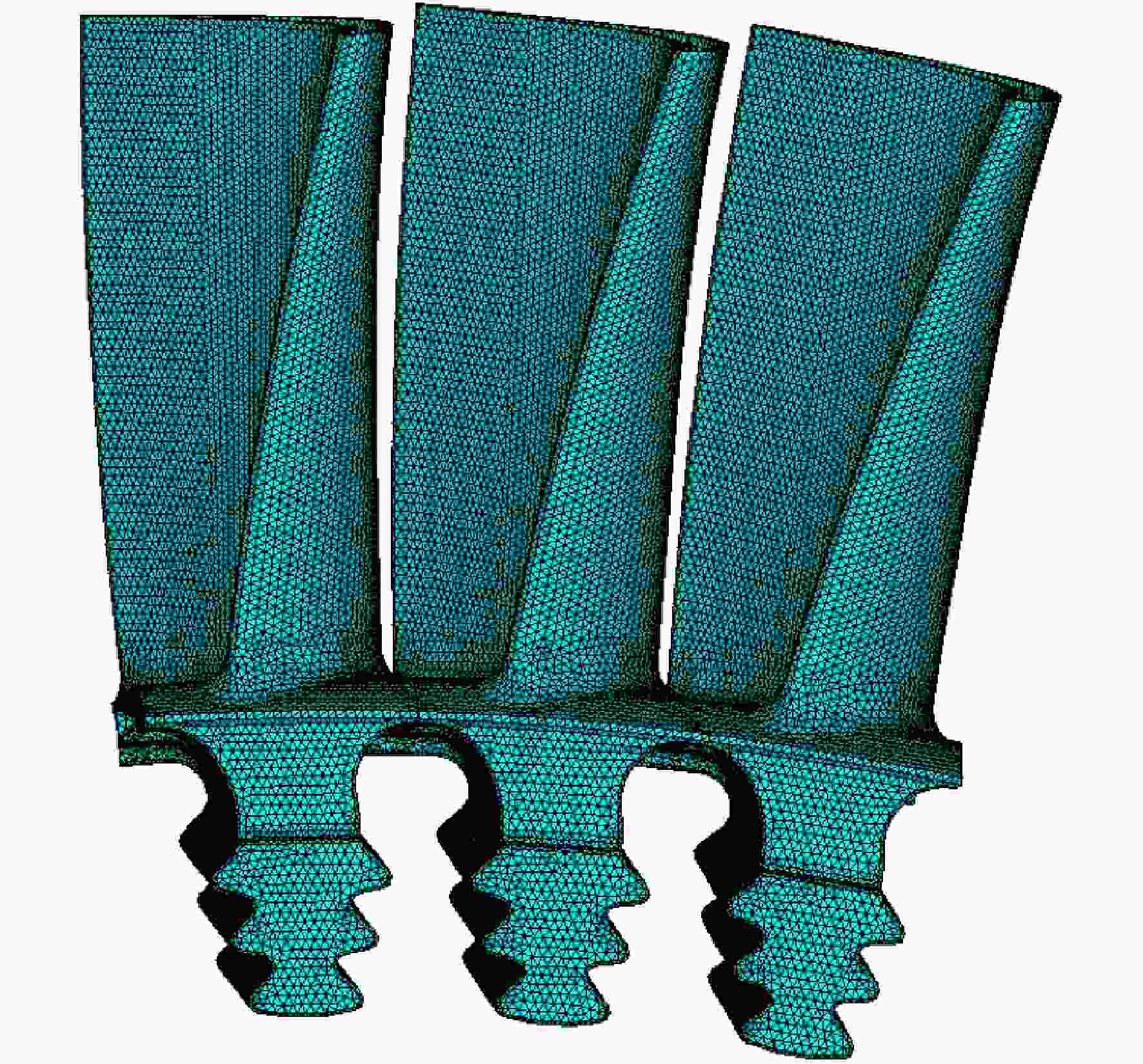

为了深入了解叶片-盘系统的振动特性、检验已有阻尼装置减振效果是否满足技术指标，有必要设计开展带干摩擦阻尼真实叶片减振特性试验。真实叶片振动特性试验相较模拟叶片试验而言，在设计过程中会遇到更多挑战，以定型带缘板阻尼涡轮叶片为例，设计了真实涡轮叶片组减振特性试验方案，通过开展涡轮叶片组减振特性试验，得到不同正压力下受激叶片的频响函数曲线。试验数据表明：缘板阻尼装置在设计频率范围内对叶片组振动有明显的抑制效果，最佳减振效果能使受激叶片共振幅值减小60%以上。
Abstract:In order to understand the vibration characteristics of the blade-disc system and to check whether the damping effect meets the technical specifications, it is necessary to design and carry out dry friction damping blade vibration characteristics experiment. Real blade vibration characteristics experiments encounter more challenges in the design process than simulated blade experiments. A certain type of turbine blade with underplatform damper was taken as an example to design an experimental programme for the vibration damping characteristics of real turbine blades. The frequency response function curves of excited blades under different positive pressures were obtained by carrying out vibration damping characteristic experiments of turbine blades. The data showed that underplatform damping device within the design frequency range of the blade group vibration had a significant inhibition effect, the best vibration damping effect can reduce the excited blade co-vibration amplitude up to 60%.
-

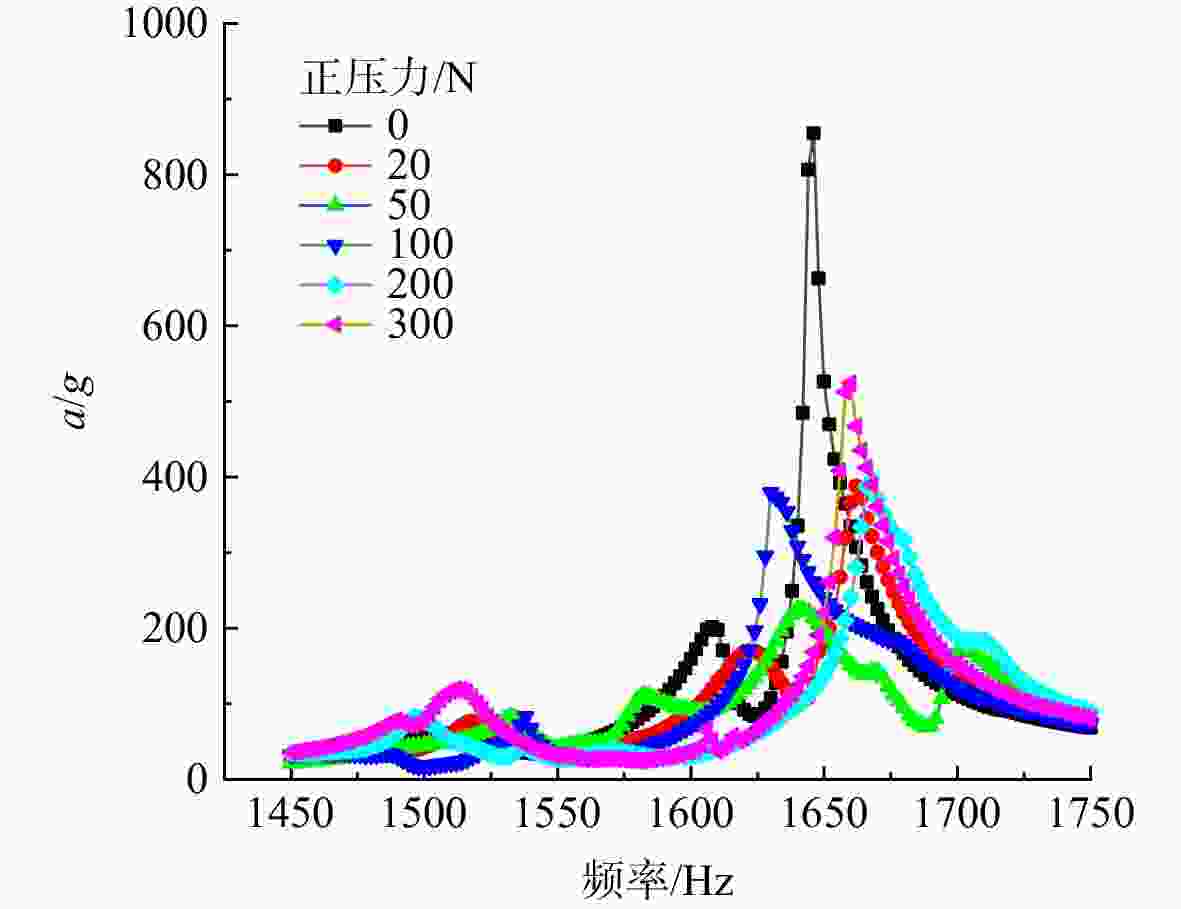

图 2 各正压力下受激叶片频响函数曲线
Figure 2. Frequency response function curves of excited blades under various positive pressures
图 12 激振力幅值5 N受激叶片频响函数曲线
Figure 12. Frequency response function curves of excited blades under excited force 5 N

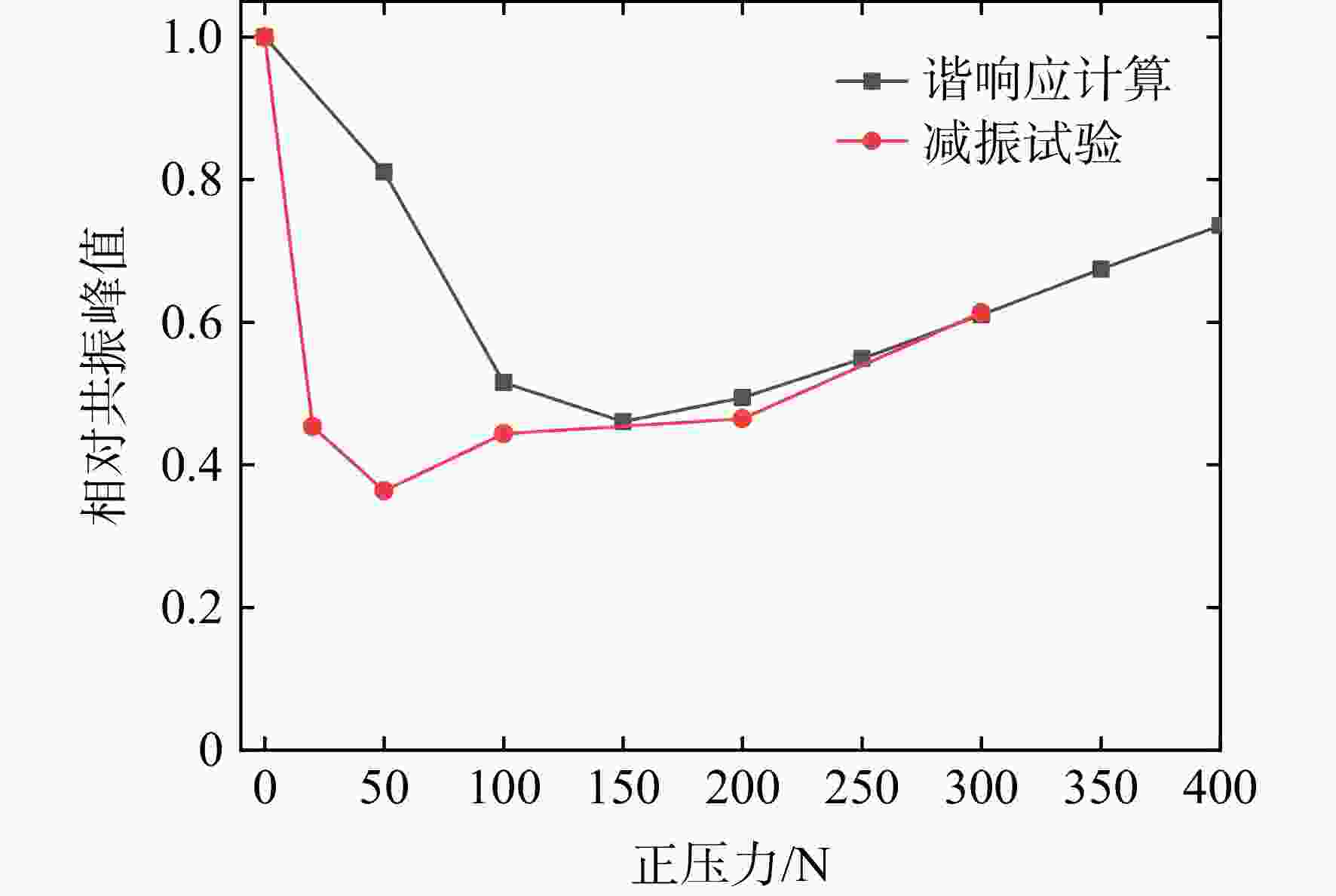

图 13 仿真计算和减振试验结果对比
Figure 13. Comparison of simulation and vibration reduction experiment

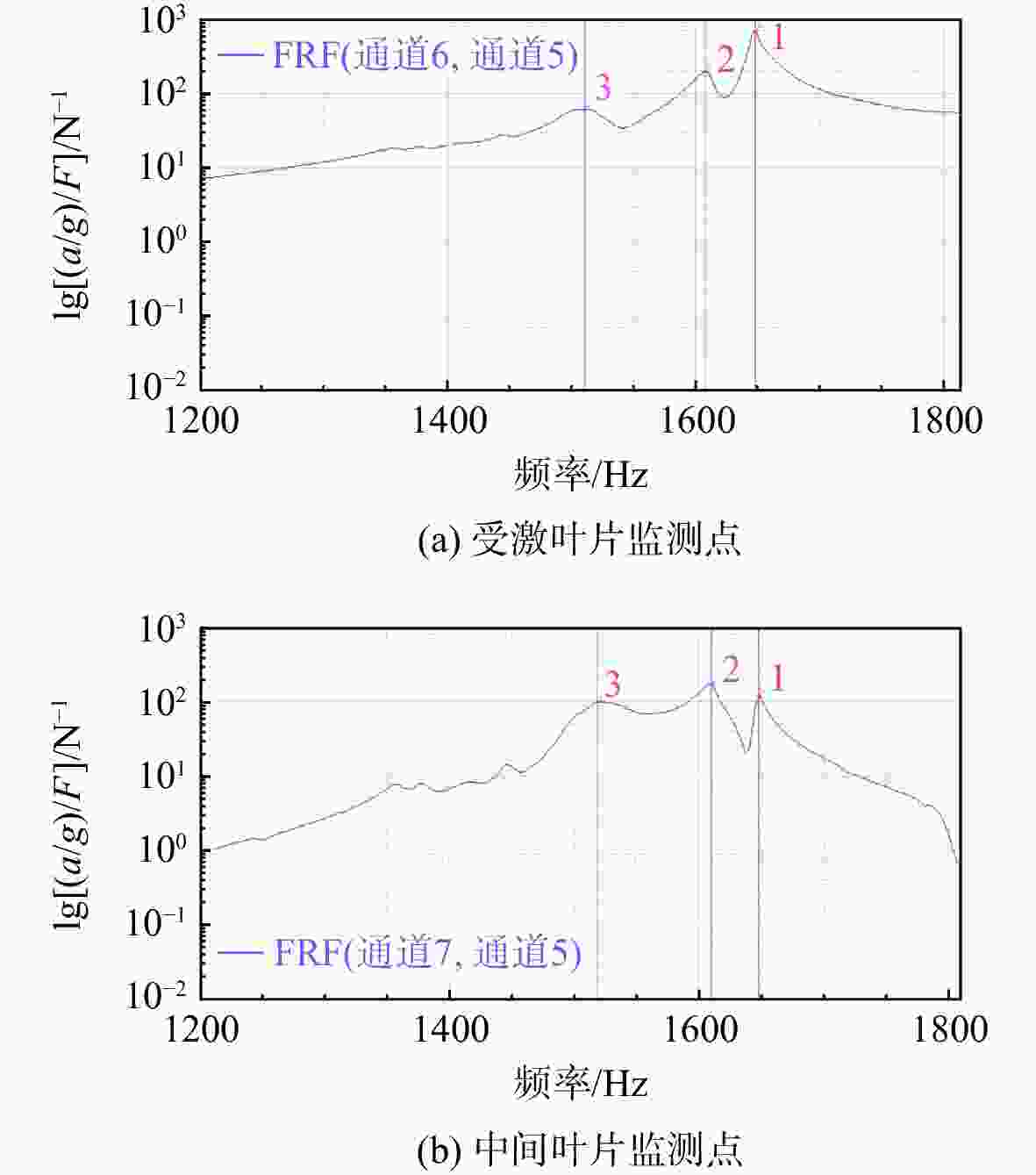

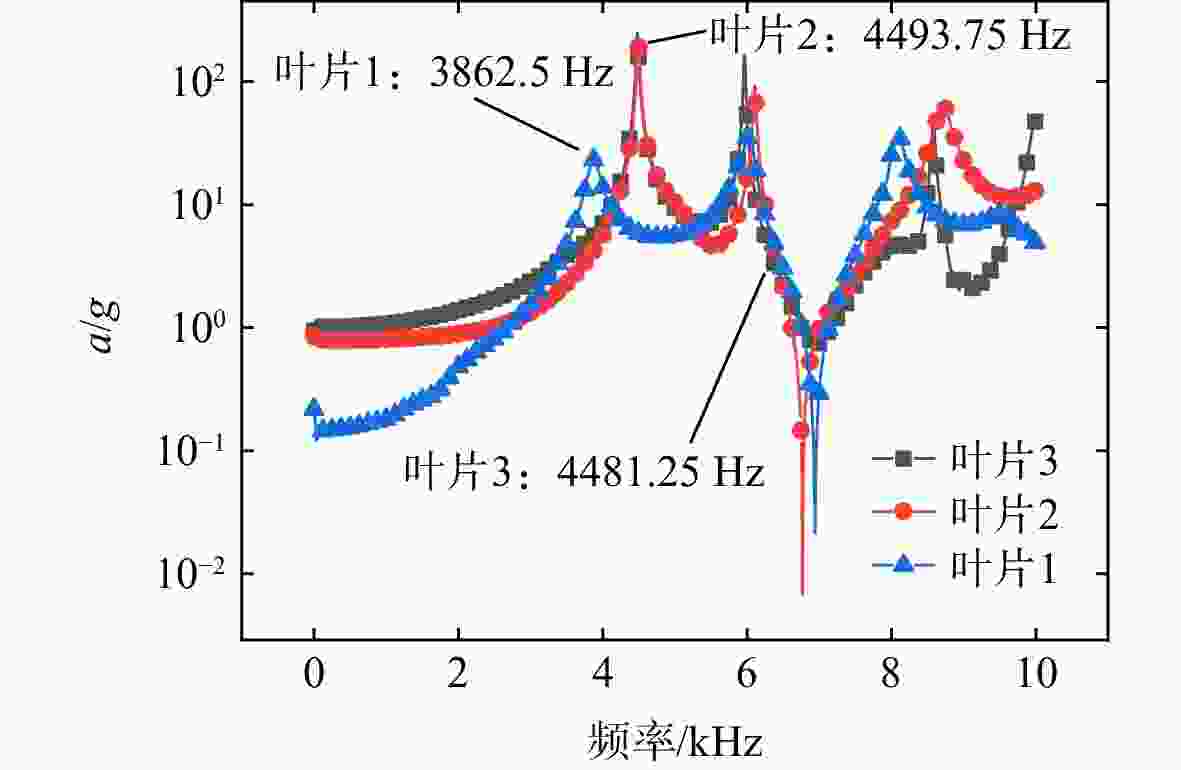

表 1 扫频测试结果
Table 1. Sweep experiment results
监测点 共振频率/Hz 第1阶 第2阶 第3阶 受激叶片监测点 1510 1608 1648 中间叶片监测点 1518 1610 1648
下载: 导出CSV
表 2 相对共振振幅和减振效率随正压力变化表
Table 2. Variation of relative resonance amplitude and damping efficiency with positive pressure
正压力P/N 相对共振振幅$\overline{X} $/% 减振效率$ \eta $/% 20 45.40 54.60 50 36.40 63.70 100 44.30 55.70 200 46.50 53.50 300 53.50 38.70
下载: 导出CSV
-
[1] SEVER I A,PETROV E,EWINS D. Experimental and numerical investigation of rotating bladed disk forced response using underplatform friction dampers[J]. Journal of Engineering for Gas Turbines and Power,2008,130(4): 042503. [2] KOSCSO A,PETROV E. Sensitivity and forced response analysis of anisotropy-mistuned bladed disks with nonlinear contact interfaces[J]. Journal of Engineering for Gas Turbines and Power,2019,141(10): 101025. doi: 10.1115/1.4044883 [3] LAXALDE D,GIBERT C,THOUVEREZ F. Experimental and numerical investigations of friction rings damping of blisks[R]. ASME Paper GT2008-50862,2008. [4] 张欢,李光辉,梁恩波. 一种摩擦阻尼器在整体叶盘结构的应用[J]. 航空动力学报,2017,32(4): 800-807. ZHANG Huan,LI Guanghui,LIANG Enbo. Application of a friction damper in blisk structure[J]. Journal of Aerospace Power,2017,32(4): 800-807. (in ChineseZHANG Huan, LI Guanghui, LIANG Enbo. Application of a friction damper in blisk structure[J]. Journal of Aerospace Power, 2017, 32(4): 800-807. (in Chinese) [5] 边杰,侯明,刘超,等. 离心叶轮高速旋转叶片振动测量与特性分析[J]. 推进技术,2018,39(7): 1597-1604. BIAN Jie,HOU Ming,LIU Chao,et al. Vibration measurement and characteristics analysis of high speed rotating blades of a centrifugal impeller[J]. Journal of Propulsion Technology,2018,39(7): 1597-1604. (in ChineseBIAN Jie, HOU Ming, LIU Chao, et al. Vibration measurement and characteristics analysis of high speed rotating blades of a centrifugal impeller[J]. Journal of Propulsion Technology, 2018, 39(7): 1597-1604. (in Chinese) [6] 姜丽婷. 旋转失谐叶片—轮盘系统振动特性分析与实验研究[D]. 辽宁 锦州: 辽宁工业大学,2020. JIANG Liting. Analysis and experimental study on vibration characteristics of rotating mistuned bladed-disk system[D]. Jinzhou Liaoning: Liaoning University of Technology,2020. (in ChineseJIANG Liting. Analysis and experimental study on vibration characteristics of rotating mistuned bladed-disk system[D]. Jinzhou Liaoning: Liaoning University of Technology, 2020. (in Chinese) [7] 李全通,廖明夫,陈卫,等. 缘板干摩擦阻尼器叶片减振实验研究[J]. 机械科学与技术,2008,27(11): 1392-1396,1400. LI Quantong,LIAO Mingfu,CHEN Wei,et al. An experimental study of decreasing vibration on blade with platform dry friction damper[J]. Mechanical Science and Technology for Aerospace Engineering,2008,27(11): 1392-1396,1400. (in Chinese doi: 10.3321/j.issn:1003-8728.2008.11.030LI Quantong, LIAO Mingfu, CHEN Wei, et al. An experimental study of decreasing vibration on blade with platform dry friction damper[J]. Mechanical Science and Technology for Aerospace Engineering, 2008, 27(11): 1392-1396, 1400. (in Chinese) doi: 10.3321/j.issn:1003-8728.2008.11.030 [8] 袁惠群,张亮,韩清凯. 航空发动机转子失谐叶片减振安装优化分析[J]. 振动、测试与诊断,2011,31(5): 647-651, 668-669. YUAN Huiqun,ZHANG Liang,HAN Qingkai. Reducing vibration mounting optimization for aero-engine rotor mistuned blade[J]. Journal of Vibration,Measurement & Diagnosis,2011,31(5): 647-651, 668-669. (in ChineseYUAN Huiqun, ZHANG Liang, HAN Qingkai. Reducing vibration mounting optimization for aero-engine rotor mistuned blade[J]. Journal of Vibration, Measurement & Diagnosis, 2011, 31(5): 647-651, 668-669. (in Chinese) [9] 陈香,朱靖,李光辉,等. 涡轮带冠叶片干摩擦阻尼减振试验[J]. 航空动力学报,2012,27(4): 817-823. CHEN Xiang,ZHU Jing,LI Guanghui,et al. Experiment on dry friction damping of shrouded turbine blades[J]. Journal of Aerospace Power,2012,27(4): 817-823. (in ChineseCHEN Xiang, ZHU Jing, LI Guanghui, et al. Experiment on dry friction damping of shrouded turbine blades[J]. Journal of Aerospace Power, 2012, 27(4): 817-823. (in Chinese) [10] 张大义,张嵩,付俭伟,等. 转子叶片缘板阻尼结构设计方法[J]. 航空动力学报,2018,33(4): 961-968. ZHANG Dayi,ZHANG Song,FU Jianwei,et al. Design method for the under platform damper of rotor blade[J]. Journal of Aerospace Power,2018,33(4): 961-968. (in ChineseZHANG Dayi, ZHANG Song, FU Jianwei, et al. Design method for the under platform damper of rotor blade[J]. Journal of Aerospace Power, 2018, 33(4): 961-968. (in Chinese) [11] ZHANG D,GAO B,HONG J,et al. Experimental investigation on dynamic response of flat blades with underplatform dampers[J]. Chinese Journal of Aeronautics,2019,32(12): 2667-2678. doi: 10.1016/j.cja.2019.04.022 [12] 张大义,杨诚,夏颖,等. 带缘板阻尼结构转子叶片振动特性的影响参数分析[J]. 振动与冲击,2019,38(10): 221-227. ZHANG Dayi,YANG Cheng,XIA Ying,et al. Influential parameters of rotating blades with under platform dampers[J]. Journal of Vibration and Shock,2019,38(10): 221-227. (in ChineseZHANG Dayi, YANG Cheng, XIA Ying, et al. Influential parameters of rotating blades with under platform dampers[J]. Journal of Vibration and Shock, 2019, 38(10): 221-227. (in Chinese) [13] 阳刚,周标,臧朝平,等. 缘板阻尼结构减振特性的影响因素分析[J]. 航空动力学报,2019,34(1): 115-124. YANG Gang,ZHOU Biao,ZANG Chaoping,et al. Analysis of effect factors on damping characteristics for underplatform dampers[J]. Journal of Aerospace Power,2019,34(1): 115-124. (in ChineseYANG Gang, ZHOU Biao, ZANG Chaoping, et al. Analysis of effect factors on damping characteristics for underplatform dampers[J]. Journal of Aerospace Power, 2019, 34(1): 115-124. (in Chinese) [14] 陈俊杰. 带冠叶盘干摩擦阻尼减振特性研究[D]. 南京: 南京航空航天大学,2015. CHEN Junjie. Research on vibration characteristicof shrouded bladed disk with friction damper[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2015. (in ChineseCHEN Junjie. Research on vibration characteristicof shrouded bladed disk with friction damper[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2015. (in Chinese) [15] 殷啸宇. 成组/整圈涡轮叶片摩擦阻尼减振试验方法研究[D]. 南京: 南京航空航天大学,2020. YIN Xiaoyu. Research on friction damping test methods for grouped/integral turbine blades[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2020. (in ChineseYIN Xiaoyu. Research on friction damping test methods for grouped/integral turbine blades[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2020. (in Chinese) [16] 满吉鑫,高庆,曾武,等. 涡轮叶片双层干摩擦阻尼器减振特性研究[J]. 振动与冲击,2022,41(21): 238-245. MAN Jixin,GAO Qing,ZENG Wu,et al. Vibration reduction characteristics of double-layer dry friction damper for turbine blade[J]. Journal of Vibration and Shock,2022,41(21): 238-245. (in ChineseMAN Jixin, GAO Qing, ZENG Wu, et al. Vibration reduction characteristics of double-layer dry friction damper for turbine blade[J]. Journal of Vibration and Shock, 2022, 41(21): 238-245. (in Chinese) [17] PETROV E P,EWINS D J. Analytical formulation of friction interface elements for analysis of nonlinear multi-harmonic vibrations of bladed disks[J]. Journal of Turbomachinery,2003,125(2): 364-371. doi: 10.1115/1.1539868 [18] 伊立言. 叶片轮盘组合体模型的多点激振试验研究[J]. 航空学报,1984,5(1): 82-91. YI Liyan. An experimental investigation on multi-point excitation of bladed disc assembly models[J]. Acta Aeronautica et Astronautica Sinica,1984,5(1): 82-91. (in Chinese doi: 10.3321/j.issn:1000-6893.1984.01.012YI Liyan. An experimental investigation on multi-point excitation of bladed disc assembly models[J]. Acta Aeronautica et Astronautica Sinica, 1984, 5(1): 82-91. (in Chinese) doi: 10.3321/j.issn:1000-6893.1984.01.012 -
