基于无模型自适应控制的ACE推力保持方法

张玉竺; 周鑫; 陈文娟; 刘鹏飞; 陈前景; 黄金泉; 鲁峰

doi:10.13224/j.cnki.jasp.20230766

基于无模型自适应控制的ACE推力保持方法

doi: 10.13224/j.cnki.jasp.20230766

张玉竺^1,,
周鑫¹,
陈文娟¹,
刘鹏飞¹,
陈前景²,
黄金泉¹,
鲁峰^1,*, ,

1.
南京航空航天大学能源与动力学院，南京 210016
2.
中国航空发动机集团有限公司中国航空发动机研究院，北京 101304

基金项目: 国家自然科学基金（52302472）；航空发动机及燃气轮机基础科学中心项目（P2022-B-Ⅴ-002-001）

详细信息

作者简介:
张玉竺（1999-），女，硕士生，主要从事航空发动机控制算法研究。E-mail：zhang_yz@nuaa.edu.cn

通讯作者:
鲁峰（1981-），男，教授、博士生导师，博士，主要从事航空发动机建模、控制和故障诊断融合方法等研究。E-mail：lufengnuaa@126.com

中图分类号: V235.16
计量
- 文章访问数: 418
- HTML浏览量: 221
- PDF量: 22
- 被引次数: 0
出版历程
- 收稿日期: 2023-12-04
- 网络出版日期: 2025-08-12

ACE thrust maintenance method based on model free adaptive control

1.
College of Energy and Power Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China
2.
Aero Engine Academy of China，Aero Engine Corporation of China，Beijing 101304，China

摘要

摘要:
自适应循环发动机（ACE）具有很强的非线性特征，参数之间耦合严重，难以建立高精度的数学模型。无模型自适应控制（MFAC）算法无需被控对象的精确模型，仅通过对其输入/输出（I/O）数据进行动态线性化就可以实现控制器的设计，计算负担小且鲁棒性较强。以某型自适应循环发动机为研究对象，设计了针对ACE单一模式的多变量无模型自适应控制策略，并通过引入积分环节，减小被控制量的响应波动并改善其动态性能。针对ACE的推力保持控制问题，分别采用人工蜂群（ABC）优化算法和PID-线性规划（PID-LP）综合优化算法设计外环指令修正回路，搭建双环多变量控制系统，以在实现发动机推力保持的同时，控制涡轮温度和压气机喘振裕度不超过限制边界。基于本文所设计的控制结构及策略，面向工程应用开展了硬件在回路仿真试验。仿真结果表明：本文提出的基于改进的MFAC双环推力控制结构能够使发动机获得良好的稳态和动态控制性能，被控制量的波动量均小于2%，且在气路部件性能退化条件下能实现安全限制范围内的推力保持，从而更好地发挥发动机的性能，延长发动机使用寿命，具有工程应用价值。
- 自适应循环发动机 /
- 无模型自适应控制 /
- 推力保持 /
- 优化控制 /
- 多变量控制
Abstract:
Adaptive cycle engine (ACE) has strong nonlinear characteristics and severe coupling between parameters. It is difficult to establish high-precision mathematical models. The model free adaptive control (MFAC) algorithm was employed to design a controller by dynamically linearizing its input/output (I/O) data without an accurate model of the controlled object. This algorithm had low computational burden and strong robustness. A multivariable model free adaptive control strategy for ACE single mode was designed based on a certain adaptive cycle engine. By introducing an integral part, the fluctuation of control variables and the dynamic performance of the system were improved. Regarding the thrust maintenance control problem of ACE, artificial bee colony (ABC) optimization algorithm and PID-linear programming (PID-LP) comprehensive optimization algorithm were proposed to design an outer loop instruction correction loop. A dual loop multivariable control system was constructed to control the turbine temperature and compressor surge margin within the limit boundary while maintaining engine thrust. Hardware in-loop simulation tests were conducted. The simulation results demonstrated that the improved MFAC dual-loop thrust control structure enabled the engine to achieve excellent steady-state and dynamic control performance. The fluctuation of the controlled variable remained below 2%, and thrust maintenance within safe limits can be achieved even under conditions of deteriorating gas path component performance. This approach optimized engine performance, extended engine service life, and exhibited significant engineering application value.
- adaptive cycle engine /
- model free adaptive control /
- thrust maintenance /
- optimization control /
- multivariate control

HTML

图 1 ACE结构示意图

Figure 1. Schematic representation of ACE

下载: 全尺寸图片幻灯片

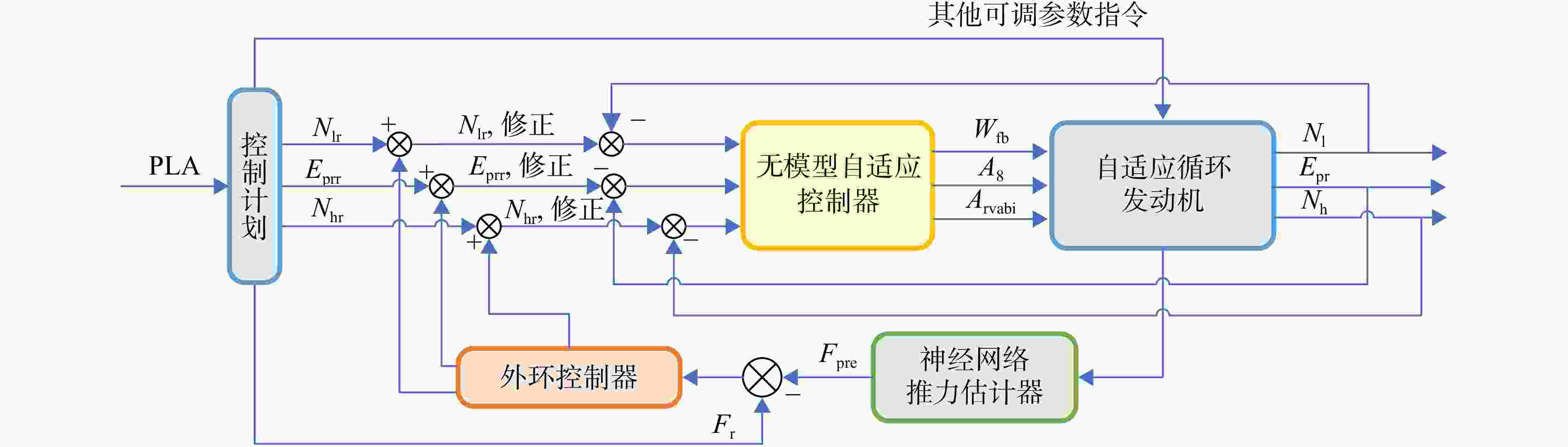

图 2 基于无模型自适应算法的双环多变量控制系统结构图

Figure 2. Structure diagram of a dual loop multivariable control system based on model free adaptive algorithm

下载: 全尺寸图片幻灯片

图 3 含积分环节的MFAC结构图

Figure 3. MFAC structure diagram with integral components

下载: 全尺寸图片幻灯片

图 4 蜜蜂采蜜过程示意图

Figure 4. Schematic diagram of bee honey picking process

下载: 全尺寸图片幻灯片

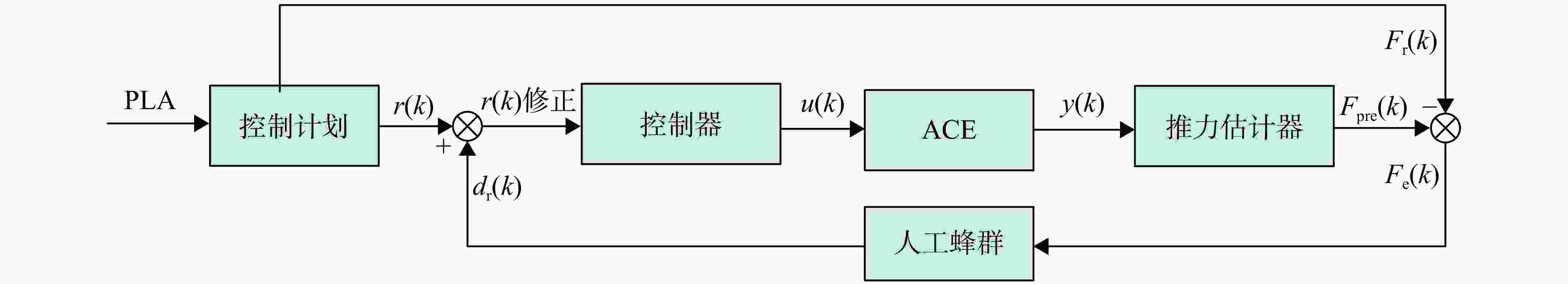

图 5 基于ABC优化算法的无模型自适应控制系统结构示意图

Figure 5. Schematic diagram of model free adaptive control system structure based on ABC optimization algorithm

下载: 全尺寸图片幻灯片

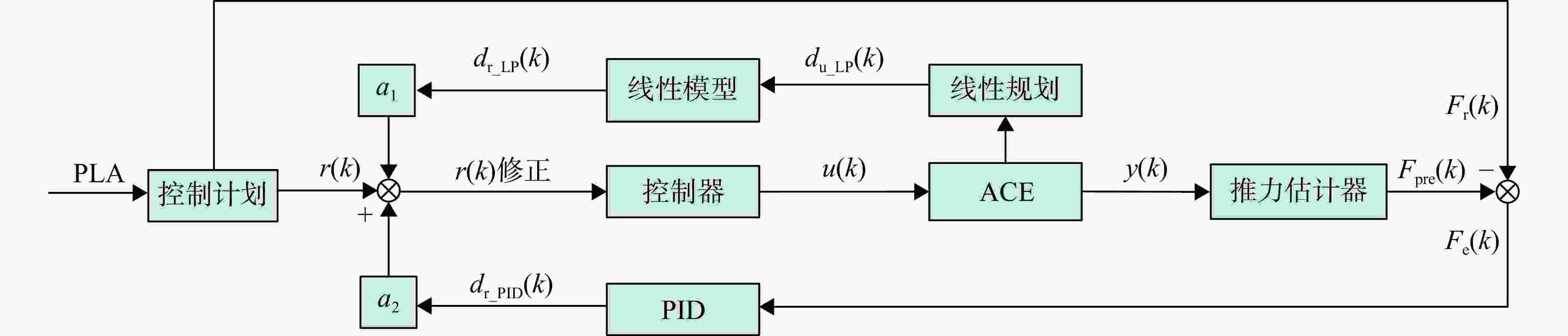

图 6 基于PID-LP综合优化算法的无模型自适应控制系统结构示意图

Figure 6. Schematic diagram of model free adaptive control system structure based on PID-LP comprehensive optimization algorithm

下载: 全尺寸图片幻灯片

图 7 HIL仿真试验原理图

Figure 7. HIL simulation tests schematic diagram

下载: 全尺寸图片幻灯片

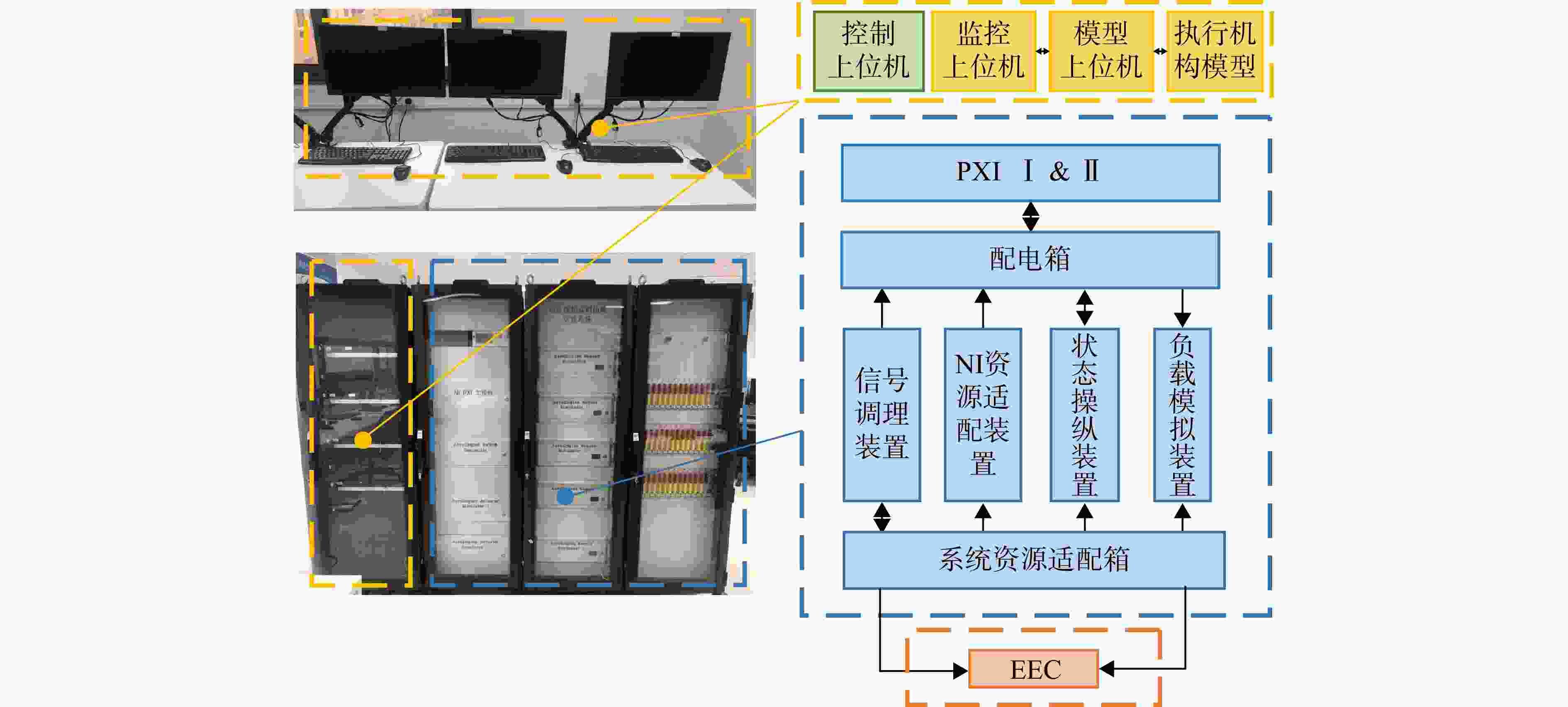

图 8 HIL试验平台组成

Figure 8. Composition of HIL tests platform

下载: 全尺寸图片幻灯片

图 9 HIL调试流程

Figure 9. HIL debugging process

下载: 全尺寸图片幻灯片

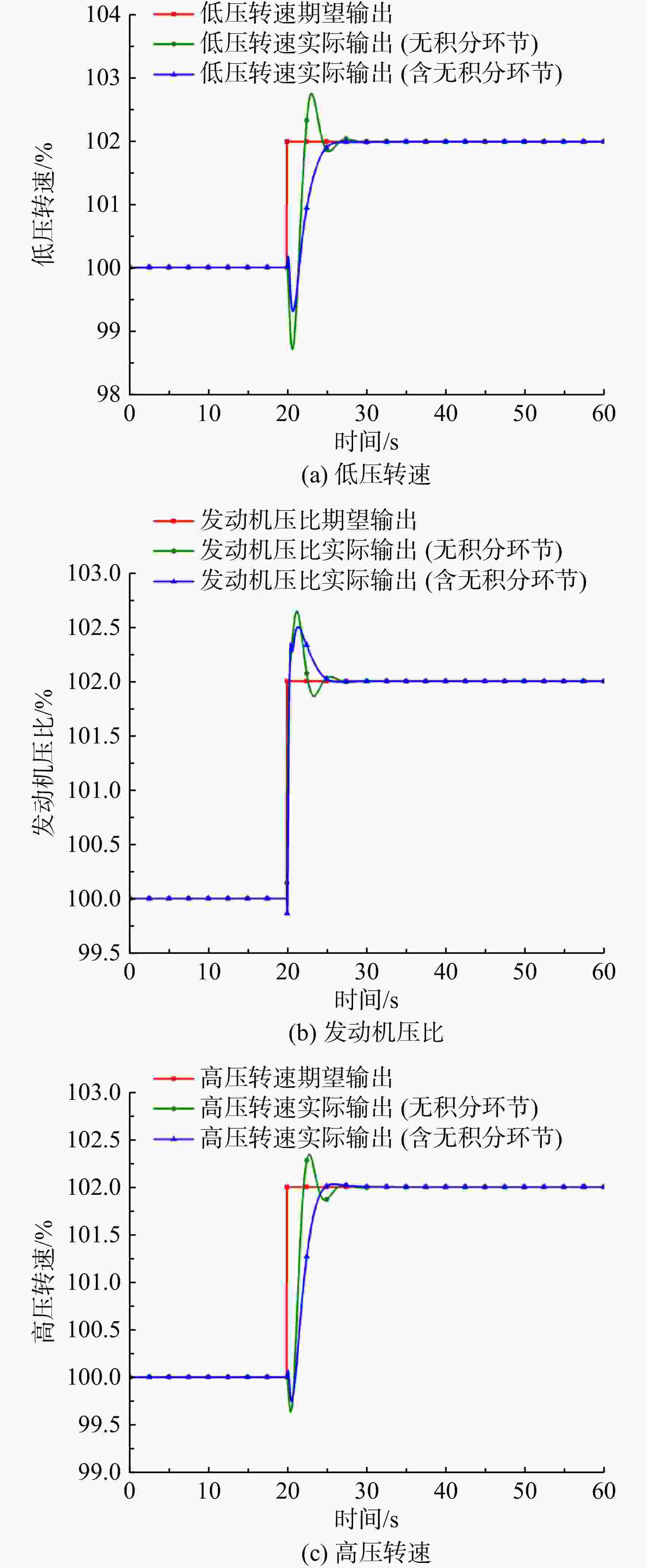

图 10 双外涵模式（M2）仿真结果

Figure 10. Simulation result in double bypass mode （M2）

下载: 全尺寸图片幻灯片

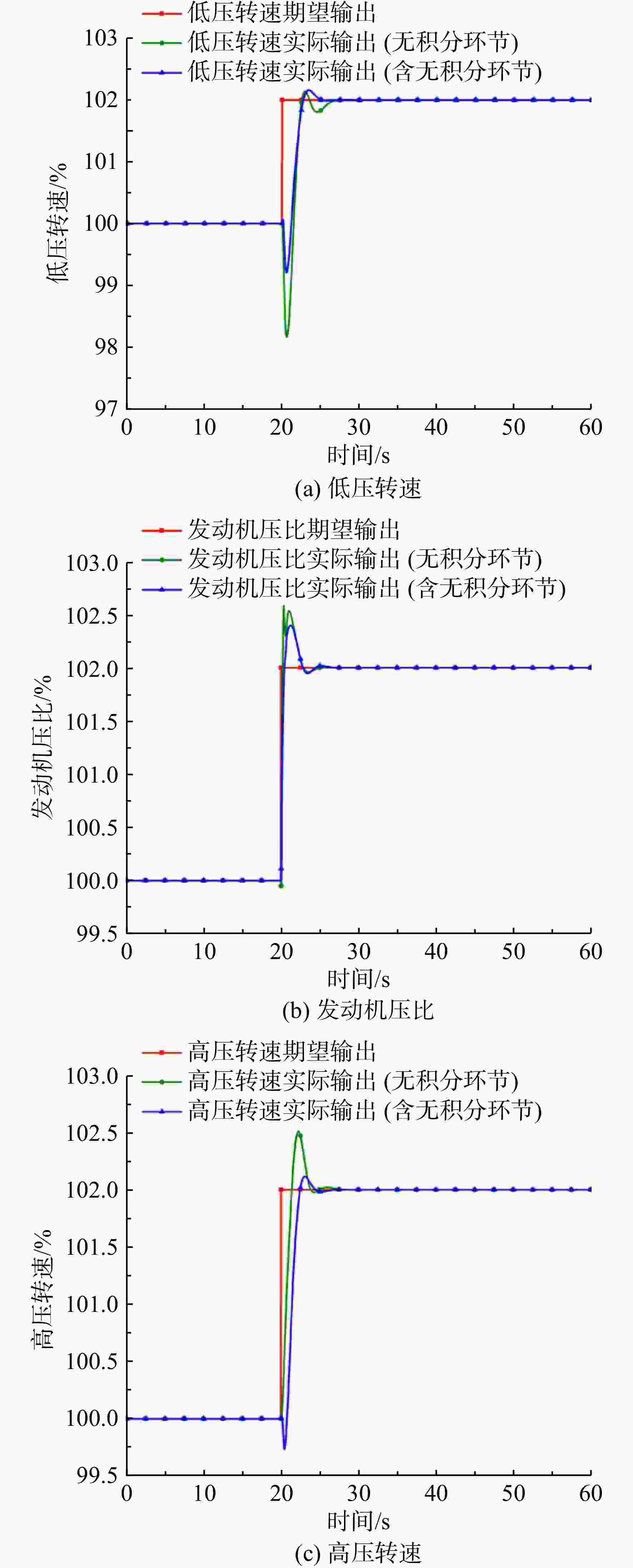

图 11 三外涵模式（M3）仿真结果

Figure 11. Simulation result in triple bypass mode （M3）

下载: 全尺寸图片幻灯片

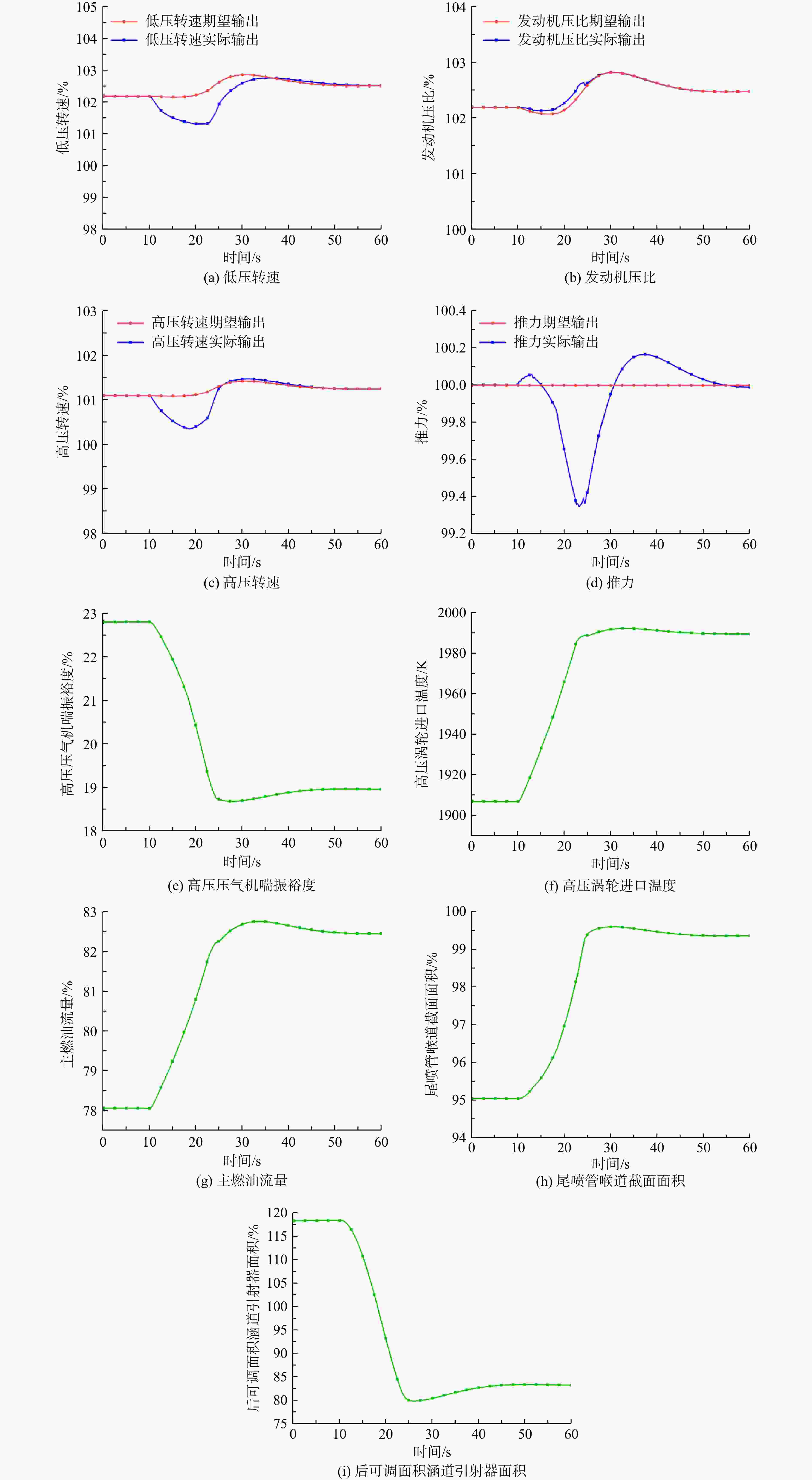

图 12 双外涵模式（M2）下变化曲线

Figure 12. Variation curve in double bypass mode （M2）

下载: 全尺寸图片幻灯片

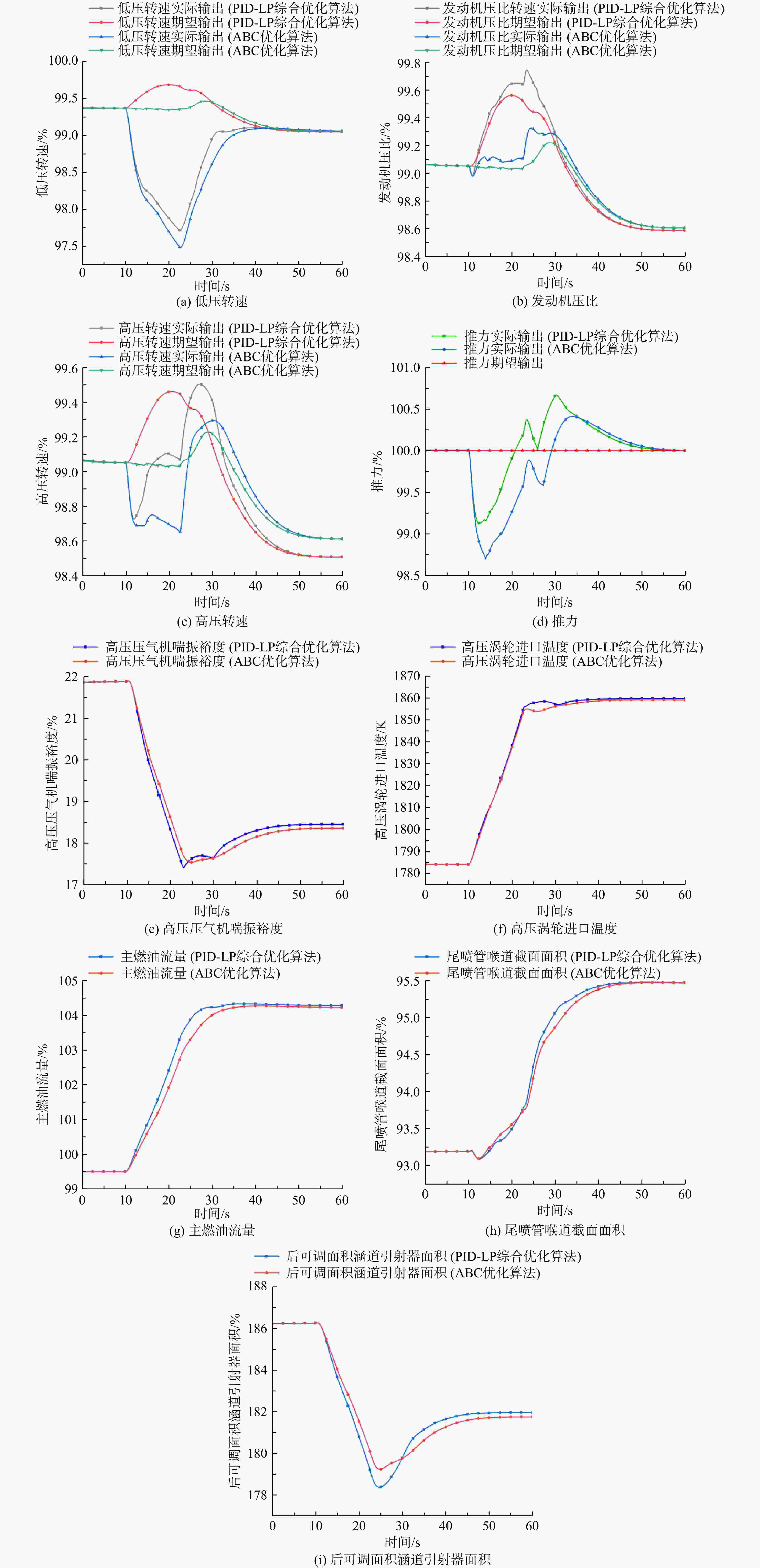

图 13 三外涵模式（M3）下变化曲线

Figure 13. Variation curve in triple bypass mode （M3）

下载: 全尺寸图片幻灯片

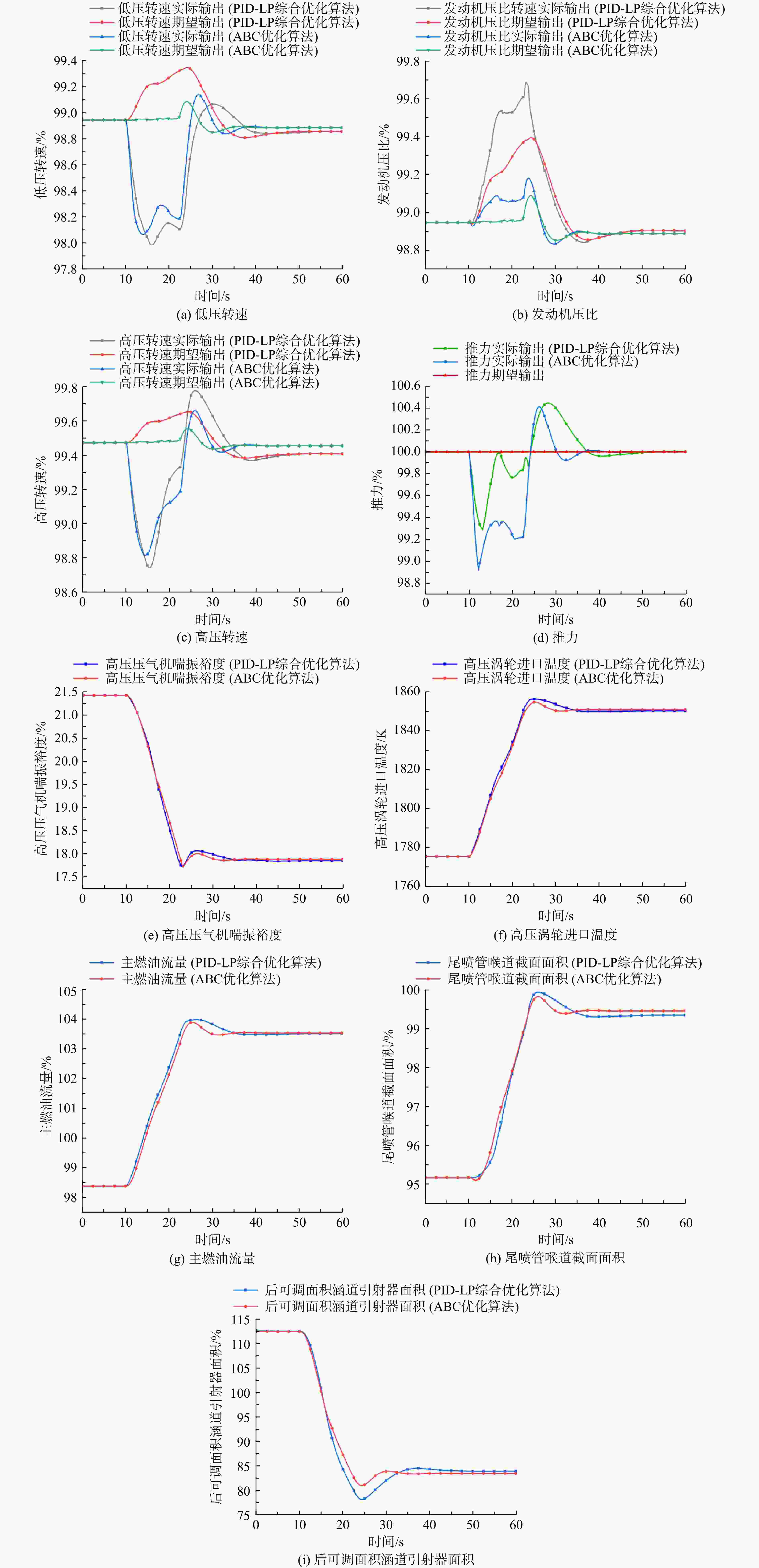

图 14 双外涵模式（M2）下变化曲线（高空点）

Figure 14. Variation curve under double bypass mode （M2）（high-altitude point）

下载: 全尺寸图片幻灯片

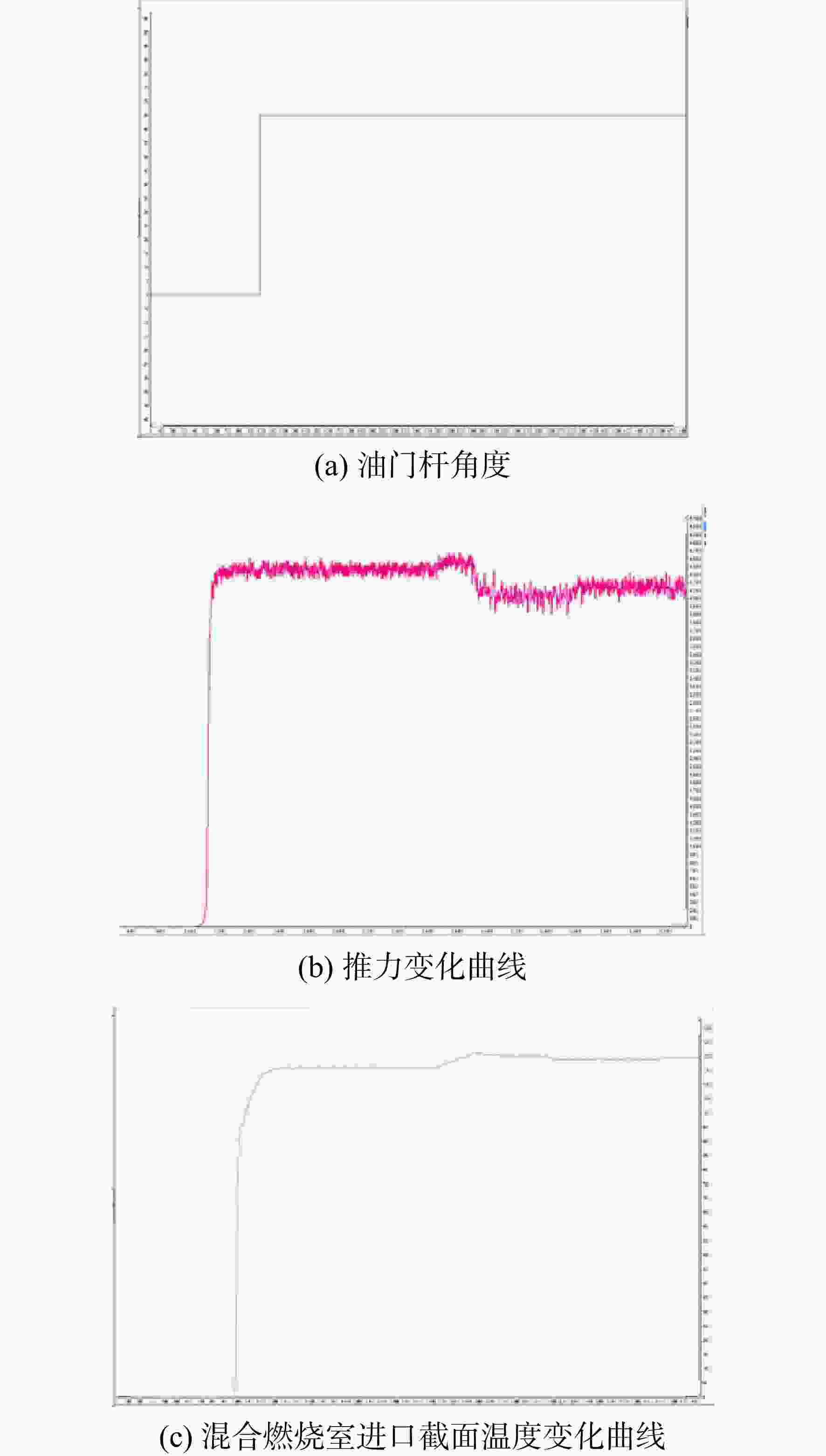

图 15 HIL仿真结果

Figure 15. HIL simulation results

下载: 全尺寸图片幻灯片

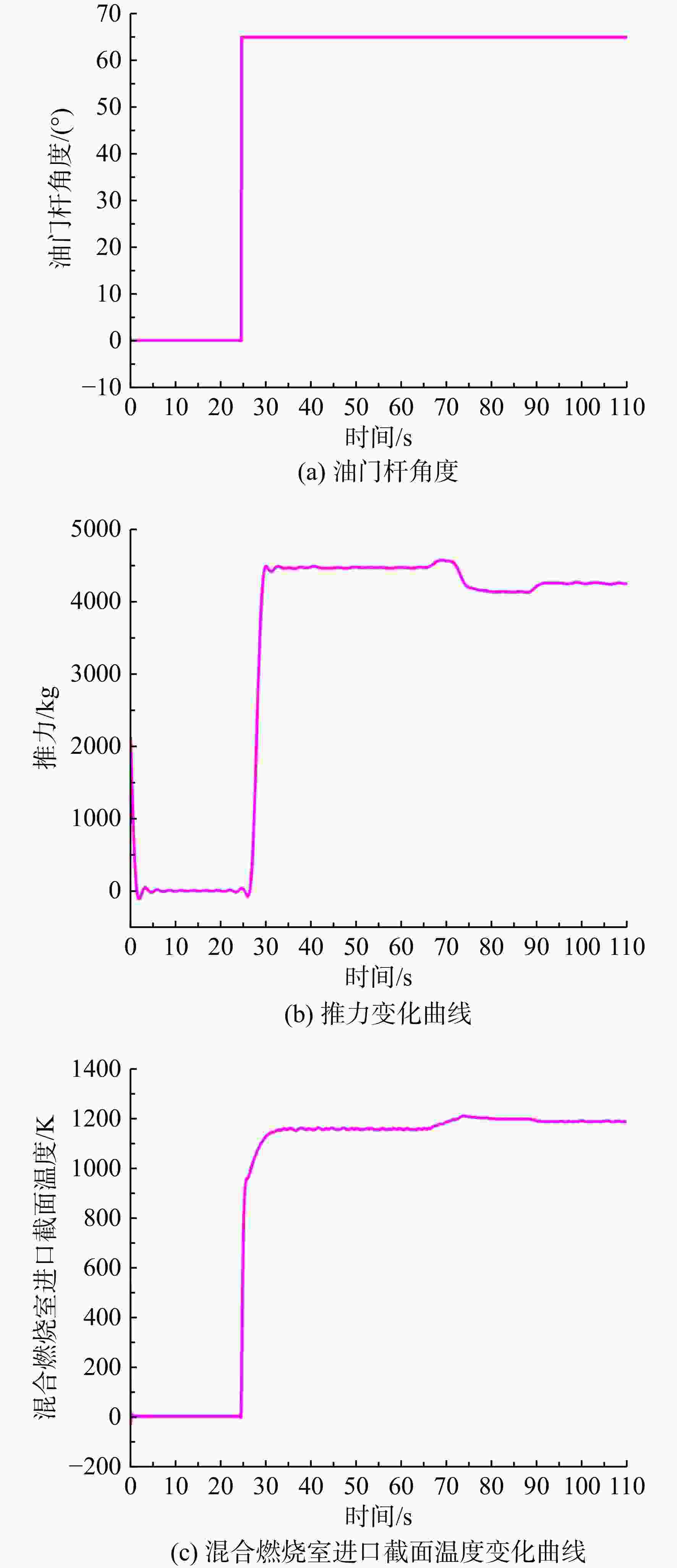

图 16 HIL数据处理结果

Figure 16. HIL simulation data processing results

下载: 全尺寸图片幻灯片

表 1 ACE典型工作模式

Table 1. Typical operation mode of ACE

模式	第二外涵道	第三外涵道
单外涵模式	关闭	关闭
双外涵模式（M1）	关闭	开启
双外涵模式（M2）	开启	关闭
三外涵模式（M3）	开启	开启

下载: 导出CSV

表 2 ACE各截面编号及定义

Table 2. Number and definition of each section of ACE

截面编号	截面定义
1	进气道与发动机的交界面
2	可调风扇进口截面
25	高压压气机进口截面
3	燃烧室进口截面
4	高压涡轮进口截面
5	低压涡轮进口截面
6	混合燃烧室进口截面
7	尾喷管进口截面
8	尾喷管喉道截面
9	尾喷管出口截面

下载: 导出CSV
