Experimental investigation on the light-round pattern of triple-swirler combustor
-
摘要:
针对三旋流基础燃烧室，运用10 kHz的液滴Mie散射和OH*化学发光同步成像技术，对航空煤油喷雾火焰点火联焰模式开展实验研究。研究表明：点火联焰过程包含类点火阶段与相邻旋流火焰发展阶段。类点火阶段具有“折线形”与“直线形”模式，相邻旋流火焰发展阶段具有“上游卷吸”“下游迟滞”与“多簇膨胀”模式。在不同空气流速、腔体压力和油气比工况条件下，“折线形-多簇膨胀”是点火联焰过程的主要模式；在点火联焰边界工况附近，“折线形-下游迟滞”模式出现概率较高，约为77.8%；在低空气流速或高油气比工况条件下，“直线形-多簇膨胀”模式占主导。
Abstract:The light-round pattern of kerosene spray flame in a triple-swirler combustor was investigated experimentally using simultaneous 10 kHz Mie scattering of droplet and OH* chemiluminescence (CL) measurements. It was shown that light-round pattern occurred in two different sub-phases, including the quasi-ignition phase and the adjacent swirling flame development phase. The linear and zigzag propagation patterns were identified in the former, and the upstream-entrainment (UE), downstream-hysteresis (DH), and multi-clusters-expansion (MCE) propagation patterns were recognized in the latter. The possibility of the light-round pattern was analyzed statistically. It was found that zigzag-MCE was the primary light-round pattern at different conditions with varying inlet air velocity, combustor pressure, and fuel-air ratio. However, under conditions near the light-round boundary, the zigzag-DH pattern appeared with a high probability of 77.8%. Similarly, under low air velocity or high fuel-air ratio, linear MCE patterns predominated.
-

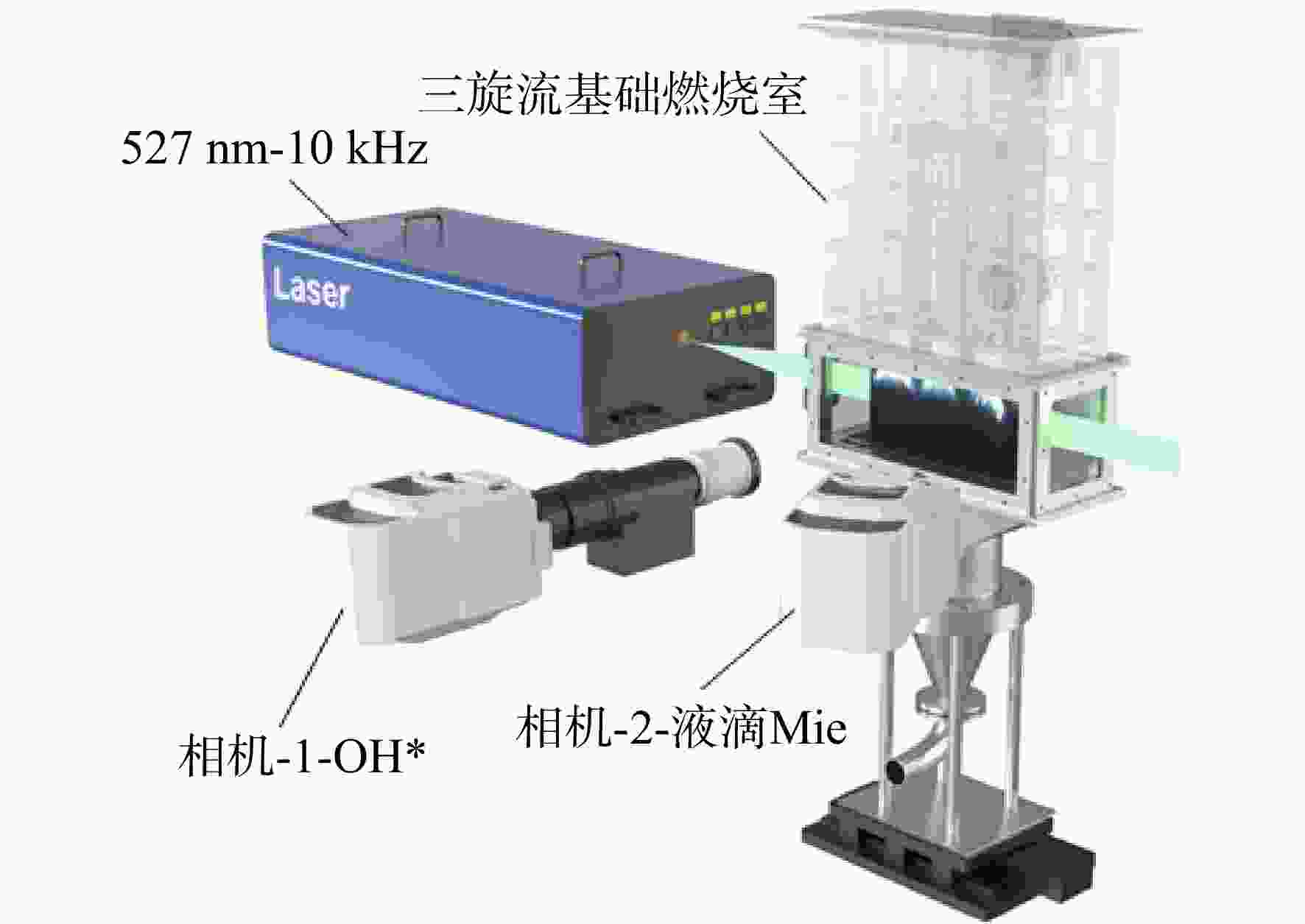

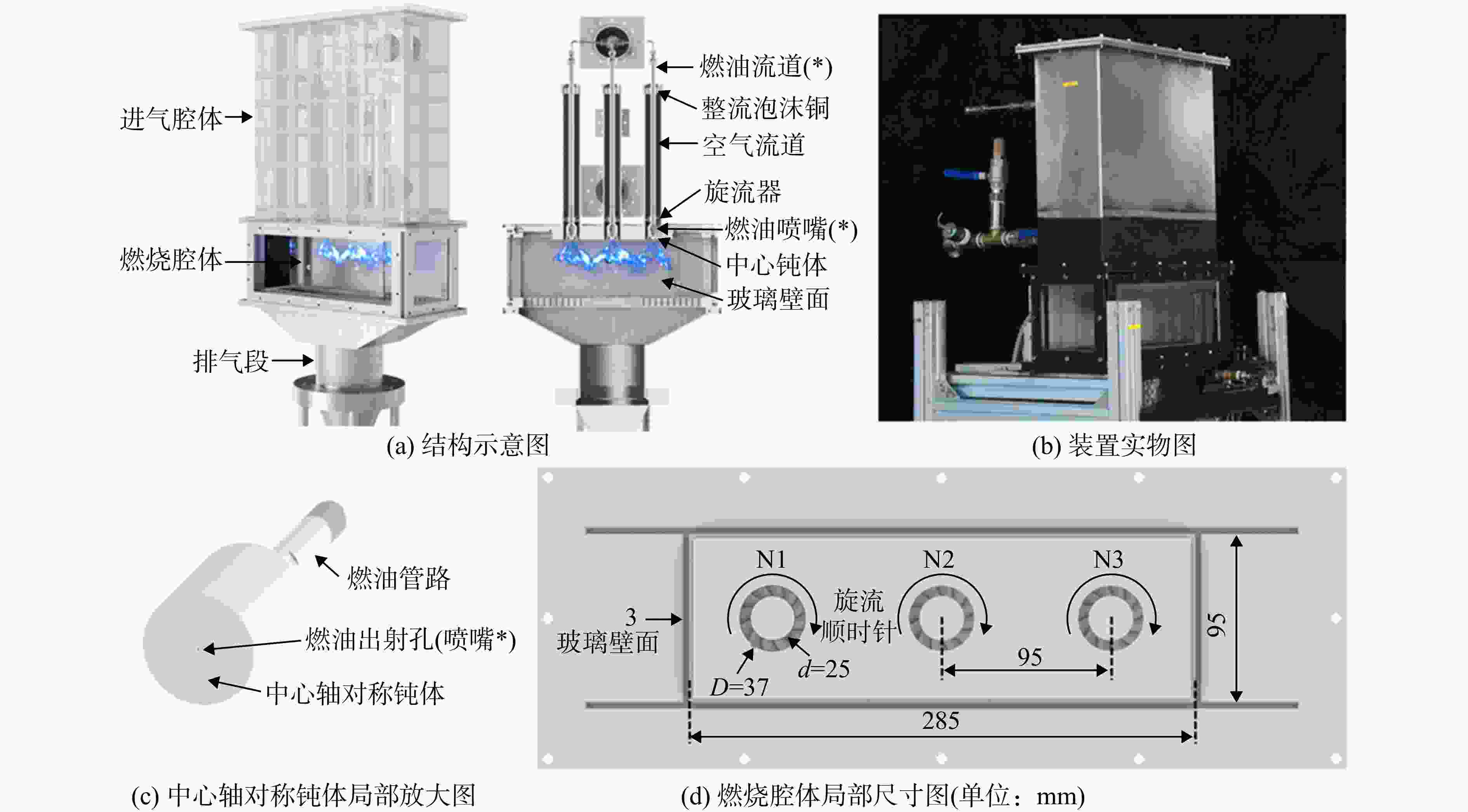

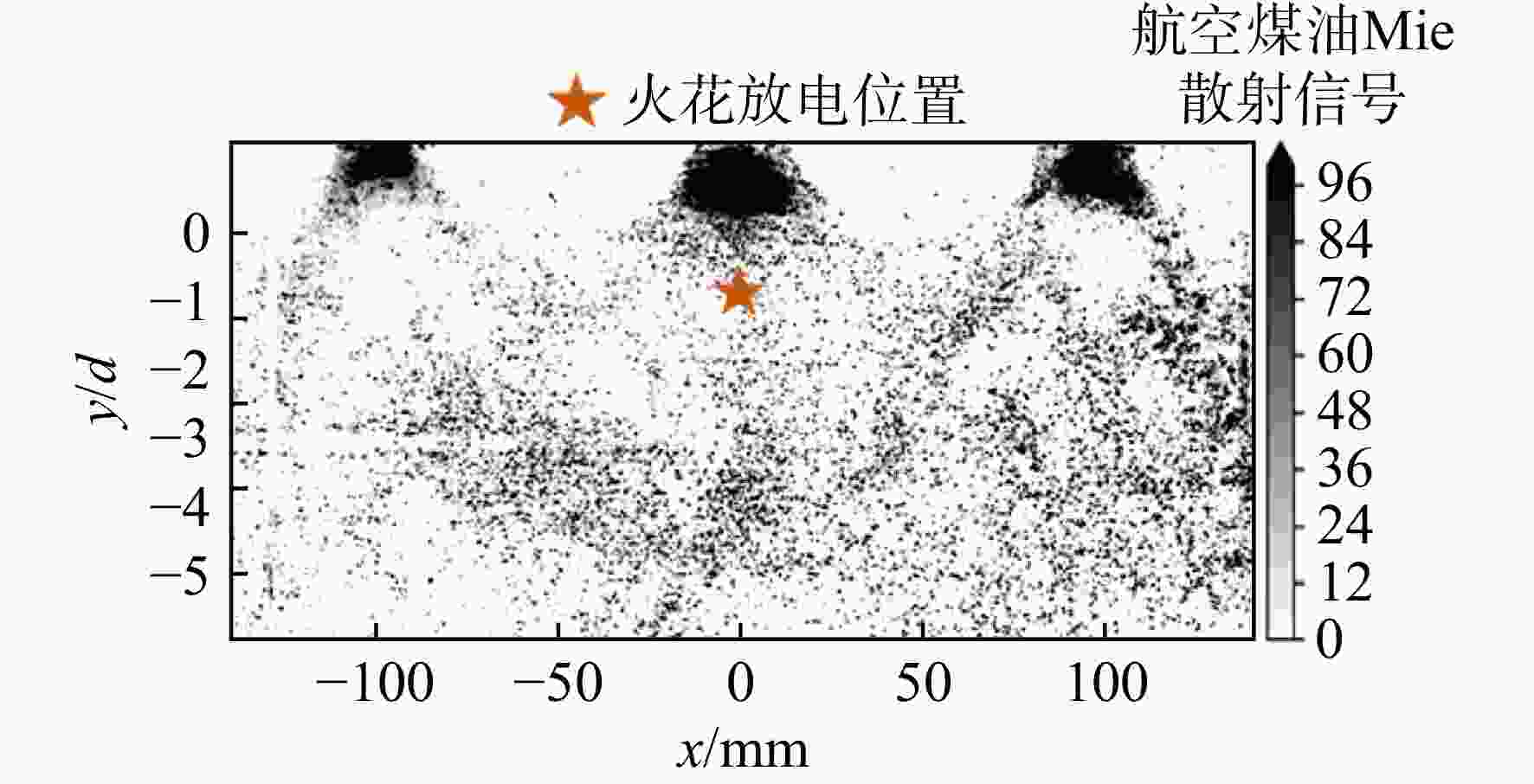

图 3 Case 2的瞬态旋流喷雾Mie散射图像
Figure 3. Instantaneous Mie scattering image of non-reacting swirling spray of Case 2

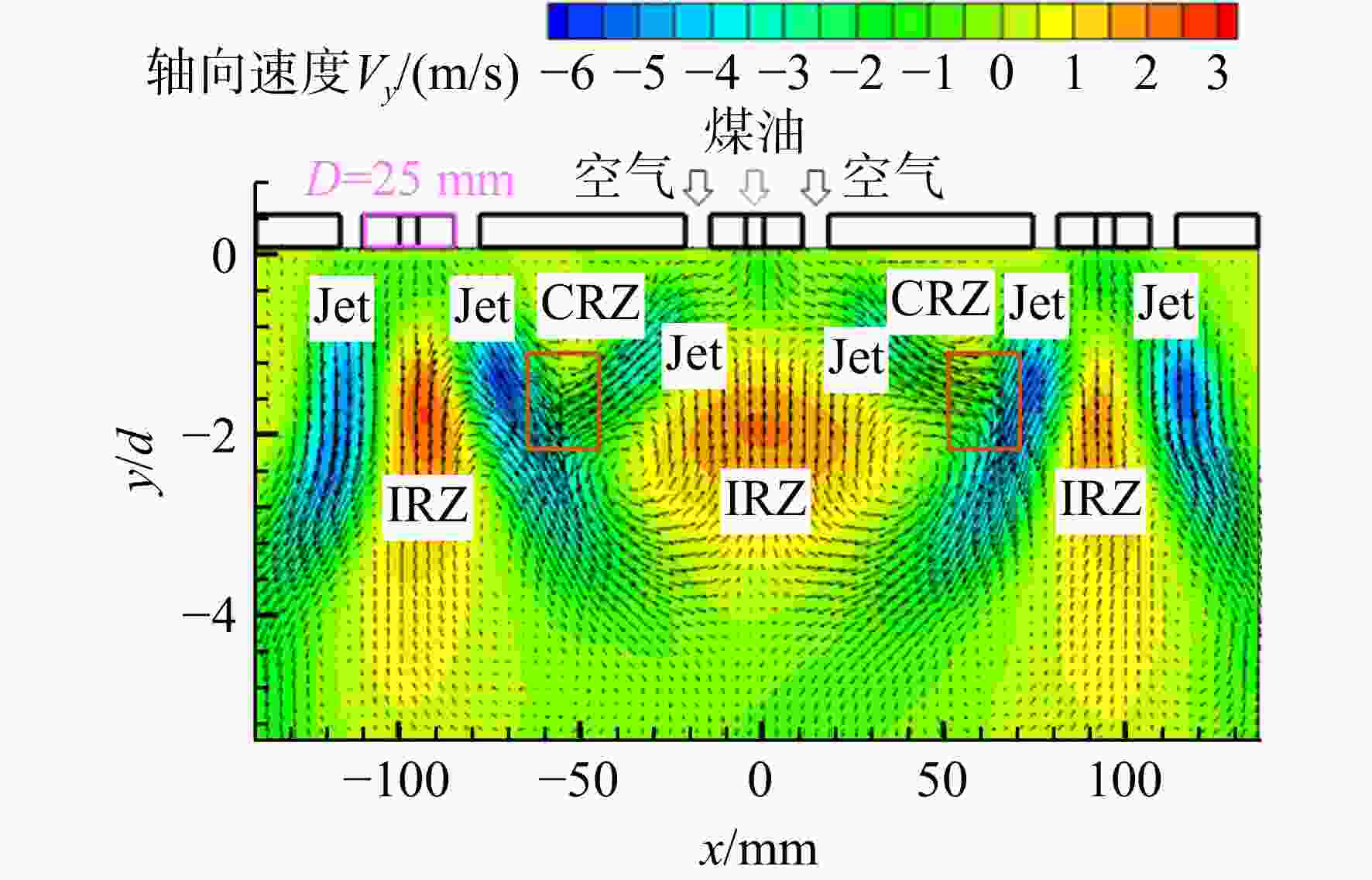

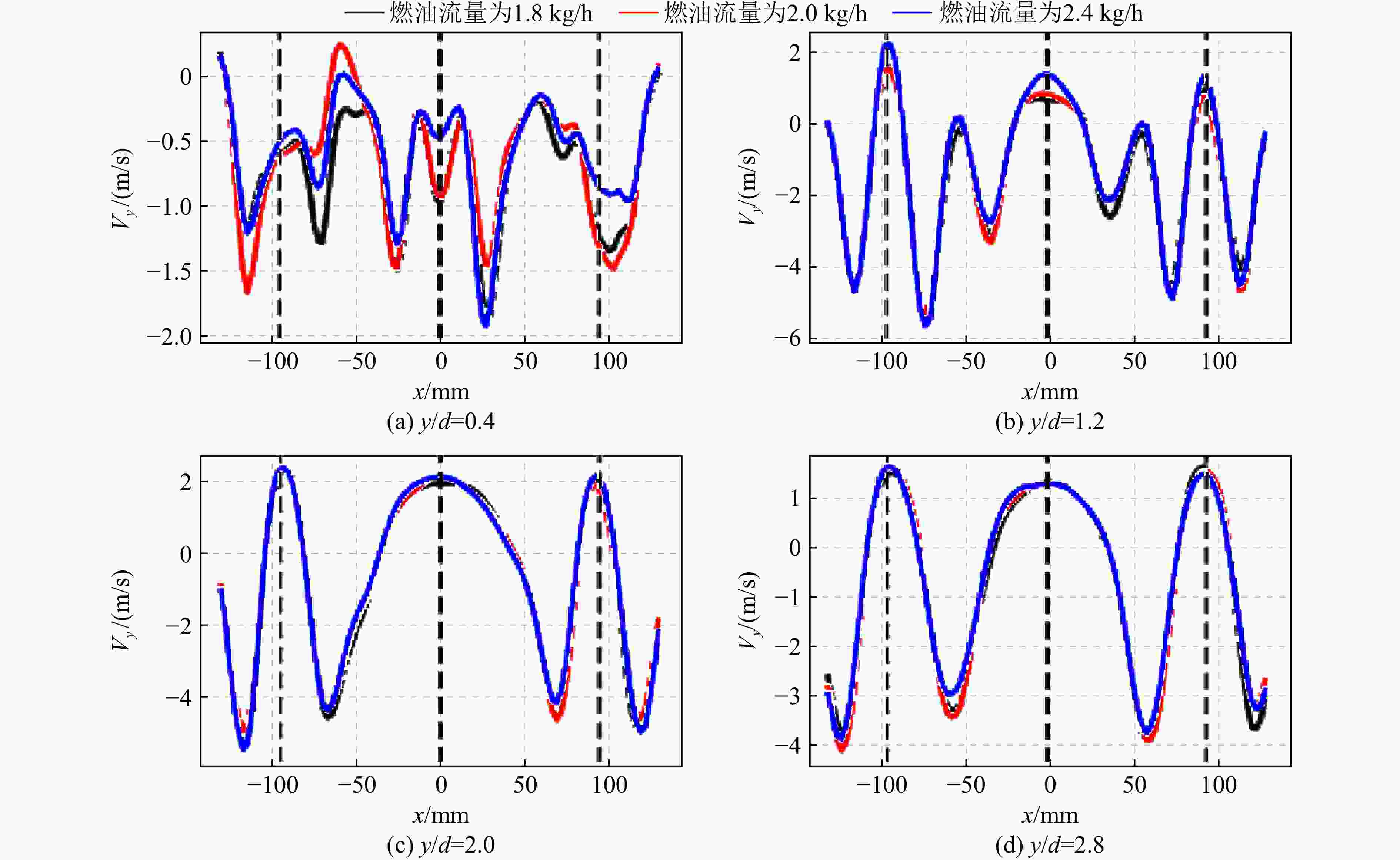

图 5 不同燃油流量旋流喷雾场平均轴向速度分布
Figure 5. Mean axial velocity distribution of non-reacting swirling spray under different kerosene flow rates

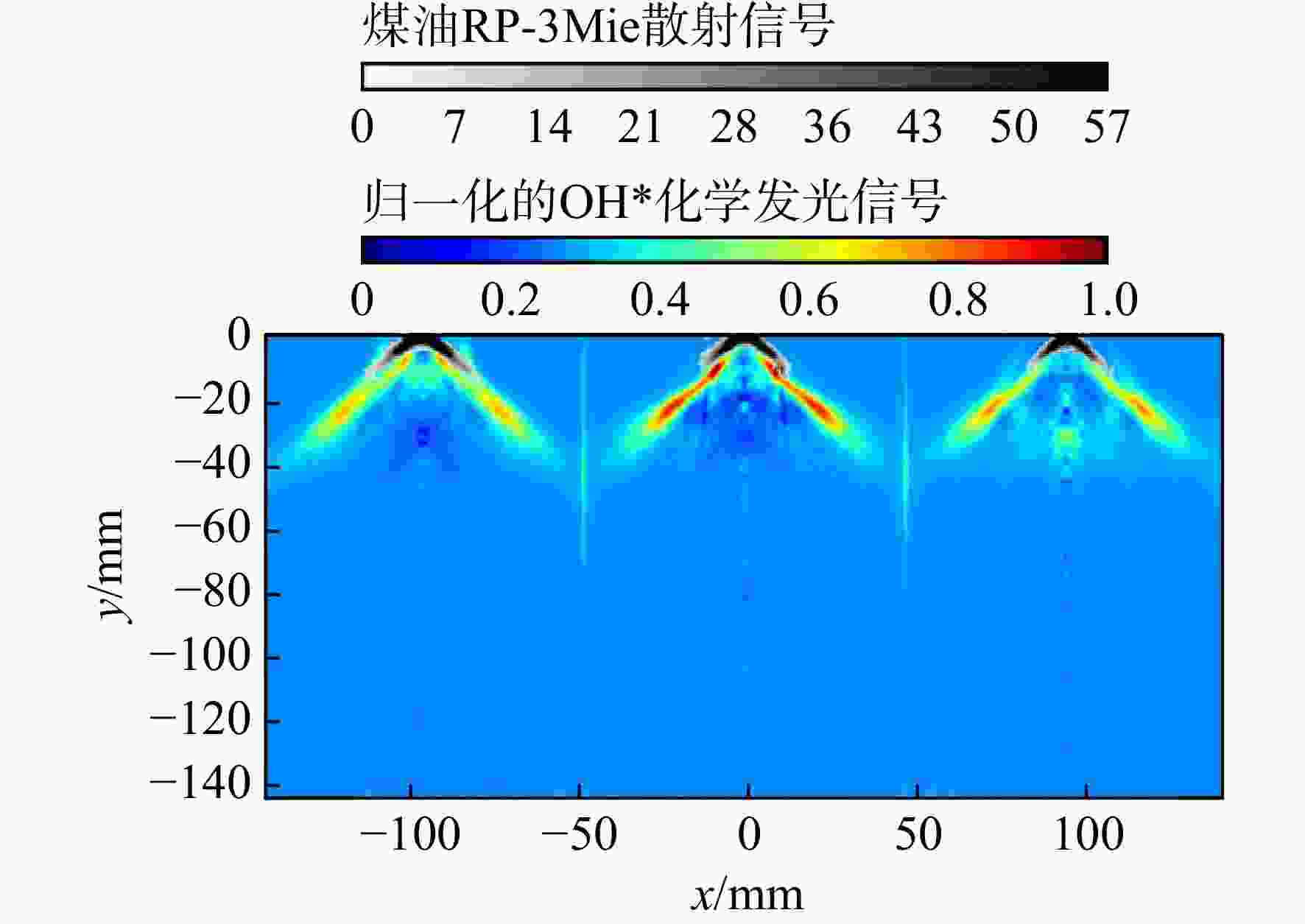

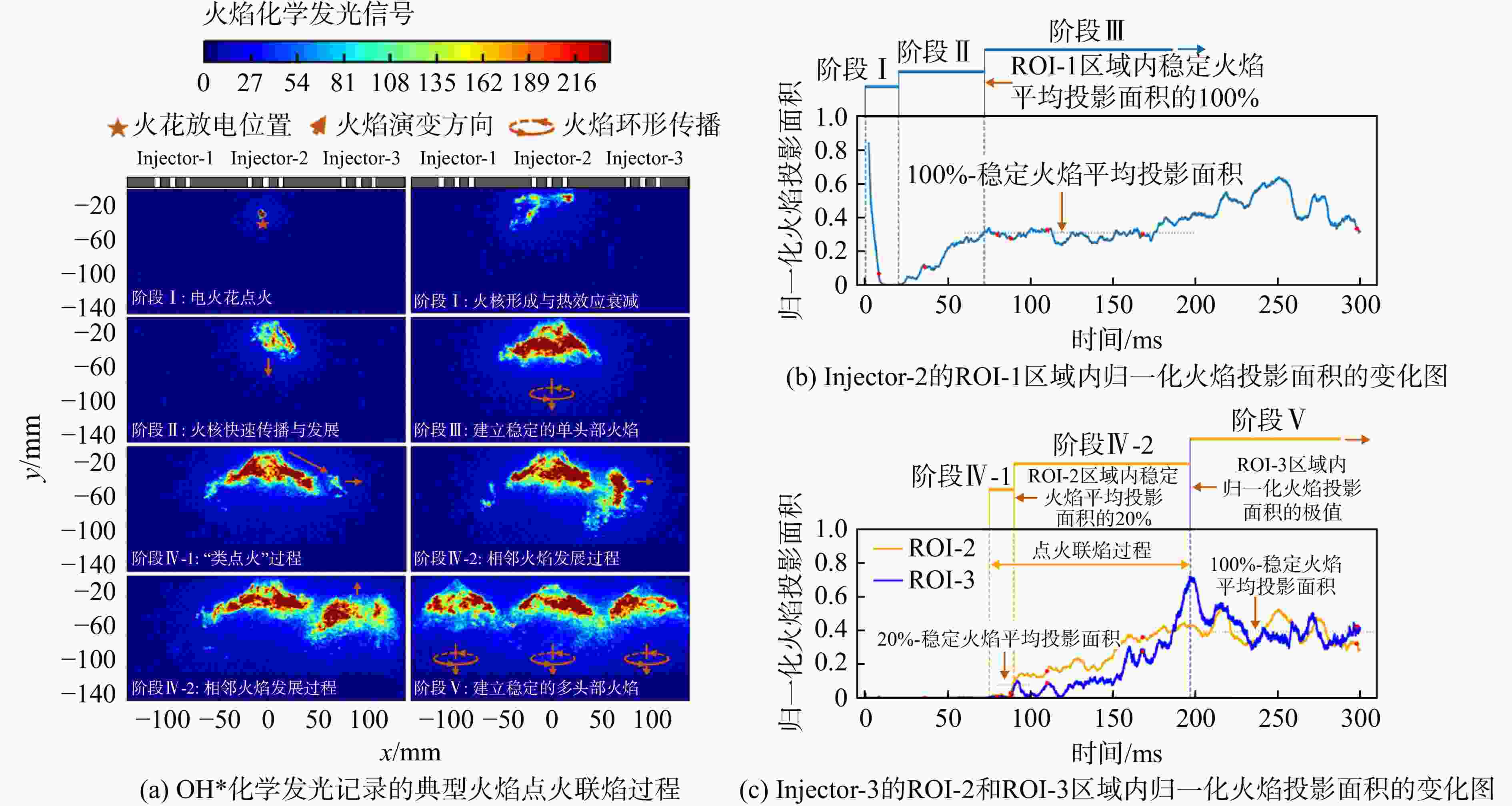

图 8 三旋流时均喷雾分布（Mie散射）与火焰形态（OH*化学发光的逆阿贝尔变换图像）叠加图
Figure 8. Overlaid of the averaged spray （Mie scattering） and flame （inverse Abel transform of OH*-CL） images

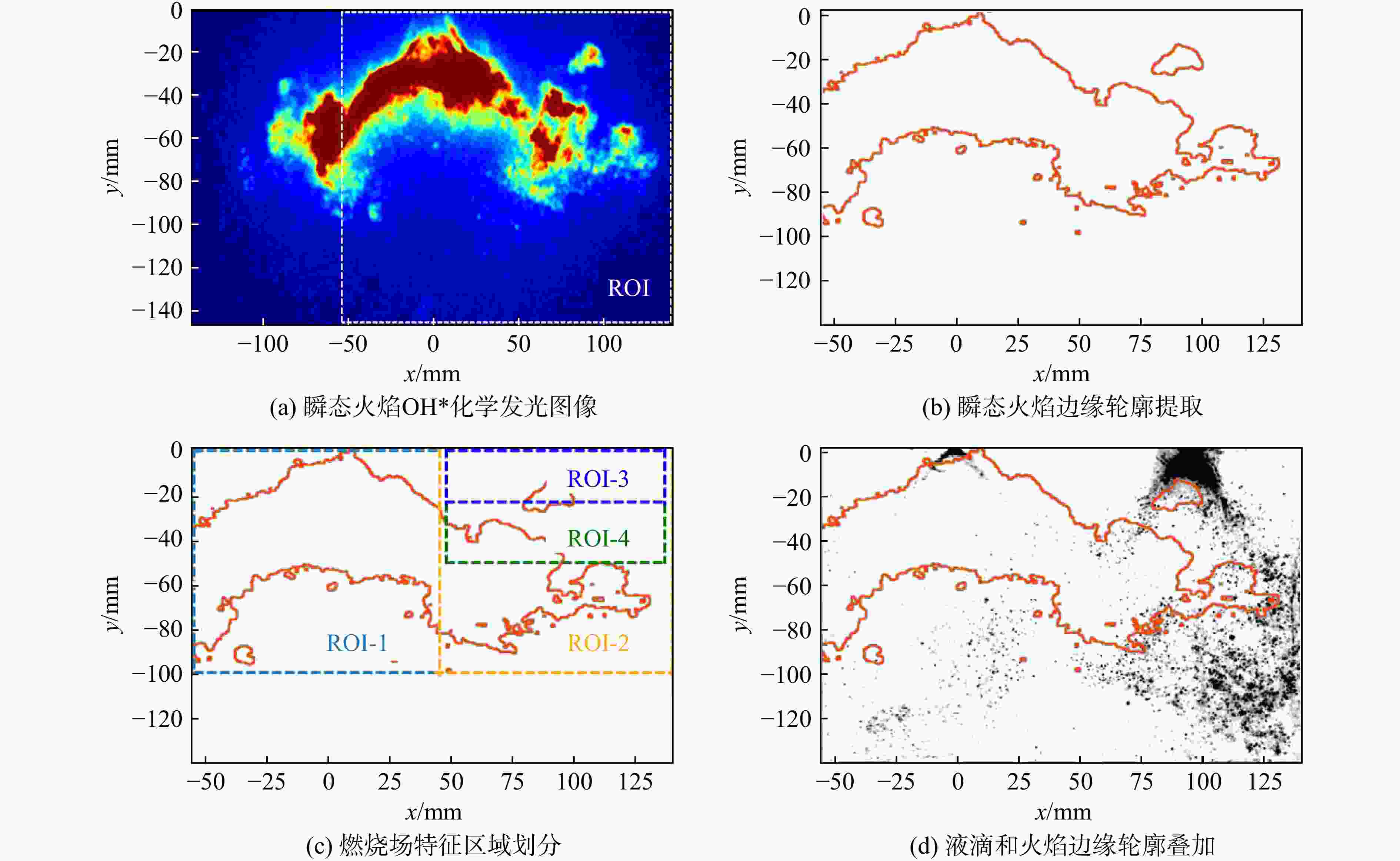

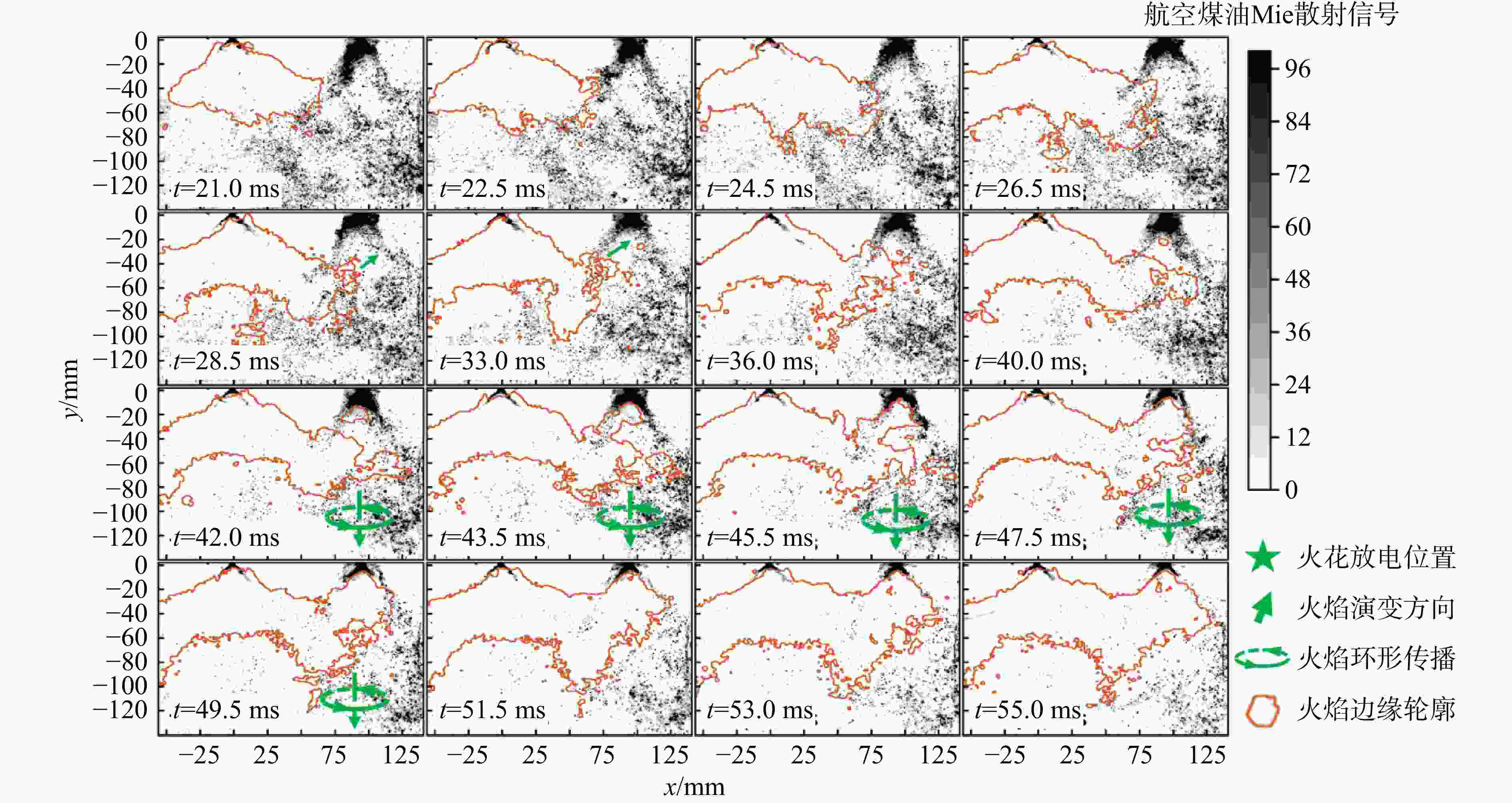

图 11 相邻旋流火焰发展阶段“上游卷吸”传播模式
Figure 11. UE propagation pattern in the adjacent swirling flame development phase

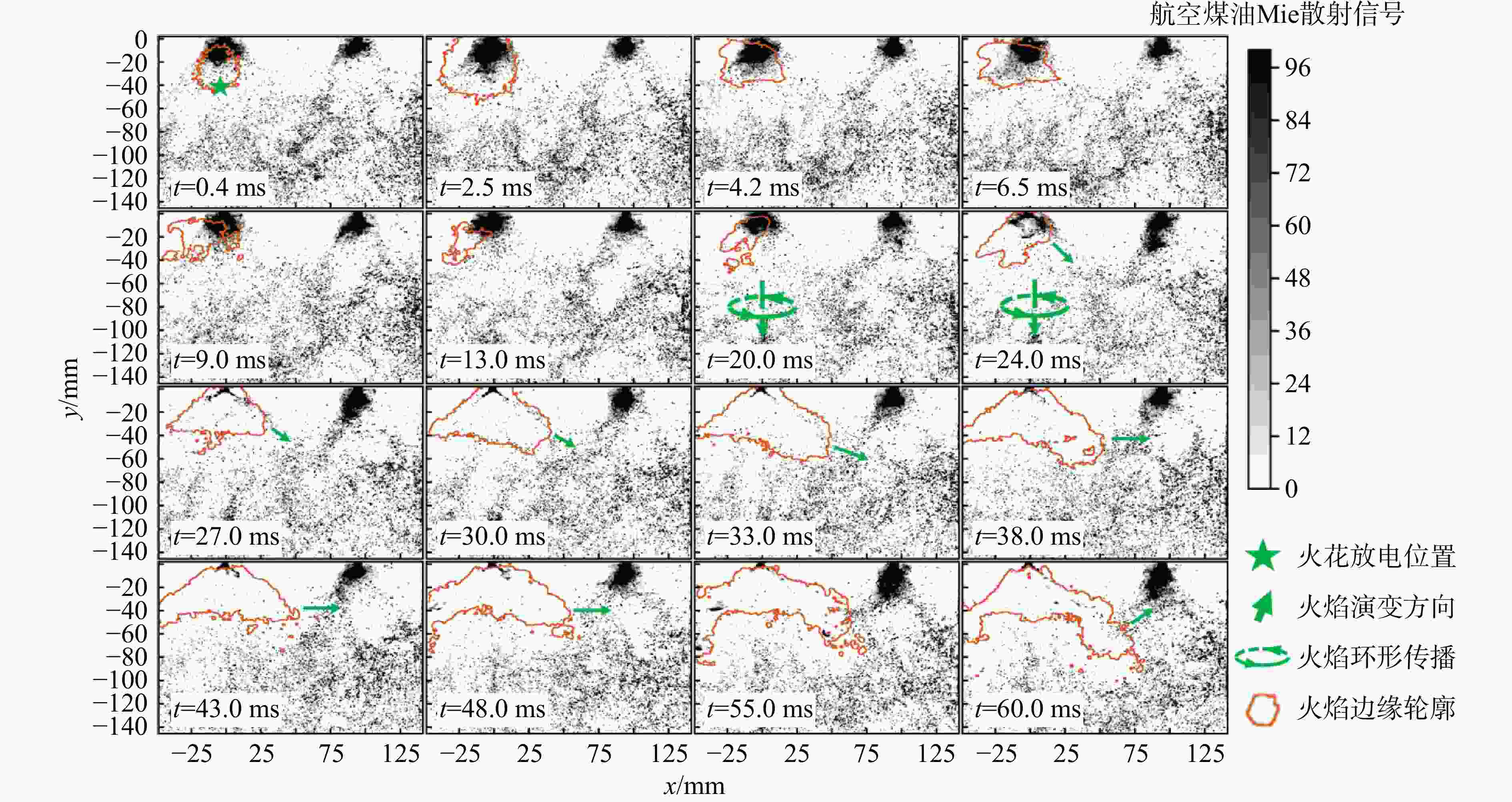

图 12 相邻旋流火焰发展阶段“下游迟滞”传播模式
Figure 12. DH propagation pattern in the adjacent swirling flame development phase
图 13 相邻旋流火焰发展阶段“多簇膨胀”传播模式
Figure 13. MCE propagation pattern in the adjacent swirling flame development phase

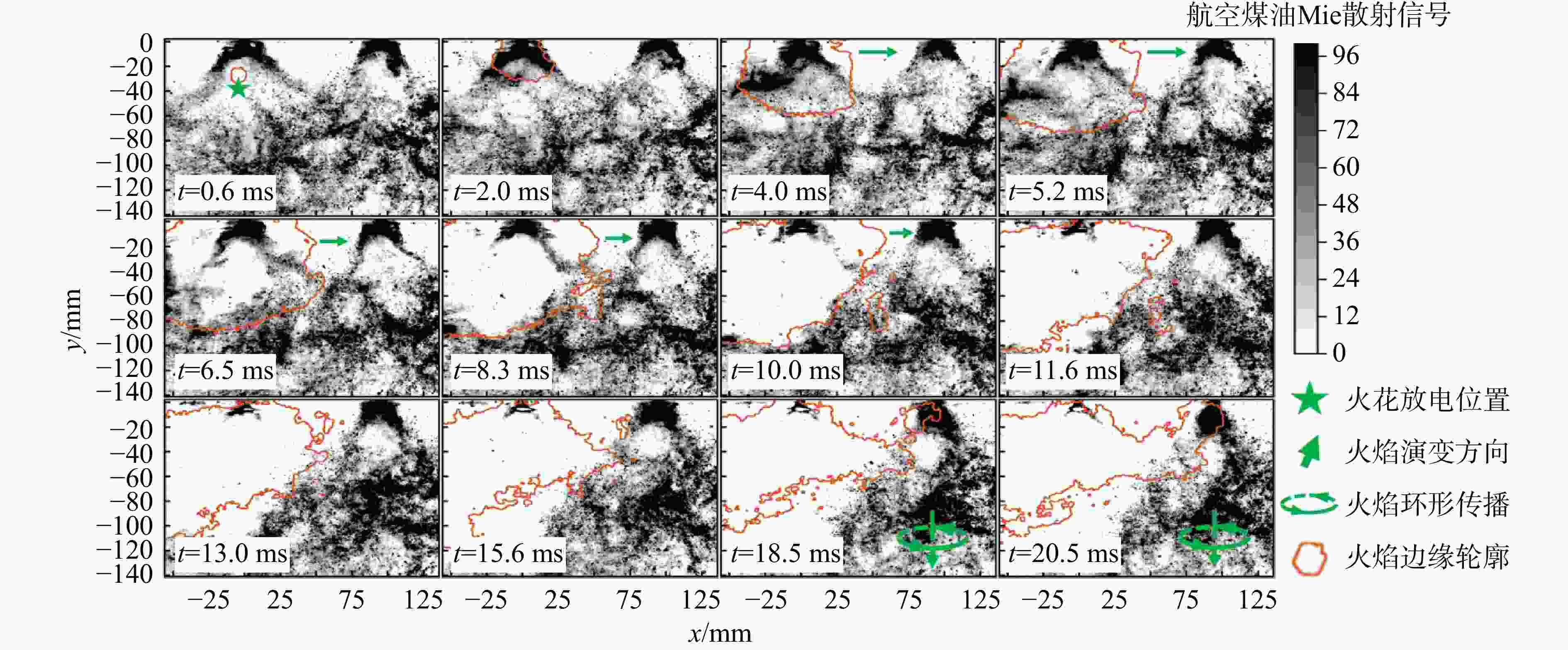

图 14 “折线形-上游卷吸”联焰模式（Case 8，f =
0.02701 ）Figure 14. Flame images of zigzag-UE propagation pattern （Case 8, f =
0.02701 ）

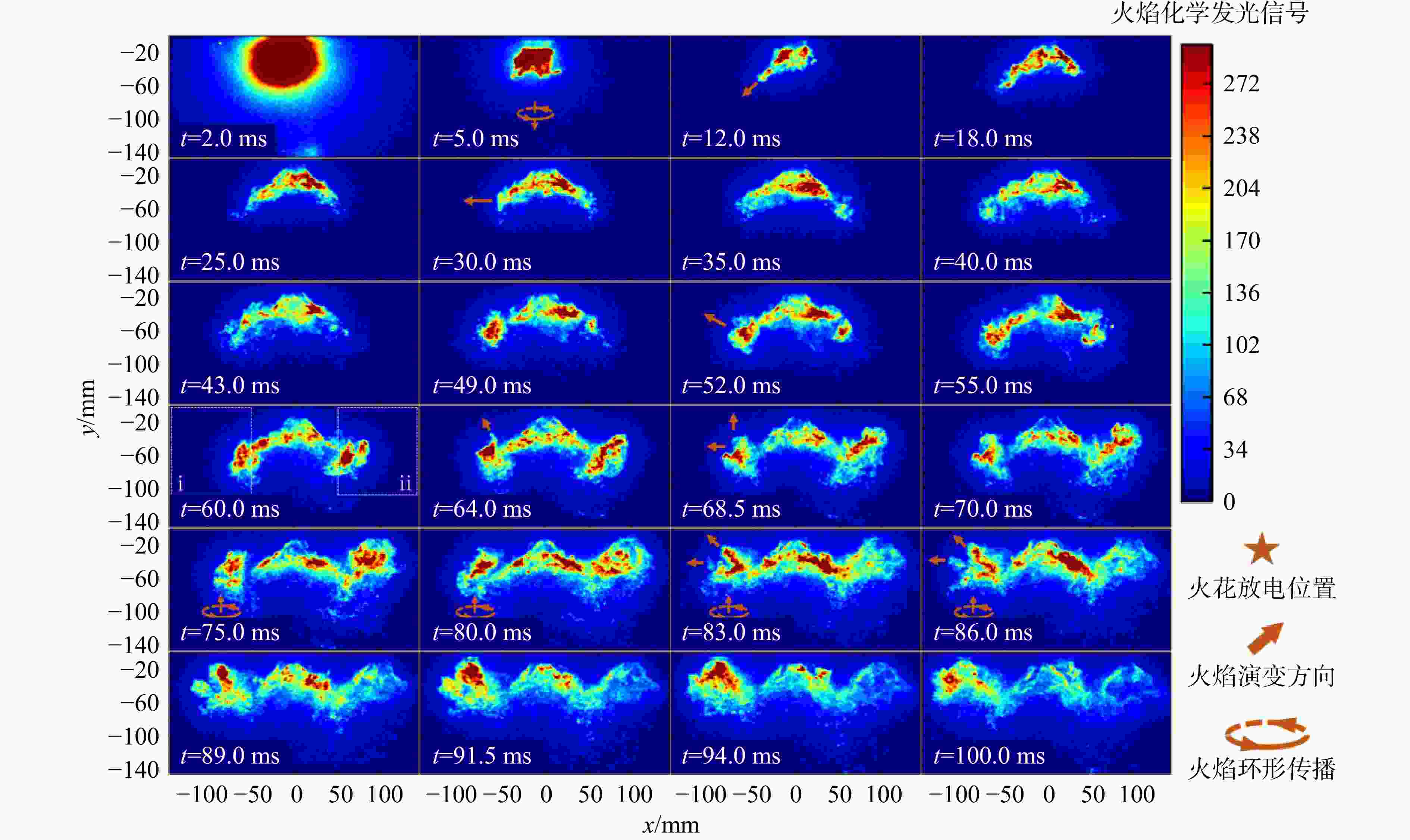

图 15 “折线形-下游迟滞”联焰模式（Case 2，f =
0.02148 ）Figure 15. Flame images of zigzag-DH propagation pattern （Case 2, f =
0.02148 ）

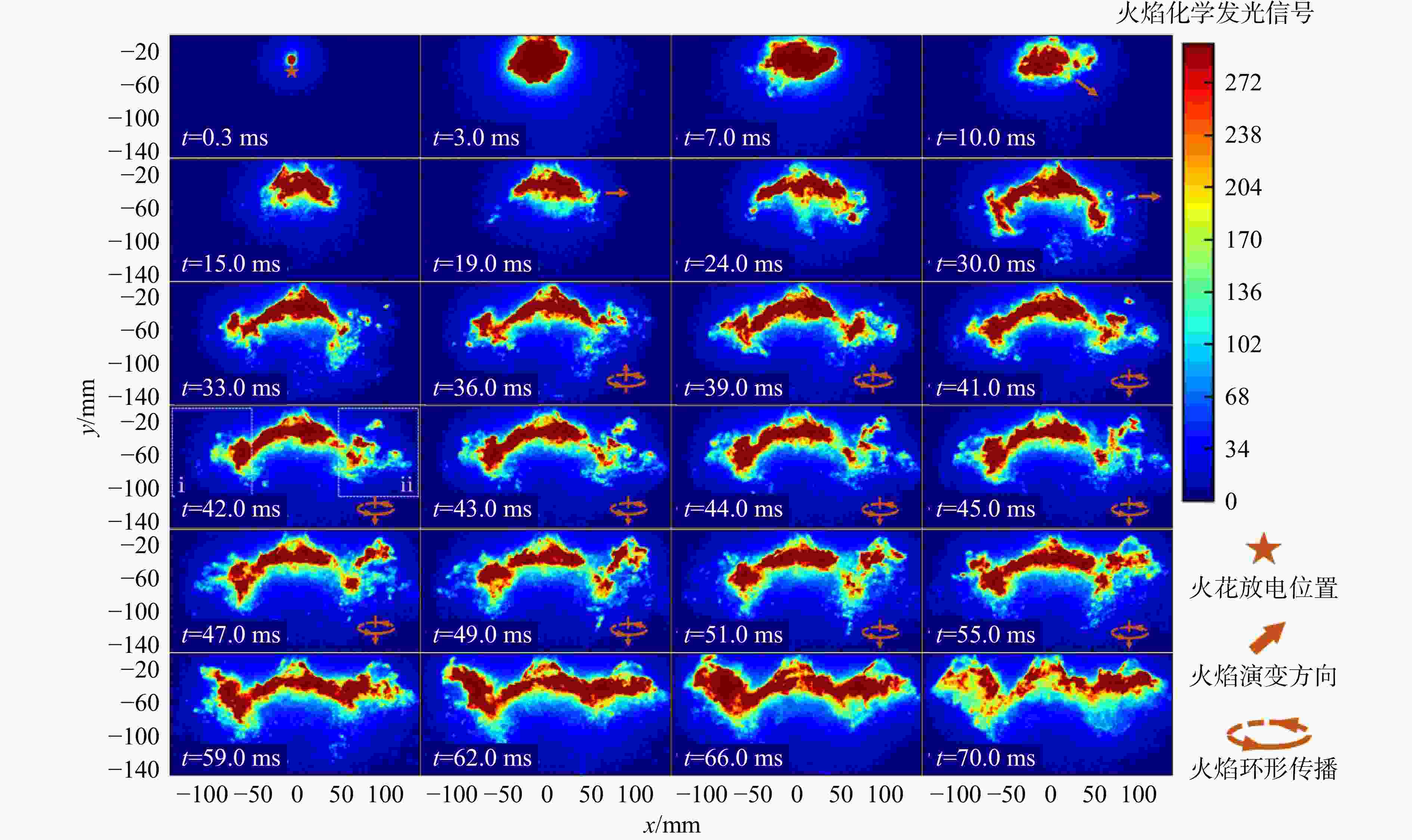

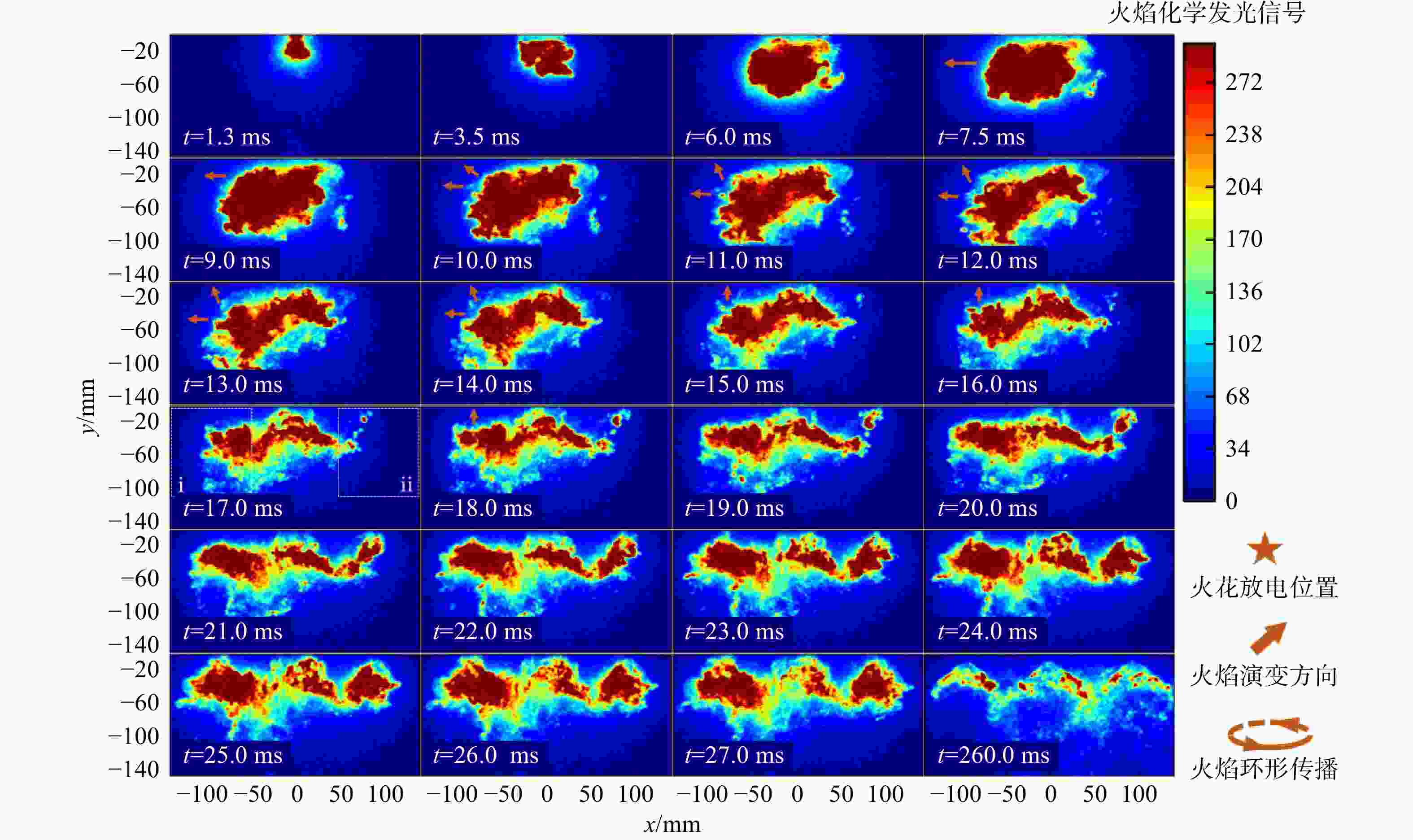

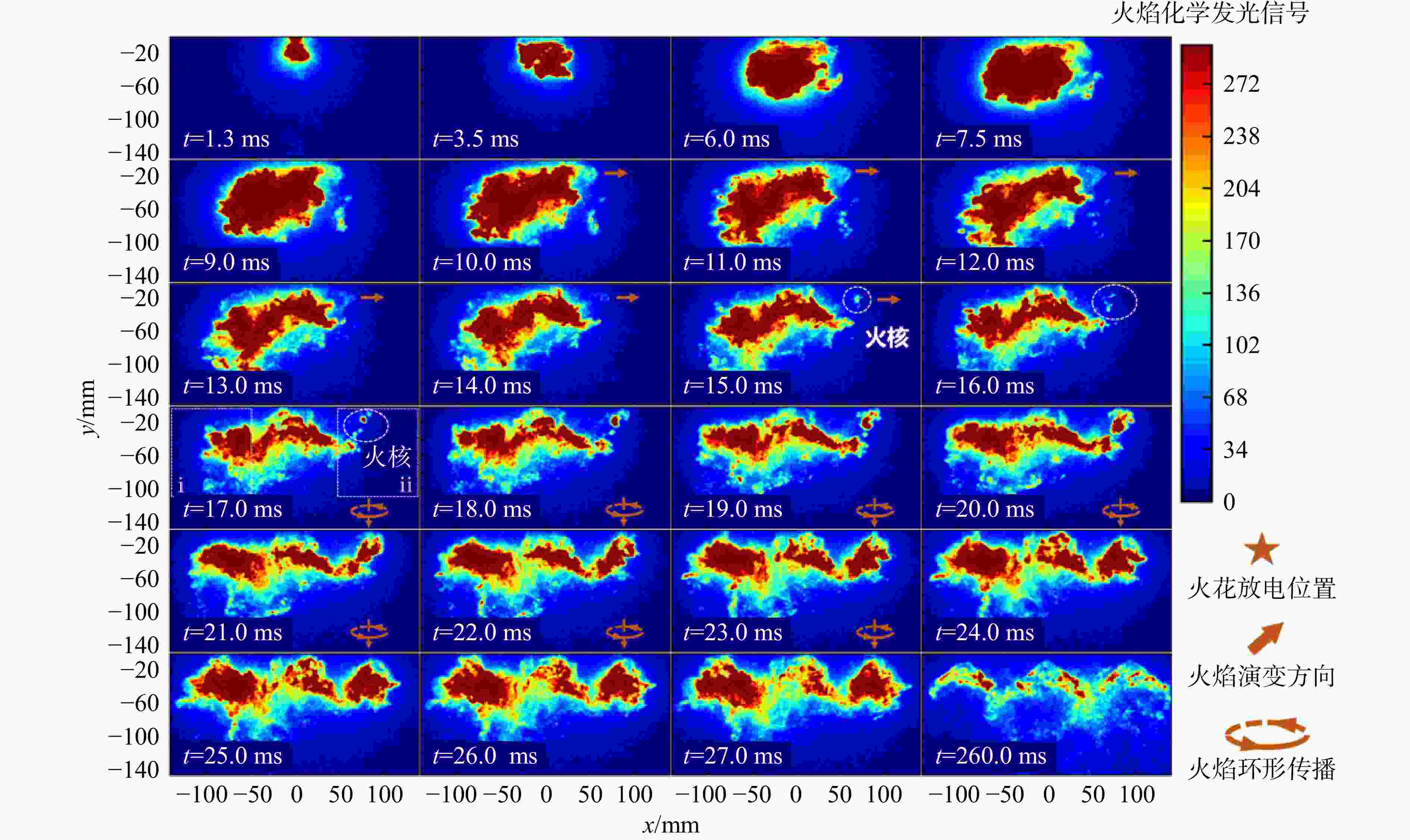

图 16 “折线形-多簇膨胀”联焰模式（Case 2，f =
0.02332 ）Figure 16. Flame images of zigzag-MCE propagation pattern （Case 2, f =
0.02332 ）

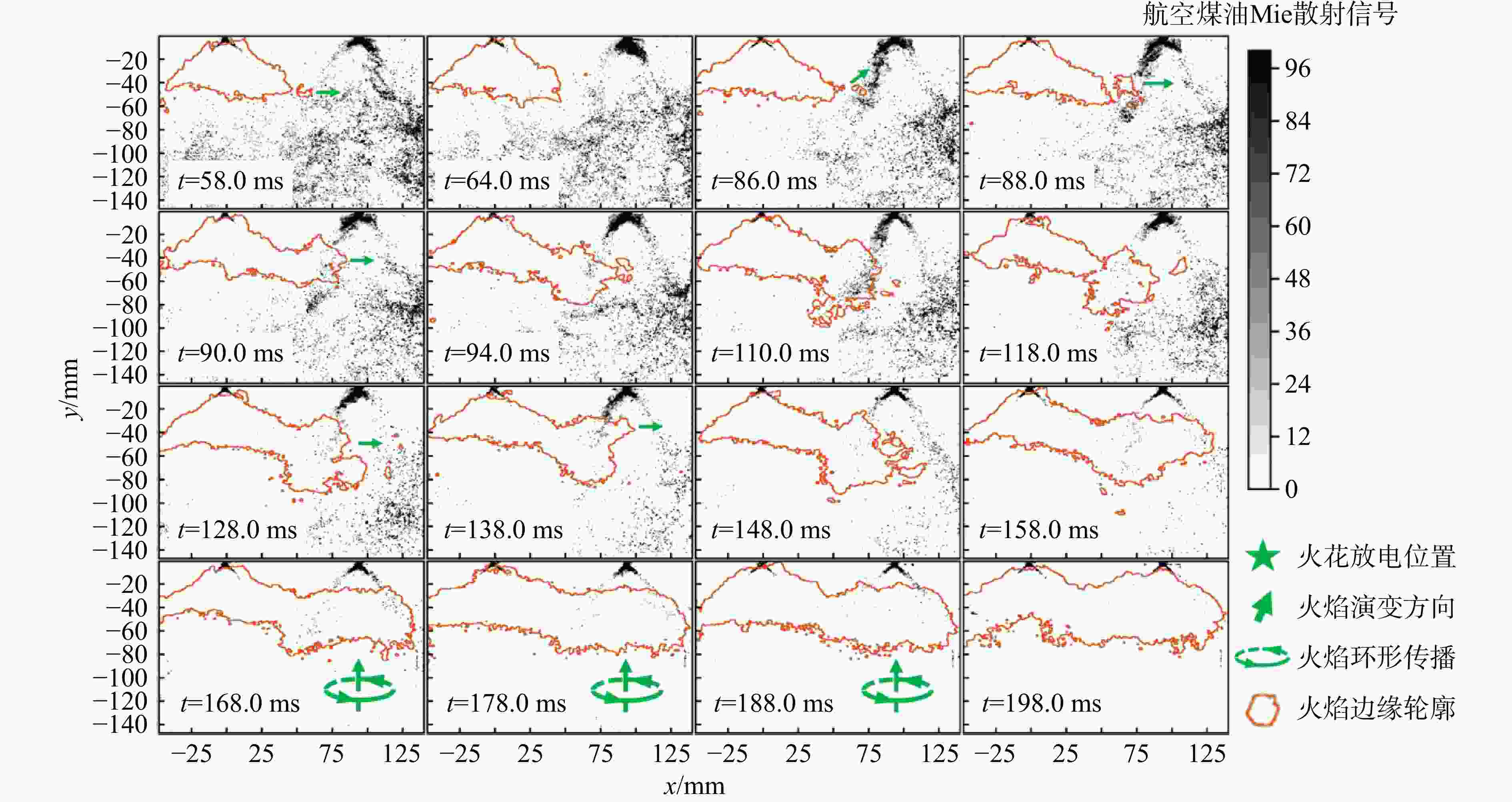

图 17 “直线形-上游卷吸”联焰模式（Case 8，f=
0.03407 ）Figure 17. Flame images of the linear-UE propagation pattern （Case 8, f =
0.03407 ）

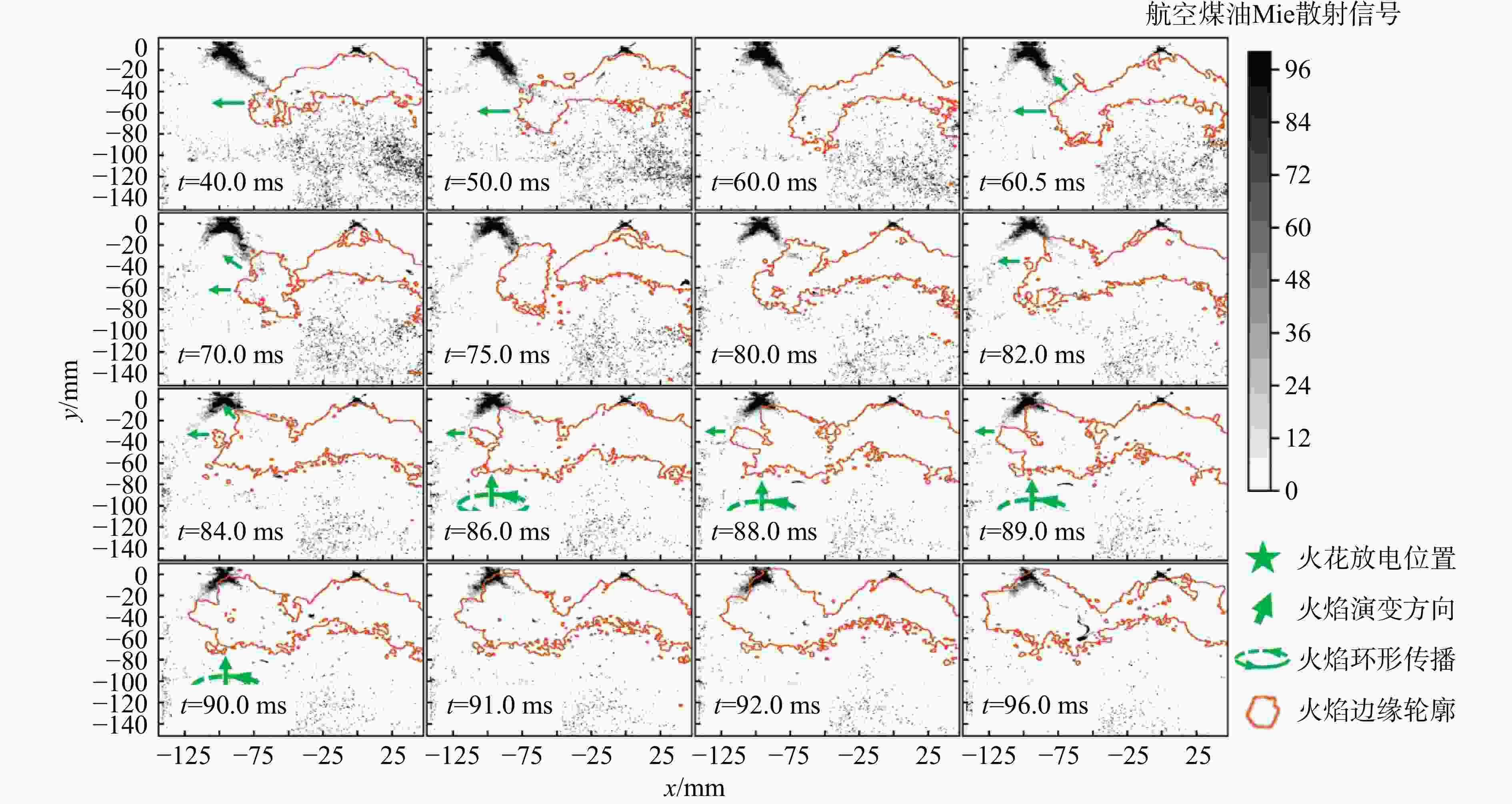

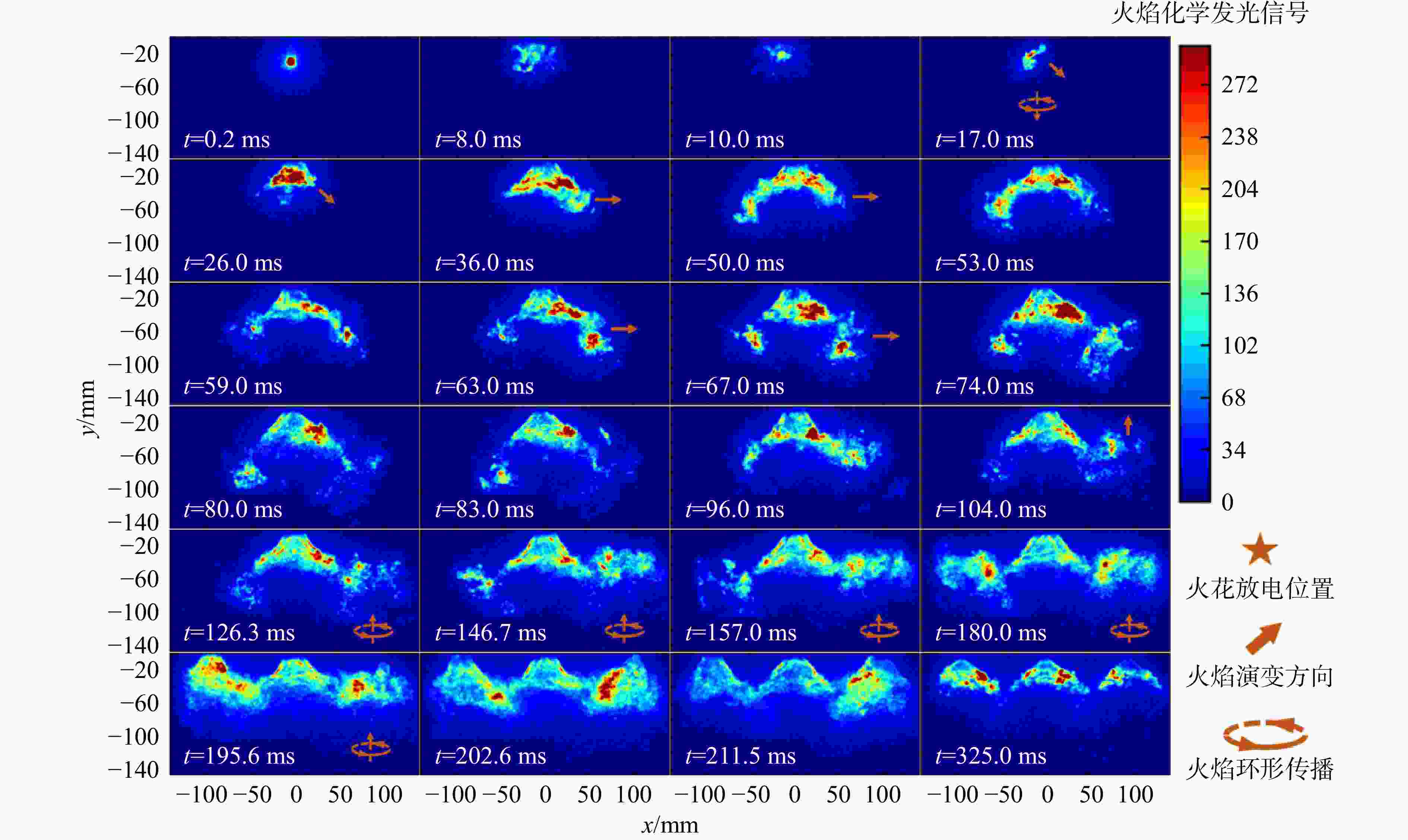

图 18 “直线形-多簇膨胀”联焰模式（Case 8，f=
0.03407 ）Figure 18. Flame images of linear-MCE propagation pattern （Case 8, f =
0.03407 ）

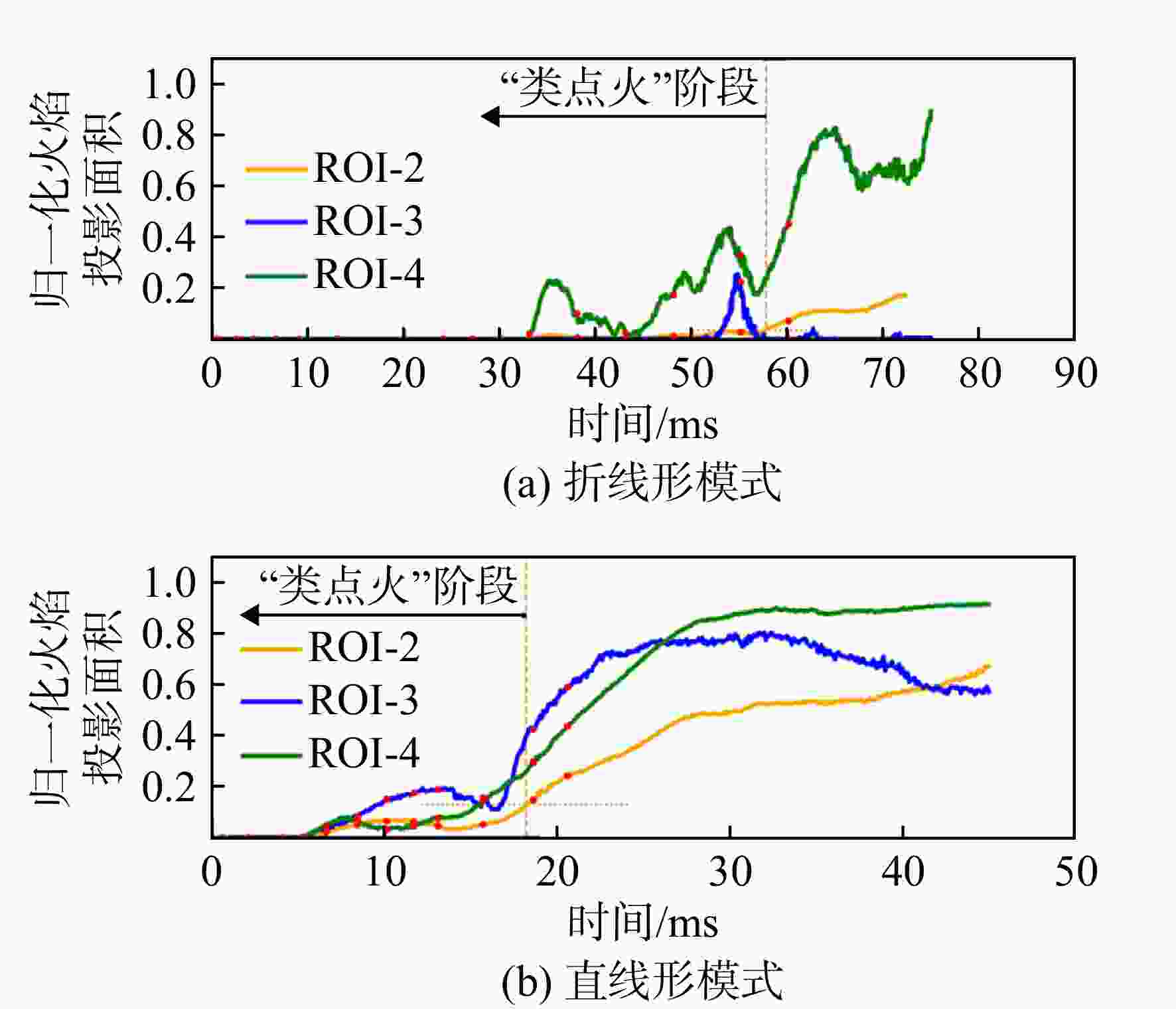

图 19 类点火过程中特征区域内归一化火焰投影面积变化，根据其特征可归纳为折线形和直线形模式
Figure 19. Two flame propagation patterns defined by the normalized flame projection area variation in characteristic regions during the quasi-ignition phase

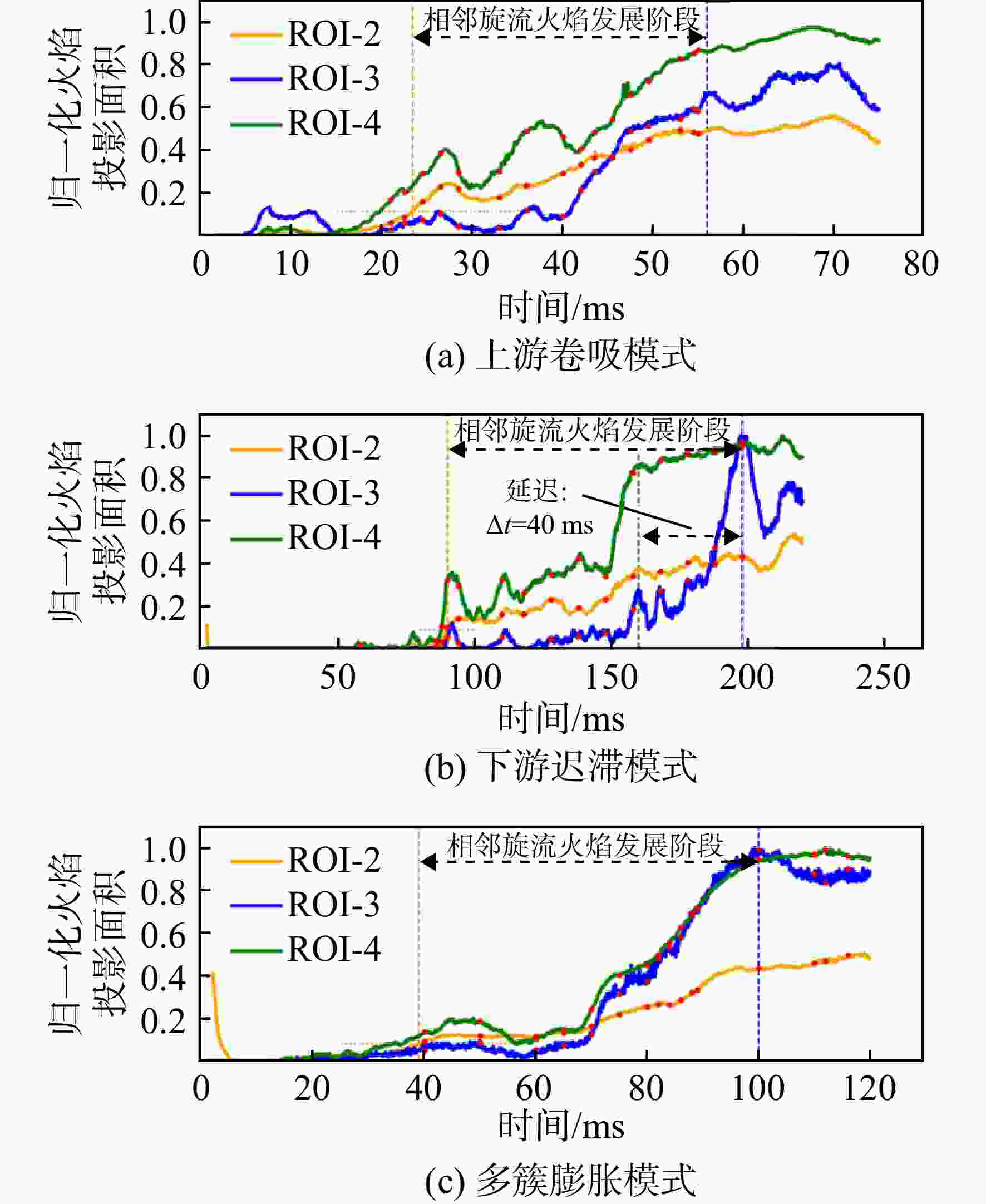

图 20 相邻旋流火焰建立过程中特征区域内归一化火焰投影面积变化，根据其特征可归纳为上游卷吸、下游迟滞和多簇膨胀模式
Figure 20. Three flame propagation patterns identified by the normalized flame projection area variation in characteristic regions of the adjacent swirling flame development phase

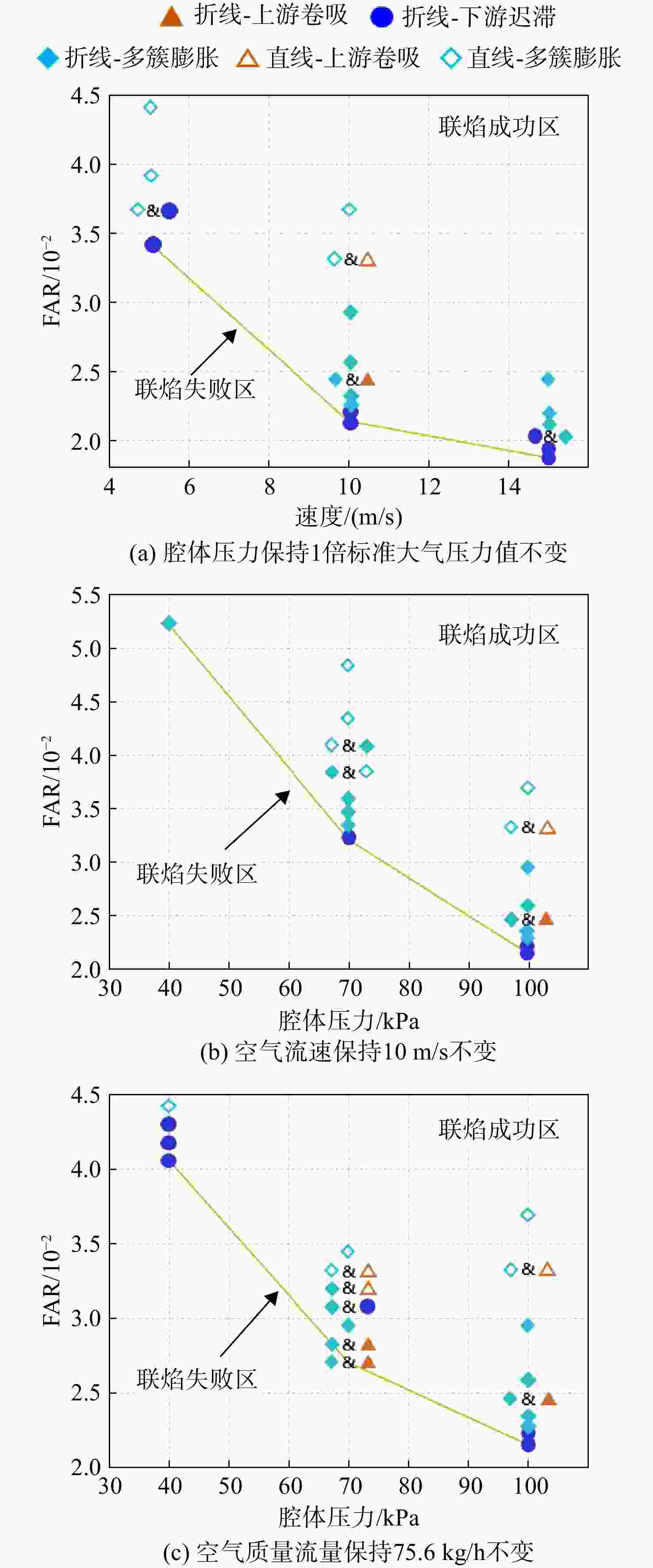

图 21 多工况下火焰传播模式统计
Figure 21. Statistics of flame propagation patterns under varying flame conditions
表 1 实验工况表
Table 1. Experimental conditions
工况 来流气动条件 空气质量流量Qm/（kg/h） 腔体压力p/Pa 空气流速V/（m/s） 油气比f Case 1 37.8 1.013×105 5 0.01964 ∶0.04910 Case 2 75.6 10 0.01719 ∶0.04051 Case 3 113.4 15 0.01228 ∶0.02455 Case 4 30.2 4.05×104 10 0.03683 ∶0.05524 Case 5 52.9 7.09×104 0.01929 ∶0.04735 Case 6 75.6 1.013×105 0.01719 ∶0.04051 Case 7 75.6 4.05×104 25 0.01473 ∶0.04420 Case 8 7.09×104 14 0.01534 ∶0.03437 Case 9 1.013×105 10 0.01719 ∶0.04051
